Nutek ATRMA Deluxe 2-Way Keyless Entry & Remote Start User Manual

Nutek Corporation Deluxe 2-Way Keyless Entry & Remote Start

User manual

www.caralarm.com
LIMITED LIFETIME WARRANTY
Products manufactured and sold by OMEGA RESEARCH
& DEVELOPMENT, (the Company), are warranted to be free
from defects in materials and workmanship under normal use.
If a product sold by the Company proves to be defective, the
Company will repair or replace it free of charge within the first
year and thereafter all parts to be repaired will be free with
only a nominal charge for Omega Research and Development’s
labor and return shipping, to the original owner during the lifetime
of the car in which it was originally installed.
All products for warranty repair must be sent postage
prepaid to Omega Research & Development, 981 N. Burnt
Hickory Road, Douglasville, GA 30134, with bill of sale or other
dated proof of purchase. This warranty is nontransferable and
does not apply to any product damaged by accident, physical or
electrical misuse or abuse, improper installation, alteration, any
use contrary to its intended function, unauthorized service, fire,
flood, lightning, or other acts of God.
This warranty limits the Company’s liability to the repair or
replacement of the product. The Company shall not be responsible
for removal and/or reinstallation charges, damage to or theft of
the vehicle or its contents, or any incidental or consequential
damages caused by any failure or alleged failure of the product
to function properly. Under No Circumstances Should This
Warranty, Or The Product Covered By It, Be Construed As A
Guarantee Or Insurance Policy Against Loss.
The Company neither assumes nor
authorizes any person or organization to
make any Warranties or assume any
liability in connection with the sale,
installation, or use of this product.
Warranty, Or The Product Covered By It, Be Construed As A
Guarantee Or Insurance Policy Against Loss.
authorizes any person or organization to
RS-255-EDP+
Deluxe 2-Way Keyless Entry & Remote Start
June 14, 2013
Operation Guide
Temporary cover. Color cover is in a separate  le.
2
Table Of Contents
Congratulations on your purchase of this convenience system by
Omega Research & Development, Inc., a world leader in vehicle security
and conveince products since 1975. This system is designed to offer ease
of use and it’s modular design allows for many features to be customiz-
able to suit your needs.
 Pleasenotethatthismanualiswrittentoreectthefullcapabilityof
this system though some features may not be available to you because
of vehicle limitations and/or chosen options at the time of installation. It is
alsowrittentoreecttheoperationsintheirdefaultcongurations.
This system has three principal user components that you should famil-
iarize yourself with:
The Status Light indicates the current system status and aids in
troubleshooting failed remote start attempts as well as in customizing
theprogrammablefeatures.Thespecicoperationsofthelightsare
described on page 5.
The Valet Switch is used to access transmitter and feature program-
ming. It is also used to place the system in valet mode which temporarily
bypasses the remote start feature. See page 5.
The remote Transmitters are used to operate the system on a daily
basis. This system is capable of being operated by up to 4 different
transmitters. Each transmitter has 1 button.
Introduction ............................................................................................2
The Controller & Transmitter ................................................................. 3
Controller & Transmitter Functions ........................................................3
Other Remote Start Features ................................................................4
Low Battery/Low Temp Automatic Starting ........................................4
Turbo Timer Feature ..........................................................................4
Pit-Stop Feature ................................................................................ 4
The Status Light ....................................................................................5
Using The Valet Switch ..........................................................................5
Transmitter Protection & Technology .....................................................6
Programming Transmitters ....................................................................6
Programming Features ..........................................................................6
User Programmable Features ...............................................................7
Installer Programmable Features ..........................................................8
Programmable Features Matrix ........................................................... 11
Introduction
3

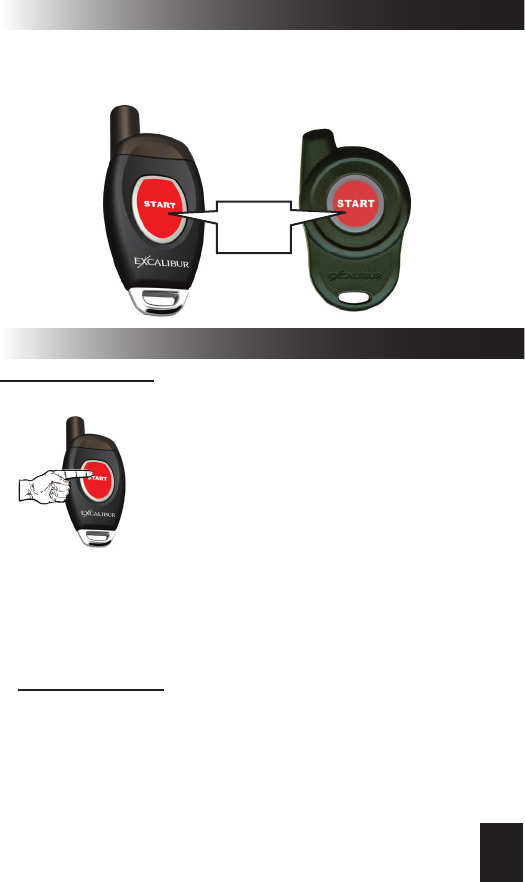

The Controller & Transmitter
2-way controller part number: 115-03
1-way transmitter part number: 113-03
Call your dealer or visit
www.caralarm.com to order replacement
transmitters.
“start”/
”unlock”
button
Controller & Transmitter Functions
REMOTE START: Press and release the “START” button
twice. (see installer feature #1 for other options)
THE PARKING LIGHTS WILL FLASH AND THE STA-•
TUS LIGHTS WILL FLASH RAPIDLY.
THE CONTROLLER WILL PLAY THE START MELODY.•
THE IGNITION WILL TURN ON AND THE SYSTEM •
WILL START THE ENGINE.
WHEN THE ENGINE IS RUNNING, THE STATUS •
LIGHTS AND THE PARKING LIGHTS WILL FLASH AS
LONG AS REMOTE START MODE IS ACTIVE.
THE 2-WAY CONTROLLER BUTTON WILL FLASH •
GREEN ONCE EVERY 2 SECONDS.
If the engine stalls, the system will make up to 3 more attempts.•
Each time you park your vehicle, set the climate controls to give you •
the desired interior temperature when you use the remote start.
The engine will run for the preset run time (see user feature #1). •
Run Time Extender• : Press the “START” button one time while in
remote start mode to restart the engine run timer.
NOTE: This can only be used once per remote start cycle. If you decide not to
drive your vehicle, you can turn off the remote start using the same method to turn it
on(keepinmindthattherstpressisconsideredtheRun Time Extender).
Upon entering the vehicle during remote start mode, turn the ignition •
key to the “ON/RUN” position (NOT START!!). When you press the
brake pedal, the remote start will turn off.
Controller battery replacement:
Remove the small screws from the lower
back case, and separate the transmitter
halves. Replace the battery(s) and reas-
semble the transmitter case.
115-03
Battery type:
CR2032 (Qty: 1)
113-03
Battery type:
CR2016 (Qty: 2)
4
Controller & Transmitter Functions (cont’d)

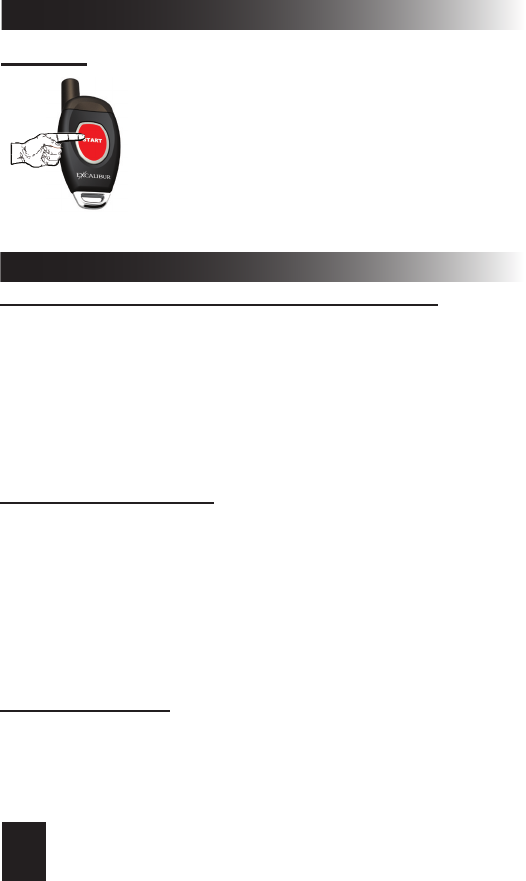

UNLOCK: Press and hold the button for 3 seconds.
THE DOORS WILL UNLOCK, THE PARKING •
LIGHTS WILL FLASH TWICE THEN ILLUMINATE FOR
30 SECONDS.
THE 2-WAY CONTROLLER WILL BEEP TWICE AND •
THE BUTTON WILL FLASH GREEN TWICE.
Other Remote Start Features
It is typically recommended that vehicles equipped with turbocharged engines
allow the engine to idle for after driving to cool the turbocharger. When this Installer
Programmable Feature is enabled, the system will automatically keep the engine
running as follows:
• Withtheenginerunning,holdthebrakepedalandengagetheparkingbrake.
When the brake pedal is released, the system will keep the engine running for the
programmed time (1, 2, or 3 minutes), and then automatically turn it off.
• TurboTimercanbepreventedfromengaging,or“bypassed”ifdesired,byturning
the engine off before engaging the parking brake, or if it’s already engaged, step on
the brake pedal to turn the turbo timer off.
LOW BATTERY/LOW TEMP AUTOMATIC STARTING
TURBO TIMER FEATURE
PIT-STOP FEATURE
This feature allows you to leave your engine running for making quick errands. To
use this feature, have the engine running normally from the ignition switch and your
footoffthebrakepedal.PresstheValetSwitchtwice;theparkinglightswillash.
Turn the key off and the engine will remain running for the programmed run time.
This feature will automatically start the engine if the vehicle battery drops
below 11 volts or the interior temperature drop to 15 (or 32) degrees fahrenheit. You
must activate these features each time you park your car to use them. They can be
activated with the following procedure:
• Turntheignitionswitch“on”,then“off”(enginenotrunning),andwithin7
seconds press the valet switch twice. If there is a 2 second delay without additional
valet button presses, the horn will honk 3 times activating low voltage start mode.
• Toactivatelowtempstarting,enterlowvoltagestartmodeasdescribed
above but, before the horn honks, press the valet switch 1 time (15 degrees) or 2
times(32degrees)within5seconds.Thehornwillhonktoconrmyourselection.
5
 TheStatusLighthelpstovisuallyconrmsthestatusofthesystemandprovides
a high level of visual deterrence. The Status Light is located in the window mount
receiver unit.
Normal System Status
1) Off = The remote starter system is off, in standby mode.
2) On Constant = The system is in the Valet Mode, with the remote starter system
disabled.
Starting System Status
The Status Light also indicates the remote start status:
3) Flashing Slow (once per second): Remote start is on.
4) Flashing Fast (after activating remote start): The system is in the process of start-
ing the engine.
Remote Starting Diagnostics
Whenever the system is placed into Valet Mode, the Status Light illuminates
solid.However,whenthisrstoccurs,theStatusLightwillash1to6ashesbe-
fore resuming solid illumination. This indicates why the engine stopped running from
the last previous remote starting attempt.
5) 1 Flash = Programmed run time expired.
6) 2 Flashes = Brake was pressed or hood opened.
7) 3 Flashes = Engine stalled or bad tach signal.
8) 4 Flashes = Received transmitter command to stop.
9) 5 Flashes = Gear selector removed from “park”.
10) 6 FLashes = Low voltage.
The Status Light
Valet Mode
Valet mode disables the remote start feature. It should be used, for example,
when you have your vehicle serviced. To engage Valet Mode:
• Withthesystem“unlocked”,pressandholdtheValetSwitchfor3seconds;the
Status Light will turn on to indicate Valet Mode. Attempts to remote start will result in
no response. Keep this in mind if remote start stops functioning.
• ToturnoffValetMode,simplypress&releasetheValetSwitchonce.TheStatus
Light will turn off.
Manual Override
This puts the system in an “unlocked” state allowing for programming operations.
• Turnthevehicle’signition“on”.
• Pressandreleasethevaletswitchonce.
Using The Valet Switch
6
Step 1 Have all transmitters which are to operate the system at hand. Then,
turn the ignition “on”.
Step 3 Press the button on each remaining transmitter one at a time. The sys-
temwillturnthelightsoffthenbackontoconrmthateachwaslearned.Ifacode
is not received within a 10 second period, the learning process will automatically
terminate, as indicated by the lights turning off.
Step 4 Turn the vehicle’s ignition key “off”.
Step 2 Within 5 seconds of turning on the ignition, press the Valet Switch 5
times.Thestatuslightandparkinglightswillilluminate,conrmingthatforthenext
10 seconds the system is ready to learn a transmitter/controller code. To enter
acode,simplypressandreleasethetransmitterbutton.Whentherstcodeis
learned all existing stored codes will be erased.
Standard Programming: Before starting, be sure the system is in an “unlocked”
state by using a working transmitter or performing a manual override.
Step 1 Turn the ignition key “ON”, then “OFF”
Step 2 Within 5 seconds of step 1, press the valet switch 5 times to access user
features (10 times to access installer features).
~ The parking lights and the status light will turn on.
Step 3 Within 10 seconds of step 2, press the valet switch the number of times cor-
responding with the desired feature’s number.
 ~Thestatuslightandtheparkinglightswillashequaltotheselectedfeature.
Step 4 Change the feature by pressing the brake pedal the same number of times
that corresponds with the desired setting.
 ~Thestatuslightsandtheparkinglightswillashequalingtheselectedsetting.
Step 5 If you wish to change more features, repeat steps 3 & 4 at this time.
Step 6 To exit programming, turn the ignition key “ON” then “OFF”. Or,
you can wait 10 seconds for programming mode to expire.
Code JumpingTM Technology
Code jumping technology uses a complex algorithm to change the transmitter’s
codes every time a button is pressed to prevent a thief from copying the signal. Only
the system in your car has the key to decipher this code and it is not replicable.
Automatic Transmitter VericationTM
There the potential threat of someone, who has temporary access to your vehicle
(mechanic, valet), programming their own transmitter to your system. For example,
someone could do so and gather your personal info from any paper work in your ve-
hicle. Then, they could visit your home and help themselves to the contents of your
vehicle without any signs of intrusion. ATVTM shows you how many transmitters are
programmedtoyoursystembyashingthestatuslighteverytimeyouturnonthe
ignition key for a 10 second period. Easily identify if transmitters have been added to
your system.
Transmitter Protection & Technology
Programming Transmitters
Programming Features
7
Feature #1 Remote Start Run Time
10 Minutes (press the brake pedal 1 time to program) - DEFAULT
5 Minutes (press the brake pedal 2 times to program)
15 Minutes (press the brake pedal 3 times to program)
20 Minutes (press the brake pedal 4 times to program)
This feature sets the period of time that the engine will run after being remotely
started. If the engine is not stopped by controller/transmitter command or a safety
circuit violation, the engine will automatically stop upon the expiration of the selected
time period. Caution: The remote engine starting feature should NEVER be
used when the vehicle is parked in an enclosed structure or garage.
ThisgroupofUserProgrammableFeaturesareallaccessedasagroupintherst
level of features’ programming. These features have a direct affect upon the sys-
tem’s operations, so the programming and operation of each are described.
Feature #2 Steady/Flashing Lights During Remote Start
Steady (press the brake pedal 1 time to program) - DEFAULT
Flashing (press the brake pedal 2 times to program)
ThisFeaturecongurestheoperationofthevehicle’sparkinglightsduringthe
remote start operation. The default setting turns on the parking lights during remote
start;theothersettingashestheparkinglightsonandoffduringremotestart.
User Programmable Features
Feature #3 Conrmation Chirp Function & Volume
Low (press the brake pedal 1 time to program) - DEFAULT
High (press the brake pedal 2 times to program)
N/A (press the brake pedal 3 times to program)
OFF (no chirps) (press the brake pedal 4 times to program)
Thisfeatureallowsthechoiceoftwodifferentvolumelevelsofthesystem’sconr-
mation chirps, you can hear and choose the setting with the best chirp volume as
you select each option.
Feature #5 Doors Lock With Ignition On
Off (press brake pedal 2 times to program) - DEFAULT
On (press brake pedal 1 time to program)
Thisfeatureconguresthesystemtoautomaticallylockthevehicle’sdoorsevery
time that the ignition switch is turned on. The following feature #6 controls the
automatic unlocking operations.
Feature #6 Doors Unlock With Ignition Off
Off (press brake pedal 2 times to program) - DEFAULT
On (press brake pedal 1 time to program)
Similar to the previous locking feature, except this feature controls the unlock opera-
tion when the ignition is turned off.
Feature #7 Doors Unlock With Trunk Release
Off (press brake pedal 2 times to program)
On (press brake pedal 1 time to program) - DEFAULT
When trunk release (CH2) is activated, this feature determines whether the
doors will unlock or not.
8
This group of Installer Programmable Features are all accessed as a group in the
second level of features’ programming. These features have a direct affect upon the
system’s operations related to the installation and vehicle type AND SHOULD ONLY
BE CHANGED BY THE INSTALLER!!!
Feature #1 Remote Start Activation
1 button presses (press the brake pedal 1 time to program)
2 button presses (press the brake pedal 2 times to program) - DEFAULT
3 button presses (press the brake pedal 3 times to program)
4 button presses (press the brake pedal 4 times to program)
This feature allows you to choose the number of button presses AND pulses
required on the White/Blue activation wire to activate the remote start feature. All of
the settings must occur within a 5 second window of the previous button press.
Feature #3 Engine Detection Method
Tachless Hi (press the brake pedal 1 time to program) - DEFAULT
Tachless Lo (press the brake pedal 2 times to program)
Tach Wire (press the brake pedal 3 times to program)
Data Tach (press the brake pedal 4 times to program)
Crank Only (press the brake pedal 5 times to program)
This feature selects the method in which the remote start monitors the engine’s run-
ning condition in remote start mode.
“Tachless Hi” sensitivity mode has an associated base starter output time duration
(see installer feature #7) and monitors the vehicle’s voltage level to determine if the
engine is running. This setting looks for a voltage increase of 0.3v after cranking.
“Tachless Lo” sensitivity mode operates like the “Tachless Hi” setting but looks for
a voltage increase of 0.5v after cranking.
“Tach Wire” Before this setting is programmed, refer to the “Violet/White wire” sec-
tion of the installation manual for proper wiring connection and the Tach Learn Pro-
cedure. It will crank the engine for up to 3 seconds or until a tach signal is detected.
“Data Tach” mode operates just like the “Tach Wire” setting except it takes its
reading from the D2D data port instead of using the Violet/White wire. Before using,
make sure this function is supported by the Databus Interface module.
“Crank Only” AKA “blind start” is similar to the “Tachless” settings however, it only
makes one start attempt and does not monitor engine running conditions. This is
useful for many “push-to-start” vehicles.
Installer Programmable Features
Feature #2 PINK/WHITE (IGN #2) wire operation
Ignition (press the brake pedal 1 time to program) - DEFAULT
Accessory (press the brake pedal 2 times to program)
Start (press the brake pedal 3 times to program)
Ignition - operates with the same timing as the PINK ignition #1 output.
Accessory - operates with the same timing as the ORANGE accessory output.
Start - operates with the same timing as the VIOLET start output
9
Installer Programmable Features (cont’d)
Feature #5 Satellite Relay Port Green Wire Function
Starter (press the brake pedal 1 time to program) - DEFAULT
Pulse After Engine Start (press the brake pedal 2 times to program)
Status Output (press the brake pedal 3 times to program)
Domelight (press the brake pedal 4 times to program)
This feature changes the operation of the Green wire (negative) on the satellite relay
port.Thisgivesyoutheexibilitytoaccomodatecertainvehiclesthatrequireany
out-of-the-ordinary pulses or remote start timing.
Starter setting operates as a secondary START output. This will have the same
pulse timing as the large Violet wire on the main harness.
Pulse After Start setting will give a 0.8 second pulse immediately after the engine
starts and is running.
Status Output setting will behave like the ignition output except it turns on 1.5
seconds earlier than the primary ignition output..
Domelight provides domelight supervision output. It will turn on when the system is
unlocked and after turning the ignition “off”.
Feature #7 Extended Starter Cranking Time
0.7 Second (press the brake pedal 1 time to program) - DEFAULT
1.00 Second (press the brake pedal 2 times to program)
1.5 Seconds (press the brake pedal 3 times to program)
2.25 Seconds (press the brake pedal 4 times to program)
This feature determines the crank time of the 1st start attempt when in “Tachless”
mode.Iftheenginedoesn’tstartontherstattempt,itwillretryupto3moretimes
extending the crank time by an additional 0.2 second with each attempt..
Feature #4 Gasoline Or Diesel Engine
Gasoline (press the brake pedal 1 time to program) - DEFAULT
Diesel 15 Sec. Delay (press the brake pedal 2 times to program)
Diesel 20 Sec. Delay (press the brake pedal 3 times to program)
Diesel 30 Sec. Delay (press the brake pedal 4 times to program)
This feature changes the system’s timing of the ignition and starter output sequence
for gas or diesel engines. Gasoline: the starter output will occur 3 seconds after the
ignitions turn on. When in “Tachless” mode, the engine running status is determined
10 seconds after starting. Diesel: the starter output will occur 15, 20, or 30 seconds
after the ignitions turn on (allows for glow plug warming). When in “Tachless” mode,
the engine running status will be determined 40 seconds after cranking.
Feature #6 Satellite Relay Port Blue Wire Function
Status (press the brake pedal 1 time to program) - DEFAULT
Ignition (press the brake pedal 2 times to program)
Defrost Pulse (press the brake pedal 3 times to program)
Status - operates like the PINK ignition output except it turns on 1.5 seconds earlier
than the PINK ignition #1 output. This is best for activating bypass kits. Ignition - op-
erates with the same timing as the PINK ignition #1 output. Defrost Pulse will send
a pulse after start only when the cabin temperature is below freezing (32 degrees F)
10
Installer Programmable Features (cont’d)
Feature #11 Turbo Timer
Off (press the brake pedal 1 time to program) - DEFAULT
Run 1 Minute (press the brake pedal 2 times to program)
Run 2 Minutes (press the brake pedal 3 times to program)
Run 3 Minutes (press the brake pedal 4 times to program)
Thisfeaturewhenturnedonconguresthesystemtoautomaticallykeeptheengine
runningbrieyafteritisturnedoff.Thisoperationisdesignedspecicallyforve-
hicles having turbocharged engines. This feature should only be programmed by the
installer, and the operation of this feature depends on the correct connection of the
neutral safety wire to the vehicle’s parking brake. Please refer to the “Black/White
wire” in the installation manual for the proper connection of this important wire.
Feature #13 Data Port Protocol
D2D (Trilogix) (press the brake pedal 1 time to program) - DEFAULT
ADS (iData) (press the brake pedal 2 times to program)
This feature determines which data protocol is used on the data ports. Choose this
based on the interface module being used. NOTE: OmegaLink modules support
both protocols. The ADS protocol is recommended for maximum capabilities.
Feature #9 Lock/Unlock Outputs
0.8 Second Output (press the brake pedal 1 time to program) - DEFAULT
3 Second Output (press the brake pedal 2 times to program)
Double 0.8 Sec Unlock (press the brake pedal 3 times to program)
This single feature gives the installer several needed options, to match the system’s
doorlocking outputs to suit different vehicle requirements.
Feature #8 Low Temp Crank Extender
0ms (Off) (press the brake pedal 1 time to program)
200ms (press the brake pedal 2 times to program) - DEFAULT
300ms (press the brake pedal 3 times to program)
400ms (press the brake pedal 4 times to program)
When the vehicle’s interior temperature is below freezing, this feature adds extra
crank time to the base timing (see installer feature #7). It applies to “Tachless” &
“Crank Only” modes only (installer feature #3)
Feature #10 Remote Start Lock Control
Off (press the brake pedal 1 time to program) - DEFAULT
Lock After Start (press the brake pedal 2 times to program)
Unlock before start (press the brake pedal 3 times to program)
Unlock Before+Lock After Start (press the brake pedal 4 times to program)
This feature allows for OEM alarm/lock control in relation to remote start operations
thus eliminating extra wiring.
11
Programmable Features Matrix
This device complies with FCC Rules part 15. Operation is subject to
the following two conditions, (1) This device may not cause harmful
interference and, (2) This device must accept any interference that
may be received, including interference that may cause undesired
operation.
The manufacturer is not responsible for any radio or TV interference
causedbyunauthorizedmodicationstothisequipment.Suchmodi-
cations could void the user’s authority to operate the equipment.
User Feature Programming: Ignition on, off, press valet 5 times
# Feature Lock Button Unlock button Trunk button ”START” button
1 Engine Run Time 10 5 15 20
2 RS Light Conrmation Steady Flashing
3 Horn Honk Volume Low Hi N/A OFF
4 N/A
5 Lock w/ IGN on On Off
6 Unlock w/ IGN Off On Off
7 Unlock w/ Trunk release On Off
Installer Feature Programming: Ignition on, off, press valet 10 times
1 Remote Start Activation 1 press 2 presses 3 presses 4 presses
2 PINK/WHITE Wire Function Ignition Accessory Start
3 Engine Detection Tachless Hi Tachless Lo Tach Wire Datatach
Crank Only (press Lock + Unlock)
4 Gas or Diesel Engine Gas Diesel
(15 sec.)
Diesel
(20 sec.)
Diesel
(30 sec.)
5 Sat. Port Green Wire Function Start Pulse after start Status Dome Light
6 Sat. Port Blue Wire Function Status Ignition Pulse after start
below freezing
7 Crank Time 0.7 sec 1 sec 1.5 sec 2.25 sec
8 Low Temp Crank Extender 0ms 200ms 300ms 400ms
9 Door lock outputs 0.8 sec 3 sec Double Unlock
10 Remote Start Lock Control Off Lock after start Unlock before
start Both
11 Turbo Timer Off 1 min 2 min 3 min
12 N/A
13 Data Port Protocol D2D (Trilogix) ADS (iData)
Back Cover
Color cover is in a
separate le.

Navigation menu
