Contents

rev1 User s Manual Part 2

7
Flash Function
1 Flash System is Armed
2 Flashes System is Disarmed
3 Flashes Disarmed / Triggered
3 or 6 Flashes Car Locator
Constant On or Flashing Under Remote Start
Chirp Function
1 Chirp System is Armed
2 Chirps System is Disarmed
3 Chirps Ajar Warning
4 Chirps Disarm / Triggered
2,3,6 Chirps Progressive Car Locator
Siren/Horn LED Doors Starter Dome Light
1. Arming 1 or 3 Chirps 1 Flash Slow Flash Locking Disabled
(Option)
2. Disarming 2 or 4 Chirps 2 or 3
Flashes Unlocking Turns on for
30 Seconds
3. Trigger Alarming Flashes Slow Flash Disabled
(Option) Flashes
4. Panic Alarming Flashes Flashes
5.Car
Jacking Alarming Flashes Disabled
(Option) Flashes
6.Car
Locator 2,3,6 Chirps 3,6 Flashes
Parking Light Indicators
Chirp Indicators
System Characteristics
Parking
Light
PLUS6900-UM.qxp 4/3/2009 1:18 PM Page 7
8
1. Press the button on the transmitter.
2. The siren will chirp once and parking lights will flash once indicating that the system is now
armed. The vehicle door will lock upon arming when interfaced with the security system.
Ajar Warning:
If the siren sounds 3 chirps,
then you have left a door,
trunk, or hood lid ajar.
Silent Arming/Disarming
Press the transmitter and button at the same time to arm or disarm your security system. No
chirp sound will be heard. The arm/disarm confirmation will be through the vehicle’s parking
lights only.
Shock Sensor Bypass
Press the button on the transmitter two times within 3 seconds. This will arm the security
system and bypass the shock sensor. The system will chirp one additional time to confirm the
sensor Bypass Mode was activated. The sensor bypass feature is programmed to activate for one
arming cycle only. The security system will return to normal operation during the next arming
cycle.
Hidden Alarm Function
Press the button first, within 3 seconds press the button to activate the hidden alarm
function. The security system will arm, but the siren / horn will be silenced even if the sensor is
triggered in the armed status.
Manual arming/disarming is controlling your security system via the remote transmitter. This
security system is equipped with an optional Automatic Arming feature which allows the security
system to arm 45 seconds after the last door is closed. Operation is as follows:
1. Turn the ignition to the “OFF” position and exit the vehicle.
2. After all entrances are closed, the security system LED will flash fast for 45 seconds. If you
reopen any Door, Hood, Trunk the security system LED will stop flashing. It will begin flashing
again once the vehicle’s entrances are closed.
3. After the 45-second timer has elapsed, the security system will automatically “ARM”. The
siren/horn will chirp once, and the parking lights will flash once.
Automatic Arming with Automatic Door Locking (Programmable)
If this feature has been programmed on, the vehicle doors will automatically lock after the
automatic arming cycle has been completed.

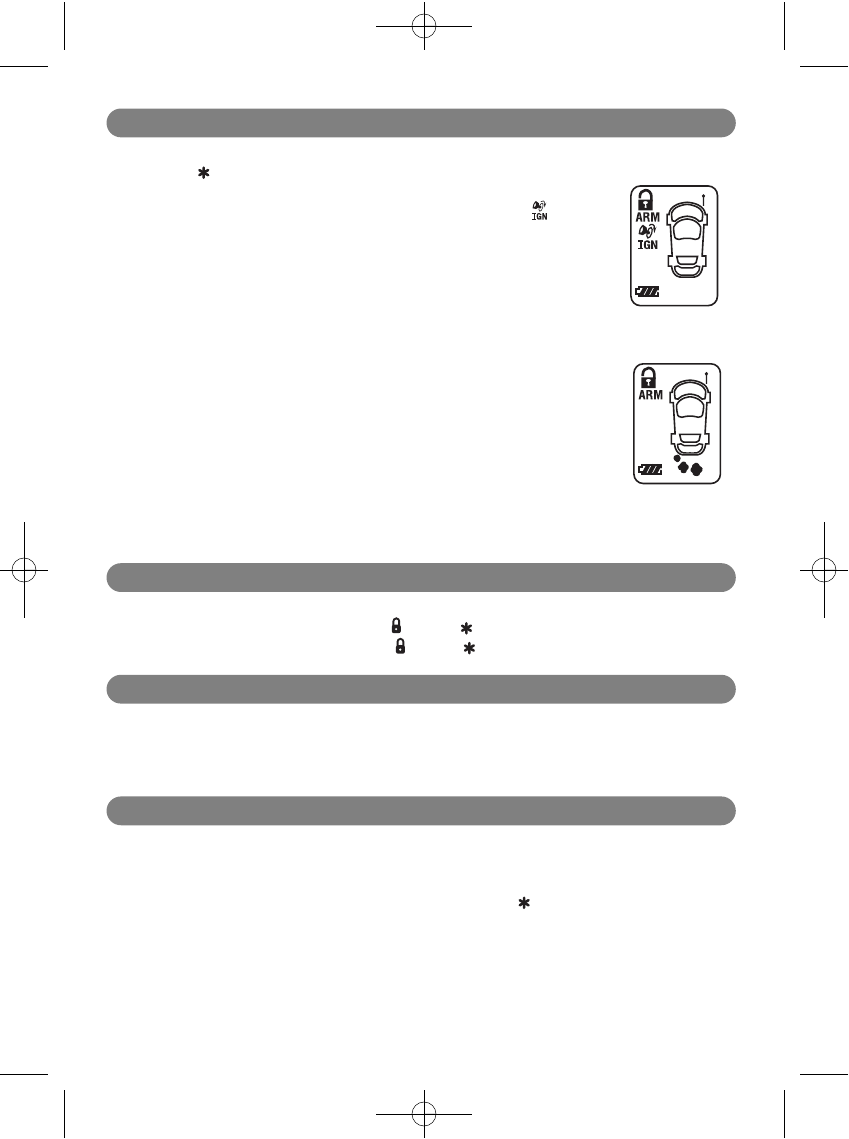

System Armed Door Ajar Trunk/Hood Ajar
Manual Lock/Arm
Automatic Arming
PLUS6900-UM.qxp 4/3/2009 1:18 PM Page 8
9

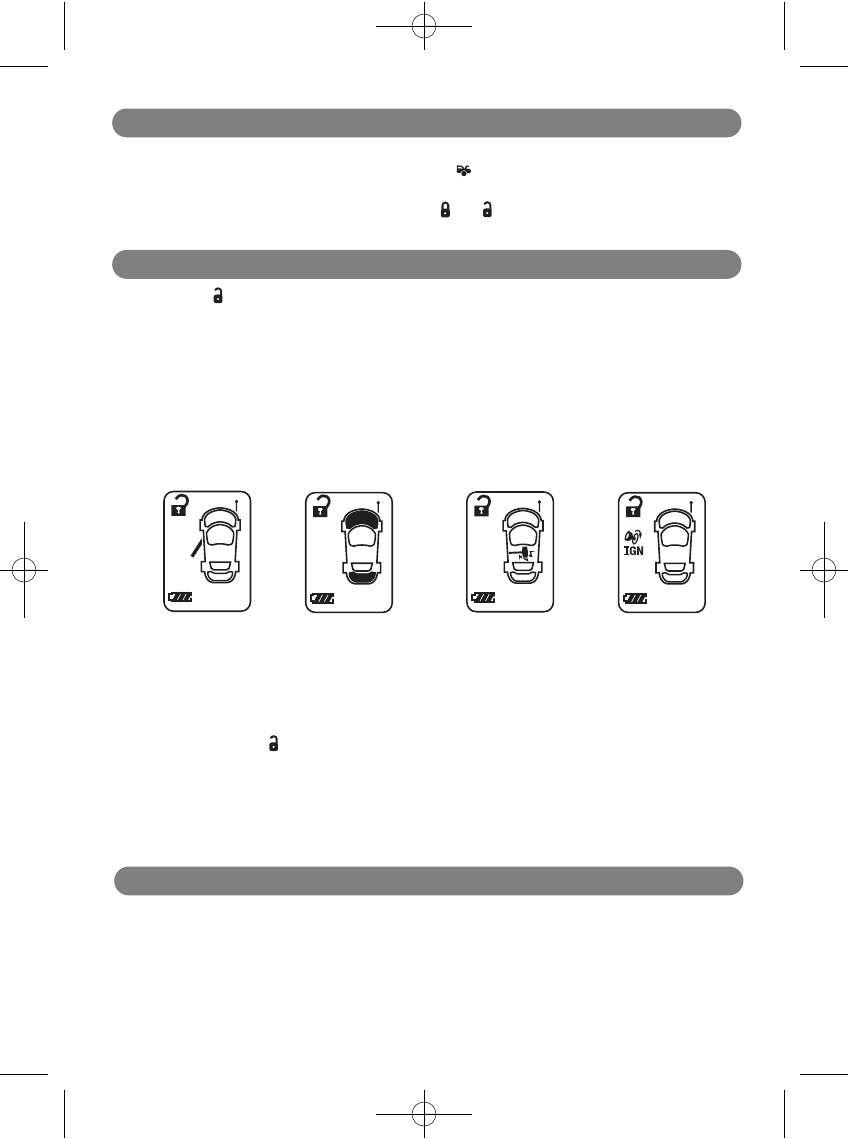

Automatic Arming Bypass
While the system is in Disarmed Mode, press the button twice. The horn/siren will respond
with one chirp and the LED will turn “ON”. The security system will remain in this mode for as
long as you wish. To exit this mode press the or buttons and the system will return to
normal status.
1. Press the button on the transmitter.
2. The siren will chirp twice and parking lights will flash twice indicating that the system is now
disarmed. The vehicle door will unlock and the dome light will turn on for 30 seconds upon
disarming when interfaced with the security system.
Tamper Disarming
If the security system was triggered prior to disarming, the siren will chirp 4 times and the
parking lights will flash 3 times. One of the enclosed panels will be displayed on the LCD
transmitter screen to indicate which sensor had been triggered
Pathway Illumination
This feature turns the parking lights “ON” for 30 seconds upon a unlock signal and for 10
seconds upon the lock signal.
Two Step Door Unlock
This feature will independently unlock the driver’s door only when disarming the security
system. Pushing the button a second time within 3 seconds will unlock the other doors.
Automatic Rearm
If this feature is selected, the security system will automatically rearm itself within 60 seconds
after disarming with the remote transmitter. Automatic rearm will cancel if any door is opened
before the 60 second timer is up.
The override function may be used if the remote transmitter is lost or inoperative. Override can
be done without password/pin number (this is the factory default setting).
1. Enter the vehicle and turn the ignition switch to “ON” position (alarm will sound).
2. Within 10 seconds push and release the valet switch. The alarm will stop sounding and enter
the Disarm Mode. You can now start and operate the vehicle normally.
Manual Un-Lock / Disarm
Disarming without a Transmitter
Automatic Arming (Continued)
Shock Sensor Triggered
Doors Triggered Trunk/Hood Triggered Ignition Triggered
PLUS6900-UM.qxp 4/3/2009 1:18 PM Page 9
10

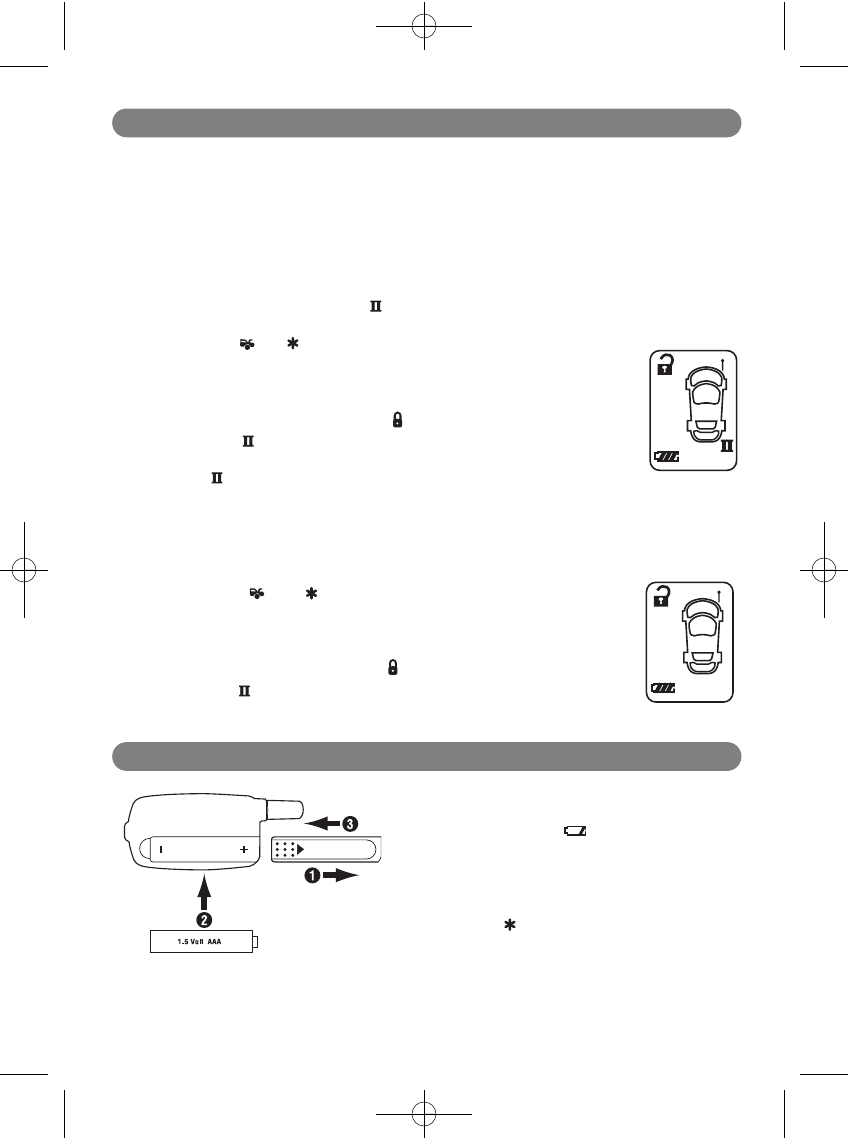

Manual valet mode allows you to bypass all alarm functions eliminating the need to hand your
transmitter to parking attendants or garage mechanics. This mode is also a necessity if your
transmitters become in-operable. When the system is in Valet Mode, all alarm functions and
remote start functions are off. However, the remote panic feature and remote door locks remain
operational. To enter the Manual Valet Mode, the system must first be disarmed either by using
your remote transmitter, or by operating the manual override sequence.
Enter Valet Mode
1. When in Disarmed Mode, turn the ignition to the “ON” position.
2. Push and hold the valet switch for 2 seconds. The LED will flash every 5
seconds as long as the unit is in the Valet Mode.
Note: When the unit is in valet mode, the LCD transmitter icon will be
displayed
Exit Valet Mode
1. To return to normal operation, turn “ON” ignition.
2. Push and hold valet switch for 2 seconds. The LED will stop flashing, indicating the system has
now exited the Valet Mode.
Note: When the unit is out of valet mode, the icon will be off and you will hear
a short melody from the transmitter..
RF valet mode provides the same functions as manual valet mode but allows you to enter and exit
the valet mode using the remote transmitter. When the system is in Valet Mode, all alarm
functions and remote start functions are off. However, the remote panic feature and remote door
locks remain operational. To enter/exit the RF Valet Mode, repeat the following procedures.
Enter Valet Mode
1. In Disarmed Mode, open the drivers door.
2. Push and hold the and transmitter buttons until the door locks cycle “Lock then Unlock”.
The LED will flash every 5 seconds to indicate that the unit is in the Valet Mode.
Note: When the unit is in valet mode, the LCD transmitter icon will be displayed
Exit Valet Mode
1. In Unlocked Mode, open the drivers door.
2. Push and hold the and transmitter buttons until the door locks cycle “Lock then Unlock”.
The LED will stop flashing every 5 seconds to indicate that the unit is out of the Valet Mode.
Note: When the unit is out of valet mode, the LCD transmitter icon will be off and you will hear
a short melody from the transmitter.
Note: The remote vehicle location system is active 30 seconds after the alarm is armed.
1. Press the button to active the vehicle locator system. The horn/siren will beep 2 times and
the parking lights will flash 3 times. This operation will repeat a second time.
2. Press the button again within 30 seconds. The horn/siren will beep 3 times and the parking
lights will flash 3 times. This operation will repeat a second time.
Hold 2 Seconds
Manual Valet Mode
RF Valet Mode (Applies to All Transmitter Types)
Progressive Remote Vehicle Locator System
PLUS6900-UM.qxp 4/3/2009 1:19 PM Page 10
The transmitter can be used as a remote panic switch to manually trigger the alarm system in
case of an emergency.
1. Press and hold the button for 3 seconds to enter the Panic Mode (horn/siren will start to
sound and parking lights will flash).
2. While in Panic Mode the transmitter and buttons can be used to lock and unlock the door
(if that option is installed). However, if the button is pressed, the vehicle’s starter disable
device (when installed) will be disabled, allowing the vehicle to start.
3. To turn off the panic function, press and hold the button again for 3 seconds or press and
release the or buttons.
4. If the panic function is not turned off by the transmitter, it will turn off and reset itself after 30
seconds.
11
Panic Feature
The Security System has a unique feature for using your vehicle’s dome light:
1. Upon disarming the vehicles security system, the interior dome light will remain on for 30
seconds.
2. If the security system is triggered, the dome light will flash for the same duration as the
horn/siren.
Note: Turn “ON” the ignition switch or arm the system to turn off the dome light.
Domelight Supervision
If the vehicles door locks have been interfaced with the security system, the system will
automatically lock the doors 3 seconds after the ignition is turned “ON”, or unlock the doors when
ignition key is turned “OFF”. Note: If a protected entrance is open, the doors will not lock.
Press and hold the button for up to 3 seconds to activate the trunk release (Channel 3 output)
and/or any other devices connected.
Press and hold the and button at the same time to activate the Channel 4 output. Channel 4
is user programmable timer output. You may program the built-in timer to send a ground signal
for any time duration from 1 second to 120 seconds. For example, this timer output may be used
to turn on the headlights, power window or sunroof (Factory defaults setting at momentary
output.)
Ignition Key Controlled Door Lock/Un-Lock
Channel #3 Trunk Release Output
Channel #4 Timer Controlled Output
Progressive Remote Vehicle Locator System (Continued)
3. Press the button again within 30 seconds. The horn/siren will beep 6 times and the parking
lights will flash 6 times.
PLUS6900-UM.qxp 4/3/2009 1:19 PM Page 11
12

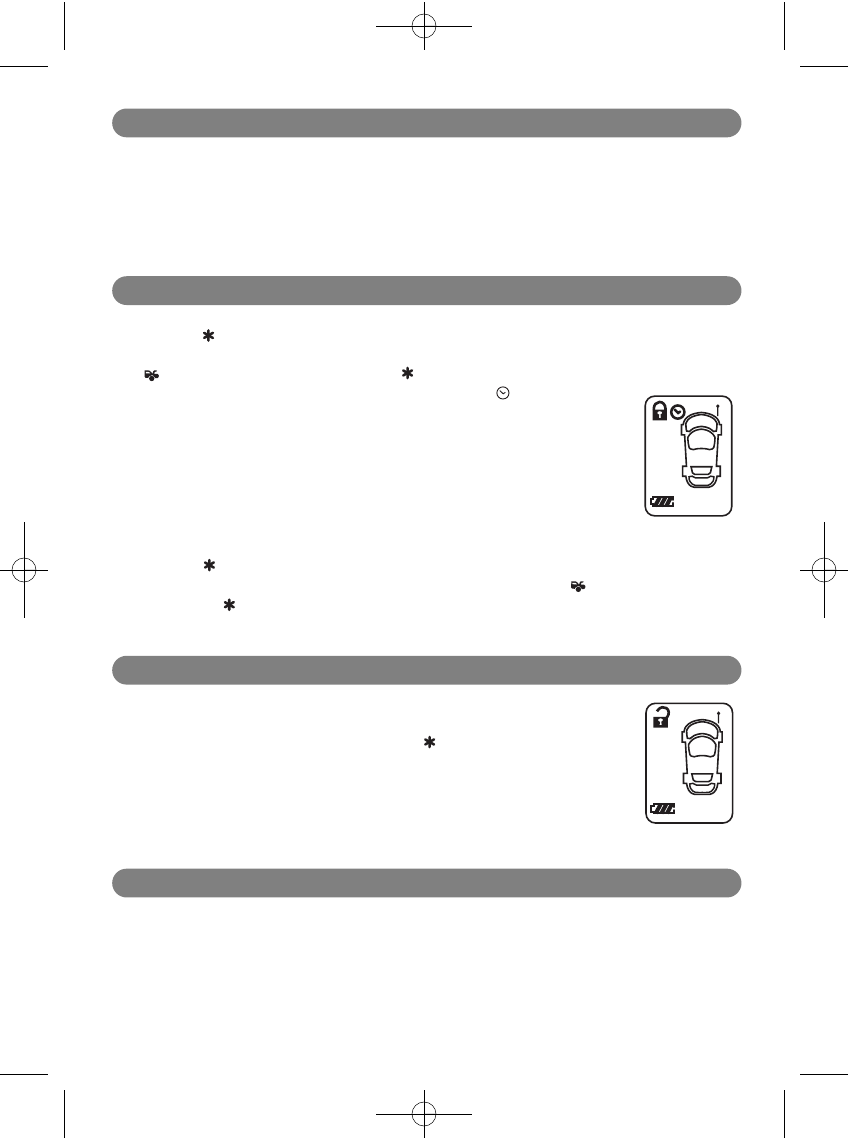

Warning: This security system has a car jacking feature. Its default setting is “OFF”. So be sure to
enable this feature if you feel it is needed.
Active Anti-Car Jacking
1. Press and hold the transmitter and buttons at the same time for 2 seconds with the
vehicle’s ignition is “ON”. The parking lights will turn on for 1.5 seconds to indicate the system
has entered the Anti-Car Jacking Mode.
2. Once the system is armed in the Anti-Car Jacking Mode, the system will trigger when the door
is opened and closed while the ignition is “ON”.
Automatic Anti-Car Jacking
1. Turn the ignition switch to the “ON” position, and the system will enter the Anti-Car Jacking
Mode. Note: Do not start the engine with the doors open. Close all entrances first. This will
prevent a false trigger.
2. Once the system is armed in the Anti-Car Jacking Mode, the system will trigger when the door
is opened while the ignition is “ON”.
When the Anti-Car Jacking Feature is Triggered
A. 50 seconds after the system has been triggered. The siren will start chirping for 15 seconds.
B. During this 15 second period of chirping, you can push and release the valet switch once to
turn off the car jacking feature.
C. 65 seconds after the system has been triggered. The siren starts sounding and the parking
lights start flashing. You must follow the override procedure to stop the system at this point.
D. 90 seconds after the system has been triggered:
1. The siren will still be sounding and the parking lights flashing.
2. The starter disable will activate to prevent the vehicle from starting.
3. Anti-Car Jacking Mode will remain active until the override procedure is performed or the
vehicle's battery power is exhausted.
Override the System to Turn Off Anti-Car Jacking
Turn the ignition switch from OFF to ON, and within 10 seconds push the valet switch. The siren
will stop sounding and the security system is now disarmed.
Anti-Carjacking Feature
PLUS6900-UM.qxp 4/3/2009 1:19 PM Page 12
13

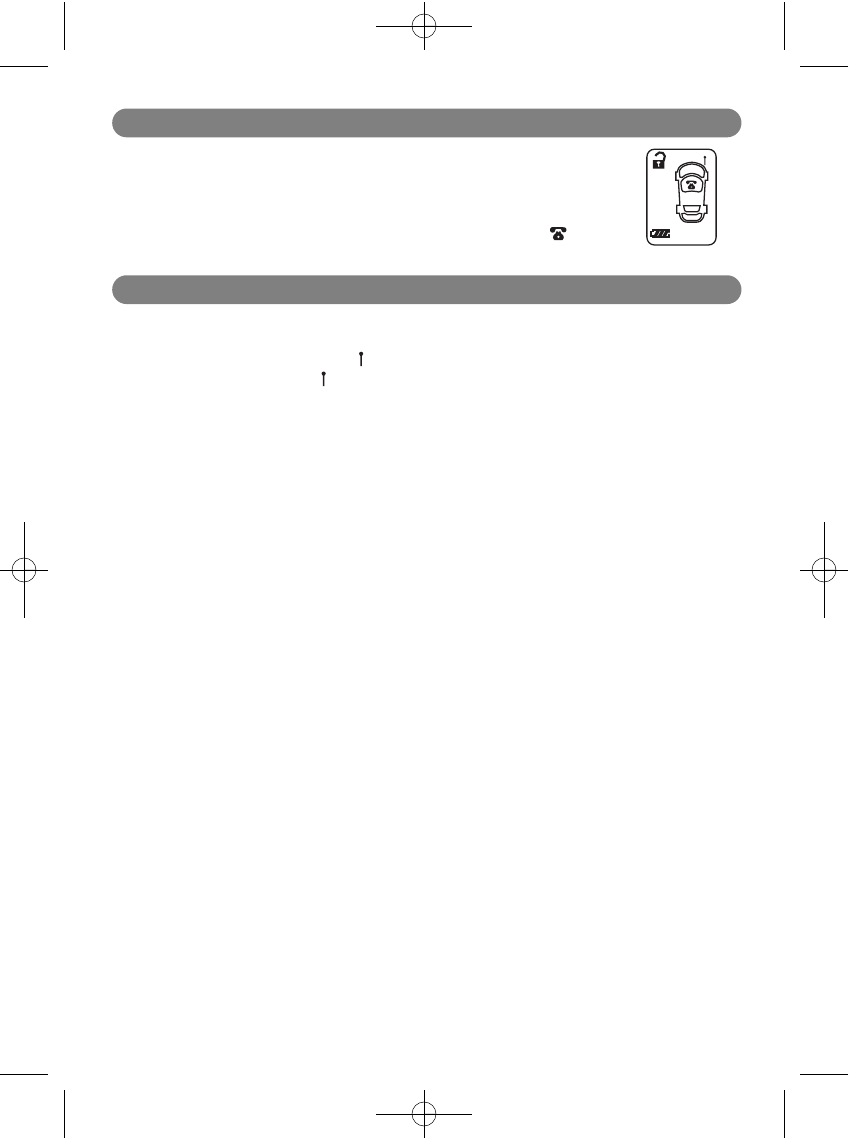

If the Out-of-Range Indication feature is activated the system will automatically check the range
every 30 minutes after armed.
1. If the user is within the range, the icon will display on the LCD screen.
2. If user is out of range, the icon will disappear from the LCD screen and the transmitter will
beeps 5 times.
Note: Activating this feature will decrease the life expectancy of battery.
Driver Paging / Lost and Found is useful when someone inside the vehicle wants
to page the driver, or if the LCD transmitter has been misplaced.
With the ignition switch in the “OFF” position, press and hold the valet switch for
2 seconds to page the LCD transmitter. One chirp shall be emitted and the
paging melody continues sounding from the LCD transmitter and will flash
on the screen.
Driver Paging / Lost and Found (Applies to LCD Transmitter Only)
Out of Range Indication
PLUS6900-UM.qxp 4/3/2009 1:19 PM Page 13
14
This feature allows the vehicle to remain running after the key has been removed from the
ignition. It is useful on occasions when you wish to exit and lock the vehicle for a short period of
time, but keep the engine running allowing the climate controls to stay on.
1. Before turning the engine off with the ignition key, press the button twice. The LED will flash
three times indicating the feature has been activated.
2. Turn the ignition key to the “OFF” position (the engine will stay running).
3. The engine will run until the pre-programmed time has elapsed or a shutdown input is received.
Note: If the alarm system has been programmed to Auto-Arm, when you exit the vehicle the
auto arming timer will start to count down and the vehicle will become armed within 45
seconds.
1. Insert the ignition key, and turn it to the “ON” position, NOT the “START” position.
2. Press the brake pedal.
Note: If the brake pedal is pressed before the key is in the “ON” position, the engine will
automatically shut off.
If the default method of remote starting has been reprogrammed to Child Safety Mode Operation,
to remote start your vehicle is to press the and the buttons at the same time.
Note: To turn off the remote start press the and the buttons at the same time.
Remote Start Your Vehicle Using the Remote Transmitter
1. Press the button twice on the transmitter.
2. The parking lights will turn on indicating the remote start has received the
signal (A melody sound from your LCD transmitter and the icon will
flash on the LCD screen to confirm the remote start was activated.)
3. The engine will start in approximately 5 seconds.
4. Once the engine is running, the parking lights will turn on again after a few
seconds, and the climate controls will activate and adjust the vehicles
interior temperature to your preset setting. While the vehicle is running, the
smoke icon will flash on the LCD screen indicating the count down timer
based on the 5, 10, 20 or 30 minute run-time setup by the installer.
5. The vehicle will run for 5 to 30 minute cycles and automatically shut down.
(When the unit shuts off, the count down timer will turn off and the
transmitter will play a melody).
Note: The Remote Start Unit will not start the vehicle if any one of the
following
conditions exists:
1. The hood is opened.
2. The brake pedal is pressed.
3. Move the optional remote start enable toggle switch to OFF position (if installed).
4. The vehicle is in a gear other then “Park” or “Neutral”.
Engine
Running
Safe Start Mode (Child Safety Mode)
Vehicle Operation when Running in Remote Start Mode
Temporary Stop Feature
Activate
Remote Start
REMOTE START OPERATIONS
PLUS6900-UM.qxp 4/3/2009 1:20 PM Page 14
Enter Timer Start:
1. Press the button twice to remote start the vehicle.
2. Let the engine run and wait for the parking lights to turn on or start flashing. Press the
button once then press and hold the button. The parking light will flash
3 times and the siren or horn will chirp 3 times and the icon will appear on
the LCD display. The vehicle is now programmed to start every 3 hours.
3. Press the brake pedal to shut off the engine.
Exit Timer Start:
1. Make sure the remote start system is not operating the engine.
2. Turn the ignition “ON”. The LED and parking lights will flash 4 times. The horn
chirps 4 times. The vehicle is no longer programmed to Timer Start
automatically.
Or
1. Press the button twice to remote start the vehicle.
2. As soon as the parking lights have turned on or flashing, press the button once. Then press
and hold the button. The parking lights will flash 4 times. The siren or horn chirps 4 times.
The vehicle is no longer programmed to Timer Start automatically.
15
When the engine is running by remote start and you wish to shut it off, follow
these steps:
1. While in Remote Start Mode, press the button twice on the remote
transmitter.
2. Move the optional remote start toggle switch to the “OFF” position (if
installed).
3. Press the vehicle’s brake pedal, the engine will stop running and the parking
lights will turn off to indicate the engine has been shut off.
The disabling the Remote Start System feature allows your system’s remote start unit to be
temporarily disabled, which prevents the vehicle from being remote started accidentally. This is
useful if the vehicle is being serviced or stored in an enclosed area. To disable the remote start,
move the optional remote start enable toggle switch to the “OFF” position.
Important! Timer Start should be used only in open areas. Never start or leave a vehicle running in
an enclosed area such as a garage or carport.
This unit can be programmed to auto-start and run the engine every 2 or 3 hours (3 hours is the
default setting). The engine will run for the programmed run time and then shut down. This
feature is designed to prevent the engine from freezing in cold climates.
A Maximum of Six Auto-Start Cycles can Occur.
Timer Starting
Turn Off Remote Start System
Toggle Switch Disable (If Installed)
Timer Starting Mode
PLUS6900-UM.qxp 4/3/2009 1:20 PM Page 15
After arriving at your destination, Turbo Timer keeps the engine running for a programmable time
period of 1, 3 or 5 minutes. This allows the engine’s turbo charger time to conveniently cool down
after you have left the vehicle.
To Activate:
1. While the engine is running, set the emergency brake and place the transmission into "Park".
2. Before turning off the engine, press and release and buttons at the same time. The parking
lights will flash indicating the remote start has entered Turbo Timer Mode.
3. Remove the ignition key and the engine will keep running.
4. Exit and secure the vehicle. The engine continues running until the pre-programmed time has
elapsed.
16
If any of the following conditions exist while the system is operating, the engine will not start or will
shut down immediately:
1. The hood is opened.
2. The brake pedal is pressed.
3. Engine is over-revved (Tachometer Checking Type only).
4. The preprogrammed run time (5/10/20/30 minutes) has elapsed.
5. Press the button twice on the remote transmitter under Remote Start Mode.
6. Move the optional remote start enable toggle switch to “OFF” position (if installed).
7. The vehicle refused to start running after 3 unsuccessful attempts.
Remote Start Shutdown Inputs
Turbo Timer Mode
PLUS6900-UM.qxp 4/3/2009 1:20 PM Page 16
Return to First Car Operation (LCD Remote Only)
1. Press and hold and buttons at the same time until one long beep is
heard. Programming Mode has now been entered.
Note: No action for five seconds will generate two long beeps indicating the
Programming Mode has been exited.
2. Within 5 seconds, press and hold the button until two beeping sounds are
heard and the icon is not displayed on the LCD screen indicating first car
operation.
17
If your transmitters have been programmed to a second Marksman security system, follow the
steps below.
For 1-Way Remote Control Transmitter:
The 1-way backup transmitter does not have the ability to operate 2 systems. Only the 2-way
LCD transmitter can operate 2 didferent systems.
For LCD Remote Control Transmitter:
Second Vehicle Operation: While the icon is displayed on the LCD screen, you can remote
control and communicate with a second vehicle security system.
1. Press and hold and buttons at the same time until one long beep is heard.
Programming Mode has now been entered.
Note: No action for five seconds will generate two long beeps indicating the
Programming Mode has been exited.
2. Within 5 seconds, press and hold the button until two beeping sounds are
heard and the icon is displayed on the LCD screen indicating second car
operation.
3. While the is displayed, press any button on the transmitter to control the
second vehicle’s security system or alarm function (arm/disarm/trunk/remote start).
Note: Button functions are the same for the second car as they are for the first car.
Second Security System Operation
The LCD remote control is powered by a 1.5 Volt AAA
Alkaline battery. When the power of the battery
weakens the battery icon will be displayed on the
screen. When the old battery is replaced with a new
one, there will be a beep to indicate the power is up. To
replace the battery, follow the steps in the illustration
at left.
Note: Press the button two times when the battery
compartment is empty, then insert the new battery.
Battery Replacement (Applies to LCD Transmitter Only)
PLUS6900-UM.qxp 4/3/2009 1:21 PM Page 17
18

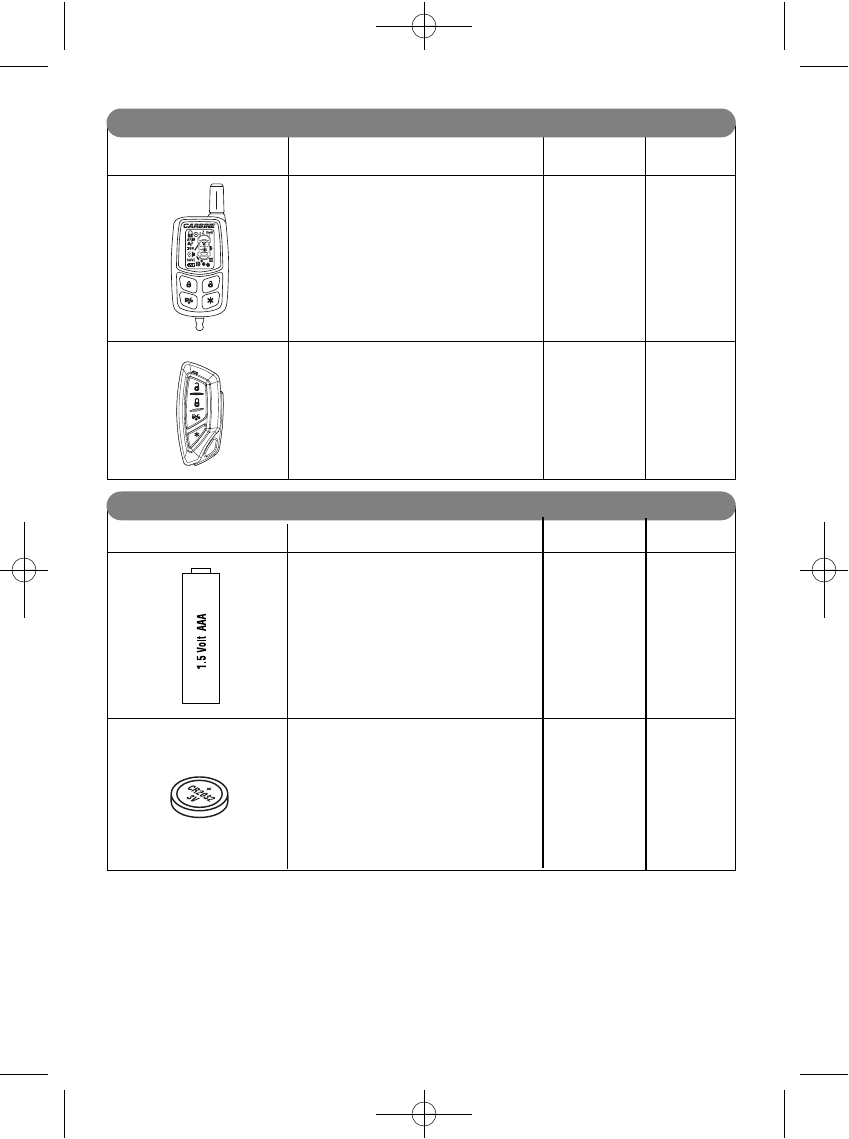

1-Way Remote for
he PLUS5900 - PLUS6900
Security System CA-RF69 39.95 ea.
2-Way LCD Remote for
the PLUS5900 - PLUS6900
Security System CARF-LCD2 79.95 ea.
TRANSMITTERS DESCRIPTION MODEL # $ PRICE
REPLACEMENT BATTERIES DESCRIPTION MODEL # $ PRICE
1.5 Volt AAA Alkaline Battery commonly
found in grocery stores, hardware stores,
etc.
3 Volt Lithium Battery (1 pc.)
Replacement Transmitters
Replacement Batteries
CR2032 4.95 ea.
PLUS6900-UM.qxp 4/3/2009 1:21 PM Page 18
Credit Card or Money Order Only
(Sorry No Cash, C.O.D. or personal checks accepted)
SHIP TO: (No P.O. Boxes)
LAST NAME FIRST NAME INITIAL
STREET ADDRESS
ADDITIONAL ADDRESS
E-MAIL ADDRESS
CITY STATE ZIP CODE
DAY TIME PHONE NUMBER
PART # DESCRIPTION QTY. PRICE EACH TOTAL
Sales Subtotal = ________ . ______
California Residents Add Sales Tax = ________ . ______
Shipping and Handling (See Chart) = ________ . ______
TOTAL = ________ . ______
On regular orders please allow 4-5 weeks for delivery.
Please give a shipping address where this order may be delivered between the hours of 9 am and 5 pm weekdays.
If UPS is unable to deliver, your order will be returned and additional shipping charges will be required.
CREDIT CARD INFORMATION
CREDIT CARD N0. EXPIRATION DATE
CARD HOLDER’S LAST NAME FIRST NAME INITIAL
STREET ADDRESS
CITY STATE ZIP CODE
Mail to: Magnadyne Corporation
ATTN: Consumer Parts Sales
P.O. Box 5365
Carson, CA 90749-5365
Shipping and Handling
Up to $20.00 $6.00
20.01 to 30.00 6.95
30.01 to 45.00 7.50
45.01 to 70.00 8.95
Over 70.01 9.95
VISA
MC
Call: (310) 884-7777 Fax: (310) 637-9542
19
Replacement Parts Order Form
PLUS6900-UM.qxp 4/3/2009 1:21 PM Page 19
PLUS6900-UM 4-03-09 Rev. A
© Copyright 2009 Magnadyne Corporation
Limited Lifetime Warranty
Magnadyne Corporation or its authorized agents will, for the life of the vehicle and to the original
purchaser, repair, replace or refund the retail sales price of said product or any part thereof, at the
option of the Magnadyne Corporation or its authorized agents, if said product or part is found
defective in materials or workmanship, when properly connected and operating on the correct
power requirements designated for the specific product. This warranty and Magnadyne Corporation
or its authorized agents obligations, hereunder do not apply where the product was: damaged while
in the possession of the consumer, subjected to unreasonable or unintended use, not reasonably
maintained, utilized in commercial or industrial operation, or serviced by anyone other than
Magnadyne Corporation or its authorized agent, or where the warning seal on the product is broken
or the power plugs or wires are detached from the unit. Magnadyne Corporation or any of its
authorized agents do not assume any labor costs for the removal and reinstallation of any product
found to be defective, or the cost of transportation to Magnadyne Corporation or its authorized
agents. Such costs are the sole responsibility of the purchaser.
This warranty does not cover the cabinet, appearance items, normal wear and tear or accessories
used in connection with the product resulting from improper installation, alteration, accident,
misuse, abuse or acts of nature.
This Limited Life Time Warranty applies only to the receiver section of the security system. Neither
the siren, transmitters, wire harness or any accessory item added to or used with a Remote Mobile
security system are covered by this Limited Life Time Warranty. Sirens, transmitters, wire harness
or any accessory item are covered by our standard 12 month limited warranty.
Magnadyne Corporation or its authorized agents shall not be liable to anyone for consequential
or incidental damages or claims that may arise due to failure of product to operate properly
except those accorded by law. Magnadyne's or its authorized agents liability to the repair,
replacement of the product as stated above if all conditions of the warranty are met. No
expressed warranty or implied warranty is given except those set forth herein. Magnadyne does
not warrant or guarantee against break in damage or the theft of the vehicle in part or whole, or
against the loss or damage to the contents of any vehicle in which a security system is
installed. Magnadyne security systems are only a deterrent against possible theft.
This warranty extends only to the original purchaser of the product and for the vehicle in which it
was originally installed. This warranty is not transferable or assignable to any person or vehicle.
Defective merchandise should be returned to the original point of purchase or secondly to
Magnadyne Corporation, 1111 W. Victoria Street, Compton, CA 90220. A return authorization must
be obtained before sending, or merchandise may be refused.
PLUS6900-UM.qxp 4/3/2009 1:21 PM Page 20

Navigation menu
