Nutek >
User Manual
Register at caralarm.com
OPERATION GUIDE
AL-1775-3DB
RS-475-3D
al-1775-3db & rs-475-3d op guide.indd 1 8/3/16 7:41 AM
Temporary cover. Final cover is in a separate le.
OPERATION GUIDE
AL-1775-3DB / RS-475-3D
REMOTE START & SECURITY PERFECTED
1
Table Of Contents
Controller & Transmitter Overview..................................................................... 3
The 2-Way Controller .................................................................................... 3
The 1-Way Transmitter .................................................................................. 3
Controller & Transmitter Functions .................................................................... 3
Other Remote Start Features ............................................................................ 8
Low Vehicle Battery Alert ............................................................................... 8
Low Battery/Low Temp Automatic Starting .................................................... 8
Turbo Timer Mode ......................................................................................... 8
Pit-Stop Mode ................................................................................................ 8
XL Pit-Stop Mode .......................................................................................... 8
Manual Transmission Starting ....................................................................... 9
Security System Features ................................................................................. 9
Last Door Arming ........................................................................................... 9
Automatic Rearming ...................................................................................... 9
Pre-Warn Detection ....................................................................................... 9
When The System Triggers ......................................................................... 10
Using The Valet Button .................................................................................... 10
Emergency Override ................................................................................... 10
SecureCode ................................................................................................ 10
Valet Mode ....................................................................................................11
The Status Light ...............................................................................................11
Multi-Car Operation ......................................................................................... 12
Selecting CAR #1 or CAR #2 ...................................................................... 12
Controller Options............................................................................................ 12
In-Range Indicator ....................................................................................... 12
Selecting Melody, Soft Melody, & Mute modes ........................................... 12
Button Lock ................................................................................................. 12
Anti-Carjacking Protection ............................................................................... 14
Programming Controllers/Transmitters ............................................................ 15
Programming Features .................................................................................... 15
User Programmable Features ......................................................................... 16
Installer Programmable Features .................................................................... 19
2

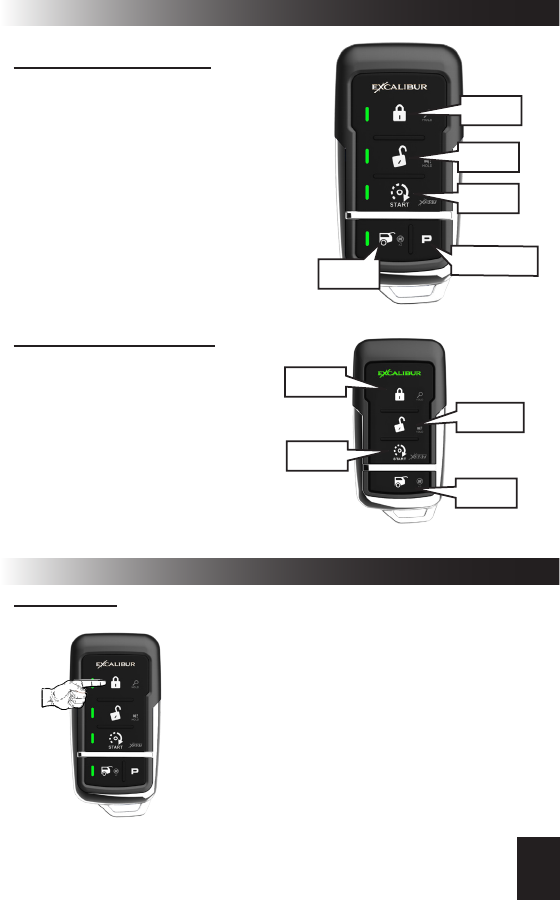

THE 2-WAY CONTROLLER
Controller & Transmitter Overview
Controller part number:
1511-03E (w/ 2 CR2025 batteries)
Call your dealer or visit www.caralarm.com to order
replacement transmitters.
Transmitter part number:
1412-03 (w/ 1 CR2032 batteries)
Call your dealer or visit www.caralarm.com to order
replacement transmitters.
Transmitter battery replacement:
Remove the small screw from the lower
back case, and separate the transmitter
halves. Replace the batteries and
reassemble the transmitter case.
THE 1-WAY TRANSMITTER
LOCK / ARM: Press and release the LOCK button.
• THE SIREN WILL CHIRP & THE PARKING LIGHTS WILL
FLASH ONCE.
• UPON RECEIVING CONFIRMATION FROM YOUR
SYSTEM, THE CONTROLLER WILL FLASH THE LOCK
BUTTON LED (TWICE FOR CAR 2) AND BEEP ONCE.
Controller & Transmitter Functions
Controller battery replacement:
Remove the small screw from the lower
back case, and separate the transmitter
halves. Replace the batteries and
reassemble the transmitter case.
LOCK
button
START
button
UNLOCK
button
TRUNK
button
START
button
UNLOCK
button
TRUNK
button
PROGRAM
button
LOCK
button
3
Controller & Transmitter Functions (cont’d)

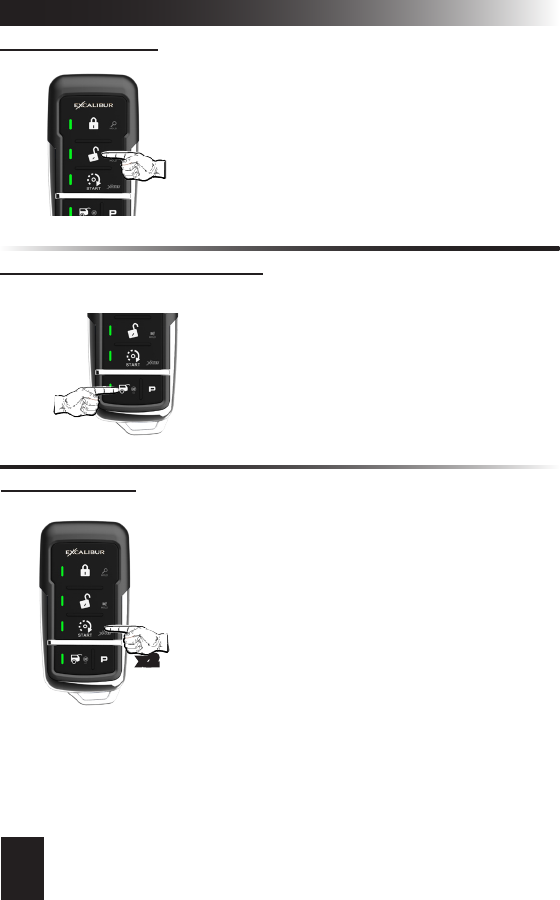

UNLOCK / DISARM: Press and release the UNLOCK button.
• THE SIREN WILL CHIRP TWICE & THE PARKING LIGHTS
WILL FLASH TWICE.
• UPON RECEIVING CONFIRMATION FROM YOUR
SYSTEM, THE CONTROLLER WILL FLASH THE UNLOCK
LED (TWICE FOR CAR 2) AND BEEP TWICE.
TRUNK RELEASE / CHANNEL 2: Press the TRUNK button for 3
seconds.
• THE SYSTEM WILL UNLOCK/DISARM AND THE TRUNK
WILL OPEN (IF EQUIPPED).
• UPON RECEIVING CONFIRMATION FROM YOUR
SYSTEM, THE CONTROLLER WILL FLASH THE TRUNK LED
(TWICE FOR CAR 2) AND BEEP TWICE.
REMOTE START: Press and release the START button twice within 5
seconds (see user feature #8 to change).
• THE PARKING LIGHTS WILL FLASH ONCE AND THE STATUS
LIGHT WILL FLASH RAPIDLY.
• THE SYSTEM WILL PROCEED TO START THE ENGINE.
• UPON RECEIVING CONFIRMATION, THE CONTROLLER WILL
PLAY THE START MELODY AND FLASH THE START BUTTON
LED ONCE EVERY 1/2 SECOND (TWICE FOR CAR 2).
• ONCE THE ENGINE IS RUNNING, THE PARKING LIGHTS WILL
TURN ON AND THE STATUS LIGHT WILL FLASH SLOWLY.
• ALL 4 LED’S ON THE CONTROLLER WILL FLASH EVERY 5
SECONDS INDICATING THE RUN TIME IS AT 100%. EACH LED
REPRESENTS 25% OF THE RUN TIME AND THEY WILL STOP
FLASHING ONE AT A TIME AS THE RUN TIME DECREASES.
• If the engine stalls, the system will make up to 3 more attempts.
• Each time you park, set the climate controls to give you the desired interior
temperature when you use the remote start.
• The engine will run for the preset run time (see user feature #1).
(continued on p. 5)
x2
4
Controller & Transmitter Functions (cont’d)

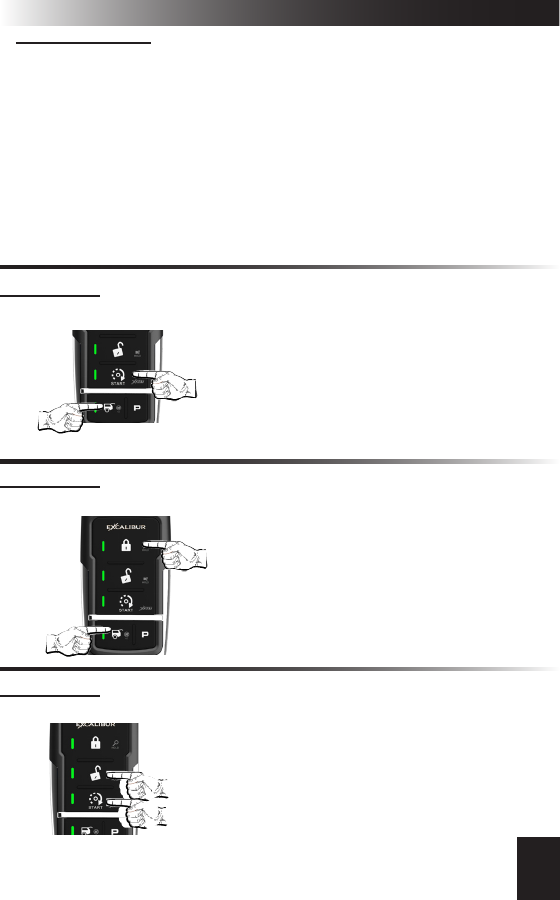

CHANNEL 3: Press and hold the TRUNK & START buttons for 2
seconds.
• YOUR SYSTEM WILL ACTIVATE THE CH. 3 OUTPUT.
• UPON RECEIVING CONFIRMATION FROM YOUR
SYSTEM, THE CONTROLLER WILL FLASH THE START &
TRUNK LED’S 3 TIMES.
CHANNEL 4: Press and hold the LOCK & TRUNK buttons for 2
seconds.
• YOUR SYSTEM WILL ACTIVATE THE CHANNEL 4
OUTPUT.
• UPON RECEIVING CONFIRMATION FROM YOUR
SYSTEM, THE CONTROLLER WILL FLASH THE LOCK
& TRUNK LED’S 4 TIMES.
• Run Time Extender: Press the START button one time during remote start to
restart the engine run timer. The timer will restart.
NOTE: This can only be used once per remote start cycle. The controller will also give you “run
time expiration warning” (2 beeps) 1 minute before the remote start cycle ends.
• If you decide not to drive your vehicle, you can turn off the remote start using the
same method to turn it on (Default = press START twice in 5 seconds).
NOTE: If user feature #8 is programmed for 1 press, the 1st press = Run Time Extender so an
additional press is required.
• Upon entering the vehicle during remote start mode, turn the ignition key to the
“ON/RUN” position (NOT START!!). When you press the brake pedal, the remote
start will turn off allowing the ignition key to take over.
CHANNEL 5: Press and hold the UNLOCK & START buttons for 3
seconds
• YOUR SYSTEM WILL ACTIVATE THE CHANNEL 5
OUTPUT.
• UPON RECEIVING CONFIRMATION FROM YOUR
SYSTEM, THE CONTROLLER WILL FLASH THE
UNLOCK & START LED’S 5 TIMES.
5
Controller & Transmitter Functions (cont’d)

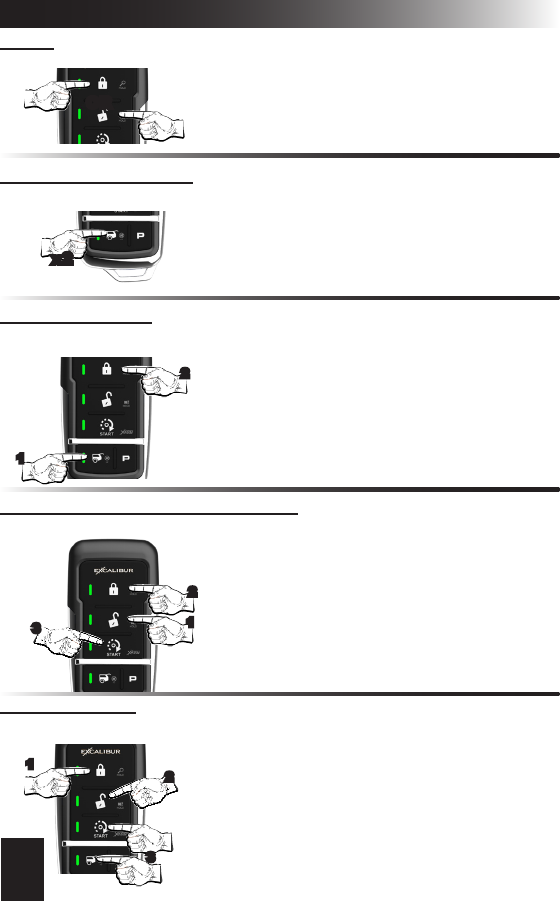

PANIC: Press and hold the LOCK or UNLOCK button for 3 seconds.
• THE SIREN/HORN WILL SOUND, THE PARKING LIGHTS
WILL FLASH, AND THE DOORS WILL LOCK OR UNLOCK
DEPENDING WHICH BUTTON IS PRESSED.
OR
SILENT ARM / DISARM: Press and release the TRUNK button twice
in 5 seconds. • THE PARKING LIGHTS WILL FLASH, AND THE DOORS
WILL LOCK/ARM OR UNLOCK/DISARM DEPENDING ON
THE CURRENT SYSTEM STATUS.
• UPON RECEIVING CONFIRMATION FROM YOUR
SYSTEM, THE CONTROLLER WILL FLASH THE LOCK OR
UNLOCK LED ONCE (TWICE FOR CAR 2)
x2
SENSOR BYPASS: Press and release the TRUNK button within 5
seconds of locking/arming the alarm system.
• THE SYSTEM WILL GIVE ONE CHIRP, AFTER LOCKING,
TO INDICATE THE SENSOR IS BYPASSED.
• UPON RECEIVING CONFIRMATION FROM YOUR
SYSTEM, THE CONTROLLER WILL ALSO CHIRP ONCE &
FLASH ALL 4 LED’S ONCE.
1
REMOTE VALET: Press LOCK then UNLOCK then TRUNK + START
within 5 seconds.
• THE SYSTEM WILL ENTER VALET MODE.
SEE PAGE 10 FOR MORE INFO ON VALET MODES.
• UPON RECEIVING CONFIRMATION FROM YOUR
SYSTEM, THE CONTROLLER WILL PLAY A MELODY
TO EXIT VALET VIA REMOTE, REPEAT THESE STEPS
LOW VOLTAGE/TEMP AUTO START: Press and release UNLOCK,
LOCK, START within 5 seconds.
• THE SYSTEM WILL GIVE ONE CHIRP TO INDICATE
THE LOW VOLT/LOW TEMP(15° F ONLY) AUTOSTART
IS ACTIVATED. SEE PAGE 7 FOR MORE INFO.
• UPON RECEIVING CONFIRMATION, THE
CONTROLLER WILL CHIRP ONCE AND THE CLOCK
WILL READ “RS AUTO” EVERY 5 SECONDS.
• SEE PAGE 7 FOR FUNCTIONAL DETAILS.
2
1
3
1
2
3
2
6
Controller & Transmitter Functions (cont’d)

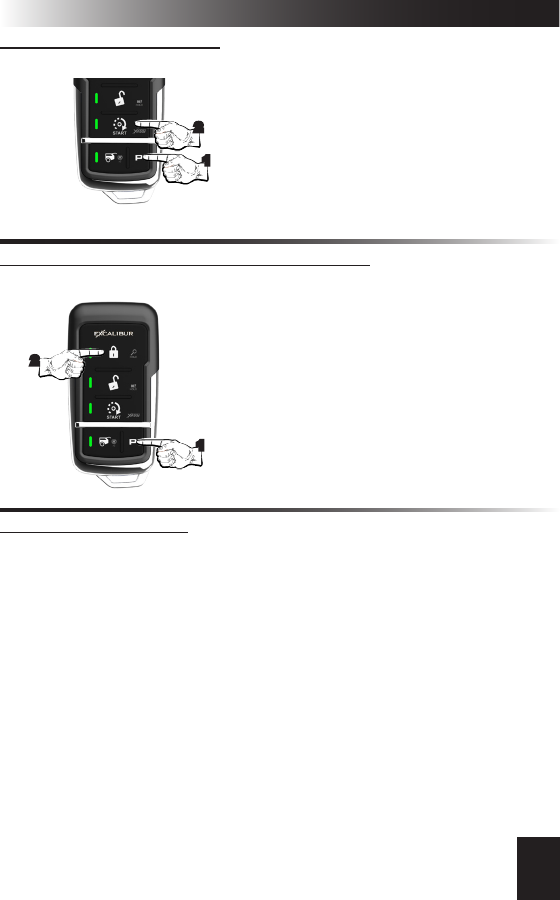

VEHICLE TEMP REQUEST: Press and release “P” then START within
5 seconds.
LOCK/UNLOCK STATUS UPDATE REQUEST: Press and release “P”
then LOCK within 5 seconds.
• UPON RECEIVING CONFIRMATION, THE
CONTROLLER WILL PLAY A MELODY AND FLASH
THE LEDs TO INDICATE THE VEHICLE’S INTERIOR
TEMPERATURE.
• TEMP INDICATORS:
1 LED = LESS THAN 30°F
2 LEDs = 31-60°F
2 LEDs = 61-90°F
4 LEDs = OVER 90°F
• THE SYSTEM WILL SEND A FULL STATUS UPDATE
TO THE CONTROLLER IN CASE THE STATUS
CHANGED WHILE THE CONTROLLER WAS OUT OF
RANGE OR BY ANOTHER CONTROLLER.
• THE LOCK OR UNLOCK LED WILL FLASH.
• THERE IS NO AUDIBLE INDICATION .
2
1
1
2
AUXILIARY FUNCTIONS 1-4:
The actual operation of these functions will vary from car to car. They are designed to
operate extra vehicle functions like automatic sliding doors or motorized hatches. Aux
1-4 are virtual outputs only available on certain vehicles when this system is integrated
with the vehicle’s data network. Consult with your installer to nd out if any of these
functions are available for your vehicle. If so, conrm each operation with the controller
and write each function in the blank spaces provided below.
- Auxiliary 1 Function (___________________): To activate this function, press and
release the TRUNK and START buttons simultaneously).
- Auxiliary 2 Function (___________________): To activate this function, press and
release the LOCK and TRUNK buttons simultaneously).
- Auxiliary 3 Function (___________________): To activate this function, press and
release the UNLOCK and START buttons simultaneously).
- Auxiliary 4 Function (___________________): To activate this function, press and
release the UNLOCK and TRUNK buttons simultaneously).
7
It is typically recommended that vehicles equipped with turbocharged engines allow the
engine to idle after driving to cool the turbocharger. When Installer Programmable Feature
#10 is ON, the system will automatically keep the engine running as follows:
• With the engine running, hold the brake pedal and engage the parking
brake. When the brake pedal is released, the system will keep the engine running for the
programmed time (1, 2, or 3 minutes).
• Turbo Timer can be bypassed by turning the engine off before engaging the parking
brake. If it’s already engaged, step on the brake pedal to turn the engine off.
TURBO TIMER MODE
PIT-STOP MODE
LOW VEHICLE BATTERY ALERT
XL PIT-STOP MODE
This feature allows you to leave your engine running for making quick errands. To use
this feature, have the engine running normally from the ignition switch and your foot off the
brake pedal. Press the Valet Switch twice; the parking lights will ash and the ignitions will
turn on. Turn the key off and the engine will remain running for the programmed run time.
Run time extender can be used in this mode.
When your vehicle’s battery drops below 11 volts for longer than 30 seconds, the
system will send an alert to the controller. The controller will beep 4 times. There is no
visual indication. The alert repeats every 30 seconds until you press any controller button.
This indicates that something is drawing excess power, your vehicle was parked for an
extended period, or your battery health is degrading. It is recommended to start your
engine before the battery voltage drops below adequate cranking voltage and leaves you
stranded.
This feature allows you to leave your engine running for making quick errands. To
use this feature, have the engine running normally from the ignition switch and your foot
off the brake pedal. Press the Valet Switch 6 times; the parking lights will ash and the
ignitions will turn on. Turn the key off and the engine will remain running for 12hrs. Run
time extender can be used in this mode allowing a run time up to 24hrs. This is
ideal for commercial refrigeration trucks, cleaning vans, vehicles w/ PTO, etc.
LOW BATTERY/LOW TEMP AUTOMATIC STARTING
Other Remote Start Features
This feature will automatically start the engine if the vehicle battery drops below
11 volts or the interior temperature drops to 15 (or 32) degrees fahrenheit. You must
activate these features each time you park your car to use them.
Method 1 - Valet Switch
• Turn the ignition switch “on”, then “off” (engine not running), and within 7 seconds
press the valet switch twice. If there is a 2 second delay without additional valet button
presses, the siren will chirp 3 times activating low voltage start mode.
• To activate low temp starting, enter low voltage start mode as described above then,
immediately after the horn honks, press the valet switch 1 time (15 degrees) or 2 times
(32 degrees) within 5 seconds. The siren will chirp to conrm your selection.
Method 2 - With The Controller (Low Volt & Low Temp. @ -15°F Only)
• Within 5 seconds, press UNLOCK, LOCK, START. You will get one chirp and the
2-way controller will ash the START LED twice every minute until canceled.
NOTE: When low temp start mode is activated, low voltage start is also activated. These
features will operate once every two hours until the ignition key is turned “ON”.
8
Other Remote Start Features (cont’d)
MANUAL TRANSMISSION STARTING
Remote starting with a manual transmission requires that you ensure the gear selector
is in NEUTRAL. There are 2 available methods.
METHOD #1 - 3D MOTION SENSOR:
This system is equipped with a 3D motion sensor built into the antenna. Whenever remote
start is activated, this sensor is monitored for vehicle movement. If the vehicle moves just
a few inches when the engine is cranking, it will instantly turn the engine off. This safety
feature allows you to enjoy remote start without performing reservation mode as described
below.
METHOD #2 - RESERVATION MODE:
For extra safety, installer feature #11 can be turned on which requires you to perform a
setup procedure that ensures the transmission was left in neutral when you park your
vehicle. This must be performed each time you leave your vehicle to use remote start
later. To do so, follow these steps:
1) With the engine running via the ignition switch, hold the brake pedal, apply the parking
brake, then release the brake pedal.
2) Use the transmitter as if you were activating remote start (default: press START twice).
The status light will start to ash slow.
3) Turn off the ignition key and exit the vehicle.
4) Press LOCK on the transmitter. The engine will shut down (unless turbo timer is on)
and the status light will ash every 2 seconds (ready to be remote started).
NOTE: Manual transmission starting is canceled if you enter the vehicle after
performing the setup procedure.
Security System Features
LAST DOOR ARMING
This system can be congured to arm automatically when all the vehicle’s doors
are closed (see user feature #9). When this feature is utilized, the siren/horn will chirp
once when all of the doors are closed. At that point, it will start a 30 second countdown
(indicated by a fast ashing status light). After 30 seconds, the system will arm (and lock
the doors if congured to do so). During the 30 second arming delay, if a point of entry is
opened, the countdown will pause until all entry points are closed again. Turning ON the
ignition key will cancel the last door arming sequence until the key is turned off and the
doors are all closed once again.
AUTOMATIC REARMING
This automatically rearms the alarm if the system is disarmed from the remote
(see user feature #10). When disarmed by remote, the system will start a 90 second
countdown (fast ashing status light) to arm the system. This is useful if the controller
accidentally disarms the system when it’s kept in a purse or pocket where other items
could potentially press the buttons. ENHANCED AUTO REARM allows you to cancel
the countdown by pressing UNLOCK a second time within 5 seconds of the rst press to
disarm the alarm.
PRE-WARN DETECTION
This system’s impact sensor is designed, in addition to detecting a full impact, will warn
away potential violators when it detects a light impact to the vehicle. The
system will respond by chirping the siren/horn 3 times and locking the doors. 9
Using The Valet Button
Security System Features (cont’d)
SECURECODE
SecureCode allows you to customize the number of valet presses required to perform
an emergency override. This is an extra layer of security that prevents anyone from
overriding the alarm even if they have a key to the vehicle. SecureCode has 2 stages
with the rst requiring 1-9 button valet presses and the second requiring 0-9 valet button
presses. This gives you 99 possible combinations. To program a custom SecureCode,
please refer to user feature #13 on Page 18.
To perform an emergency override with SecureCode, use the following steps:
STEP 1 - With the system armed, enter the vehicle (the alarm will activate).
STEP 2 - Turn the ignition switch to the “ON” position.
STEP 3 - Within 5 seconds of step 2, press the valet switch to enter the rst digit of your
programmed code.
STEP 4 - After a few seconds, the siren will stop sounding and chirp once (conrming
stage 1). The siren will then continue sounding.
STEP 5 - Now, within 5 seconds of step 4, press the valet switch to enter the second digit
of your code. If the code is correct, the alarm will disarm.
EMERGENCY OVERRIDE
If you were to lose or break your controller, you’d need to perform an emergency
override to disarm the system and use your vehicle. To do so, use the following steps:
STEP 1 - Enter the vehicle (the alarm should sound).
STEP 2 - Turn the ignition key to the “ON” position.
STEP 3 - Press the valet switch (located in the window-mount antenna) once.
NOTE: Enter your SecureCode at this time if programmed via user feature #13
STEP 4 - Turn the ignition key “OFF”.
If the code is entered incorrectly, you must turn the ignition key OFF, then back
ON to try again. Additionally, if 2 failed attempts are made, the alarm will ignore
any further attempts for 2 minutes.
WHEN THE SYSTEM TRIGGERS
It will sound the siren/horn and ash the parking lights for 30 seconds (programmable).
At this point you will also be notied on the controller as to which zone is violated (while
in range). When disarming after a trigger event, the siren/horn will chirp 4 times and the
parking lights will ash 4 times instead of the standard 2 times.
ZONE INDICATORS (1 FLASH = CAR1, 2 FLASHES = CAR2):
HOOD: LOCK + UNLOCK LEDs will ash
DOOR: LOCK + UNLOCK + START LEDs will ash
SENSOR: All 4 LEDs will ash
LOCK ON TRIGGER: If a door is opened when the system is triggered, it will wait until the
door is closed again, then lock the doors. This feature combats “slim jim” type devices.
STORM SAFE MODE: When the system is triggered, pressing the UNLOCK button will
stop the alarm from sounding but will leave the doors locked.
NUISANCE PREVENTION: If the system pre-warns 5 times within 15 minutes, it will
bypass the zone for the remainder of the 15 minutes before rearming the pre-warn zone.
Additionally, if a full trigger zone is left open, the system will trigger a total of 3 times
before bypassing the zone. Once the zone is closed again, it will re-arm that zone.
10
The Status Light
VALET MODE
Valet mode completely disables all security & remote start functions. Keyless entry is
still operable. To enter valet mode, perform the following steps:
STEP 1 - Disarm the system by remote or by performing an emergency override.
STEP 2 - Press and hold the valet switch for 2 seconds. The system will chirp once
and the status light will turn on.
EXITING VALET MODE - Press and release the valet switch once.
The status light, located in the antenna, indicates the system’s current status.
SECURITY SYSTEM STATUS
OFF: The alarm is disarmed and not performing any automatic functions.
ON: The alarm is in valet mode.
FLASHING SLOW: The alarm is armed and monitoring all entry points.
FLASHING FAST: One of the automatic arming features is in progress.
AUTOMATIC TRANSMITTER VERIFICATION
Every time you turn on the ignition key, the status light will ash a number of times
equal to the number of controllers programmed to the system. This unique security
feature combats potential thieves (valet attendant, mechanic, etc.) from adding their own
transmitter without your knowledge and accessing your vehicle at a later time.
ALARM ZONE VIOLATION RECALL
If the security system is triggered, upon disarming, the status light will ash
a number of times to indicate exactly which zone(s), has been violated. It will
store the last 2 violated circuits and continually repeat the ash pattern until the vehicle’s
ignition key is turned ON.
2 FLASHES: Hood trigger
3 FLASHES: Door trigger
4 FLASHES: Sensor port trigger
REMOTE START STATUS
FLASHING SLOW: The engine was remote started successfully and is running.
FLASHING FAST: The remote start sequence has begun and is in process of starting.
2 FLASHES, PAUSE: The engine is running while the alarm is armed.
REMOTE START DIAGNOSTICS
The remote start system can also indicate which zone caused the last remote start
cycle to end. To see this indicator, place the system into alarm valet mode. Immediately
after the chirp, the status light will ash to indicate which zone violation occured.
1 FLASH: The hood was opened.
2 FLASHES: Brake pedal was pressed or
3 FLASHES: Bad tach signal or engine overrev.
4 FLASHES: The neutral safety circuit was triggered.
5 FLASHES: The 3D sensor detected vehicle motion.
6 FLASHES: Received command to stop.
7 FLASHES: The alarm was triggered.
8 FLASHES: Run time expired.
9 FLASHES: Low battery voltage was detected.
Using The Valet Button (cont’d)
11
The controller can operate up to 2 different systems. When controlling 2 systems, it will
receive all status updates on the currently selected vehicle prole and will receive only
trigger alerts for the 2nd vehicle. You can switch from one car to the other at anytime. Use
the following steps to change vehicles.
SELECTING CAR #1 OR CAR #2
Vehicle #1: Press the “P” and LOCK buttons for 1 second to select Car #1. The controller
will beep once and ash the LOCK LED once.
Vehicle #2: Press the “P” and UNLOCK buttons for 1 second to select Car #2. The con-
troller will beep twice and ash the UNLOCK LED twice.
Multi-Car Operation
Controller Options
SELECTING MELODY, SOFT MELODY, & MUTE MODES
Whenever 2-way alerts are received from the system, the controller can alert you with a
melody, soft melody, or visual only. By default, the controller is set for melody only.
Hold the “P” then TRUNK buttons simultaneously for 1/2 second to change.
You can lock the buttons on the controller to prevent accidental button presses. To lock
the buttons, hold “P” then START simultaneously for 1 second. Repeat this to unlock the
buttons. While the buttons are locked, all 4 LEDs will ash when you press any button.
BUTTON LOCK
All primary commands sent to the system have a conrmation response that is sent
to the controller to indicate that the command was successful. If no response is received
within a few seconds, all 4 LEDs will ash once indicating that you may be out of range of
your system.
IN-RANGE INDICATOR
12
BLANK PAGE
13
Anti-Carjacking Protection
The system is equipped with two separate Anti-Carjacking protection features (ignition,
open door, or both). All are programmable, and must be turned on to operate. Once
activated, the user has 60 seconds to cancel the Anti-Carjacking protection process
(described below). If Anti-Carjacking is not cancelled, 53 seconds after being activated
the siren will begin to chirp for 7 seconds to alert the user that the system is about to enter
into an alarm condition. The Valet Switch may still be pressed once during this period to
cancel the Anti-Carjacking process.
If the Anti-Carjacking process is not cancelled before the 60 second countdown ex-
pires, the system will enter an alarm condition, sounding the siren and ashing the parking
lights. 30 seconds after this occurs, or should the ignition be turned off in the meantime,
the stater interrupt will engage. Once the system enters the alarm condition, it will not
respond to the transmitter, nor will the system reset automatically after 60 seconds, and it
can only be disengaged by:
Step 1 Turning the vehicle’s ignition off.
Step 2 Turning the ignition back on.
Step 3 Within 5 seconds, perform an Emergency Override using the Valet Switch. If the
SecureCode has been customized, the correct number of Valet Switch presses must be
made.
The different types of Anti-Carjacking protection are:
Ignition Activated Anti-Carjacking activates every time the vehicle’s ignition is turned
on. The Valet Switch must be pressed within 60 seconds of activating to cancel Anti-
Carjacking. This is User Programmable Feature #12.
Door Anti-Carjacking activates when a door is opened after the vehicle is started and
the engine is running. The Valet Switch must be pressed within 60 seconds after activa-
tion to cancel Anti-Carjacking. This is User Programmable Feature #12.
14
If the Unauthorized Transmitter Alert feature is on, programming a transmitter to the
system will activate the “UTA” warning and the extended Status Light indication. For the
next 48 hours, the siren/horn will sound a brief series of chirps every time the vehicle’s
ignition key is turned on.
Special Programming procedure to turn on the UTA feature: Use this method to
program transmitters or optional controllers, and to turn on the Unauthorized Transmitter
Alert feature.
Follow the same steps as the Standard Programming, but on any transmitter/controller
being programmed instead of pressing the LOCK button, press the LOCK and the UN-
LOCK buttons together. This action turns on the Unauthorized Transmitter Alert feature
and at the same time programs the transmitter or controller to operate the system.
Once the Unauthorized Transmitter Alert feature is turned on, the warning will sound
for 48 hours after any transmitter programming, including the programming session which
was used to turn it on. This feature can only be turned off again by sending the system
back to Omega for a reset.
Step 1 Turn the ignition key “ON”, then “OFF”.
Step 2 Within 5 seconds of step 1, press the valet switch 5 times to access user features
(10 times to access installer features).
~ The siren/horn will sound and the status light will turn on.
Step 3 Within 10 seconds of step 2, press the valet switch the number of times corre-
sponding with the desired feature’s number.
~ The siren/horn will chirp, the status light, and the parking lights will ash equal
to the selected feature.
Step 4 Change the feature by pressing the transmitter button that corresponds with
the desired setting. The siren/horn will chirp to correspond with the chosen setting.
Programming Features
Standard Programming: Using this method to program additional or replacement
transmitters does not turn on or otherwise affect the Unauthorized Transmitter Alert (UTA)
feature. Before you begin, have all transmitters which are to operate the system at hand
and make sure the correct vehicle prole (see page 12) is selected on the controller(s).
Step 1 Then, turn the ignition “on”.
Step 2 Within 5 seconds of Step 1, press the Valet Switch 5 times. The siren/horn will
briey sound, conrming that the system is ready to learn a transmitter code.
Step 3 Press the LOCK button on each transmitter one at a time. The system will chirp
the siren/horn once to conrm that each was learned. If a code is not received within 10
seconds of Step 2, the learning process will automatically exit.
Programming Controllers/Transmitters
15
User Programmable Features
Feature #5 - Ignition Controlled Lock/Unlock
Off (press LOCK to program)
Lock w/ Ignition On (press UNLOCK to program)
Unlock w/ Ignition Off (press TRUNK to program)
Lock And Unlock w/ Ignition (press START to program)
This feature controls the lock/unlock operations when the ignition key is turned on/off,
Feature #1 - Remote Start Run Time
3 Minutes (press LOCK to program)
10 Minutes (press UNLOCK to program)
15 Minutes (press TRUNK to program)
20 Minutes (press START to program)
30 Minutes (press LOCK & UNLOCK to program)
This sets the maximum amount of time that the remote start will keep the engine running if
it is not shut down by other methods.
Feature #3 - Conrmation Chirp Volume
Low (softest) (press LOCK to program)
Medium Low (press UNLOCK to program)
Medium High (press TRUNK to program)
High (loudest) (press START to program)
This feature allows the choice different chirp volume levels, and when programming it,
each selection will be conrmed in the chosen volume making it easy to choose the most
suitable setting.
Feature #4 - BROWN Wire Audible Output
Pulsed Horn Low (press LOCK to program)
Pulsed Horn Medium (press UNLOCK to program)
Pulsed Horn High (press TRUNK to program)
Steady Siren (press START to program)
Random (press LOCK & UNLOCK to program)
This changes the BROWN wire’s audible output when the alarm is triggered. Steady siren
must be selected when using a siren (other horn outputs stay at the Medium setting). The
horn honk options will affect all horn honk outputs used as well as change the BROWN
wire’s function.
Feature #2 - Flashing Light Conrmations
Unlock: ON, RS: ON (press LOCK to program)
Unlock: ON, RS: Flash (press UNLOCK to program)
Unlock: Flash, RS: ON (press TRUNK to program)
Unlock: Flash, RS: Flash (press START to program)
This feature affects the parking light conrmations for system unlock & remote start func-
tions. With the above options, you can select any combination of:
Unlock: Flash - Flashes twice after unlock
Unlock: ON - Flashes twice then stays on for 30 seconds after unlock
RS: ON - Stays on during remote start mode
RS: Flash - Flashes once every 1.5 seconds during remote start mode
16
User Programmable Features (cont’d)
Feature #9 - Last Door Arming
Off (press LOCK to program)
On w/o doors locking (press UNLOCK to program)
On w/ doors locking (press TRUNK to program)
“Last Door Arming” has the system automatically arm itself every time you exit the vehicle
(the complete operation is described on page 8).
Feature #10 - Automatic Rearming
Off (press LOCK to program)
On w/o doors locking (press UNLOCK to program)
On w/ doors locking (press TRUNK to program)
Enhanced auto rearm (press START to program)
“Automatic Rearming”, described on page 9, rearms the alarm if accidentally disarmed.
Options are to have Automatic Rearming operate with or without also locking the doors
when the system does rearm. Enhanced auto rearm allows you to cancel the rearming
sequence by pressing unlock a 2nd time after disarming.
Feature #6 - Open Door Bypass of Ignition Locking
On (press LOCK to program)
Off (press UNLOCK to program)
This feature cancels the automatic locking or unlocking of the vehicle’s doors if one of the
doors is open when the ignition switch is turned on or off.
Feature #7 - Unlock w/ Trunk Release
On (press LOCK to program)
Off (press UNLOCK to program)
“2nd channel” is most commonly used for trunk release, in which case the alarm should
also disarm. This feature, when on, congures the system to unlock/disarm when the 2nd
channel is activated.
Feature #8 - Remote Start Activation From The Remote
Press START button 1 time (press LOCK to program)
Press START button 2 times (press UNLOCK to program)
Press START button 3 times (press TRUNK to program)
Press START button 4 times (press START to program)
This feature changes how the remote start feature is activated from the remote.
Feature #11 - Conrmation Chirps
Siren + Horn (press LOCK to program)
Siren Only (press UNLOCK to program)
Horn Only (press TRUNK to program)
On Demand (siren+horn) (press START to program)
Off (press LOCK & UNLOCK to program)
This feature selects whether the siren and/or horn give conrmation chirps. Both outputs
will always sound when the alarm system is triggered or in panic mode.
Feature #12 - Anti-Carjacking
Ignition Only (press LOCK to program)
Door Only (press UNLOCK to program)
Ignition + Door (press TRUNK to program)
Off (press START to program)
This selects between the 2 forms of anti-carjacking protection. Details on using anti-
carjacking protection are described on page 14.
17
User Programmable Features (cont’d)
Feature #15 - Alarm Trigger Duration
30 Seconds (press LOCK to program)
60 Seconds (press UNLOCK to program)
90 Seconds (press TRUNK to program)
120 Seconds (press START to program)
This feature selects the period of time for which the system sounds the siren (and/or horn)
and ashes the lights when triggered. Caution: Before lengthening the Alarm Duration
you should always check and determine if there are any local anti-noise or nuisance
ordinances in your area.
Feature #16 - Arming Delay
3 Seconds (press LOCK to program)
15 Seconds (press UNLOCK to program)
30 Seconds (press TRUNK to program)
45 Seconds (press START to program)
This selects how long the alarm waits to monitor trigger zones after arming.
Feature #17 - Open Door Warning Upon Arming
On (press LOCK to program)
Off (press UNLOCK to program)
When this feature is turned on, if one of the vehicle’s doors is open at the time that the
system is armed via the controller or transmitter, the siren will chirp 3 times and the park-
ing lights will ash 3 times, instead of once.
Feature #14 - Ignition Activated Override
On (press LOCK to program)
Off (press UNLOCK to program)
This feature allows an activated system to be overridden and disarmed by simply turning
the ignition switch on within 10 seconds of the alarm triggering. After 10 seconds, the
Emergency Override must be performed.
Feature #13 - SecureCode
DEFAULT - 1 Press
SecureCode is a unique patented feature which allows you to select the number of Valet
Switch presses in two stages, instead of “1 press”, which would be required in order to
perform an Emergency Override. If any of the three anti-carjacking features are utilized,
a customized SecureCode would also be required to turn it off once it is fully activated.
SecureCode operation is described on page 10.
To custom program a new SecureCode:
Step 1 Access user feature #13 (follow the steps on page 15).
Step 2 Within 10 seconds slowly press and release the transmitter’s LOCK button
the number of times equal to the desired SecureCode for stage 1, allow the system to
respond to each transmitter button press with a siren chirp before pressing the button
again. A few seconds after the nal button press, the system will chirp conrming the total
number for stage 1.
Step 3 Congure stage 2 of the SecureCode by pressing and releasing the LOCK button
again equal to the number of times desired for the stage 2. The system will
conrm as it did for stage 1.
NOTE:To start over, press the valet button 13 times again.
18
Installer Programmable Features
This group of Installer Programmable Features are all accessed as a group in the second
level of features’ programming. These features have a direct affect upon the system’s op-
erations related to the installation and vehicle type AND SHOULD ONLY BE CHANGED
BY THE INSTALLER!!!
Feature #1 - Remote Start Activation From The WHITE/BLUE Wire
1 pulse (press LOCK to program)
2 pulses (press UNLOCK to program)
3 pulses (press TRUNK to program)
4 pulses (press START to program)
This feature changes how remote start is activated from the (-) activation input wire.
Feature #2 - Vehicle Learn
Enabled (press LOCK to program)
Disabled (press UNLOCK to program)
When enabled, the system will allow the installer to perform vehicle learn (described in the
installation guide). This allows quick programming of several vehicle specic settings.
WARNING: This feature should only be programmed by the installer.
Feature #3 - Engine Detection Method
Progressive Voltage (press LOCK to program)
Voltage (press UNLOCK to program)
Tach Wire (press TRUNK to program)
Data Tach (press START to program)
Crank Only (press LOCK & UNLOCK to program)
This feature selects the method in which the remote start monitors the engine’s running
condition in remote start mode. The best method available is auto-detected during the
VEHICLE LEARN process.
“Progressive Voltage” mode is a new version of our popular “tachless hi” method. It
uses a preset crank time (see installer feature #7) and monitors the vehicle’s voltage level
to determine if the engine is running. This setting looks for a voltage increase of 0.3v after
cranking but allows for voltage drops after the engine is running for 2 minutes accomodat-
ing new progressive style alternators. This method is the most universal for all vehicles.
“Voltage” mode looks for a voltage increase of 0.5v after cranking and constantly moni-
tors voltage during remote start operation.
“Tach Wire” Before this setting is programmed, refer to the “Violet/White wire” section of
the installation manual for proper wiring connection and the Tach Learn Procedure. It will
crank the engine for up to 3 seconds or until a tach signal is detected.
“Data Tach” mode operates just like the “Tach Wire” setting except it takes its reading
from the D2D data port instead of using the Violet/White wire. Before using, make sure
this function is supported by the Databus Interface module.
“Crank Only” AKA “blind start” is similar to the “Tachless” settings however, it only makes
one start attempt and does not monitor engine running conditions. This is useful for many
“push-to-start” vehicles.
Feature #4 - Gasoline Or Diesel Engine
Gasoline (press LOCK to program)
Diesel 15 Sec. Delay (press UNLOCK to program)
Diesel 20 Sec. Delay (press TRUNK to program)
Diesel 30 Sec. Delay (press START to program)
This feature changes the system’s timing of the ignition and starter output sequence for
gas or diesel engines. Gasoline: the starter output will occur 3 seconds after the ignitions
turn on. When in “Tachless” mode, the engine running status is determined 10 seconds
after starting. Diesel: the starter output will occur 15, 20, or 30 seconds after the
ignitions turn on (allows for glow plug warming). When in “Tachless” mode, the
engine running status will be determined 40 seconds after cranking.
19
Installer Programmable Features (cont’d)
Feature #5 - Light Relay Function (3DB) / Sat. Port Green Wire Function (non-3DB)
Dome Light Output (press LOCK to program)
Start (press UNLOCK to program)
Ignition Output (press TRUNK to program)
Accessory Output (press START to program)
Status (press LOCK & UNLOCK to program)
Light Flash (press TRUNK & START to program)
This output can be programmed to perform any functions listed above. 3DB models
utalize a built in relay. Non-3DB models use a 250ma negative output on the satalite port.
Feature #7 - Starter Cranking Time
0.75 Second (press LOCK to program)
1.00 Second (press UNLOCK to program)
1.5 Seconds (press TRUNK to program)
2.25 Seconds (press START to program)
3 Seconds (press LOCK & UNLOCK to program)
Average (press TRUNK & START to program)
This feature determines the crank time of the 1st start attempt when in “Tachless” mode.
If the engine doesn’t start on the rst attempt, it will retry up to 3 more times extending
the crank time by an additional 0.2 second with each attempt. The “Average” setting will
sample the last 8 cranks (by ignition key) and average the crank time automatically for
increased accuracy.
Feature #8 - Door Lock/Unlock Outputs
0.8 Second Outputs (press LOCK to program)
3 Second Outputs (press UNLOCK to program)
Double Pulse Unlock Output (press TRUNK to program)
Total Closure Lock Output (press START to program)
This changes the system’s doorlocking outputs to suite different vehicle requirements. The
total closure setting provides a 28 second lock pulse (press LOCK or UNLOCK is during
the pulse to stop it) and a 0.8 second unlock pulse.
Feature #9 Remote Start Lock Control
Off (press LOCK to program)
Lock After Start (press UNLOCK to program)
Unlock Before start (press TRUNK to program)
Unlock Before Start & Lock After Start (press START to program)
Lock After Engine Off (press LOCK & UNLOCK to program)
This feature allows for OEM alarm/lock control in relation to remote start operations thus
eliminating extra wiring for OEM alarm control.
Feature #6 Blue Satellite Port, Blue Wire Function
Ignition (press LOCK to program)
Status / GWR (press UNLOCK to program)
Defrost 0.8 sec Pulse (press TRUNK to program)
Defrost 10 min Pulse (press START to program)
Pulse After Engine Off (press LOCK & UNLOCK to program)
Horn (press TRUNK & START to program)
This determines the function of the Blue wire on the Blue satellite relay port.
The Status setting turns on briey before the Ignition output and stays on during remote
start mode. The other pulse settings give a 0.8 second pulse under the selected condi-
tion. Defrost Pulse will send a pulse after start only when the cabin temperature is below
freezing (32 degrees F / 0 degrees C).
20
Installer Programmable Features (cont’d)
Feature #11 - Manual Transmission Reservation Mode
On (press LOCK to program)
Off (press UNLOCK to program)
This feature changes the parameters of the system’s remote start operation to be suitable
for manual transmission-equipped vehicles via a “setup” procedure which must be fol-
lowed upon exiting the vehicle to ensure the transmission is in neutral.
Feature #10 - Turbo Timer
Off (press LOCK to program)
Run 1 Minute (press UNLOCK to program)
Run 2 Minutes (press TRUNK to program)
Run 3 Minutes (press START to program)
This feature, the operation of which is described on page 8, when turned on
congures the system to automatically keep the engine running briey after the key is
turned off. This operation is designed specically for vehicles with turbocharged engines.
NOTE: This feature is dependent on the proper wiring of the neutral safety circuit.
Feature #12 Data Port Protocol
Green: DBI, Black: DBI (press LOCK to program)
Green: iData, Black: iData (press UNLOCK to program)
Green: DBI, Black: iData (press TRUNK to program)
Green: iData, Black: DBI (press START to program)
This feature determines which data protocol is used on each data port. Choose this based
on the accessory being connected to the port. NOTE: When a BLADE is inserted, this
feature automatically switches the black port to the iDatalink protocol.
Feature #14 - Pulse Ignition On Disarm
On (press LOCK to program)
Off (press UNLOCK to program)
This feature will pulse the ignition and activate any attached immobilizer bypass module
for vehicles that require the ignition to be turned on to disarm the OEM alarm.
Feature #15 Lock On Prewarn
On (press LOCK to program)
Off (press UNLOCK to program)
This feature will automatically lock the doors to combat unauthorized entry from lock pick-
ing when the prewarn zone is triggered.
Feature #16 - Starter Interrupt Functions
Alarm Only (press LOCK to program)
Anti-Grind Only (press UNLOCK to program)
Alarm & Anti-Grind (press TRUNK to program)
Automatic (press START to program)
Alarm Only - The Starter Interrupt is operable whenever the alarm is armed.
Anti-Grind Only - The Starter Interrupt is operable whenever remote start is on.
Alarm & Anti-Grind - This setting engages starter interrupt when the alarm is armed AND
when the system is in remote start mode.
Automatic - The Starter Interrupt output will automatically engage 90 seconds
after the ignition switch is turned “off”, and after disarming the system.
Feature #13 - Alarm Functions
On (press LOCK to program)
Off (press UNLOCK to program)
Off- Unlock Only (press TRUNK to program)
Sensor Detect (press START to program)
This feature converts keyless entry models to full alarm systems (installation changes may
be required). Sensor Detect automatically turns on alarm functions when a sensor is con-
nected to the sensor port or data port.
21
Installer Programmable Features (cont’d)
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in ac-
cordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to cor-
rect the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Warning! Changes or modications made to this equipment not expressly approved by the part responsible for compli-
ance could void the use’s authority to operate the equipment
NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modica-
tions to this equipment. Such modications could void the user’s authority to operate the equipment.
Feature #17 Low Temp Crank Extender
0ms (press LOCK to program)
200ms (press UNLOCK to program)
300ms (press TRUNK to program)
400ms (press START to program)
When the vehicle’s interior temperature is below freezing, this feature adds extra crank
time to the base timing (see installer feature #7). It applies to tachless modes only
(installer feature #3).
Feature #20 Low Current / Motorcycle Mode
On (press LOCK to program)
Off (press UNLOCK to program)
This feature, when on, reduces the system’s current draw by as much as 40% to maxi-
mize the vehicle’s battery life while the alarm is armed. It causes the starter interrupt
output to only operate when the ignition is turned on and reduces the frequency of the
“armed” ashing status light signicantly. This is ideal when the system is to be used on
vehicles that have limited battery capacity and/or may sit for extended periods without
charging the battery.
Feature #18 - Arm, Disarm or Additional Channels
Arm / Disarm (press LOCK to program)
Arm / Channel 5 (press UNLOCK to program)
Channel 4 / Disarm (press TRUNK to program)
Channel 4 / Channel 5 (press START to program)
The system has outputs designed for arming and/or disarming a factory-equipped security
system. These wires may be used instead to provide further system outputs, which are
remotely operated by the controller or transmitter. These outputs are in addition to the
2nd channel and 3rd channel outputs. As shown in the programming assignment, the
arm, disarm, channel 4 and channel 5 are programmable as various combinations. For
example, if the disarm output is needed, but not the arm output, then channel 4 may be
made available for use.
Feature #19 - Horn Relay Function (3DB) / Brown Wire Function (non-3DB)
Horn Output (press LOCK to program)
Ignition (press UNLOCK to program)
Trunk Release (press TRUNK to program)
Pulse After Start (press START to program)
The primary function of this second relay, is to operate the vehicle’s existing horn; either in
conjunction with the electronic siren, or in place of the siren. Using both the siren and the
horn creates an extremely effective security system. Optionally, if desired or needed, this
relay can be programmed for the other functions listed above.
22
CONVENIENCESECURITYINSTALLER ONLY
User Feature Programming: Ignition on, off, press valet 5 times
# Feature Lock Button
(Brake 1x)
Unlock button
(Brake 2x)
Trunk button
(Brake 3x)
Start button
(Brake 4x)
Lock +
Unlock
(Brake 5x)
Trunk
+ Start
(Brake 6x)
1 Remote Start Run Time 3 min 10 min 15 min 20 min 30 min
2 Flashing Light Conrmations Unlock: ON
RS: ON
Unlock: ON
RS: Flash
Unlock: Flash
RS: ON
Unlock: Flash
RS: Flash
3 Conrmation Chirp Volume Low Med-Low Med-High High
4 BROWN Wire: Siren / Pulsed Horn Pulse LOW Pulse MED Pulse HI Steady Siren Random
5 Ignition Lock / Unlock Off Ign On = Lock Ign. Off = Unlock Lock + Unlock
6 Door Open Bypass for Feat. #5 On Off
7 Unlock w/ Trunk Release On Off
8 RS Activation (Remote) Start x 1 Start x 2 Start x 3 Start x 4
9 Last Door Arming Off On w/o Lock On w/ Lock
10 Automatic Rearming Off On w/o Lock On w/ Lock Enhanced
11 Conrmation Chirps Siren + Horn Siren Only Horn Only On Demand Off
12 Anti-Carjacking Ignition Door Ignition + Door Off
13 Override Code See operation guide for programming instructions. DEFAULT: 1,0
14 Ignition Override On Off
15 Alarm Trigger Duration 30 sec 60 sec 90 sec 120 sec
16 Arming Delay 3 sec 15 sec 30 sec 45 sec
17 Open Door Warning Upon Arming On Off
Installer Feature Programming: Ignition on, off, press valet 10 times
1 RS Activation (WHITE/BLUE wire) 1 Pulse 2 pulses 3 pulses 4 pulses
2 Vehicle Learn Enabled Disabled
3 Engine Detection Prog. Voltage Voltage Tach Wire Data-tach Crank Only
4 Gasoline or Diesel Engine Gasoline 15 sec Diesel 20 sec Diesel 30 sec Diesel
5 Light Relay / Sat Port Green Wire Dome Light Start Ignition Accessory Status Light Flash
6 Blue Sat Port BLUE Wire Ignition Status 0.8 sec Defrost
Pulse
10 min Defrost
Pulse
Pulse After
Engine Off Horn
7 Crank Time 0.75 sec 1 sec 1.5 sec 2.25 sec 3 sec Average
8 Door Lock/Unlock Outputs 0.8 sec 3 sec Double Unlock Total Closure
9 Remote Start Lock Control Off Lock After Start Unlock before
Start
Unlock Before
& Lock After
Lock After
Engine Off
10 Turbo Timer Off 1 min 2 min 3 min
11 Manual Transmission Reservation On Off
12 Data Port Protocol Green: DBI
Black: DBI
Green: iData
Black: iData
Green: DBI
Black: iData
Green: iData
Black: DBI
13 Alarm Functions On Off Off-Unlock Only Sensor Detect
14 Pulse Ign. on Disarm On Off
15 Lock On Prewarn On Off
16 Starter Interrupt Alarm Only Anti-grind Only Alarm/Anti-Grind Automatic
17 Low Temp Crank Extender 0 ms 200 ms 300 ms 400 ms
18 Arm/Disarm or CH. 4/5 Arm/Disarm Arm/CH. 5 CH. 4/Disarm CH. 4/CH.5
19 Horn Relay Function / Brown Wire Horn Ignition Trunk Release Pulse After
Start
20 Low Current Mode On Off
FEATURE SETTING KEY: Default Setting Default For “3DB” Models When Different
23
Back Cover
Color cover is in a
separate le.
24
