OPERATION GUIDE

AL-1670-B

RS-375-3DB

RS-375-3D

RS-370

al-1670-B + rs-375-db + 375-3d + 370 op guide.indd 1 7/12/16 1:36 PM

Temporary cover. Final cover is in a separate le.

OPERATION GUIDE

AL-1670-B

RS-375-3DB

RS-375-3D

RS-370

REMOTE START & SECURITY PERFECTED

1

Table Of Contents

Controller Overview �� 3

The Controller �� 3

Controller Functions �� 3

Other Remote Start Features �� 8

Low Battery/Low Temp Automatic Starting �� 8

Turbo Timer Mode �� 8

Pit-Stop Mode �� 8

XL Pit-Stop Mode �� 8

Manual Transmission Starting �� 9

Security System Features �� 9

Last Door Arming �� 9

Automatic Rearming �� 9

Pre-Warn Detection �� 9

When The System Triggers �� 10

Using The Valet Button �� 10

Emergency Override �� 10

SecureCode �� 10

Valet Mode ��11

The Status Light ��11

Anti-Carjacking Protection �� 12

Programming Controllers/Transmitters �� 13

Programming Features �� 13

User Programmable Features �� 14

Installer Programmable Features �� 19

2

Controller Overview

Call your dealer or visit www.caralarm.com to order replacement controllers.

Transmitter battery replacement:

Remove the small screw from the lower back case, and separate the transmitter

halves� Replace the batteries and reassemble the transmitter case�

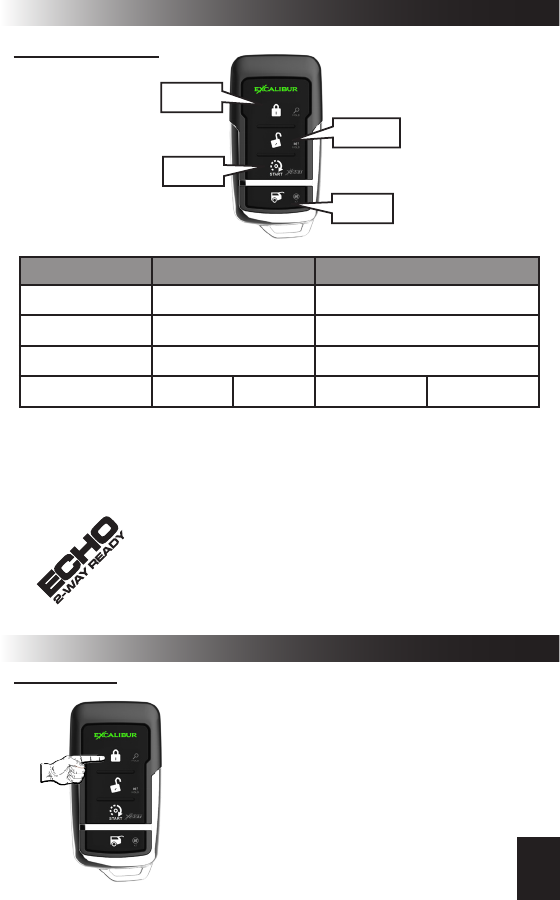

THE CONTROLLER

LOCK / ARM: Press and release the LOCK button�

• THE SIREN WILL CHIRP & THE PARKING LIGHTS WILL

FLASH ONCE�

Controller Functions

LOCK

button

START

button

UNLOCK

button

TRUNK

button

System Controller(s) Battery

AL-1670-B 1415-03 (x2) CR-2016 (2 per controller)

RS-375-3DB 1412-03 (x2) CR-2032 (1 per controller)

RS-370-3D 1412-03 (x2) CR-2032 (1 per controller)

RS-370 1415-03 1416-07 CR-2016 (x2) CR-2032 (x1)

IF YOUR ANTENNA HAS THE ECHO 2-WAY READY

LOGO, YOU CAN UPGRADE TO 2-WAY JUST BY ADDING

A 2-WAY CONTROLLER. ASK YOUR DEALER ABOUT:

MODEL 1510-03 (LCD 2-WAY)

MODEL 1511-03 (LED 2-WAY)

3

Controller Functions (cont’d)

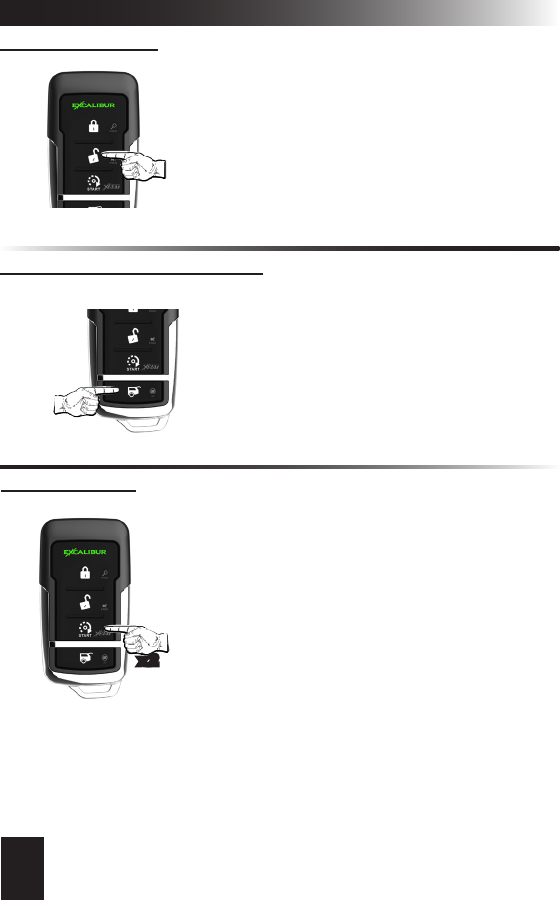

UNLOCK / DISARM: Press and release the UNLOCK button�

• THE SIREN WILL CHIRP TWICE & THE PARKING LIGHTS

WILL FLASH TWICE�

TRUNK RELEASE / CHANNEL 2: Press the TRUNK button for 3

seconds�

• THE SYSTEM WILL UNLOCK/DISARM AND THE TRUNK

WILL OPEN (IF EQUIPPED)�

REMOTE START: Press and release the START button twice within 5

seconds (see user feature #8 to change)�

• THE PARKING LIGHTS WILL FLASH ONCE AND THE STATUS

LIGHT WILL FLASH RAPIDLY�

• THE SYSTEM WILL PROCEED TO START THE ENGINE�

• ONCE THE ENGINE IS RUNNING, THE PARKING LIGHTS WILL

TURN ON AND THE STATUS LIGHT WILL FLASH SLOWLY�

• If the engine stalls, the system will make up to 3 more attempts�

• Each time you park, set the climate controls to give you the desired interior

temperature when you use the remote start�

• The engine will run for the preset run time (see user feature #1)�

(continued on p. 5)

x2

4

Controller Functions (cont’d)

CHANNEL 3: Press and hold the TRUNK & START buttons for 2

seconds�

• YOUR SYSTEM WILL ACTIVATE THE CH� 3 OUTPUT�

CHANNEL 4: Press and hold the LOCK & TRUNK buttons for 2

seconds�

• YOUR SYSTEM WILL ACTIVATE THE CHANNEL 4

OUTPUT�

• Run Time Extender: Press the START button one time during remote start to

restart the engine run timer� The timer will restart�

NOTE: This can only be used once per remote start cycle.

• If you decide not to drive your vehicle, you can turn off the remote start using the

same method to turn it on (Default = press START twice in 5 seconds)�

NOTE: If user feature #8 is programmed for 1 press, the 1st press = Run Time Extender so an

additional press is required.

• Upon entering the vehicle during remote start mode, turn the ignition key to the

“ON/RUN” position (NOT START!!)� When you press the brake pedal, the remote

start will turn off allowing the ignition key to take over�

CHANNEL 5: Press and hold the UNLOCK & START buttons for 3

seconds

• YOUR SYSTEM WILL ACTIVATE THE CHANNEL 5

OUTPUT�

5

Controller Functions (cont’d)

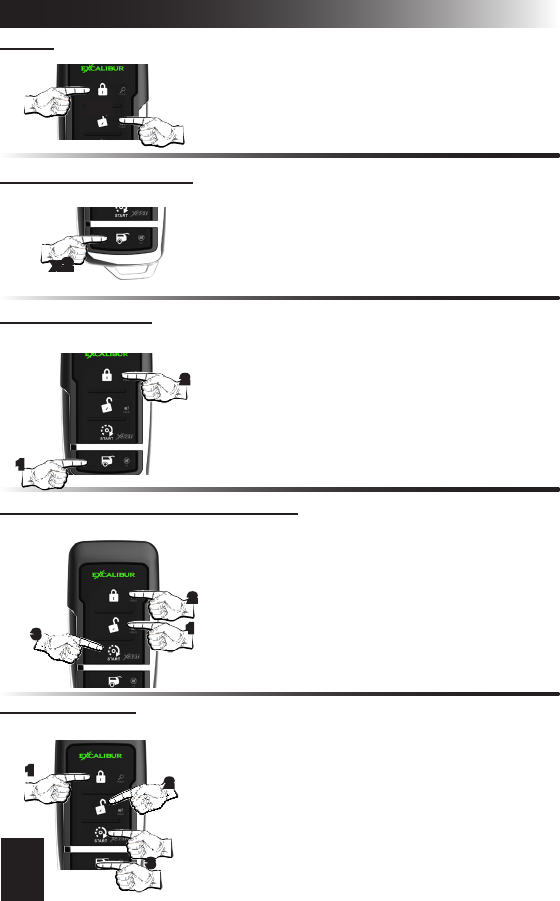

PANIC: Press and hold the LOCK or UNLOCK button for 3 seconds�

• THE SIREN/HORN WILL SOUND, THE PARKING LIGHTS

WILL FLASH, AND THE DOORS WILL LOCK OR UNLOCK

DEPENDING WHICH BUTTON IS PRESSED�

OR

SILENT ARM / DISARM: Press and release the TRUNK button twice

in 5 seconds� • THE PARKING LIGHTS WILL FLASH, AND THE DOORS

WILL LOCK/ARM OR UNLOCK/DISARM DEPENDING ON

THE CURRENT SYSTEM STATUS�

x2

SENSOR BYPASS: Press and release the TRUNK button within 5

seconds of locking/arming the alarm system�

• THE SYSTEM WILL GIVE ONE CHIRP, AFTER LOCKING,

TO INDICATE THE SENSOR IS BYPASSED�

1

REMOTE VALET: Press LOCK then UNLOCK then TRUNK + START

within 5 seconds�

• THE SYSTEM WILL ENTER VALET MODE�

SEE PAGE 10 FOR MORE INFO ON VALET MODES�

TO EXIT VALET VIA REMOTE, REPEAT THESE STEPS

LOW VOLTAGE/TEMP AUTO START: Press and release UNLOCK,

LOCK, START within 5 seconds�

• THE SYSTEM WILL GIVE ONE CHIRP TO INDICATE

THE LOW VOLT/LOW TEMP(15° F ONLY) AUTOSTART

IS ACTIVATED� SEE PAGE 7 FOR MORE INFO�

2

1

3

1

2

3

2

6

Controller Functions (cont’d)

AUXILIARY FUNCTIONS 1-4:

The actual operation of these functions will vary from car to car� They are designed to

operate extra vehicle functions like automatic sliding doors or motorized hatches� Aux

1-4 are virtual outputs only available on certain vehicles when this system is integrated

with the vehicle’s data network. Consult with your installer to nd out if any of these

functions are available for your vehicle. If so, conrm each operation with the controller

and write each function in the blank spaces provided below�

- Auxiliary 1 Function (___________________): To activate this function, press and

release the TRUNK and START buttons simultaneously)�

- Auxiliary 2 Function (___________________): To activate this function, press and

release the LOCK and TRUNK buttons simultaneously)�

- Auxiliary 3 Function (___________________): To activate this function, press and

release the UNLOCK and START buttons simultaneously)�

- Auxiliary 4 Function (___________________): To activate this function, press and

release the UNLOCK and TRUNK buttons simultaneously)�

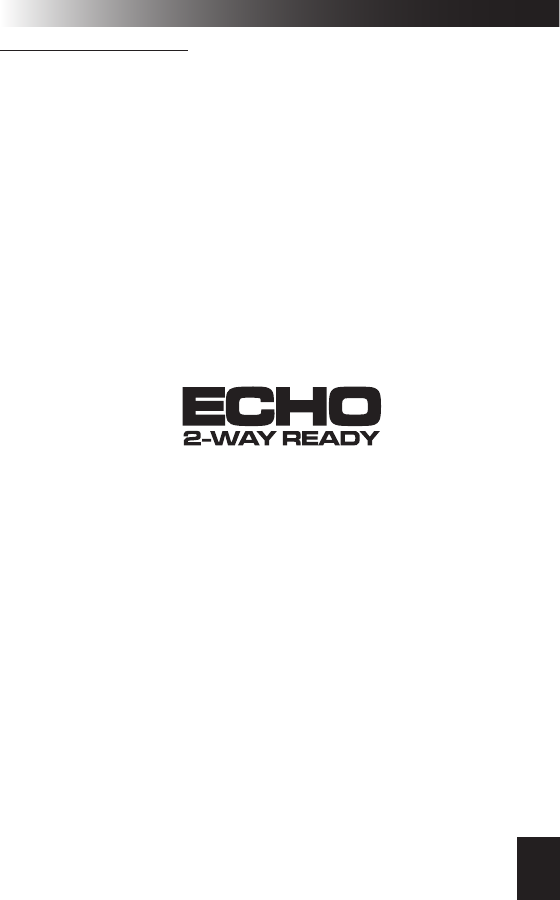

IF YOUR ANTENNA HAS THE ECHO 2-WAY READY

LOGO, YOU CAN UPGRADE TO 2-WAY JUST BY ADDING

A 2-WAY CONTROLLER. ASK YOUR DEALER ABOUT:

MODEL 1510-03 (LCD 2-WAY)

MODEL 1511-03 (LED 2-WAY)

7

It is typically recommended that vehicles equipped with turbocharged engines allow the

engine to idle after driving to cool the turbocharger� When Installer Programmable Feature

#10 is ON, the system will automatically keep the engine running as follows:

• With the engine running, hold the brake pedal and engage the parking

brake� When the brake pedal is released, the system will keep the engine running for the

programmed time (1, 2, or 3 minutes)�

• Turbo Timer can be bypassed by turning the engine off before engaging the parking

brake� If it’s already engaged, step on the brake pedal to turn the engine off�

TURBO TIMER MODE

PIT-STOP MODE

XL PIT-STOP MODE

This feature allows you to leave your engine running for making quick errands� To use

this feature, have the engine running normally from the ignition switch and your foot off the

brake pedal. Press the Valet Switch twice; the parking lights will ash and the ignitions will

turn on� Turn the key off and the engine will remain running for the programmed run time�

Run time extender can be used in this mode�

This feature allows you to leave your engine running for making quick errands� To

use this feature, have the engine running normally from the ignition switch and your foot

off the brake pedal. Press the Valet Switch 6 times; the parking lights will ash and the

ignitions will turn on� Turn the key off and the engine will remain running for 12hrs� Run

time extender can be used in this mode allowing a run time up to 24hrs� This is ideal for

commercial refrigeration trucks, cleaning vans, vehicles w/ PTO, etc�

LOW BATTERY/LOW TEMP AUTOMATIC STARTING

Other Remote Start Features

This feature will automatically start the engine if the vehicle battery drops below

11 volts or the interior temperature drops to 15 (or 32) degrees fahrenheit� You must

activate these features each time you park your car to use them�

Method 1 - Valet Switch

• Turn the ignition switch “on”, then “off” (engine not running), and within 7 seconds

press the valet switch twice� If there is a 2 second delay without additional valet button

presses, the siren will chirp 3 times activating low voltage start mode�

• To activate low temp starting, enter low voltage start mode as described above then,

immediately after the horn honks, press the valet switch 1 time (15 degrees) or 2 times

(32 degrees) within 5 seconds. The siren will chirp to conrm your selection.

Method 2 - With The Controller (Low Volt & Low Temp. @ -15°F Only)

• Within 5 seconds, press UNLOCK, LOCK, START� The siren/horn will chirp to

conrm.

NOTE: When low temp start mode is activated, low voltage start is also activated� These

features will operate once every two hours until the ignition key is turned “ON”�

8

Other Remote Start Features (cont’d)

MANUAL TRANSMISSION STARTING

Remote starting with a manual transmission requires that you ensure the gear selector

is in NEUTRAL� There are 2 available methods�

METHOD #1 - 3D MOTION SENSOR:

Some models are equipped with a 3D motion sensor built into the antenna (optional

sensors are available as an upgrade)� Whenever remote start is activated, this sensor is

monitored for vehicle movement� If the vehicle moves just a few inches when the engine is

cranking, it will instantly turn the engine off� This safety feature allows you to enjoy remote

start without performing reservation mode as described below�

METHOD #2 - RESERVATION MODE:

For extra safety, installer feature #11 can be turned on which requires you to perform a

setup procedure that ensures the transmission was left in neutral when you park your

vehicle� This must be performed each time you leave your vehicle to use remote start

later� To do so, follow these steps:

1) With the engine running via the ignition switch, hold the brake pedal, apply the parking

brake, then release the brake pedal�

2) Use the transmitter as if you were activating remote start (default: press START twice)�

The status light will start to ash slow.

3) Turn off the ignition key and exit the vehicle�

4) Press LOCK on the transmitter� The engine will shut down (unless turbo timer is on)

and the status light will ash every 2 seconds (ready to be remote started).

NOTE: Manual transmission starting is canceled if you enter the vehicle after

performing the setup procedure.

Security System Features

LAST DOOR ARMING

This system can be congured to arm automatically when all the vehicle’s doors

are closed (see user feature #9)� When this feature is utilized, the siren/horn will chirp

once when all of the doors are closed� At that point, it will start a 30 second countdown

(indicated by a fast ashing status light). After 30 seconds, the system will arm (and lock

the doors if congured to do so). During the 30 second arming delay, if a point of entry is

opened, the countdown will pause until all entry points are closed again� Turning ON the

ignition key will cancel the last door arming sequence until the key is turned off and the

doors are all closed once again�

AUTOMATIC REARMING

This automatically rearms the alarm if the system is disarmed from the remote

(see user feature #10)� When disarmed by remote, the system will start a 90 second

countdown (fast ashing status light) to arm the system. This is useful if the controller

accidentally disarms the system when it’s kept in a purse or pocket where other items

could potentially press the buttons� ENHANCED AUTO REARM allows you to cancel

the countdown by pressing UNLOCK a second time within 5 seconds of the rst press to

disarm the alarm�

PRE-WARN DETECTION

This system’s impact sensor is designed, in addition to detecting a full impact, will warn

away potential violators when it detects a light impact to the vehicle� The

system will respond by chirping the siren/horn 3 times and locking the doors� 9

Using The Valet Button

Security System Features (cont’d)

SECURECODE

SecureCode allows you to customize the number of valet presses required to perform

an emergency override� This is an extra layer of security that prevents anyone from

overriding the alarm even if they have a key to the vehicle� SecureCode has 2 stages

with the rst requiring 1-9 button valet presses and the second requiring 0-9 valet button

presses� This gives you 99 possible combinations� To program a custom SecureCode,

please refer to user feature #13 on Page 18�

To perform an emergency override with SecureCode, use the following steps:

STEP 1 - With the system armed, enter the vehicle (the alarm will activate)�

STEP 2 - Turn the ignition switch to the “ON” position�

STEP 3 - Within 5 seconds of step 2, press the valet switch to enter the rst digit of your

programmed code�

STEP 4 - After a few seconds, the siren will stop sounding and chirp once (conrming

stage 1)� The siren will then continue sounding�

STEP 5 - Now, within 5 seconds of step 4, press the valet switch to enter the second digit

of your code� If the code is correct, the alarm will disarm�

EMERGENCY OVERRIDE

If you were to lose or break your controller, you’d need to perform an emergency

override to disarm the system and use your vehicle� To do so, use the following steps:

STEP 1 - Enter the vehicle (the alarm should sound)�

STEP 2 - Turn the ignition key to the “ON” position�

STEP 3 - Press the valet switch (located in the window-mount antenna) once�

NOTE: Enter your SecureCode at this time if programmed via user feature #13

STEP 4 - Turn the ignition key “OFF”�

If the code is entered incorrectly, you must turn the ignition key OFF, then back ON to try

again� Additionally, if 2 failed attempts are made, the alarm will ignore any further attempts

for 2 minutes�

WHEN THE SYSTEM TRIGGERS

It will sound the siren/horn and ash the parking lights for 30 seconds (programmable).

When disarming after a trigger event, the siren/horn will chirp 4 times and the parking

lights will ash 4 times instead of the standard 2 times.

LOCK ON TRIGGER: If a door is opened when the system is triggered, it will wait until the

door is closed again, then lock the doors� This feature combats “slim jim” type devices�

STORM SAFE MODE: When the system is triggered, pressing the UNLOCK button will

stop the alarm from sounding but will leave the doors locked�

NUISANCE PREVENTION: If the system pre-warns 5 times within 15 minutes, it will

bypass the zone for the remainder of the 15 minutes before rearming the pre-warn zone�

Additionally, if a full trigger zone is left open, the system will trigger a total of 3 times

before bypassing the zone� Once the zone is closed again, it will re-arm that zone�

10

The Status Light

VALET MODE

Valet mode completely disables all security & remote start functions� Keyless entry is

still operable� To enter valet mode, perform the following steps:

STEP 1 - Disarm the system by remote or by performing an emergency override�

STEP 2 - Press and hold the valet switch for 2 seconds� The system will chirp once

and the status light will turn on�

EXITING VALET MODE - Press and release the valet switch once�

The status light, located in the antenna, indicates the system’s current status�

SECURITY SYSTEM STATUS

OFF: The alarm is disarmed and not performing any automatic functions�

ON: The alarm is in valet mode�

FLASHING SLOW: The alarm is armed and monitoring all entry points�

FLASHING FAST: One of the automatic arming features is in progress�

AUTOMATIC TRANSMITTER VERIFICATION

Every time you turn on the ignition key, the status light will ash a number of times

equal to the number of controllers programmed to the system� This unique security

feature combats potential thieves (valet attendant, mechanic, etc�) from adding their own

transmitter without your knowledge and accessing your vehicle at a later time�

ALARM ZONE VIOLATION RECALL

If the security system is triggered, upon disarming, the status light will ash

a number of times to indicate exactly which zone(s), has been violated� It will

store the last 2 violated circuits and continually repeat the ash pattern until the vehicle’s

ignition key is turned ON�

2 FLASHES: Hood trigger

3 FLASHES: Door trigger

4 FLASHES: Sensor port trigger

REMOTE START STATUS

FLASHING SLOW: The engine was remote started successfully and is running�

FLASHING FAST: The remote start sequence has begun and is in process of starting�

2 FLASHES, PAUSE: The engine is running while the alarm is armed�

REMOTE START DIAGNOSTICS

The remote start system can also indicate which zone caused the last remote start

cycle to end� To see this indicator, place the system into alarm valet mode� Immediately

after the chirp, the status light will ash to indicate which zone violation occured.

1 FLASH: The hood was opened�

2 FLASHES: Brake pedal was pressed or

3 FLASHES: Bad tach signal or engine overrev�

4 FLASHES: The neutral safety circuit was triggered�

5 FLASHES: The 3D sensor detected vehicle motion�

6 FLASHES: Received command to stop�

7 FLASHES: The alarm was triggered�

8 FLASHES: Run time expired�

9 FLASHES: Low battery voltage was detected�

Using The Valet Button (cont’d)

11

Anti-Carjacking Protection

The system is equipped with two separate Anti-Carjacking protection features (ignition,

open door, or both)� All are programmable, and must be turned on to operate� Once

activated, the user has 60 seconds to cancel the Anti-Carjacking protection process

(described below)� If Anti-Carjacking is not cancelled, 53 seconds after being activated

the siren will begin to chirp for 7 seconds to alert the user that the system is about to enter

into an alarm condition� The Valet Switch may still be pressed once during this period to

cancel the Anti-Carjacking process�

If the Anti-Carjacking process is not cancelled before the 60 second countdown ex-

pires, the system will enter an alarm condition, sounding the siren and ashing the parking

lights� 30 seconds after this occurs, or should the ignition be turned off in the meantime,

the stater interrupt will engage� Once the system enters the alarm condition, it will not

respond to the transmitter, nor will the system reset automatically after 60 seconds, and it

can only be disengaged by:

Step 1 Turning the vehicle’s ignition off�

Step 2 Turning the ignition back on�

Step 3 Within 5 seconds, perform an Emergency Override using the Valet Switch� If the

SecureCode has been customized, the correct number of Valet Switch presses must be

made�

The different types of Anti-Carjacking protection are:

Ignition Activated Anti-Carjacking activates every time the vehicle’s ignition is turned

on� The Valet Switch must be pressed within 60 seconds of activating to cancel Anti-

Carjacking� This is User Programmable Feature #12�

Door Anti-Carjacking activates when a door is opened after the vehicle is started and

the engine is running� The Valet Switch must be pressed within 60 seconds after activa-

tion to cancel Anti-Carjacking� This is User Programmable Feature #12�

12

If the Unauthorized Transmitter Alert feature is on, programming a transmitter to the

system will activate the “UTA” warning and the extended Status Light indication� For the

next 48 hours, the siren/horn will sound a brief series of chirps every time the vehicle’s

ignition key is turned on�

Special Programming procedure to turn on the UTA feature: Use this method to

program transmitters or optional controllers, and to turn on the Unauthorized Transmitter

Alert feature�

Follow the same steps as the Standard Programming, but on any controller being

programmed instead of pressing the LOCK button, press the LOCK and the UNLOCK

buttons together� This action turns on the Unauthorized Transmitter Alert feature and at

the same time programs the controller to operate the system�

Once the Unauthorized Transmitter Alert feature is turned on, the warning will sound

for 48 hours after any transmitter programming, including the programming session which

was used to turn it on� This feature can only be turned off again by sending the system

back to Omega for a reset�

Step 1 Turn the ignition key “ON”, then “OFF”�

Step 2 Within 5 seconds of step 1, press the valet switch 5 times to access user features

(10 times to access installer features)�

~ The siren/horn will sound and the status light will turn on�

Step 3 Within 10 seconds of step 2, press the valet switch the number of times corre-

sponding with the desired feature’s number�

~ The siren/horn will chirp, the status light, and the parking lights will ash equal

to the selected feature�

Step 4 Change the feature by pressing the transmitter button that corresponds with

the desired setting� The siren/horn will chirp to correspond with the chosen setting�

Programming Features

Standard Programming: Using this method to program additional or replacement

transmitters does not turn on or otherwise affect the Unauthorized Transmitter Alert (UTA)

feature� Before you begin, have all transmitters which are to operate the system at hand�

Step 1 Then, turn the ignition “on”�

Step 2 Within 5 seconds of Step 1, press the Valet Switch 5 times� The siren/horn will

briey sound, conrming that the system is ready to learn a transmitter code.

Step 3 Press the LOCK button on each transmitter one at a time� The system will chirp

the siren/horn once to conrm that each was learned. If a code is not received within 10

seconds of Step 2, the learning process will automatically exit�

Programming Controllers/Transmitters

13

User Programmable Features

Feature #5 - Ignition Controlled Lock/Unlock

Off (press LOCK to program)

Lock w/ Ignition On (press UNLOCK to program)

Unlock w/ Ignition Off (press TRUNK to program)

Lock And Unlock w/ Ignition (press START to program)

This feature controls the lock/unlock operations when the ignition key is turned on/off�

Feature #1 - Remote Start Run Time

3 Minutes (press LOCK to program)

10 Minutes (press UNLOCK to program)

15 Minutes (press TRUNK to program)

20 Minutes (press START to program)

30 Minutes (press LOCK & UNLOCK to program)

This sets the maximum amount of time that the remote start will keep the engine running if

it is not shut down by other methods�

Feature #3 - Conrmation Chirp Volume

Low (softest) (press LOCK to program)

Medium Low (press UNLOCK to program)

Medium High (press TRUNK to program)

High (loudest) (press START to program)

This feature allows the choice different chirp volume levels, and when programming it,

each selection will be conrmed in the chosen volume making it easy to choose the most

suitable setting�

Feature #4 - BROWN Wire Audible Output

Pulsed Horn Low (press LOCK to program)

Pulsed Horn Medium (press UNLOCK to program)

Pulsed Horn High (press TRUNK to program)

Steady Siren (press START to program)

Random (press LOCK & UNLOCK to program)

This changes the BROWN wire’s audible output when the alarm is triggered� Steady siren

must be selected when using a siren (other horn outputs stay at the Medium setting)� The

horn honk options will affect all horn honk outputs used as well as change the BROWN

wire’s function�

Feature #2 - Flashing Light Conrmations

Unlock: ON, RS: ON (press LOCK to program)

Unlock: ON, RS: Flash (press UNLOCK to program)

Unlock: Flash, RS: ON (press TRUNK to program)

Unlock: Flash, RS: Flash (press START to program)

This feature affects the parking light conrmations for system unlock & remote start func-

tions� With the above options, you can select any combination of:

Unlock: Flash - Flashes twice after unlock

Unlock: ON - Flashes twice then stays on for 30 seconds after unlock

RS: ON - Stays on during remote start mode

RS: Flash - Flashes once every 1�5 seconds during remote start mode

14

User Programmable Features (cont’d)

Feature #6 - Open Door Bypass of Ignition Locking

On (press LOCK to program)

Off (press UNLOCK to program)

This feature cancels the automatic locking or unlocking of the vehicle’s doors if one of the

doors is open when the ignition switch is turned on or off�

Feature #9 - Last Door Arming

Off (press LOCK to program)

On w/o doors locking (press UNLOCK to program)

On w/ doors locking (press TRUNK to program)

“Last Door Arming” has the system automatically arm itself every time you exit the vehicle

(the complete operation is described on page 8)�

Feature #10 - Automatic Rearming

Off (press LOCK to program)

On w/o doors locking (press UNLOCK to program)

On w/ doors locking (press TRUNK to program)

Enhanced auto rearm (press START to program)

“Automatic Rearming”, described on page 9, rearms the alarm if accidentally disarmed�

Options are to have Automatic Rearming operate with or without also locking the doors

when the system does rearm� Enhanced auto rearm allows you to cancel the rearming

sequence by pressing unlock a 2nd time after disarming�

Feature #7 - Unlock w/ Trunk Release

On (press LOCK to program)

Off (press UNLOCK to program)

“2nd channel” is most commonly used for trunk release, in which case the alarm should

also disarm. This feature, when on, congures the system to unlock/disarm when the 2nd

channel is activated�

Feature #8 - Remote Start Activation From The Remote

Press START button 1 time (press LOCK to program)

Press START button 2 times (press UNLOCK to program)

Press START button 3 times (press TRUNK to program)

Press START button 4 times (press START to program)

This feature changes how the remote start feature is activated from the remote�

Feature #11 - Conrmation Chirps

Siren + Horn (press LOCK to program)

Siren Only (press UNLOCK to program)

Horn Only (press TRUNK to program)

On Demand (siren+horn) (press START to program)

Off (press LOCK & UNLOCK to program)

This feature selects whether the siren and/or horn give conrmation chirps� Both outputs

will always sound when the alarm system is triggered or in panic mode�

Feature #12 - Anti-Carjacking

Ignition Only (press LOCK to program)

Door Only (press UNLOCK to program)

Ignition + Door (press TRUNK to program)

Off (press START to program)

This selects between the 2 forms of anti-carjacking protection� Details on using anti-

carjacking protection are described on page 14�

15

User Programmable Features (cont’d)

Feature #15 - Alarm Trigger Duration

30 Seconds (press LOCK to program)

60 Seconds (press UNLOCK to program)

90 Seconds (press TRUNK to program)

120 Seconds (press START to program)

This feature selects the period of time for which the system sounds the siren (and/or horn)

and ashes the lights when triggered. Caution: Before lengthening the Alarm Duration

you should always check and determine if there are any local anti-noise or nuisance

ordinances in your area.

Feature #16 - Arming Delay

3 Seconds (press LOCK to program)

15 Seconds (press UNLOCK to program)

30 Seconds (press TRUNK to program)

45 Seconds (press START to program)

This selects how long the alarm waits to monitor trigger zones after arming�

Feature #17 - Open Door Warning Upon Arming

On (press LOCK to program)

Off (press UNLOCK to program)

When this feature is turned on, if one of the vehicle’s doors is open at the time that the

system is armed via the controller or transmitter, the siren will chirp 3 times and the park-

ing lights will ash 3 times, instead of once.

Feature #14 - Ignition Activated Override

On (press LOCK to program)

Off (press UNLOCK to program)

This feature allows an activated system to be overridden and disarmed by simply turning

the ignition switch on within 10 seconds of the alarm triggering� After 10 seconds, the

Emergency Override must be performed�

Feature #13 - SecureCode

DEFAULT - 1 Press

SecureCode is a unique patented feature which allows you to select the number of Valet

Switch presses in two stages, instead of “1 press”, which would be required in order to

perform an Emergency Override� If any of the three anti-carjacking features are utilized,

a customized SecureCode would also be required to turn it off once it is fully activated�

SecureCode operation is described on page 10�

To custom program a new SecureCode:

Step 1 Access user feature #13 (follow the steps on page 15)�

Step 2 Within 10 seconds slowly press and release the transmitter’s LOCK button

the number of times equal to the desired SecureCode for stage 1, allow the system to

respond to each transmitter button press with a siren chirp before pressing the button

again. A few seconds after the nal button press, the system will chirp conrming the total

number for stage 1�

Step 3 Congure stage 2 of the SecureCode by pressing and releasing the LOCK button

again equal to the number of times desired for the stage 2� The system will

conrm as it did for stage 1.

NOTE:To start over, press the valet button 13 times again.

16

BLANK PAGE

17

BLANK PAGE

18

Installer Programmable Features

This group of Installer Programmable Features are all accessed as a group in the second

level of features’ programming� These features have a direct affect upon the system’s op-

erations related to the installation and vehicle type AND SHOULD ONLY BE CHANGED

BY THE INSTALLER!!!

Feature #1 - Remote Start Activation From The WHITE/BLUE Wire

1 pulse (press LOCK to program)

2 pulses (press UNLOCK to program)

3 pulses (press TRUNK to program)

4 pulses (press START to program)

This feature changes how remote start is activated from the (-) activation input wire�

Feature #2 - Vehicle Learn

Enabled (press LOCK to program)

Disabled (press UNLOCK to program)

When enabled, the system will allow the installer to perform vehicle learn (described in the

installation guide). This allows quick programming of several vehicle specic settings.

WARNING: This feature should only be programmed by the installer.

Feature #3 - Engine Detection Method

Progressive Voltage (press LOCK to program)

Voltage (press UNLOCK to program)

Tach Wire (press TRUNK to program)

Data Tach (press START to program)

Crank Only (press LOCK & UNLOCK to program)

This feature selects the method in which the remote start monitors the engine’s running

condition in remote start mode� The best method available is auto-detected during the

VEHICLE LEARN process�

“Progressive Voltage” mode is a new version of our popular “tachless hi” method� It

uses a preset crank time (see installer feature #7) and monitors the vehicle’s voltage level

to determine if the engine is running� This setting looks for a voltage increase of 0�3v after

cranking but allows for voltage drops after the engine is running for 2 minutes accomodat-

ing new progressive style alternators� This method is the most universal for all vehicles�

“Voltage” mode looks for a voltage increase of 0�5v after cranking and constantly moni-

tors voltage during remote start operation�

“Tach Wire” Before this setting is programmed, refer to the “Violet/White wire” section of

the installation manual for proper wiring connection and the Tach Learn Procedure� It will

crank the engine for up to 3 seconds or until a tach signal is detected�

“Data Tach” mode operates just like the “Tach Wire” setting except it takes its reading

from the D2D data port instead of using the Violet/White wire� Before using, make sure

this function is supported by the Databus Interface module�

“Crank Only” AKA “blind start” is similar to the “Tachless” settings however, it only makes

one start attempt and does not monitor engine running conditions� This is useful for many

“push-to-start” vehicles�

Feature #4 - Gasoline Or Diesel Engine

Gasoline (press LOCK to program)

Diesel 15 Sec. Delay (press UNLOCK to program)

Diesel 20 Sec. Delay (press TRUNK to program)

Diesel 30 Sec. Delay (press START to program)

This feature changes the system’s timing of the ignition and starter output sequence for

gas or diesel engines� Gasoline: the starter output will occur 3 seconds after the ignitions

turn on� When in “Tachless” mode, the engine running status is determined 10 seconds

after starting� Diesel: the starter output will occur 15, 20, or 30 seconds after the

ignitions turn on (allows for glow plug warming)� When in “Tachless” mode, the

engine running status will be determined 40 seconds after cranking�

19

Installer Programmable Features (cont’d)

Feature #5 - Light Relay Function (3DB) / Sat. Port Green Wire Function (non-3DB)

Dome Light Output (press LOCK to program)

Start (press UNLOCK to program)

Ignition Output (press TRUNK to program)

Accessory Output (press START to program)

Status (press LOCK & UNLOCK to program)

Light Flash (press TRUNK & START to program)

This output can be programmed to perform any functions listed above� 3DB models

utalize a built in relay� Non-3DB models use a 250ma negative output on the satalite port�

Feature #7 - Starter Cranking Time

0.75 Second (press LOCK to program)

1.00 Second (press UNLOCK to program)

1.5 Seconds (press TRUNK to program)

2.25 Seconds (press START to program)

3 Seconds (press LOCK & UNLOCK to program)

Average (press TRUNK & START to program)

This feature determines the crank time of the 1st start attempt when in “Tachless” mode�

If the engine doesn’t start on the rst attempt, it will retry up to 3 more times extending

the crank time by an additional 0�2 second with each attempt� The “Average” setting will

sample the last 8 cranks (by ignition key) and average the crank time automatically for

increased accuracy�

Feature #8 - Door Lock/Unlock Outputs

0.8 Second Outputs (press LOCK to program)

3 Second Outputs (press UNLOCK to program)

Double Pulse Unlock Output (press TRUNK to program)

Total Closure Lock Output (press START to program)

This changes the system’s doorlocking outputs to suite different vehicle requirements� The

total closure setting provides a 28 second lock pulse (press LOCK or UNLOCK is during

the pulse to stop it) and a 0�8 second unlock pulse�

Feature #9 Remote Start Lock Control

Off (press LOCK to program)

Lock After Start (press UNLOCK to program)

Unlock before start (press TRUNK to program)

Unlock Before RS & Lock After RS (press START to program)

Lock After Engine Off (press LOCK & UNLOCK to program)

This feature allows for OEM alarm/lock control in relation to remote start operations thus

eliminating extra wiring for OEM alarm control�

Feature #6 Blue Satellite Port, Blue Wire Function

Ignition (press LOCK to program)

Status / GWR (press UNLOCK to program)

Defrost 0.8 sec Pulse (press TRUNK to program)

Defrost 10 min Pulse (press START to program)

Pulse After Engine Off (press LOCK & UNLOCK to program)

Horn (press TRUNK & START to program)

This determines the function of the Blue wire on the Blue satellite relay port�

The Status setting turns on briey before the Ignition output and stays on during remote

start mode� The other pulse settings give a 0�8 second pulse under the selected condi-

tion� Defrost Pulse will send a pulse after start only when the cabin temperature is below

freezing (32 degrees F / 0 degrees C)�

20

Installer Programmable Features (cont’d)

Feature #11 - Manual Transmission Reservation Mode

On (press LOCK to program)

Off (press UNLOCK to program)

This feature changes the parameters of the system’s remote start operation to be suitable

for manual transmission-equipped vehicles via a “setup” procedure which must be fol-

lowed upon exiting the vehicle to ensure the transmission is in neutral�

Feature #10 - Turbo Timer

Off (press LOCK to program)

Run 1 Minute (press UNLOCK to program)

Run 2 Minutes (press TRUNK to program)

Run 3 Minutes (press START to program)

This feature, the operation of which is described on page 8, when turned on

congures the system to automatically keep the engine running briey after the key is

turned off. This operation is designed specically for vehicles with turbocharged engines.

NOTE: This feature is dependent on the proper wiring of the neutral safety circuit.

Feature #12 Data Port Protocol

Green: DBI, Black: DBI (press LOCK to program)

Green: iData, Black: iData (press UNLOCK to program)

Green: DBI, Black: iData (press TRUNK to program)

Green: iData, Black: DBI (press START to program)

This feature determines which data protocol is used on each data port� Choose this based

on the accessory being connected to the port� NOTE: When a BLADE is inserted, this

feature automatically switches the black port to the iDatalink protocol.

Feature #14 - Pulse Ignition On Disarm

On (press LOCK to program)

Off (press UNLOCK to program)

This feature will pulse the ignition and activate any attached immobilizer bypass module

for vehicles that require the ignition to be turned on to disarm the OEM alarm�

Feature #15 Lock On Prewarn

On (press LOCK to program)

Off (press UNLOCK to program)

This feature will automatically lock the doors to combat unauthorized entry from lock pick-

ing when the prewarn zone is triggered�

Feature #16 - Starter Interrupt Functions

Alarm Only (press LOCK to program)

Anti-Grind Only (press UNLOCK to program)

Alarm & Anti-Grind (press TRUNK to program)

Automatic (press START to program)

Alarm Only - The Starter Interrupt is operable whenever the alarm is armed�

Anti-Grind Only - The Starter Interrupt is operable whenever remote start is on�

Alarm & Anti-Grind - This setting engages starter interrupt when the alarm is armed AND

when the system is in remote start mode�

Automatic - The Starter Interrupt output will automatically engage 90 seconds

after the ignition switch is turned “off”, and after disarming the system�

Feature #13 - Alarm Functions

On (press LOCK to program)

Off (press UNLOCK to program)

Off- Unlock Only (press TRUNK to program)

Sensor Detect (press START to program)

This feature converts keyless entry models to full alarm systems (installation changes may

be required)� Sensor Detect automatically turns on alarm functions when a sensor is con-

nected to the sensor port or data port�

21

Installer Programmable Features (cont’d)

This device complies with FCC Rules part 15� Operation is subject to the following two

conditions, (1) This device may not cause harmful interference and, (2) This device

must accept any interference that may be received, including interference that may

cause undesired operation�

The manufacturer is not responsible for any radio or TV interference caused by

unauthorized modications to this equipment. Such modications could void the user’s

authority to operate the equipment�

Feature #17 Low Temp Crank Extender

0ms (press LOCK to program)

200ms (press UNLOCK to program)

300ms (press TRUNK to program)

400ms (press START to program)

When the vehicle’s interior temperature is below freezing, this feature adds extra crank

time to the base timing (see installer feature #7)� It applies to tachless modes only

(installer feature #3)�

Feature #20 Low Current / Motorcycle Mode

On (press LOCK to program)

Off (press UNLOCK to program)

This feature, when on, reduces the system’s current draw by as much as 40% to maxi-

mize the vehicle’s battery life while the alarm is armed� It causes the starter interrupt

output to only operate when the ignition is turned on and reduces the frequency of the

“armed” ashing status light signicantly. This is ideal when the system is to be used on

vehicles that have limited battery capacity and/or may sit for extended periods without

charging the battery�

Feature #18 - Arm, Disarm or Additional Channels

Arm / Disarm (press LOCK to program)

Arm / Channel 5 (press UNLOCK to program)

Channel 4 / Disarm (press TRUNK to program)

Channel 4 / Channel 5 (press START to program)

The system has outputs designed for arming and/or disarming a factory-equipped security

system� These wires may be used instead to provide further system outputs, which are

remotely operated by the controller or transmitter� These outputs are in addition to the

2nd channel and 3rd channel outputs� As shown in the programming assignment, the

arm, disarm, channel 4 and channel 5 are programmable as various combinations� For

example, if the disarm output is needed, but not the arm output, then channel 4 may be

made available for use�

Feature #19 - Horn Relay Function (3DB) / Brown Wire Function (non-3DB)

Horn Output (press LOCK to program)

Ignition (press UNLOCK to program)

Trunk Release (press TRUNK to program)

Pulse After Start (press START to program)

The primary function of this output, is to operate the vehicle’s existing horn� Optionally, if

desired or needed, this output can be programmed for the other functions listed above�

3DB models utalize a built in relay� Non-3DB models use a 1 amp negative output on the

Brown wire�

22

CONVENIENCESECURITYINSTALLER ONLY

User Feature Programming: Ignition on, off, press valet 5 times

# Feature Lock Button

(Brake 1x)

Unlock button

(Brake 2x)

Trunk button

(Brake 3x)

Start button

(Brake 4x)

Lock +

Unlock

(Brake 5x)

Trunk

+ Start

(Brake 6x)

1 Remote Start Run Time 3 min 10 min 15 min 20 min 30 min

2 Flashing Light Conrmations Unlock: ON

RS: ON

Unlock: ON

RS: Flash

Unlock: Flash

RS: ON

Unlock: Flash

RS: Flash

3 Conrmation Chirp Volume Low Med-Low Med-High High

4 BROWN Wire: Siren / Pulsed Horn Pulse LOW Pulse MED Pulse HI Steady Siren Random

5 Ignition Lock / Unlock Off Ign On = Lock Ign. Off = Unlock Lock + Unlock

6 Door Open Bypass for Feat. #5 On Off

7 Unlock w/ Trunk Release On Off

8 RS Activation (Remote) Start x 1 Start x 2 Start x 3 Start x 4

9 Last Door Arming Off On w/o Lock On w/ Lock

10 Automatic Rearming Off On w/o Lock On w/ Lock Enhanced

11 Conrmation Chirps Siren + Horn Siren Only Horn Only On Demand Off

12 Anti-Carjacking Ignition Door Ignition + Door Off

13 Override Code See operation guide for programming instructions. DEFAULT: 1,0

14 Ignition Override On Off

15 Alarm Trigger Duration 30 sec 60 sec 90 sec 120 sec

16 Arming Delay 3 sec 15 sec 30 sec 45 sec

17 Open Door Warning Upon Arming On Off

Installer Feature Programming: Ignition on, off, press valet 10 times

1 RS Activation (WHITE/BLUE wire) 1 Pulse 2 pulses 3 pulses 4 pulses

2 Vehicle Learn Enabled Disabled

3 Engine Detection Prog. Voltage Voltage Tach Wire Data-tach Crank Only

4 Gasoline or Diesel Engine Gasoline 15 sec Diesel 20 sec Diesel 30 sec Diesel

5 Light Relay Function Dome Light Start Ignition Accessory Status Light Flash

6 Blue Sat Port BLUE Wire Ignition Status 0.8 sec Defrost

Pulse

10 min Defrost

Pulse

Pulse After

Engine Off Horn

7 Crank Time 0.75 sec 1 sec 1.5 sec 2.25 sec 3 sec Average

8 Door Lock/Unlock Outputs 0.8 sec 3 sec Double Unlock Total Closure

9 Remote Start Lock Control Off Lock after Start Unlock before

Start

Unlock Before

& Lock After

Lock After

Engine Off

10 Turbo Timer Off 1 min 2 min 3 min

11 Manual Transmission Reservation On Off

12 Data Port Protocol Green: DBI

Black: DBI

Green: iData

Black: iData

Green: DBI

Black: iData

Green: iData

Black: DBI

13 Alarm Functions On Off Off-Unlock Only Sensor Detect

14 Pulse Ign. on Disarm On Off

15 Lock On Prewarn On Off

16 Starter Interrupt Alarm Only Anti-Grind Only Alarm/Anti-Grind Automatic

17 Low Temp Crank Extender 0 ms 200 ms 300 ms 400 ms

18 Arm/Disarm or CH. 4/5 Arm/Disarm Arm/CH. 5 CH. 4/Disarm CH. 4/CH.5

19 Horn Relay Function / Brown

Wire Horn Ignition Trunk Release Pulse After

Start

20 Low Current Mode On Off

FEATURE SETTING KEY: Default Setting Default For “AL-1670-B” Model When Different

UnderLine - Default For “RS-X70-3DB” Models When Different� 23

Back Cover

Color cover is in a

separate le.

24

Nutek NTQE Transmitter User Manual

Nutek Corporation Transmitter

User Manual

Navigation menu

Namespaces

Views

Navigation
