Nyko Technologies 86125 TYPE PAD User Manual SPECIFICATION FOR APPROVAL
Nyko Technolgies, Inc. TYPE PAD SPECIFICATION FOR APPROVAL
Contents
- 1. Users Manual
- 2. User manual
User manual
Nyko Technolgies, Inc.
1
TYPE PAD
CATALOG
1．Introduction and Application---------------------1
2，Product Image------------------------------------1
3．Product Size-------------------------------------1
4．The Introduction of Keyboard Interface-----------2
5．Instructions-------------------------------------4
6、Technical Parameters----------------- ----------5
7. Life Test Standard----------————- ----------5
8. Surface Requirements and Inspection Standards -------6
9、Attention---------------------------- ---------6
Nyko Technolgies, Inc.
2
TYPE PAD
Ⅰ、Production introduction and function application:
1. It is applied to TYX-581 XBOXONE controller keyboard which is designed
and produced by Yuyuanxin.
2.The XBOX ONE controller keyboard is designed for a Microsoft XBOX ONE
Handle.it can apply to original XBOX ONE old and new two kinds of handles
perfectly. it will not affect the use of headphones.and be compatible
the various of XBOX ONE console system (as image 1). It can input
fond,test, and symbols conveniently and quickly.
3、The players can group chat with this keyboard comfortable .It is easy
to use and also can combine with any version of XBOX one original handle
controller, and provide text inputting,group chat and gaming as well.
4、Its silicon surface is used the import environmental silicone, and it will
be shiny green in the dark.

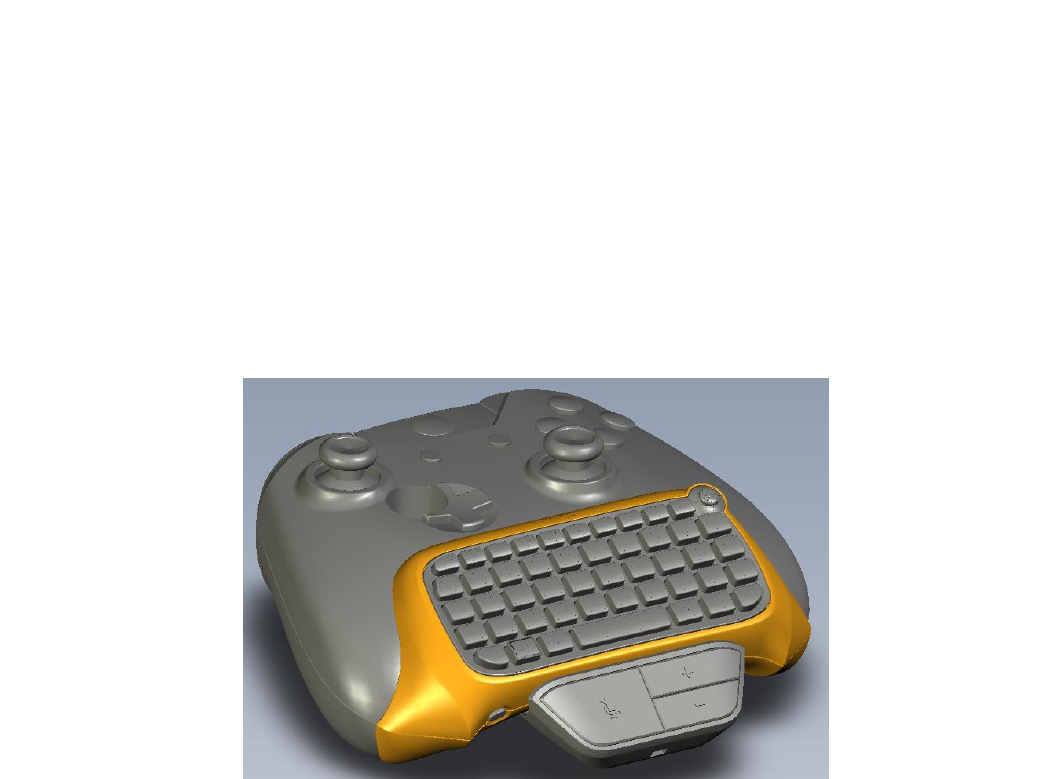

Ⅱ．Product Picture：
图1
Ⅲ．Product size
Nyko Technolgies, Inc.
3
Length 142*wide63*high45mm

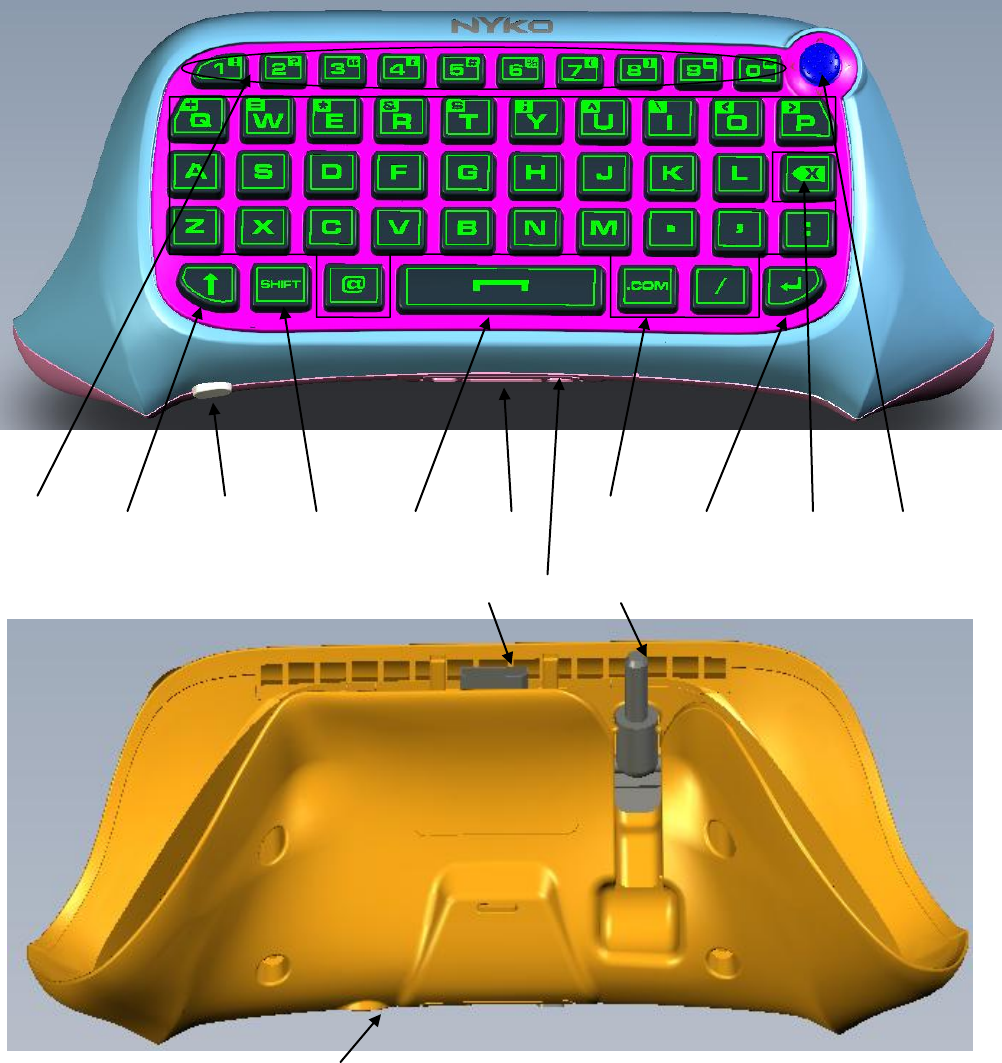

Ⅳ、Introduction of Keyboard interface ：
1 2 3 4 5 6 7 8 9 10
11 14 12
13
1、0-9(number key )
2、Caps Lock
3、Signal pair key
Nyko Technolgies, Inc.
4
4、Shift
5、SPACE
6、X one
7、26 letters and commonly symbol keys
8、Enter
9、Back space
10、Stick head for five direction
11、XBOX one headset male jack
12、Rotating 3.5 headset male jack
13、3.5 female headset
14、2.4G code indicating lamp
Ⅴ、User Instruction：
1．Connect the host power firstly then connect HDMI cable with display equipment. you
open the console power of XBOX ONE while the indicator will be on.
2、Connect the controller with XBOX one console. (if have any question please check the
console specification.)
3、Aim its joint pin to XBOX one guide hole, aim headset to the back seat of xbox one
controller.then push the keyboard into the xbox one handle slowly until it
connect .(Note:New controller need the 3.5 headset plug,you should open the silicone
by arrow direction at the bottom of the keyboard,then turn 3.5 audio plug to external
rotation until it is connected.)
4、Under the power on status, put the 2.4G receiver to any USB port of XBOX ONE.and
enter the signal pairing key on the back of the xbox one keyboard within 15 seconds.It
will be paired when the blue indicator will glitter. (Note:when pairing,the distance of
Nyko Technolgies, Inc.
5
keyboard and receiving part must be within 0.5 meters,if pairing fails, try above steps
again.)
5、It will work when the blue indicator will turn off after pairing.
6、Pair only once between the XBOX one keyboard with 2.4G receiver. Open the console
to awake the controller automatically for future use.
7、Five direction analog stick similar to UP.DOWN.LEFT.RIGHT .A key function
for stronger user’s experience.
8、Its headset jack can be compatible with the Xbox one original headset and
have the same effect as connecting with the controllers, the new
controlleralso can be compatible with 3.5 headset for PS4.
9、It will be in sleeping mode while the XBOX one handle sleeps, Please press
“ ”Button to awake it and controller.
Ⅵ、Technical parameters
1、Applicable range：suitable to work with XBOX ONE set.
2、Wireless version：2.4G
3、Wireless distance:effectiverange8-10M
4、Working current（when the buttons press）：0.8mA
5、Working current（No button pressing）：8uA
6、Product size：142x63x45MM
7、Material：ABS
Ⅶ.Life test:
1 High temperature test：set the temperature in60℃±2℃ and put the sample
into the incubator then take it out after 4 hours,under the natural
condition after 1-2 hours,function and appearance should be able to meet
Nyko Technolgies, Inc.
6
the inspection requirements before test,slight deformation ,drops
phenomenon.
2 Low temperature test：set the temperature in-20℃ and do the same steps
as the high temperature test.
3 Button life test：inspection methods and conditions:install button on the
fixture analog buttons,at a rate of 25 times/min,the level not less than 250g
of evenly buttons,press/ release as a results.requirement:press buttons at
least 100000 times,keys should be able to work normally,silk screen and
buttons/plating/paint shall have no loss.
4 Hardware salt spray test：Set the temperature of salt spray test chamber in 35
℃,configurationsalt solution concentration in 5%,the PH value of 6.5-7.2,salt
fog settlement for 1-2ml/80 cm 2.h., put it into the testing machine, and test it
in 24h at least. Wash it after testing, it will be acceptable that there is no falloff
and rusting of its appearance after washing and wiping it.
Ⅷ. Appearance requirement and inspection standards:
1.No deformation.no shrinkage.no burrs,no gap,spray oilevenly,no surface
scratched,no dirt,no black sports and no burr for the housing.
2.No screw losing, cracks,poor Logo printing
3.Packing material and accessories must according to the requirement of the
order
4.Other standard please refer to the similar products.
Ⅸ、Attention
In order to use the bluetooth products correctly and ensure the performance is
goodplease read follow carefully.
● Do not hit the keyboard seriously.
● Do not let this product contact with benzene,thinner,chemical.etc.
Nyko Technolgies, Inc.
7
● Do not close to strong magnetic field ,electric field.
● Please avoid direct lighting or heating apparatus.
● Do not repair and reconstruct by yourself.
● Waste packing,batteries ,electronic products,old classification properly handle.
FCC STATEMENT :
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
he receiver is connected.
