OBDSTAR Technology DP80 Key Master DP PLUS User Manual

OBDSTAR Technology Co., Ltd Key Master DP PLUS

User Manual

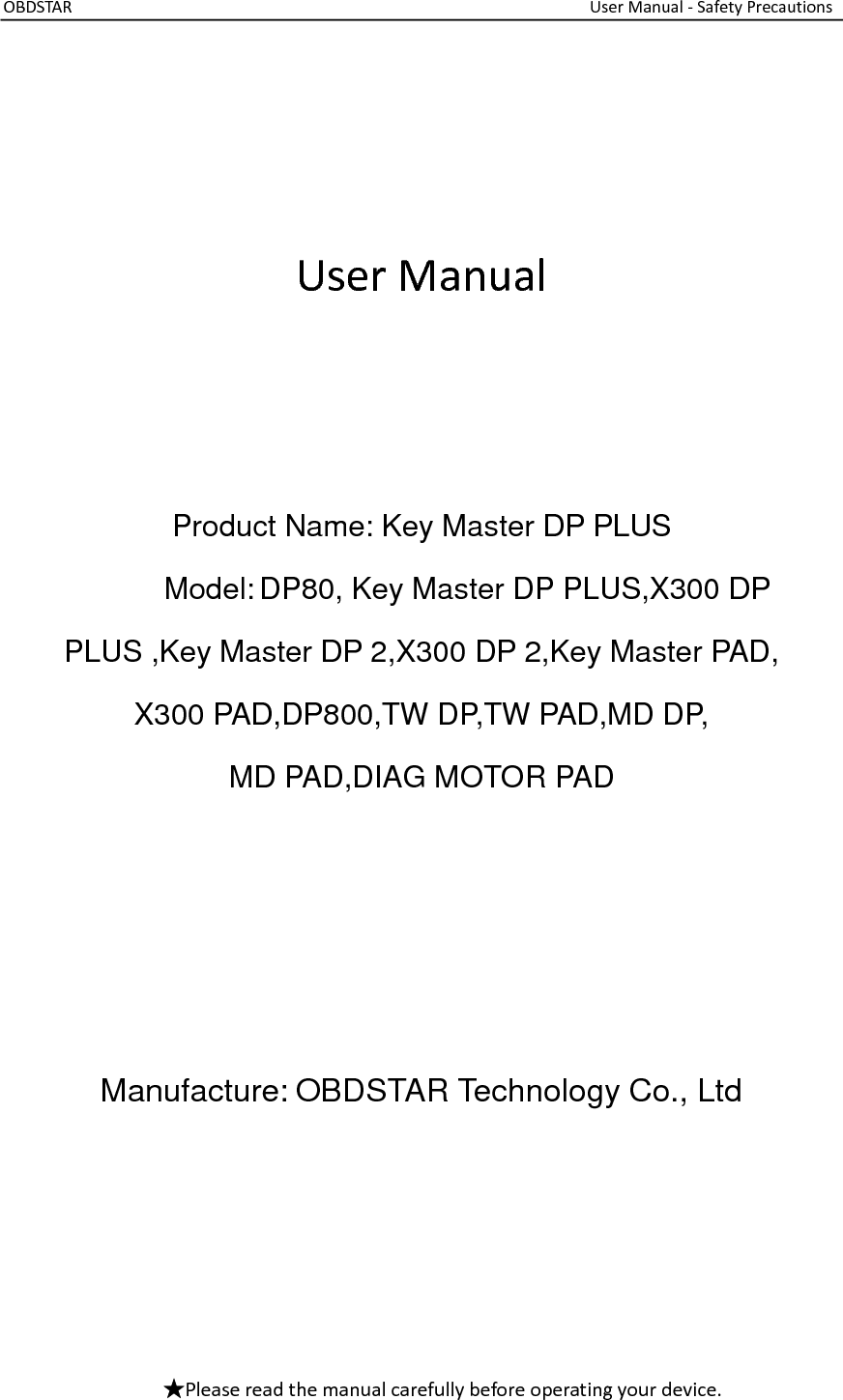

OBDSTAR User Manual - Safety Precautions User Manual Product Name: Key Master DP PLUS Model: DP80, Key Master DP PLUS,X300 DP PLUS ,Key Master DP 2,X300 DP 2,Key Master PAD, X300 PAD,DP800,TW DP,TW PAD,MD DP, MD PAD,DIAG MOTOR PAD Manufacture: OBDSTAR Technology Co., Ltd ★Please read the manual carefully before operating your device.

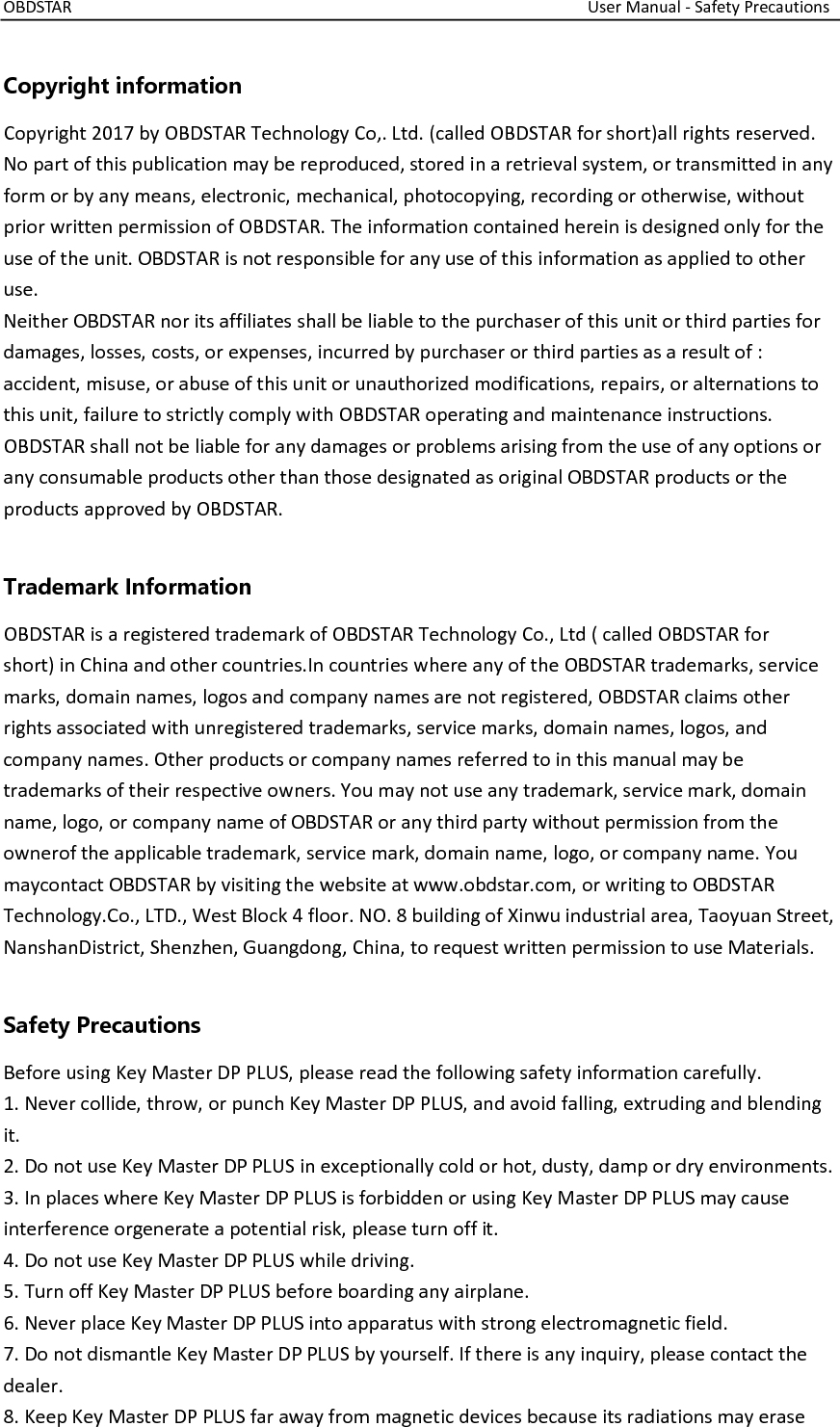

OBDSTAR User Manual - Safety Precautions Copyright information Copyright 2017 by OBDSTAR Technology Co,. Ltd. (called OBDSTAR for short)all rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without prior written permission of OBDSTAR. The information contained herein is designed only for the use of the unit. OBDSTAR is not responsible for any use of this information as applied to other use. Neither OBDSTAR nor its affiliates shall be liable to the purchaser of this unit or third parties for damages, losses, costs, or expenses, incurred by purchaser or third parties as a result of : accident, misuse, or abuse of this unit or unauthorized modifications, repairs, or alternations to this unit, failure to strictly comply with OBDSTAR operating and maintenance instructions. OBDSTAR shall not be liable for any damages or problems arising from the use of any options or any consumable products other than those designated as original OBDSTAR products or the products approved by OBDSTAR. Trademark Information OBDSTAR is a registered trademark of OBDSTAR Technology Co., Ltd ( called OBDSTAR for short) in China and other countries.In countries where any of the OBDSTAR trademarks, service marks, domain names, logos and company names are not registered, OBDSTAR claims other rights associated with unregistered trademarks, service marks, domain names, logos, and company names. Other products or company names referred to in this manual may be trademarks of their respective owners. You may not use any trademark, service mark, domain name, logo, or company name of OBDSTAR or any third party without permission from the ownerof the applicable trademark, service mark, domain name, logo, or company name. You maycontact OBDSTAR by visiting the website at www.obdstar.com, or writing to OBDSTAR Technology.Co., LTD., West Block 4 floor. NO. 8 building of Xinwu industrial area, Taoyuan Street, NanshanDistrict, Shenzhen, Guangdong, China, to request written permission to use Materials. Safety Precautions Before using Key Master DP PLUS, please read the following safety information carefully. 1. Never collide, throw, or punch Key Master DP PLUS, and avoid falling, extruding and blending it. 2. Do not use Key Master DP PLUS in exceptionally cold or hot, dusty, damp or dry environments. 3. In places where Key Master DP PLUS is forbidden or using Key Master DP PLUS may cause interference orgenerate a potential risk, please turn off it. 4. Do not use Key Master DP PLUS while driving. 5. Turn off Key Master DP PLUS before boarding any airplane. 6. Never place Key Master DP PLUS into apparatus with strong electromagnetic field. 7. Do not dismantle Key Master DP PLUS by yourself. If there is any inquiry, please contact the dealer. 8. Keep Key Master DP PLUS far away from magnetic devices because its radiations may erase

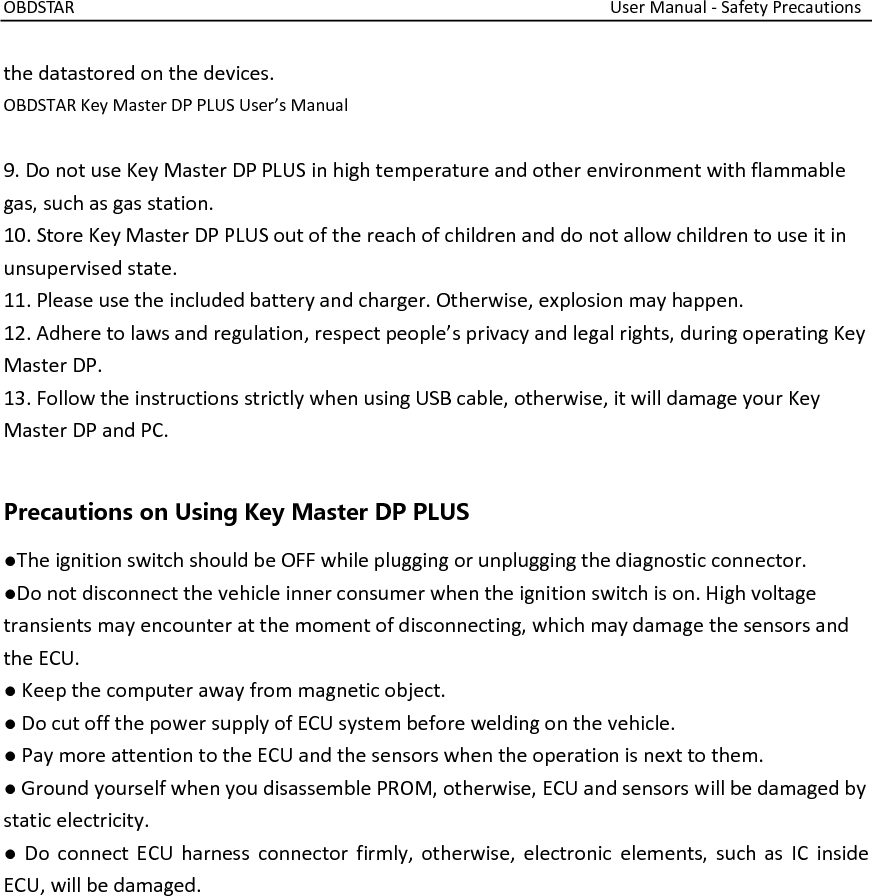

OBDSTAR User Manual - Safety Precautions the datastored on the devices. OBDSTAR Key Master DP PLUS User’s Manual 9. Do not use Key Master DP PLUS in high temperature and other environment with flammable gas, such as gas station. 10. Store Key Master DP PLUS out of the reach of children and do not allow children to use it in unsupervised state. 11. Please use the included battery and charger. Otherwise, explosion may happen. 12. Adhere to laws and regulation, respect people’s privacy and legal rights, during operating Key Master DP. 13. Follow the instructions strictly when using USB cable, otherwise, it will damage your Key Master DP and PC. Precautions on Using Key Master DP PLUS ●The ignition switch should be OFF while plugging or unplugging the diagnostic connector. ●Do not disconnect the vehicle inner consumer when the ignition switch is on. High voltage transients may encounter at the moment of disconnecting, which may damage the sensors and the ECU. ● Keep the computer away from magnetic object. ● Do cut off the power supply of ECU system before welding on the vehicle. ● Pay more attention to the ECU and the sensors when the operation is next to them. ● Ground yourself when you disassemble PROM, otherwise, ECU and sensors will be damaged by static electricity. ● Do connect ECU harness connector firmly, otherwise, electronic elements, such as IC inside ECU, will be damaged.

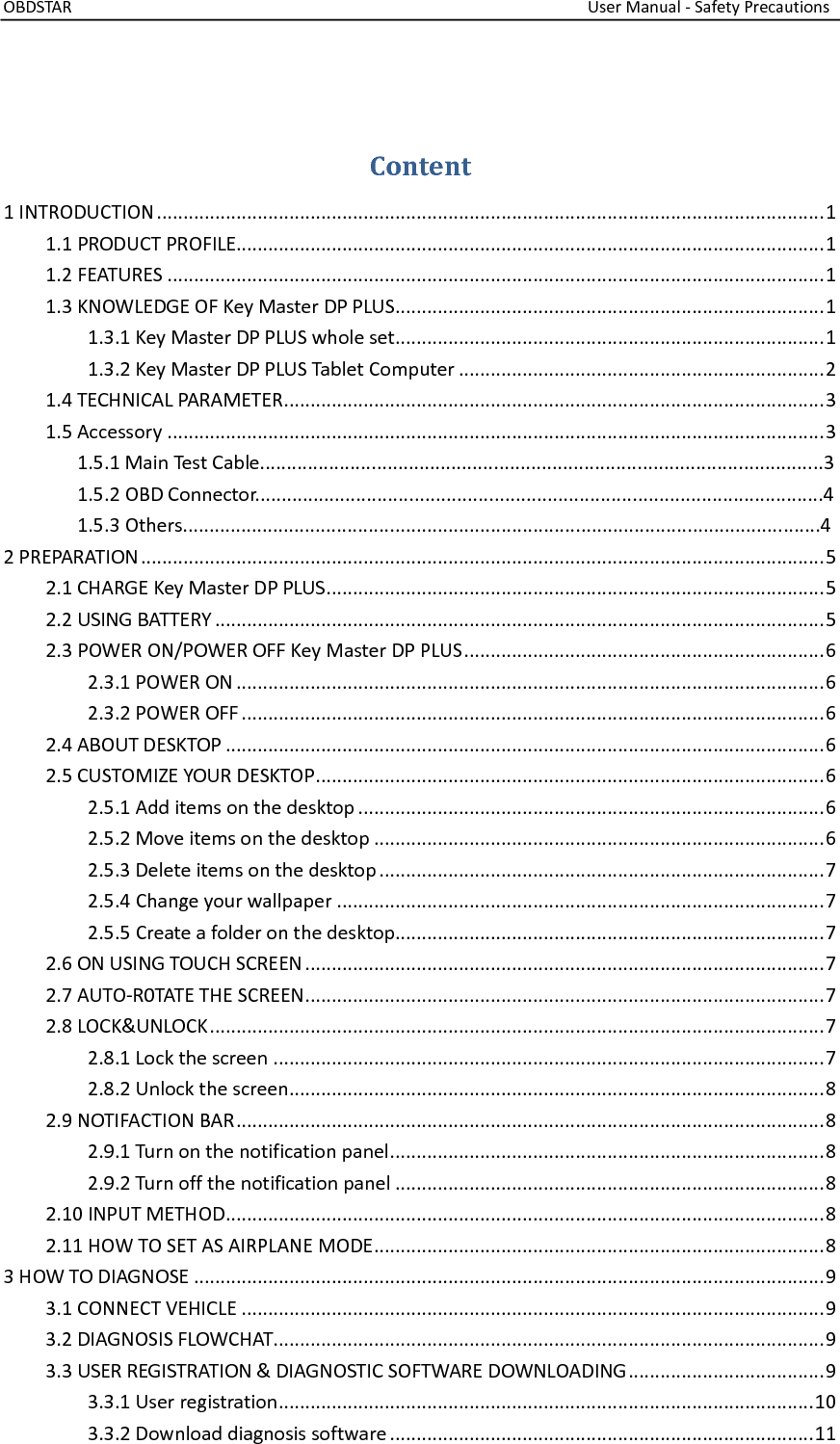

OBDSTAR User Manual - Safety Precautions Content 1 INTRODUCTION .............................................................................................................................. 1 1.1 PRODUCT PROFILE............................................................................................................... 1 1.2 FEATURES ............................................................................................................................ 1 1.3 KNOWLEDGE OF Key Master DP PLUS ................................................................................. 1 1.3.1 Key Master DP PLUS whole set ................................................................................. 1 1.3.2 Key Master DP PLUS Tablet Computer ..................................................................... 2 1.4 TECHNICAL PARAMETER ...................................................................................................... 3 1.5 Accessory ............................................................................................................................ 3 1.5.1 Main Test Cable..........................................................................................................3 1.5.2 OBD Connector...........................................................................................................4 1.5.3 Others........................................................................................................................4 2 PREPARATION ................................................................................................................................. 5 2.1 CHARGE Key Master DP PLUS .............................................................................................. 5 2.2 USING BATTERY ................................................................................................................... 5 2.3 POWER ON/POWER OFF Key Master DP PLUS .................................................................... 6 2.3.1 POWER ON ............................................................................................................... 6 2.3.2 POWER OFF .............................................................................................................. 6 2.4 ABOUT DESKTOP ................................................................................................................. 6 2.5 CUSTOMIZE YOUR DESKTOP ................................................................................................ 6 2.5.1 Add items on the desktop ........................................................................................ 6 2.5.2 Move items on the desktop ..................................................................................... 6 2.5.3 Delete items on the desktop .................................................................................... 7 2.5.4 Change your wallpaper ............................................................................................ 7 2.5.5 Create a folder on the desktop................................................................................. 7 2.6 ON USING TOUCH SCREEN .................................................................................................. 7 2.7 AUTO-R0TATE THE SCREEN .................................................................................................. 7 2.8 LOCK&UNLOCK .................................................................................................................... 7 2.8.1 Lock the screen ........................................................................................................ 7 2.8.2 Unlock the screen ..................................................................................................... 8 2.9 NOTIFACTION BAR ............................................................................................................... 8 2.9.1 Turn on the notification panel .................................................................................. 8 2.9.2 Turn off the notification panel ................................................................................. 8 2.10 INPUT METHOD ................................................................................................................. 8 2.11 HOW TO SET AS AIRPLANE MODE ..................................................................................... 8 3 HOW TO DIAGNOSE ....................................................................................................................... 9 3.1 CONNECT VEHICLE .............................................................................................................. 9 3.2 DIAGNOSIS FLOWCHAT........................................................................................................ 9 3.3 USER REGISTRATION & DIAGNOSTIC SOFTWARE DOWNLOADING ..................................... 9 3.3.1 User registration ..................................................................................................... 10 3.3.2 Download diagnosis software ................................................................................ 11

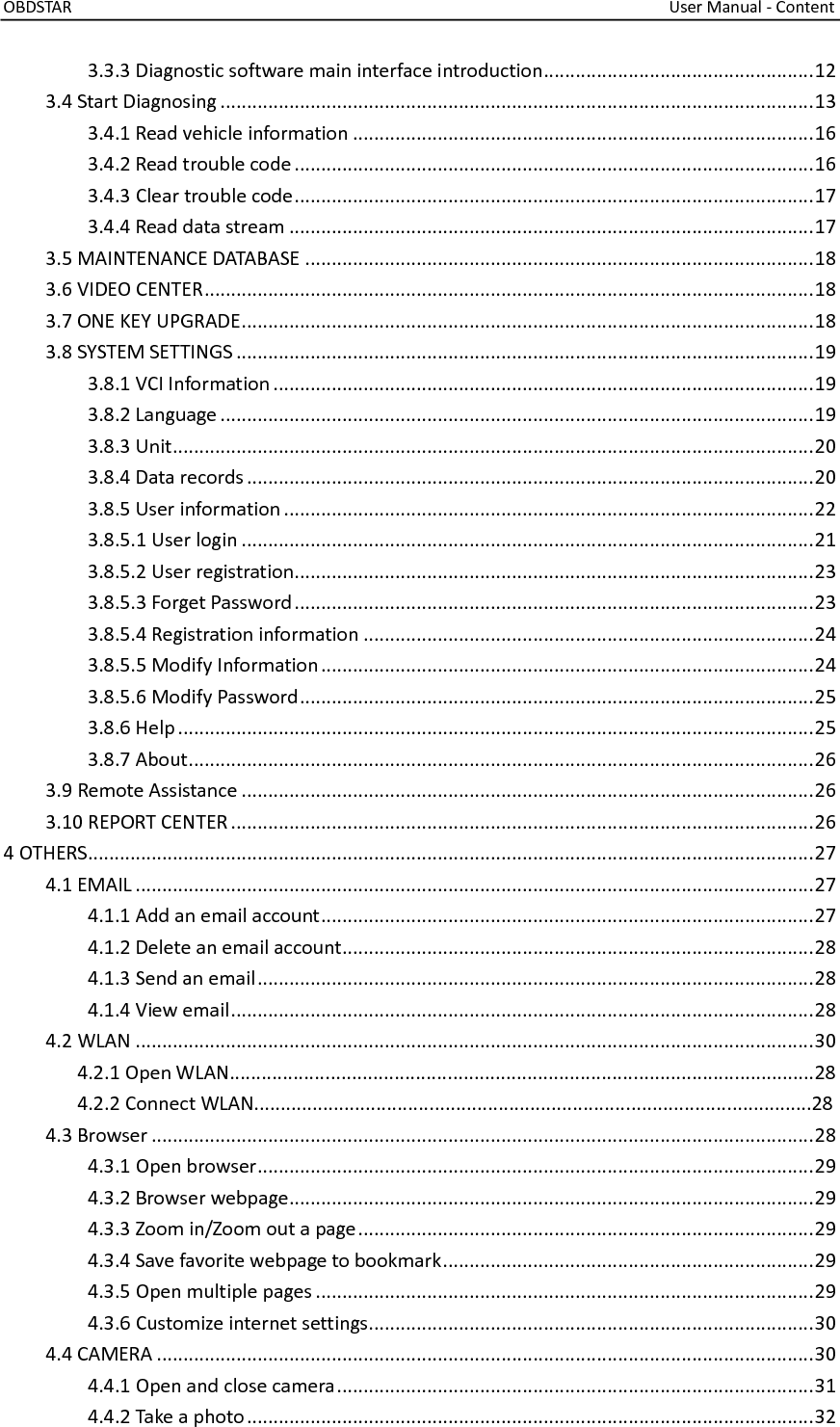

OBDSTAR User Manual - Content 3.3.3 Diagnostic software main interface introduction ................................................... 12 3.4 Start Diagnosing ................................................................................................................ 13 3.4.1 Read vehicle information ....................................................................................... 16 3.4.2 Read trouble code .................................................................................................. 16 3.4.3 Clear trouble code .................................................................................................. 17 3.4.4 Read data stream ................................................................................................... 17 3.5 MAINTENANCE DATABASE ................................................................................................ 18 3.6 VIDEO CENTER ................................................................................................................... 18 3.7 ONE KEY UPGRADE ............................................................................................................ 18 3.8 SYSTEM SETTINGS ............................................................................................................. 19 3.8.1 VCI Information ...................................................................................................... 19 3.8.2 Language ................................................................................................................ 19 3.8.3 Unit ......................................................................................................................... 20 3.8.4 Data records ........................................................................................................... 20 3.8.5 User information .................................................................................................... 22 3.8.5.1 User login ............................................................................................................ 21 3.8.5.2 User registration .................................................................................................. 23 3.8.5.3 Forget Password .................................................................................................. 23 3.8.5.4 Registration information ..................................................................................... 24 3.8.5.5 Modify Information ............................................................................................. 24 3.8.5.6 Modify Password ................................................................................................. 25 3.8.6 Help ........................................................................................................................ 25 3.8.7 About ...................................................................................................................... 26 3.9 Remote Assistance ............................................................................................................ 26 3.10 REPORT CENTER .............................................................................................................. 26 4 OTHERS ......................................................................................................................................... 27 4.1 EMAIL ................................................................................................................................ 27 4.1.1 Add an email account ............................................................................................. 27 4.1.2 Delete an email account ......................................................................................... 28 4.1.3 Send an email ......................................................................................................... 28 4.1.4 View email .............................................................................................................. 28 4.2 WLAN ................................................................................................................................ 30 4.2.1 Open WLAN..............................................................................................................28 4.2.2 Connect WLAN.........................................................................................................28 4.3 Browser ............................................................................................................................. 28 4.3.1 Open browser ......................................................................................................... 29 4.3.2 Browser webpage ................................................................................................... 29 4.3.3 Zoom in/Zoom out a page ...................................................................................... 29 4.3.4 Save favorite webpage to bookmark ...................................................................... 29 4.3.5 Open multiple pages .............................................................................................. 29 4.3.6 Customize internet settings.................................................................................... 30 4.4 CAMERA ............................................................................................................................ 30 4.4.1 Open and close camera .......................................................................................... 31 4.4.2 Take a photo ........................................................................................................... 32

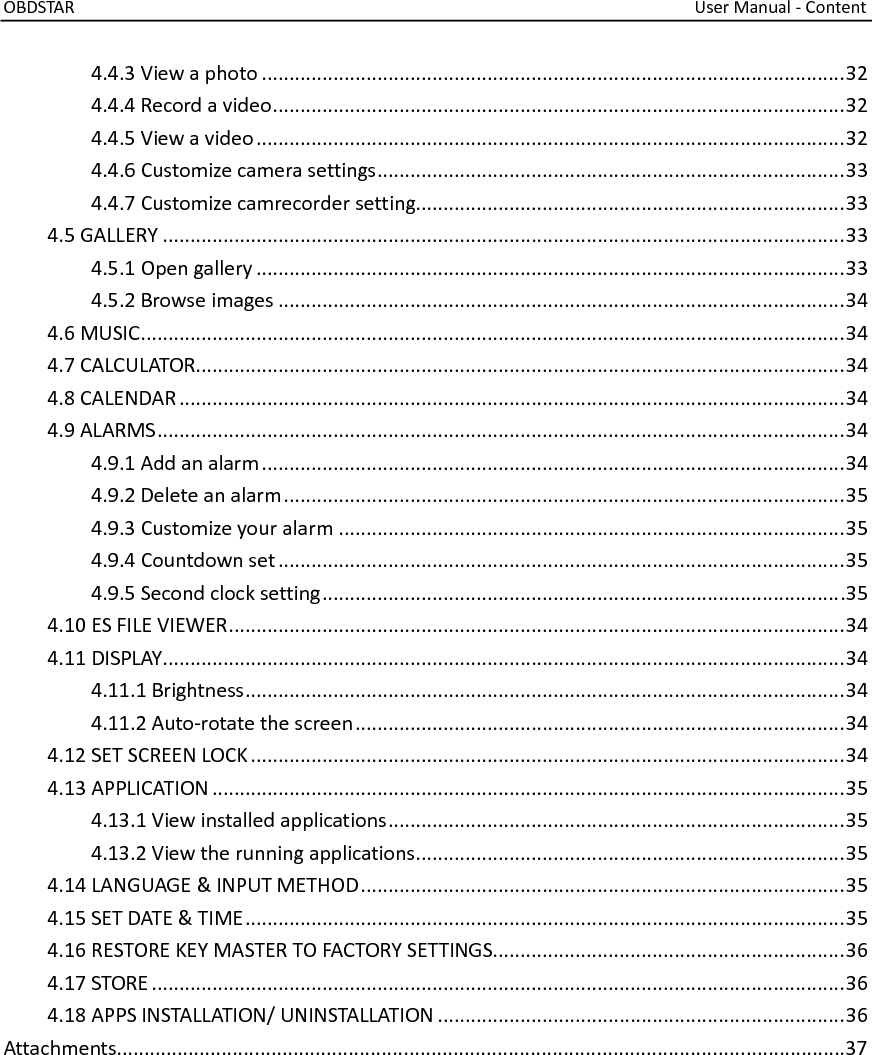

OBDSTAR User Manual - Content 4.4.3 View a photo .......................................................................................................... 32 4.4.4 Record a video ........................................................................................................ 32 4.4.5 View a video ........................................................................................................... 32 4.4.6 Customize camera settings ..................................................................................... 33 4.4.7 Customize camrecorder setting.............................................................................. 33 4.5 GALLERY ............................................................................................................................ 33 4.5.1 Open gallery ........................................................................................................... 33 4.5.2 Browse images ....................................................................................................... 34 4.6 MUSIC ................................................................................................................................ 34 4.7 CALCULATOR...................................................................................................................... 34 4.8 CALENDAR ......................................................................................................................... 34 4.9 ALARMS ............................................................................................................................. 34 4.9.1 Add an alarm .......................................................................................................... 34 4.9.2 Delete an alarm ...................................................................................................... 35 4.9.3 Customize your alarm ............................................................................................ 35 4.9.4 Countdown set ....................................................................................................... 35 4.9.5 Second clock setting .............................................................................................. .35 4.10 ES FILE VIEWER ................................................................................................................ 34 4.11 DISPLAY ............................................................................................................................ 34 4.11.1 Brightness ............................................................................................................. 34 4.11.2 Auto-rotate the screen ......................................................................................... 34 4.12 SET SCREEN LOCK ............................................................................................................ 34 4.13 APPLICATION ................................................................................................................... 35 4.13.1 View installed applications ................................................................................... 35 4.13.2 View the running applications .............................................................................. 35 4.14 LANGUAGE & INPUT METHOD ........................................................................................ 35 4.15 SET DATE & TIME ............................................................................................................. 35 4.16 RESTORE KEY MASTER TO FACTORY SETTINGS................................................................ 36 4.17 STORE .............................................................................................................................. 36 4.18 APPS INSTALLATION/ UNINSTALLATION .......................................................................... 36 Attachments....................................................................................................................................37

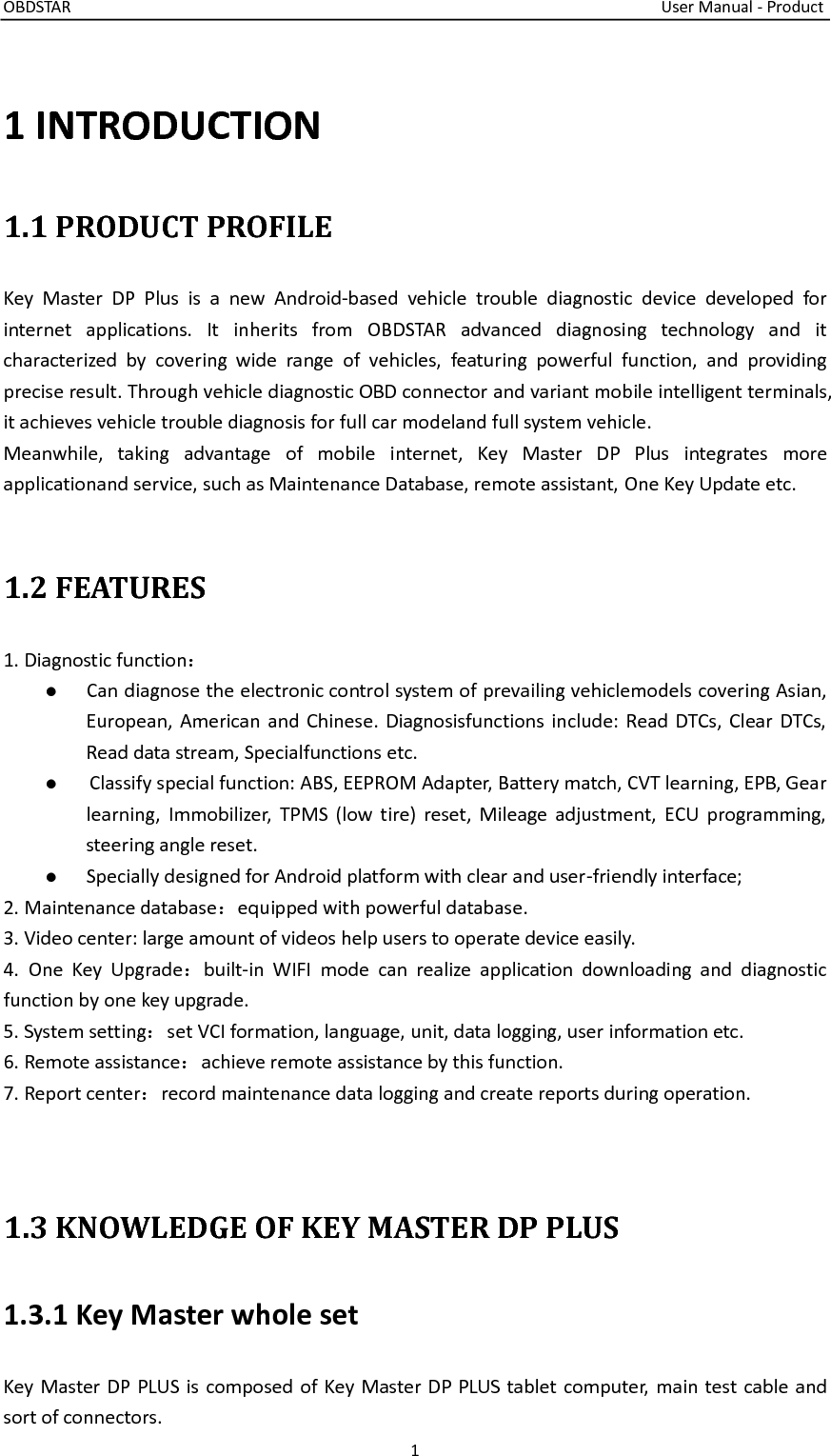

OBDSTAR User Manual - Product 1 1 INTRODUCTION 1.1 PRODUCT PROFILE Key Master DP Plus is a new Android-based vehicle trouble diagnostic device developed for internet applications. It inherits from OBDSTAR advanced diagnosing technology and it characterized by covering wide range of vehicles, featuring powerful function, and providing precise result. Through vehicle diagnostic OBD connector and variant mobile intelligent terminals, it achieves vehicle trouble diagnosis for full car modeland full system vehicle. Meanwhile, taking advantage of mobile internet, Key Master DP Plus integrates more applicationand service, such as Maintenance Database, remote assistant, One Key Update etc. 1.2 FEATURES 1. Diagnostic function： ● Can diagnose the electronic control system of prevailing vehiclemodels covering Asian, European, American and Chinese. Diagnosisfunctions include: Read DTCs, Clear DTCs, Read data stream, Specialfunctions etc. ● Classify special function: ABS, EEPROM Adapter, Battery match, CVT learning, EPB, Gear learning, Immobilizer, TPMS (low tire) reset, Mileage adjustment, ECU programming, steering angle reset. ● Specially designed for Android platform with clear and user-friendly interface; 2. Maintenance database：equipped with powerful database. 3. Video center: large amount of videos help users to operate device easily. 4. One Key Upgrade：built-in WIFI mode can realize application downloading and diagnostic function by one key upgrade. 5. System setting：set VCI formation, language, unit, data logging, user information etc. 6. Remote assistance：achieve remote assistance by this function. 7. Report center：record maintenance data logging and create reports during operation. 1.3 KNOWLEDGE OF KEY MASTER DP PLUS 1.3.1 Key Master whole set Key Master DP PLUS is composed of Key Master DP PLUS tablet computer, main test cable and sort of connectors.

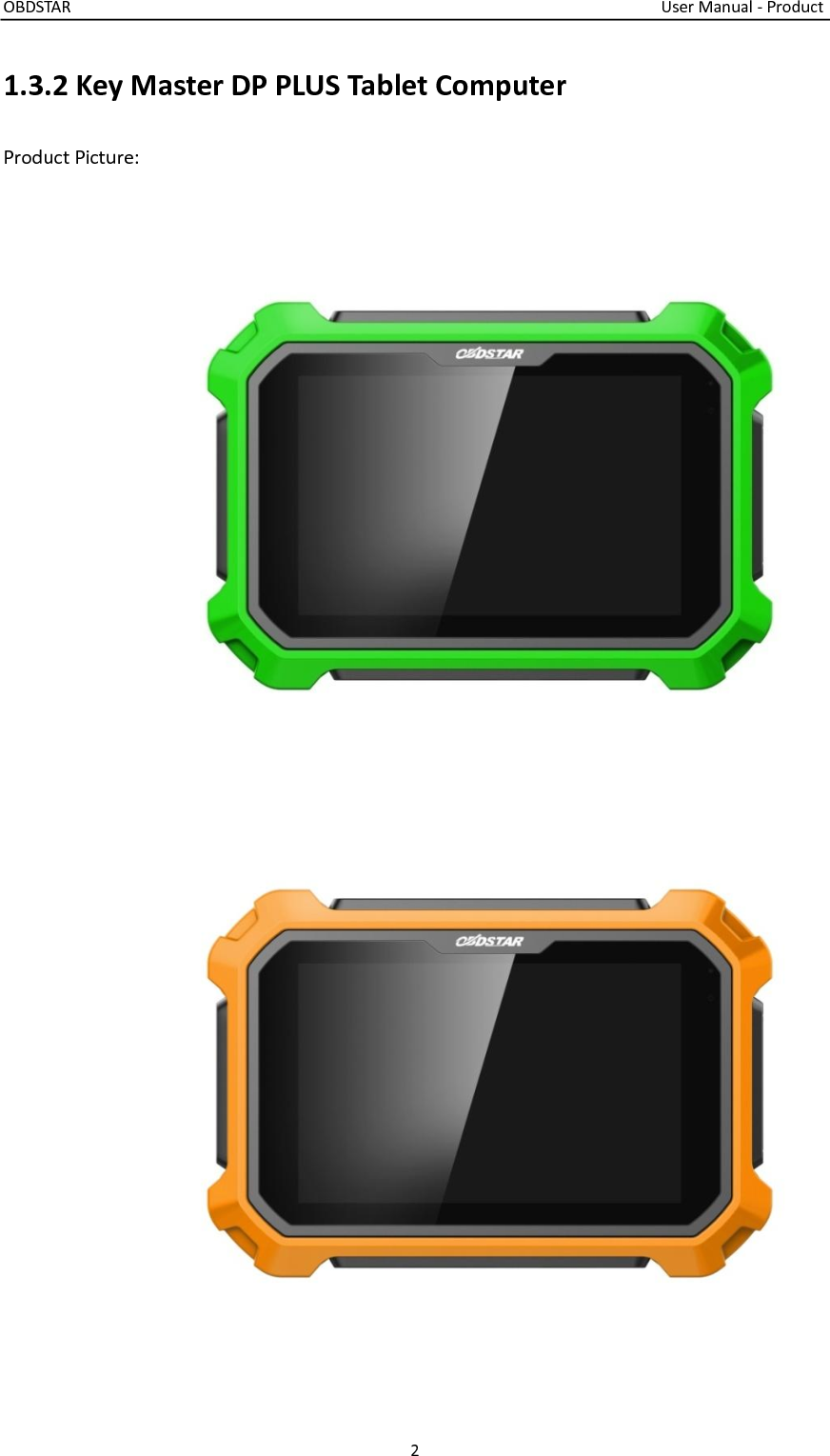

OBDSTAR User Manual - Product 2 1.3.2 Key Master DP PLUS Tablet Computer Product Picture:
OBDSTAR User Manual - Product 3 1.4 TECHNICAL PARAMETER ● Operation system：Android 5.1.1 ● CPU：Exynos4418 Dual Core ARM Cortex A9 1.4GHz ● Battery：3700mh, rechargeable polymer lithium battery ● Extension memory card: 32G Micro SD (TF)card supported ● Memory capacity：2GB ● Storage capacity：32GB ● LCD：8.0 inch ● LCD resolution：1280*800 ● Touch screen：capacitive touch screen ● Camera：5 mega rear view camera ● Wi-Fi：supported ● Working temperature：-10℃~55℃（14℉~131℉） ● Storage temperature：-20℃~70℃（-4℉~158℉） ● Weight：about 1.0 Kg ● Dimension：254mm*174*mm*35mm 1.5 ACCESSORY（Standard Configuration） 1.5.1 Main Test Cable

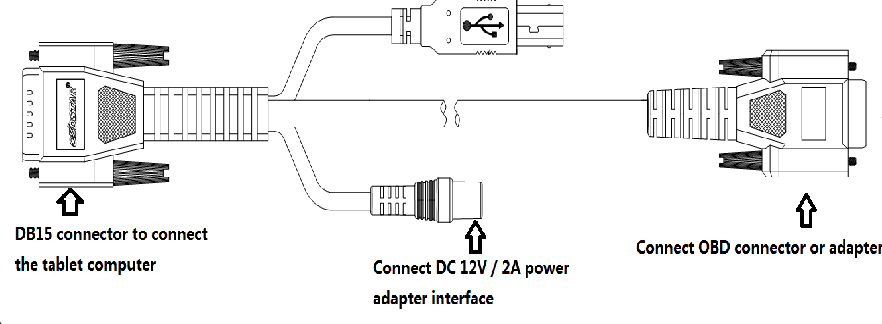

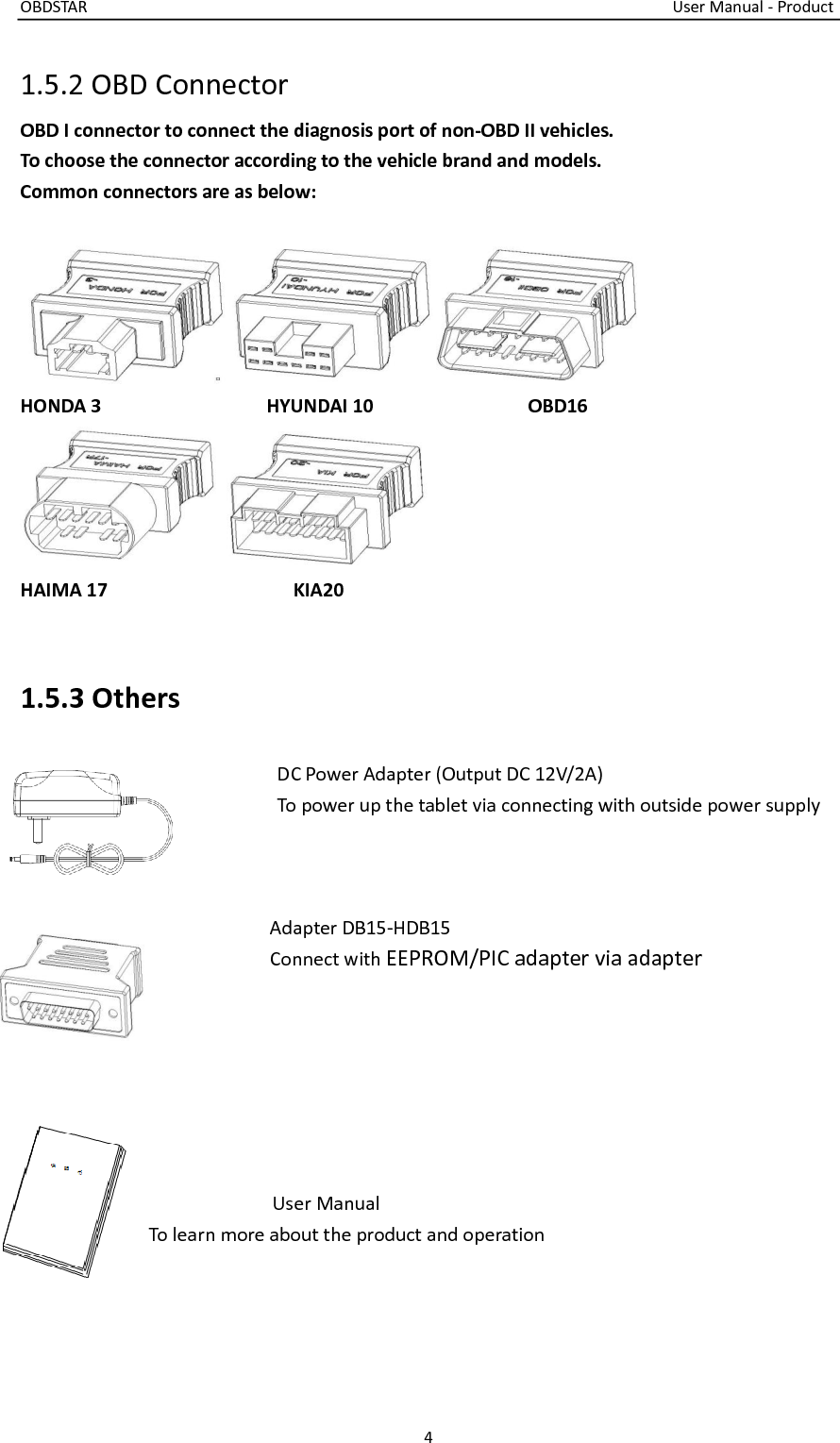

OBDSTAR User Manual - Product 4 1.5.2 OBD Connector OBD I connector to connect the diagnosis port of non-OBD II vehicles. To choose the connector according to the vehicle brand and models. Common connectors are as below: HONDA 3 HYUNDAI 10 OBD16 HAIMA 17 KIA20 1.5.3 Others DC Power Adapter (Output DC 12V/2A) To power up the tablet via connecting with outside power supply Adapter DB15-HDB15 Connect with EEPROM/PIC adapter via adapter User Manual To learn more about the product and operation

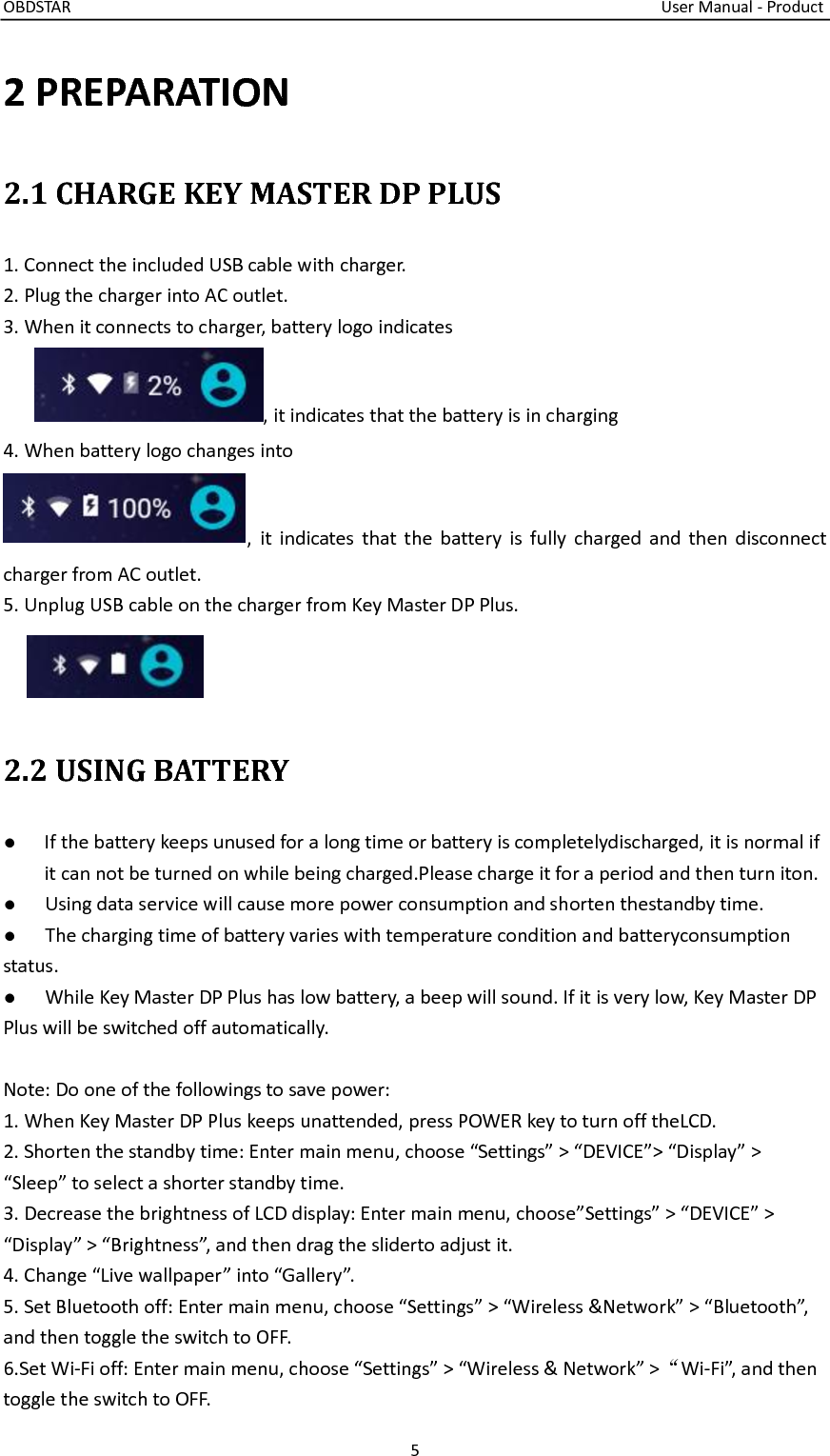

OBDSTAR User Manual - Product 5 2 PREPARATION 2.1 CHARGE KEY MASTER DP PLUS 1. Connect the included USB cable with charger. 2. Plug the charger into AC outlet. 3. When it connects to charger, battery logo indicates , it indicates that the battery is in charging 4. When battery logo changes into , it indicates that the battery is fully charged and then disconnect charger from AC outlet. 5. Unplug USB cable on the charger from Key Master DP Plus. 2.2 USING BATTERY ● If the battery keeps unused for a long time or battery is completelydischarged, it is normal if it can not be turned on while being charged.Please charge it for a period and then turn iton. ● Using data service will cause more power consumption and shorten thestandby time. ● The charging time of battery varies with temperature condition and batteryconsumption status. ● While Key Master DP Plus has low battery, a beep will sound. If it is very low, Key Master DP Plus will be switched off automatically. Note: Do one of the followings to save power: 1. When Key Master DP Plus keeps unattended, press POWER key to turn off theLCD. 2. Shorten the standby time: Enter main menu, choose “Settings” > “DEVICE”> “Display” > “Sleep” to select a shorter standby time. 3. Decrease the brightness of LCD display: Enter main menu, choose”Settings” > “DEVICE” > “Display” > “Brightness”, and then drag the sliderto adjust it. 4. Change “Live wallpaper” into “Gallery”. 5. Set Bluetooth off: Enter main menu, choose “Settings” > “Wireless &Network” > “Bluetooth”, and then toggle the switch to OFF. 6.Set Wi-Fi off: Enter main menu, choose “Settings” > “Wireless & Network” >“Wi-Fi”, and then toggle the switch to OFF.

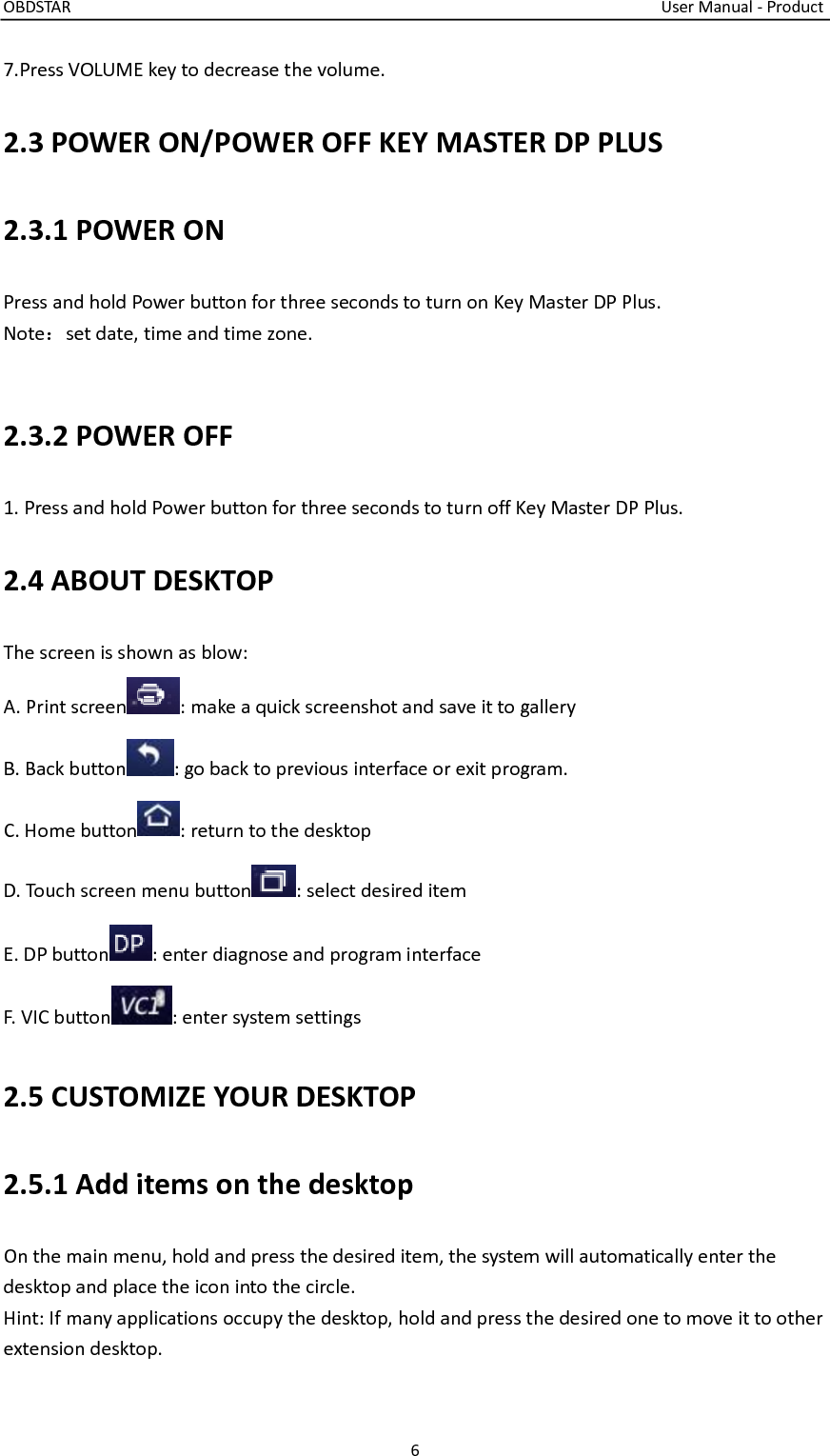

OBDSTAR User Manual - Product 6 7.Press VOLUME key to decrease the volume. 2.3 POWER ON/POWER OFF KEY MASTER DP PLUS 2.3.1 POWER ON Press and hold Power button for three seconds to turn on Key Master DP Plus. Note：set date, time and time zone. 2.3.2 POWER OFF 1. Press and hold Power button for three seconds to turn off Key Master DP Plus. 2.4 ABOUT DESKTOP The screen is shown as blow: A. Print screen : make a quick screenshot and save it to gallery B. Back button : go back to previous interface or exit program. C. Home button : return to the desktop D. Touch screen menu button : select desired item E. DP button : enter diagnose and program interface F. VIC button : enter system settings 2.5 CUSTOMIZE YOUR DESKTOP 2.5.1 Add items on the desktop On the main menu, hold and press the desired item, the system will automatically enter the desktop and place the icon into the circle. Hint: If many applications occupy the desktop, hold and press the desired one to move it to other extension desktop.

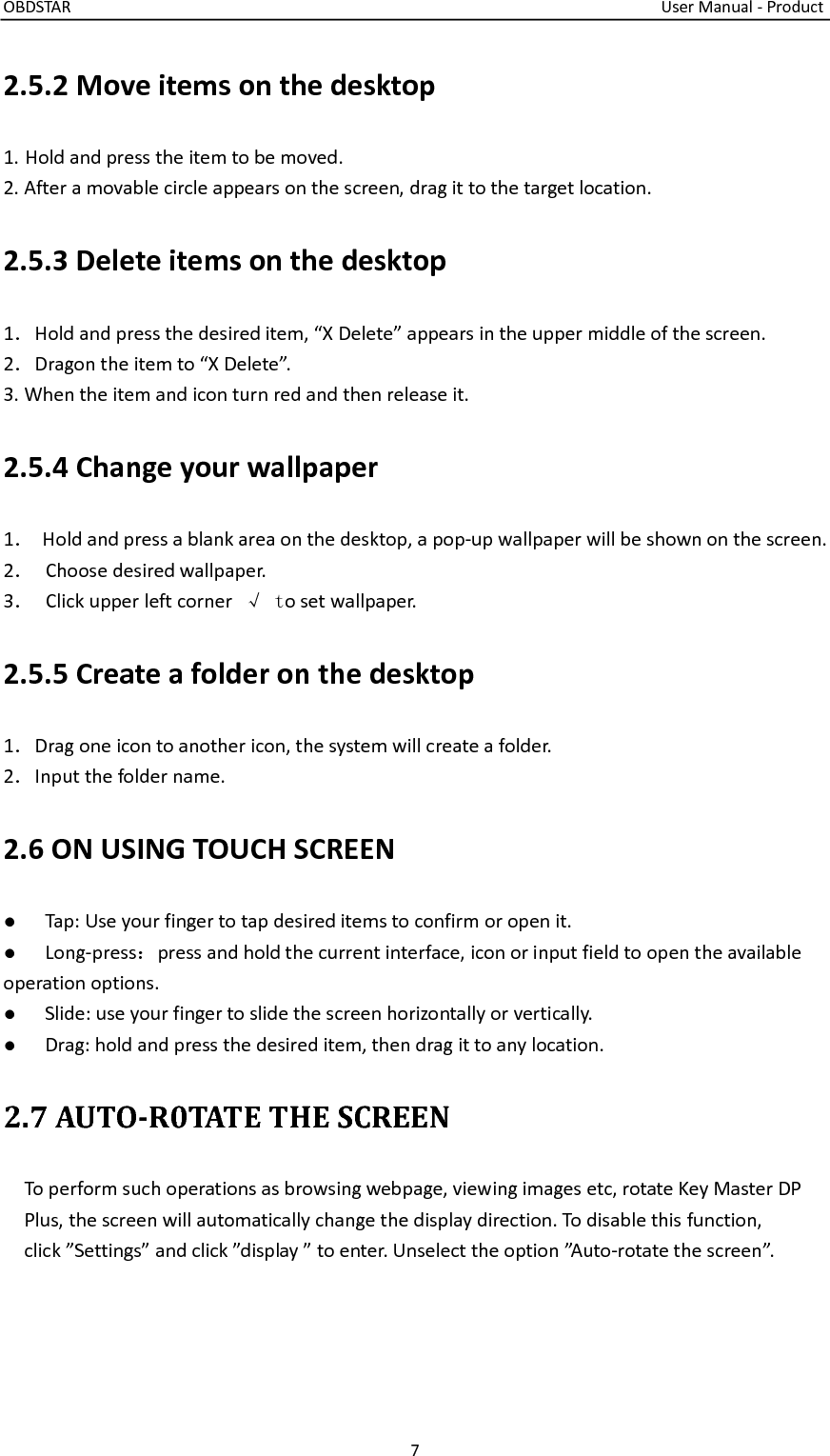

OBDSTAR User Manual - Product 7 2.5.2 Move items on the desktop 1. Hold and press the item to be moved. 2. After a movable circle appears on the screen, drag it to the target location. 2.5.3 Delete items on the desktop 1．Hold and press the desired item, “X Delete” appears in the upper middle of the screen. 2．Dragon the item to “X Delete”. 3. When the item and icon turn red and then release it. 2.5.4 Change your wallpaper 1． Hold and press a blank area on the desktop, a pop-up wallpaper will be shown on the screen. 2． Choose desired wallpaper. 3． Click upper left corner √ to set wallpaper. 2.5.5 Create a folder on the desktop 1．Drag one icon to another icon, the system will create a folder. 2．Input the folder name. 2.6 ON USING TOUCH SCREEN ● Tap: Use your finger to tap desired items to confirm or open it. ● Long-press：press and hold the current interface, icon or input field to open the available operation options. ● Slide: use your finger to slide the screen horizontally or vertically. ● Drag: hold and press the desired item, then drag it to any location. 2.7 AUTO-R0TATE THE SCREEN To perform such operations as browsing webpage, viewing images etc, rotate Key Master DP Plus, the screen will automatically change the display direction. To disable this function, click ”Settings” and click ”display ” to enter. Unselect the option ”Auto-rotate the screen”.

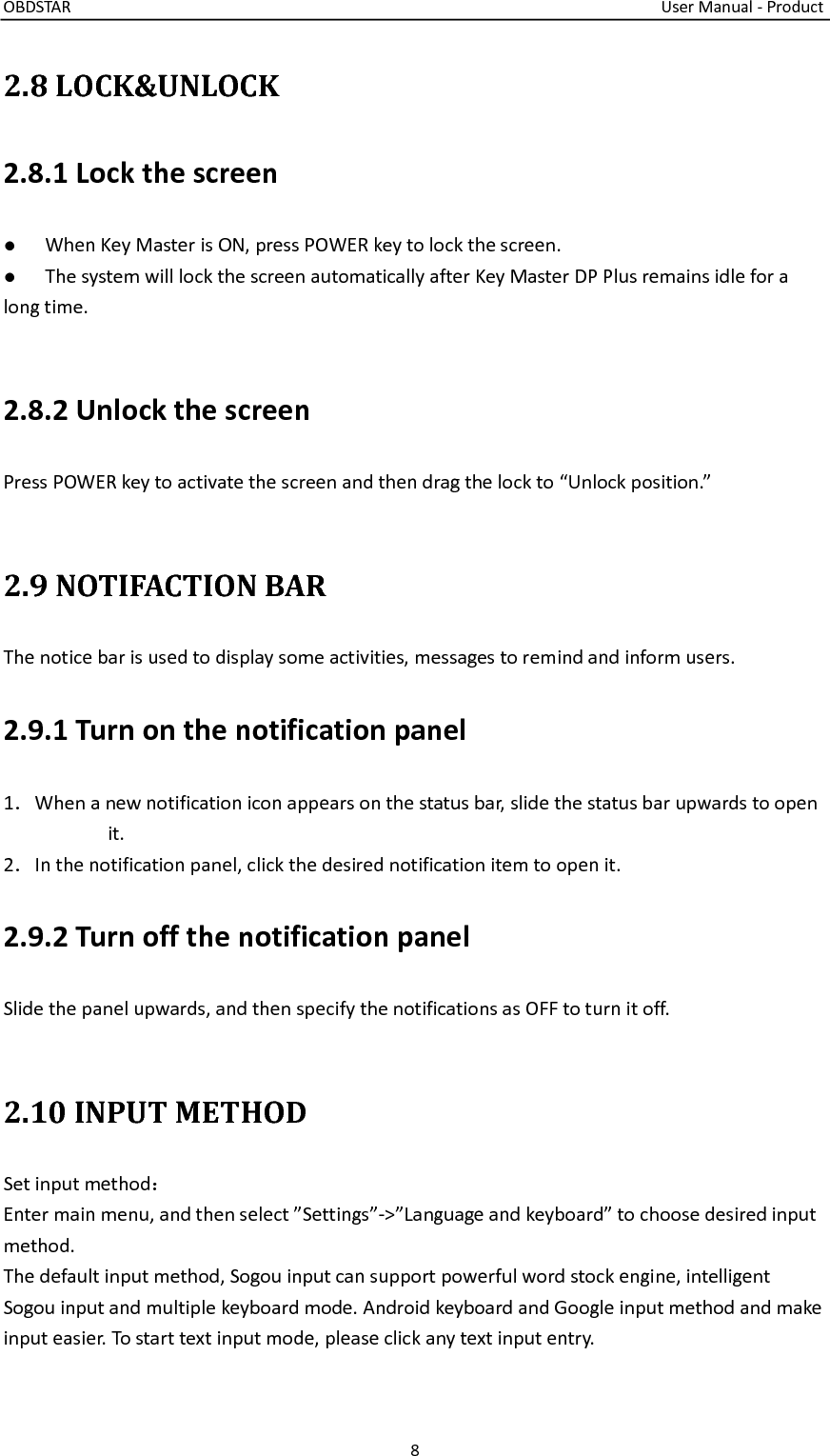

OBDSTAR User Manual - Product 8 2.8 LOCK&UNLOCK 2.8.1 Lock the screen ● When Key Master is ON, press POWER key to lock the screen. ● The system will lock the screen automatically after Key Master DP Plus remains idle for a long time. 2.8.2 Unlock the screen Press POWER key to activate the screen and then drag the lock to “Unlock position.” 2.9 NOTIFACTION BAR The notice bar is used to display some activities, messages to remind and inform users. 2.9.1 Turn on the notification panel 1．When a new notification icon appears on the status bar, slide the status bar upwards to open it. 2．In the notification panel, click the desired notification item to open it. 2.9.2 Turn off the notification panel Slide the panel upwards, and then specify the notifications as OFF to turn it off. 2.10 INPUT METHOD Set input method： Enter main menu, and then select ”Settings”->”Language and keyboard” to choose desired input method. The default input method, Sogou input can support powerful word stock engine, intelligent Sogou input and multiple keyboard mode. Android keyboard and Google input method and make input easier. To start text input mode, please click any text input entry.

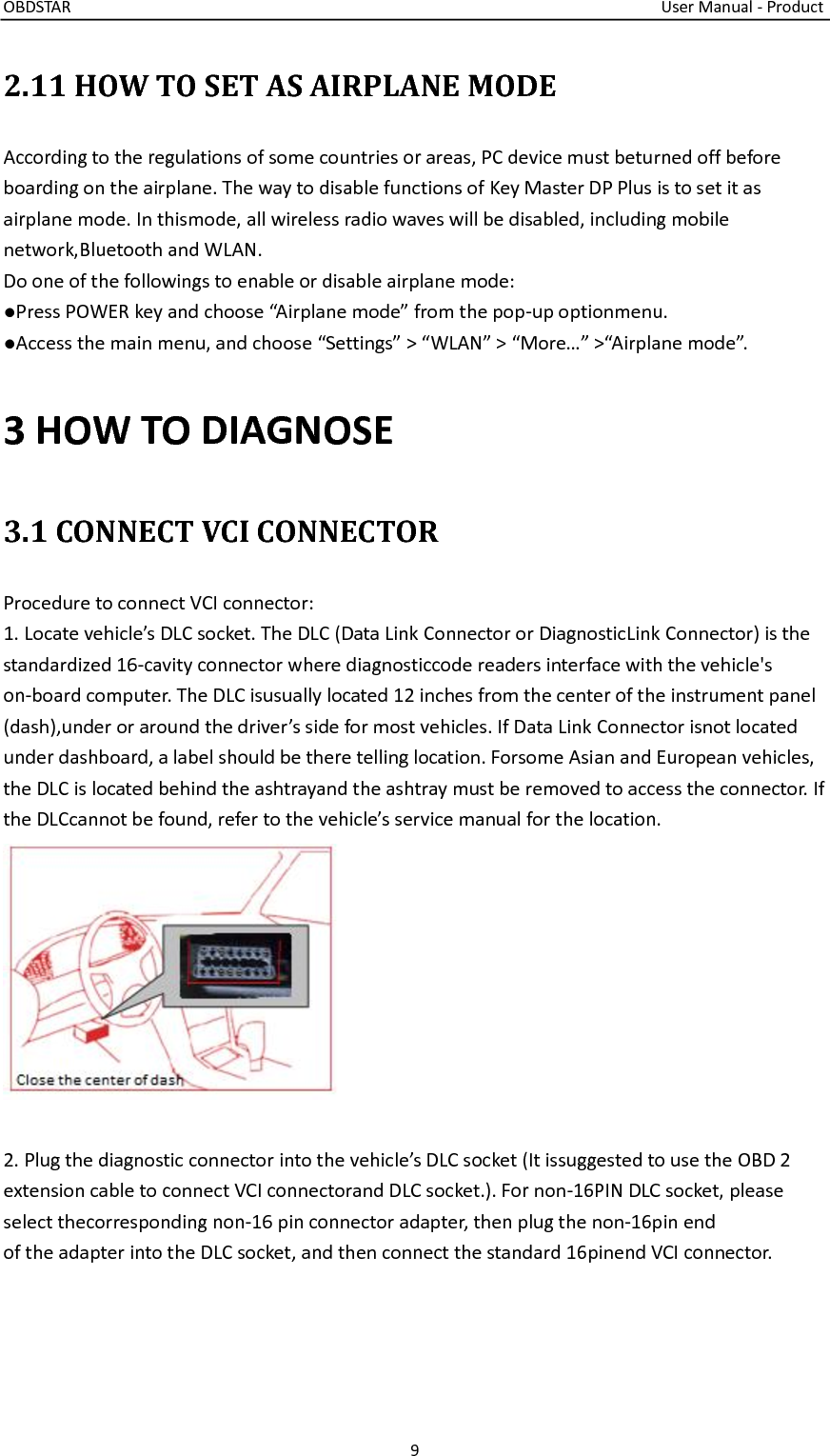

OBDSTAR User Manual - Product 9 2.11 HOW TO SET AS AIRPLANE MODE According to the regulations of some countries or areas, PC device must beturned off before boarding on the airplane. The way to disable functions of Key Master DP Plus is to set it as airplane mode. In thismode, all wireless radio waves will be disabled, including mobile network,Bluetooth and WLAN. Do one of the followings to enable or disable airplane mode: ●Press POWER key and choose “Airplane mode” from the pop-up optionmenu. ●Access the main menu, and choose “Settings” > “WLAN” > “More…” >“Airplane mode”.3 HOW TO DIAGNOSE 3.1 CONNECT VCI CONNECTOR Procedure to connect VCI connector: 1. Locate vehicle’s DLC socket. The DLC (Data Link Connector or DiagnosticLink Connector) is the standardized 16-cavity connector where diagnosticcode readers interface with the vehicle's on-board computer. The DLC isusually located 12 inches from the center of the instrument panel (dash),under or around the driver’s side for most vehicles. If Data Link Connector isnot located under dashboard, a label should be there telling location. Forsome Asian and European vehicles, the DLC is located behind the ashtrayand the ashtray must be removed to access the connector. If the DLCcannot be found, refer to the vehicle’s service manual for the location. 2. Plug the diagnostic connector into the vehicle’s DLC socket (It issuggested to use the OBD 2 extension cable to connect VCI connectorand DLC socket.). For non-16PIN DLC socket, please select thecorresponding non-16 pin connector adapter, then plug the non-16pin end of the adapter into the DLC socket, and then connect the standard 16pinend VCI connector.

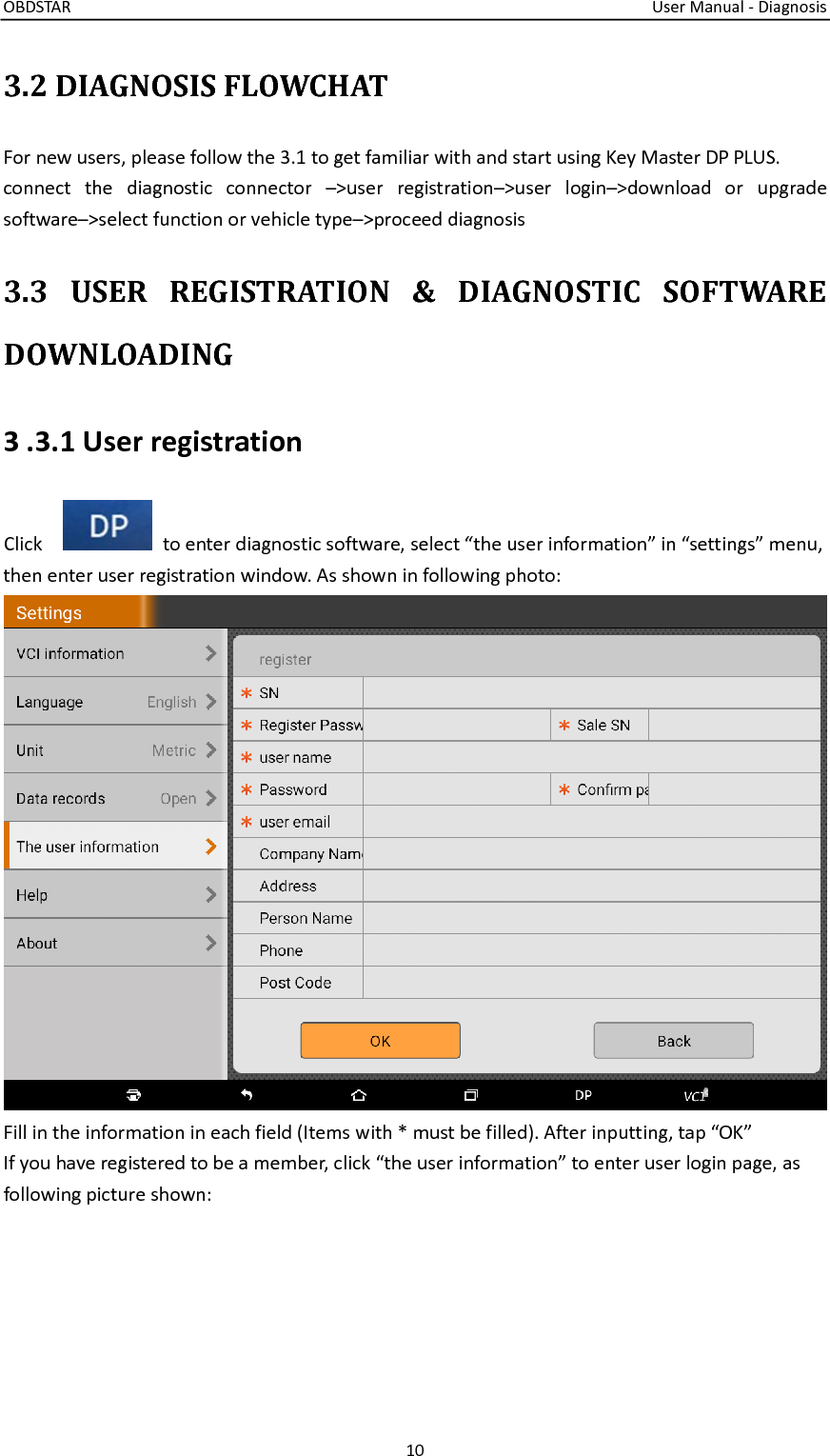

OBDSTAR User Manual - Diagnosis 10 3.2 DIAGNOSIS FLOWCHAT For new users, please follow the 3.1 to get familiar with and start using Key Master DP PLUS. connect the diagnostic connector –>user registration–>user login–>download or upgrade software–>select function or vehicle type–>proceed diagnosis 3.3 USER REGISTRATION & DIAGNOSTIC SOFTWARE DOWNLOADING 3 .3.1 User registration Click to enter diagnostic software, select “the user information” in “settings” menu, then enter user registration window. As shown in following photo: Fill in the information in each field (Items with * must be filled). After inputting, tap “OK” If you have registered to be a member, click “the user information” to enter user login page, as following picture shown:

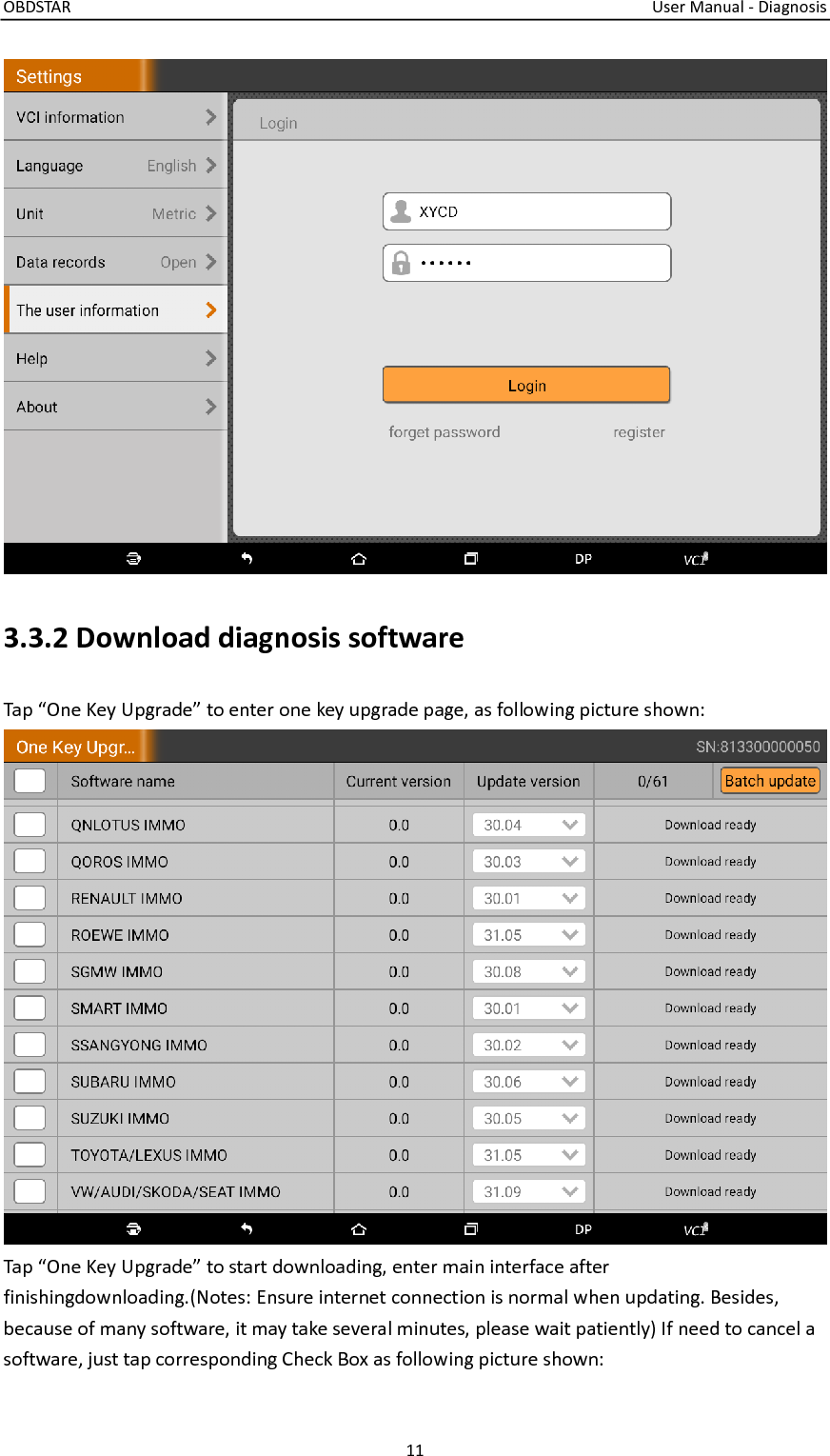

OBDSTAR User Manual - Diagnosis 11 3.3.2 Download diagnosis software Tap “One Key Upgrade” to enter one key upgrade page, as following picture shown: Tap “One Key Upgrade” to start downloading, enter main interface after finishingdownloading.(Notes: Ensure internet connection is normal when updating. Besides, because of many software, it may take several minutes, please wait patiently) If need to cancel a software, just tap corresponding Check Box as following picture shown:
OBDSTAR User Manual - Diagnosis 12 3 .3.3 Diagnostic software main interface introduction

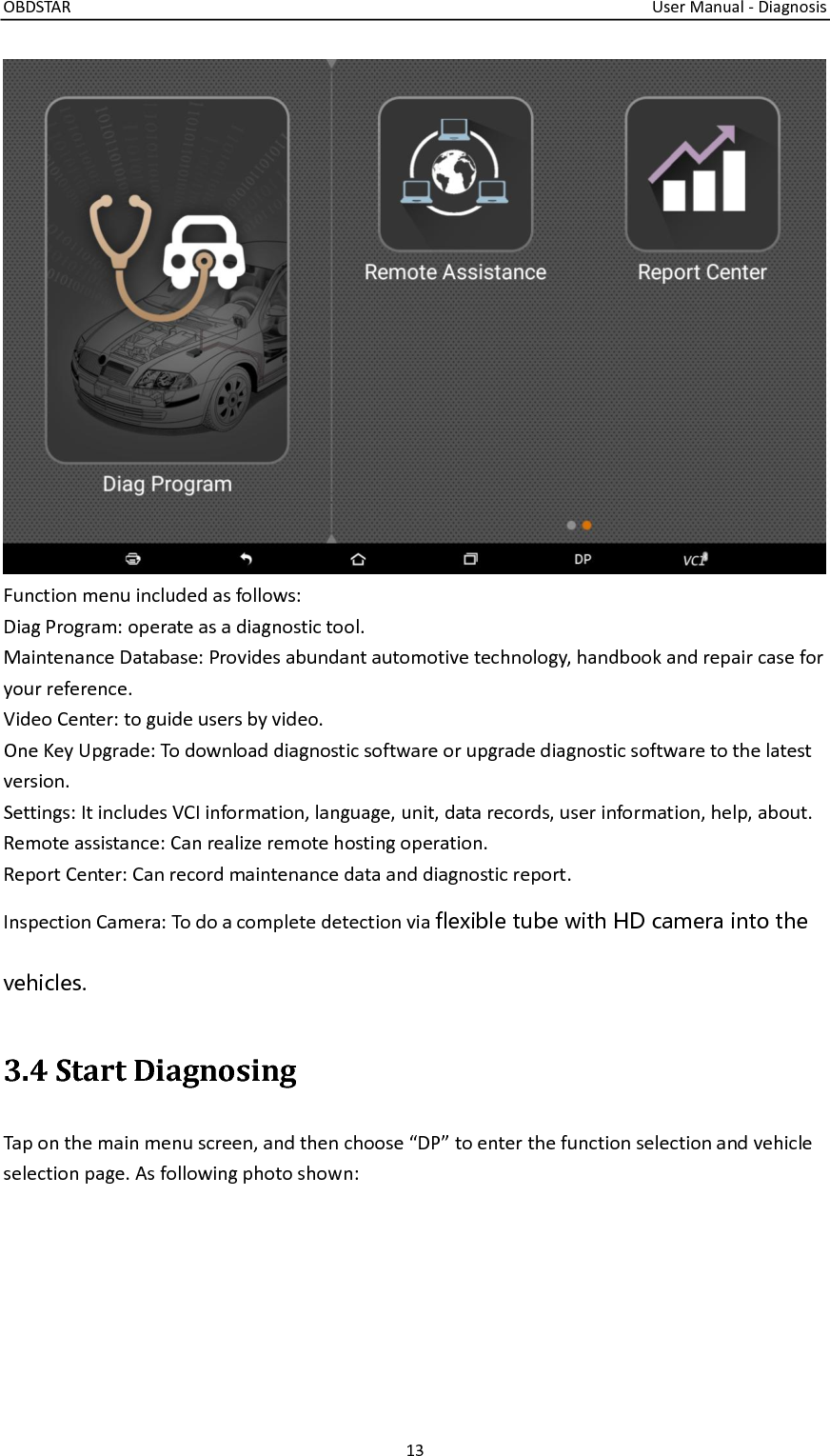

OBDSTAR User Manual - Diagnosis 13 Function menu included as follows: Diag Program: operate as a diagnostic tool. Maintenance Database: Provides abundant automotive technology, handbook and repair case for your reference. Video Center: to guide users by video. One Key Upgrade: To download diagnostic software or upgrade diagnostic software to the latest version. Settings: It includes VCI information, language, unit, data records, user information, help, about. Remote assistance: Can realize remote hosting operation. Report Center: Can record maintenance data and diagnostic report. Inspection Camera: To do a complete detection via flexible tube with HD camera into the vehicles. 3.4 Start Diagnosing Tap on the main menu screen, and then choose “DP” to enter the function selection and vehicle selection page. As following photo shown:

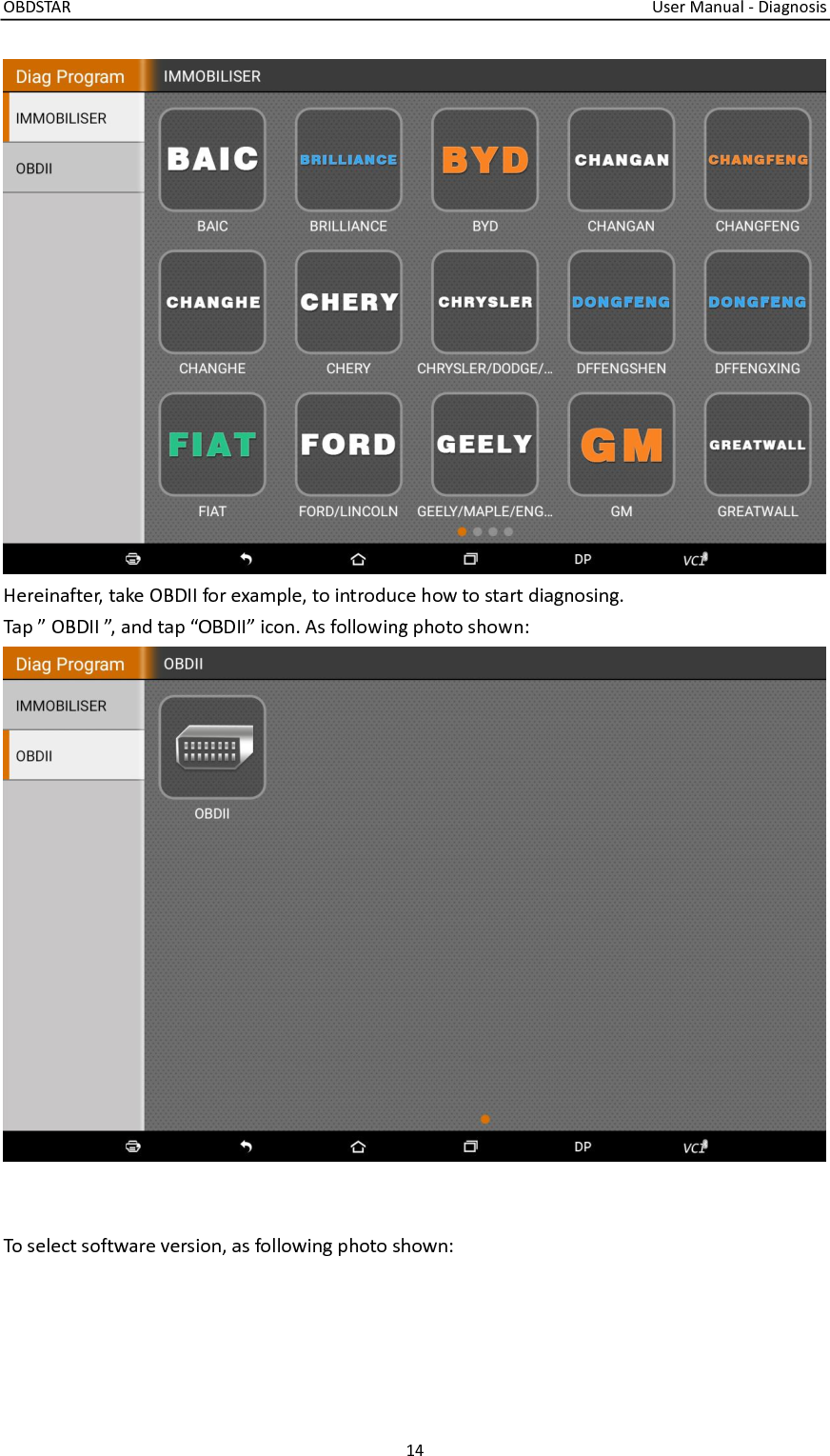

OBDSTAR User Manual - Diagnosis 14 Hereinafter, take OBDII for example, to introduce how to start diagnosing. Tap ” OBDII ”, and tap “OBDII” icon. As following photo shown: To select software version, as following photo shown:

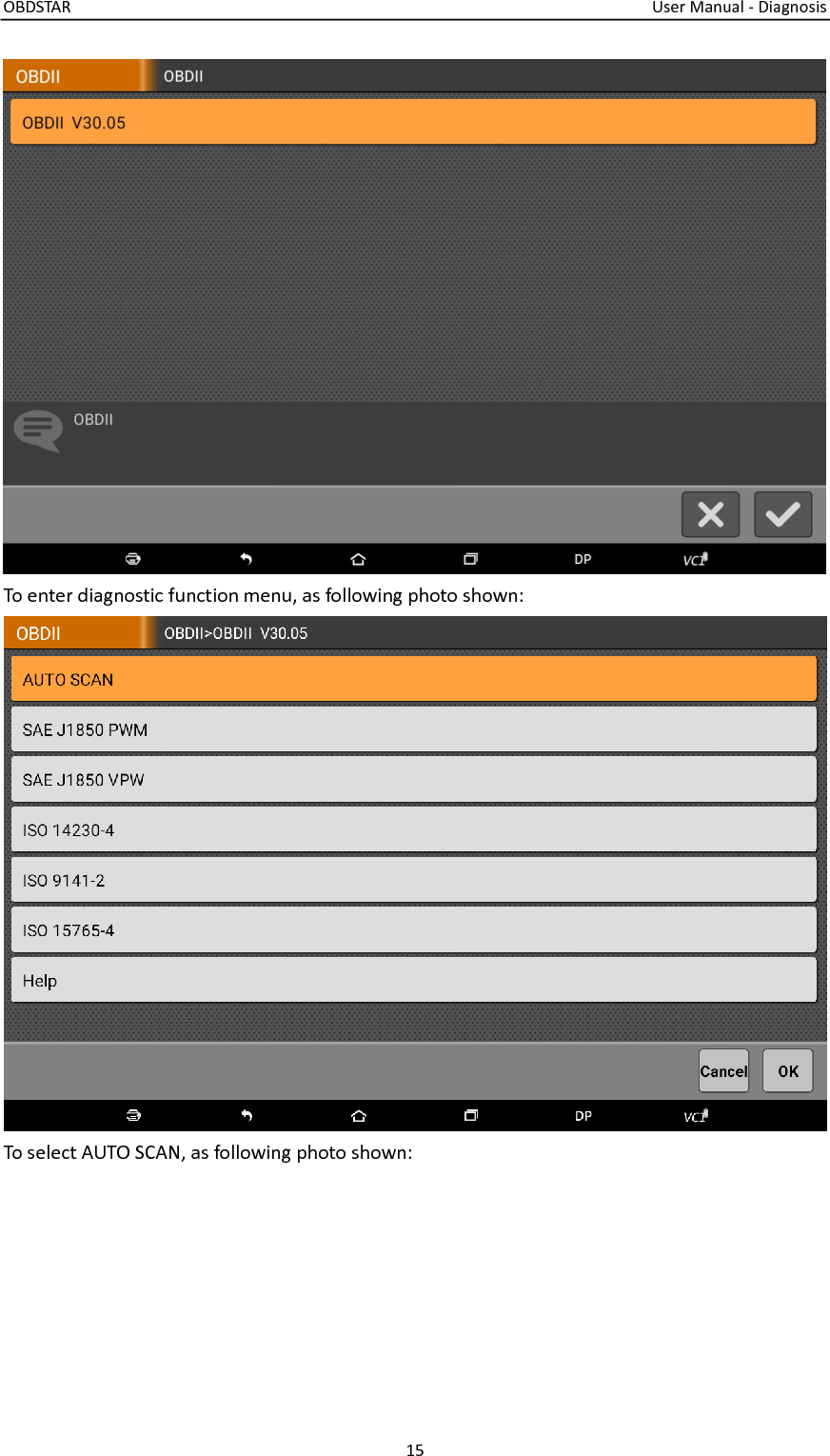

OBDSTAR User Manual - Diagnosis 15 To enter diagnostic function menu, as following photo shown: To select AUTO SCAN, as following photo shown:

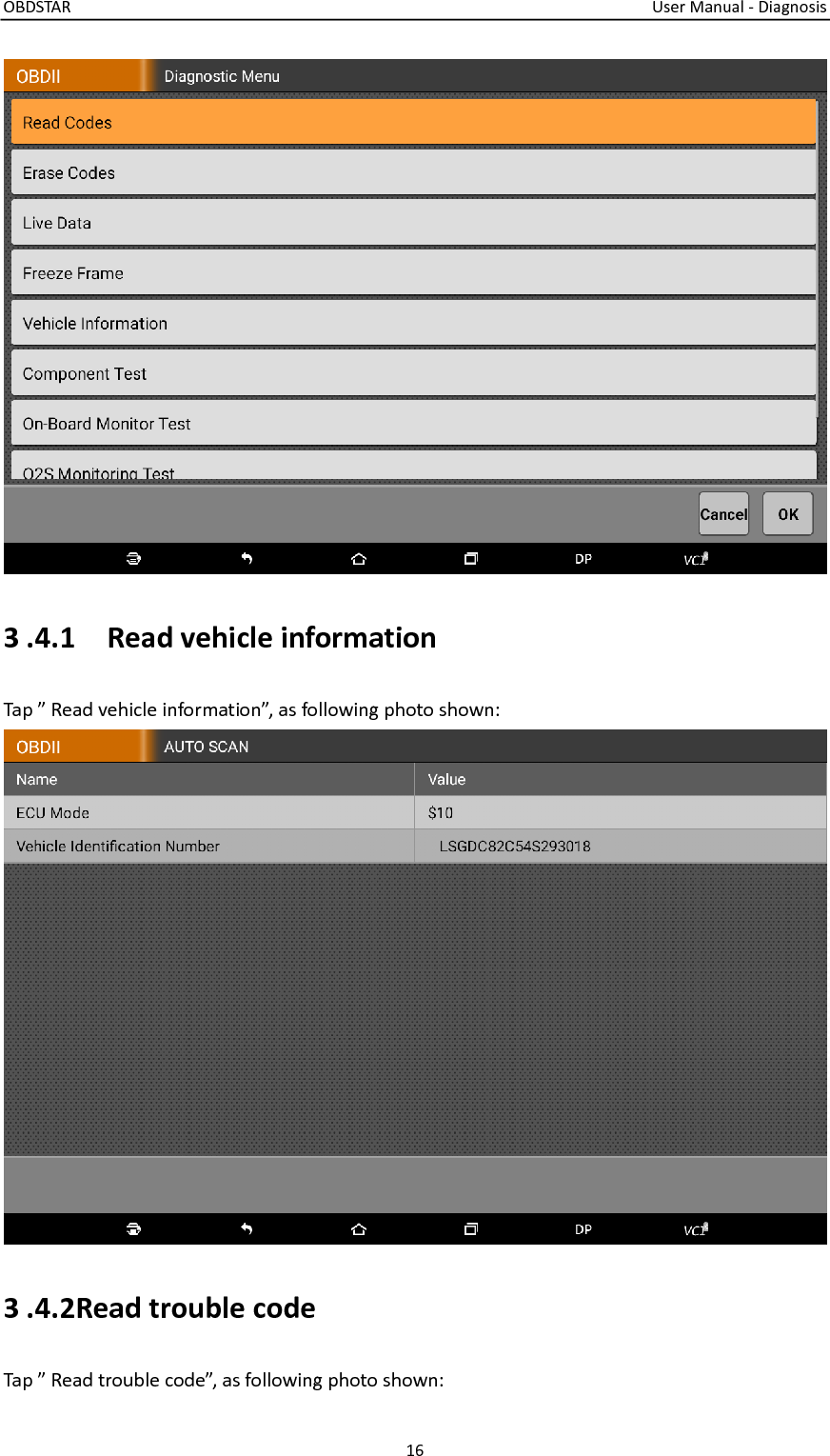

OBDSTAR User Manual - Diagnosis 16 3 .4.1 Read vehicle information Tap ” Read vehicle information”, as following photo shown: 3 .4.2Read trouble code Tap ” Read trouble code”, as following photo shown:

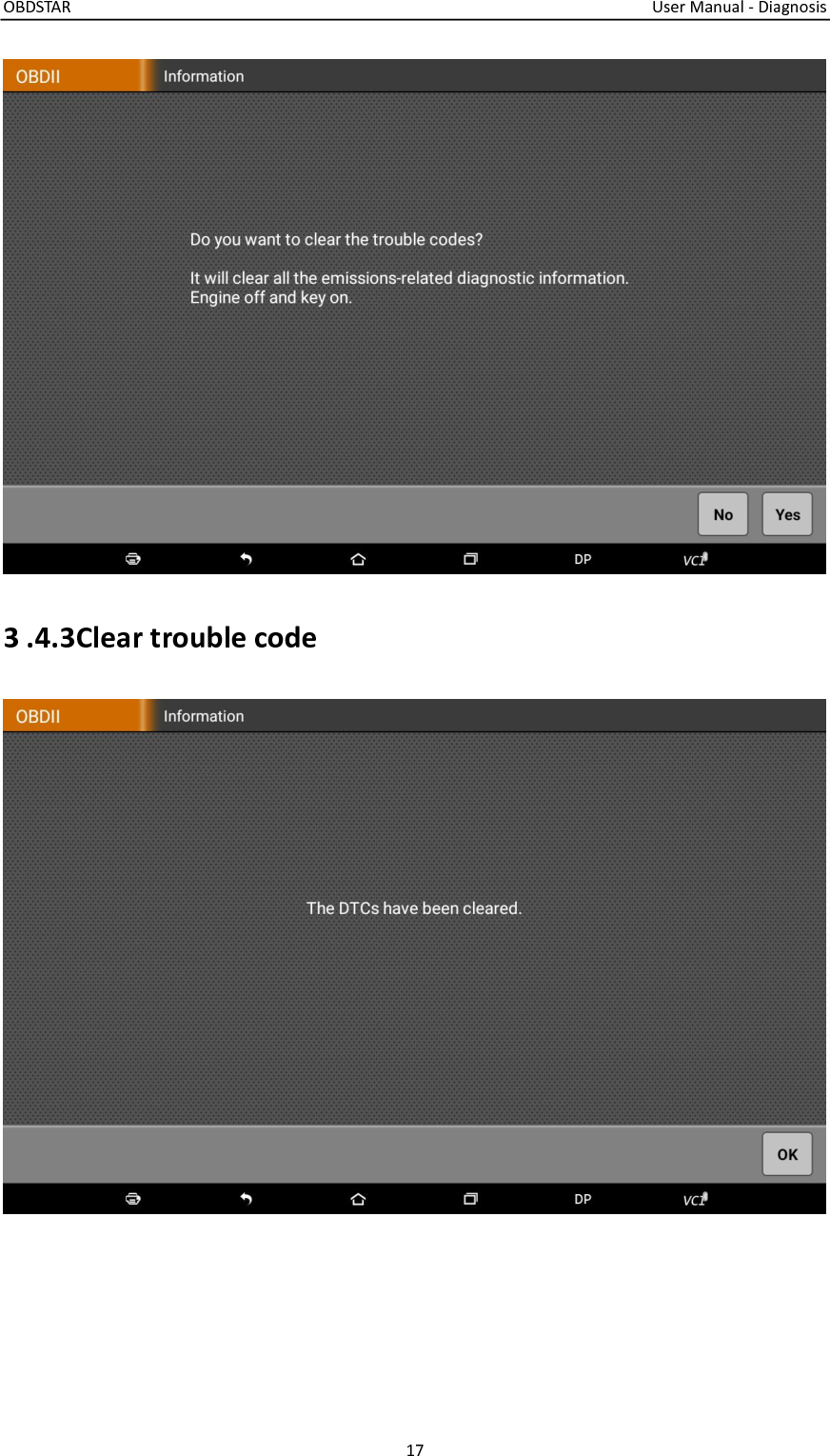

OBDSTAR User Manual - Diagnosis 17 3 .4.3Clear trouble code

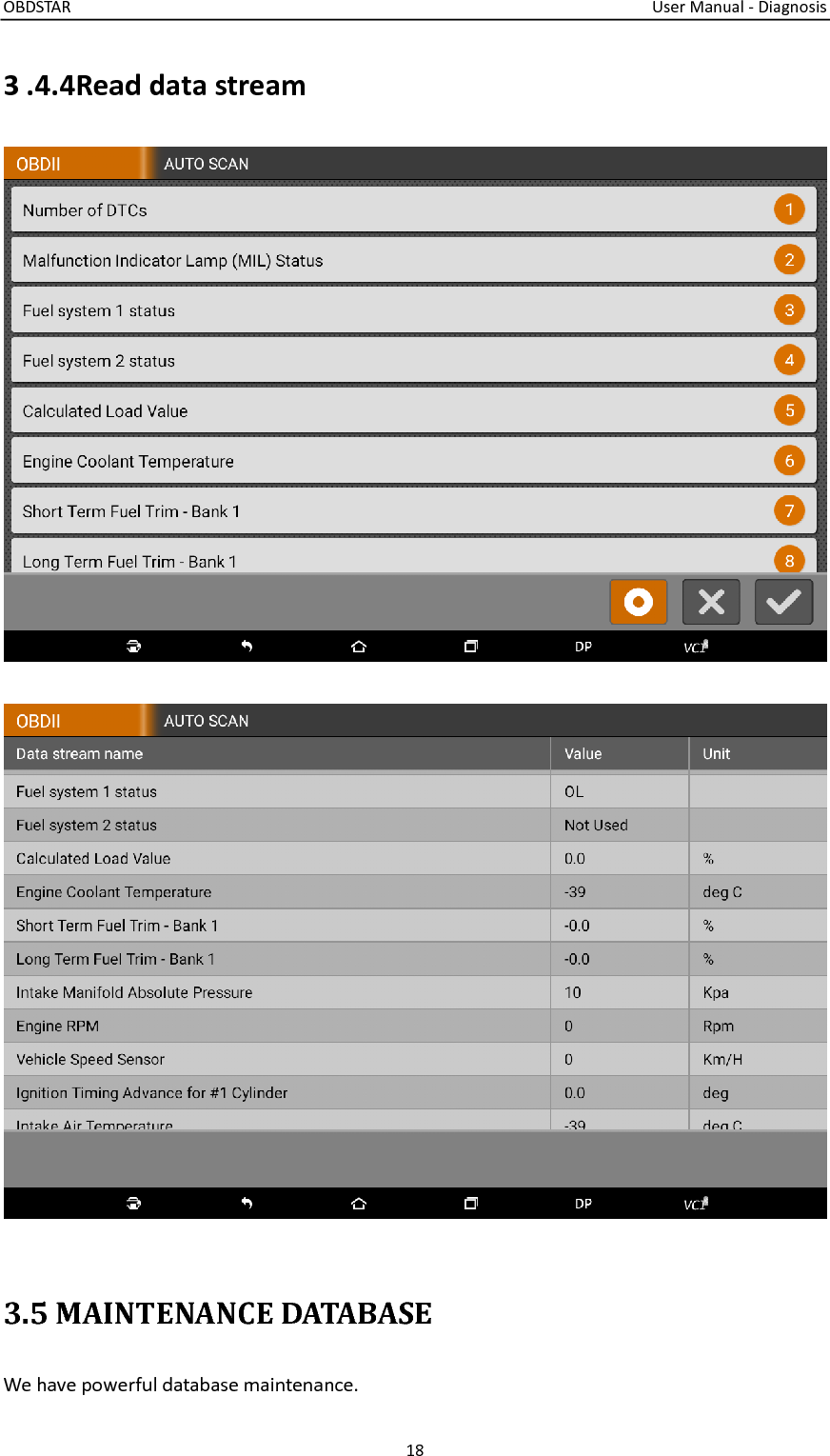

OBDSTAR User Manual - Diagnosis 18 3 .4.4Read data stream 3.5 MAINTENANCE DATABASE We have powerful database maintenance.

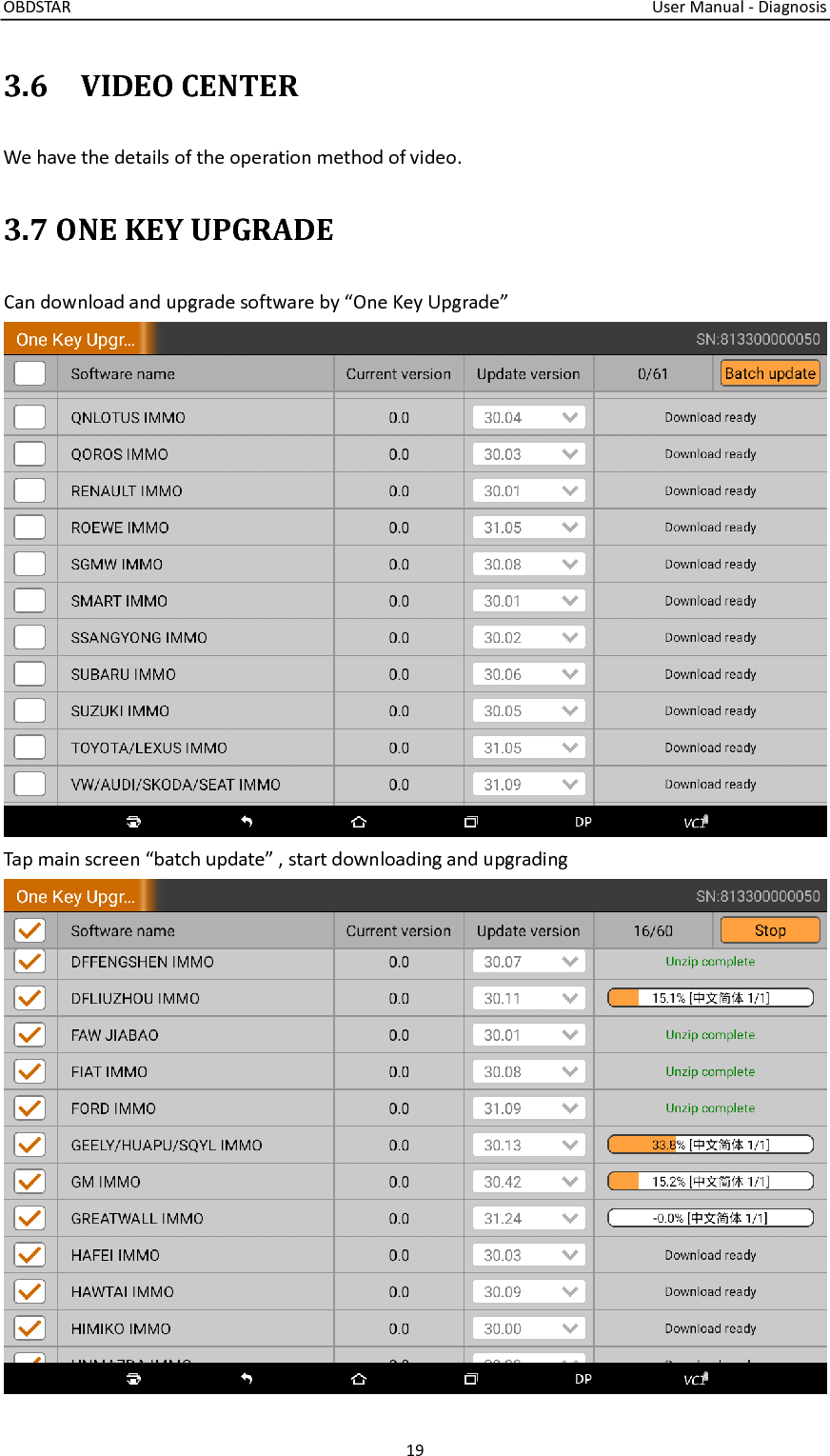

OBDSTAR User Manual - Diagnosis 19 3.6 VIDEO CENTER We have the details of the operation method of video. 3.7 ONE KEY UPGRADE Can download and upgrade software by “One Key Upgrade” Tap main screen “batch update” , start downloading and upgrading

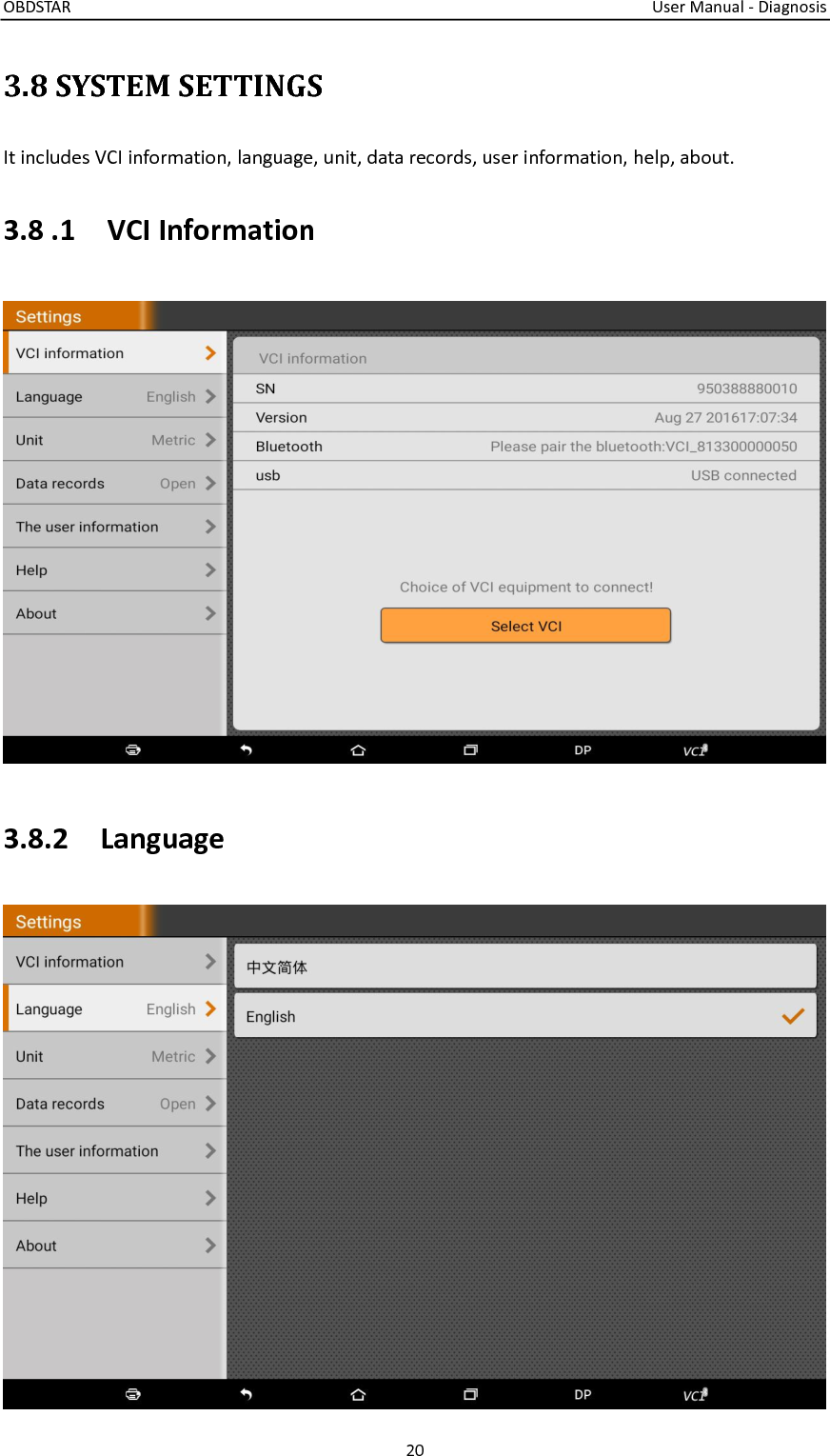

OBDSTAR User Manual - Diagnosis 20 3.8 SYSTEM SETTINGS It includes VCI information, language, unit, data records, user information, help, about. 3.8 .1 VCI Information 3.8.2 Language

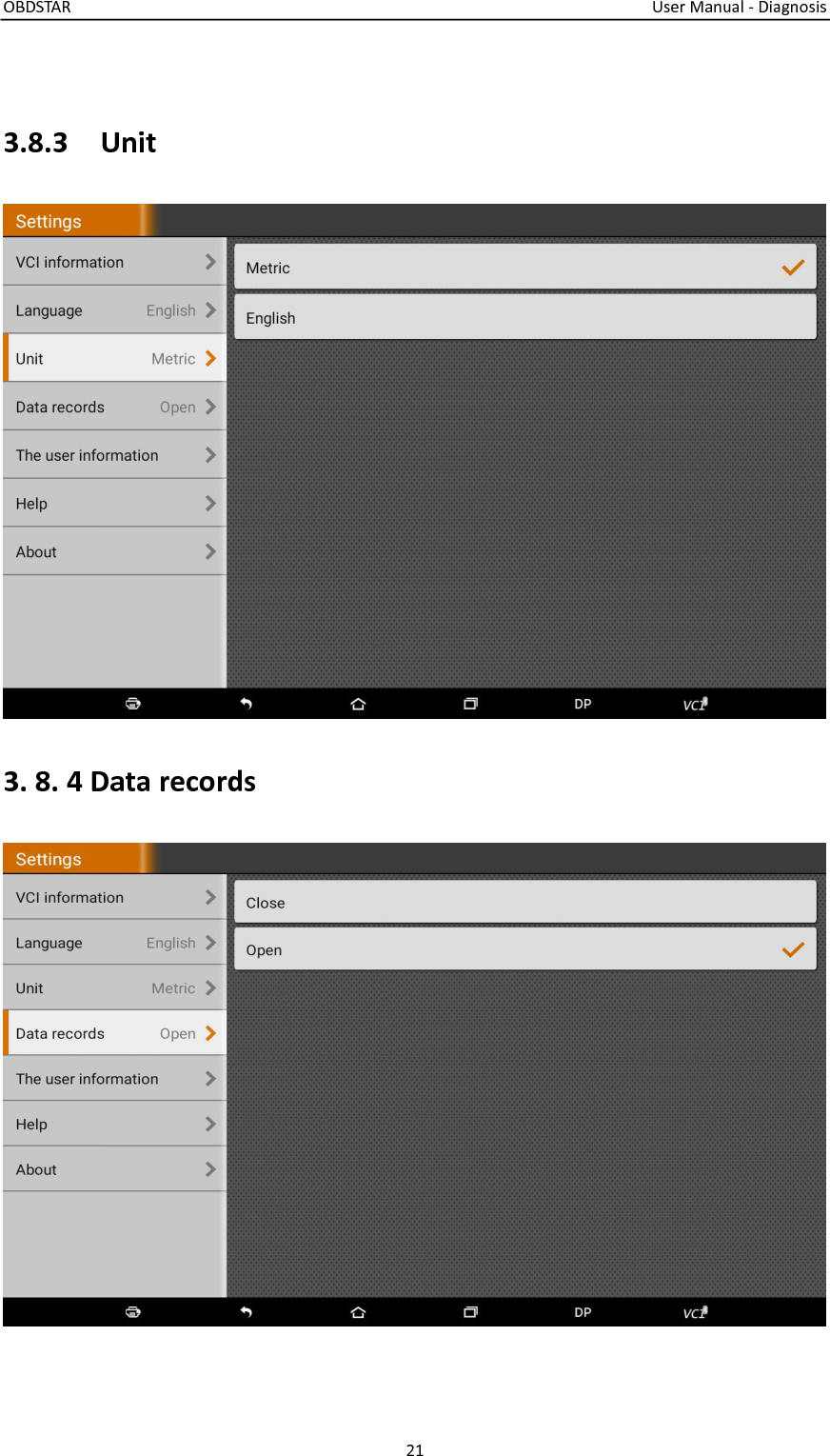

OBDSTAR User Manual - Diagnosis 21 3.8.3 Unit 3. 8. 4 Data records

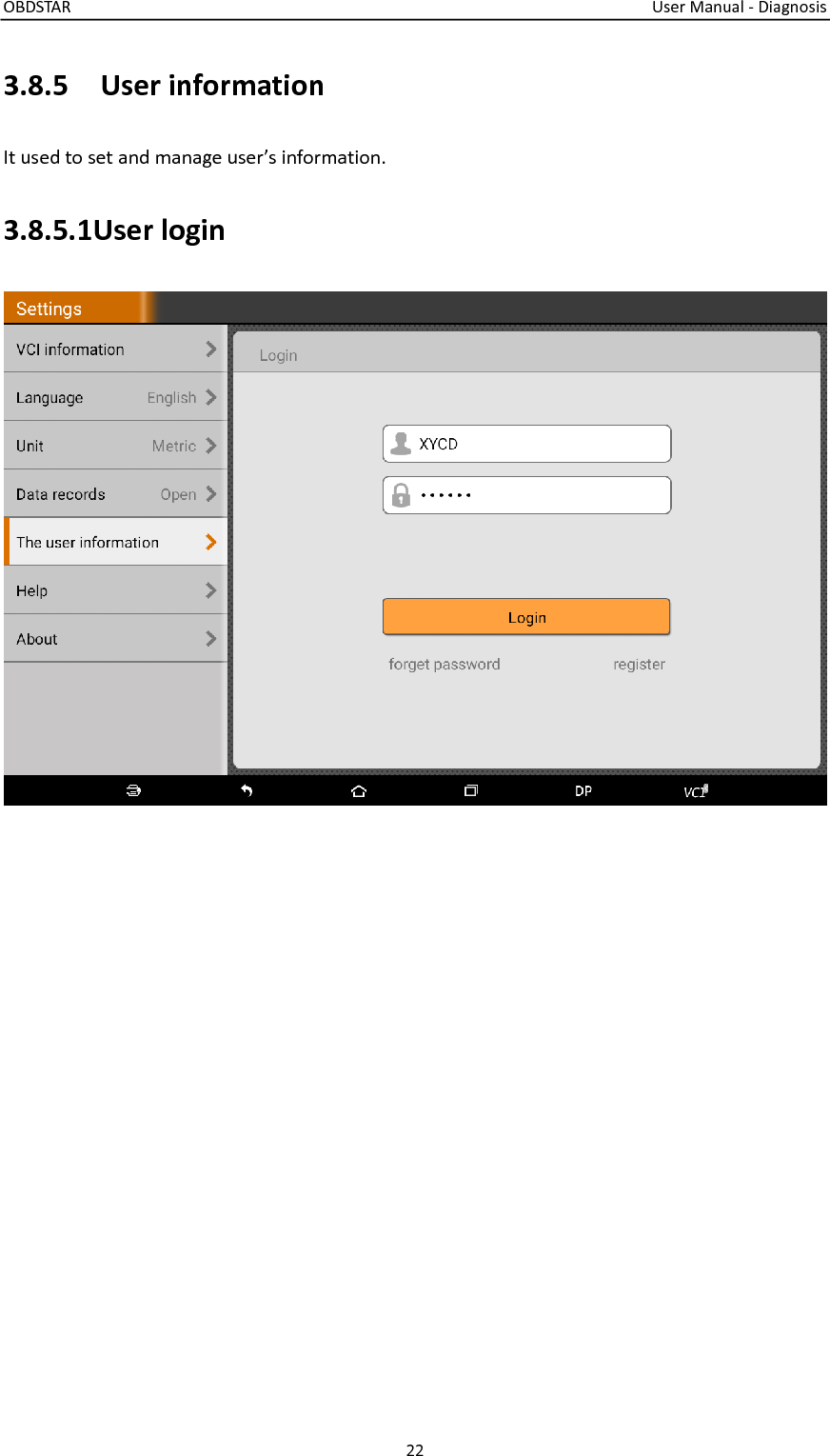

OBDSTAR User Manual - Diagnosis 22 3.8.5 User information It used to set and manage user’s information. 3.8.5.1User login
OBDSTAR User Manual - Diagnosis 23 3.8.5.2User registration 3.8.5.3Forget Password

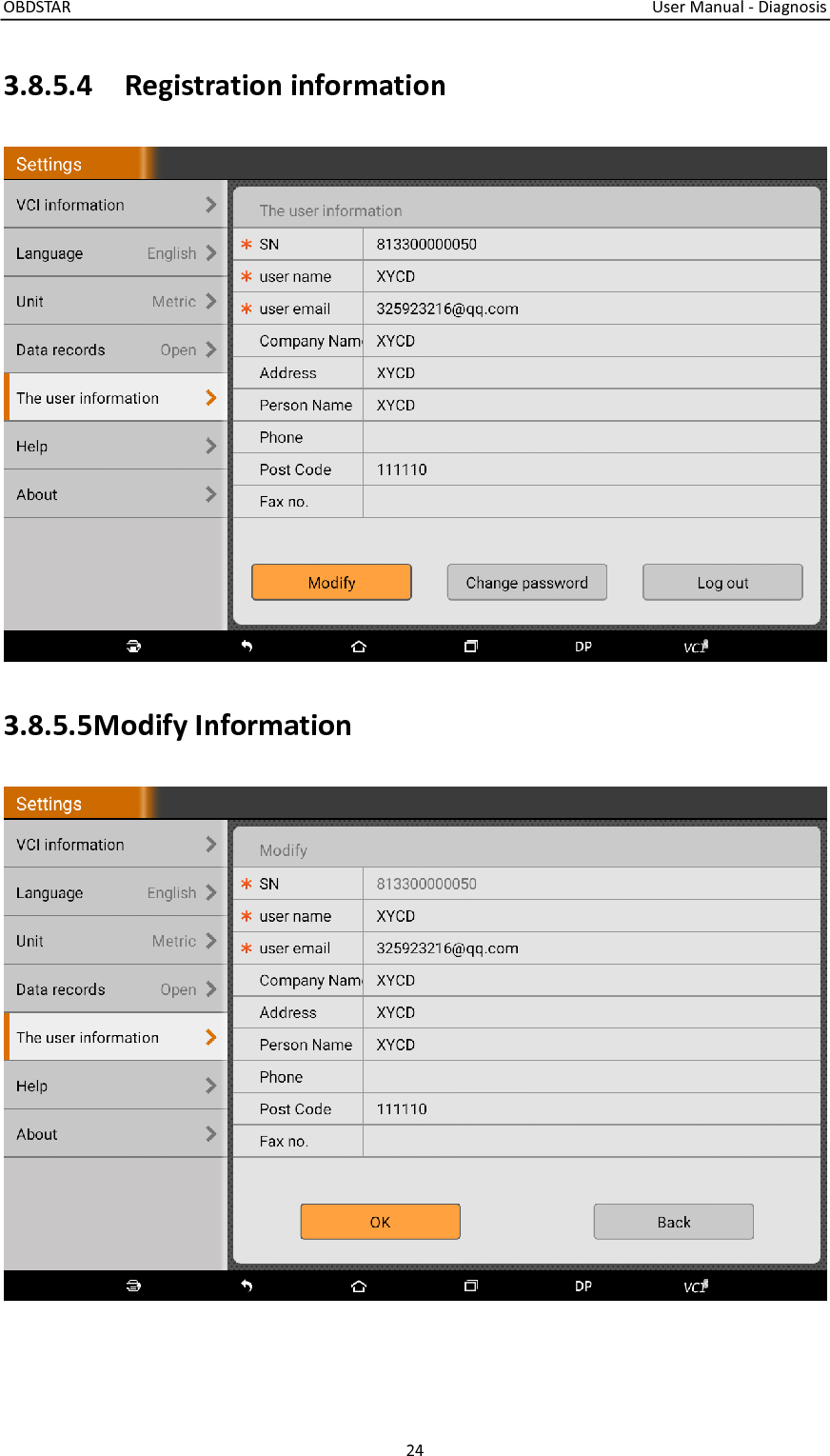

OBDSTAR User Manual - Diagnosis 24 3.8.5.4 Registration information 3.8.5.5Modify Information

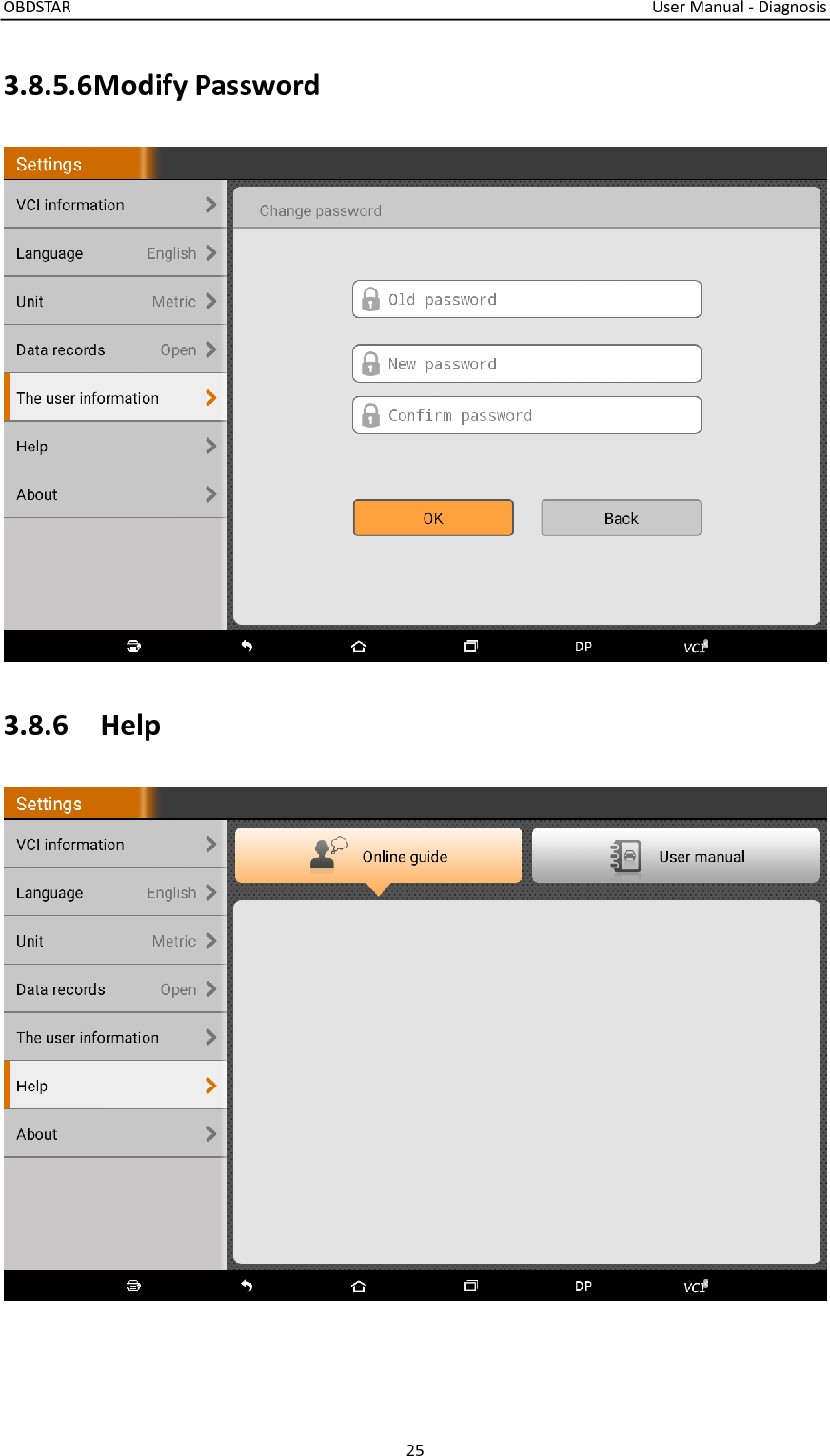

OBDSTAR User Manual - Diagnosis 25 3.8.5.6Modify Password 3.8.6 Help

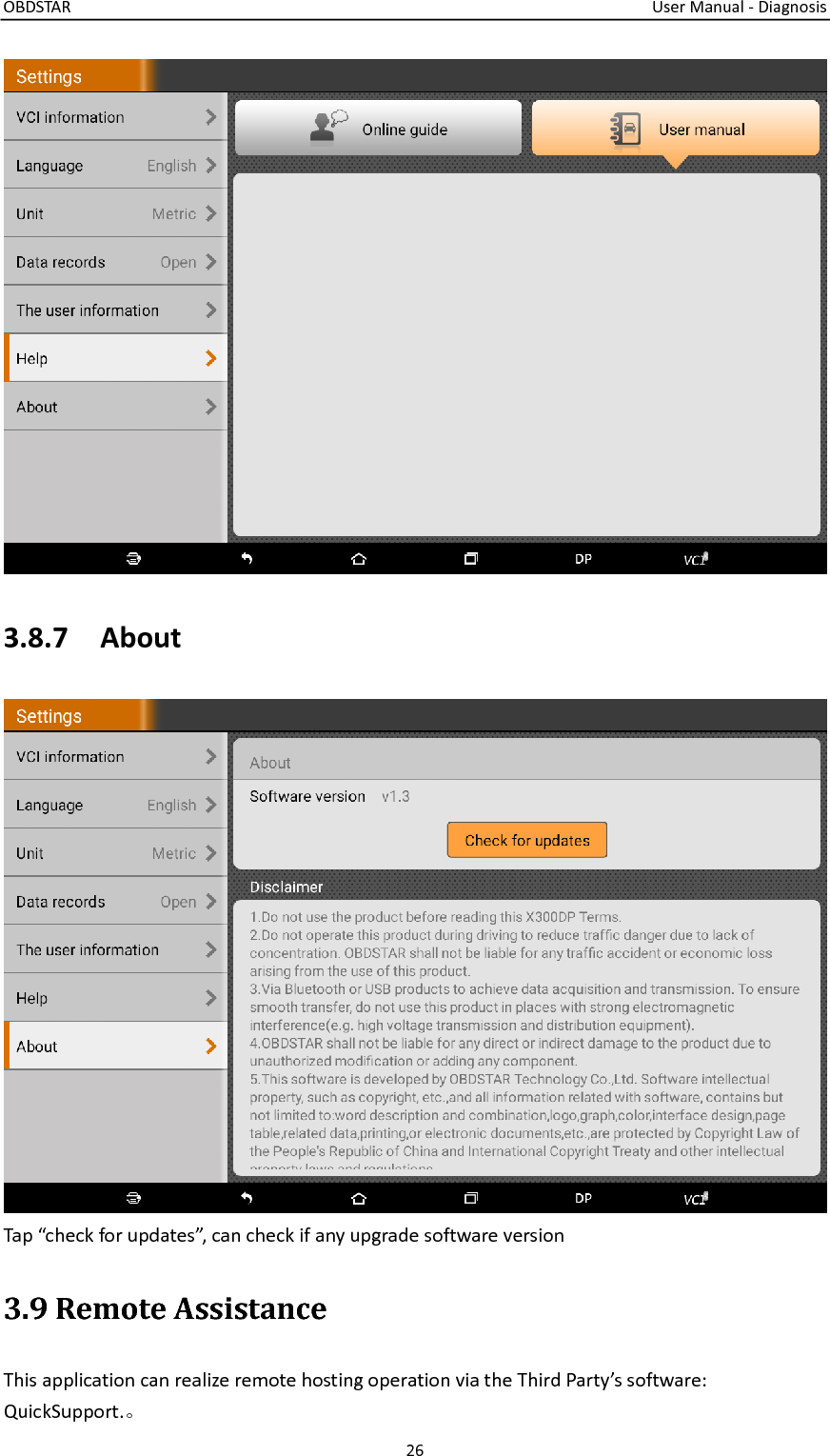

OBDSTAR User Manual - Diagnosis 26 3.8.7 About Tap “check for updates”, can check if any upgrade software version 3.9 Remote Assistance This application can realize remote hosting operation via the Third Party’s software: QuickSupport.。

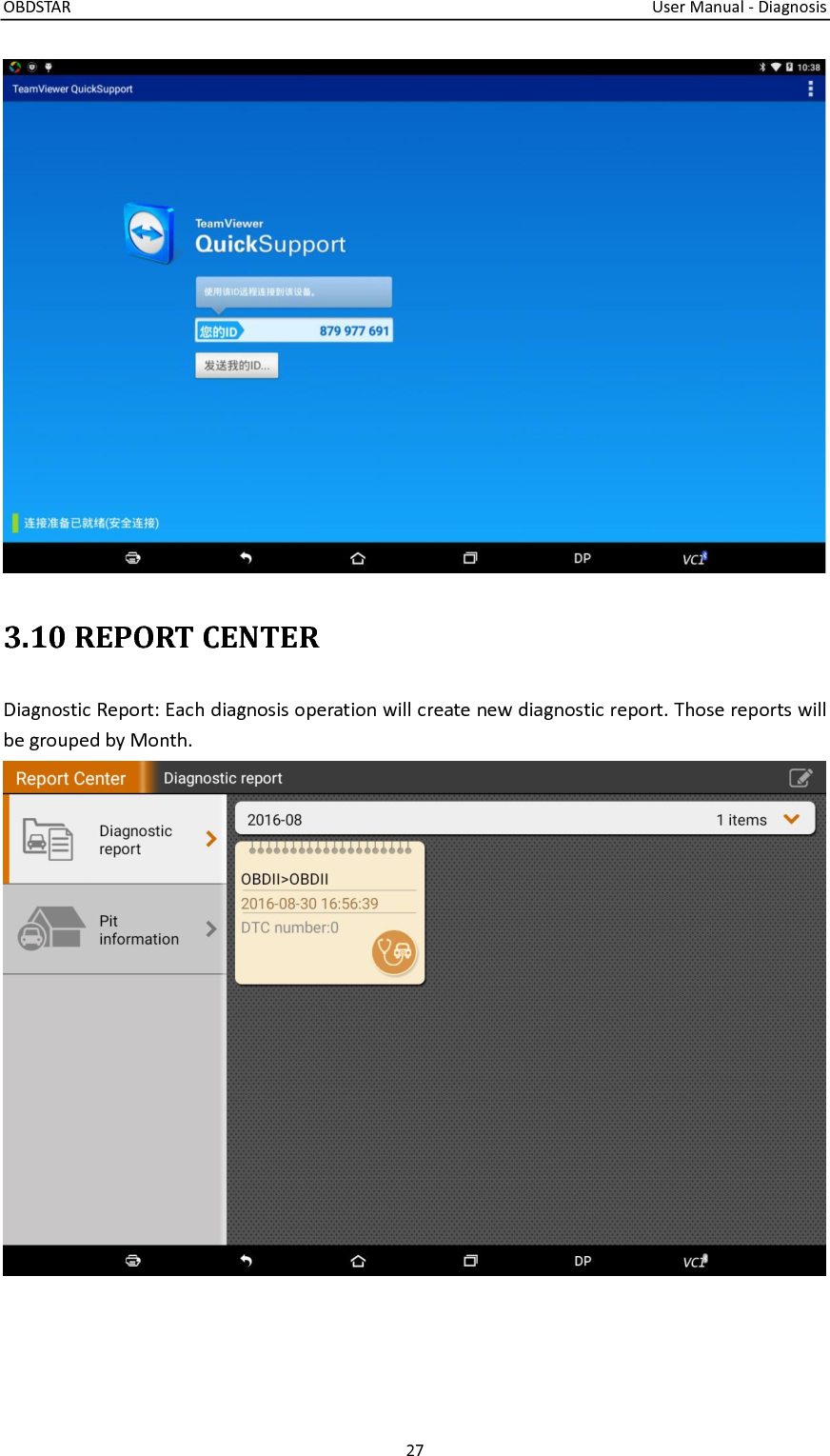

OBDSTAR User Manual - Diagnosis 27 3.10 REPORT CENTER Diagnostic Report: Each diagnosis operation will create new diagnostic report. Those reports will be grouped by Month.

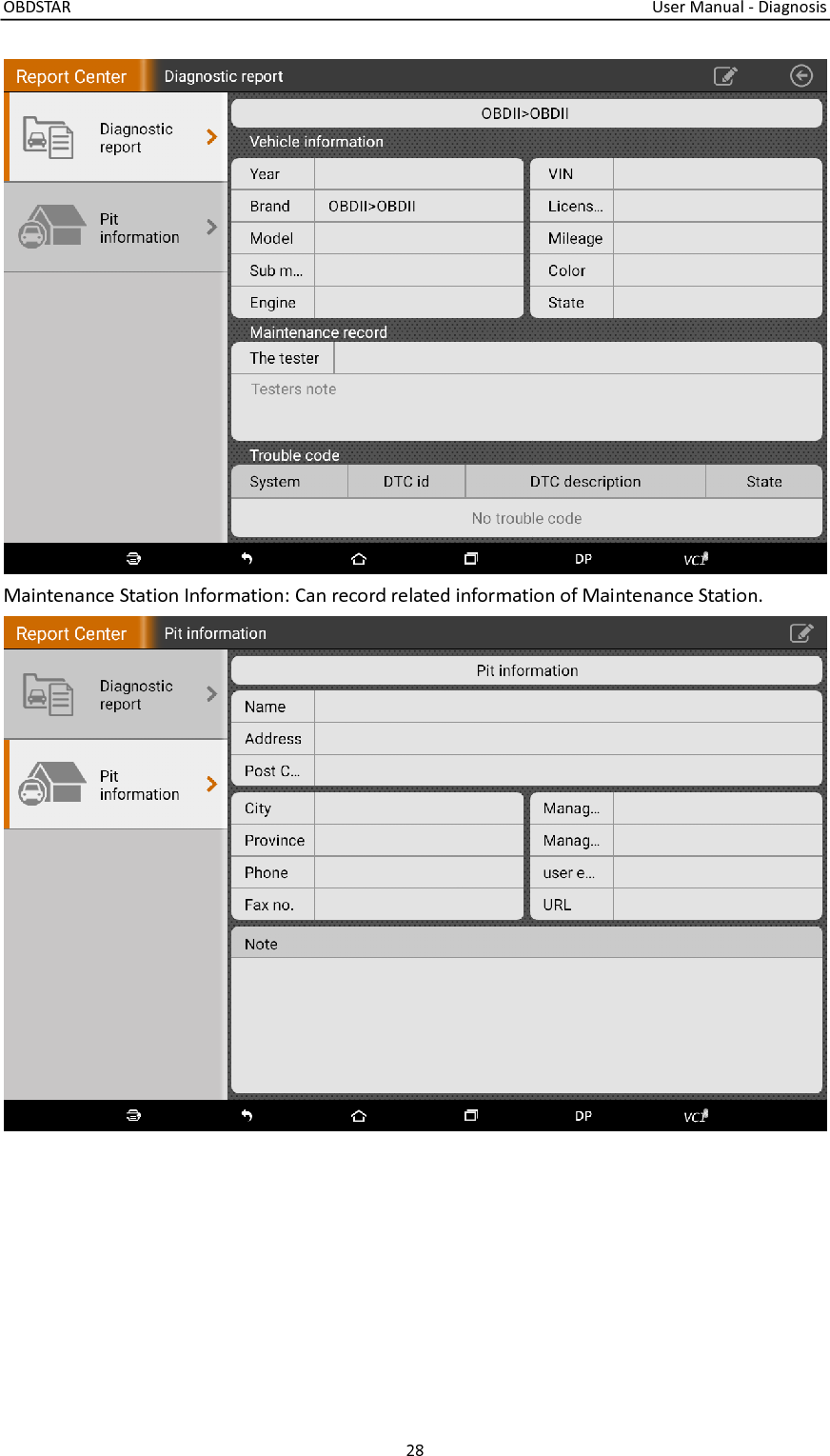

OBDSTAR User Manual - Diagnosis 28 Maintenance Station Information: Can record related information of Maintenance Station.

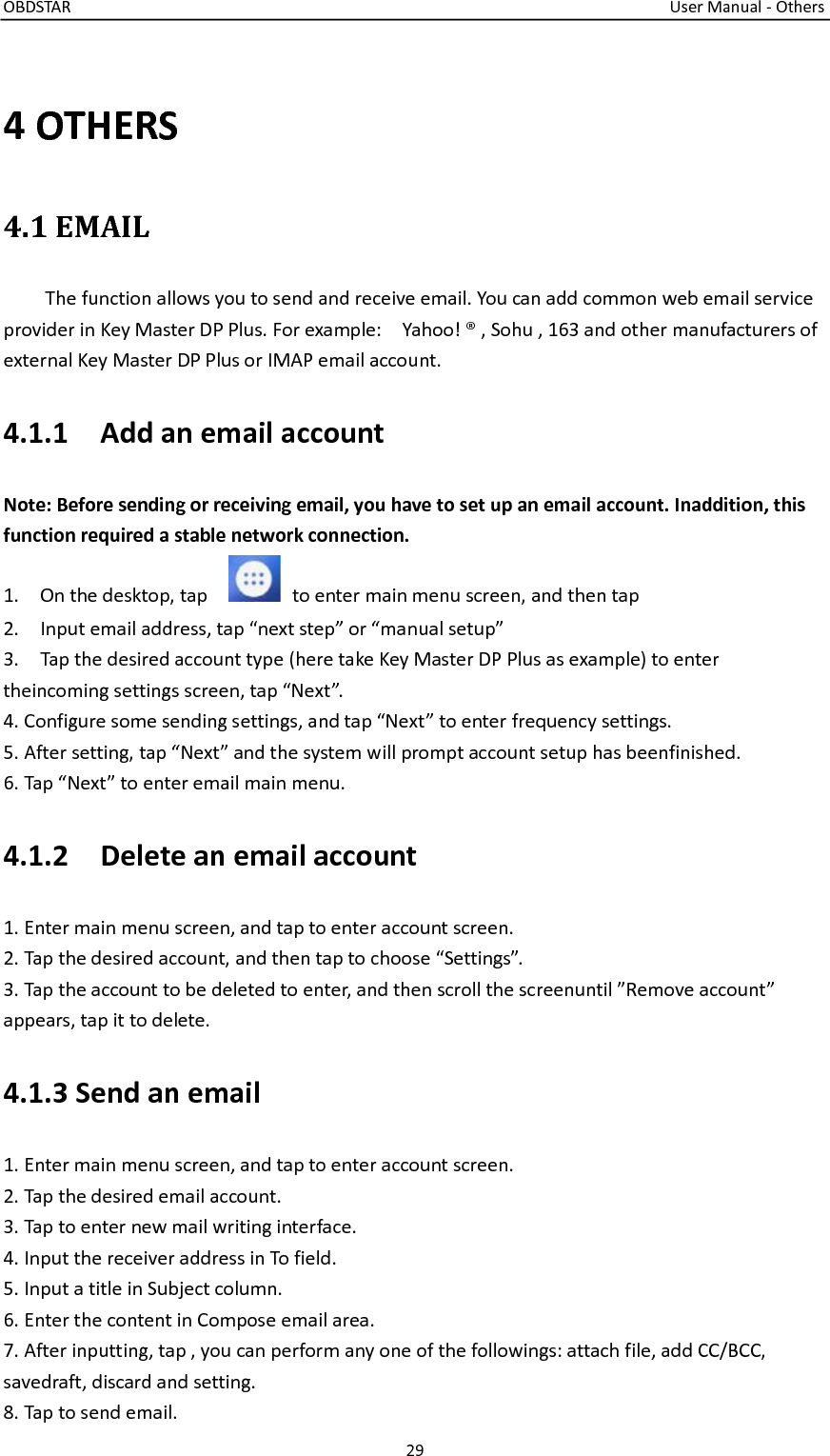

OBDSTAR User Manual - Others 29 4 OTHERS 4.1 EMAIL The function allows you to send and receive email. You can add common web email service provider in Key Master DP Plus. For example: Yahoo! ® , Sohu , 163 and other manufacturers of external Key Master DP Plus or IMAP email account. 4.1.1 Add an email account Note: Before sending or receiving email, you have to set up an email account. Inaddition, this function required a stable network connection. 1. On the desktop, tap to enter main menu screen, and then tap 2. Input email address, tap “next step” or “manual setup” 3. Tap the desired account type (here take Key Master DP Plus as example) to enter theincoming settings screen, tap “Next”. 4. Configure some sending settings, and tap “Next” to enter frequency settings. 5. After setting, tap “Next” and the system will prompt account setup has beenfinished. 6. Tap “Next” to enter email main menu. 4.1.2 Delete an email account 1. Enter main menu screen, and tap to enter account screen. 2. Tap the desired account, and then tap to choose “Settings”. 3. Tap the account to be deleted to enter, and then scroll the screenuntil ”Remove account” appears, tap it to delete. 4.1.3 Send an email 1. Enter main menu screen, and tap to enter account screen. 2. Tap the desired email account. 3. Tap to enter new mail writing interface. 4. Input the receiver address in To field. 5. Input a title in Subject column. 6. Enter the content in Compose email area. 7. After inputting, tap , you can perform any one of the followings: attach file, add CC/BCC, savedraft, discard and setting. 8. Tap to send email.

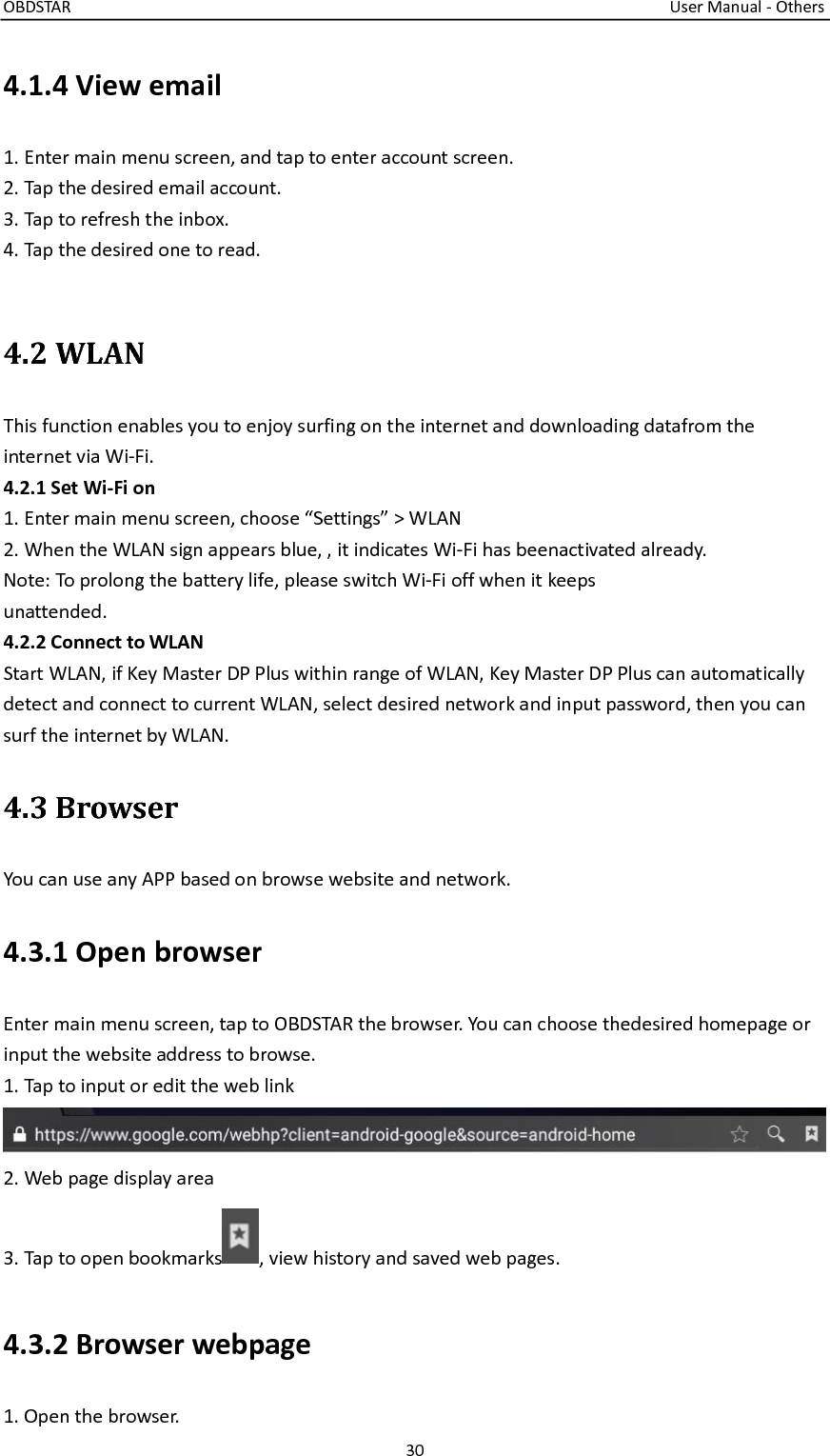

OBDSTAR User Manual - Others 30 4.1.4 View email 1. Enter main menu screen, and tap to enter account screen. 2. Tap the desired email account. 3. Tap to refresh the inbox. 4. Tap the desired one to read. 4.2 WLAN This function enables you to enjoy surfing on the internet and downloading datafrom the internet via Wi-Fi. 4.2.1 Set Wi-Fi on 1. Enter main menu screen, choose “Settings” > WLAN 2. When the WLAN sign appears blue, , it indicates Wi-Fi has beenactivated already. Note: To prolong the battery life, please switch Wi-Fi off when it keeps unattended. 4.2.2 Connect to WLAN Start WLAN, if Key Master DP Plus within range of WLAN, Key Master DP Plus can automatically detect and connect to current WLAN, select desired network and input password, then you can surf the internet by WLAN. 4.3 Browser You can use any APP based on browse website and network. 4.3.1 Open browser Enter main menu screen, tap to OBDSTAR the browser. You can choose thedesired homepage or input the website address to browse. 1. Tap to input or edit the web link 2. Web page display area 3. Tap to open bookmarks , view history and saved web pages. 4.3.2 Browser webpage 1. Open the browser.

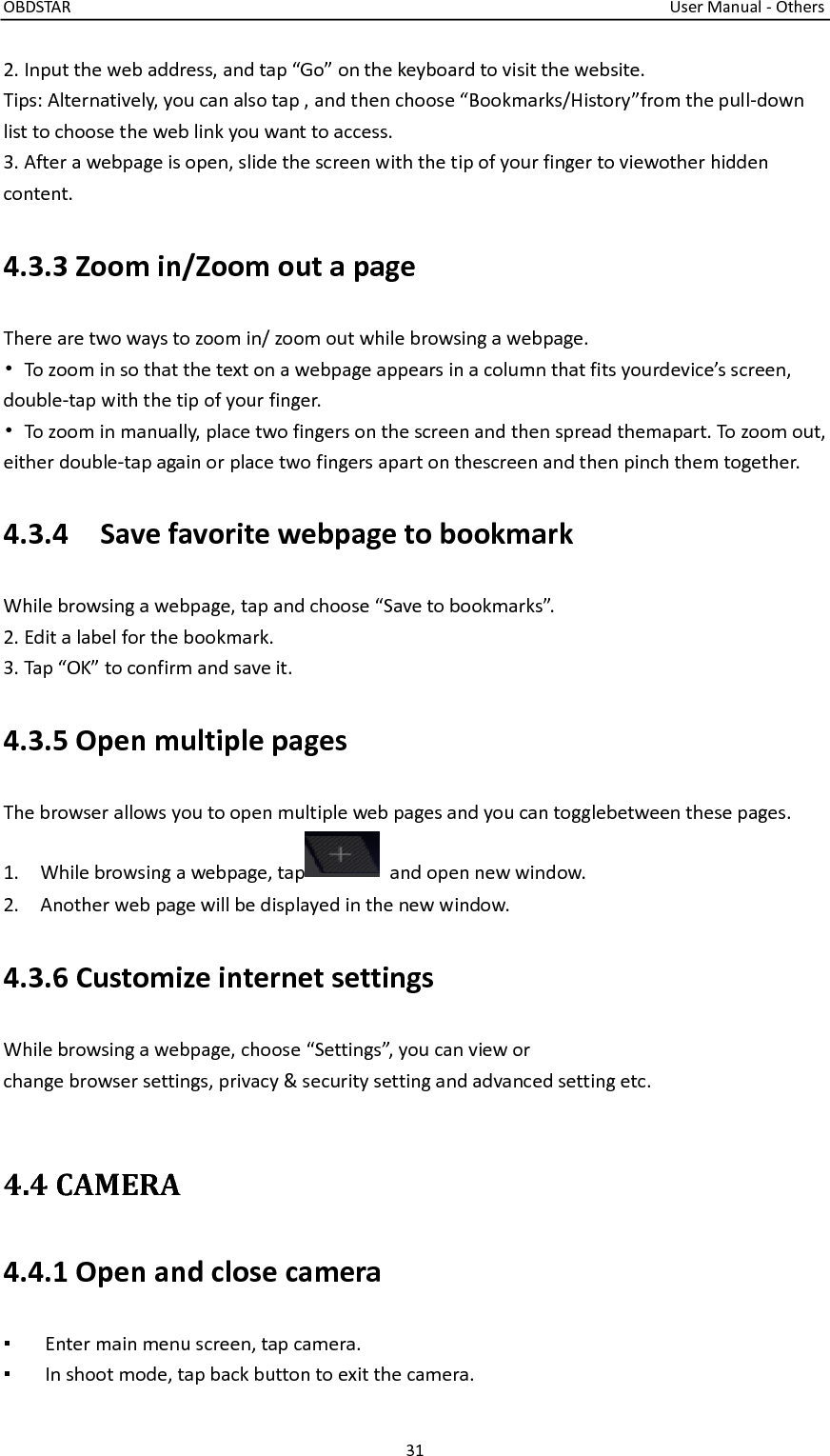

OBDSTAR User Manual - Others 31 2. Input the web address, and tap “Go” on the keyboard to visit the website. Tips: Alternatively, you can also tap , and then choose “Bookmarks/History”from the pull-down list to choose the web link you want to access. 3. After a webpage is open, slide the screen with the tip of your finger to viewother hidden content. 4.3.3 Zoom in/Zoom out a page There are two ways to zoom in/ zoom out while browsing a webpage. • To zoom in so that the text on a webpage appears in a column that fits yourdevice’s screen, double-tap with the tip of your finger. • To zoom in manually, place two fingers on the screen and then spread themapart. To zoom out, either double-tap again or place two fingers apart on thescreen and then pinch them together. 4.3.4 Save favorite webpage to bookmark While browsing a webpage, tap and choose “Save to bookmarks”. 2. Edit a label for the bookmark. 3. Tap “OK” to confirm and save it. 4.3.5 Open multiple pages The browser allows you to open multiple web pages and you can togglebetween these pages. 1. While browsing a webpage, tap and open new window. 2. Another web page will be displayed in the new window. 4.3.6 Customize internet settings While browsing a webpage, choose “Settings”, you can view or change browser settings, privacy & security setting and advanced setting etc. 4.4 CAMERA 4.4.1 Open and close camera ▪ Enter main menu screen, tap camera. ▪ In shoot mode, tap back button to exit the camera.

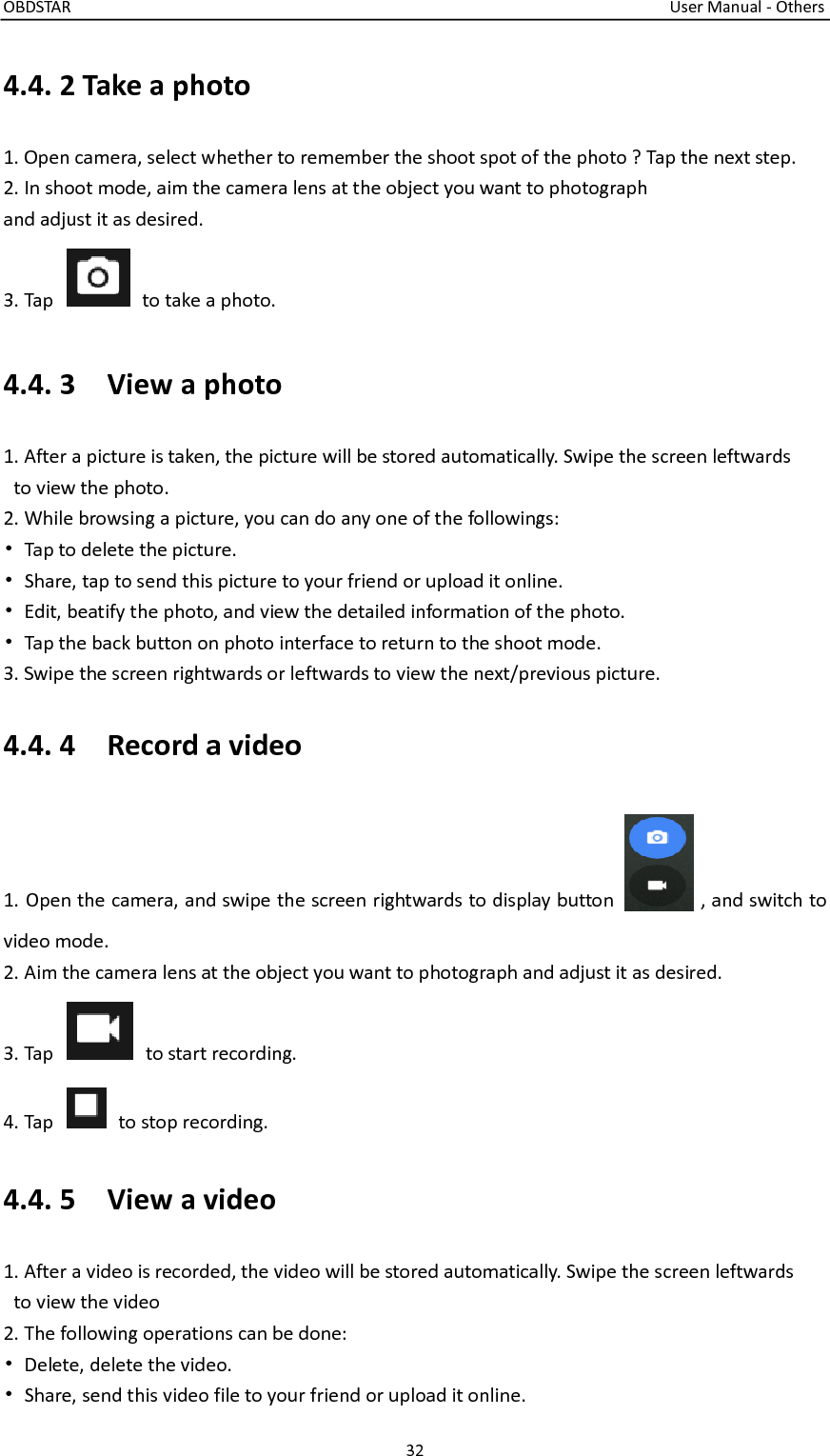

OBDSTAR User Manual - Others 32 4.4. 2 Take a photo 1. Open camera, select whether to remember the shoot spot of the photo ? Tap the next step. 2. In shoot mode, aim the camera lens at the object you want to photograph and adjust it as desired. 3. Tap to take a photo. 4.4. 3 View a photo 1. After a picture is taken, the picture will be stored automatically. Swipe the screen leftwards to view the photo. 2. While browsing a picture, you can do any one of the followings: • Tap to delete the picture. • Share, tap to send this picture to your friend or upload it online. • Edit, beatify the photo, and view the detailed information of the photo. • Tap the back button on photo interface to return to the shoot mode. 3. Swipe the screen rightwards or leftwards to view the next/previous picture. 4.4. 4 Record a video 1. Open the camera, and swipe the screen rightwards to display button , and switch to video mode. 2. Aim the camera lens at the object you want to photograph and adjust it as desired. 3. Tap to start recording. 4. Tap to stop recording. 4.4. 5 View a video 1. After a video is recorded, the video will be stored automatically. Swipe the screen leftwards to view the video 2. The following operations can be done: • Delete, delete the video. • Share, send this video file to your friend or upload it online.

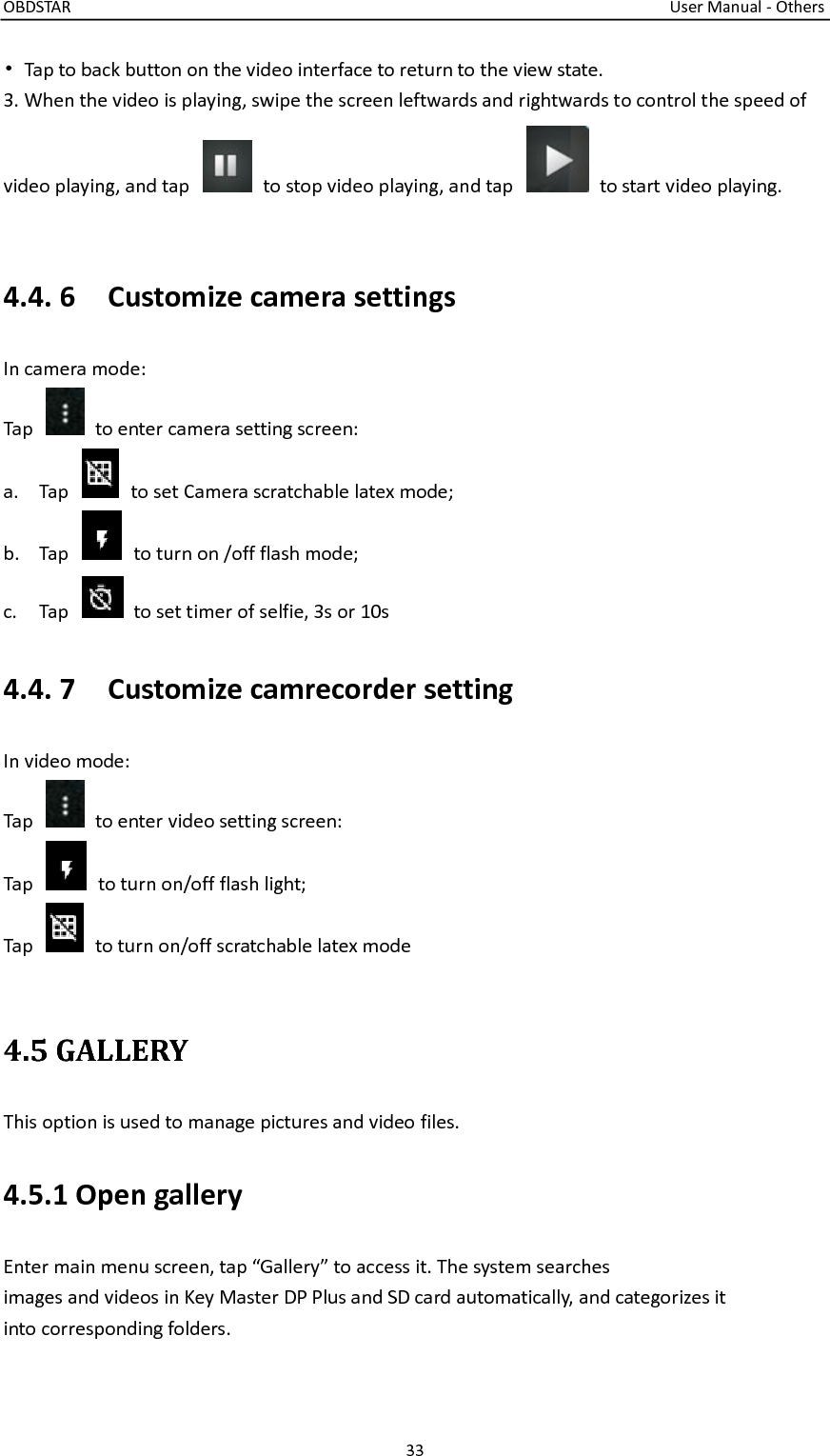

OBDSTAR User Manual - Others 33 • Tap to back button on the video interface to return to the view state. 3. When the video is playing, swipe the screen leftwards and rightwards to control the speed of video playing, and tap to stop video playing, and tap to start video playing. 4.4. 6 Customize camera settings In camera mode: Tap to enter camera setting screen: a. Tap to set Camera scratchable latex mode; b. Tap to turn on /off flash mode; c. Tap to set timer of selfie, 3s or 10s 4.4. 7 Customize camrecorder setting In video mode: Tap to enter video setting screen: Tap to turn on/off flash light; Tap to turn on/off scratchable latex mode 4.5 GALLERY This option is used to manage pictures and video files. 4.5.1 Open gallery Enter main menu screen, tap “Gallery” to access it. The system searches images and videos in Key Master DP Plus and SD card automatically, and categorizes it into corresponding folders.
OBDSTAR User Manual - Others 34 4.5.2 Browse images 1. Enter main menu screen, tap “Gallery”. 2. Tap the picture folder you want to view. 3. Tap the desired image to browse. 4. Swipe the screen rightwards or leftwards to view the next/previous picture. 4.6 MUSIC Music files are stored into 4 categories: Artists, Albums, Songs and Playlist. Tap the desired music to display music. Press the button on the right side to increase or decrease the volume. Tips: While playing, tap back button to switch to other applications and the player will be running in background. Open the status bar and choose the audio file to return to the player screen. 4.7 CALCULATOR You can use calculator to operate algorithm of plus, subtract, multiply and divide, and function operation of sin, cos,tan and log. 4.8 CALENDAR This function lets you view calendar or create to-do events. Enter main menu screen, tap “Calendar”. Swipe up and down to switch to month; Tap some day , the followings can be done. Tap to refresh, search, hide control and setting. 4.9 ALARMS 4.9.1 Add an alarm 1. Enter main menu, and tap “Alarm”.

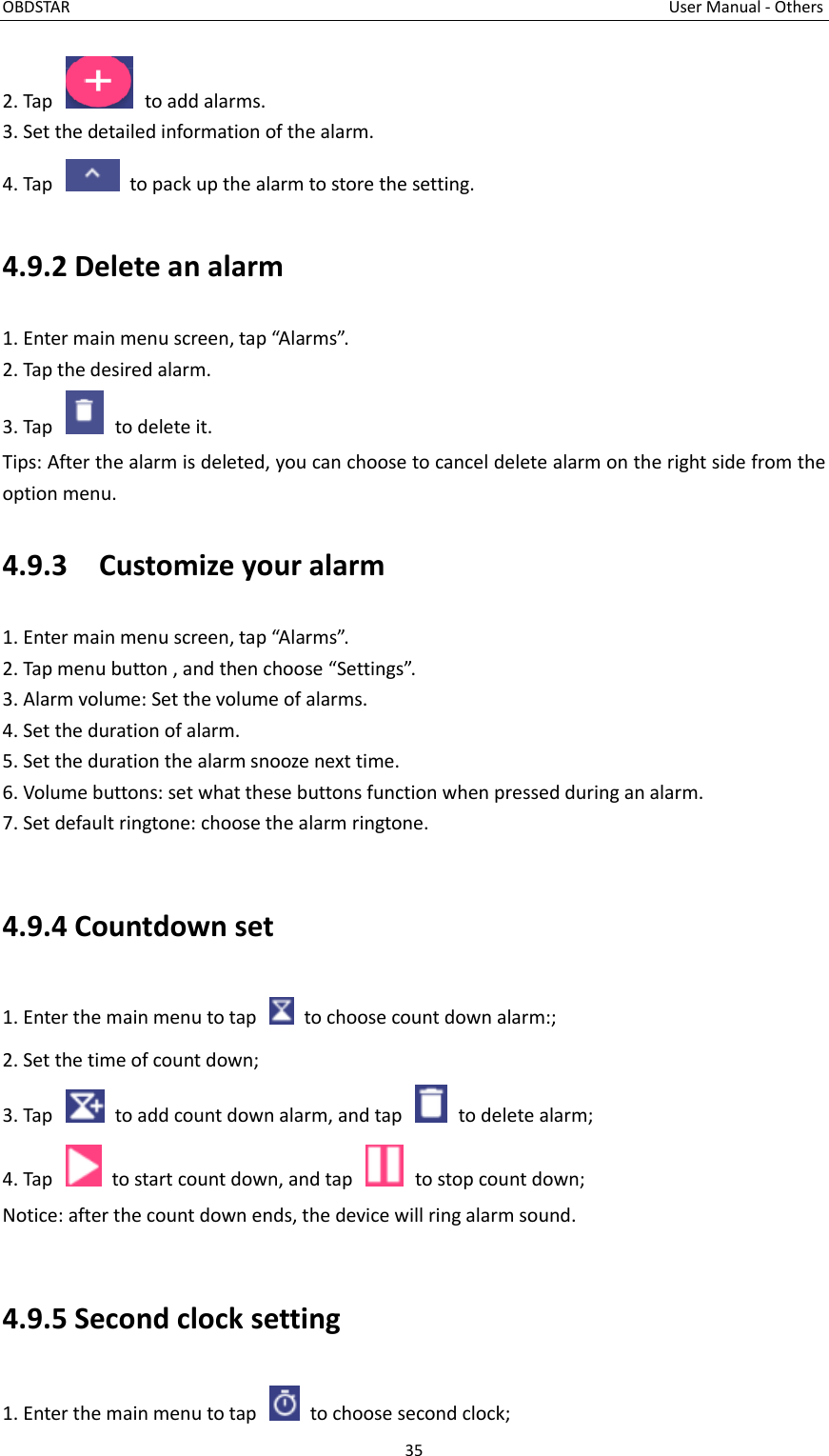

OBDSTAR User Manual - Others 35 2. Tap to add alarms. 3. Set the detailed information of the alarm. 4. Tap to pack up the alarm to store the setting. 4.9.2 Delete an alarm 1. Enter main menu screen, tap “Alarms”. 2. Tap the desired alarm. 3. Tap to delete it. Tips: After the alarm is deleted, you can choose to cancel delete alarm on the right side from the option menu. 4.9.3 Customize your alarm 1. Enter main menu screen, tap “Alarms”. 2. Tap menu button , and then choose “Settings”. 3. Alarm volume: Set the volume of alarms. 4. Set the duration of alarm. 5. Set the duration the alarm snooze next time. 6. Volume buttons: set what these buttons function when pressed during an alarm. 7. Set default ringtone: choose the alarm ringtone. 4.9.4 Countdown set 1. Enter the main menu to tap to choose count down alarm:; 2. Set the time of count down; 3. Tap to add count down alarm, and tap to delete alarm; 4. Tap to start count down, and tap to stop count down; Notice: after the count down ends, the device will ring alarm sound. 4.9.5 Second clock setting 1. Enter the main menu to tap to choose second clock;

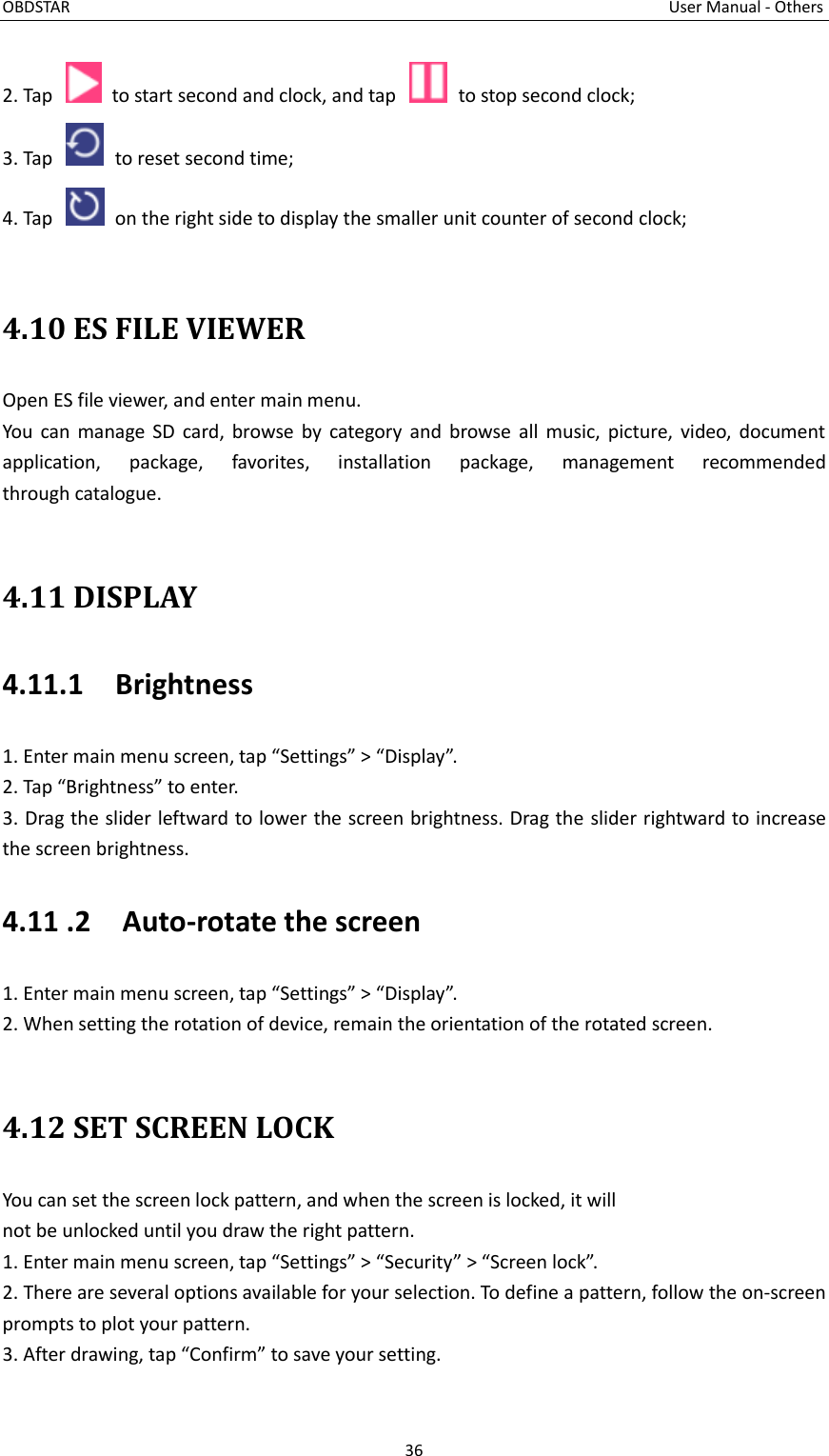

OBDSTAR User Manual - Others 36 2. Tap to start second and clock, and tap to stop second clock; 3. Tap to reset second time; 4. Tap on the right side to display the smaller unit counter of second clock; 4.10 ES FILE VIEWER Open ES file viewer, and enter main menu. You can manage SD card, browse by category and browse all music, picture, video, document application, package, favorites, installation package, management recommended through catalogue. 4.11 DISPLAY 4.11.1 Brightness 1. Enter main menu screen, tap “Settings” > “Display”. 2. Tap “Brightness” to enter. 3. Drag the slider leftward to lower the screen brightness. Drag the slider rightward to increase the screen brightness. 4.11 .2 Auto-rotate the screen 1. Enter main menu screen, tap “Settings” > “Display”. 2. When setting the rotation of device, remain the orientation of the rotated screen. 4.12 SET SCREEN LOCK You can set the screen lock pattern, and when the screen is locked, it will not be unlocked until you draw the right pattern. 1. Enter main menu screen, tap “Settings” > “Security” > “Screen lock”. 2. There are several options available for your selection. To define a pattern, follow the on-screen prompts to plot your pattern. 3. After drawing, tap “Confirm” to save your setting.

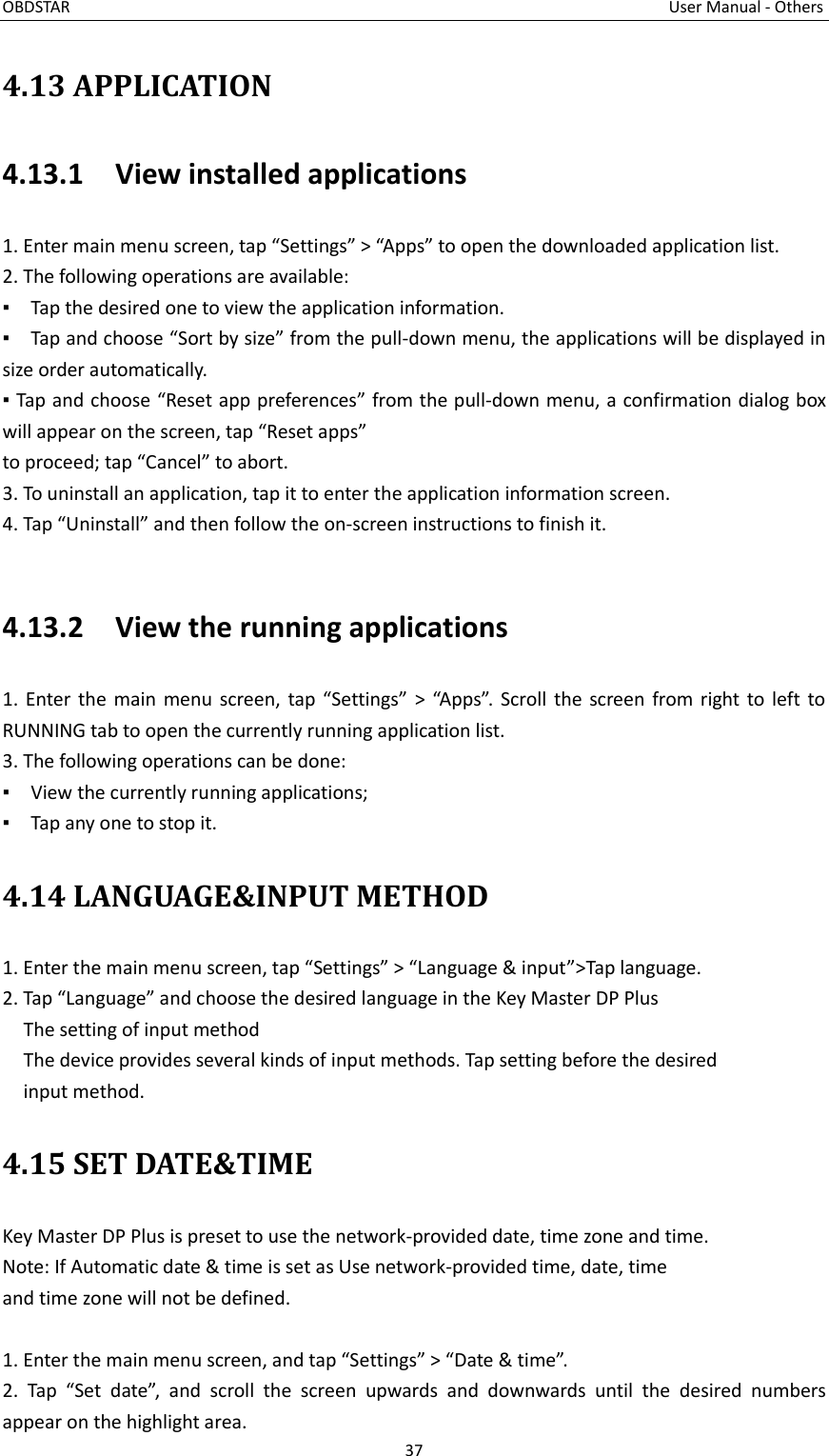

OBDSTAR User Manual - Others 37 4.13 APPLICATION 4.13.1 View installed applications 1. Enter main menu screen, tap “Settings” > “Apps” to open the downloaded application list. 2. The following operations are available: ▪ Tap the desired one to view the application information. ▪ Tap and choose “Sort by size” from the pull-down menu, the applications will be displayed in size order automatically. ▪ Tap and choose “Reset app preferences” from the pull-down menu, a confirmation dialog box will appear on the screen, tap “Reset apps” to proceed; tap “Cancel” to abort. 3. To uninstall an application, tap it to enter the application information screen. 4. Tap “Uninstall” and then follow the on-screen instructions to finish it. 4.13.2 View the running applications 1. Enter the main menu screen, tap “Settings” > “Apps”. Scroll the screen from right to left to RUNNING tab to open the currently running application list. 3. The following operations can be done: ▪ View the currently running applications; ▪ Tap any one to stop it. 4.14 LANGUAGE&INPUT METHOD 1. Enter the main menu screen, tap “Settings” > “Language & input”>Tap language. 2. Tap “Language” and choose the desired language in the Key Master DP Plus The setting of input method The device provides several kinds of input methods. Tap setting before the desired input method. 4.15 SET DATE&TIME Key Master DP Plus is preset to use the network-provided date, time zone and time. Note: If Automatic date & time is set as Use network-provided time, date, time and time zone will not be defined. 1. Enter the main menu screen, and tap “Settings” > “Date & time”. 2. Tap “Set date”, and scroll the screen upwards and downwards until the desired numbers appear on the highlight area.

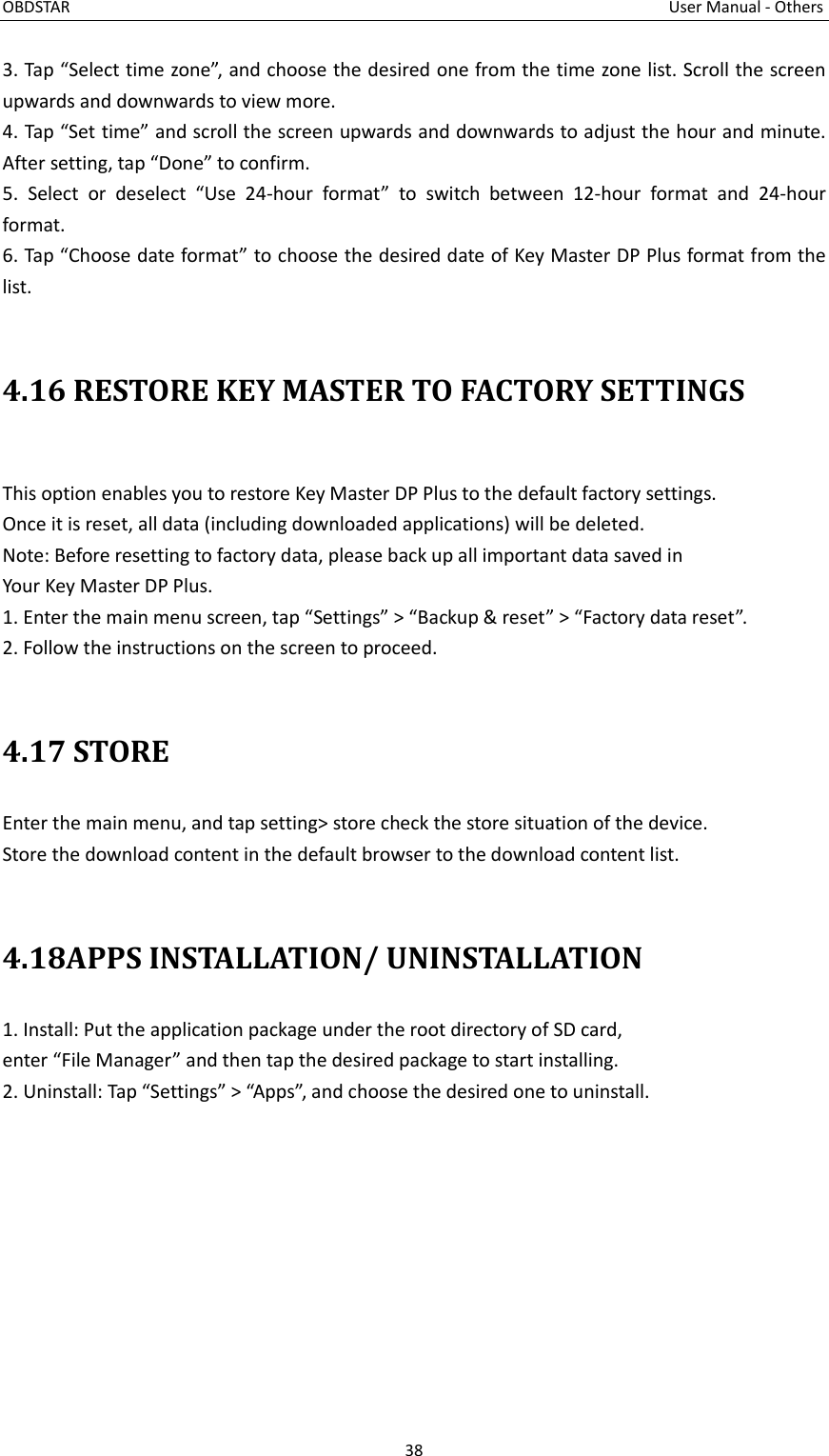

OBDSTAR User Manual - Others 38 3. Tap “Select time zone”, and choose the desired one from the time zone list. Scroll the screen upwards and downwards to view more. 4. Tap “Set time” and scroll the screen upwards and downwards to adjust the hour and minute. After setting, tap “Done” to confirm. 5. Select or deselect “Use 24-hour format” to switch between 12-hour format and 24-hour format. 6. Tap “Choose date format” to choose the desired date of Key Master DP Plus format from the list. 4.16 RESTORE KEY MASTER TO FACTORY SETTINGS This option enables you to restore Key Master DP Plus to the default factory settings. Once it is reset, all data (including downloaded applications) will be deleted. Note: Before resetting to factory data, please back up all important data saved in Your Key Master DP Plus. 1. Enter the main menu screen, tap “Settings” > “Backup & reset” > “Factory data reset”. 2. Follow the instructions on the screen to proceed. 4.17 STORE Enter the main menu, and tap setting> store check the store situation of the device. Store the download content in the default browser to the download content list. 4.18APPS INSTALLATION/ UNINSTALLATION 1. Install: Put the application package under the root directory of SD card, enter “File Manager” and then tap the desired package to start installing. 2. Uninstall: Tap “Settings” > “Apps”, and choose the desired one to uninstall.

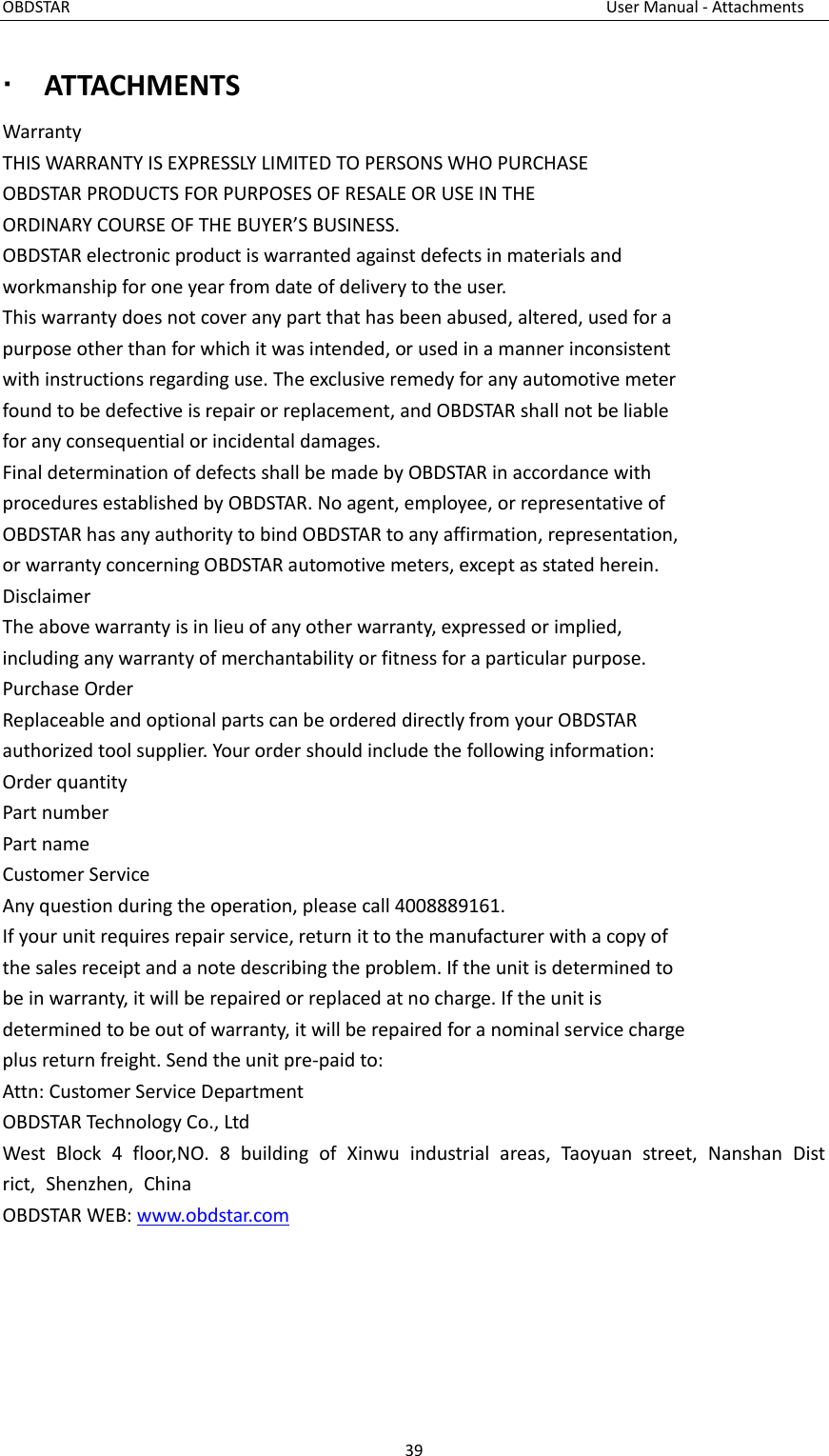

OBDSTAR User Manual - Attachments 39  ATTACHMENTS Warranty THIS WARRANTY IS EXPRESSLY LIMITED TO PERSONS WHO PURCHASE OBDSTAR PRODUCTS FOR PURPOSES OF RESALE OR USE IN THE ORDINARY COURSE OF THE BUYER’S BUSINESS. OBDSTAR electronic product is warranted against defects in materials and workmanship for one year from date of delivery to the user. This warranty does not cover any part that has been abused, altered, used for a purpose other than for which it was intended, or used in a manner inconsistent with instructions regarding use. The exclusive remedy for any automotive meter found to be defective is repair or replacement, and OBDSTAR shall not be liable for any consequential or incidental damages. Final determination of defects shall be made by OBDSTAR in accordance with procedures established by OBDSTAR. No agent, employee, or representative of OBDSTAR has any authority to bind OBDSTAR to any affirmation, representation, or warranty concerning OBDSTAR automotive meters, except as stated herein. Disclaimer The above warranty is in lieu of any other warranty, expressed or implied, including any warranty of merchantability or fitness for a particular purpose. Purchase Order Replaceable and optional parts can be ordered directly from your OBDSTAR authorized tool supplier. Your order should include the following information: Order quantity Part number Part name Customer Service Any question during the operation, please call 4008889161. If your unit requires repair service, return it to the manufacturer with a copy of the sales receipt and a note describing the problem. If the unit is determined to be in warranty, it will be repaired or replaced at no charge. If the unit is determined to be out of warranty, it will be repaired for a nominal service charge plus return freight. Send the unit pre-paid to: Attn: Customer Service Department OBDSTAR Technology Co., Ltd West Block 4 floor,NO. 8 building of Xinwu industrial areas, Taoyuan street, Nanshan District, Shenzhen, China OBDSTAR WEB: www.obdstar.com
OBDSTAR User Manual - Attachments 40 FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.
