OHM TECHNOLOGY OHM-4009 SOUNDBASE User Manual bohm b3 soundbase manual

OHM TECHNOLOGY (HONGKONG)COMPANY LIMITED SOUNDBASE bohm b3 soundbase manual

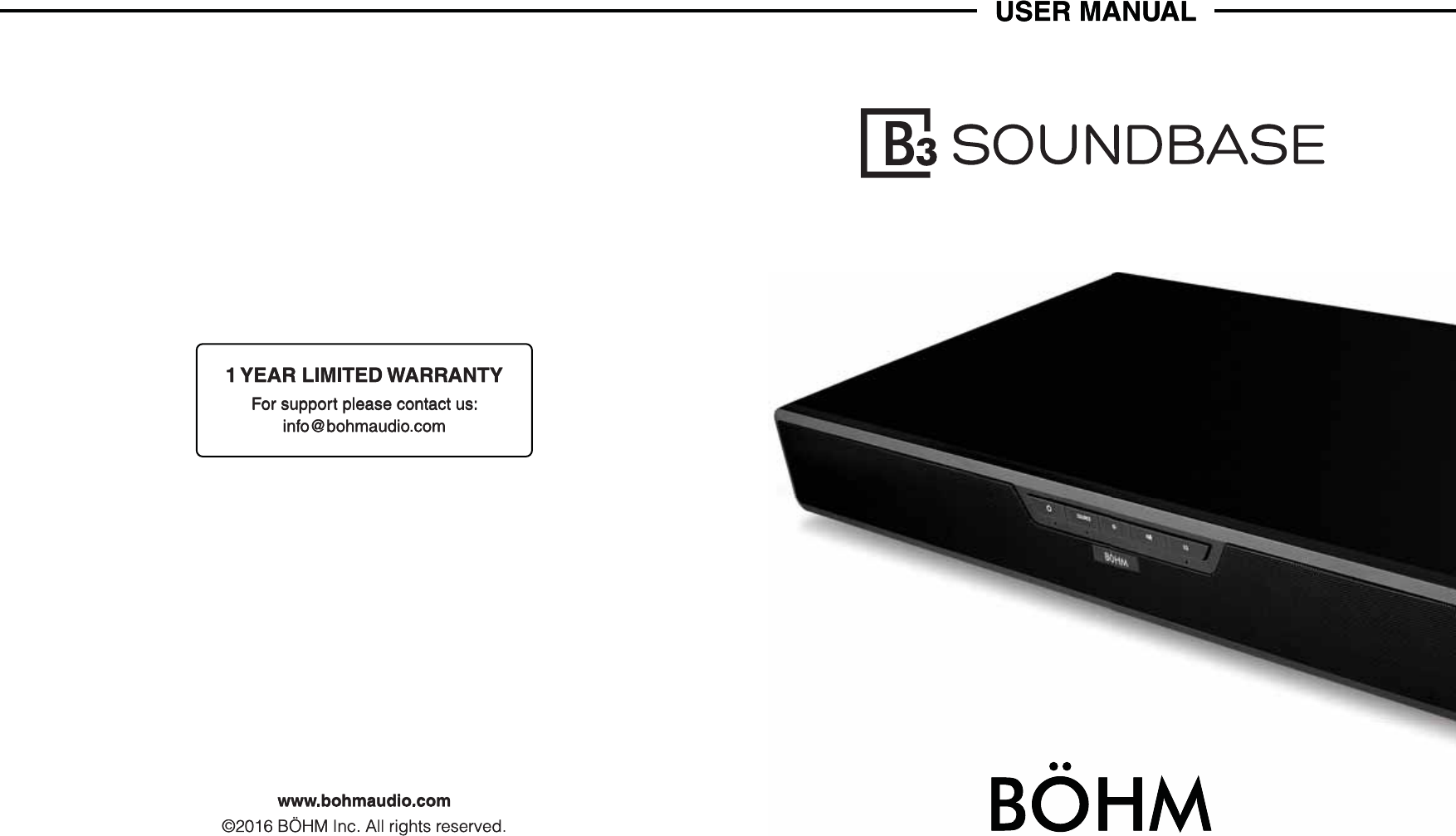

User manual

For support please contact us:info@bohmaudio.com1 YEAR LIMITED WARRANTYwww.bohmaudio.com©2016 BÖHM Inc. All rights reserved.USER MANUAL

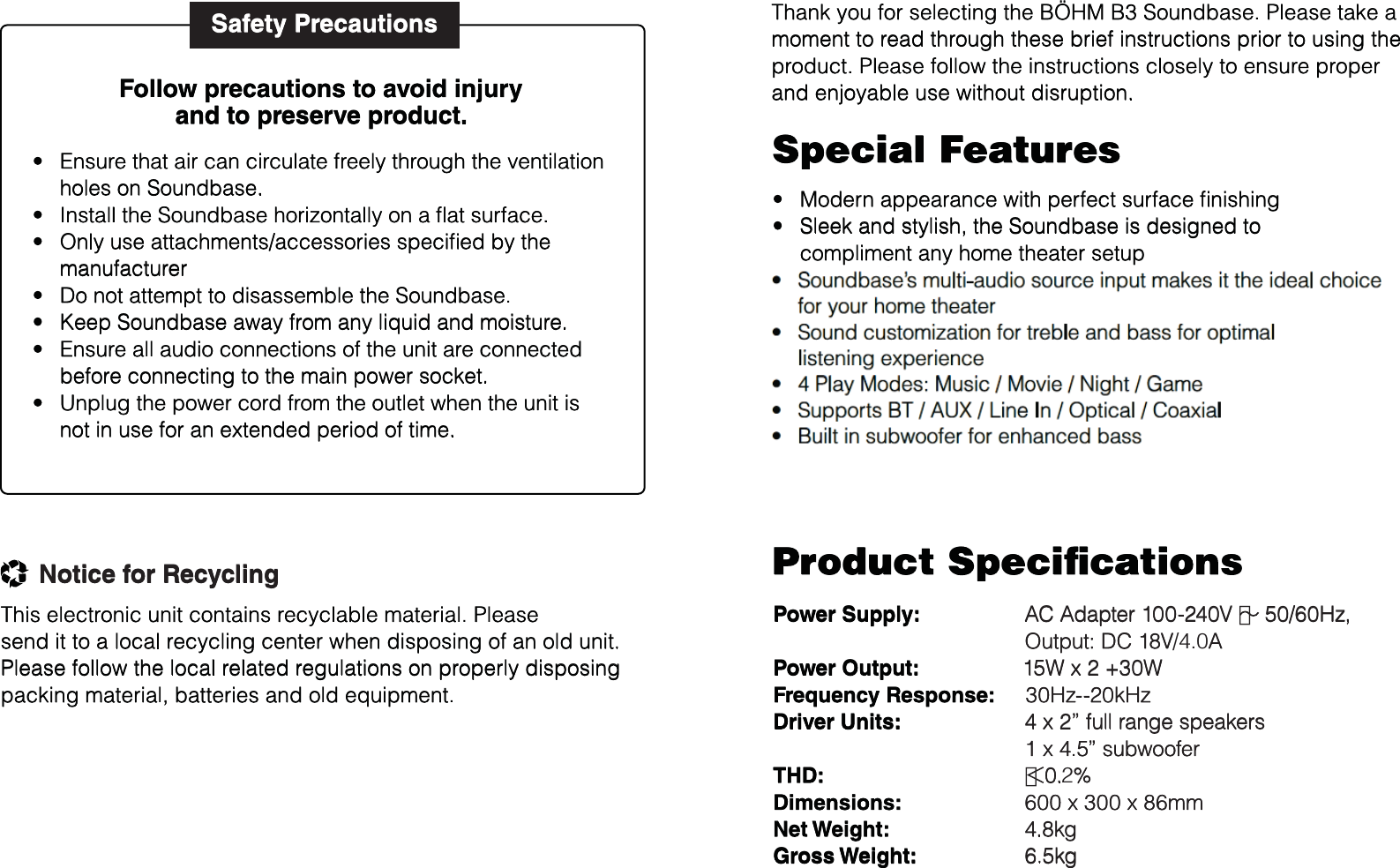

Thank you for selecting the BÖHM B3 Soundbase. Please take a moment to read through these brief instructions prior to using the product. Please follow the instructions closely to ensure proper and enjoyable use without disruption.Power Supply:Power Output:Frequency Response:Driver Units:THD:Dimensions:Net Weight:Gross Weight:AC Adapter 100-240V ∼ 50/60Hz, Output: DC 18V/4.0A15W x 2 +30W30Hz--20kHz4 x 2” full range speakers 1 x 4.5” subwoofer＜0.2%600 x 300 x 86mm4.8kg6.5kgEnsure that air can circulate freely through the ventilation holes on Soundbase.Install the Soundbase horizontally on a flat surface.Only use attachments/accessories specified by themanufacturerDo not attempt to disassemble the Soundbase.Keep Soundbase away from any liquid and moisture.Ensure all audio connections of the unit are connected before connecting to the main power socket.Unplug the power cord from the outlet when the unit is not in use for an extended period of time.Safety PrecautionstttttttModern appearance with perfect surface finishingSleek and stylish, the Soundbase is designed to compliment any home theater setupCompatible with the latest MP3 / PC / Smart Phone / Portable Audio Player / TVSoundbase’s multi-audio source input makes it the ideal choice for your home theaterSound customization for treble and bass for optimallistening experience4 Play Modes: Music / Movie / Night / GameSupports BT / AUX / Line In / Optical / CoaxialBuilt in subwoofer for enhanced bassttttttttProduct SpecificationsFollow precautions to avoid injuryand to preserve product.Special FeaturesThis electronic unit contains recyclable material. Please send it to a local recycling center when disposing of an old unit. Please follow the local related regulations on properly disposingpacking material, batteries and old equipment.Notice for Recycling

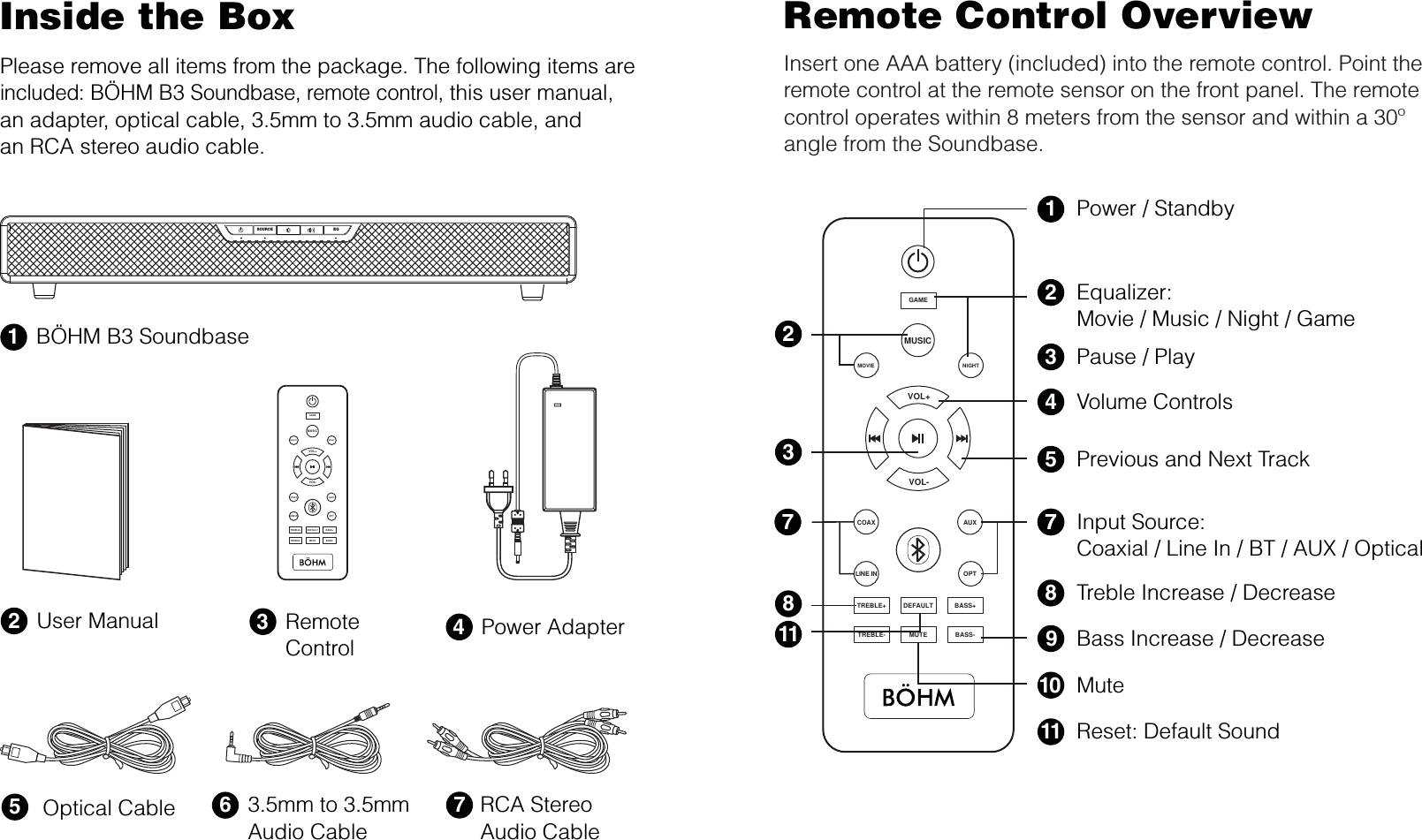

Inside the BoxPlease remove all items from the package. The following items are included: BÖHM B3 Soundbase, remote control, this user manual,an adapter, optical cable, 3.5mm to 3.5mm audio cable, andan RCA stereo audio cable.Remote Control OverviewInsert one AAA battery (included) into the remote control. Point the remote control at the remote sensor on the front panel. The remote control operates within 8 meters from the sensor and within a 30º angle from the Soundbase.1BÖHM B3 Soundbase3Remote Control 4Power Adapter653.5mm to 3.5mm Audio CableOptical Cable2User Manual7RCA StereoAudio CablePower / Standby1Equalizer:Movie / Music / Night / Game2Volume Controls4Previous and Next Track5Pause / Play3328Input Source:Coaxial / Line In / BT / AUX / Optical7Treble Increase / Decrease8Reset: Default Sound11Mute10Bass Increase / Decrease911+MUSICMOVIETREBLE+NIGHTDEFAULT BASS+TREBLE- MUTEGAMEBASS-COAXOPTAUXLINE INVOL+VOL-SOURCE EQ+MUSICMOVIETREBLE+NIGHTDEFAULT BASS+TREBLE- MUTEGAMEBASS-COAXOPTAUXLINE INVOL+VOL-77
Back ViewFront ViewSoundbase OverviewPowerCarefully take the tower body and base out of the packaging. Take the screws and washers out of packaging. Attach thebase to the body aligning the two holes in the base with thetwo holes in the tower, then screw the base into the body.Setting Up the Soundbase34211Press the power button to turn the unit off or on. Press againto put the Soundbase in standby mode.tRed: StandbytGreen Flashing: Ready for BT PairingtBlue Flashing: Connected to BTSource2Press the Source button to switch between bluetooth, line in,AUX, optical, and coaxial modes. tGreen Flashing: BluetoothtRed and Green Flashing Alternately: Line IntRed Flashing: AUXtOrange: OpticaltGreen: CoaxialtMusic: Best suited for listening to musictMovie: Best suited for watching moviestNight: Removes bass powertGame: Best suited for playing gamesEqualizer4DC 18V Port5Line In (3.5mm) Port6AUX (L/R) Port7Coaxial Port8Optical Port9Volume Up/Down3Press the EQ button to switch the equalizer between music,movie, night, and game mode. L--AUX IN--R COAXIAL OPTICALLINE INDC IN 18V56789SOURCE EQNOTE: The LED light below the button indicates the current setting.

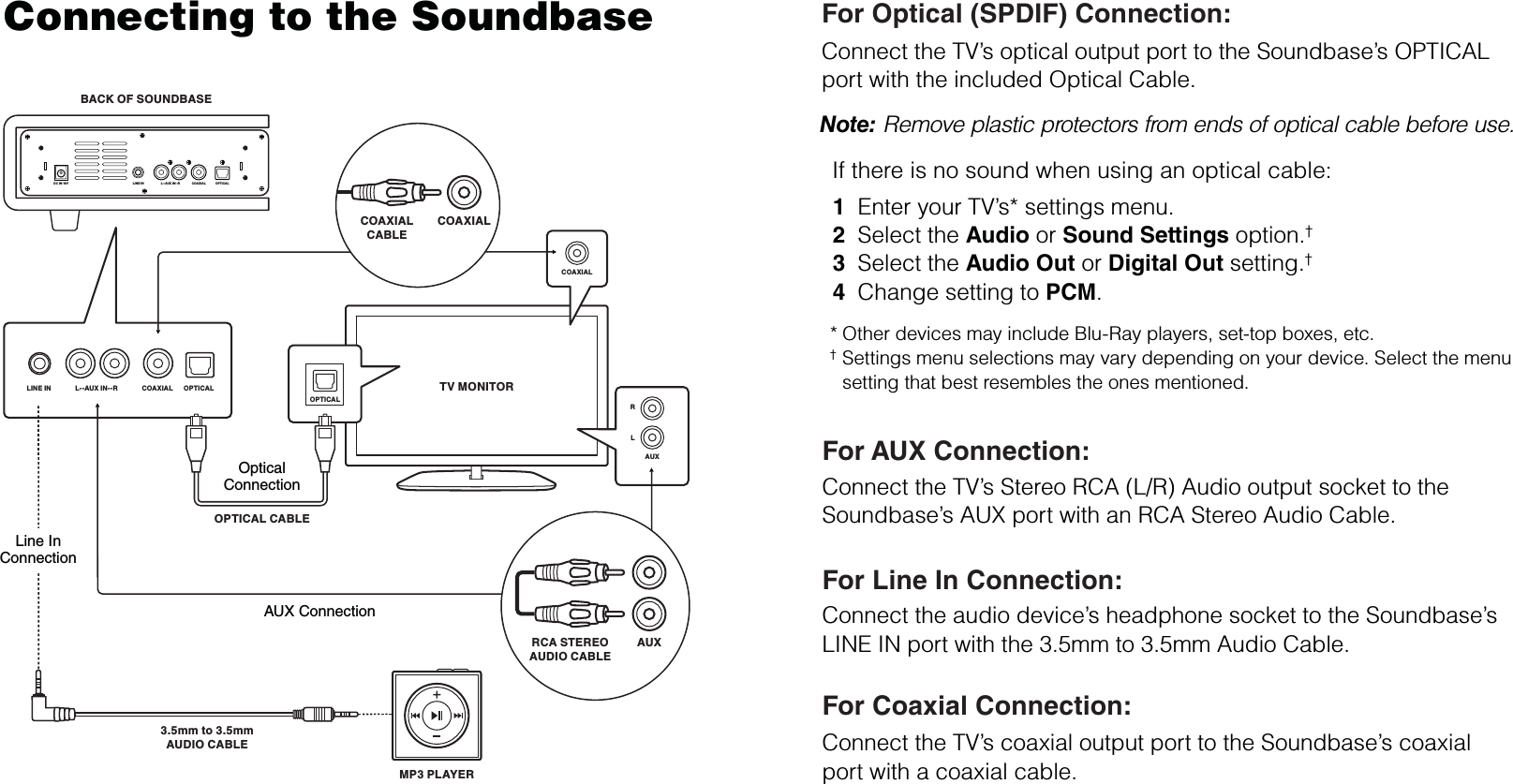

OPTICAL CABLEBACK OF SOUNDBASETV MONITORMP3 PLAYER3.5mm to 3.5mmAUDIO CABLEConnecting to the SoundbaseRLAUXCOAXIALOPTICALAUXRCA STEREOAUDIO CABLECOAXIALCOAXIALCABLEAUX ConnectionLine InConnectionOpticalConnectionFor Optical (SPDIF) Connection:Note: Remove plastic protectors from ends of optical cable before use.Connect the TV’s optical output port to the Soundbase’s OPTICAL port with the included Optical Cable.If there is no sound when using an optical cable:*† Other devices may include Blu-Ray players, set-top boxes, etc.Settings menu selections may vary depending on your device. Select the menu setting that best resembles the ones mentioned.1234Enter your TV’s* settings menu.Select the Audio or Sound Settings option.†Select the Audio Out or Digital Out setting.†Change setting to PCM.For AUX Connection:Connect the TV’s Stereo RCA (L/R) Audio output socket to the Soundbase’s AUX port with an RCA Stereo Audio Cable.For Line In Connection:Connect the audio device’s headphone socket to the Soundbase’s LINE IN port with the 3.5mm to 3.5mm Audio Cable.For Coaxial Connection:Connect the TV’s coaxial output port to the Soundbase’s coaxial port with a coaxial cable.L--AUX IN--R COAXIAL OPTICALLINE INDC IN 18VL--AUX IN--R COAXIAL OPTICALLINE IN

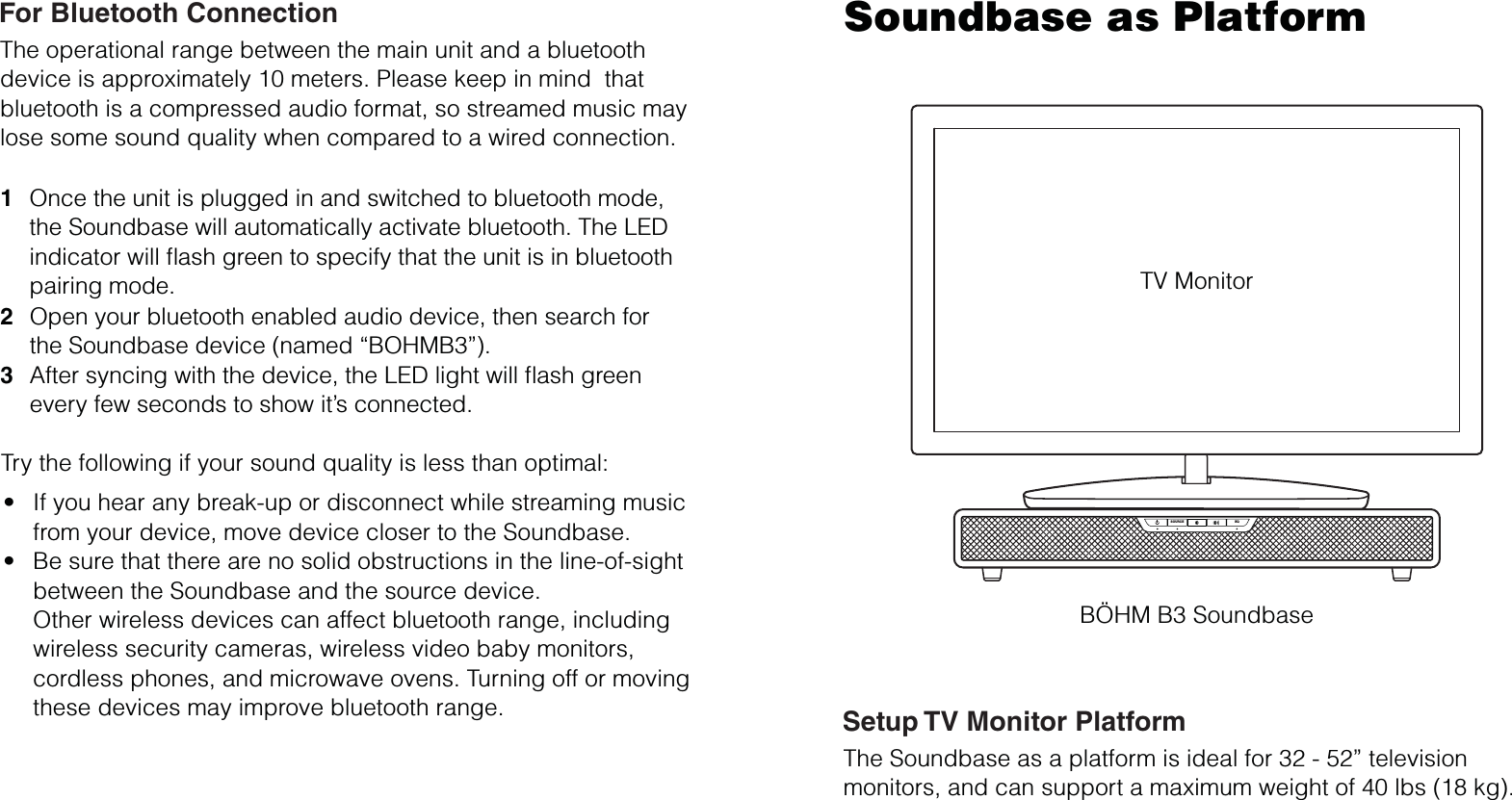

SOURCE EQTV MonitorSoundbase as PlatformOpen your bluetooth enabled audio device, then search forthe Soundbase device (named “BOHMB3”).After syncing with the device, the LED light will flash greenevery few seconds to show it’s connected. 23Once the unit is plugged in and switched to bluetooth mode,the Soundbase will automatically activate bluetooth. The LEDindicator will flash green to specify that the unit is in bluetoothpairing mode.1The operational range between the main unit and a bluetooth device is approximately 10 meters. Please keep in mind thatbluetooth is a compressed audio format, so streamed music maylose some sound quality when compared to a wired connection.If you hear any break-up or disconnect while streaming music from your device, move device closer to the Soundbase.Be sure that there are no solid obstructions in the line-of-sight between the Soundbase and the source device.Other wireless devices can affect bluetooth range, including wireless security cameras, wireless video baby monitors,cordless phones, and microwave ovens. Turning off or movingthese devices may improve bluetooth range.ttTry the following if your sound quality is less than optimal:For Bluetooth ConnectionThe Soundbase as a platform is ideal for 32 - 52” televisionmonitors, and can support a maximum weight of 40 lbs (18 kg).Setup TV Monitor PlatformBÖHM B3 Soundbase
This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna.
