Users Manual

BT‐CB.02UserGuide

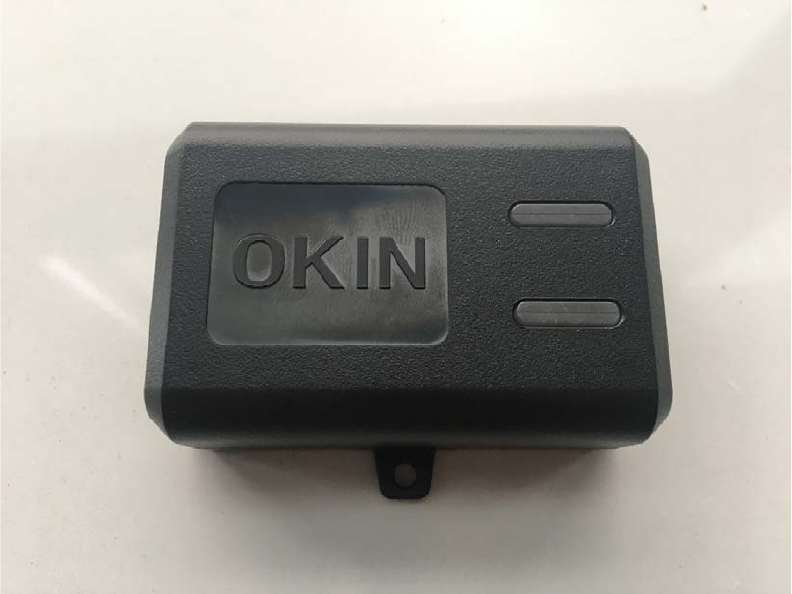

Appearance

Specification

1.PartNumber:BT‐CB.02;

2.WorkingVoltage:18‐30V;

3.WorkingCurrent:5mA@29V;

4.OperationTemperature:‐20~55℃;

5.Storagetemperature:‐45~85℃;

6.RFFrequencyRange:2.402~2.480GHz;

7.RFModulation: GFSK;

8.RFTransmittedPower:-4.0dBm;

9.HousingMaterial:ABS765A,94V‐0;

InterfaceDescription

1. StatusIndication:onecolor,twodifferentstatus

Status1:Breathing lamp,whenpoweredon;

Status2:Blue,whenBluetoothislinkedbysmartphone;

StatusIndication

Main‐MFPINterface

Instructions

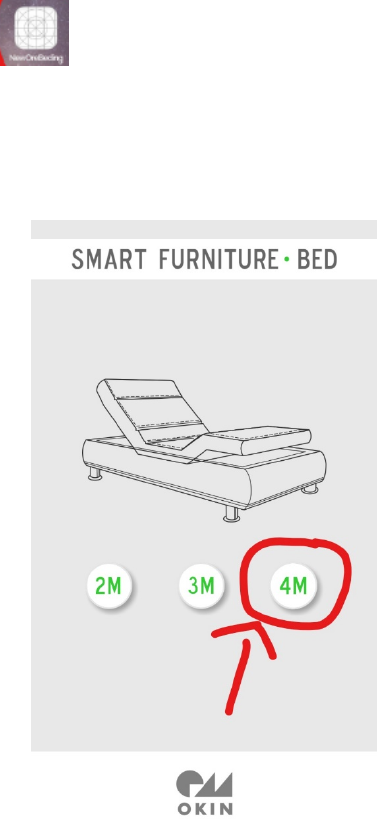

1. OpentheNewOreBedingapplication

2. Selectthecurrentcontrolboxisafewmotorsystems

http://www.pgyer.com/jbm0 ------Android mobile app download address

http://www.pgyer.com/Synergy369-ios------Iphone mobile app download address

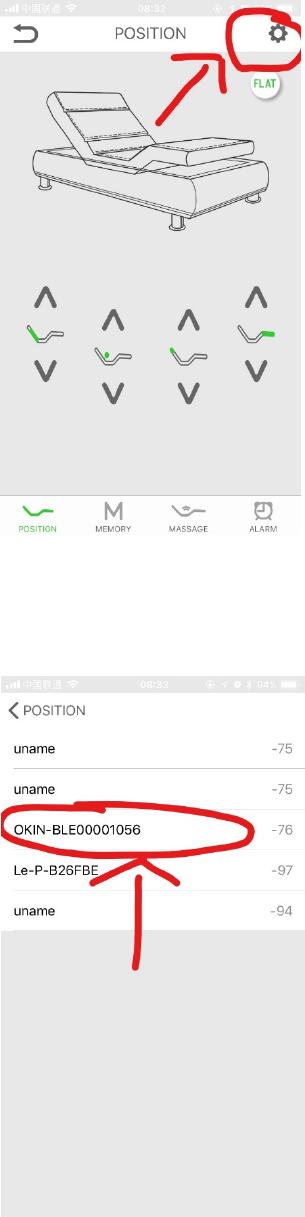

3. GotothesetupinterfaceandpairtheBluetoothcontrolbox

3. SelectthesignalpairingfromthecurrentlyusedBluetoothcontrolbox

4.Aftersuccessfulpairing,operatethemaininterface,youcanoperatethecontrol

box

FCC：

AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliance

couldvoidtheuser’sauthoritytooperatetheequipment.

Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwo

conditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustaccept

anyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.

ISEDRSSWarning:

ThisdevicecomplieswithInnovation,ScienceandEconomicDevelopmentCanadalicenceexempt

RSSstandard(s).Operationissubjecttothefollowingtwoconditions:(1)thisdevice

maynotcauseinterference,and(2)thisdevicemustacceptanyinterference,including

interferencethatmaycauseundesiredoperationofthedevice.

LeprésentappareilestconformeauxCNRd'ISEDapplicablesauxappareilsradio

exemptsdelicence.

L'exploitationestautoriséeauxdeuxconditionssuivantes:

(1)l'appareilnedoitpasproduiredebrouillage,et

(2)l'utilisateurdel'appareildoitacceptertoutbrouillageradioélectriquesubi,

mêmesilebrouillageestsusceptibled'encompromettrelefonctionnement.

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment .This equipment should be installed and operated with minimum distance 20cm between

the radiator& your body.

ISED Radiation Exposure Statement:

This equipment complies with ISED radiation exposure limits set forth for an uncontrolled

environment .This equipment should be installed and operated with minimum distance 20cm between

the radiator& your body. This transmitter must not be co-located or operating in conjunction with any

other antenna or transmitter.

Le rayonnement de la classe b repecte IC fixaient un environnement non contrôlés.Installation et mise

en œuvre de ce matériel devrait avec échangeur distance minimale entre 20 cm ton corps.Lanceurs ou

ne peuvent pas coexister cette antenne ou capteurs avec d’autres.
