OKIN Refined Electric Technology CB1220 Control Box User Manual
OKIN Refined Electric Technology Co., Ltd. Control Box
User Manual
Issue department：Bedding Division Date： 2018-11-09
ProductFunction
instruction
Author： Kyle
No：CB1220
CB1220 Version： 1.1
Page 1 of 4
1
CB1220 Functioninstruction

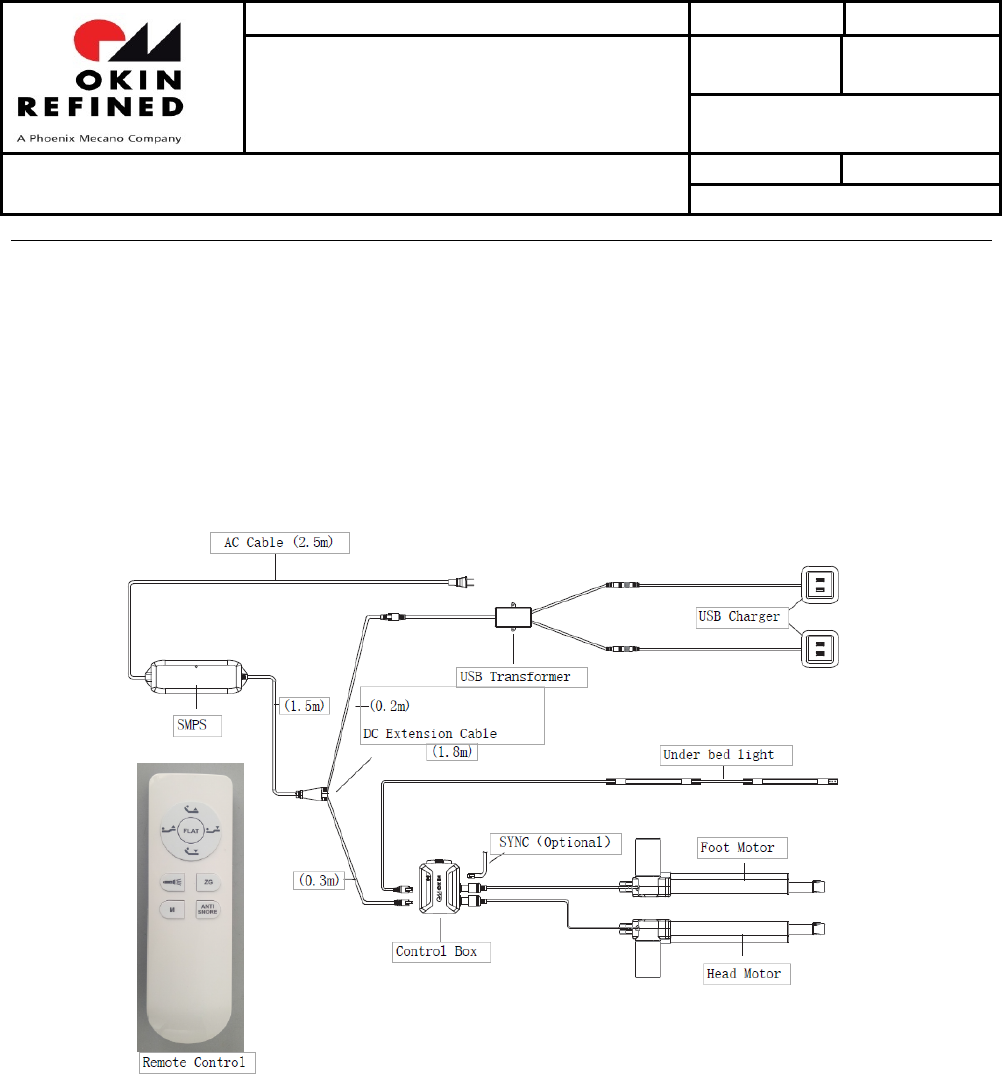

1. Electricalconfigurationdiagram：
FCC ID: PCU-RF3409
IC：21319-RF3409
FCC ID：PCU-CB1220
IC: 21319-CB1220
Issue department：Bedding Division Date： 2018-11-09
ProductFunction
instruction
Author： Kyle
No：CB1220
CB1220 Version： 1.1
Page 1 of 4
2

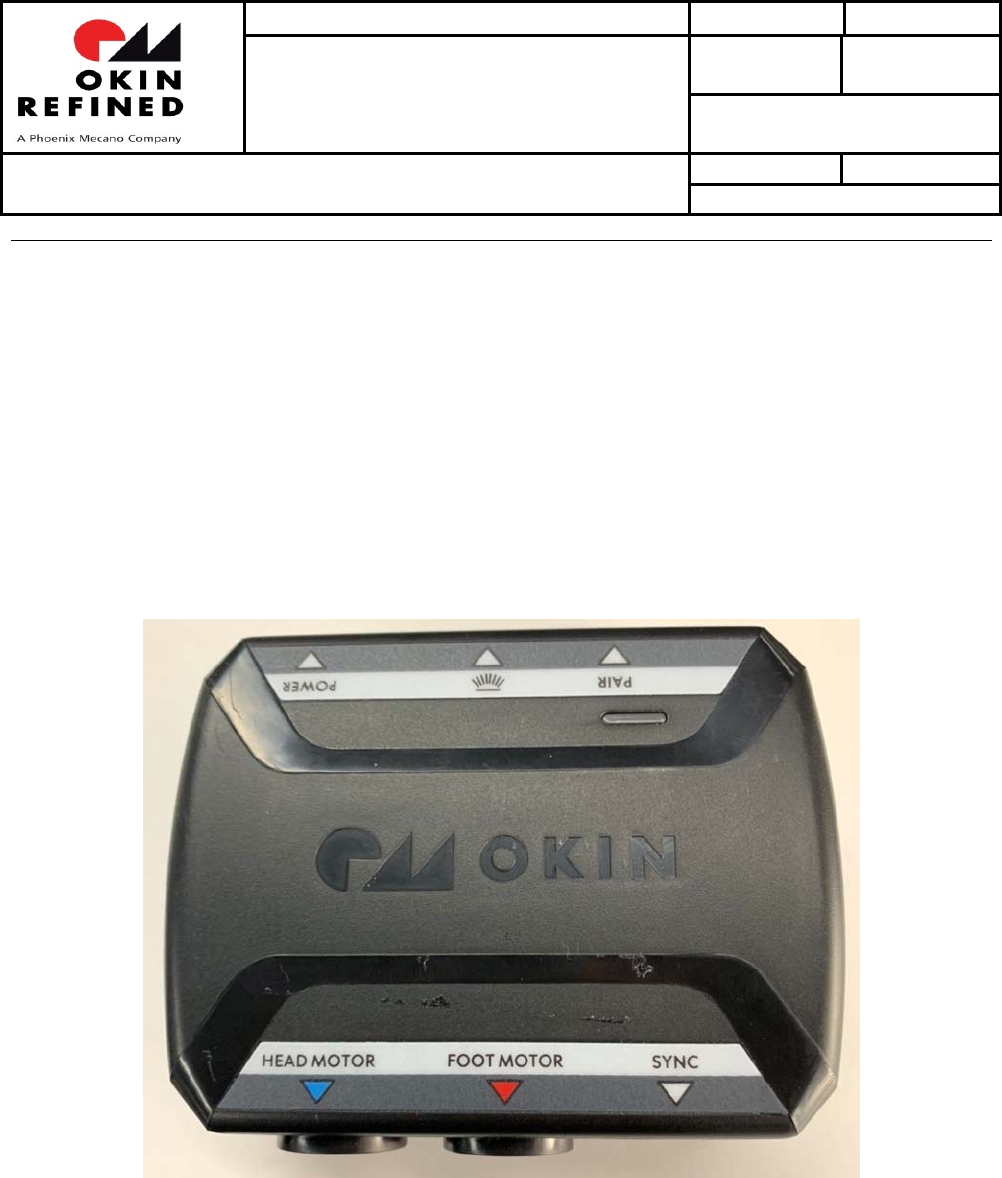

2. FunctionPicture
3.Processoftest
3.1. HEADMOTOR
Connecttoheadactuator,controlbyremotesingle:
Issue department：Bedding Division Date： 2018-11-09
ProductFunction
instruction
Author： Kyle
No：CB1220
CB1220 Version： 1.1
Page 2 of 4
3
Clickhead upbuttonontheremote,headactuatormovesout,stopwhenreleased；
Clickheaddownbutton，headactuatormovesin,stopwhenreleased；
Thisfunctiontakeseffectonlybypressingthecorrespondingbuttonontheremote.
3.2. FOOTMOTOR
Connecttofootactuator,controlbyremotesingle:
Clickfoot up button，footactuatormovesout，stopwhenreleased；
Clickfoot downbutton，footactuatormovesin，stopwhenreleased；
Thisfunctiontakeseffectonlybypressingthecorrespondingbuttonontheremote.
3.3. SYNCport
ConnectwiththesameotherControlboxorOtheraccessories;
3.4. PowerLED&PAIRINGLED
Powersupplyforcontrolbox,PAIRINGLEDofcontrolboxisblue,POWERLEDisgreen。
3.5. Power
Connecttothe29VDC;
3.6. RESETbutton
PressandholdtheRESETbutton，theHead,Footactuatorswillmovestolowerposition.
3.7. PairFunction
DoubleclickRESETbutton，pairingLEDturnson，thecontrolboxentersintomodeofcodeparing；
PressandholdtheparingLEDofRemote,thebacklightofparingLEDflashes,thebacklightofremoteflashes,the
remoteentersintomodeofcodeparing;
ThebacklightofparingLEDofremotestopsflashing,andtheparingledofcontrolboxturnsoff,itindicatesthat
thecodeparingissuccessful;
Iffails,repeatalltheprocessesabove;
Issue department：Bedding Division Date： 2018-11-09
ProductFunction
instruction
Author： Kyle
No：CB1220
CB1220 Version： 1.1
Page 4 of 4
5
FCC Statement
Any Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
ISED RSS Warning:
This device complies with Innovation, Science and Economic Development Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the
device.
Le présent appareil est conforme aux CNR d'ISED applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.
ISED RF exposure statement:
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator& your
body.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Le
rayonnement de la classe b repecte ISED fixaient un environnement non contrôlés.Installation et mise en
œuvre de ce matériel devrait avec échangeur distance minimale entre 20 cm ton corps.Lanceurs ou ne peuvent pas
coexister cette antenne ou capteurs avec d’autres.
