OKIN Refined Electric Technology CU3583S CONTROL UNIT User Manual

OKIN Refined Electric Technology Co., Ltd. CONTROL UNIT Users Manual

Users Manual

Issue department：Bedding Division
Date：
2017-05-03
Product Function
instruction
Author：
Kyle
No：CU358-3-S
CU358-3-S
Version：
1.1
Page 1 of 5
1
CU358-3-S Function instruction

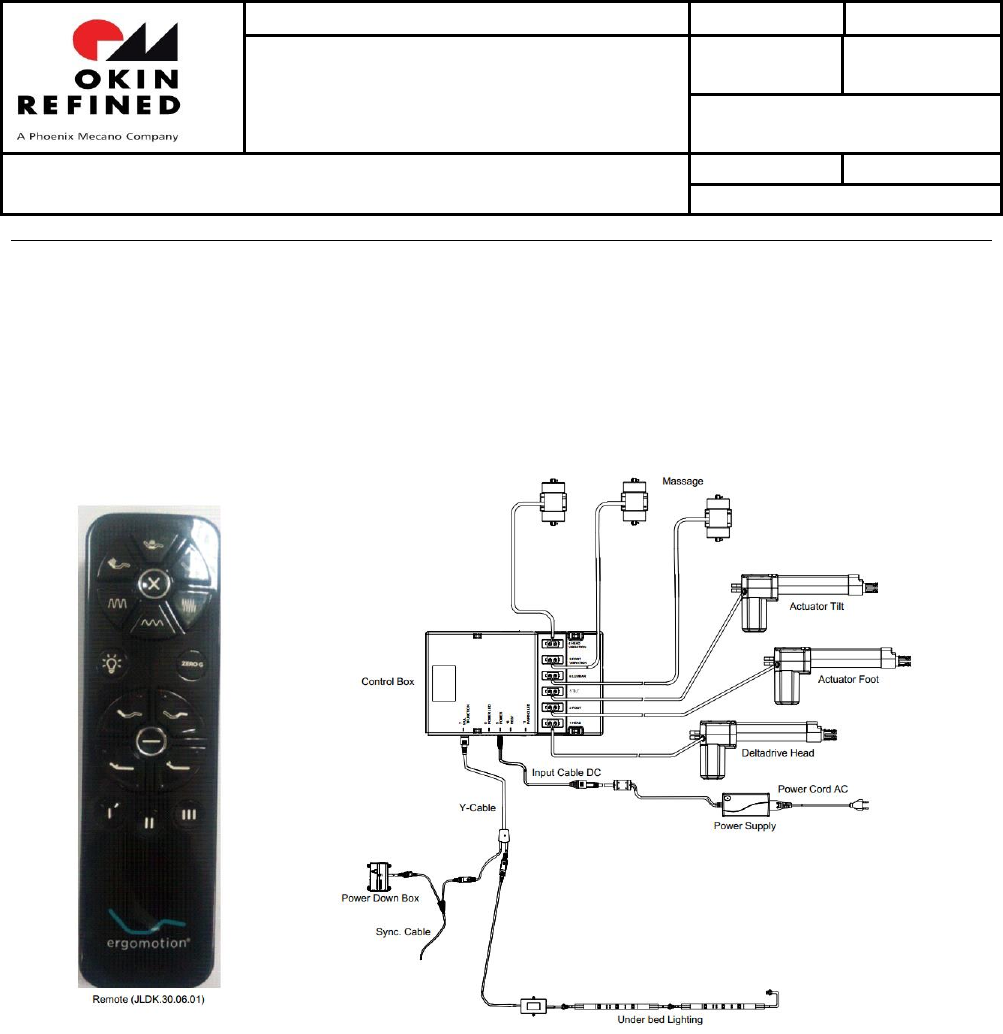

1. Electrical configuration diagram：
Issue department：Bedding Division
Date：
2017-05-03
Product Function
instruction
Author：
Kyle
No：CU358-3-S
CU358-3-S
Version：
1.1
Page 2 of 5
2

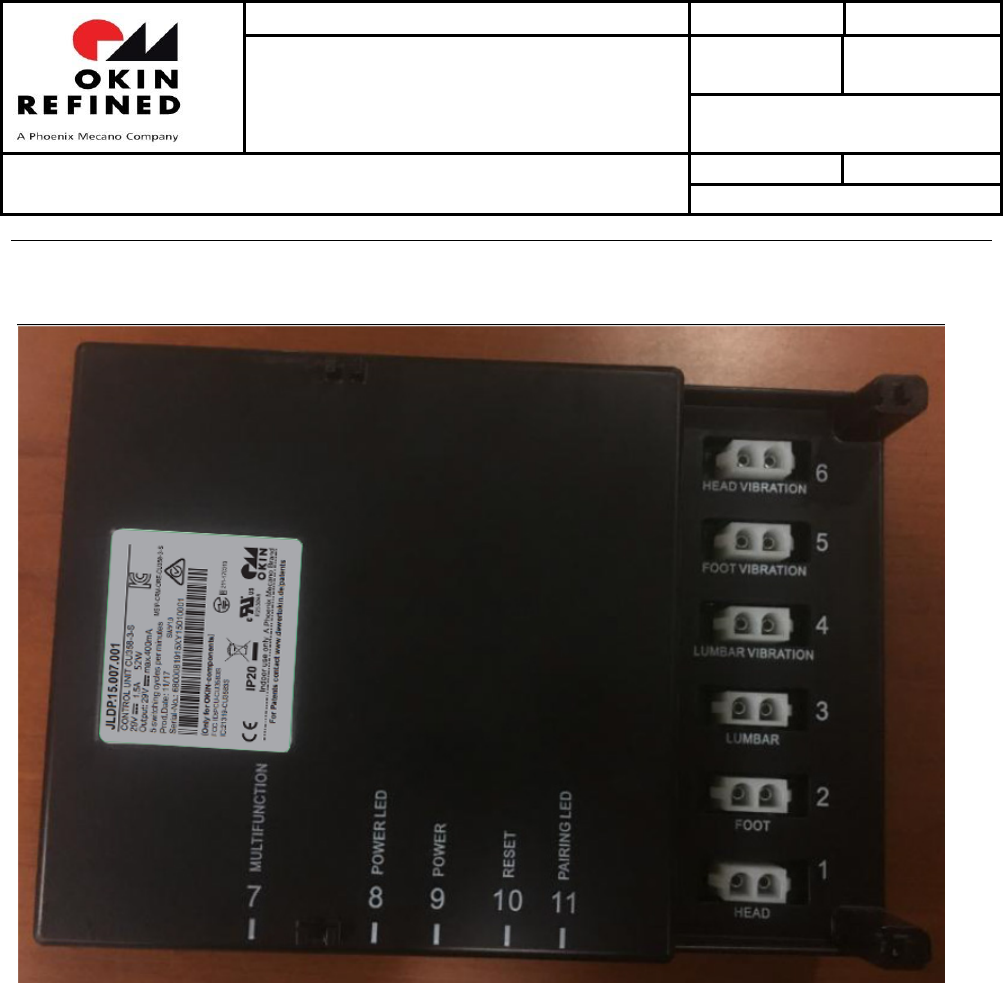

2. Function Picture
1. Process of test
1.1. HEAD port
Connect to head actuator,control by remote single:
Click head up button on the remote, head actuator moves out, stop when released；
Click head down button，head actuator moves in, stop when released；
This function takes effect only by pressing the corresponding button on the remote.
1.2. FOOT port
Connect to foot actuator,control by remote single:
Issue department：Bedding Division
Date：
2017-05-03
Product Function
instruction
Author：
Kyle
No：CU358-3-S
CU358-3-S
Version：
1.1
Page 3 of 5
3
Click foot up button，foot actuator moves out，stop when released；
Click foot down button，foot actuator moves in，stop when released；
This function takes effect only by pressing the corresponding button on the remote.
1.3. LUMBAR port
Connect to lumbar actuator,control by remote single:
Click lumbar up button，foot actuator moves out，stop when released；
Click lumbar down button，foot actuator moves in，stop when released；
This function takes effect only by pressing the corresponding button on the remote.
1.4. LUMBAR VIBRATION
Connect to lumbar massage,control by remote:
Click lumbar massage + button,lumbar massage strengthens by one level;
Click lumbar massage - button,lumbar massage weakenby one level;
This function takes effect only by pressing the corresponding button on the remote.
1.5. FOOT VIBRATION
Connect to foot massage,control by remote:
Click foot massage + button,foot massage strengthens by one level;
Click foot massage - button,foot massage weakenby one level;
This function takes effect only by pressing the corresponding button on the remote.
1.6. HEAD VIBRATION
Connect to head massage,control by remote:
Click head massage + button,head massage strengthens by one level;
Click head massage - button,head massage weakenby one level;
This function takes effect only by pressing the corresponding button on the remote.
1.7. MULTIFUNCTION port
Connect with the same other Control box or Other accessories;
Issue department：Bedding Division
Date：
2017-05-03
Product Function
instruction
Author：
Kyle
No：CU358-3-S
CU358-3-S
Version：
1.1
Page 4 of 5
4
1.8. Power LED & PAIRING LED
Power supply for control box, PAIRING LED of control box flashes for 4 times,and then turns off, POWER LED turns
on。
1.9. Power
Connect to the 29V DC;
1.10. RESET button
Press and hold the RESET button，the Head, Foot and Lumber actuators will moves to lower position.
1.11. Pair Function
Double click RESET button，pairing LED turns on，the control box enters into mode of code paring；
Press and hold the paring LED of Remote, the backlight of paring LED flashes, the backlight of remote flashes, the
remote enters into mode of code paring;
The backlight of paring LED of remote stops flashing, and the paring led of control box turns off, it indicates that
the code paring is successful;
If fails, repeat all the processes above;
1.12. Test for underbed light
Click button of underbed light, turns on( or turns off ) the underbed light, switch the status once when click once；
This function takes effect only by pressing the corresponding button on the remote.
1.13. FLAT function
Press and release the FLAT button on remote，the head and foot actuators moves to lower position(when the
actuator is free, can turn off the vibration motor and turn off the indicator light when press once )，stop when
press any buton；
This function takes effect only by pressing the corresponding button on the remote.
Issue department：Bedding Division
Date：
2017-05-03
Product Function
instruction
Author：
Kyle
No：CU358-3-S
CU358-3-S
Version：
1.1
Page 5 of 5
5
1.14. ZERO G position function
Press and release ZERO G button on remote，the head and foot actuator moves to preset memory position，stop
when press any button；
This function takes effect only by pressing the corresponding button on the remote.
1.15. LOUNGE position function
Press and release LOUNGE on remote，the head and foot actuator moves to preset memory
position, stop when press any button；
This function takes effect only by pressing the corresponding button on the remote.
1.16. TV position function
Press and release TV on remote，the head and foot actuator moves to preset memory position,
stop when press any button；
This function takes effect only by pressing the corresponding button on the remote.
Any Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
IC Warning ：
This device complies with Innovation,Science and Economic Development Canada licence-exempt
RSS standard (s). Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference,including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Innovation,Science and Economic Development Canada
applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
FCC Warning ：
