OKIN Refined Electric Technology JLDP05053 BT Control Box User Manual 4 x
OKIN Refined Electric Technology Co., Ltd. BT Control Box 4 x
Users Manual
发行部门 Issued by：研发部 R&D dept.
Creation date
：2017.04.13
产品说明书（功能说明） Founder： Peter
Product specification
APP 蓝牙系统说明书(JLDK.) APP Blue Tooth system
Specification (JLDK.)
version： 1
Page 1 for 4

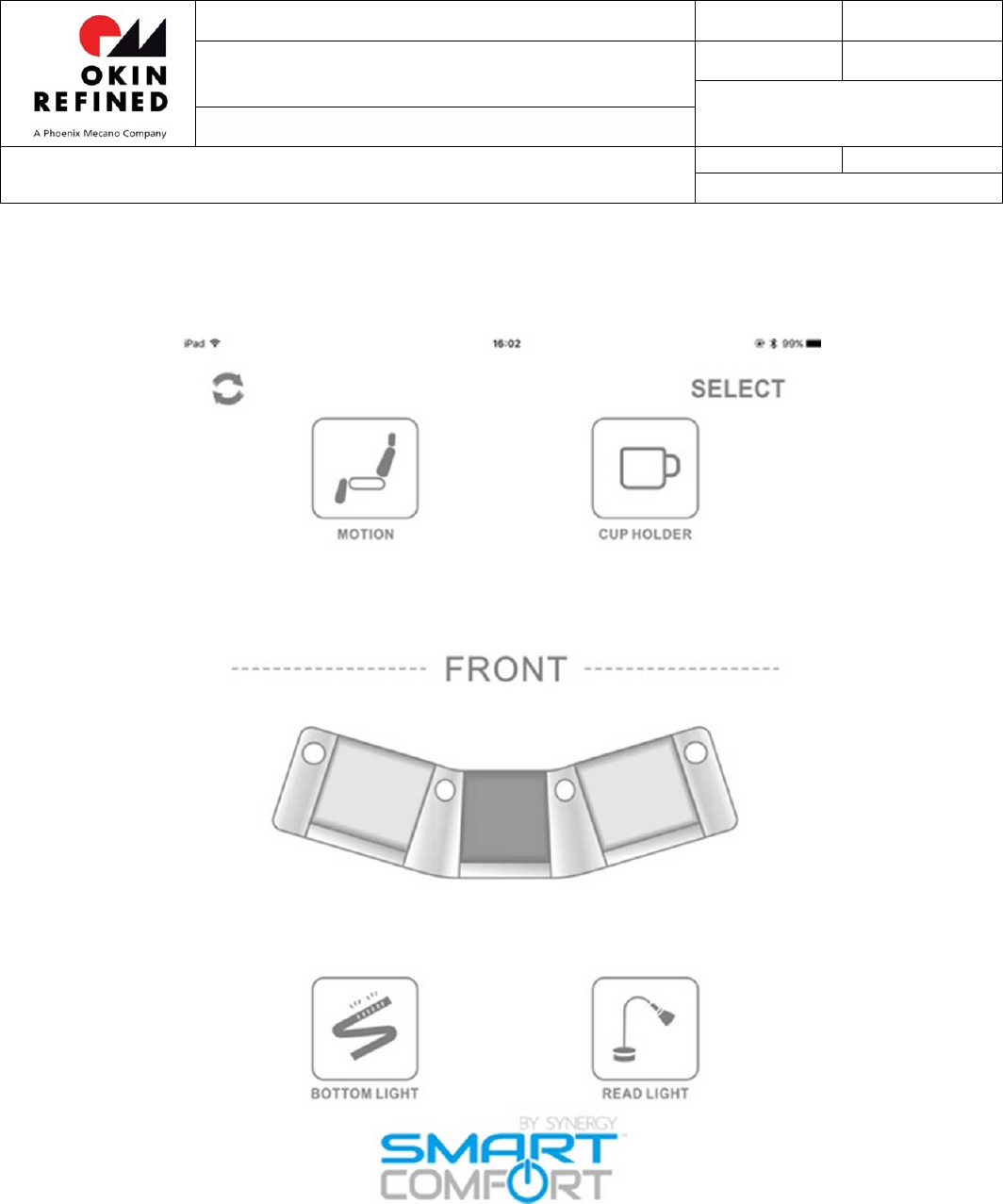

一、 产品外观直视图ProductAppearance
APP 蓝牙系统 - JLDK.
APP blue tooth – JLDK.
二、产品外形尺寸图DimensionDrawings
无/ NONE
发行部门 Issued by：研发部 R&D dept.
Creation date
：2017.04.13
产品说明书（功能说明） Founder： Peter
Product specification
APP 蓝牙系统说明书(JLDK.) APP Blue Tooth system
Specification (JLDK.)
version： 1
Page 2 for 4
三、产品功能描述ProductFeatures
1、通过 APP 控制，可自主选择沙发。Through APP control, can choose sofa independently.
2、单个沙发可实现三电机控制、阅读灯控制、七彩杯灯光控制以及灯带控制。
Can achieve three motor control, reading
lamp control, seven colors cup lighting control and lamp belt control by single sofa.
3、七彩杯颜色与灯带同步。
The color of the cup is synchronized with the lamp belt.
4、具备 USB 充电功能，支持 2A 充电。USB charging port, support 2A charging .
5、具有备用开关，能够实现电机控制。
T
he motor can be controlled with spare switch.
5、常用休闲沙发或影院椅。For leisure sofas and cinema armchairs.
四、产品性能参数的主要要求 PerformanceData
1、APP 控制开关 APP control
2、适用于直通电路 For Direct circuit
3、其它参数如附表 Other data is shown in the
following table.
输出 Output USB 输出电压
USB output
voltage
5V
USB 输出电流
USB output
current
2A
输入 Input 输入电压范围
Input voltage
range
29V
环境
Environment
室内使用 Indoor use
其它 Other 电源线 Cable
SMPS/
Main motor-Backrest/recline
Single motor-Head tilt
Single motor-Lumbar
Connecting
line
Bluetooth
control box
Emergency switch
Cup holder
SMPS/
Main motor-Backrest/recline
Single motor-Head tilt
Single motor-Lumbar
Connecting
line
USB socket
Cup holder
Emergency switch

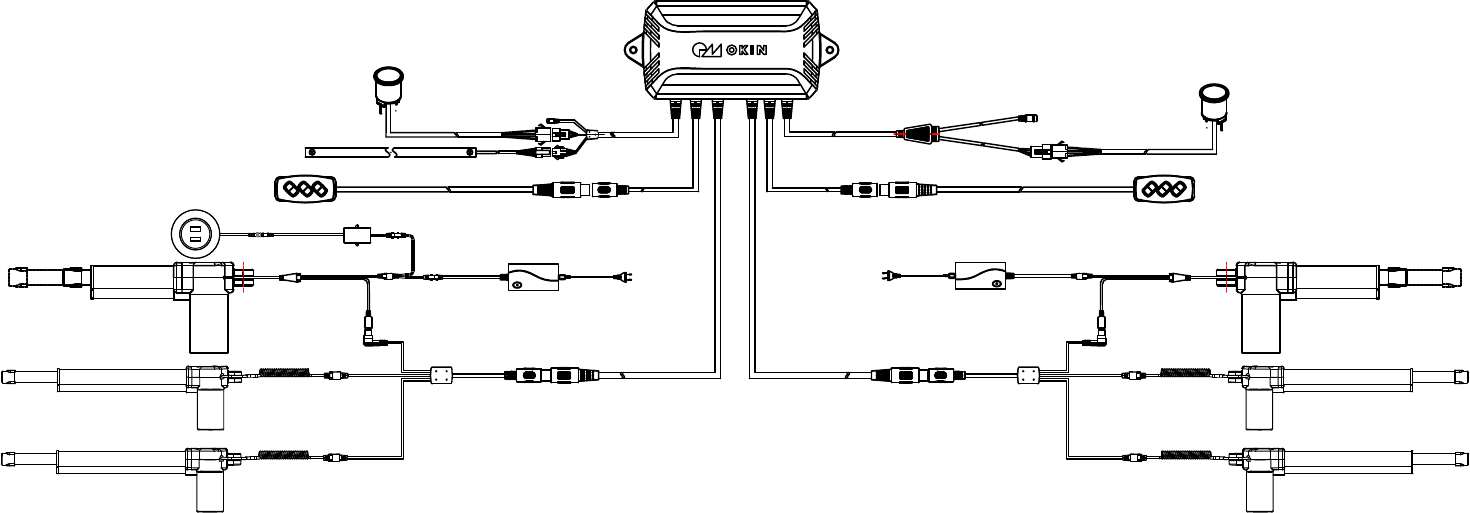

五、电气连接图ConnectionDiagram
发行部门 Issued by：研发部 R&D dept.
Creation date
：2017.04.13
产品说明书（功能说明） Founder： Peter
Product specification
APP 蓝牙系统说明书(JLDK.) APP Blue Tooth system
Specification (JLDK.)
version： 1
Page 3 for 4
七、产品常见问题FAQ
问题一： 沙发不能够工作
A: My sofa doesn’t work.
回答：请按照以下步骤排查：
Q: Please take the following steps to check your sofa.
1. 先检查开关电源指示灯是否点亮；
Check the SMPS light
（1.1 点亮为正常；1.2 非点亮即检查开关电源线路连接情况，在连接正常情况下指示灯仍未点亮，请更换开关电源
重试）
1.1 If the SMPS light is on, the system works.
1.2 If the SMPS light is off, please check whether there is a disconnection. If all items are connected properly but the light is
still off, please replace the SMPS and retry.
2. 再检查开关按键按下后，背光是否点亮；
Press a switch key and check the LED light
（2.1 一般情况下，点亮即为正常；特殊情况下，指示灯点亮却无法正常工作的，需更换手控开关或驱动器（主要因
产品本身线路情况影响导致无法正常工作）；2.2 如未点亮，需检查从开关电源至手控开关的整条线路是否正常（如
接口未连接、线材被压破等），线路连接正常指示灯仍未亮则需更换手控开关。
2.1 If the LED light is on, the system works. If the light is on but the sofa still doesn’t work, please replace the switch or the
actuator, for the circuit of the product might be the major cause of the fault.
2.2. If the LED light is off, please check whether there is a disconnection or any cuts or crimps in cables. If the connection
and the cables are in good condition but the light is still off, please replace the switch.
八、维护保养MaintenanceInstructions
1、非防水产品不允许置于潮湿区域，且所有产品不允许用水清洗，只能使用酒精擦拭；
Please do not use the non-water proof products in damp environment. No products can be washed with water. Cleaning with
alcohol is allowed.
六、产品的主要使用范围Environment
发行部门 Issued by：研发部 R&D dept.
Creation date
：2017.04.13
产品说明书（功能说明） Founder： Peter
Product specification
APP 蓝牙系统说明书(JLDK.) APP Blue Tooth system
Specification (JLDK.)
version： 1
Page 4 for 4
2、外观使用塑料材质，且含有许多元器件，请轻拿轻放，正确安装；
Please handle the product with care and install it properly to avoid any breaks in plastic material or in small components.
3、遵守安全操作规程，不超负荷使用产品，及时消除不安全因素;
Please follow the specification and eliminate insecurities in time. Overload is not allowed.
4、产品使用环境温度：常温下使用；
Ambient temperature: room temperature.
5、相对湿度：不大于80%。
Relative humidity: no more than 80%.
FCC：
AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidthe
user’sauthoritytooperatetheequipment.
Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)This
devicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,including
interferencethatmaycauseundesiredoperation.
ISEDRSSWarning:
ThisdevicecomplieswithInnovation,ScienceandEconomicDevelopmentCanadalicenceexemptRSSstandard(s).
Operationissubjecttothefollowingtwoconditions:(1)thisdevice
maynotcauseinterference,and(2)thisdevicemustacceptanyinterference,includinginterferencethatmay
causeundesiredoperationofthedevice.
LeprésentappareilestconformeauxCNRd'ISEDapplicablesauxappareilsradio
exemptsdelicence.
L'exploitationestautoriséeauxdeuxconditionssuivantes:
(1)l'appareilnedoitpasproduiredebrouillage,et
(2)l'utilisateurdel'appareildoitacceptertoutbrouillageradioélectriquesubi,
mêmesilebrouillageestsusceptibled'encompromettrelefonctionnement.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This
equipment should be installed and operated with minimum distance 20cm between the radiator& your body.
ISED Radiation Exposure Statement:
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment .This
equipment should be installed and operated with minimum distance 20cm between the radiator& your body. This
transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Le rayonnement de la classe b repecte IC fixaient un environnement non contrôlés.Installation et mise en œuvre
de ce matériel devrait avec échangeur distance minimale entre 20 cm ton corps.Lanceurs ou ne peuvent pas
coexister cette antenne ou capteurs avec d’autres.
