OKIN Refined Electric Technology RF2205 Remote Control User Manual
OKIN Refined Electric Technology Co., Ltd. Remote Control Users Manual
Users Manual
OKIN Refined Electric Technology Co., Ltd
Page 1 of
3
Operating Manual of Remote Control system

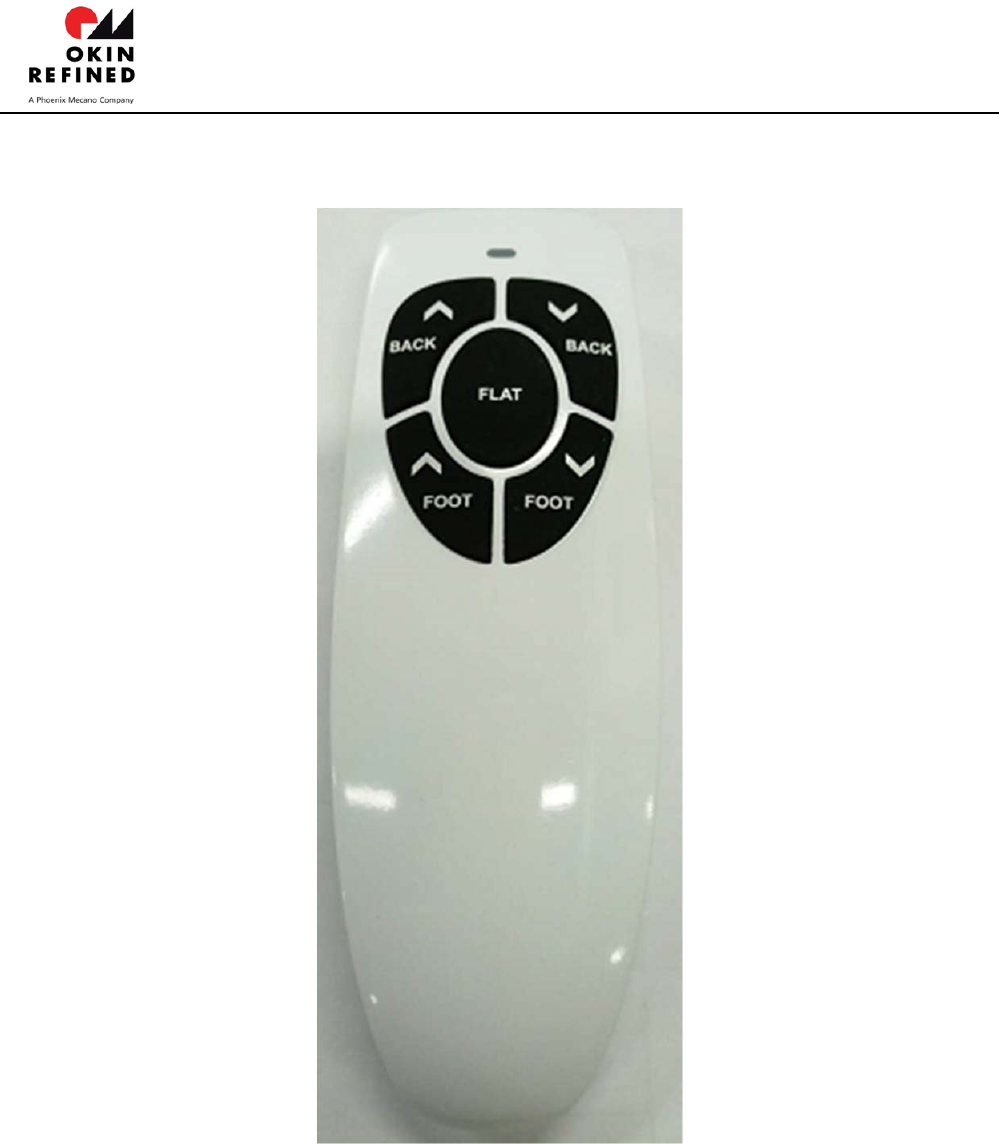

Interface of the remote control

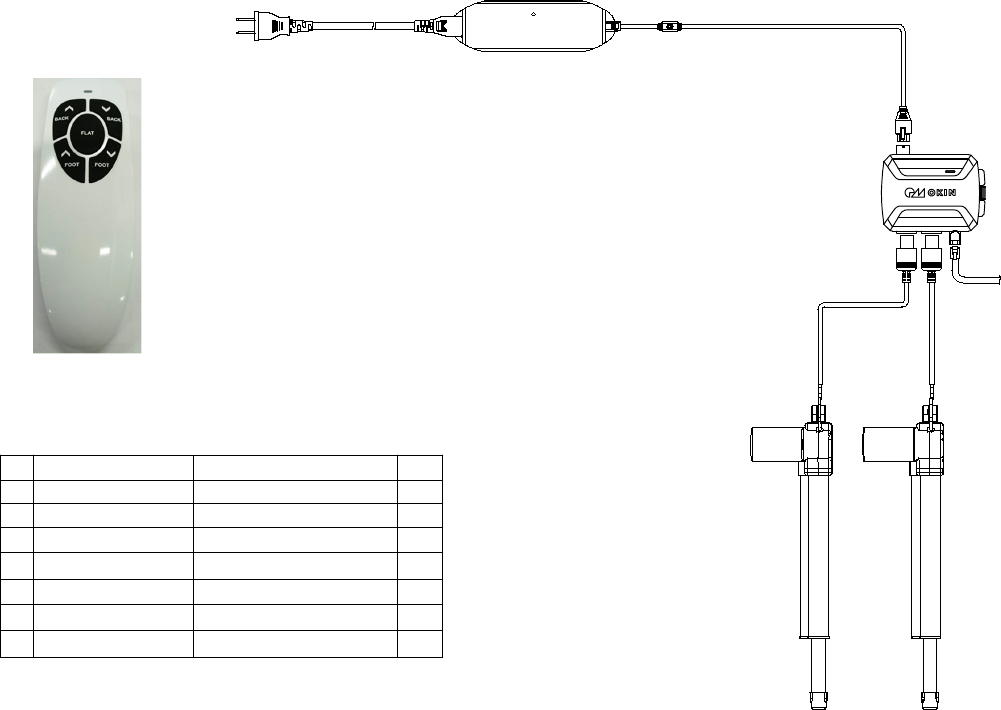

2. Electrical configuration diagram
2
3
4
11
1
5
6
1
Power Cord AC
Power Supply
R5.504.01.250
JLDP.10.023.000
Power Cord AC
Remote model
(RF2205)
Power Supply
(JLDP.10.023.000)
SYNC.
Motor
Control Box
CB.11.20.01
Pair&Power Cord DC
Pair&Power Cord DC
Synchronization Cable
1
2
Control Box
Head Foot
R5.217.01.013
71
Motor/(Head&Foot)
Remote model
RF2205
Page 2 of 3
CB.11.20.01
OKIN Refined Electric Technology Co., Ltd
Page 3 of 3
3. Button description
A. BACK UP button：Press and hold the button, the Head actuator will go up. Stop when
released.
B. BACK DN button：Press and hold the button, the Head actuator will go down. Stop when
released.
C. FOOT UP button：Press and hold the button, the Foot actuator will go up. Stop when
released.
D. FOOT DN button：Press and hold the button, the Foot actuator will go down. Stop when
released.
E. FLAT button: Click the button, the Head and Foot actuator will start up simultaneously and
keep running until arriving to their low limited switches,. Running can be stopped by
clicking any button.
The blue LEDs for backlight are on as long as any button is pressed. IF all buttons are
released the LEDs will automatically turn off three seconds later.
The blue LED for power is always on as long as the power on.
FCC：
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
IC RSS warning
This device complies with Industry Canada licence-exempt RSS standard (s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference,including interference that may cause undesired
operation of the device.
ISED RSS Warning:
This device complies with Innovation,Science and Economic Development Canada
licenceexempt RSS standard(s). Operation is subject to the following two conditions: (1)
this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'ISED applicables aux appareils radioexempts
de licence.
L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
