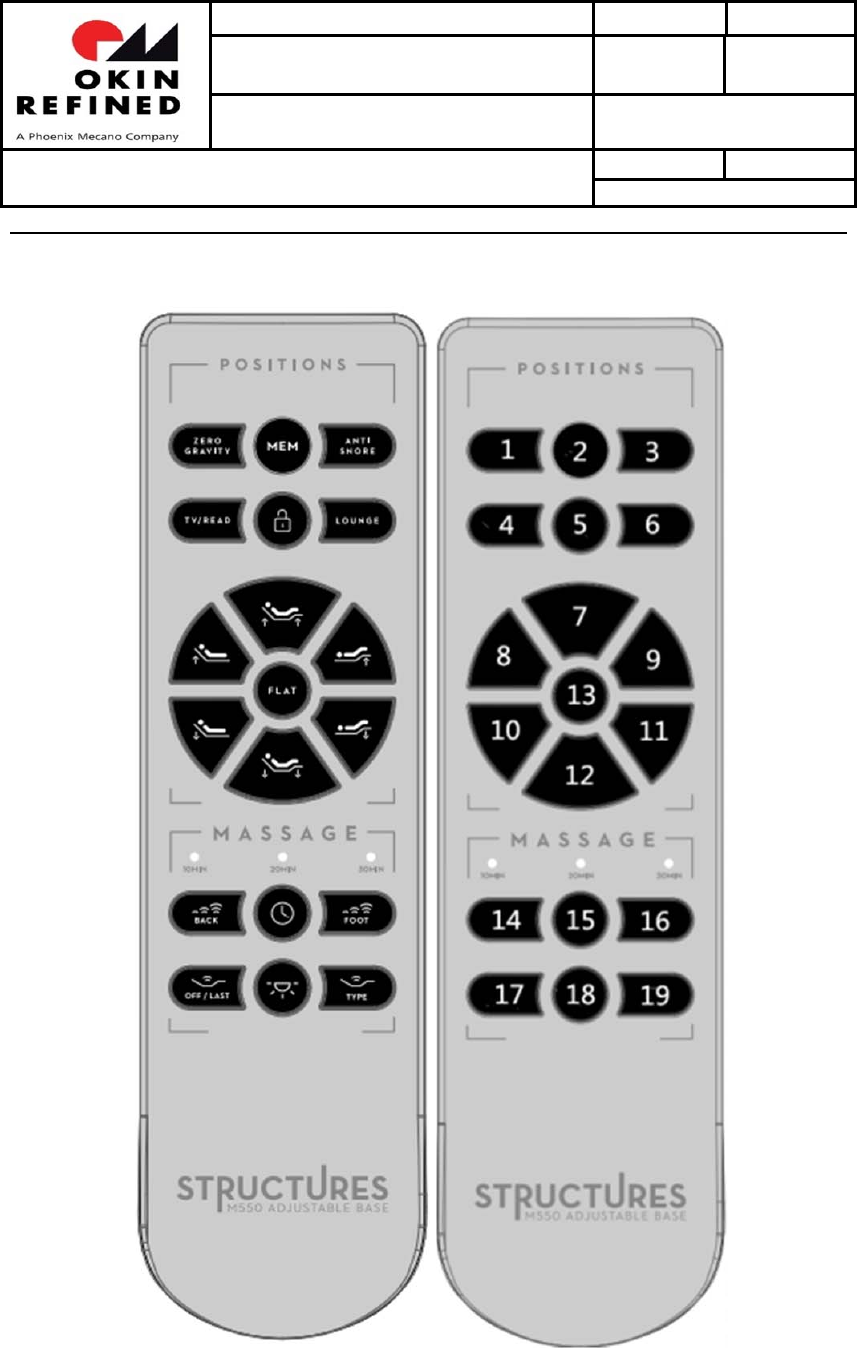

Figure1buttonofremote
Issue Department：Bedding Division Date： 2017-8-15
System Instruction Author：
Instruction of RF3019A
Edition： 1.1
Page 2 of 6
2 / 7
1. Item
1.1 ZG button（button 1 in figure 1）
Click the ZG button, the actuator moves to ZG position, stop when click any button during the
movement;
Press and hold the ZG button for 5s, timer LED of remote flashes, the control box records
current position as ZG position;
When in the process of moving to memory positions, the head and foot actuators move first,
then the tilt and lumbar actuators move;
1.2 M1 nitton（buttton 2 in figure 1）
Click M1 button, actuators move to M1 position, stop when click any button during
movement；
Press and hold M1 button for 5s, timer LED of remote flashes, the control box records current
position as M1 position;
When in the process of moving to memory positions, the head and foot actuators move first,
then the tilt and lumbar actuators move;
1.3 AntiSnore button（button 3 in figure 1）
Click
AntiSnore
button, actuators move to
AntiSnore
position, stop when click any button
during movement；
Press and hold
AntiSnore
button for 5s, timer LED of remote flashes, the control box records
current position as
AntiSnore
position;
When in the process of moving to memory positions, the head and foot actuators move first,
then the tilt and lumbar actuators move;
1.4 TV/PC button（button 4 in figure 1）
Click
TV/PC
button, actuators move to
TV/PC
position, stop when click any button during
movement；
Issue Department：Bedding Division Date： 2017-8-15
System Instruction Author：
Instruction of RF3019A
Edition： 1.1
Page 3 of 6
Press and hold
TV/PC
button for 5s, timer LED of remote flashes, the control box records
current position as
TV/PC
position;
When in the process of moving to memory positions, the head and foot actuators move first,
then the tilt and lumbar actuators move;
1.5 LOUNGE button（button 6 in figure 1）
Click
LOUNGE
button, actuators move to
LOUNGE
position, stop when click any button
during movement；
Press and hold
LOUNGE
button for 5s, timer LED of remote flashes, the control box records
current position as
LOUNGE
position;
When in the process of moving to memory positions, the head and foot actuators move first,
then the tilt and lumbar actuators move;
1.6 Childlock button（button 5 in figure 1）
In unlocked state, press and hold the childlock button, the red backlight of children lock
button begins to flash, after 5s, the red backlight stops flashing, remote entersl into locked
state;
Under locked state, press any button except childlock button, the red backlight of childlock
turns on, the button you pressed is invalid;
Under locked state, press and hold childlock button, red backlight of childrenlock begins to
flash,after 5s, the red backlight stops flashing, remote enters into the normal working
condition;
1.7 Reset all memory positions to default settings（button 1 and 13 in figure 1）
1.8 Head up（button 8 in figure 1）
Press and hold
HEAD UP button of remote, head actuator moves out, stop when
released
；
3 / 7
Issue Department：Bedding Division Date： 2017-8-15
System Instruction Author：
Instruction of RF3019A
Edition： 1.1
Page 4 of 6
4/7
1.9 Head down（button 10 in figure 1）
Press and hold HEAD DOWN button of remote, head actuator moves in, stop when released；
1.10 Foot up（button 9 in figure 1）
Pressa and hold FOOT UP button of remote, foot actuator moves out, stop when released;
1.11 foot down（button 11 in figure 1）
Press and hold FOOT DOWN button of remote, foot actuator moves in , stop when released；
When moving to flat position, lumbar actuator and tilt actuator move first, after 500ms, head and
foot actuators start moving;
1.12 Head and Foot up（button 7 in figure 1）
Press and hold button 7, tilt actuator moves out, stio when released;
1.13 Head and Foot down（button 12 in figure 1）
Press and hold button 12, tilt actuator moves in, stop when released;
1.14 Flat（button 13 in figure 1）
Click FLAT button, the bed goes flat, stop when click any button during the process of going
flat；
1.15 Massage bcak（button 14 in figure 1）
Click MASSAGE BACK button, head massage motor switches massage intensity, massage
intensityswitches among 0-1-2-3；
1.16 Massage timer（button 15 in figure 2）
If the massage motors do not work, the button is invalid, if the massage motors work, click the
Issue Department：Bedding Division Date： 2017-8-15
System Instruction Author：
Instruction of RF3019A
Edition： 1.1
Page 5 of 6
5/ 7
button to switch the massage time, when massage time switch to 0, turn off the massage;
1.17 Massage foot（button 16 in figure 1）
Click MASSAGE FOOT button, head massage motor switches massage intensity, massage
intensityswitches among 0-1-2-3；
1.18 Massage ON/LAST（button 17 in figure 1）
Click the Massage ON / LAST button, if the massage motors are on, turn off the massage motors
and record the current massage intensity and mode of head and foot massage motors. If the
massage motor is off, turn on the massage motors and restore to the previous recorded
massage intensity and massage mode (Note: Only when press the ON / LAST button only to
turn off the massage motor, it will record the current massage intensity and massage mode, press
the head and foot massage motor button or timer button or open the massage motor, it will not
not record the status of massage motors);
1.19 Under bed light（button 18 in figure 1）
Click the under bed light button, the under bed light switch its on/off state; After the under bed
light opens, if do not manually close, it will automatically turn off after 5 minutes;
1.20 Massage Type（button 19 in figure 1）
Click massage type button, to switch the massage mode og massage motors, massage mode
switches among type0type1type2type3type0; this button can only switch the massage
mode, it can not open massage motors；
Issue Department：Bedding Division Date： 2017-8-15
System Instruction Author：
Instruction of RF3019A
Edition： 1.1
Page 6 of 6
6 / 7
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
ISED RSS Warning:
This device complies with Innovation,Science and Economic Development Canada licenceexempt
RSS standard(s). Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'ISED applicables aux appareils radioexempts de
licence.
L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d'en compromettre le fonctionnement.
ISED RF exposure statement:
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled
environment.The device has been evaluated to meet general RF exposure requirement.
Le matériel est conforme aux limites de dose d'exposition aux rayonnements énoncés pour fac un
autre environnement.ce dispositif a été évalué à satisfaire l'exigence générale de l'exposition aux
rf.
