o o

OL_ |VII

LC TV

5-Series

o o

OL EV| A

Syntax-Brillian Corporation

20480 East Business Parkway

City of Industry, California 91789 USA

1-866-9-OLEVtA

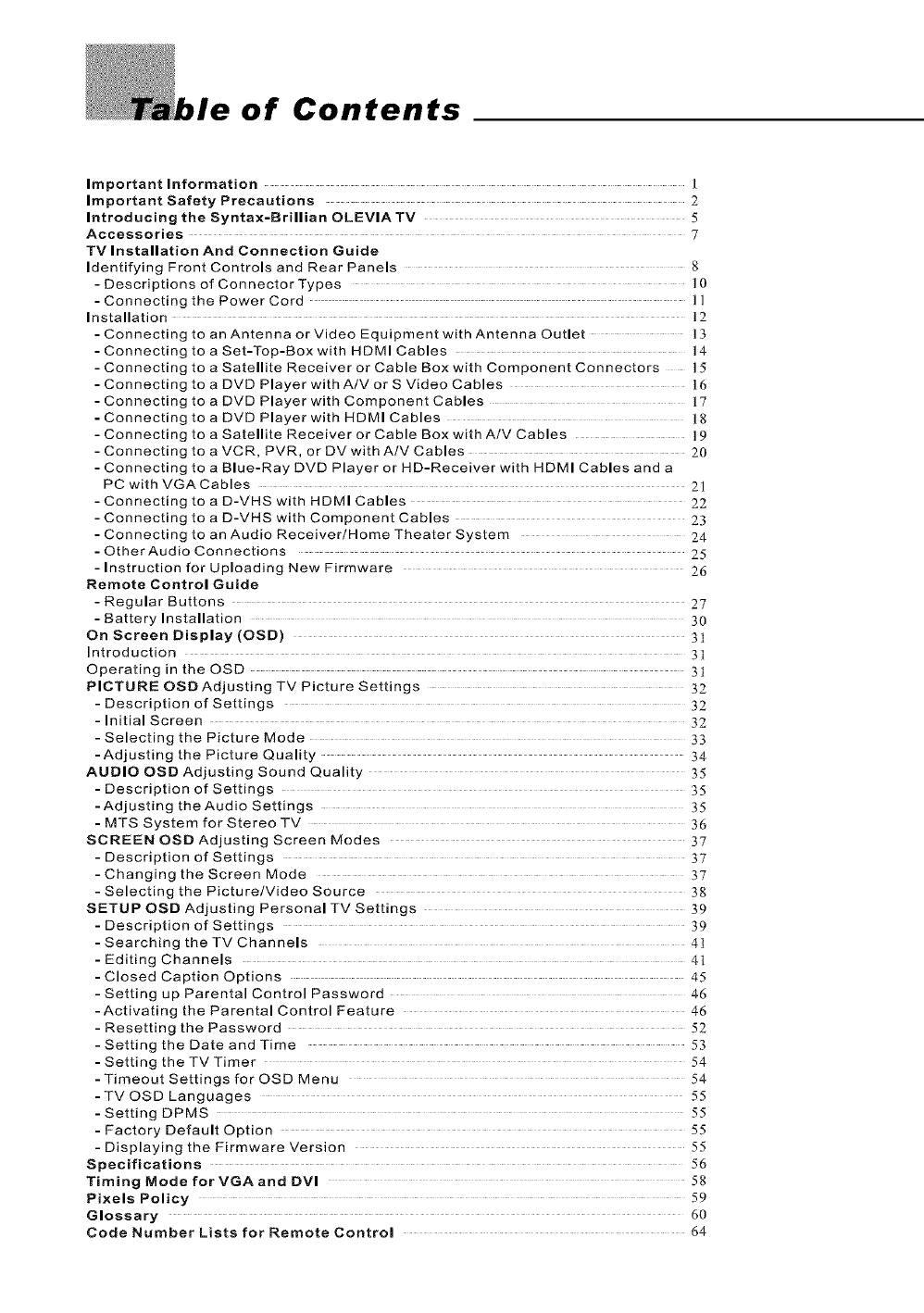

of Contents

Important Information I

Important Safety Precautions 2

Introducing the Syntax-Brillian OLEVIA TV 5

Accessories 7

TV Installation And Connection Guide

Identifying Front Controls and Rear Panels 8

- Descriptions of Connector Types ]0

- Connecting the Power Cord |]

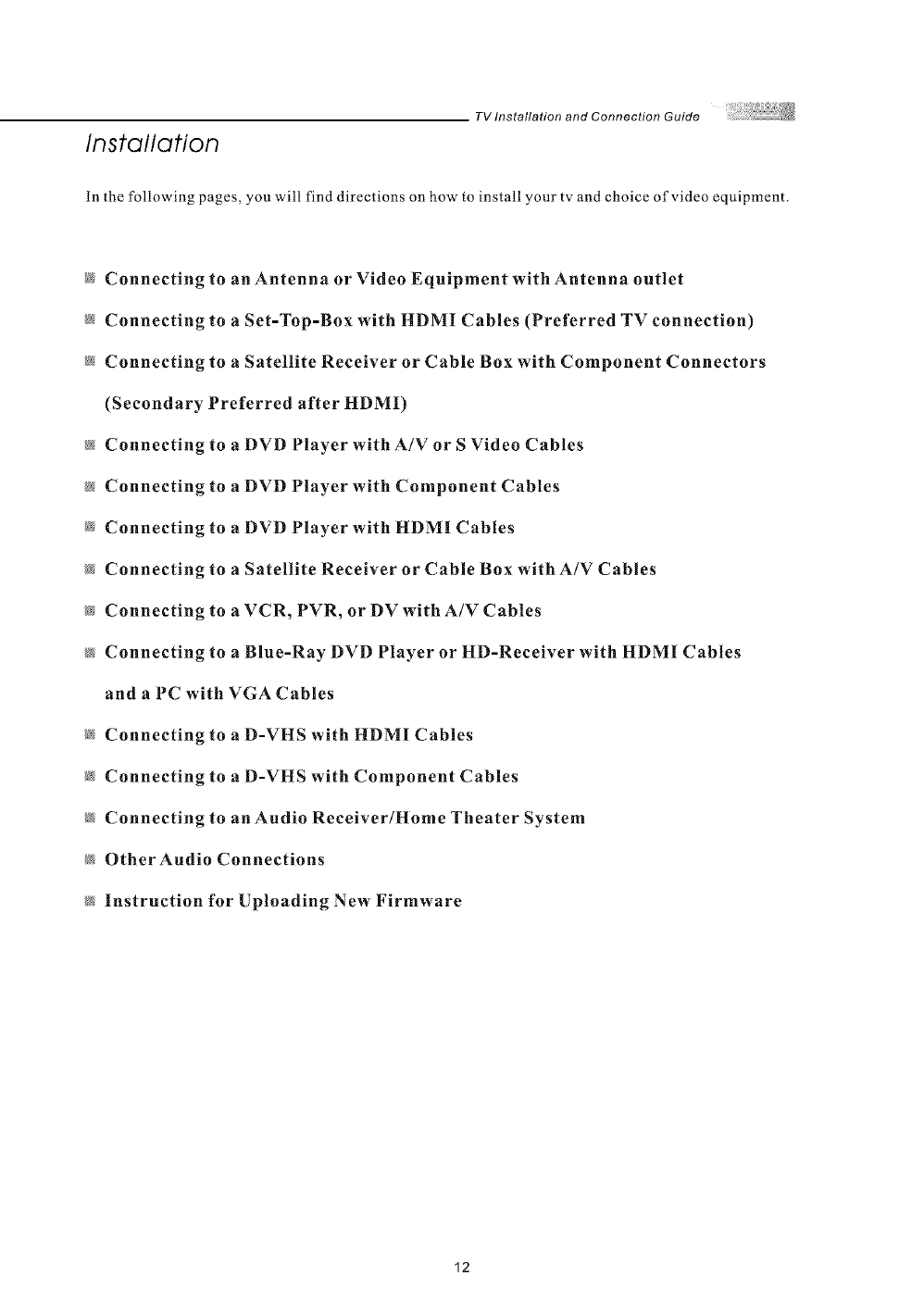

Installation 52

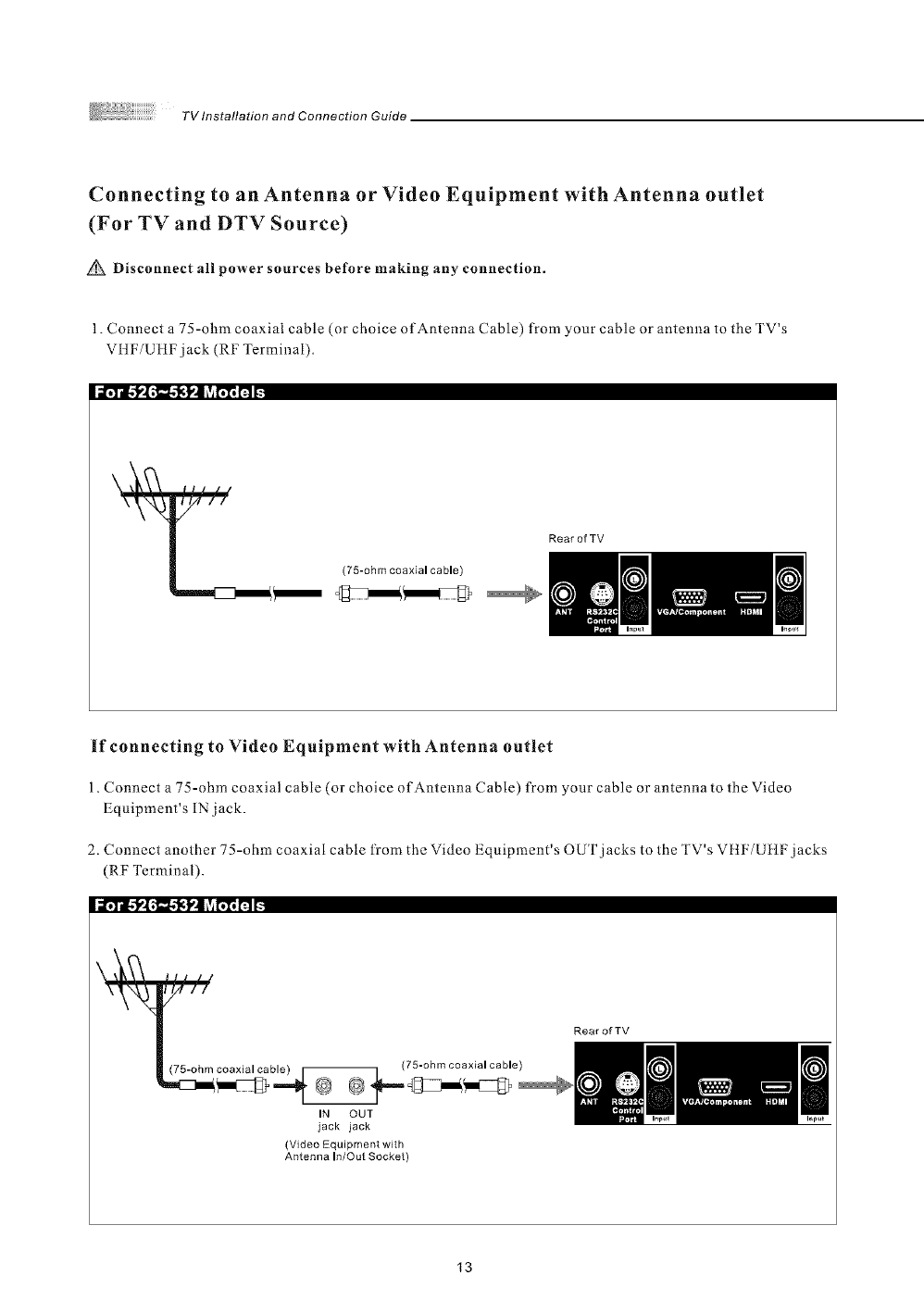

-Connecting to an Antenna or Video Equipment with Antenna Outlet ]3

-Connecting to a Set-Top-Box with HDMI Cables 14

-Connecting to a Satellite Receiver or Cable Box with Component Connectors 15

-Connecting to a DVD Player withA/V or S Video Cables 16

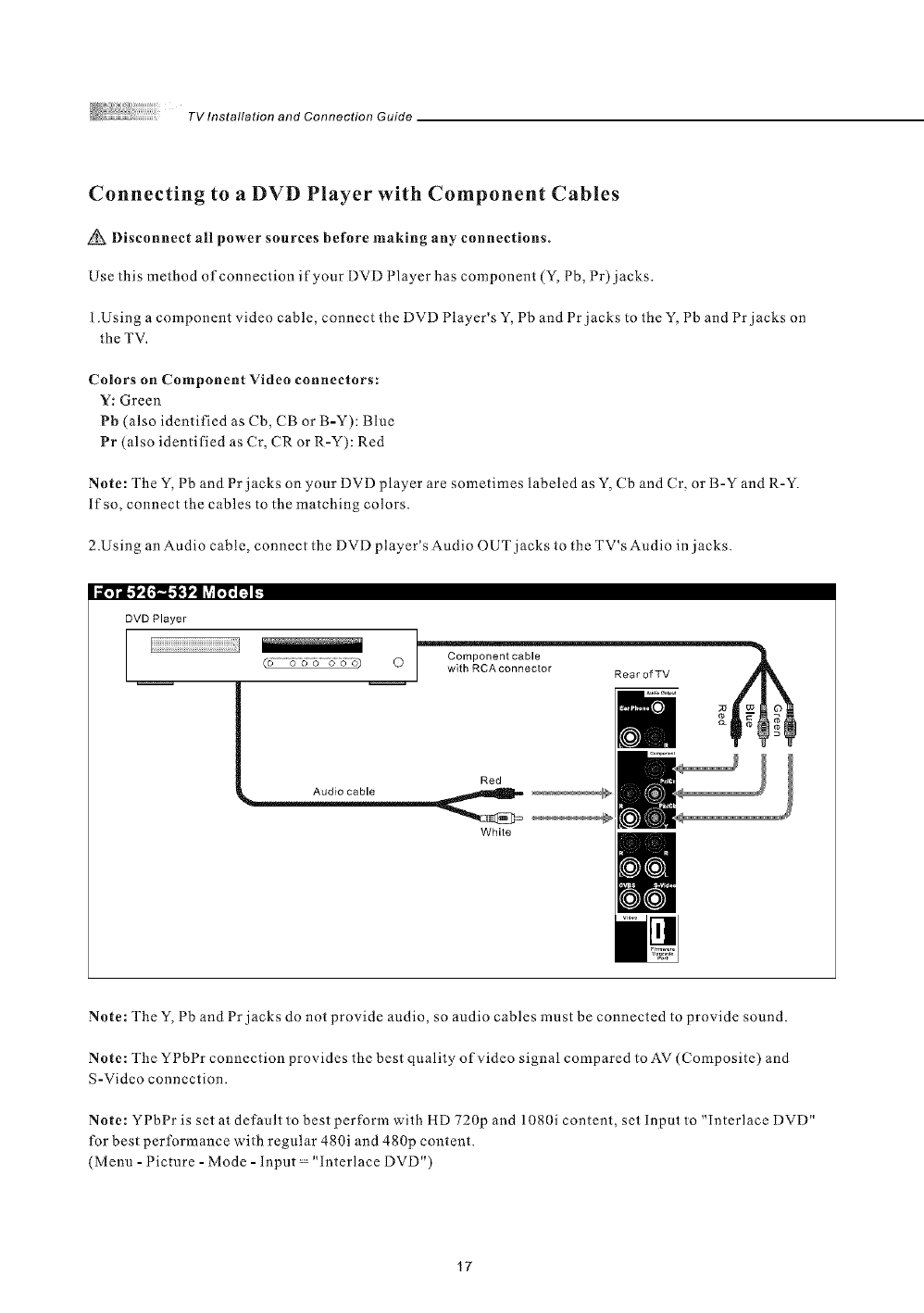

-Connecting to a DVD Player with Component Cables t7

- Connecting to a DVD Player with HDMI Cables t8

-Connecting to a Satellite Receiver or Cable Box with A/V Cables 19

- Connecting to a VCR, PVR, or DVwithA/V Cables 20

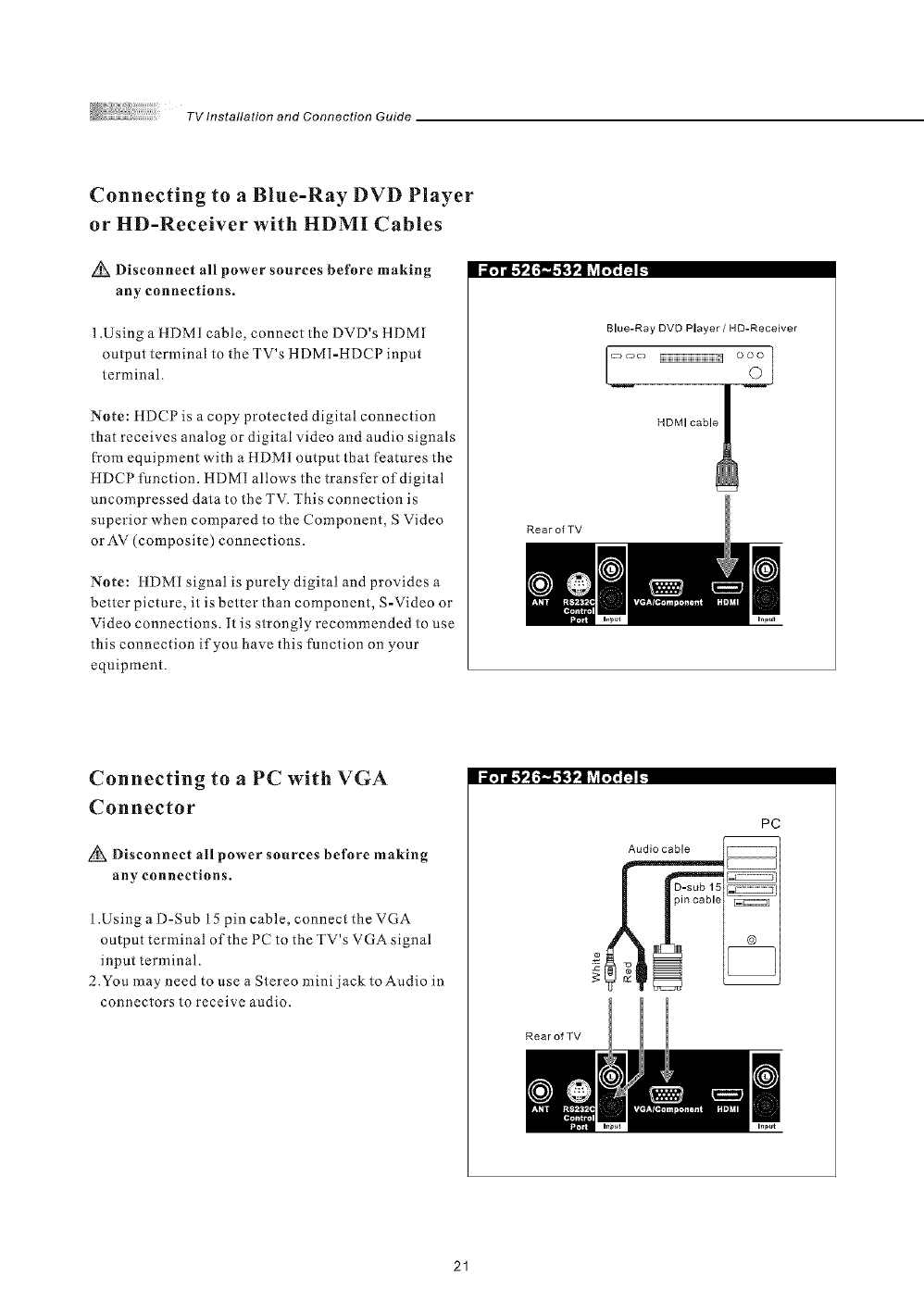

- Connecting to a Blue-Ray DVD Player or HD-Receiver with HDMI Cables and a

PC with VGA Cables 2t

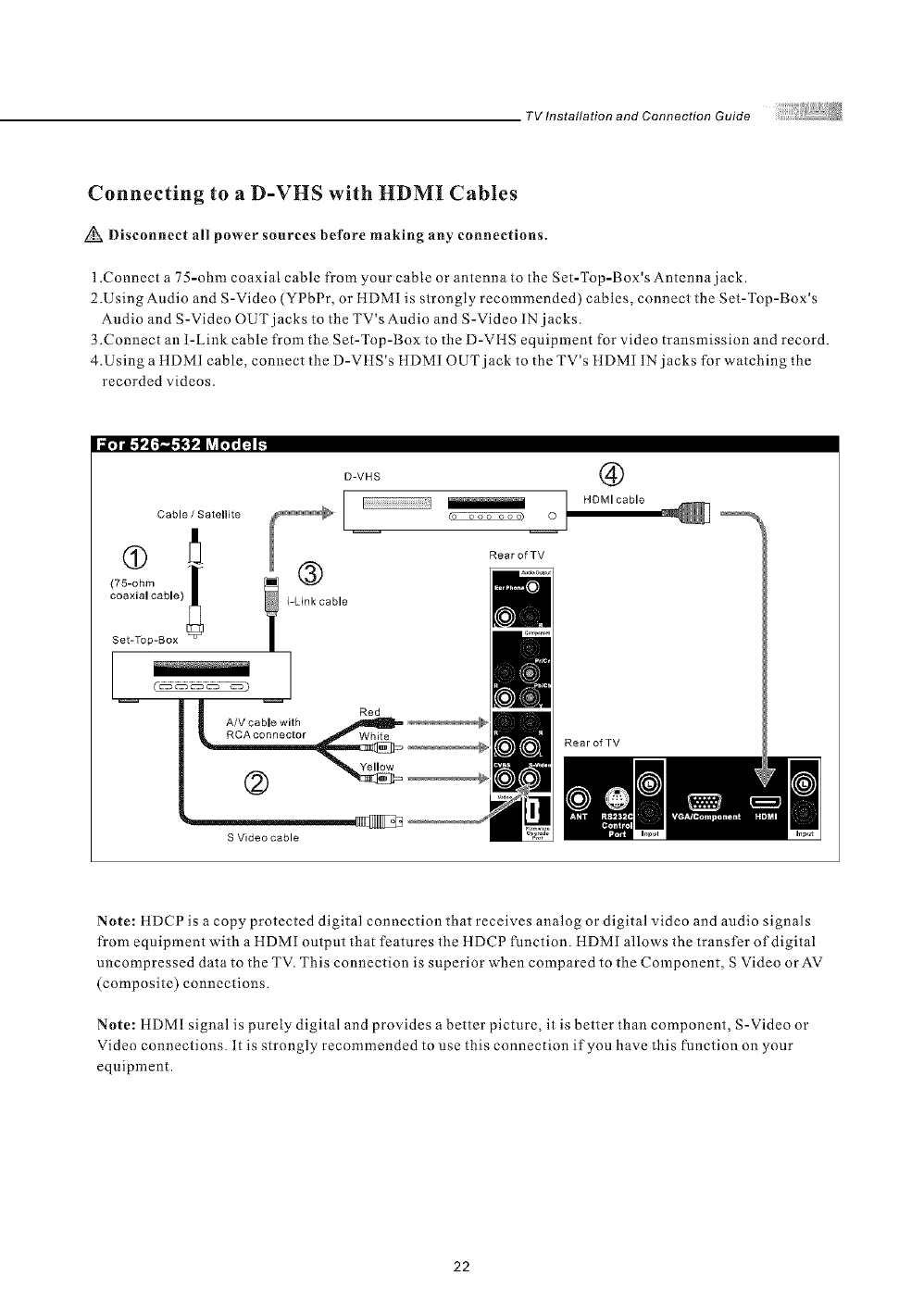

- Connecting to a D-VHS with HDMI Cables 22

- Connecting to a D-VHS with Component Cables 23

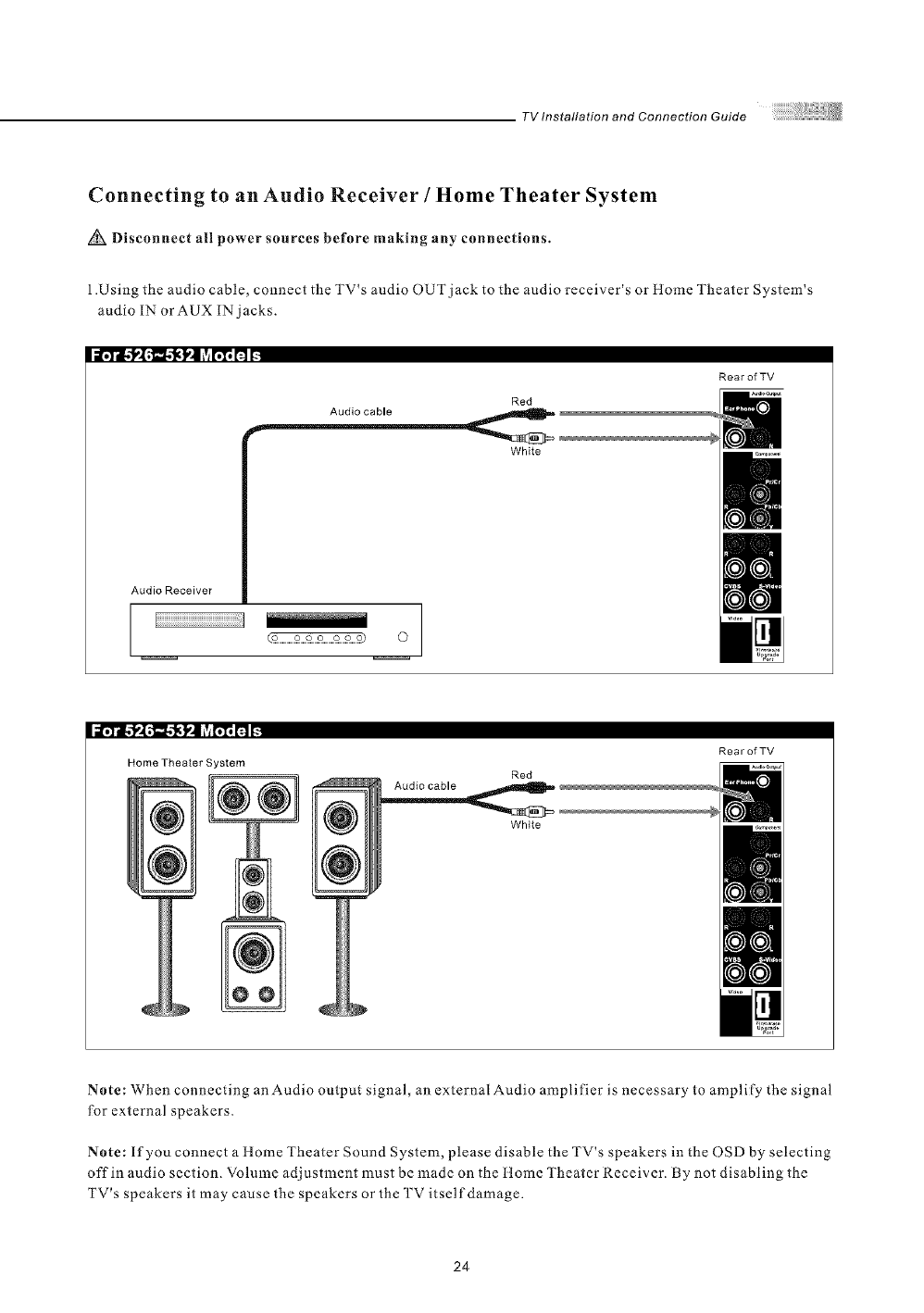

- Connecting to an Audio Receiver/Home Theater System 24

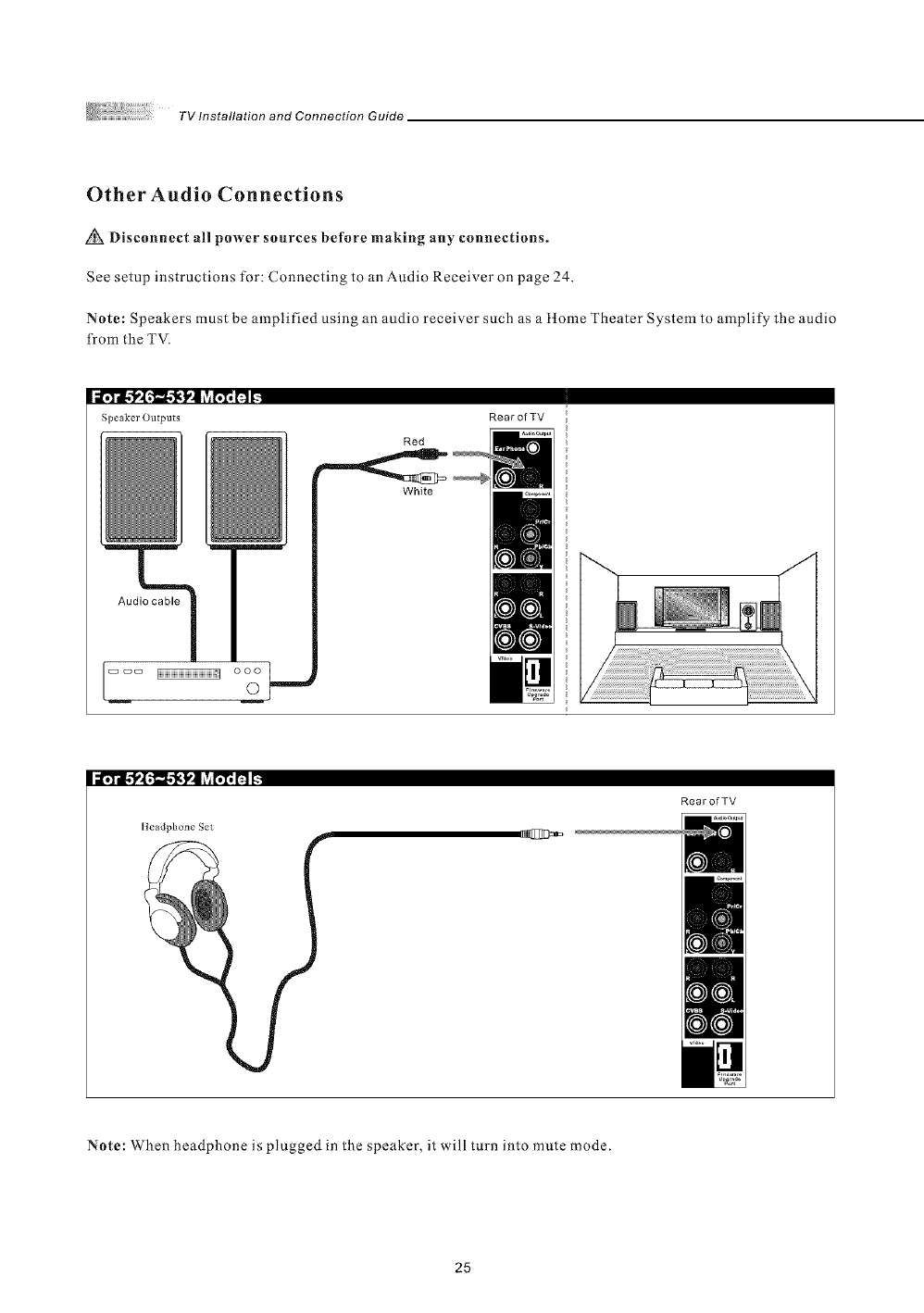

- Other Audio Connections 25

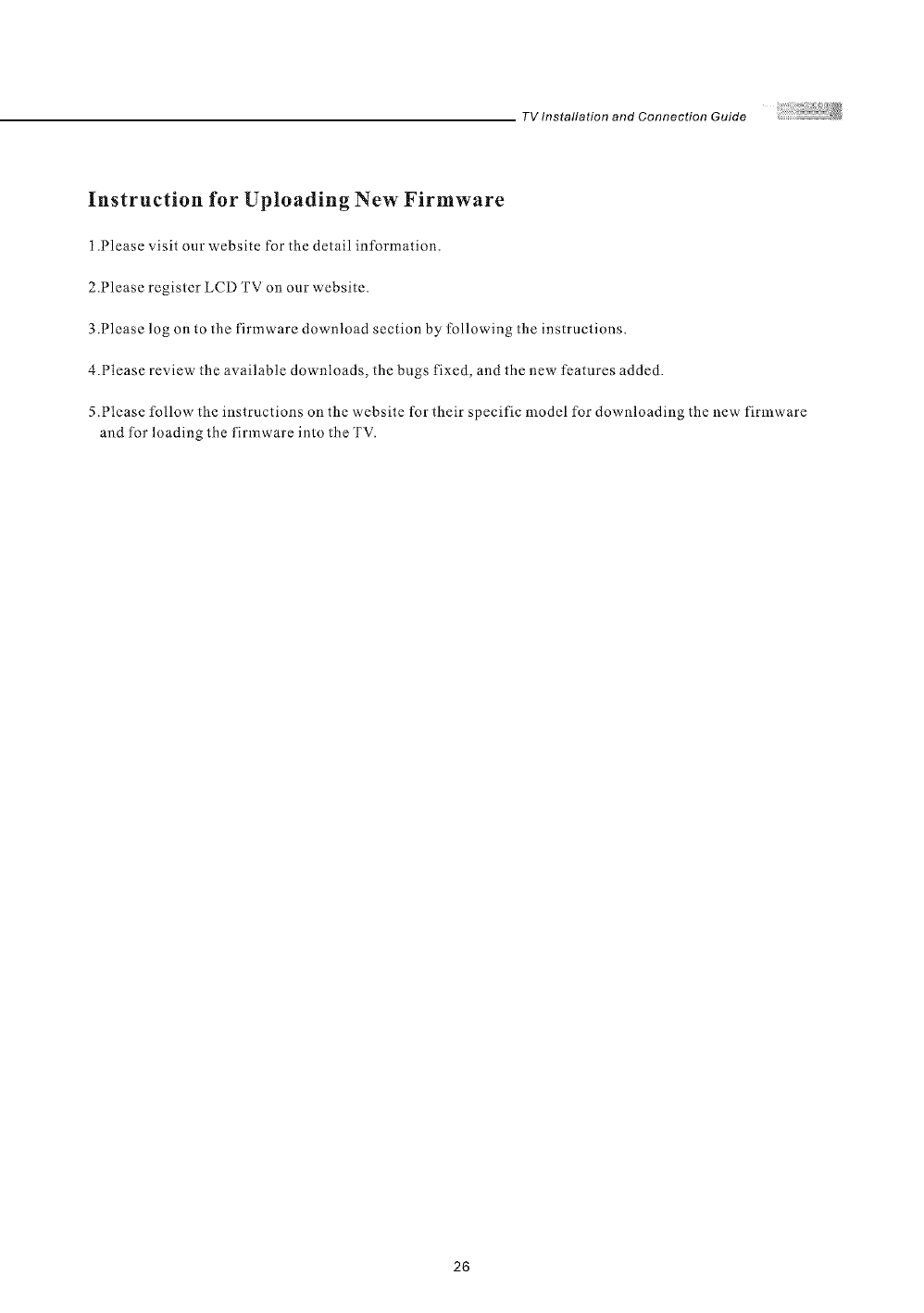

- Instruction for Uploading New Firmware 26

Remote Control Guide

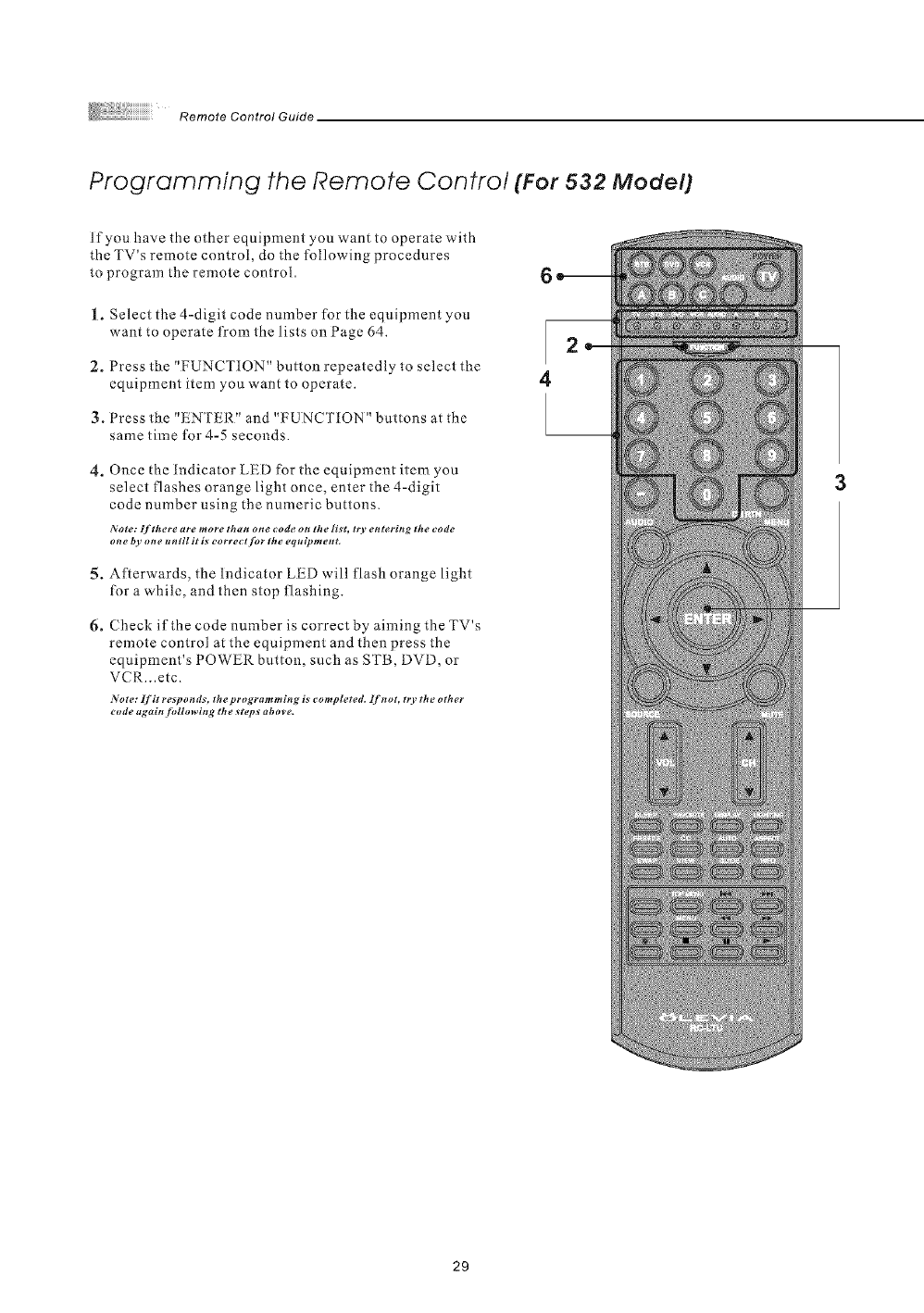

- Regular Buttons 27

- Battery Installation 30

On Screen Display (OSD) 31

Introduction 31

Operating in the OSD 31

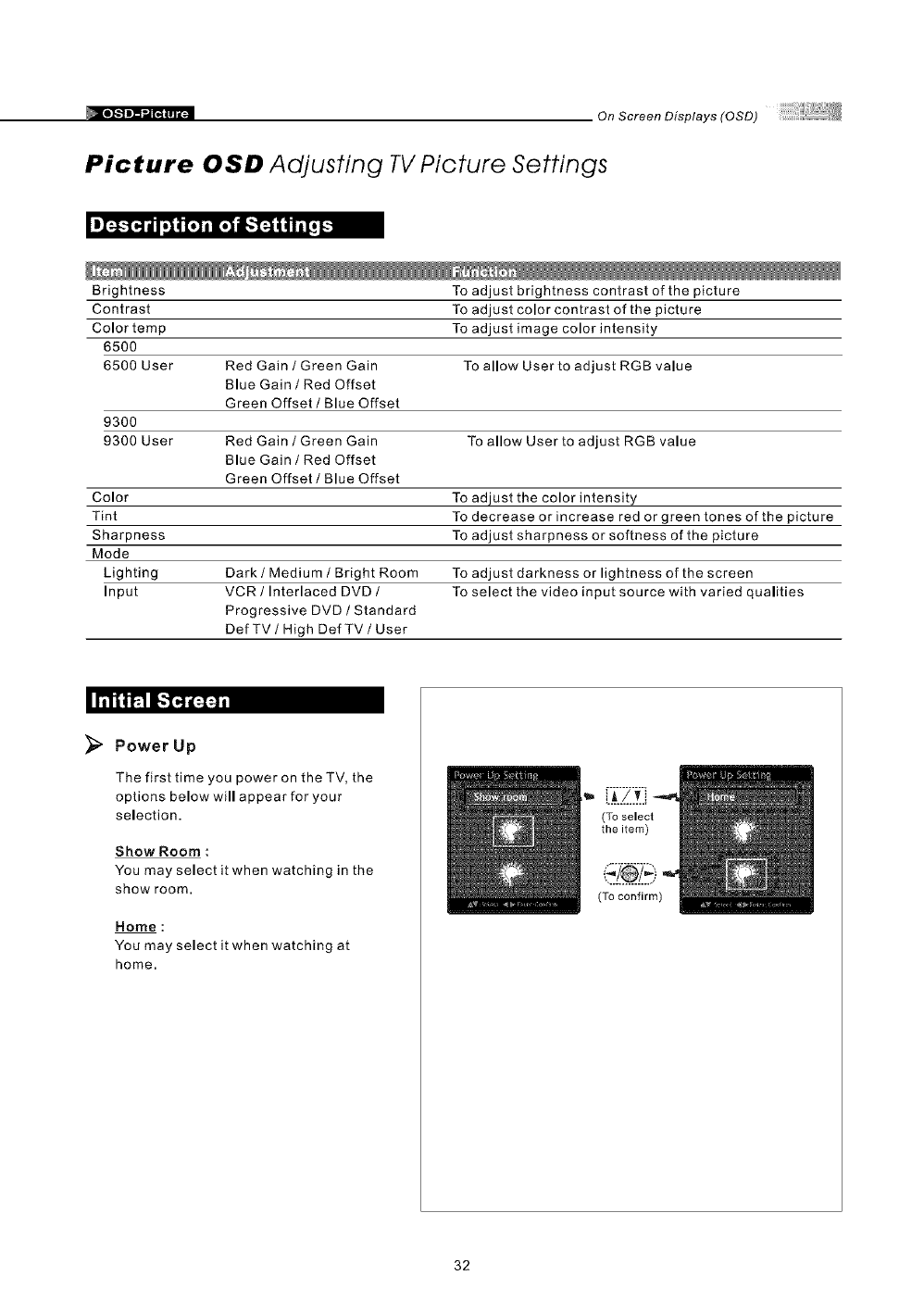

PICTURE OSDAdjusting TV Picture Settings 32

- Description of Settings 32

-Initial Screen 32

-Selecting the Picture Mode 33

-Adjusting the Picture Quality 34

AUDIO OSD Adjusting Sound Quality 35

- Description of Settings 35

- Adjusting the Audio Settings 35

- MTS System for Stereo TV 36

SCREEN OSD Adjusting Screen Modes 37

-Description of Settings 37

- Changing the Screen Mode 37

- Selecting the Picture/Video Source 38

SETUP OSD Adjusting Personal TV Settings 3£)

- Description of Settings 39

- Searching the TV Channels 41

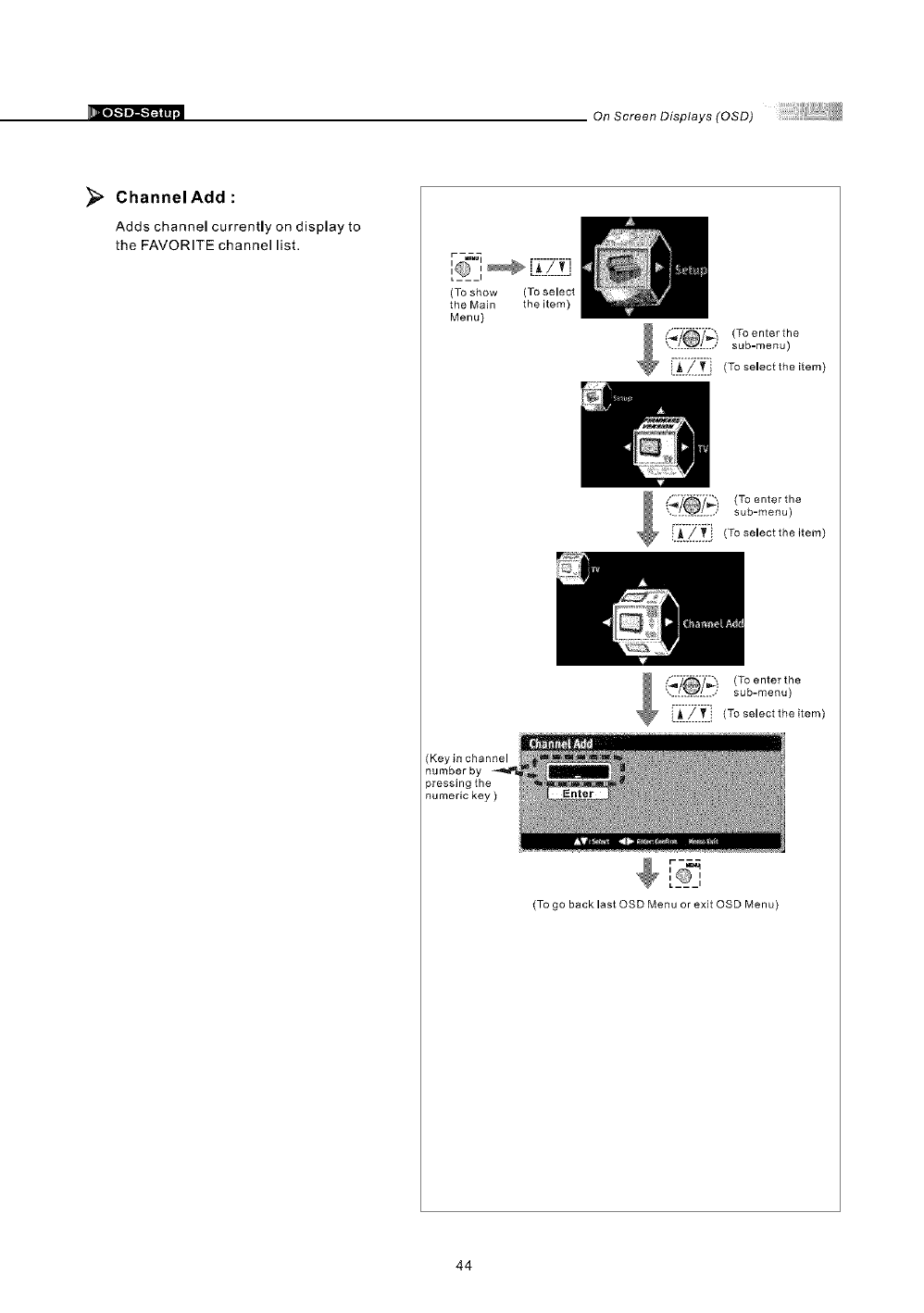

-Editing Channels 4]

- Closed Caption Options 45

- Setting up Parental Control Password 46

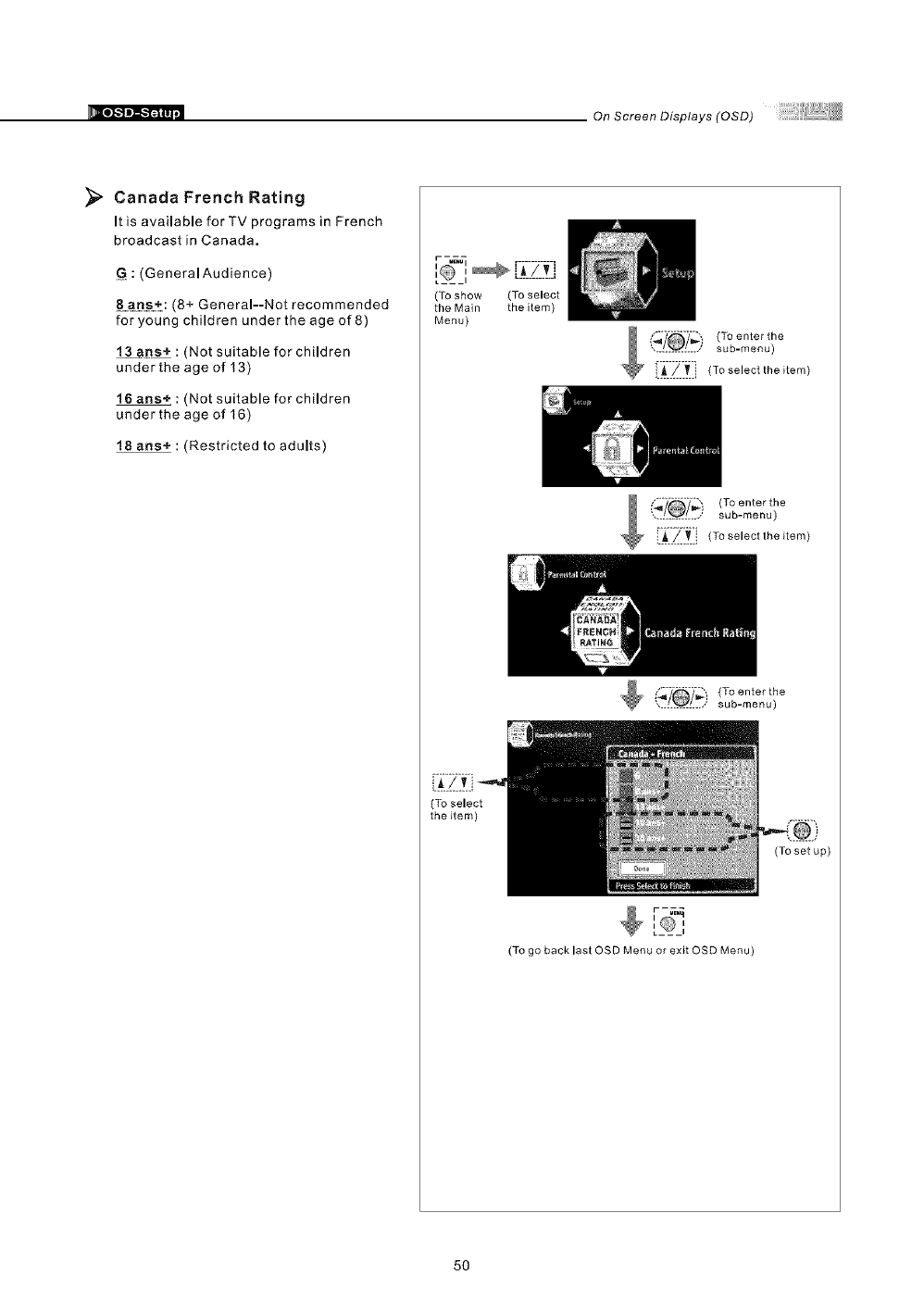

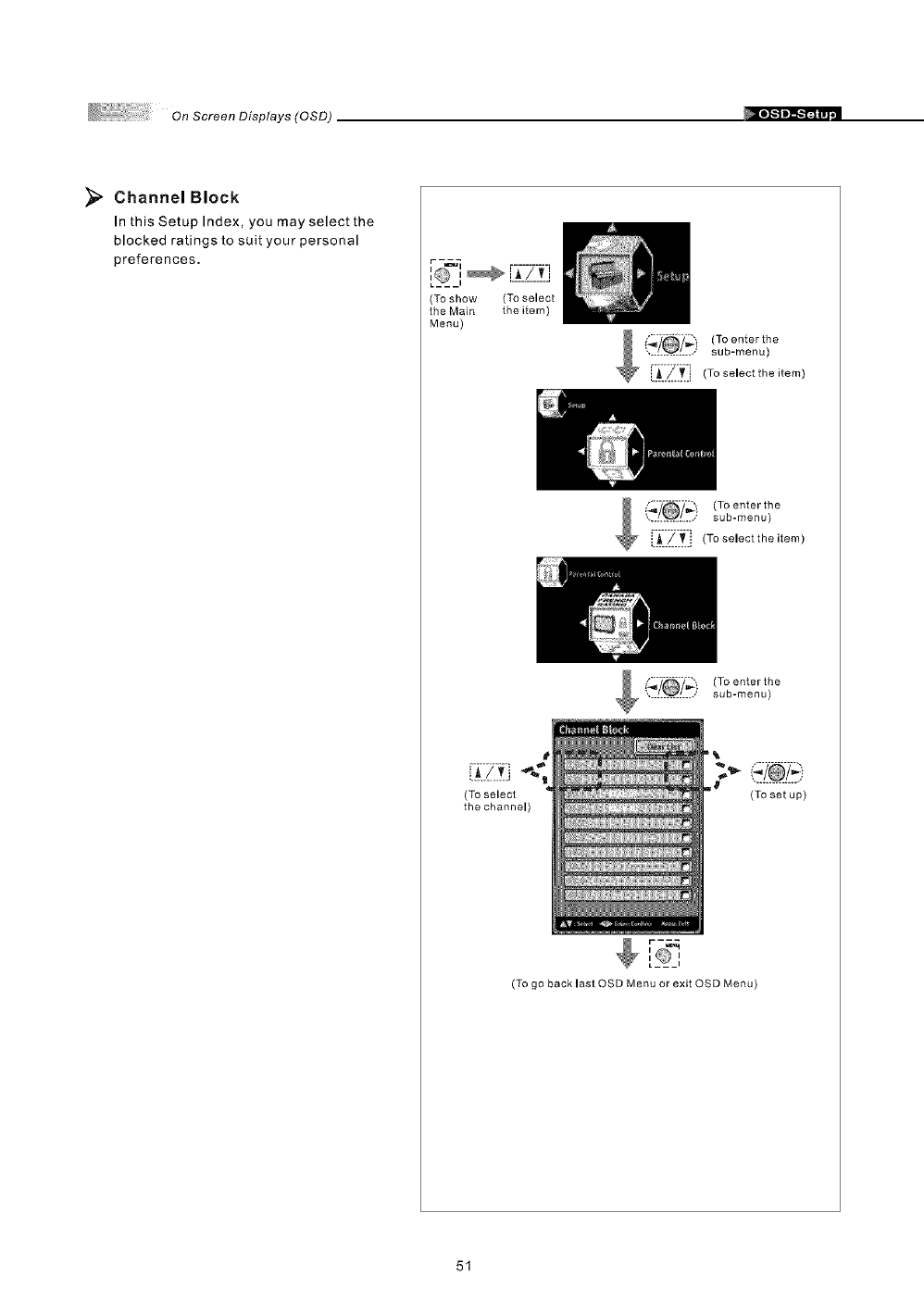

-Activating the Parental Control Feature 46

-Resetting the Password 52

-Setting the Date and Time 53

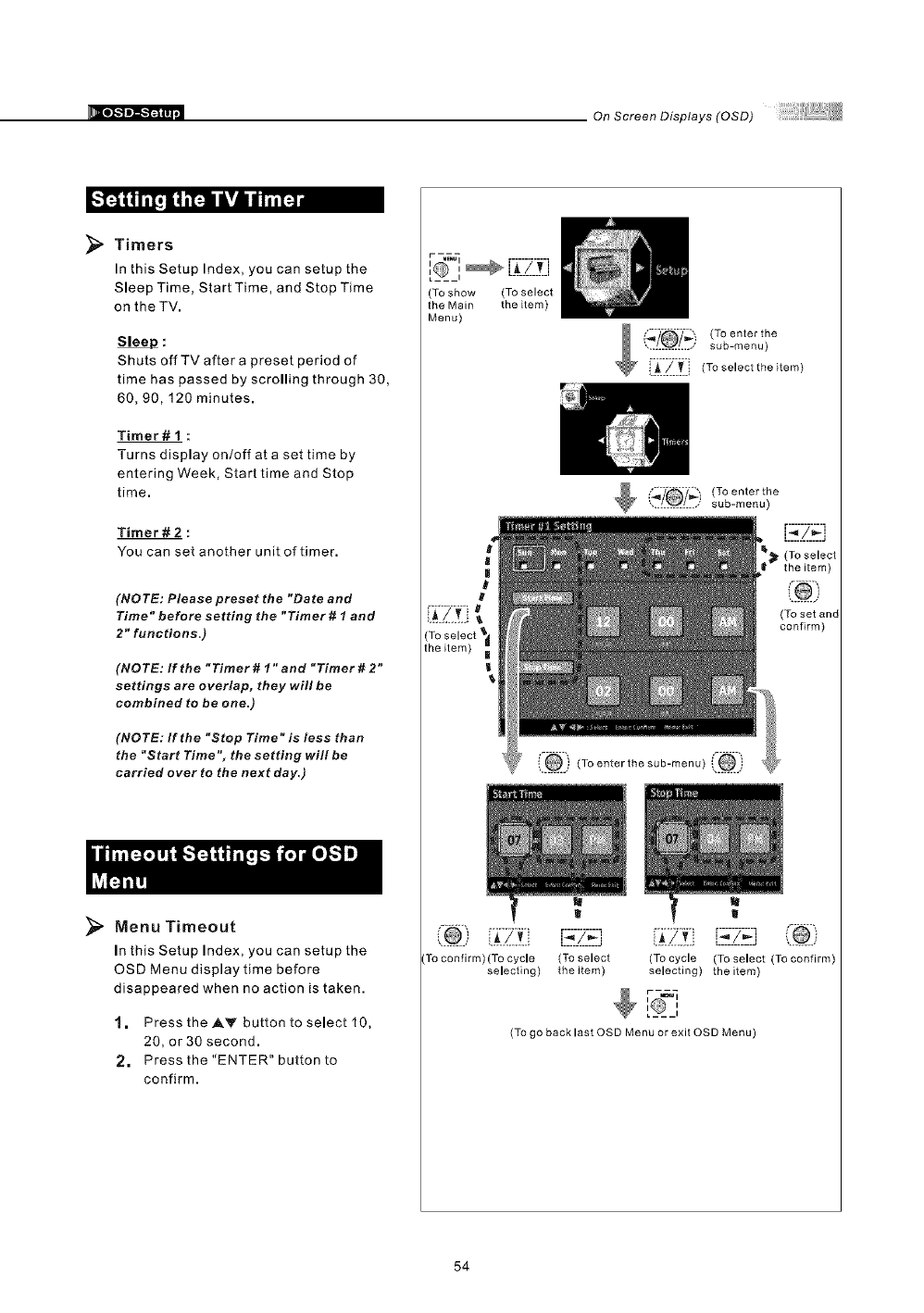

- Setting the TVTimer 54

-Timeout Settings for OSD Menu 54

-TV OSD Languages 55

-Setting DPMS 55

-Factory Default Option 55

- Displaying the Firmware Version 55

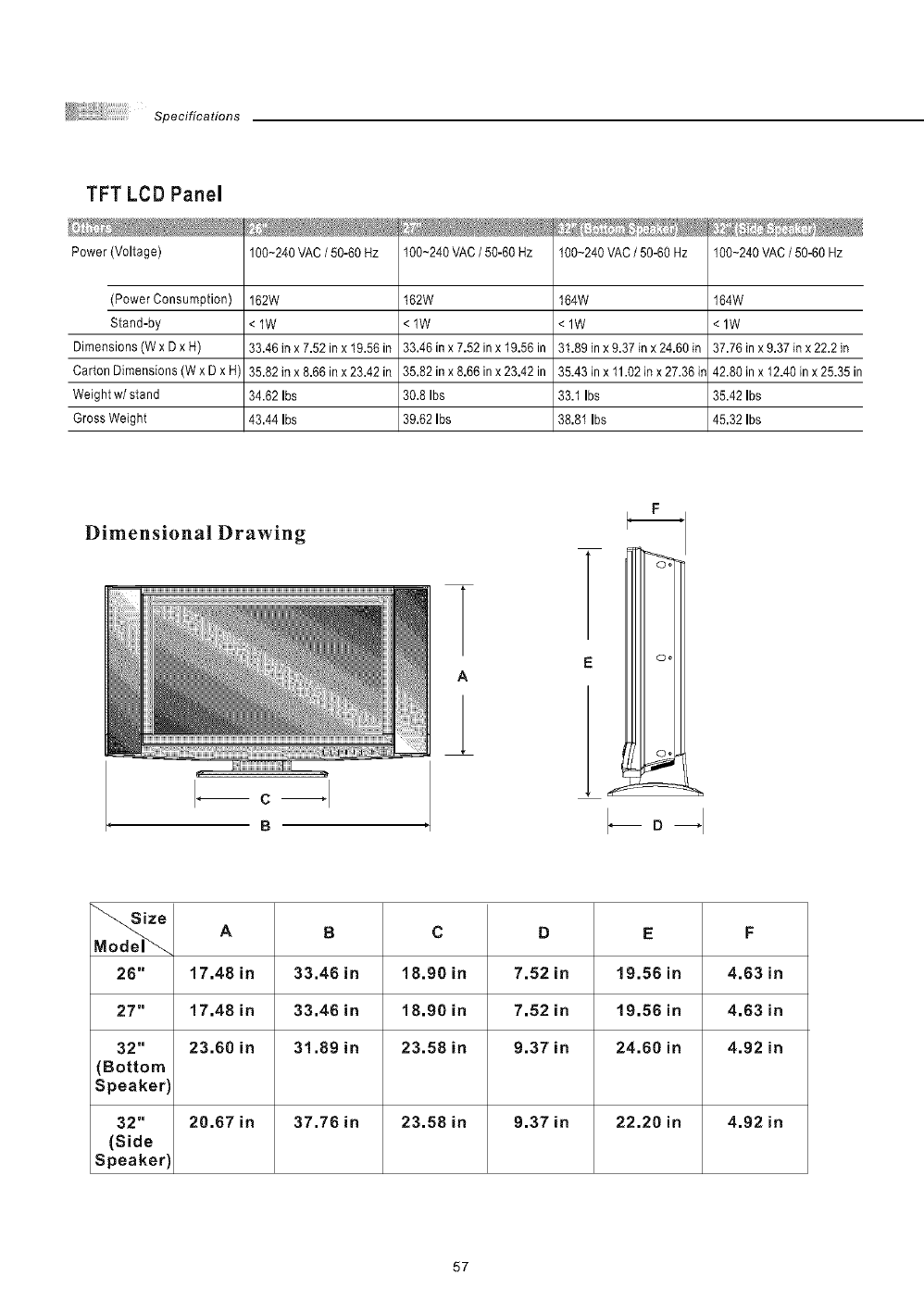

Specifications 56

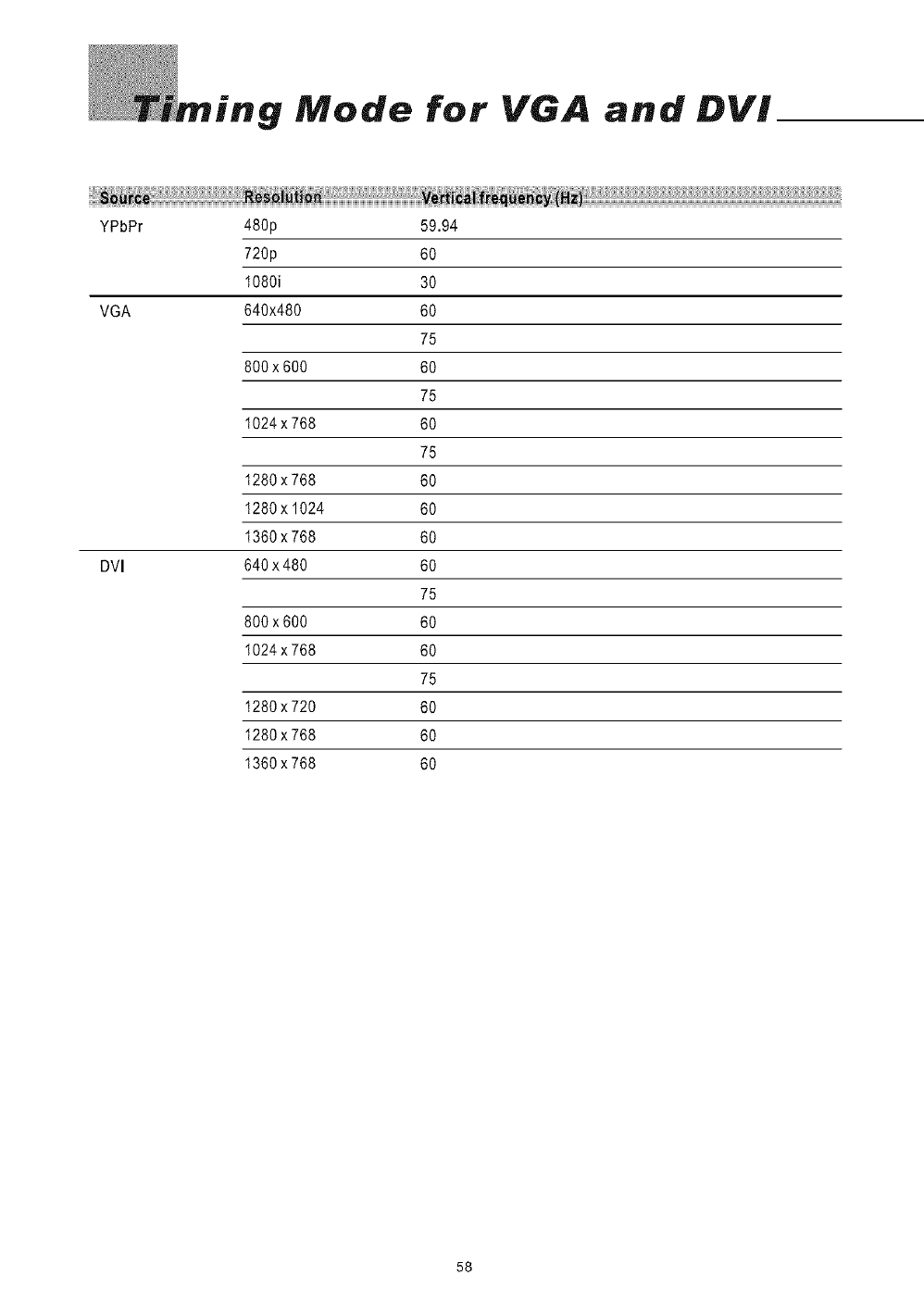

Timing Mode for VGAand DVl 58

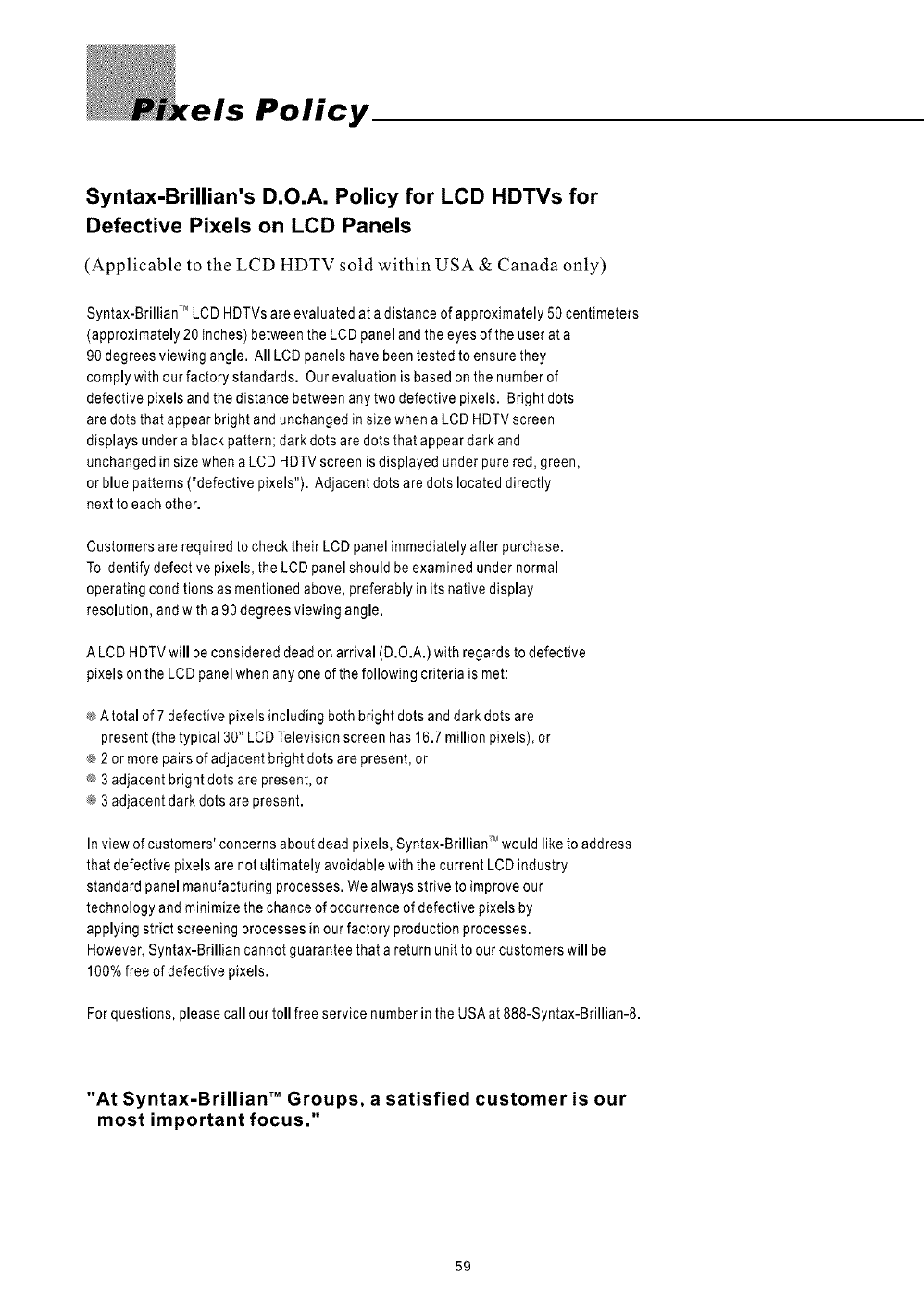

Pixels Policy 59

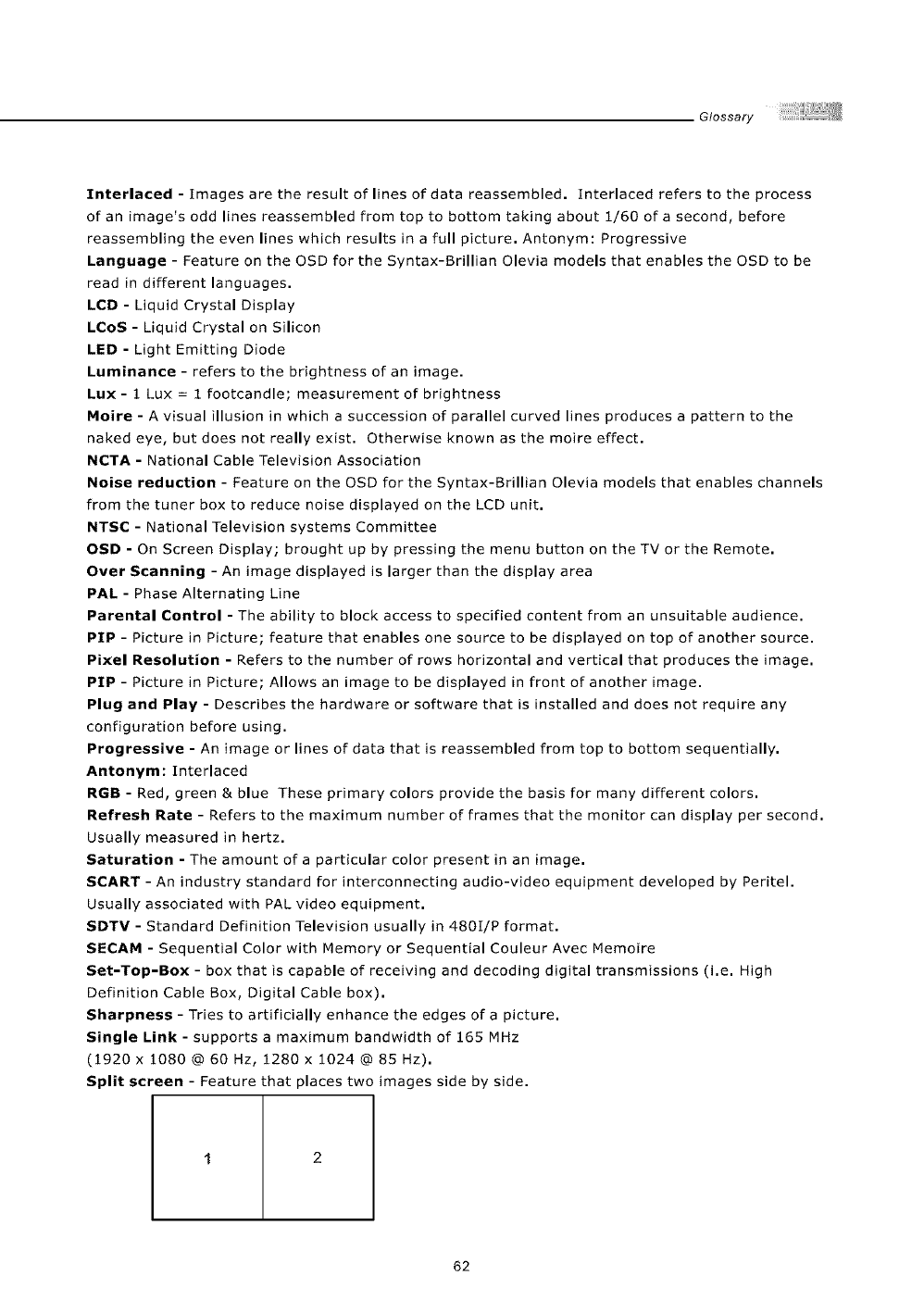

Glossary 60

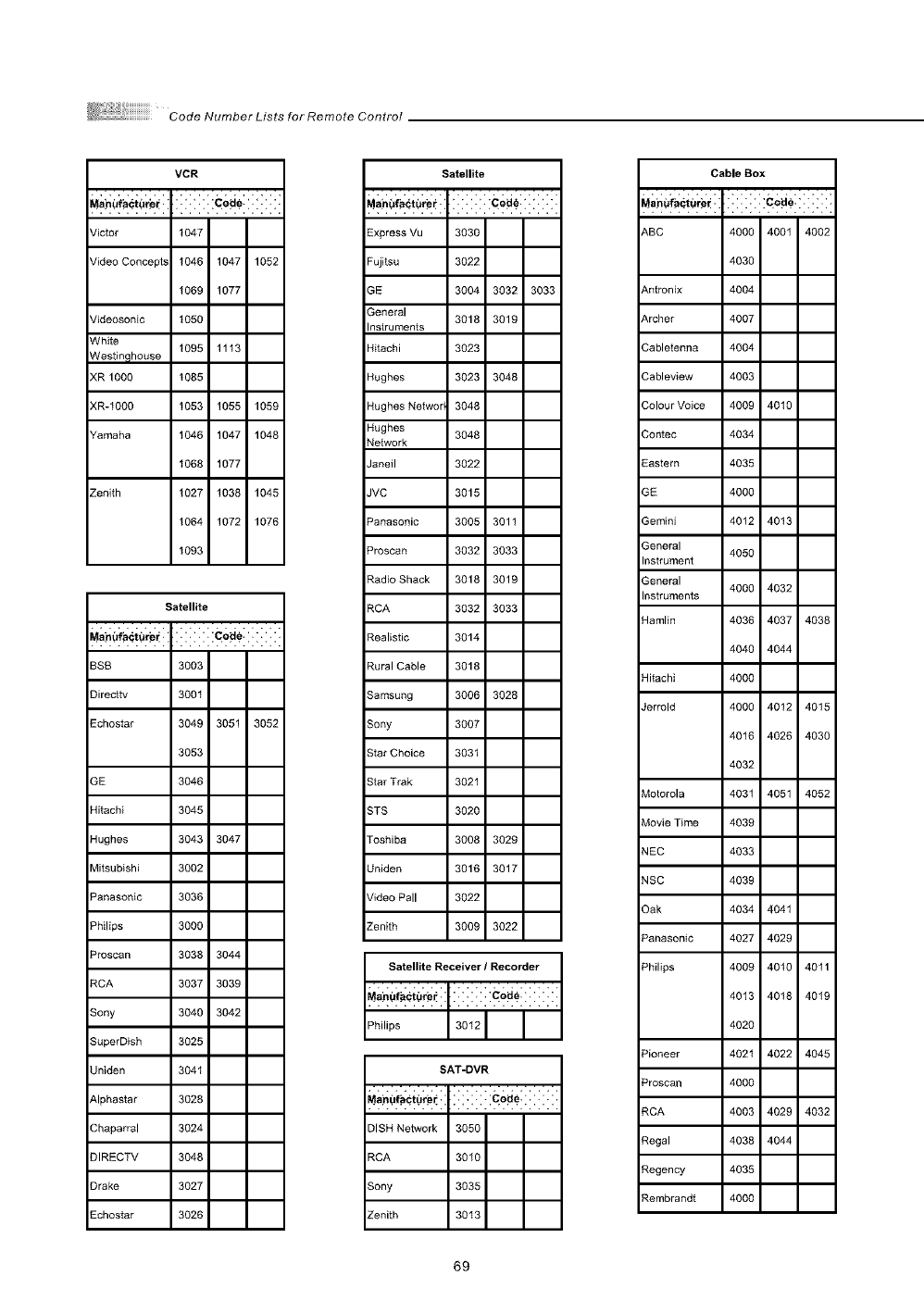

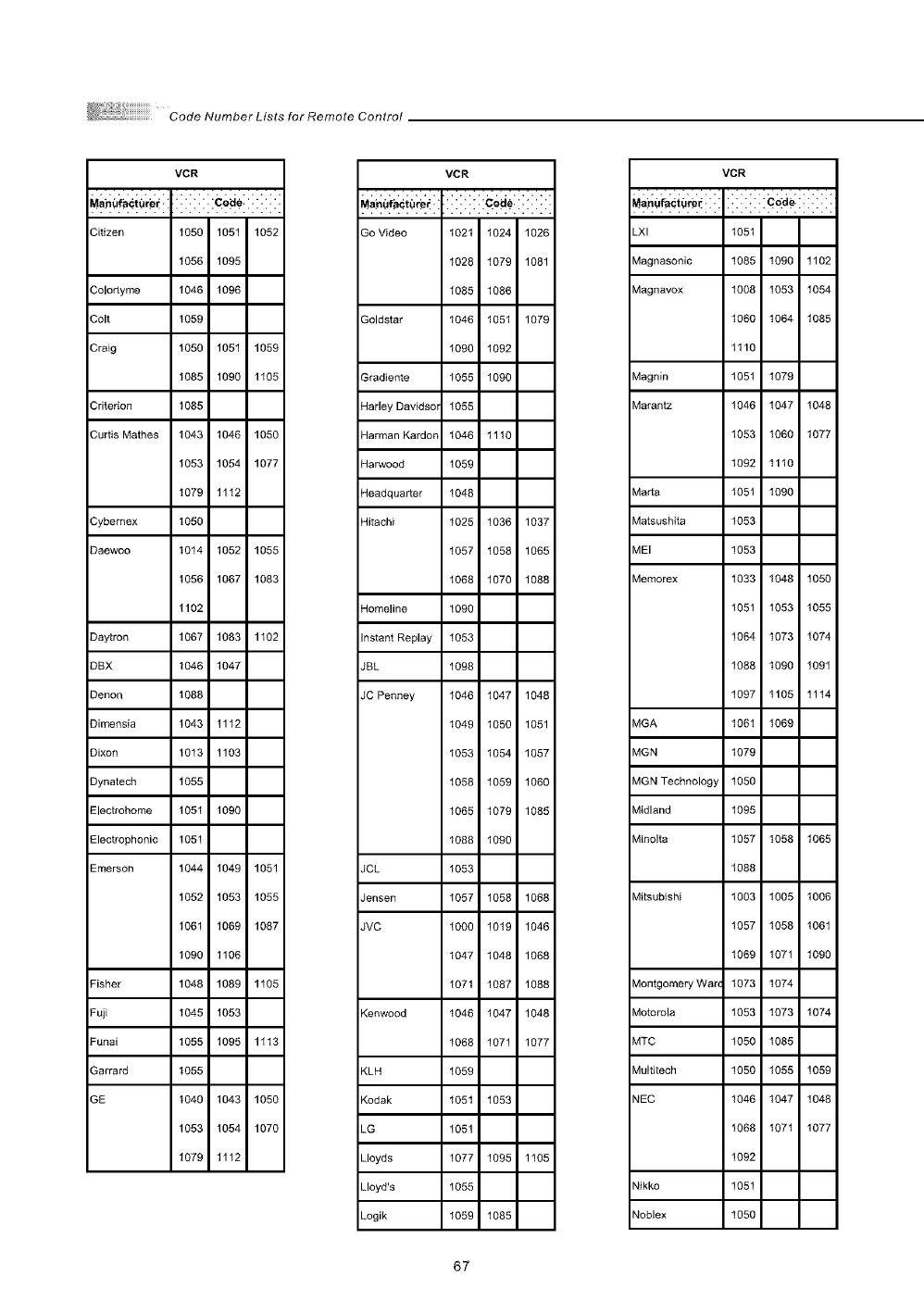

Code Number Lists for Remote Control 64

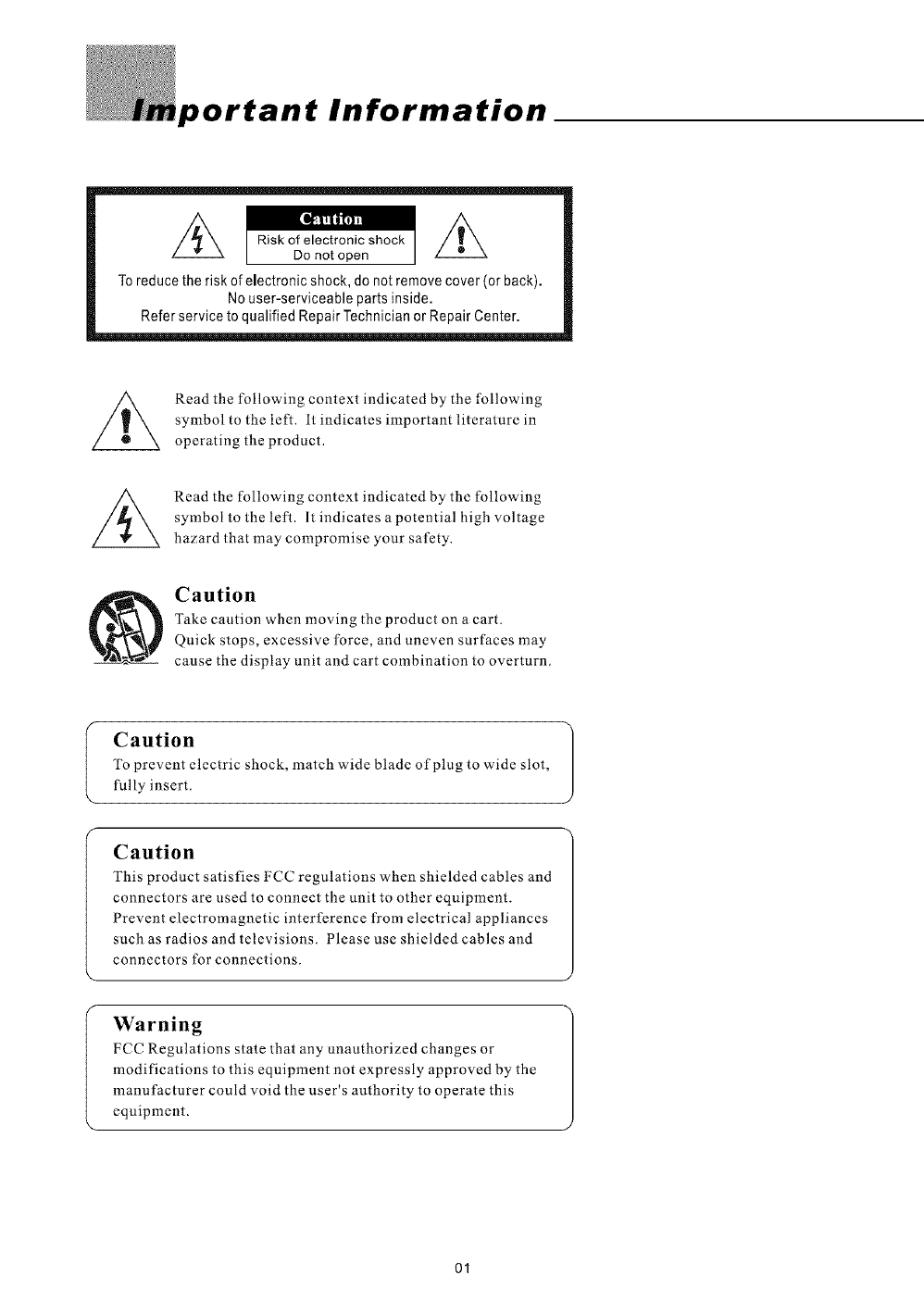

portant Information

///_ Risk of electronic shock

[et_trBff111

Do not open

To reduce the risk of electronic shock, do not remove cover (or back).

No user-serviceable parts inside.

Refer service to qualified Repair Technician or Repair Center.

Read the following context indicated by the following

symbol to the left. it indicates important literature in

operating the product.

Read the following context indicated by the following

symbol to the left. [t indicates a potential high voltage

hazard that may compromise your safety.

®Caution

Take caution when moving the product on a cart.

Quick stops, excessive force, and uneven surfaces may

cause the display unit and cart combination to overturn.

Caution ]

To prevent electric shock, match wide blade of plug to wide slot,

fully insert.

Caution

This product satisfies FCC regulations when shielded cables and

connectors arc used to connect the unit to other equipment.

Prevent electromagnetic interference from electrical appliances

such as radios and televisions. Please use shielded cables and

connectors for connections.

Warning

FCC Regulations state that any unauthorized changes or

modifications to this equipment not expressly approved by the

manufacturer could void the user's authority to operate this

equipment.

01

Safety Precautions

Cleaning

Remember to unplug theAC cord from theAC outlet

before cleaning the display unit.

Then spray small amount original WINDEX window

clearer (blue stuff), not Ammonia-added clearer, on

cloth to clean the display_

Remember to use only soft cotton cloth such as an old

100% cotton T-shirt, not sponges brillo abrasive

material, to clean the display.

No drips allowed.

Stand

Do not place the display unit on an unstable place.

The TV may fall resulting in serious personal

injuries to nearby people as well as damage to the

display unit.

Ventilation

Do not cover or block these vents and openings located

on the top and back of the display. Inadequate ventilation

may cause overheating and shorten the lifespan of the display.

Do not place in an enclosed area such as a built-in shelf,

unless proper ventilation is provided or the manufacturer's

instructions are followed. Keep the distance of 10cm

minimum between the display unit and wall. Never install the

display unit as indicated in the picture below.

Air circulation is blocked Air circulation is blocked

O2

Never insert objects or spill liquid

into the display unit

Never insert any object into the display unit through

openings or spill liquid on the display unit. High

voltage flows in the display unit, and inserting an

object can cause electric shock and/or short internal

parts.

Precautions when transporting the

display

Carrying the display requires two or more people.

Keep away from water and moisture

Do not place the display in areas where moisture is

present or where the unit may get wet such as bath-

rooms, kitchen, pool area or in a wet basement.

Keep away from heat sources

Keep the display unit away from heat sources such

as radiators, heaters, stoves and other

heat-generating products.

The liquid crystal panel used in this

product is made of glass

Do not hit the panel. Be careful to prevent from

getting hurt by broken glass pieces in case the panel

breaks.

Follow operating instructions

All operating instructions must be followed.

Servicing

Do not attempt to service the display unit yourself.

Removing covers expose you to high voltage and

other dangerous conditions. Request a qualified

service technician to perform the service.

Attachments

Do not use attachments not recommended by the

manufacturer. Use of inadequate attachments may

result in accidents to nearby poeple or to the unit.

Power source

This product must operate on a power source

specified on the specification label, lfyou are not

sure of the type of power supply used in your home,

consult your dealer or local power company. For

units designed to operate on batteries or another

power source, refer to the operating instructions.

AC cord protection

The AC cords must be routed properly to prevent

people fl'om stepping on them or objects from resting

on them. Check the cords at the plugs and product.

Wall mounting

Be sure to install the display unit according to the

method recommended by the manufacturer. Use

only the mounting hardware recommended by the

manufacturer.

Overloading

Do not overloadAC outlets or extension cords. It

may result in electric shock or start a fire.

O3

Important Safety Precautions

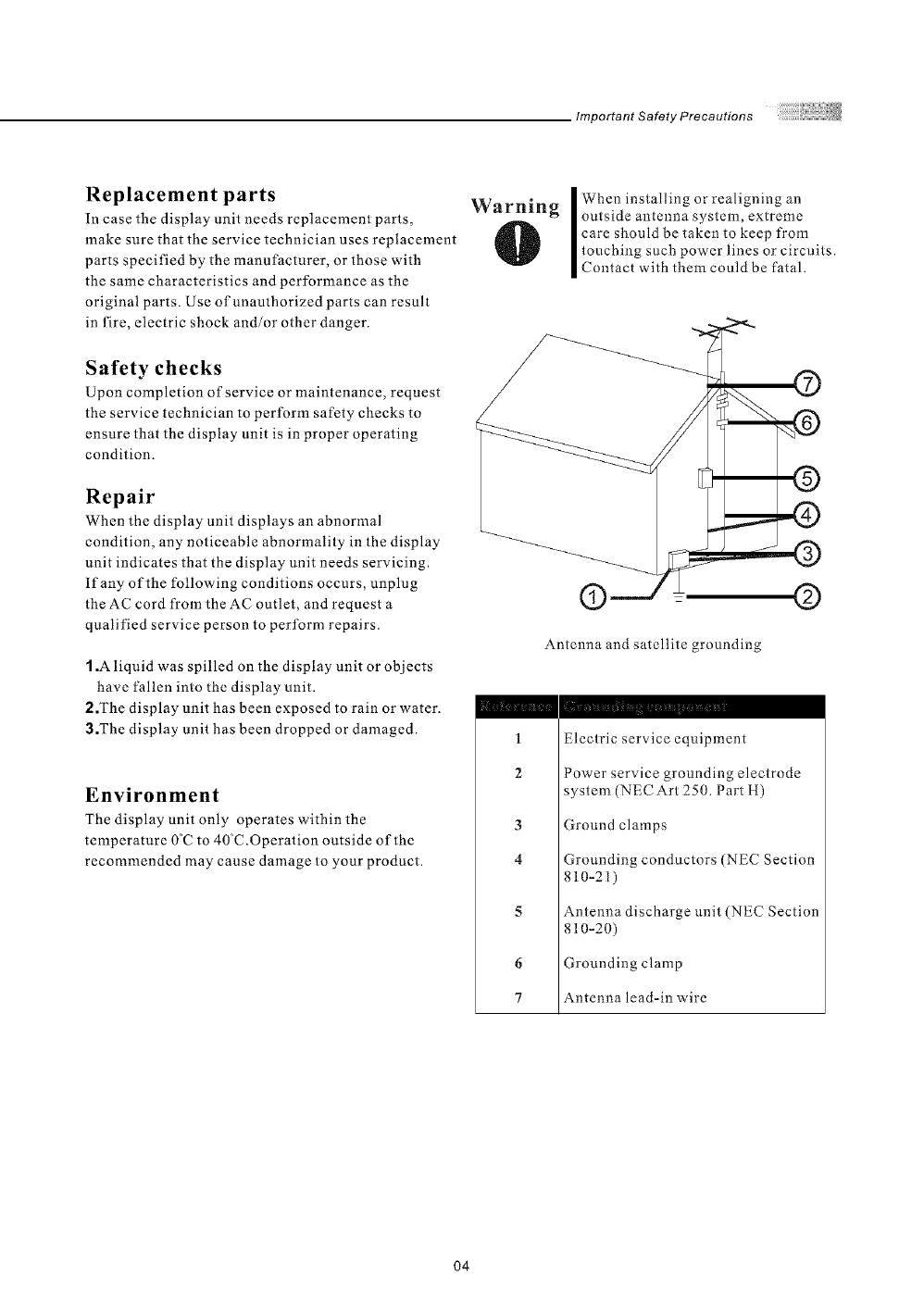

Replacement parts

In case the display unit needs replacement parts,

make sure that the service technician uses replacement

parts specified by the manufacturer, or those with

the same characteristics and performance as the

original parts. Use of unauthorized parts can result

in fire, electric shock and/or other danger.

Safety checks

Upon completion of service or maintenance, request

the service technician to perform safety checks to

ensure that the display unit is in proper operating

condition.

Repair

When the display unit displays an abnormal

condition, any noticeable abnormality in the display

unit indicates that the display unit needs servicing.

If any of the following conditions occurs, unplug

the AC cord from the AC outlet, and request a

qualified service person to perfbrm repairs.

1.A liquid was spilled on the display unit or objects

have fallen into the display unit.

2.The display unit has been exposed to rain or water.

3.The display unit has been dropped or damaged.

Environment

The display unit only operates within the

temperature 0"C to 40 C.Opcration outside of the

recommended may cause damage to your product.

Warning

IWhen installing or realigning an

outside antenna system, extreme

care sbould be taken to keep from

touching such power lines or circuits.

Contact with them could be fatal.

® ©

Antenna and satellite grounding

I

2

3

4

5

6

7

Electric service equipment

Power service grounding electrode

system (NEC Art 250. Part H)

Ground clamps

Grounding conductors (NEC Section

810-21)

Antenna discharge unit (NEC Section

810-20)

Grounding clamp

Autenna lead-in wire

O4

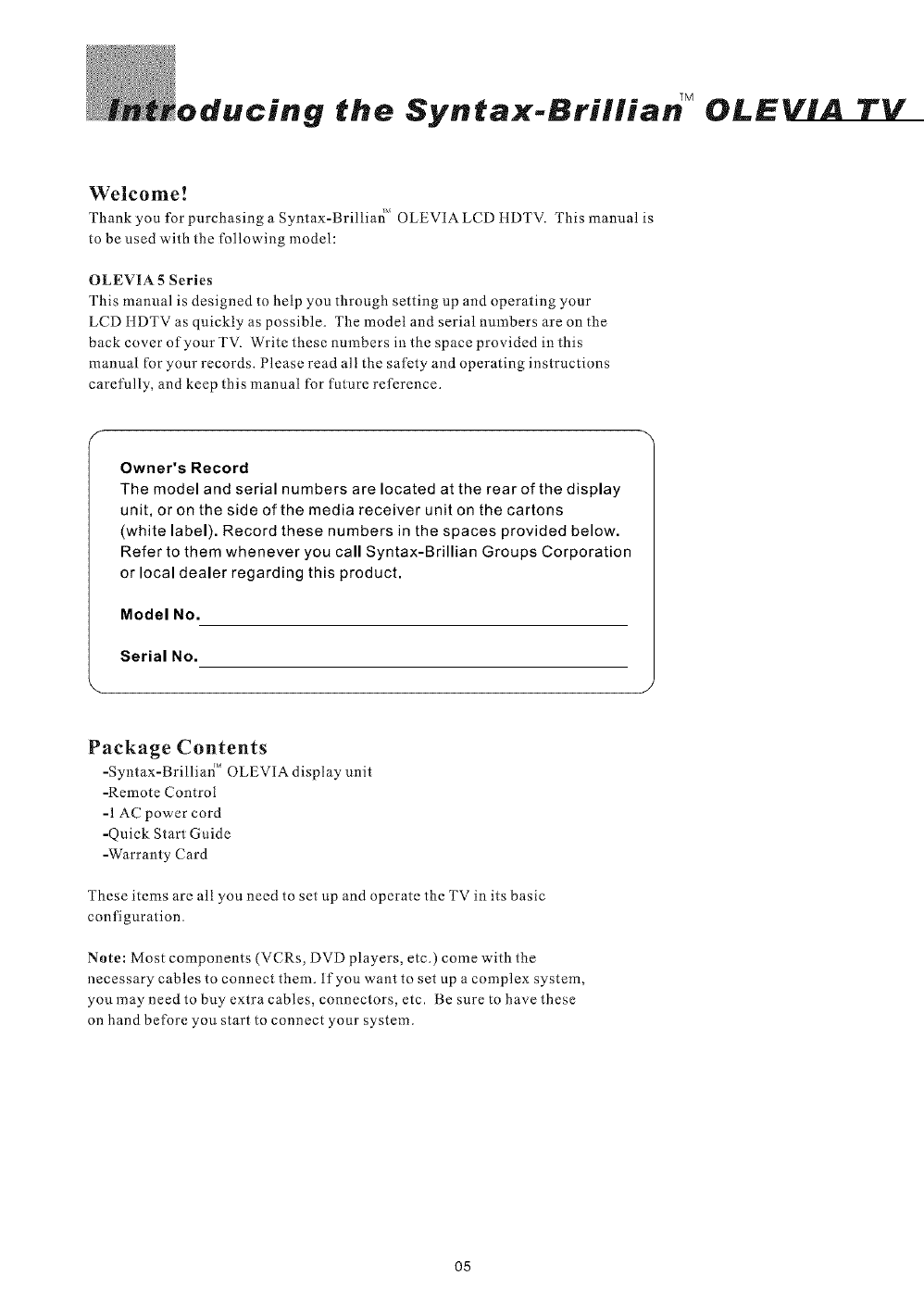

oducing the Syntax-Briliian OLEVJA JI_

Welcome!

"ihank you for purchasing a Syntax-Brflhan OLEVIA LCD HDTV. This manual is

to be used with the following model:

OLEVIA 5 Series

This manual is designed to help you through setting up and operating your

LCD ftDTV as quickly as possible. The model and serial numbers are on the

back cover of your TV. Write these numbers in the space provided in this

manual for your records. Please read al! the safety and operating instructions

carefully, and keep this manual for future reference.

Owner's Record

The model and serial numbers are located at the rear of the display

unit, or on the side of the media receiver unit on the cartons

(white label). Record these numbers in the spaces provided below.

Refer to them whenever you call Syntax-Brillian Groups Corporation

or local dealer regarding this product.

Model No.

Serial No.

Package Contents

-Syntax-Brilliar_ MOLEVIA display unit

-Remote Control

-1 AC power cord

-Quick Start Guide

-Warranty Card

These items are all you need to set up and operate the TV in its basic

conHguration.

Note: Most components (VCRs, DVD players, etc.) come with the

necessary cables to connect them. If you want to set up a complex system,

you may need to buy extra cables, connectors, etc. Be sure to have these

on hand before you start to connect your system.

O5

Introducing the Syntax-Brillian Olevia TV

Syntax-Brillial{ _' OLEVIA LCD HDTV includes many features, you will

enjoy throughout the usage of your TV. These highlighted features include:

Fully Integrated HDTV (High Definition TV):

HDTV delivers a stunning picture far beyond the quality of standard

televisions. These programs offer crystal clear video with amazing

detail played with enhanced audio quality of digital television programs.

You can enjoy better sound and picture in movies, prime time TV shows,

and other HD broadcasts in dynamic television settings through cable,

satellite or even free broadcasts over the air.

ItIGIt*I3EFENITION TELEV_StON

HDMI (High Definition Multimedia Interface):

The next generation ofDVI, HDMI provides the best interface between

a DVD player and compatible products such as digital set top box for

uncompressed digital audio/video connections. When matched with a

Syntax-Brillian OLEVIA TV, multi-channel digital audio signals,

uncompressed I_'VI digital video and intercommunication between high

multimedia interfaces are combined through a single interconnecting cable.

HDrlrll ''

H_GHo_J_mo_4 MULT_EO_A _4_ER_ACE

ATI :

For a true high definition cinematic experience, your Syntax-Brilliaff" TV

uses the Xilleon ''_image processing chip fromATI. The Xilleoff" chip offers

many advanced features.

The Xilleoi_ Mchip allows your new Syntax-Brill'an MTV to display a spectrum

of over 16 million colors, so you can enjoy a true color viewing experience

with vivid tones and natural hues.

Xilleoff "_ uses advanced digital image processing technologies to convert

standard definition signals (such as those usually found in analog TV broadcasts,

DVDs, and cable set-top boxes) to the brilliant 1366 x 768 format used by your

Syntax-Brillian TM TV.

With analog video still being broadcast, Xilleoff _' integrates a 3D comb to

virtually eliminate problems like dot crawl and keep your Syntax-Brillian '_

display looking its finest.

Xilleon TM uses advanced deinterlacing technology to reduce artifacts such as

jagged lines in moving pictures. Contrast, sharpness, saturation and many other

parameters are also automatically optimized 60 times per second.

Enjoy your new Syntax-Brilliaff _' TV powered by ATI Xilleon') _

O6

cessories

Supplied Accessories

Remote control & batteries (AAAx 2)

Optional Accessories

Wall Mount Set

Model # WM 10D : available for 20" -23"

Models

Model # WM30D : available for 26" above

Models

Power cord x 1

User manual

(CD-ROM) x 1

1. Before using the wall mount, please read

its Quick Start Guide and follow assembly

guide.

2. For safety purpose, please purchase wall

mount that will support the LCD HDTV

weight.

3. Following installation instruction is only

for your reference.

4. Please consult authorized service personnel

for the installation of wall mount.

QSG x 1

2=!v ,

/ :/l-r,,g _ [ [

Warranty Card x 1

[]

07

Installation and Connection Guide

Identifying Front and Rear Panels

Front Panel

POWER Turns display on/off.

MENU Displays the On Screen Display(OSD)

menu. In OSD menu, press it to return

to the previous screen or to exit.

CH_ /CH- Adjusts Channel. In the OSD menu,

both keys are used to navigate within

IIlenu.

VOL+/VOL- Adjusts Volume. in the OSD menu, both

keys are used to navigate within menu.

Vol_ is used to select the highlighted

option.

SOURCE Press to switch the input sources.

IR SENSOR Contains Infra-red light for digital

data transmission by the remote

control. Please point remote control

at IR Sensor tbr thnction.

IR Sensor

08

TVInstallation and Connection Guide

Identifying Front and Rear Panels

Rear Panel

_o The power cord connects here,

i ..............

RF Terminal

®

Component

R 0 0 Pr/Cr

L I_ @ Pb/Cb

Video

R 0 (_ Video

L {_ _ S-V,dec

HDMI/DVI

VGA/Audio Input

R k

Audio Input

RQL®

USB Service Port

RS232 Service

Port

O

To receive signals from VHF /UHF antennas or acable system

(bor TV Mo els Ony)

(5 RCA jacks) Used to connect A/V equipment with component video outputs, such as

a DVD player, Digital Satellite Receiver, or compatible Video Game System.

NOTE: The component inputs have a superior quality of picture _han the S-Video or AV

(composite video) inputs.

AV (Composite Video: 3 RCAjacks): Used to connect a VCR, Super VHS (S-VHS),

DVD player, or other video devices to the TV.

OR

S-Video : (1 DIN and 2 RCAjacks) Used to connect video devices to the TV.

tlowever, they have a better quality of picture than a composite video signal.

Used to connect digital video equipment with a HDMI/DVI output.

NOTE: Preferred connection for HDM1/DV1 Satellite or Set-Top-Box equipment.

Used tbr analog RGB signals from a personal computer. VGA has one set of Audio R/L inputs.

OR

As a computer input with VGA to RCA Adapter.

To send an AV receiver or other equipment to the TV's connected audio signals

To download some information from website to TV for user

Only for Service Technician use, not an interface for other devices.

Warning !

This RS232 control port is for service purpose only, and should be used by trained

serviceman only. Any random connection may cause damage to this unit.

Used for audio output to earphone.

O9

TV Installation and Connection Guide

Descriptions of Connector Types

You may find it necessary to use some of the following cable types during setup.

75-ohm Coaxial Cable

S-Video Cable

Audio/Video Cable

Video (Yellow)

@]l 1__ LeftAudio(White)

C_ _ Right Audio (Red)

Component Cable

c_ m _ Pbtcb(Blool

HDMI Cable

For TV/cable connection

Used for transferring video signal, which is split

into two signals, brightness and color.

Through this connection, you can view a better

picture than AV (Composite Video) connection.

Used ('or transferring audio and video signal.

This connection is the most commonly found on

A/V equipment.

Used for transferring video signal, which is split

into three signals, one brightness and two color.

Through this connection, you can view abetter

high definition picture than S-Video orAV

(Composite Video) connection.

Used for transferring digital uncompressed video

and audio signals to the TV.

llDMI signal is purely digital and provides a

crystal clear technology better than component,

S-Video or Video connections. It is strongly

recommended to use this connection i['you have

this function on your equipment.

10

TV Installation and Connection Guide

Connecting the Power Cord

Complete other connections prior to connecting the power cord:

1.Connect the power cord to the AC IN connector of the TV.

RearofTV

2.Connect the other end of the power cord to the wall outlet.

@

Installation

TV Installation and Connection Guide

In the following pages, you will find directions on how to install your tv and choice of video equipment.

Connecting to an Antenna or Video Equipment with Antenna outlet

@ Connecting to a Set-Top-Box with HDMI Cables (Preferred TV connection)

Connecting to a Satellite Receiver or Cable Box with Component Connectors

(Secondary Preferred after HDMI)

@ Connecting to aDVD Player with A/V or SVideo Cables

@ Connecting to a DVD Player with Component Cables

@ Connecting to a DVD Player with HDM1 Cables

Connecting to a Satellite Receiver or Cable Box with A/V Cables

@ Connecting to a VCR, PVR, or DV with A/V Cables

@ Connecting to a Blue-Ray DVD Player or HD-Reeelver with HDMI Cables

and a PC with VGA Cables

Connecting to a D-VHS with HDMI Cables

@ Connecting to a D-VHS with Component Cables

Connecting to an Audio Receiver/Home Theater System

@OtherAudin Connections

@ Instruction for Uploading New Firmware

12

TV Installation and Connection Guide

Connecting to an Antenna or Video Equipment with Antenna outlet

(For TV and DTV Source)

Disconnect all power sources before making any connection.

1. Connect a 75-ohm coaxial cable (or choice of Antenna Cable) from your cable or antenna to the TV's

VHF/UItF jack (RF Terminal),

(75-ohm coaxial cable)

RearofTV

If connecting to Video Equipment with Antenna outlet

1. Connect a 75-ohm coaxial cable (or choice of Antenna Cable) from your cable or antenna to the Video

Equipment's 1N jack.

2. Connect another 75-ohm coaxial cable from the Video Equipment's OUT jacks to the TV's VHF/UHF jacks

(RF Terminal).

_b_ (75-ohm coaxial cable)

IN OUT

jack jack

(Video Equipment with

Antenna In/Out Socket)

RearofTV

13

TV Installation and Connection Guide

Connecting to a Set-Top-Box with HDMI Cables

Disconnect al! power sources before making any connection.

1. Connect a 75-ohm coaxial cable (or choice of Antenna Cable) from your cable or antenna to the

Set-Top-Box's VIIF/U HFjack (RF Terminal).

2. Connect a HDMI cable from the Set-Top-Box's HDMI OUT jacks to the TV's HDMI IN jacks.

RearofTV

Cable /

SatelNite

q®

(75-ohm

coaxial

Set-Top-Box cable)

HDMI cable ]

Note: HDCP is a copy protected digital connection that receives analog or digital video and audio signals t¥om

equipment with a HDMI output that features the HDCP function. HDMI allows the transfer of digital

uncompressed data to the TV. This connection is superior when compared to the Component, S Video or AV

(composite) connections.

Note: ttDM1 signal is purely digital and provides a better picture, it is better than component, S-Video or Video

connections, it is strongly recommended to use this connection if you have this function on your equipment.

14

TV Installation and Connection Guide

Connecting to aSatellite Receiver or Cable Box with Component

Connectors (Secondary Preferred after HDMD

Disconnect all power sources before making any connections.

Use this method of connection if your Satellite Receiver or Cable Box has component (Y, Pb, Pr) jacks.

1.Using a component video cable, connect the Satellite Receiver or Cable Boxes' Y, Pb and Pr jacks to the Y

Pb and Pr jacks on the TV.

Colors on Component Video connectors:

Y: Green

Pb (also identified as Cb, CB or B-Y): Blue

Pr (also identified as Cr, CR or R-Y): Red

Note: The Y, Pb and Pr jacks on your Satellite Receiver or Cable Box are sometimes labeled as Y, Cb and Cr

or B-Y and R-Y. If so, connect the cables to the matching colors.

2.Using an Audio cable, connect the Satellite Receiver or Cable Boxes' Audio OUT jacks to the TV's Audio m

jacks.

Iil._!'.l.'l_._ I,'i ?,r;l_ r_ _

Satellite Receiver or Cable Box

I Comp .... t cable

with RCA connector Rear o

Red

Audio cable

White

Note: The Y, Pb and Pr jacks do not provide audio, so audio cables must be connected to provide sound.

Note: The YPbPr connection provides the best quality of video signal compared to AV (composite) and

S-Video connection.

Note: YPbPr is set at default to best perform with tID 720p and 1080i content, set Input to "interlace DVD"

for best performance with regular 480i and 480p content.

(Menu-[ icture- Mode- input ='Interlace DVD")

15

TV Installation and Connection Guide

Connecting to a DVD Player with A/V or S Video Cables

Disconnect all power sources before making any connections.

Use this method of connection if your DVD player does not have component (Y, Pb, Pr) jacks.

Note: If your [)VII) player has component video output connectors, for best picture quality, use the connection

described for Connecting to a I) VD Player with Component Connectors.(See page. 17)

1.Using an A/V cable, connect the DVD player's Audio OUT jacks to the TV's Audio IN jacks.

2.Using an S-Video Cable, connect the DVD player's S Video OUT jack to the TV's S Video 1N jack.

Iarol"_f,,[ ,"_..!¢d,lI _v,[.z, [_ g

DVD Player

I iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!iiiil

Cd-----__;-s -(_5-_)] o

Red

RearofTV

S Video cable

=o

Note: When you connect video equipment to both the same Video and S-Video input jacks, the display will

automatically select S-Video first

To view Video signal, please disconnect the S-Video jack or turn off the Video signal on the video equipment.

S-Video is strongly recommended for use if your VCR or video equipment has the option.

S-Video input has better quality of picture than a composite Video signal.

16

TV Installation and Connection Guide

Connecting to a DVD Player with Component Cables

Disconnect all power sources before making any connections.

Use this method of connection if your DVD Player has component (Y, Pb, Pr) jacks.

1.Using a component video cable, connect the DVD Player's Y, Pb and Pr jacks to the Y, Pb and Pr jacks on

the TV.

Colors on Component Video connectors:

Y: Green

Pb (also identified as Cb, CB or B-Y): Blue

Pr (also identified as Cr, CR or R-Y): Red

Note: The Y, Pb and Pr jacks on your DVD player are solnetimes labeled as Y, Cb and Cr, or B-Y and R-Y.

If so, connect the cables to the matching colors.

2.Using an Audio cable, connect the DVD player s Audio OUT jacks to the FV s Audio in jacks.

DVD Player

@Component cable

Red

Audio cable

White

Note: The Y, Pb and Pr jacks do not provide audio, so audio cables must be connected to provide sound.

Note: The YPbPr connection provides the best quality of video signal compared to AV (Composite) and

S-Video connection.

Note: YPbPr is set at default to best perform with HD 720p and 1080i content, set Input to "Interlace DVD"

for best performance with regular 480i and 480p content.

(Menu - Picture - Mode - Input = "Interlace DVD")

17

TV Installation and Connection Guide

Connecting to a DVD Player with HDMI Cables

Disconnect all power sources before making any connections.

Use this method of connection if your DVD Player has ItDM[ jacks.

1.Using a HDMI cable, connect the DVD Player's HDMI output terminal to the TV's HDMI-HDCP input

terminal.

RearofTV

HDMI cable

DVD Player

I0

Note: ttDCP is a copy protected digital connection that receives analog or digital video and audio signals

fi-om equipment with a HDM1 output that features the HDCP function. HDM1 allows the transfer of digital

uncompressed data to the TVI '["his connection is superior when compared to the Component, S Video or AV

(composite) connections.

Note: HDMI signal is purely digital and provides a better picture, it is better than component, S-Video or

Video connections. It is strongly recommended to use this connection if you have this function on your

equipment

18

TV Installation and Connection Guide

Connecting to a Satellite Receiver or Cable Box with A/V Connectors

Disconnect all power sources before making any connections.

1.Connect a 75-ohm coaxial cable fi-om your Cable TV to the Satellite Receiver's or Cable Box's Ant (Antenna)

jack.

2.Using Audio and S Video cables, connect the satellite receiver's Audio and S-Video OUT jacks to the TV

Audio and S Video IN jacks.

i_.-ii--jB.-l,,I;,g_-i__.,ll_vA'_ ff] |

RearofTV

(i)

(75-ohm

Satellite Receiver coaxial cable)

or Cable Box I_[_ 1

_ _ _ Red ............................................_'

S Video cable

Note: When you connect video equipment to both the same Video and S-Video input jacks, display will

automatically select S Video first.

To view S-Video signal, please disconnect Video jack or turn off the Video signal on the video equipment.

S-Video is strongly recommended for use if your VCR or video equipment has it because S-Video input has

better quality of picture than a composite Video signal.

19

TV Installation and Connection Guide

Connecting to aVCR, PVR, or DV with A/V Cables

Disconnect atl power sources before making any connections.

I .Using A/V cable and S-Video cables, connect the video equipment's Audio and S-Video OUT jacks to the

TV's Audio and S-Video In jacks.

VCR RearofTV

PVR

DV

Red

A/V cable with RCA connecto_ _,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,_W_

S Video cable

Connecting both Video IN and S-Video IN

Note: When you connect video equipment to both the same Video and S-Video input jacks, display will

automatically select S-Video first.

To view Video signal, please disconnect the S-Video jack or turn off the S-Video signal on the video equipment.

S-Video is strongly recommended for use if your VCR or video equipment has it. S-Video input has a better

quality of picture than a composite Video signal.

2O

TV Installation and Connection Guide

Connecting to a Blue-Ray DVD Player

or HD-Receiver with HDMI Cables

Disconnect all power sources before making

any connections.

1.Using a tlDM] cable, connect the DVD's HI)MI

output terminal to the TV's HDMI-HDCP input

terminal.

Note: HDCP is a copy protected digital connection

that receives analog or digital video and audio signals

from equipment with a HDM[ output that features the

HDCP {'unction. HDMI allows the transfer of digital

uncompressed data to the TV. This connection is

superior when compared to the Component, S Video

or AV (composite) connections.

Note: HDMI signal is purely digital and provides a

better picture, it is better than component, S-Video or

Video connections. It is strongly recommended to use

this connection if you have this function on your

equipment.

RearofTV

Blue-Ray DVD Player /HD-Receiver

HDMI cable_

Connecting to aPC with VGA

Connector

Disconnect all power sources before making

any connections.

1.Using a D-Sub 15 pin cable, connect the VGA

output terminal of the PC to the TV's VGA signal

input terminal.

2.You may need to use a Stereo mini jack to Audio in

connectors to receive audio.

PC

Audio cable

D.-sub 15

@

RearofTV

21

TV Installation and Connection Guide

Connecting to a D-VHS with HDMI Cables

Disconnect all power sources before making any connections.

1.Connect a 75-ohm coaxial cable from your cable or antenna to the Set-Top-Box's Antenna jack.

2.Using Audio and S-Video (YPbPr, or HDMI is strongly recommended) cables, connect the Set-Top-Box's

Audio and S-Video OUT jacks to the TV's Audio and S-Video IN jacks.

3.Connect an I-Link cable from the Set-Top-Box to the D-VItS equipment for video transmission and record.

4.Using a HDMI cable, connect the D-VIfS's tlDMI OUT jack to the TV's ttDMI IN jacks for watching the

recorded videos.

Il'_l.!'l_."ll.lO'll ?A'_I_l't _.

Cable /Satellite

(75-ohm I

c2'2

D-VHS

Rear of YV

i-Link cable

Red

A/V cable with

RCA connector White

S Video cable

®

HDMI cable

RearofTV

Note: HDCP is a copy protected digital connection that receives analog or digital video and audio signals

from equipment with a HDMI output that features the HDCP function. HDMI allows the transfer of digital

uncompressed data to the TV. This connection is superior when compared to the Component, S Video or AV

(composite) connections.

Note: HDMI signal is purely digital and provides a better picture, it is better than component, S-Video or

Video connections. It is strongly recommended to use this connection if you have this function on your

equipment.

22

TV Installation and Connection Guide

Connecting to a D-VHS with Component Cables

Disconnect all power sources before making any connections.

Use this method of connection if your D-VHS has component (Y, Pb, Pr)jacks.

1.Connect a75-ohm coaxial cable from your cable or antenna to the Set-Top-Box's Antenna jack.

2.Using Audio and S-Video (YPbPr, or HDMI is strongly recommended) cables, connect the Set-Top-Box's

Audio and S-Video OUT jacks to the TV's Audio and S-Video IN jacks.

3 .Connect an 1-Link cable from the Set-Top-Box to the D-VItS equipment for video transmission and record.

4.Using Audio and Cmnponent video cables, connect the D-VHS's Audio and Y, Pb and Pr OUT jacks to the

TV's Audio and Y, Pb and Pr iN jacks/br watching the recorded videos.

Colors on Component Video connectors:

Y: Green

Pb (also identified as Cb, CB or B-Y): Blue

Pr (also identified as Cr, CR or R-Y): Red

Cable /Satellite

(75-ohm

coaxial cable

Set-Top-Box

(:3)

i-Link cable

Red

A/V cable with

RCA connector White

_o

S Video cable

Component cable

O _A coNl_ector

Note: The Y, Pb and Pr jacks do not provide audio, so audio cables must be connected to provide sound.

Note: The YPbPr connection provides the best quality of video signal compared to AV (Composite) and

S-Video connection.

Note: YPbPr is set at default to best perform with HD 720p and 1080i content, set input to "Interlace DVD"

for best performance with regular 480i and 480p content.

(Menu - Picture - Mode - Input = "Interlace DVD")

23

TV Installation and Connection Guide

Connecting to an Audio Receiver /Home Theater System

Disconnect all power sources before making any connections.

1.Using the audio cable, connect the TV's audio OUT jack to the audio receiver's or Home Theater System's

audio IN orAUX IN jacks.

| it,_--_'.I,'_qg !'_11iv_l'_ _

Audio cable Red

White

Rear of TV

Audio Receiver

©

i_.q--.vl,l.'tt.'!_ _'_11?,1_ ['tl _

Home Theater System

Audio cable Red

White

RearofTV

Note: When connecting an Audio output signal, an external Audio amplifier is necessary to amplil'y the signal

for external speakers.

Note: if you connect a ttome Theater Sound System, please disable the TV's speakers in the ()SD by selecting

offin audio section. Volume adjustment nmst be made on the tiome Theater Receiver. By not disabling the

TV's speakers it may cause the speakers or the TV itself damage.

24

TV Installation and Connection Guide

Other Audio Connections

Disconnect all power sources before making any connections.

See setup instructions for: Connecting to an Audio Receiver on page 24,

Note: Speakers must be amplified using an audio receiver such as a ftome Theater System to amplify the audio

from the TV:

Speaker ()_ltputs

Audio cable

Red

White

RearofTV

lleadphoneSet

Rear of TV

Note: When headphone is plugged in the speaker, it will turn into mute mode.

25

Instruction for Uploading New Firmware

1.Please visit our website for the detail information.

2.Please register LCD TV on our website.

3.Please log on to the firmware download section by following the instructions.

4.Please review the available downloads, the bugs fixed, and the new features added.

5.Please follow the instructions on the website for their specific model for downloading the new firmware

and for loading the firmware into the TV.

26

mote Control Guide

Remote Function Keys & Description {For 526-527 Models)

Regular Buttons

B POWER Press to turn display on/off.

I_ LIGHTING Press to switch the lighting mode

between Dark, Medium, Bright Room.

[] ASPECT Press to switch the aspect ratio between

Aspect, Full, Panoramic, Zoom, 1:1 mode.

FREEZE Press to freeze the picture. Press again to

unfreeze the picture.

[[_ MENU Press to activate or close the On Screen

Display menu.

_]_ ENTER Press to enter to Sub-Menu, or highlight

and set up menu.

_'[ DISPLAY Press to display the information of

current channel number and time.

[] NUMBER BUTTONS Press to select channels on

the display.

[] RETURN Press to return the previous-channel.

I_ VOL+/VOL- Press to adjust the volume.

MUTE Press to mute the sound.

DIRECTION BUTTONS :

i/T Press to select between four main sections or

select the function item.

_/_ Press to enter to Sub-Menu, select the function

item or adjust the value bar.

il_ SOURCE Press to switch the source input between

Tuner, Composite, S-Video, Component, HDMI,

VGA, and VGA Component.

AUDIO Press to switch the TVAudio System

between SAP, Mono or Stereo mode.

AUTO Press to adjust screen position automatically

when the screen image is not centered under VGA

mode.

_l] C.C. Press to call up the Closed Caption (CC) and

Caption Service (CS) list.

[_! FAVORITE Press to select t3vorite channels.

Can be preset in OSD Menu.

SLEEP Press to automatically shut off the TV after

a preset period of time has passed.

_] CH+ /CH- Press to adjust channel up and channel

down.

TIME Press to set the display to automatically turn

off at the set time.

27

Remote Function Keys & Description CFor 532 Model}

_lm POWER Press to turn display on/off.

[] FUNCTION Press to select the equipment item you

want to program or operate.

[] NUMBER BUTTONS Press to select channels on

the display.

[] - Press to select sub-channeh

[] AUDIO Press to switch the TVAudio System

between SAP, Mono or Stereo mode.

[] DIRECTION BUTTONS :

A/_ Press to select between four main sections or

select the function item.

_/_ Press to enter to Sub-Menu, select the function

item or adjust the value bar. _-_

LA_J

[] SOURCE Press to switch the source input between Tuner,

Composite 1, Composite 2, S-Video I, S-Video 2,

Component 1, Component 2, HDMI, VGA,

VOL+/VOL- Press to adjust the volume.

CH RTN Press to return the previous-chauneh

[] MENU Press to activate or close the On Screen

Display menu.

ENTER Press to enter to Sub-Menu, or highlight

and set up menu.

[] MUTE Press to mute the sound.

[] CtI+/Cfi- Press to adjust channel up and channel

down.

[l_ ilotKeys Press to directly access certain Shortcut

TV functions.

1. SLEEP Press to automatically shut off the TV

after a preset period of time has passed.

2. FAVORFI'E Press to select t:avorite channels.

Can be preset in OSD Menu.

3. DISPLAY Press to display the inf%)rmation of

current channel number.

when the screen image is not centered under VGA mode.

8. ASPECT Press to switch the aspect ratio

between Aspect, Full, Panoramic, Zoom, t :1 mode.

4. LIGHTING Press to switch the lighting mode

between Dark, Medium, Bright Room.

5. FREEZE Press to freeze the picture. Press again

to unfreeze the picture.

6. C.C. Press to turn on/of f the Closed Caption (CC)

function.

7. AUTO Press to adjust screen position automatically

9. SWAP Press to swap the positions ofthe source

when in PIP or Split Screen modes.

10. VIEW Press to select and program Full Screen,

PIP and Split Screen viewing options.

11. GUIDE Press to see the Channel Guide.

12. INFO Press to see the current program name

and relevant information.

Other Buttons They only can work when operating

the other equipments such as DVD, or VCR device.

%

%

%

%

®

%

%

@

@

@

28

_i!iiiii_i!ii!i,ii:il;!iiiiiiiiiiiiiiiiiiiiiiiiiiiiRomoteCo,,tro_Sui_o

Programming the Remote Control [For 532 Model}

if you have the other equipment you want to operate with

the TV's remote control, do the following procedures

to program the remote control.

l. Select the 4-digit code number for the equipment you

want to operate t¥om the lists on Page 64.

2. Press the "FUNCTION" button repeatedly to select the

equipment item you want to operate.

3. Press the "EN I ER" and "FUNCTION" buttons at the

same time t)ar 4-5 seconds.

4, Once the Indicator I,ED for the equipment item you

select flashes orange light once, enter the 4-digit

code number using the numeric buttons.

Note: tj'there are more than one code on the list, try entering the code

one by one until it is l'orrertJbr the equipmettt.

5. Afterwards, the indicator LED will flash orange light

lbr a while, and then stop flashing.

6. Check if the code number is correct by aiming the TV's

remote control at the equipment and then press the

equipment's POWER button, such as STB, DVD, or

VCR..,etc.

Note: If it rexponds, the programming is completed, if not, try the other

code again _bllowing the st_,ps above.

29

Remote Control Guide

Battery Installation

1.Push the tab and pull it out as illustrated below.

2.Insert two size AAA (lot 526--527 models) or AA (f!)r 532 model) batteries

(supplied) by matching the (+) and (-) on the batteries to the diagram inside

the remote control's battery department.

3.Replace the cover back and make sure the cover "snaps" into the remote

control.

Note:

1.The display unit comes with two new AAA (/br 526.-527 models) or AA

(]br 532 model) batteries as accessories.

However, due to uncontrollable causes, the electricity of the accessory

batteries may be partially or completely drained. We do not warrant the

quality of the batteries in any case since many factors are considered.

If replacement is needed, please purchase two AAA (fi)r 526-527 models)

orAA (/br 532 model) batteries.

2.1tandle remote with care. Avoid dropping it, placing in direct sunlight,

near a heater, high areas of humidity or getting it wet. If the remote gets

wet, please wipe it dry immediately. In the event of the remote not working

properly or is in operational, a replacement of remote control may be

required.

3.If you do not use the remote control for a long period of time, please remove

the batteries and store in a cool place to preserve battery life.

4.Do not mix new and used or with diffcrent types of batteries for operation.

3O

Screen Displays (OSD)

After you have finished connecting your TV, you are now ready to choose

and personalize your TV settings in the OSD (On Screen Display) menu.

There are four main sections in the OSD Menu:


OSD Screen

OSD

Audio

OSD Setup

OSD

j Ir;l !_ _o_]m]

M_NU

1. Press "@ "button to enter OsD

menu mode.

2. To select between four main sections,

press the keys "A" and "T ".

3. To enter to Sub-Menu,press the keys

,or _-,-_ .

4. To select the function item, press the

keys "A", "'_", "-,9 ", or" m,.-".

5. To adjust the value bar, press the keys

"_'q" and "m,_".

6. To select and set up, press" @ ".

7. To go back to last OSD Menu or exit

t_NU

the OSD menu, press"@ "againor

without action for 12 sedonds of

inactivity.

31

On Screen Displays (OSD)

Picture OSD Adjusting TV Picture Settings

Brightness To adjust brightness contrast of the picture

Contrast To adjust color contrast of the picture

Color temp To adjust image color intensity

6500

6500 User Red Gain /Green Gain To allow User to adjust RGB value

Blue Gain /Red Offset

Green Offset /Blue Offset

9300

9300 User Red Gain /Green Gain To allow User to adjust RGB value

Blue Gain /Red Offset

Green Offset /Blue Offset

Color To adjust the color intensity

Tint To decrease or increase red or green tones of the picture

Sharpness To adjust sharpness or softness of the picture

Mode

Lighting Dark /Medium /Bright Room To adjust darkness or lightness of the screen

Input VCR /Interlaced DVD /To select the video input source with varied qualities

Progressive DVD /Standard

DefTV /High DefTV/User

PowerUp

The first time you power on theTV, the

options below will appear for your

selection.

Show Room :

You may select it when watching in the

show room.

_ome :

YOU may select it when watching at

home,

(To select

the item)

(To confirm)

32

OnScreenDisplays(OSD)

_;_ Mode

In this "Mode" Index, you can select one of

the picture modes which is suitable for the

program you are watching.

To adjust darkness or lightness of the

screen

* Dark Room : To darken the screen

*Medium Room

* Bright Room : To brighten the screen

To select the video input source with

varied qualities

* VCR

*Interlaced DVD

*Progressive DVD

*Standard DefTV

*High DefTV

* User

(To show

the Main

Menu)

(To select

the item)

.............. • %

(To enter the

III " "J" " sub-menu)

i.4./.!.,

(To select

the item)

(_0_') (To enter the _Q'_).............. sub-menu)

(To select [-A-7-_-]

L_k._/_ZJtheorem) .............

_, r-_

[_@__,

(To go back last OSD Menu or exit OSD Menu)

33

_r_"4J"D_#J_/_ On Screen Displays (OSD)

In this Setup Index, you can adjust the video

and picture settings to suit your personal

preferences.

_> Brightness

To darken or brighten the picture

_ Contrast

To reduce(soften) or enhance(deepen)

color contrast of the picture

Color

To decrease or increase color intensity

of the picture

_i_ Tint

It allows you to decrease or increase red

or green tones of the picture,

_ Sharpness

To soften or sharpen the picture

_ Color Temp

To customize the RGB settings

0500

6500 User :

*Red Gain-To increase red tones of

the picture

* Green Gain-To increase green tones

of the picture

*Blue Gain- To increase blue tones of

the picture

*Red Offset-To decrease red tones of

the picture

*Green Offset- To decrease green

tones of the picture

* Blue Offset-To decrease blue tones

of the picture

9300

9300 User :

The settings are as the same as the

"6500 User" option,

Native :

To select the nature color tones of the


(To show

the Main

Menu)

(To select

the item)

_O_) r_ (To enterthe............... sub-menu)

(To enter the !t_/O/_:

sub-menu) ...............•

[--.__-:Z::___-](To adjust the settings)[.'._--[[Z[_[J

I___ I

(To go back last OSD Menu or exit OSD Menu)

(To show (To select

the Main the item)

Menu)

To enter the

sub-menu)

i_ /_ i (To select ri7-_-i

............. the item) .............

ro enter the @

sub-menu) ',............."

[-,'.__-::_:::__-:] (To adjust the settings) [ ",'-_-':Z[[_':J

(To go back last OSD Menu or exit OSD Menu)

34

OnScreen Displays (OSD)

Audio OSD Adjusting Sound Quality

Treble It allows to adjust higher pitched sounds.

Bass It allows to adjust lower pitched sounds.

Balance It allows to adjust volume balance of the R/L speakers for

the best stereo reproduction.

Language English, Frangais, Espan'ol There are three language formats available for program

broadcasting.

MTS (Multi-channel Mono, SAP, Stereo It allows to select the sound reception of stereo, bilingual

Television Sound) and mono programs between the TVAudio System.

Mute On, Off It allows to mute the sound•

Speaker On, Off It allows to turn On/Off the speakers of the TV when using

a Receiver or Home Theater System•

:Ii i i_ I I i I! I I i],?ll;ll'rl li'11t,,17I l t i itf t

[]

In this Setup Index, you can adjust the audio

settings to suit your personal preferences.

Treble

Decreases/Increases high pitch sounds.

_;_ Bass

Decreases/Increases low pitch sounds.

_, Balance

Adjusts volume to R/L speakers for the

best stereo reproduction.

Language

There are three language formats

available for program broadcasting. You

may select from: English, Espa5ol,

Frangais.

_;_ Mute

Mutes sounds.

Speaker

Turns TV speakers On/Off when using

Home Theater System.

(To show (To select

the Main the item)

Menu)

_(_'"'""_ _ (To enterthe

,,./@/., sub ..... )

{J.Z_[.i

(To select

the item)

_,_'_ (Toenterthe

'...............'sub-menu) ',,....X-_t_.....,"

[-;--7--_- i (To adjust (To select [+_'7-_;-i

• the settings) the item) ...........

r--_

(To go back last OSD Menu or exit OSD Menu)

35

On Screen Displays (OSD)

In this Setup Index, you can adjust the audio

settings to suit your personal preferences.

MTS

Toggles audio through Stereo_ SAP and

Mono.

Mono :

Selects Mene reception. (Uses to

reduce noise during weak stereo

broadcasts)

SAP :

Selects audio to SecondaryAnalog

Program. (If no SAP signal is present,

the TV remains in Stereo Mode)

Stereo :

Selects Stereo reception when viewing

a program.

(To show

the Main

Menu)

(To select

the item)

(To select

the item)

I___ I

(Togo back last OSD Menu or exit OSD Menu)

36

_!iiiii!i!!i!ii!i!!i!ii!i!!i!!!iiiiiiiiiiiiiOn Screen Displays (OSD)

Screen OSD Adjusting Screen Modes

i

Adjustment

H.Position It allows you to adjust the picture position horizontally.

V.Position It allows you to adjust the picture position vertically.

Fine Tone It allows you to enhance the picture quality.

Aspect Ratio Aspect, Full Screen, It allows you to select the aspect ratio of the picture you

Panoramic, Zoom 1, are watching.

Zoom 2,1:l Mode

Cropping On, Off Once activating this function, the picture you are watching

will be enlarged. Then its edges will be cropped

automatically.

Source Tuner, Composite, It allows you to select one of the picture or video sources

S-Video, Component, you want to view.

HDMI, VGA, VGA

Component

In this Setup Index, you can adjust the screen

settings to suit your personal preferences.

}_" Adjustment (Analog Source Only)

Adjusts the picture position and its

quality.

H,Position :

Moves the picture left and right in the

"Full Screen, Panoramic, and Zoom"

modes.

V.Position :

Moves the picture up and down in the

"Full Screen, Panoramic, and Zoom"

modes.

Fine Tone :

Enhances picture quality by reducing

horizontal flickering. (yea mode only)

Auto Svnc :

Adjust the image to its best position and

autematicaiiy dispiays on the screen.

_, Aspect Ratio

It allows you to select the aspect ratio

of the picture you are watching.

.,&_S DeC[ :

Toggles picture between 16:9 /4:3

aspect ratio•

(To show (To select

the Main the item)

Menu)

_(__i % (Toenterthe

..../Q.!. .... sub-menu)

,/®/• Too, to,the

sub-menu) ...............•

[--.__-IIZII___-Ii(to adjust the settings) [i___-ii_i-.__-_-ii

,

[ _,

(To go back last OSD Menu or exit OSD Menu)

37

On Screen Displays (OSD)

Full Screen :

Enlarges a4:3 picture to fill the 16:9

screen.

Panoramic :

Enlarges a picture from 4:3 to 16:9 by

stretching it horizontally.

Zoom 1 :

Stretches the image both horizontally

and vertically.

Zoom 2:

Stretches the image both horizontally

and vertically, which will lose part of the

image on both ends.

1:1 Mode :

Returns the image to its original mode.

_, Cropping

Crops image and then enlarges it to fill the

screen.

(Note: This feature helps remove any noise

visible under both vertical and horizontal

edges of the image)

(To show

the Main

Menu)

(To select

the item)

_,'_/O/_i _ (To enterthe............... sub-menu)

',, /8/ .... b ..... ) ...... _."_-!.....

r_._--7--_- i (To adjust (To select F--7¥ ]

, the settings) the item) _--_--/--J.J

r--=.q

L__,

(To go back last OSD Menu or exit OSD Menu)

In this Setup Index, you can select the input

source of the picture or video you want to

view.

_" Main Picture Source

It allows you to view images from

optional video equipment connected to

this unit by selecting the appropriate

input source.

Tuner :

Composite :

S-Video :

Component :

HDMI:

VGA :

VGA Component :

(To show (To select

the Main the item)

Menu)

£,,'_'"'"'"'_ % (Toenterthe

III .,./8/., sub-m_n_)

I___ I

(To go back last OSD Menu or exit OSD Menu)

38

On Screen Displays (OSD)

Setup OSD Adjusting Personal TV Settings

TV

Favorite, Skip, Name

Cable Standard, Air

Channel Setup

Auto Channel Search

ChannelAdd

Closed Caption

Analog Type

Digital Type

Font

Size

Font Color

Background Color

It allows you to set up Channel functions.

It can auto scan the available channels of theTV or CATV.

It allows you to add channels to your favorite channel list.

It allows you to select the Closed Caption type shown on

the TV program.

Off, CC1-4, T1-4

Off, CS1+6

As Broadcaster, Stypel-7

As Broadcaster, Large,

Medium, Small

Black, White, Green, Blue,

Red, Cyan, Yellow, Magenta

Black, White, Green, Blue,

Red, Cyan, Yellow, Magenta

Parental Control

Enter Password

Rating On, Off

MPAA Rating G/PG/PG-13/R/NC-17/X

Block Unrating On, Off

TV Rating TV-Y/TV-Y7/TV-Y7-FV

TV-G/TV-PG(V,S,L,D)/

TV-14(V,S,L,D) /TV-MA

(V,S,L)

Canada English Rating

Canada French Rating

Channel Block

Change Password

Timers Sleep, Timer# 1, It can be set to turn on /off the TV automatically at the set

Timer # 2 time.

Date and Time It allows you to set the information of "Date and Time".

Menu Timeout 10, 20, 30 It can be set to shut off the TVautomatically after a preset

period of time has passed.

Language English, Fran_ais, Espai'fol It allows you to set the OSD Menu language.

DPMS On, Off TV and Backlight will shut off automatically when no video

source is detected when DPMS is active.

Factory Settings It can reset all parameters in OSD Menu Mode for all input

sources.

Factory Settings by Input It can reset all parameters in OSD Menu Mode for the

source you select currently.

Firmware Version

39

On Screen Displays (OSD)

.]_.! 1,1_11J[, i i_ILVl_ =_.!il i[:]

In this Setup Index, you can pre-search all

channels before watching the programs.

}_" Auto Channel Search

Will scan and preset all receivable

channels automatically.

Cable :

Selects cable if using tuner as the input.

*Auto

* Standard

*HRC

* IRC

Air:

Selects air if using antenna.

(NOTE: The Auto Scan is set to scan

cable TVchannels by default. You

cannot receive and set the cable TV

channels and VHF/ UHF channels at the

same time.)

r- -_

I___ I

LO,_[Z£

(To show (To select

the Main the item)

Menu)

sub-menu)

E;i:_:tl,ITose'eo*theitem)

............... sub-menu)

i_._(..f.j (To selectthe item)

_ _"_ (To enter the

............... sub-menu)

[KT._[i(To,el_otth_item)

(To enter the

,./0/., sub-menu)

4O

[_O_,

(To go back last OSD Menu or exit OSD Menu)

On Screen Displays (OSD)

[_]_

In this Setup Index, you can edit channels to

suit your personal preferences.

_, Channel Setup

Will scan and preset all receivable

channels automatically.

Favorite :

Selects and stores a list of favorite

channels.

Browses through favorite channels by

pressing Hotkey "FAVORITE".

I I

(To show (To select

the Main the item)

Menu)

_0/_ (To enter the

............... sub-menu)

L_.._..T..i (To select the item)

I_1 (To enter the

k "--J" J sub-menu)

I._..__T..I (To select the item)

_ '_'i (To enter the

............... sub-menu)

i._'.._.._..i (To select the item)

(To enter the

,,,,.j. jsub-menu)

(To select

the channel)

I___ I,0,

m_ ...............

(To set up)

(To go back last OSD Menu or exit OSD Menu)

41

On Screen Displays (OSD)

Ski_:

Skips channels from viewing.

(NOTE: Once this function is set, the

skipped channels will not be displayed

after searching, If you wish to view later,

enter the channel number by pressing

the numeric keys on the remote control,)

r-Z,,_,q

I I ® Ei__]Z_i]

(To show (To select

the Main the item)

Menu)

{_/O/_'i (To enter the

............... sub-menu)

i.A../.._.i (To select the item)

(To enter the

sub-menu)

[i_.i_ii_i} (To select the item)

'.. /8/ .; (Toenter the

sub-menu)

i._ /_.i (To select the item)

_("_/_,) (To enter the

............... sub-menu)

(To select

the channel)

I___ I,@,

(To set up)

(To go back last OSD Menu or exit OSD Menu)

42

On Screen Displays (OSD)

Name :

Creates a personal name for each channel.

(Name will appear in the upper-right corner

of the screen) R-_7

:®, ® _i_ifi

(To show (To select

the Main the item)

Menu)

(_/Oy_! (To enter the

............... sub-menu)

i._.Z..[., (To select the item)

[]

(To select

the item) (To set up)

i._.!..[.i

To select

the channel) (To go back last OSD Menu or exit OSD Menu)

43

On Screen Displays (OSD)

Channel Add :

Adds channel currently on display to

the FAVORITE channel list.

r--.T._

/1__- __1 _L@ I L............

(To show (To select

the Main the item)

Menu)

,, /_/ .,' (Toenterthe

sub-menu)

_-ZI_II (To select the item

(Keyin channel

numberby

pressingthe

numeric key)

I___ IL@ ,

(To go back last OSD Menu or exit OSD Menu)

44

On Screen Displays (OSD)

Displays the audio portion of a television

signal as text on the television screen.

_> Analog Type

If there is Closed Caption data shown on

the analog TV channel, you can select

your preferred Closed Caption type by

scrolling through CC1-4, T1-4.

CCl : is used for most programs

CC2 : may be used for alternate languages

"rext : is used for network and station

information, such as channel guides,

schedules, or bulletin board, for Closed

Caption programs.

Digital Type

Selects preferred Close Caption type by

scrolling through CSI - 6.

_" Font

Selects preferred font by scrolling

through As Broadcaster, Style 1-7.

(Digital TV channel only)

_, Size

Selects preferred font size by scrolling

through As Broadcaster, Large, Medium,

Small. (Digital TVchannel only)

_, Font Color

Selects preferred font color by scrolling

through As Broadcaster, Black, White,

Green, Blue, Red, Cyan, Yellow,

Magenta. (Digital TVchannel only)

_" Background Color

Selects preferred background color by

scrolling through As Broadcaster, Black,

White, Green, Blue, Red, Cyan, Yellow,

Magenta. (Digital TVchannel only)

(To show

the Main

Menu)

(To select

the item)

(_7_y _ (To enter the

_' "J ./ sub-menu)

i.A /[.i (To select the item)

............... sub-menu)

k/_/ / sub-menu) t,--L:'---_--L---/

i ,__!..T] (To select the item) i._../...[.i

F-_

,@,

(To go back last OSD Menu or exit OSD Menu)

45

On Screen Displays (OSD)

This function allows programs to be

restricted and controlled by parents.

Enter Password

Password is necessary to enter and

re-enter the Parental Control Menu

screen.

(NOTE: The Factory Default password

is "99999".)

Blocks programs based on programing rating

system.

The TV Parental Control features by receiving

the rating signal from your local broadcasting

station or cable service provider.

_" Rating

*On- To activate rating function

* Off- To disable all of rating functions

r -._._

I i

L_,

(To show (To select

the Main the item)

Menu)

_QI!'_" i (To enter the

sub-menu)

i'_'Zi_i, (to select the item)

I___ I,0,

(To enter the

sub-menu)

(Key in

pressing the

numeric key )

(To go back last OSD Menu or exit OSD Menu)

46

On Screen Displays (OSD)

_, MPAA Rating

Motion Picture Association of America

provide movie ratings, including those

shown on TV.

G : (General Audience) No restriction.

PG : (Parental guidance suggestion)

Children under 13 should be accompanied

by an adult.

PG-13 : (Parents strongly cautioned)

Children under 13 should be accompanied

by an adult.

R : (Restricted) Viewers should be 17 or

older.

NC-17 : (Not classified) Viewers should

be 17 or older.

X: (Adults only)

I___ I

(To show (To select

the Main the item)

Menu)

i . ............. .

/_/ (To enter the

,, ,.j. :sub-menu)

E._.../...)..i(Toseleottheitem)

,./@/... (To enter the

sub-menu)

I___ I

(To select _ i

the item)

(To set up) _'

(To go back last OSD Menu or exit OSD Menu)

47

On Screen Displays (OSD)

TV Rating

u.s. TV ratings are for TV programs

rated according to the U.S. Television

Parental Guidelines.

TV-MAIVISIL : (Mature audiences only)

TV-141VlSILID : (Parents strongly

cautioned)

TV-PGIVISILID : (Parental guidance

suggested)

TV-G : (General audience)

TV-Y7/FV : (Directed to children under

7 or older)

TV-Y : (All children)

(NOTE: When you block the lower rating,

the higher age-based ratings are blocked

automatically.)

Block Unrating

You may select "On" for MPAA Unrated

and TV Unrating. This allows you to

block programs or movies that are

broadcast without a rating.

To watch unrated channels, re-activate

MPAA Unrated and TV Unrating to "Off".

(NOTE: The unrated option is available

only when you have selected U,S.A. as

your coun try/region.)

To show

the Main

Menu)

(To select

the item)

/_/ (To enter the

_f sub-menu)

E'_I'__ ii (To select the item)

(_'_ (To enter the

............... sub-menu)

LA.J..._.i (To select the item)

,0,

To enter the

sub-menu)

(To go back last OSD Menu or exit OSD Menu)

(To set up)

48

On Screen Displays (OSD)

_" Canada English Rating

It is available for TV programs in English

broadcast in Canada.

: (Intended for children under 8)

C8± : (Generally considered acceptable

for children aged 8 and older to watch

on their own)

: (GeneralAudience)

P G : (Parental Guidance) Parents may

consider some content inappropriate

for unsupervised viewing by children

aged 8-13,

14+ : (Not suitable for viewers under

the age of 14)

184-:(Adult)

NOTE: When you block the Iower rating,

the higher age-based ratings are blocked

automatically,

(To show

the Main

Menu)

EI;IIZ..tll

(To select

the item)

(To select

the item)

!,_/O/_ (To enter the

'-.............. 'sub-menu)

i._.._.._..i (To selectthe item)

_Q_ (To enter the

............... sub-menu)

i.$.S_T_i (To select theitem)

I___ I[O,

To enter the

sub-menu)

(To set up)

(To go back last OSD Menu or exit OSD Menu)

49

On Screen Displays (OSD)

Canada French Rating

It is available for TV programs in French

broadcast in Canada•

: (GeneralAudience)

8 arts+: (8+ General--Not recommended

for young children under the age of 8)

13 ans_ : (Not suitable for children

under the age of 13)

16arts+ : (Not suitable for children

under the age of 16)

18 arts+ : (Restricted to adults)

(To show

the Main

Menu)

(To select

the item)

(To select

the item)

_,__y_ (To enter the

............... sub-menu)

i._._.._.., (To select the item)

(Toenter the

., ,._j,. sub-menu)

i-_-_ii_il (To select the item)

_ _- sub-menu)

',, /_/ ,*' (Toenterthe

I___ I,@,

(To go back last OSD Menu or exit OSD Menu)

(To set up)

5O

On Screen Displays (OSD)

Channel Block

In this Setup Index, you may select the

blocked ratings to suit your personal

preferences. _,, _ E__-.7_::f_-J

(To show (To select

the Main the item)

Menu)

I . ............. ,

(To enter the

,,/@/,, sub-menu)

[__./.._.i (To selectthe item)

,,_7-[7_' ! (To enter the

', O J

............. sub-menu)

[_.._.._.i (To select the item)

_ '_77_' (To enter the

', 0 .,; sub-menu)

(To select

the channel)

I___ I

m_ ...............

(To set up)

(To go back last OSD Menu or exit OSD Menu)

51

On Screen Displays (OSD)

Change Password

You may change to a new preferred

password by pressing the numeric key

within 6 numbers.

r--_

I I,®, ® [.]i_-Z_t]

(To show (To select

the Main the item)

Menu)

#L@;:Pa,swo.,c,ooo/- ............. , (To enter"Enter

(Key in

pressing the

numeric key )

I___ I,,.@,

(To confirm and then

enter "Enter New

Password" screen)

(Key in new

password b

pressing the

numeric key )

(Key in new

password

again by

numeric key )

(To confirm and then

enter "Confirm New

Password" screen)

(To go back last OSD Menu or exit OSD Menu)

52

On Screen Displays (OSD)

,T_] iI i iT_II hT:I O]Ei(:l':.i iT, i I lii[:l

}_" Date and Time

In this Setup Index, you can setup the

Date, Week, Time Zone, and Current

Time on the TV.

Date :

Date is set automaticaiiy when NTSC

source is used. (ManuaJ adjustment is

necessary however, if not used)

Week :

It will be automatically displayed

according to the Date setting.

"lime Zone :

You can select avaiJabJe time zone

where you live.

Current Time :

Time is set automatically when NTSC

source is used. (Manual adjustment is

necessary however, if not used)

Dayliqht Savinqs :

Option will be selected automatically

based on settings above.

Auto Calibration :

Once activating this function, the information

of "Date and Time" will be corrected

automatically based on accurate time.

NOTE: Once marking the "Auto

Calibration" setting, all settings shown

on the "Date and Time" screen will be

invalid.

r- -._q

I___ IL@,

(To show (To select

the Main the item)

Menu)

sub-menu)

[ IZi] <Toso.ec.he,tom

TOenter the

sub-menu)

L*_..4.v..i

(To cycle

selecting)

(To confirm)

I _ IL@,

(To go back last OSD Menu or exit OSO Menu)

53

On Screen Displays (OSD)

_" Timers

In this Setup Index, you can setup the

Sleep Time, Start Time, and Stop Time

on the TV.

Sleeg :

Shuts offTV after a preset period of

time has passed by scrolling through 30,

60, 90,120 minutes.

Timer # 1 :

Turns display on/off at a set time by

entering Week, Start time and Stop

time.

Timer # 2 :

You can set another unit of timer.

(NOTE: Please preset the "Date and

Time" before setting the "Timer #1and

2" functions.)

(NOTE: If the "Timer #1" and "Timer # 2"

settings are overlap, they will be

combined to be one.)

(NOTE: If the "Stop Time" is less than

the "Start Time", the setting will be

carried over to the next day,)

_" Menu Timeout

In this Setup Index, you can setup the

OSD Menu display time before

disappeared when no action is taken.

1. Press the AY button to select 10,

20, or 30 second.

2. Press the "ENTER" button to

confirm.

--.T._

_:

To show (To select

the Main the item)

Menu)

{_I!QI!_ (To enter the

i sub-menu)

i ii?iltli{toso,octtho,tem)

|

|

t

l

(To select t_d

the item) I

I

"Q'_i (Toenterthesub-menu)('O)

M

W W

[Toconfirm)(To cycle (To select (To cycle (To select (To confirm)

selecting) the item) selecting) the item)

I___ I

(To go back last OSD Menu or exit oee Menu)

54

On Screen Displays (OSD)

Languages

There are three language formats

available for the OSD Menu. You may

select it doing the following:

English, Frangais, Espa_ol.

DPMS

TV and Backlight will shut off

automatically when no video source

is detected when DPMS is active.

* On- To activate this function

*Off- To disable this function

_, Factory Settings

You can reset all OSD settings to original

manufacture settings for all input sources.

_" Factory Settings by Input

You can reset all OSD settings to original

manufacture settings for the source you

select currently.

Firmware Version

You can see the firmware version here

that installed in the HDTV unit,

I___ I

(To show (To select

the Main the item)

Menu)

_'_ (To enter the

............... sub-menu)

i._.._..T..i (To selectthe item)

I___ I[0,

(To go back last OSD Menu or exit OSD Menu)

55

pecifications

TFT LCD Panel

Panel Size

Aspect Ratio

Pixels

Dynamic Contrast Ratio

H/V(View Angle)

Gray to Gray Response

Time

PC Compatible Frequency

26"

16:9

1366X768

1600:1

178 o (H)/178 (V)

6 ms

30~85 KHz(H) /50~80Hz(V)

Max. t360x768 @60Hz

27 _l

16;9

1366X768

1000:1

178 o (H)/178, (V)

8 ms

30~85KHz(H)/50~80Hz(V)

Max.1360x768@60Hz

32" (Bottom Speaker)

16:9

1366 X 768

I000:I

176, (R)/176 (V)

8ms

30~85KHz(H)/50~80Hz(V)

Max.t360x768@60Hz

32"(Side Speaker)

16:9

1366 X 768

1000:1

176o (H)/176o (V)

8 ms

30~85KHz(H)/50~80Hz(V)

Max.1360x768@60Hz

Video Compatibility NTSC

DTV & HDTV Compatibility 480i, 480p, 720p, 1080i

Aspect Ratio Adjustment Zoom, Full Screen, 4:3, 1:1,

Panoramic

3D Comb Filter Y

3 : 2/2 : 2 PullDown Y

Digital Noise Reduction Y

Adjustable Color Native, 6500, 6500-User,

Temperature 9300, 9300-User

De-interlacer y

VGAAuto Frequency Y

Correction

TV Auto Frequency y

Detection

Auto Sound Level Control Y

Output Watt 2 (16W +10W)

Sound Effect MTS (Mono /Stereo /SAP)

TV Tuner Combo RF (NTSC/ATSC) Tuner xl

Video Input Composite (CVBS) xl, S-Video xt, Y/Pb/Pr, Y/Cb/Cr xl, R/L x3

HDTV & Video Input VGA/Component xl, HDMI xl, R/L x2

Service Port RS232C Port (Mini DIN 6 Pins) xl, Firmware Upgrade Port (AType) xl

Audio Output Output : Earphone, R/L xl

*NOTE : Product Specification is Subject to Change without Notice.

56

Specifications

TFT LCD Panel

Power (Voltage) 100~240 VAC /50-60 Hz 100~240VAC/50-60Hz 100-240 VAC /50-60 Hz 100-240 VAC /50-60 Hz

(PowerConsumption) 162W t62W 164W 164W

Stand-by < lW < lW < lW < lW

Dimensions(Wx Dx H) 33.46ill x 7.52in x t9.56 in 33.46inx 7.52in x 19.56in 31.89inx 9.37in x24.60in 37.76inx 9.37in x 22.2in

CartonDimensions(W x Dx H) 35.82inx 8.66in x23.42in 35.82inx 8.66in x 23.42in 35.43inx 11.02in x27.36ir 42.80inx 12.40in x25.35in

Weightw/stand 34.62Ibs 30.8Ibs 33.1Ibs 35.42Ibs

GrossWeight 43.44Ibs 39.62Ibs 38.81Ibs 45.32Ibs

Dimensional Drawing

A

AB C D E F

26" 17.48 in 33.46 in 18.98 in 7.52 in 19.56 in 4.63 in

27" 17.48 in 33.46 in 18.90 in 7.52 in 19.56 in 4.63 in

32" 23.60 in 3t .89 in 23.58 in 9.37 in 24.60 in 4.92 in

(Bottom

Speaker

32" 20.67 in 37.76 in 23.58 in 9.37 in 22.20 in 4.92 in

(Side

Speaker)

57

"g Mode for VGA and DVI

YPbPr 480p 59.94

720p 60

1080i 30

VGA 640x480 60

75

800x600 60

75

1024x768 60

75

1280x768 60

1280x1024 60

I360x768 60

DVl 640x480 60

75

800x600 60

1024x768 60

75

1280x720 60

1280x768 60

1360x768 60

58

Policy

Syntax-Brillian's D.O.A. Policy for LCD HDTVs for

Defective Pixels on LCD Panels

(Applicable to the LCD HDTV sold within USA & Canada only)

Syntax-Brillian TM LCD HDTVs are evaluated at a distance of approximately 50 centimeters

(approximately 20 inches) between the LCD panel and the eyes of the user at a

90 degrees viewing angle. All LCD panels have been tested to ensure they

comply with our factory standards. Our evaluation is based on the number of

defective pixels and the distance between any two defective pixels. Bright dots

are dots that appear bright and unchanged in size when a LCD HDTV screen

displays under a black pattern; dark dots are dots that appear dark and

unchanged in size when a LCD HDTV screen is displayed under pure red, green,

or blue patterns ("defective pixels"). Adjacent dots are dots located directly

next to each other.

Customers are required to check their LCD panel immediately after purchase.

To identify defective pixels, the LCD panel should be examined under normal

operating conditions as mentioned above, preferably in its native display

resolution, and with a 90 degrees viewing angle.

A LCD HDTV will be considered dead on arrival (D.O.A.) with regards to defective

pixels on the LCD panel when any one of the following criteria is met:

_ Atotal of 7 defective pixels including both bright dots and dark dots are

present (the typical 30" LCD Television screen has 16.7 million pixels), or

® 2 or more pairs of adjacent bright dots are present, or

¢_3 adjacent bright dots are present, or

® 3 adjacent dark dots are present.

In view of customers' concerns about dead pixels, Syntax-Brillian ''_would like to address

that defective pixels are not ultimately avoidable with the current LCD industry

standard panel manufacturing processes. We always strive to improve our

technology and minimize the chance of occurrence of defective pixels by

applying strict screening processes in our factory production processes.

However, Syntax-Brillian cannot guarantee that a return unit to our customers will be

100% free of defective pixels.

For questions, please call our toll free service number in the USA at 888-Syntax-Brillian-8.

"At Syntax-Brillian TM Groups, a satisfied customer is our

most important focus."

59

3:2 pull down - Process of converting 24 frames per second film to video by repeating one film frame

as three fields, then the next film frame as two fields.

480I - 480 lines of display every 1/60 of a second; image is displayed by interlace scanning. See

also Interlaced

480P - 480 lines of display every 1/60 of a second; image is displayed by progressive scanning. See

also Progressive.

720P - 720 lines of display every 1/60 of a second; image is displayed by progressive scanning. See

also Progressive.

10801 - 540 lines of display x 2 every 1/30 of a second; image is displayed by interlace scanning.

See also Interlaced

16_9 - Aspect ratio under Hi Def. and theater movie formats. Also known as widescreen; see Aspect

Ratio

4:3 - Aspect ratio under SDTV; see Aspect Ratio

Active Matrix TFT (Thin Film Transfer) - A type of display technology where the three primary

colors are modulated. Results in better contrast ratios suitable for video.

Alarm - Feature on the Syntax-Brillian Olevia models. Allows the unit to power on from the stand by

mode.

Alarm Time - Time specified as to when the unit will power on. See Alarm.

Aspect Ratio - The ratio of an image according to the width and height of a picture.

ATSC - Advanced Television Systems Committee; international, non-profit organization that is

committed to developing standards for digital television.

Reference: http:/!www.atsc.org

Bezel - Refers to the plastic or metal frame that acts like a shell around the LCD glass.

IBacklight - Refers to the component, that lights up the LCD display.

Balance - Feature on the OSD for the Syntax-Brillian Olevia models that adjust the left and right

sound output from the speakers.

Background - Feature on the OSD for the Syntax-Brillian Olevia models, which allows the user to

change the OSD background, display to transparent or opaque.

Brightness - The measurement of color that is illuminated. Colors range from black to white.

CATV - Community Antenna Television (Cable Television)

Channel Favorite - Feature on the OSD for the Syntax-Brillian Olevia models that allows the user to

scroll through a defined list of channels that the user sets up.

Channel Edit - Feature on the OSD for the Syntax-Brillian Olevia models that allows the user add or

delete a channel.

Channel Source - Feature on the OSD for the Syntax-Brillian Olevia models that lets the user select

the source of their channels. Select TV for antennae or CATV for cable television.

Channel Auto Scan - Feature on the OSD for the Syntax-Brillian Olevia models that when initiated,

will determine which channels are available and which arenot. If a desired channel is not accessible,

you can add the channel in manually. See Channel Edit.

Channel Fine Tune - Feature on the OSD for the Syntax-Brillian Olevia models that enables the user

to tune the channel for better reception.

Chroma - (Chrominance) Refers to the color characteristics of a video signal.

£C - Closed Caption

60

Glossary

Color - The term refers to the amount of color present. This varies between each user, as each

person perceives colors differently.

Color Temperature - Feature on the OSD for the Syntax-Brillian Olevia models that enables warm,

normal or cool color settings. Warm emphasizes red, cool emphasizes blue, and normal doesn't

emphasize any of the primary colors. This setting may affect each person individually depending on

how color is perceived.

Comb Filter - A filtering system designed to removal unwanted artifacts by rejecting certain

frequencies while permitting others.

Component - A three RCA type input that uses high quality cables (one for brightness, and two for

color). Process increases bandwidth resulting in more color information to be carried to theTV

producing a more accurate picture.

Composite - Also known as CVBS, Technology that permits the combination of color information and

brightness under one wire. A single video signal that carries both brightness and color information

are contained in a single wire.

Contrast - Difference in luminance between the white and black colors.

CRT - Cathode Ray Tube.

DB15 - Also referred to as VGA; See VGA

De-Interlace - Process of converting an interlaced video signal.

Display Area - The perimeter of the LCD glass the image is displayed on. See Video Resolution

Dual Link- See Single Link; Supportsa maximum bandwidth of 2x 165 MHz (1920x 1080 @ 60 Hz,

1280 x 1024 @ 85 Hz).

DVI- Digital Video Interface Describes the technology that is used to take full advantage of a signal

when paired with a high-end video card and flat panel displays

DVI-A - Digital Video Hi-Resolution Analog

DVI-D- Digital Video Interface Digital; Cable is used for direct connection from one digital source

to the TV; See DVI

DVI-I- Digital Video Interface Integrated; Cable that supports analog and digital signals; SeeDVI

DTV - Digital Television

Factory Default - Feature on the OSD for the Syntax-Brillian Olevia models that resets all menu options

to factory default.

F-Connector - The standard connector found on video equipments that coaxial cables connect to.

Flat-Panel Display - ultra thin displays, usually found in notebooks are now entering the TV

appliances sector as new technology enables wider/larger screens.

Frame-Acomplete picture that includes both even and odd lines. 30 video frames are present in 1

second.

Gain - Describes the amplification level of a particular signal.

HDCP - High bandwidth Digital Content Protection

HDTV - 1.High Definition Television 2. Designates as the unit having a built in ATSC tuner to decode

High Definition signals (720P/1080I).

HD-Ready - A unit that supports the High Definition displays (720P/10801) with the help of a Set-Top Box.

Horizontal Resolution - Refers to the number of vertical black and white lines defined along a horizontal

line.

IR- Infrared

Input - term used in the On Screen Display

61

Glossary

Interlaced - Images are the result of lines of data reassembled. Interlaced refers to the process

of an image's odd lines reassembled from top to bottom taking about 1/60 of a second, before

reassembling the even lines which results in a full picture. Antonym: Progressive

Language - Feature on the OSD for the Syntax-Brillian Olevia models that enables the OSD to be

read in different languages.

LCD - Liquid Crystal Display

LCoS - Liquid Crystal on Silicon

LED - Light Emitting Diode

Luminance - refers to the brightness of an image.

Lux - 1 Lux = 1 footcandle; measurement of brightness

Moire - A visual illusion in which a succession of parallel curved lines produces a pattern to the

naked eye, but does not really exist. Otherwise known as the moire effect.

NCTA - National Cable Television Association

Noise reduction - Feature on the OSD for the Syntax-Brillian Olevia models that enables channels

from the tuner box to reduce noise displayed on the LCD unit.

NTSC - National Television systems Committee

OSD - On Screen Display; brought up by pressing the menu button on the TV or the Remote.

Over Scanning - An image displayed is larger than the display area

PAL - Phase Alternating Line

Parental Control - The ability to block access to specified content from an unsuitable audience.

PIP - Picture in Picture; feature that enables one source to be displayed on top of another source.

Pixel Resolution - Refers to the number of rows horizontal and vertical that produces the image.

PIP -Picture in Picture; Allows an image to be displayed in front of another image.

Plug and Play - Describes the hardware or software that is installed and does not require any

configuration before using.

Progressive - An image or lines of data that is reassembled from top to bottom sequentially.

Antonym: Interlaced

RGB - Red, green & blue These primary colors provide the basis for many different colors.

Refresh Rate - Refers to the maximum number of frames that the monitor can display per second.

Usually measured in hertz.

Saturation - The amount of a particular color present in an image.

SCART - An industry standard for interconnecting audio-video equipment developed by Peritel.

Usually associated with PAL video equipment.

SDTV - Standard Definition Television usually in 480I/P format.

SECAM - Sequential Color with Memory or Sequential Couleur Avec Memoire

Set-Top-Box - box that is capable of receiving and decoding digital transmissions (i.e. High

Definition Cable Box, Digital Cable box).

Sharpness - Tries to artificially enhance the edges of a picture.

Single Link - supports a maximum bandwidth of 165 MHz

(1920 x 1080 @ 60 Hz, 1280 x 1024 @ 85 Hz).

Split screen - Feature that places two images side by side.

1 2

62

Glossary

Swap- Button featured on theOlevia remote. Used in thePOP3or PIP12 views to swap the sub

viewable boxes with the main viewable box,

Tint - Adjusts the whiteness level within the color, Similar to Hue,

Under- scanning Term used where the image displayed is smaller than the display area,

Up convert - Process of converting a 480P/I signals to 720P or 10801.

V-Chip - Chip that controls access to forbidden content specified by an adult,

VGA - 1. Video Graphics Array (DB15) 2.

Video Display - Refers to the display resolution

Video Resolution

VGA 640x480

SVGA 800 x 600

XGA I024x768

QVGA t280 x960

SXGA+ 1400 x 1050

UXGA 1600 x 1200

QXGA 2045 x 1836

QSXGA+ 2800 x 2100

QUXGA 3200x2400

WXGA 1280X800

SXGA 1280X 1024

WXGA+ 1400 X 1050

WSXGA 1680X 1080

WUXGA 1920X 1200

QSXGA 2560X2048

Viewable Angle - Angle at which the screen is still viewable.

Widescreen - See 16:9

YCbCr- Used often with standard interlaced video equipment. See Component

YPbPr - Used often with progressive video equipment. See Component

63

de Number Lists for Remote Control,

TV

8yntax-Brillian

(OLEVIA) 0000

3 Series

5 Series (Remote Default)

7 Series

Syntax-Brfllian

(OLEVIA)

HVE Series

HVM Series

HVS Series

HVi Series

HVX Series

DLT-2711M

DLT-3212M 0001

DLT-3712

LT27HV

LT30HV

LT32HV

LT27HVS

LT30HVS

LT20HVK

LT20S

DVD

Maln(tf_t(lr_. i_ i'i'i'i'iCe_)'i'i'i'i-

Aiwa 2073

Apex 2000 2001 2003

2004 2016 2028

2029 2030

Audiovox 2074

Blaupunkt 2078

BOSE 2062 2071

Brokson[c 2045

Cherry 2025

Clarion 2046

Classic 2047

Daewoo 2079 2080 2113

Denon 2075 2095 2096

Emerson 2048 2049

Fisher 2050 2076

Funai 2049 2064

GE 2005 2051 2102

Go Video 2068 2070

GPX 2052

Great Wall 210t

DVD

Harman Kardon 2114

Hitachi 2065 2067

Irradio 2092

JVC 2007 2010 2011

2012 2013

Kenwood 2097 2100

Koss 2093

Magnavox 2020 2035

Marantz 2085

Memorex 2087

Mintek 2053

Mi_ubishi 2088 2089 2090

2091

NAD 2048 2081

Nakamichi 2054

Norcent 2055 2056

Onkyo 2082 2086

Odtron 2057

Panasonic 2008 2036 2037

Phillps 2002 2009 2021

2022 2023 2043

Pioneer 2027

Polaroid 2111

Proscan 2005 2099

Qwestar 2057

RCA 2005 2024 2038

2110

Sampo 2058

Samsung 2006 2017 2033

2041

Sansui 2060

Sanyo 2059 2063

Sharp 2014 2031

Sherwood 2061

DVD

Sony 2016 2018 2034

2039

Sylvania 2049 2072 2077

Techwood 2083

Toshiba 2019 2026 2040

2042

Yamaha 2084 2098

£enith 2069 2094

HTIB

BOSE 2071

Onkyo 2086

RCA 2105

DVD /VCR Combo

Ma)l_f_t(_r_, i; i' [' [' i' [(_eLle. [, [, i' i-

Go Video 2068 2070

Hitachi 2067

JVC 2010

Polaroid 2111

Samsung 2017

Sanyo 2063

Zenith 2069

DVD Recorder

rradio 2196

Panasonic 2103

Phillps 2107

Pioneer 2104

RCA 2105

Sony 2108

Yamaha 2109

64

_i!iiiiiii!ii!i_ii:il;!iiiiiiiiiiiiiiiiiiiiiiiiiiiiCodeNumberListsforRemoteControl

TV /DVD /VCR Combo

Maln0f_t(_r_. '. i .i -i.i.iCe_l_-i.i.i.i -

Samsung 2041

Sylvania 2072

Toshiba 2040

Portable DVD

M._0f_i_;._::f.:.:-:.:.c;_e:.:-:.:.:

Cybe_HomeI 21121 I

TV /DVD Combo

Ma_(Jfbqt(Jrb_. i_ i-i.i.i-i(_e_h)-i.i.i.i'

Aiwa 2044

Apex 2016

Broksonic 2045

JVC 2011

Sansui 2060

Toshiba 2042

Amplifier

Kenwood 5048

Pioneer 5041

RCA 5069

Yamaha 5001 5053

AUDIO

Maln(If_qt(Ir_ ""i" [' [" i" i qoid_ [" [" i" i

Cambridge 5011

Ibiza 5037

Sony ...... 5043 .........

Audio Cassette

Ma)lof_tor_' ]i' [' [' i' [qo[d_ [-[, i' i

Aiwa 5039

Curtis Mathes 5041

Denon 5052

Fisher 5042 5049

GE 5070

Kenwood 5048 5056

NAD 5040

Nakamichi 5054

Onkyo 5055

Optimus 5041 5047

Panasonlc 5015 5050

Philips 5013

Pioneer 5018 5041 5045

Proscan 5070

Quasar 5050

Radio Shack 5047

RCA 5070

Sansui 5057

Sanyo 5044

Sherwood 5047

Sony 5043

Technics 5050

Yamaha 5053

HTIB

BOSE 5010

Philips 5022

Audio System

Ma)l(If_t (Ir_, i[ [' [' i' [' [(_d_ [, i' [' ["

Aiwa 5039

Carver 5051

Curtis Mathes 5041

Denon 5052

Harman Kardon 5046

Kenwood 5048 5056

Nakamichi 5054

Panasonic 5015 5016

Philips 5013 5014

Pioneer 5018 504t

5031 5032 5033

RCA &

Dimensia 5034 5035

Sansui 5057

Sanyo 5044

Scientific Atlant_ 5067

Sony 5043

Technics 5050

Yamaha 5053

Phono

Kenwood 5048

Pioneer 5041

Sony 5043

Yamaha 5053

DVR

Philips 1042

RCA 1116

RePlay 1115

Tivo 1116

65

Code Number Lists for Remote Control

Receiver /Tuner

Aiwa 5017 5036 5039

BOSE 5010

Carver 5051

Curtis Mathes 5041

Denon 5006 5026 5027

5052

Fisher 5042 5044 5049

Gradiente 5062

Harman Kardor 5008 5038 5046

Hitachi 5059

JBL 5038

Jensen 5061

JVC 5007 5030

Kenwood 5005 5028 5048

5056

Loxman 5064

Mclntosh 5058

NAD 5040

Nakamichi 5054

NEC 5040

Nikko 5063

Onkyo 5055

Op6mus 5041 5047

Panasonic 5009 5012 5016

5029 5050

Philips 5014 5022

Pioneer 5004 5023 5041

5045

Quasar 5050

Radio Shack 5047

RCA 5071 5072

Sansui 5057

Sanyo 5042 5044

Sharp 5060

Sherwood 5047

Receiver /Tuner

Ma_(J(aqt(Jr_. [_"[' i' [' [' [CeLI_ ' i' [' [' ['

Sony 5024 5043

Technics 5002 5020 5050

Yamaha 5048 5053

Zenith 5065

TV /VCR Combo

Ma_of_qt(_r_' [[ i' [" [' i' [(_oLk). [. [, i' ["

Action 1102

Broksonic 1023 1106

Daewoo 1014

Emerson 1106

GE 1040 1081 1087

Goldstar 1090

Hitachi 1036 1037

JVC 1019

Panasonic 1002 t020 1090

Philips 1018

Precision 1102

Quasar 1090

RCA 1012 1016

Realistic 1105

Samsung 1029 1065

Sharp 1015

Sony 1007

Sylvania 1030

Toshiba 1010

Zenith 1038 1090

DVD /VCR Combo

Ma)_f_tor_(- i" i i i i iCod_ •i [ i i

Go Video 1026 t028

Hitachi 1025

JVC 1000

Samsung 1031

Sanyo 1022

Zenith 1027

IPaTv'vci u:erc°mb°I

::::::::::::::::::::::

TV /DVD /VCR Combo

Samsung 1039

Sylvania 1032

Toshiba 1011

PVR

Mah0f_dt0rei ." ", ".". ", Cede:. "." : :

.... '""1

•-....-.

VCR

Mah_f_t(ir#_. :" :. :-:. :. :qoLl¢. :-:. :. :.

Admiral 1073 t074 t101

Adventura 1065

Aiko 1056

Aiwa 1055

Akai 1044 1045 1068

1069 1080 1093

American High 1053

Asha 1050

Audio Dynamics 1046 1047

Audiovox 1051

Beaumark 1049 1050 1079

Bell & Howell 1048

Broksonic 1023 t049

Calix 1051

Candle 1050 1051 1052

1079 1083 1090

1092 1095 1102

Canon 1053 1054

Capehart 1067 t083

Carver 1060 t110

CCE 1056 1059

Challenger 1001

66

_i!iiiiiii!ii!i_ii:il;!iiiiiiiiiiiiiiiiiiiiiiiiiiiiCodeNumberListsforRemoteControl

VCR VCR

Ma_f_t_r_, ]:-:, :, :-:Ceae, :, :, :-:, Ma_(Jf_t_r_, :: :-:, :. :. :(_ea_, :, :. :. :,

Citizen 1050 1051 1052 GoVideo 1021 1024 1026

1056 1095 t028 1079 1081

Colortyme 1046 1096 1085 1086

Colt 1059 Goldstar 1046 1051 1079

Craig 1050 1051 1059 1090 1092

1085 1090 1105 Gradiente 1055 1090

Criterion 1085 Harley Davidsor 1055

Curtis Mathes 1043 1046 1060 Harman Kardon 1046 1110

1053 1054 1077 Harwood 1059

t079 11t2 Headquarter 1048

Cybemex 1050 Hitachi 1025 1036 1037

Daewoo 1014 1052 1055 1057 1058 1065

1056 1067 1083 1068 1070 1088

1102 Homeline t 090

Daytron 1067 1083 1102 Instant Replay 1053

DBX t046 1047 JBL 1098

Denon 1088 JC Penney 1046 1047 1048

Dimensia 1043 1112 1049 1050 1051

Dixon 1013 1103 1053 1054 1057

Dynatech 1055 1058 1059 1060

Electrohome 1051 1090 1065 1079 1085

Electrophonic t05t 1088 1090

Emerson 1044 1049 1051 JCL 1053

1052 1053 1055 Jensen 1057 1058 1068

1061 1069 1087 JVC 1000 1019 1046

1090 1106 t047 1048 1068

Fisher 1048 1089 1105 1071 1087 1088

Fuji t045 1053 Kenwood 1046 1047 1048

Funai 1055 1095 1113 1068 1071 1077

Garrard 1055 KLH 1059

GE 1040 1043 1050 Kodak 1051 1053

1053 1054 1070 LG 1061

1079 1112 Lloyds 1077 1095 1105

Lloyd's 1055

Logik 1059 1085

VCR

LXl 1051

Magnasonic 1085 1090 1102

Magnavox 1008 t053 1054

1060 I064 1085

1110

Magnin 1051 1079

Maran_ 1046 1047 1048

1053 1060 1077

1092 t110

Marta 1051 t090

Matsushita 1053

MEI 1053

Memorex 1033 1048 1050

1051 1053 1055

1064 t073 1074

1088 t090 1091

1097 1105 1114

MGA 1061 1069

MGN 1079

MGN Technology 1050

Midland 1095

Minolta 1057 t058 1065

1088

Mitsubishi 1003 1005 1006

1057 1058 1061

1069 1071 1090

Montgomery Warc 1073 t074

Motorola 1053 t073 1074

MTC 1050 1085

Multitech 1059 1055 1059

NEC 1046 1047 1048

1066 1071 1077

1092

Nikko 1051

Noblex 1050

67

Code Number Lists for Remote Control

VCR

Olympus 1053

Optimus 1051 1073 1074

1090 1094

OptonJca 1062

Orion 1087 1090 1106

1114

Panason[c 1002 t004 1009

1020 1053 1054

1066 1085 1105

Pentax 1057 1058 1065

1070 1077 1088

Philco 1053 1054 1060

1088 t106

Philips 1017 1018 1053

1060 1062 1110

Pilot 1051

Pioneer 1047 1057 1071

1075 1078 1104

PoRland 1067 t083

Proscan 1043 1112

Protec 1059

Proton 1085

Pulsar 1064 1079 1095

1102

Quarter 1048

QuaRz 1048

Quasar 1053 1054

Radio Shack 1051 1062 1074

1090

Radio Shack/ 1048 1050 1051

Realistic 1053 t054 1055

1062 1073

Radix 1051

Randex 1051

VCR

_aln_f_t(Ir_, [[ [' [' i' [" [(_eLl_, [, i' [" ['

_CA 1012 1016 1043

1044 1050 1853

1057 1058 1065

1070 1078 1079

1088 1107 1108

1112

_ealistic 1048 1050 1051

1052 1053 1854

1055 1062 1073

1074 1079 1090

1094 1097 1105

_icoh 1072 1076

_unco 1064

Samsung 1029 1031 1035

1039 1050 1052

1079 1095

Sanky 1064 1073 1074

Sansui 1047 1068 1071

1085 1114

Sanyo 1022 1048 1050

1089 1097 1105

Scott 1049 1052 1061

1090

Sears 1048 1051 1053

1057 1058 1065

1077 1088 1089

1090 1097 1105

Sharp 1015 1062 1073

1074 1091 1094

1101

Shlntom 1045 1058 1059

1085

Shogun 1050

Signature 1073 1074

Signature 2000 1097 1101

VCR

Singer 1053 1059 1072

1076 1085

Sony t007 1045 1063

I080 1082 1084

1098 1099

STS 1053 1065

Sylvania 1030 1032 1053

1054 1055 1060

t06t 1110

Symphonic t055 1077 1095

1105 1113

Tandy 1048

Tashiko 1051

Tatung 1068

Teac t055 1068 1107

Technics t053 1066

Teknika 1051 1053 1055

1090

TMK 1050

Toshiba 1010 1011 1052

t057 1061 1069

t100 1102 1105

1109

T_evision 1050 1051 1090

Unitec 1095

Unitech 1050

VectorResea_ t046 1047 1052

t077

Wards 1050 1051 1052

1053 1055 1057

1058 1059 1062

1065 1073 1074

t079 1090 1091

t094 1105 1108

1110

68

_!iiiii!i!!i!ii!i!!i!ii!i!!i_!!!iiiiiiiiiiii_Code Number Lists for Remote Control

VCR

Victor 1047

Video Concepts 1046 1047 1052

1069 1077

Videosonic t 050

White 1095 1113

Westinghouse

XR 1000 1086

XR-1000 1053 1055 1059

Yamaha 1046 1047 1048

1068 1077

Zenith 1027 1038 1045

1064 1072 1076

1093

Satellite

Ma_f_qt0r_ '"" [" [' i' [' [Cede ' [' i' [' ['

BSB 3003

Dire_tv 3001

Echostar 3049 3051 3052

3053

GE 3046

Hitachi 3045

Hughes 3043 3047

Mi_ubishi 3002

Panasonic 3036

Philips 3000

Proscan 3038 3044

RCA 3037 3039

Sony 3040 3042

SuperDish 3025

Uniden 3041

Alphastar 3028

Chaparral 3024

DIRECTV 3048

Drake 3027

Echostar 3026

Satellite

Ma_f_tl)t'_i_- ". i i i i ICeU_ •i i i i

Express Vu 3030

Fujitsu 3022

GE 3004 3032 3033

General 3018 3019

Instruments

Hitachi 3023

Hughes 3023 3048

Hughes Networ 3048

Hughes 3048

Network

Janeil 3022

JVC 3015

Panasonic 3005 3011

Proscan 3032 3033

Radio Shack 3018 301g

RCA 3032 3033

Realistic 3014

Rural Cable 3018

Samsung 3006 3028

Sony 3007

Star Choice 3031

Star Trak 3021

STS 3020

Toshiba 3008 3029

Uniden 3016 3017

Video Pall 3022

Zenith 3009 3022

Iph Satellite Receiver /Recorder

il p 1

SAT-DVR

DISH Network 3050

RCA 3010

Sony 3035

Zenith 30t3

Cable Box

ABC 4000 4001 4002

4030

Antron[x 4004

Archer 4007

Cabletenna 4004

Cableview 4003

Colour Voice 4009 4010

Contec 4034

Eastern 4035

GE 4000

Gemini 4012 4013

General 4050

Instrument

General 4000 4032

Instruments

Hamlin 4036 4037 4038

4040 4044

Hitachi 4000

Jerrold 4000 4012 4015

4016 4026 4030

4032

Motorola 4031 4051 4052

Movie Time 4039

NEC 4033

NSC 4039

Oak 4034 4041

Panasonlc 4027 4029

Philips 4009 4010 4011

4013 4018 4019

4020

Pioneer 4021 4022 4045

Proscan 4000

RCA 4003 4029 4032

Regal 4038 4044

Regency 4035

Rembrandt 4000

69

Code Number Lists for Remote Control

Cable Box

Samsung 4022

ScientificAtlant 4002 4023 4024

4025 4048

Signal 40t2

Signature 4000

Sony 4049

Sprucer 4029

Standard 4042 4043

Component

Starcom 4012 4030

Stargate 4012

StarqLtest 4012

Tocom 4001 4015

Tusa 40t2

TV86 4039

Unika 4004

United Cable 4030

Universal 4004 4007

View Star 4034 4039

Zenith 4028

70
