OLYMPUS

DiGiTAL CAMERA

STYLUS-9000 I,!_1-9000

instruction Manual

..........

• econtentsofthebo×

Strap LI-50B Lithium ion Battery LI-50C Battery Charger

Digital camera

USB cable AV cable OLYMPUS Master 2 CD-ROM microSD Attachment

CB-USB6 CB-AVC3

Other accessories not shown: instruction Manual (this manual), warranty card

Contents may vary depending on purchase location.

Preparing the Camera

"Preparing the Camera" (p. 10)

i_!_i_i_i!_i_i_ • Images

"Shooting,Viewing, and Erasing" (p. 15)

"Three Types of Setting Operations" (p. 3)

Printing

"Direct printing (PictBridge)" (p. 46)

"Print Reservations (DPOF)" (p. 49)

>Names of Parts ...................................... 6

> Preparing the Camera ......................... 10

>Shooting, Viewing, and Erasing ......... 15

>Using Shooting Modes ........................ 18

>Using Shooting Functions .................. 20

>Using Playback Features .................... 24

>Menus for Shooting Functions ........... 26

>Menus for Playback, Editing, and

Printing Functions ............................... 34

>Menus for Other Camera Settings .....39

>Printing ................................................. 46

>Using OLYMPUS Master 2................... 52

>Usage Tips ........................................... 54

>Appendix .............................................. 59

>Index ..................................................... 73

_ There may be unavailable menus depending on the

other related settings or the selected ,_N mode

(p. 30).

MENUbutton A,row0ad

obo,,on

4 Use _:_7_ to select the desired

Set the mode dial to a position other Submenu 1, and press the [] button.

than _. Pagetab Submenu 2

_ The _._) symbol in "Menu O t

Settings" (p. 26 to 45) /_'M_ I

indicates available shooting

modes.

Press the MENU button.

® This example describes how to set the

[DIGITAL ZOOM].

Shooting mode top menu

3Use _:_:7_}q to select the desired

menu, and press the [] button.

_) Pressing and

holding the

button displays

an explanation

(menu guide) of the

selected option.

Submenu I

@_ To quickly move to the desired submenu,

press _ to highlight the page tab, and then

use q:_7_ to move the page tab. Press _ to

return to the Submenu I.

Some menus include submenus that appear

...............byp!es_i,!?!he_::!!b_!!o2.....................................

Use _ to select the Submenu 2,

and press the [] button.

•Once a setting is adjusted, the display returns to

the previous screen.

_ There may be

additional operations.

"Menu Settings" (p. 26

to 45)

setting.

Shutter button (p. 15)

Zoom lever (p. 20, p. 24)

[] button (exposure compensation) (p. 21)

button (macro) (p. 21)

_. button (flash) (p. 20)

_) button (seF-timer) (p. 22)

..... [] button (playback) (p. 16)

DISP./e button (inf .... tion display change/

menu guide/date and time check) (p. 3, p. 14,

p. 22)

'-- OR/'_ button (panorama/Shadow Adjustment

Technology/multi window/erase) (p. 17, p. 23)

button (p. 3, p. 23)

Menu lnde×

Menus for Shooting Functions

When the mode dial is set to a shooting mode position

(1!'2t_'_ _ _N BEAUTY_), settings can be adjusted•

_: {_. IMAGE QUALITY ......... p.26

".2 :_ CAMERA MENU

WB ............................... p.27

ISO .............................. p.27

DRIVE .......................... p.27

FINE ZOOM ................. p.28

DIGITAL ZOOM ........... p.28

ESP/[_ ....................... p.28

AF MODE .................... p.28

_ (Sound recording) .... p.29

IMAGE STABILIZER

(Still images)/

DIS MOVIE MODE

(Movies) ................... p.29

SHADOW ADJ ............. p.29

_ SCENE MODE ............. p.30

"_ _ PANORAMA ................. p.31

_b RESET ......................... p.33

_,_ SETUP

MEMORY FORMAT/

FORMAT .................. p.39

BACKUP ...................... p.39

i_'_ (Language) ........ p.39

PW ON SETUP ........... p.40

MENU COLOR ............ p.40

SOUND SETTINGS..••• p.41

REC VIEW ................... p.41

Shooting mode top menu

FILE NAME .................. p.42

PIXEL MAPPING ......... p.42

[.c_,J(Monitor) ............... p.43

(Date/time) ............ p.43

DUALTIME ................... p.43

VIDEO OUT ................. p.44

POWER SAVE ............. p.45

_ SILENT MODE ............ p.45

Menus for Playback Editing, and Printing Functions

When the mode dial is set to the [] position, settings can

be adjusted.

EXIT*_

Playback mode top l_qenu

_: I_ SLIDESHOW ............... p.34

".2"2:_, PERFECT FIX ............. p.34

3_ i;_ BEAUTY FIX ................ p.34

_4 2_ EDIT

[_ (Resize) ................ p.35

4:::J"(Crop) .................... p.35

COLOR EDIT ............... p.35

CALENDAR ................. p.36

INDEX .......................... p.36

,[_. PLAYBACK MENU

O-_ (Protect) ............... p.36

_q (Rotate) ................... p.37

(Add sound to still

images) .................... p.37

".6)@ ERASE ......................... p.37

_ PRINT ORDER ............ p.38

".8 _: SETUP"

*Same as 'Menus for

Shooting Functions"

_9 _ SILENT MODE ............ p.45

ENiiiii_i_ii_i_iii_i!_!_!!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_i_i!_!_i_i_i_i_!!i!i!i!i!_!_

of Parts

........Camera unit

I Self-timer lamp ............................. p.22

2Flash ............................................ p.20

3Multi-connector ................ p.44, 46, 52

4 Connector cover .............. p.44, 46, 52

5Strap eyelet .................................. p.lO

6 Microphone ............................ p.29, 37

7 Lens ............................................. p.59

8 Battery/card compartment cover

............................................... p.11, 55

9Tripod socket .................................. --

1 \

2 5

LOLYMPUS Hyr_rc_y_l _cl_

............................10

....................................12

I Shutter button ........................ p.15, 54

2ON/OFF button ............................. p.13

3Zoom lever ............................. p.20, 24

4Card access lamp ........................ p.61

5 Speaker .......................................... --

6 Monitor ......................... p.8, 15, 43, 54

7 MENU button .............................. p.3, 5

8DISR/_ button

(information display change/

menu guide/date and time check)

........................................... p.3, 14, 22

9Mode dial ................. p.3, 5, 15, 16, 18

I0 [] button (playback) ................... p.16

I1 [] button (OK/FUNC) .............. p.3, 23

I2 Arrowpad ............................ p.3, 4, 13

[] button

(exposure compensation) ........ p.21

_,_button (macro) .................... p.21

button (self-timer) ............... p.22

button (flash) ....................... p.20

I3 OR/'_ button (panorama/

Shadow Adjustment Technology/

multi window/erase) ............... p.17, 23

17 16 15 14 13 12

still image

I Shooting mode ....................... p.18, 19

2Flash mode .................................. p.20

3Silent mode .................................. p.45

4Image stabilization (still images)/

Digital image stabilization (movies)

..................................................... p.2g

5 Macro/super macro ...................... p.21

6 Shadow Adjustment Technology... p.29

7 Battery check ......................... p.10, 55

8 Flash standby/camera shake warning/

flash charge ................................. p.54

9 AF target mark ............................. p.15

I0 Sound record ................... p.19, 29, 37

17 14 13 12

Movie

Dual time ...................................... p.43

Number of storable still pictures/

remaining recording time

......................................... p.15, 19, 61

Current memory ........................... _.60

Self-timer ..................................... _.22

Aperture value ............................. _.15

Shutter speed .............................. _.15

Exposure compensation .............. _.21

Compression/Frame rate ............. _.26

Image size ................................... _.26

Metering ....................................... _.28

Drive ............................................ _.27

ISO ............................................... _.27

White balance .............................. _.27

Playback mode display

1 2 3 4 3 4

1413 12

stiII image

I Silent mode .................................. p.45

2Print reservation/

number of prints ................... p.49/p.48

3Sound record ............. p.19, 29, 37, 58

4Protect ......................................... p.36

5 Battery check ......................... p.10, 55

6 Aperture value ............................. p.15

7 Exposure compensation .............. p.21

8 White balance .............................. p.27

9Image size ................................... p.26

13 12

Movie

I0 File number .................................. p.42

II Frame number

Elapsed time/total recording time

..................................................... p.17

I2 Current memory ........................... p.60

I3 Compression/Frame rate ............. p.26

I4 _so...............................................p.27

I5 Date and time ........................ p.13, 43

I6 Shutter speed .............................. p.15

the Camera

.......Attaching the camera _trap ....................

_ Pull the strap tight so that it does not come

loose.

.........Charging the battery

The included battery charger (AC cable type

or plug-in type) differs depending on the

region where you purchased the camera. If

you received a plug-in type battery charger,

plug it directly into an AC outlet.

Example: AC cable type battery

charger

Battery charger

Lithium ion

battery

Battery comes partially charged. Before

use, be sure to charge the battery until the

charging indicator goes off

(for approx. 2 hours).

_} If the charge indicator does not light or

it blinks, the battery may not be inserted

correctly or the battery or the charger may

be broken.

_ For detaiIs on the battery and the charger,

see "Battery and charger" (p. 59).

When to charge the battery

Charge the battery when the error message

shown below appears.

Flashes in red

Monitor top right Error message

Charging indicator

Lights: Charging

Off: Charged

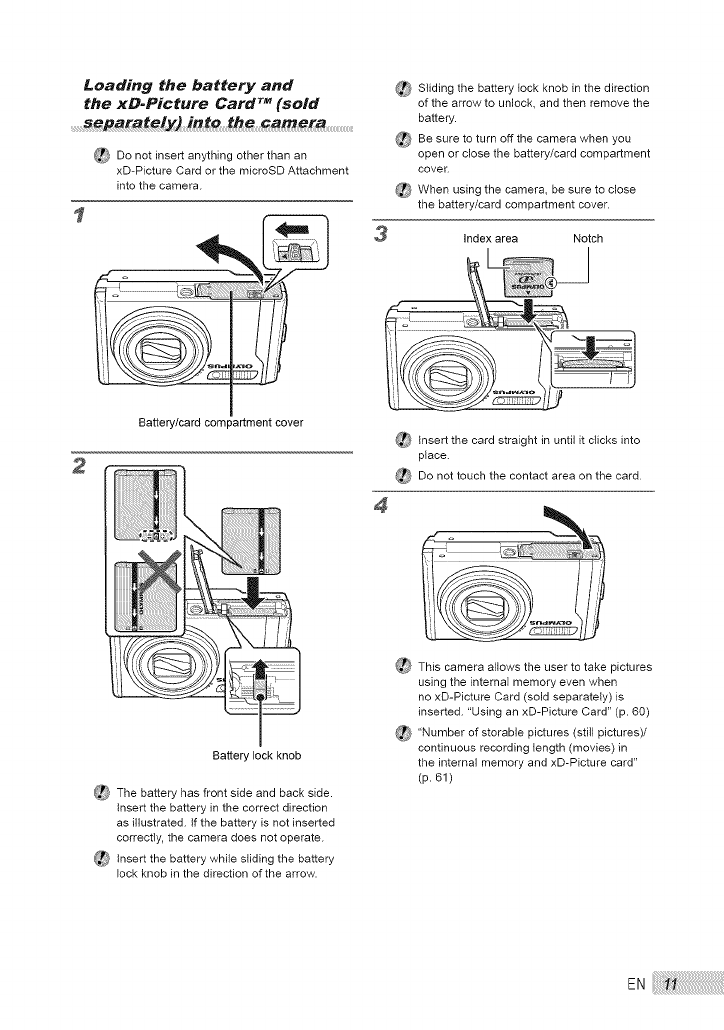

Loading the battery and

the xD-Picture Card TM (sold

_ Do not insert anything other than an

xD-Picture Card or the microSD Attachment

into the camera.

Battery/card compartment cover

Batterylock knob

_ The battery has front side and back side.

Insert the battery in the correct direction

as illustrated. If the battery is not inserted

correctly, the camera does not operate.

_P_ Insert the battery while sliding the battery

lock knob in the direction of the arrow.

_ Sliding the battery lock knob in the direction

of the arrow to unlock, and then remove the

battery.

Be sure to turn off the camera when you

open or close the battery/card compartment

cover.

_} When using the camera, be sure to close

the battery/card compartment cover.

Index area Notch

_ Insert the card straight in until it dicks into

place.

_ Do not touch the contact area on the card.

_ This camera allows the user to take pictures

using the internaI memory even when

no xD-Picture Card (sold separately) is

inserted. "Using an xD-Picture Card" (p. 60)

_ "Number of storable pictures (still pictures)/

continuous recording length (movies) in

the internal memory and xD-Picture card"

(p. 61)

ToremovethexD-PictureCard

d' (2}

_ Press in the card until it clicks and comes

out slightly, and then grasp the card to pull it

out.

Using amicroSD card/

microSOHC card

........(sold separately) ......................................................................................

microSD card/microSDHC card (hereinafter

referred to as "microSD card") is also compatible

with this camera by using the microSD

Attachment.

_ "Using a microSD Attachment" (p. 62)

Insert the microSD card into the

Attachment.

Insert the card to

the end.

2 Insert the microSD Attachment into

the camera.

Notch

To remove the microSD card

(_ Pull the microSD card straight out.

Do not touch the contact area on the

microSD Attachment and microSD card.

ArrOw pad and #peration guide

The symbols _, _ F_I_l [_ displayed

on various setting and movie playback screens

indicate that arrow pad are used.

CANCEL*_

L iJJ

Arrow pad

Operation guides displayed at the bottom of the

screen indicate that the MENU button, _ button,

zoom lever, or "_ button is used.

........Setting the date and tirne

The date and time set here are saved to image

file names, date prints, and other data.

Press the ON/OFF button to turn on

the camera.

® The date and time setting screen is displayed

when the date and time are not set.

CANCEL*_

Date and time setting screen

2 Use _;?_ to select the year for

[YI.

CANCEL*_

Operation guide

3Press _ to save the setting for [Y].

CANCEL*_

4As in steps 2 and 3, use _i7_

and the _ button to set

[M] (month), [D] (day), and

[TIME] (hours and minutes}, and

[Y/M/D] (date order).

(_ For precisetime setting, press the _ button

as the time signal strikes O0 seconds.

_ To change the date and time, adjust the

setting from the menu. [_[_)] (Date/time)

(p. 43)

TO check the date and time

Press the DISR button while the camera is

turned off. The current time is displayed for

approx. 3 seconds.

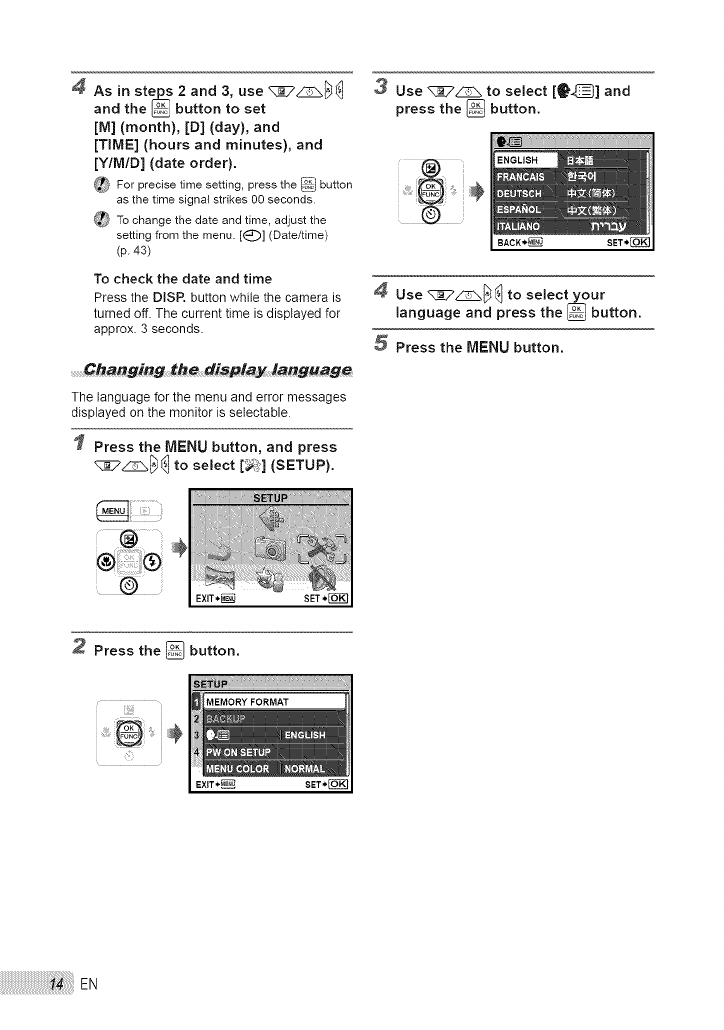

........Changing the display languag_

The language for the menu and error messages

displayed on the monitor is setectable.

Press the MENU button, and press

_::7_[_ to select [_] (SETUP).

3 Use _7_ to select [_] and

press the _ button.

4Use_ toselectyour

language and press the _ button.

Press the ME.NU button.

SET*

2Press the _ button.

g, Viewing, and Erasing

Shooting with optimum

aperture value and shutter

...........speed (_ mode)

In this mode, automatic camera shooting can

be used while also ailowing changes to a wide

range of other shooting menu functions, such as

exposure compensation, white balance, and so

on when needed.

Set the mode dial to II_.

2Press the ON/OFF button to turn on

the camera,

Number of storable

still pictures (p. 61)

Monitor

(standby mode screen)

3 Hold the camera, and compose the

shot.

Horizontal gnp

Vertical grip

_ When hotding the camera, take care not to

cover the flash with your fingers, etc.

4Press the shutter button halfway

down to focus on the subject.

® When the camera focuses on the subject, the

exposure is locked (shutter speed and aperture

value are displayed), and the AF target mark

changes to green.

® The camera was unable to focus if the AF target

mark flashes red. Try focusing again.

_ Press the ON/OFF button again to turn off

the camera.

Press halfway

Shutter speed

Aperture value

_ "Focusing" (p. 56)

5To take the picture, gently press

the shutter button all the way down

while being careful not to shake the

camera,

Image review screen

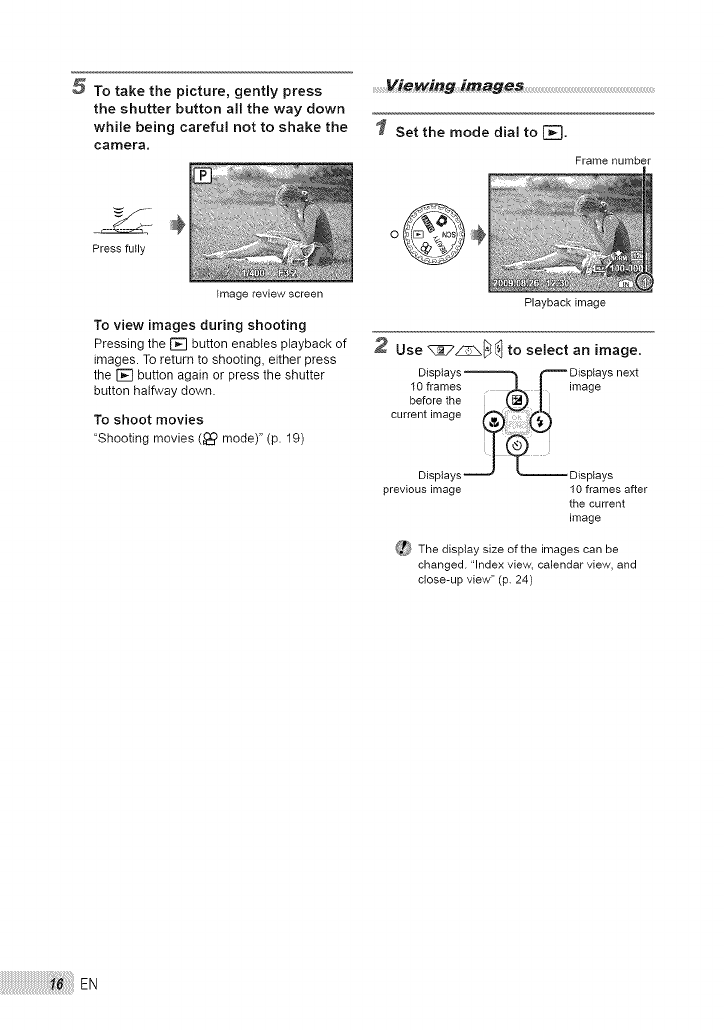

Viewing images

Set the mode dial to ['_-q.

Frame number

Pressfully o@

To view images during shooting

Pressing the [] button enables playback of

images. To return to shooting, either press

the [] button again or press the shutter

button halfway down.

To shoot movies

"Shooting movies (_ mode)" (p. 19)

Playback image

£Use _;7_ _ to select an image.

Displays_ _ Displays next

fO frames_ _image

before the ._ L_)

current image "_'_

Displays_1_ Displays

previous image 10frames after

the current


_ The display size of the images can be

changed. "Index view, calendar view, and

close-up view" (p. 24)

To play back movies

Select a movie, and press the [] button.

Erasing images during

p/ayback (Sing/e image era_e)

Press the "_ button when the

playback image to be erased is

displayed.

Movie

Operations during movie playback

Volume: During playback, press _.

Fast=forwardlrewind: Select with r_.

Each time a button is pressed, the playback

speed cycles through 2x, 20x, and standard

(lx) speed in the direction of the pressed

button.

Pause: Press the [] button.

During playback

2Press _7 to select [YES], and

press the _ button.

_ [_ ERASE] (p. 37)

Elapsed time/

Total recording time

First (last) framelframe advance:

During pause, press q317to display the

first frame, and press _ to display the

last frame. Playback is reversed while _ is

pressed, playback occurs normally while _J

is pressed. Press the [] button to resume

playback.

During pause

To stop movie playback

Press the MENU button.

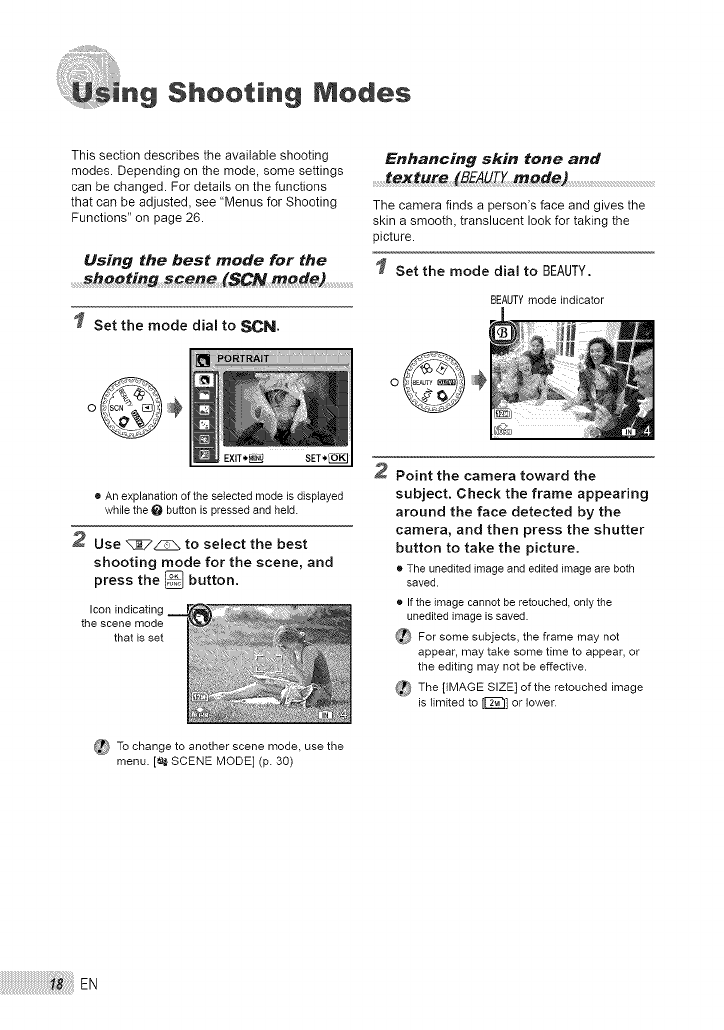

Shooting Modes

This section describes the available shooting

modes. Depending on the mode, some settings

can be changed. For details on the functions

that can be adjusted, see "Menus for Shooting

Functions" on page 26.

Using the best mode for the

............... mode)

Set the mode dial to S_;N.

•An explanation of the selected mode is displayed

while the _ button is pressed and held.

2 Use q:_7_ to select the best

shooting mode for the scene, and

press the _ button.

Icon indicatinc

the scene mode

that is set

To change to another scene mode, use the

menu. [_ SCENE MODE] (p. 30)

Enhancing skin tone and

The camera finds a person's face and gives tile

skin a smooth, translucent look for taking the

picture.

Set the mode dial to BEAUTY,

BEAUTYmode indicator

2Point the camera toward the

subject. Check the frame appearing

around the face detected by the

camera, and then press the shutter

button to take the picture.

® The unedited image and edited image are both

saved.

® If the image cannot be retouched, only the

unedited image is saved.

_ For some subjects, the flame may not

appear, may take some time to appear, or

the editing may not be effective.

_ The [IMAGE SIZE] of the retouched image

is limited to [F_'I] or lower.

Shooting with automatic

........_tting_ (_ _ode) .............................................................

The camera will automatically select the optimal

shooting mode for the scene. This is a fully

automatic mode that allows you to take a picture

suited to the scene by simply pressing the

shutter button. Settings in the shooting function

menu are not available in _ mode.

Set the mode dial to FE_f_].

The indicator changes to

the icon for the scene mode

selected by the camera.

.........ShQ#ting mavie_ (_ mQde)

Audio is recorded with the movie.

Set the mode dial to _),

mode indicator

o@ l÷

o l÷

•Press the shutter button helfivay down or press the

DISR button to check which shooting mode the

camera has automatically selected.

_ In some cases, the camera may not select

the desired shooting mode.

_ When the camera cannot identify which is

the optimal mode, Pmode will be selected.

To zoom while shooting a movie

The optical zoom is not available while

shooting a movie.

Use [DIGITAL ZOOM] (p. 28).

To shoot a movie with digital image

stabilization

[DIS MOVIE MODE] (p. 29)

Press the shutter button halfway

down to focus on the subject, and

gently press the button all the way

down to start recording.

Lights red during shooting

Press halfway

Press fully

Remaining recording time (p. 61)

3 Gently press the shutter button all

the way down to stop recording.

Shootin Functions

In addition to the wide variety of shooting modes,

the camera has functions that broaden the

expressive range and shooting options available

to the photographer•

........Using the optica! zoom ................................................

Pressing the zoom level adjusts the shooting

range•

Press toward W Press toward T

(Wide) (Telephoto)

Zoom bar

_ Opticat zoom: 10×, Digita] zoom: 5×.

@_'_Use of[IMAGE STABILIZER] (Still images)/

[DtS MOVIE MODE] (Movies) (p. 29) is

recommended when shooting with the

telephoto zoom.

To take larger images without reducing

image quality

[FINE ZOOM] (p. 28)

To take larger images

[DIGITAL ZOOM] (p. 28)

_ The zoom bar appearance identifies the

status of the fine zoom/digital zoom.

When using _

optical zoom I_...........................................

Optical zoom range

When using _= _ _

fine zoom |LT='J

Fine zoom range

Wh .... ing _

digital zoom

IIL l_

Digital zoom range

The flash functions can be selected to best

match the shooting conditions and render the

desired image•

IPress the _ button,

iiiiii}!i•;_

iii!i, ,i iiiiiii!!!!¸¸ill@i÷

<!!} il

2 Use _ to select the setting option,

and press the _ button to set.

FLASH AUTO

REDEYE

FILL IN

FLASH OFF

The flash fires automatically in

low-light or backlight conditions.

This emits pre-flashes to reduce

the occurrence of red eye in your

)hotos.

The flash fires regardless of the

available light.

The flash does not fire.

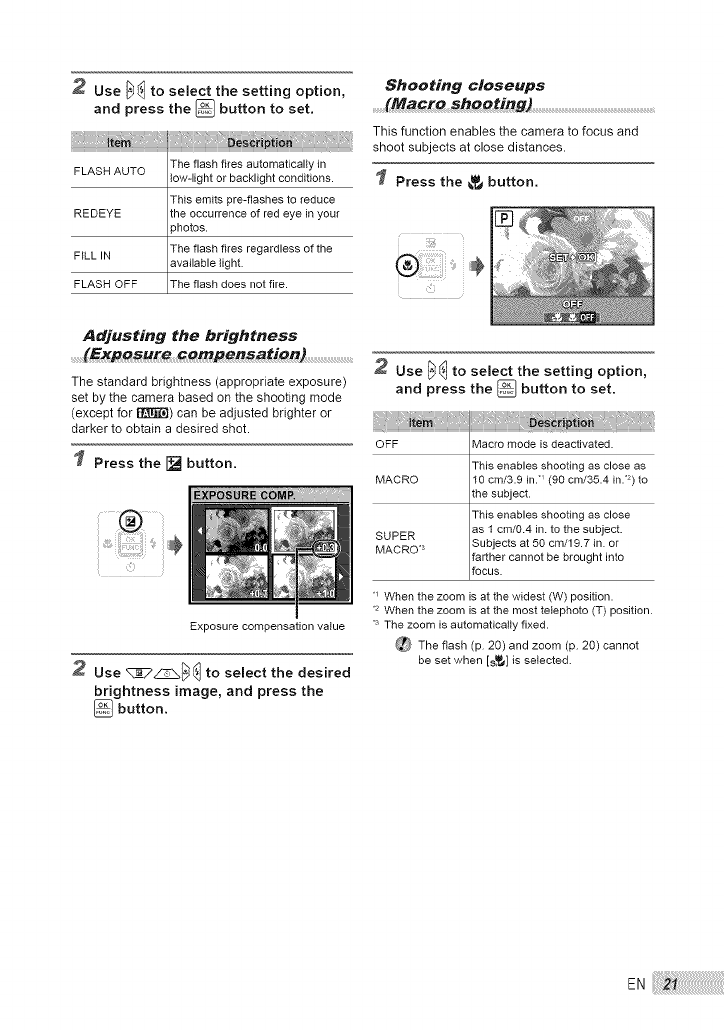

Adjusting the brightness

.......(Exposure _ompensation)

The standard brightness (appropriate exposure)

set by the camera based on the shooting mode

(except for [1_]_) can be adjusted brighter or

darker to obtain a desired shot.

Press the [] button.

Exposure compensation value

Use q:_;7_ to select the desired

brightness image, and press the

button.

Shooting closeups

(Macro shooting)

This function enables the camera to focus and

shoot subjects at close distances.

Press the _,_ button.

_ii:i

':_ :!_/I_ ......

Use [_ to select the setting option,

and press the _ button to set.

OFF Macro mode is deactivated.

This enables shooting as close as

MACRO 10 cm/3.9 in._ (90 cm/35.4 in. _2)to

the subject.

This enables shooting as close

SUPER as 1 cm/0.4 in. to the subject.

MACRO,3 Subjects at 50 cm/19.7 in. or

farther cannot be brought into

focus.

"_ When the zoom is at the widest (W) position.

,2 When the zoom is at the most telephoto (T) position.

,3 The zoom is automatically fixed.

(_,_ The flash (p. 20) and zoom (p. 20) cannot

be set when [e,_] is selected.

.........Using the self-time_

After the shutter button is pressed all the way

down, the picture is taken after a time delay.

Press the _) button,

2 Use q::_7_ to select the setting

option, and press the _ button to

set.

Changing the shooting

information display

The display of the screen information can be

changed to best match the situation, such as

for the need of clear view of the screen or for

making a precise composition by using the grid

display.

Press the DISk button.

• The displayed shooting information changes in

the order shown below each time the button is

pressed. "Shooting mode display" (p. 8)

Normal Histogram

No information Grid

(_f_} Self-timer shooting is automatically canceled

after one shot.

To cancel the self-timer after it starts

Press the _ button again.

Reading a histogram

If the peak fills too much of the frame,

the image will appear mostly white.

If the peak fills too

much of the frame,

the image will

appear mostly black.

The green section shows

the luminance distribution in the

center area of the monitor.

.........Using the FUNC menu

The FUNC menu provides the following menu

functions that can be quickly called and set.

• [WB] (p. 27) •[ESP/_L}] (p. 28)

• [ISO] (p. 27) •[{J, IMAGE QUALITY] (p. 26)

• [DRIVE](p. 27)

Press the _ button.

Quickly calling and using

The following menu functions can be quickly

called and used.

• [PANORAMA] (p. 31) • [MULTI WINDOW] (p. 23)

• [SHADOW ADJ] (p. 29)

Press the OR/_ button.

ilii!i

2 Use q:iT_ to select the menu

function and _ to select the

setting option, and then press the

button to set.

Use _ to select the menu function,

and press the _ button to set.

To use the effects preview screen

(Multi window)

Selecting an option from [ZOOM],

[EXPOSURE COMP.], [WE] or [ESP/[_]

shows 4 preview images that reflect the

adjusted values of the selected shooting

function. Use _:7_r_ to select the

desired image, and press the _ button.

Brightening the monitor

.......(Backlight boost)

Pressing and holding the OR/_ button

brightens the monitor. The monitor returns to the

original brightness if no operation is performed

for 10 seconds.

Playback Features

index view_ calendar view_ and

Index view and calendar view enable quick

selection of a target image. Close-up view (up

to lOx magnification) allows checking of image

details.

Press toward W or Ton the zoom

lever.

To select an image in index view

Use _:7_ L_to select an image, and

press the [] button to display the selected

image in single-image view.

To select images in calendar view

Use _:7_ _J to select a date and press

the [] button or press toward T on the

zoom lever to view the images taken on the

selected date.

To scroll an image in close=up view

Use _[7_ L_to move the viewing area.

Changing the image

information display .....................................................................

Shooting information displayed on the screen

can be changed.

Press the DiSR button.

® The displayed image information changes in

the order shown below each time the button is

pressed.

Normal Histogram

Detailed No information

(,_ "Reading a histogram" (p. 22)

24 EN

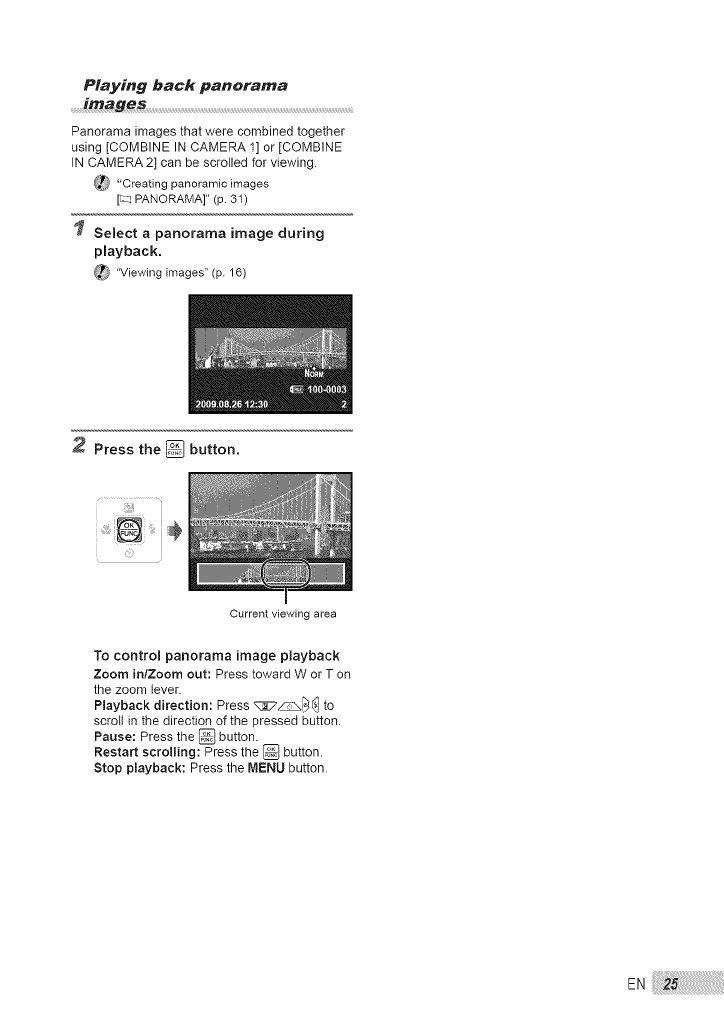

Playing back panorama

Panorama images that were combined together

using [COMBINE IN CAMERA 1] or [COMBINE

IN CAMERA 2] can be scrolled for viewing•

_ "Creating panoramic images

[_ PANORAMA]" (p. 31)

Select a panorama image during

playback.

"Viewing images" (p. 16)

2Press the _ button,

!i!iiii

i i÷

(i!i_

Current viewing area

To control panorama image playback

Zoom in/Zoom out: Press toward W or T on

the zoom lever.

Playback direction: Press _r_ to

scroll in the direction of the pressed button.

Pause: Press the [] button.

Restart scrolling: Press the [] button.

Stop playback: Press the MENU button.

Menus for Shooting Functions

When the mode dial is set to a shooting mode position (_i_ II_ 8CN BEAUTY _), settings can be

adjusted.

_ @ indicates positions of the mode dial at which the function can be set.

The default settings of the function are highlighted in

Selecting the appropriate image quality for your application [_.o. IMAGE QUALITY]

........ tALIIY .....................

@ : _ I_1 ,_I_1 BEAUTY

Still images

IMAGE SIZE

COMPRESSION

5M (2560× 1920)

3M (2048× 1536)

2M (1600×1200)

1M (1280×960)

VGA (640×480)

16:9 (1920x1080)

FINE

iii

Suitable for printing pictures over A3 (11 × 17 in.).

Suitable for printing pictures at A4 (8.5×11 in.).

Suitable for printing pictures up to A4 (8.5×11 in.).

Suitable for printing pictures at A5 (5×7 in.).

Suitable for printing pictures at postcard size.

Suitable for viewing pictures on a TV or using pictures on emails and

web sites.

Suitable for playing pictures on wide screen TV.

Shooting at high quality.

Shooting at normal quality.

Movies

IMAGE SIZE

FRAME RATE

VGA (640x480) /Setect the image quality based on the image size and frame rate.

H gher frame rates prov de smoother mov es.

" frames per second

_} "Number of storable pictures (still pictures)/continuous recording length (movies) in the internal

memory and xD-Picture Card" (p. 61)

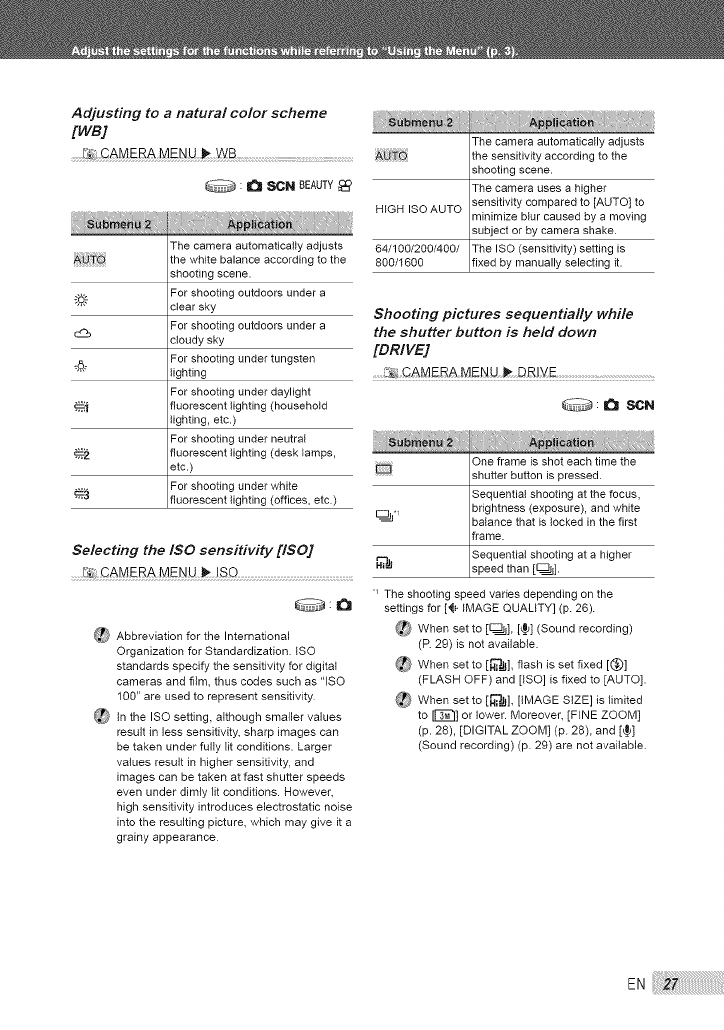

Adjusting to anatural color scheme

[WB]

_ CAMERAMENU_ WB ........ _

: _ SeN BEAUTY

The camera automatically adjusts

TO the white balance according to the

shooting scene.

For shooting outdoors under a

";_" clear sky

cC5 For shooting outdoors under a

cloudy sky

For shooting under tungsten

:6,_ lighting

For shooting under daylight

_i fluorescent lighting (household

lighting, etc.)

For shooting under neutral

:,@"2 fluorescent lighting (desk lamps,

etc.)

For shooting under white

_3 fluorescent lighting (offices, etc.)

Selecting the /SO sensitivity I/SOl

L:_CAMEBA MENU _ !SO

Abbreviation for the International

Organization for Standardization. ISO

standards specify the sensitivity for digital

cameras and film, thus codes such as "ISO

100" are used to represent sensitivity.

In the ISO setting, although smaller values

result in less sensitivity, sharp images can

be taken under fully lit conditions. Larger

values result in higher sensitivity, and

images can be taken at fast shutter speeds

even under dimly lit conditions. However,

high sensitivity introduces electrostatic noise

into the resulting picture, which may give it a

grainy appearance.

HIGH ISO AUTO

64/100/200/400/

800/1600

The camera automatically adjusts

the sensitivity according to the

shooting scene.

The camera uses a higher

sensitivity compared to [AUTO) to

minimize blur caused by a moving

subject or by camera shake.

The ISO (sensitivity) setting is

fixed by manually selecting it.

Shooting pictures sequentially while

the shutter button is held down

[DRIVE]

....... _ OB!_E ....................... ....

One frame is shot each time the

shutter button is pressed.

Sequential shooting at the focus,

E_'_ brightness (exposure), and white

balance that is locked in the first

frame.

Sequential shooting at a higher

HP'J_J'JJ speed than [E_] ].

"1 The shooting speed varies depending on the

settings for [_i, IMAGE QUALITY] (p. 26).

(_) When set to [1::_3], [_] (Sound recording)

(R 29) is not available.

_ When set to [H_*_3_],flash is set fixed [(_)]

(FLASH OFF) and [ISO] is fixed to [AUTO].

_ When set to [H_C3_],[IMAGE SIZE] is limited

to [E_] or lower. Moreover, [FINE ZOOM]

(p. 28), [DIGITAL ZOOM] (p. 28), and [_]

(Sound recording) (p. 29) are not available.

Shooting at higher magnifications than

optical zoom without reducing the

image quality [FINE ZOOM]

....... ZQOM

_--, _ : _ ,,_,CNtBEAUTY

Only optical zoom is used to zoom

in for shooting.

Optical zoom and image cropping

ON are combined to zoom in for

shoot ng (Approx. 62x (max.).

_P_ This function will not reduce the image

quality since it dose not convert the data

with fewer pixels into the data with larger

pixels.

_ When set to [ON], [IMAGE SIZE] is limited

to [E_] or lower.

This function is not available when

[DIGITAL ZOOM] is [ON].

@_ This function is not available when

[s,_ SUPER MACRO] (p. 21) is selected.

Shooting at higher magnifications than

optical zoom [DIGITAL ZOOM]

L-:_CAMERA MENU _ D!G!TAL £Q©M ....

: _"_ ,,,_Ni BEAUTY

Only optical zoom is used to zoom

in for shooting.

Optical zoom and digital zoom are

ON combined to zoom in for shooting

(Approx. 50x max..

_ This function is not available when

[FINE ZOOM] is [ON].

_ This function is not available when

[s,_ SUPER MACRO] (p. 21) is selected.

Selecting the range for measuring the

brightness [ESP/[_]

Shoots to obtain a balanced

brightness over the entire screen.

(Meters the brightness at the

center and surrounding areas of

the screen separately.)

Shoots the subject at the center

[_ (spot) dar ng back ght ng.

_ When set to [ESP], the center may

appear dark when shooting against strong

backtighting.

Selecting the focusing area [AF MODE]

.......:_ GAMEBA MENU _ AE MQDE .......................................................

FACE DETECT

iESP

This is used for taking pictures of

people. (The camera automatically

detects a face and displays a

frame on the monitor). Press the

shatter button halfway, when the

camera focuses on a face the AF

target mark lights green. When the

AF target mark lights orange, this

indicates the camera has focused

on something other than a face.

This enables you to compose the

shot without worrying about the

focusing position. The camera

finds the subject to focus on and

automatically adjusts the focus.

The camera focuses on the

subject within the AF target mark.

_ For some subjects, the frame may not appear or

may take some time to appear.

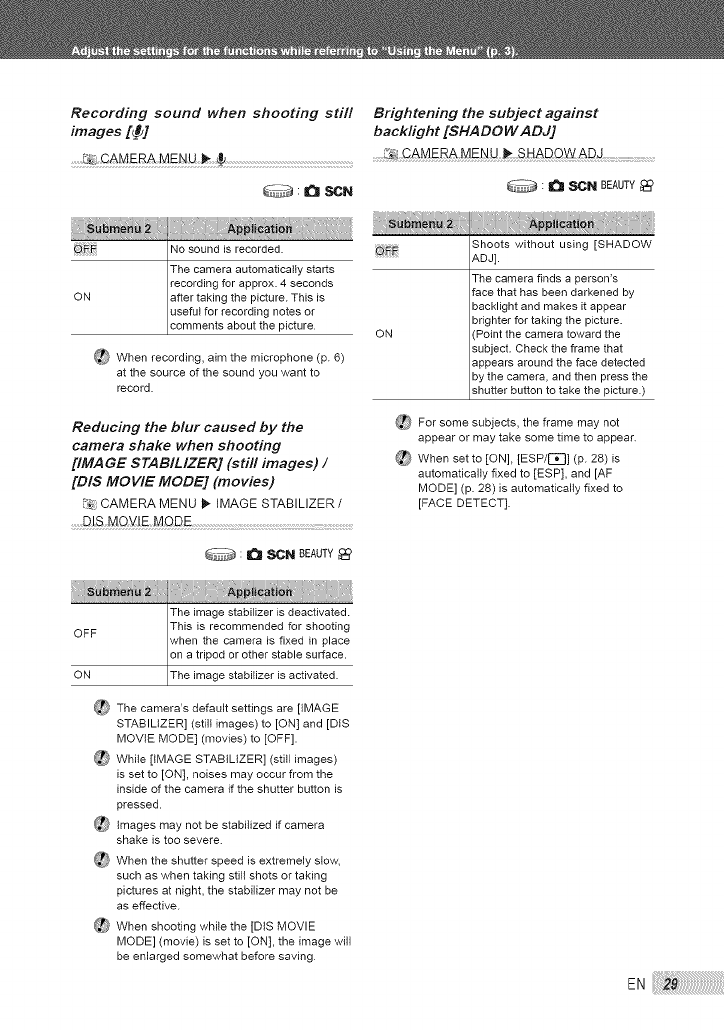

Recording sound when shooting still Brightening the subject against

images [_] backlight [SHADOWADJ]

......._:_CAMEBA ........ .............................

C_ : it_ ,_:_!_1 0 : I_1 ,SeN BEAUTY

No sound is recorded.

The camera automatically starts

recording for approx. 4 seconds

ON after taking the picture. This is

useful for recording notes or

comments about the p cture.

_ When recording, aim the microphone (p. 6)

at the source of the sound you want to

record.

Reducing the blur caused by the

camera shake when shooting

[IMAGE STABILIZER] (still images) /

[DIS MOVIE MODE] (movies)

?_i CAMERA MENU _ IMAGE STABILIZER /

........DIS MQ_IE MQDE ............................

_ : _ sen BEAUTY

Shoots without using [SHADOW

ADd].

The camera finds a person's

face that has been darkened by

backlight and makes it appear

brighter for taking the picture.

(Point the camera toward the

subject. Check the frame that

appears around the face detected

by the camera, and then press the

shutter button to take the picture.)

For some subjects, the frame may not

appear or may take some time to appear.

_ When set to [ON], [ESP/E_] (p. 28) is

automatically fixed to [ESP], and [AF

MODE] (p. 28) is automatically fixed to

[FACE DETECT].

OFF

The image stabilizer is deactivated.

This is recommended for shooting

when the camera is fixed in place

on a tripod or other stable surface.

The mage stab zer s actvated.

The camera's default settings are [IMAGE

STABILIZER] (still images) to [ON] and [DIS

MOVIE MODE] (movies) to [OFF].

While [IMAGE STABILIZER] (stilt images)

is set to [ON], noises may occur from the

inside of the camera if the shutter button is

pressed.

Images may not be stabilized if camera

shake is too severe.

When the shutter speed is extremely stow,

such as when taking still shots or taking

pictures at night, the stabilizer may not be

as effective.

When shooting while the [DIS MOVIE

MODE] (movie) is set to [ON], the image will

be enlarged somewhat before saving.

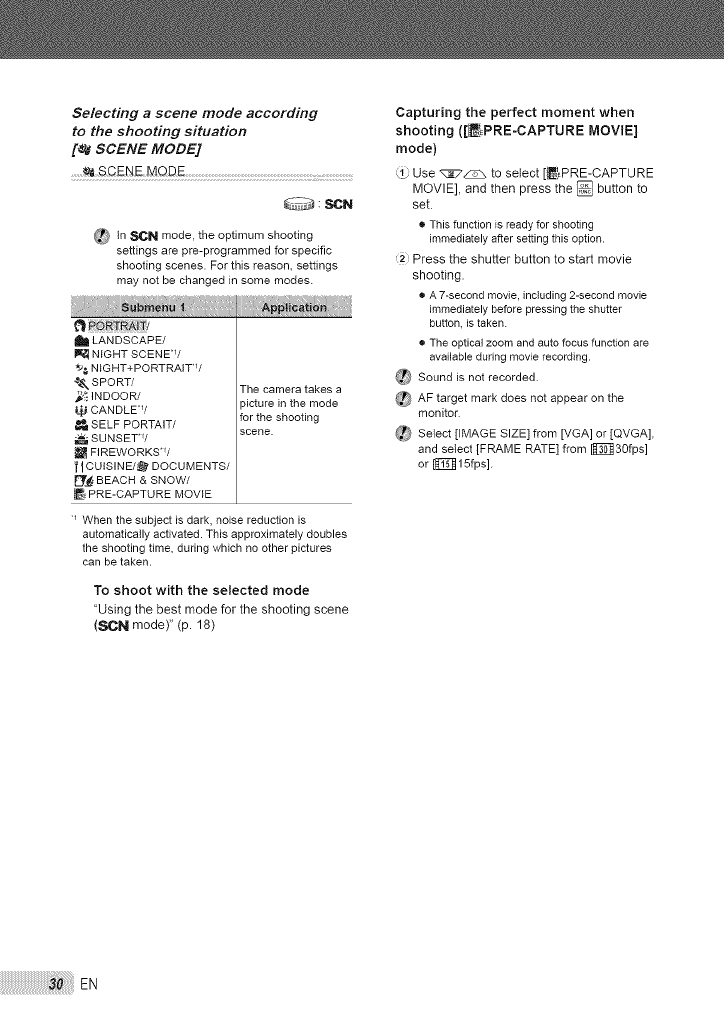

Selecting a scene mode according

to the shooting situation

[_# SCENE MODE]

......._ SCSNE MQD5 .....

(:::T_:scN

_ In ,_01_1 mode, the optimum shooting

settings are pre-programmed for specific

shooting scenes. For this reason, settings

may not be changed in some modes.

¢I LANDSCAPE/

NIGHT SCENE/

*J,_NtGHT+PORTRAITW

_ SPORT/

_ INDOOR/

CANDLEW

SELF PORTAIT/

SUNSET*/

FIREWORKS*/

_'_CUtSINE/L_' DOCUMENTS/

[_ BEACH & SNOW/

_.,oPRE-CAPTURE MOVIE

The camera takes a

picture in the mode

for the shooting

scene.

When the subject is dark, noise reduction is

automatically activated. This approximately doubles

the shooting time, during which no other pictures

can be taken.

To shoot with the selected mode

"Using the best mode for the shooting scene

(_i_1 mode)" (p. 18)

Capturing the perfect moment when

shooting ([_PRE-CAPTURE MOVIE]

mode)

% Use _ to setect [_PRE-CAPTURE

MOVIE], and then press the [] button to

set.

® This function is ready for shooting

immediately after setting this option.

Press the shutter button to start movie

shooting.

® A 7-second movie, including 2-second movie

immediately before pressing the shutter

button, is taken.

® The optical zoom and auto focus function are

available during movie recording.

Sound is not recorded.

@_ AF target mark does not appear on the

monitor.

_ Select [IMAGE SIZE] from [VGA] or [QVGA],

and select [FRAME RATE] from [_[T01_3Ofps]

or [_]] 15fps].

Creating panoramic images

[_ PANORAMA]

_ : r'_ SCN

Three frames are taken and

combined by the camera. The

user only composes the shots

so that the target marks and

M_p.A __ pointers overlap, and the camera

.........................................automatically reteases the shutter.

The shooting functions are already

preset to the optimum settings for

)anoramic shooting.

Three frames are taken and

COMBINE IN combined by the camera. The

CAMERA 2"_.2 user composes the shots using

the guide frame and manually

releases the shutter.

The frames that were taken are

combined into a panorama image

using the OLYMPUS Master 2

COMBINE IN PC software from the provided CD-

ROM. Pictures are taken in the

last [ISO] or [_6 SCENE MODE]

settings (except for some scene

modes).

Not available in .SCN mode (p. 18).

2 The [{i. IMAGE QUALITY] (p. 26) setting cannot be

changed.

The focus, exposure (p. 2I), zoom position

(p. 20), and [WB] (p. 27) are locked at the

first frame.

The flash (p. 20) is fixed to (_) (FLASH OFF)

mode.

_ Panorama images can be edited using

[SHADOW ADd] (p. 29), [COLOR EDIT]

(p. 35) only.

_) "Playing back panorama images" (p. 25)

Taking pictures with

[COMBINE IN CAMERA 1]

_ Press the shutter button to take the first

frame.

Move the camera slightly in the direction

of the second frame.

Target mark

Pointer

Screen when combining

images from left to right

3> Move the camera slowly while keeping it

straight, and stop the camera where the

pointer and target mark overlap.

• The camera releases the shutter

automatically.

_ To combine onty two pictures, press the

button before taking the third frame.

4_ Take the third frame in the same way as

Step 3_.

• After the third frame is taken, the camera

automatically processes the frames and the

combined panorama image is displayed.

(_/_ To cancei making panoramic picture during

shooting, press the MENU button.

_ When the shutter does not automatically

release, try [COMBINE IN CAMERA 2] or

[COMBINE IN PC].

Taking pictures with

[COMBINE iN CAMERA 2]

,:1_,Use [_ to select the direction that the

frames are combined.

Direction for

combining the

next frame

Press the shutter button to take the first

frame.

• A guide frame appears as e reference.

Guide frame

Joint area

1st frame

,3 Compose the second shot so that the

joint area overlaps the guide frame.

Composition of the 2nd frame

4. Press the shutter button to take the

second frame.

To combine onty two pictures, press the

button before taking the third frame.

5> Take the third frame in the same way as

Steps 3_ to 14x.

• After the third frame is taken, the camera

automatically processes the frames and the

combined panorama image is displayed.

_ To cancei making panoramic picture during

shooting, press the MENU button.

Taking pictures with [COMBINE IN PC]

% Use _[_ to select the direction

that the frames are combined.

Press the shutter button to take the first

frame, and then compose the second

shot.

• Composetheshotusingtheguideframeso

that thetwo adjacentframes overlap.

3> Repeat Step _ until the number of

required frames are taken, and then press

the _ button when finished.

_ When the [[_1mark is displayed, you cannot

continue shooting any further. Panorama

shooting is possible for up to 10frames.

_ Refer to the OLYMPUSMaster 2 help

guide for details on how to make panorama

images.

Restoring the shooting functions to the

default settings [_ RESET]

........_ BESE! ...............

_ : _ _ SCN BEAUTY

YES

Restores the following menu

functions to the default settings.

• Flash (p. 20)

• Exposure compensation (p. 21)

• Macro (p. 21)

• Self-timer (p. 22)

•[_, IMAGE QUALITY] (p. 26)

• Menu functions in

[1;_ CAMERA MENU]

(p. 27 to 29)

The current settings are not

changed.

EN 33

Menus for Playback, Editing, and

Printing Functions

_ The default settings of the function are highlighted in.

When the mode dial is set to the [] position, settings can be adjusted.

Playing back automatically [_ SLIDESHOW]

......._?_s_!_Esu_ .... ....

)_ _ _/ / Selects the range of images for the slideshow, the

STILL PICTURE/ FADEw_iSLIDEW OFF/ }2 type of transition effect ([TYPE]) used between

MOVIE/ _mages, and the background mus c BGM.

CALENDAR ZOOM Vdatd2

Only when [STILL PICTURE] is selected in Submenu 1.

2 Only when [CALENDAR] is selected in Submenu 1.

To start a slideshow

After pressing the @ button to make the [BGM] settings, the slideshow starts. To stop the

slideshow, press the [] button or the MENU button.

_ [BGM] is not available when [_ SILENT MODE] (p.45) is set to [ON].

Retouching images [_ PERFECT FIX] Retouching the skin and eyes

....... [_ BEAUTY FIX]

........_ BEAUTY EiX

_) Depending on the picture, the editing may

not be effective. _ Depending on the picture, the editing may

_P_ The retouching process may lower the not be effective.

image resolution.

SHADOW ADJ

REDEYE FIX

[SHADOW ADJ] and

[REDEYE FIX] are applied

together.

Only sections darkened by

backlighting and dim lighting are

brightened.

Eyes that are reddened by the

flash are corrected.

U_'Use :317_ to select a correction

method and press the [] button.

Use r_ to select an image for retouching,

and press the [] button.

®The retouchedimageissaved asa separate

image.

CLEAR SKIN

SPARKLE EYE

DRAMATIC

EYE

SOFT/AVG/

HARD

[CLEAR SKIN],

[SPARKLE EYE] and

[DRAMATIC EYE] are

applied together.

Makes skin look

smooth and

translucent. Select the

desired effect from

among the 3 levels.

Enhances the contrast

of the eyes.

Enlarges the subject's

eyes.

% Use _ to select a correction

method, and press the [] button.

Use _ to select an image for retouching,

and press the [] button.

® The retouched image is saved as a separate

image.

When [CLEAR SKIN] is selected

Use _[7_ to setect the retouching level,

and press the [] button.

Changing the color tone of image

[COLOR EDIT]

Changing the image size [_]

Slack & white This changes the image to bIack

and white.

This changes the image to a

Sepia sepia tone.

This increases the color saturation

Saturation(hard) of the image.

This slightty increases the color

Saturation (soft) saturation of the image.

Sepia

Black &

(.1 Use [_] to select an image.

Use _[7_ to select an image size and

press the [] button.

• The image with the selected size is saved as a

separate image.

Cropping a picture [JEll

.......,_ ED!I _ _ ..................................

J_,Use [_q to select an image, and press the

[] button.

Use the zoom lever to select the size of

the cropping frame, and use _J

to move the frame.

Saturation

Saturation (soft)

_ Use _j to select an image, and press the

[] button.

Use _[_J to select the desired

color, and press the [] button.

• Theimage withthe selectedcolor is savedas

a separateimage.

Cropping frame

'_ Press the [] button.

• Theeditedimageis savedasa separateimage.

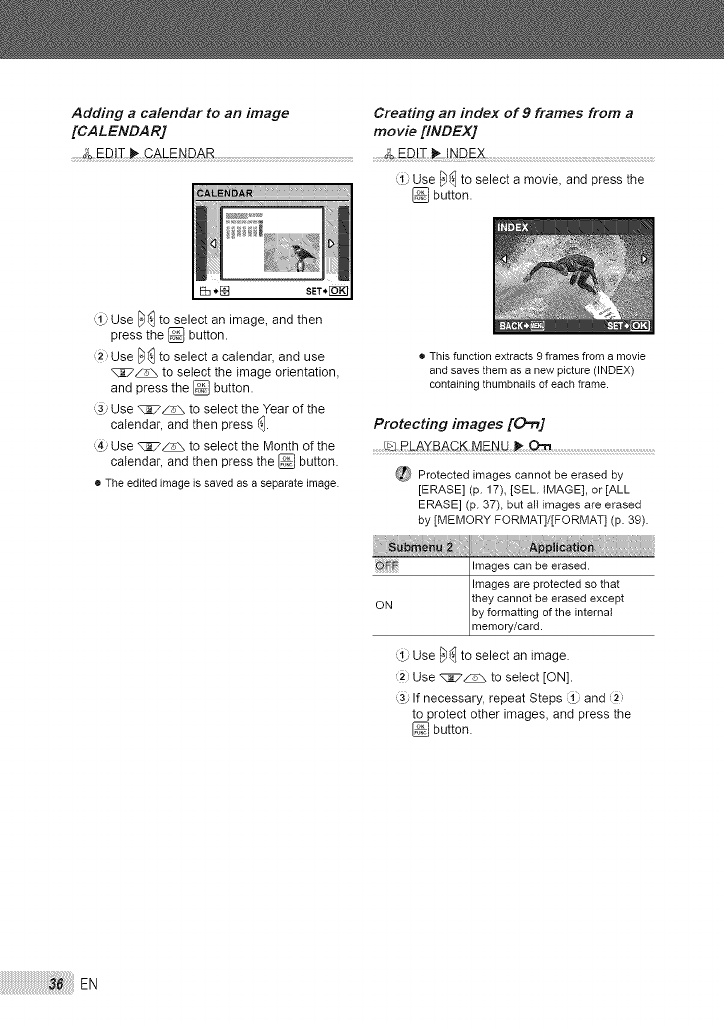

Adding acalendar to an image Creating an index of 9 frames from a

[CALENDAR] movie [INDEX]

%, Use _ to select a movie, and press the

[] button.

,:1_,Use _ to select an image, and then

press the [] button.

Use [_ to select a calendar, and use

_ to select the image orientation,

and press the [] button.

3_ Use ::_[7_ to select the Year of the

calendar, and then press _J.

(4/Use ::_[7_ to select the Month of the

calendar, and then press the [] button.

• Theeditedimageis savedasa separateimage.

® This function extracts 9 frames from a movie

and saves them as a new picture (INDEX)

containing thumbnails of each frame.

Protecting images [On]

........L_] BLAYBAGK ......................................................................

_ Protected images cannot be erased by

[ERASE] (p. 17), [SEE iMAGE], or [ALL

ERASE] (p. 37), but all images are erased

by [MEMORY FORMAT]/[FORMAT] (p. 39).

Images can be erased,

Images are protected so that

they cannot be erased except

ON by formatting of the internal

memory/card.

{1_ Use _J to select an image.

Use _ to select [ON].

3_ If necessary, repeat Steps (:1_,and ,2

to protect other images, and press the

[] button.

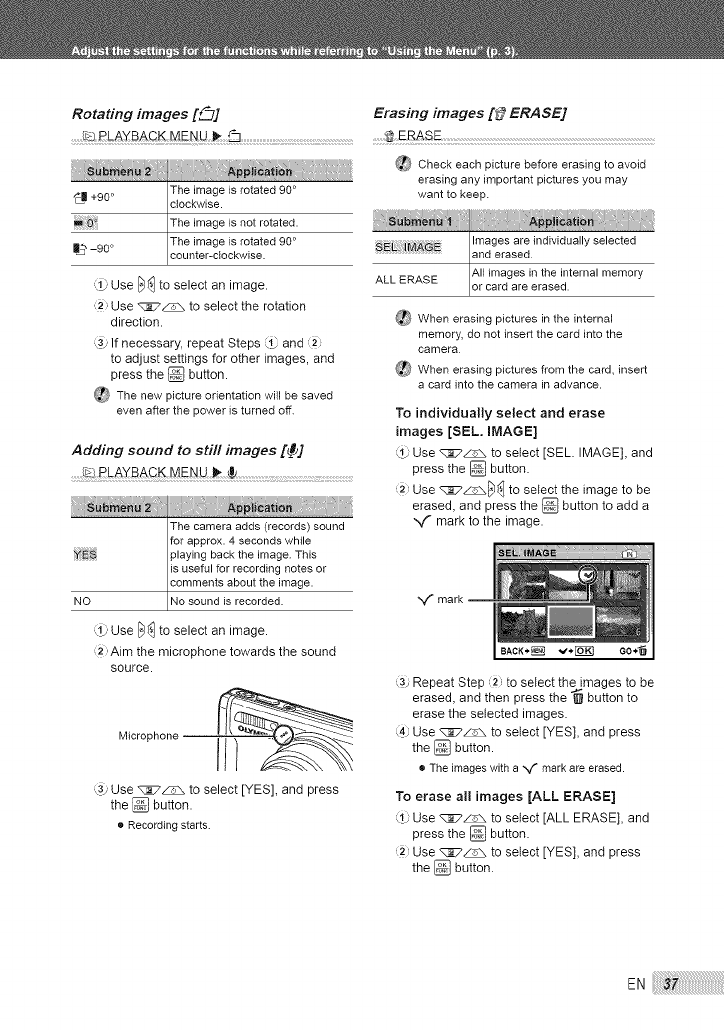

Rotating images [_] Erasing images [_ ERASE]

....... ....................... EBASE....

_ Check each picture before erasing to avoid

erasing any important pictures you may

_| +90° The image is rotated 90 ° want to keep.

clockwise.

The image is not rotated.

_90° The image is rotated 90 °

counter-clockwise.

::1_,Use [_] to select an image.

Use q3gT_ to select the rotation

direction.

3_If necessary, repeat Steps _ and

to adjust settings for other images, and

press the [] button.

_t_ The new picture orientation will be saved

even after the power is turned off.

Adding sound to still images [_]

.......!>J_LAYBAC_ MBMU _ _l....................

The camera adds (records) sound

for approx. 4 seconds while

playing back the image. This

is useful for recording notes or

comments about the image.

NO No sound s recorded.

,::1_,Use [_ to select an image.

Aim the microphone towards the sound

source.

Microphone

,3 Use :3g7_ to select [YES], and press

the [] button.

® Recording starts.

_ When erasing pictures in the internal

memory, do not insert the card into the

camera.

{_ When erasing pictures from the card, insert

a card into the camera in advance.

To individually select and erase

images [SEL. iMAGE]

_ Use _ to select [SEL. IMAGE], and

press the [] button,

_) Use _ to select the image to be

erased, and press the [] button to add a

",7" mark to the image,

mark

(3_Repeat Step to select the images to be

erased, and then press the _ button to

erase the selected images.

4_ Use _ to select [YES], and press

the [] button.

®Theimageswith a "y" markare erased.

To erase all images [ALL ERASE]

_ Use _ to select [ALL ERASE], and

press the [] button.

_) Use _ to select [YES], and press

the [] button.

Saving print settings to the image data

[_ PRINT ORDER]

........_ RB!N! ORDEB ................................................................................................................................................

_} "Print Reservations (DPOF)" (p. 49)

_ Print reservation can only be set for still

images that are recorded to the card.

Menus for Other Camera Settings

_ The default settings of the function are highlighted in.

Erasing data completely

[MEMORY FORMAT]/[FORMAT]

_ Before formatting, check that no important

data is left in the internat memory or card.

_ Non-Olympus cards and cards that have

been formatted by a computer must be

formatted with this camera before use.

Completely erases the image data

YES in the internal memory* or card

(including protected images).

N Cance s formatt ng.

Be sure to remove the card before formatting the

internal memory.

Changing the display language [_]

........_? ................

"Changing the display language" (p. 14)

The language for the menus and

Languages "_ error messages displayed on the

Imonitor is selected.

"_ The available languages vary depending on the

country and/or region where the camera was

purchased.

Copying images in the internal memory

to the card [BACKUP]

Backs up image data in the

YES internal memory to the card.

Cance s the backup.

_ It takes some time to back up data. Check

that the battery has sufficient power before

starting the backup, or use an AC adapter.

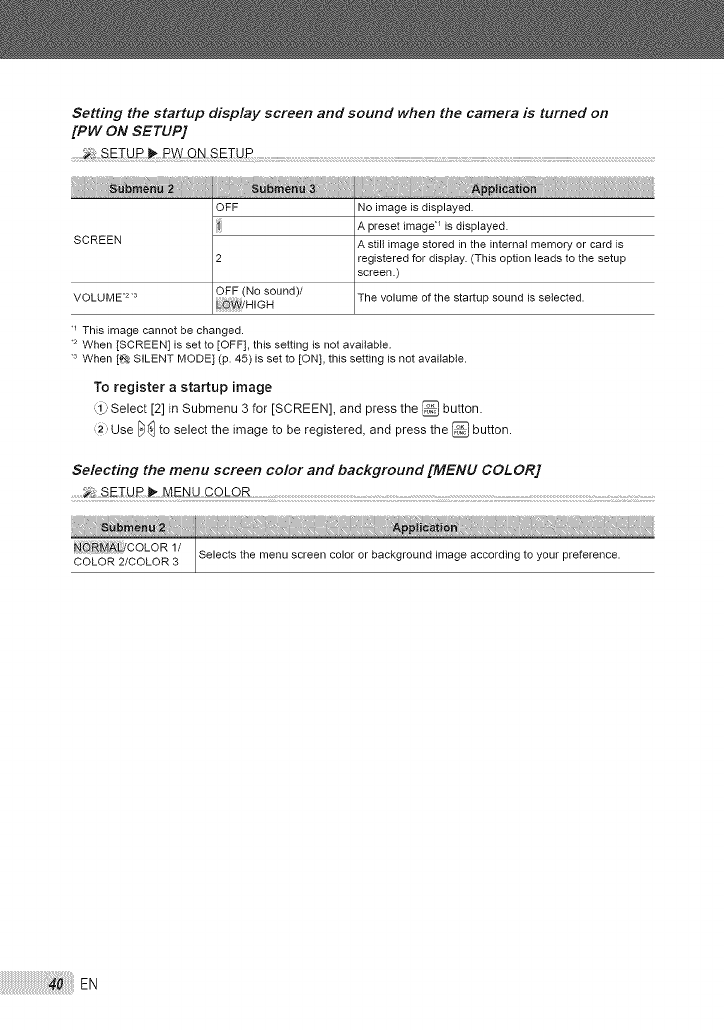

Setting the startup display screen and sound when the camera is turned on

[PW ONSETUP]

OFF No image is displayed.

2OFF A preset image is displayed.

SCREEN A still image stored in the internal memory or card is

registered for display. (This option leads to the setup

screen.)

(N d)/

VOLUME2 s @_!H GH The vo ume of the star up sound s se ected.

This image cannot be changed.

2 When [SCREEN] is set to [OFF], this setting is not available.

s When [_ SILENT MODE] (p. 45) is set to [ON], this setting is not available.

To register a startup image

'#DSelect [2] in Submenu 3 for [SCREEN], and press the [] button.

Use r_ to select the image to be registered, and press the [] button.

Selecting the menu screen color and background [MENU COLOR]

......._sE_u_ .............................................................................................

N _ COLOR 1/ Selects the menu screen color or background image according to your preference.

COLOR 2/COLOR 3

Selecting the camera sound and its volume [SOUND SETTINGS]

BEEP

SHUTTER SOUND

O_]VOLUME

SOUND TYPE

VOLUME

SOUND TYPE

VOLUME

OFF (No sound)/

_iOW/HIGH

OFF (No sound)/

_!HIGH

1/2/3

OFF (No sound)/

_!HIGH

iiiii_ii_ii_ii1iii_iiiii_i_i_iii_i_iiiiii@i_i@_i_!iii!_iiiiiiiHi_iii_ii_ii_i_iii_ii_iiiii_iiiiii_

Selects the operating sound and volume

of the camera buttons (except the shutter

button).

Selects the type and volume of the shatter

sound.

-- Adjusts the warning sound volume.

-- Adjusts the image playback volume.

_ To turn off all sounds at once, adjust the setting from [_ SILENT MODE] (p. 45).

Viewing the image immediately after shooting [REC VIEW]

....... vtEw .... ...... ...... :

_i_iiilli!i_ii! !i,!,!,!,:ili:iiii!!,!,!,,,Lii!_,!:!,,,,,_:!,iI,_!,9_iiii!i!,,,,,,,,,,,J!',,%i,,,,,,_i,iiii_,_!..........ii,L:!,,,L L:L::ii!,_L,,l,,:i!__......

The image being recorded is not displayed. This allows the user to prepare for the next

OFF shot while following the subject in the monitor after shooting.

The image being recorded is displayed. This allows the user to briefly check the image

O:i'4 that was ust taken.

_ Even when set to [ON], you can resume shooting while the image is being displayed.

Resetting the file name numbers of Adjusting the CCD and the image

pictures [FILE NAME] processing function [PIXEL MAPPING]

Folder name

DCIM

Folder name File name


.jPg

Automatic Automatic

numbering numbering

-- Month: 1 to C

(A=October,

B=November,

C=December)

_ This function has already been adjusted

at factory shipping, and no adjustment is

needed right after purchase. Approximately

once a year is recommended.

_ For best results, wait at least one minute

after taking or viewing pictures before

performing pixel mapping. If the camera is

turned off during pixel mapping, be sure to

perform it again.

To adjust the CCD and the image

processing function

Press the [] button when [START]

(Submenu 2) is displayed.

• Thecamerachecksand adjuststhe CCD andthe

imageprocessingfunctionat the sametime.

Day: 01 to 31

AUTO

This resets the sequential number

for the folder name and file name

whenever a new card is inserted. _1

This is useful when grouping

images on separate cards.

Even when a new card is inserted,

this continues the numbering for

the folder name and file name from

the previous card. This is useful for

managing all image folder names

and files names with sequential

numbers.

The number for the folder name is reset to 100, and

the one for the file name is reset to 0001.

Adjusting the brightness of the monitor Setting the date and time for another

[I..l_J] time zone [DUAL TIME]

To adjust the monitor brightness

J_,Use q317_ to adjust the brightness

while viewing the screen, and then press

the [] button.

_ By setting [DUALTIME] to [ON] and setting

the date and time, the set date and time is

reflected in the image file names, date prints

and so on.

.........................................Switches to the date and

-- time set in [(_)] (Date/

time).

Switches to the date

(Proceeds and time that were set in

to the [DUALTIME] when using

setting

screen.L) the camera in another

time zone.

Setting the date and time [_)]

_ "Setting the date and time" (p. 13)

_ The setting procedure is identical to that in "Setting

the date and time" (p. 13).

_} The date display order is the same as that

set with [_].

To select the date and time display

order

,:1_,Press 1_after setting "Minute", and use

_ to select the date display order.

Date orde*

I CANCEL*_ SET*_

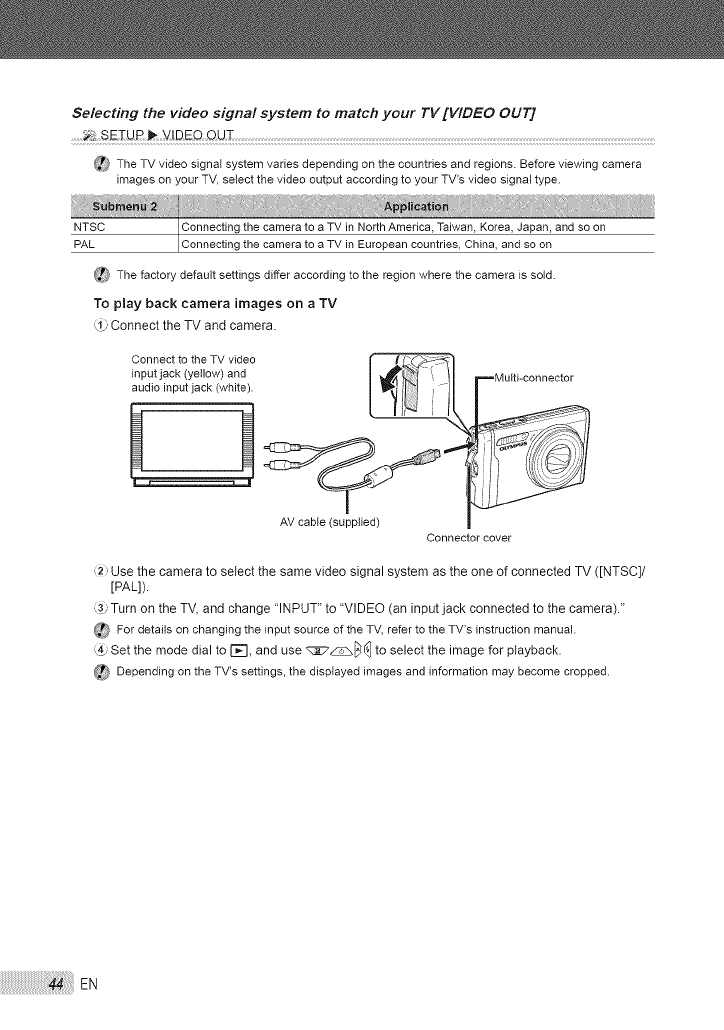

Selecting the video signal system to match your TV [VIDEO OUT]

_ The TV video signal system varies depending on the countries and regions. Before viewing camera

images on your TV, select the video output according to your TV's video signal type.

NTSC Connecting the camera to a TV in North America, Taiwan, Korea, Japan, and so on

PAL Connecting the camera to a TV in European countries, China, and so on

_ The factory default settings differ according to the region where the camera is sold.

To play back camera images on a TV

J_, Connect the TV and camera.

Cpnt _c_t _teh/°Twk_Vidd° _Muiti ....... tor

audio input jack (white).

AV cable (supplied)

Connector cover

Use the camera to select the same video signal system as the one of connected TV ([NTSC]/

[PAL]).

3_Turn on the TV, and change "INPUT" to "VIDEO (an input jack connected to the camera)."

@_ For details on changing the input source of the TV,refer to the TV's instruction manual.

4j Set the mode dial to [_, and use _J to select the image for playback.

(_ Depending on the TV's settings, the displayed images and information maybecome cropped.

Saving battery power between shots

[POWERSAVE]

Cancels [POWER SAVE].

When the camera is not being

used for approx. 10 seconds, the

ON monitor automatically turns off to

save battery power.

To resume standby mode

Press any button or turn the mode dial.

Turning off the camera sounds

[_ SILENT MODE]

Activates the [SOUND SETTINGS]

setting.

The electronic sounds (operating

sound, shutter sound, warning

ON sound) and playback sounds are

muted.

_ [SOUND SETTINGS] (p. 41)

By connecting the camera to a PictBridge-

compatible printer, you can print images directly

without using a computer.

To find out if your printer supports PictBridge,

refer to the printer's instruction manual.

• PictBridge is a standard for connecting digital

cameras and printers of different makers and

printing out pictures directly.

The printing modes, paper sizes, and other

parameters that can be set with the camera

vary depending on the printer that is used.

For details, refer to the printer's instruction

manuat.

_} For details on the available paper types,

loading paper, and installing ink cassettes,

refer to the printer's instruction manual.

Printing images at the

printer's standard settings

........[EAS Y PR IN T] ...........................................................................................................................................................................................................

Display the image to be printed on

the monitor,

_ "Viewing images" (p. 16)

_ Printing can also be started when the

camera is turned off. After performing Step

2, use q:_7_ to select [EASY PRINT],

press the _ button. Use _ to select an

image, and press the _ button.

2Turn on the printer, and then

connect the printer and camera.

3Press _ to start printing.

4To print another image, use [_

to select an image, and press the

button.

To exit printing

After a selected image is displayed on the

screen, disconnect the USB cable from the

camera and printer.

Changing the printer's settings

fo_ printing [CUSTOM PRINT]

Follow Steps I and 2 for [EASY

PRINT] (p. 46), then press the

button.

4 Use _7_ to select [SIZE]

(Submenu 3), and press _.

_} If the [PRINTPAPER] screen is not

displayed, the [SIZE], [BORDERLESS],

and [PICS/SHEET] are set to the printer's

standard.

2 Use _7_ to select [CUSTOM

PRINT], and press the _ button.

3 Use _7_ to select the print

mode, and press the _ button.

ALL PRINT

MULTI PRINT

ALL INDEX

PRINT ORDER "1

This prints the image selected in

Step 6.

This prints all images stored in the

internal memory or card.

This prints one image in a multiple

layout format.

This prints an index of all images

stored in the internal memory

or card.

This prints images based on the

)rint reservation data on the card.

[PRINT ORDER] is available only when print

reservations have been made. "Print Reservations

(DPOF)" (p. 49)

5 Use _7_ to select the

[BORDERLESS] or [PICS/SHEET]

settings, and press the _ button.

The image is printed with a border

around it ([OFF]).

OFF/ON'_ The image is printed to fill the

entire paper ([ON]).

(The number of The number of images per sheet

images per sheet ([PICS/SHEET]) is seiectable only

varies depending when [MULTI PRINT] is selected

on the printer.) n Step 3.

_ The available settings for [BORDERLESS] vary

depending on the printer.

_} If [STANDARD] is selected in Steps 4 and 5,

the image is printed at the printer's standard

settings.

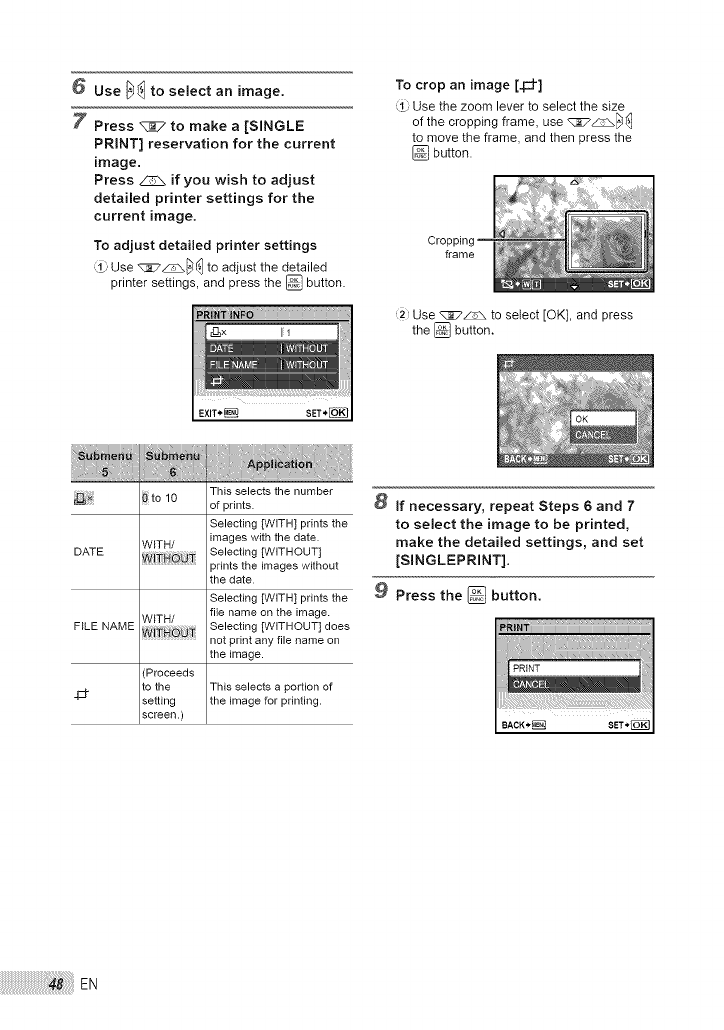

6 Use _ to select an image.

7Press _7 to make a [SINGLE

PRINT] reservation for the current

image.

Press _if you wish to adjust

detailed printer settings for the

current image.

To adjust detailed printer settings

,::1_.Use _:7_ _Jto adjust the detailed

printer settings, and press the _ button.

DATE

FILE NAME

_Utomen_::

_to 10

WITH/

(Proceeds

to the

setting

screen.)

This selects the number

of prints.

Selecting [WITH] prints the

images with the date.

Selecting [WITHOUT]

prints the images without

the date.

Selecting [WITH] prints the

file name on the image.

Selecting [WITHOUT] does

not print any file name on

the image.

This selects a portion of

the image for printing.

To crop an image [-I:d']

{b Use the zoom lever to select the size

of the cropping frame, use _[7_[_

to move the fi-ame, and then press the

button.

Cropping

frame

Use _ to select [OK] and press

the _ button.

If necessary, repeat Steps 6and 7

to select the image to be printed,

make the detailed settings, and set

[SINGLEPRINT].

9 Press the _ button.

tVUse _ to select [PRINT], and

the _ button,press

• Printing starts.

• When [OPTION SET] is selected in [ALL PRINT]

mode, [PRINT INFO] screen is displayed.

• When printing is finished, the [PRINT MODE

SELECT] screen is displayed.

To cancel printing

J_,Press the [] button while

[TRANSFERRING] is displayed.

Use q3Z7_ to select [CANCEL], then

press the [] button.

_Press the MENU button.

_2When the message [REMOVE USB

CABLE] is displayed, disconnect

the USB cable from the camera and

printer.

In print reservations, the number of prints and

date imprint option are saved in the image on

the card. This enables easy printing at a printer

or print shop supporting DPOF by using only the

print reservations on the card without a computer

or a camera.

*_ DPOF is a standard for storing automatic printout

information from digital cameras.

Print reservations can be set only for the

images stored on the card. Insert a card

with recorded images before making print

reservations.

_} DPOF reservations set by another DPOF

device cannot be changed by this camera.

Make changes using the original device.

Making new DPOF reservations with this

camera will erase the reservations made by

the other device.

_ DPOF print reservations can be made for up

to 999 images per card.

Single=frame print

reservations [_] ...........................................................................

Set the mode dial to [_7, and then

press the MENU button to display

the top menu.

2 Use %_7_ to select [R_ PRINT

ORDER], and press the _ button.

3Use _;;_ to select [rE]_],and

press the _ button.

4 Use _ to select the image for print

reservation. Use _;_ to select

the quantity. Press the _ button.

Use _;_z_ to select the [Q] (date

print) screen option, and press the

[] button.

NO This prints the imago onty.

This prints the imago with the

DATE shooting date.

This prints the imago with the

TIME shoot ng time.

Reserving one print each of all

Follow Steps I and 2 in [rE_] (p. 49).

2 Use _[2'_ to select [r[_._L],and

press the [] button.

3Follow Steps 5 to 6 in [_].

Resetting all print reservation

Set the mode dial to [_, and then

press the MENU button to display

the top menu.

Use _[;:_[_ _ to select [_ PRINT

ORDER], and press the [] button.

3Select either [r[_] or [_[_L], and press

the _ button.

6 Use _;Tz_ to select [SET], and

press the _ button.

Resetting the print reservation

Follow Steps 1 and 2 of "Resetting

all print reservation data" (p. 50).

2Use _ to select [r[_], and

press the _ button.

3 Use _:7_ to select [KEEP) and

press the _ button.

4 Use _ to select the image with

the print reservation you want to

cancel. Use %_7_ to set the print

quantity to "0".

5If necessary, repeat Step 4, and then

press the _ button when finished.

6 Use _ to select the [(_] (date

print) screen option, and press the

button.

• Thesettingsareapp}iedto the remainingimages

withthe printreservationdata.

7 Use _:7_ to select [SET], and

press the _ button.

OLYMPUS Master 2

System requirements and

installation of OLYMPUS

Master 2............................

Install the OLYMPUS Master 2 software by

referring to the included installation guide.

Connecting the camera to a

computer

Make sure the camera is turned off,

• The monitor is off.

2Connect the camera to a computer.

• The camera automatically turns on.

_EMuIti tor.......

USB cable (supplied)

_!!_i\ ° i',,

_=_( Connector cover

_ Locate the position of the USB port by

referring to your computer's instructions

manual.

3 Use _:_:7_ to select [PC], and

the _ button.

press

• The computer automatically detects the camera as

a new device on the first connection.

Windows

After the computer detects the camera, a

message indicating the completion of the

setting appears. Confirm the message and

click "OK". The camera is recognized as a

removable disk.

Macintosh

When iPhoto started, exit iPhoto and start

OLYMPUS Master 2.

_ While the camera is connected to the

computer, shooting functions are disabled.

_ Connecting the camera to a computer via a

USB hub may cause unstable operation.

_ When [MTP] is set for the submenu that

appears by pressing _ after selecting [PC]

in Step 3, images cannot be transferred to a

computer using OLYMPUS Master 2.

........8tarting OLYMPUS Maste_ 2

Double=click the OLYMPUS Master 2

icon.

Windows

app ...... the desktop.

Macintosh

"_ appears in the OLYMPUS Master 2 folder.

®Browse window appears after starting the

software.

_ When you start OLYMPUS Master 2 for the

first time after installation, "Default Settings"

and "Registration" screens appear. Follow

the instructions on the screen.

YMPUS Master 2

When OLYMPUS Master 2 is started, Quick

Start Guide appears on the screen that

helps you to handle the camera without any

question. When the Quick Start Guide is not

displayed, click _ in the toolbar to show

the Guide.

For details on the operation, refer to the help

guide of the software.

Transferring and saving

images without using

OLYMPUS Master 2 .......................................................................

This camera is compatible with tile USB Mass

Storage Class, You can transfer and save the

imagedata on your computer while the camera

and the computer are connected,

System requirements

Windows : Windows 2000 Professional/

XP Home Edition/

XP Professional/Vista

Macintosh : Mac OS X v10.3 or later

On a computer running Windows Vista, if

[MTP] is set for the submenu that appears

by pressing _] after selecting [PC] in Step 3

of "Connecting the camera to a computer"

(p. 52), Windows Photo Gallery will become

available.

_i_ Even if a computer has USB ports, proper

operation is not guaranteed in the following

cases.

® Computers with USB ports installed using an

expansion card, etc.

® Computers without a factory-installed OS and

home-built computers

If the camera does not work as intended, or if

an error message is displayed on the screen,

and you are unsure of what to do, refer to the

information below to fix the problem(s).

...................TroubleshQoting ...................................................................................................................................................................

Battery .................ii: i

"The camera does not work

battery is installed"

•Insert recharged battery in the _rect _i:rection.

"Charging the battery" (p. 10),

and the xU-Picture Card TM (SO]__t_jy}i_tQ :

the camera" (p. I1)

•Battery performance may have been reduced

temporarily due to low temperature. Take the

battery out of the camera, and warm it by putting it

in your pocket for a while.

Card/Internal memory

"An error message

"Errormessage"(p. 55) /_iTMiiiii'

Shutter button

"No picture is taken when the sh_te

button is pressed"

• Cancel sleep mode.

To save battery power, the camera automatically

goes into sleep mode and the monitor turns off

if there is no operation after 3 minutes When the

camera is turned on. No picture is taken eyen if

the shutter button is fully pressed in this mode.

Operate the zoom lever or other buttons to restore

the camera from sleep mode before taking a

picture. If the camera is left for 15 minutes, it

automatically turns off. Press the ON/OFF button to

turn on the camera.

• Set the mode dial to a position other than []_j.

• Wait until _'.(flash charge) stops blinking before

taking pictures.

Monitor

"Difficult to see"

® Condensation *_may have forme d. Turn offthe

power and wait for the camera _bdy to become

acclimated to the surrounding l_emperature and dry

out before taking pictures.

• Dew drops can form in the camer_ when !t is

suddenly taken from e cold location into a _arm,

humid room.

"Vertical lines appear on the screen"

® Vertical lines may appear on the screen at

times such as when the camera is pointed at an

extremely bright subject under e clear sky. The

lines do not appear, however, in the final image.

"The light is caught in the picture"

®Shooting with flash in dark situations results in

an image with many flash reflections on dust in

the air.

Date and time function

default setting"

® If the battery is removed en_ ieff:ou{ of the camera

for about 1 day .2,the date end time settings return

to the default setting and must be reset.

•2 The time until the date and time settings return

to the default setting varies depending on how

long the battery have been loaded.

"Setting the date end time" (p. I3)

Others

"Noises occur from the inside of the

camera in shooting standby mode"

® Auto focusing operation may cause lens

movement noises even if you do not make any

camera operation.

Errormessage

_P_ When one of the messages below is

displayed on the monitor, check the

corrective action.

CARD ERROR

WRITE

PROTECT

MEMORY FULL

CARD FULL

C::}

NO PICTURE


ERROR

Card problem

Insert a new card.

Card problem

Use a computer to cancel the

read-only setting.

Internal memory problem

•Insert a card.

• Erase unwanted imagesN

Card problem

• Replace the card.

, Erase unwanted imagesN

Card problem

, Use _/_ to select

[CLEAN CARD], and press the

button. Take out the card,

wipe the contact area (p. 60)

with a soft, dry cloth, and then

load the card again.

• Use R_/_ to select

[FORMAT], and press the

button. Next, use _/_

to select [YES], and press the

_ button/_

Internal memory problem

Use ____ to select

MEMORY FORMAT], and

press the _ button. Next, use

_ to select [YES], and

press the _ buttons 2

Internal memory/Card problem

Take pictures before viewing

them.

Problem with selected image

Use photo retouch software,

etc. to view the image on a

computer. If the image stitl

cannot be viewed, the image file

is corrupted.

[_ Problem with selected image

THE iMAGE

CANNOT Use photo retouch software, etc.

BE EDITED to edit the image on a computer.

Operation problem

Close the battery/card

CARD-COVER compartment cover.

OPEN

_ZZ3

BATTERY Battery problem

EMPTY Charge the battery.

[_X connection problem

Connect the camera and

NO computer or printer correctly.

CONNECTION

Printer problem

Load paper into the printer.

NO PAPER

Printer problem

Refill the ink in the printer.

NO INK

,/_ Printer problem

Remove the jammed paper.

JAMMED

SETTINGS Printer problem

Return to the status where the

CHANGED "_ printer can be used.

Printer problem

r_ Turn off the camera and printer,

check the printer for any

PRINT ERROR problems, and then turn the

power on again.

E_ Problem with selected image

CANNOT PRINT 4 Use a computer to print.

_ Before erasing important images, download them to

a computer.

_2All data will be erased.

,s This is displayed, for instance, when the printer's

paper tray has been removed. Do not operate

the printer while making the print settings on the

camera.

_4This camera may be unable to print images taken by

other cameras.

.....ShQoting tips ............................................................................................................

When you are unsure of how to take a picture

that you envision, refer to the information below.

Focusing

"Focusing on the subject"

• Taking a picture of a subject not in the center

of the screen

After focusing on an object at the same distance

as the subject, compose the shot, and take the

picture.

Pressing the shutter button halfway (p. 15)

• Set [AF MODE] (p. 28) to [iESP]

• Taking a picture of subjects where autefocus

is difficult

In the following cases, after focusing on an object

(by pressing the shutter button halfway down) with

high contrast at the same distance as the subject,

compose the shot, and take the picture.

Subjects with low contrast _ _/

When extremely bright objects ,¢_f_:y_ _-I

appear in the center of the _ _'_#<_ _,,_L _L]"

screen -_4, _, _ : ....

When objects are at different

distances

Fast-moving object

The subject is not in the

center of the frame

Object with no vertical lines "_

It is also effective to compose the shot by holding

the camera vertically to focus, and then returning to

the horizontal position to take the picture.

"Taking pictures (or movies) without

camera shake"

• Taking pictures using [IMAGE STABILIZER]

(p. 29)

When a picture is taken of a shadowy subject, the

CCD "_shifts to correct for camera shake even if

the ISO speed is not increased. This function is

also effective when taking pictures at a high zoom

magnification.

" A device that takes light received through the

lens and converts it into electric signals.

• Shooting movies using [DIS MOVIE MODE]

(p. 29)

• Taking picture with [.t_ SPORT] (p. 30)

Since you can take pictures with a high shutter

speed by setting [_ SPORT], it's also effective for

blurry subjects.

• Taking pictures at a high ISO sensitivity

if a high ISO sensitivity is selected, pictures can

be taken at a high shutter speed even at locations

where a flash cannot be used.

[ISO] (p. 27)

"Taking pictures with the right

brightness"

• Taking pictures of a subject against a backlight

A face against the backlight is brightened.

[SHADOW ADJ] (p. 29)

• Taking pictures using [FACE DETECT] for

[AF MODE] (p. 28)

Appropriate exposure is obtained for a face

against the backlight, and the face is brightened.

• Taking pictures using [E_J] for [ESP![]LI] (p. 28)

The picture can be taken based on the brightness

at the center of the monitor, so it's not affected by

the light in the background.

• Taking pictures using [FILL IN] (p. 21) flash

A subject against a backlight is brightened.

• Taking pictures of a white beach or snow

scene

Set the mode to [_ BEACH & SNOW] (p. 30)

• Taking pictures using exposure compensation

(p. 21)

Adjust the brightness while viewing the screen

far taking the picture. Normally, taking pictures of

white subjects (such as snow) results in images

that are darker than the actual subject. Use the

[] button to adjust in the positive (+) direction

to express whites as they appear. When taking

pictures of black subjects, on the other hand, it is

effective to adjust in the negative (-) direction.

Color hue

"Taking pictures with colors at the same

shade as they appear"

®Taking pictures by selecting [WB] (p. 27)

Best results in most environments can normally

be obtained with the AUTO setting, but for some

subjects, you should try experimenting with

different settings. (This is especially true for

sunshade under a clear sky, mixed natural and

artificial light settings, and so on.)

"Taking sharper pictures"

® Taking pictures with the optical zoom

Avoid using [DIGITAL ZOOM] (p. 28) to take

pictures.

® Taking pictures at a low ISO sensitivity

If the picture is taken with a high ISO sensitivity,

noise (small colored spots and color unevenness

that were not in the original image) can occur, and

the image can appear grainy.

[ISO] (p. 27)

"Taking pictures so that the frames are

stitched smoothly"

® A tip for panoramic shooting

Taking pictures by pivoting with the camera at the

center prevents shifting of the image. When taking

pictures of close objects in particular, pivoting with

the lens and at the center produces favorable

results.

[_-_PANORAMA] (p. 31 )

"Makingbattery last longer"

• Avoid performing the following operations as

much as possible as they use up battery power

even if no pictures are actually taken

®Repeatedly pressing the shutter button

halfway.

• Repeatedly using the zoom.

•Set [POWER SAVE] (p. 45) to [ON]

"Viewing images in the internal memory

and card"

• Remove the card when viewing pictures in the

internal memory.

®"Loading the battery and the xD-Picture

Card TM (sold separately) into the camera"

(p. 11)

• "Using the microSD card/microSDHC card

(sold separately)" (p. 12)

"Erasing the sound recorded to a still

image"

• Record over the sound with silence when

playing back the image

[_] (Add sound to still images) (p. 37]

........Camera Gate ........Battery and charger

Exterior

•Wipe gently with a soft cloth. If the camera is

very dirty, soak the cloth in mild soapy water

and wring well. Wipe the camera with the

damp cloth and then dry it with a dry cloth. If

you have used the camera at the beach, use a

cloth soaked in clean water and wrung well.

Monitor

•Wipe gently with a soft cloth.

Lens

•Blow dust off the lens with a commercial

blower, then wipe gently with a lens cleaner.

Battery/Charger

•Wipe gently with a soft, dry cloth.

_i} Do not use strong solvents such as benzene

or alcohol, or chemically treated cloth.

_ Mold may form on the lens surface if the

lens is left dirty.

.........Storage

•When storing the camera for extended

periods, remove the battery, AC adapter and

card, and keep in a cool, dry place that is well

ventilated.

• Periodically insert the battery and test the

camera functions.

_ Avoid leaving the camera in places where

chemical products are handled since this

may result in corrosion.

This camera uses one Olympus lithium ion

battery (LI-50B). No other type of batteries can

be used.

_P_ Caution:

There is a risk of explosion if the battery is

replaced with the incorrect battery type.

Dispose of the used battery following

the instructions in "Battery Handling

Precautions". (p. 65)

•Power consumption by the camera varies

depending on which functions are used.

•During the conditions described below, power

is consumed continuously and the battery

becomes exhausted quickly.

•The zoom is used repeatedly.

•The shutter button is pressed halfway

repeatedly in shooting mode, activating the

auto focus.

•A picture is displayed on the monitor for an

extended period of time.

•The camera is connected to a computer or

printer.

•Using an exhausted battery may cause the

camera to turn off without displaying the

battery level warning.

•The rechargeable battery is not fully charged

at the time of purchase. Charge the battery

fully with the LI-50C charger before use.

•The provided rechargeable battery usually

takes approximately 2 hours to charge (varies

on usage).

•The supplied LI-50C battery charger is used

only for LI-50B battery. Do not charge other

type of battery with the supplied battery

charger. It might cause explosion, leaking,

overheating or fire.

•For plug-in type battery charger:

This power unit is intended to be correctly

orientated in a vertical or floor mount position.

......... adapter ...............................................................

An AC adapter is useful for time-consuming

tasks such as image downloads to a computer

or when running a slideshow for a long period of

time. To use an AC adapter for this camera, the

multi-adapter (CB-MA3/accessory) is required.

Do not use any other AC adapter with this

camera.

Using your charger and AC

•The charger and AC adapter can be used in

most home electrical sources within the range

of 100 V to 240 V AC (50/6OHz) around the

world. However, depending on the country

or area you are in, theAC wall outlet may be

shaped differently and the charger and AC

adapter may require a plug adapter to match

the wall outlet. For details, ask at your local

electrical shop or travel agent.

•Do not use travel voltage converters as they

could damage your charger and AC adapter.

.........UsinganxD-PictureCard

A card (and internal memory) also corresponds

to the film that records images in a film camera.

Otherwise, the recorded images (data) can be

erased, and retouching is also available with

the use of a computer. Cards can be removed

from the camera and exchanged, but this is

not possible with the internal memory. Use of

larger capacity cards enables you to take more

pictures.

Index area

(Notes can be filled in

here)

Cards compatible with this camera

xD-Picture Card (16MB to 2GB)

(TypeH/M/M+, Standard)

Using anew card

Before using a non-Olympus card or a card

that was used for another purpose in a

computer or other device, use [MEMORY

FORMAT]/[FORMAT] (p. 39) to format the

card.

Checking the image saving location

The memory indicator shows whether the

internal memory or card is being used during

shooting and playback.

Current memory indicator

_: Internal memory is being used

None: Card is being used

Current memory

indicator

Shooting mode

Playback mode

_ Even if [MEMORY FORMAT]/[FORMAT],

[ERASE], [SEE IMAGE], or [ALL ERASE]

is performed, the data in the card is not

completely erased. When disposing of

the card, damage the card to prevent the

disclosure of personat data.

Contact area

(Contact section of the

card with the internal

camera terminal)

Do not touch the contact area directly.

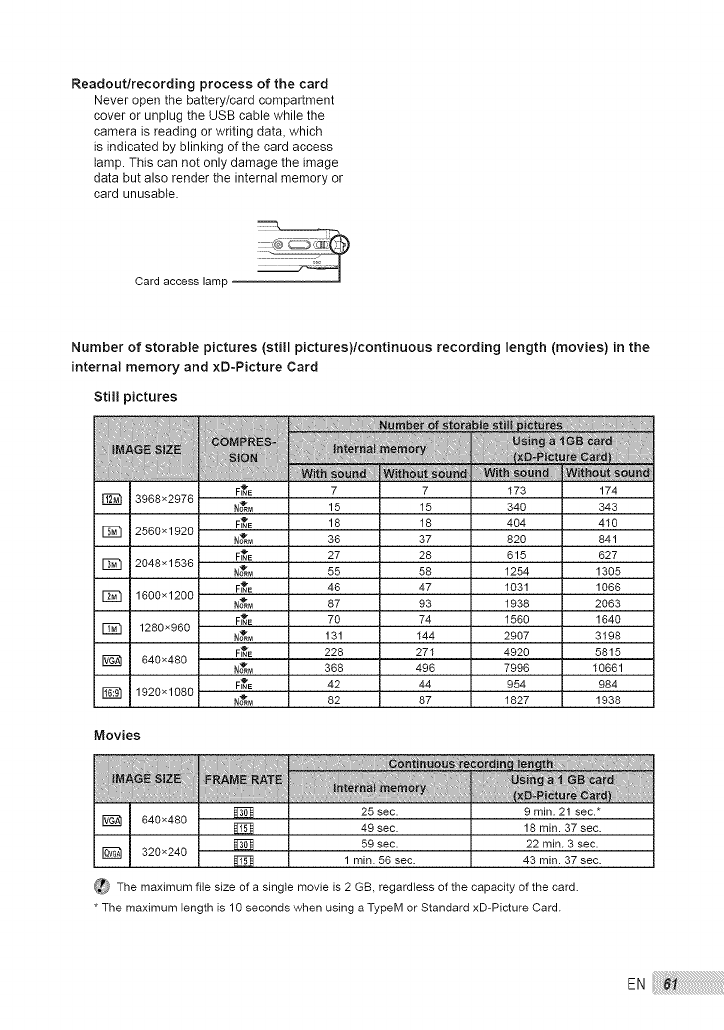

Readout/recording process of the card

Never open the battery/card compartment

cover or unplug the USB cable while the

camera is reading or writing data, which

is indicated by blinking of the card access

tamp. This can not only damage the image

data but also render the internal memory or

card unusable.

Card access lamp

Number of storable pictures (still pictures)/continuous recording length (movies) in the

internal memory and xD=Picture Card

Still pictures

F_E 7 7 173 174

3968×2976 N_M 15 15 340 343

F_E 18 18 404 410

2560x1920 N_M 36 37 820 841

F_E 27 28 615 627

I_ 2048×1536 N_M 55 58 1254 1305

F_E 46 47 1031 1066

I_ 1600×1200 N_M 87 93 1938 2063

F_E 70 74 1560 1640

1280×960 N_M 131 144 2907 3198

F_E 228 271 4920 5815

640×480 N_M 368 496 7996 10661

F_E 42 44 954 984

1920×1080 N_M 82 87 1827 1938

Movies

640×480 _ 25 sec.

_]_ 49 sec.

320×240 _ 59 sec.

1 min. 56 sec.

_ The maximumfile size of a singlemovie is 2 GB, regardless ofthe capacity ofthe card.

* The maximum length is 10 seconds when using a TypeM or Standard xD-Pi_ure Card.

9min. 21 sec. *

18 min. 37 sec.

22 min. 3 sec.

43 min. 37 sec.

Increasing the number of pictures that

can be taken

Either erase unwanted imagos, or connect

the camera to a computer or other device to

save the imagos, and then erase the images

in the internal memory or card.

[ERASE] (p. 17), [SEL. IMAGE] (p. 37),

[ALL ERASE] (p. 37), [MEMORY FORMAT]/

[FORMAT] (p. 39)

.........Using a microSO Attachment

_} Do not use the attachment with Olympus

digital cameras that do not support this

microSD Attachment, as well as with other

brands of digital cameras, computers,

printers, and other devices that support

xD-Picture Card. Doing so not only may

damage the pictures taken, but may also

result in the malfunction of the device.

_ If the microSD card cannot be removed,

do not use force. Contact authorized

distributors/service centers.

Cards compatible with this camera

microSD card/microSDHC card

_t_ For a tist of tested microSD cards, please

visit our website (http://www.otympus.com/).

Sending images

You can send images to a computer or

printer by using the USB cable provided with

the camera.

To send data to other devices, remove

the attachment from the camera and use

a commercially available microSD card

adapter.

Handling precautions

Do not touch the contact area of the

attachment or microSD card. Doing so

may cause failure in reading the images.

When fingerprints or stains are found on

the contact area, wipe the area with a soft

dry cloth.

62 EN

........SAFETY PRECAUTIONS

CAUTION: TO REDUCETHE RISK OF ELECTRICAL

SHOCK.DO NOT REMOVECOVER (OR BACK).

NOUSER-SERVICEABLEPARTSINSIDE.

REFER SERVICINGTO QUALIFIEDOLYMPUS

SERVICE PERSONNEL

/_ An exclamation mark enclosed in a

tdang}e alerts you to important operating

and maintenance instructions in the

documentation provided with the product.

If the product is used without observing

the information given under this symbol

senous injury or death may result.

If the product is used without observing the

information given under this symbol, injury

or death may result.

If the product is used without observing the

information given under this symbol, minor

personal injury, damage to the equipment,

or loss of valuable data may result.

l WARNING' 1

TO AVOID THE RISK OF FIRE OR ELECTRICAL SHOCK,

NEVER DISASSEMBLE, EXPOSE THIS PRODUCT TO

WATER OR OPERATE IN A HIGH HUMIDITY ENVIRONMENT.

//_ DANGER

Z_ WARNING

Z_ CAUTION

General Precautions

Read All Instructions -- Before you use the

product, read alt operating instructions. Save all

manuals and documentation for future reference.

Cleaning --Always unplug this product from the

wall outlet before cleaning. Use only a damp

cloth for cleaning. Never use any type of liquid or

aerosol cleaner, or any type of organic solvent to

clean this product.

Attachments -- For your safety, and to avoid

damaging the product, use only accessories

recommended by Olympus.

Water and Moisture -- For precautions on

products with weatherproof designs, read the

weatherproofing sections.

Location -- To avoid damage to the product, mount

the product securely on a stable tripod, stand,

or bracket.

Power Source -- Connect this product only to the

power source described on the product label.

Lightning -- If a lightning storm occurs while using

an AC adapter, remove it from the wall outlet

immediately.

Foreign Objects -- To avoid personal injury, never

insert a metal object into the product.

Heat -- Never use or store this product near any

heat source such as a radiator, heat register,

stove, or any type of equipment or appliance that

generates heat, including stereo amplifiers.

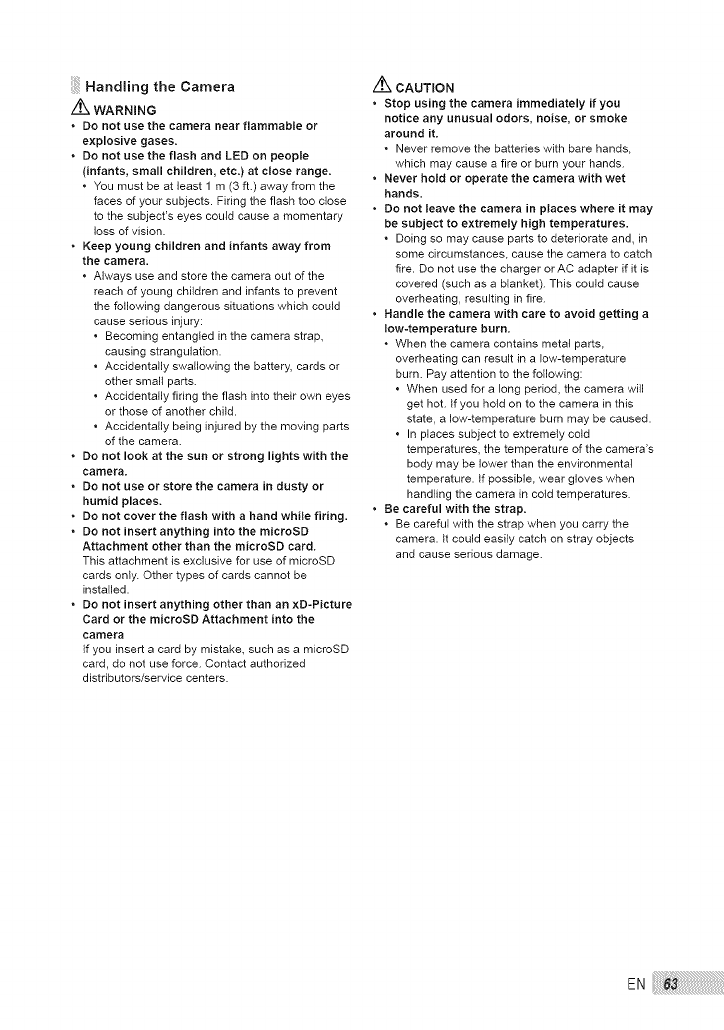

Handling the Camera

•/_ WARNING

•Do not use the camera near flammable or

explosive gases.

•Do not use the flash and LED on people

(infants, small children, etc.) at close range.

•You must be at least 1 m (3 ft.) away from the

faces of your subjects. Firing the flash too close

to the subject's eyes could cause a momentary

loss of vision.

• Keep young children and infants away from

the camera.

•Always use and store the camera out of the

reach of young children and infants to prevent

the following dangerous situations which could

cause serious injury:

•Becoming entangled in the camera strap,

causing strangulation.

•Accidentally swallowing the battery, cards or

other small parts.

•Accidentally firing the flash into their own eyes

or those of another child.

•Accidentally being injured by the moving parts

of the camera.

• Do not look at the sun or strong lights with the

camera.

• Do not use or store the camera in dusty or

humid places.

• Do not cover the flash with a hand while firing.

• Do not insert anything into the microSD

Attachment other than the microSD card.

This attachment is exclusive for use of microSD

cards only. Other types of cards cannot be

installed.

• Do not insert anything other than an xD-Picture

Card or the microSD Attachment into the

camera

If you insert a card by mistake, such as a microSD

card, do not use force. Contact authorized

distributors/service centers.

Z_ CAUTION

• Stop using the camera immediately if you

notice any unusual odors, noise, or smoke

around it.

•Never remove the batteries with bare hands,

which may cause a fire or burn your hands.

• Never hold or operate the camera with wet

hands.

• Do not leave the camera in places where it may

be subject to extremely high temperatures.

•Doing so may cause parts to deteriorate and, in

some circumstances, cause the camera to catch

fire. Do not use the charger orAC adapter if it is

covered (such as a blanket). This could cause

overheating, resulting in fire.

• Handle the camera with care to avoid getting a

tow-temperature burn.

•When the camera contains metal parts,

overheating can result in a low-temperature

burn. Pay attention to the following:

•When used for a long period, the camera will

get hot. If you hold on to the camera in this

state, a low-temperature burn may be caused.

•In places subject to extremely cold

temperatures, the temperature of the camera's

body may be lower than the environmental

temperature, tf possible, wear gloves when

handling the camera in cold temperatures.

•Be careful with the strap.

•Be careful with the strap when you carry the

camera. It could easily catch on stray objects

and cause serious damage.

Battery Handling Precautions

Follow these important guidelines to

prevent batteries from leaking, overheating,

burning, exploding, or causing electrical

shocks or burns.

Z_ DANGER

•Tile camera uses a lithium ion battery specified

by Olympus. Charge the battery with the specified

charger. Do not use any other chargers.

•Never heat or incinerate batteries.

•Take precautions when carrying or storing

batteries to prevent them from coming into contact

with any metal objects such as jewelry, pins,

fasteners, etc.

•Never store batteries where they will be

exposed to direct sunlight, or subjected to high

temperatures in a hot vehicle, near a heat source,

etc.

•To prevent causing battery leaks or damaging their

terminals, carefully follow all instructions regarding

the use of batteries. Never attempt to disassemble

a battery or modify it in any way, solder, etc.

• If battery fluid gets into your eyes, flush your eyes

immediately with clear, cold running water and

seek medical attention immediately.

•Always store batteries out of the reach of small

children. If a child accidentally swallows a battery,

seek medical attention immediately.

,A.'_ WARNIN G

•Keep batteries dry at all times.

•To prevent batteries from leaking, overheating,

or causing a fire or explosion, use only batteries

recommended for use with this product.

•Insert the battery carefully as described in the

operating instructions.

•If rechargeable batteries have not been recharged

within the specified time, stop charging them and

do not use them.

•Do not use a battery if it is cracked or broken.

•If a battery leaks, becomes discolored or

deformed, or becomes abnormal in any other way

during operation, stop using the camera.

•If a battery leaks fluid onto your clothing or skin,

remove the clothing and flush the affected area

with clean, running cold water immediately. If

the fluid burns your skin, seek medical attention

immediately.

•Never subject batteries to strong shocks or

continuous vibration.

/_ CAUTION

• Before loading, always inspect tile battery carefully

for leaks, discoloration, warping, or any other

abnormality.

•The battery may become hot during prolonged

use. To avoid minor burns, do not remove it

immediately after using the camera.

•Always unload the battery from the camera before

storing the camera for a long period.

Caution for Usage Environment

•To protect the high-precision technology contained

in this product, never leave the camera in the

places listed below, no matter if in use or storage:

•Places where temperatures and/or humidity

are high or go through extreme changes.

Direct sunlight, beaches, locked cars, or near

other heat sources (stove, radiator, etc.) or

humidifiers.

•In sandy or dusty environments.

•Near flammable items or explosives.

• In wet places, such as bathrooms or in the rain.

When using products with weatherproof designs,

read their manuals as well.

• tn places prone to strong vibrations.

•De net get water or sand on the camera when

using it at the beach or in sandy places as this

may lead to damage or malfunction.

•Never drop the camera or subject it to severe

shocks or vibrations.

•When mounted on a tripod, adjust the position of

the camera with the tripod head, De net twist the

camera.

•Do not touch electric contacts on cameras.

•Do not leave the camera pointed directly at the

sun. This may cause lens or shutter curtain

damage, color failure, ghosting on the CCD, or

may possibly cause fires.

•Do not push or pull severely on the lens.

•Before storing the camera for a long period,

remove the batteries. Select a cool, dry location

for storage to prevent condensation or mold from

forming inside the camera. After storage, test the

camera by turning it on and pressing the shutter

button to make sure that it is operating normally.

•Always observe the operating environment

restrictions described in the camera's manual.

64 EN

Battery Handling Precautions

• This camera uses a tithium ion battery specified by

Olympus. Do not use any other type of battery.

• If the battery's terminals get wet or greasy, camera

contact failure may result. Wipe the battery well

with a dry cloth before use.

• Always charge a battery when using it for the first

time, or if it has not been used for a long period.

• When operating the camera with battery power

at low temperatures, try to keep the camera and

spare battery as warm as possible. A battery that

has run down at low temperatures may be restored

after it is warmed at room temperature.

• The number of pictures you can take may vary

depending on the shooting conditions or battery.

• Before going on a long trip, and especially before

traveling abroad, purchase extra batteries. A

recommended battery may be difficult to obtain

while traveling.

• Please recycle batteries to help save our planet's

resources. When you throw away dead batteries,

be sure to cover their terminals and always

observe local laws and regulations.

:LCD Monitor

•Do not push the monitor forcibly; otherwise the

image may become vague, resulting in a playback

mode failure or damage to the monitor.

•A strip of light may appear on the top/bottom of the

monitor, but this is not a malfunction.

•When a subject is viewed diagonally in the

camera, the edges may appear zigzagged on the

monitor. This is not a malfunction; it will be less

noticeable in playback mode.

• In places subject to low temperatures, the LCD

monitor may take a long time to turn on or its

color may change temporarily. When using the

camera in extremely cold places, it is a good idea

to occasionally place it in a warm place. An LCD

monitor exhibiting poor performance due to low

temperatures will recover in normal temperatures.

• The LCD used for the monitor is made with

high-precision technology. However, black spots

or bright spots of light may appear constantly on

the LCD monitor. Due to its characteristics or the

angte at which you are viewing the monitor, the

spot may not be uniform in color and brightness.

This is not a malfunction.

Legal and Other Notices

• Olympus makes no representations or warranties

regarding any damages, or benefit expected by

using this unit lawfully, or any request from a third

person, which are caused by the inappropriate use

of this product.

• Olympus makes no representations or warranties

regarding any damages or any benefit expected

by using this unit lawfully which are caused by

erasing picture data.

Disclaimer of Warranty

Olympus makes no representations or warranties,

either expressed or implied, by or concerning any

content of these written materials or software, and

in no event shall be liable for any implied warranty

of merchantability or fitness for any particular

purpose or for any consequential, incidental or

indirect damages (including but not limited to

damages for loss of business profits, business

interruption and loss of business information)

arising from the use or inability to use these

written materials or software or equipment. Some

countries do not allow the exclusion or limitation of

liability for consequential or incidental damages,

so the above limitations may not apply to you.

• Olympus reserves all rights to this manual.

Warn_ng

Unauthorized photographing or use of

copyrighted material may violate applicable

responsibility for unauthorized photographing,

use or other acts that infringe upon the rights of

materials or this software may be reproduced

or used in any form or by any means, electronic

or mechanical, including photocopying and

recording or the use of any type of information

storage and retrieval system, without the prior

written permission of Olympus. No liability

is assumed with respect to the use of the

information contained in these written materials

or software, or for damages resulting from

the use of the information contained therein.

Olympus reserves the right to alter the features

and contents of this publication or software

without obligation or advance notice.

FCC Notice

• Radio and Television Interference

• Changes or modifications not expressly approved

by the manufacturer may void the user's authority

to operate this equipment. This equipment has

been tested and found to comply with the limits for

a Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide

reasonable protection against harmful intederence

in a residential installation.

• This equipment generates, uses, and can radiate

radio frequency energy and, if not installed

and used in accordance with the instructions,

may cause harmful interference to radio

communications.

• However, there is no guarantee that interference

will not occur in a particular installation. If this

equipment does cause harmful interference

to radio or television reception, which can be

determined by turning the equipment off and

on, the user is encouraged to try to correct the

interference by one or more of the following

measures:

• Adjust or relocate the receiving antenna.

• increase the distance between the camera and

receiver.

• Connect the equipment to an outlet on a circuit

different from that to which the receiver is

connected.

• Consult your dealer or an experienced radio/TV

technician for help. Onty the OLYMPUS-supplied

USB cable should be used to connect the

camera to USB enabled personal computers

(PC).

Any unauthorized changes or modifications to

this equipment would void the user's authority

to operate it.

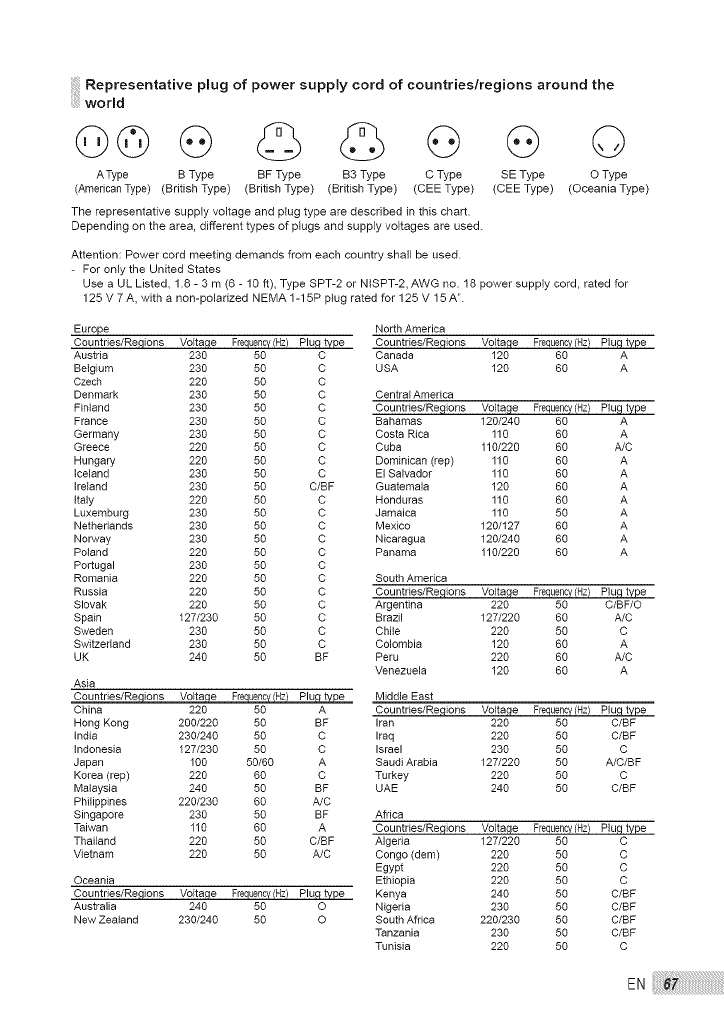

Ropreseo,o.,vop,u0o.powe.sopp,ycordo.oount.es,roo,onsaround,.e

world

GOG G 0

AType B Type BF Type B3 Type C Type SE Type O Type

(America°Type) (British Type) (British Type) (British Type) (CEE Type) (OEE Type) (Oceania Type)

The representative supply voltage and plug type are described in this chart.

Depending on the area, different types of plugs and supply voltages are used.

Attention: Power cord meeting demands from each country shall be used.

- For only the United States

Use a UL Listed, 1.8 - 3 m (6 - 10 ft), Type SPT-2 or NISPT-2, AWG no. 18 power supply cord, rated for

125 V 7 A, with a non-polarized NEMA 1-15P plug rated for 125 V 15 A".

Europe North America

Countries/Re,qions Voltage Frequency(Hz)Plugtype Countries/Reqions Voltage Frequency(Hz) Plu,gtype

Austria 230 50 C Canada 120 60 A

Belgium 230 50 C USA 120 60 A

Czech 220 50 C

Denmark 230 50 C Central America

Finland 230 50 C Countries/Regions Voltage Frequency(Hz) Plugtype

France 230 50 C Bahamas 120/240 60 A

Germany 230 50 C Costa Rica 110 60 A

Greece 220 50 C Cuba 110/220 60 A/C

Hungary 220 50 C Dominican (rep) 110 60 A

Iceland 230 50 C El Salvador 110 60 A

Ireland 230 50 C/BF Guatemala 120 60 A

Italy 220 50 C Honduras 110 60 A

Luxemburg 230 50 C Jamaica 110 50 A

Netherlands 230 50 C Mexico 120/127 60 A

Norway 230 50 C Nicaragua 120/240 60 A

Poland 220 50 C Panama 110/220 60 A

Portugal 230 50 C

Romania 220 50 C South America

Russia 220 50 C Countries/Regions Volta,qe Frequency(Hz) Plu,gtype

Slovak 220 50 C Argentina 220 50 C/BF/O

Spain I27/230 50 C Brazil 127/220 60 A/C

Sweden 230 50 C Chile 220 50 C

Switzerland 230 50 C Colombia 120 60 A

UK 240 50 BP Peru 220 60 A/C

Venezuela 120 60 A

Asia

Countries/Re_qions Voltaqe Frequency(Bz) Pluq type

China 220 50 A

Hong Kong 200/220 50 BP

India 230/240 50 C

Indonesia I27/230 50 C

Japan 100 50/60 A

Korea (rep) 220 60 C

Malaysia 240 50 BP

Philippines 220/230 60 A/C

Singapore 230 50 BP

Taiwan 110 60 A

Thailand 220 50 C/BF

Vietnam 220 50 A/C

Oceania

Countries/Reqions Voltage Frequency(Hz)Plugtype

Australia 240 50 O

New Zealand 230/240 50 O

Middle East

Cauntries/Re_ians Valtaqe Frequency(Hz) Pluqtype

Iran 220 50 C/BF

Iraq 220 50 C/BF

Israel 230 50 C

Saudi Arabia 127/220 50 A/C/BF

Turkey 220 50 C

UAE 240 50 C/BP

Africa

Countries/Reqions Volta,qe Frequency(Hz) Plu,gtype

Algeria 127/220 50 C

Congo (dem) 220 50 C

Egypt 220 50 C

Ethiopia 220 50 C

Kenya 240 50 C/BP

Nigeria 230 50 C/BP

South Africa 220/230 50 C/BP

Tanzania 230 50 C/BP

Tunisia 220 50 C

Forous,omers,n.or,.andSou,.

America

For customers in USA

Declaration of Conformit

Model Number STYLUS-9000/p-9000

Trade Name OLYMPUS

Responsible Party

OLYMPUS IMAGING AMERICA INC.

Address : 3500 Corporate

Parkway, P.O. Box

610, Center Valley, PA

18034-0610, U.S.A.

Telephone Number : 484-896-5000

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC

rules. Operation is subject to the following two

conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference

received, including interference that may cause

undesired operation.

For customers in Canada

This Class B digital apparatus meets all

requirements of the Canadian Interference-

Causing Equipment Regulations.

Use Only Dedicated Rechargeable Battery

and Battery Charger

We strongly recommend that you use only

the genuine Olympus dedicated rechargeable

battery and battery charger with this camera.

Using a non-genuine rechargeabte battery

and/or battery charger may result in fire or

personal injury due to leakage, heating, ignition

or damage to the battery. Olympus does not

assume any liability for accidents or damage

that may result from the use of a battery and/or

battery charger that are not genuine Olympus

accessories.

OLYMPUS WORLDWIDE LIMITED

WARRANTY - IMAGING PRODUCTS

Olympus warrants that the enclosed Olympus@

imaging product(s) and related Olympus@

accessories (individually a 'Product" and

collectively the "Products") will be free from

defects in materials and workmanship under

normal use and service for a period of one (1)

year from the date of purchase.

If any Product proves to be defective within the

one-year warranty period, the customer must

return the defective Product to any of Olympus

Service Centers, following the procedure

set forth below (See "WHAT TO DO WHEN

SERVICE IS NEEDED").

Olympus, at its sole discretion, will repair,

replace, or adjust the defective Product,

provided that Olympus investigation and

factory inspection disclose that (a) such defect

developed under normal and proper use and

(b) the Product is covered under this limited

warranty.

Repair, replacement, or adjustment of defective

Products shall be Olympus's sole obligation and

the customer's sole remedy hereunder.

The customer is liable and shall pay for shipment

of the Products to the Olympus Service Center.

Olympus shall not be obligated to perform

preventive maintenance, installation,

deinstallation, or maintenance.

Olympus reserves the right to (i) use

reconditioned, refurbished, and/or serviceable

used parts (that meet Olympus's quality

assurance standards) for warranty or any other

repairs and (ii) make any internal or external

design and/or feature changes on or to its

products without any liability to incorporate such

changes on or to the Products.

WHAT IS NOT COVERED BY THIS

LIMITED WARRANTY

Excluded from this limited warranty and not

warranted by Olympus in any fashion, either

express, implied, or by statute, are:

(a) products and accessories not manufactured by

Olympus and/or not bearing the "OLYMPUS"

brand label (the warranty coverage for products

and accessories of other manufacturers,

which may be distributed by Olympus, is the

responsibility of the manufacturers of such

products and accessories in accordance with

the terms and duration of such manufacturers'

warranties);

(b) any Product which has been disassembled,

repaired, tampered with, altered, changed, or

modified by persons other than Olympus's own

authorized service personnel unless repair

by others is made with the written consent of

Olympus;

from wear, tear, misuse, abuse, negligence,

sand, liquids, impact, improper storage,

nonperformance of scheduled operator and

maintenance items, battery leakage, use of non-

"OLYMPUS" brand accessories, consumables, or

supplies, or use of the Products in combination

with non-compatible devices;

(d) software programs;

(e) supplies and consumables (including but not

limited to lamps, ink, paper, film, prints, negatives,

cables and batteries); and/or

(f) Products which do not contain a validly placed

and recorded Olympus serial number, unless they

are a model on which Olympus does not place

and record serial numbers.

EXCEPT FOR THE LIMITED WARRANTY

SET FORTH ABOVE, OLYMPUS MAKES

NO AND DISCLAIMS ALL OTHER

REPRESENTATIONS, GUARANTIES,

CONDITIONS, AND WARRANTIES

CONCERNING THE PRODUCTS, WHETHER

DIRECT OR INDIRECT, EXPRESS OR

IMPLIED, OR ARISING UNDER ANY STATUTE,

ORDINANCE, COMMERCIAL USAGE OR

OTHERWISE, INCLUDING BUT NOT LIMITED

TO ANY WARRANTY OR REPRESENTATION

AS TO THE SUITABILITY, DURABILITY,

DESIGN, OPERATION, OR CONDITON OF

THE PRODUCTS (OR ANY PART THEREOF)

OR THE MERCHANTABILITY OF THE

PRODUCTS OR THEIR FITNESS FOR A

PARTICULAR PURPOSE, OR RELATING

TO THE INFRINGEMENT OFANY PATENT,

RIGHT USED OR INCLUDED THEREIN.

IF ANY IMPLIED WARRANTIES APPLY AS

A MATTER OF LAW, THEY ARE LIMITED

IN DURATION TO THE LENGTH OF THIS

LIMITED WARRANTY.

SOME STATES MAY NOT RECOGNIZE

A DISCLAIMER OR LIMITATION OF

WARRANTIES AND/OR LIMITATION OF

LIABILITY SO THE ABOVE DISCLAIMERS AND

EXCLUSIONS MAY NOTAPPLY.

THE CUSTOMER MAY ALSO HAVE

DIFFERENTAND/OR ADDITIONAL RIGHTS

AND REMEDIES THAT VARY FROM STATE

TO STATE.

THE CUSTOMER ACKNOWLEDGES AND

AGREES THAT OLYMPUS SHALL NOT

BE RESPONSIBLE FORANY DAMAGES

THAT THE CUSTOMER MAY INCUR FROM

DELAYED SHIPMENT, PRODUCT FAILURE,

PRODUCT DESIGN, SELECTION, OR

PRODUCTION, IMAGE OR DATA LOSS OR

IMPAIRMENT OR FROM ANY OTHER CAUSE,

WHETHER LIABILITY IS ASSERTED IN

CONTRACT, TORT (INCLUDING NEGLIGENCE

AND STRICT PRODUCT LIABILITY) OR

OTHERWISE. IN NO EVENT SHALL OLYMPUS

BE LIABLE FORANY INDIRECT, INCIDENTAL,

CONSEQUENTIAL OR SPECIAL DAMAGES OF

ANY KIND (INCLUDING WITHOUT LIMITATION

LOSS OF PROFITS OR LOSS OF USE),

WHETHER OR NOT OLYMPUS SHALL BE OR

SHOULD BE AWARE OF THE POSSIBILITY OF

SUCH POTENTIAL LOSS OR DAMAGE.

Representations and warranties made by any

person, including but not limited to dealers,

representatives, salespersons, or agents of

Olympus, which are inconsistent or in conflict

with or in addition to the terms of this limited

warranty, shall not be binding upon Olympus

unless reduced to writing and approved by an

expressly authorized officer of Olympus.

This limited warranty is the complete and

exclusive statement of warranty which

Olympus agrees to provide with respect to the

Products and it shall supersede all prior and

contemporaneous oral or written agreements,

understandings, proposals, and communications

pertaining to the subject matter hereof.

This limited warranty is exclusively for the

benefit of the original customer and cannot be

transferred or assigned.

WHAT TO DO WHEN SERVICE IS NEEDED

The customer must transfer any image or other

data saved on a Product to another image or

data storage medium and/or remove any film

from the Product prior to sending the Product to

Olympus for service.

IN NO EVENT SHALL OLYMPUS BE

RESPONSIBLE FOR SAVING, KEEPING OR

MAINTAINING ANY IMAGE OR DATA SAVED

ON A PRODUCT RECEIVED BY IT FOR

SERVICE, OR ON ANY FILM CONTAINED

WITHIN A PRODUCT RECEIVED BY IT

FOR SERVICE, NOR SHALL OLYMPUS BE

RESPONSIBLE FORANY DAMAGES IN

THE EVENTANY IMAGE OR DATA IS LOST

OR IMPAIRED WHILE SERVICE IS BEING

PERFORMED (INCLUDING, WITHOUT

LIMITATION, DIRECT, INDIRECT, INCIDENTAL,

CONSEQUENTIAL OR SPECIAL DAMAGES,

LOSS OF PROFITS OR LOSS OF USE),

WHETHER OR NOT OLYMPUS SHALL BE OR

SHOULD BE AWARE OF THE POSSIBILITY OF

SUCH POTENTIAL LOSS OR IMPAIRMENT.

Package the Product carefully using ample

padding material to prevent damage in transit

and either deliver it to the Authorized Olympus

Dealer that sold you the Product or ship it

postage prepaid and insured to any of our

Olympus Service Centers.

When returning Products for service, your

package should include the following:

I Sales receipt showing date and place of

purchase.

2 Copy of this limited warranty bearing the

Product serial number corresponding to the

serial number on the Product (unless it is a

model on which Olympus does not place and

record serial numbers).

3A detailed description of the problem.

4Sample prints, negatives, digitat prints (or files on

disk) if available and related to the problem.

When service is completed, the Product will be

returned to you postage prepaid.

WHERE TO SEND PRODUCT FOR

SERVmCE

See "WORLDWIDE WARRANTY" for the

nearest service center.

INTERNATIONAL WARRANTY SERVmCE

International warranty service is available under

this warranty.

Trademarks

• IBM is a registered trademark of International

Business Machines Corporation.

• Microsoft and Windows are registered trademarks

of Microsoft Corporation.

• Macintosh is a trademark of Apple Inc.

• xD-Picture Card TM iS a trademark.

• microSD is a trademark of the SD Association.

• All other company and product names are

registered trademarks and/or trademarks of their

respective owners.

• The standards for camera file systems referred to

in this manual are the 'Design rule for Camera File

system/DCF" standards stipulated by the Japan

Electronics and Information Technology Industries

Association (JEITA).

........SPECIFICATIONS

Camera

Product type : Digital camera (for shooting and displaying)

Still pictures : Digital recording, JPEG (in accordance with Design rule for Camera File

s_stem(Drip!!

Applicable standards : Extt 2.2, Digital Print Order Format (DPOF), PRINT Image Matching Ill,

Sound with still pictures : Wave format

Movie : AVI Motion JPEG

Memory : Internal memory

xD-Picture Card (16 MB to 2 GB) (TypeH/M/M+, Standard)

No. of pictures : Approx. 250

No. of effective pixels : 12,000,000 pixets

Lens : Olympus lens 5.0 to 50.0 mm, f3.2 to 5.9

Photometric system : Digital ESP metering, spot metering system

s_!t_ _pt_d i 4to!dooQ_,c

Shooting range : 0.5 m (1.6 ft.) to _ (W), 1.0 m (3.3 ft.) to _o(T) (normal)

0.1 m (0.3 ft.) to _ (W), 0.9 m (3.0 ft.) to _o(T) (macro mode)

Flash charge time : Approx. 4 sec. (for full flash discharge at room temperature using a new

fully charged battery)

Water resistance

Type : Equivalent to IEC Standard publication 529 IPX8 (under OLYMPUS test

Meaning : Camera can normally be used under water at a specified water

pressure.

Temperature : 0 °C to 40 °C (32 °F to 104 °F) (operation)/

-20 °C to 60 °C (-4 °F to 140 °F) (storage)

Humidity : 30 %to 90 % (operation)/10 % to 90 % (storage)

Dimensions : 96.0 mm (W) × 60.0 mm (H) × 31.0 mm (D) (3.8 × 2.4 × 1.2 in.)

....................................................................................................!exc!x,¢2gRr°}rust°nsZ...................................................................................................................

Weight : 185 g (8.5 oz) (excluding battery and card)

"Shadow Adjustment Technology" function contains patented

technologies from Apical Limited.

apical

Lithium ion battery (L1=5013)

Product type : Lithium ion rechargeable battery

Model No. : LP50BA/LI-50BB

Standard voltage : DC 3.7 V

Standard capacity : 925 rnAh

Battery life : Approx. 300 full charges (varies on usage)

operatjngenv!_onme_t

Temperature : 0°C to 40°C (32°F to 104°F) (charging)/

-10°C to 60°C (14°F to 140°F) (operation)/

D!mens!ons 34:4 mm _W!, _ 40 0 m !_ mm (D)!1 ! 0 !n.!

Weight : Approx. 20 g (0.7 oz)

Battery charger (LI-50C)

Model No. : Lb50CAA/LI-50CAB/Lb50CBA/LI-50CBB

Power requirements : AC 100 to 240 V (50/60 Hz)

Output : DC 4.2 V, 700 mA

Operating environment

Temperature : O°C to 40°C (32°F to 104°F) (operation)/

Weight : Approx. 70 g (2.5 oz)

microSD Attachment

Temperature : -10°C to 40°C (14 to 104°F) (operation) /

-20°C to 65°C (-4 to 149°F) (storage)

Dimensions : 25.0 him (W) x 20.3 mm (H) x 1.7 mm (D) (1.0 × 0.8 × 0.07 in.) (Handle:2.2 mm

(0.09 in.))

wt!g_t

Design and specifications subject to change without notice.

AC adapter ............................................ 60

AF MODE ............................................. 28

ALL (PERFECT FIX) ............................. 34

ALL (SLIDESHOW) .............................. 34

ALL INDEX ........................................... 47

ALL PRINT ............................................ 47

All-image print reservation [[_L .............. 50

AUTO (FILE NAME) ............................. 42

AUTO (ISO) .......................................... 27

AUTO (WB) ........................................... 27

AV cable ............................................ 2, 44

.........B ........

BACKUP ............................................... 39

Battery ............................ 2, 10, 54, 58, 59

Battery charger ............................... 10, 59

BEAUTY FIX r,_,_................................... 34

BEAUTYmode ......................................... 18

BEEP .................................................... 41

BGM ...................................................... 34

Black & White ....................................... 35

CALENDAR .......................................... 36

CALENDAR (SLIDESHOW) ................. 34

Calendar view ....................................... 24

CAMERA MENU r-_j.............................. 27

Card .......................................... 11, 12, 60

CLEAR SKIN ........................................ 34

Close-up view O, .................................. 24

Cloudy day d2_ ..................................... 27

COLOR 1/2/3 ........................................ 40

COLOR EDIT ........................................ 35

COMBINE IN CAMERA1 ...................... 31

COMBINE IN CAMERA2 ..................... 3!

COMBINE IN PC .................................. 31

COMPRESSION ................................... 26

Connection

To Computer ................................... 52

To Printer ........................................ 46

To Television ................................... 44

Cropping a picture 4::f".................... 35, 48

CUSTOM PRINT .................................. 47

DATE (_:::) ) ........................................... 50

DATE (PRINT INFO) ............................. 48

Date and time Q .......................... 13, 43

DIGITAL ZOOM .................................... 28

Direct printing ........................................ 46

Display language _'._ .................. 14, 39

DIS MOVIE MODE (Movie) .................. 29

DPOF .................................................... 49

DRAMATIC EYE ................................... 34

DRIVE ................................................... 27

DUALTIME ............................................ 43

EASY PRINT ........................................ 46

EDIT 2_............................................ 35, 36

Erase

ALL ERASE .................................... 37

ERASE _ ........................................ 37

SELIMAGE .................................... 37

Single image erase ......................... 17

ESP ....................................................... 28

ESP/[2_} ................................................ 28

Exposure ............................................... 15

Exposure compensation [] .................. 21

FACE DETECT ..................................... 28

FADER (SLIDESHOW) ......................... 34

FILE NAME ........................................... 42

File name .............................................. 42

FILE NAME (PRINT INFO) ................... 48

FILL IN _ ............................................. 21

FINE ...................................................... 26

FINE ZOOM .......................................... 28

FLASH AUTO ....................................... 21

Flash charge ......................................... 54

Flash mode _ ...................................... 20

FLASH OFF _ ..................................... 21

Fluorescent lamp 1/2/3 _i_2_3 .......... 27

FORMAT ............................................... 39

Format .................................................. 39

FRAME RATE ....................................... 26

FUNC menu .......................................... 23

mode ........................................... 19

iESP ...................................................... 28

IMAGE QUALITY {_.. ............................ 26

IMAGE SIZE ......................................... 26

IMAGE STABILIZER (Still images) ....... 29

INDEX ................................................... 36

Index view [] ....................................... 24

Information displays ........................ 22, 24

Internal memory .............................. 11,61

ISO ........................................................ 27

Lithium ion battery ..................................2

NTSC .................................................... 44

Number of prints (,Jinx).......................... 48

OLYMPUS Master 2 ......................... 2, 52

Optical zoom ......................................... 20

PAL ....................................................... 44

PANORAMA L:_..................................... 31

Panorama playback .............................. 25

PC ......................................................... 52

PERFECT FIX I_ .................................. 34

PictBridge ............................................. 46

Picture rotation .rm................................. 37

PIXEL MAPPING .................................. 42

PLAYBACK MENU L-c)..................... 36, 37

Playback mode [] ............................... 16

Playback on a TV .................................. 44

POWER SAVE ...................................... 45

PRINT ORDER _ .......................... 38, 47

Print reservations .................................. 49

Printing pictures .................................... 46

Protect O"11........................................... 36

PW ON SETUP ..................................... 40

MACRO _ ........................................... 21

Macro mode _t_..................................... 21

MEMORY FORMAT .............................. 39

Menu ....................................................... 3

MENU COLOR ..................................... 40

Menu guide ............................................. 3

microSD Attachment ................... 2, 12, 62

microSD card .................................. 12, 62

microSDHC card ............................. 12, 62

Monitor brightness adjustment [.c_,_....... 43

MOVIE (SLIDESHOW) ......................... 34

MULTI PRINT ....................................... 47

MULTI WINDOW .................................. 23

NO (_)) ............................................... 50

NORMAL .............................................. 26

NORMAL (MENU COLOR) ................... 40

NORMAL (SLIDESHOW) ..................... 34

74 EN

REC VIEW ............................................ 41

REDEYE @ ....................................... 21

REDEYE FIX ........................................ 34

RESET _ .............................................. 33

RESET (FILE NAME) ........................... 42

Resizing _ ......................................... 35

Saturation (Hard) .................................. 35

Saturation (Soft) .................................... 35

SCN (SCENE MODE) _ ............... 18, 30

SCREEN ............................................... 40

SELFTIMER _ ..................................... 22

Sepia ..................................................... 35

Sequential shooting _ ....................... 27

SETUP _ ............................................. 39

SHADOW ADJ ................................ 23, 29

Shooting mode ...................................... 15

Shooting movies _ .............................. 19

Shootingstillpictures

(Fullautomode)_ ....................19

Shootingstillpictures_ .....................15

SHUTTERSOUND...............................41

SILENTMODE_.................................45

Single-imageprintreservationr[_ ......... 49

Single-frame shooting EC3.................... 27

SLIDE (SLIDESHOW) .......................... 34

SLIDESHOW _b; ................................... 34

Sound recording

Adding sound to still pictures _ ...... 37

Recording sound with still pictures

........................................................ 29

SOUND SETTINGS .............................. 41

SPARKLE EYE ..................................... 34

SPOT (AF MODE) ................................ 28

Spot metering [j_ ................................. 28

STILL PICTURE (SLIDESHOW) .......... 34

Strap ................................................. 2, 10

Sunny day "_ ....................................... 27

SUPER MACRO s,_ ............................. 21

TIME (_)) ............................................ 50

Top menu ................................................ 5

Tungsten light ;,,6_.................................. 27

Turn the camera on ........................ 13, 15

TYPE .................................................... 34

USB cable ................................... 2, 46, 52

..........V .....

VIDEO OUT .......................................... 44

VOLUME ............................................... 40

VOLUME [] ........................................ 41

Warning sound _)))................................ 41

White balance WB ................................ 27

xD-Picture Card .............................. !!, 60

Zoom ..................................................... 20

ZOOM (SLIDESHOW) .......................... 34

OLYMPUS

http://www.olympusamerica.com/

OLYMPUS iMAGiNG AMERICA iNC.

3500 Corporate Parkway, P.O. Box 610, Center Valley, PA 18034-06t0, U.S.A. TeL 484-896-5000

TechnicaJ Support (USA)

24/7 online automated help: http://www.olympusamerica.com/support

Phone customer support: Tel. 1-888=553=4448 (Toll-free)

Our phone customer support is available from 8am to 10pm (Monday to Friday)

and 9am to 5pm (Sunday) ET

http://olympusamerica.com/contactus

Olympus software updates can be obtained at: httpd/www.olympusamerica.com/digital

TO find the nearest Service Centers, please visit: http://www.olympusamerica.com/digitaJ,

and click on the Worldwide Warranty icon at the bottom of the page.

U.S.A.:

California

NewYork

Canada:

Mexico:

Argentina:

Brazil:

Service Centers

Chile:

Olympus imaging America inc.

10805 Holder Street Suite 170

Cypress, CA 90630-5145

Tel: (888) 553-4448

Olympus imaging America Inc. Colombia:

400 Rabro Drive

Hauppaage, NY 11788-4258

Tel: (888) 553-4448

Olympus Canada inc.

Consumer Products Group

151 Telson Road

Markham, Ontario Canada L3R 1E7

Tel. (888)553-4448

Olympus imaging de Mexico S.A. de C.V.

WTC Mexico, Panama:

Montecito No.38 - Lobby - Office 3

Col. Napoles, Mexico D.F. 03810

Tel. (01800)800-2128

E-mail: oimx@olympus.com

Jesus Labrador

Paraguay755 PB, 01057AAI - Buenos Aires

Te1:(011)4313-3174 Fax: (011)4312-B239 Peru:

E-Mail: olympus@)esuslabrador.com.ar

Jesus Labrador

Bartolome Mitrte 860

Cl03BAAP - BuenosAires

Tel: (011)4331-1227 Fax:(011)4331-1247

E-mail: olympus@jesuslabrador.com.ar

Olympus OpticaJ do Brasil Ltda.

Rua do R6cio 430 -2 andar- VilaOlimpia

CEP04552-906 - SEePaulo- Brasil

Tel: 0800 72 66 72 0 Uruguay:

Fax: +55 11 3046-6412

E-mail: obl-cameras@olympus.com

Venezue|a:

REiFSCHNEIDER S.A.

Camino El Conquistador del Monte 5024

Huechuraba, Santiago

Tel: 56-2-6781200 Fax: 56-2-6781202

E-mail: olympus@reifschneider.cl,

serviciotecnico@reifschneider.cl

CV Tronica LTDA

Calle 68 No 12-57, Bogota

Tel: (0571)235-7260/348-1573

Fax: (0571) 348-1574

E-mall: servicio@cvtronica.com

CV Tronica LTDA

Cra9 No23-49Local215 C,CIntercentr0,Bogota

Tel: (0571)284-4365

CV Tronica LTDA

Av, Cra 15 No105A-22Piso2 Local5, Bogota

Tel: (0571) 637 4540 - 619 1682

TECNOTEK

Centre Comercial Multimax

Via Ricardo J. Alfaro, Local #14

Apartado 083%00333 Bethania, Panama

Tel: 507-360-3500

Pax: 507-360-3549

E-mail: daniels@multitek.com.pa

ELECTRONICA LAU SI

Av. Oscar R. Benavides 4703/4707

Callao (Ex-Av. Colonial) Lima, Peru

Te1:452-1333 Fax:451-6403

E-mail:Olympus@elausi.com.pe

ELECTRONICA LAU SI

Av. Carlos izaguire 1334

Los Olivos, Lima - Peru

Tel. 542-3647

Pax:523-4819

E.mail: ventas@elausi.com.pe

Fotocamara S.R.L.

Rondeau 1470 Montevideo

Tel: (02) 900-2004 Fax: (02) 900-8430

E-mail: FOTOCAM@ADINET.COM.UY

Micron C.A.

4ta. transversal Urb. Horizonte,

Edificio America,Mezanine, Caracas1070-A

Tel: (0212)238-3528 Fax: (021B)239-8598

E-mail: serviciotecnico@micron.com.ve

Printed in China VN061201

OLYMPUS Cameras, All Manual L0904435

Navigation menu

Versions of this User Manual:

Views

Navigation
