OMEGA TECHNOLOGY BH-530 Bluetooth Stereo Headset User Manual User s manual
OMEGA TECHNOLOGY INC. Bluetooth Stereo Headset User s manual
User Manual
User’s manual

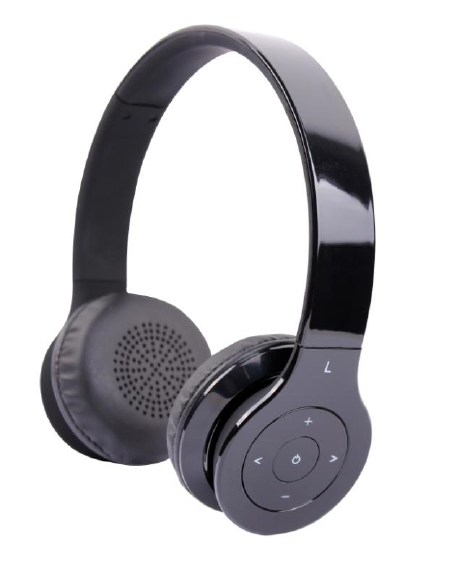

BH-530
Bluetooth Stereo Headset
Specifications
Bluetooth version
Bluetooth V3.0+EDR
SUPPORT: HSP, HFP, A2DP and AVRCP
Buttons
Volume up/down
Song last/next
MFB pair/pick up call/hang up call/redial
Effective range
10 meters
Working time
Music: Up to 10 hours
Talk: Up to 11hours
Standby time
Up to 250 hours
Input
DC: 5V/160mA
Charging time
Approx 3 hours
Microphone
Bulid-in 360° Omin directional
Rechargable
Micro USB cable
Welcome use Bluetooth stereo headset, BH-530
BH-530 is a Bluetooth stereo headset which supports following Bluetooth profiles:
HSP —— Headset Profile
HFP —— Hands-free Profile
A2DP—— Advanced Audio Distribution Profile
AVRCP——Audio/Video Remote Control Profile
You can enjoy wireless music and hand free talking by using BH-530.
Function:
1) Pairing with any mobile phone with built-in Bluetooth devices (e.g. iPhone, HTC, Samsung)
and Tablet PC (such as iPad).
• Answer, end and reject call from the headset
• Redial last number.
• Voice dial.
• Listen to music wirelessly
• Fully remote control buttons on the headset for pause/play/last song/next song/re-
dial/voice call.
2) Automatic switching in between conversation and music, you will not miss any incoming
call during music listening.
3) Automatic connecting with the last paired device when turn on the headset.
4) Feature of the battery indicator is available on iOS5, 6 on iPhone, iPad. it will show the
battery status for the headset without installing any Apps.
5) Multilink technology allows you to connect to two devices at the same time. All you need
to do is simply repeat the pairing process for the second device and manually reconnect
from the first device.
6) Voice prompt now comes with five status alerts in English. Power on, power off, pairing,
pairing completed, incoming call. The voice notice comes directly through the headset and
tells what the current status is about.
Note: Even though the paired device and headset support the same Bluetooth profiles, the
functions may be different due to the specification difference of the paired devices.
I - Before using
1) Overview
• 1.extension panel can fit different size user.
• 2.> key :next song
• 3.< key :last song
• 4.LED Indicator for different states
• 5.Multifunction button (MFB):Switch on/off the headset, answer, stop call, voice dial,
redial last number, pause and play
• 6/7.+ key: volume up / – key: volume down
2) Charging the headset
• First time charging : first time charger battery ,please be sure the battery has been
charged fully before use.
• Next time: When you hear warning tones of “DU DU DU” out and at the same time the
red light blinks two times. It means battery is almost run out ,you need to charge it.
A. Charging the battery with Micro USB cable
• Step1: Insert USB charging cable into USB port which have support 5V power (such as
AC/DC USB adapter or PC USB port)
• Step2: Connect charging cable to the charging port of headset.
1.
2.
3.
4.
5.
7.
6.
• When the red light is on, the headset is in charging.
• When the blue light is on, the headset is fully charged.
• It takes about almost 3 hours to charge the headset fully.
Note: when you plug the charger cable please turn off the BH-530.
II - How to use
1) Switching on / off headset
Function
Operation
LED indicator
Voice prompt
Switch
on
Press the MFB button for 3
seconds, and release it till
the blue LED is on
Blue LED blink 3 times.
Power On
Switch
off
Press the MFB button for 5
seconds, and release it till
the red LED is on
Red LED blink 3 times
Power Off
2) Pairing the headset with Bluetooth devices
A. How to enter pairing mode
Function
Operation
LED indicator
Voice prompt
Enter pairing
mode
Make sure the headset is
off. Press and hold MFB
button for 6 seconds, and
release it till the red and
blue LEDS blink alternately
Red and blue LEDs
blink alternately.
Pairing
B. Pairing the headset with Bluetooth mobile phone
Please make sure your mobile phone has Bluetooth function that can be used.
Notes: Specific pairing procedures may vary with different mobile phone. Please refer to
your mobile phone manual for further information. Steps as follows:
• Please keep the headset and mobile phone in the range of 1 meter when pairing.
• Make the headset enter into pairing mode (LED is red and blue blinking)
• Start the Bluetooth function of mobile phone and search for new Bluetooth devices.
After searched, select “BH-530”in the Bluetooth device list.
• According to indication, enter password or PIN No:”0000”, and press the key of” Yes”
or “confirmed”. ( it depends on the Bluetooth device setting )
• After successful pairing, select “BH-530" in the Bluetooth device list, and press
“connect”.
• After connect successfully, the blue LED of the headset will keep blinking.
Notes:
• If the pairing is not successful, please switch off headset firstly, and then re-pair again.
• After pairing is successful, paired devices will remember each other. Unless pairing
information is deleted because of new pairing, no need to pair when use next time. If
you want to pair the headset with other devices, please pair it with the new device
according to steps 1～6 mentioned above.
• Multilink technology allows simultaneous connection to two different devices, just
simply repeat the pairing process on both devices.
• Although WIN7 is a superior operating system with most drivers already built-in, in
some cases this does not cover the various hardware configurations built into the
device (e.g. PC, Note book, Net book etc) from the manufacturer. In this case, please
visit the manufacturer’s web site for the latest Bluetooth drivers for your onboard
Bluetooth device.
3) Re-connecting to a Bluetooth device
• Automatic connecting
Every time the headset is switched on, it will connect to last connected device
automatically, of course the source device Bluetooth must be on “on” states
• Manual connecting to last connected HFP device
When the headset is in standby mode and doesn’t connect to any HFP devices, short
press MFB button once, it will connect to last connected source device automatically.
Notes:
- Before connecting to a Bluetooth device, please turn on the Bluetooth device’s
Bluetooth function.
- On some Bluetooth devices, take some Nokia mobile phones for example, you have to
allow automatic connecting in the mobile phone’s settings. Please refer to your mobile
phone’s manual for further information.
4) Making calls with the headset
Function
Status of headset
Operation
Voice dial
Standby mode
Press and hold MFB button for 1 second, release it
till hearing indication sound ,then speak the call you
want to.
Redial last
number
Standby mode
Short press MFB twice quickly
Volume up
Conversation mode
Short press + key
Volume
down
Conversation mode
Short press - key
Answer
calling
Ringing
Short press MFB
Reject calling
Ringing
Press and hold MFB button for 1 second, and release
until you hear indication sound
• Not all the mobile phones support all the functions listed above. Please refer to the
instruction of your mobile phone.
• Some functions and indication tones may vary with different mobile phones.
• When the volume is adjusted to max or min, you will hear a indication tone.
• For some mobile phones, when you press the key of accepting on the phone, the
conversation will be sent to the mobile phone. At this time, you can switch the call to
headset by using the conversation switch button or through operating on the mobile
phone. Please refer to the instruction of your mobile phone for further information.
5) Playing music
When the headset connects with the mobile phone or Bluetooth transmitter , you can
enjoy music through headset wirelessly.
Function
Status of headset
Operation
Pause
Playing music
Short press MFB
Play
Pausing
Short press MFB
Next song
Playing music
Short press > key
Last song
Playing music
Short press < key
Volume up
Playing music
Short press + key
Volume down
Playing music
Short press - key
Notes:
• For some of mobile phones, when they are playing music, the music will transmit to
the speaker of mobile phone, you have to choose “transmit the sound through
Bluetooth” in the “setting” of music play interface, and then choose “BH-530” in the
device list, the music will be transmitted to the headset. Please refer to the
instruction of your mobile phone for further information.
• When the volume of headset is adjusted to max. or min, you will hear a indication DU
DU tone.
• Remote control the function of last song/next song/pause, it needs your mobile
phone or Bluetooth transmitter supports AVRCP. Please refer to the instruction of
your mobile phone or Bluetooth transmitter for further information.
6) LED
1) Battery Charging mode
LED indicator
Status of the headset
Red LED is on
Charging
Blue LED is on
Finish charging
2) Operation mode
LED Indicator
Status of the headset
Red and blue LEDs blink alternately
Pairing mode
Blue LED quickly blinks twice every 1 seconds.
Not connected to a device
Blue and Red LED quickly blinks three times every 2
seconds
Set up HFP and A2DP connection
Red LED blinks twice every 20 seconds
Low power
8) Low power Indication tone
“DU” tones every 20 seconds
• Care and maintenance
Please read the following suggestions carefully, that will help you to fulfill any warranty
obligations and to enjoy this product for many years.
• Keep dry and don’t put it in the dump place, in case of effecting the interior circuit of
product.
• Don’t put the product under the sunlight or place hot areas. High temperature will
short the life of electronic device, destroy the battery, or distort certain plastic.
• Don’t expose the product in the cold areas. It may damage the internal circuit board.
• Don’t try to take apart the product. It may damage the product if you are not
professional.
• Don’t fall off on the floor or knock the hard substance. It may damage interior circuit.
• Don’t use intensify chemical or detergent to clean the product.
• Don’t scrap the surface with sharp things. In case the product doesn’t function
properly, send it to the store you bought it. The staff will help you to solve the
problem.
FCC Statement
Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions
(1)this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation
