OMNIKEY CM5321 RFID Reader User Manual

OMNIKEY GmbH RFID Reader

User Manual

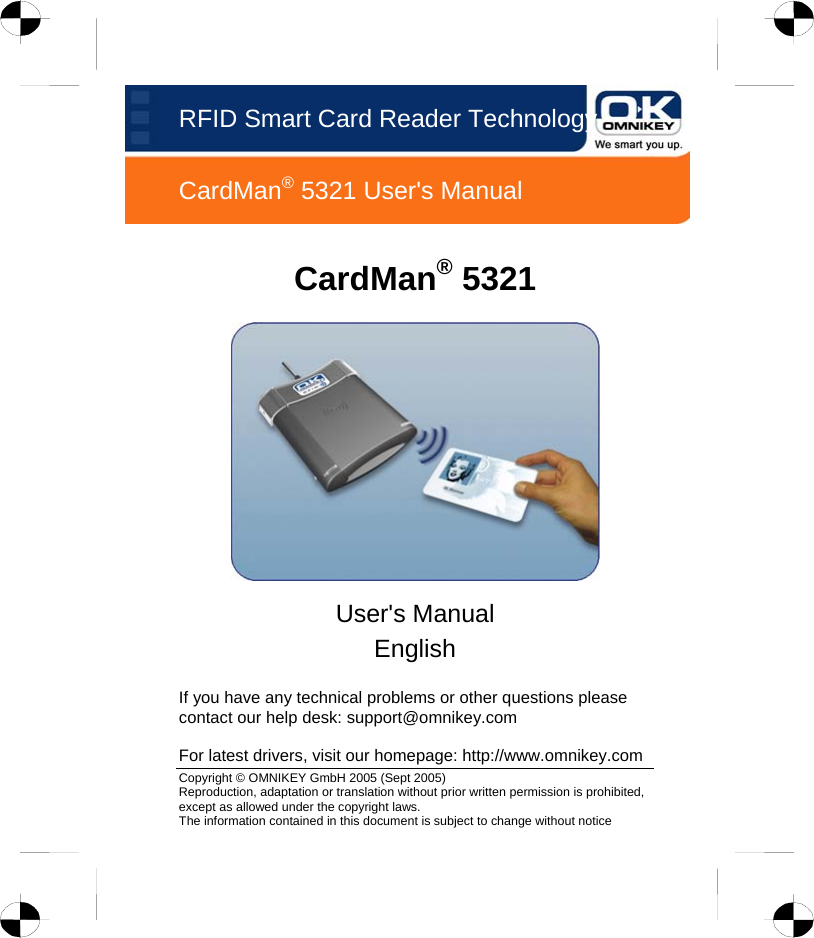

RFID Smart Card Reader Technology CardMan® 5321 User's Manual Copyright © OMNIKEY GmbH 2005 (Sept 2005) Reproduction, adaptation or translation without prior written permission is prohibited, except as allowed under the copyright laws. The information contained in this document is subject to change without notice CardMan® 5321 User's Manual English If you have any technical problems or other questions please contact our help desk: support@omnikey.com For latest drivers, visit our homepage: http://www.omnikey.com

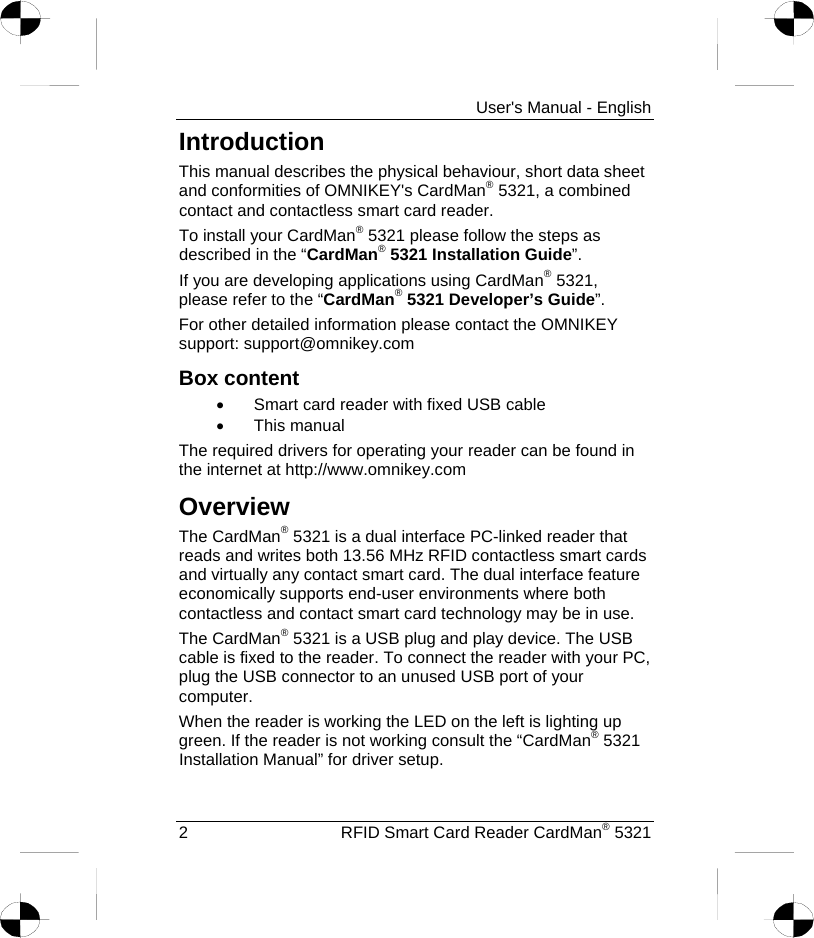

User's Manual - English Introduction This manual describes the physical behaviour, short data sheet and conformities of OMNIKEY's CardMan® 5321, a combined contact and contactless smart card reader. To install your CardMan® 5321 please follow the steps as described in the “CardMan® 5321 Installation Guide”. If you are developing applications using CardMan® 5321, please refer to the “CardMan® 5321 Developer’s Guide”. For other detailed information please contact the OMNIKEY support: support@omnikey.com Box content • Smart card reader with fixed USB cable • This manual The required drivers for operating your reader can be found in the internet at http://www.omnikey.comOverview The CardMan® 5321 is a dual interface PC-linked reader that reads and writes both 13.56 MHz RFID contactless smart cards and virtually any contact smart card. The dual interface feature economically supports end-user environments where both contactless and contact smart card technology may be in use. The CardMan® 5321 is a USB plug and play device. The USB cable is fixed to the reader. To connect the reader with your PC, plug the USB connector to an unused USB port of your computer. When the reader is working the LED on the left is lighting up green. If the reader is not working consult the “CardMan® 5321 Installation Manual” for driver setup. 2 RFID Smart Card Reader CardMan® 5321

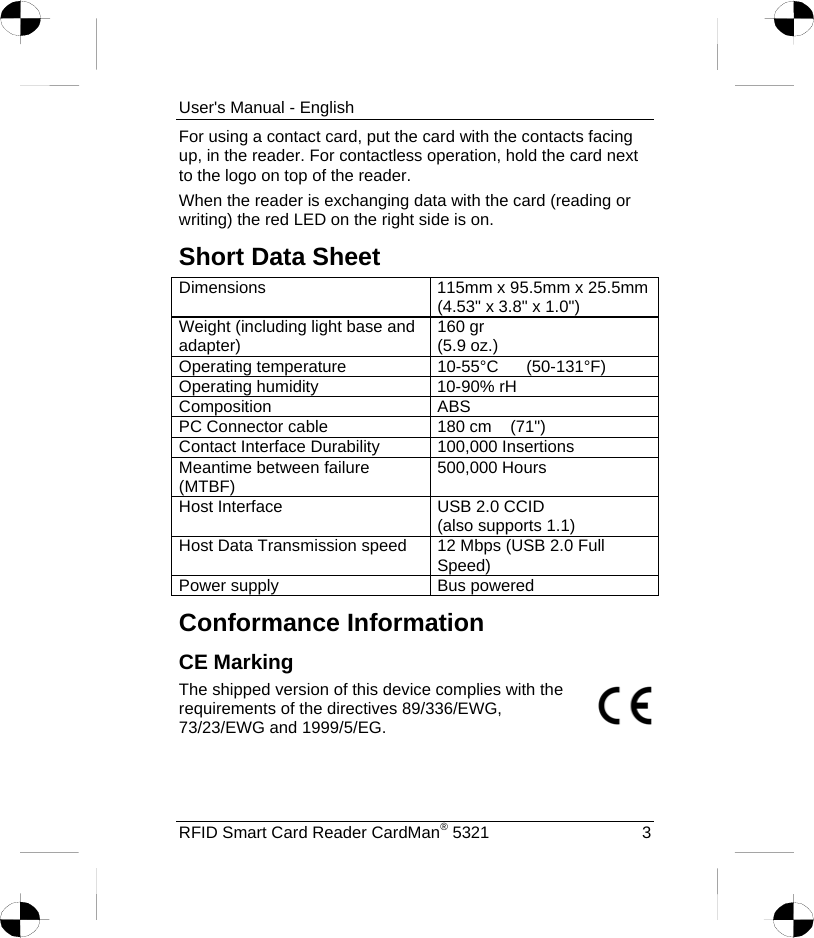

User's Manual - English For using a contact card, put the card with the contacts facing up, in the reader. For contactless operation, hold the card next to the logo on top of the reader. When the reader is exchanging data with the card (reading or writing) the red LED on the right side is on. Short Data Sheet Dimensions 115mm x 95.5mm x 25.5mm (4.53" x 3.8" x 1.0") Weight (including light base and adapter) 160 gr (5.9 oz.) Operating temperature 10-55°C (50-131°F) Operating humidity 10-90% rH Composition ABS PC Connector cable 180 cm (71") Contact Interface Durability 100,000 Insertions Meantime between failure (MTBF) 500,000 Hours Host Interface USB 2.0 CCID (also supports 1.1) Host Data Transmission speed 12 Mbps (USB 2.0 Full Speed) Power supply Bus powered Conformance Information CE Marking The shipped version of this device complies with the requirements of the directives 89/336/EWG, 73/23/EWG and 1999/5/EG. RFID Smart Card Reader CardMan® 5321 3

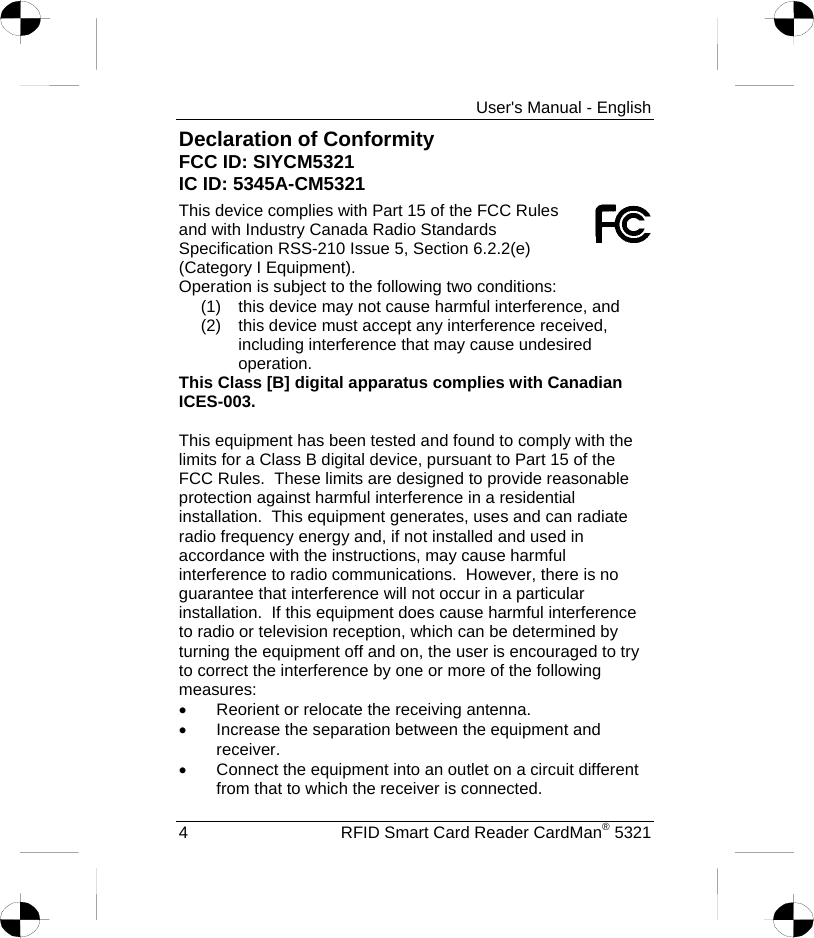

User's Manual - English Declaration of Conformity FCC ID: SIYCM5321 IC ID: 5345A-CM5321 This device complies with Part 15 of the FCC Rules and with Industry Canada Radio Standards Specification RSS-210 Issue 5, Section 6.2.2(e) (Category I Equipment). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class [B] digital apparatus complies with Canadian ICES-003. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4 RFID Smart Card Reader CardMan® 5321

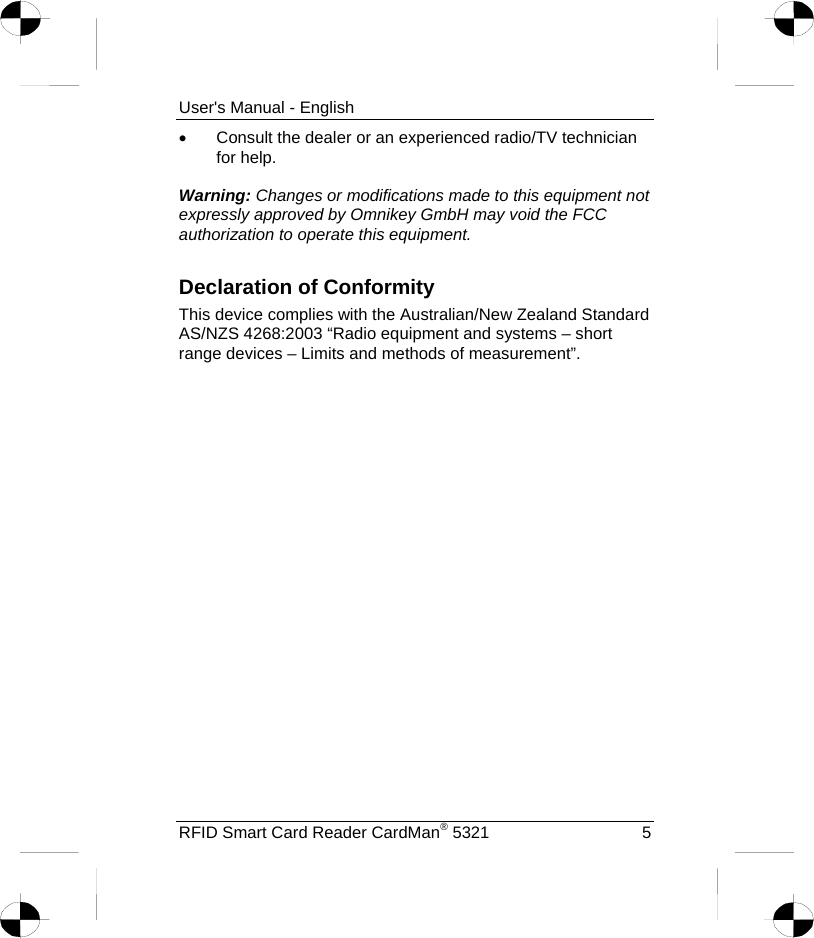

User's Manual - English • Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this equipment not expressly approved by Omnikey GmbH may void the FCC authorization to operate this equipment. Declaration of Conformity This device complies with the Australian/New Zealand Standard AS/NZS 4268:2003 “Radio equipment and systems – short range devices – Limits and methods of measurement”. RFID Smart Card Reader CardMan® 5321 5

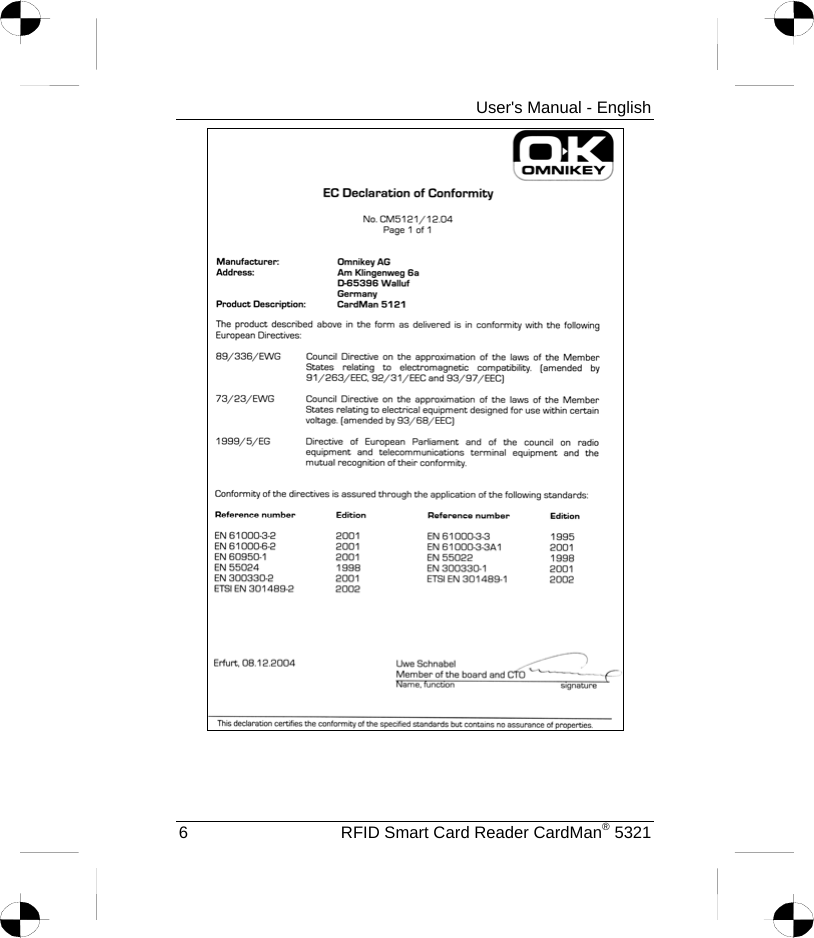

User's Manual - English 6 RFID Smart Card Reader CardMan® 5321
