OMRON HEALTHCARE HHXIT3Z Omron NFC Communication Tray User Manual Short term confidentiality Users Manual
OMRON HEALTHCARE Co.,Ltd Omron NFC Communication Tray Short term confidentiality Users Manual
Short-term confidentiality_Users Manual
INTRODUCTION
Thank you for purchasing the OMRON NFC
Communication Tray.
Fill-in for future reference
DATE PURCHASED: ___________
• Staple your purchase receipt here
• Register your product online at
www.register-omron.com
Please read this instruction manual thoroughly before using
the unit. Please keep this for future reference.
IMPORTANT SAFETY INFORMATION
To assure the correct use of the product, basic safety use
should always be followed including the warnings and
cautions listed in this instruction manual.
SAFETY SYMBOLS USED IN THIS
INSTRUCTION MANUAL
WARNING Indicates a potentially hazardous situation
which, if not avoided, could result in death or
serious injury.
CAUTION
Indicates a potentially hazardous situation
which, if not avoided, may result in minor
or moderate injury to the user or patient or
damage to the equipment or other property.
OPERATING THE DEVICE
This product is a reader-writer that uses radio
waves for RFID equipment. The application and
location of this product may affect medical devices.
The following precaution must be observed in the
application of this product to minimize the effects
on medical devices. Any person with an implanted
medical device must keep the area where the
device is implanted at least 9 inches (22 cm) away
from the antenna of this product.
Do not use damaged USB cables or plugs. Doing
so may cause an electric shock, short-circuiting, or
fi re.
Read all information in the instruction manual and
any other literature included in the box before using
the unit.
Operate the unit only as intended. Do not use for
any other purpose.
Do not touch the USB Connector with wet hands.
Do not use the unit near objects that emit strong
magnetic or radio waves, in locations where it may
be exposed to static electricity, on a tilted surface
or in an unstable place where it may be subject to
vibrations. Using the unit in such environments
may result in unit malfunction or data transfer
failure.
Do not place devices that do not support the NFC
Communication Tray directly on or near the unit.
Do not place more than two devices directly on or
near the unit.
Do not unplug the USB cable while the unit is
transferring data. Doing so may result in a transfer
failure.
Do not insert any foreign objects into the USB
plug. Doing so may result in a function failure.
To ensure correct usage, only use this product
with a NFC enabled device. For more information
on products that are NFC enabled, visit www.
omronhealthcare.com
Do not place heavy objects or devices on the USB
cable. Do not damage, fabricate, forcefully bend,
twist, pull, squeeze, or heat the USB cable. When
disconnecting the NFC Communication Tray,
do not pull the USB cable.
Always hold and pull the
USB plug. Do not wrap the
USB cable around the tray
when storing the unit. Doing
so may damage the cable.
The unit may not operate normally if a USB hub
or extension cable is used. If it does not function
correctly, directly connect the unit to the PC.
INSTRUCTION MANUAL
NFC Communication Tray
Model: HHX-IT3-Z HHX-IT3-Z
1883299-7 A
HHX-IT3-Z_A_EN_M09_121019.pdf
CARE AND MAINTENANCE
Do not disassemble or modify the unit. Changes or
modifi cations not approved by Omron Healthcare
will void the user warranty.
Dispose of the unit and components according to
applicable local regulations. Unlawful disposal may
cause environmental pollution.
CARE AND MAINTENANCE
To keep the unit in the best condition and protect it from
damage, follow the directions listed below:
CAUTION
Do not disassemble or modify the unit.
Changes or modifi cations not approved by Omron
Healthcare will void the user warranty.
Clean the unit with a
soft dry cloth.
Do not use any abrasive
or volatile cleaners. To
remove stubborn stains,
wipe the unit with a
damp cloth moistened
with water or mild
detergent. Then, wipe the
unit with a dry cloth.
Do not immerse the unit or any of the components in
water.
The unit is not waterproof. Do not wash it or touch it
with wet hands. Be careful that water does not get into
the unit.
Store the unit in a safe and dry location.
Avoid exposure to direct sunlight, high temperatures,
high humidity, water, dust or salty air.
Do not subject the unit to strong shock, drop, or step
on it.
Avoid exposing the unit to chemical or corrosive
vapors.
Keep the unit out of the reach of young children.
Use of the unit must be consistent with the
instructions provided in this manual.
TRANSFERRING DATA TO THE PC
To begin using the software for the fi rst time, please
refer to the device’s instruction.

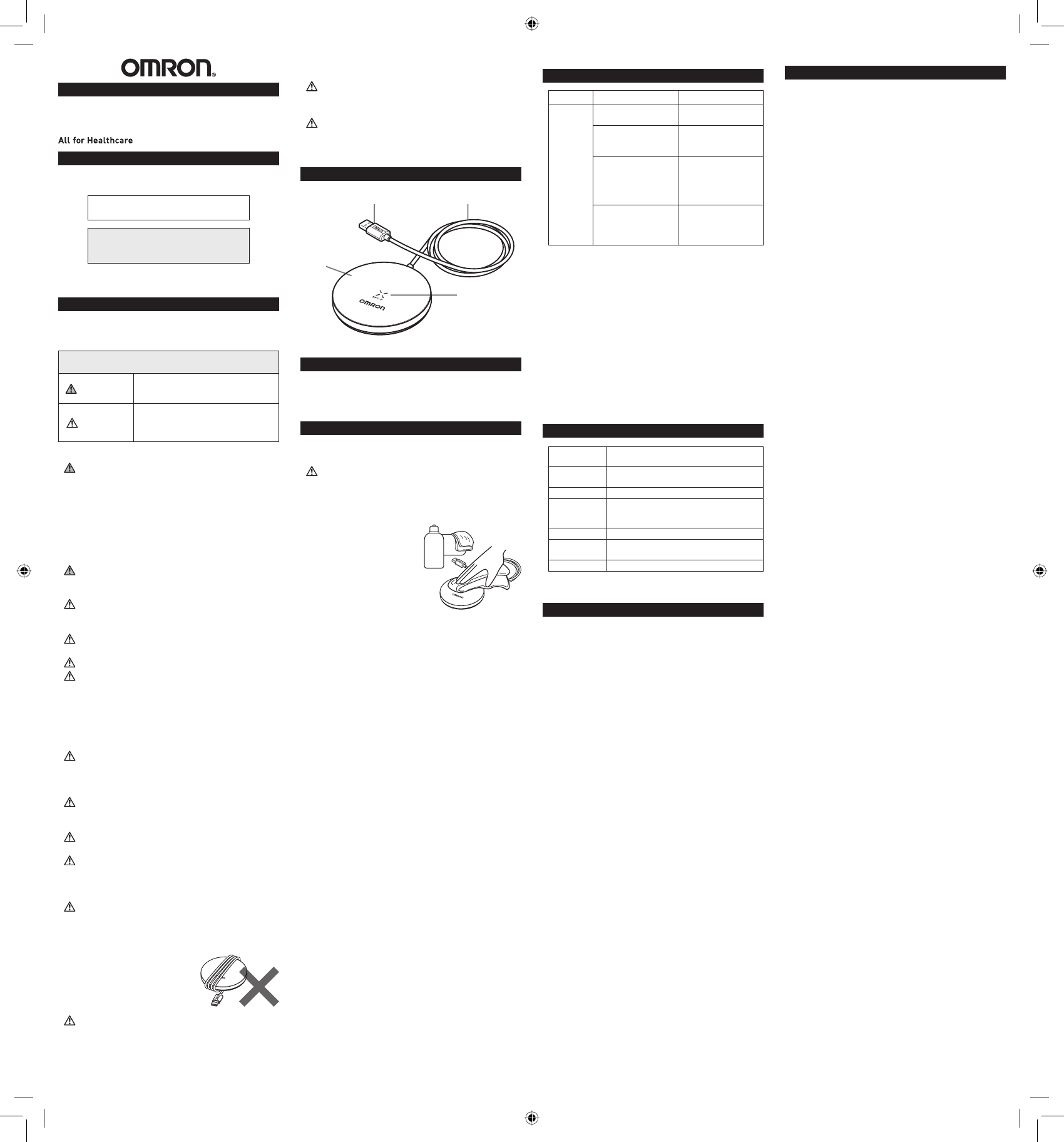

KNOW YOUR UNIT
USB plug
Tray
USB cable
Communication
area mark
ABOUT THE COMMUNICATION FUNCTION
FCC CAUTION:
This unit complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This unit may not cause harmful interference, and
(2) this unit must accept any interference received,
including interference that may cause undesired
operation.
Changes or modifi cations not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the unit.
This unit has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in
a residential installation. This unit generates, uses and
can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in
a particular installation. If this unit does cause harmful
interference to radio or television reception, which can
be determined by turning the unit off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the unit and
receiver.
Connect the unit into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
•
•
•
•
LIMITED WARRANTY
Your OMRON NFC Communication Tray is warranted
to be free from defects in materials and workmanship
appearing within 1 year from the date of purchase, when
used in accordance with the instructions provided with
the unit. The above warranties extend only to the original
retail purchaser.
We will, at our option, replace without charge any unit
covered by the above warranties. Replacement is our
only responsibility and your only remedy under the
above warranties.
To obtain warranty service contact Omron’s Customer
Support at 1-800-634-4350. Information for warranty
service is available on our website at
www.omronhealthcare.com.
Enclose the Proof of Purchase. Include a letter, with your
name, address, phone number, and description of the
specifi c problem. Pack the product carefully to prevent
damage in transit. Because of possible loss in transit,
we recommend insuring the product with return receipt
requested.
THE FOREGOING IS THE SOLE WARRANTY
PROVIDED BY OMRON IN CONNECTION
WITH THIS PRODUCT, AND OMRON HEREBY
DISCLAIMS ANY OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING IMPLIED
WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE.
IMPLIED WARRANTIES AND OTHER TERMS
THAT MAY BE IMPOSED BY LAW, IF ANY, ARE
LIMITED IN DURATION TO THE PERIOD OF
THE ABOVE EXPRESS WARRANTY.
OMRON SHALL NOT BE LIABLE FOR LOSS OF
USE OR ANY OTHER SPECIAL, INCIDENTAL,
CONSEQUENTIAL OR INDIRECT COSTS,
EXPENSES OR DAMAGES.
This warranty provides you with specifi c legal rights,
and you may have other rights that vary by jurisdiction.
Because of special local requirements, some of the above
limitations and exclusions may not apply to you.
FOR CUSTOMER SERVICE
Visit our web site at: www.omronhealthcare.com
Call toll free: 1-800-634-4350
Manufactured for:
OMRON HEALTHCARE Co., Ltd.
Distributed by:
OMRON HEALTHCARE, INC.
1925 West Field Court
Lake Forest, IL 60045 U.S.A.
www.omronhealthcare.com
© 2012 OMRON HEALTHCARE, INC.
Made in China
TROUBLESHOOTING TIPS
Problem Probable Cause How to Correct
No data is
transferred.
Software is not installed
or it has not been started.
Refer to your device’s
Instruction Manual.
The NFC Communication
Tray is not connected
properly.
Connect the NFC
Communication Tray
properly.
The communication area
mark on the device is not
aligned to the mark on
the NFC Communication
Tray.
Match the marks on the
device and the NFC
Communication Tray.
Data transfer was
attempted near a
magnetic source.
Transfer data in a
location not affected
by an electromagnetic
interference.
NOTES:
Ensure that the USB cable is plugged into the USB
2.0 (USB 1.1) port when connecting the unit to the
PC. Currently, a USB 3.0 port is not supported.
Some PCs may have both USB 3.0 and USB 2.0
ports. Always use the USB 2.0 port even on such
PCs.
If the data transfer is still not working after trying
the above troubleshooting tips, there may be a
product failure occurring. For failure of the product,
please contact the Omron Healthcare’s Customers
Service.
•
•
SPECIFICATIONS
Model: OMRON NFC Communication Tray
HHX-IT3-Z
Communication
system: Based on NFC-F (ISO/IEC 18092),
Based on RFID (ISO/IEC 15693)
Power supply: 5VDC (supplied via USB)
Operating
Temperature/
Humidity:
41˚F to 95˚F (+5˚C to +35˚C) / 30% to 85%RH
Weight: Approx. 2 1/4'' oz (65 g) (including USB cable)
Dimensions: Approx. 3 3/4'' (diameter) × 1/2'' (h)
(
φ
95 mm × 13 mm)
Contents: Instruction Manual
Specifi cations are subject to change without notice.•
