INSTRUCTION MANUAL
HJ-327T
HJ-327T-ZG
9527561-8A
Alvita Wireless Activity Tracker
CONTENTS BEFORE USING INSTRUCTIONS MAINTENANCE ContentsCONTENTS
CONTENTS
Before Using
INTRODUCTION ............................................1
IMPORTANT SAFETY INFORMATION ..... 2
KNOW YOUR TRACKER ..............................4
INSERTING THE BATTERY ......................... 5
CHANGING THE BATTERY COVER .......... 6
OPTIONAL STRIDE LENGTH
MEASUREMENT ...........................................7
PAIRING THE TRACKER WITH
SMARTPHONE ...............................................8
Instructions
USING THE TRACKER ............................... 10
TRANSFERRING AND DELETING DATA
... 14
Maintenance
MAINTENANCE AND STORAGE ............. 16
BATTERY REPLACEMENT ........................ 18
TROUBLESHOOTING .................................20
SPECIFICATIONS ......................................... 24
FCC STATEMENT ........................................26
LIMITED WARRANTY ............................... 28
DATA TRANSMISSION AND
TRADEMARKS ............................................30
1
MAINTENANCE CONTENTS BEFORE USING INSTRUCTIONS MAINTENANCEContents BEFORE USING InstructIons
INTRODUCTION
Thank you for purchasing the OMRON Alvita
Wireless Activity Tracker (HJ-327T).
Activity Tracker
Battery (CR2032)
Clip
Spare battery cover
Coin shaped screwdriver
Quick Start Guide
This Tracker features advanced 3D Smart Sensor
technology - so it knows exactly when you’re
taking a step. You can easily track your progress by
transferring your walking data from the Tracker to
your smartphone. Use this tracker everyday to
monitor your fitness achievements!
Your Tracker comes with the following components:
Please read this instruction manual thoroughly
before using the tracker.
Before Using
2
CONTENTS BEFORE USING INSTRUCTIONS MAINTENANCEBEFORE USING Contents
IMPORTANT SAFETY INFORMATION
Warning: Improper use may result in death or
serious injur y.
yContact your doctor or healthcare provider
before beginning a weight reduction or exercise
program.
yKeep the tracker out of the reach of young
children. The tracker contains small pieces that
may be swallowed. Immediately contact your
physician if any piece is swallowed.
yIf battery uid gets in your eyes, on your skin
or clothing immediately rinse with plenty of
clean water. Contact a physician immediately.
yDo not put the tracker near (within 9 inch)
implantable medical tracker such as
pacemakers.
yIn places where radio communications are
prohibited, remove the tracker’s battery to turn
off the Bluetooth®.
go to next page
3
MAINTENANCE CONTENTS BEFORE USING INSTRUCTIONS MAINTENANCEContents BEFORE USING InstructIons
Caution: Improper use may result in minor
or moderate injury to the user or
damage to the equipment.
yDo not throw the battery into re. The battery
may explode.
yAlways use the type of battery indicated.
yDo not immerse the tracker or any of the
components in water. The tracker is not
waterproof.
yDo not disassemble or modify the tracker.
yRemove the battery from this tracker if you
are not going to use it for a long period of time
(approximately three months or longer).
yDo not subject the tracker to strong shock such
as dropping it on the ground.
yDo not put the tracker in the back pocket of
your pants or skirt.
yDispose of the tracker, battery, and components
according to applicable local regulations.
Unlawful disposal may cause environmental
pollution.
yDo not place the tracker in direct contact with
your skin if you have sensitive skin or the area
where you place the tracker has numbness,
swelling, eczema, skin irritation, a broken bone
or an injury.
4
CONTENTS BEFORE USING INSTRUCTIONS MAINTENANCEBEFORE USING Contents

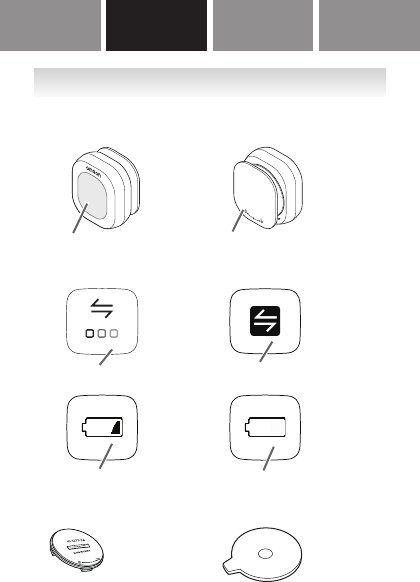

KNOW YOUR TRACKER
Main Tracker
Front Back
Display (touch screen) Clip
Display
Data transfer indicator Measurement results
transfer indicator
Low battery indicator Exhausted battery indicator
Spare Battery Cover Coin shaped screwdriver
5
MAINTENANCE CONTENTS BEFORE USING INSTRUCTIONS MAINTENANCEContents BEFORE USING InstructIons
INSERTING THE BATTERY

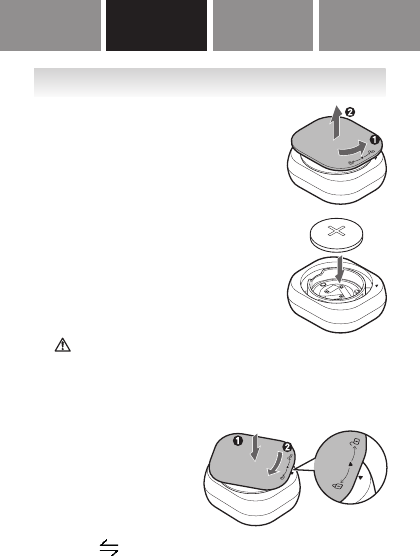

1. Remove the battery cover
from the tracker.
(1) Rotate the battery cover
counter-clockwise.
(2) Lift the battery cover out of
the tracker.
2. Insert the battery (CR2032)
with the positive side (+)
face up.
Caution:
Do not insert the battery with the polarities in
the wrong direction.
3. Replace the battery cover.
(1) Align two marks
and press the
battery cover down.
(2) Rotate the cover
clockwise.
When is displayed the tracker’s screen,
proceed to “PAIRING THE TRACKER WITH
SMA RTPHONE”.
6
CONTENTS BEFORE USING INSTRUCTIONS MAINTENANCEBEFORE USING Contents
CHANGING THE BATTERY COVER
A battery cover with clip is attached to the
tracker at the time of purchase. You can replace
it with the spare battery cover depending on
your needs.

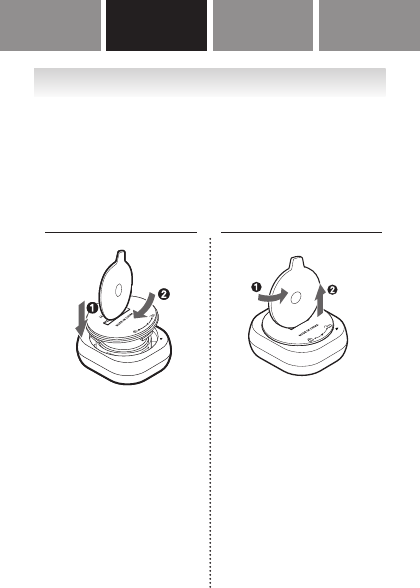

Attach to the tracker
Remove from the tracker
1. Align the protrusion
on the battery cover
with the indent on
the tracker.
2. Insert the coin
shaped screwdriver
into the groove of
the battery cover.
3. Rotate the battery
cover clockwise.
1. Insert the coin
shaped screwdriver
into the groove of
the battery cover.
2. Rotate the battery
cover counter-
clockwise.
3. Lift the battery
cover out of the
tracker.
7
MAINTENANCE CONTENTS BEFORE USING INSTRUCTIONS MAINTENANCEContents BEFORE USING InstructIons
OPTIONAL STRIDE LENGTH
MEASUREMENT
The initial stride length displayed on the app is an
estimated value calculated by your height setting.
You may choose to adjust your stride length by
adding the new value in the app. For instructions
on calculating your stride manually, please refer
to the following instruction, and then entering the
new value in the application.

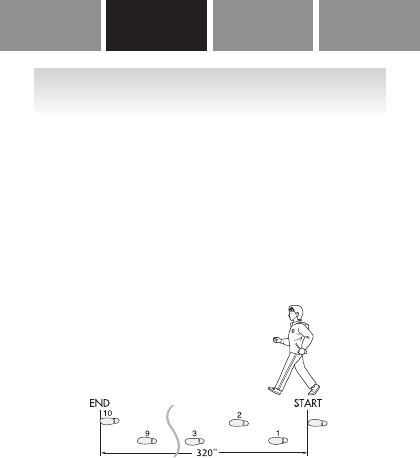

How to measure your stride length
1. Walk 10 steps with your normal stride as
illustrated below.
2. Measure the distance from START to END in inches.
3. Calculate your stride length by dividing the total
distance by 10.
Example:
Total distance = 320''
320 ÷ 10 = 32 inches (2 feet 8 inches)
Conversion Chart
12 inches = 1 foot
24 inches = 2 feet
36 inches = 3 feet
48 inches = 4 feet
8
CONTENTS BEFORE USING INSTRUCTIONS MAINTENANCEBEFORE USING Contents
PAIRING THE TRACKER WITH
SMARTPHONE
You will need to follow steps 1 to 4 when using
the tracker for the first time.

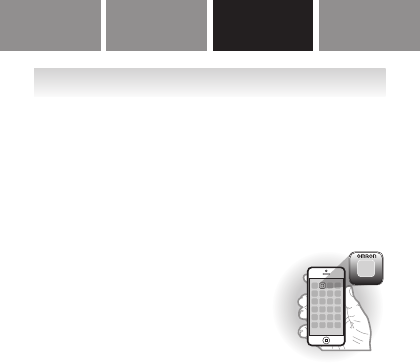

iPhone
Launching the
application
1. Turn on Bluetooth® on
your iPhone.
2. Install the Omron
Fitness app from the
App Store.
3. Launch the app and
follow the onscreen
instructions.
Android
Launching the
application
1. Turn on Bluetooth®
on your Android
smartphone.
2. Install the Omron
Fitness app from
Google Play.
3. Launch the app and
follow the onscreen
instructions.
Note:
If the initial settings are not correct, the
measurement results may not be accurate.
go to next page
9
MAINTENANCE CONTENTS BEFORE USING INSTRUCTIONS MAINTENANCEContents BEFORE USING InstructIons

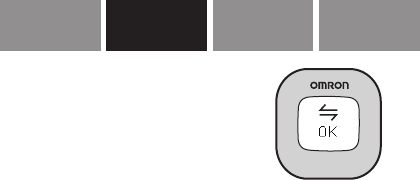

4. When “OK” is displayed
on the tracker, all the settings
are completed.
Note:
The tracker syncs with the following devices
and applications:
iPhone® 4S+, iOS 7+
Samsung Galaxy S® III, S®4, S®5
AndroidTM V4.3+
10
CONTENTS BEFORE USING INSTRUCTIONS MAINTENANCEContents Before Using INSTRUCTIONS Maintenance contents
USING THE TRACKER
How to wear
The tracker accurately counts in a pocket, bag, or
just about anywhere you want to place it. The tracker
may be placed in the upper front pocket of your shirt,
pants, skirt, in a bag, or attached to a belt.
Note:
Before putting the tracker in your pocket make
sure the display turns off, or the tracker may not
count steps correctly.
The tracker may not count steps correctly
in the following conditions:
1. The tracker moves irregularly
The tracker is placed in or attached to a bag,
and the bag moves irregularly.
The tracker is attached to your wrist.
2. Walking at an inconsistent pace
You shufe or wear sandals.
You constantly start and stop walking, or
move at some other inconsistent pace.
3. Up and down movement
You stand up and sit down.
You play sports other than walking.
You go up or down stairs or a steep slope.
go to next page
11
MAINTENANCE CONTENTS BEFORE USING INSTRUCTIONS MAINTENANCEMaintenance contents INSTRUCTIONS
4. Vibrations from a moving vehicle
You are on a bicycle, automobile, train or bus.
5. Walking extremely slowly
How to turn the tracker’s display on and off
To turn on the tracker’s display:
Shake the tracker 2 or 3 times in any direction to
turn on the display. After shaking the tracker, it
will take a moment for the screen to activate.
To turn off the tracker’s display:
Touch the center of the tracker’s display for
2 or 3 seconds to turn off the display. In addition,
the screen will go blank after 20 seconds of
inactivity so as to save battery life. Refer to
Battery saving mode for more information.
How to turn off Bluetooth®
Bluetooth® is set “ON” as a default. To turn off
Bluetooth®, please remove the tracker’s battery.
Battery saving mode
The tracker contains a battery saving mode. This
feature helps extend the battery life of the tracker.
The tracker will continue tracking all indices even
though the screen goes blank after 20 seconds
inactivity or when touching the tracker's display
for 2 to 3 seconds.
12
CONTENTS BEFORE USING INSTRUCTIONS MAINTENANCEContents Before Using INSTRUCTIONS Maintenance contents
How to view your data
The tracker stores up to 14 days of data, but
displays only the current day’s data. Measurement
results older than 14 days will be overwritten
starting from the oldest first. If you want to save
the data, transfer the data to your smartphone.
(Refer to “TRANSFERRING AND DELETING
DATA”.)

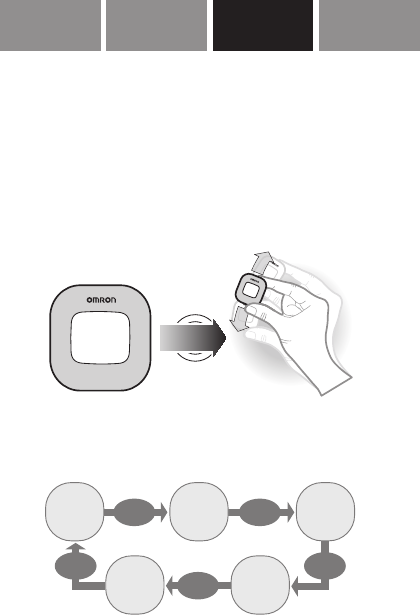

1 Shake 2 or 3 times to turn on the tracker’s display.
Shake
2
Touch the tracker’s display with the tip of your index
finger and press down for 1 or 2 seconds to view
the different indices.
Touch Touch
Touch
TouchTouch
10934
steps
4.66
mile
238
kcal
3019
steps
aerobic
AM
10:13
Step count Distance Calories
Aerobic stepsTime
go to next page
13
MAINTENANCE CONTENTS BEFORE USING INSTRUCTIONS MAINTENANCEMaintenance contents INSTRUCTIONS
Note:
Should be the palm of the hand or a flat and
stabilized surface when the tracker won’t work
even if you touch it.
Aerobic steps
Aerobic steps are the physical exercise that help us
stay healthy. Aerobic steps are counted separately
when walking more than 60 steps per minute and
more than 10 minutes successively. If a rest of less
than 1 minute is taken after a continuous walk of
more than 10 minutes, this will be regarded as part
of “a continuous walk.
14
CONTENTS BEFORE USING INSTRUCTIONS MAINTENANCEContents Before Using INSTRUCTIONS Maintenance contents
TRANSFERRING AND DELETING DATA
Transferring data
The tracker will always display the current days
data. It will also store up to 14 days of data (which
will not be visible on the tracker). In order to view
previous results, you will need to transfer your
data from the tracker to the app. Please follow
these steps to transfer your data :
1. Turn on Bluetooth® on your
smartphone.
2. Open the app on your
smartphone.
3. Shake the tracker to activate
the display.
The data transfer starts automatically
(within 10 meters).
4. On the app either pull down at the top of the
application, or on the dashboard, press and
hold the synch symbol and the transfering of
data will begin.
go to next page
15
MAINTENANCE CONTENTS BEFORE USING INSTRUCTIONS MAINTENANCEMaintenance contents INSTRUCTIONS
About the indicator
When blinks or is lit, transfer results
immediately so you do not lose any data.
Blinking: 10-13 days of measurement results have
been stored.
Lit:14 days of measurement results have been
stored.
If the number of days exceeds 14, the oldest results
are deleted first. Please transfer measurement
results as soon as possible so data is not
overwritten.
Deleting all results and settings
You are able to update and delete all personal data
and measurement results on the tracker from app.
Please refer to the app for instructions.
16
CONTENTS BEFORE USING INSTRUCTIONS MAINTENANCEMAINTENANCE

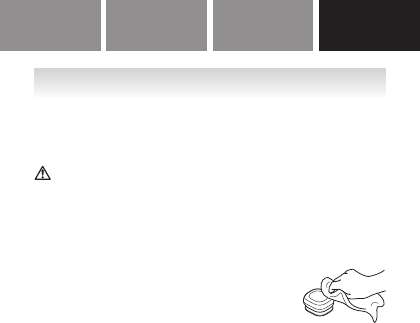

MAINTENANCE AND STORAGE
To keep the tracker in the best condition and
protect the tracker from damage follow the
directions listed below:
Caution:
Do not disassemble or modify the tracker.
Changes or modifications not approved by Omron
Healthcare will void the user warranty.
Clean the tracker with a soft dry cloth.
Do not use any abrasive or volatile
cleaners.
Do not immerse the tracker or any of the
components in water.
The tracker is not waterproof. Do not wash it or
touch it with wet hands. Be careful that water does
not get into the tracker.
Store the tracker in a safe and dry location.
Avoid the tracker being exposed to direct sunlight,
high temperatures, high humidity, water and/or
dust.
Do not subject the tracker to strong shock,
drop, or step on it.
go to next page
17
MAINTENANCE CONTENTS BEFORE USING INSTRUCTIONS MAINTENANCEMAINTENANCE
Replace a exhausted battery with a new one
immediately.
Remove the battery if the tracker will not be
used for three months or longer.
Use of the tracker must be consistent with the
instructions provided in this manual.
18
CONTENTS BEFORE USING INSTRUCTIONS MAINTENANCEMAINTENANCE
BATTERY REPLACEMENT
When the low/exhausted battery indicator appears
on the display, immediately replace the battery
with a new CR2032 battery.
Low battery Battery power is low.
Exhausted battery Battery power is exhausted and
the tracker stops measuring.
NOTE:
The supplied battery is for initial use. The battery life may
be shorter.
IMPORTANT!:
Do not remove the battery around 12:00AM
(0:00). The measurement results of the day
when the battery was removed will be added to
the measurement results for the day the battery
was inserted. (It is assumed that the battery
will be removed and replaced with a new one
on the same day.)
After replacing the battery, you need to open
the Omron Fitness app on your smartphone
and retransfer your personal data from your
smartphone to the tracker.
go to next page
19
MAINTENANCE CONTENTS BEFORE USING INSTRUCTIONS MAINTENANCEMAINTENANCE

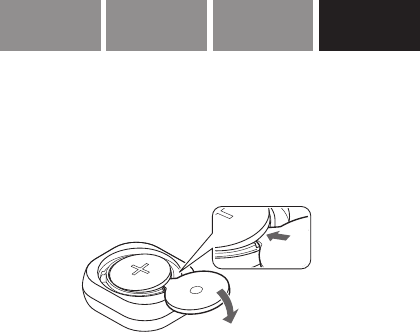

Replacing the battery
1. Take off the battery cover.
2. Insert the protrusion of the coin shaped
screwdriver into the gap to remove the
battery.
3. Insert a new CR2032 battery with the
positive side (+) face up.
20
CONTENTS BEFORE USING INSTRUCTIONS MAINTENANCEMAINTENANCE
TROUBLESHOOTING
Problem
Probable Cause
How to Correct
/
is displayed
The battery
is low/
exhausted.
Replace the battery with
a new 3V CR2032 lithium
battery. (Refer to “BATTERY
REPLACEMENT”.)
Nothing is
displayed.
Battery
saving mode
is active.
Refer to “Battery saving
mode” in “USING THE
TR ACK ER”.
The
polarities of
the battery
(+ and -) are
aligned in
the wrong
directions.
Insert the battery in the
correct alignment. (Refer
to “INSERTING THE
BATTERY”.)
The battery
is exhausted.
Replace the battery with
a new 3V CR2032 lithium
battery. (Refer to “BATTERY
REPLACEMENT”.)
The
“HELLO!”
and are
alternately
displayed.
The battery
is low.
Replace the battery with
a new 3V CR2032 lithium
battery. (Refer to “BATTERY
REPLACEMENT”.)
go to next page
21
MAINTENANCE CONTENTS BEFORE USING INSTRUCTIONS MAINTENANCEMAINTENANCE
Problem
Probable Cause
How to Correct
The
displayed
values are
incorrect.
The tracker
is positioned
incorrectly.
Refer to “The tracker may
not count steps correctly in
the following conditions:” in
“USING THE TRACKER”.
Irregular
movement.
Inconsistent
pace.
Up and down
movement.
The set
values are
wrong.
Check the settings on app.
The display
is unusual
or does not
respond to
touch.
The battery
is low or
exhausted.
Replace the battery with
a new 3V CR2032 lithium
battery. (Refer to “BATTERY
REPLACEMENT”.)
Data
communication
error.
Try transferring the data
again.
go to next page
22
CONTENTS BEFORE USING INSTRUCTIONS MAINTENANCEMAINTENANCE
Problem
Probable Cause
How to Correct
Data
cannot be
transferred.
Battery
saving mode
is active.
Refer to “Battery saving
mode” in “USING THE
TR ACK ER”.
No app is
installed
on your
smartphone
or the
installed app
does not run.
Install or run the app.
The tracker
is not
registered to
the app.
Register the tracker to the
app.
Data has
been
transferred
near an
object that
emits intense
magnetic
force or radio
waves.
Try transferring the data in a
location where radio waves
are not present.
The battery
is low or
exhausted.
Replace the battery with
a new 3V CR2032 lithium
battery. (Refer to “BATTERY
REPLACEMENT”.)
go to next page
23
MAINTENANCE CONTENTS BEFORE USING INSTRUCTIONS MAINTENANCEMAINTENANCE
Problem
Probable Cause
How to Correct
Data
cannot be
transferred.
The tracker
is too far
from your
smartphone.
Make sure that there is no
obstacle between the tracker
and your smartphone, and
move them close to each
other.
The data
communication
with your
smartphone
seems
abnormal.
Turn your smartphone off
and on, and try to transfer the
data again.
24
CONTENTS BEFORE USING INSTRUCTIONS MAINTENANCEMAINTENANCE
SPECIFICATIONS
Product Name Alvita Wireless Activity Tracker
Type HJ-327T
Power Supply 3VDC (1 lithium battery CR2032)
Battery Life Approx. 3 months
NOTE:
The supplied battery is for initial use.
This battery can run out within 3 months.
(Based on OMRON testing)
Measurement
Range
Tracks Steps: 0 to 99,999 steps
Distance walked: 0.0 to 621.3 miles
Time: 12:00 AM to 11:59 PM
Activity calories: 0 to 59,999 kcal
Aerobic steps: 0 to 99,999 steps
IT Function Bluetooth® Smart technology
Memory
Capacity
Previous 14 days (current day on display)
Setting Range
These items cannot be set from the tracker.
Information registered to the app can
automatically transfers to the tracker.
Time: 12:00 AM to 11:59 PM
Weight:
22 to 300 lb (in increments of 1 lb)
Height:
3' 4" to 6' 6" (in increments of 1 inch)
Stride length:
12" to 48" (in increments of 1 inch)
go to next page
25
MAINTENANCE CONTENTS BEFORE USING INSTRUCTIONS MAINTENANCEMAINTENANCE
Operating
Temp e r at u re/
Humidity
14°F to 104°F / 30 to 85% RH
External
Dimensions
Approx. 1 1/4''(w) × 1 2/5''(h) × 7/10''(d)
(including the clip)
Weight Approx. 0.5oz (including the clip)
Contents Tracker, 3V CR2032 lithium battery,
clip, spare battery cover, coin shaped
screwdriver and Quick Start Guide
Specifications are subject to change without notice.
26
CONTENTS BEFORE USING INSTRUCTIONS MAINTENANCEMAINTENANCE
FCC STATEMENT
FCC CAUTION
Changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy, and if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However,there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on,the user is
encouraged to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
go to next page
27
MAINTENANCE CONTENTS BEFORE USING INSTRUCTIONS MAINTENANCE
This transmitter must not be co-located or operated in
conjunction with any other antenna or transmitter.
This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment and meets
the FCC radio frequency (RF) Exposure Guidelines. This
equipment has very low levels of RF energy that are deemed
to comply without testing of specic absorption ratio (SAR).
FCC ID :Q6ZHJ327T
(FCC ID is listed in the battery holder.)
28
CONTENTS BEFORE USING INSTRUCTIONS MAINTENANCEMAINTENANCE
go to next page
LIMITED WARRANTY
Your HJ-327T Alvita Wireless Activity Tracker, excluding
the battery, is warranted to be free from defects in materials
and workmanship appearing within 1 year from the date of
purchase, when used in accordance with the instructions
provided with the tracker. The above warranties extend only
to the original retail purchaser.
We will, at our option, repair or replace without charge
any Pedometer covered by the above warranties.Repair or
replacement is our only responsibility and your only remedy
under the above warranties.
To obtain warranty service contact Omrons Customer
Support at 1-800-634-4350. Information for warranty
service is available on our website at:
www.omrontness.com.
Enclose the Proof of Purchase. Include a letter, with your
name, address, phone number, and description of the
specic problem. Pack the product carefully to prevent
damage in transit. Because of possible loss in transit,
we recommend insuring the product with return receipt
requested.
29
MAINTENANCE CONTENTS BEFORE USING INSTRUCTIONS MAINTENANCEMAINTENANCE
THE FOREGOING IS THE SOLE
WARRANTY PROVIDED BY OMRON IN
CONNECTION WITH THIS PRODUCT,
AND OMRON HEREBY DISCLAIMS
ANY OTHER WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING IMPLIED
WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR
PURPOSE. IMPLIED WARRANTIES AND
OTHER TERMS THAT MAY BE IMPOSED
BY LAW, IF ANY, ARE LIMITED IN
DURATION TO THE PERIOD OF THE
ABOVE EXPRESS WARRANTY.
OMRON SHALL NOT BE LIABLE FOR
LOSS OF USE OR ANY OTHER SPECIAL,
INCIDENTAL, CONSEQUENTIAL OR
INDIRECT COSTS, EXPENSES OR
DAMAGES.
This warranty provides you with specic legal rights, and
you may have other rights that which vary from state to
state. Some states do not allow limitations on how long an
implied warranty lasts, so the above limitation may not
apply to you. Some states do not allow the exclusion or
limitation of incidental or consequential damages, so the
above limitation or exclusion may not apply to you.
FOR CUSTOMER SERVICE
Visit our web site at: www.omrontness.com
Call toll free: 1-800-634-4350
30
BEFORE USING INSTRUCTIONS MAINTENANCE
DATA TRANSMISSION AND
TRADEMARKS
yThis Product operates in the unlicensed ISM
band at 2.4GHz. In case this Product is used
around the other wireless devices including
microwave and wireless LAN, which operate
same frequency band of this Product, there
is a possibility that interference occurs
between this Product and such other devices.
If such interference occurs, please stop the
operation of other devices or relocate this
Product before using this Product or do not
use this Product around the other wireless
devices.
yDue to the use of radio waves, third
parties may intercept transmissions either
deliberately or accidentally. Do not use this
Product for matters related to vital secrets or
human lives.
The Bluetooth® Smart word mark and logos are
registered trademarks owned by Bluetooth SIG,
Inc. and any use of such marks by OMRON
HEALTHCARE Co., Ltd. is under license.
Other trademarks and trade names are those of
their respective owners.
Apple and the Apple logo are trademarks of Apple Inc.,
registered in the U.S. and other countries.
App Store is a service mark of Apple Inc.
Android and Google Play are both trademarks of Google Inc.
Samsung and Galaxy S are both registered trademarks of
Samsung Electronics Co., Ltd.
CONTENTS
OMRON HEALTHCARE, INC.
1925 West Field Court
Lake Forest, IL 60045 U.S.A.
www.omronhealthcare.com
© 2014 OMRON
HEALTHCARE, INC.
Made in China

Navigation menu
