ONE DIAMOND ELECTRONICS INC. POLAROID PSPT401 Users Manual

Contents

Users Manual

Smartphone 4”PSPT401

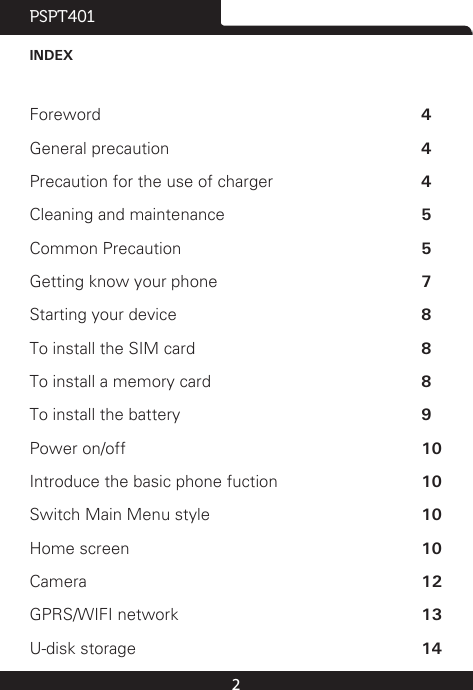

2PSPT401INDEXForeword 4General precaution 4Precaution for the use of charger 4Cleaning and maintenance 5Common Precaution 5Getting know your phone 7Starting your device 8To install the SIM card 8To install a memory card 8To install the battery 9Power on/off 10Introduce the basic phone fuction 10 Switch Main Menu style 10Home screen 10Camera 12GPRS/WIFI network 13U-disk storage 14
3PSPT401Music 15BT 15Technical Specications 16FCC cautions 17

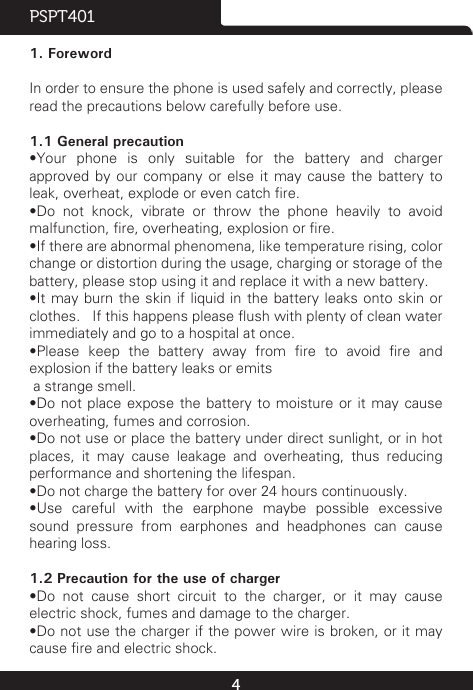

4PSPT4011. ForewordIn order to ensure the phone is used safely and correctly, please read the precautions below carefully before use.1.1 General precaution•Your phone is only suitable for the battery and charger approved by our company or else it may cause the battery to leak, overheat, explode or even catch re.•Do not knock, vibrate or throw the phone heavily to avoid malfunction, re, overheating, explosion or re.•If there are abnormal phenomena, like temperature rising, color change or distortion during the usage, charging or storage of the battery, please stop using it and replace it with a new battery.•It may burn the skin if liquid in the battery leaks onto skin or clothes. If this happens please ush with plenty of clean water immediately and go to a hospital at once.•Please keep the battery away from re to avoid re and explosion if the battery leaks or emits a strange smell.•Do not place expose the battery to moisture or it may cause overheating, fumes and corrosion.•Do not use or place the battery under direct sunlight, or in hot places, it may cause leakage and overheating, thus reducing performance and shortening the lifespan.•Do not charge the battery for over 24 hours continuously.•Use careful with the earphone maybe possible excessive sound pressure from earphones and headphones can cause hearing loss.1.2 Precaution for the use of charger•Do not cause short circuit to the charger, or it may cause electric shock, fumes and damage to the charger.•Do not use the charger if the power wire is broken, or it may cause re and electric shock.

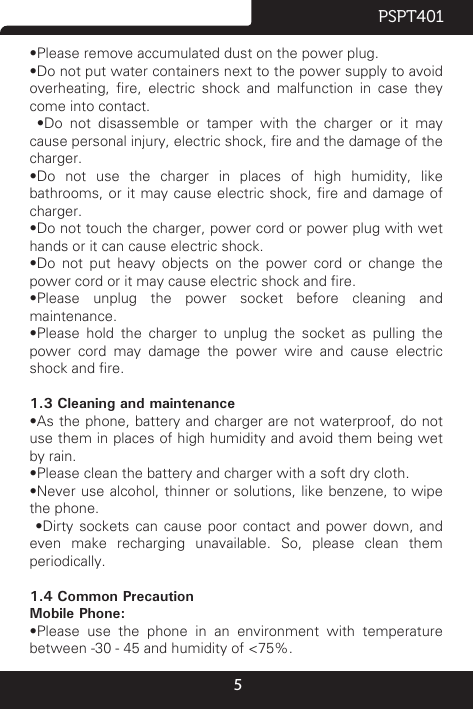

5PSPT401•Please remove accumulated dust on the power plug.•Do not put water containers next to the power supply to avoid overheating, re, electric shock and malfunction in case they come into contact. •Do not disassemble or tamper with the charger or it may cause personal injury, electric shock, re and the damage of the charger.•Do not use the charger in places of high humidity, like bathrooms, or it may cause electric shock, re and damage of charger.•Do not touch the charger, power cord or power plug with wet hands or it can cause electric shock.•Do not put heavy objects on the power cord or change the power cord or it may cause electric shock and re.•Please unplug the power socket before cleaning and maintenance.•Please hold the charger to unplug the socket as pulling the power cord may damage the power wire and cause electric shock and re.1.3 Cleaning and maintenance•As the phone, battery and charger are not waterproof, do not use them in places of high humidity and avoid them being wet by rain.•Please clean the battery and charger with a soft dry cloth.•Never use alcohol, thinner or solutions, like benzene, to wipe the phone. •Dirty sockets can cause poor contact and power down, and even make recharging unavailable. So, please clean them periodically.1.4 Common PrecautionMobile Phone:•Please use the phone in an environment with temperature between -30℃- 45℃and humidity of <75%.

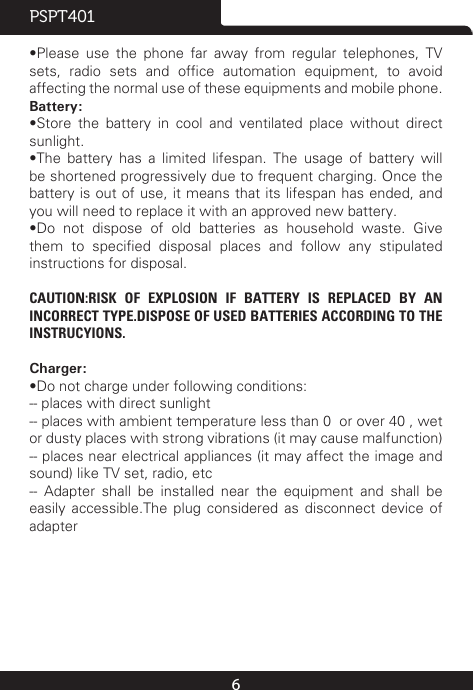

6PSPT401•Please use the phone far away from regular telephones, TV sets, radio sets and ofce automation equipment, to avoid affecting the normal use of these equipments and mobile phone.Battery:•Store the battery in cool and ventilated place without direct sunlight.•The battery has a limited lifespan. The usage of battery will be shortened progressively due to frequent charging. Once the battery is out of use, it means that its lifespan has ended, and you will need to replace it with an approved new battery.•Do not dispose of old batteries as household waste. Give them to specied disposal places and follow any stipulated instructions for disposal.CAUTION:RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCYIONS.Charger:•Do not charge under following conditions:-- places with direct sunlight-- places with ambient temperature less than 0℃ or over 40℃, wet or dusty places with strong vibrations (it may cause malfunction)-- places near electrical appliances (it may affect the image and sound) like TV set, radio, etc-- Adapter shall be installed near the equipment and shall be easily accessible.The plug considered as disconnect device of adapter
7PSPT4012. Getting know your phone 1℃USB / Charger Connector2℃Proximity Sensor3℃Earphones connector (Jack 3.5)4℃Handset5℃Turn on / off Button6℃Frontal Camera7℃Volume buttons8℃Flash9℃Back Camera10℃LCD display11℃Microphone12℃Flash13℃Speaker14℃Flash15℃Loud Speaker

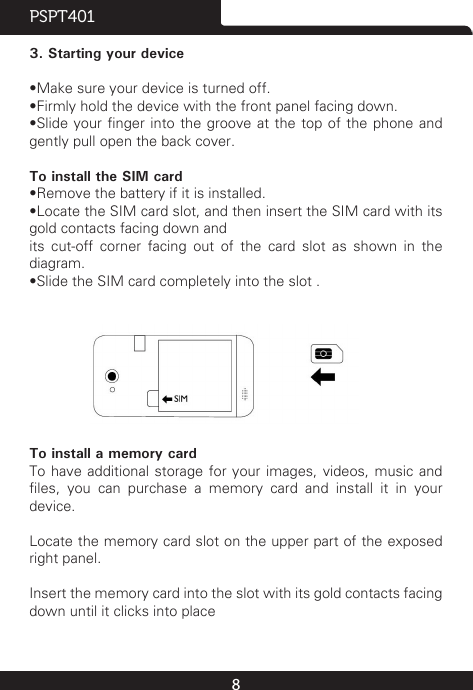

8PSPT4013. Starting your device•Make sure your device is turned off.•Firmly hold the device with the front panel facing down.•Slide your nger into the groove at the top of the phone and gently pull open the back cover.To install the SIM card•Remove the battery if it is installed.•Locate the SIM card slot, and then insert the SIM card with its gold contacts facing down andits cut-off corner facing out of the card slot as shown in the diagram.•Slide the SIM card completely into the slot . To install a memory cardTo have additional storage for your images, videos, music and les, you can purchase a memory card and install it in your device.Locate the memory card slot on the upper part of the exposed right panel.Insert the memory card into the slot with its gold contacts facing down until it clicks into place

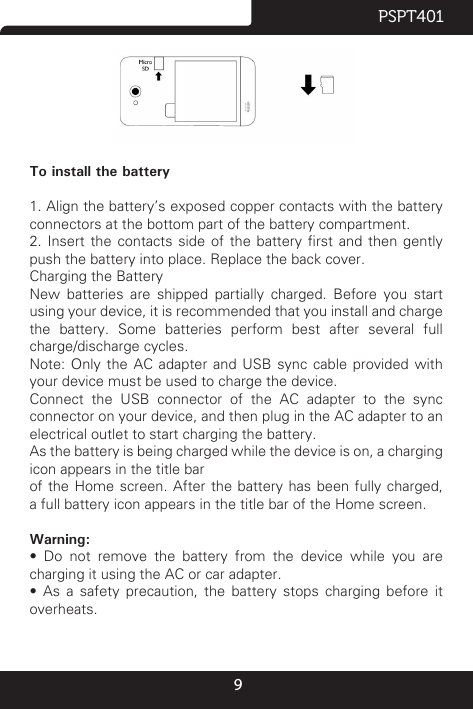

9PSPT401 To install the battery1. Align the battery’s exposed copper contacts with the battery connectors at the bottom part of the battery compartment.2. Insert the contacts side of the battery rst and then gently push the battery into place. Replace the back cover.Charging the BatteryNew batteries are shipped partially charged. Before you start using your device, it is recommended that you install and charge the battery. Some batteries perform best after several full charge/discharge cycles.Note: Only the AC adapter and USB sync cable provided with your device must be used to charge the device.Connect the USB connector of the AC adapter to the sync connector on your device, and then plug in the AC adapter to an electrical outlet to start charging the battery.As the battery is being charged while the device is on, a charging icon appears in the title barof the Home screen. After the battery has been fully charged, a full battery icon appears in the title bar of the Home screen.Warning:• Do not remove the battery from the device while you are charging it using the AC or car adapter.• As a safety precaution, the battery stops charging before it overheats.

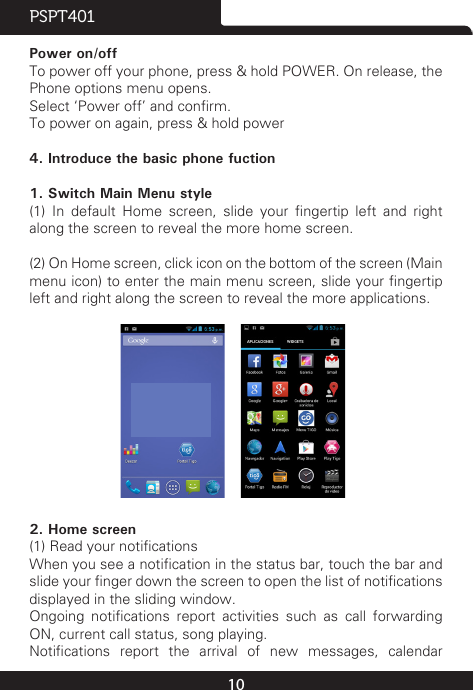

10PSPT401Power on/offTo power off your phone, press & hold POWER. On release, the Phone options menu opens.Select ‘Power off’ and conrm.To power on again, press & hold power 4. Introduce the basic phone fuction1. Switch Main Menu style(1) In default Home screen, slide your ngertip left and right along the screen to reveal the more home screen. (2) On Home screen, click icon on the bottom of the screen (Main menu icon) to enter the main menu screen, slide your ngertip left and right along the screen to reveal the more applications.  2. Home screen(1) Read your noticationsWhen you see a notication in the status bar, touch the bar and slide your nger down the screen to open the list of notications displayed in the sliding window.Ongoing notications report activities such as call forwarding ON, current call status, song playing.Notications report the arrival of new messages, calendar
11PSPT401events, and alarms. You can clear notications list by selecting ‘Clear’ notications at the top of the notications window.To open the message, reminder or other notication, you can touch the items. To close the notications window, slide your nger up the screen. (2) Create Home screen shortcuts and widgets:From the Home screen, touch and hold the blank screen, or click MENU Key and select ‘Wallpaper’. Enter the main menu screen, slide your ngertip left to reveal the widget, select a shortcut to some of your saved information (such as a play list), a widget (a clock) for your Home screen.(3) Move objects on the Home screen•To move an icon or other item on the Home screen, you must rst touch & hold i t to enter move mode. The object will magnify when it’s ready to be moved.•Without lifting your nger (or you’ll drop out of move mode), drag the object to the new position. To move an item to a section of the Home screen not in view, move it to the edg e of the screen and hold it there for a moment. The screen view will shift; position the object and release.
12PSPT401 3. CameraAll the pictures you can capture or view on your phone are stored on a memory card, which must be installed in your phone. Before you can use the Camera or view pictures in Pictures, make sure you have a card installed. 

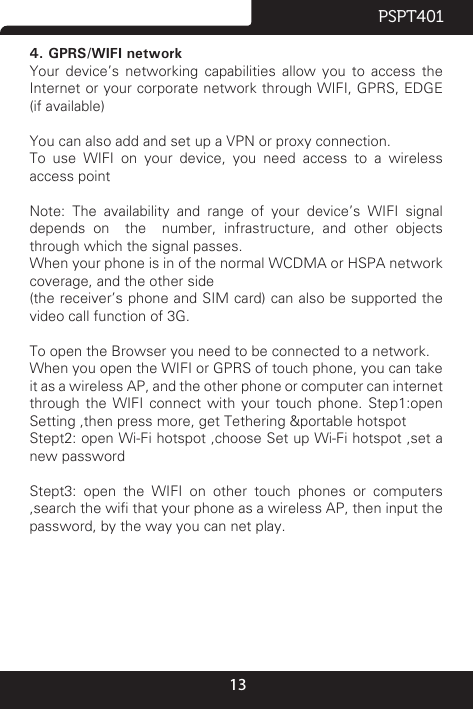

13PSPT4014. GPRS/WIFI networkYour device’s networking capabilities allow you to access the Internet or your corporate network through WIFI, GPRS, EDGE (if available)You can also add and set up a VPN or proxy connection.To use WIFI on your device, you need access to a wireless access pointNote: The availability and range of your device’s WIFI signal depends on the number, infrastructure, and other objects through which the signal passes.When your phone is in of the normal WCDMA or HSPA network coverage, and the other side(the receiver’s phone and SIM card) can also be supported the video call function of 3G.To open the Browser you need to be connected to a network.When you open the WIFI or GPRS of touch phone, you can take it as a wireless AP, and the other phone or computer can internet through the WIFI connect with your touch phone. Step1:open Setting ,then press more, get Tethering &portable hotspotStept2: open Wi-Fi hotspot ,choose Set up Wi-Fi hotspot ,set a new passwordStept3: open the WIFI on other touch phones or computers ,search the wi that your phone as a wireless AP, then input the password, by the way you can net play.

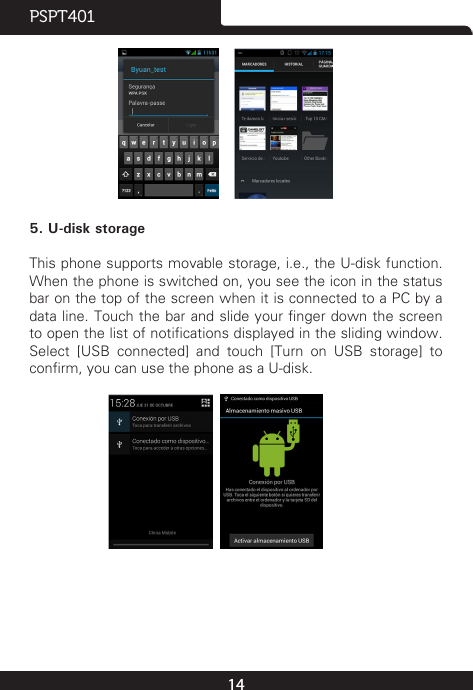

14PSPT401  5. U-disk storageThis phone supports movable storage, i.e., the U-disk function. When the phone is switched on, you see the icon in the status bar on the top of the screen when it is connected to a PC by a data line. Touch the bar and slide your nger down the screen to open the list of notications displayed in the sliding window. Select [USB connected] and touch [Turn on USB storage] to conrm, you can use the phone as a U-disk.  

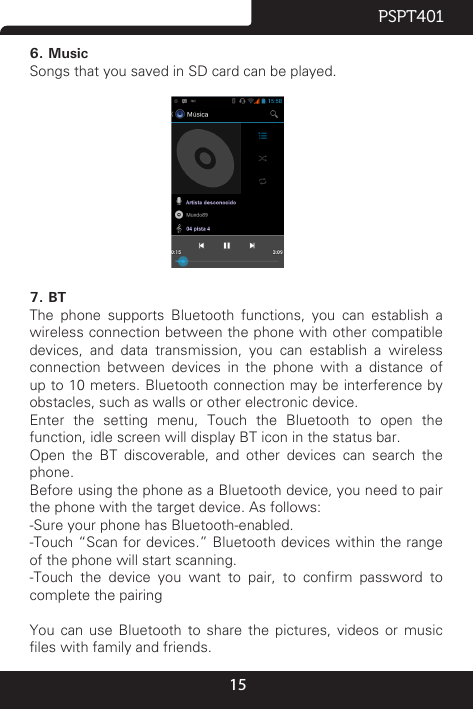

15PSPT4016. MusicSongs that you saved in SD card can be played. 7. BTThe phone supports Bluetooth functions, you can establish a wireless connection between the phone with other compatible devices, and data transmission, you can establish a wireless connection between devices in the phone with a distance of up to 10 meters. Bluetooth connection may be interference by obstacles, such as walls or other electronic device.Enter the setting menu, Touch the Bluetooth to open the function, idle screen will display BT icon in the status bar.Open the BT discoverable, and other devices can search the phone.Before using the phone as a Bluetooth device, you need to pair the phone with the target device. As follows:-Sure your phone has Bluetooth-enabled.-Touch “Scan for devices.” Bluetooth devices within the range of the phone will start scanning.-Touch the device you want to pair, to conrm password to complete the pairingYou can use Bluetooth to share the pictures, videos or music les with family and friends.

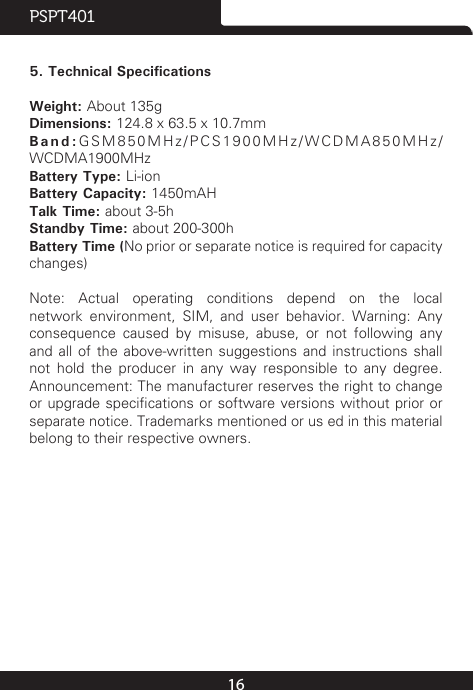

16PSPT401 5. Technical SpecificationsWeight: About 135gDimensions: 124.8 x 63.5 x 10.7mmBand:GSM850MHz/PCS1900MHz/WCDMA850MHz/WCDMA1900MHzBattery Type: Li-ionBattery Capacity: 1450mAH Talk Time: about 3-5hStandby Time: about 200-300hBattery Time (No prior or separate notice is required for capacity changes)Note: Actual operating conditions depend on the local network environment, SIM, and user behavior. Warning: Any consequence caused by misuse, abuse, or not following any and all of the above-written suggestions and instructions shall not hold the producer in any way responsible to any degree. Announcement: The manufacturer reserves the right to change or upgrade specications or software versions without prior or separate notice. Trademarks mentioned or us ed in this material belong to their respective owners.

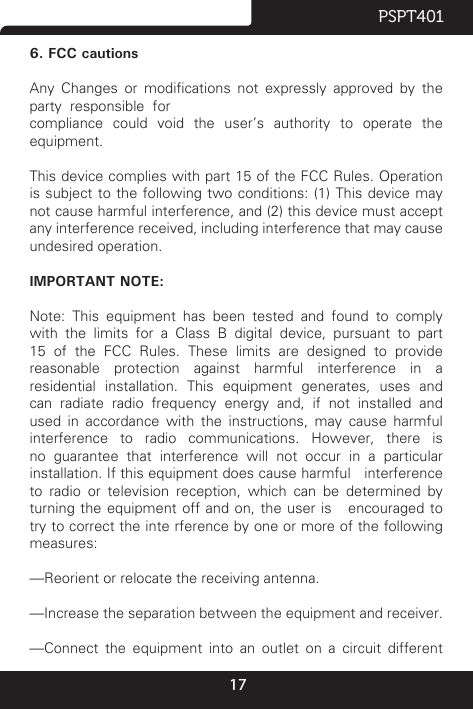

17PSPT4016. FCC cautionsAny Changes or modications not expressly approved by the party responsible forcompliance could void the user’s authority to operate the equipment.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.IMPORTANT NOTE:Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the inte rference by one or more of the following measures:—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different

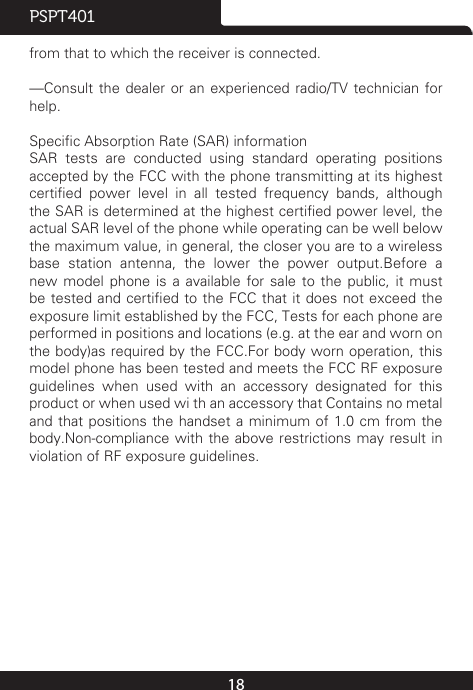

18PSPT401from that to which the receiver is connected.—Consult the dealer or an experienced radio/TV technician for help.Specic Absorption Rate (SAR) informationSAR tests are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certied power level in all tested frequency bands, although the SAR is determined at the highest certied power level, the actual SAR level of the phone while operating can be well below the maximum value, in general, the closer you are to a wireless base station antenna, the lower the power output.Before a new model phone is a available for sale to the public, it must be tested and certied to the FCC that it does not exceed the exposure limit established by the FCC, Tests for each phone are performed in positions and locations (e.g. at the ear and worn on the body)as required by the FCC.For body worn operation, this model phone has been tested and meets the FCC RF exposure guidelines when used with an accessory designated for this product or when used wi th an accessory that Contains no metal and that positions the handset a minimum of 1.0 cm from the body.Non-compliance with the above restrictions may result in violation of RF exposure guidelines.

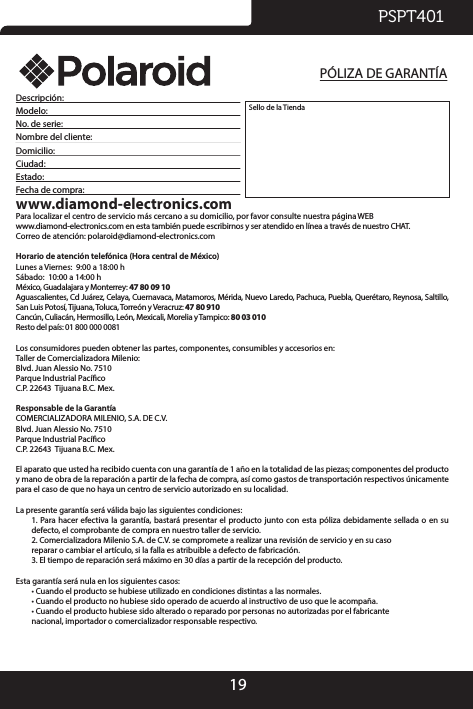

19PSPT401Descripción: Modelo: No. de serie: Nombre del cliente: Domicilio: Ciudad: Estado: Fecha de compra: www.diamond-electronics.comPara localizar el centro de servicio más cercano a su domicilio, por favor consulte nuestra página WEBwww.diamond-electronics.com en esta también puede escribirnos y ser atendido en línea a través de nuestro CHAT.Correo de atención: polaroid@diamond-electronics.comHorario de atención telefónica (Hora central de México)Lunes a Viernes: 9:00 a 18:00 hSábado: 10:00 a 14:00 hMéxico, Guadalajara y Monterrey: 47 80 09 10Aguascalientes, Cd Juárez, Celaya, Cuernavaca, Matamoros, Mérida, Nuevo Laredo, Pachuca, Puebla, Querétaro, Reynosa, Saltillo, San Luis Potosí, Tijuana, Toluca, Torreón y Veracruz: 47 80 910Cancún, Culiacán, Hermosillo, León, Mexicali, Morelia y Tampico: 80 03 010Resto del país: 01 800 000 0081 Los consumidores pueden obtener las partes, componentes, consumibles y accesorios en:Taller de Comercializadora Milenio:Blvd. Juan Alessio No. 7510Parque Industrial PacícoC.P. 22643 Tijuana B.C. Mex.Responsable de la GarantíaCOMERCIALIZADORA MILENIO, S.A. DE C.V. Blvd. Juan Alessio No. 7510Parque Industrial PacícoC.P. 22643 Tijuana B.C. Mex.El aparato que usted ha recibido cuenta con una garantía de 1 año en la totalidad de las piezas; componentes del producto y mano de obra de la reparación a partir de la fecha de compra, así como gastos de transportación respectivos únicamente para el caso de que no haya un centro de servicio autorizado en su localidad. La presente garantía será válida bajo las siguientes condiciones:1. Para hacer efectiva la garantía, bastará presentar el producto junto con esta póliza debidamente sellada o en su defecto, el comprobante de compra en nuestro taller de servicio.2. Comercializadora Milenio S.A. de C.V. se compromete a realizar una revisión de servicio y en su caso reparar o cambiar el artículo, si la falla es atribuible a defecto de fabricación.3. El tiempo de reparación será máximo en 30 días a partir de la recepción del producto.Esta garantía será nula en los siguientes casos:• Cuando el producto se hubiese utilizado en condiciones distintas a las normales.• Cuando el producto no hubiese sido operado de acuerdo al instructivo de uso que le acompaña.• Cuando el producto hubiese sido alterado o reparado por personas no autorizadas por el fabricante nacional, importador o comercializador responsable respectivo.Sello de la TiendaPÓLIZA DE GARANTÍA

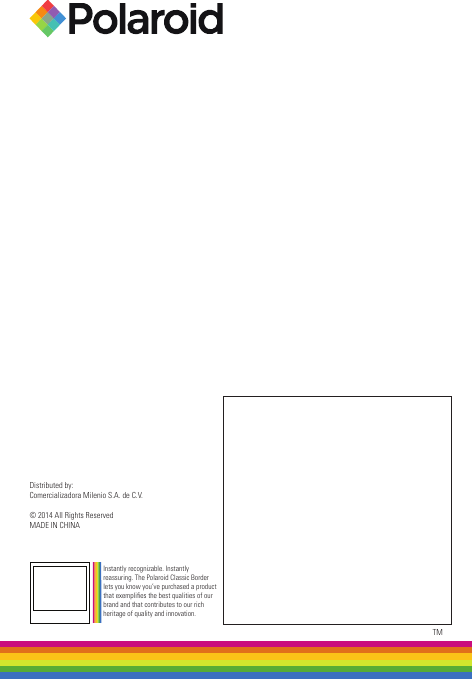

Distributed by:Comercializadora Milenio S.A. de C.V.© 2014 All Rights ReservedMADE IN CHINATMInstantly recognizable. Instantly reassuring. The Polaroid Classic Border lets you know you’ve purchased a product that exemplies the best qualities of our brand and that contributes to our rich heritage of quality and innovation.
