ONYX Healthcare lnc MD116 Mobile Medical Assistant Tablet User Manual

ONYX Healthcare lnc. Mobile Medical Assistant Tablet

Contents

User Manual

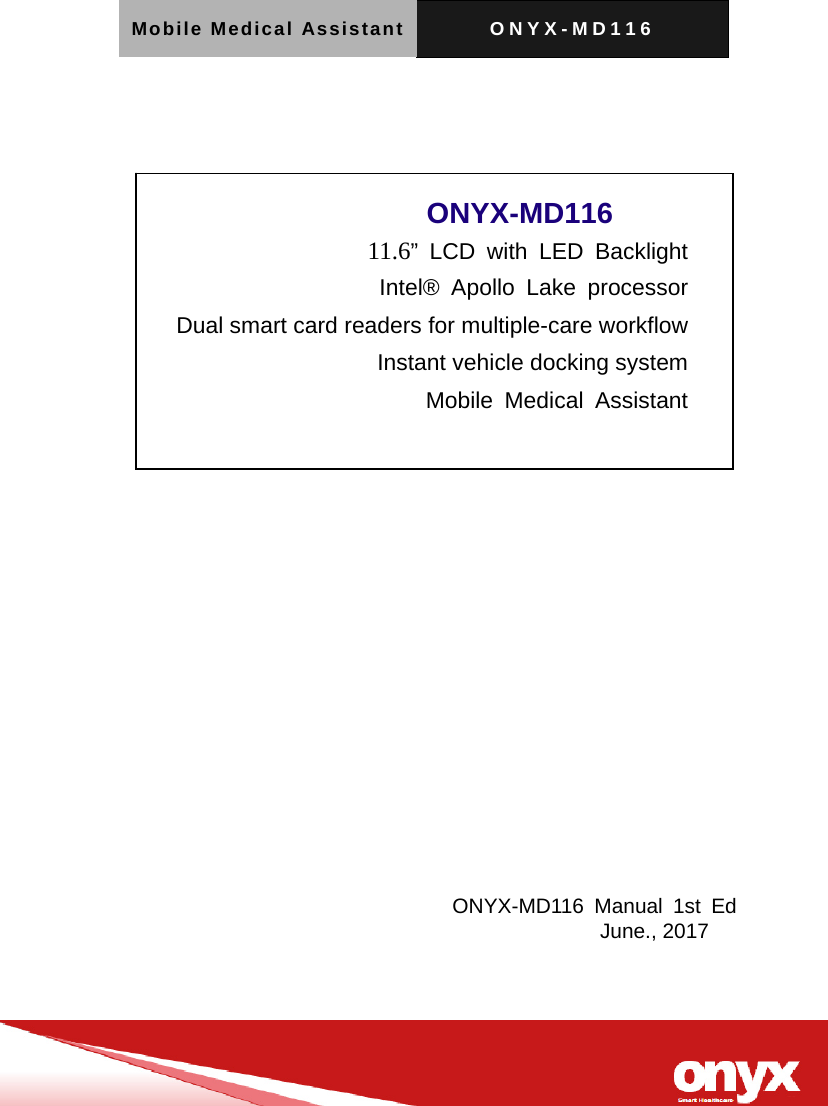

Mobile Medical Assistant ONYX-MD116 ONYX-MD116 11.6” LCD with LED Backlight Intel® Apollo Lake processor Dual smart card readers for multiple-care workflow Instant vehicle docking system Mobile Medical Assistant ONYX-MD116 Manual 1st Ed June., 2017

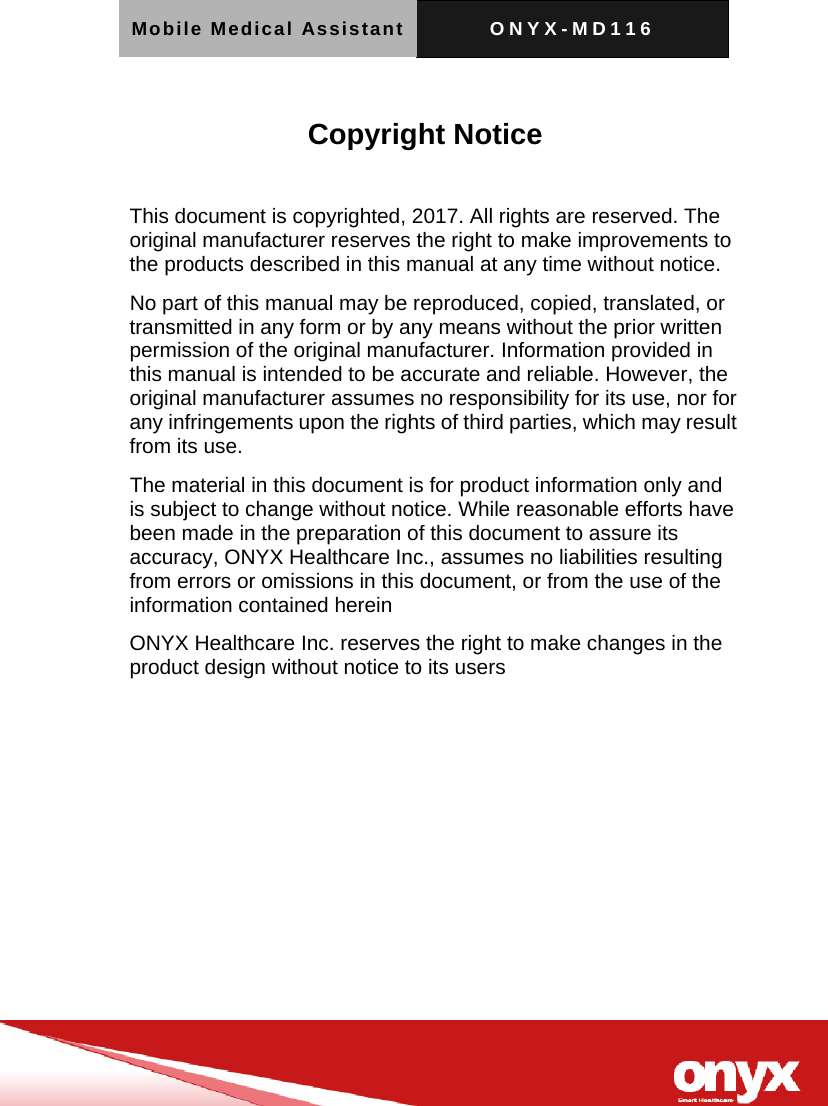

Mobile Medical Assistant ONYX-MD116 Copyright Notice This document is copyrighted, 2017. All rights are reserved. The original manufacturer reserves the right to make improvements to the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of the original manufacturer. Information provided in this manual is intended to be accurate and reliable. However, the original manufacturer assumes no responsibility for its use, nor for any infringements upon the rights of third parties, which may result from its use. The material in this document is for product information only and is subject to change without notice. While reasonable efforts have been made in the preparation of this document to assure its accuracy, ONYX Healthcare Inc., assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein ONYX Healthcare Inc. reserves the right to make changes in the product design without notice to its users

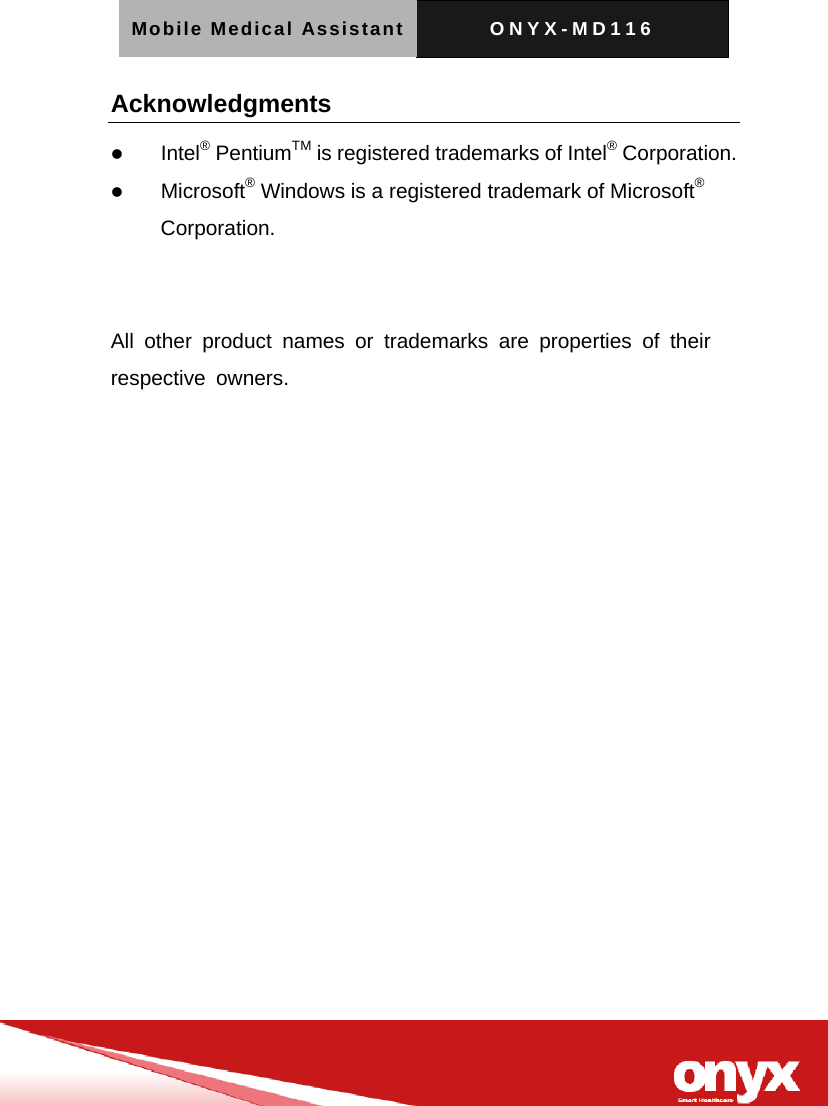

Mobile Medical Assistant ONYX-MD116 Acknowledgments  Intel® PentiumTM is registered trademarks of Intel® Corporation.  Microsoft® Windows is a registered trademark of Microsoft® Corporation. All other product names or trademarks are properties of their respective owners.
Mobile Medical Assistant ONYX-MD116 Packing List Before you begin installing your Mobile Medical Assistant, please make sure that the following items have been shipped:  ONYX-MD116 Mobile Medical Assistant  ONYX-MD116 Docking Station  Four VESA Screws(M:4mm x P:0.7mm x L:10mm)
Mobile Medical Assistant ONYX-MD116 If any of these items are missing or damaged, you should contact your distributor or sales representative immediately. Headquarters Onyx Healthcare Inc. 2F, No.135, Lane 235, Pao-Chiao Rd., Hsin-Tien City, Taipei 231, Taiwan, R.O.C. TEL: +886-2-8919-2188 FAX: +886-2-8919-1699 E-mail: sales@onyx-healthcare.com http://www.onyx-healthcare.com Worldwide Offices: Onyx Healthcare Inc. 2F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) TEL: +886-2-8919-2188 FAX: +886-2-8919-1699 E-mail: sales@onyx-healthcare.com http://www.onyx-healthcare.com Worldwide Offices: Onyx Healthcare, USA Inc. 324W. Blueridge Ave., Orange,, CA 92865, USA Tel : +1-714-792-0774 Fax: +1-714-792-0481
Mobile Medical Assistant ONYX-MD116 Email: usasales@onyx-healthcare.com Onyx Healthcare EUROPE B.V. Primulalaan 42, 5582 GL Waalre, Netherlands Tel : +31-(0)499-745600 Email: eusales@onyx-healthcare.com Onyx Healthcare (Shanghai) INC. 20F, unit D, GEM Building, No. 487 Tianlin Road, Shanghai, China Tel: +86-021-64956588 Fax: +86-021-64956889 Email: cnsales@onyx-healthcare.com

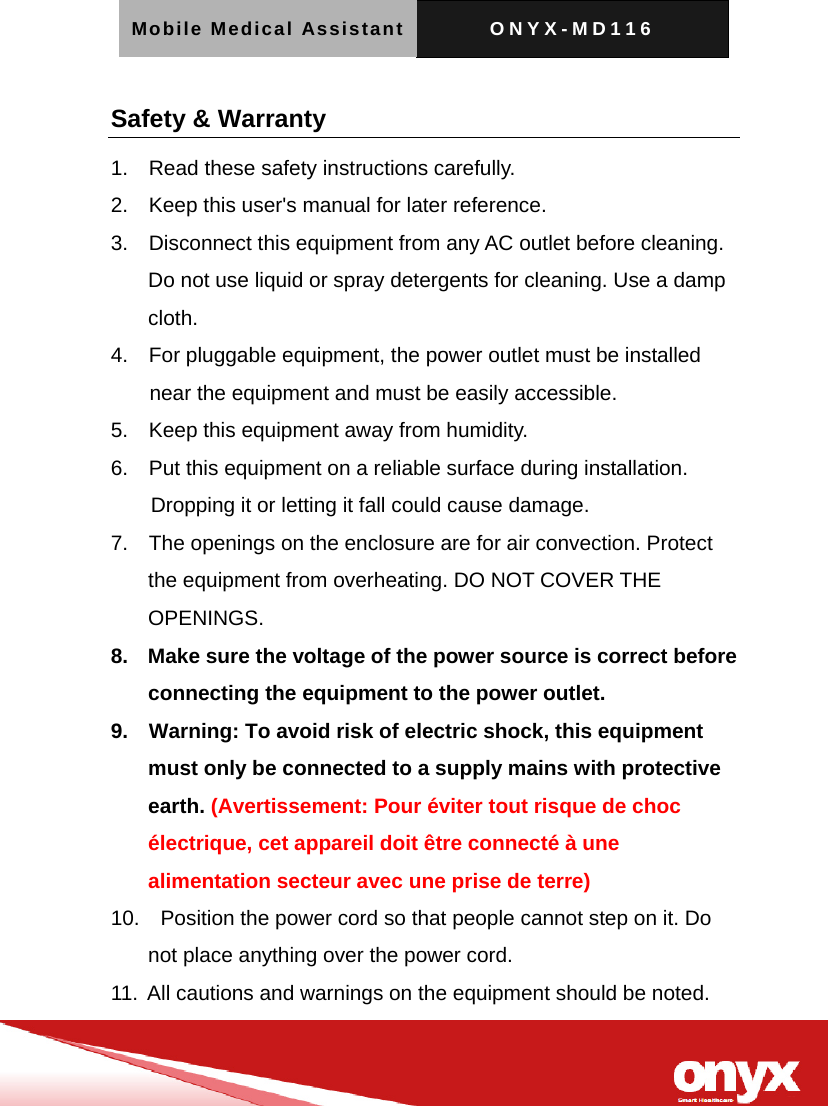

Mobile Medical Assistant ONYX-MD116 Safety & Warranty 1. Read these safety instructions carefully. 2. Keep this user's manual for later reference. 3. Disconnect this equipment from any AC outlet before cleaning. Do not use liquid or spray detergents for cleaning. Use a damp cloth. 4. For pluggable equipment, the power outlet must be installed near the equipment and must be easily accessible. 5. Keep this equipment away from humidity. 6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall could cause damage. 7. The openings on the enclosure are for air convection. Protect the equipment from overheating. DO NOT COVER THE OPENINGS. 8. Make sure the voltage of the power source is correct before connecting the equipment to the power outlet. 9. Warning: To avoid risk of electric shock, this equipment must only be connected to a supply mains with protective earth. (Avertissement: Pour éviter tout risque de choc électrique, cet appareil doit être connecté à une alimentation secteur avec une prise de terre) 10. Position the power cord so that people cannot step on it. Do not place anything over the power cord. 11. All cautions and warnings on the equipment should be noted.

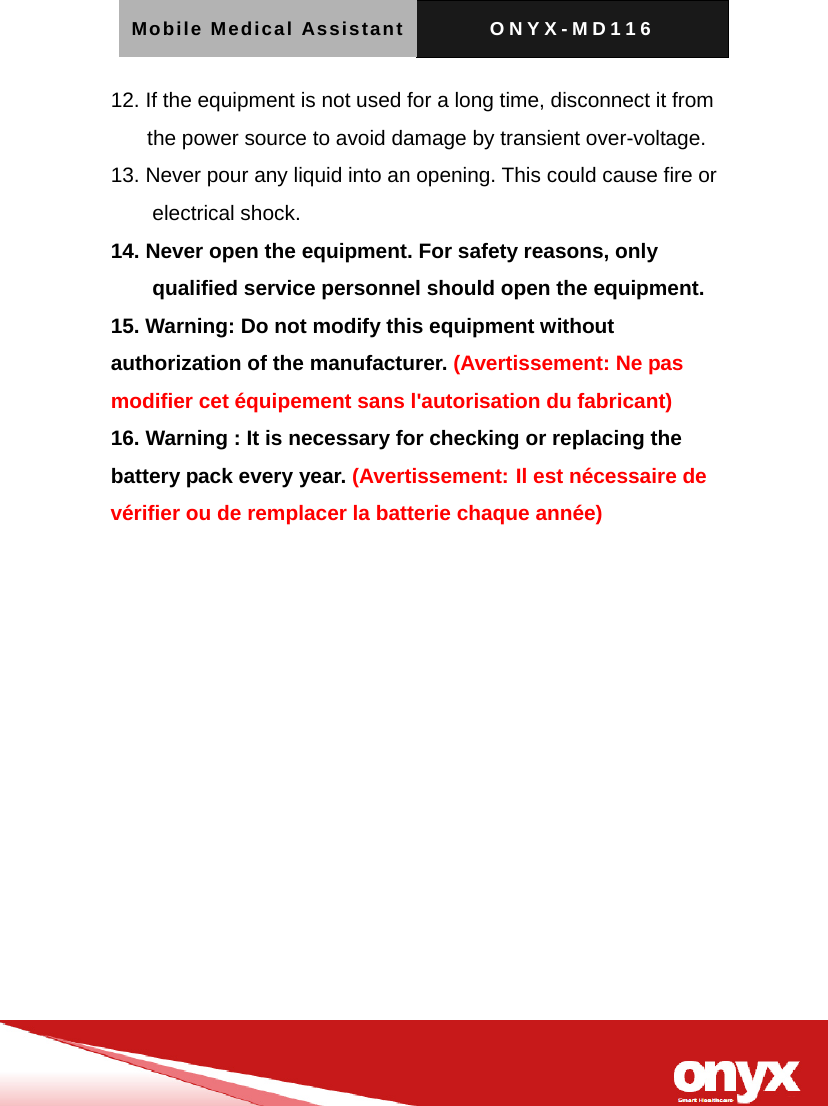

Mobile Medical Assistant ONYX-MD116 12. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient over-voltage. 13. Never pour any liquid into an opening. This could cause fire or electrical shock. 14. Never open the equipment. For safety reasons, only qualified service personnel should open the equipment. 15. Warning: Do not modify this equipment without authorization of the manufacturer. (Avertissement: Ne pas modifier cet équipement sans l'autorisation du fabricant) 16. Warning : It is necessary for checking or replacing the battery pack every year. (Avertissement: Il est nécessaire de vérifier ou de remplacer la batterie chaque année)

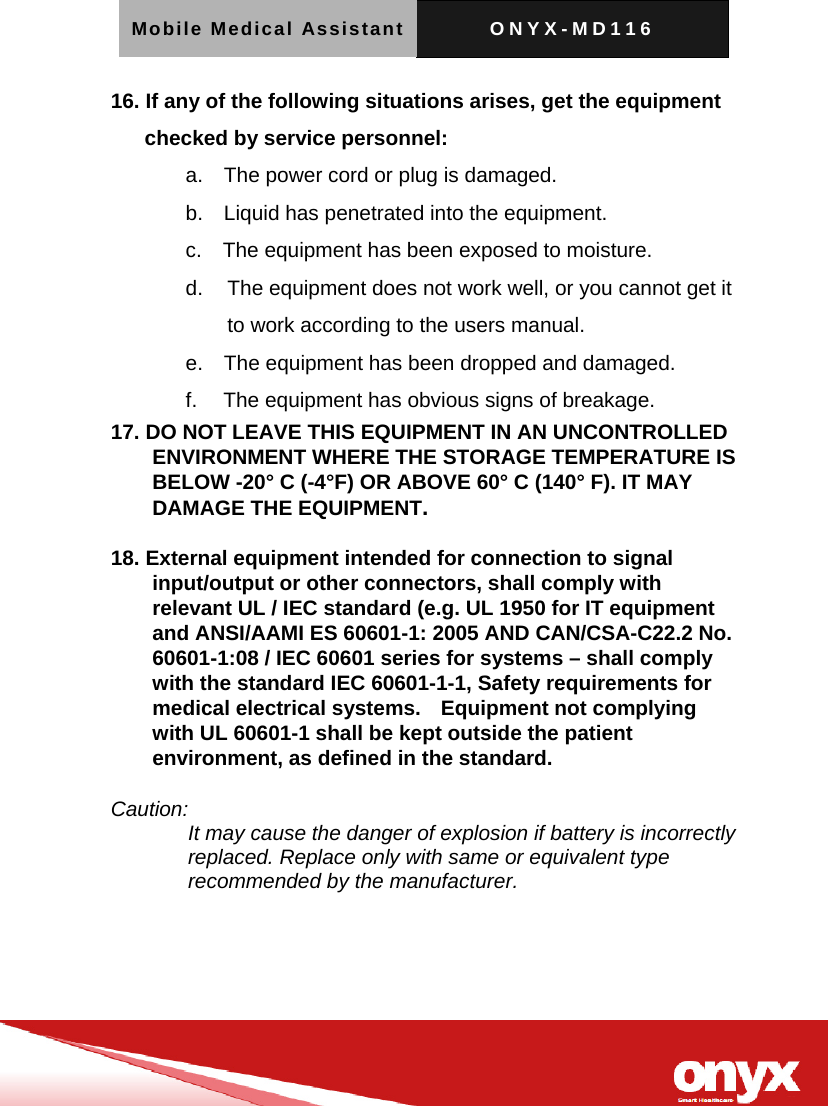

Mobile Medical Assistant ONYX-MD116 16. If any of the following situations arises, get the equipment checked by service personnel: a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work according to the users manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage. 17. DO NOT LEAVE THIS EQUIPMENT IN AN UNCONTROLLED ENVIRONMENT WHERE THE STORAGE TEMPERATURE IS BELOW -20° C (-4°F) OR ABOVE 60° C (140° F). IT MAY DAMAGE THE EQUIPMENT. 18. External equipment intended for connection to signal input/output or other connectors, shall comply with relevant UL / IEC standard (e.g. UL 1950 for IT equipment and ANSI/AAMI ES 60601-1: 2005 AND CAN/CSA-C22.2 No. 60601-1:08 / IEC 60601 series for systems – shall comply with the standard IEC 60601-1-1, Safety requirements for medical electrical systems. Equipment not complying with UL 60601-1 shall be kept outside the patient environment, as defined in the standard. Caution: It may cause the danger of explosion if battery is incorrectly replaced. Replace only with same or equivalent type recommended by the manufacturer.
Mobile Medical Assistant ONYX-MD116 Classification 1. Degree of production against electric shock: not classified 2. Degree of protection against the ingress of water: IPX0 3. Mode of operation: Continuous 4. Type of protection against electric shock: Class I equipment 5. No Applied Part, No AP/APG

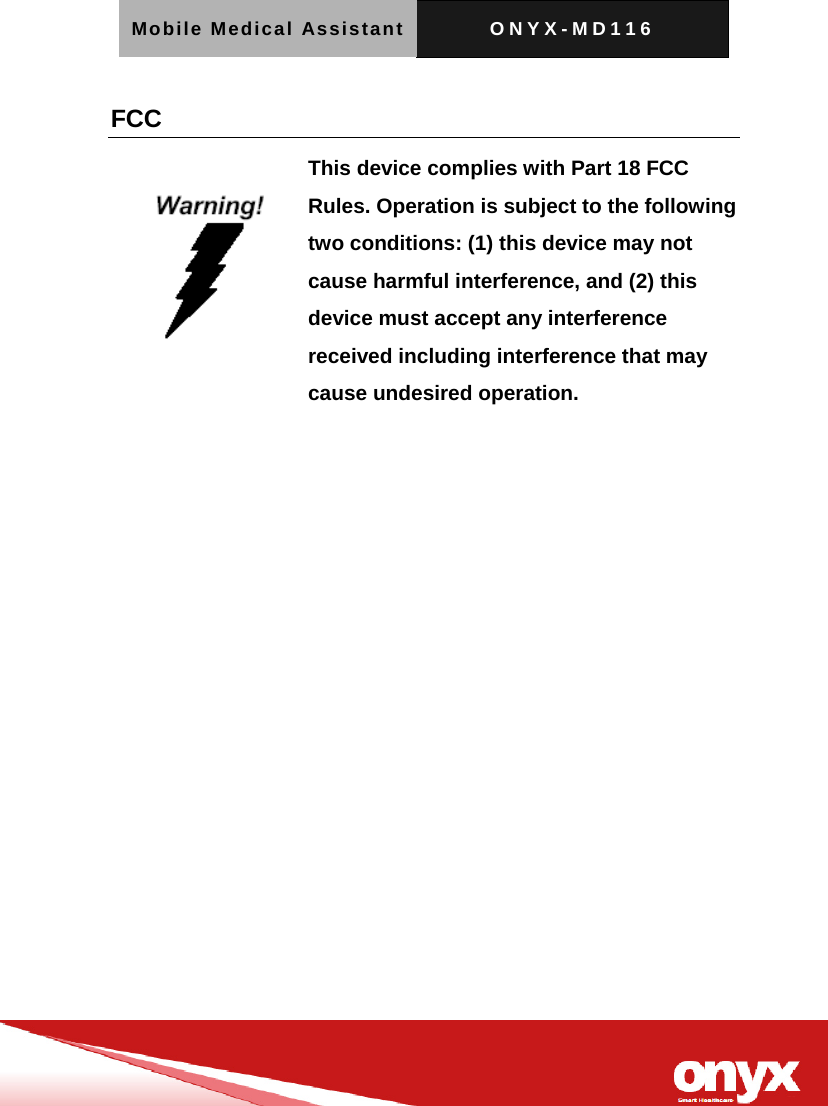

Mobile Medical Assistant ONYX-MD116 FCC This device complies with Part 18 FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation.
Mobile Medical Assistant ONYX-MD116 UL Module Description ONYX-MD116 module is developed to suitable for the Classification Mark requirement
Mobile Medical Assistant ONYX-MD116 Safety Symbol Description The following safety symbols are the further explanations for your reference. MEDICAL – GENERAL MEDICAL EQUIPMENT AS TO ELECTRICAL SHOCK, FIRE AND MECHANICAL HAZARDS ONLY IN ACCORDANCE WITH ANSI/AAMI ES 60601-1 (2005) + AMD (2012) and CAN/CSA-C22.2 No. 6060-1 (2014). Attention, consult ACCOMPANYING DOCUMENTS. Stand-by Ground wire Protective Ground wire.

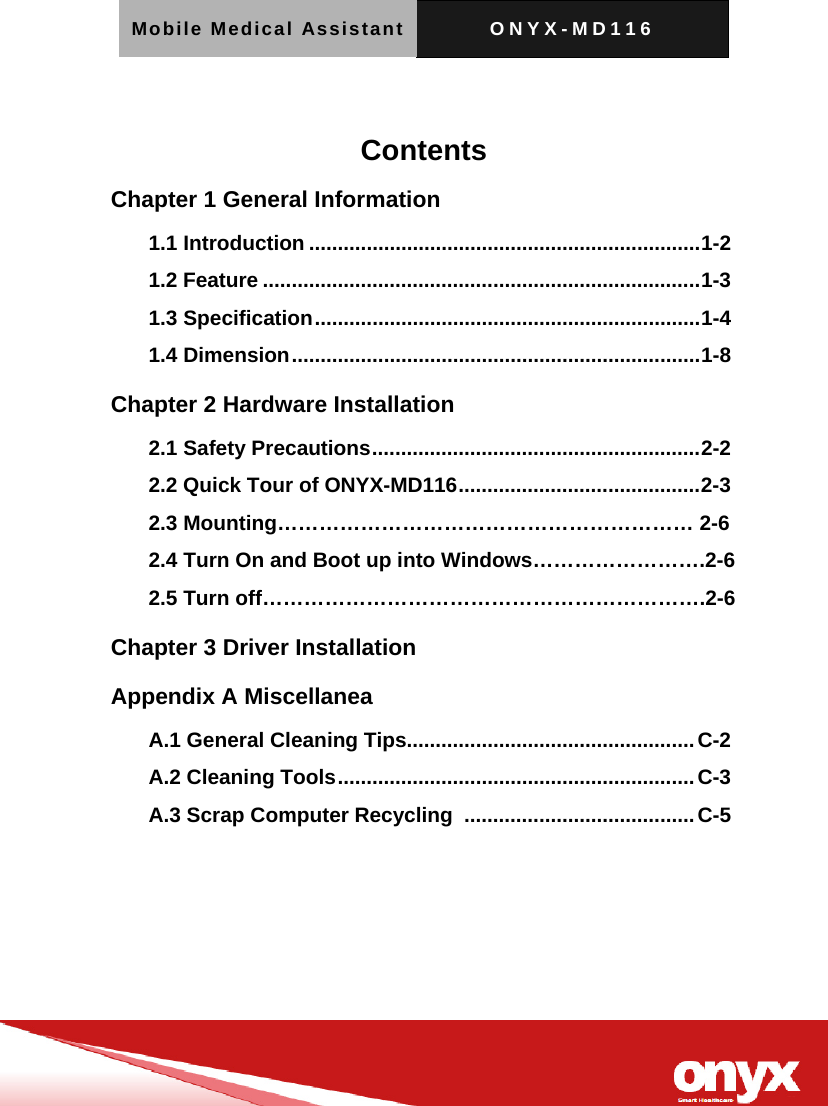

Mobile Medical Assistant ONYX-MD116 Contents Chapter 1 General Information 1.1 Introduction .................................................................... 1-2 1.2 Feature ............................................................................ 1-3 1.3 Specification ................................................................... 1-4 1.4 Dimension ....................................................................... 1-8 Chapter 2 Hardware Installation 2.1 Safety Precautions ......................................................... 2-2 2.2 Quick Tour of ONYX-MD116 .......................................... 2-3 2.3 Mounting…………………………………………………… 2-6 2.4 Turn On and Boot up into Windows…………………….2-6 2.5 Turn off……………………………………………………….2-6 Chapter 3 Driver Installation Appendix A Miscellanea A.1 General Cleaning Tips.................................................. C-2 A.2 Cleaning Tools .............................................................. C-3 A.3 Scrap Computer Recycling ........................................ C-5

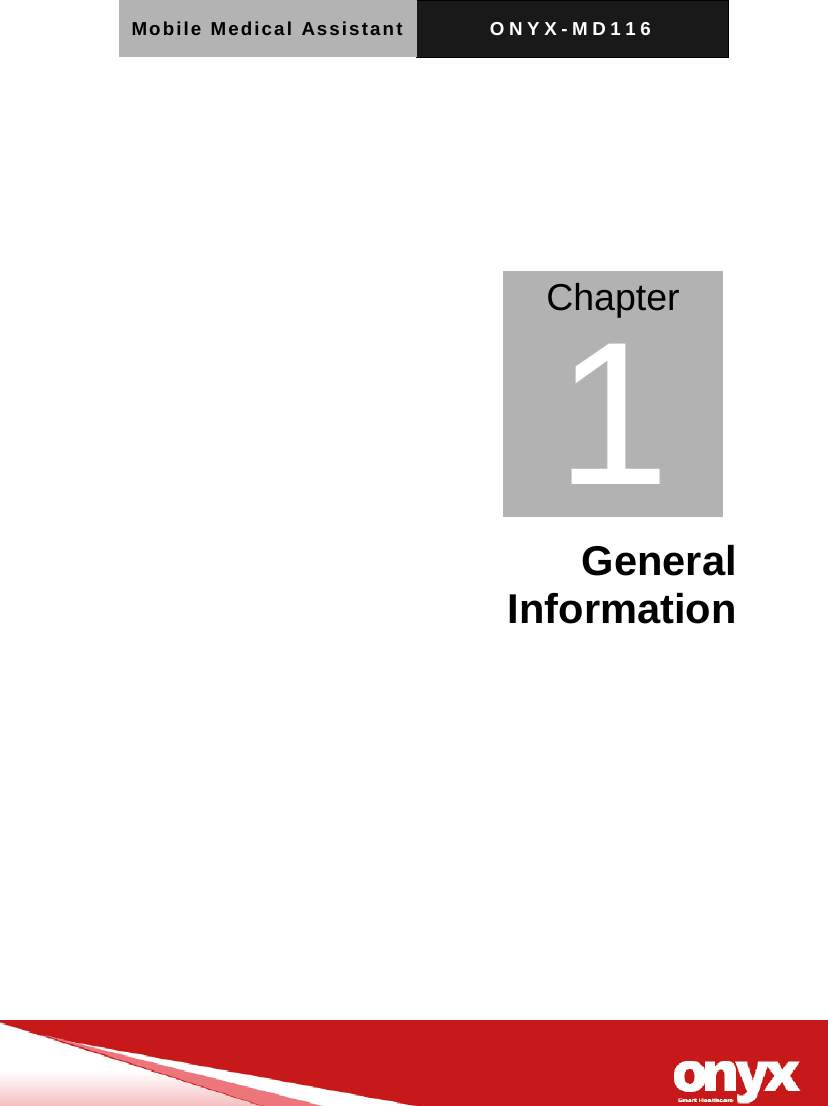

Mobile Medical Assistant ONYX-MD116 General Information Chapter 1

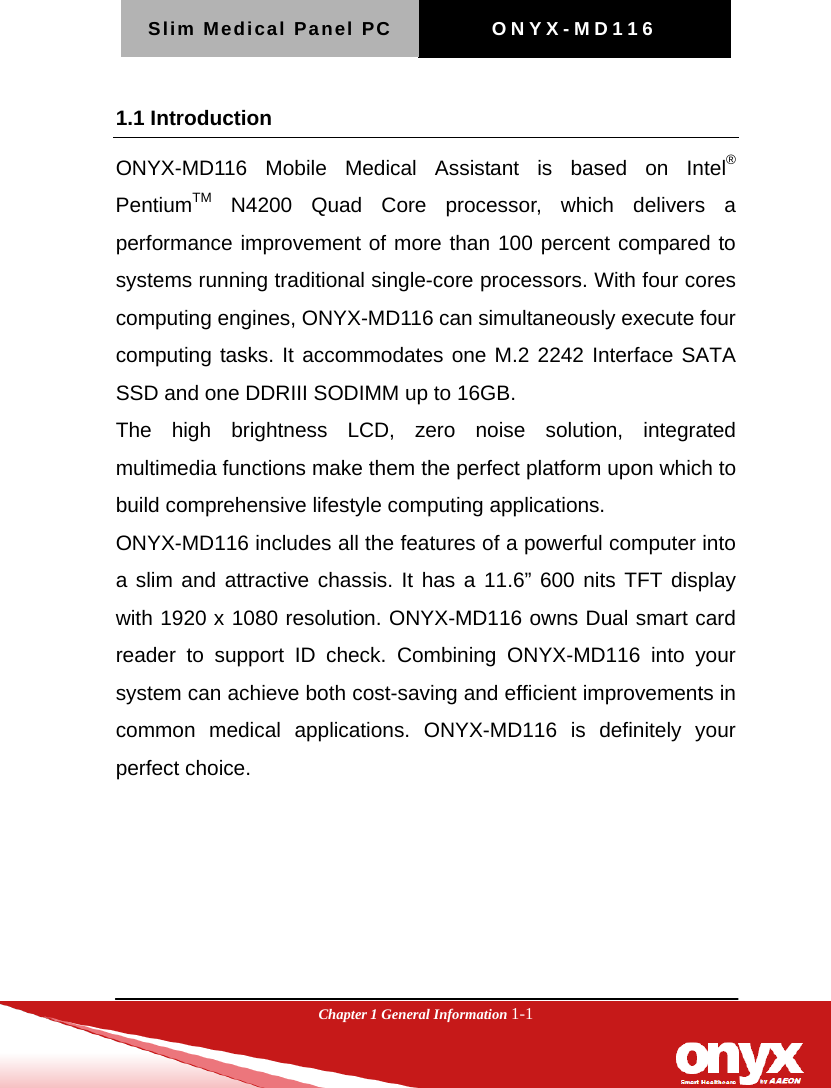

Slim Medical Panel PC ONYX-MD116 Chapter 1 General Information 1-1 1.1 Introduction ONYX-MD116 Mobile Medical Assistant is based on Intel® PentiumTM N4200 Quad Core processor, which delivers a performance improvement of more than 100 percent compared to systems running traditional single-core processors. With four cores computing engines, ONYX-MD116 can simultaneously execute four computing tasks. It accommodates one M.2 2242 Interface SATA SSD and one DDRIII SODIMM up to 16GB. The high brightness LCD, zero noise solution, integrated multimedia functions make them the perfect platform upon which to build comprehensive lifestyle computing applications. ONYX-MD116 includes all the features of a powerful computer into a slim and attractive chassis. It has a 11.6” 600 nits TFT display with 1920 x 1080 resolution. ONYX-MD116 owns Dual smart card reader to support ID check. Combining ONYX-MD116 into your system can achieve both cost-saving and efficient improvements in common medical applications. ONYX-MD116 is definitely your perfect choice.

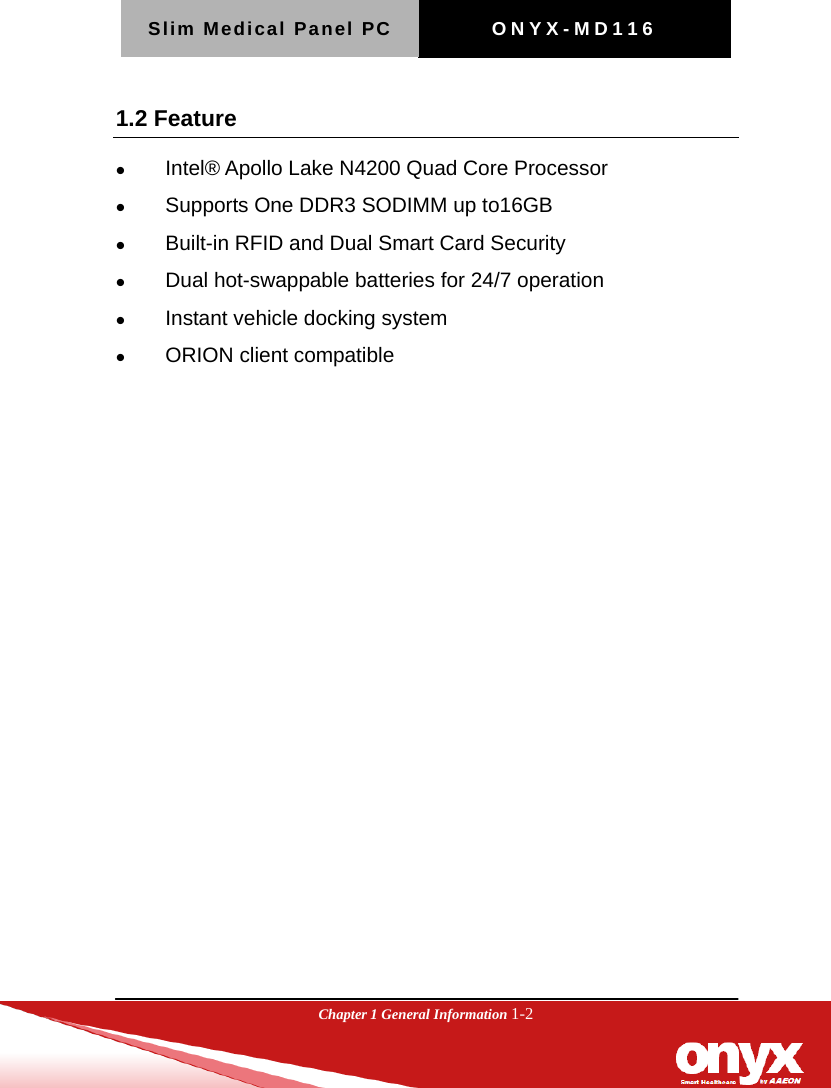

Slim Medical Panel PC ONYX-MD116 Chapter 1 General Information 1-2 1.2 Feature  Intel® Apollo Lake N4200 Quad Core Processor  Supports One DDR3 SODIMM up to16GB  Built-in RFID and Dual Smart Card Security  Dual hot-swappable batteries for 24/7 operation  Instant vehicle docking system  ORION client compatible

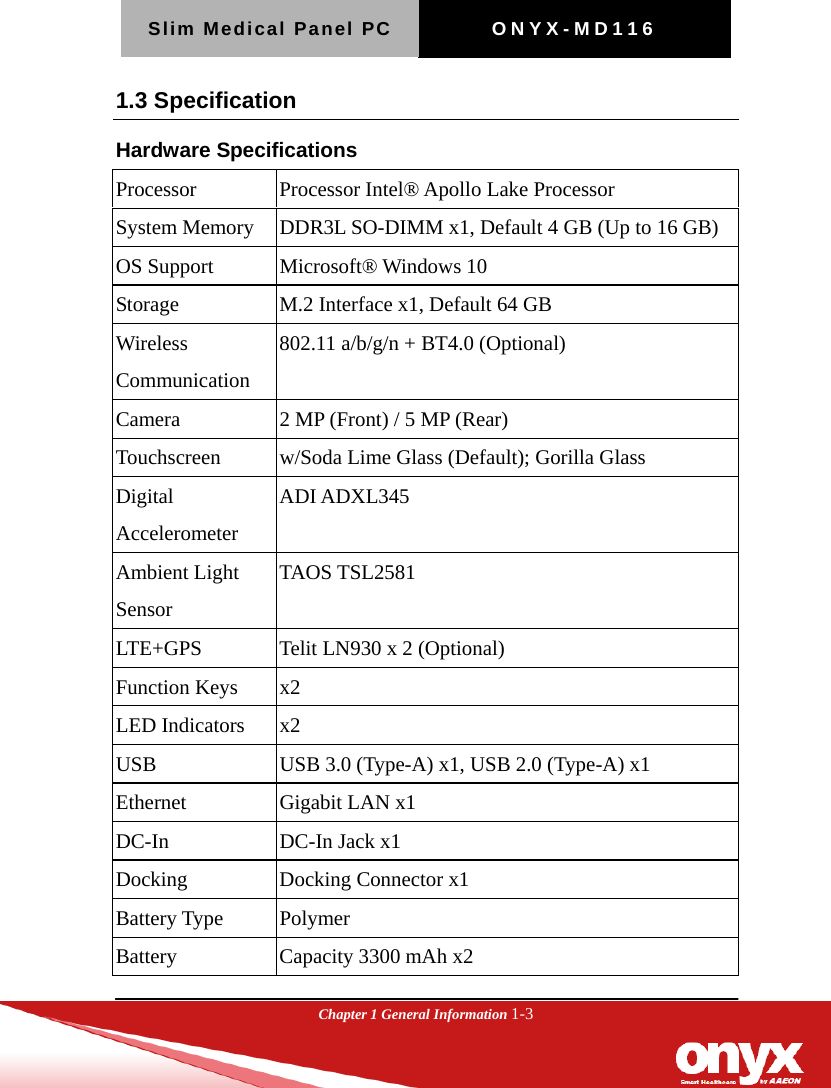

Slim Medical Panel PC ONYX-MD116 Chapter 1 General Information 1-3 1.3 Specification Hardware Specifications Processor Processor Intel® Apollo Lake Processor System Memory DDR3L SO-DIMM x1, Default 4 GB (Up to 16 GB) OS Support Microsoft® Windows 10 Storage M.2 Interface x1, Default 64 GB Wireless Communication 802.11 a/b/g/n + BT4.0 (Optional) Camera 2 MP (Front) / 5 MP (Rear) Touchscreen w/Soda Lime Glass (Default); Gorilla Glass Digital Accelerometer ADI ADXL345 Ambient Light Sensor TAOS TSL2581 LTE+GPS Telit LN930 x 2 (Optional) Function Keys x2 LED Indicators x2 USB USB 3.0 (Type-A) x1, USB 2.0 (Type-A) x1 Ethernet Gigabit LAN x1 DC-In DC-In Jack x1 Docking Docking Connector x1 Battery Type Polymer Battery Capacity 3300 mAh x2

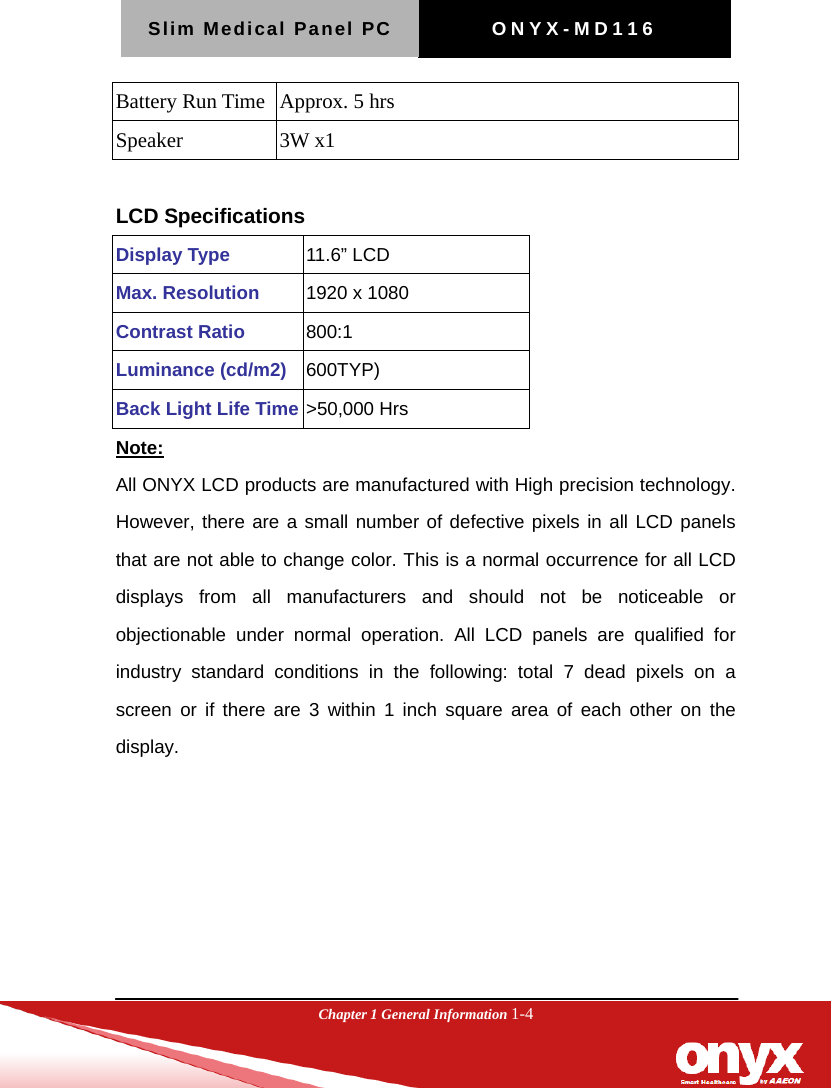

Slim Medical Panel PC ONYX-MD116 Chapter 1 General Information 1-4 Battery Run Time Approx. 5 hrs Speaker 3W x1 LCD Specifications Display Type 11.6” LCD Max. Resolution 1920 x 1080 Contrast Ratio 800:1 Luminance (cd/m2) 600TYP) Back Light Life Time >50,000 Hrs Note: All ONYX LCD products are manufactured with High precision technology. However, there are a small number of defective pixels in all LCD panels that are not able to change color. This is a normal occurrence for all LCD displays from all manufacturers and should not be noticeable or objectionable under normal operation. All LCD panels are qualified for industry standard conditions in the following: total 7 dead pixels on a screen or if there are 3 within 1 inch square area of each other on the display.

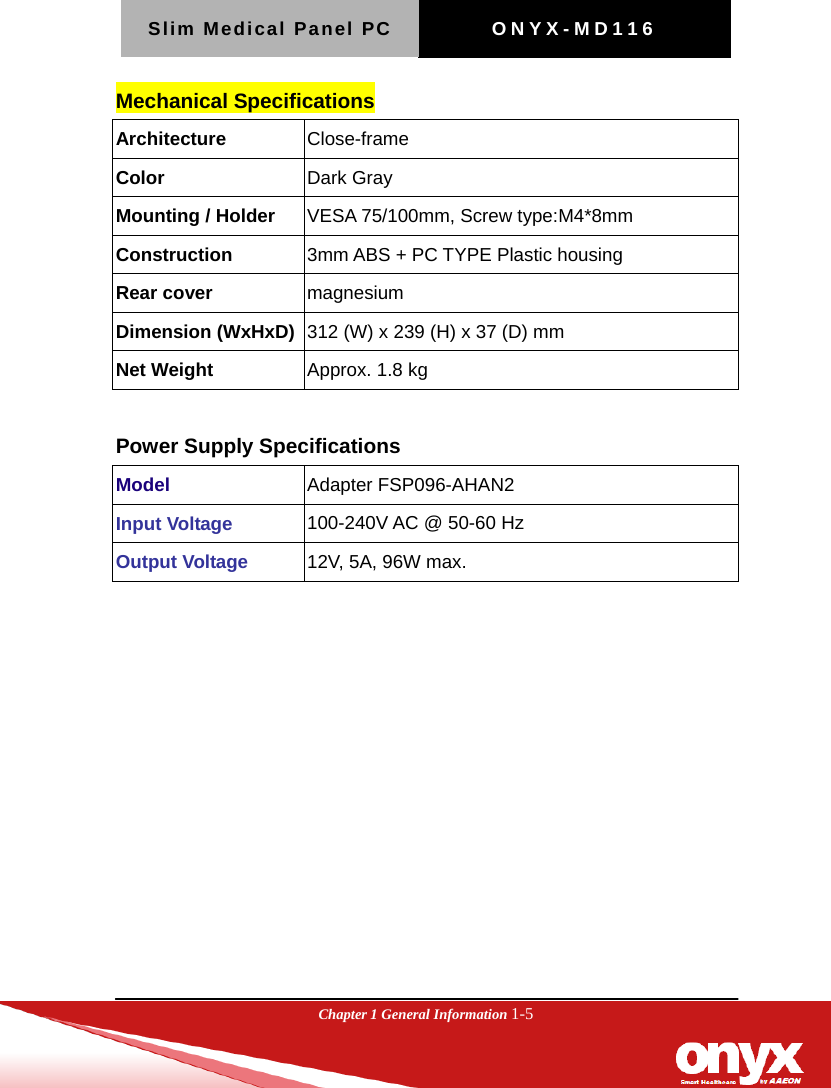

Slim Medical Panel PC ONYX-MD116 Chapter 1 General Information 1-5 Mechanical Specifications Architecture Close-frame Color Dark Gray Mounting / Holder VESA 75/100mm, Screw type:M4*8mm Construction 3mm ABS + PC TYPE Plastic housing Rear cover magnesium Dimension (WxHxD) 312 (W) x 239 (H) x 37 (D) mm Net Weight Approx. 1.8 kg Power Supply Specifications Model Adapter FSP096-AHAN2 Input Voltage 100-240V AC @ 50-60 Hz Output Voltage 12V, 5A, 96W max.

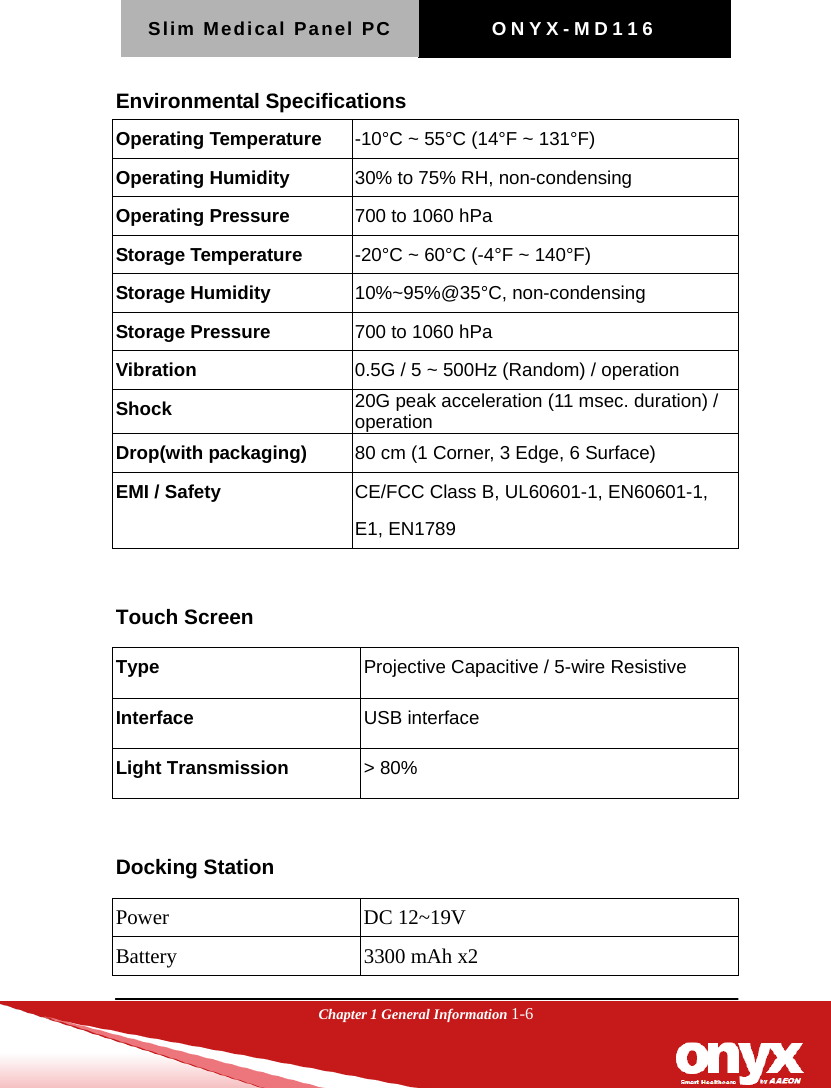

Slim Medical Panel PC ONYX-MD116 Chapter 1 General Information 1-6 Environmental Specifications Operating Temperature -10°C ~ 55°C (14°F ~ 131°F) Operating Humidity 30% to 75% RH, non-condensing Operating Pressure 700 to 1060 hPa Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F) Storage Humidity 10%~95%@35°C, non-condensing Storage Pressure 700 to 1060 hPa Vibration 0.5G / 5 ~ 500Hz (Random) / operation Shock 20G peak acceleration (11 msec. duration) / operation Drop(with packaging) 80 cm (1 Corner, 3 Edge, 6 Surface) EMI / Safety CE/FCC Class B, UL60601-1, EN60601-1, E1, EN1789 Touch Screen Type Projective Capacitive / 5-wire Resistive Interface USB interface Light Transmission > 80% Docking Station Power DC 12~19V Battery 3300 mAh x2

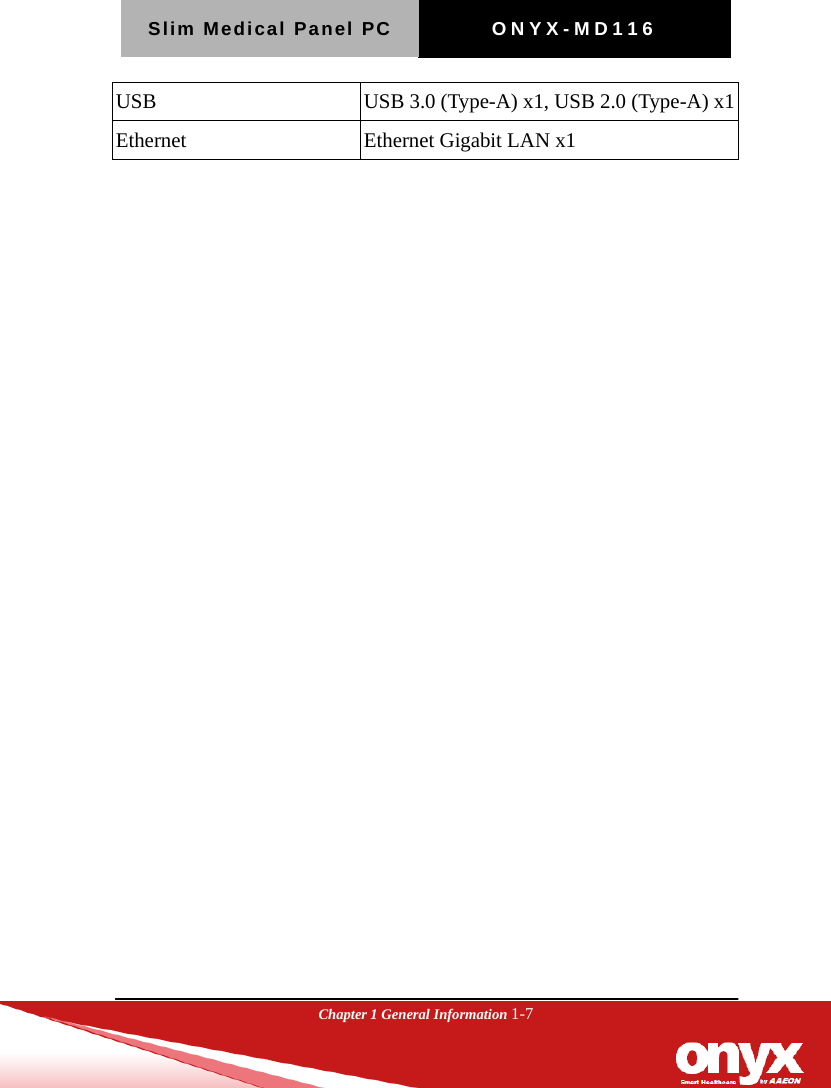

Slim Medical Panel PC ONYX-MD116 Chapter 1 General Information 1-7 USB USB 3.0 (Type-A) x1, USB 2.0 (Type-A) x1 Ethernet Ethernet Gigabit LAN x1
Slim Medical Panel PC ONYX-MD116 Chapter 1 General Information 1-8 1.4 Dimension

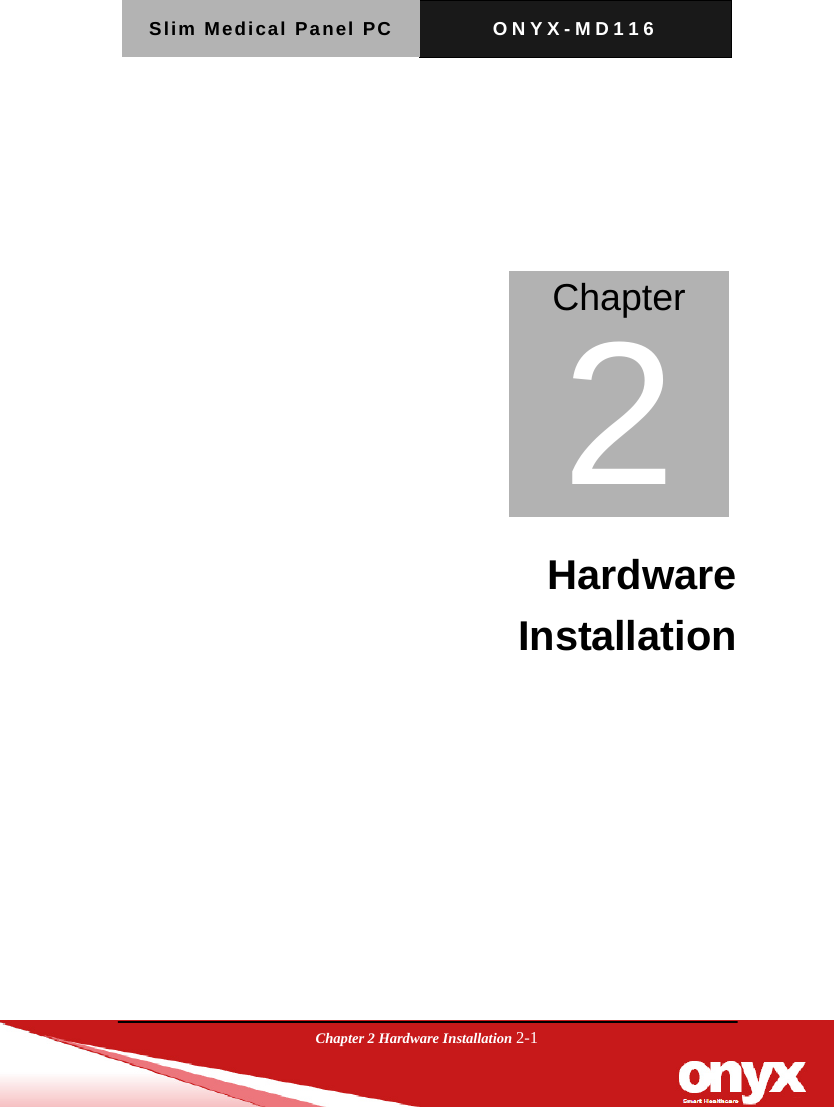

Slim Medical Panel PC ONYX-MD116 Chapter 2 Hardware Installation 2-1 Hardware Installation Chapter 2

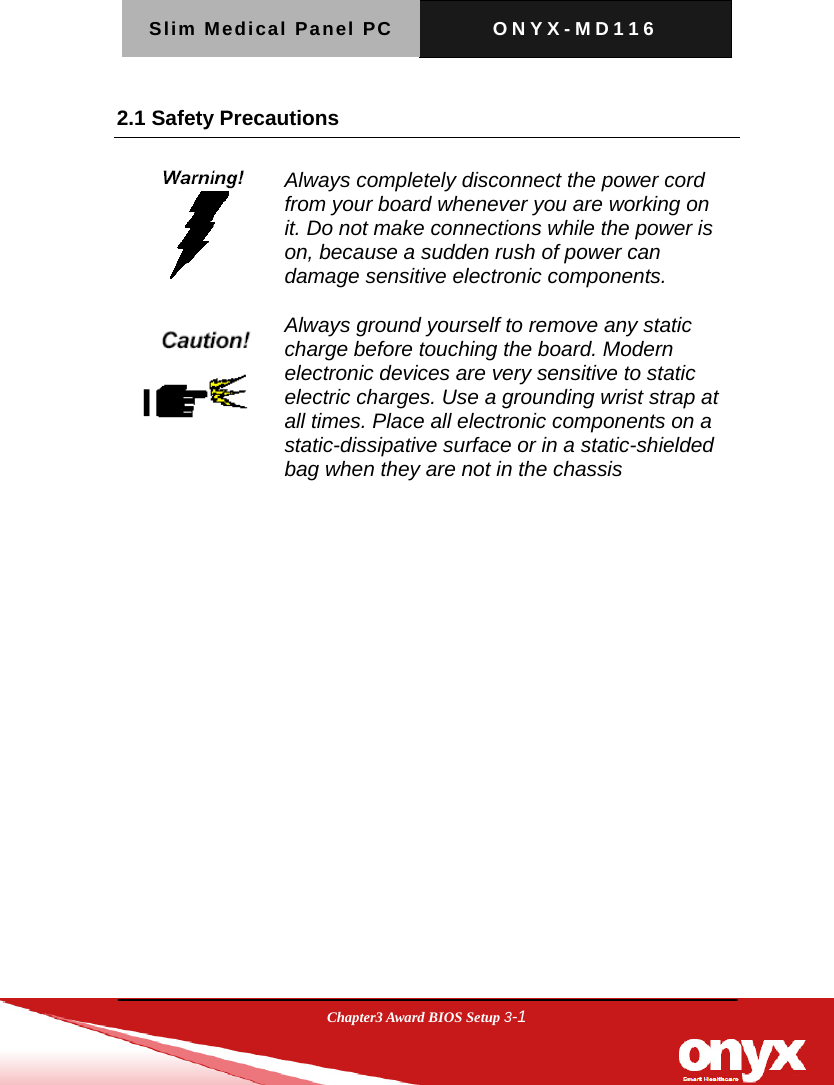

Slim Medical Panel PC ONYX-MD116 Chapter3 Award BIOS Setup 3-1 2.1 Safety Precautions Always completely disconnect the power cord from your board whenever you are working on it. Do not make connections while the power is on, because a sudden rush of power can damage sensitive electronic components. Always ground yourself to remove any static charge before touching the board. Modern electronic devices are very sensitive to static electric charges. Use a grounding wrist strap at all times. Place all electronic components on a static-dissipative surface or in a static-shielded bag when they are not in the chassis

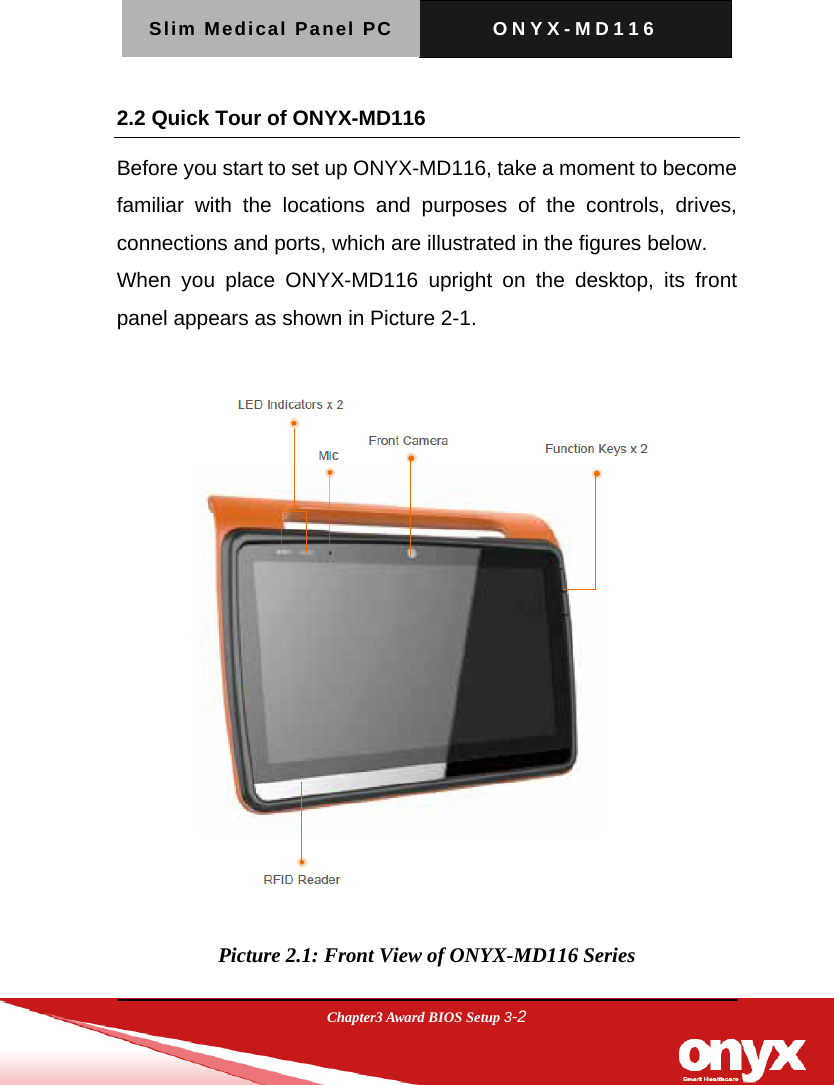

Slim Medical Panel PC ONYX-MD116 Chapter3 Award BIOS Setup 3-2 2.2 Quick Tour of ONYX-MD116 Before you start to set up ONYX-MD116, take a moment to become familiar with the locations and purposes of the controls, drives, connections and ports, which are illustrated in the figures below. When you place ONYX-MD116 upright on the desktop, its front panel appears as shown in Picture 2-1. Picture 2.1: Front View of ONYX-MD116 Series

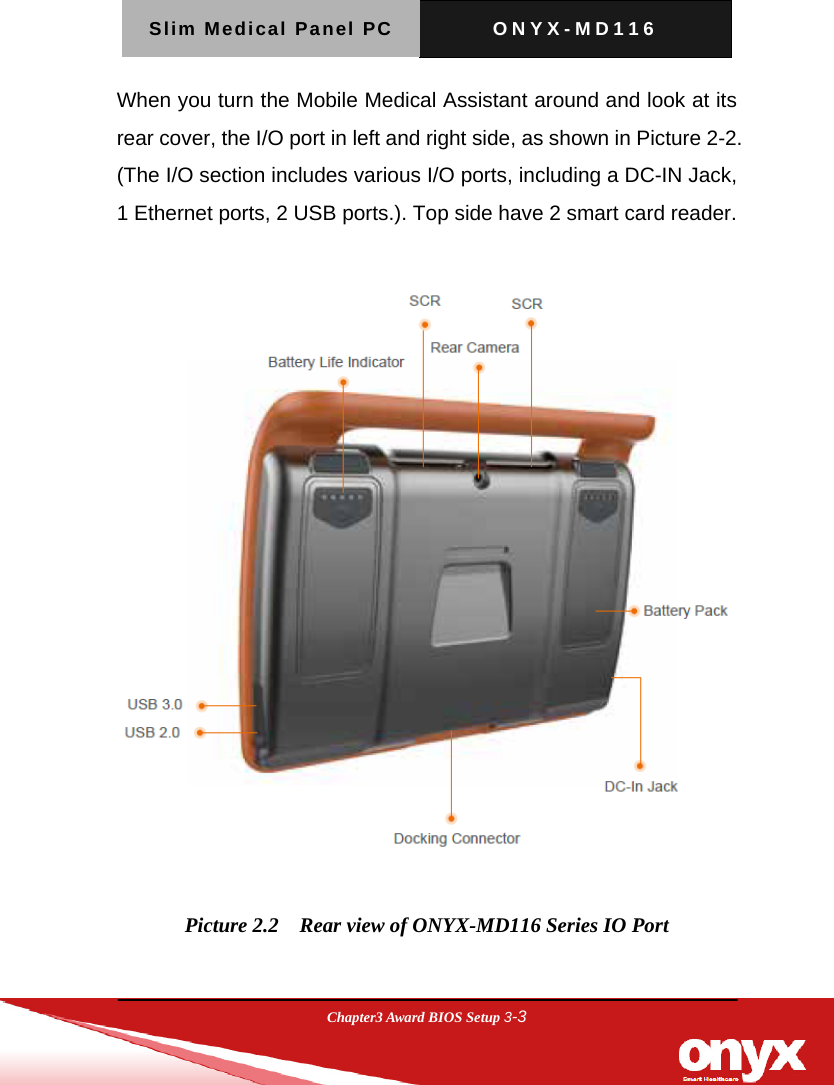

Slim Medical Panel PC ONYX-MD116 Chapter3 Award BIOS Setup 3-3 When you turn the Mobile Medical Assistant around and look at its rear cover, the I/O port in left and right side, as shown in Picture 2-2. (The I/O section includes various I/O ports, including a DC-IN Jack, 1 Ethernet ports, 2 USB ports.). Top side have 2 smart card reader. Picture 2.2 Rear view of ONYX-MD116 Series IO Port

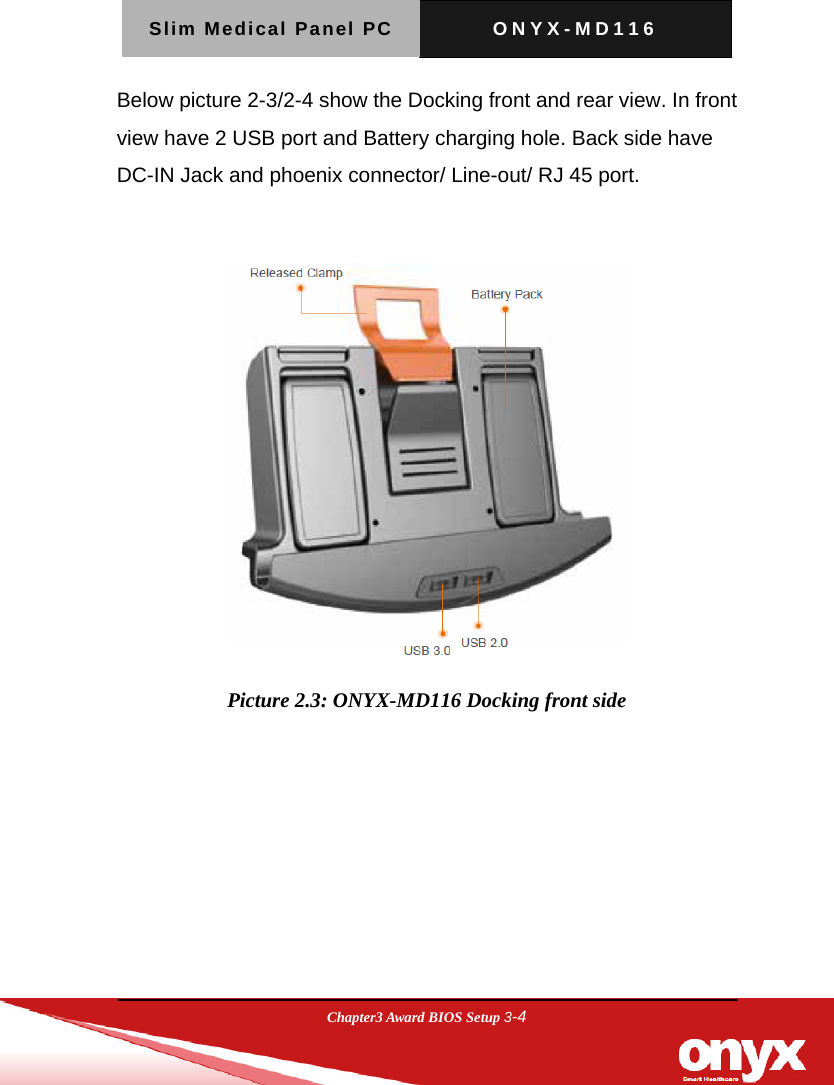

Slim Medical Panel PC ONYX-MD116 Chapter3 Award BIOS Setup 3-4 Below picture 2-3/2-4 show the Docking front and rear view. In front view have 2 USB port and Battery charging hole. Back side have DC-IN Jack and phoenix connector/ Line-out/ RJ 45 port. Picture 2.3: ONYX-MD116 Docking front side

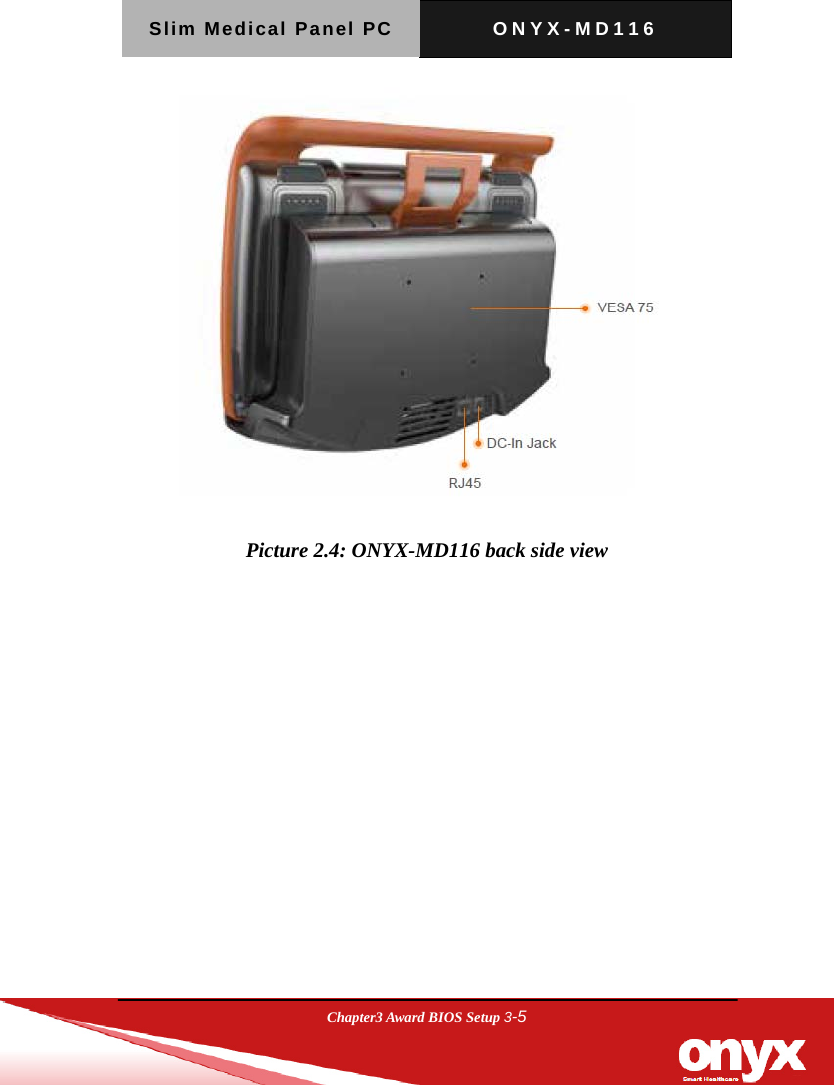

Slim Medical Panel PC ONYX-MD116 Chapter3 Award BIOS Setup 3-5 Picture 2.4: ONYX-MD116 back side view

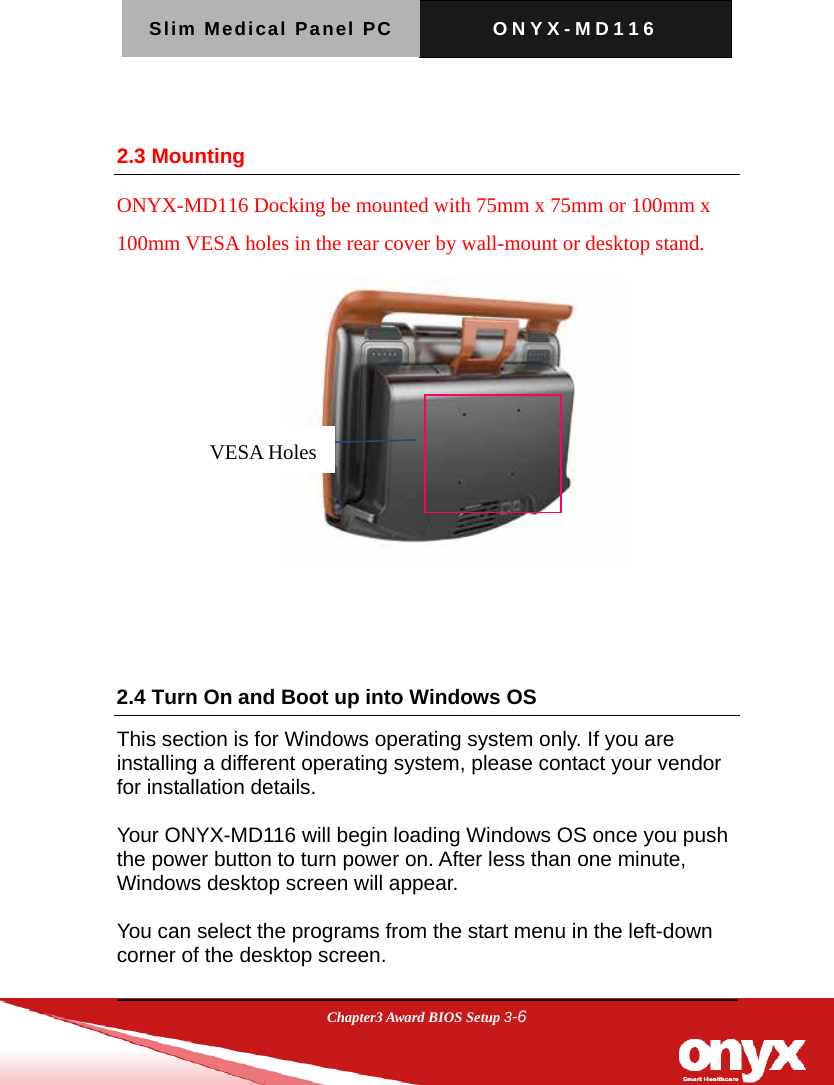

Slim Medical Panel PC ONYX-MD116 Chapter3 Award BIOS Setup 3-6 2.3 Mounting ONYX-MD116 Docking be mounted with 75mm x 75mm or 100mm x 100mm VESA holes in the rear cover by wall-mount or desktop stand. 2.4 Turn On and Boot up into Windows OS This section is for Windows operating system only. If you are installing a different operating system, please contact your vendor for installation details. Your ONYX-MD116 will begin loading Windows OS once you push the power button to turn power on. After less than one minute, Windows desktop screen will appear. You can select the programs from the start menu in the left-down corner of the desktop screen. VESA Holes
Slim Medical Panel PC ONYX-MD116 Chapter3 Award BIOS Setup 3-7 2.5 Turn off Turning off ONYX-MD116 properly is important for system reliability. There are two ways to turn off the system. 1. On the start menu, click “shut down” and select “OK” 2. Push the power button and then the system will shut down automatically 2.6 Connectors 1. USB 2.0 port These 4-pin Universal Serial Bus (USB) ports are available for connecting USB 2.0 devices. 2. USB 3.0 These 9 Universal Serial Bus (USB) ports are available for connecting USB 3.0 devices. 3. COM port. This 9-pin COM port is for serial devices. 4. LAN (RJ-45) port. These port allows Gigabit connection 5. POTENTIAL EQUALIZATION CONDUCTOR. The purpose of additional potential equalization is to equalize potentials between different metal parts that can be touched simultaneously, or to reduce differences of potential which can occur during operation between the bodies of medical electrical devices and conductive parts of other objects. The connector is specially shaped so as to prevent chance disconnection when used as intended, while allowing the lead to be removed without the need for tools.
Slim Medical Panel PC ONYX-MD116 Chapter3 Driver Installation 3-1 Driver Installation Chapter 3

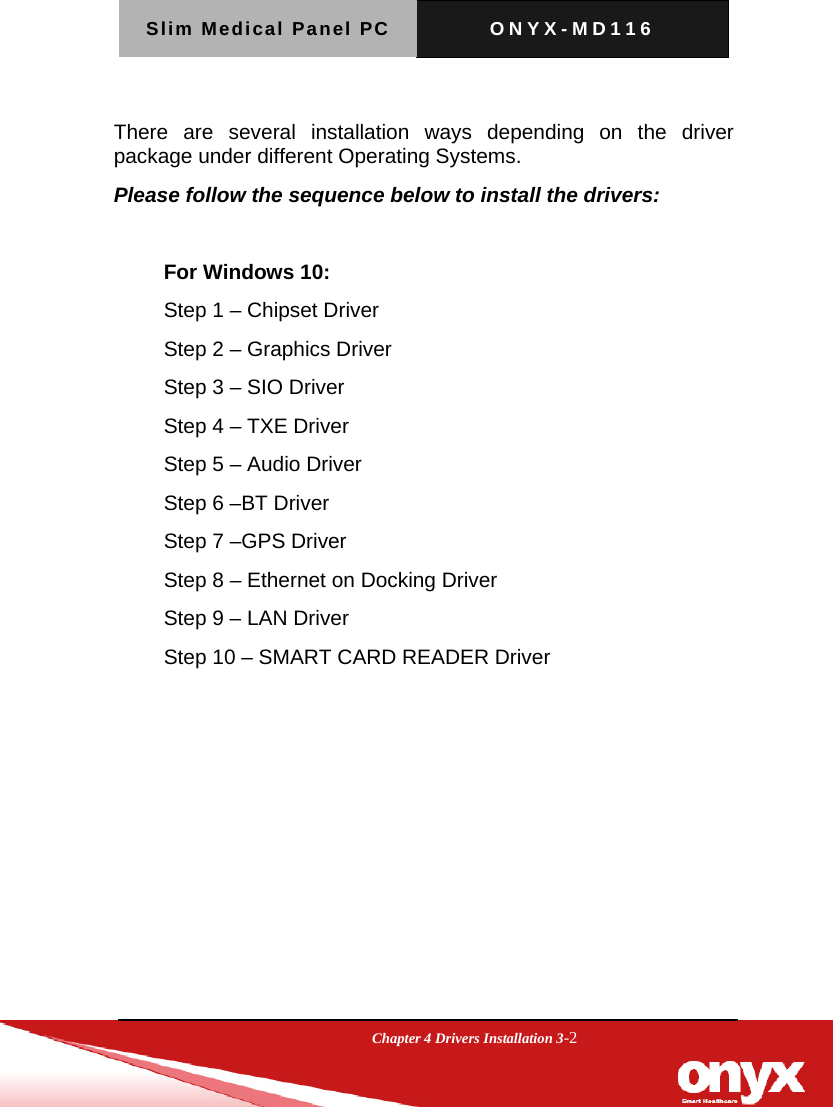

Slim Medical Panel PC ONYX-MD116 Chapter 4 Drivers Installation 3-2 There are several installation ways depending on the driver package under different Operating Systems. Please follow the sequence below to install the drivers: For Windows 10: Step 1 – Chipset Driver Step 2 – Graphics Driver Step 3 – SIO Driver Step 4 – TXE Driver Step 5 – Audio Driver Step 6 –BT Driver Step 7 –GPS Driver Step 8 – Ethernet on Docking Driver Step 9 – LAN Driver Step 10 – SMART CARD READER Driver

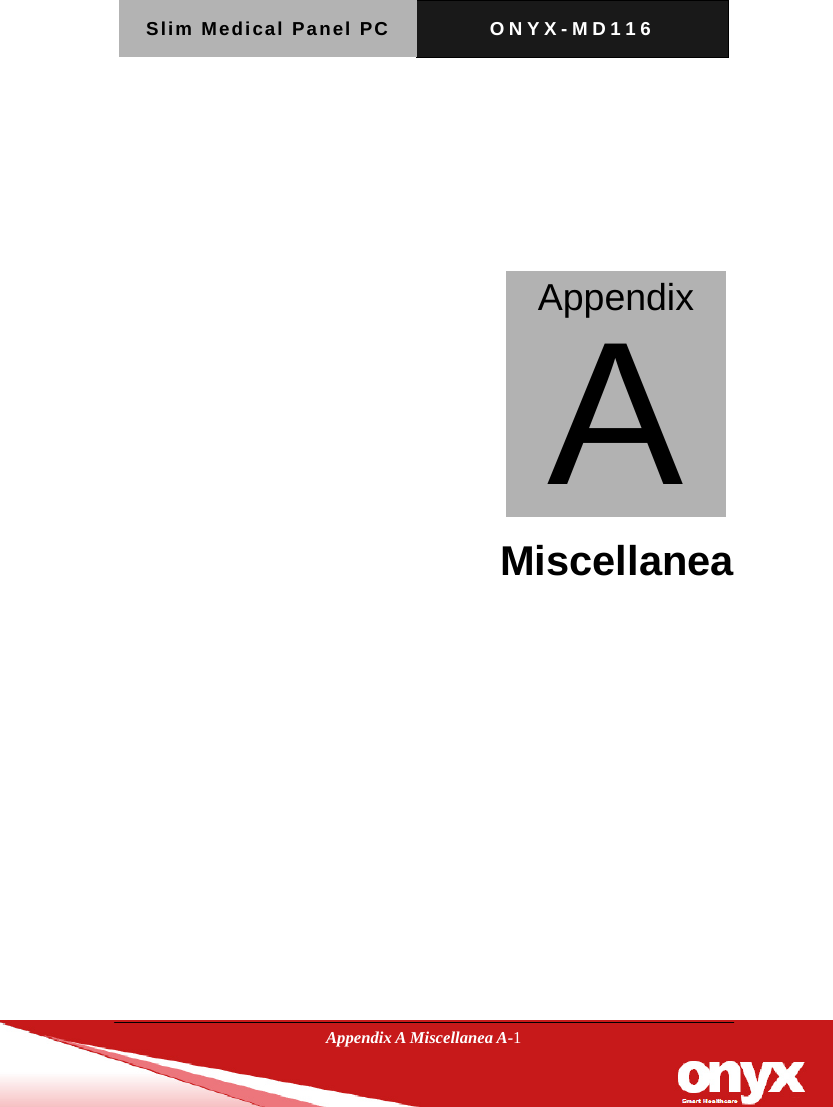

Slim Medical Panel PC ONYX-MD116 Appendix A Miscellanea A-1 Miscellanea Appendix A
Slim Medical Panel PC ONYX-MD116 Appendix A Miscellanea A-2 A.1 General Cleaning Tips You may need the following precautions before you begin to clean the computer. When you clean any single part or component for the computer, please read and understand the details below fully. 1. Never spray or squirt the liquids directly onto any computer component. If you need to clean the device, please rub it with a piece of dry cloth. 2. Be cautious of the tiny removable components when you use a vacuum cleaner to absorb the dirt on the floor. 3. Turn the system off before you start to clean up the component or computer. 4. Never drop the components inside the computer or get circuit board damp or wet. 5. Be cautious of all kinds of cleaning solvents or chemicals when you use it for the sake of cleaning. Some individuals may be allergic to the ingredients. 6. Try not to put any food, drink or cigarette around the computer. 7. ONYX Healthcare Inc. has tested and verified these cleaning disinfectants, CIDEX, Viraguard, Control III Disinfectant Germicide, Caviwipes, Dispatch Disinfectant Cleaner CLH69101, Puregreen 24 Disinfectant, can be used with ONYX-MD116. Use of any other disinfectants will

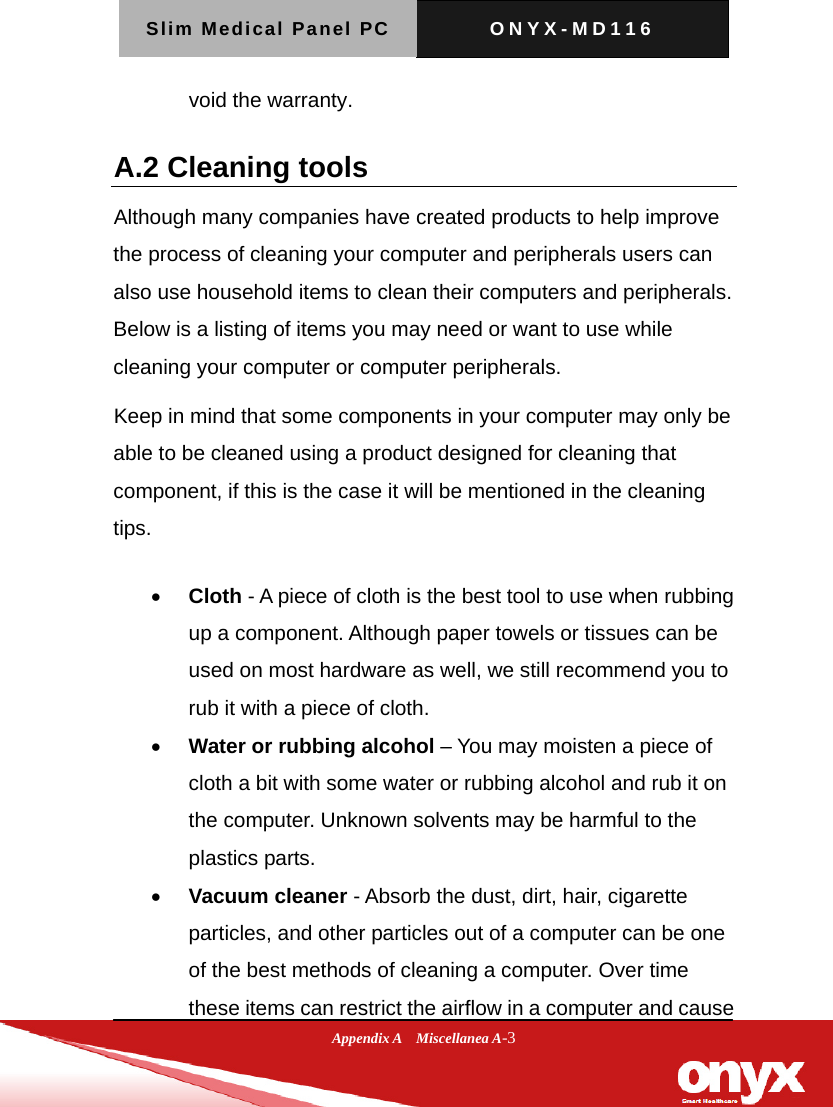

Slim Medical Panel PC ONYX-MD116 Appendix A Miscellanea A-3 void the warranty. A.2 Cleaning tools Although many companies have created products to help improve the process of cleaning your computer and peripherals users can also use household items to clean their computers and peripherals. Below is a listing of items you may need or want to use while cleaning your computer or computer peripherals. Keep in mind that some components in your computer may only be able to be cleaned using a product designed for cleaning that component, if this is the case it will be mentioned in the cleaning tips.  Cloth - A piece of cloth is the best tool to use when rubbing up a component. Although paper towels or tissues can be used on most hardware as well, we still recommend you to rub it with a piece of cloth.  Water or rubbing alcohol – You may moisten a piece of cloth a bit with some water or rubbing alcohol and rub it on the computer. Unknown solvents may be harmful to the plastics parts.  Vacuum cleaner - Absorb the dust, dirt, hair, cigarette particles, and other particles out of a computer can be one of the best methods of cleaning a computer. Over time these items can restrict the airflow in a computer and cause

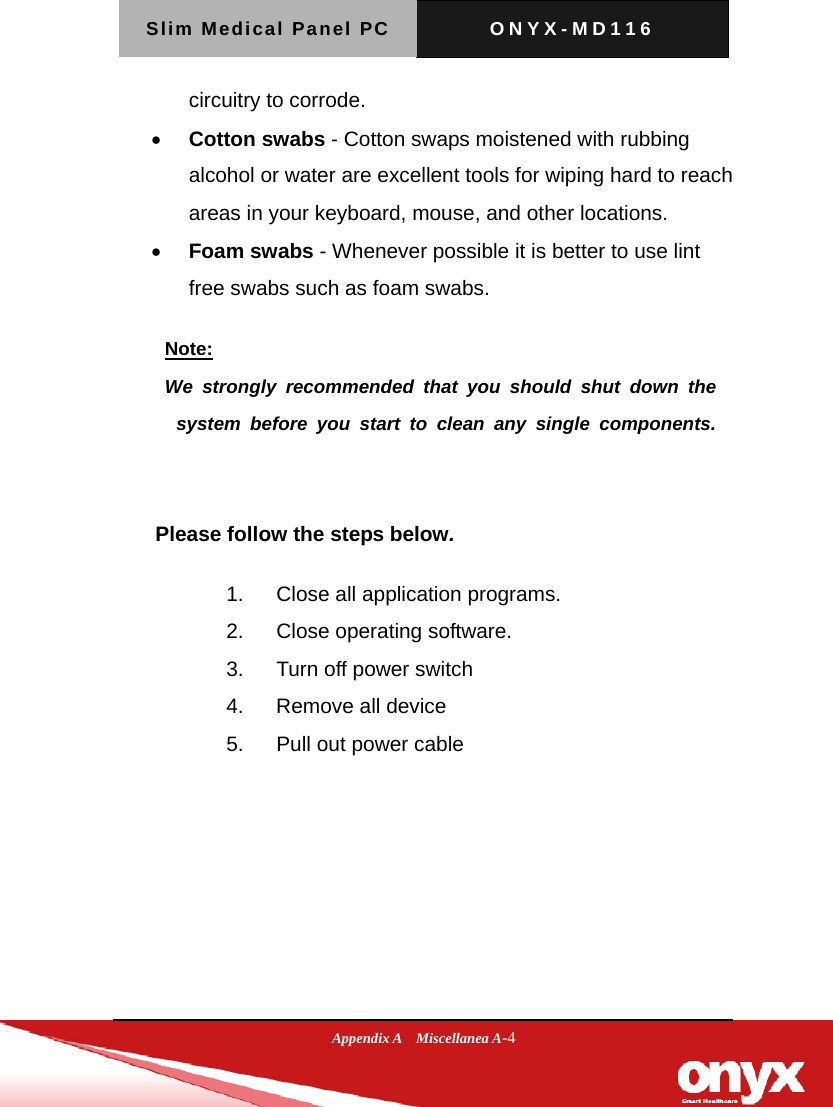

Slim Medical Panel PC ONYX-MD116 Appendix A Miscellanea A-4 circuitry to corrode.  Cotton swabs - Cotton swaps moistened with rubbing alcohol or water are excellent tools for wiping hard to reach areas in your keyboard, mouse, and other locations.  Foam swabs - Whenever possible it is better to use lint free swabs such as foam swabs. Please follow the steps below. 1. Close all application programs. 2. Close operating software. 3. Turn off power switch 4. Remove all device 5. Pull out power cable Note: We strongly recommended that you should shut down the system before you start to clean any single components.

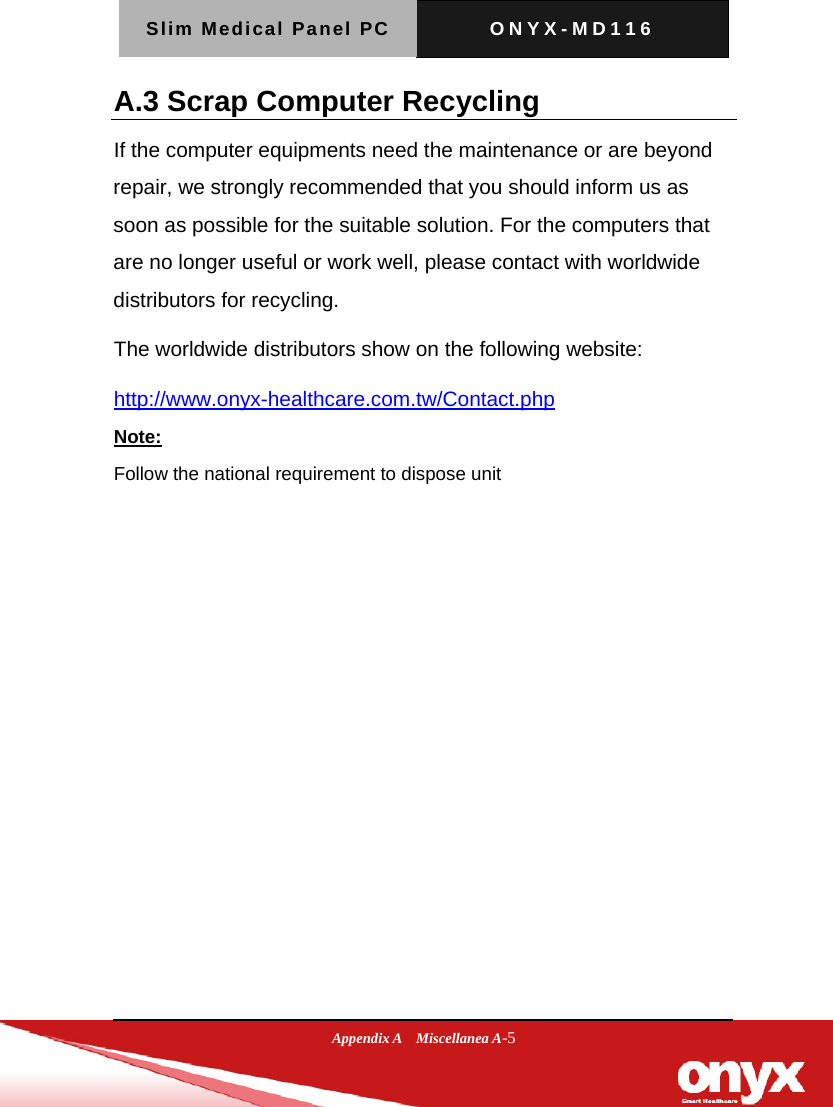

Slim Medical Panel PC ONYX-MD116 Appendix A Miscellanea A-5 A.3 Scrap Computer Recycling If the computer equipments need the maintenance or are beyond repair, we strongly recommended that you should inform us as soon as possible for the suitable solution. For the computers that are no longer useful or work well, please contact with worldwide distributors for recycling. The worldwide distributors show on the following website: http://www.onyx-healthcare.com.tw/Contact.php Note: Follow the national requirement to dispose unit 

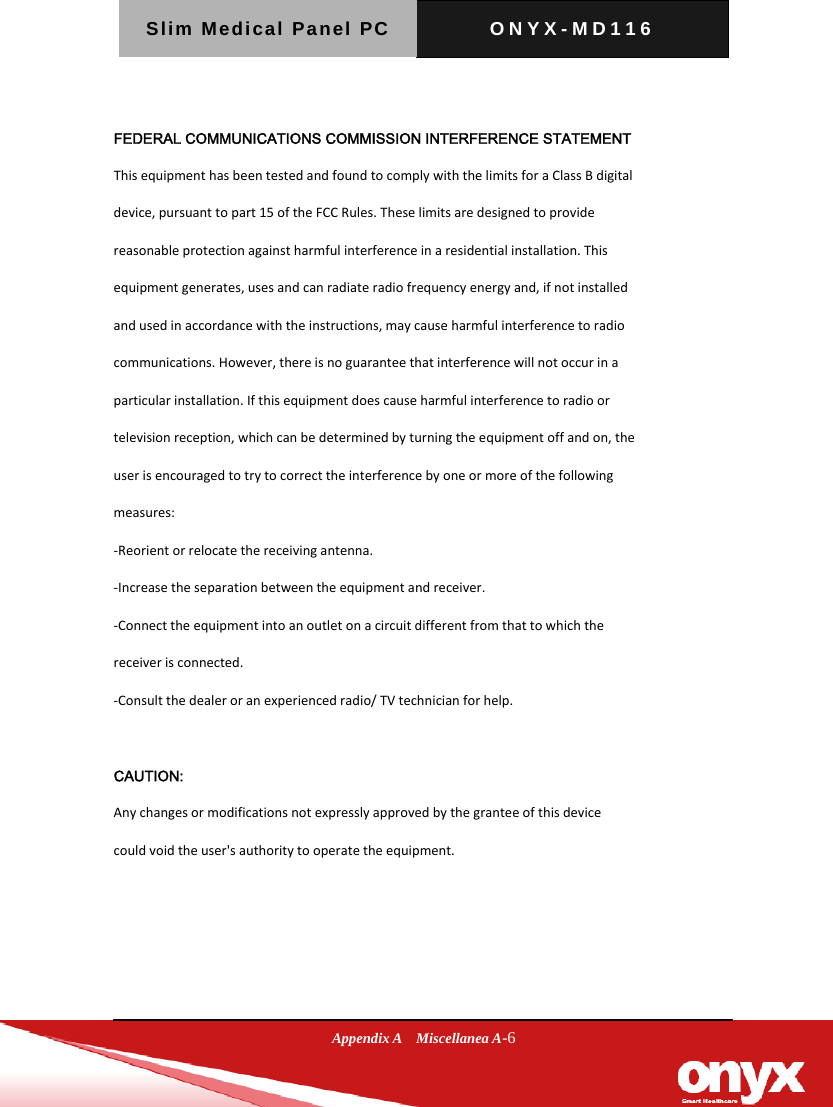

Slim Medical Panel PC ONYX-MD116 Appendix A Miscellanea A-6 FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:‐Reorientorrelocatethereceivingantenna.‐Increasetheseparationbetweentheequipmentandreceiver.‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp. CAUTION: Anychangesormodificationsnotexpresslyapprovedbythegranteeofthisdevicecouldvoidtheuser'sauthoritytooperatetheequipment.

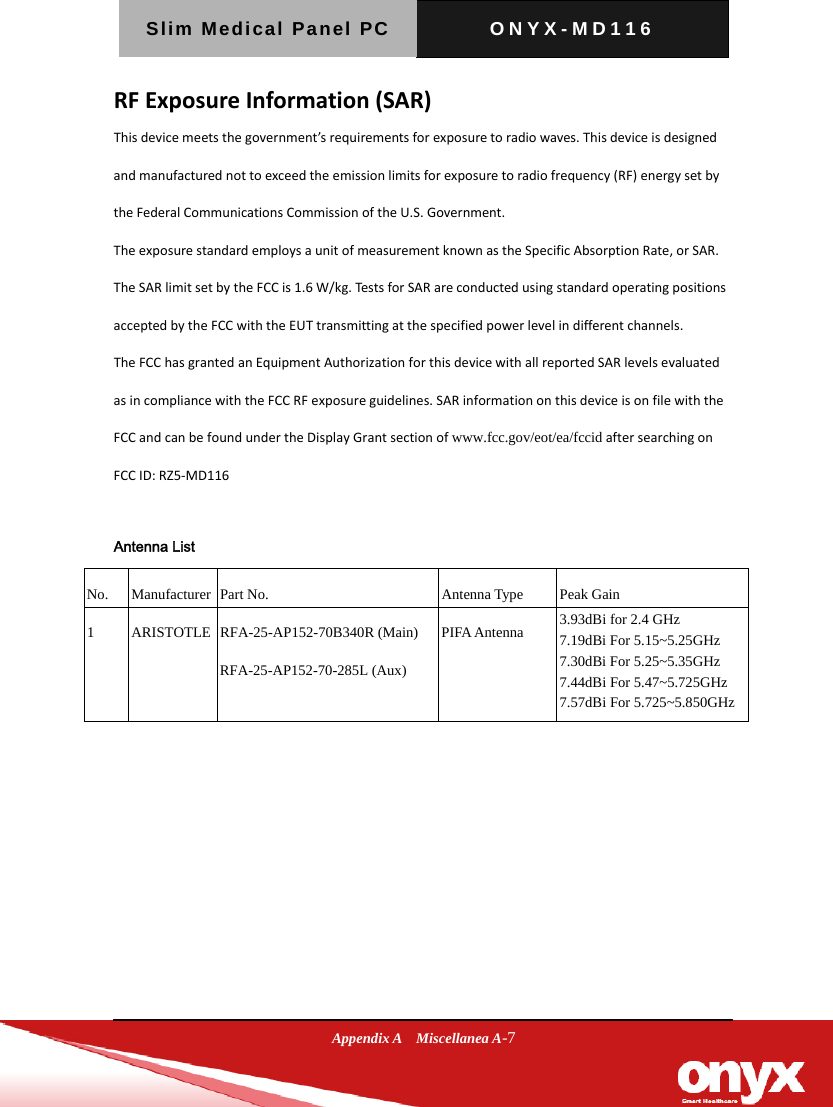

Slim Medical Panel PC ONYX-MD116 Appendix A Miscellanea A-7 TheFCChasgrantedanEquipmentAuthorizationforthisdevicewithallreportedSARlevelsevaluatedasincompliancewiththeFCCRFexposureguidelines.SARinformationonthisdeviceisonfilewiththeFCCandcanbefoundundertheDisplayGrantsectionofwww.fcc.gov/eot/ea/fccidaftersearchingonFCCID:RZ5‐MD116Antenna ListNo.ManufacturerPart No.Antenna TypePeak Gain1ARISTOTLE RFA-25-AP152-70B340R (Main) RFA-25-AP152-70-285L (Aux) PIFA Antenna3.93dBi for 2.4 GHz 7.19dBi For 5.15~5.25GHz 7.30dBi For 5.25~5.35GHz 7.44dBi For 5.47~5.725GHz 7.57dBi For 5.725~5.850GHz RFExposureInformation(SAR)Thisdevicemeetsthegovernment’srequirementsforexposuretoradiowaves.Thisdeviceisdesignedandmanufacturednottoexceedtheemissionlimitsforexposuretoradiofrequency(RF)energysetbytheFederalCommunicationsCommissionoftheU.S.Government.TheexposurestandardemploysaunitofmeasurementknownastheSpecificAbsorptionRate,orSAR.TheSARlimitsetbytheFCCis1.6W/kg.TestsforSARareconductedusingstandardoperatingpositionsacceptedbytheFCCwiththeEUTtransmittingatthespecifiedpowerlevelindifferentchannels.
