ONYX Healthcare lnc VISTAHUB-WIFI VistaHub Wifi only User Manual
ONYX Healthcare lnc. VistaHub Wifi only
User manual
Medica l PC VISTAHUB-WIFI
VISTAHUB-WIFI
Intel® Cherry Trail Z8350 Processor
VistaHub Wifi only
VitalConnect
VISTAHUB-WIFI Manual 1st Ed
Aug, 2017
Medica l PC VISTAHUB-WIFI
Copyright Notice
This document is copyrighted, 2017. All rights are reserved. The
original manufacturer reserves the right to make improvements to the
products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in this
manual is intended to be accurate and reliable. However, the original
manufacturer assumes no responsibility for its use, nor for any
infringements upon the rights of third parties, which may result from its
use.
The material in this document is for product information only and is
subject to change without notice. While reasonable efforts have been
made in the preparation of this document to assure its accuracy, ONYX
Healthcare Inc., assumes no liabilities resulting from errors or
omissions in this document, or from the use of the information
contained herein
ONYX Healthcare Inc. reserves the right to make changes in the
product design without notice to its users
Medica l PC VISTAHUB-WIFI
Acknowledgments
Intel® Cherry Trail is registered trademarks of Intel® Corporation.
Microsoft® Windows is a registered trademark of Microsoft®
Corporation.
All other product names or trademarks are properties of their respec
tive owners.
Medica l PC VISTAHUB-WIFI
Packing List
Before you begin installing your Medical Box PC, please make sure that
the following items have been shipped:
MedPC-6200 Medical Box PC
Medical Power Adapter 5V/3.5A
WiFi/BT Antenna
VESA Mounting Bracket
Medica l PC VISTAHUB-WIFI
If any of these items are missing or damaged, you should contact your
distributor or sales representative immediately.
Headquarters
Onyx Healthcare Inc.
2F, No.135, Lane 235, Pao-Chiao Rd.,
Hsin-Tien City, Taipei 231, Taiwan, R.O.C.
TEL: +886-2-8919-2188
FAX: +886-2-8919-1699
E-mail: sales@onyx-healthcare.com
http://www.onyx-healthcare.com
Worldwide Offices:
Onyx Healthcare, USA Inc.
324W. Blueridge Ave., Orange,, CA 92865, USA
Tel : +1-714-792-0774
Fax: +1-714-792-0481
Email: usasales@onyx-healthcare.com
Onyx Healthcare EUROPE B.V.
Primulalaan 42, 5582 GL Waalre, Netherlands
Tel : +31(0)499-745600
Email: eusales@onyx-healthcare.com
Medica l PC VISTAHUB-WIFI
Onyx Healthcare (Shanghai) INC.
20F, unit D, GEM Building, No. 487 Tianlin Road,
Shanghai, China
Tel: +86-021-64956588
Fax: +86-021-64956889
Email: cnsales@onyx-healthcare.com
Medica l PC VISTAHUB-WIFI
Safety & Warranty
1. Read these safety instructions carefully.
2. Keep this user's manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Do
not use liquid or spray detergents for cleaning. Use a damp cloth.
4. For pluggable equipment, the power outlet must be installed near the
equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping
it or letting it fall could cause damage.
7. The openings on the enclosure are for air convection. Protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before
connecting the equipment to the power outlet.
9. Warning: To avoid risk of electric shock, this equipment must
only be connected to a supply mains with protective earth.
(Avertissement: Pour éviter tout risque de choc électrique, cet
appareil doit être connecté à une alimentation secteur avec une
prise de terre)
10. Position the power cord so that people cannot step on it. Do not
place anything over the power cord.
11. All cautions and warnings on the equipment should be noted.
12. If the equipment is not used for a long time, disconnect it from the
power source to avoid damage by transient over-voltage.
Medica l PC VISTAHUB-WIFI
13. Never pour any liquid into an opening. This could cause fire or
electrical shock.
14. Never open the equipment. For safety reasons, only qualified
service personnel should open the equipment.
15. Warning: Do not modify this equipment without authorization of
the manufacturer. (Avertissement: Ne pas modifier cet équipement
sans l'autorisation du fabricant)
16. Warning : It is necessary for checking or replacing the battery
pack every year. (Avertissement: Il est nécessaire de vérifier ou de
remplacer la batterie chaque année)
Medica l PC VISTAHUB-WIFI
16. If any of the following situations arises, get the equipment
checked by service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to
work according to the users manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.
17. DO NOT LEAVE THIS EQUIPMENT IN AN UNCONTROLLED
ENVIRONMENT WHERE THE STORAGE TEMPERATURE IS
BELOW -20° C (-4°F) OR ABOVE 60° C (140° F). IT MAY DAMAGE
THE EQUIPMENT.
18. External equipment intended for connection to signal
input/output or other connectors, shall comply with relevant UL
/ IEC standard (e.g. UL 1950 for IT equipment and ANSI/AAMI ES
60601-1: 2005 AND CAN/CSA-C22.2 No. 60601-1:08 / IEC 60601
series for systems – shall comply with the standard IEC
60601-1-1, Safety requirements for medical electrical systems.
Equipment not complying with UL 60601-1 shall be kept outside
the patient environment, as defined in the standard.
19. Unplug the power cord from the power adapter jack to
disconnect the device.
Caution:
It may cause the danger of explosion if battery is incorrectly
replaced. Replace only with same or equivalent type
recommended by the manufacturer.
Medica l PC VISTAHUB-WIFI
Classification
1. Degree of production against electric shock: not classified
2. Degree of protection against the ingress of water: IPX0
3. Mode of operation: Continuous
4. Type of protection against electric shock: Class I equipment
5. No Applied Part, No AP/APG
Medica l PC VISTAHUB-WIFI
FCC
This device complies with Part 18 FCC Rules.
Operation is subject to the following two
conditions: (1) this device may not cause
harmful interference, and (2) this device must
accept any interference received including
interference that may cause undesired
operation.
Medica l PC VISTAHUB-WIFI
UL Module Description
MEDPC-6200 modules are developed to
suitable for the Classification Mark
requirement
Medica l PC VISTAHUB-WIFI

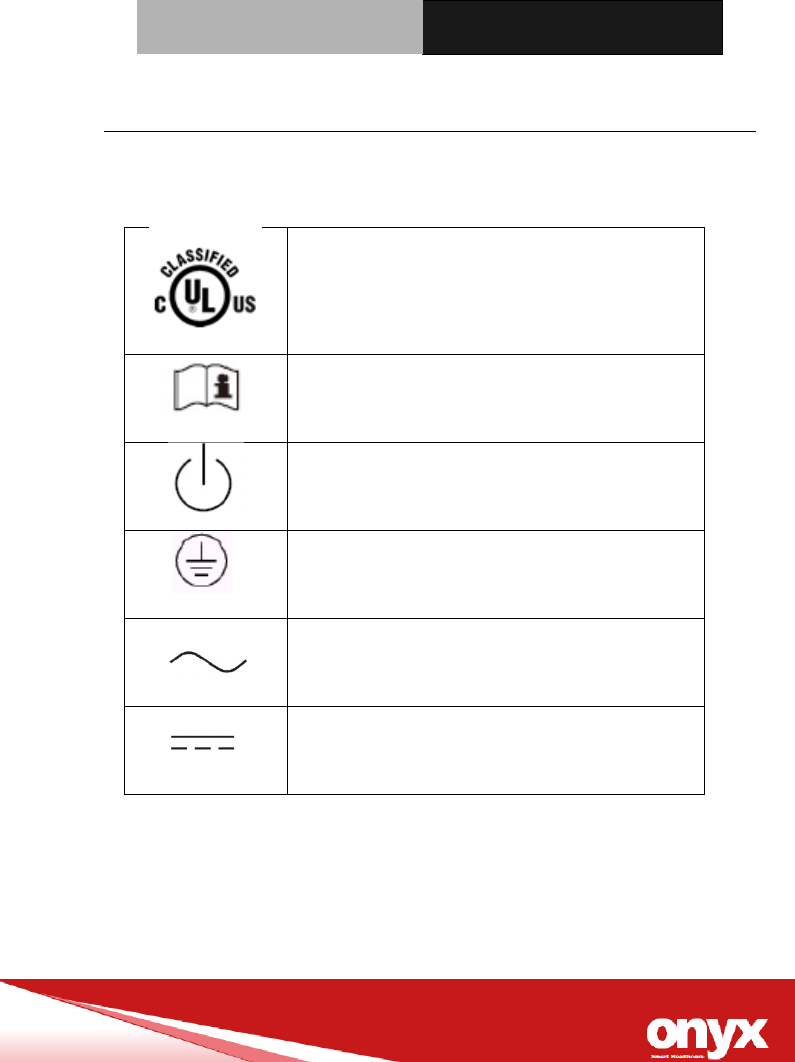

Safety Symbol Description
The following safety symbols are the further explanations for your
reference.
Medical equipment with respect to electric
shock, fire and mechanical hazards only in
accordance with ANSI/AAMI ES 60601-
1:
2005 AND CAN/CSA-C22.2 No.
60601-1:08
A
ttention
, consult ACCOMPANYING
DOCUMENTS.
Stand
-
by
G
round
wire
Protective Ground wire.
Alternating current
Direct current
Medica l PC VISTAHUB-WIFI
Contents
Chapter 1 General Information
1.1 Introduction..................................................................1-2
1.2 Feature .........................................................................1-3
1.3 Specification ................................................................1-4
1.4 Dimension ....................................................................1-8
Chapter 2 Hardware Installation
2.1 Safety Precautions ......................................................2-2
2.2 Quick Tour of the MEDPC-6200 ...................................2-3
2.3 Turn On and Boot up into Windows…………………….2-7
2.4 Turn off……………………………………………………….2-7
Chapter 3 Driver Installation
Appendix A Miscellanea
A.1 General Cleaning Tips................................................ C-2
A.2 Cleaning Tools ........................................................... C-3
A.3 Scrap Computer Recycling ...................................... C-5
Medica l PC VISTAHUB-WIFI
General
Information
Chapter
1
Medica l PC M E D P C - 6 2 0 0
1.1 Introduction
Vital Sign is a building block of all the tasks nurses do every day, and
also a fundamental element for doctors to determine what kind of
treatment and medication should to be given. How to optimize nurses’
time and improve the data correctness by automating the vital sign
frontline reporting is the winning key to deliver an excellent nursing care
service.
MedPC-6200 is designed for this purpose. With the integration of
wearable sensors and intuitive software UI, MedPC-6200 is working as a
Gateway to transfer and document all the data liked NIBP, SpO2, pulse
rate and temperature into HL7 format, which is a common protocol
nowadays to be addressed by many different world-known EMR
software.
By consistency, doctors/clinicians can utilize the data among the ward,
operation room, nurse station, pharmacy, and even outside facilities, like
hemodialysis center, nursing care house and home.
Medica l PC M E D P C - 6 2 0 0
1.2 Feature
Intel® Cherry Trail processor
Win10 64 bit and Android 6.0 compatible
Compact & light weight design for installation
Standard USB Type-A for easy connection with medical device
Support VESA 75 via mounting brackets
CE/FCC Class-B LV4, EN60601-1 & UL60601-1 V3.1, CE/FCC RF
Certified
Medica l PC M E D P C - 6 2 0 0
1.3 Specification
Main System Specifications
CPU Intel® Cherry Trail Z8350 1.44GHz (2M Cache, up to 1.92 GHz)
System Memory DDR3L on board, default support 2GB (1GB/2GB/4GB)
Storage eMMC on board, default support 32GB (16GB/32GB/64GB)
I/O
USB 2.0 (Type-A) x4
Gb Ethernet RJ45 x1
HDMI Out x1
DC-In Jack x1
Power Button x1
Communications
A WiFi: GWF-4M02 1T1R
B. BT: XHT-08X 1T1R
Audio Codec REALTEK.ALC5672-VB-CGT
LAN Chip No Wake on LAN
Speaker NA
Security No TPM
Power input 5V DC
Battery RTC Coin Battery
System Cooling Fan less
Medica l PC M E D P C - 6 2 0 0
Front Panel Design
Control Button N/A
DMIC N/A
Camera N/A
RFID N/A
Smart Card Reader N/A
LED Indicator N/A
Display Specification
LCD size N/A
Brand N/A
LCD Model Number N/A
Resolution N/A
Luminance (cd/m2) N/A
Contrast Ratio N/A
Viewing Angel N/A
Interface N/A
Backlight Life Time (Hrs.) N/A
Weight N/A
Medica l PC M E D P C - 6 2 0 0
Touch Screen Specification
Touch Type N/A
Brand N/A
Touch Model Number N/A
TS Controller N/A
Interface N/A
Power Adapter Specification
Model Medical Adapter
AC input 100-240V AC@50-60 Hz
DC output 5V / 3.5A, 17.5W max
Mechanical Specifications
Architecture Aluminum Top Cover + Metal Bottom Base
Color Top Cover: Blue; Bottom Base: Blue
Mounting VESA 75mm (Via VESA Cradle)
Dimension (W x H x D) 130 x 93 x 33 (mm)
Net Weight Approx. 1Kg
Medica l PC M E D P C - 6 2 0 0

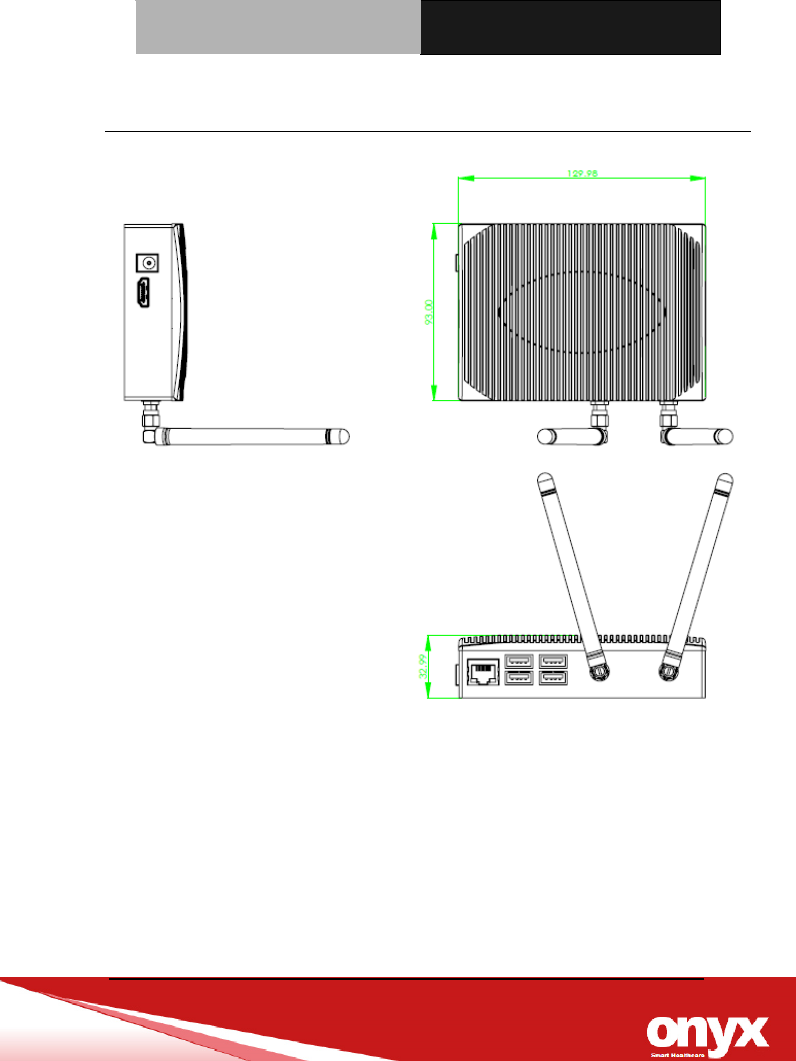

1.4 Dimension
Medica l PC M E D P C - 6 2 0 0
Hardware
Installation
Chapter
2
Medica l PC M E D P C - 6 2 0 0
2.1 Safety Precautions
Always completely disconnect the power cord
from your board whenever you are working on
it. Do not make connections while the power is
on, because a sudden rush of power can
damage sensitive electronic components.
Always ground yourself to remove any static
charge before touching the board. Modern
electronic devices are very sensitive to static
electric charges. Use a grounding wrist strap at
all times. Place all electronic components on a
static-dissipative surface or in a static-shielded
bag when they are not in the chassis
Medica l PC M E D P C - 6 2 0 0
2.2 Quick Tour of the MedPC-6200
Before you start to set up MedPC-6200, take a moment to become
familiar with the locations and purposes of the controls, drives,
connections and ports, which are illustrated in the figures below.
When you place MedPC-6200 on the desktop, its top cover appears as
shown in Picture 2-1. When you turn the MedPC-6200 to the back side,
the I/O includes four USB and one Ethernet and two dipole antennas for
WiFi and BT connectivity, shown in Picture 2-2.

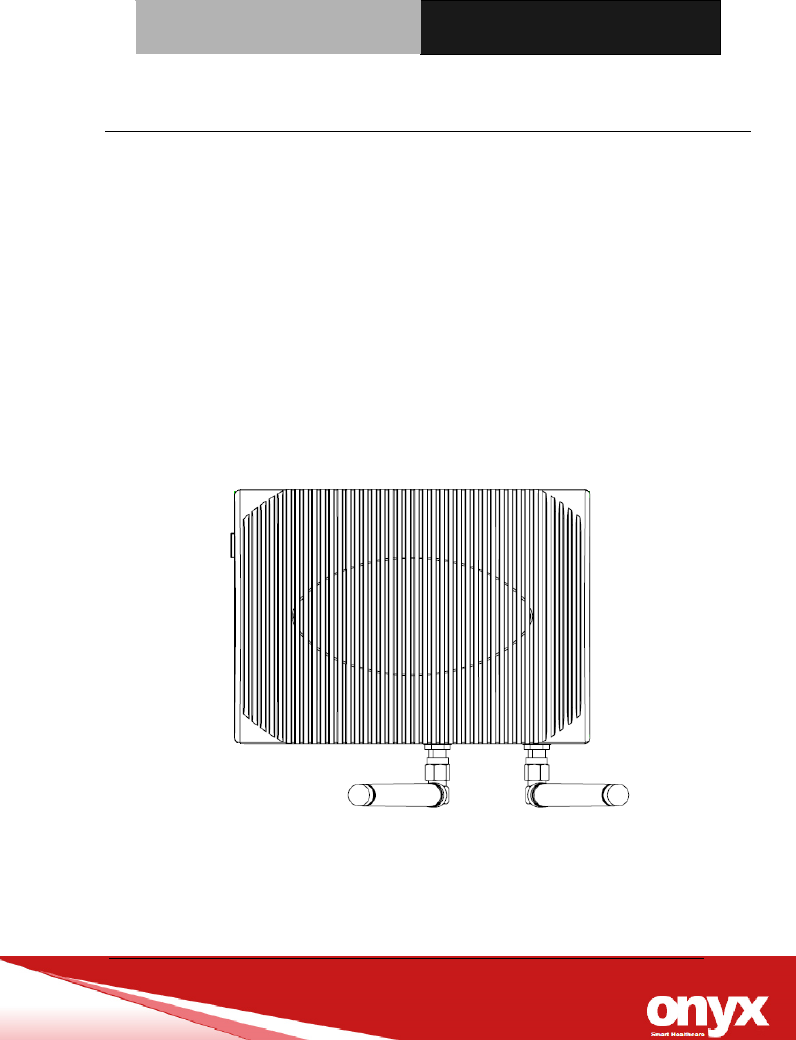

Picture 2.1: Top View of the MedPC-6200
Medica l PC M E D P C - 6 2 0 0

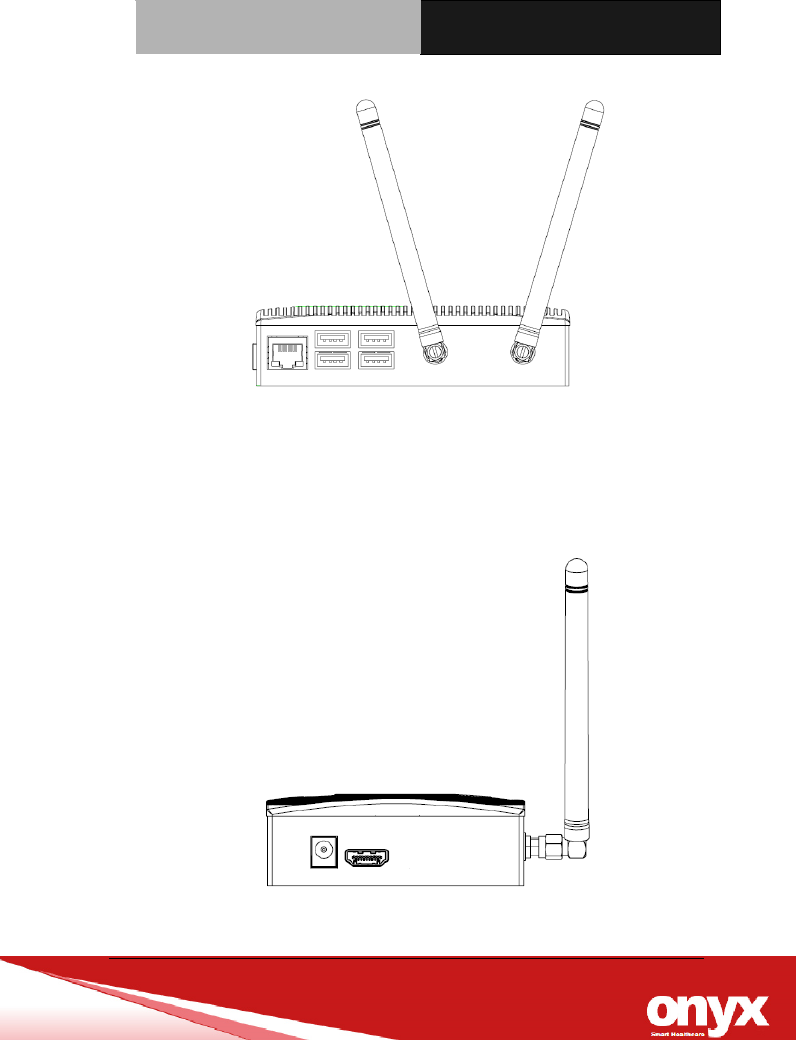

Picture 2.2: Rear View of the MedPC-6200
When you turn the MedPC-6200 and see it from left, it contains a HDMI
out and a DC-In jack.
Picture 2.3: Left View of the MedPC-6200
Medica l PC M E D P C - 6 2 0 0
MedPC-6200 comes with a VESA mounting kit, which includes a
standard VESA 75 holes for wall mount, desk mount or floor mount.
2.3 Turn On and Boot up into Windows and Android OS
This section is for Windows and Android operating system only. If you
are installing a different operating system, please contact your vendor for
installation details.
Your MedPC-6200 will begin loading Windows/Android OS once you
push the power button to turn power on. After less than one minute,
Windows/Android desktop screen will appear.
You can select the programs from the start menu in the left-down corner
of the desktop screen.
2.4 Turn off
Turning off MEDPC-6200 properly is important for system reliability.
There are two ways to turn off the system.
1. On the start menu, click “shut down” and select “OK”
2. Push the power button and then the system will shut down
automatically
.
Medica l PC M E D P C - 6 2 0 0
Driver
Installation
Chapter
3
Medica l PC M E D P C - 6 2 0 0
There are several installation ways depending on the driver package
under different Operating Systems.
Please follow the sequence below to install the drivers:
For Windows 10 Only
Step 1 – Chipset
Step 2 – WiFi
Step 3 – BT
Medica l PC M E D P C - 6 2 0 0
Miscellanea
Appendix
A
Medica l PC M E D P C - 6 2 0 0
A.1 General Cleaning Tips
You may need the following precautions before you begin to clean the
computer. When you clean any single part or component for the
computer, please read and understand the details below fully.
1. Never spray or squirt the liquids directly onto any computer
component. If you need to clean the device, please rub it with a
piece of dry cloth.
2. Be cautious of the tiny removable components when you use a
vacuum cleaner to absorb the dirt on the floor.
3. Turn the system off before you start to clean up the component
or computer.
4. Never drop the components inside the computer or get circuit
board damp or wet.
5. Be cautious of all kinds of cleaning solvents or chemicals when
you use it for the sake of cleaning. Some individuals may be
allergic to the ingredients.
6. Try not to put any food, drink or cigarette around the computer.
7. ONYX Healthcare Inc. has tested and verified these cleaning
disinfectants, CIDEX, Viraguard, Control III Disinfectant
Germicide, Caviwipes, Dispatch Disinfectant Cleaner CLH69101,
Puregreen 24 Disinfectant, can be used with the MEDPC-6200.
Use of any other disinfectants will void the warranty.
Medica l PC M E D P C - 6 2 0 0
A.2 Cleaning Tools
Although many companies have created products to help improve the
process of cleaning your computer and peripherals users can also use
household items to clean their computers and peripherals. Below is a
listing of items you may need or want to use while cleaning your
computer or computer peripherals.
Keep in mind that some components in your computer may only be able
to be cleaned using a product designed for cleaning that component, if
this is the case it will be mentioned in the cleaning tips.
Cloth - A piece of cloth is the best tool to use when rubbing up a
component. Although paper towels or tissues can be used on
most hardware as well, we still recommend you to rub it with a
piece of cloth.
Water or rubbing alcohol – You may moisten a piece of cloth a
bit with some water or rubbing alcohol and rub it on the computer.
Unknown solvents may be harmful to the plastics parts.
Vacuum cleaner - Absorb the dust, dirt, hair, cigarette particles,
and other particles out of a computer can be one of the best
methods of cleaning a computer. Over time these items can
restrict the airflow in a computer and cause circuitry to corrode.
Cotton swabs - Cotton swaps moistened with rubbing alcohol or
water are excellent tools for wiping hard to reach areas in your
keyboard, mouse, and other locations.
Medica l PC M E D P C - 6 2 0 0
Foam swabs - Whenever possible it is better to use lint free
swabs such as foam swabs.
Please follow the steps below.
1. Close all application programs.
2. Close operating software.
3. Turn off power switch
4. Remove all device
5. Pull out power cable
Note:
We strongly recommended that you should shut down the
system before you start to clean any single components.
Medica l PC M E D P C - 6 2 0 0
A.3 Scrap Computer Recycling
If the computer equipments need the maintenance or are beyond repair,
we strongly recommended that you should inform us as soon as possible
for the suitable solution. For the computers that are no longer useful or
work well, please contact with worldwide distributors for recycling.
The worldwide distributors show on the following website:
http://www.onyx-healthcare.com.tw/Contact.php
Note:
Follow the national requirement to dispose unit
Medica l PC M E D P C - 6 2 0 0
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE
STATEMENT
This equipment has been tested and found to comply with the li
mits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protectio
n against harmful interference in a residential installation. This e
quipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction
s, may cause harmful interference to radio communications. How
ever, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interf
erence to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged t
o try to correct the interference by one or more of the followin
g measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different fro
m that to which the receiver is connected.
-Consult the dealer or an experienced radio/ TV technician for h
elp.
CAUTION:
Any changes or modifications not expressly approved by the grantee of
this device could void the user's authority to operate the equipment.
RF exposure warning
This equipment must be installed and operated in accordance with
provided instructions and the antenna(s) used for this transmitter must
be installed to provide a separation distance of at least 20 cm from all
persons and must not be co-located or operating in conjunction with
any other antenna or transmitter. End-users and installers must be
provide with antenna installation instructions and transmitter operating
conditions for satisfying RF exposure compliance.
Medica l PC M E D P C - 6 2 0 0
This radio transmitter FCCID: RZ5-VISTAHUB-WIFI has been
approved by FCC to operate with the antenna types listed below
with the maximum permissible gain and required antenna
impedance for each antenna type indicated. Antenna types not
included in this list, having a gain greater than the maximum gain
indicated for that type, are strictly prohibited for use with this
device.
Antenna List
No.
Manufacturer
Part No. Antenna Type
Peak Gain
1
2
3
ARISTOTLE
ARISTOTLE
ARISTOTLE
RFA-25-L14M3-B32
RFA-25-L14M3-B32
RFA-25-L14M3-B32
Dipole
Dipole
Dipole
2.5dBi for WLAN
2.5dBi for Bluetooth
3.5dBi for 5GHz
Note: The antenna connector is Reverse SMA type.
