OWC-300T_User Manual
User Manual
Please this manual carefully before you use the product.
Product detail and features

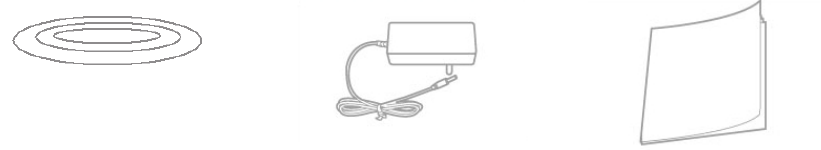

Product Detail

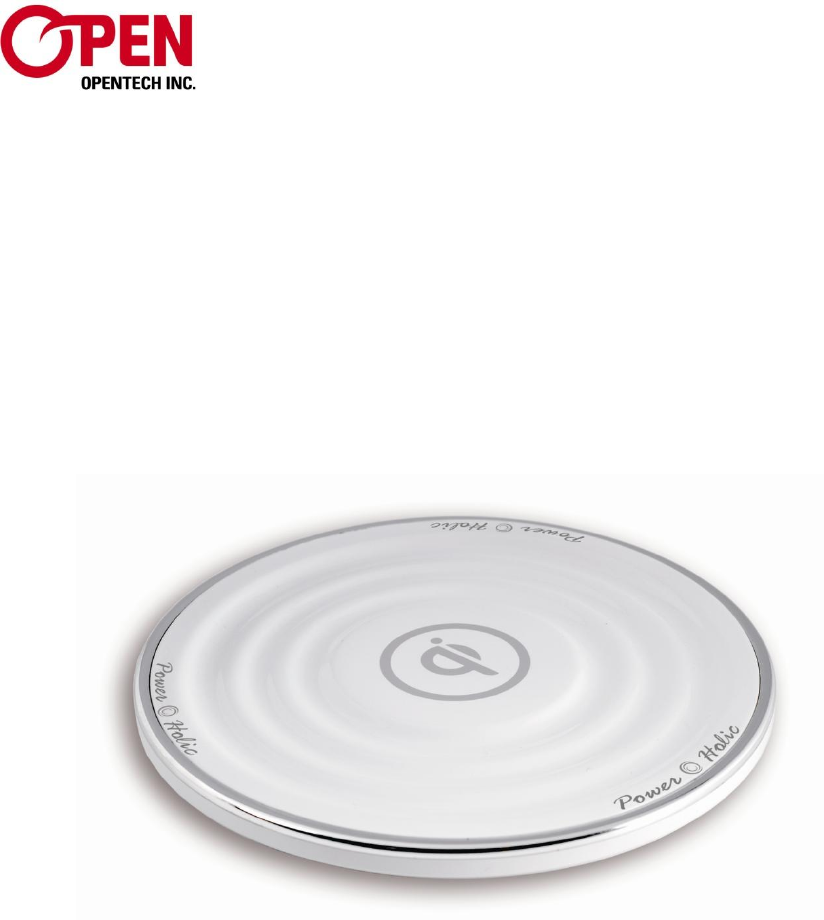

Wireless charging pad (OWC-300T)
AC power adaptor
(19V 0.5A, 100V~240V)
User manual
Product features
PowerHolic disc type wireless charging pad is designed for quick and easy
charge experience to mobile phone users with following great features.
PowerHolic disc type wireless charging pad uses concentric pattern, which
psychologically encourage users to place mobile phone on the center of the
pad.
Concentric waves generate air flow between mobile phone and pad, it
minimize excessive heat from conventional pad design.
Our curved surface design creates air flow between mobile phone and pad,
which minimizes heat radiation.
Charging status can be checked at any time and from any direction by the
three LED indicators located on the edges of the pad.
This product is WPC Qi certified, so any product attached with a WPC (Wireless
Power Consortium) Qi logo are compatible regardless of manufacturer.
Basic Instruction
1. Connect Adaptor to the
charging pad then to the
electrical outlet.
2. Place WPC wireless charging
receiver on the center of
charging pad. With one short
beep sound, charging will
start. LED indicator lights
located on the edge will
blinks.
CAUTION:
Do not put metallic objects on the pad. It may cause overheat or malfunction.
If the charging receiver is not placed properly to the center of the pad, charging of
the device might not be possible.
Specifications
Power output
5W (Max.)
Power input
19V, 0.5A (Max.)
Operational temperature
0~55℃
Humidity Range
0~90%
Operational frequency
range
110~205KHz
Size (mm)
120 x 120 x 11
Weight(g)
77g 2g
One year limited warranty
Opentech Inc. sells its products with the intent that they are free of defects in
manufacture and workmanship for one year from the date of original purchase,
except as noted below. Opentech Inc. warrants that its products will be free of
defects in material and workmanship under normal use and service. This warranty
extends only to customers and does not extend to Retailers.
To obtain warranty service on your Opentech Inc. product, mail the product and your
dated sales receipt (as proof of purchase), postpaid, to the following address:
Opentech Inc.
After Service
13F, SJ-Technoville 60-19, Gasan-Dong, Geumcheon-Gu, Seoul, Korea 153-801
Opentech Inc. does not authorize anyone, including, but not limited to, Retailers, the
subsequent consumer purchaser of the product from a Retailer or remote purchasers,
to obligate Opentech Inc. in any way beyond the term set forth herein.
FCC compliance statement
This device complies with Part 15 of the Federal Communications Commission (FCC)
Rules. Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that
may cause undesired operation.
CAUTION:
Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate this equipment.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the manufacturer’s instructions, may cause
interference harmful to radio communications.
There is no guarantee, however, that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio or TV technician for help.
