Wireless USB Adapter
OPA-3201
This manual provides specifications for the OPA-
3201 wireless USB adapter. Specifications Manual
![](/img.php?id=2441791&img=bg2.png)
OPA-3201
Specifications Manual
All information subject to change without notice.
Document History
Model Number: OPA-3201 Specification Number: SS14033
Edition: Original Spec Number: SS14025
Date: 2014-
Copyright 2014 Opticon. All rights reserved.
This manual may not, in whole or in part, be copied, photocopied, reproduced, translated or converted to any
electronic or machine readable form without prior written consent of Opticon.
Limited Warranty and Disclaimers
PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING OR USING THE
PRODUCT.
Serial Number
A serial number appears on all Opticon products. This official registration number is directly related to the device
purchased. Do not remove the serial number from your Opticon device. Removing the serial number voids the
warranty.
Warranty
Unless otherwise agreed in a written contract, all Opticon products are warranted against defects in materials and
workmanship for two years after purchase. Opticon will repair or, at its option, replace products that are defective
in materials or workmanship with proper use during the warranty period. Opticon is not liable for damages caused
by modifications made by a customer. In such cases, standard repair charges will apply. If a product is returned
under warranty and no defect is found, standard repair charges will apply. Opticon assumes no liability for any
direct, indirect, consequential or incidental damages arising out of use or inability to use both the hardware and
software, even if Opticon has been informed about the possibility of such damages.
Packaging
The packing materials are recyclable. We recommend that you save all packing material to use should you need
to transport your scanner or send it for service. Damage caused by improper packaging during shipment is not
covered by the warranty.
Trademarks
Trademarks used are the property of their respective owners.
Opticon Inc. and Opticon Sensors Europe B.V. are wholly owned subsidiaries of OPTOELECTRONICS Co., Ltd.,
12-17, Tsukagoshi 4-chome, Warabi-shi, Saitama, Japan 335-0002. TEL +81-(0) 48-446-1183; FAX +81-(0) 48-
446-1184
SUPPORT
USA Europe
Phone: 800-636-0090
Email: support@opticonusa.com Email: support@opticon.com
Web: www.opticonusa.com Web: www.opticon.com
![](/img.php?id=2441791&img=bg3.png)
OPA-3201
Specifications Manual
Revision History
Specification No. : SS14033
Product name : OPA-3201
Edition Date Page Section Description of Changes
First 2014/ - - Initial release
![](/img.php?id=2441791&img=bg4.png)
OPA-3201
Specifications Manual
Contents
1. Abstract..............................................................................................................................1
2. Overview ............................................................................................................................1
3. Basic Specifications .........................................................................................................2
4. Detailed View .....................................................................................................................3
5. Electrical Specifications ...................................................................................................4
5.1. USB ............................................................................................................................4
6. Interface Specifications ....................................................................................................4
6.1. USB Interface .............................................................................................................4
6.1.1. Connector ........................................................................................................................ 4
6.1.2. USB Interface Circuit....................................................................................................... 4
6.2. Wireless Interface.......................................................................................................5
6.2.1. HID Specifications ........................................................................................................... 5
7. Environmental Specifications ..........................................................................................6
7.1. Temperature...............................................................................................................6
7.2. Humidity .....................................................................................................................6
7.3. Vibration Strength (without packing)...........................................................................6
7.4. Vibration Strength (in individual packing) ...................................................................6
7.5. Drop Impact Strength (without packaging) .................................................................6
7.6. Drop Impact Strength (in individual packaging)..........................................................7
7.7. Electrostatic Discharge (ESD) Immunity ....................................................................7
8. Regulatory Compliance ....................................................................................................8
8.1. Product Safety............................................................................................................8
8.2. EMC ...........................................................................................................................8
8.3. Others.........................................................................................................................8
9. RoHS...................................................................................................................................9
10. Reliability .........................................................................................................................9
11. Precautions......................................................................................................................9
11.1. Handling ...................................................................................................................9
11.2. Radio Law ................................................................................................................9
11.3. Wireless Communication........................................................................................10
11.4. Frequency Baud .....................................................................................................10
12. Product Labels ..............................................................................................................11
13. Packaging Specifications .............................................................................................12
13.1. Individual Packaging ..............................................................................................12
13.2. Collective Packaging ..............................................................................................13
![](/img.php?id=2441791&img=bg5.png)
OPA-3201
Specifications Manual
14. Physical Features..........................................................................................................14
14.1. Dimensions.............................................................................................................14
14.2. Weight ....................................................................................................................14
14.3. Mechanical Drawing ...............................................................................................14
![](/img.php?id=2441791&img=bg6.png)
OPA-3201
Specifications Manual
1
1. Abstract
This manual provides specifications for the OPA-3201 wireless USB adapter.
2. Overview
The OPA-3201 is a USB adapter designed for Opticon wireless scanners, including the OPN-3200 and
OPN-4200.
・ The OPA-3201 allows for wireless operation without special settings.
・ The OPA-3201 is simple and easy to use, just like USB scanners are.
・ The OPA-3201 can be used as a USB HID keyboard on a host device such as PC.
・ Alternative to the USB-HID keyboard interface, the OPA3201 can use the host's protocol stack
via HCI (Host Controller Interface).
![](/img.php?id=2441791&img=bg7.png)
OPA-3201
Specifications Manual
2
3. Basic Specifications
Item Specification Note
CPU 32 bit RISC
FROM 1 Mbyte
Control
Section
SRAM 48 Kbyte
Indicator
LED Blue x 1
Frequency 2402 ~ 2480 MHz
Specification IEEE 802.15.1 compliant
Communication
distance 10 m
It may be shorter
depending on usage
environments
Output level 4 dBm max
Bluetooth
Profile HID / SPP (HCI)
Supporting SPP
depends on host’s
protocol stack
Interface
USB ・Full-Speed 12 Mbps (HID)
・Low-Power class
Operating voltage 4.5 ~ 5.5 V
Power
Section
USB
Current consumption 100 mA or less
USB power supply
Operating -5 ~ 50°C
Temperature
Storage -20 ~ 60°C
Operating 20 ~ 85%RH
Humidity
Storage 20 ~ 85%RH
No condensing
No frost
Vibration
10 Hz ~ 100 Hz, acceleration of 19.6 m/s2, 60
minutes per cycle, repeat once in each X, Y
and Z-direction
Environmental
Specifications
Drop Drop the scanner 18 times (6 faces x 3) from
the height of 150 cm onto a concrete floor
Product safety EN60950-1:2005
IEC60950-1:2006
EMC
EN 55022:2010
EN 301 489-1 V1.9.2
EN 301 489-17 V2.1.1
EN 300 328 V1.8.1
FCC Part 15 Subpart C, Subpart B ClassB
VCCI Class B
For residential,
commercial and light-
industrial environments
Regulatory Compliance
Other
CE Marking
Certification for Construction Design of
Specified Radio Equipment
No distraction Air discharge (direct): ±10 kV
Immunity
Test
ESD
No malfunction Air discharge (direct): ±8 kV
Conditions:
IEC61000-4-2
compliant
Dimensions 43.8 × 8.3 × 17.4 (WDH mm)
Physical
Features
Weight Approx. 6 g
![](/img.php?id=2441791&img=bg8.png)
OPA-3201
Specifications Manual
3
4. Detailed View
Figure 1: Detailed View of OPA-3201
No Name Description
1 USB connector A connector to connect to the host
2 Address label The OPA-3201’s address bar code. A wireless connection can be
established by reading this label with a scanner.
![](/img.php?id=2441791&img=bg9.png)
OPA-3201
Specifications Manual
4
5. Electrical Specifications
5.1. USB
Power supply voltage : 4.5 ~ 5.5 V
Bus-Power class : Low-Power
Current consumption : 100 mA or less
6. Interface Specifications
The OPA-3201 supports two types of interfaces; USB and wireless.
6.1. USB Interface
The USB-HID interface is supported.
6.1.1. Connector
Signal name Pin No.
VCC 1
Data(-) 2
Data(+) 3
GND 4

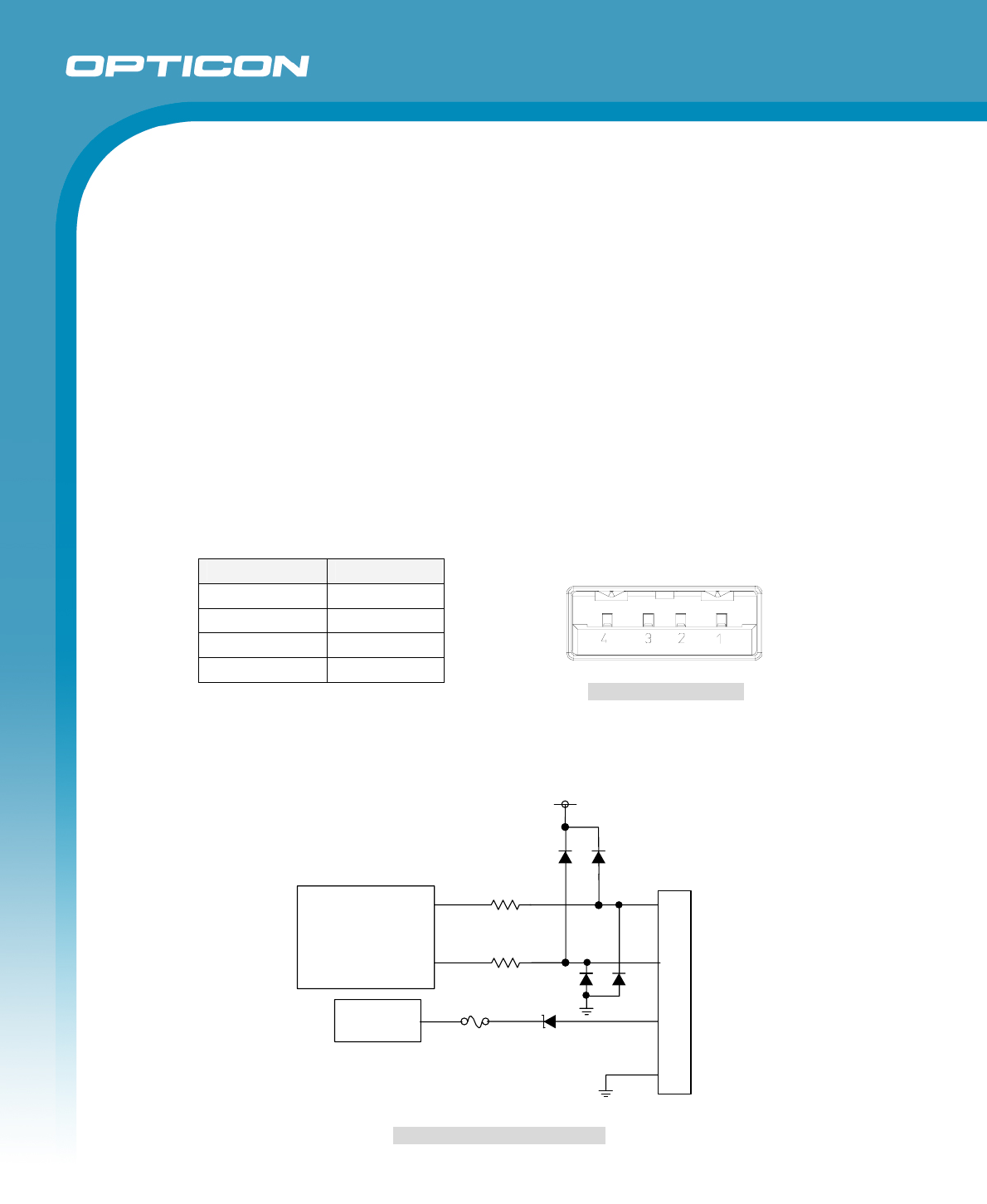

Figure 2: USB Plug (A):
6.1.2. USB Interface Circuit
Figure 3: Interface Circuit (USB)
Front view
3
2
1
4
Bluetooth
Controller
Data(+)
Data(-)
VCC
GND
USB connector
+5.0 V
power supply
![](/img.php?id=2441791&img=bga.png)
OPA-3201
Specifications Manual
5
6.2. Wireless Interface
The OPA-3201 uses IEEE 802.15.1 as the wireless interface.
6.2.1. HID Specifications
Frequency : 2402 ~ 2480 MHz
Specification : IEEE 802.15.1 compliant
Communication distance : 10 m
Output level : 4 dBm max
Implemented profile : HID
Communication configuration : 1 to 1
Operating mode in communication : Slave mode
Security mode : Authentication supported
Encryption : Encryption supported
![](/img.php?id=2441791&img=bgb.png)
OPA-3201
Specifications Manual
6
7. Environmental Specifications
7.1. Temperature
The performance is guaranteed when the range of ambient temperature is the following values:
Operating temperature : -5 ~ 50 °C
Storage temperature : -20 ~ 60°C
7.2. Humidity
The performance is guaranteed when the range of ambient humidity is the following values:
Operating humidity : 20 ~ 85% RH (no condensation, no frost)
Storage humidity : 20 ~ 85% RH (no condensation, no frost)
7.3. Vibration Strength (without packing)
There shall be no sign of malfunction after the following vibration test.
Vibration test: Increase the frequency of the vibration from 10Hz to 100Hz at an accelerated
velocity of 19.6m/s2 (2.0 G) for 30 minutes (60 minutes per cycle) in the non-operating state. Repeat
this in each X, Y and Z direction.
7.4. Vibration Strength (in individual packing)
There shall be no sign of malfunction after the following vibration test.
Vibration test: Increase the frequency of the vibration from 10Hz to 100Hz at an accelerated
velocity of 19.6 m/s2 (2.0 G) for 30 minutes (60 minutes per cycle) in individually packaged state.
Repeat this in each X, Y and Z direction.
7.5. Drop Impact Strength (without packaging)
There shall be no sign of malfunction after the following drop test.
Drop test: Drop the scanner 18 times in total (3 times at each 6 face) from a height of 75 cm onto a
concrete floor as shown below.

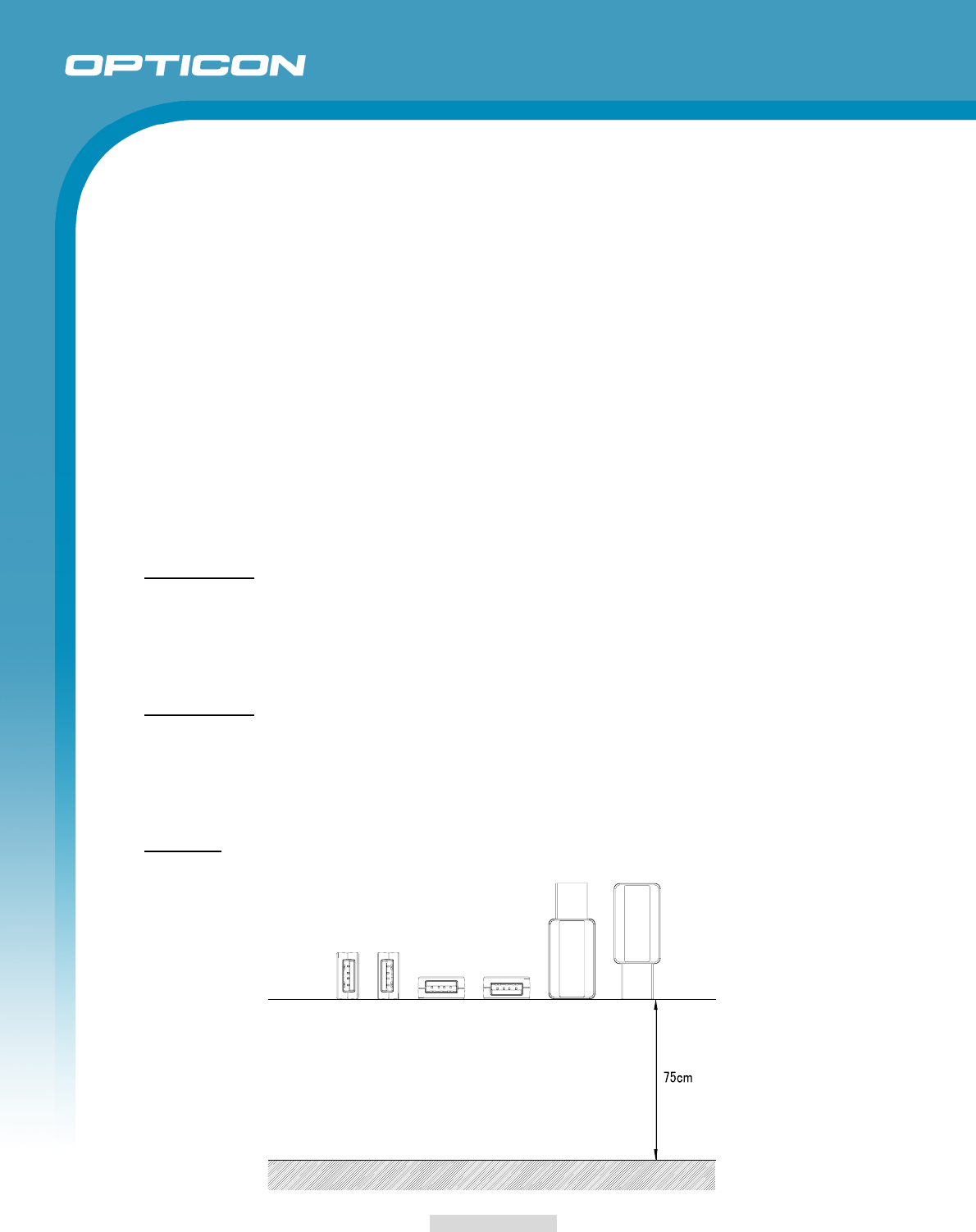

Figure 4: Drop Test
![](/img.php?id=2441791&img=bgc.png)
OPA-3201
Specifications Manual
7
7.6. Drop Impact Strength (in individual packaging)
There shall be no sign of malfunction after the following drop test.
Drop test: Drop an individually packaged scanner 10 times in total, at any of 1 corner, 3 edges, and
6 faces, from a height of 150 cm onto a concrete floor.
7.7. Electrostatic Discharge (ESD) Immunity
Aerial discharge : ±8 kV max (no malfunction)
±10 kV max (no distraction)
Measurement environment : Testing method compliant with IEC-61000-4-2.
Discharge resistance : 330 Ω
Charging capacitor : 150 pF
![](/img.php?id=2441791&img=bgd.png)
OPA-3201
Specifications Manual
8
Federal Communications Commission Notices
This product complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Harmful Interference Notice
This product has been tested and complies with the specifications for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used according to the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which is found by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment or devices
• Connect the equipment to an outlet other than the receiver's
• Consult a dealer or an experienced radio/TV technician for assistance
Changes or modifications to this equipment that have not been approved by Ruckus Wireless
may void the user's authority to operate this equipment.
8. Regulatory Compliance
8.1. Product Safety
EN60950-1:2005
IEC60950-1:2006
8.2. EMC
R&TTE Directive
・EN 55022:2010
・EN 301 489-1 V1.9.2
・EN 301 489-17 V2.1.1
・EN 300 328 V1.8.1
FCC Part 15 Subpart B Class B
VCCI Class B
8.3. Others
・Certification for Construction Design of Specified Radio Equipment
This is a Class B product, to be used in a domestic environment, based on the Technical
Requirement of the Voluntary Control Council for Interference from Information Technology
Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it
may cause radio interference.
RF Exposure Information This product complies with FCC radiation exposure limits
set forth for an uncontrolled environment.
![](/img.php?id=2441791&img=bge.png)
OPA-3201
Specifications Manual
9
9. RoHS
The OPA-3201 is compliant with RoHS.
RoHS: The restriction of the use of certain hazardous substances in electrical and
electronic equipment, 2011/65/EC
10. Reliability
MTBF (Mean Time Between Failures) 10,000 hours
11. Precautions
11.1. Handling
Handle this product carefully. Do not deliberately subject it to any of the following.
(1) Shock:
・Do not drop this product from a height greater than specified in this manual.
・Do not place this product under or between any heavy items.
(2) Temperature Conditions:
・Do not use this product at temperatures outside the specified range.
・Do not pour boiling water on this product.
・Do not throw this product into a fire.
(3) Foreign Materials:
・Do not immerse this product in water or other liquid.
・Do not expose this product to chemicals.
(4) Others
・Do not disassemble this product.
・Do not use this product near a radio or a TV. It may cause reception problems.
・This product may be affected by a momentary voltage drop caused by lightning.
11.2. Radio Law
This product qualifies as specified radio equipment for radio stations of 2.4 GHz band data
communication system and has obtained the Certification for Construction
Design of Specified Radio Equipment. Therefore, radio station license is not required in Japan.
The following activities are prohibited under the Radio Law:
・Remodeling and disassembly
・Peeling off the certificate label
Do not use this equipment under the following environment, as radio interference may affect other
device and end up with causing physical or material damage.
・Safety apparatus and medical device for human body protection
・Environment where is concerned to cause serious damage
![](/img.php?id=2441791&img=bgf.png)
OPA-3201
Specifications Manual
10
11.3. Wireless Communication
・This product supports wireless communication with other devices that have the same
specifications (profile).
・A wireless connection to any device other than Opticon products is not guaranteed.
・This product and the Opticon wireless scanners use the 2.4 GHz frequency band that is shared
among other devices. It may affect the communication speed and distance between this product
and the scanners.
・The communication speed and distance vary depending on the interference and radio wave
condition between this product and the scanners.
11.4. Frequency Baud
This product uses the 2.4 GHz frequency band. Read carefully the followings before using this
product.
In the frequency band of this product, scientific, medical and industrial devices including microwaves
are used. Also other radio stations including local private radio station for mobile object identification
requiring license for such as manufacturing lines at factories, specific power-saving radio station
requiring no license and amateur radio station are managed.
1. Make sure that “other radio stations” are not managed in the frequency band 2.4 GHz before
using this product.
2. In case that radio interference occurs between this product and “other radio stations,” change the
service space immediately, or stop transmitting radio wave to avoid the interference.
3. If you have any questions or troubles, please contact our sales office.
![](/img.php?id=2441791&img=bg10.png)
OPA-3201
Specifications Manual
11
12. Product Labels
The product label is affixed to the back of the OPN-3201 as shown below.
Figure 5: Product Labels
![](/img.php?id=2441791&img=bg11.png)
OPA-3201
Specifications Manual
12
13. Packaging Specifications
13.1. Individual Packaging
Assembled package size: xxx × xxx × xxx (WDH mm)
Figure 6: Individual Packaging
![](/img.php?id=2441791&img=bg12.png)
OPA-3201
Specifications Manual
13
13.2. Collective Packaging
Quantity : 100 pcs
Assembled package size : xxx × xxx × xxx (WDH mm)
Figure 7: Collective Packaging
* ‘Ro mark’ on the boxes for the product indicates that the product is RoHS compliant declared by
Optoelectronics Co., Ltd.
![](/img.php?id=2441791&img=bg13.png)
OPA-3201
Specifications Manual
14
14. Physical Features
14.1. Dimensions
43.8 × 8.3 × 17.4 (WDH mm)
14.2. Weight
Approx. 6 g (excluding accessories)
14.3. Mechanical Drawing
Figure 8: Mechanical Drawing
[Unit: mm]
