Master Specification
Wireless Barcode Scanner
Product Name OPL-2724
Specification No. SS08057
Edition Initial
Date of Publication
Original Spec. No. SS08045
Optoelectronics Co., Ltd.
4-12-17 Tsukagoshi
Warabi-shi, Saitama
335-0002 Japan
TEL: +81 (0)48-446-1183
FAX: +81 (0)48-446-1184
Revision History
Specification Number: SS08057
Product Name: OPL-2724
Revision Date Section Description of Changes
Initial 2008/ -
OPL-2724 SS08057
Table of Contents
1. Abstract.................................................................................................................................................. 1
2. Overview................................................................................................................................................ 1
3. Physical Features .................................................................................................................................. 1
4. Detailed View......................................................................................................................................... 2
5. Basic Specifications............................................................................................................................... 3
6. Electrical Specifications ......................................................................................................................... 4
7. Technical Specifications......................................................................................................................... 4
8. Interface Specifications........................................................................................................................ 10
9. Operation Specifications...................................................................................................................... 11
10. Default Settings ................................................................................................................................. 12
11. Durability ............................................................................................................................................ 14
12. Reliability ........................................................................................................................................... 14
13. Electrical Specifications ..................................................................................................................... 14
14. Regulatory Compliance ..................................................................................................................... 15
15. RoHS ................................................................................................................................................. 15
16. Display of Product Information........................................................................................................... 16
17. Packaging Specifications................................................................................................................... 18
18. Product Specification Changes.......................................................................................................... 20
19. Warranty ............................................................................................................................................ 20
20. Precautions.......................................................................................................................................... 1
21. Bluetooth.............................................................................................................................................. 2
22. Frequency Band .................................................................................................................................. 2
OPL-2724 SS08057
- -
1
1. Abstract
This manual provides specifications for the OPL-2724 wireless barcode scanner.
This scanner is a laser barcode scanner which is able to detect black or colored barcodes on the white or
colored back ground.
2. Overview
- OPL-2724 is a wireless barcode scanner.
- The use of a short-wavelength red laser beam enhances visibility when scanning lines.
- To scan a barcode, press the trigger switch without the optical window of this scanner touching the
objective barcode.
- Supported symbologies are: WPC (EAN, JAN, UPC-A / UPC-E), industrial 2of5, IATA, interleaved 2of5,
NW-7 (Codabar), Code-39, Code-93, Code-128, EAN-128 and MSI Plessey.
- Code options, read options and communication settings can be configured by sending commands.
- Scanned data is transferred to the designated device via wireless communication (Bluetooth V2.0).
- If the OPL-2724 is disconnected because it is out of range or the Bluetooth device is not available,
scanned data will be saved in the built-in memory of the scanner.
- OPL-2724 uses 2 size AAA alkali batteries for its power supply.
- This product is compliant with RoHS.
3. Physical Features
3-1. Dimensions
96 x 40 x 22 (in millimeters)
Figure 1: Physical Features
3-2. Weight
50 g Max. (excluding the weight of battery)
OPL-2724 SS08057
- -
2
4. Detailed View

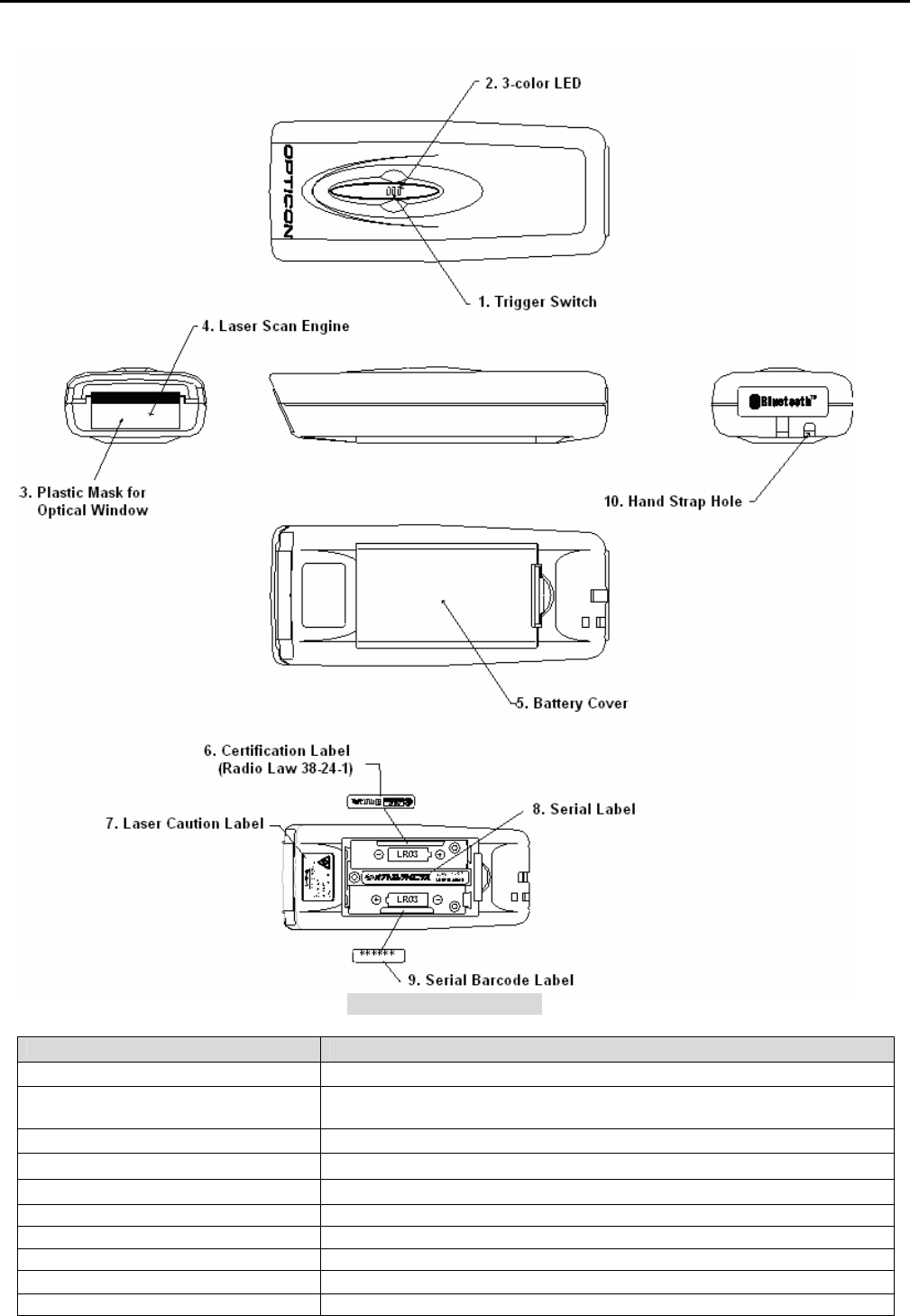

Figure 2: Detailed View
Name Function
1. Trigger Switch To scan barcodes and to enable or disable Bluetooth communication.
2. 3-color LED (Red, Green, Blue) To notify the status of barcode scanning, Bluetooth communication,
and warnings so on.
3. Plastic Mask for Optical Window Optical window for laser barcode scanning.
4. Laser Scan Engine Laser scan engine to scan barcodes.
5. Battery Cover To protect batteries.
6. Certification Label Label to notify the acquisition of Radio Law 38-24-1 certification.
7. Laser Caution Label To warn about the laser beam.
8. Serial Label Label to notify the model name and other product information.
9. Serial Barcode Label Label to notify the serial number of the product.
10. Hand Strap Hole To attach the hand strap to the scanner.
OPL-2724 SS08057
- -
3
5. Basic Specifications
Item Specifications Notes
CPU 16-bit CISC CPU Control
section Clock frequency 14.74 M Hz
FROM 256 KB For BIOS/AP External
memory SRAM 32 KB For WORK/DATA
LED 3-color LED (red, green, blue) Display
section Function Notifies the status of barcode
scanning, battery power remained,
Bluetooth communication.
Buzzer Loudness 70 dBA or higher
(when the scanner is set to “Loud”)
Buzzer noise was
estimated at a point 10
cm behind the scanner.
Operation keys 1 key
(trigger key / enable or disable
Bluetooth communication)
Operation
keys
Key durability 500,000 times
Laser wavelength 650 ± 10 nm / under 1 mW IEC68025-1 Class 2
Scan rate 100scan/sec
Resolution 0.127 mm or higher
PCS 0.45 or higher
Depth of field 70 to 185 mm Resolution: 1.0 mm
PCS: 0.9 or higher
Ambient light immunity 50,000lx
Scanning
section
Supported
symbologies
WPC(UPC,EAN,JAN),NW-7,Code-39,
industrial 2of5, interleaved 2of5,
Code-93,Code-128 etc and EAN-128
Main battery LR-03 (two size AAA alkali batteries)
Battery life 1 48 hours When scanning twice in
every 10 seconds with
Bluetooth ON all time.
Battery life 2 (*) 30 days or longer Under conditions below.
1.5 mA or less In stand-by state Current consumption
125 mA or less In operating state
Power Supply
Section
Data retention time 48 hours
Lithium secondary battery (3.4 mAh)
After the discharge of
main batteries.
Frequency 2400 MHz to 2483.5 MHz
Specifications Bluetooth Ver2.0 compliant With SPP
Transmission power Class 2 compliant (Under 4 dBm )
Comm. range 10 m Communication range
may differ due to the
environments.
Baud rate 115.2 kbps
Wireless
Comm.
Section
Antenna 1/4λ (surface mounted)
Operating temperature -5 to 50 deg. C
Storage temperature -10 to 60 deg. C
Operating humidity 30 to 80 % No condensation
Storage humidity 20 to 90 % No condensation
Water resistant IP-X2
Shock 1.5 ｍ onto a concrete floor.
(Dropped once on each of 6 sides).
No defects found.
Air discharge: ± 10 kV No malfunctions found.
Air discharge: ± 15 kV No destruction found.
Environmental
Conditions
Anti-static
Indirect discharge:± 10 kV No malfunctions found.
Regulations Others Radio Law 38-24-1 certification
Bluetooth logo certification
* When scanning 100 times a day. (Connect Bluetooth only when transmitting data.)
OPL-2724 SS08057
- -
4
6. Electrical Specifications
Item Specifications Unit
Light source Red laser diode －
Emission wavelength 650 ± 10 (at 25 deg. C）JIS C 6802 Class 1 nm
Light output < 1.0 (IEC60825-1 Class 2) mW
Scan method Bi-directional scanning －
Scan rate 100 ± 20 scans / sec
Scan angle 54 ± 5 Deg.
Scan angle 44° Deg.
Resolution 0.127 or higher mm
7. Technical Specifications
The conditions for technical specifications are as follows, unless otherwise specified in each section.
Item Conditions
Ambient temperature and humidity Room temperature and humidity
Ambient light 500 to 900 lx
Background Black
Scan angle 54° (scan range: 44°)
Light detecting angle 40°
PCS
(Note*)
0.45 or higher
(over 70% of reflectivity of space and quiet zones.)
Barcode sample OPTOELECTRONICS test sample (9-digit Code-39)
Resolution: 0.25 mm
Distance 90 mm from the optical window
Angle α = 0°, β = 15°, γ = 0°
Curvature R = ∞
PCS=Reflectance of white bar－Reflectance of black bar
Reflectance of white bar
Scanning performance may decline if dirt or scratches mar the optical window. Keep the optical window
clean.
OPL-2724 SS08057
- -
5
7-1. Scan Area and Resolution

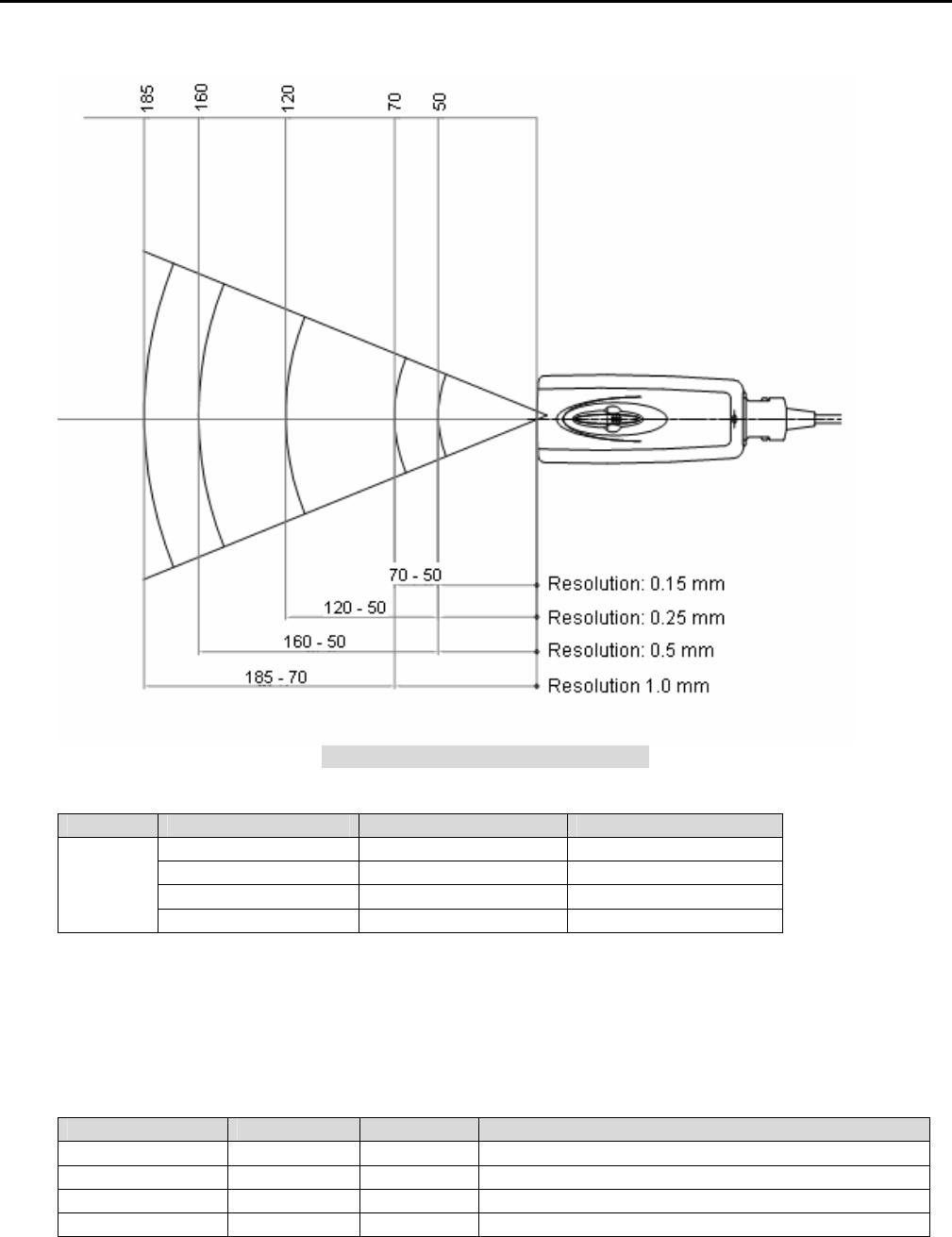

Figure 3: Depth of field in millimeters.
PCS Resolution (mm) Space Depth of Field (mm)
1.0 25 mm 70 to 185
0.5 18 mm 50 to 160
0.25 10 mm 50 to 120
0.9
0.15 7 mm 50 to 70
Details:
The depth of field is measured from the optical window of the scanner.
The scan area is a circular area centered on the beam, which appears at various resolutions.
Conditions:
Resolution Symbology No of Digit Barcode Sample
1.0 mm Code-39 1 OPTOELECTRONICS test sample, PCS = 0.9
0.5 mm Code-39 3 OPTOELECTRONICS test sample, PCS = 0.9
0.25 mm Code-39 8 OPTOELECTRONICS test sample, PCS = 0.9
0.15 mm Code-39 10 OPTOELECTRONICS test sample, PCS = 0.9
OPL-2724 SS08057
- -
6
7-2. Pitch Angle
Pitch angle: α = ± 25°
Figure 4: Pitch angle
7-3. Skew Angle
Skew angle: β = ± 50° (excluding dead zone)
OPL-2724 SS08057
- -
7
7-4. Dead Zone
Dead zone: β = ± 8°
(There are some areas in which scanning may fail due to specular reflection.)

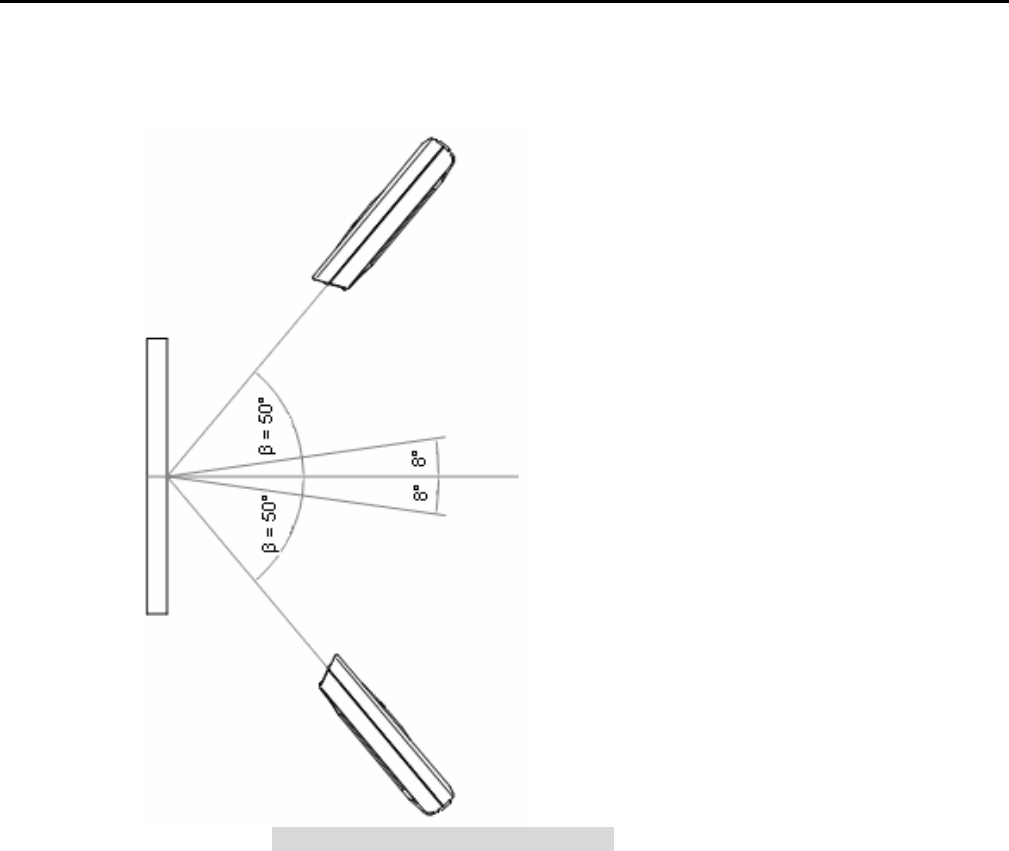

Figure 5: Skew angle and dead zone
OPL-2724 SS08057
- -
8
7-5. Tilt Angle
γ = ± 20°
<Conditions>
Barcode Sample: OPTOELECTRONICS test sample
PCS: 0.9
Resolution: 0.26 mm
Symbologies: 13-digit JAN
(96 mm from the optical window of the scanner.)

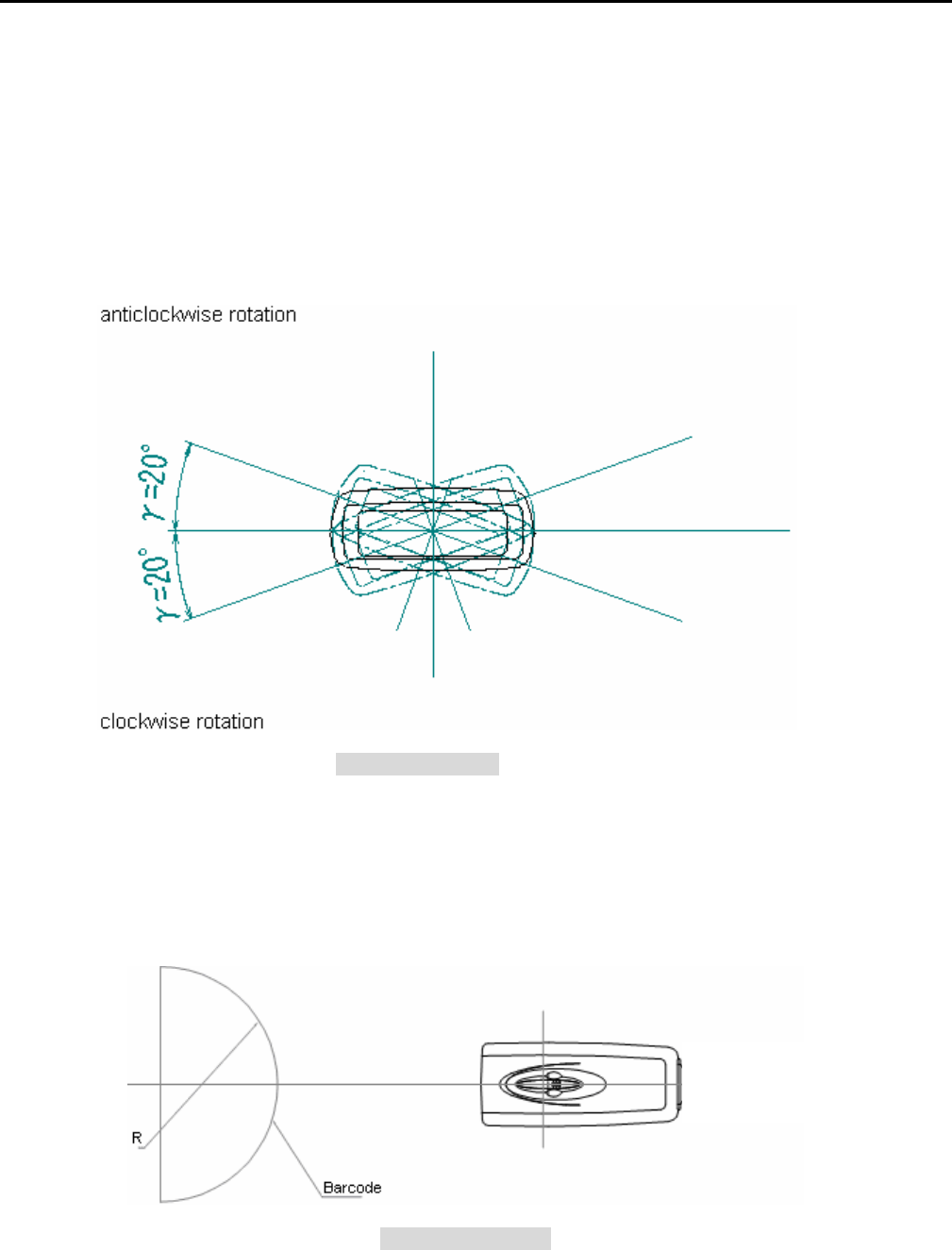

Figure 6: Tilt angle
7-6. Curvature
With 8-digit JAN barcodes, decoding performance is guaranteed when R≧15mm.
With 13-digit JAN barcodes, decoding performance is guaranteed when R≧20mm.
(96 mm from the optical window of the scanner.)
Figure 7: Curvature
<Conditions>
Barcode Sample: OPTOELECTRONICS test sample
PCS: 0.9
Resolution: 0.26 mm
OPL-2724 SS08057
- -
9
7-7. Scan Width
Scannable barcode width differs depending on the depth of field.
7-8. Ambient Light Immunity
Scanning performance is guaranteed when the range of illumination on a barcode surface is between
zero and the following values:
Incandescent Light: to 3,000 lx.
Fluorescent Light: to 3,000 lx.
Sunlight: to 50,000 lx
Figure 8: Ambient Light Immunity
<Conditions>
In the state shown in the figure above, carried out scanning test under the conditions below:
PCS: 0.9
Resolution: 0.25 mm
Symbology: 8-digit Code-39
Quiet zone: 10 mm
N/W ratio: 1:2.5
(Do not cause specular reflection of the light source.)
7-6. Supported Symbologies
z WPC (UPC, EAN, JAN)
z NW-7 (CODABAR)
z Industrial 2of5, Interleaved 2of5
z Code-39
z Code-93
z Code-128
z EAN-128
z MSI / Plessey
Scan rate 100 scans and 100 decodes per second
Ambient temperature and humidity: Room temperature and humidity
Ambient light: 500 to 900 lx
OPL-2724 SS08057
- -
10
8. Interface Specifications
8-1. Wireless Specifications
OPL-2724 is a Bluetooth ver2.0 + EDR compliant device supporting SPP (serial port profile).
OPL-2724 uses Bluetooth as the wireless interface.
Therefore, the device which communicates with the OPL-2724 must support the same SPP.
Supported protocol stack
RF (Radio Frequency Protocol)
BB (Base Band Protocol)
LM (Link Manager Protocol)
L2CAP (Logical Link Control and Adaptation Protocol)
SDP (Service Discovery Protocol)
RFCOMM (serial port emulation)
-Supported profile
GAP (Generic Access Profile)
SPP (Serial Port Profile)
-Communication configuration
1 OPL-2724 to 1 Host System (Do not connect multiple scanners to one host system.)
-Operation mode of the scanner while connected to the host system
Master / Slave mode
-Security mode
Authentication enabled: These settings can be configured using menu barcodes.
-Encryption
Encryption enabled: These settings can be configured using menu barcodes.
*Encryption will be disabled if the device which communicates with the OPL-2724 does not support
the encryption features.
-Communication range
Approximately 10 meters
*Communication range may differ due to the environments.
8-2. Configuration of Settings by Reading Menu Barcode Labels
Communication parameter settings of OPL-2724 can be configured by scanning menu barcodes.
(Refer to the instruction manual for further information of menu barcodes)
OPL-2724 SS08057
- -
11
9. Operation Specifications
9-1. Buzzer and LED Display
OPL-2724 notifies its operation state with LED and buzzer on its head section.
Overview
Status Color Light Details of the Status Buzzer
Green Lighting Shows that scanning of the barcode or transmission of scanned
has been done successfully. Trrr
Orange Lighting Shows that scanned data is stored in memory while the scanner
is disconnected. Trrrrrrrrrrr
Scanning
Red Lighting Shows that the scanned data was not successfully transmitted. Pip, Pip, Pip
Blue Blinking Shows that the scanner is making connection to Bluetooth. ---
Blue Blinking Shows that Bluetooth connection was made successfully. (*1) Trrr, Trrr
Bluetooth
connect
Red Lighting Shows that Bluetooth connection was not made successfully. －
Red Lighting Shows that Bluetooth was disconnected. Pip, Pip, Pip
Bluetooth
disconnect Red Lighting Shows that the Bluetooth device is out of range or not available. Trrrrrrrrrrr
Red Lighting
Notifies that the batteries are running low every time the user
presses trigger key. (*2)
It is possible to scan barcodes.
Pip, Pip, Pip
Trigger Key
operation
Red Lighting
Notifies that the batteries are running low every time the user
presses trigger key. (*3)
It is not possible to scan barcodes.
---
*1: When the scanner is automatically connected after scanning a barcode, Good Read buzzer will
sound.
*2: Please prepare new batteries.
*3: Please change batteries.
9-2. Operating Time
Specifications Conditions
About 48 hours - When scanning once in every 5 seconds.
- When Bluetooth is connected all time.
30 days or longer - When scanning 100 times a day.
- Connect Bluetooth only when transmitting scanned data.
Operating conditions - Normal temperature
- Barcode sample: Code-39 (PCS: 0.9, Resolution: 0.25mm)
*The foregoing performance is guaranteed when using alkali batteries.
*OPL-2724 may not satisfy the foregoing performance due to battery degradation.
OPL-2724 SS08057
- -
12
10. Default Settings
To make it easier to configure the settings of OPL-2724 to the default settings, there are [U1] menu
barcodes. For communication settings, there are [INIT] menu barcodes.
At the time of shipment from the factory, all settings are configured to [U1]. ([INIT] menu barcodes are
included in [U1] menu barcodes.
[U1] Default Settings 1: Supported symbologies
Code type Reading Transmit
code
length Transmit CD Calculate
CD Transmit
others Set
prefix Set suffix
UPC-A ○ × ○ ○ ― CR
UPC-A Add-on × × ○ ○ ― CR
UPC-E ○ × × ○ ― CR
UPC-E Add-on × × × ○ ― CR
EAN-13 ○ × ○ ○ ― CR
EAN-13 Add-on × × ○ ○ ― CR
EAN-8 ○ × ○ ○ ― CR
EAN-8 Add-on × × ○ ○ ― CR
Code-39 ○ × ○ ×
ST/SP
Transmission ― CR
NW-7(Coda bar) ○ × × × Transmit as
abcd/abcd
― CR
D.2of5 ○ × ○ × ― CR
I.2of5 ○ × ○ × ― CR
Code-93 × × - ○ ― CR
Code-128 × × - ○ ― CR
EAN-128 × × - ○ CR
MSI/Plessey × × ○ ○ ― CR
IATA × × ○ × ― CR
Note:
1) In the “Reading” column,”○” means “Enable to read” and “×” means “Disable to read.”
2) In the “Transmit code length” column,”○” means “Transmit code length” and “×” means “Not
transmit code length.”
3) In the “Transmit CD” column,”○” means “Transmit check digit” and “×” means “Not transmit
check digit.
Also,”-” means “there is no setting for check digit transmission.”
4) In the “Calculate CD” column,”○” means “calculate check digit” and “×” means “do not calculate
check digit.”
5) In the “Setting prefix” column,”-” means “there is no setting for prefix.”
OPL-2724 SS08057
- -
13
[U1] Default Settings 2: Read, trigger and buzzer options
Item Default setting
Setting the number of characters Fixed length OFF all codes
Read mode Single read
Multiple read reset time 500 msec
Add-on wait mode 500 msec
Redundancy Read 3 time, redundancy = 2
NW-7 inter-character gap check Within 1 character
Multiple columns read Disable multiple columns read
Trigger switch Enable trigger
Read time 2 seconds
Buzzer durations 200 msec
Buzzer tone 3 kHz + 2.5 kHz
Buzzer loudness Loud
Indicator duration (Green LED) 200 msec
[U1/INIT] Default Settings 3: Communication options
Item Default setting
BD address automatic connection setting Enabled
Barcode automatic connection setting
No reception memory setting Disabled
Data correction mode setting Disabled
Enable / Disable connection with trigger switch Enabled
Trigger key for connecting hold time setting 3 seconds
Trigger key for disconnecting hold time setting 5 seconds
Automatic disconnection time setting 3 minutes
Automatic re-connection valid time setting Disabled
Select a sound when disconnected Enabled
ACK/NACK control Nonprocedural
ACK/NACK 1 second
Time required for connecting to slave mode 2 minutes
U1/INIT] Default Settings 4: Bluetooth options
Item Default setting
C
onnection mode Master mode
BD address setting Disabled
Authentication Disabled
PIN-code label Disabled
Encryption Disabled
OPL-2724 SS08057
- -
14
11. Durability
11-1. Water Resistant and Dust-proof Features
Item Specifications
Water Resistant IP-X2
11-2. Anti-static Electricity Features
Item Specifications Notes
Air discharge: ±10 kV No malfunction
Air discharge: ±15 kV No destruction
Anti-static
Electricity Indirect discharge: ±19 kV No malfunction
Test IEC61000-4-2 compliant
11-3. Drop Test
Item Conditions Notes
Drop Test *
Dropped from a height of
150 cm onto a concrete
floor.
Once on each of 6 sides.
*Note:
- Scratches on the scanner’s case are not deemed as defects.
- The scanner must perform normally after the test.
- Battery cover should not fall apart during or after the test.
12. Reliability
Item Section Life
MTBF Laser scan engine
(when not ON all time) 10,000 hours
Trigger key 500,000 times
Keystroke
verification Conditions: Press trigger key with 2kgf force.
13. Electrical Specifications
13-1. Absolute Maximum Ratings
Item Specifications Unit
Power Supply Vol. -0.3 to 3.6 V
13-2. Current Consumption
Item Specifications Conditions
In standby state 1.5 mA or less No Bluetooth communication
No laser scanning
In communication 35 mA or less With Bluetooth communication
No laser scanning
Maximum current 125 mA or less With Bluetooth communication
With laser scanning
Testing conditions Power supply voltage: 3.0 V, Operating temperature: 25 deg. C
OPL-2724 SS08057
- -
15
14. Regulatory Compliance
14-1. Laser Safety
• JIS C 6802: 2005 Class 1
• IEC825-1/EN60825-1: Laser class 1
• FDA CDRH Laser class 1. Complies with 21 CFR 1040.10 and 1040.11 except for
deviations pursuant to laser notice No. 50 dated July 26, 2001.
Class 1 laser devices are not considered to be hazardous when used for their intended purpose.
Avoid staring into the laser beam.
14-2. Product Safety
• IEC60950-1
• EN60950-1
14-3. EMC
• EN55022
• EN55024
• FCC Part 15 Subpart B Class B
• FCC Part 15 Subpart C Class B
• VCCI Class B
14-3. R&TTE
• EN300 328
• EN301 489
14-4. Others
• Radio Law 38-24-1
• Bluetooth logo certification
15. RoHS
OPL-2724 is a RoHS compliant product.
*RoHS: The restriction of the use of certain hazardous substances in electrical and electronic
equipment,2002/95/EC.
This is a Class B product, to be used in a domestic environment, based on
the Technical Requirement of the Voluntary Control Council for Interference
from Information Technology Equipment (VCCI). If this is used near a radio
or television receiver in a domestic environment, it may cause radio
interference.
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions : ( 1 ) this device may not cause harmful
interference, and ( 2 ) this device must accept any interference received,
including interference that may cause undesired operation.
OPL-2724 SS08057
- -
16

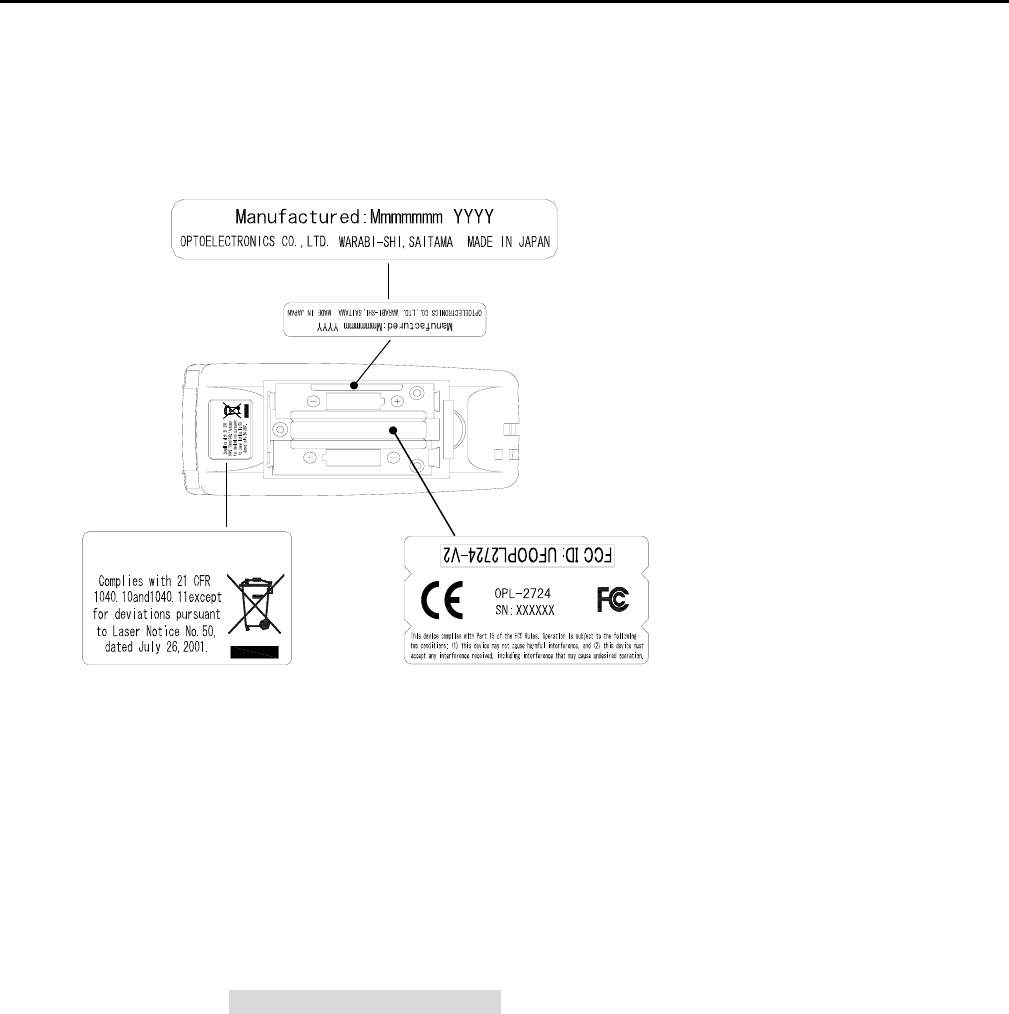

16. Display of Product Information
Attach serial label, laser caution label and model name label as shown below:
Figure 9: Product Information
Manufacturer_ID_Label
OPL27247039-0-01
Model_Name_Label
OPL27247100-0-02
CLASS 1 LASER PRODUCT
IEC60825-1+A2:2001
LR03
LR03
CLASS 1 LASER PRODUCT
IEC60825-1+A2:2001
Laser_Caution_Label
OPL27247032-0-00
OPL-2724 SS08057
- -
17
16-1. Individual Packaging Box Label
Attach a label with the information listed below to the individual packaging box.
OPL―2724 Model name
*OF2OPL2724* Specification No.
OPL2724 Item No.
*123456* Serisla No. (6 digits)
OPL-2724 SS08057
- -
18

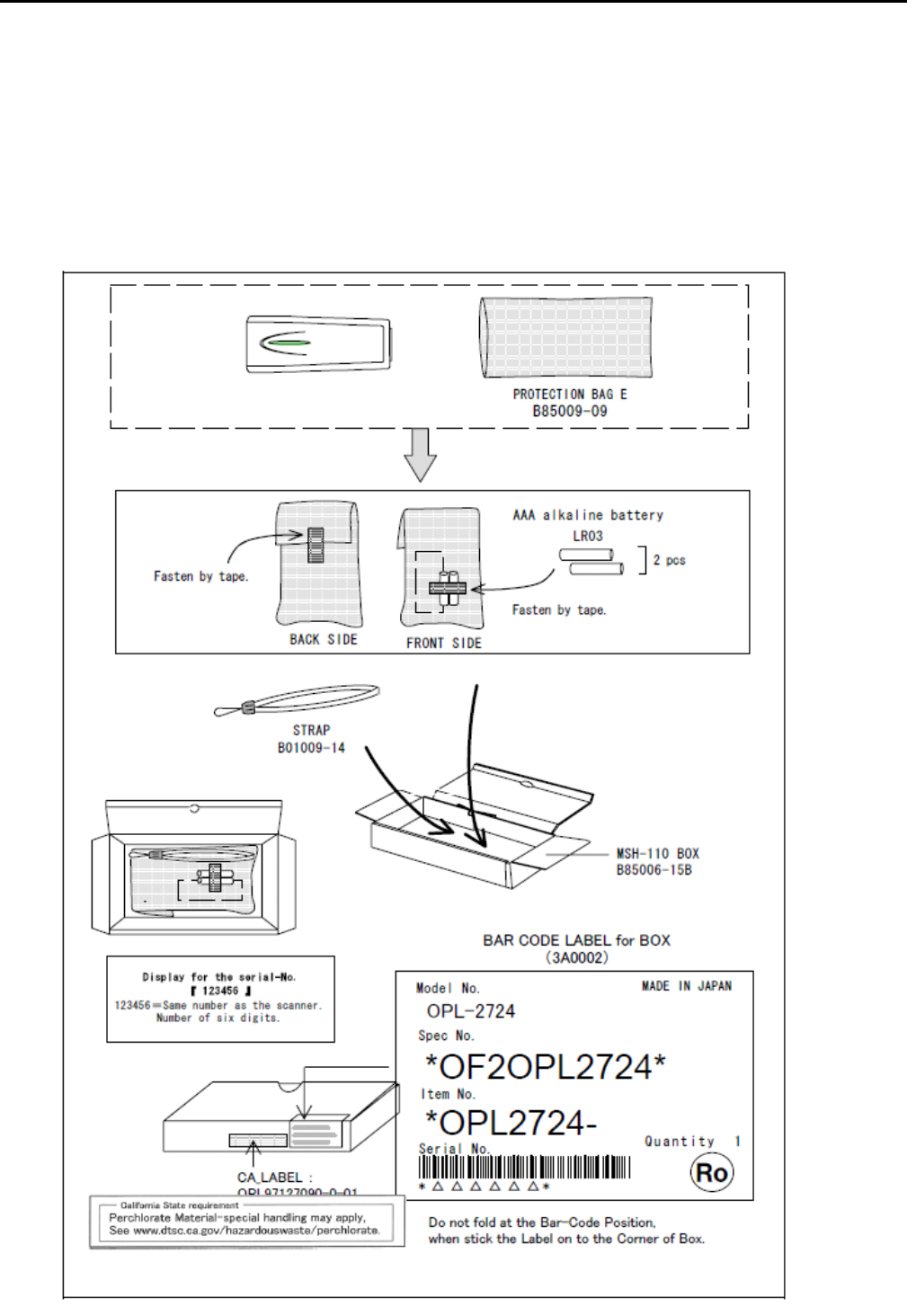

17. Packaging Specifications
17-1. Individual Packaging Specifications
Put the OPL-2724 into a protective bubble bag and put it into the individual packaging box.
Accessories:
• Size AAA alkali batteries X 2
• Hand strap
OPL-2724 SS08057
- -
19
17-2. Individual Packaging Box Specifications
Dimensions: 245 (W) x 110 (D) x 38 (H) mm
Note: The ‘Ro’ mark on the inner and outer packaging indicates that this product does not use any
materials, components or parts that are restricted under RoHS standards (the restriction of the use of
certain hazardous substances in electrical and electronic equipment, 2002/95/EC). This is an internal
determination by Optoelectronics and carries no legal weight in the EU.
OPL-2724 SS08057
- -
20
18. Product Specification Changes
Any changes to the product specifications stated in this manual shall be discussed in advance.
19. Warranty
19-1. Warranty Period
Optoelectronics Co., Ltd. (hereinafter ‘Optoelectronics’) warrants that this product is free of defects
and malfunctions for a period of 12 (twelve) months beginning on the last day of the month in which it
is shipped. Optoelectronics will repair product defects or malfunctions that arise in the course of
normal usage during the twelve-month warranty period free of charge.
Any repair or replacement of the product after the foregoing warranty period will be charged at regular
rates.
Repair or replacement of the product due to defects or malfunctions that arise as a result of customer
mishandling will be charged at regular rates, even during the foregoing warranty period.
19-2. Delivery Method
Products for maintenance or repair shall be sent back to Optoelectronics. The sender is responsible
for all shipping costs.
19-3. Repair Timeframe
Repaired products will be sent back to the customer within 20 (twenty) days of acceptance by
Optoelectronics.
Expedited repairs may be available, subject to terms agreed upon by Optoelectronics and the
customer.
19-4. Maintenance Period
The maintenance period of this product is 5 (five) years after its shipment.
Optoelectronics may discontinue maintenance of this product during the 5 (five)-year maintenance
period if a satisfactory replacement product or alternative maintenance solution is agreed to.
19-5. Other
Any additional warranty issues must be discussed with Optoelectronics on a case-by-case basis.
OPL-2724 SS08057
- -
1
20. Precautions
20-1. Laser-related Caution
• Do not stare into the laser light from a scanning window. It may harm your eyes.
• Do not point the laser directly at others’ eyes. It may harm your eyes.
• Do not stare into the beam with optical instruments. It may harm your eyes.
20-2. For the Radio Equipment
OPL-2724, a radio equipment for low power radio station of 2.4 GHz band advanced data
communication system specified in the Radio Law, has obtained the Certification for Construction
Design of Specified Radio Equipment. Therefore, it does not have radio station license in Japan.
The following activities are prohibited under the Radio Law:
• Remodeling and disassembly
• Peeling off the certificate label
Do not use this product for the devices or in the environments stated below:
It may cause radio interference and affect surrounding equipments, which may induce injury or
physical damages.
• Safety and medical devices designed to protect human body
• Environments in which there may be serious damages to this product.
20-3. Handling
Handle this product carefully. Do not deliberately subject it to any of the following:
(1) Shock
• Do not throw or drop the scanner.
• Do not squeeze the scanner between heavy items.
(2) Temperature Conditions
• Do not use the scanner at temperatures outside the specified range.
• Do not pour boiling water on the scanner.
• Do not throw the scanner into the fire.
(3) Foreign Materials
• Do not put the scanner into water.
• Do not put the scanner into chemicals.
(4) Other
• Do not disassemble this product.
• Do not use the scanner near a radio or a TV receiver. It may cause reception problems.
• Do not use the scanner near a device which generates excessive static electricity.
It may cause problems.
• The device may not perform properly when placed near a flickering light, such as a CRT.
• The information in this specification is subject to change without notice.
20-4. Export Administration Regulations
This product is subject to the strategically controlled exports regulated under “Foreign Exchange
and Foreign Trade Laws”. Therefore, export of this product may require an export permission of
Japanese government.
OPL-2724 SS08057
- -
2
21. Bluetooth
• Bluetooth® is a trademark owned by its proprietor and used by OPTOELECTRONICS Co., Ltd.
under license.
• To communicate via Bluetooth, the divice which OPL-2724 is connected to, must support the
same Bluetooth version and profile.
• OPL-2724 is compliant to Bluetooth standards. However, we cannot assure the connection
between OPL-2724 and other Bluetooth devices which have not been tested.
• Bluetooth supporting devices use 2.4 GHz frequency band. However, many other sorts of
devices also utilize this frequency band. It may effect the communication speed or
communication range of this scanner.
• The use of OPL-2724 outside of the European Union, the United States and Canada is
punishable under the law.
• Communication speed and communication range of OPL-2724 may differ due to the obstcles
and radio wave conditions between OPL-2724 and the divice, which OPL-2724 is connected to.
Conditions of the divice, which OPL-2724 is connected to, may also effect the communication
speed and communication range of OPL-2724.
• Expected interference distance is up to 10 meters.
22. Frequency Band
The frequency band 2.4 GHz is utilized by this scanner. Read carefully the followings before using this
product.
In the frequency band of this scanner, scientific, medical and industrial devices including microwaves are
used. Also other radio stations including local private radio station for mobile object identification requiring
license for such as manufacturing lines at factories, specific power-saving radio station requiring no
license and amatuer radio station are managed.
1. Please make sure that “other radio stations” are not managed in the frequency band 2.4 GHz
before using this scanner.
2. In case that radio interference occurs between this scanner and “other radio stations,” change
the service space immediately, or stop transmitting radiowave to avoid the interference.
*If you have any questions or troubles, please contact our marketing group.
Handle product in accordance with this specification.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This device complies with Part 15 of FCC RF Rules. Operation is subject to the
following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause
undesired operation of the device.
