OPTOELECTRONICS OPN3200I Handy Image Scanner User Manual
OPTOELECTRONICS Co., Ltd. Handy Image Scanner Users Manual
Users Manual
Handheld Bluetooth 2D Imager Scanner

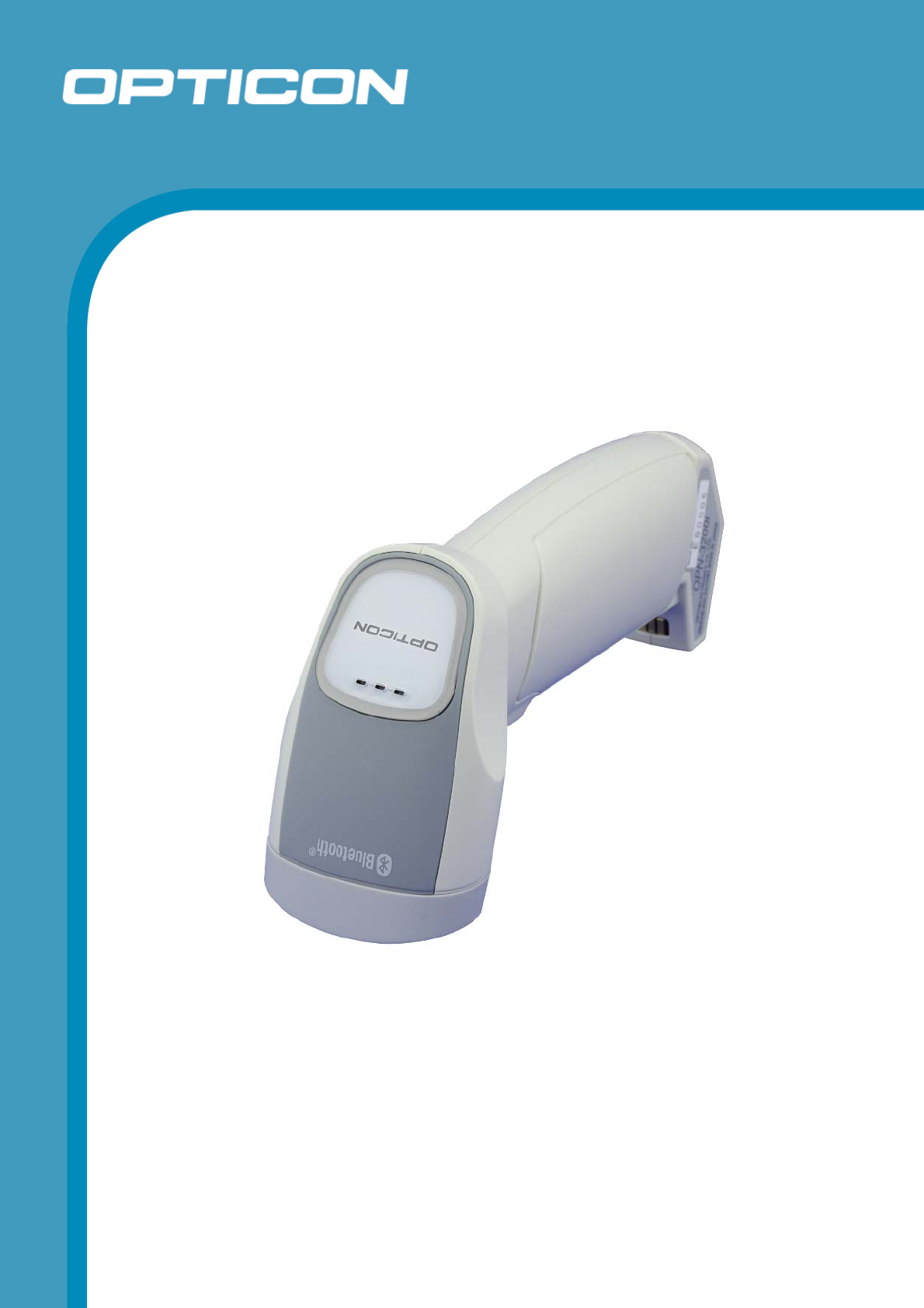

OPN-3200i
This manual provides specifications for the OPN-
3200i handheld Bluetooth 2D imager scanner. Specifications Manual
OPN-3200i
Specifications Manual
All information subject to change without notice.
Document History
Model Number: OPN-3200i Specification Number: SS14021
Edition: 1st Original Spec Number: SS14015
Date: 2014-10-15
Copyright 2014 Opticon. All rights reserved.
This manual may not, in whole or in part, be copied, photocopied, reproduced, translated or converted to any
electronic or machine readable form without prior written consent of Opticon.
Limited Warranty and Disclaimers
PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING OR USING THE
PRODUCT.
Serial Number
A serial number appears on all Opticon products. This official registration number is directly related to the device
purchased. Do not remove the serial number from your Opticon device. Removing the serial number voids the
warranty.
Warranty
Unless otherwise agreed in a written contract, all Opticon products are warranted against defects in materials and
workmanship for two years after purchase. Opticon will repair or, at its option, replace products that are defective
in materials or workmanship with proper use during the warranty period. Opticon is not liable for damages caused
by modifications made by a customer. In such cases, standard repair charges will apply. If a product is returned
under warranty and no defect is found, standard repair charges will apply. Opticon assumes no liability for any
direct, indirect, consequential or incidental damages arising out of use or inability to use both the hardware and
software, even if Opticon has been informed about the possibility of such damages.
Packaging
The packing materials are recyclable. We recommend that you save all packing material to use should you need
to transport your scanner or send it for service. Damage caused by improper packaging during shipment is not
covered by the warranty.
Trademarks
Trademarks used are the property of their respective owners.
Opticon Inc. and Opticon Sensors Europe B.V. are wholly owned subsidiaries of OPTOELECTRONICS Co., Ltd.,
12-17, Tsukagoshi 4-chome, Warabi-shi, Saitama, Japan 335-0002. TEL +81-(0) 48-446-1183; FAX +81-(0) 48-
446-1184
SUPPORT
USA Europe
Phone: 800-636-0090
Email: support@opticonusa.com Email: support@opticon.com
Web: www.opticonusa.com Web: www.opticon.com
OPN-3200i
Specifications Manual
Revision History
Specification No. : SS14021
Product name : OPN-3200i
Edition Date Page Section Description of Changes
First 2014/10/15 - - Initial release
OPN-3200i
Specifications Manual
Contents
1. Abstract..............................................................................................................................1
2. Overview............................................................................................................................................ 1
3. Basic Specifications......................................................................................................................... 2

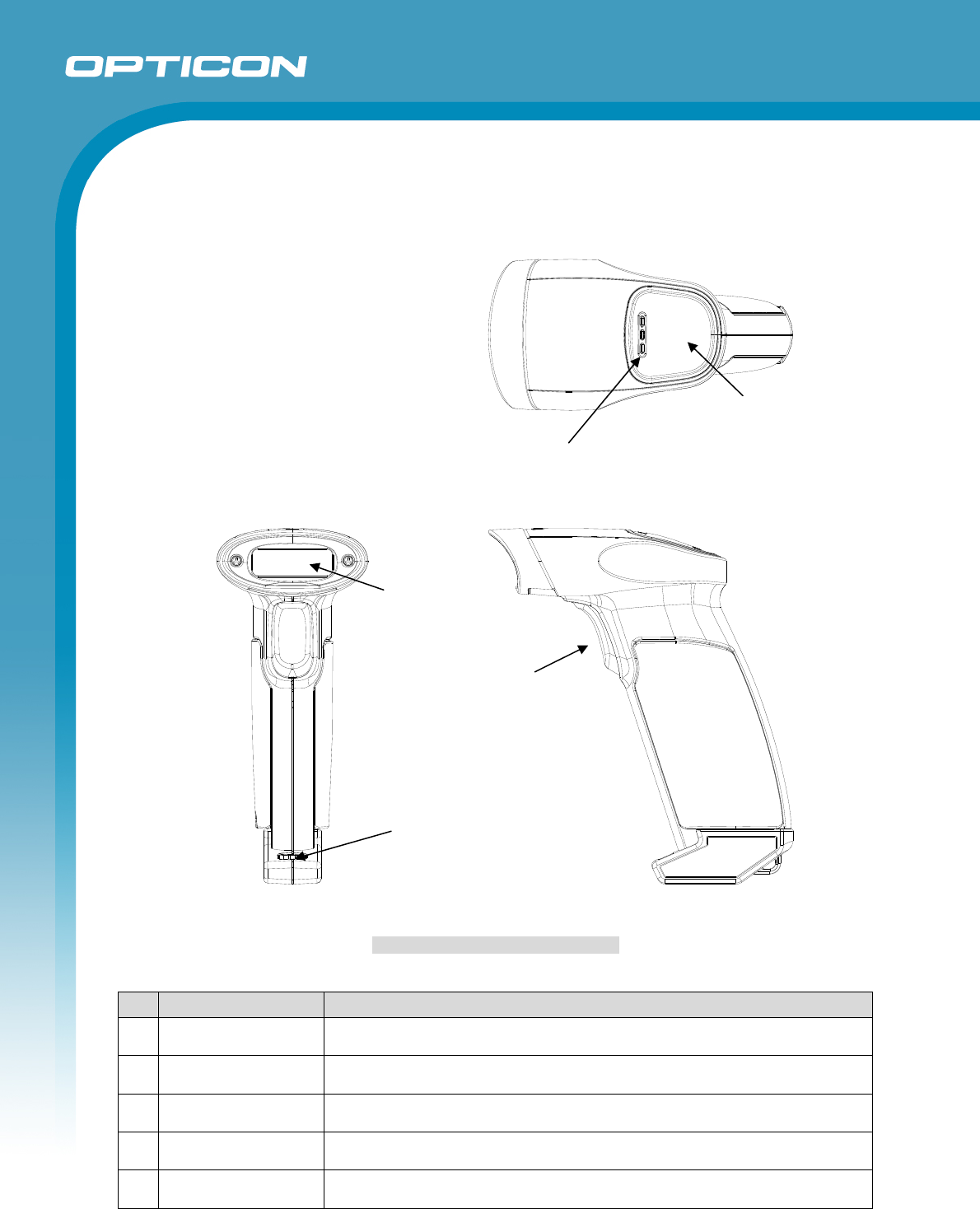

4. Detailed View .................................................................................................................................... 5
5. Electrical Specifications .................................................................................................................. 6
5.1. Current Consumption................................................................................................................ 6
5.2. Operating Time and Charging Time ......................................................................................... 6
6. Interface Specifications ................................................................................................................... 6
6.1. Bluetooth ................................................................................................................................... 6
7. Optical Specifications...................................................................................................................... 7
7.1. Basic Optical Specifications...................................................................................................... 7

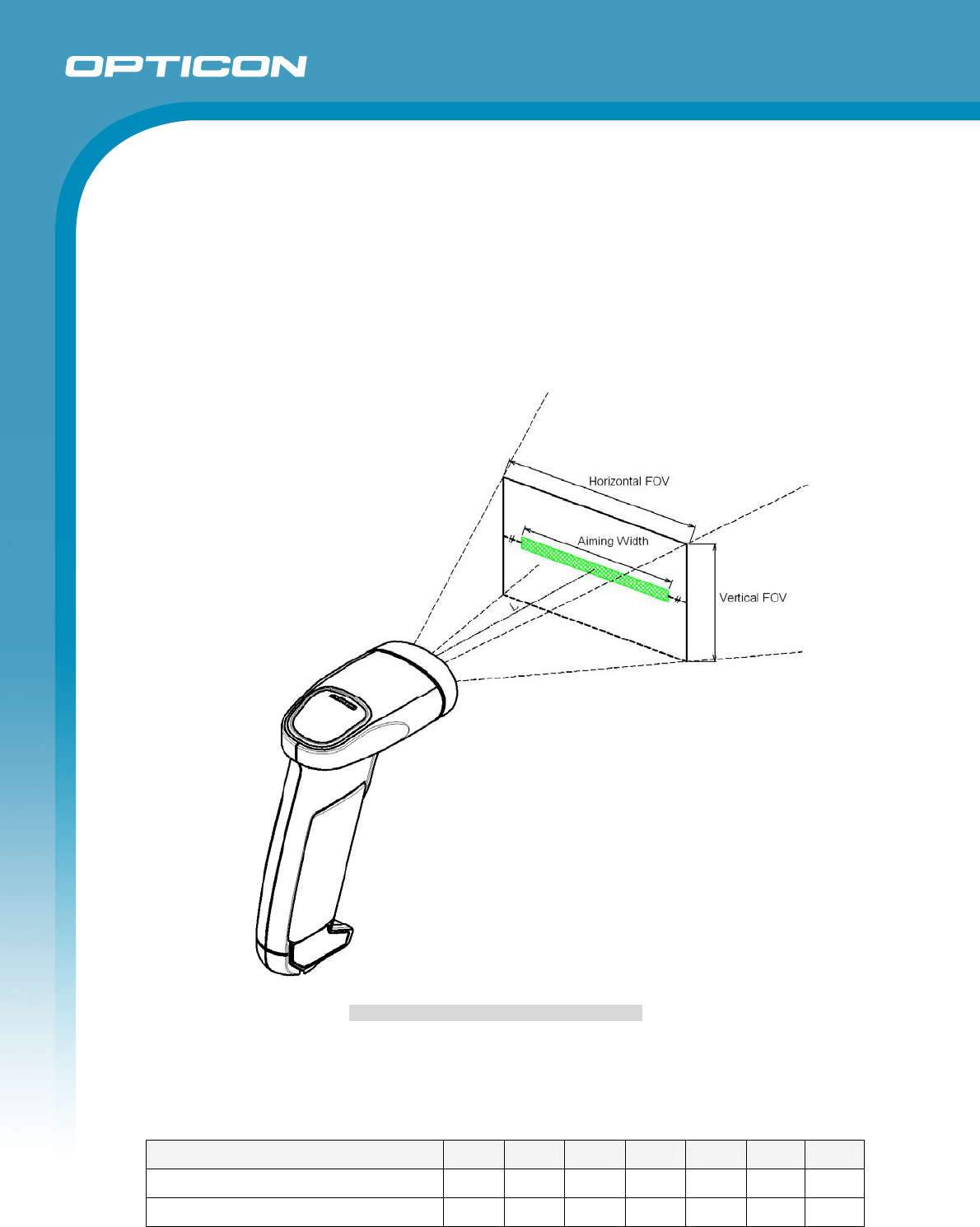

7.2. Aiming Pattern .......................................................................................................................... 8
7.3. Imaging Range.......................................................................................................................... 8
8. Technical Specifications.................................................................................................................. 9
8.1. Bar Code Test Sample............................................................................................................ 10
8.2. Scan Area and Depth of Field................................................................................................. 11
8.3. Printed Contrast Signal (PCS) ................................................................................................ 12
8.4. Minimum Resolution ............................................................................................................... 12
8.5. Wide Bar Code........................................................................................................................ 12

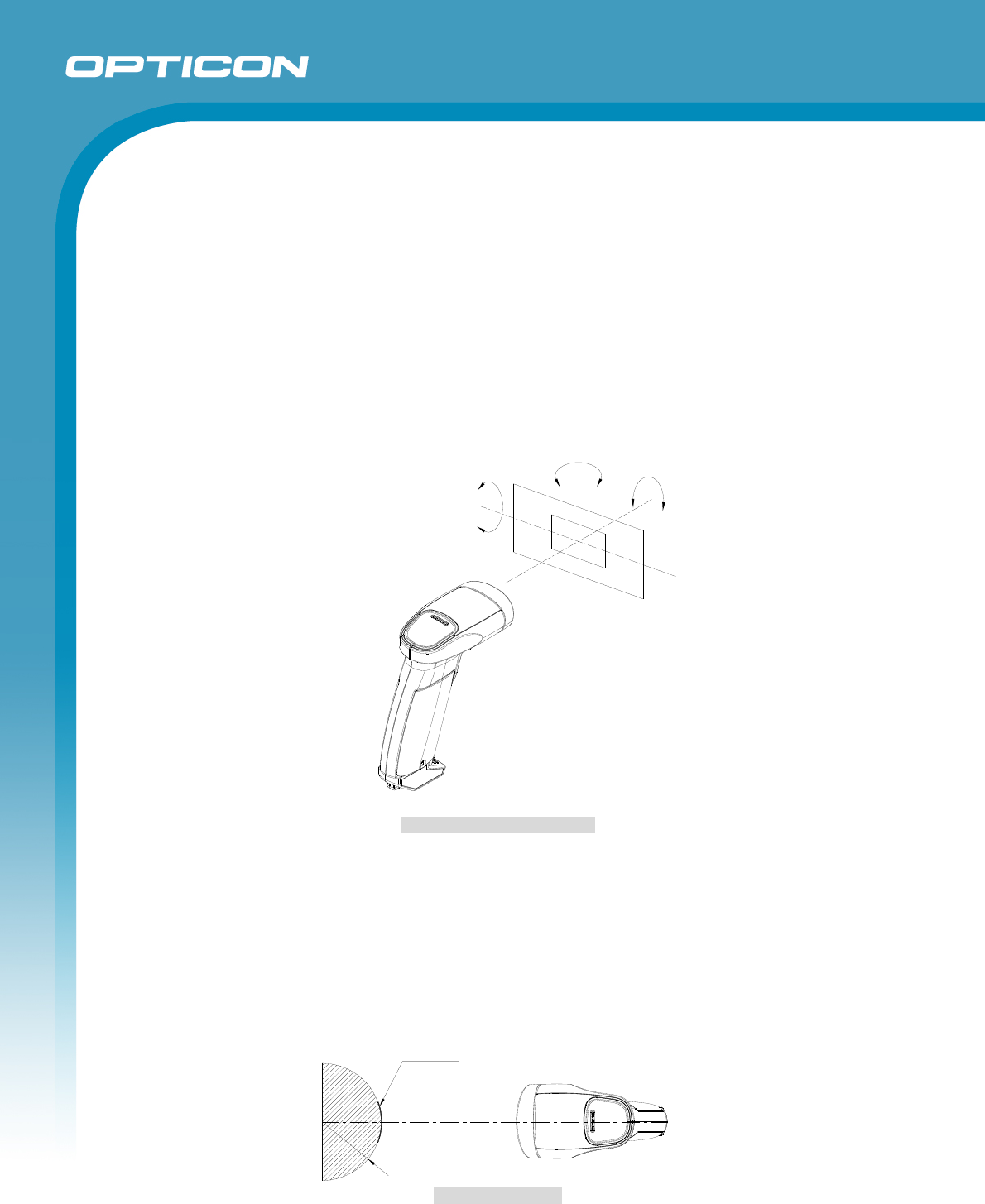

8.6. Pitch, Skew and Tilt ................................................................................................................ 13
8.7. Curvature ................................................................................................................................ 13

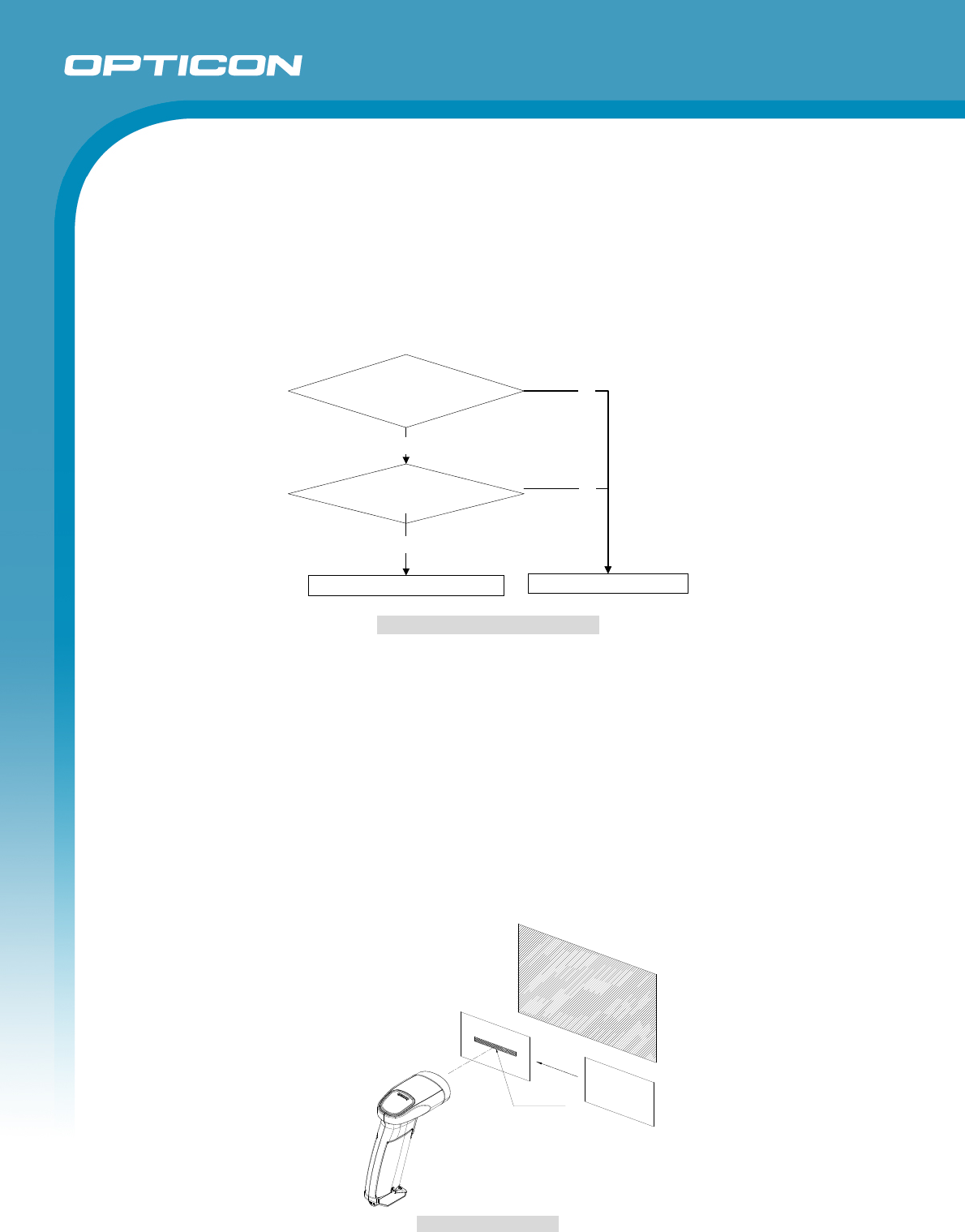

8.8. Auto Trigger ............................................................................................................................ 14
8.8.1. Stand Detection............................................................................................................. 14
8.8.2. Auto Trigger Operation.................................................................................................. 14
8.8.3. Motion Tolerance........................................................................................................... 15
9. Environmental Specifications....................................................................................................... 16
9.1. Temperature............................................................................................................................ 16
9.2. Humidity .................................................................................................................................. 16
9.3. Ambient Light Immunity .......................................................................................................... 16
9.4. Dust and Drip Proof ................................................................................................................ 16
9.5. Vibration Strength (without packing).......................................................................................16
9.6. Vibration Strength (in individual packing) ............................................................................... 17

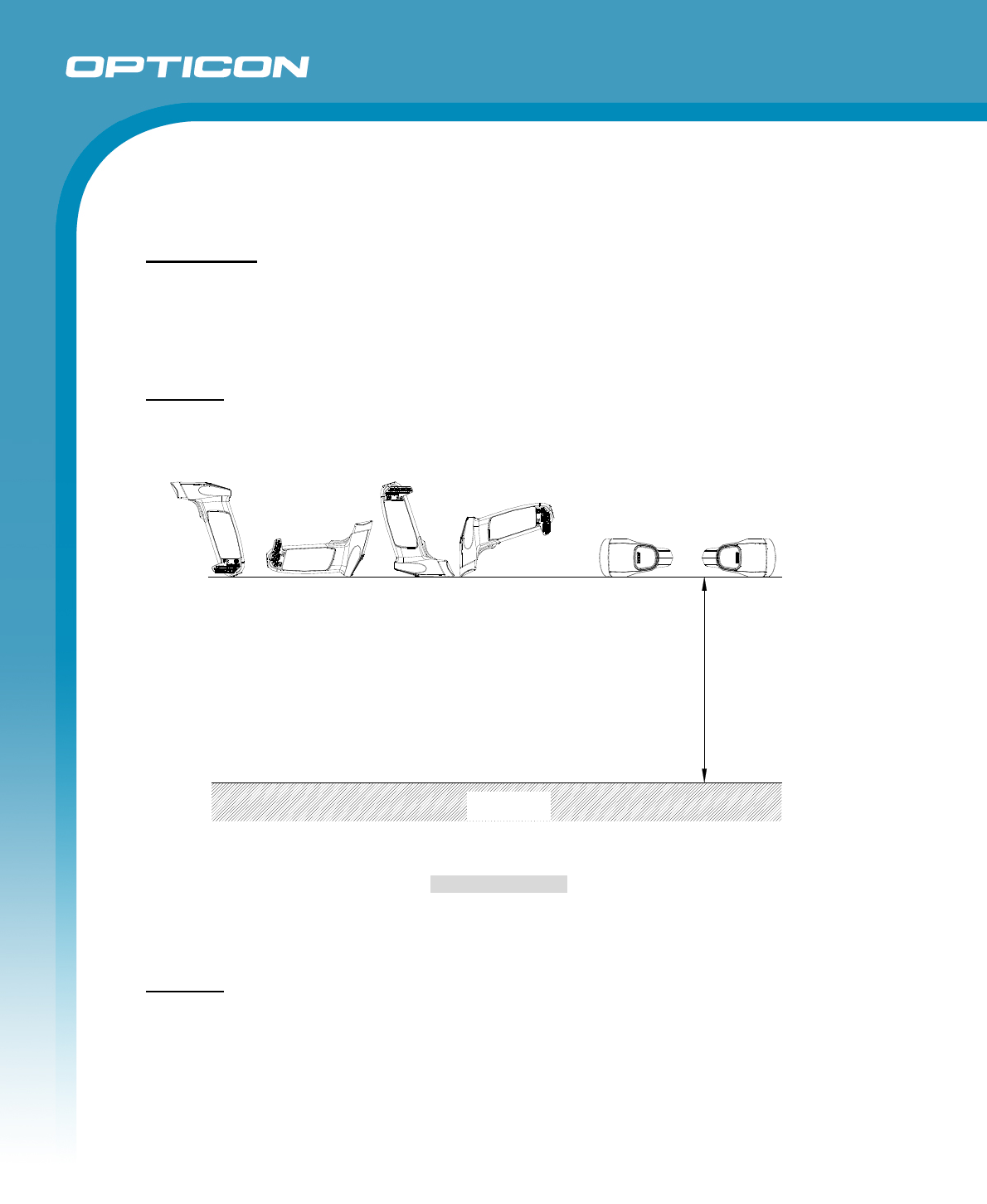

9.7. Drop Impact Strength (without packaging) ............................................................................. 17
9.8. Drop Impact Strength (in individual packaging) ...................................................................... 17
9.9. Electrostatic Discharge (ESD) Immunity................................................................................. 17
10. Regulatory Compliance ............................................................................................................... 18
10.1. LED Safety............................................................................................................................ 18
OPN-3200i
Specifications Manual
10.2. Product Safety ...................................................................................................................... 18
10.3. EMC ...................................................................................................................................... 18
10.4. Others ................................................................................................................................... 19
11. RoHS.............................................................................................................................................. 19
12. Reliability....................................................................................................................................... 19
13. Precautions................................................................................................................................... 19
13.1. Handling................................................................................................................................ 19
13.2. Radio Law ............................................................................................................................. 20
13.3. Bluetooth............................................................................................................................... 20
13.4. Frequency Baud.................................................................................................................... 20
14. Product Labels.............................................................................................................................. 21
15. Packaging Specifications............................................................................................................ 22

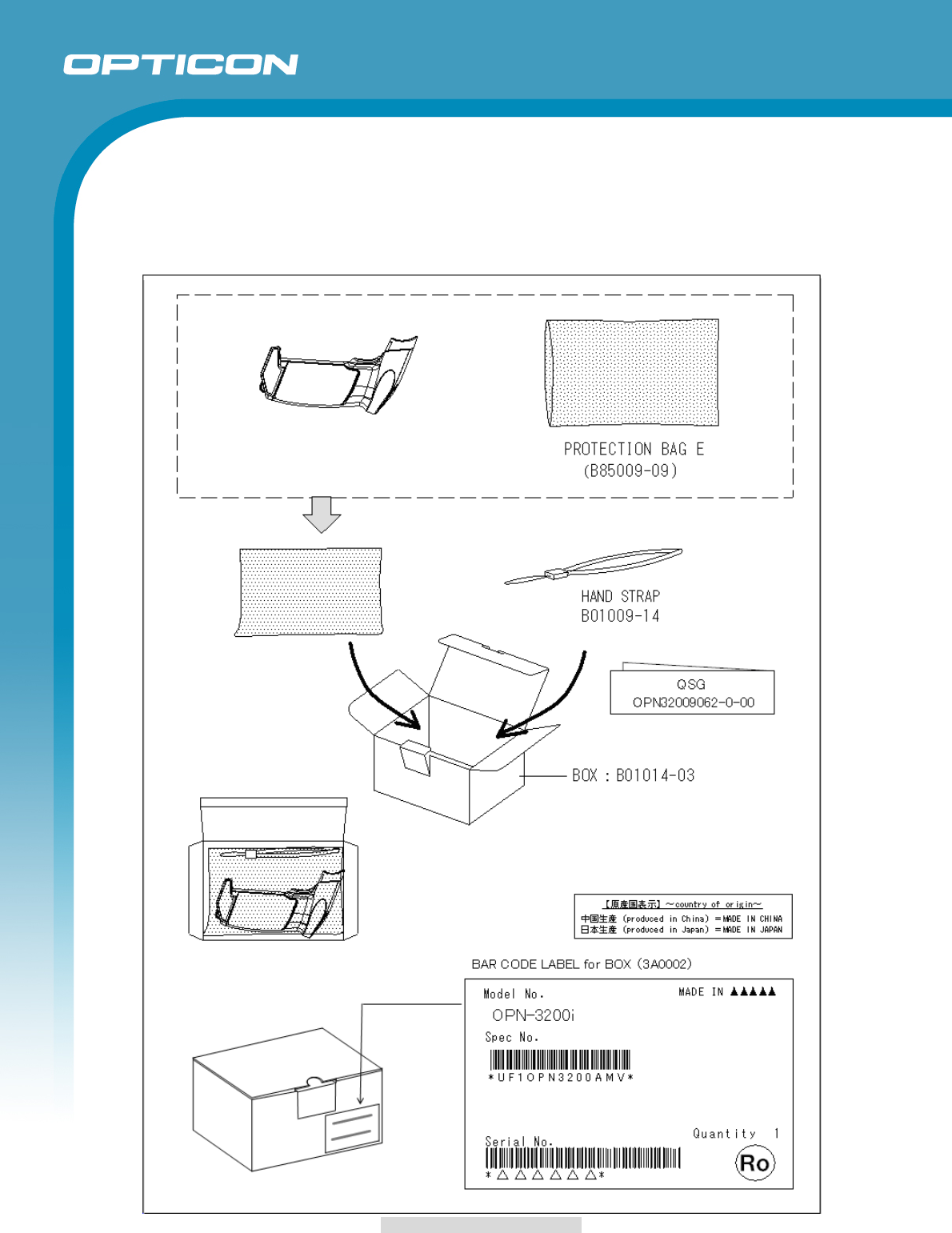

15.1. Individual Packaging ............................................................................................................. 22
15.2. Collective Packaging............................................................................................................. 23
16. Physical Features......................................................................................................................... 24
16.1. Dimensions ........................................................................................................................... 24
16.2. Weight ................................................................................................................................... 24

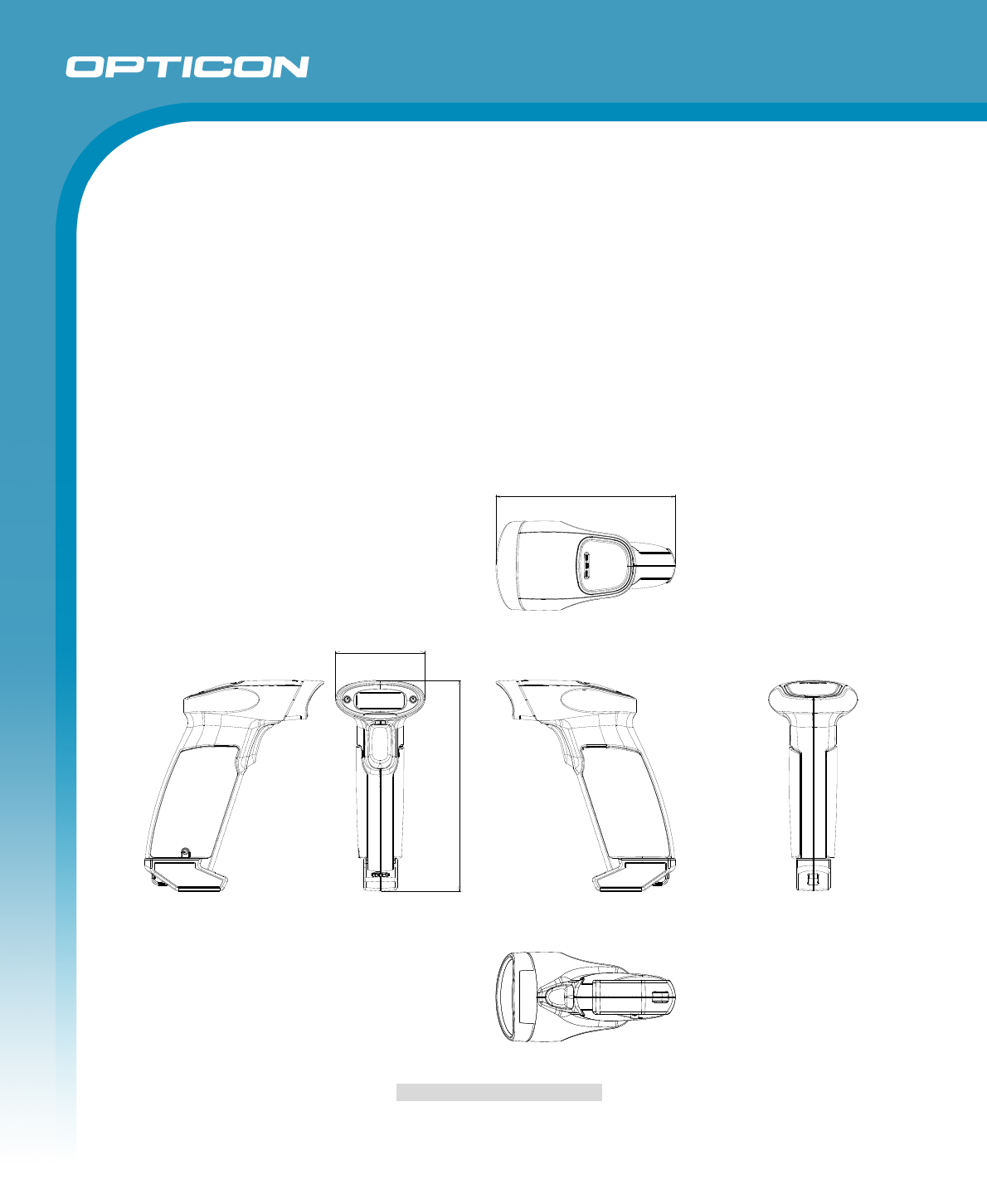

16.3. Mechanical Drawing.............................................................................................................. 24
17. Supported Symbologies.............................................................................................................. 25
17.1. Default Setting ...................................................................................................................... 25
17.2. Supported Symbologies........................................................................................................ 25
17.2.1. 1D Bar Codes .............................................................................................................. 25
17.2.2. GS1 Databar, Composite Code................................................................................... 26
17.2.3. 2D Codes..................................................................................................................... 26
OPN-3200i
Specifications Manual
1
1. Abstract
This manual provides specifications for the OPN-3200i handheld Bluetooth 2D imager scanner.
2. Overview
The OPN-3200i is a handheld 2D imager scanner that enables high speed scanning of standard linear
(1D) and 2D symbologies. The scanned data is output via Bluetooth.
・ All bar code data scanned is transmitted to a host device through the Bluetooth interface.
・ The scanner can work with many Bluetooth-enabled host devices, such as PCs, tablet PCs and
smart phones.
・ Bluetooth SPP (Serial Port Profile) and HID (Human Interface Device Profile) are implemented.
・ The scanner can read bar codes from LCD screens.
・ This scanner is equipped with a vibrating function that can signal certain events to the users even
in noisy environments. Additionally it has a buzzer and a LED indicator.
・ A single green LED aiming line toward a target bar code can help the users find the appropriate
scanning position.
・ Special antimicrobial treatment is applied to the chassis, and alcohol can be used to wipe the
scanner clean (except for the scanning window and the logo panel).
・ The power source is 3.7 V 1100 mAh (typ.) lithium-ion battery.
・ A dedicated charging cradle CHG-3201 is supplied for recharging and easy storage of the
scanner.
・ The scanner is Apple MFi certified.
OPN-3200i
Specifications Manual
2
3. Basic Specifications
Item Specification Note
CPU 32 bit CISC / 96 MHz
FROM 512 Kbyte + 32 Kbyte
SRAM 96 Kbyte
Control
Section
FROM (storage) 1 Mbyte For data area only
Input
Section
Key type 1 key: trigger
LED 2 colors (red, green) and 1 color (blue)
Buzzer Loudness (3-level) / tone adjustable
Indicator
Vibration motor Strength (3-level) / duration adjustable
Frequency 2402 ~ 2480 MHz
Specification Bluetooth Ver 2.1 compliant
Communication
distance 10 m
It may be shorter
depending on usage
environments
Output level Class 2 Max output 4 dBm
Interface
Bluetooth
Profile SPP / HID
Scan method WVGA (0.36 million-pixel) CMOS area sensor Frame rate: 60 fps
Light source for illumination 2 red LEDs
Light source for aiming 1 green LED
Effective pixels 0.36 million pixels (H: 752 x V: 480)
Optical Section
View angle Horizontal: about 40.6°
Vertical: about 26.4°
Symbologies
UPC-A, UPC-A Add-on, UPC-E, UPC-E Add-on,
EAN-13, EAN-13 Add-on, EAN-8, EAN-8 Add-on,
JAN-8, JAN-13, Code 39, Tri-Optic, NW-7,
Industrial 2 of 5, Interleaved 2 of 5, S-Code, IATA,
Code 93, Code 128, MSI/Plessey, UK/Plessey,
TELEPEN, Code 11, Matrix 2 of 5, Chinese Post
Matrix 2 of 5, Korean Postal Authority code,
Intelligent Mail Barcode, POSTNET, JPN
Refer to Chapter 17.
for details
Minimum resolution Code 39 : 0.127 mm PCS 0.9
Curvature R ≥ 16 mm (10-digit 0.15 mm Codabar)
R ≥ 20 mm (12-digit UPC) PCS 0.9
Wide bar code 100 mm wide 0.2 mm resolution Code 39 (DOF 115
mm) is readable:
Motion Tolerance UPC 100% moving at 2m/sec (DOF 80 mm)
is readable:
Resolution (0.127) 60 ~ 95
Code 39
Resolution (0.254) 45 ~ 185
Resolution (0.508) 50 ~ 250
Code 128
Resolution (0.20) 65 ~ 150
Supported 1D Symbologies
Depth of Field
UPC Resolution (0.33) 45 ~ 175
OPN-3200i
Specifications Manual
3
Item Specification Note
Symbologies
GS1 DataBar, GS1 DataBar Limited, GS1
DataBar Expanded, Composite GS1 DataBar,
Composite GS1-128, Composite EAN,
Composite UPC
GS1 DataBar: formerly
called “RSS”
Refer to Chapter 17. for
details
GS1 DataBar : 0.169 mm
GS1/Composite
Minimum resolution Composite Code : 0.169 mm
Symbologies
PDF417, MicroPDF417, Codablock F, QR
Code, MicroQR Code, Data Matrix (ECC 0 -
140 / ECC 200), MaxiCode (Modes 2 to 5),
Aztec Code, Aztec Runes, Chinese-sensible
code, PLANET，Netherlands KIX，UK Postal，
Australian Postal
Disable Code 128
when Codablock F is
enabled.
Refer to Chapter 17. for
details
PDF417 : 0.169 mm
QR Code : 0.212 mm
Minimum resolution (mm)
DataMatrix : 0.212 mm
PCS 0.9
Resolution (0.169) 55 ~ 105
PDF417
Resolution (0.254) 35 ~ 155
Resolution (0.212) 70 ~ 95
QR Code
Resolution (0.381) 35 ~ 165
Supported 2D Symbologies
Depth of field
(mm)
DataMatrix Resolution (0.254) 65 ~ 120
PCS 0.9
Pitch : ±50°
Skew : ±50°
Scan angle
Tilt : ±180° MRD 32% or more
Common
Minimum PCS 0.3 or more
Main battery Lithium-ion 1100 mAh (typ.) Charge the battery
before initial use
Up-time 24 hours or more *1
Operating (charging) voltage 5.0 ~ 6.5V
Power Section
Current
consumption Charging Less than 1 A
Charging with charger
Operating 0 ~ 50°C
Temperature
Storage -20 ~ 60°C
Operating 20 ~ 85%
Humidity
Storage 20 ~ 85%
No condensing
No frost
Fluorescent 10,000 lx or less UPC 100%, optical axis
angle 75°, distance 100 mm
Ambient light
immunity Sunlight 100,000 lx or less
Vibration
10 Hz ~ 100 Hz, acceleration of 19.6 m/s2, 60
minutes per cycle, repeat once in each X, Y
and Z-direction
Drop Drop the scanner 30 times (6 faces x 5) from
the height of 150 cm onto a concrete floor
Environmental Specifications
Dust and drip proof IP42 equivalent
*1: When a bar code is read twice every 10 seconds at room temperature in a const Bluetooth connection (SPP
master mode).
OPN-3200i
Specifications Manual
4
Item Specification Note
LED safety IEC 62471-1:2006 Exempt_Group Peak Wavelength
624 nm
Product safety EN60950-1:2005
IEC60950-1:2006
EMC
EN 55022:2010
EN 301 489-1 V1.9.2
EN 301 489-17 V2.1.1
EN 300 328 V1.8.1
FCC Part 15 Subpart C, Subpart B ClassB
VCCI Class B
For residential,
commercial and light-
industrial environments
Regulatory Compliance
Other
Bluetooth logo certification
MFi license
CE Marking
Certification for Construction Design of
Specified Radio Equipment
No distraction Air discharge (direct): ±15 kV
Immunity
Test
ESD
No malfunction Contact discharge (direct / indirect): ±6 kV
Air discharge (direct): ±8 kV
Conditions:
IEC61000-4-2
compliant
Dimensions 113 × 56 × 132 (WDH mm)
Physical
Features
Weight Approx. 132 g Excluding accessories
OPN-3200i
Specifications Manual
5
4. Detailed View
Figure 1: Detailed View of OPN-3200i
No Name Description
1 Trigger Key A key to read bar codes
2 Scan Window LED illumination is emitted from this window to read bar codes.
3 Status LED The operating statuses, such as bar code reading, Bluetooth connection
and warning, are indicated by different colors.
4 Buzzer Holes A sound from a built-in buzzer comes out through these holes.
5 Charging terminals Charging pins connected to the dedicated charging cradle CHG-3201
1
3
5
4
2
OPN-3200i
Specifications Manual
6
5. Electrical Specifications
5.1. Current Consumption
Item Specification Note
Standby 15 mA or less With wireless connection
Sleep 1 mA or less
Operating 330 mA or less Reading, communications,
LED, vibration motor activated
Measurement condition Power voltage 3.7 V at 25 °C
5.2. Operating Time and Charging Time
Item Specification Note
Sleep 200 hours or more
Standby Approx. 72 hours With wireless connection
Battery
duration Reading Approx. 24 hours 1 scan / 5 secs with wireless connection
Charging time Approx. 3 hours With AC adaptor power supply
* The above specifications may not be met when the battery pack has been deteriorated.
6. Interface Specifications
6.1. Bluetooth
Frequency : 2402 ~ 2480 MHz
Specification : Bluetooth Ver 2.1 compliant
Communication distance : 10 m
Output level : Class 2 (max 4 dBm)
Implemented profile : SPP / HID
Communication configuration : 1 to 1
Operating mode in communication : Master / Slave mode
Security mode : Authentication supported
Encryption : Encryption supported
OPN-3200i
Specifications Manual
7
7. Optical Specifications
7.1. Basic Optical Specifications
Item Characteristics
Scan method CMOS area sensor (white / black) -
Effective pixels (Column) × (Row) 752 × 480 dots
Image capture speed (*1) Frame rate 60 fps
Focal distance Distance from the front edge of scanner 124.8 mm
Horizontal Approx. 40.6°
View angle Vertical Approx. 26.4°
Red LED -
Peak wavelength 617 nm
Directivity angle: 2Φ 1/2 (*2) 60°
Light source for illumination
(LED × 2)
Maximum radiation output (*3) 15000 mcd
Green LED -
Peak wavelength 528 nm
Light source for aiming
(LED × 1)
Maximum radiation output (*4) 18700 mcd
*1 The fastest seed of image capture
*2 60° is the data that the LED radiant intensity is reduced by half from the center of optical axis, which is
reference value from the LED datasheet.
*3, *4 Reference value based on the datasheet (25°C, IF = 140 mA ).
OPN-3200i
Specifications Manual
8
7.2. Aiming Pattern
The aiming is used for the following purpose:
1. Light source to indicate the appropriate reading range
2. Light source for auto trigger operation
The aiming specifications are as follows:
・ An optical axis of imaging field of view and the center of horizontal aiming width coincide at a
distance of L=65±20 mm from the front edge of the scanner.
・ The horizontal aiming width to the horizontal width of imaging filed of view at a distance of L=65
mm is 80%±10%.
Figure 2: Aiming Pattern and Imaging Range
7.3. Imaging Range
The range is ±5% from the following values.
L: Distance from the front edge of scanner [mm] 60 80 100 120 140 160
H: Horizontal imaging range [mm] 66 82 97 111 125 136
V: Vertical imaging range [mm] 42 52 62 72 82 93
OPN-3200i
Specifications Manual
9
8. Technical Specifications
Code reading is performed by positioning the aiming light over the center of a code. The conditions for
technical specifications are as follows unless otherwise specified in each section.
<Conditions>
Temperature and humidity : Room temperature, room humidity
Ambient light : 100 ~ 200 lx
Angles : Pitch: α = 0°, Skew: β = 15°, Tilt: γ = 0°
Curvature : R = ∞
Power supply voltage : 5.0 V
PCS (1D and 2D) : 0.9 or higher
Scanning Test : 1 read in 0.5 sec or less. Accept the performance with 70% or more
success rate for 10 readings.
Bar code test sample
(1D and 2D) : Refer to Section 8.1. for details.
<Bar code test sample>
1D codes: OPTOELECTRONICS test samples
GS1 Databar, Stacked codes, 2D codes: Labels printed by a dedicated printer for bar code
OPN-3200i
Specifications Manual
10
8.1. Bar Code Test Sample
1D Bar Codes
<Code 39>
Resolution Symbology PCS Size (mm) No. of Digits
0.127 mm 32 × 10 15
0.20 mm 100 × 10 31
0.254 mm 32.5 × 12 7
0.508 mm
Code 39 0.9
36 × 25 4
<Code 128>
Resolution Symbology PCS Size (mm) No. of Digits
0.20 mm Code 128 0.9 42 × 10 16
<UPC>
Resolution Symbology PCS Size (mm) No. of Digits
0.330 mm 12-digit UPC 0.9/0.3 31.5 × 25.0 12
<Codabar>
Resolution Symbology PCS Size (mm) No. of Digits
0.150 mm Codabar (NW-7) 0.9 20 × 10 10
GS1 Databar/Composite
<GS1-limited>
Resolution Symbology PCS Size (mm) No. of Digits
0.169 mm Limited 0.9 12 × 1.5 14
0.169 mm Limited-Composite 0.9 12 × 3.0 26
2D Codes
<PDF417>
Resolution Error Correction PCS Size (mm) No. of Character
0.169 mm 23 × 10
0.254 mm Level-3 0.9
35 × 15 58
<QR Code: Model-2>
Resolution Error Correction PCS Size (mm) No. of Character
0.212 mm 6 × 6
0.381 mm M 0.9
11 × 11 44
<Data Matrix>
Resolution Model PCS Size (mm) No. of Character
0.212 mm 5 × 5
0.254 mm ECC200 0.9 6 × 6 40
* The size is outline dimensions excluding the quiet zones.
OPN-3200i
Specifications Manual
11
8.2. Scan Area and Depth of Field
The scan area is within the arc centered on the scan origin as shown in each resolution, which is
measured from the front edge of the scanner.
Figure 3: Scan Area and Depth of Field
65 120
Data Matrix
250
65
175
10555
15535
70 95
35 165
Code 128
100% UPC
PDF417
QR Code
Resolution 0.508
Resolution 0.20
Resolution 0.33
Resolution 0.169
Resolution 0.254
.
Resolution 0.212
Resolution 0.381
Resolution 0.254
45
50
50 100 150 200 250
Resolution 0.127
60 95
45 185
[Unit: mm]
Resolution 0.254
Code 39
300
150
OPN-3200i
Specifications Manual
12
8.3. Printed Contrast Signal (PCS)
0.3 or higher
<Conditions>
MRD : 32% and higher (70% or higher reflectivity of space and quiet zone)
Distance : 125 mm from the front edge of the scanner
Bar code : UPC (resolution 0.33 mm, PCS 0.3) specified in Section 8.1.
MRD = Minimum reflectance of white space - Maximum reflectance of black bar
PCS = Reflectance of white spece - Reflectance of black bar
Reflectance of white space
* Be sure to keep the optical window clean without dirt or scratches, or it may have a bad effect on the reading
characteristics.
8.4. Minimum Resolution
1D bar code : 0.127 mm (Code 39 specified in Section 8.1.)
GS1 Databar : 0.169 mm (GS1 Databar Limited specified in Section 8.1.)
Stacked code : 0.169 mm (PDF417, GS1 Databar Limited Composite specified in Section
8.1.)
2D code : 0.212 mm (QR Code, Data Matrix specified in Section 8.1.)
<Conditions>
Bar code : Above codes specified in Section 8.1.
Distance : 95 mm from the front edge of the scanner
Angle : α = 0°, β = + 15°, γ = 0°
Curvature : R = ∞
8.5. Wide Bar Code
Code 39 with width of 100 mm and resolution of 0.2 mm can be read
<Conditions>
Bar Code : Code 39 (resolution 0.20 mm, PCS 0.9) specified in Section 8.1.
Distance : 155 mm from the front edge of the scanner
Angle : α = 0°, β = +15°, γ = 0°
Curvature : R = ∞
Figure 4: Wide Bar Code
OPN-3200i
Specifications Manual
13
8.6. Pitch, Skew and Tilt
Pitch : α = ±50°
Skew : β = ±50°
Tilt : γ = ±180°
<Conditions>
Bar code : UPC (resolution 0.33 mm) specified in Chapter 8.1
Distance : 125 mm from the front edge of the scanner
Curvature : R = ∞
Angle : Pitch β = +15°, γ = 0°
Skew, Dead zone α = 0°, γ = 0°
Tilt α = 0°, β = +15°
α
β
γ
+
+
+
-
-
-
Figure 5: Pitch, Skew and Tilt
8.7. Curvature
0.33 mm 12-digit UPC : R ≥ 20 mm
0.15 mm 10-digit Codabar (NW-7) : R ≥ 16 mm
<Conditions>
Bar code : UPC (0.33 mm) and Codabar (0.15 mm) specified in Section 8.1.
Distance : 105 mm from the front edge of the scanner
Angle : α = 0°, β = +15°, γ = 0°
R
Bar code
Figure 6: Curvature
* The reading characteristics may deteriorate due to the specular reflection of LED illumination when the
reflectivity is high..
OPN-3200i
Specifications Manual
14
8.8. Auto Trigger
When the scanner is placed in a dedicated stand (sold separately) which contains a magnet, it can
detect this magnet and enters auto trigger mode. The scanner starts scanning automatically when it
detects a change in brightness that occurs when a bar code label is presented in front of it.
8.8.1. Stand Detection
“Stand detection - Auto trigger flow”
Figure 7: Stand Detection Flow
* The dedicated stand is an optional accessory that can be purchased separately.
* The stand detection mode is disabled by default. It must be enabled to be used.
8.8.2. Auto Trigger Operation
The scanner should be triggered when a gray-colored paper is presented in front of a black-
colored background paper. The scanner should also be triggered when a black-colored
paper is presented in front of a gray-colored background paper.
<Conditions>
Paper : Black paper from Glory: Black 010010016
: Gray paper from Glory: Silver-gray 010010016
Ambient light : 500 ~ 1000 lx
Moving speed of paper : 2 m/s or slower
Temperature / Humidity : Room temperature / room humidity
Figure 8: Auto Trigger
Is Stand Detection
mode “*4” enabled?
A
uto Trigge
r
Yes
Yes
No
Manual Trigger
No
Is the scanner
in the stand?
Paper
Background
Detection ran
g
e
OPN-3200i
Specifications Manual
15
8.8.3. Motion Tolerance
100% UPC bar codes moving at 2m/s can be read.
<Conditions>
Temperature / Humidity : Room temperature / room humidity
Ambient light : 500 ~ 1000 lx
Distance : 125 mm from the front edge of the scanner
PCS : 0.9 or higher
Bar code : Refer to Section 8.1.

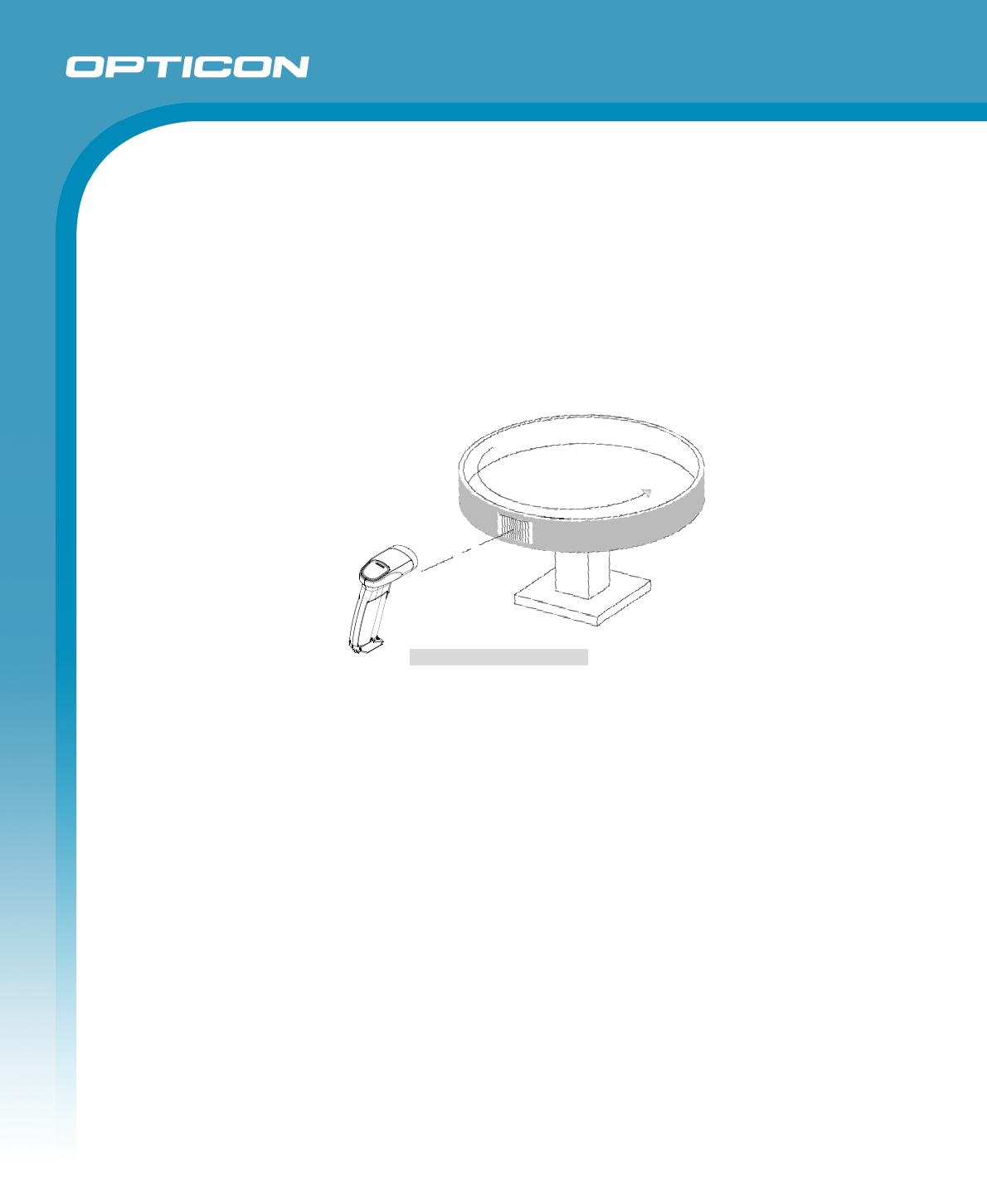

Figure 9: Motion Tolerance
* The reading characteristics may deteriorate due to the specular reflection of LED illumination when the
reflectivity is high.
OPN-3200i
Specifications Manual
16
9. Environmental Specifications
9.1. Temperature
Scanning performance is guaranteed when the range of ambient temperature around the scanner is
the following values:
Operating temperature : 0 ~ 50 °C
Storage temperature : -20 ~ 60°C
9.2. Humidity
Scanning performance is guaranteed when the range of ambient humidity around the scanner is the
following values:
Operating humidity : 20 ~ 85% RH (no condensation, no frost)
Storage humidity : 20 ~ 85% RH (no condensation, no frost)
9.3. Ambient Light Immunity
Scanning performance is guaranteed when the range of illumination on a bar code surface is
between zero and the following values:
Incandescent light : 10,000 lx
Fluorescent light : 10,000 lx
Sunlight : 100,000 lx
<Conditions>
Bar code : UPC (resolution 0.33 mm) specified in Section 8.1.
Distance : 125 mm from the front edge of the camera module
Angle : α = 0°, β =＋15°, γ = 0°
Curvature : R = ∞
Power supply voltage : 3.7 V
* Be sure that the direct light or specular reflection from the light source does not enter the light
receiving section of the scanner.
9.4. Dust and Drip Proof
IEC IP42 equivalent
Protection against solid objects: Level 4 equivalent
Protected against solid objects greater than 1.0 mm
Protection against liquids: Level 2 (JIS IPX2) equivalent
Protected against dripping water from the vertical when tilted up to 15°
* () is JIS drip-proof type.
9.5. Vibration Strength (without packing)
There shall be no sign of malfunction after the following vibration test.
Vibration test: Increase the frequency of the vibration from 10Hz to 100Hz at an accelerated
velocity of 19.6m/s2 (2.0 G) for 30 minutes (60 minutes per cycle) in the non-operating state. Repeat
this in each X, Y and Z direction.
OPN-3200i
Specifications Manual
17
9.6. Vibration Strength (in individual packing)
There shall be no sign of malfunction after the following vibration test.
Vibration test: Increase the frequency of the vibration from 10Hz to 100Hz at an accelerated
velocity of 19.6 m/s2 (2.0 G) for 30 minutes (60 minutes per cycle) in individually packaged state.
Repeat this in each X, Y and Z direction.
9.7. Drop Impact Strength (without packaging)
There shall be no sign of malfunction after the following drop test.
Drop test: Drop the scanner 30 times in total (5 times at each 6 face) from a height of 150 cm onto
a concrete floor as shown below.
150cm
Figure 10: Drop Test
9.8. Drop Impact Strength (in individual packaging)
There shall be no sign of malfunction after the following drop test.
Drop test: Drop an individually packaged scanner 10 times in total, at any of 1 corner, 3 edges, and
6 faces, from a height of 150 cm onto a concrete floor.
9.9. Electrostatic Discharge (ESD) Immunity
Contact discharge : ±6 kV max (direct or indirect discharge, no malfunction)
Aerial discharge : ±8 kV max (no malfunction)
±15 kV max (no distraction)
Measurement environment : Testing method compliant with IEC-61000-4-2.
Discharge resistance : 330 Ω
Charging capacitor : 150 pF
Concret
150 cm
OPN-3200i
Specifications Manual
18
Federal Communications Commission Notices
This product complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Harmful Interference Notice
This product has been tested and complies with the specifications for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used according to the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which is found by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment or devices
• Connect the equipment to an outlet other than the receiver's
• Consult a dealer or an experienced radio/TV technician for assistance
Changes or modifications to this equipment that have not been approved by Ruckus Wireless
may void the user's authority to operate this equipment.
10. Regulatory Compliance
10.1. LED Safety
IIEC 62471-1:2006 Exempt_Group
10.2. Product Safety
EN60950-1:2005
IEC60950-1:2006
10.3. EMC
R&TTE Directive
・EN 55022:2010
・EN 301 489-1 V1.9.2
・EN 301 489-17 V2.1.1
・EN 300 328 V1.8.1
FCC Part 15 Subpart B Class B
RF Exposure Information
This product complies with FCC radiation exposure limits set forth for an uncontrolled
environment.
VCCI Class B
This is a Class B product, to be used in a domestic environment, based on the Technical
Requirement of the Voluntary Control Council for Interference from Information Technology
Equipment (VCCI). If this is used near a radio or television receiver in a domestic environment, it
may cause radio interference.
OPN-3200i
Specifications Manual
19
“Made for iPod,” “Made for iPhone,” and “Made for
iPad” mean that an electronic accessory has been
designed to connect specifically to iPod, iPhone, or
iPad, respectively, and has been certified by the
developer to meet Apple performance standards.Apple
is not responsible for the operation of this device or its
compliance with safety and regulatory standards. Please
note that the use of this accessory with iPod, iPhone, or
iPad may affect wireless performance.
10.4. Others
・Bluetooth logo certification
・MFi license
・Certification for Construction Design of Specified Radio Equipment
・Classification of Specified
Radio Equipment Article 2 Paragraph 1, Item 19 Low power data
communication system in 2.4 GHz band
・Model Name OPA-26X1
・Certificate Number 201-125603
11. RoHS
The OPN-3200i is compliant with RoHS.
RoHS: The restriction of the use of certain hazardous substances in electrical and
electronic equipment, 2011/65/EU
12. Reliability
MTBF (Mean Time Between Failures) 10,000 hours
13. Precautions
13.1. Handling
Handle this product carefully. Do not deliberately subject it to any of the following.
(1) Shock:
・Do not drop this product from a height greater than specified in this manual.
・Do not place this product under or between any heavy items.
・Do not swing the cable around.
(2) Temperature Conditions:
・Do not use this product at temperatures outside the specified range.
・Do not pour boiling water on this product.
・Do not throw this product into a fire.
(3) Foreign Materials:
・Do not immerse this product in water or other liquid.
・Do not expose this product to chemicals.
OPN-3200i
Specifications Manual
20
(4) Others
・Do not disassemble this product.
・Do not use this product near a radio or a TV. It may cause reception problems.
・This product may be affected by a momentary voltage drop caused by lightning.
・iPhone, iPad and iPod are trademarks of Apple Inc.
・Other company and product names may be trademarks of their respective owners.
13.2. Radio Law
This product qualifies as specified radio equipment for radio stations of 2.4 GHz band data
communication system and has obtained the Certification for Construction
Design of Specified Radio Equipment. Therefore, radio station license is not required in Japan.
The following activities are prohibited under the Radio Law:
・Remodeling and disassembly
・Peeling off the certificate label
Do not use this equipment under the following environment, as radio interference may affect other
device and end up with causing physical or material damage.
・Safety apparatus and medical device for human body protection
・Environment where is concerned to cause serious damage
13.3. Bluetooth
・This product supports Bluetooth wireless communication with other Bluetooth devices that have
the same profile
・This product complies with Bluetooth standards; however, its communication performance with
untested devices is not guaranteed.
・Bluetooth devices use the 2.4 GHz frequency band that is shared among other devices. It may
affect the communication speed and distance between this product and the host device.
・The communication speed and distance vary depending on the interference and radio wave
condition between this product and the host device.
13.4. Frequency Baud
This product uses the 2.4 GHz frequency band. Read carefully the followings before using this
product.
In the frequency band of this product, scientific, medical and industrial devices including microwaves
are used. Also other radio stations including local private radio station for mobile object identification
requiring license for such as manufacturing lines at factories, specific power-saving radio station
requiring no license and amateur radio station are managed.
1. Make sure that “other radio stations” are not managed in the frequency band 2.4 GHz before
using this product.
2. In case that radio interference occurs between this product and “other radio stations,” change the
service space immediately, or stop transmitting radio wave to avoid the interference.
3. If you have any questions or troubles, please contact our sales office.
OPN-3200i
Specifications Manual
21
14. Product Labels
The product labels are affixed to the scanner as shown below.
Figure 11: Product Labels
Product label Shows the product name, serial number, and month and year of manufacture.
Logo label Shows the standards-compliant languages and logos.
Logo label
Product label
OPN-3200i
Specifications Manual
22
15. Packaging Specifications
15.1. Individual Packaging
Assembled package size: 165 × 110 × 82 (WDH mm)
Figure 12: Individual Packaging
OPN-3200i
Specifications Manual
23
15.2. Collective Packaging
Assembled package size : 585 × 520 × 200 (WDH mm)

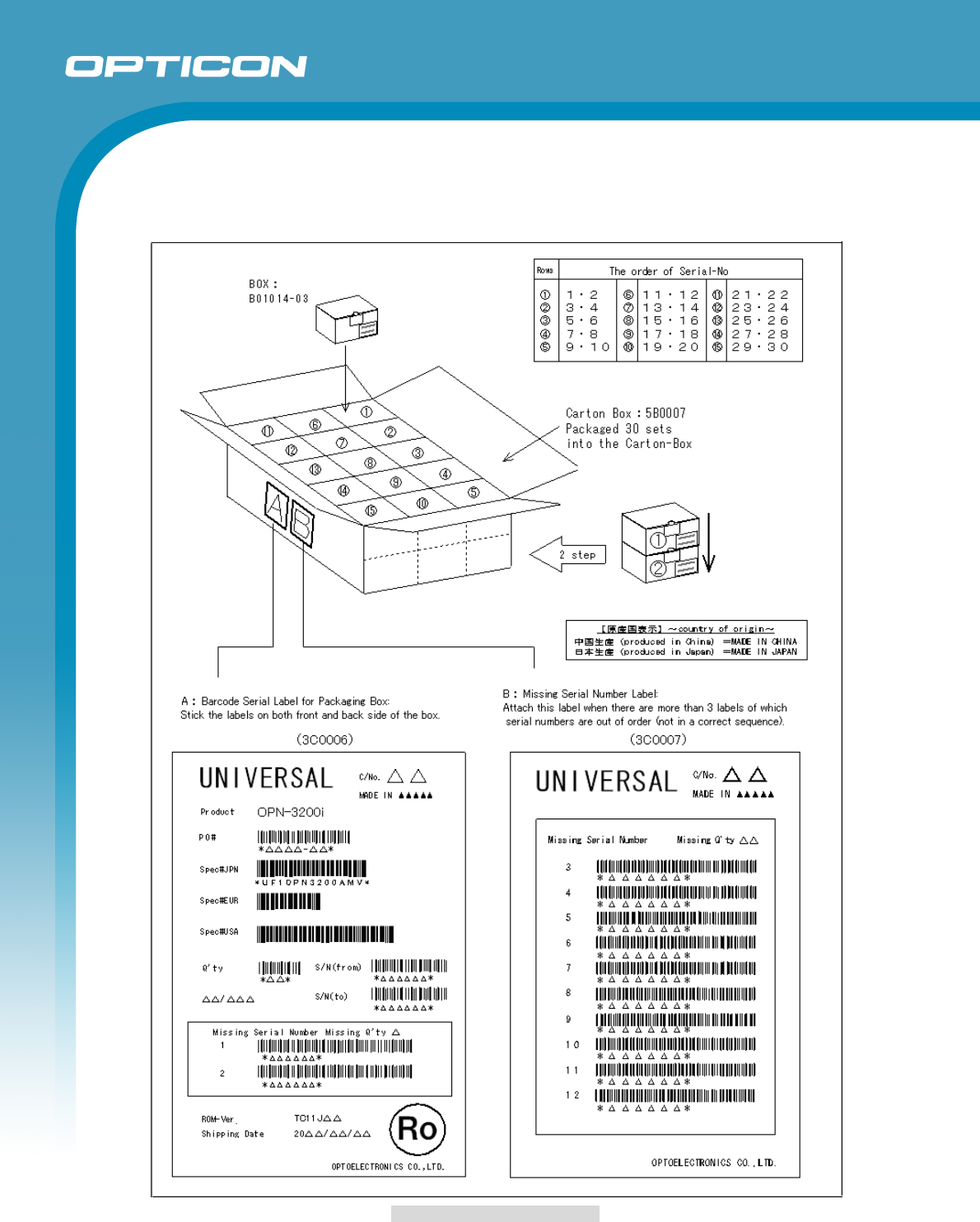

Figure 13: Collective Packaging
* ‘Ro mark’ on the boxes for the product indicates that the product is RoHS compliant declared by
Optoelectronics Co., Ltd.
OPN-3200i
Specifications Manual
24
16. Physical Features
16.1. Dimensions
56 × 113 × 132 (WDH mm / excluding protruding portion)
16.2. Weight
Approx. 132 g (excluding accessories)
16.3. Mechanical Drawing
Figure 14: Mechanical Drawing
(113)
(56)
(132)
OPN-3200i
Specifications Manual
25
17. Supported Symbologies
17.1. Default Setting

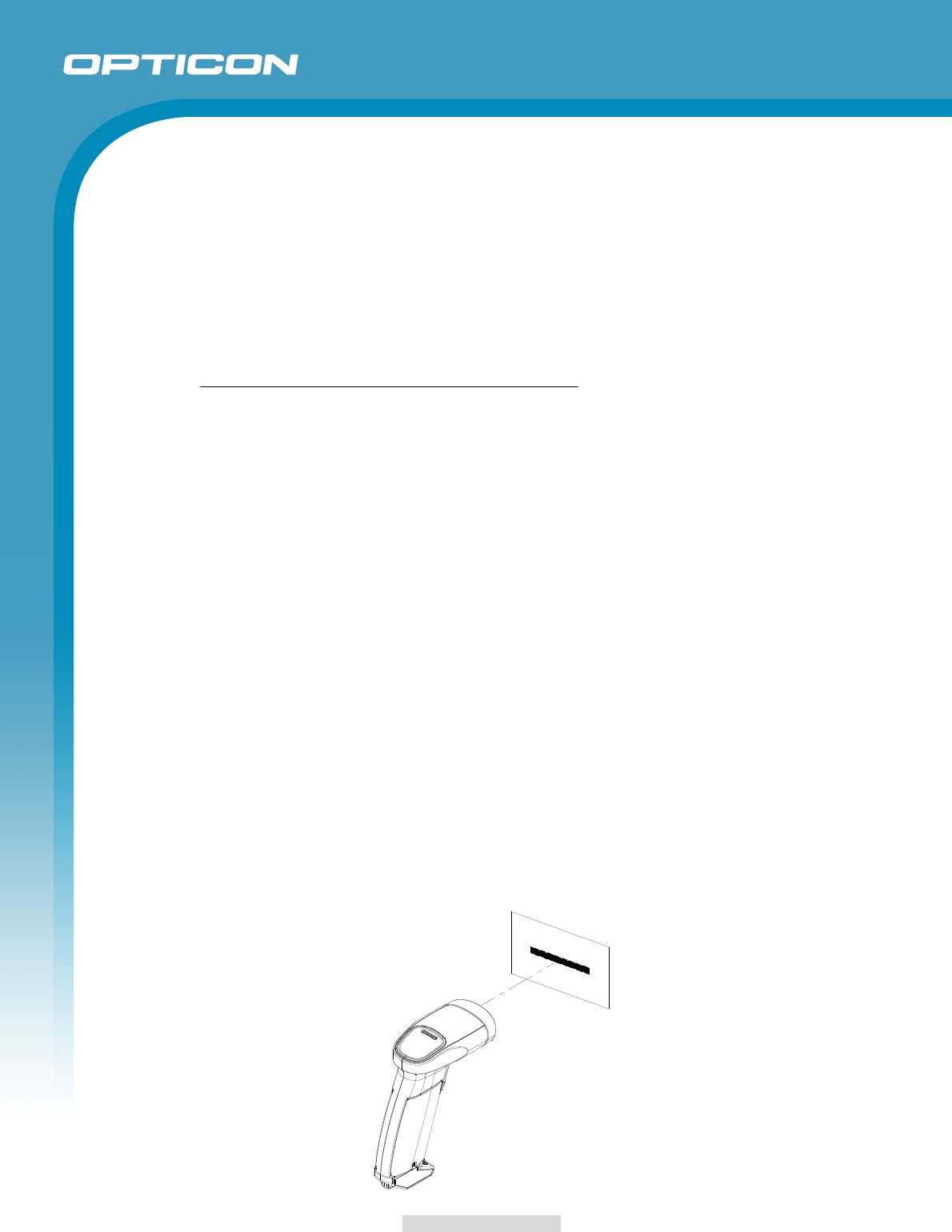

The scanner is set to default settings by reading the following menu label.
Default
17.2. Supported Symbologies
17.2.1. 1D Bar Codes
Code type Default Minimum length Note
UPC ○ -
UPC Add-on 2
UPC Add-on 5
EAN (JAN) ○ -
EAN Add-on 2
EAN Add-on 5
EAN-13 ○
EAN-13 Add-on 2
EAN-13 Add-on 5
EAN-8 ○
EAN-8 Add-on 2
EAN-8 Add-on 5
Code 39 ○ 1 Not transmit ST/SP
Tri-Optic ○ - Not transmit ST/SP
Codabar (NW7) ○ 1 Not transmit ST/SP
Industrial 2 of 5 ○ 5
Interleaved 2of 5 ○ 6
S-Code 5
Code 128 ○ 1 GS1 conversion (setting required)
Code 93 ○ 1
IATA ○ 5
MSI/Plessey 3
UK/Plessey 2
TELEPEN 1
Code 11 1
Matrix 2 of 5 5
Chinese Post Matrix 2 of 5 -
Korean Postal Authority -
Intelligent Mail Barcode -
POSTNET -
JPN (Customer Barcode) -
@MENU
_
OPTO@ZZ@SO@ZZ@OTPO
_
UNEM@
OPN-3200i
Specifications Manual
26
17.2.2. GS1 Databar, Composite Code
Code type Default Note
GS1 DataBar
・GS1 DataBar Omnidirectional
・GS1 DataBar Truncated
・GS1 DataBar Stacked
・GS1 DataBar Stacked Omnidirectional
○
GS1 DataBar Limited ○
GS1 DataBar Expanded
・GS1 DataBar Expanded
・GS1 DataBar Expanded Stacked
○
GS1 conversion (setting required)
Composite GS1 DataBar
・CC-A
・CC-B
・Limited CC-A
・Limited CC-B
・Expanded CC-A
・Expanded CC-B
○ GS1 conversion (setting required)
Composite GS1-128
・CC-A
・CC-B
・CC-C
GS1 conversion (setting required)
Composite EAN
・EAN-13 CC-A
・EAN-13 CC-B
・EAN-8 CC-A
・EAN-8 CC-B
GS1 conversion (setting required)
Composite UPC
・UPC-A CC-A
・UPC-A CC-B
・UPC-E CC-A
・UPC-E CC-B
GS1 conversion (setting required)
17.2.3. 2D Codes
Code type Default Note
PDF417 ○
Micro PDF417
Codablock F
QR Code ○ GS1 conversion (setting required)
Micro QR ○
Data Matrix (ECC 200) ○ GS1 conversion (setting required)
Data Matrix (ECC 000-140)
Aztec Code ○
Aztec Runes
Chinese-sensible code
Maxi Code
PLANET
Netherlands KIX
UK Postal
Australian Postal
* The supported symbologies vary depending on specifications for the application to be loaded.
