OPTOELECTRONICS OPN4000I Bluetooth Barcode Scanner User Manual SS13054 OPN 4000i ENG DM
OPTOELECTRONICS Co., Ltd. Bluetooth Barcode Scanner SS13054 OPN 4000i ENG DM
User Manual
Master Specification
Data Collector with Bluetooth
Model No. OPN-4000i
Manufacturing
Specification No. XF2OPN4000 DOC_ID SS13054
Issue No. Edition 1st
Issue Date 2014-3-14
Approved by
Optoelectronics Co., Ltd.
4-12-17 Tsukagoshi Warabi-shi, Saitama
335-0002 Japan
TEL +81-48-446-1183
FAX +81-48-446-1184
OPN-4000i DOC ID：SS13054
Revision History
DOC_ID ：SS13054
Model No. ：OPN-4000i
Edition Date Section Description of Changes
1st 2014-3-14 - （Initial Issue）
OPN-4000i DOC ID：SS13054
Index Page
1. ABSTRACT ................................................................................................................................. 1
2. OVERVIEW ............................................................................................................................... 1
3. BASIC SPECIFICATION........................................................................................................... 2
4. DETAILED VIEW....................................................................................................................... 4
5. ELECTRICAL SPECIFICATIONS ............................................................................................ 5
5.1. ＵＳＢ..........................................................................................................................................5
5.2. Charging Cradle ......................................................................................................................5
6. INTERFACE ............................................................................................................................... 5
6.1. USB .......................................................................................................................................... 5
6.1.1. Connector....................................................................................................................................... 5
6.1.2. USB Interface Circuit...................................................................................................................... 5
6.2. Bluetooth..................................................................................................................................6
7. OPTICAL SPECIFICATIONS.................................................................................................... 6
7.1. Basic Optical Specifications ....................................................................................................6
7.2. Aiming Pattern ......................................................................................................................7
8. TECHNICAL SPECIFICATIONS.............................................................................................. 8
8.1. Bar code Test Sample ............................................................................................................8
8.2. Scan Area and Depth of Field ................................................................................................. 9
8.3. Printed Contrast Signal (PCS)................................................................................................ 9
8.4. Minimum Resolution ...............................................................................................................10
8.5. Wide Barcode ......................................................................................................................... 10
8.6. Petch, Skew and Tilt ...............................................................................................................10
8.7. Curvature ................................................................................................................................11
9. ENVIRONMENTAL SPECIFICATIONS ................................................................................ 12
9.1. Temperature .......................................................................................................................... 12
9.2. Humidity................................................................................................................................12
9.3. Ambient Light Immunity ......................................................................................................12
9.4. Dust and Drip Proof ..............................................................................................................12
9.5. Vibration Strength(without packing) ...................................................................................12
9.6. Vibration Strength (in individual packing) .......................................................................... 12
9.7. Drop Impact Strength ...........................................................................................................13
9.8. Drop Impact Strength (in individual packaging).................................................................13
9.9. Electrical Specifications ........................................................................................................13
10. REGULATORY COMPLIANCE............................................................................................... 14
10.1. LED Safety.............................................................................................................................14
10.2. Product Safety .......................................................................................................................14
10.3. EMC .......................................................................................................................................14
10.4. Other ...................................................................................................................................... 15
11. ROHS......................................................................................................................................... 15
12. MTBF ........................................................................................................................................ 15
13. PRECAUTIONS........................................................................................................................ 15
13.1. Precaution against Laser Light ............................................................................................15
13.2. Handling ................................................................................................................................ 15
13.3. Radio Low ..............................................................................................................................16
13.4. Export Administration Regulations...................................................................................... 16
OPN-4000i DOC ID：SS13054
13.5. Bluetooth................................................................................................................................16
13.6. Frequency Band.....................................................................................................................16

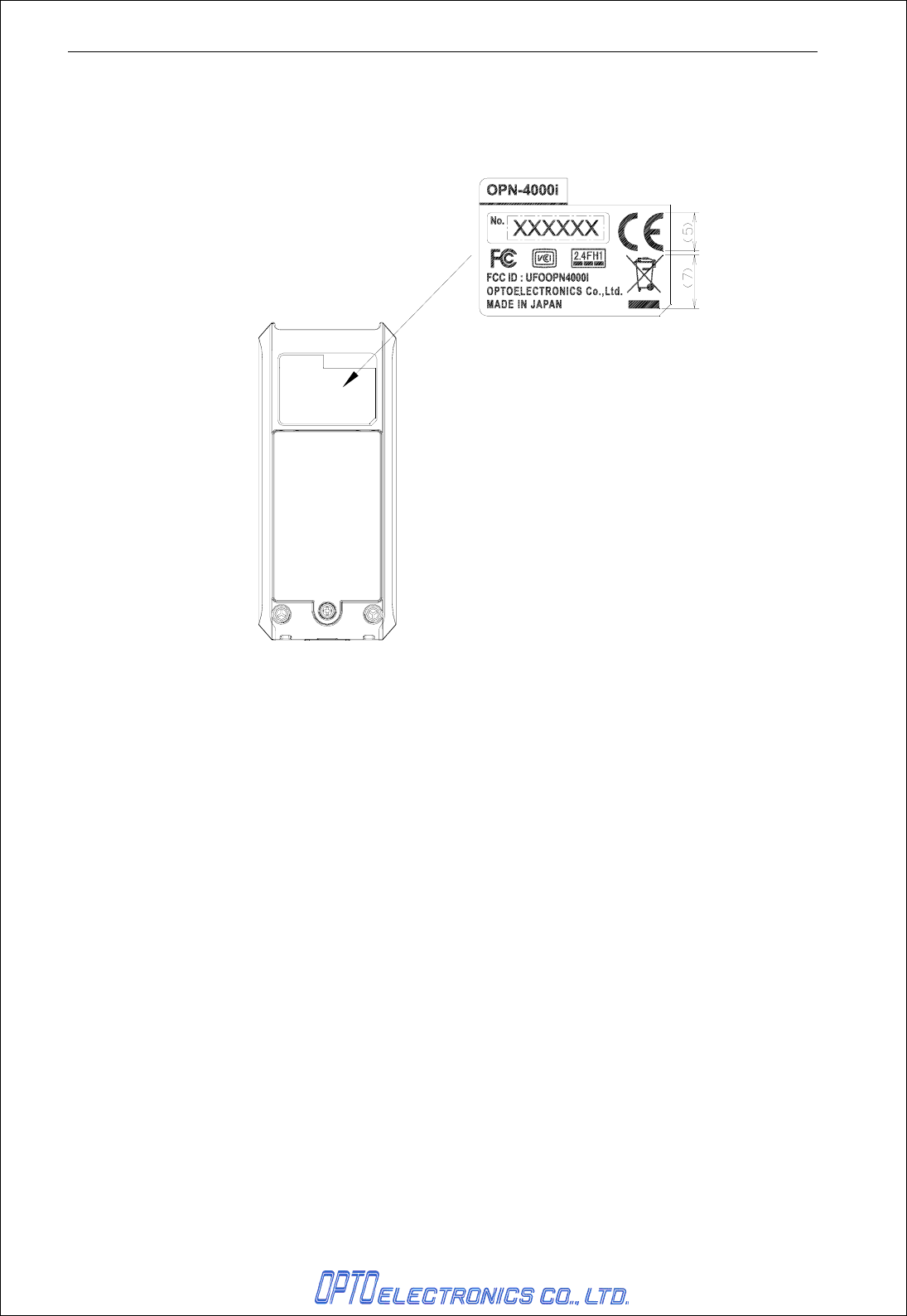

14. PRODUCT LABEL ...................................................................................................................18
15. PACKAGING SPECIFICATIONS ........................................................................................... 19

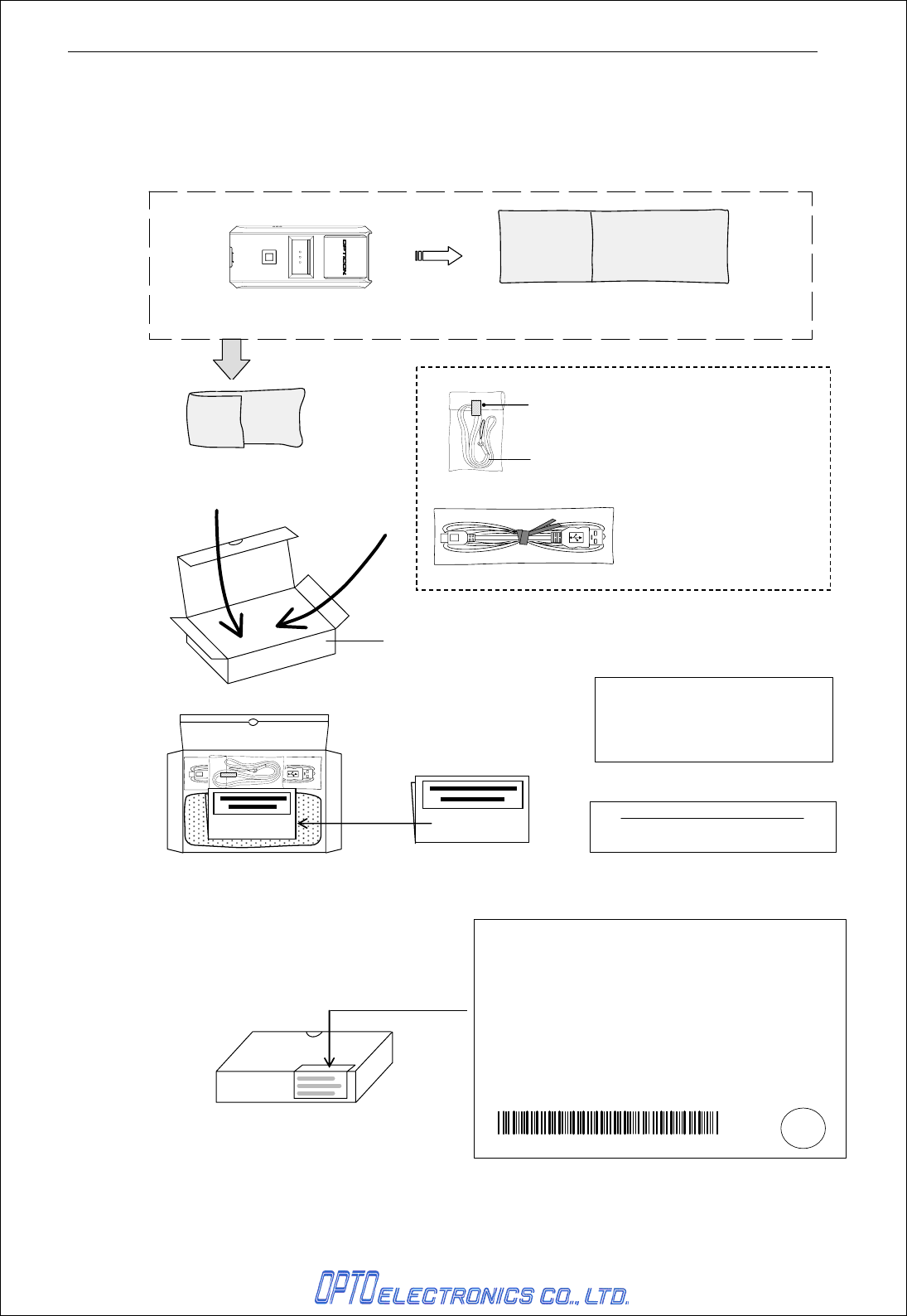

15.1. Individual Packaging Specification ......................................................................................19

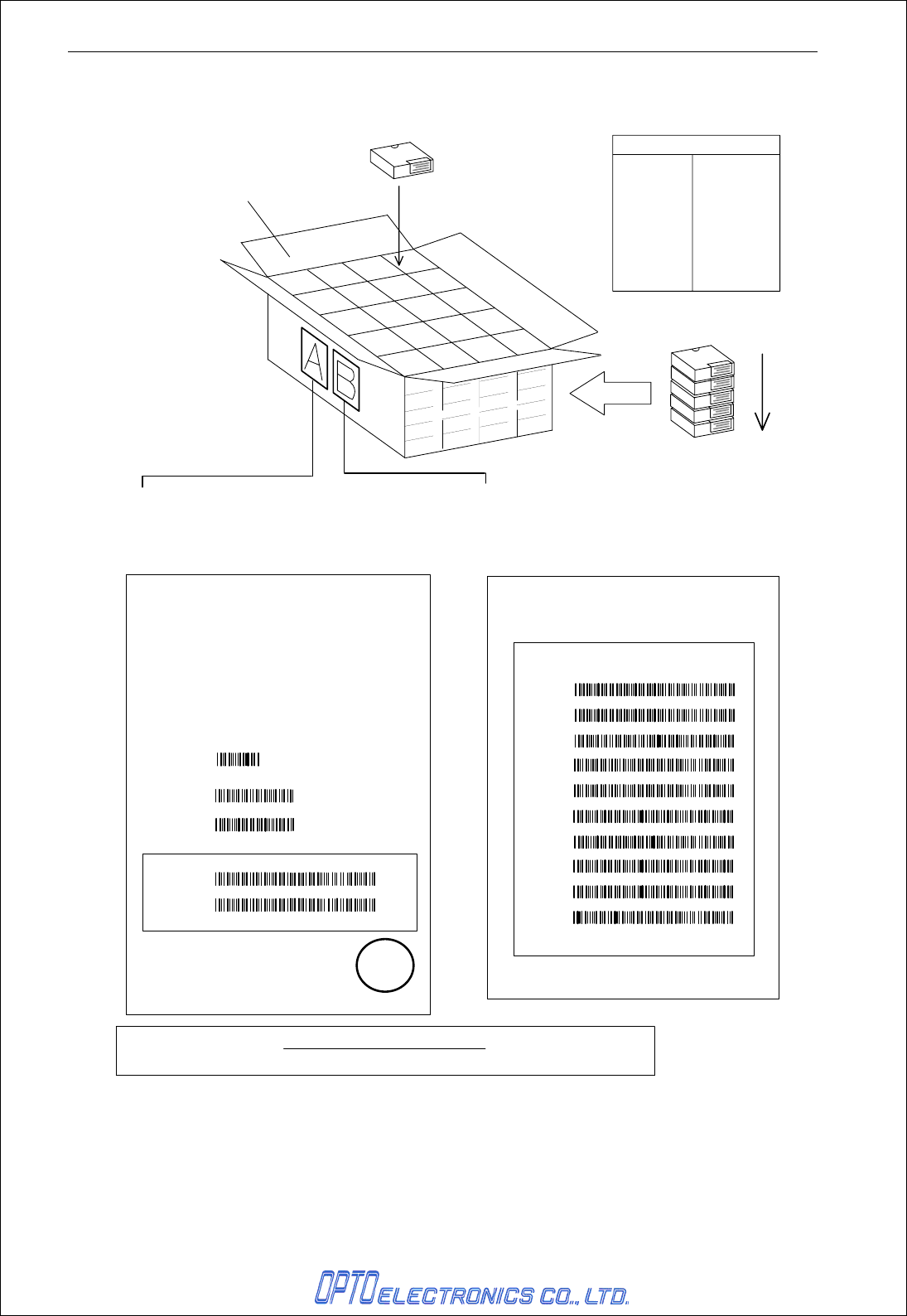

15.2. Collective Packaging Specification .......................................................................................20
16. WARRANTY.............................................................................................................................. 21
16.1. Warranty period.....................................................................................................................21
16.2. Delivery..................................................................................................................................21
16.3. Repair Timeframe..................................................................................................................21
16.4. Maintenance Period............................................................................................................... 21
16.5. Other ...................................................................................................................................... 21
17. PHYSICAL FEATURES........................................................................................................... 21
17.1. Dimensions ............................................................................................................................21
17.2. Weight .................................................................................................................................... 21

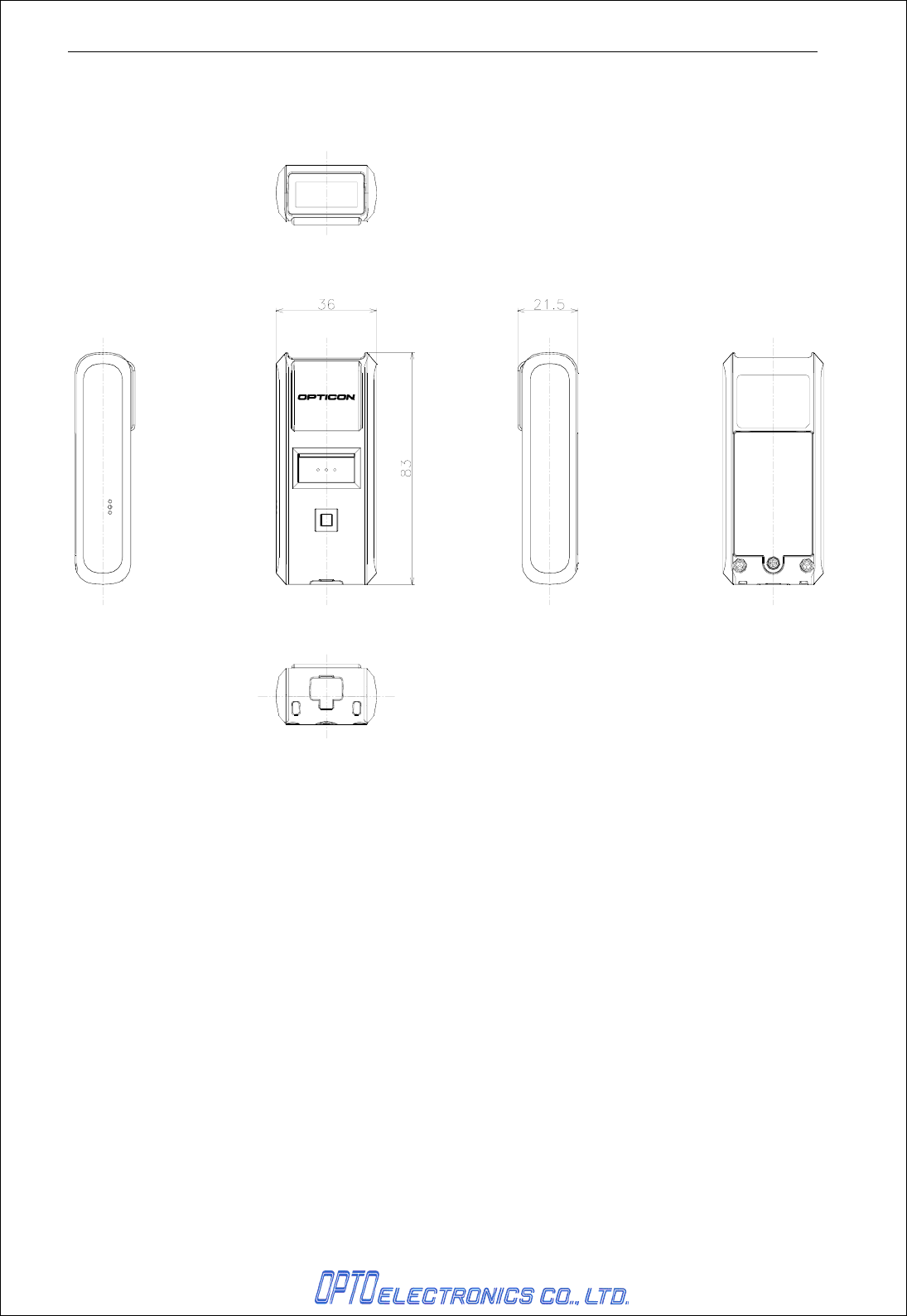

17.3. Mechanical Drawing..............................................................................................................22
18. SUPPORTED SYMBOLOGIES ............................................................................................... 23
18.1. Menu Barcode for Default Setting........................................................................................23
18.2. Supported Symbologies .........................................................................................................23
18.2.1. 1D symbologies............................................................................................................................ 23
18.2.2. GS1 Databar, Composite Code.................................................................................................... 24
OPN-4000i DOC ID：SS13054
1
1. Abstract
This manual provides specifications for the OPN-4000i 1D Imager Barcode Scanner.
2. Overview
The OPN-4000i scanner enables data transmission of barcode using Bluetooth wireless thechnology.
z The OPN-4000i is handy and simple data collector.
Data transmission is performed via a USB or Bluetooth.
z The OPN-4000i has SPP and HID profiles.
z Power supply is 3.7V, 600mAh(typ.) and Lithium-ion polymer battery is used.
z The power supply charging is done via a USB interface or charging cradle.
z MFi license agreement approved by Apple Inc.
OPN-4000i DOC ID：SS13054
2
3. Basic Specification
Item Spedification Note
CPU 32bit CISC/96MHz
FROM 512Kbyte + 32KByte
SRAM 96Kbyte
Control
Section
FROM(strage) 1Mbyte For user data
Input
Section
Key type 2 keys: Trigger, Function
LED bi-colors(red and green) 2pcs, a blue LED
Display
section
Beeper Tone:variable frequency, Volume:3-level
variable
Contents year, month, day, hour, minute and second
RTC
Error ≤±90seconds per a month
Frequency 2402MHz - 2480MHz
Specification Bluetooth Ver2.1
Communication
distance 10ｍ
It may shorter
depending on usage
environments
Output level Class 2 2dBm max.
Bluetooth
Profile SPP/HID
I /F
USB ・Full-Speed 12Mbps ( HID/COM )
・Hi-Power Bus-powered
Scanning method CCDLinear image sens6,7
Scanning light source 1 red LED
Effective pixels 1500
Optical Section
View angle Horizontal: Approx. 50°
Symbologies
JAN,EAN,UPC-A,UPC-E,NW-7 (Codabar),
Industrial 2 of 5,Interleaved 2 of 5,
Code 11，Code 39，Code 93，Code 128 and
others
Minimum resolution Code 39 : 0.1mm PCS 0.9
Curvature Radius ≧ 15mm ( EAN8 )
Radius ≧ 20mm ( EAN13 ) PCS 0.9
Wide Bar Code Possible to read: Code 39 with 110 mm width and
resolution 0.2mm

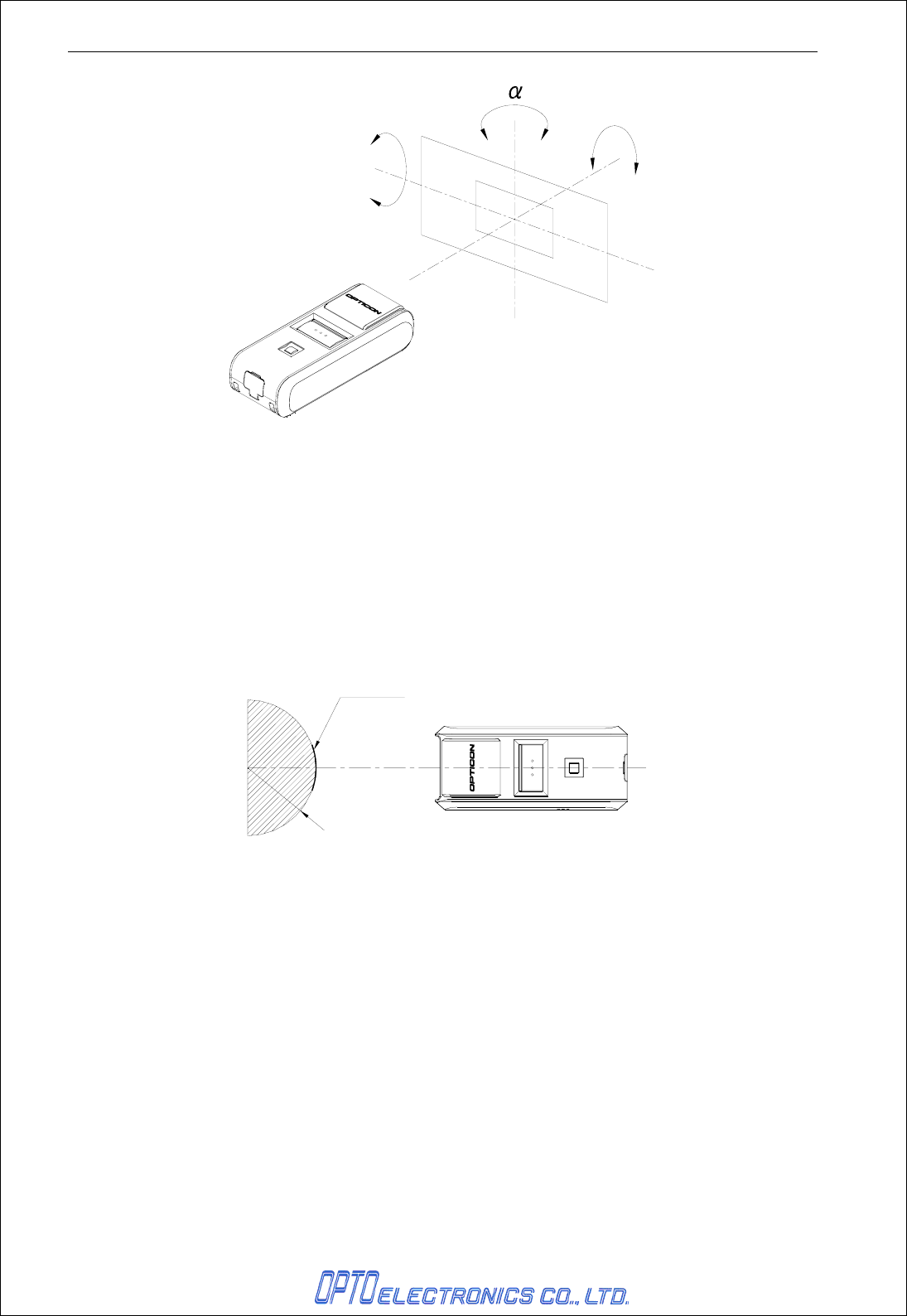

Pitch:α≤ ±50°
Skew:β≤ ±65°（Excluding dead zone）
Scan Angle
Tilt:γ≤ ±25°
PCS 0.9
Resolution ( 0.127 ) 75 - 120
Resolution ( 0.15 ) 65 - 130
Resolution ( 0.25 ) 55 - 220
Resolution ( 0.5 ) 55 - 240
Supported 1D Symbologies

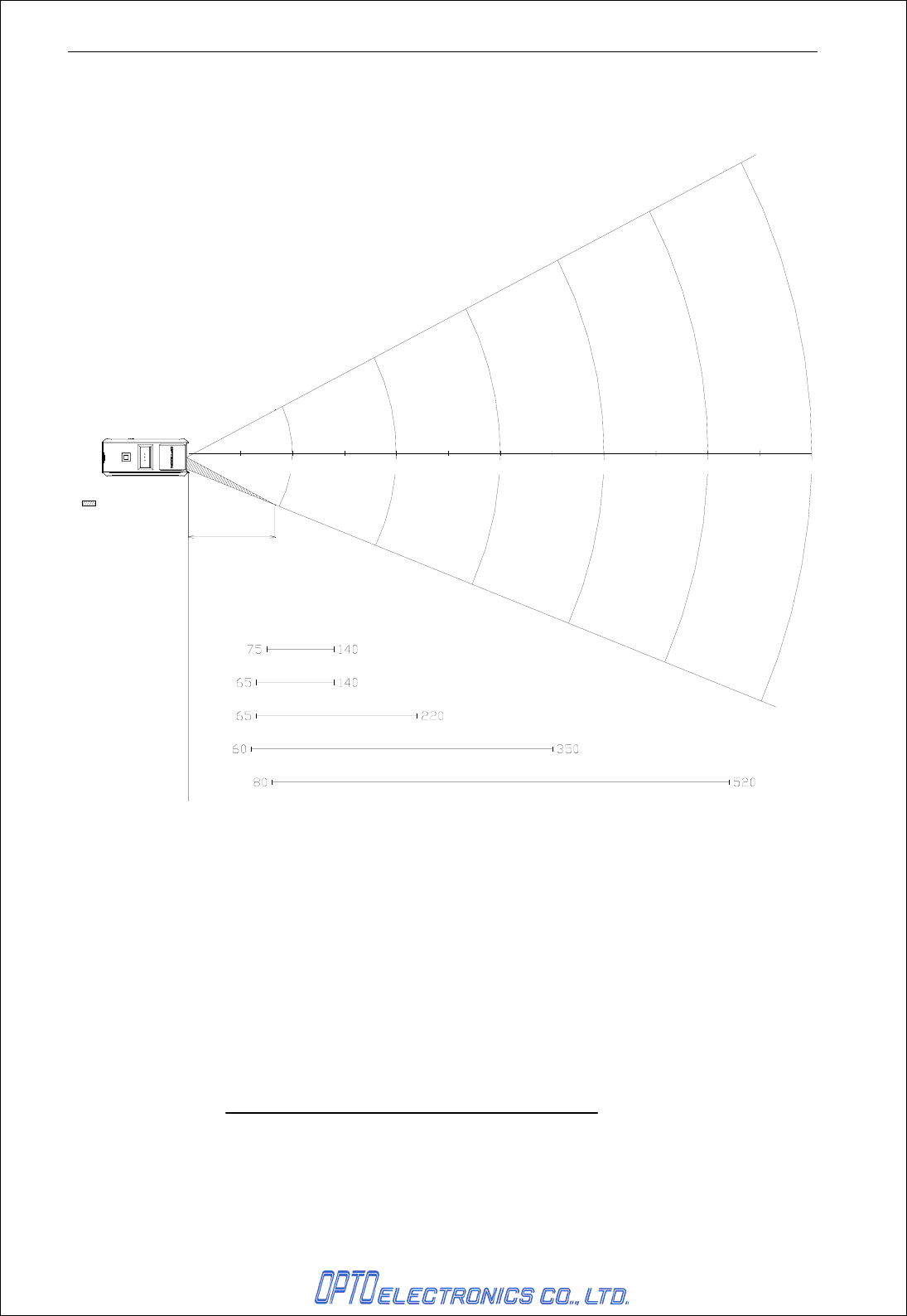

Depth of field
(mm) Code 39
Resolution ( 1.0 ) 70 - 520
OPN-4000i DOC ID：SS13054
3
Item Spedification Note
Minimum PCS 0.3 or more MRD: 32% or more
Main Battery Lithium-ion polymer battery 600mAh(typ.)
Up-time 25hours or more
When a barcode is
scanned twice in 10
sec. at 25 deg. C
Range of
Operation(Charging)
Voltage
4.5 - 5.5 V
Power
Current
consumption Charging <500mA
Operating 0 - 50 ℃
Temperature Storage -20 - 60 ℃
Operating 20%RH - 85%RH No frost,
no condensation.
Humidity
Storage 20%RH - 85%RH No frost,
no condensation.
Fluorenscent 10,000 lx or less Ambient
Light
Immunity Sunlight： 100,000 lx or less
Vibration
Increase the frequency of vibration from 10 Hz
to 100 Hz at an accelerated velocity of 19.6
m/s2 (2G) for 6 minutes each in X, Y and
Z-direction. Repeated this test for 10 times.

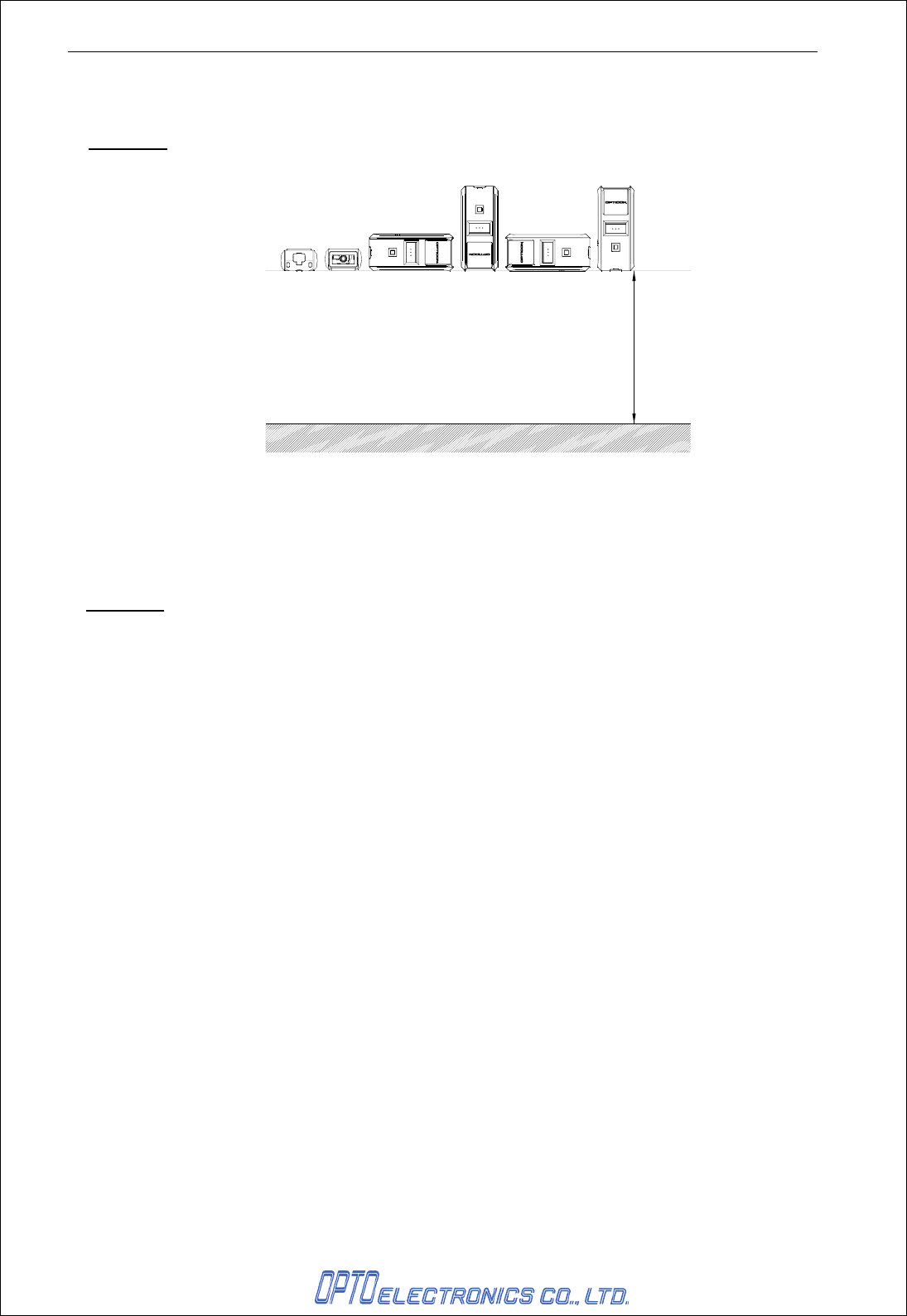

Drop
Drop 3 times, at each 6 faces (right, left, front,
back and top), from a height of 120 cm onto a
concrete surface.
Environmental Specification
Dust and drip proof IP42
LED safety IEC 62471:2006 Exempt Risk Group Peak Wavelength ：
624 nm
Safety standards EN60950-1:2005
IEC60950-1:2006
EMC
EN 55022:2010
EN 301 489-1 V1.9.2
EN 301 489-17 V2.1.1
EN 300 328 V1.7.1
FCC Part 15 Subpart C , Subpart B ClassB
VCCI ClassB
For residential,
commercial and
light-industrial
environments
Product safety CE Marking
Regulatory
Other Bluetooth logo certification
MFi License program
No
destruction 15kV (Air)
Immunity
test
ESD
immunity No
malfunction 8kV (Air)
Condition:
IEC61000-4-2
compliant
Dimensions 83.0(D) × 36.0(W) × 21.5(H) (mm)
Physical
Features
Weight Approx. 52g Excluding
the accessories
OPN-4000i DOC ID：SS13054
4

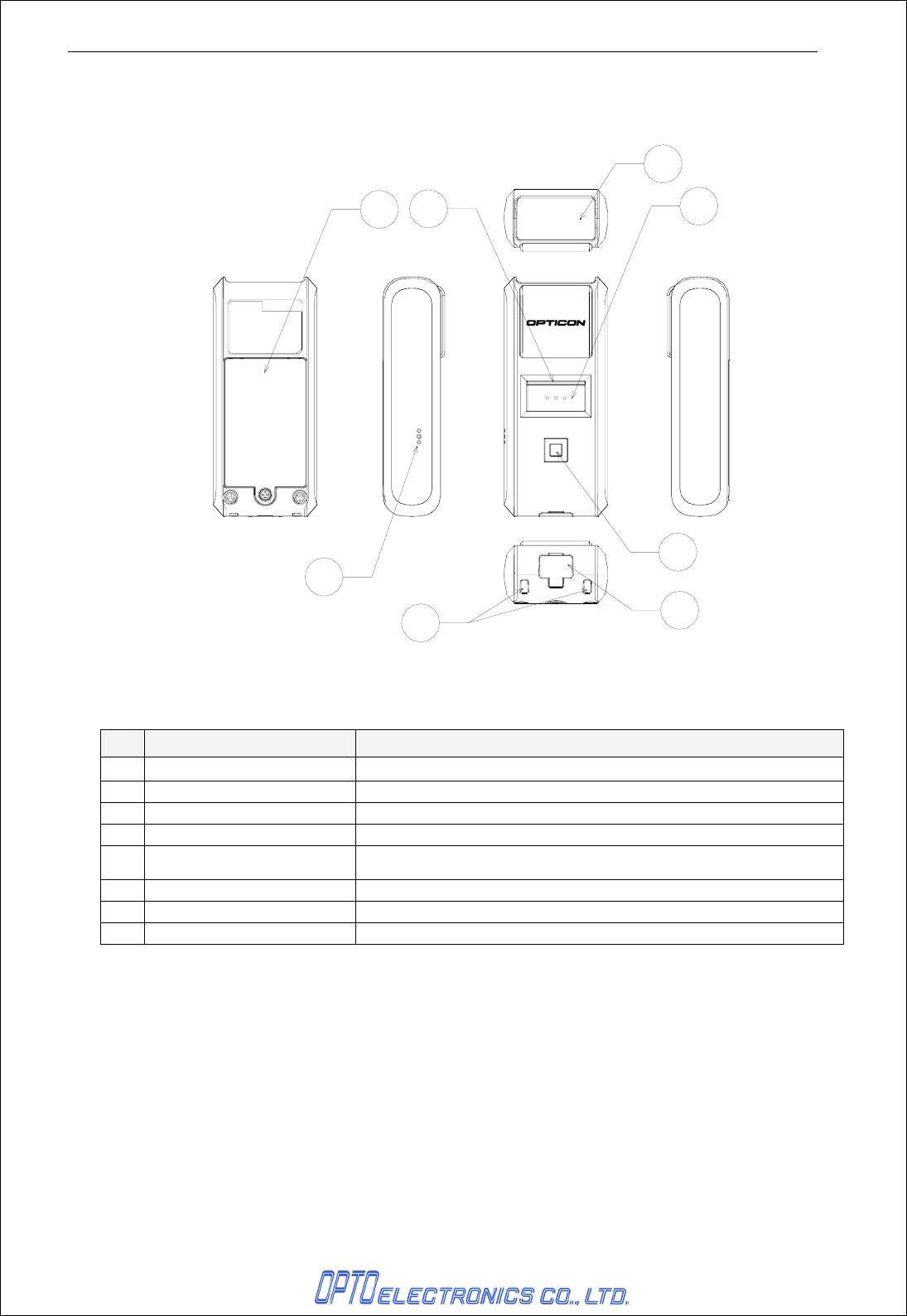

4. Detailed View
1
2
3
4
5
6
7
8
Figure 1: Detailed View
No. Name Description
1 Scanning Window Laser light is emitted through this window to read bar codes.
2 Scanning Window The laser light is emitted through this window.
3 Trigger Key A trigger key used to read bar codes
4 Function Key A function key that can be configured with application
5 LED Indicator of operating status, such as bar code reading and
warnings
6 Buzzer Hole Sound from a built-in buzzer comes out through these holes.
7 Strap Hole A hole to attach a hand strap
8 Battery Box Cover A cover is opened to remove battery.
OPN-4000i DOC ID：SS13054
5
5. Electrical Specifications
5.1. ＵＳＢ
・Voltage ： 4.5-5.5V
・Bus-Power Class ： Hi-Power ( 500mA max )
・Current consumption ： <500mA
5.2. Charging Cradle
・Voltage ： 4.5-5.5V
6. Interface
The OPN-4000i supports USB, Bluetooth and serial interfaces.
6.1. USB
This interface supported FULL Speed USB.

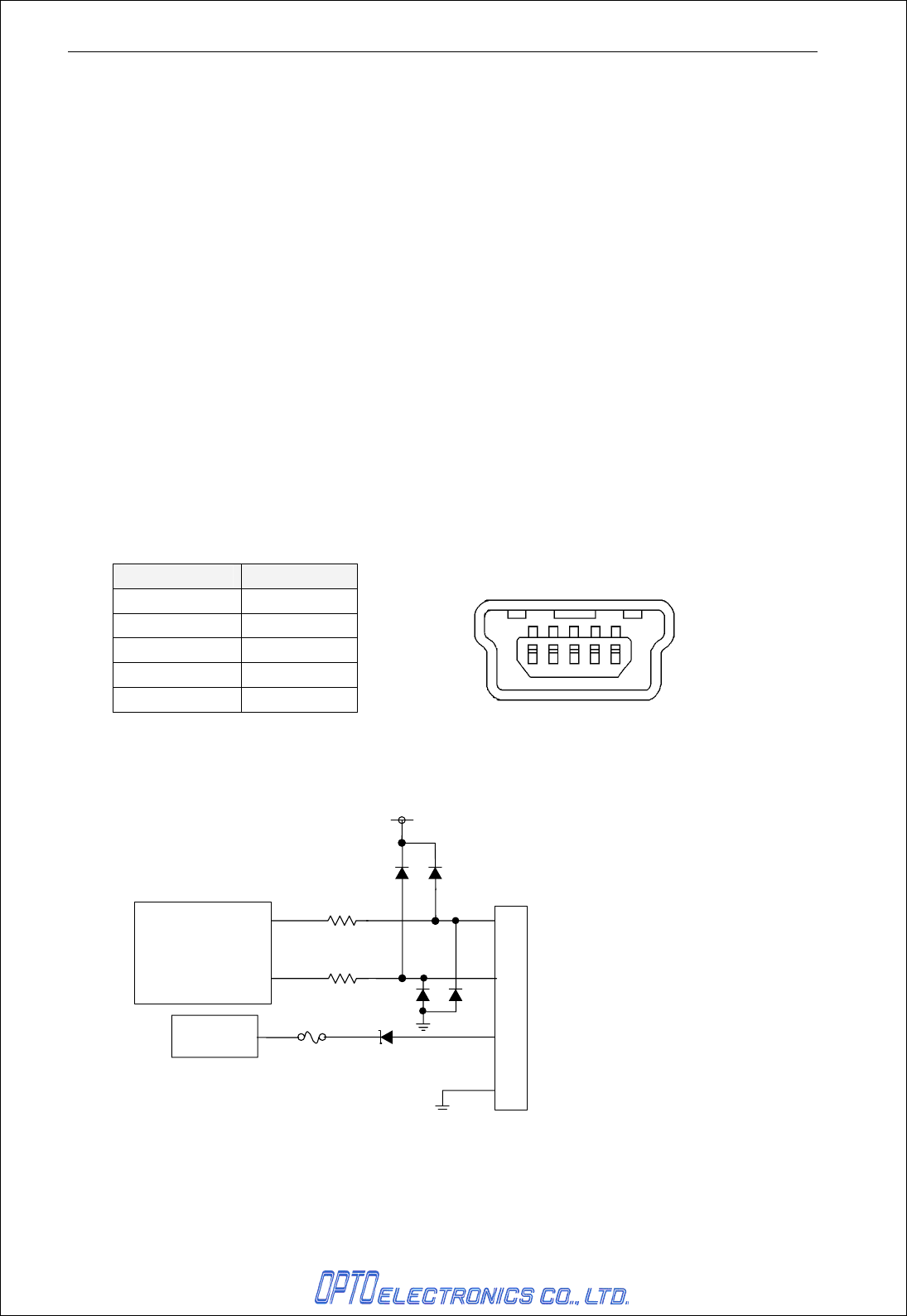

6.1.1. Connector
Signal Pin No.
VCC 1
Data(-) 2
Data(+) 3
( NC ) 4
GND 5
Figure 2 : MINI USB B
コネクタ
6.1.2. USB Interface Circuit
Figure 3:USBInterface Circuit
3
2
1
4
Microcontroller
Data(+)
Data(-)
VCC
GND
USB connector
+5.0V Power
......
5
15
......
OPN-4000i DOC ID：SS13054
6
6.2. Bluetooth
The OPN-4000i supported Bluetooth.
Frequency : 2402MHz - 2480MHz
Specification : Bluetooth Ver2.1
Communication
distance : 10ｍ
Output level : Class 2 (2dBm Max.)
Supported profiles : SPP/HID
Topology of connection : Point-to-point
Operating mode : Master or Slave mode
Security mode : Enabled
Encryption : Enabled
7. Optical Specifications
7.1. Basic Optical Specifications
Item Characteristics
Scan method CCD linear image sensor ―
Number of effective pixel Horizontal 1500dot
Image capture speed (*1 ) Frame rate (*1) 300scan/s
Focal distance Distance from the front edge of
scanner 105 mm
View angle Horizontal Approx. 50°
Red LED ―
Peak wavelength 624 nm
Aiming light source
Maximum radiation output (*2 ) 12lm
*1 The fastest seed of image capture.
*2 Reference value extracted from the datasheet. (25 ℃、IF = 140 mA)
OPN-4000i DOC ID：SS13054
7
7.2. Aiming Pattern
The aiming is used for the following purpose:
1. Fill light when scanning is used.
2. Fill light to recognize the appropriate reading range.
The aiming specifications are as follows:
- An optical axis of imaging field of view and the center of horizontal aiming width coincide at a distance of
L=83±10 mm from the front edge of the scanner.
- The horizontal aiming width to the horizontal width of imaging filed of view at a distance of L=83 is
100%±10%.
エイミング水平幅
L
水平撮像範囲

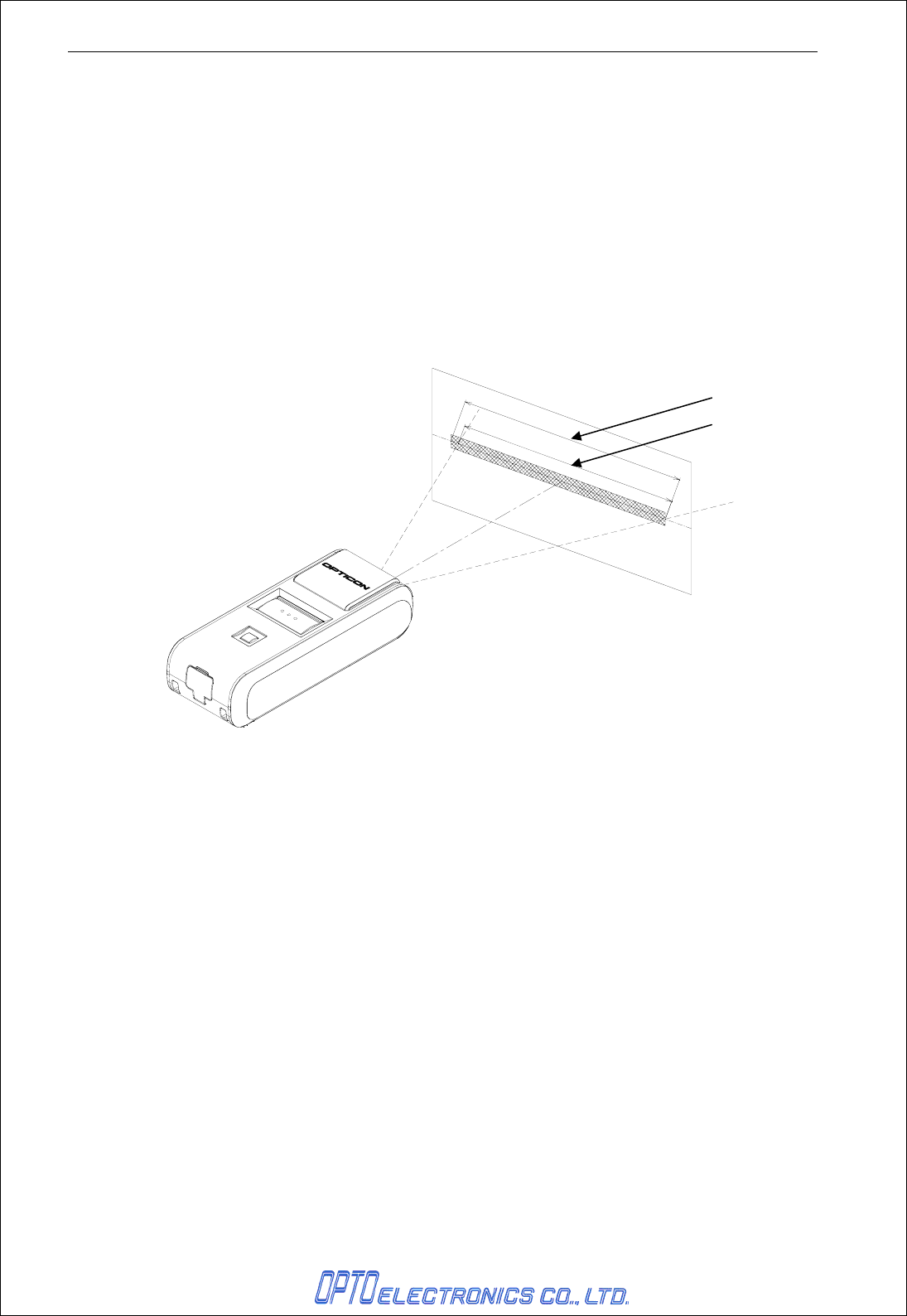

Figure 4 : Aiming Pattern and Imaging Range
Aming width
View width
OPN-4000i DOC ID：SS13054
8
8. Technical Specifications
The conditions for technical specifications are as follows, unless otherwise specified in each section.
<Conditions>
Ambient Temperature and Humidity ：Room temperature, room humidity
Ambient Light ： 200-300 lx
Pitch ： α = 0°
Skew ： β = 15°
Tilt ： γ = 0°
Curvature ： Ｒ = ∞
Power supply voltage ： 3.7 V
Scanning Tests ： Performance is approved when scanning is successful in
all 10 tests. Scanning is deemed successful when completed in 0.5 second or less.
Barcode Test Sample ： Specified below.
< Test chart >
For 1D codes, OPTOELECTRONICS test samples
8.1. Bar code Test Sample
＜Code 39＞
Resolution Symbology PCS Margin No. of Digits
1.0mm 25mm 1
0.5mm 18mm 3
0.25mm 10mm 8
0.2 10mm 34
0.15mm 7mm 10
0.127mm 5mm 4
0.1mm
Code 39 0.9
5mm 4
＜JAN＞
Resolution Symbology PCS Margin No. of Digits
0.26 mm 10 mm 13
0.26 mm 10 mm 8
0.33mm
JAN 0.9
10mm 13
OPN-4000i DOC ID：SS13054
9
8.2. Scan Area and Depth of Field
Distance in this drawing is measured from the front edge of the scanner.
この範囲では読み取
れない場合があります
100 200 300
50 150 250
83
400 500 600
350 450 550
[単位：mm]
Figure 5: Depth of Field
8.3. Printed Contrast Signal (PCS)
0.3 or higher
<Conditions>
MRD : 32% and higher
(70% or higher reflectivity of space and quiet zone)
Distance : 105mm from the front edge of the scanner
Bar Code Sample : UPC specified in Chapter 8. (Resolution: 0.33 mm, PCS: 0.3)
MRD = Minimum reflectance of white bar - Maximum reflectance of black bar
PCS = Reflectance of white bar－Reflectance of black bar
Reflectance of white bar
Resolution:0.127
Resolution:0.15
Resolution:0.25
Resolution:0.5
Resolution:1.0
Unit: mm
OPN-4000i DOC ID：SS13054
10
8.4. Minimum Resolution
0.1mm or higher
<Conditions>
Bar Code Sample : The above codes specified in Chapter 8.1
Distance : 95 mm from the front edge of the scanner
Angle : α = 0°, β =＋15°, γ = 0°
Curvature : R = ∞
8.5. Wide Barcode
Code 39 with width of 110 mm and resolution of 0.2 mm can be read
<Conditions>
Bar Code Sample : 0.20 mm Code 39 / PCS 0.9 specified in Chapter 8.1
Distance : 150 mm from the front edge of the scanner
Angle : α = 0°, β =＋15°, γ = 0°
Curvature : R = ∞
Figure 6 : Wide Barcode
8.6. Petch, Skew and Tilt
Pitch : α ≦ ±50° （※1）
Skew : β ≦ ±65° （※2）
Dead Zone : β ≦ ±8° （※2）
Tilt : γ ≦ ±25° （※3）
<Conditions>
Bar Code Sample : 0.26 mm JAN specified in Chapter 8.1
Distance : 95 mm from the edge of the scan engine
Curvature : R = ∞
※1 ピッチ角度の条件は、β = +15°、γ = 0°、
※2 スキュー角度の条件は、α = 0°、γ = 0°、
※3 チルト角度の条件は、α = 0°、β = +15°とします。
OPN-4000i DOC ID：SS13054
11
β
γ
+
+
+
-
-
-
Figure 7 : Pitch, Skew and Tilt
8.7. Curvature
0.26 mm JAN 8-digit ：R ≧ 15 mm
0.26 mm JAN 13-digit ：R ≧ 20 mm
<Conditions>
Bar Code Sample : 0.26 mm JAN specified in Chapter 8.1
Distance : 150 mm from the edge of the scan engine
Angle : α = 0°, β =＋15°, γ = 0°
R
バーコード
Figure 8: Curvature
Note: Scanning may fail due to the specular reflection of LED illumination when the reflectivity is high.
OPN-4000i DOC ID：SS13054
12
9. Environmental Specifications
9.1. Temperature
Operating : 0 - 50 ℃
Strage : -20 - 60 ℃
9.2. Humidity
Operating : 20 - 85%RH（no condensation, no frost）
Strage : 20 - 85%RH（no condensation, no frost）
9.3. Ambient Light Immunity
Scanning performance is guaranteed when the range of illumination on a barcode surface is the following
values.
Incandescent light : 0 - 10,000 lx
Fluorescent light : 0 - 10,000 lx
Sunlight : 0 - 100,000 lx
<Conditions>
Bar Code Sample : 0.26mm JAN specified in Chapter 8.1
Distance : 95mm from the front edge of the camera module
Angle : α = 0°, β =＋15°, γ = 0°
Curvature : R = ∞
Power Supply Voltage : 3.7 V
* Be sure that the direct light or specular reflection from the light source does not enter the light receiving
section of the OPN-4000i
9.4. Dust and Drip Proof
IEC IP42 equivalent
Protection against solid objects: Level 4
Protected against solid objects greater than 1.0 mm
Protection against liquids: Level 2 (JIS IPX2)
Protected against dripping water from the vertical when tilted up to 15°
9.5. Vibration Strength(without packing)
There shall be no sign of malfunction after the following vibration test.
Vibration test: Increase the frequency of the vibration from 10Hz to 100Hz at an accelerated velocity of
19.6m/s2 (2.0 G) for 30 minutes (60 minutes for a cycle) in the non-operating state. Repeat this in each X, Y
and Z direction.
9.6. Vibration Strength (in individual packing)
There shall be no sign of malfunction after the following vibration test.
Vibration test: Increase the frequency of the vibration from 10Hz to 100Hz at an accelerated velocity of 19.6
m/s2 (2.0 G) for 30 minutes (60 minutes for a cycle) in individually packaged state. Repeat this in each X, Y
and Z direction.
OPN-4000i DOC ID：SS13054
13
9.7. Drop Impact Strength
There shall be no sign of malfunction after the following drop test.
Drop test: Drop the scanner three times (18 times in total), at each 6 face, from a height of 150cm onto a
concrete floor as shown below.
150cm
Figure 10:
Drop test
9.8. Drop Impact Strength (in individual packaging)
There shall be no sign of malfunction after the following drop test.
Drop test: Drop an individually packaged scanner 10 times in total, at any of 1 corner, 3 edges, and 6 faces,
from a height of 150 cm onto a concrete floor.
9.9. Electrical Specifications
Air discharge ±8 kV max. (No malfunction)
±15 kV max. (No destruction)
Measurement environment An electrostatic testing device compliant with IEC 61000-4-2 is
used.
Discharge resistance 330 Ω
Charging capacitor 150 pF
OPN-4000i DOC ID：SS13054
14
10. Regulatory Compliance
10.1. LED Safety
IEC 62471:2006 Exempt Risk Group
10.2. Product Safety
EN60950-1:2005
IEC60950-1:2006
10.3. EMC
R & TTE directive
・EN 55022:2010
・EN 301 489-1 V1.9.2
・EN 301 489-17 V2.1.1
・EN 300 328 V1.7.1
FCC Part 15 Subpart C , Subpart B ClassB
VCCI Class B
Federal Communications Commission Notices
This product complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Harmful Interference Notice
This product has been tested and complies with the specifications for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used according to the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which is found by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment or devices
• Connect the equipment to an outlet other than the receiver's
• Consult a dealer or an experienced radio/TV technician for assistance
Changes or modifications to this equipment that have not been approved by Ruckus
Wireless may void the user's authority to operate this equipment.
This is a Class B product, to be used in a domestic environment, based on the Technical
Requirement of the Voluntary Control Council for Interference from Information
Technology Equipment (VCCI). If this is used near a radio or television receiver in a
domestic environment, it may cause radio interference.
OPN-4000i DOC ID：SS13054
15
10.4. Other
Bluetooth logo certification
MFi License Program
The OPN-4000i uses Bluetooth module which qualifies as radio equipment for low-power radio stations as
specified in the Radio Law 38-24-1.
11. RoHS
The OPN-4000i is compliant with RoHS.
RoHS: The restriction of use of certain hazardous substance in electrical and
electronicequipment, 2011/65/EU.
12. MTBF
MTBF (Mean Time Between Failures) 10,000 hours
13. Precautions
13.1. Precaution against Laser Light
*Use of controls or adjustments or performance of procedures other than those specified herein may result
in hazardous radiation exposure.
Caution - Do not stare into the laser light from a scanning window. It may harm your eyes.
Do not point the laser directly at others’ eyes. It may harm your eyes.
Do not stare into the beam with optical instruments. It may harm your eyes.
13.2. Handling
Handle this product carefully. Do not deliberately subject it to any of the following:
(1) Shock:
• Do not drop this product from a height greater than specified in this manual.
• Do not place this product under or between any heavy items.
• Do not swing this product around holding the hand strap.
(2) Temperature Conditions:
• Do not use this product at temperatures outside the specified range.
• Do not pour boiling water on this product.
• Do not throw this product into a fire.
(3) Foreign Materials:
• Do not immerse this product in water or other liquid.
• Do not expose this product to chemicals.
(4) Others
Specified Radio Equipment：
Low power data communications system in the 2.4GHz band in Article 2 paragraph 1 item (19),
Ordinance of MPT.
Model type of Bluetooth module：OPA-26X1
Number of certification:
201-125603
OPN-4000i DOC ID：SS13054
16
• Do not disassemble this product.
• Do not use this product near a radio or a TV. It may cause reception problems.
• This product may be affected by a momentary voltage drop caused by lightning.
• This product may not perform properly in a place where it will be subjected to a flickering light, such as a
CRT (computer monitor, television, etc.).
13.3. Radio Low
The OPN-4000i uses Bluetooth module which qualifies as radio equipment for low-power radio stations (2.4
GHz band advanced data communication systems) as specified in the Radio Law 38-24-1.
Therefore it does not need to have a radio station license in Japan.
The following activities are prohibited under the Radio Law:
・ Remodeling and disassembly
・ Peeling off the certificate label
Do NOT use the scanner under the following environment, as radio interference may affect other device and
end up with causing physical or material damage.
・ Safety apparatus and medical device for human body protection
・ Environment where is concerned to cause serious damage
13.4. Export Administration Regulations
This product is subject to the strategically controlled exports regulated under “Foreign Exchange and
Foreign Trade Laws”. Therefore, export of this product may require an export permission of Japanese
government.
13.5. Bluetooth
To communicate via Bluetooth, the device which OPN-4000i is connected to must support the same
Bluetooth version and profile as OPN-4000i’s.
・ OPN-4000i is compliant to Bluetooth standards. However, we cannot assure the connection between
OPN-4000i and other Bluetooth devices which have not been tested.
・ Bluetooth supporting devices use 2.4 GHz frequency band. However, many other sorts of devices also
utilize this frequency band. It may have an effect on the communication speed or communication range of
this data collector.
・ The use of OPN-4000i outside of the European Union, the United States and Canada is punishable under
the law.
・ Communication speed and communication range of OPN-4000i may differ due to the obstacles and radio
wave conditions between OPN-4000i and the device, which OPN-4000i is connected to.
・ Conditions of the device, which OPN-4000i is connected to, may also affect the communication speed and
communication range of OPN-4000i.
13.6. Frequency Band
The frequency band 2.4 GHz is utilized by this product. Read carefully the followings before using this
product.
In the frequency band of this product, scientific, medical and industrial devices including microwaves are
used. Also other radio stations including local private radio station for mobile object identification requiring
license for such as manufacturing lines at factories, specific power-saving radio station requiring no license
and amateur radio station are managed.
1. Please make sure that “other radio stations” are not managed in the frequency band 2.4 GHz before
OPN-4000i DOC ID：SS13054
17
using this product.
2. In case that radio interference occurs between this product and “other radio stations,” change the
service space immediately, or stop transmitting radio wave to avoid the interference.
3. If you have any questions or troubles, please contact our sales office.
* This s
p
ecification manual is sub
j
ect to chan
g
e without
p
rior notice.
OPN-4000i DOC ID：SS13054
18
14. Product Label
The labels shown below are attached to the back side of the data collector.
Figure 11:
Product & Laser Caution Label
Unit:mm
OPN-4000i DOC ID：SS13054
19
15. Packaging Specifications
15.1. Individual Packaging Specification
Assembled package size: 125 x 112 x 40 (WDH mm)
【国内向】 個装箱ﾊﾞｰｺｰﾄﾞﾗﾍﾞﾙ （3A0002）
MADE IN
▲▲▲▲▲
Model No.
MODEL NEME
Spec No.
*ﾊﾞｰｺｰﾄﾞ*
*△△△△△△*
Serial No. Quantity 1
Item No.
Ｒｏ
*XF2OPN4000*
*-*
OPN-4000i-WHT
AIR PACKING
OPN10018003-0-01
Neck strap
Poly bag
Mini USB cable
BOX
No.OPN20018001-0-00
＊折り目にﾊﾞｰｺｰﾄﾞがかからない事
ｼﾘｱﾙNo.の表示について
『 123456 』
123456＝製品ｼﾘｱﾙNo.
6桁のｼﾘｱﾙNo.を表示
【原産国表示】～country of origin～
中国生産（produced in China）＝MADE IN CHINA
日本生産（produced in Japan）＝MADE IN JAPAN
ﾃｰﾌﾟ止めはしないで折り返したまま
折り返しを下にして箱に詰める
QUICK START GUIDE
一番上に乗せる
Figure 12:
個装梱包図
OPN-4000i DOC ID：SS13054
20
15.2. Collective Packaging Specification
Assembled package size: 595 x 520 x 245 (WDH mm), 100 pieces/box
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
①
5段入り
Carton Box（5B0008）100台入り
①1～5
②6～10
③11～15
④16～20
⑤21～25
⑥26～30
⑦31～35
⑧36～40
⑨41～45
⑩46～50
⑫
⑪
⑬
⑭
⑮
⑯
⑰
⑱
⑲
⑳
⑪51～55
⑫56～60
⑬61～65
⑭66～70
⑮71～75
⑯76～80
⑰81～85
⑱86～90
⑲91～95
⑳96～100
ｼﾘｱﾙNo.の順序
（3C0006） （3C0007）
C/No.
△△
MADE IN
▲▲▲▲▲
3
*
△△△△△△
*
OPTOELECTRONICS CO.,LTD.
Missing Serial Number Missing Q'ty △△
4
5
6
7
8
9
10
11
12
*
△△△△△△
*
*
△△△△△△
*
*
△△△△△△
*
*
△△△△△△
*
*
△△△△△△
*
*
△△△△△△
*
*
△△△△△△
*
*
△△△△△△
*
*
△△△△△△
*
*XF2OPN4000*
*
-
*
C/No.
△△
MADE IN
▲▲▲▲▲
Product
OPN-4000i-WHT
PO#
*
△△△△
-
△△
*
Spec#
Q'ty
*
△△
*
△△
/
△△
S/N(from)
*000001*
S/N(to)
*000
▲▲▲
*
Missing Serial Number Missing Q'ty △
1
*
△△△△△△
*
2
*
△△△△△△
*
ROM-Ver.(Bluetooht)
Shipping Date
TD01J**
20△△/△△/△△
OPTOELECTRONICS CO.,LTD.
Ｒｏ
Item# ﾊﾞｰｺｰﾄﾞ
ROM-Ver.(MAIN) TC08J**
Ａ ：【国内向】 外装箱ﾊﾞｰｺｰﾄﾞﾗﾍﾞﾙ
正面と背面の2ヶ所に貼付（面の中央付近）
Ｂ：【国内向】 Missing Serial Numberﾗﾍﾞﾙ
欠品が3つ以上の場合にのみ貼付する
Aﾗﾍﾞﾙと並べ 正面と背面の2ヶ所に貼付(面の中央付近)
【原産国表示】～country of origin～
中国生産（produced in China）＝MADE IN CHINA 日本生産（produced in Japan）＝MADE IN JAPAN
※弊社製品用の梱包箱に貼られております Ro のマークは、当該製品が弊社の判断により RoHS 指令
（The restriction of use of certain hazardous substance in electrical and electronic equipment, 2011/65/EU.）
に適合したことを宣言するものです。
Figure 13:
集合梱包図
OPN-4000i DOC ID：SS13054
21
16. Warranty
16.1. Warranty period
OPTOELECTRONICS Co., Ltd. warrants that this product is free of defects or malfunctions for a
period of twelve (12) months from its shipment. In case of having defects or malfunctions caused by
normal usage in accordance with this specification during the foregoing warranty period,
OPTOELECTRONICS shall repair or adjust the product free of charge.
Any repair or replacement of the product after the foregoing warranty period shall be charged at
regular repair rates.
If defects or malfunctions were caused by customer mishandling, product repairs or replacement will
be charged at regular repair rates, even during the foregoing warranty period.
16.2. Delivery
Products for maintenance or repair shall be sent back to OPTOELECTRONICS. The sender is
responsible for all shipping costs.
16.3. Repair Timeframe
Repaired products shall be shipped back to the customer within 20 days after acceptance by
OPTOELECTRONICS.
Expedited repairs may be available, subject to terms agreed to by OPTOELECTRONICS and the
customer.
16.4. Maintenance Period
The maintenance period of this product is 5 years after its shipment.
OPTOELECTRONICS may discontinue maintenance for this product during the 5-year maintenance
period if a satisfactory replacement product or maintenance solution is agreed to.
16.5. Other
Any additional warranty issues must be discussed with OPTOELECTRONICS on a case-by-case
basis.
17. Physical Features
17.1. Dimensions
83.0(D) × 36.0(W) × 21.5(H) (mm)
17.2. Weight
Approx. 52g （Excluding the accessories）
OPN-4000i DOC ID：SS13054
22
17.3. Mechanical Drawing
Figure 14:
Outline drawing
Unit:mm
OPN-4000i DOC ID：SS13054
23
18. Supported Symbologies
18.1. Menu Barcode for Default Setting
Menu barcodes are prepared for the default setting to make the setting easier.
Functions Menu labels Menu codes
SET _ZZ_ ZZ
Default _SO_ SO
END _ZZ_ ZZ
18.2. Supported Symbologies
18.2.1. 1D symbologies
Code type Default Remarks Code type
UPC ○ -
UPC Add-on 2
UPC Add-on 5
EAN(JAN) ○ -
EAN Add-on 2
EAN Add-on 5
EAN-13 ○
EAN-13 Add-on 2
EAN-13 Add-on 5
EAN-8 ○
EAN-8 Add-on 2
EAN-8 Add-on 5
Code 39 ○ 1 Not transmit ST/SP
Tri-Optic ○ - Not transmit ST/SP
Codabar (NW7) ○ 5 Not transmit ST/SP
Industrial 2of 5 ○ 5
Interleaved 2of 5 ○ 6
S-Code 5
Code 128 ○ 1 GS1 conversion (setting
required)
Code 93 ○ 1
IATA ○ 5
MSI/Plessey ○ 3
UK/Plessey 2
Telepen ○ 1
Code 11 1
Matrix 2 of 5 5
Chinese Post Matrix 2 of 5 -
Korean Postal Authority -
OPN-4000i DOC ID：SS13054
24
18.2.2. GS1 Databar, Composite Code
Code type Default Remarks
GS1 DataBar
・GS1 DataBar Omnidirectional
・GS1 DataBar Truncated
・GS1 DataBar Stacked
・GS1 DataBar Stacked Omnidirectional
GS1 DataBar Limited
GS1 DataBar Expanded
・GS1 DataBar Expanded
・GS1 DataBar Expanded Stacked
GS1 conversion (setting
required)
