Master Specifications
Handy Laser Scanner
Product Name OPR-3301
Specification No. SS08xxx
Edition Initial release
Date of Publication T.B.D
Original Spec. No. SS08xxx
Optoelectronics Co., Ltd.
4-12-17 Tsukagoshi
Warabi-shi, Saitama
335-0002 Japan
TEL: +81 (0) 48-446-1183
FAX: +81 (0) 48-446-1184
OPR-3301 SS08xxx
Revision History
Specification Number: SS08xxx
Product Name: OPR-3301
Revision Date Section Description of Changes
Initial T.B.D -
OPR-3301 SS08xxx
Table of Contents
1. Overview ...................................................................................................................1
2. Abstract .....................................................................................................................1
3. Basic Specifications...................................................................................................1
4. Detailed View ............................................................................................................3
5. Electrical Specifications.............................................................................................4
6. Optical Specifications ................................................................................................6
7. Technical Specifications.............................................................................................6
8. Bluetooth ...................................................................................................................9
9. Default Setting.........................................................................................................10
10. Default Setting.......................................................................................................13

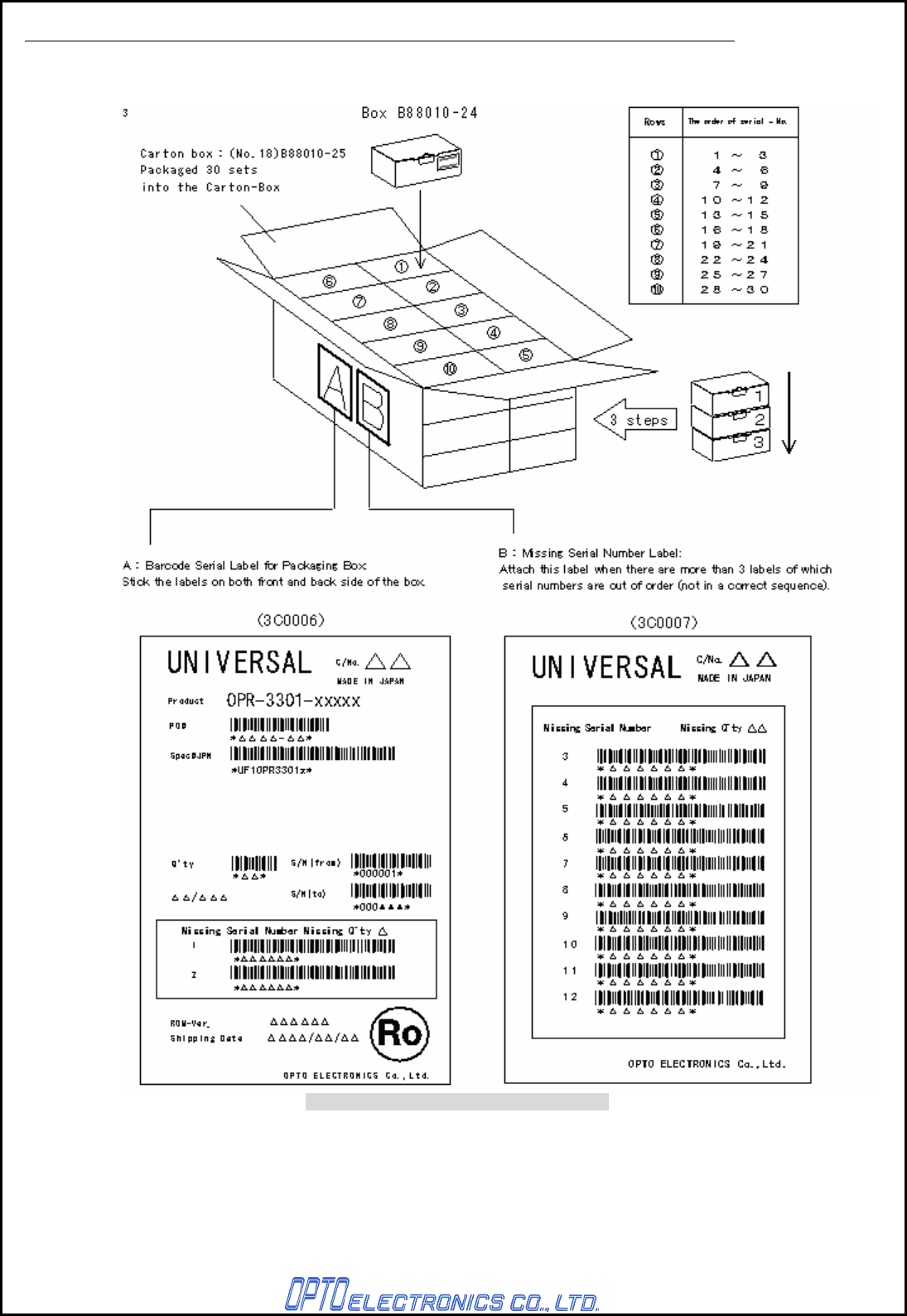

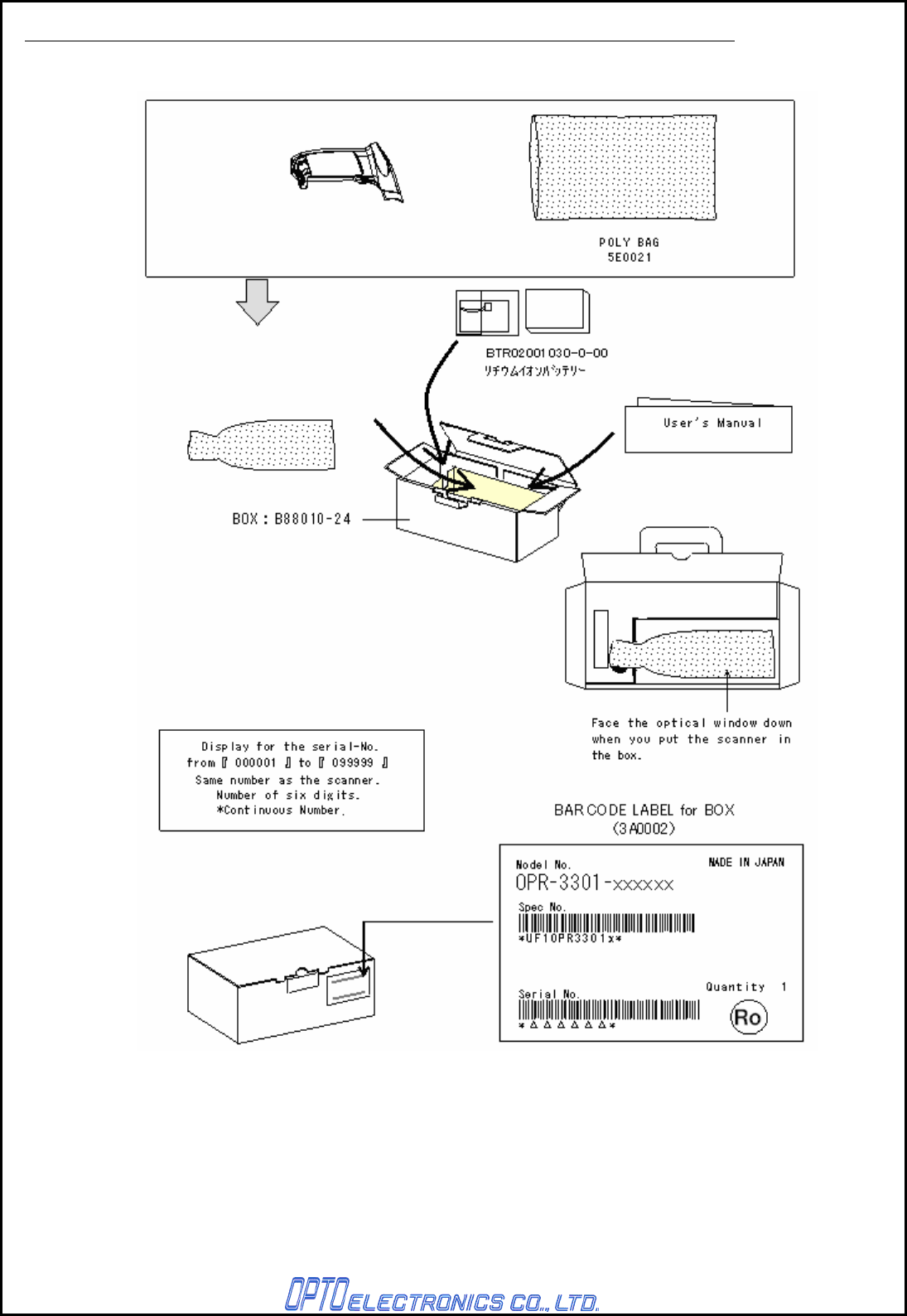

11. Packaging Specifications .......................................................................................14
12. Environmental Specifications.................................................................................16
13. Reliability ...............................................................................................................18
14. Warranty................................................................................................................18
15. Regulatory Compliance .........................................................................................19
16. RoHS.....................................................................................................................19
17. Precautions ...........................................................................................................20
18. Auto Trigger ...........................................................................................................22
Appendix. Mechanical Drawing ...................................................................................23
OPR-3301 SS08xxx
1. Overview
This manual provides specifications for the wireless handy laser scanner, OPR-3301.
2. Abstract
The use of a short-wavelength red laser beam enhances the visibility of scanning lines.
・ Efficient reading performance using laser light
The use of a short-wavelength red laser beam enhances the reading performance.
With a high level -visibility of scanning lines and its gun-type grip, it is easier to target the
objective barcodes and it release operators from the physical load.
・ Wireless Communication via Bluetooth Interface
Bluetooth wireless communication raises efficiency of work with the Bluetooth wireless
communication which supports 10meters distance and it is compliant with Class 2.
・ Dedicated cradle
OPR-3301 can be charged by replacing the unit on the dedicated cradle.
It takes about 5hours to fully charge the unit.
・ Wide variety of Supported Symbologies
EAN / JAN / UPC / Industrial 2of5 / IATA/Interleaved 2of5 / NW-7(Codabar) / Code 39 / Code
93 / Code 128 / MSI/Plessey / ISBN / GS1 DataBar / MicroPDF417 and so on.
Please refer to the section 10 for further information.
・ RoHS
OPR-3301 is compliant with RoHS.
(However, it is assessed by Optoelectronics Co., Ltd. and the assession does not have any
legal weight in the EU.)
OPR-3301 SS08xxx
1
3. Basic Specifications
Item Specifiaction Remark
MPU 32 bit ST Micro STR710FZx Clock:48MHz
FROM
1Mbits
Control Section
SRAM 1Mbits
Frequency 2402MHz to 2480MHz
Specification Bluetooth Ver1.2 Compliant Supported profile: SPP, HID
Transmission output Class 2(4dBm or less)
Communication range 10m The communication distance may vary.
Baud rate 115.2kbps
Wireless
communication
section
Antenna 1/4λ (Surface mounted type)
Reading method 1.0mW or less 100±20scan/sec
Light emitting element Red laser diode Wave length: 650±10nm (25°C)
Optical
Section
Light output ≤ 1.0mW Laser Class 2 product
Symbology
EAN / JAN / UPC / Industrial
2of5 / IATA/Interleaved 2of5
/ NW-7(Codabar) / Code 39
/ Code 93 / Code 128 /
MSI/Plessey / ISBN / GS1
DataBar / MicroPDF417
Please refer to the section 10 for further information.
Minimum resolution 0.127mm Code 39 (PCS 0.9)

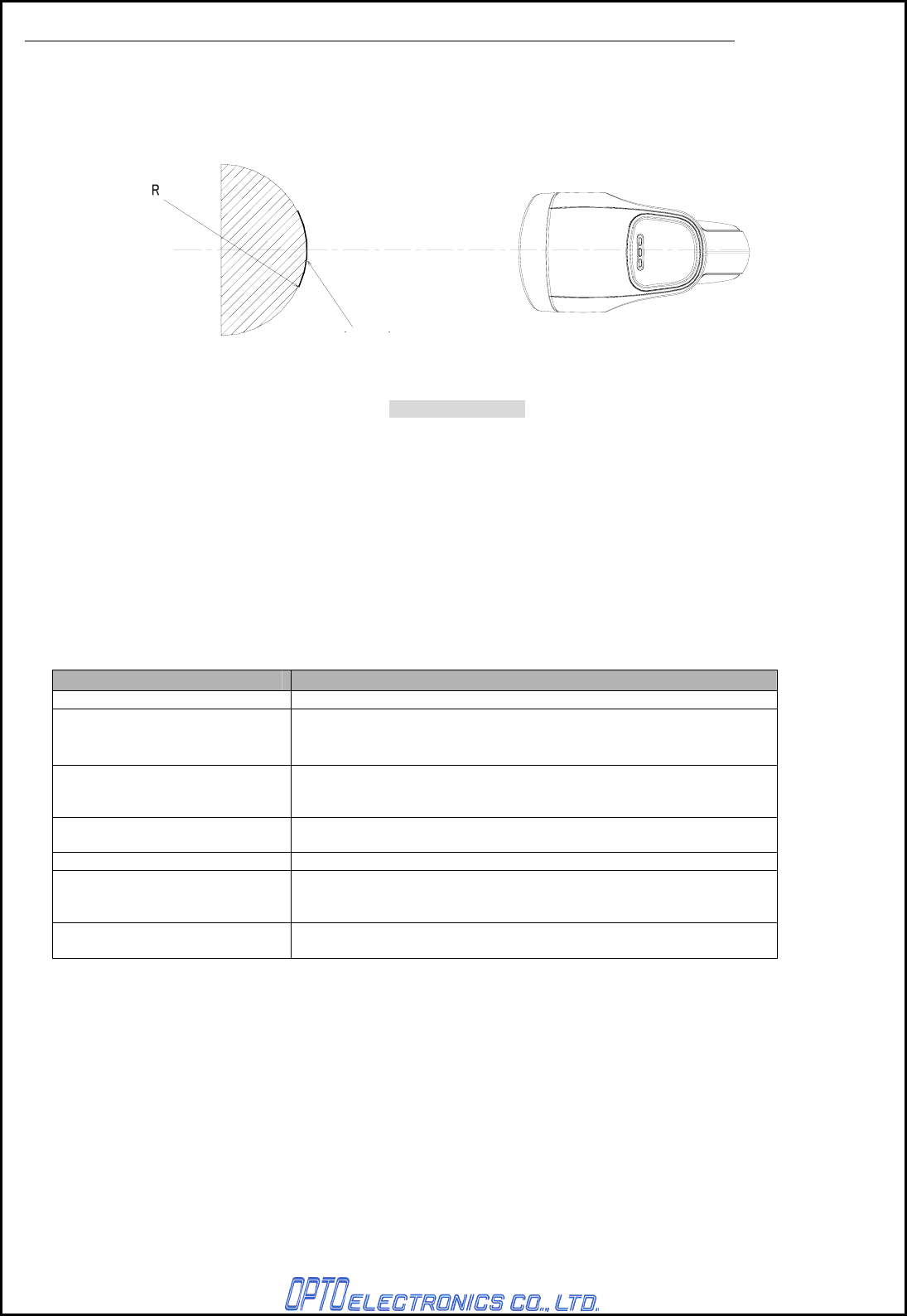

Curvature R≥15 mm (8-digit JAN)
R≥20 mm (13-digit JAN) PCS 0.9
Pitch: α≤±35°
Skew: β≤±50°(Excluding
dead zone)
Scan angles
Tilt: γ≤±20°
PCS 0.9
Resolution (1.0)
40 to
500m
m
Resolution (0.5)
20 to
350m
m
Resolution (0.25) 20 to
200mm
PCS 0.9

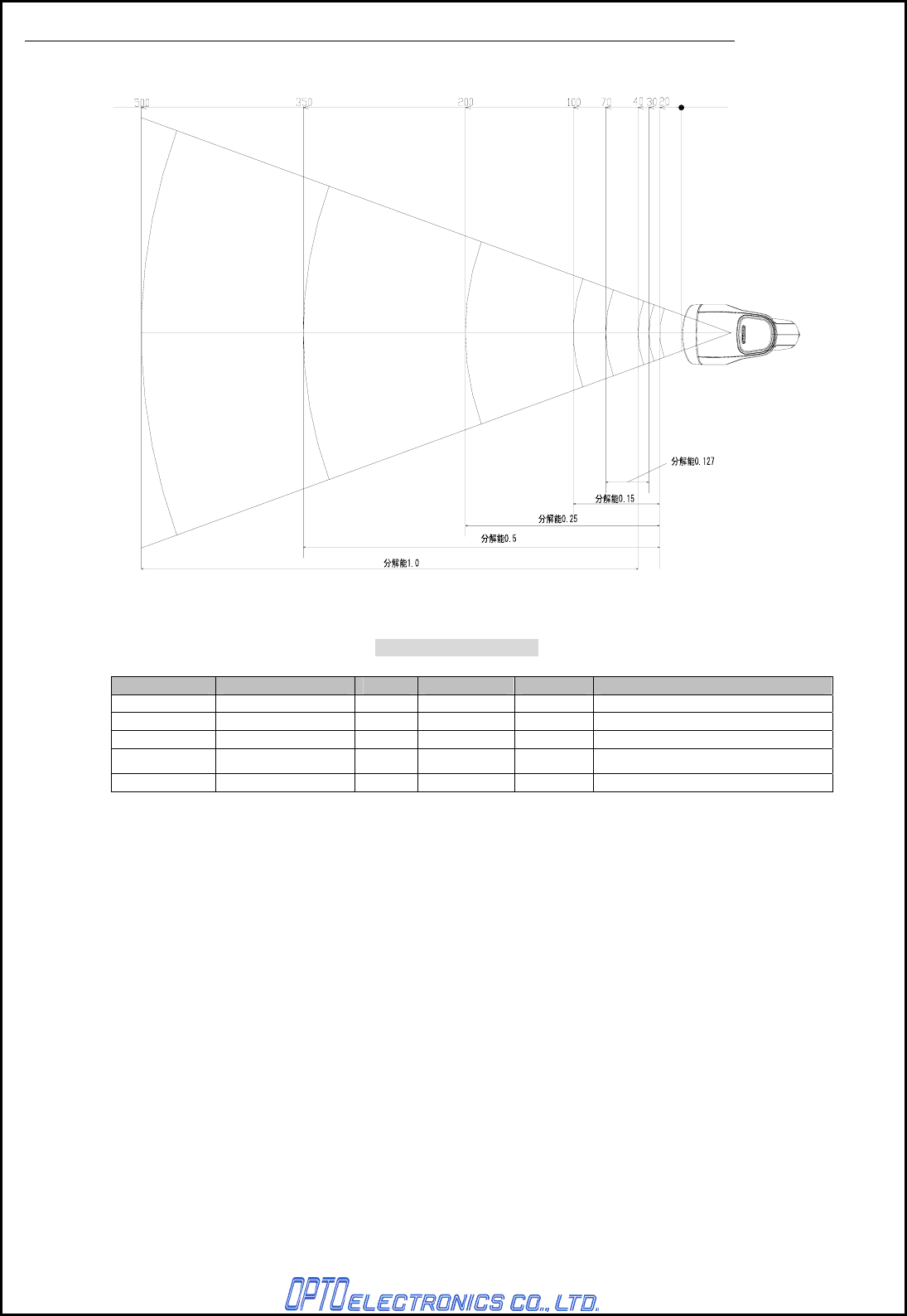

Depth of
Field (mm) Code 39
Resolution (0.127) 30 to
70mm
Technical specifications
Minimum PCS 0.45 or higher Over 70% of reflectivity of space and quiet zone
Lithium-ion secondary
battery
Specification Nominal capacity: 1000mAh
Nominal voltage: 3.7V
When discharging at 0.2CA
Main
battery
Charging
time
- About 5hours
(with using the dedicated
AC adapter )
- About 10hours
(with using the dedicated
USB Bun power supply)
Peak 220 mA When scanning and decoding
Average 165 mA When scanning and decoding
Consumption
current
(at 3.7 V ) Idle 30 mA (typ) When idle without connection to communication line
When idle About 48hours
Power supply section
Battery life In use About 15hours
*When the battery is fully charged and operation is
1scan/5sec.
OPR-3301 SS08xxx
2
Item Specifiaction Remark
Operation -5 to 50°C When charging: 0 to 40°C
Temperature Storage -20 to 60°C
Operation 5 to 95 %
(No condensation, no frost)
Humidity
Storage 5 to 95 %
(No condensation, no frost)
Incandescent
light 3,000 lx or less
Ambient
light
immunity Sun light 50,000 lx or less
Code 39 (Resolution: 0.25mm)
Light axis:75° Depth: 70mm
Dust and drip proof IP42 compliant
Vibration
No malfunction occurred after the following
vibration test.
Vibration test: Increase the frequency of the
vibration from 10 Hz to 100 Hz with accelerated
velocity 19.6 m/s2 (2 G) for 60 minutes in
non-operating state. Repeat this routine in each
X, Y, Z direction once for 60 minutes each.
Environmental Specifications
Shock
No malfunction occurred after the following drop
test.

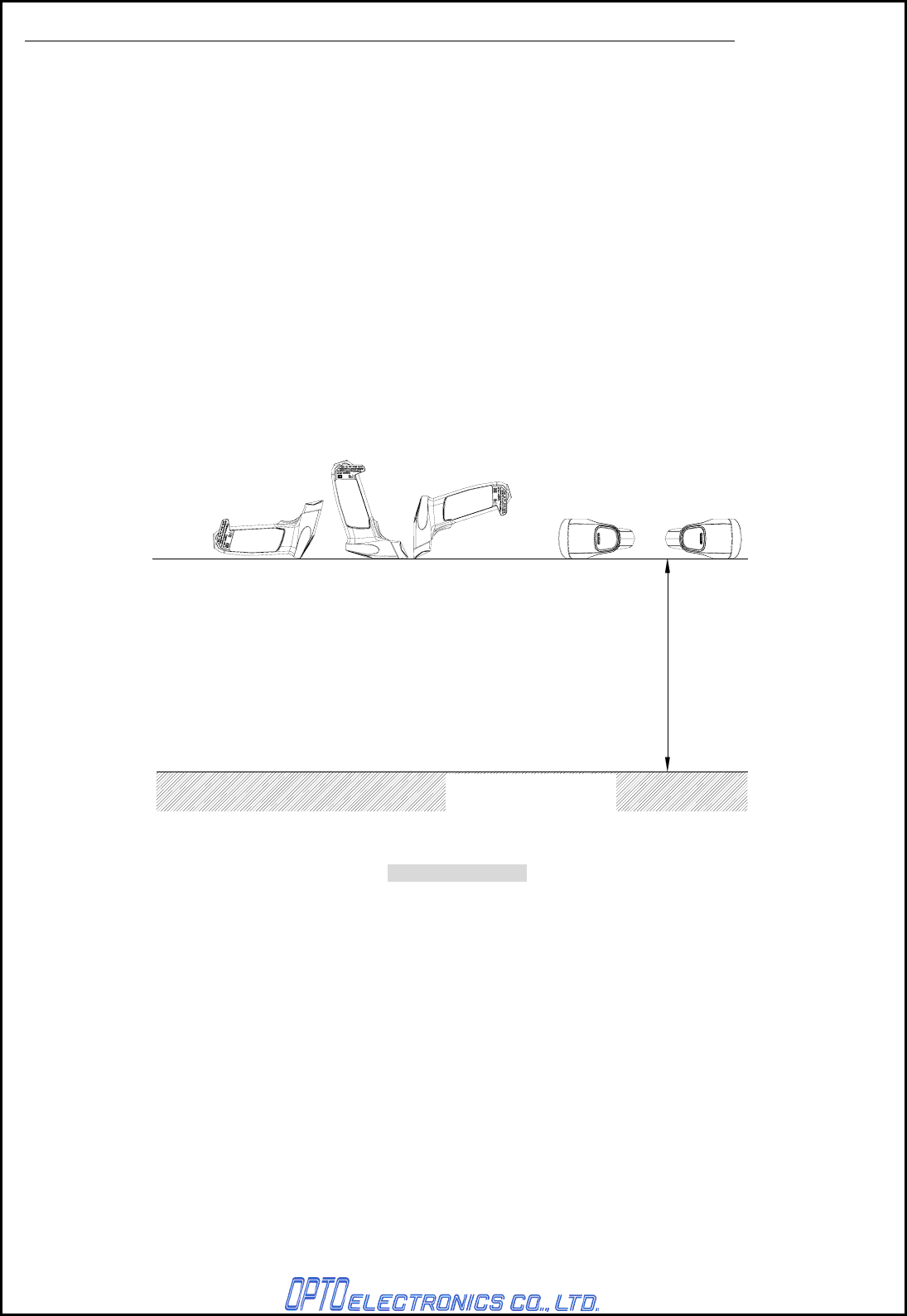

Drop Test: Drop the scanner from a height of
120 cm onto a concrete floor (three times in
each of 6 angles).
Laser safety JIS C 6802:2005 class 2
IEC 60825-1+A2:2001 Class 2
EMI
VCCI Class B/EN55022 CLASS B/FCC
Part15,C
For residential, commercial and
light-industrial environments
Product safety IEC/EN 60950-1
Immunity EN61000-6-1 Class-B
CE Marking
Others Certification for Construction Design of
Specified Radio Equipment Radio low
Regulatory compliance
Logo certification Bluetooth logo certification
No
malfunction
15 kV
(Impressed static electricity of 15kVfor 50 times
on the surface of the scanner)
Static
electricity
No destruction
Contact Discharge (direct / indirect): ± 6 kV
Air Discharge (direct):± 8 kV
Condition:
IEC:61000-4-2 compliant
Frequency 80 to 1000 MHz
Level 3 V/m
Amplitude
Modulation
AM 80 % (AM)
Condition:
IEC61000-4-3 compliant
Frequency 0.15 to 80 MHz
Level 3 V
Radio
Frequency
Common
Mode AM 80 % (AM)
Condition: IEC61000-4-6 compliant
Frequency 50, 60 Hz
3 A/m
Immunity Test (*)
Power
supply
frequency
magnetic
field
Dip 1 30 % drop, 0.5cycles
Condition: IEC61000-4-8
compliant
About 56(W) × 113(D) × 132(H) (Unit: mm)
Physical
features About 110g
*Includes when using OPR-3301 with a communication cradle, CRD-3301.
OPR-3301 SS08xxx
3

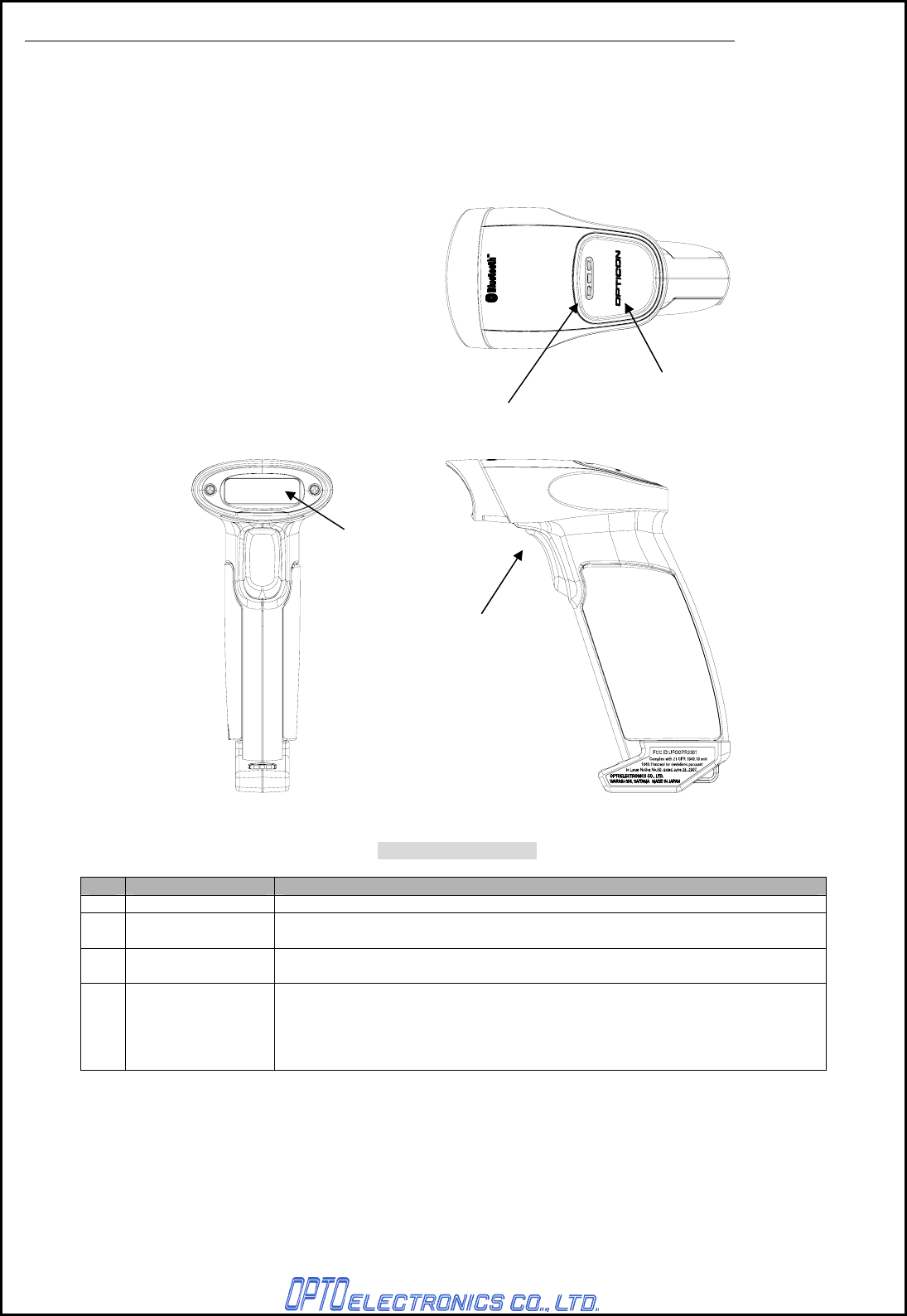

4. Detailed View

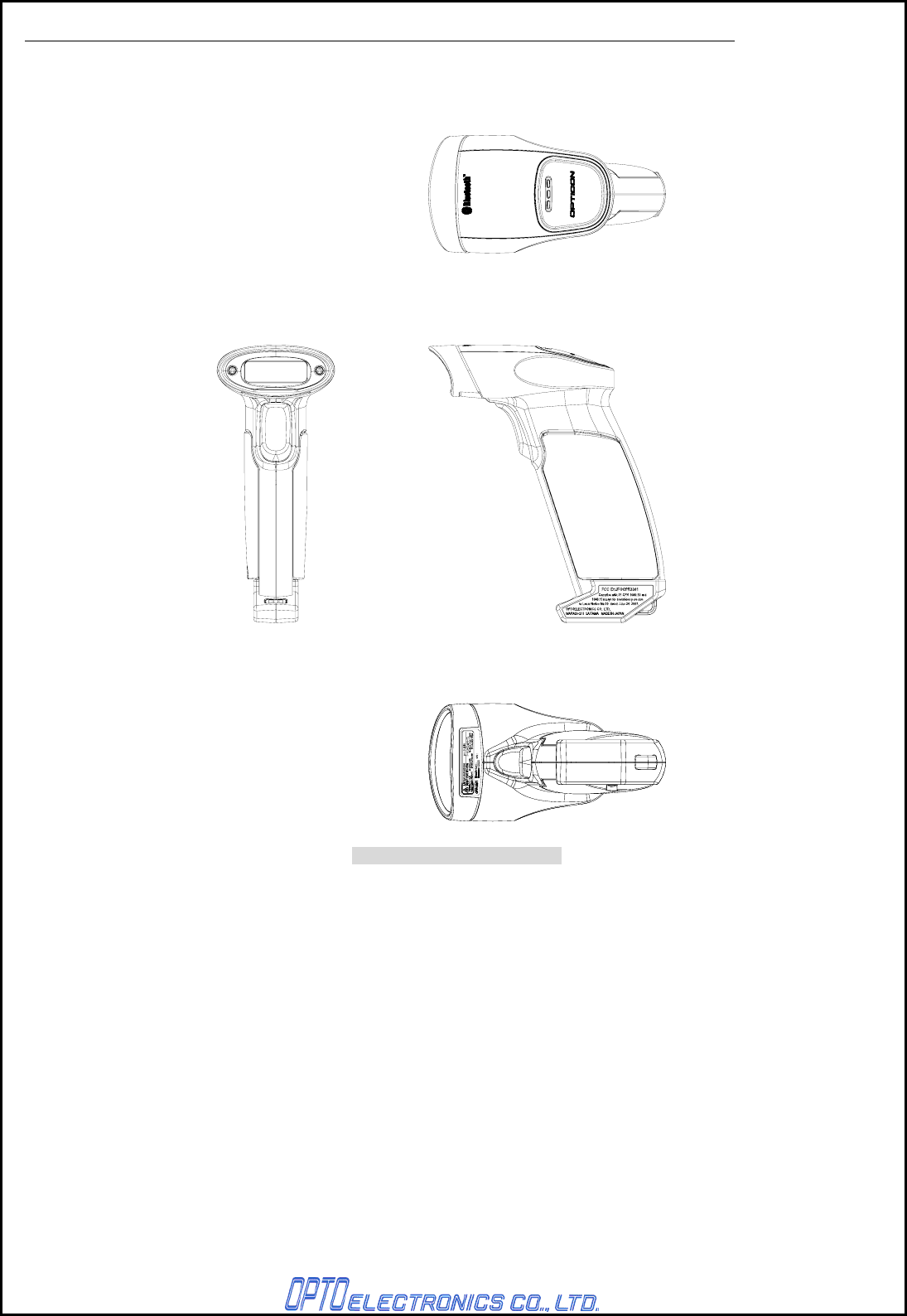

Figure 1: Detailed view
No. Name Function
1 Trigger switch To capture and decode a barcode image, you need to press the trigger switch.
2 Light receiving lens The scanner captures a barcode image through a light receiving lens. Make sure
the lens is clean before scanning.
3 Status LED
The status LED lights up green when the scanner registers a successful read.
4 Buzzer holes
The buzzer sounds through these holes. The buzzer cannot be heard when
those holes are covered.
The buzzer sounds upon the completion of scanning. Buzzer settings can be
configured in various ways. You can enable or disable the buzzer as well as
change the buzzer loudness or duration.
1
2
3
4
OPR-3301 SS08xxx
4
4.1. Status LED and Buzzer
OPR-3301 notifies its operation state with LED and buzzer on its head section.
Status LED Indication Details of the status Buzzer
Red Lighting Shows that the scanner is being charged after setting it on the cradle.While
charging Green Lighting Shows the completion of charging. ---
Blue Shows that scanning of the barcode or transmission of scanned has
been done successfully.
Trrr
Red Shows that the scanned data was not successfully transmitted. Pip
Barcode
scanning
Green
Blinking
Shows that scanned data is being stored in memory. Pip
Continuously
blinking Shows that the scanner is making connection to Bluetooth. ---
Blue Lighting Shows that Bluetooth connection was made successfully. Pip,
peep
Connecting
Bluetooth
Red Lighting Shows that Bluetooth connection was not made successfully. Pip,
Pip, Pip
Shows that Bluetooth was disconnected.
Disconnecting
Bluetooth Red Lighting
Shows that the Bluetooth device is out of range and the connection
was disconnected.
Trrr
Low battery
power Red Continuously
blinking Shows that the battery is running out. Please charge it immediately. ---
5. Electrical Specifications
5.1. Configuration
OPR-3301 consists of following sections:
- Decode section
It decodes signals from laser module section which transmits scanned data via analogue output.
Bluetooth communication section which controls system is also included in this section.
- Interface section
Power supply section and charging control and user interface is included.
Power is supplied from a batter pack or CRD-3301.
F-ROM
ﾚｰｻﾞｰｴﾝｼﾞﾝ
アナログ
ASIC
POWER 6pin
ＣＰＵ
S-RAM
BATTERY
3pin
PWBサブ
リチウムイオン
Battery
Figure 2: Electrical specifications
5.2. Consumption Current
Parameter Specification Remark
Idle 1 30 mA(typ) Bluetooth is disconnected.
Idle 2 35 mA(typ) Bluetooth is connected.
Operation current （Ave.）165 mA When scanning, communicating and LED lights.
Maximum current
（Peak） 220 mA Peak value of operation current.
Measurement condition /
others
・Power supply voltage 3.7V / 25°C
・Operation current was measured while test mode.
OPR-3301 SS08xxx
5
5.3. Charging Current
Status Specification Remark
600 mA or less When connected to RSS232C (using a AC
adapter).
Charging with CRD-3301
300 mA or less
When connected to USB.
Bus power class: Hi-PO WER（500 mA）。
Nom500 mA。
Measurement condition /
others
・Measured at 25°C.
・Temperature should be between 0 to 40°C when charging scanner.
(Charging may be stopped when the temperature is over 40°C due to the thermo
protection.)
・As a protection for when there is a malfunction of power supply, charging will be
stopped when the voltage impressed to the charging terminals is over the range
between 3 to 6V.
5.4. Operation Time and Charging Time
Status Specification Remark
Idle 1 About 55 hours - When Bluetooth is disconnected all the time.
Idle 2 About 48 hours - When Bluetooth is connected all the time.
Battery up time
When scanning About 15 hours - When scanning once in every 5 seconds.
- When Bluetooth is disconnected all the time.
Charging time 1 About 5 hours - When the scanner is connected to CRD-3301
via RS232C.
Charging time
Charging time 2 About 10 hours - When the scanner is connected to CRD-3301
via USB (power supplied from n).
*OPR-3301 may not satisfy the foregoing performance due to battery degradation.
OPR-3301 SS08xxx
6

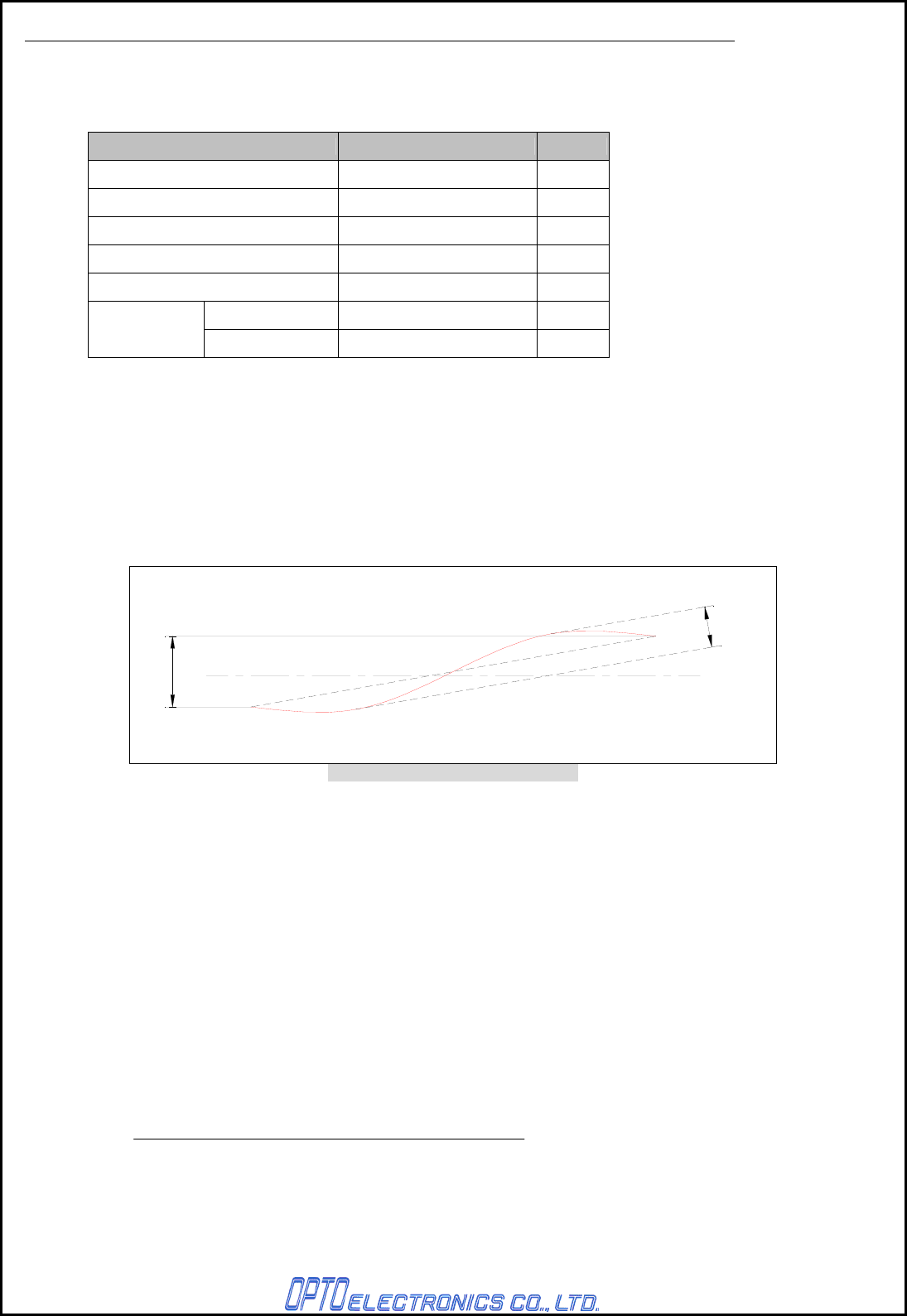

6. Optical Specifications
6.1. Laser Scan Specifications
Parameter Specification Unit
Light-emitting element Red laser diode -
Emission wavelength 650±10 nm (25°C) nm
Light output 1.0 mW or less (Class 1) mw
Scanning method Bi-directional scanning -
Scanning speed 100±20 scans/s
Scan angle 54±5 °
Scan angle
Read angle range 44 (Min) °
6.2. Curvature of Scan
Maximum gap between the straight line connecting both ends of the laser scan line and the actual
laser scan line: Less than 1.27° curvature from the scan origin.
Maximum of 3.3 mm curvature when measured at a point 150 mm away from the scan origin. (The
skew angle of this measurement was zero degrees.)
Measurement was done from the center of scan line.
Horizontal Line
Curvature
Tilt
Figure 3: Laser scan tilt and curvature
7. Technical Specifications
The conditions for technical specifications are as follows, unless otherwise specified in each section.
<Conditions>
Ambient temperature and humidity: Room temperature (5 to 35º C)
Room humidity (45% to 85% RH)
Ambient light: 500 to 900 lx
Background of barcode: Barcode = black
Power supply voltage: 5.0 V
Decoding test: Approve the performance when decoding is successful in all ten tests.
(Decoding is deemed successful when completed in 0.5 seconds or less.)
7.1. Laser Scan Specifications
0.45 or higher (over 70% of reflectivity of space and quiet zone).
PCS=Reflectance of white bar－Reflectance of black bar
Reflectance of white bar
Scanning performance may decline if dirt or scratches mar the optical window. Keep the optical window
clean.
OPR-3301 SS08xxx
7
7.2. Scan Area and Resolution
Figure 4: Depth of Field
Resolution Symbology PCS Quiet zone Digits Decode depth [mm]
1.0mm Code 39 0.9 25 mm 1 40 to 500
0.5mm Code 39 0.9 18 mm 3 20 to 350
0.25mm Code 39 0.9 10 mm 8 20 to 200
0.15mm Code 39 0.9 7 mm 10 20 to 100
0.127mm Code 39 0.9 5 mm 4 30 to 70
<Conditions>
Barcode Sample: OPTOELECTRONICS Test Sample
Angle: Pitch angle: α = 0° Skew angle: β = 15° Tilt angle: γ = 0°
Curvature: R = ∞
OPR-3301 SS08xxx
8
7.3. Curvature
7.3.1. Pitch Angle
α ≤ ±35°
7.3.2. Skew Angle
β ≤ ±50° (Excluding dead zone)
7.3.3. Dead Zone
β ≤ ±8° (There are some areas in which decoding fails due to specular reflection)
7.3.4. Tilt Angle
γ ≤ ±20°
<Condition>
Barcode:
Pitch, Skew angle, Dead zone
PCS = 0.9, Resolution = 0.25 mm, Symbology = 9-digit Code 39, Quiet Zone = 10 mm,
N/W Ratio = 1:2.5
Tilt Angle
PCS = 0.9, Resolution = 0.26 mm, Symbology = 13-digit JAN, Quiet Zone = 10 mm
Distance: 60mm from the focal plane of the scanner
Angle:
Pitch angle
Skew angle: β = +15°, Tilt angle: γ = 0°
Tilt angle
Pitch angle: α = 0°, Skew angle: β = +15
Skew angle and Dead zone
Pitch angle: α = 0°, Tilt angle: γ = 0°
Figure 5: Pitch, skew and tilt
Angle
β
－
＋
－
＋
α
＋
－
γ
OPR-3301 SS08xxx
9
7.4. Curvature
With 8-digit JAN/UPC/EAN barcodes, decoding performance is guaranteed when R≥15 mm.
With 13-digit JAN/UPC/EAN barcodes, decoding performance is guaranteed when R≥20 mm.
Figure 6: Curvature
Barcode Sample: OPTOELECTRONICS Test Sample
PCS = 0.9, Resolution = 0.26 mm, Symbology = 9-digit Code 39,
Quiet Zone = 10 mm
Distance: 60 mm from the edge of the scanner
Angle: Skew angle: β=+15°
8. Bluetooth
OPR-3301 uses ver.1.2 compliant Bluetooth device as a wireless communication interface.
The Bluetooth device supports SPP (Serial Port Profile) and HID (Human Interface Device).
Feature Description
Version 1.2
Supported profile SPP (Serial Port Profile)
HID (Human Interface Device)
Communication configuration
1 to 1
One scanner to one host system
(Do not connect multiple scanners to one host system.)
Scanner operating mode while
connected to the host system Master(OPR-3301) or Slave mode(CRD-3301)
Power saving mode The scanner does not support sniff mode
Security mode and Encryption
Authentication and encryption enabled: As for the communication
between CRD-3301, this mode can be set by enabling the mode for
CRD-3301.
Comm. range 10 m
*The distance may vary depending on the environment.
Barcode
OPR-3301 SS08xxx
10
9. Default Setting
Scan the following menu barcodes to return to the default settings.
Default Settings 1: Options Readable codes
Symbology Read
Transmit
Code
Length
Transmit
CD
Calculate
CD
Set
Prefix
Set
Suffix Other
UPC-A ○ × ○ ○ － CR
UPC-A Add-on × × ○ ○ － CR
UPC-E ○ × ○ ○ － CR
UPC-E Add-on × × ○ ○ － CR
EAN-13 ○ × ○ ○ － CR
EAN-13 Add-on × × ○ ○ － CR
EAN-8 ○ × ○ ○ － CR
EAN-8 Add-on × × ○ ○ － CR
Code 39 ○ × ○ ×
－ CR Not transmit ST/SP
Code 39 Trioptic ○ × － － － CR Not transmit ST/SP
NW-7(Codabar) ○ × ○ ×
－ CR Not transmit ST/SP
Industrial2of5 ○ × ○ ×
－ CR
Interleaved2of5 ○ × ○ ×
－ CR
Code 93 ○ × × ○ － CR
Code 128 ○ × × ○ － CR
EAN-128 × × × ○ － CR
S-Code ○ × ○ ×
－ CR
MSI/Plessey ○ × ○CD1 ○CD1 － CR
UK/Plessey ○ × ○ ○ － CR
TELEPEN ○ × × ○ － CR
Matrix2of5 × × ○ ×
－ CR
Chinese Post Matrix 2of5 × × ○ ×
－ CR
IATA ○ × ○ ×
－ CR
RSS-14 × × ○ ○ － CR
RSS-limited × × ○ ○ － CR
RSS-expanded × × ○ ○ － CR
PDF417 × ×
－ － － CR
MicroPDF417 × ×
－ － － CR
Code 11 × × × ○ － CR
Korean Postal Code
(Code 3of5)
× × × ○ － CR
1. In the “Reading” column, “” means “Enable reading” and “X” means “Disable reading.”
2. In the “Transmit code length” column, “” means “Transmit code length” and “X” means “Do not transmit code length.”
3. In the “Transmit CD” column, “” means “Transmit check digit” and “X” means “Do not transmit check digit.”
4. In the “Calculate CD” column, “” means “Calculate check digit” and “X” means “Do not calculate check digit.”
“— “ means “not supported.”
5. In the “Prefix” column, “—“ means “there is no prefix setting.”
OPR-3301 SS08xxx
11
Default Settings 2: Read Options, Trigger, Buzzer
Item Default Setting
Setting the number of characters Fixed length OFF all codes
Read mode Single read
Multiple read reset time 500 ms
Add-on wait mode 500 ms
Multiple label read Disable
Multiple column read Disable
Redundancy (*1) Read 1 time, redundancy = 0
Trigger switch Enable
Trigger repeat Disable
Auto trigger Disable
Read time 2 seconds (when trigger enabled)
Margin check Normal
Buzzer duration 50 ms
Buzzer loudness 1 (max.)
Start up buzzer After transmission
Good read LED Indicator duration 200 ms
*1: Redundancy: Read n times, redundancy = n+1 for the following symbologies and lengths:
Symbology Number of digit
Code 39 5 or less
NW-7(Codabar) All
IATA 8 or less
Industrial2of5 8 or less
Interleaved2of5 8 or less
MSI/Plessey 4 or less
Code 11 5 or less
Default Settings 3-1: Communication options
Item Configurations
Destination setting Cradle (RS232C) connection
No reception memory (data correct) setting Disabled
Enable / Disable connection with trigger switch Disabled
Trigger key for connecting hold time setting Disabled
Trigger key for disconnecting hold time setting Disabled
Automatic disconnection time setting Disabled
Automatic re-connection valid time setting 5 minutes
ACK/NAK control Nonprocedural
ACK/NACK 1 second
Wireless
communication
function
PIN code setting enable （接続先 BD アドレス下 4桁）
BD address automatic connection setting 有効
Authentication 有効（ペアリング処理自動実行）
Bluetooth
Connection
function Encryption なし
*In the default setting, the cable used to connect CRD-3301 and host is RS232C.
*When connecting CRD-3301 and host via USB, set the destination to cradle (USB-HID).
*Do not set the PC [CNPC] as destination when connecting CRD-3301 and host.
OPR-3301 SS08xxx
12
Default Settings 3-2: Read, trigger and buzzer options
Parameter Setting
Baud rate 9600 bps
Parity bit No parity
Data length 8 bits
Stop bit 1 bit
Hand shaking No handshake
ACK/NAK Nonprocedural
CS time out Indefinitely
Inter character delay No delay
Default Settings 3-3: Communication between CRD-3301 and host with USB cable
Item Default setting
Keyboard language USA
Numerical output Full Key Code
Caps Lock mode No Caps Lock Mode
Inter character delay No deklay
OPR-3301 SS08xxx
13
10. Default Setting
The serial number shown below is affixed to the scanner.
Figure 7: Curvature
Model name label: Shows product name, product number, production date and the laser class “2” logo.
Logo label: Shows the regulations which the scanner supports.
Serial label: Shows grant number and descriptions which are compliant with the regulations.
Model name label
Serial label
Logo label
OPR-3301 SS08xxx
14
11. Packaging Specifications
11.1. Individual Packaging Specifications
Put the scanner in the box after putting it in the foam bag.
Dimensions: 55(W) × 120(D) × 105(H)mm
OPR-3301 SS08xxx
15
11.2. Collective Packaging Specifications
Figure 8: Individual Packaging Specifications
Note: The “RO” mark labeled on the package tray or package box guarantees that the applicable product has
passed our test of RoHS restrictions compliance (the restriction of the use of certain hazardous
substances in electrical and electronic equipment, 2002/95 EC). However, this document does not have
any legal weight in the EU.
OPR-3301 SS08xxx
16
11.3. Accessory Specifications
The following table shows a list of accessories for each model.
- User’s manual
- Dedicated battery pack （BTR02001030-0-00）
12. Environmental Specifications
12.1. Operation Temperature and Humidity
-10 to 60°C (When charging: 0 to 40°C)
5 to 95% (No condensation, no frost)
* Charging may be stopped when the temperature is over 40°C due to the thermo protection.
12.2. Storage Temperature and Humidity
-20 to 60°C (When charging: 0 to 40°C)
5 to 95% (No condensation, no frost)
12.3. Ambient light Immunity
Decoding performance is guaranteed when the range of illumination on a barcode surface is
between zero and the following values:
Incandescent light 0 to 4,000lx
Fluorescent light 0 to 4,000lx
Sunlight 0 to 80,00lx
<Conditions>
Barcode Sample: OPTOELECTRONICS Test Sample,
PCS = 0.9, Resolution = 0.25mm, Symbology = 9-digit Code-39, Quiet Zone = 10mm,
N/W Ratio = 1:2.5
Distance: 100 mm from the edge of the scanner
Angle: α = 0°, β = 15°, γ = 0°
Curvature: R = ∞
Power supply voltage: 3.7V
*Specular reflection should be avoided.
Figure 9: Ambient Light Immunity
12.4. Drip and Dust Proof
IEC IP 54 compliant
Barcode
OPR-3301 SS08xxx
17
12.5. Electrical Specifications
Specifications mentioned below include combination of the scanner and CDR-3301.
- Withstand Voltage: AC 1500 V/ per 60 seconds, 10mA or less
- Insulation Resistance: DC 500 V, 2 MΩ or higher
- Current Leakage: 250 μA or less / AC 250 V 60 Hz
- Power Line Noise Immunity: ± 1kV and higher
- Static Electricity Noise Immunity:
No destruction found: ± 15kV (air or direct discharge)
No malfunction found: ± 8 kV (air or direct discharge),
±6kV (contact, direct or indirect discharge)
Note: Testing method complies with IEC-61000-4-2. 150pF, 330Ω

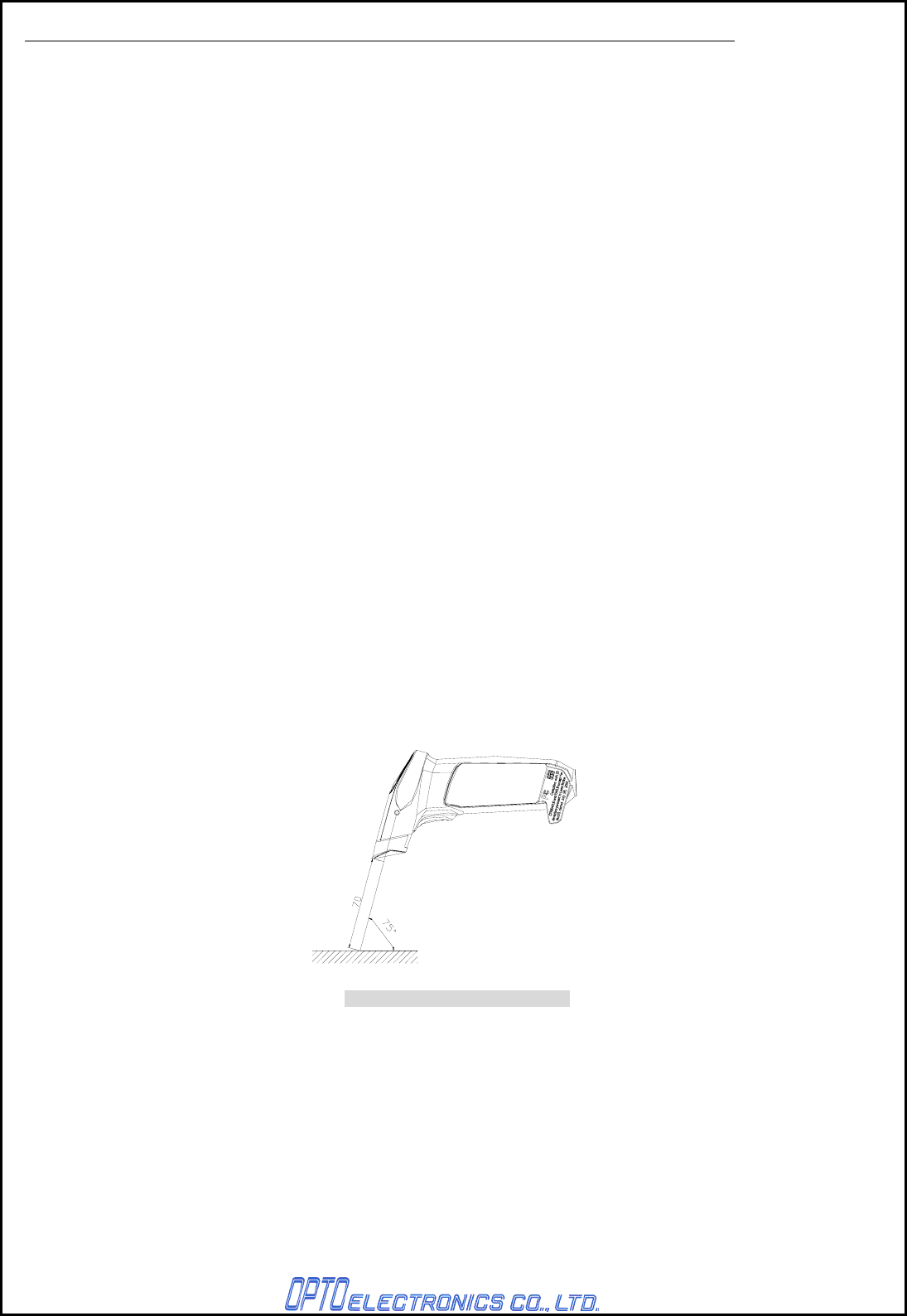

12.6. Drop Test (Without Individual Packaging)
No malfunction occurred after the following drop test.
Drop Test: Drop the scanner from a height of 150 cm onto a concrete floor (three times in each of 5
angles as shown in the figure.
150cm
Figure 10: Drop test
12.7. Drop Test (With Individual Packaging)
No malfunction occurred after the following drop test.
Drop Test: Drop an individually packaged scanner from a height of 150 cm onto a concrete floor
once on its 1 corner, 3 edges, and 6 sides (10 total drop tests)
12.8. Vibration Strength
No malfunction occurred after the following vibration test.
Vibration test: Increase the frequency of the vibration from 10 Hz to 100 Hz with accelerated
velocity 19.6m/s2 (2G) for 30 minutes (60 minutes for one cycle) in non-operating state. Repeat
this routine in each X, Y, Z directions.
Concrete floor
OPR-3301 SS08xxx
18
13. Reliability
MTBF (Mean Time Between Failures) of this product is as follows.
Product (excluding laser module): 48,000 hours
Laser module: 10,000 hours
*The estimate of MTBF and product life cycle is based on standard operation of the product within
the recommended temperature range and without extreme electronic or mechanical shock.
*The figure specified above does not consider the battery pack, because it can be easily affected by
environments and charging conditions.
14. Warranty
14.1. Warranty Period
OPTOELECTRONICS Co., Ltd. warrants that this product is free of defects or malfunctions for a
period of twelve (12) months from its shipment. In case of having defects or malfunctions caused
by normal usage in accordance with this specification during the foregoing warranty period,
OPTOELECTRONICS shall repair or adjust the product free of charge.
Any repair or replacement of the product after the foregoing warranty period shall be charged at
regular repair rates.
If defects or malfunctions were caused by customer mishandling, product repairs or replacement
will be charged at regular repair rates, even during the foregoing warranty period.
14.2. Delivery
Products for maintenance or repair shall be sent back to OPTOELECTRONICS. The sender is
responsible for all shipping costs.
14.3. Repair Timeframe
Repaired products shall be shipped back to the customer within 20 days after acceptance by
OPTOELECTRONICS. However, the time needed for the repair of products with early failures need
to be separately discussed with Optoelectronics.
Expedited repairs may be available, subject to terms agreed to by OPTOELECTRONICS and the
customer.
14.4. Maintenance Period
The maintenance period of this product is 5 years after its shipment.
OPTOELECTRONICS may discontinue maintenance for this product during the 5-year
maintenance period if a satisfactory replacement product or maintenance solution is agreed to.
14.5. Other
Any additional warranty issues must be discussed with OPTOELECTRONICS on a case-by-case
basis.

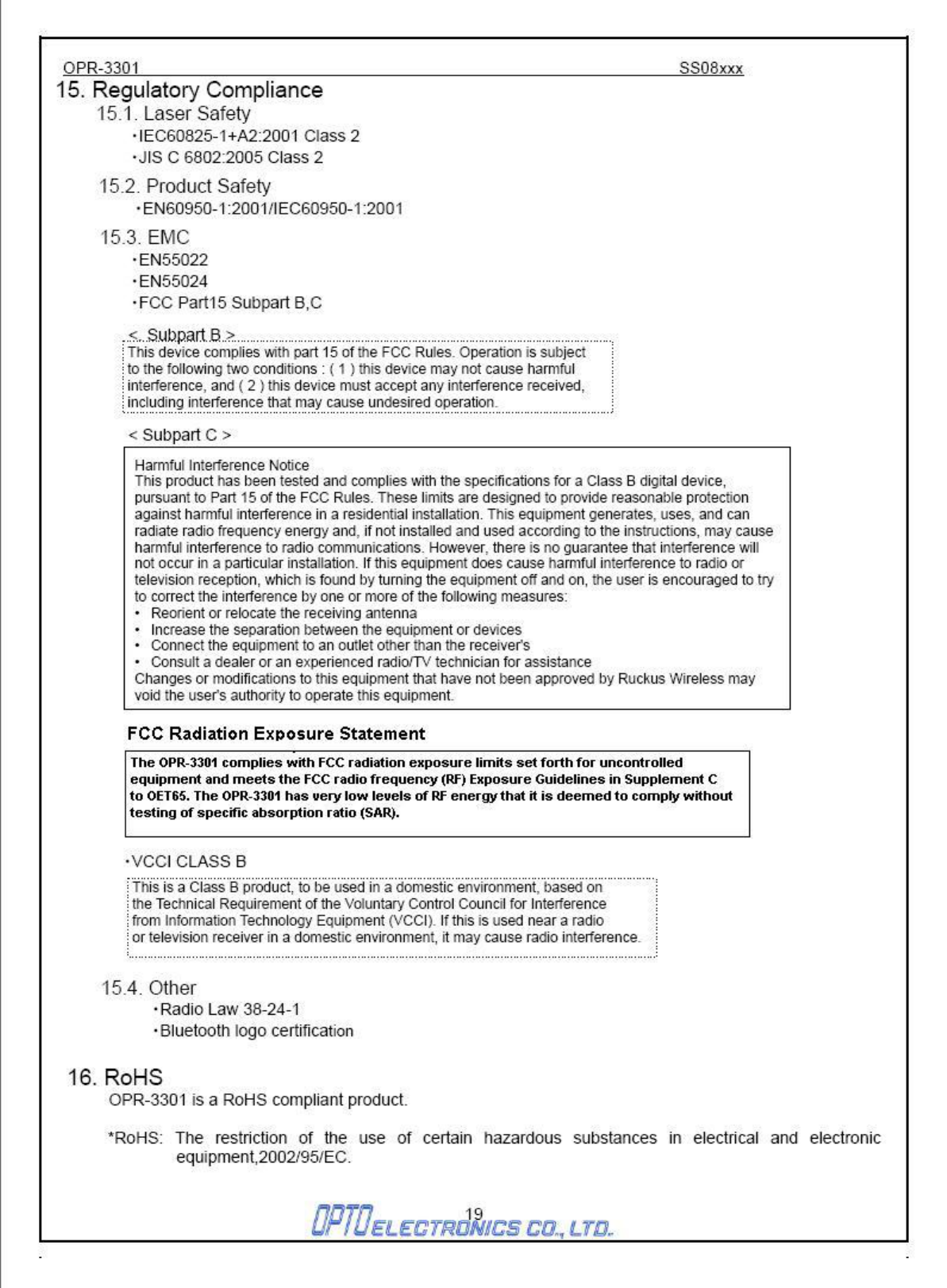

OPR-3301 SS08xxx
20
17. Precautions
17.1. Precautions about laser light
・Do not stare into the laser light from a scanning window. It may harm your eyes.
・Do not point the laser directly at others’ eyes. It may harm your eyes.
・Do not stare into the beam with optical instruments. It may harm your eyes.
Caution - Use of controls adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure
17.2. Handling
(1) Shock
・Do not throw or drop the scanner.
・Do not squeeze the scanner between heavy items.
(2) Temperature Conditions
・Do not use the scanner at temperatures outside the specified range.
・Do not pour boiling water on the scanner.
・Do not throw the scanner into the fire.
(3) Foreign Materials
・Do not put the scanner into water.
・Do not put the scanner into chemicals.
(4) Other
・Do not disassemble this product.
・Do not use the scanner near a radio or a TV receiver. It may cause reception problems.
・Do not use the scanner near a device which generates excessive static electricity.
It may cause problems.
・The device may not perform properly when placed near a flickering light, such
17.3. Radio Low
The data collector has obtained the Certification for Construction Design of Specified Radio
Equipment.
Therefore it does not need to have a radio station license in Japan.
The following activities are prohibited under the Radio Law:
•Remodeling and disassembly
•Peeling off the certificate label
Do NOT use the data collector under the following environment:
*Otherwise radio interference may affect other device and end up with causing physical or material
damage.
•Safety apparatus and medical device for human body protection
•Environment where is concerned to cause serious damage
17.4. Export Administration Regulations
This product is subject to the strategically controlled exports regulated under “Foreign Exchange and
Foreign Trade Laws”. Therefore, export of this product may require an export permission of Japanese
government.
OPR-3301 SS08xxx
21
17.5. Bluetooth
To communicate via Bluetooth, the device which OPR-3301 is connected to must support the same
Bluetooth version and profile as OPR-3301’s.
・ OPR-3301 is compliant to Bluetooth standards. However, we cannot assure the connection
between OPR-3301 and other Bluetooth devices which have not been tested.
・ Bluetooth supporting devices use 2.4 GHz frequency band. However, many other sorts of devices
also utilize this frequency band. It may effect the communication speed or communication range
of this data collector.
・ The use of OPR-3301 outside of the European Union, the United States and Canada is
punishable under the law.
・ Communication speed and communication range of OPR-3301 may differ due to the obstacles
and radio wave conditions between OPR-3301 and the device, which OPR-3301 is connected to.
・ Conditions of the device, which OPR-3301 is connected to, may also affect the communication
speed and communication range of OPR-3301.
17.6. Frequency Baud
The frequency band 2.4 GHz is utilized by this scanner. Read carefully the followings before using
this product.
In the frequency band of this scanner, scientific, medical and industrial devices including microwaves
are used. Also other radio stations including local private radio station for mobile object identification
requiring license for such as manufacturing lines at factories, specific power-saving radio station
requiring no license and amateur radio station are managed.
Please make sure that “other radio stations” are not managed in the frequency band 2.4 GHz before
using this scanner.
In case that radio interference occurs between this scanner and “other radio stations,” change the
service space immediately, or stop transmitting radio wave to avoid the interference.
If you have any questions or troubles, please contact our marketing group.
The content of this specification manual may change without any notice.
OPR-3301 SS08xxx
22
18. Auto Trigger
Auto Trigger Sensor
When auto trigger is used, the scanner starts barcode reading after detecting a change in reflection in the
detection area. The scanner will be triggered if the sensors detect changes in brightness in the detection area.
Auto trigger distance: 40mm from the edge of the scanner.
Conditions
Moving speed: 100 ±10 mm/s
Angle: Skew angle as specified in chapter 7-3 excluding pitch angle
and dead zone.
Environmental temperature and
humidity:
Room temperature and humidity
Environmental illuminance: 500 to 900 lx
Conditions for the auto trigger: 1. Barcode sheet: OPTOELECTRONICS Test Sheet
(white)
Background: OPTOELECTRONICS Test Sheet
(black)
2. Barcode sheet: OPTOELECTRONICS Test Sheet
(black)
Background: OPTOELECTRONICS Test Sheet
(white)
OPR-3301 SS08xxx
23
Appendix. Mechanical Drawing
Dimensions: 165(H)×68(W)×155(D) *Excluding intruding portions.
Figure 11: Mechanical drawing
