Infopia Co.,Ltd. O Care Bluetooth Bridge
User manual
Oh’Care Bluetooth Bridge
Bluetooth RS 232C Serial Dongle
User’s Manual
Ver. 1.0 (2017.06.26)
Oh’Care Bluetooth Bridge
2
Contents
1. The Product ......................................................................................................................................................................... 3
1-1. The Overview .......................................................................................................................................................... 3
1-2. The outward form and detail ........................................................................................................................ 3
2. The Product specification ............................................................................................................................................ 7
3. Products Connecting ...................................................................................................................................................... 8
4. Product Communication Test Method .............................................................................................................. 10
5. Handling Precautions .................................................................................................................................................. 12
Oh’Care Bluetooth Bridge
3
1. The Product
1-1. The Overview
Oh'Care Bridge is a communication device that transmits and receives information on the
measurement results of the diagnostic equipment. Oh'Care Bridge communicate
wirelessly or the wired communication method by the Bluetooth communication method.
It is a purpose to make it possible to connect to a device through D-Sub 9 Pin, Stereo
Jack or the like and wirelessly connect a wired communication device. Oh’Care Bridge
could be select BLE or Wi-Fi
In this manual, Oh'Care Bridge refers to Oh' Care Bluetooth Bridge.
It can be used as a wireless serial multiport used like Oh'Care Bridge. For more details,
refer to the user's manual.
1-2. The outward form and detail

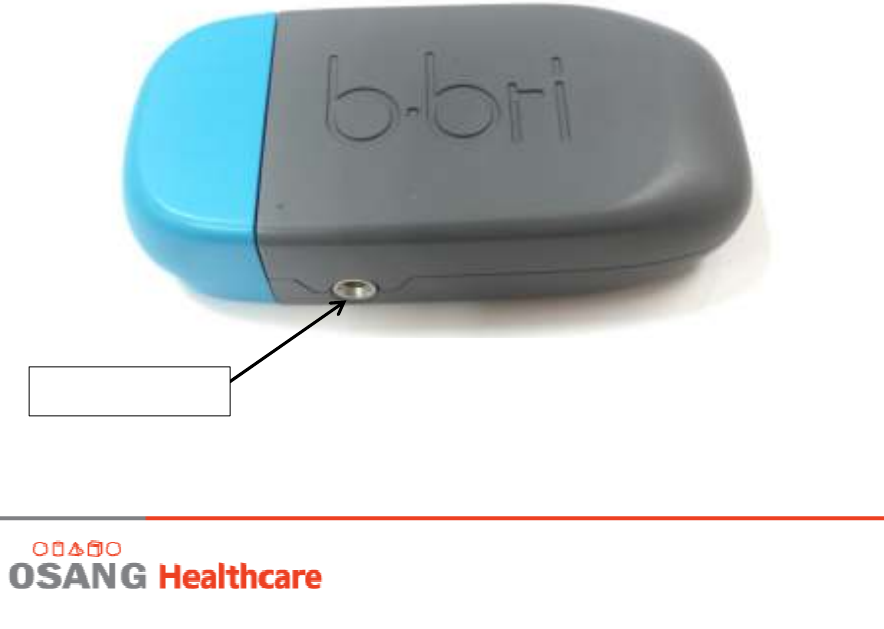

Figure 1. The Oh’ Care Bridge Upper
2.5 ф Stereo Jack
Oh’Care Bluetooth Bridge
4

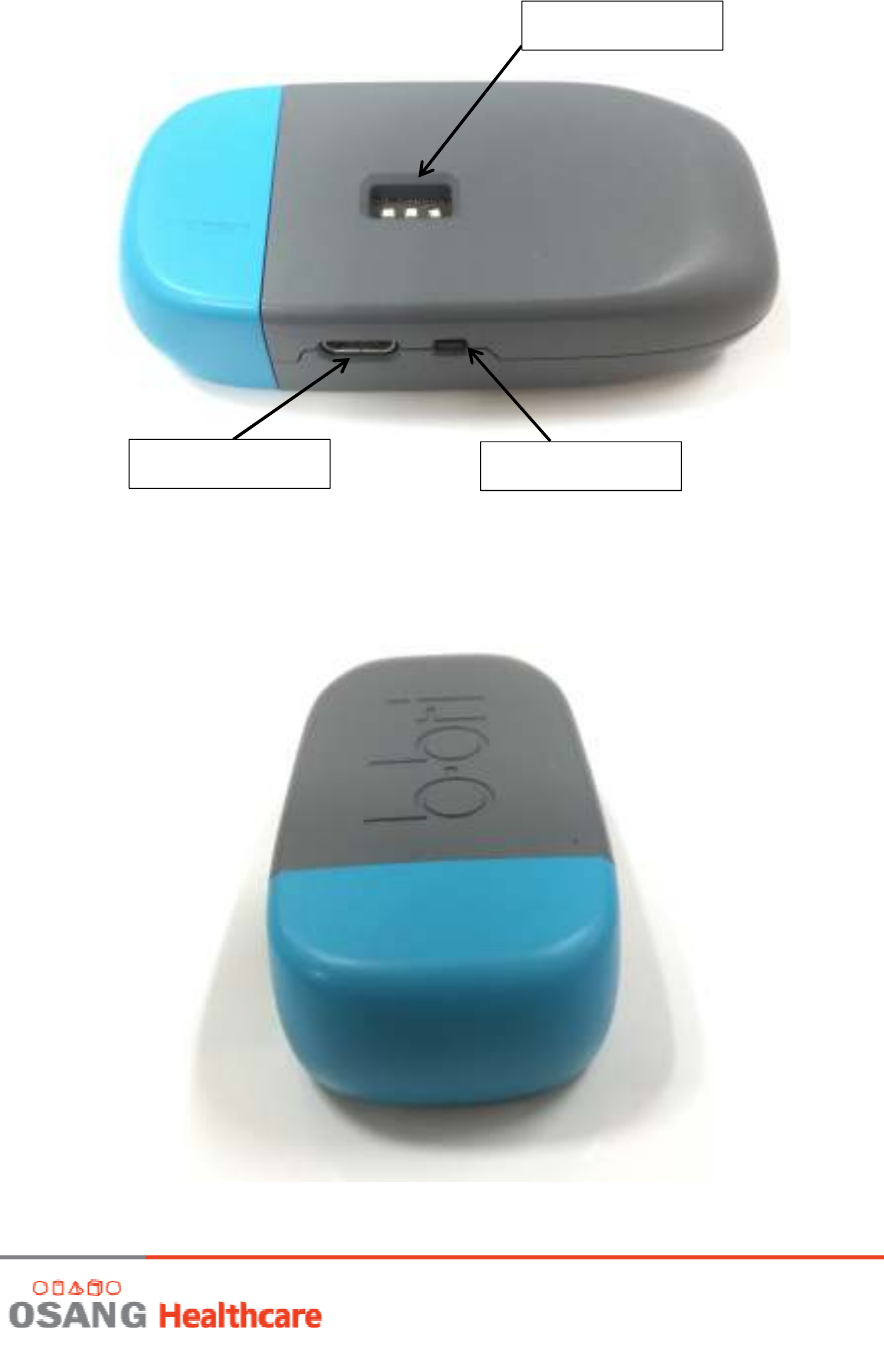

Figure 2 The Oh’ Care Bridge bottom side
Figure 3 The Oh’ Care Bridge Upper side
Micro USB Tact Switch
Dip Switch
Oh’Care Bluetooth Bridge
5

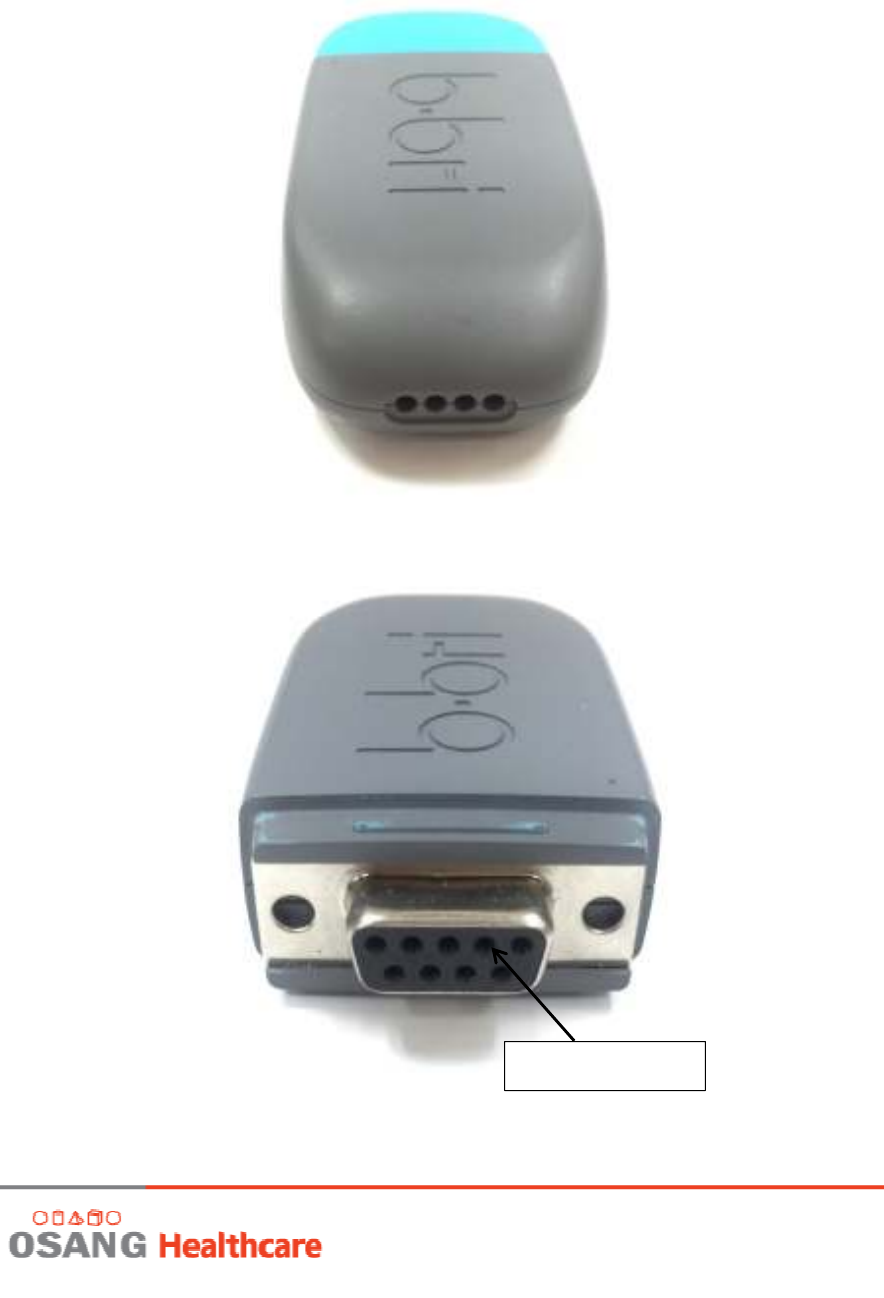

Figure 4. The Oh’ Care Bridge Back side
Figure 5. The Oh’ Care Bridge D-Sub 9 Pin Connecting part
D-Sub 9pin
Oh’Care Bluetooth Bridge
6
- 2.5 ф Stereo Jack: Stereo Jack type product. Serial communication connection
connector.
- Dip Switch: The Dip switch is for communication baud rate setting.
- Micro USB: Power supply via PC or adapter and USB communication connector
- Tact Switch: BLE is a pairing switch.
- D-Sub 9pin connector: Power supply through equipment and D-Sub 9 Pin type
equipment. It is a connector using RS-232 communication standard.
- To use Wi-Fi, specific API is needed to connect with protocol. And specific command
is mandatory for data transmission
- 2.5 ф Stereo Jack and Micro USB do not work with Wi-Fi without specific commands
and API.
Oh’Care Bluetooth Bridge
7
2. The Product specification
- Manufacturer: OSANG Healthcare Co., Ltd
- Model: OCB-1000
- Product Name: Oh’Care Bridge
- In Power: DC 5V, 30mA
- Size: (H)75mm X (W)35mm X(D) 17mm
- S/N: OCB-1704270001
- S/W Version: Oh’Care Bridge SW V1.0
- H/W Version: Oh’Care Bridge HW V1.0
- Communication: BLE, Wi-Fi
Oh’Care Bluetooth Bridge
8
3. Products Connecting
Figure 6. Oh’Care Bridge and 2.5 ф Stereo Jack type connected cable
1. 2.5 ф Stereo Jack connection
- Oh’Care Bridge 2.5 ф Stereo Jack and OSANG Healthcare products can be connected
2.5 ф Stereo Jack type. Such as Figure 6. 2.5 ф Stereo Jack able to connect cable.
- - However, the power supply for 2.5 ф Stereo Jack cable connection is supplied via
Micro USB.
2. D-Sub 9 Pin connector
- - Connect Oh'Care Bridge D - Sub 9 Pin connector to the equipment provided with
the regular health care serial connector.
- D-Sub 9’s 1 pin 5 V power supply 5 Pin powered via GND and supports RS-232
communication.
Oh’Care Bluetooth Bridge
9

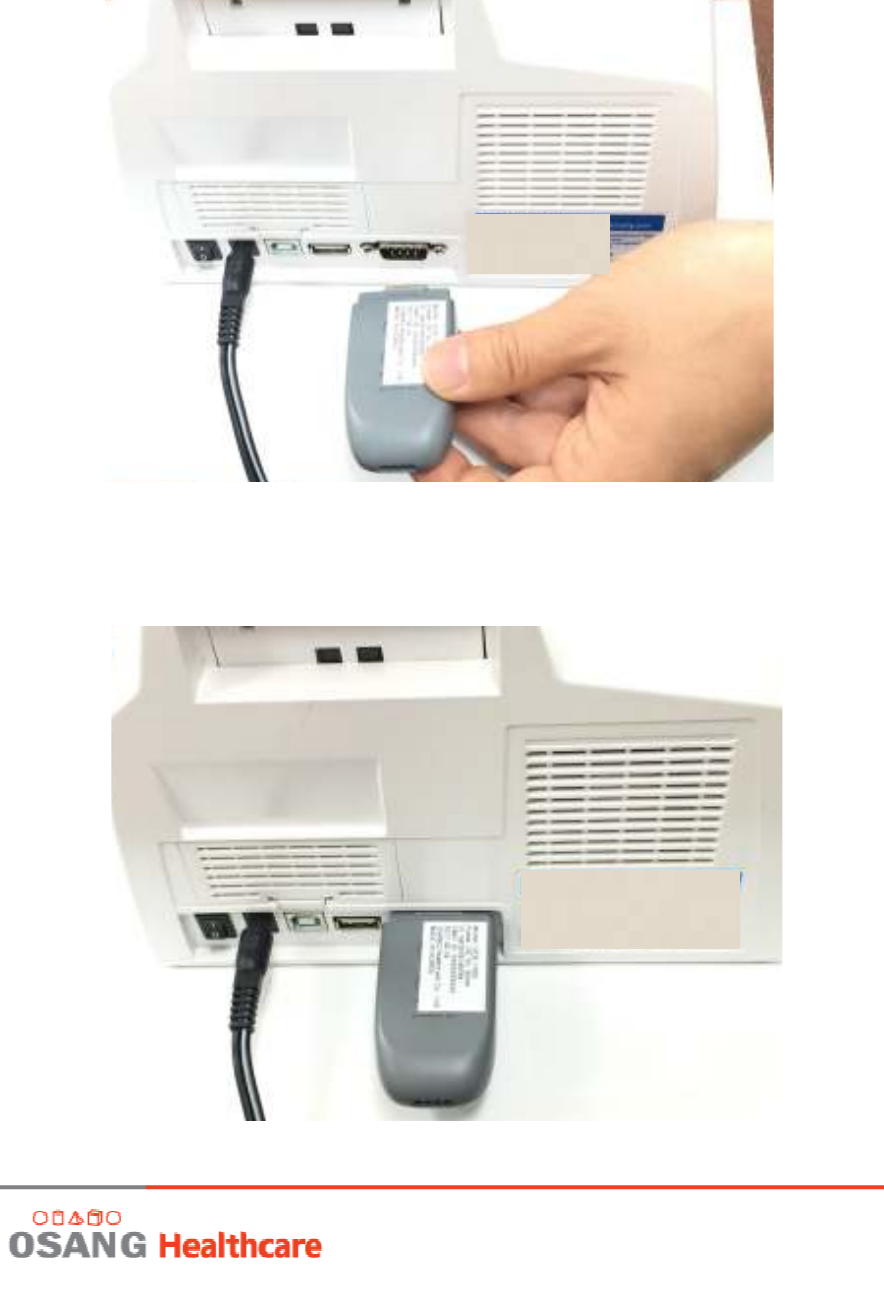

Figure 7 . Oh'Care Bridge on D-Sub 9
Figure 8. Oh’ Care Bridge connected state.
Oh’Care Bluetooth Bridge
10
4. Product Communication Test Method
① Through BLE Master, search the currently driven BLE List as shown.
② Pair with necessary BLE after completion of search and proceed with connecting.
③ You can send BLE Master side Data using Slave Oh'Care Bridge connected to
equipment or PC.
- Figure. 9 shows a state in which pairing of BLE is performed and connection is
made. Figure. 10 is information on devices transmitted from the Ocean healthcare
device. Figure. 11 shows the results confirmed for the data transmitted and received
by the BLE communication.

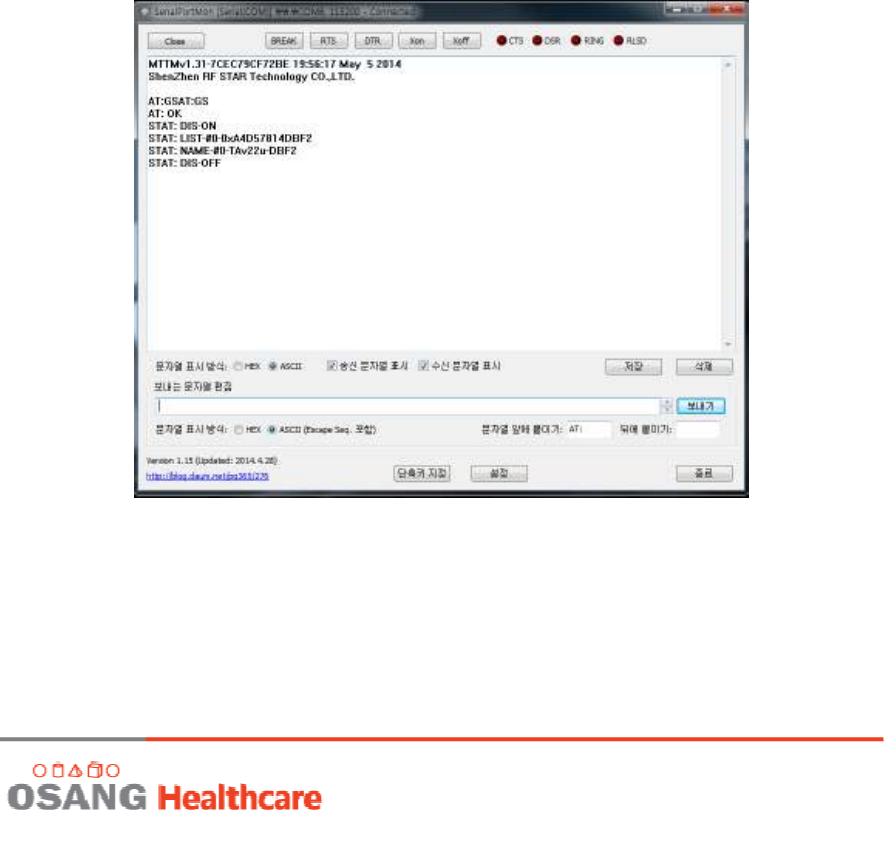

Figure 9. Oh’ Care Bridge BLE Searching
Oh’Care Bluetooth Bridge
11

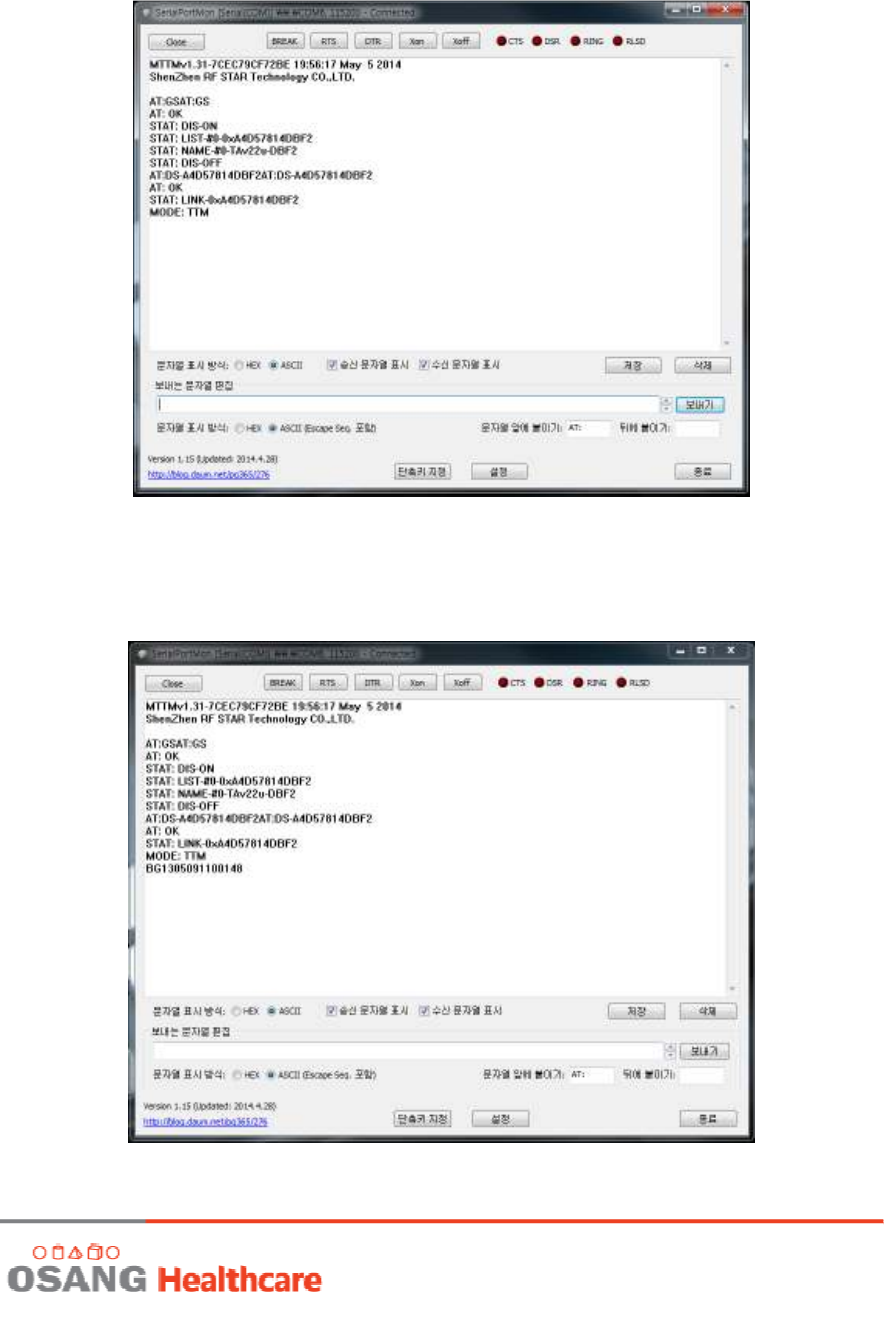

Figure 10. Oh’ Care Bridge connecting
Figure 11. Oh’ Care Bridge data communication
Oh’Care Bluetooth Bridge
12
5. Handling Precautions
1) Please do a thorough technical examination before actually applying on site. We are
not responsible for any problems that may arise due to the characteristics of the
radio.
2) Do not disassemble, repair, remodel.
3) As it conforms to the RS - 232 communication standard and is a product, if you
connect a line that does not conform to the standard to the product, it may damage
the product, so please be careful.
4) Please use the power supply that conforms to the standard.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not in-stalled
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Oh’Care Bluetooth Bridge
13
CAUTION : Changes or modifications not expressly approved by the manufacturer
responsible for compliance could void the user’s authority to operate the equipment.
OCB-1000 is limited to work with OSANG Healthcare product documented in the manual only
Problems may occur when connecting to other products than below
1. Blood Glucose Monitoring Systems
( GluNEO, GluNEO Lite, Finetest Auto Coding Premium, HealthPro, Glucolab Auto
Coding, Oh’Care, Oh’Care Lite)
2. HbA1c : An HbA1c measuring device gauges average blood glucose over 3 months
by detecting hemoglobin
( Clover A1C)
3. Cholesterol : A cholesterol measuring device enables quick and efficient
measurement of Total Cholesterol
(LipidPro)
4. Immuno Diagnosis : Through antigen-antibody reactions, SelexOn screens for
diseases by extracting markers created by cardiac disorders, thyroid conditions,
cancer and infectious diseases.
(SelexOn)
This device must be installed and operated in accordance with provided instructions and the
antenna(s) used for this transmitter must be installed to provide a separation distance of at
least 20 cm from all persons and must not be co-located or operating in conjunction with any
other antenna or transmitter.
Manufacturer: OSANG Helathcare Co., Ltd
Address: 132, Anyangcheondong-ro, Dongan-gu, Anyang-si, Gyeonggi-do
14040, Korea
Phone Number: 031-460-0300
