LMW-200 SERIES LCD MONITOR USER MANUAL

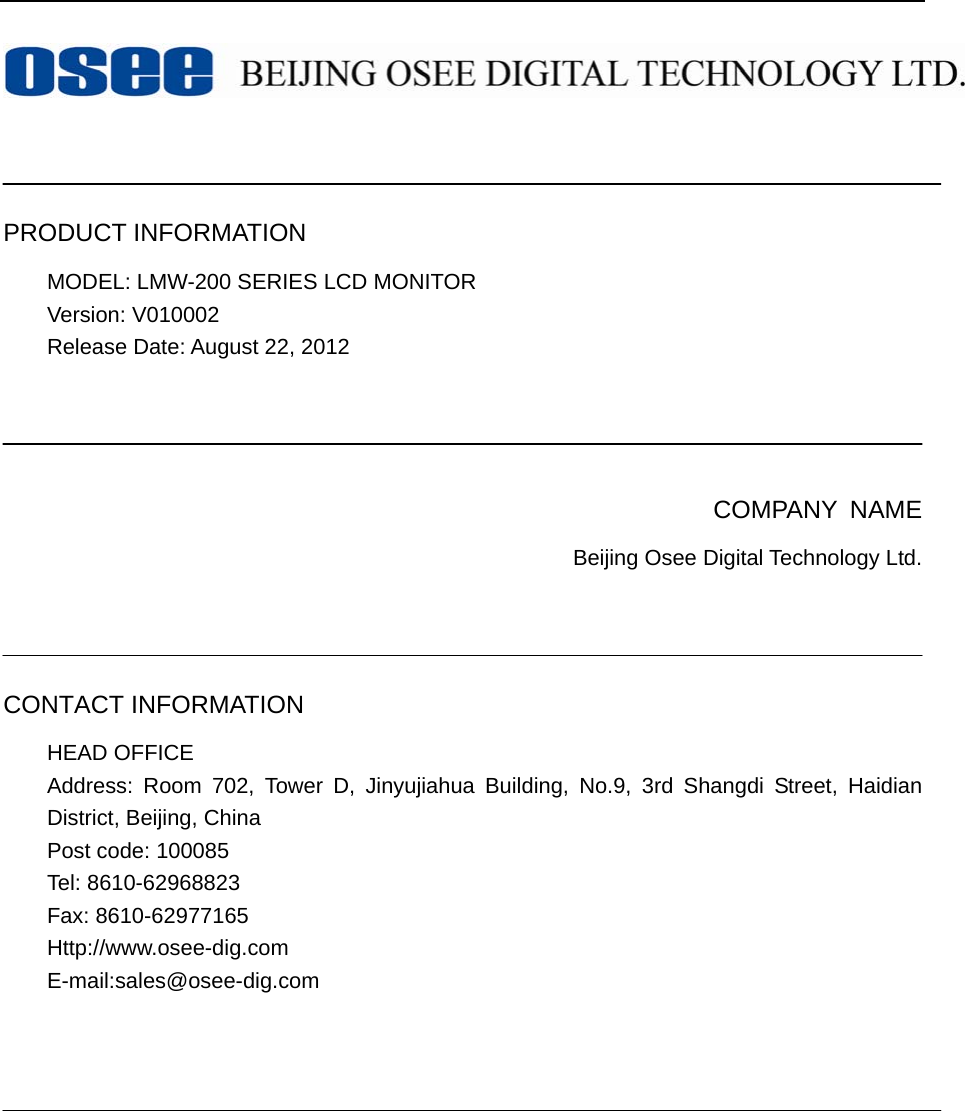

PRODUCT INFORMATION MODEL: LMW-200 SERIES LCD MONITOR Version: V010002 Release Date: August 22, 2012 COMPANY NAME Beijing Osee Digital Technology Ltd. CONTACT INFORMATION HEAD OFFICE Address: Room 702, Tower D, Jinyujiahua Building, No.9, 3rd Shangdi Street, Haidian District, Beijing, China Post code: 100085 Tel: 8610-62968823 Fax: 8610-62977165 Http://www.osee-dig.com E-mail:sales@osee-dig.com

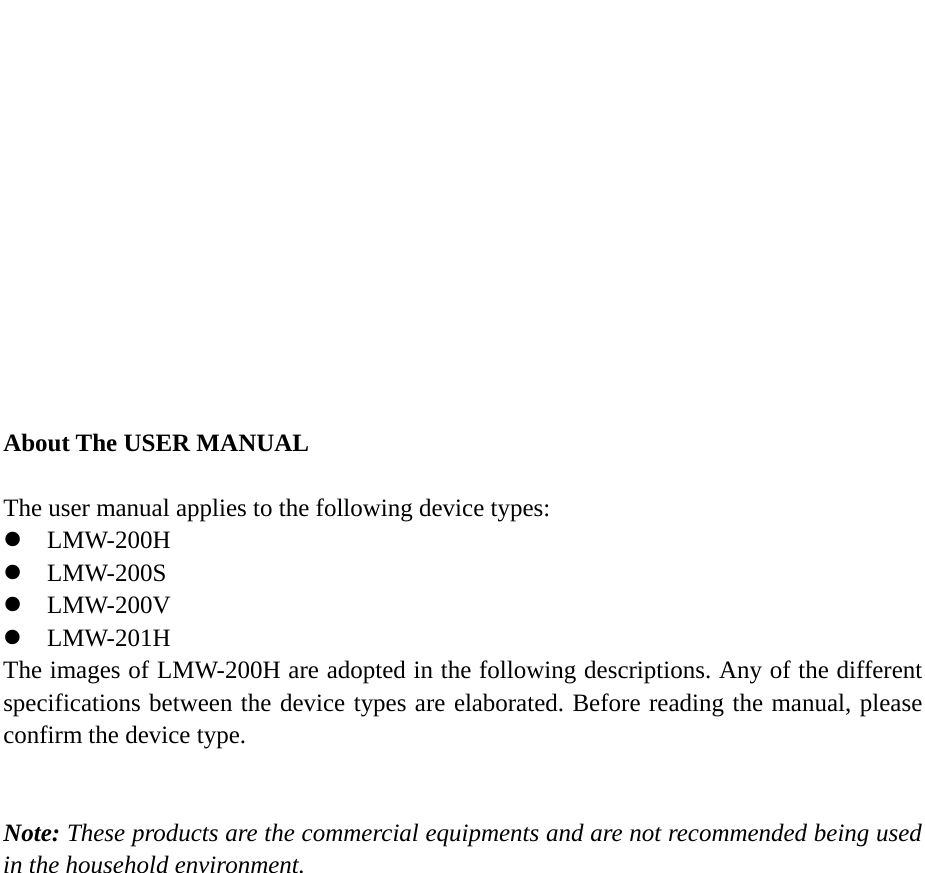

About The USER MANUAL The user manual applies to the following device types: z LMW-200H z LMW-200S z LMW-200V z LMW-201H The images of LMW-200H are adopted in the following descriptions. Any of the different specifications between the device types are elaborated. Before reading the manual, please confirm the device type. Note: These products are the commercial equipments and are not recommended being used in the household environment.

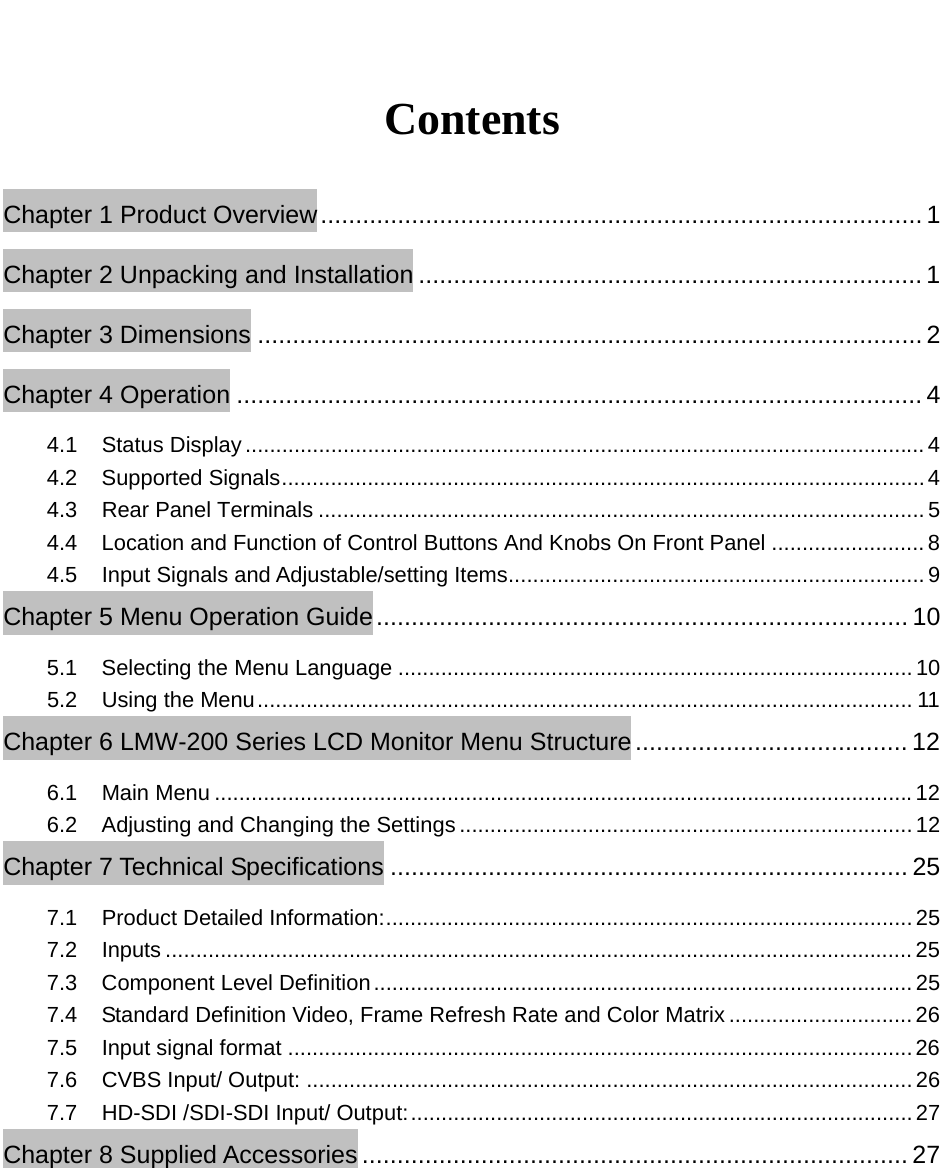

Contents Chapter 1 Product Overview ...................................................................................... 1 Chapter 2 Unpacking and Installation ........................................................................ 1 Chapter 3 Dimensions ............................................................................................... 2 Chapter 4 Operation .................................................................................................. 4 4.1 Status Display ............................................................................................................... 4 4.2 Supported Signals ......................................................................................................... 4 4.3 Rear Panel Terminals ................................................................................................... 5 4.4 Location and Function of Control Buttons And Knobs On Front Panel ......................... 8 4.5 Input Signals and Adjustable/setting Items .................................................................... 9 Chapter 5 Menu Operation Guide ............................................................................ 10 5.1 Selecting the Menu Language .................................................................................... 10 5.2 Using the Menu ........................................................................................................... 11 Chapter 6 LMW-200 Series LCD Monitor Menu Structure ....................................... 12 6.1 Main Menu .................................................................................................................. 12 6.2 Adjusting and Changing the Settings .......................................................................... 12 Chapter 7 Technical Specifications .......................................................................... 25 7.1 Product Detailed Information: ...................................................................................... 25 7.2 Inputs .......................................................................................................................... 25 7.3 Component Level Definition ........................................................................................ 25 7.4 Standard Definition Video, Frame Refresh Rate and Color Matrix .............................. 26 7.5 Input signal format ...................................................................................................... 26 7.6 CVBS Input/ Output: ................................................................................................... 26 7.7 HD-SDI /SDI-SDI Input/ Output: .................................................................................. 27 Chapter 8 Supplied Accessories .............................................................................. 27

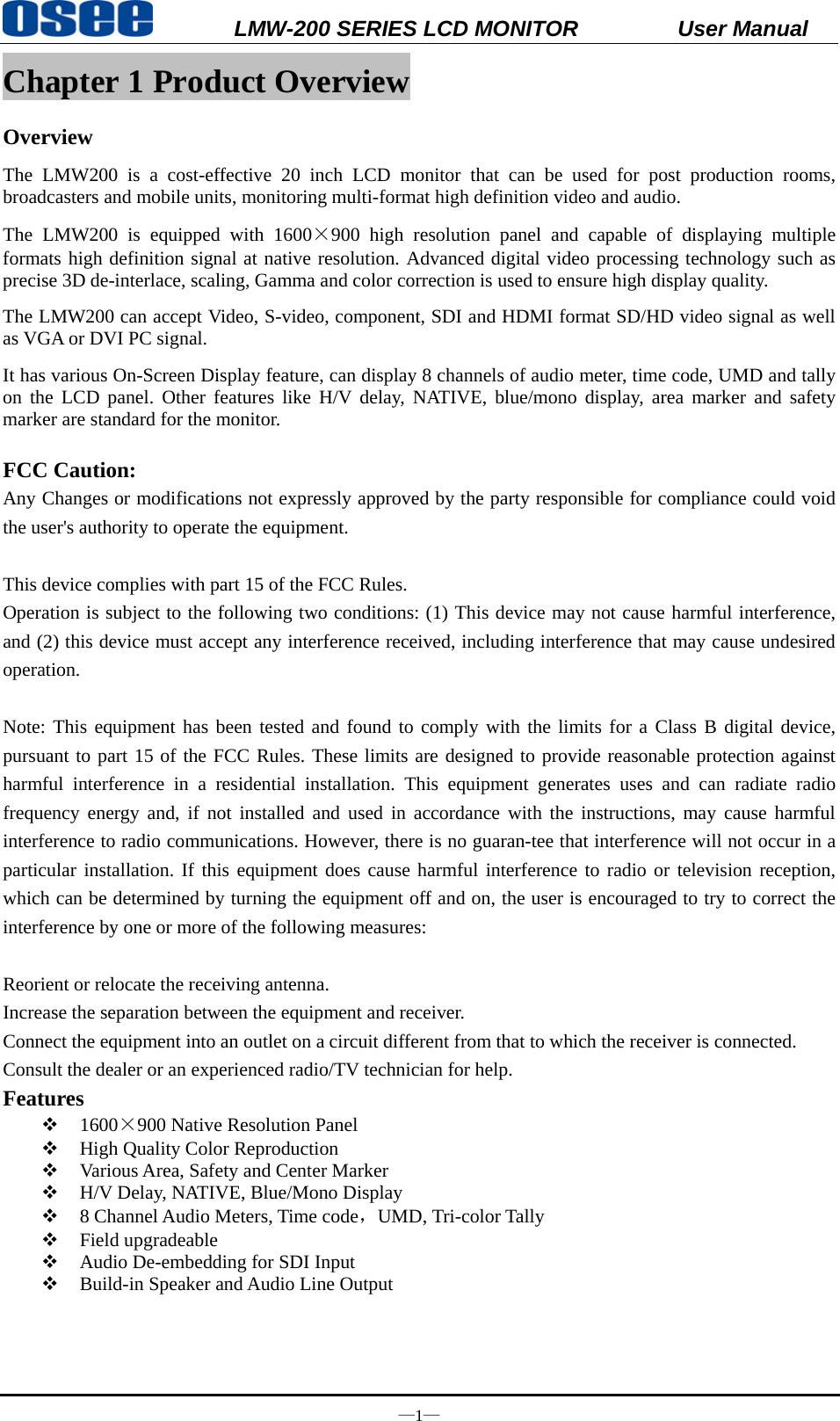

LMW-200 SERIES LCD MONITOR User Manual —1— Chapter 1 Product Overview Overview The LMW200 is a cost-effective 20 inch LCD monitor that can be used for post production rooms, broadcasters and mobile units, monitoring multi-format high definition video and audio. The LMW200 is equipped with 1600×900 high resolution panel and capable of displaying multiple formats high definition signal at native resolution. Advanced digital video processing technology such as precise 3D de-interlace, scaling, Gamma and color correction is used to ensure high display quality. The LMW200 can accept Video, S-video, component, SDI and HDMI format SD/HD video signal as well as VGA or DVI PC signal. It has various On-Screen Display feature, can display 8 channels of audio meter, time code, UMD and tally on the LCD panel. Other features like H/V delay, NATIVE, blue/mono display, area marker and safety marker are standard for the monitor. FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guaran-tee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Features  1600×900 Native Resolution Panel  High Quality Color Reproduction  Various Area, Safety and Center Marker  H/V Delay, NATIVE, Blue/Mono Display  8 Channel Audio Meters, Time code，UMD, Tri-color Tally  Field upgradeable  Audio De-embedding for SDI Input  Build-in Speaker and Audio Line Output
LMW-200 SERIES LCD MONITOR User Manual —1— Chapter 2 Unpacking and Installation Unpack the LMW-200 Monitor and inspect for any apparent physical damage that may have occurred in transit. In addition to the monitor, the packaging should contain a power cord, warranty card, a power adapter (AC to DC) and table stand. There are also seven M4 x 8mm screws for table stand attaching. We recommend you retain the shipping carton for future use. 1. When installing a mount option, please assure a soft and non-scratch surfaced is used to place the monitor on. 2. Place the monitor on the soft surface screen face down for installation of table stand or mount. 3. Use the included screws to attach the table stand either option. Use the included screws to attach the mount either option. The table stand attaches on the rear bottom of the unit whilst the mount is located on the rear center. Please refer to Chapter 3 for further reference. Attaching the table stand 4. Place the LMW-200 in the required location for operation. 5. Connect the required signals. For BNC connections use 75Ω rated connectors. 6. Connect A.C. Mains power using the included EIC power cord. Please ensure an Earth ground present to ensure proper operation of the unit. 7. As a final step turn on the mains power using the toggle switch located on the rear of the LMW-200 above the power connection. NOTE: LMW-200 Monitor also supports cabinet installation. There is optional part for choice: LMW-200-A-BE.

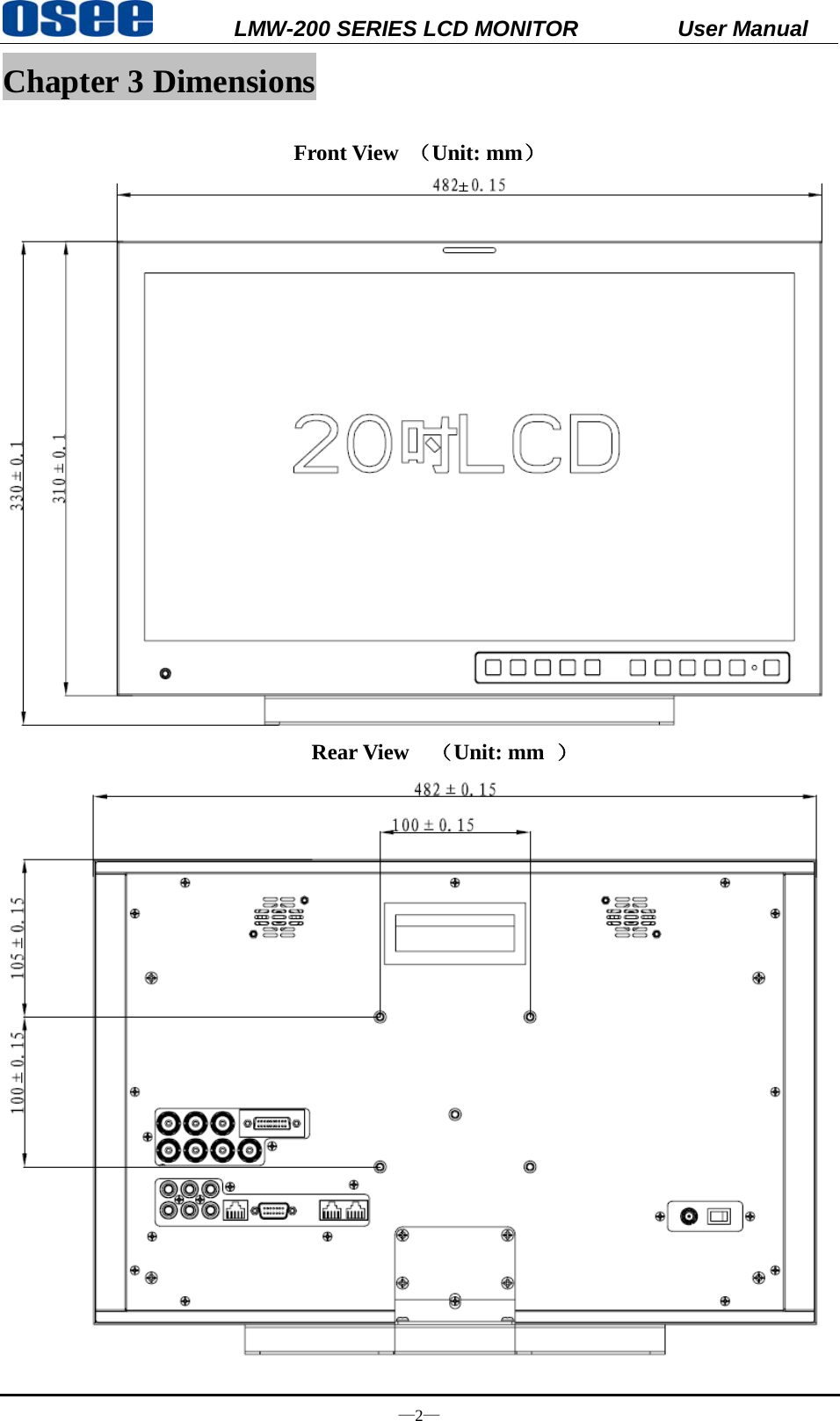

LMW-200 SERIES LCD MONITOR User Manual —2— Chapter 3 Dimensions Front View （Unit: mm） Rear View （Unit: mm ）

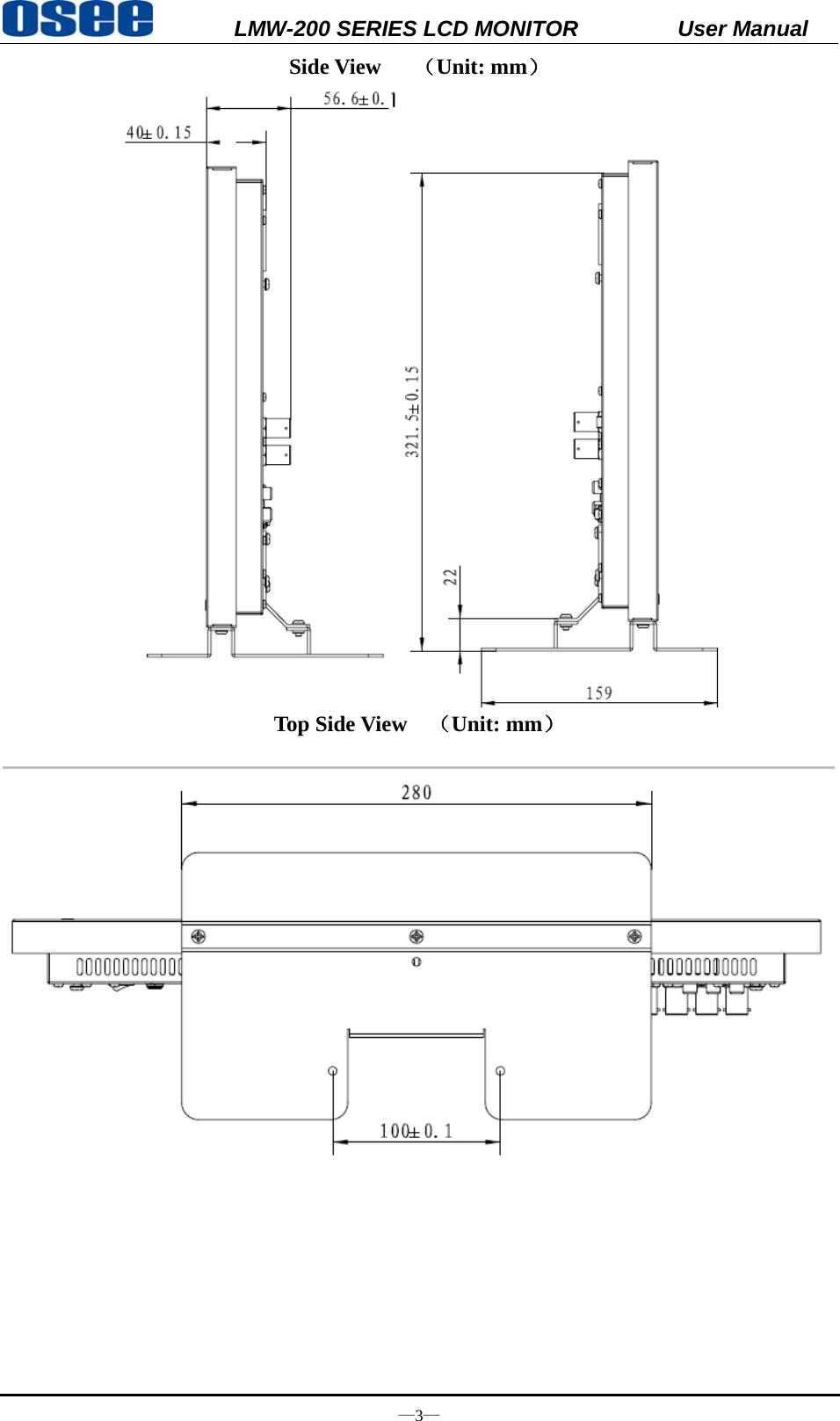

LMW-200 SERIES LCD MONITOR User Manual —3— Side View （Unit: mm） Top Side View （Unit: mm）

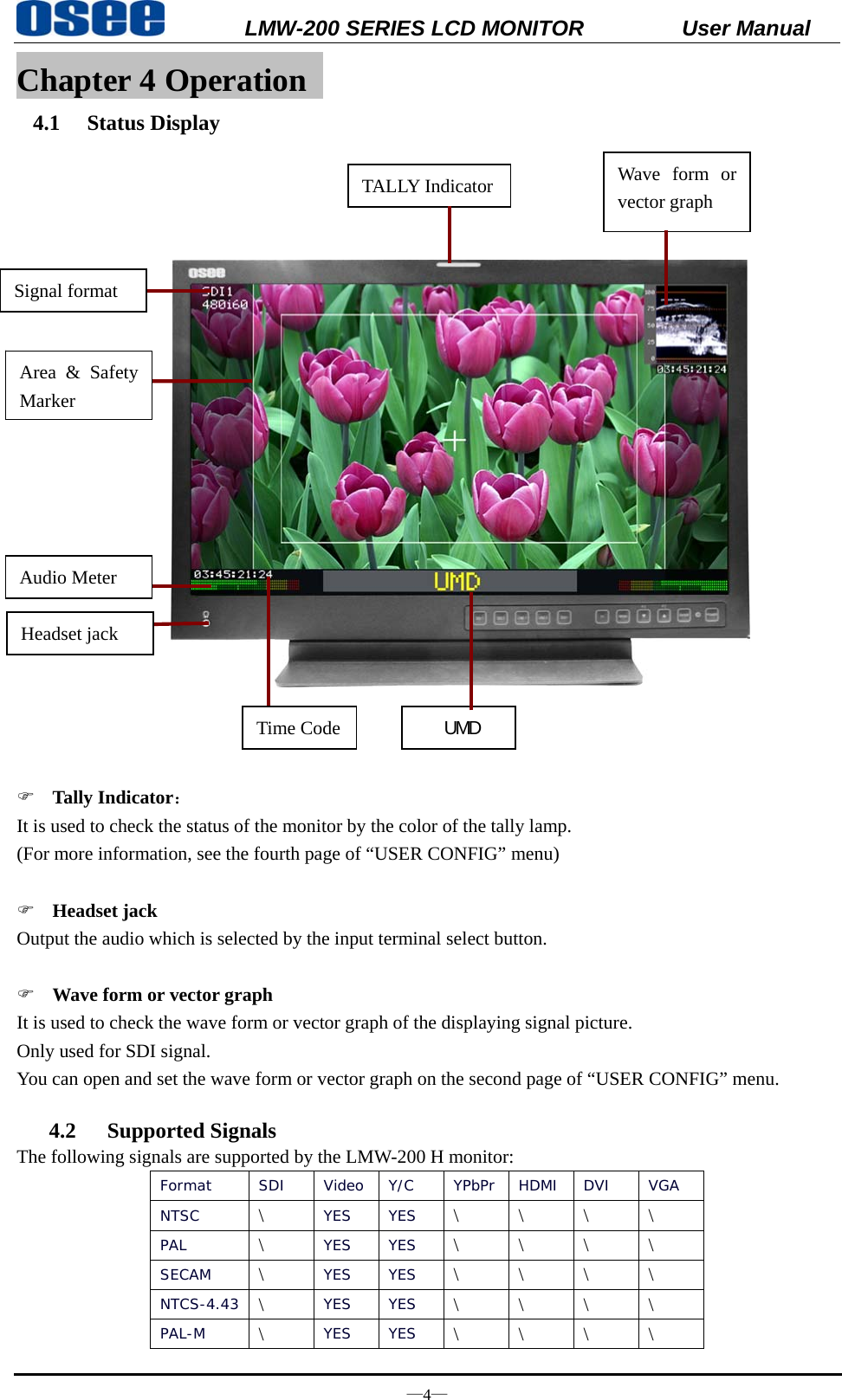

LMW-200 SERIES LCD MONITOR User Manual —4— Chapter 4 Operation 4.1 Status Display ) Tally Indicator： It is used to check the status of the monitor by the color of the tally lamp. (For more information, see the fourth page of “USER CONFIG” menu) ) Headset jack Output the audio which is selected by the input terminal select button. ) Wave form or vector graph It is used to check the wave form or vector graph of the displaying signal picture. Only used for SDI signal. You can open and set the wave form or vector graph on the second page of “USER CONFIG” menu. 4.2 Supported Signals The following signals are supported by the LMW-200 H monitor: Format SDI Video Y/C YPbPr HDMI DVI VGA NTSC \ YES YES \ \ \ \ PAL \ YES YES \ \ \ \ SECAM \ YES YES \ \ \ \ NTCS-4.43 \ YES YES \ \ \ \ PAL-M \ YES YES \ \ \ \ Signal format Audio Meter TALLY Indicator Headset jack Wave form or vector graph Time Code UMD Area & Safety Marker

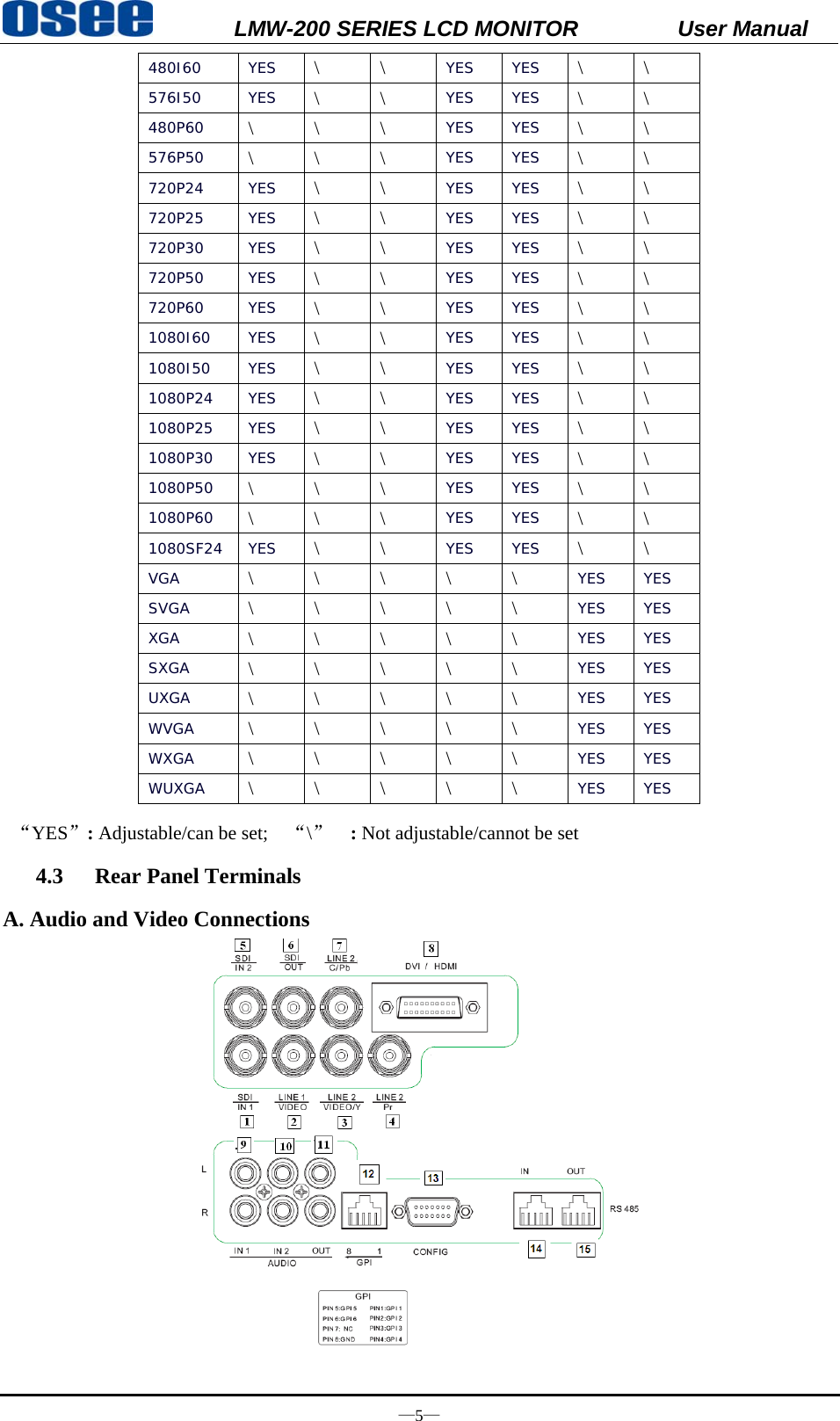

LMW-200 SERIES LCD MONITOR User Manual —5— 480I60 YES \ \ YES YES \ \ 576I50 YES \ \ YES YES \ \ 480P60 \ \ \ YES YES \ \ 576P50 \ \ \ YES YES \ \ 720P24 YES \ \ YES YES \ \ 720P25 YES \ \ YES YES \ \ 720P30 YES \ \ YES YES \ \ 720P50 YES \ \ YES YES \ \ 720P60 YES \ \ YES YES \ \ 1080I60 YES \ \ YES YES \ \ 1080I50 YES \ \ YES YES \ \ 1080P24 YES \ \ YES YES \ \ 1080P25 YES \ \ YES YES \ \ 1080P30 YES \ \ YES YES \ \ 1080P50 \ \ \ YES YES \ \ 1080P60 \ \ \ YES YES \ \ 1080SF24 YES \ \ YES YES \ \ VGA \ \ \ \ \ YES YES SVGA \ \ \ \ \ YES YES XGA \ \ \ \ \ YES YES SXGA \ \ \ \ \ YES YES UXGA \ \ \ \ \ YES YES WVGA \ \ \ \ \ YES YES WXGA \ \ \ \ \ YES YES WUXGA \ \ \ \ \ YES YES “YES”: Adjustable/can be set; “\” : Not adjustable/cannot be set 4.3 Rear Panel Terminals A. Audio and Video Connections

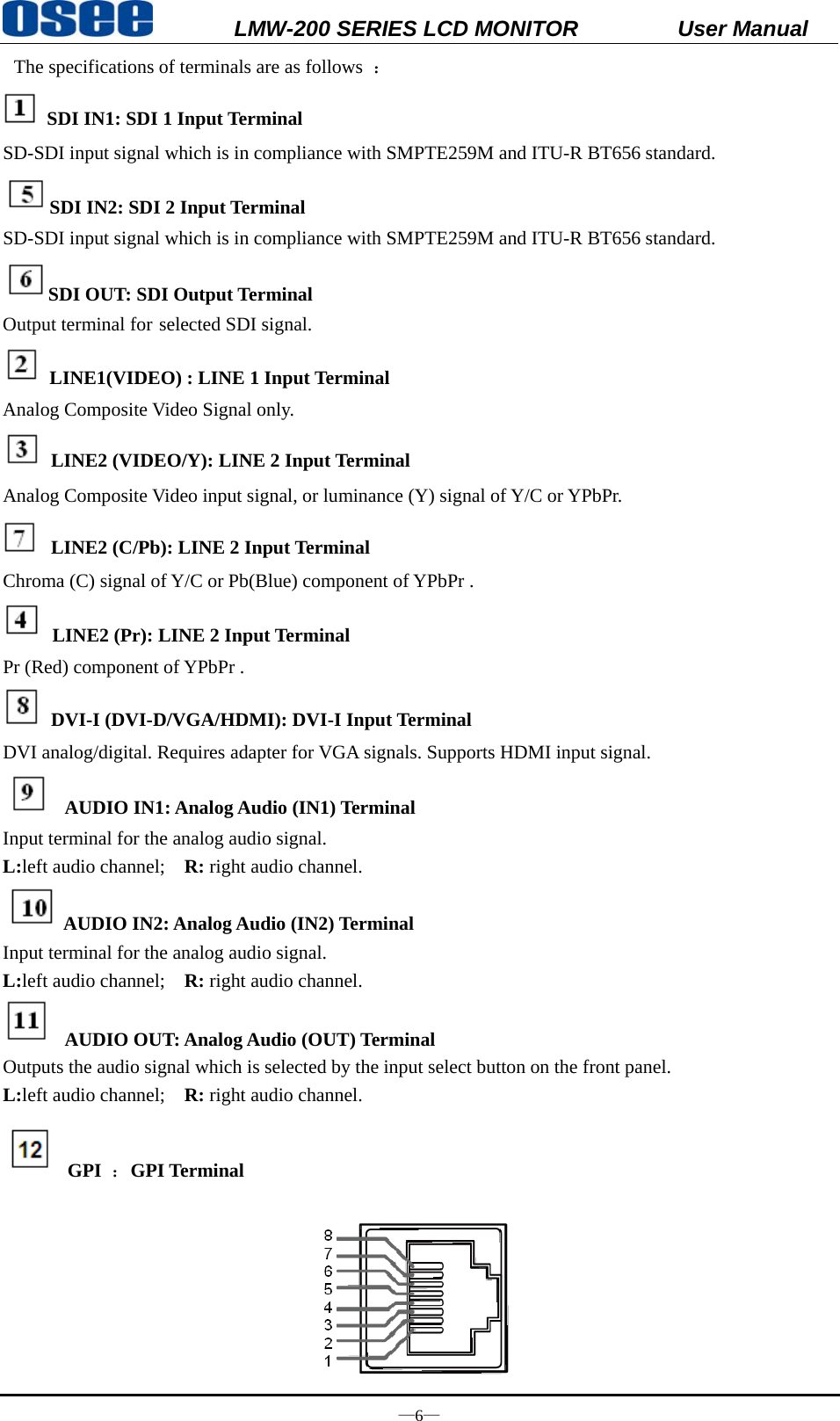

LMW-200 SERIES LCD MONITOR User Manual —6— The specifications of terminals are as follows ： SDI IN1: SDI 1 Input Terminal SD-SDI input signal which is in compliance with SMPTE259M and ITU-R BT656 standard. SDI IN2: SDI 2 Input Terminal SD-SDI input signal which is in compliance with SMPTE259M and ITU-R BT656 standard. SDI OUT: SDI Output Terminal Output terminal for selected SDI signal. LINE1(VIDEO) : LINE 1 Input Terminal Analog Composite Video Signal only. LINE2 (VIDEO/Y): LINE 2 Input Terminal Analog Composite Video input signal, or luminance (Y) signal of Y/C or YPbPr. LINE2 (C/Pb): LINE 2 Input Terminal Chroma (C) signal of Y/C or Pb(Blue) component of YPbPr . LINE2 (Pr): LINE 2 Input Terminal Pr (Red) component of YPbPr . DVI-I (DVI-D/VGA/HDMI): DVI-I Input Terminal DVI analog/digital. Requires adapter for VGA signals. Supports HDMI input signal. AUDIO IN1: Analog Audio (IN1) Terminal Input terminal for the analog audio signal. L:left audio channel; R: right audio channel. AUDIO IN2: Analog Audio (IN2) Terminal Input terminal for the analog audio signal. L:left audio channel; R: right audio channel. AUDIO OUT: Analog Audio (OUT) Terminal Outputs the audio signal which is selected by the input select button on the front panel. L:left audio channel; R: right audio channel. GPI ：GPI Terminal

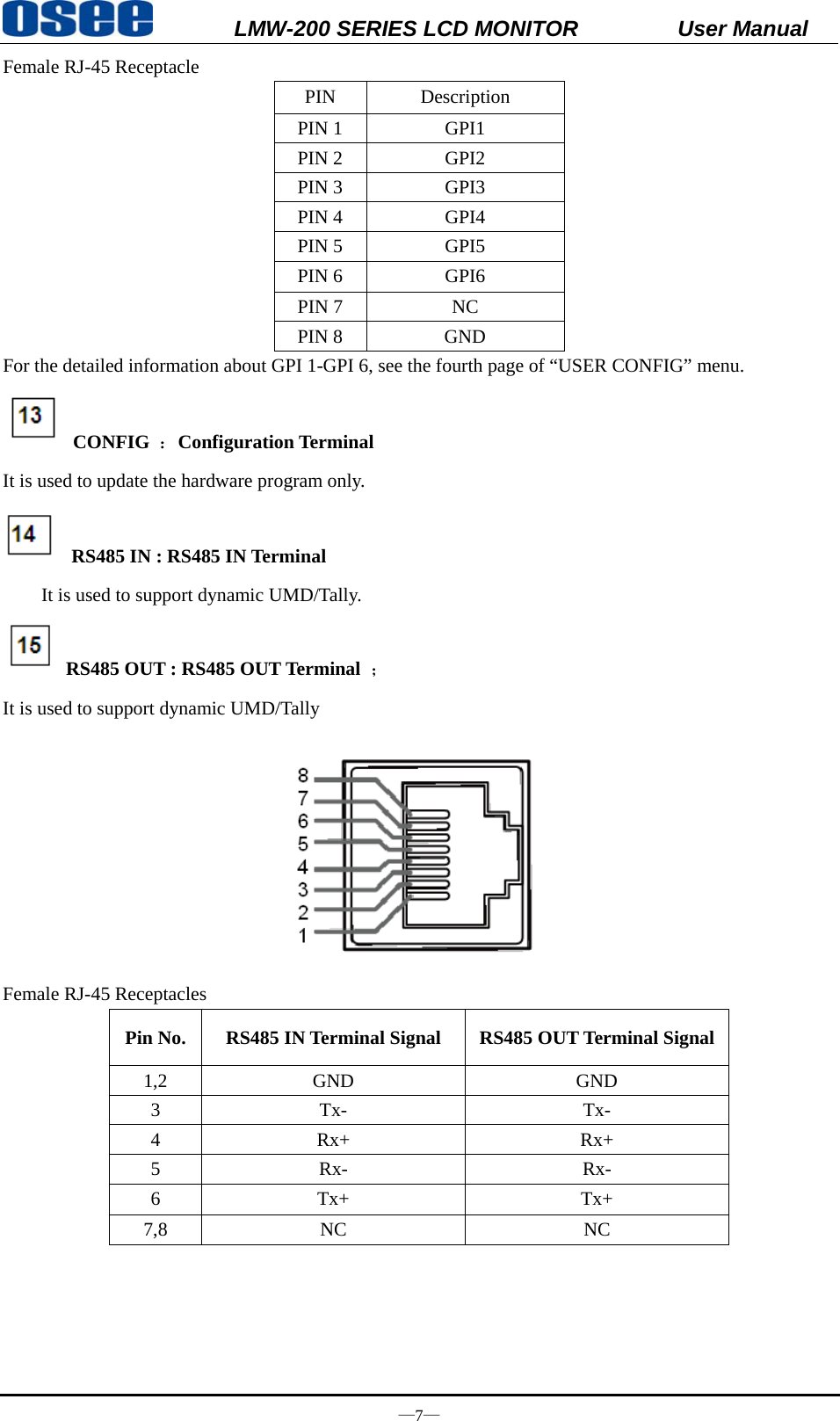

LMW-200 SERIES LCD MONITOR User Manual —7— Female RJ-45 Receptacle PIN Description PIN 1 GPI1 PIN 2 GPI2 PIN 3 GPI3 PIN 4 GPI4 PIN 5 GPI5 PIN 6 GPI6 PIN 7 NC PIN 8 GND For the detailed information about GPI 1-GPI 6, see the fourth page of “USER CONFIG” menu. CONFIG ：Configuration Terminal It is used to update the hardware program only. RS485 IN : RS485 IN Terminal It is used to support dynamic UMD/Tally. RS485 OUT : RS485 OUT Terminal ； It is used to support dynamic UMD/Tally Female RJ-45 Receptacles Pin No. RS485 IN Terminal Signal RS485 OUT Terminal Signal 1,2 GND GND 3 Tx- Tx- 4 Rx+ Rx+ 5 Rx- Rx- 6 Tx+ Tx+ 7,8 NC NC

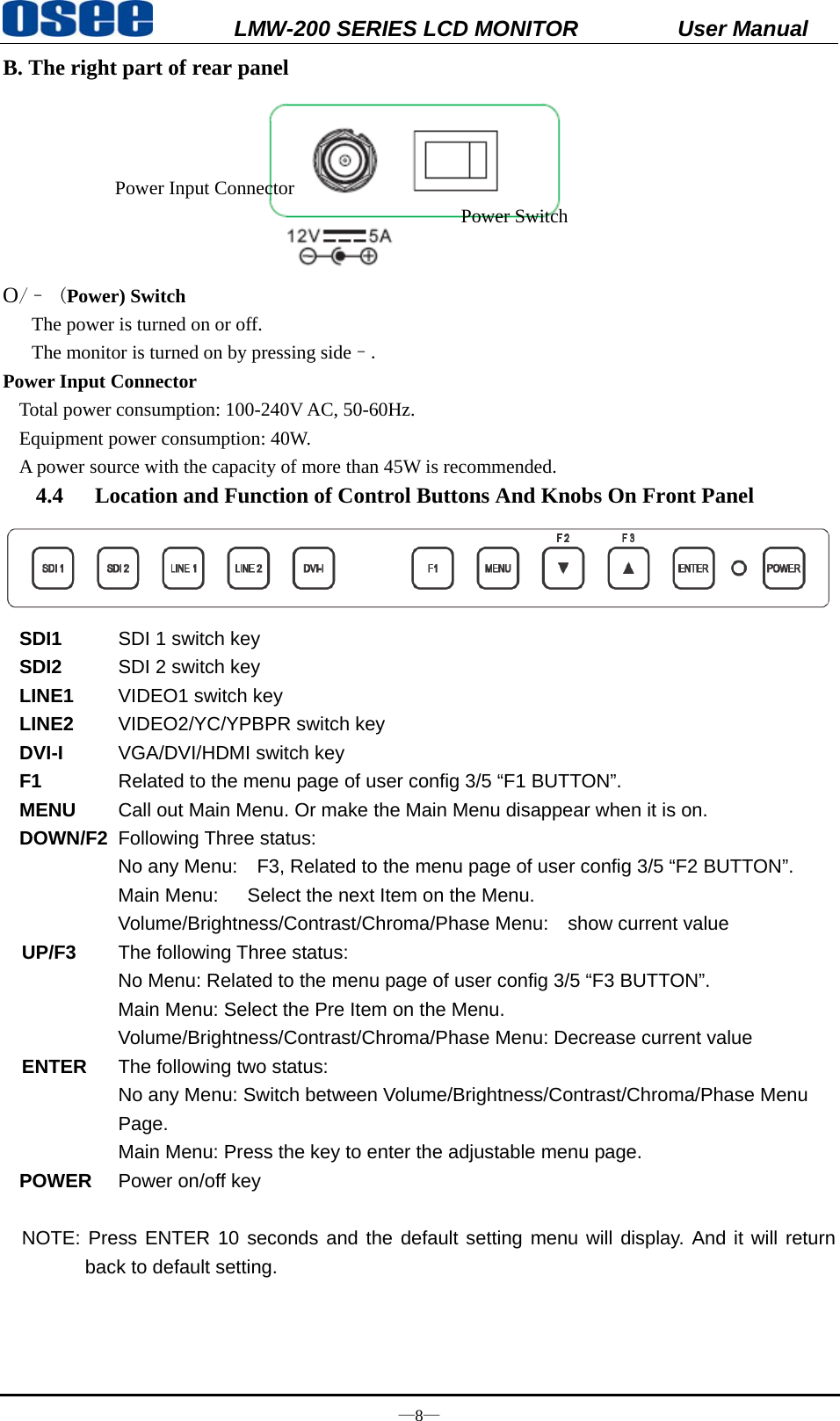

LMW-200 SERIES LCD MONITOR User Manual —8— B. The right part of rear panel O/– (Power) Switch The power is turned on or off. The monitor is turned on by pressing side–. Power Input Connector Total power consumption: 100-240V AC, 50-60Hz. Equipment power consumption: 40W. A power source with the capacity of more than 45W is recommended. 4.4 Location and Function of Control Buttons And Knobs On Front Panel SDI1 SDI 1 switch key SDI2 SDI 2 switch key LINE1 VIDEO1 switch key LINE2 VIDEO2/YC/YPBPR switch key DVI-I VGA/DVI/HDMI switch key F1 Related to the menu page of user config 3/5 “F1 BUTTON”. MENU Call out Main Menu. Or make the Main Menu disappear when it is on. DOWN/F2 Following Three status: No any Menu: F3, Related to the menu page of user config 3/5 “F2 BUTTON”. Main Menu: Select the next Item on the Menu. Volume/Brightness/Contrast/Chroma/Phase Menu: show current value UP/F3 The following Three status: No Menu: Related to the menu page of user config 3/5 “F3 BUTTON”. Main Menu: Select the Pre Item on the Menu. Volume/Brightness/Contrast/Chroma/Phase Menu: Decrease current value ENTER The following two status: No any Menu: Switch between Volume/Brightness/Contrast/Chroma/Phase Menu Page. Main Menu: Press the key to enter the adjustable menu page. POWER Power on/off key NOTE: Press ENTER 10 seconds and the default setting menu will display. And it will return back to default setting. Power Input Connector Power Switch

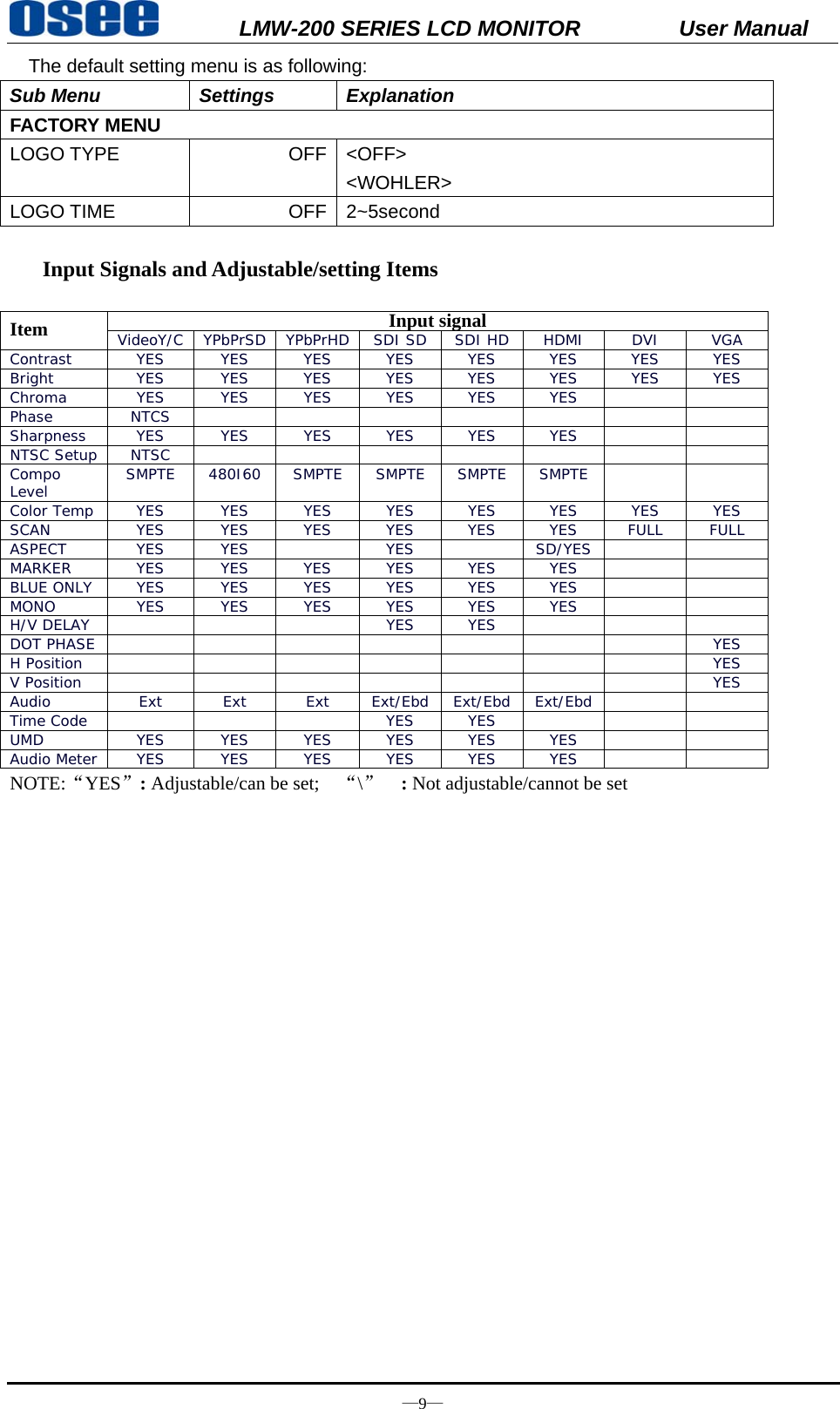

LMW-200 SERIES LCD MONITOR User Manual —9— The default setting menu is as following: Sub Menu Settings Explanation FACTORY MENU LOGO TYPE OFF <OFF> <WOHLER> LOGO TIME OFF 2~5second Input Signals and Adjustable/setting Items Item Input signal VideoY/C YPbPrSD YPbPrHD SDI SD SDI HD HDMI DVI VGA Contrast YES YES YES YES YES YES YES YES Bright YES YES YES YES YES YES YES YES Chroma YES YES YES YES YES YES Phase NTCS Sharpness YES YES YES YES YES YES NTSC Setup NTSC Compo Level SMPTE 480I60 SMPTE SMPTE SMPTE SMPTE Color Temp YES YES YES YES YES YES YES YES SCAN YES YES YES YES YES YES FULL FULL ASPECT YES YES YES SD/YES MARKER YES YES YES YES YES YES BLUE ONLY YES YES YES YES YES YES MONO YES YES YES YES YES YES H/V DELAY YES YES DOT PHASE YES H Position YES V Position YES Audio Ext Ext Ext Ext/Ebd Ext/Ebd Ext/Ebd Time Code YES YES UMD YES YES YES YES YES YES Audio Meter YES YES YES YES YES YES NOTE:“YES”: Adjustable/can be set; “\” : Not adjustable/cannot be set

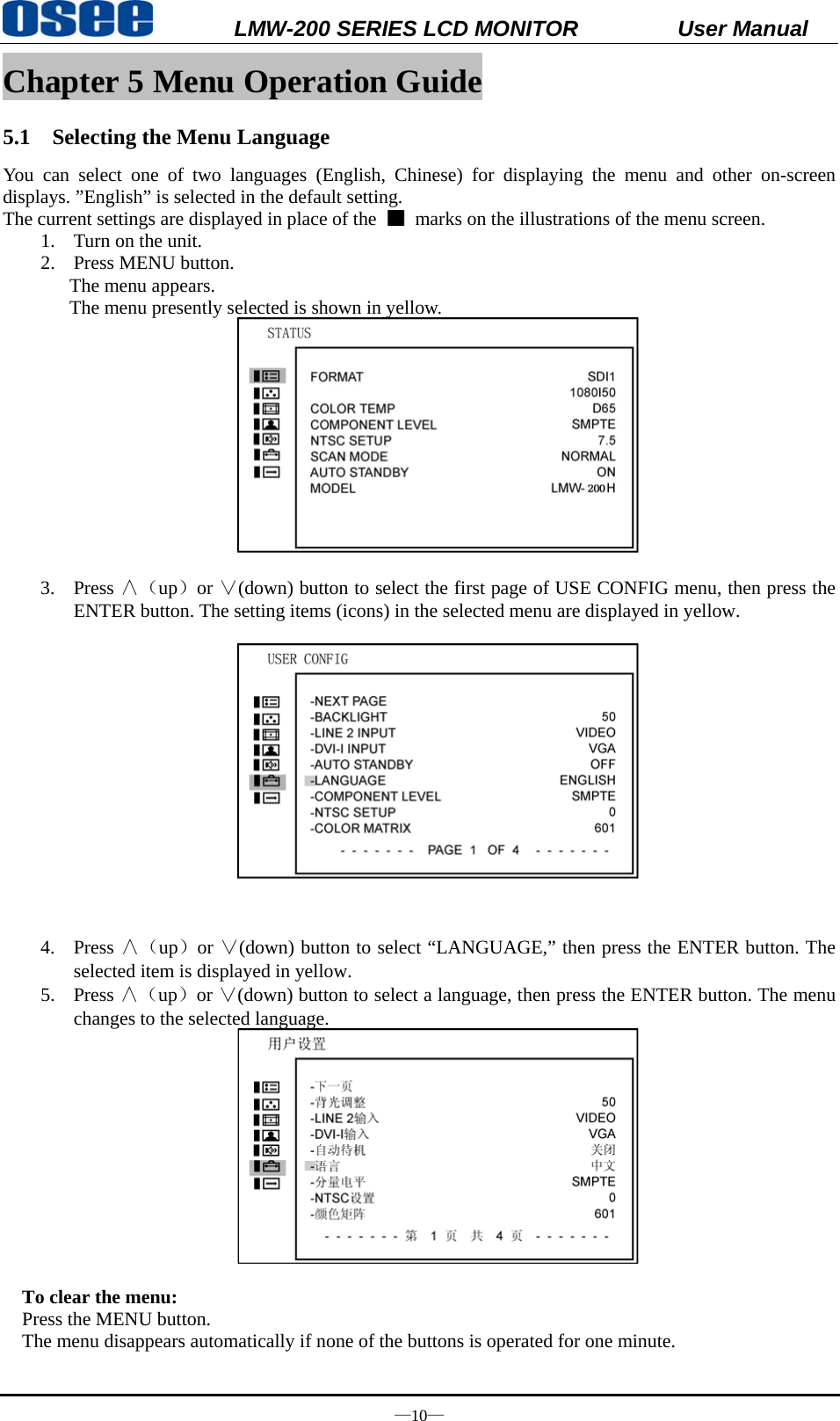

LMW-200 SERIES LCD MONITOR User Manual —10— Chapter 5 Menu Operation Guide 5.1 Selecting the Menu Language You can select one of two languages (English, Chinese) for displaying the menu and other on-screen displays. ”English” is selected in the default setting. The current settings are displayed in place of the marks on the illustrations of the menu screen. 1. Turn on the unit. 2. Press MENU button. The menu appears. The menu presently selected is shown in yellow. 3. Press ∧（up）or ∨(down) button to select the first page of USE CONFIG menu, then press the ENTER button. The setting items (icons) in the selected menu are displayed in yellow. 4. Press ∧（up）or ∨(down) button to select “LANGUAGE,” then press the ENTER button. The selected item is displayed in yellow. 5. Press ∧（up）or ∨(down) button to select a language, then press the ENTER button. The menu changes to the selected language. To clear the menu: Press the MENU button. The menu disappears automatically if none of the buttons is operated for one minute.

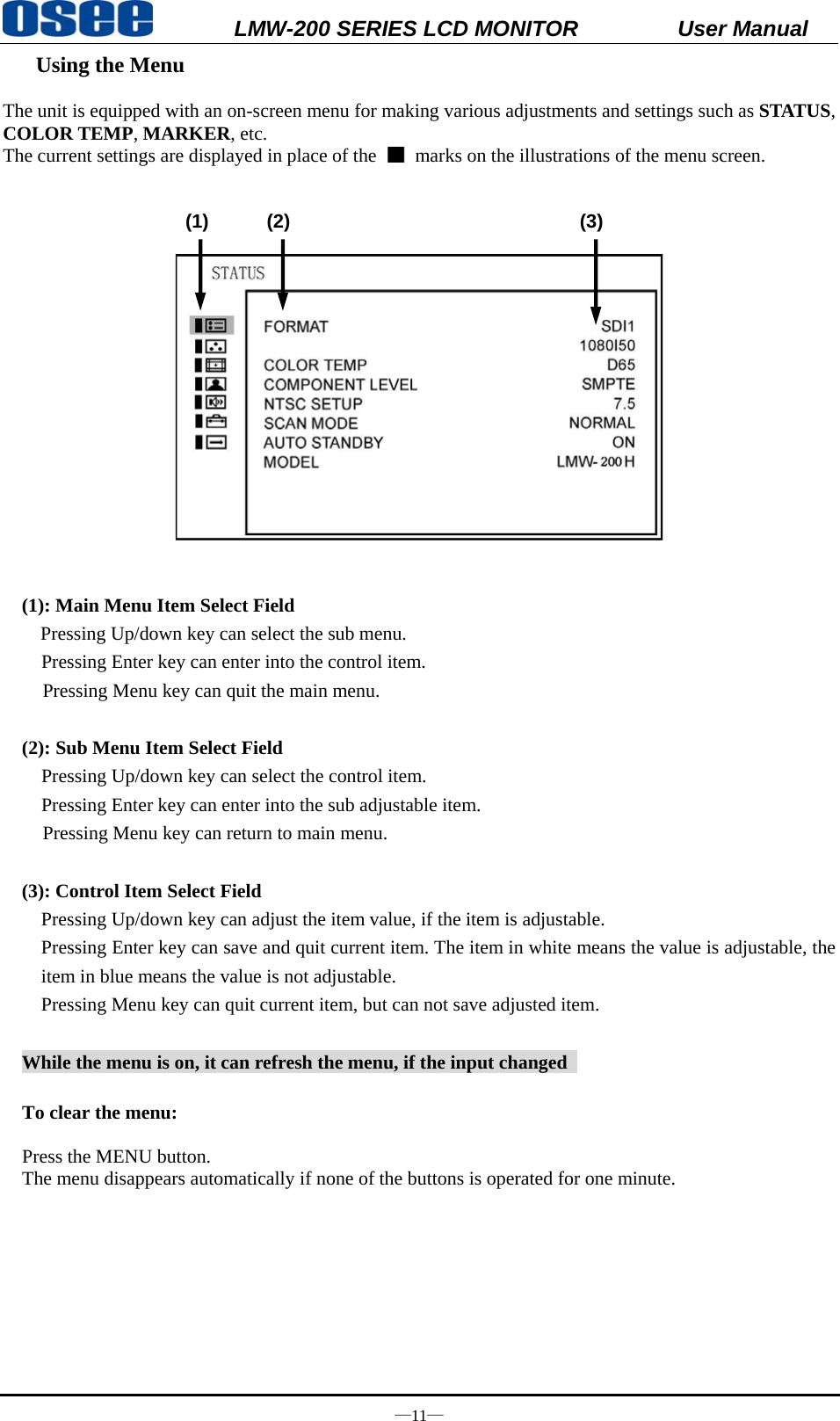

LMW-200 SERIES LCD MONITOR User Manual —11— Using the Menu The unit is equipped with an on-screen menu for making various adjustments and settings such as STATUS, COLOR TEMP, MARKER, etc. The current settings are displayed in place of the marks on the illustrations of the menu screen. (1) (2) (3) (1): Main Menu Item Select Field Pressing Up/down key can select the sub menu. Pressing Enter key can enter into the control item. Pressing Menu key can quit the main menu. (2): Sub Menu Item Select Field Pressing Up/down key can select the control item. Pressing Enter key can enter into the sub adjustable item. Pressing Menu key can return to main menu. (3): Control Item Select Field Pressing Up/down key can adjust the item value, if the item is adjustable. Pressing Enter key can save and quit current item. The item in white means the value is adjustable, the item in blue means the value is not adjustable. Pressing Menu key can quit current item, but can not save adjusted item. While the menu is on, it can refresh the menu, if the input changed To clear the menu: Press the MENU button. The menu disappears automatically if none of the buttons is operated for one minute.

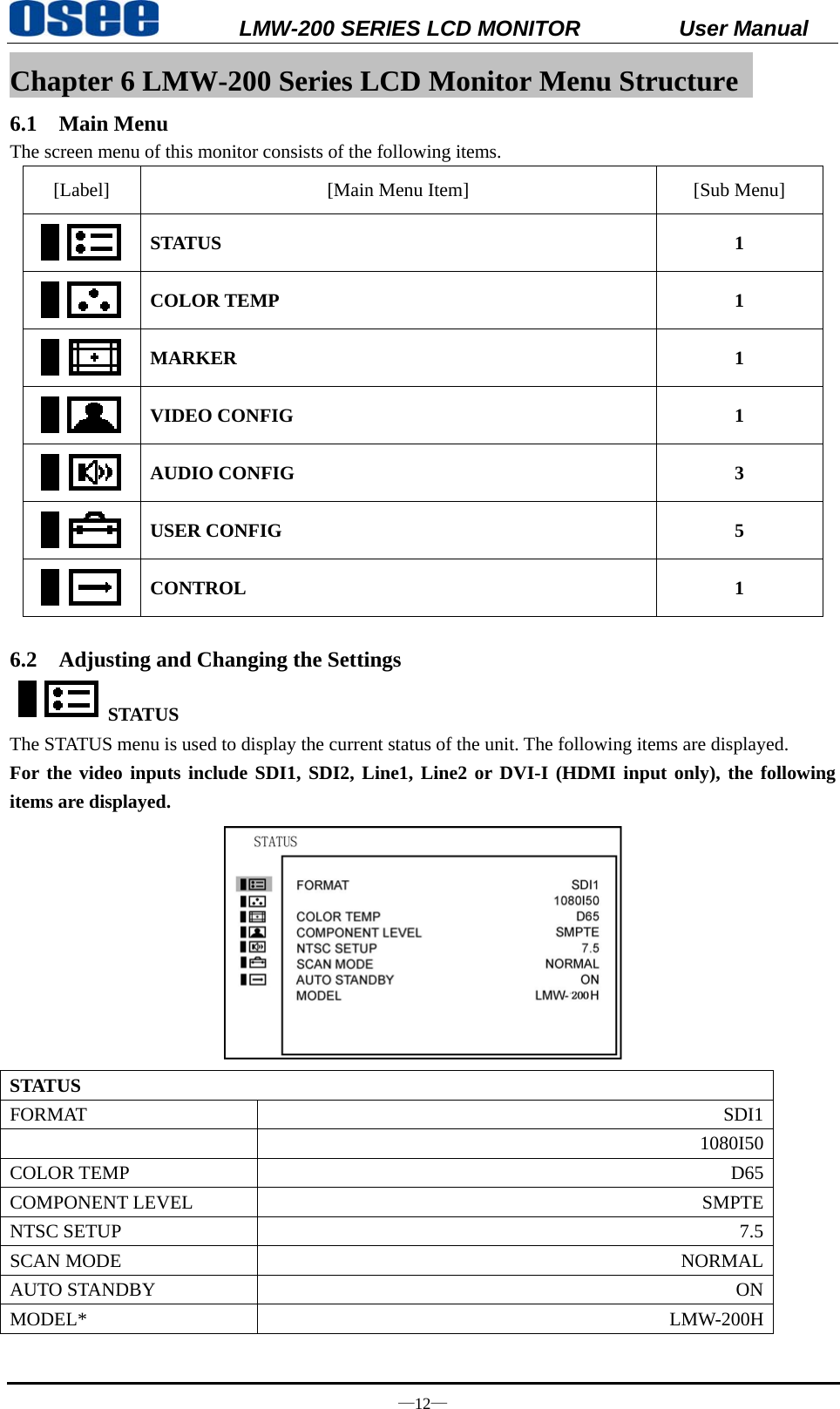

LMW-200 SERIES LCD MONITOR User Manual —12— Chapter 6 LMW-200 Series LCD Monitor Menu Structure 6.1 Main Menu The screen menu of this monitor consists of the following items. [Label] [Main Menu Item] [Sub Menu] STATUS 1 COLOR TEMP 1 MARKER 1 VIDEO CONFIG 1 AUDIO CONFIG 3 USER CONFIG 5 CONTROL 1 6.2 Adjusting and Changing the Settings STATUS The STATUS menu is used to display the current status of the unit. The following items are displayed. For the video inputs include SDI1, SDI2, Line1, Line2 or DVI-I (HDMI input only), the following items are displayed. STATUS FORMAT SDI1 1080I50COLOR TEMP D65COMPONENT LEVEL SMPTENTSC SETUP 7.5SCAN MODE NORMALAUTO STANDBY ONMODEL* LMW-200H

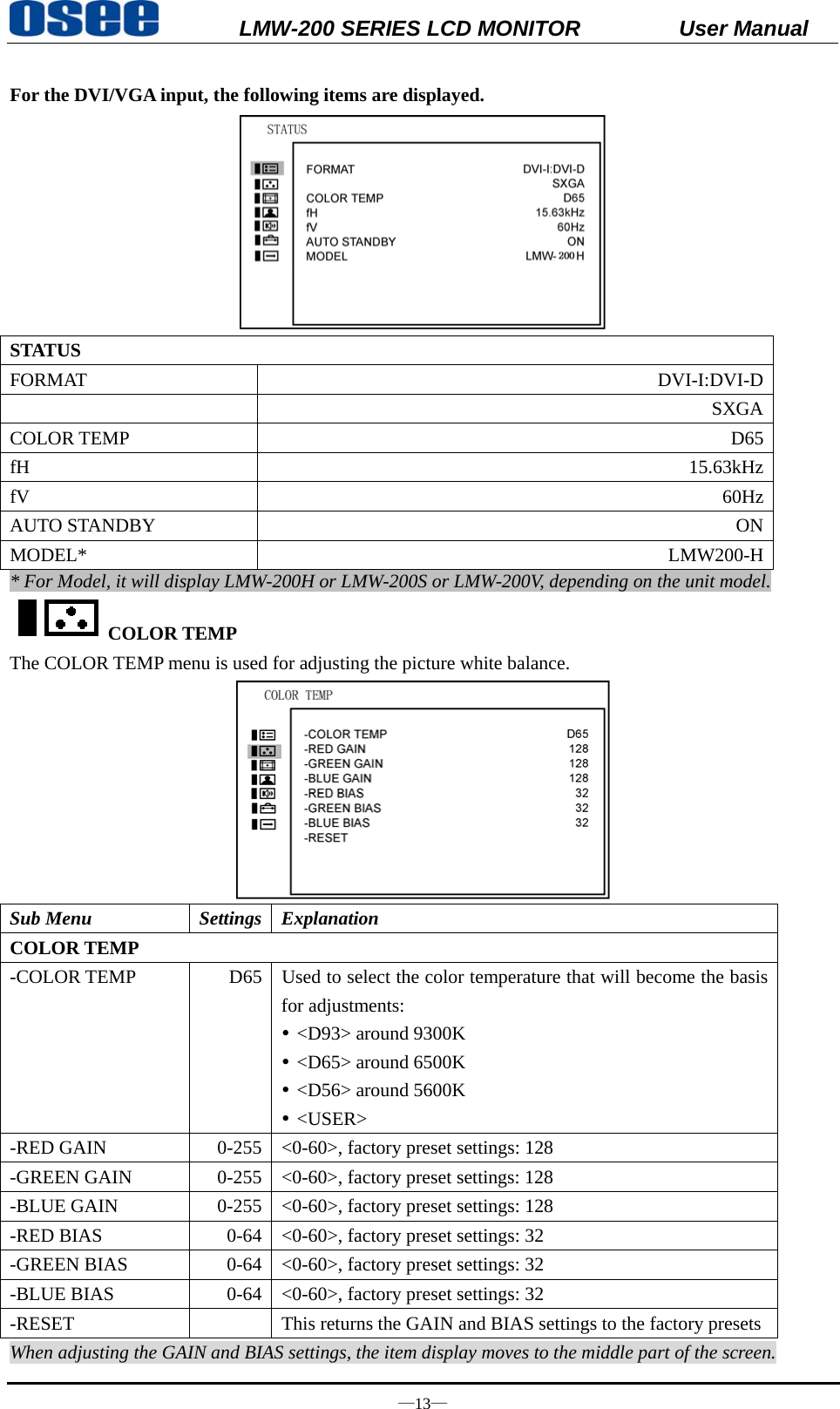

LMW-200 SERIES LCD MONITOR User Manual —13— For the DVI/VGA input, the following items are displayed. STATUS FORMAT DVI-I:DVI-D SXGACOLOR TEMP D65fH 15.63kHzfV 60HzAUTO STANDBY ONMODEL* LMW200-H* For Model, it will display LMW-200H or LMW-200S or LMW-200V, depending on the unit model. COLOR TEMP The COLOR TEMP menu is used for adjusting the picture white balance. Sub Menu Settings Explanation COLOR TEMP -COLOR TEMP D65 Used to select the color temperature that will become the basis for adjustments: y <D93> around 9300K y <D65> around 6500K y <D56> around 5600K y <USER> -RED GAIN 0-255 <0-60>, factory preset settings: 128 -GREEN GAIN 0-255 <0-60>, factory preset settings: 128 -BLUE GAIN 0-255 <0-60>, factory preset settings: 128 -RED BIAS 0-64 <0-60>, factory preset settings: 32 -GREEN BIAS 0-64 <0-60>, factory preset settings: 32 -BLUE BIAS 0-64 <0-60>, factory preset settings: 32 -RESET This returns the GAIN and BIAS settings to the factory presetsWhen adjusting the GAIN and BIAS settings, the item display moves to the middle part of the screen.

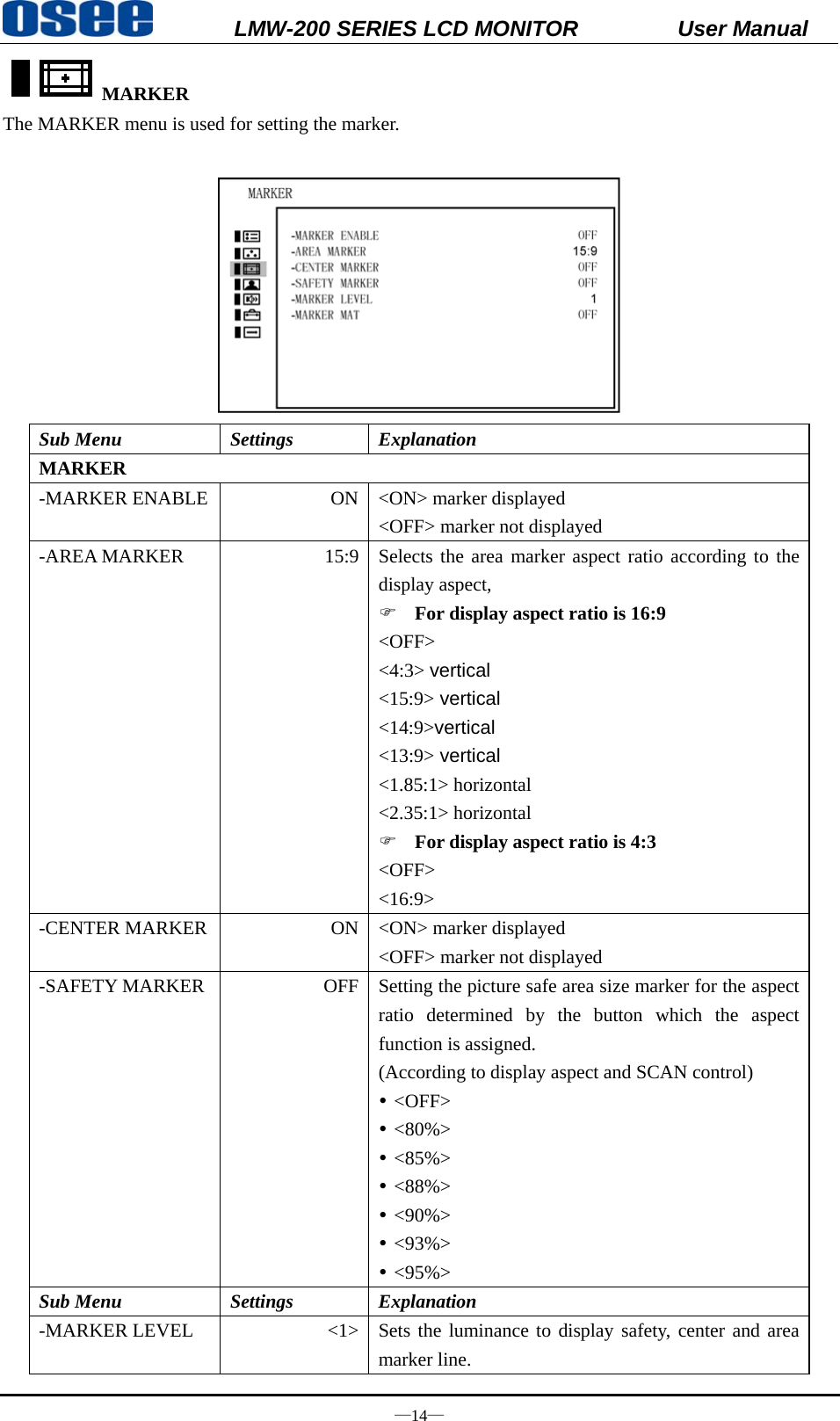

LMW-200 SERIES LCD MONITOR User Manual —14— MARKER The MARKER menu is used for setting the marker. Sub Menu Settings Explanation MARKER -MARKER ENABLE ON <ON> marker displayed <OFF> marker not displayed -AREA MARKER 15:9 Selects the area marker aspect ratio according to the display aspect, ) For display aspect ratio is 16:9 <OFF> <4:3> vertical <15:9> vertical <14:9>vertical <13:9> vertical <1.85:1> horizontal <2.35:1> horizontal ) For display aspect ratio is 4:3 <OFF> <16:9> -CENTER MARKER ON <ON> marker displayed <OFF> marker not displayed -SAFETY MARKER OFF Setting the picture safe area size marker for the aspect ratio determined by the button which the aspect function is assigned. (According to display aspect and SCAN control) y <OFF> y <80%> y <85%> y <88%> y <90%> y <93%> y <95%> Sub Menu Settings Explanation -MARKER LEVEL <1> Sets the luminance to display safety, center and area marker line.

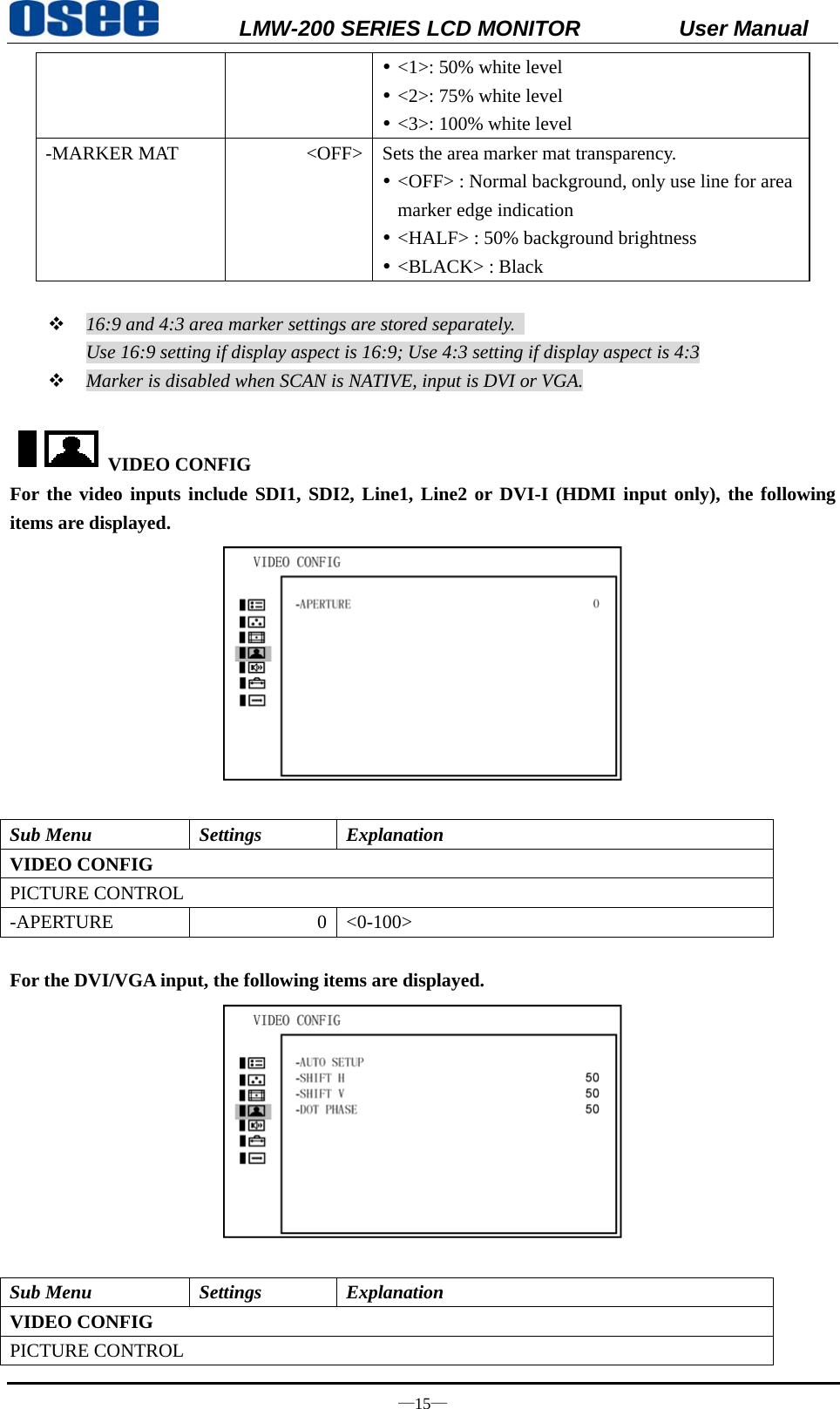

LMW-200 SERIES LCD MONITOR User Manual —15— y <1>: 50% white level y <2>: 75% white level y <3>: 100% white level -MARKER MAT <OFF> Sets the area marker mat transparency. y <OFF> : Normal background, only use line for area marker edge indication y <HALF> : 50% background brightness y <BLACK> : Black  16:9 and 4:3 area marker settings are stored separately. Use 16:9 setting if display aspect is 16:9; Use 4:3 setting if display aspect is 4:3  Marker is disabled when SCAN is NATIVE, input is DVI or VGA. VIDEO CONFIG For the video inputs include SDI1, SDI2, Line1, Line2 or DVI-I (HDMI input only), the following items are displayed. Sub Menu Settings Explanation VIDEO CONFIG PICTURE CONTROL -APERTURE 0 <0-100> For the DVI/VGA input, the following items are displayed. Sub Menu Settings Explanation VIDEO CONFIG PICTURE CONTROL

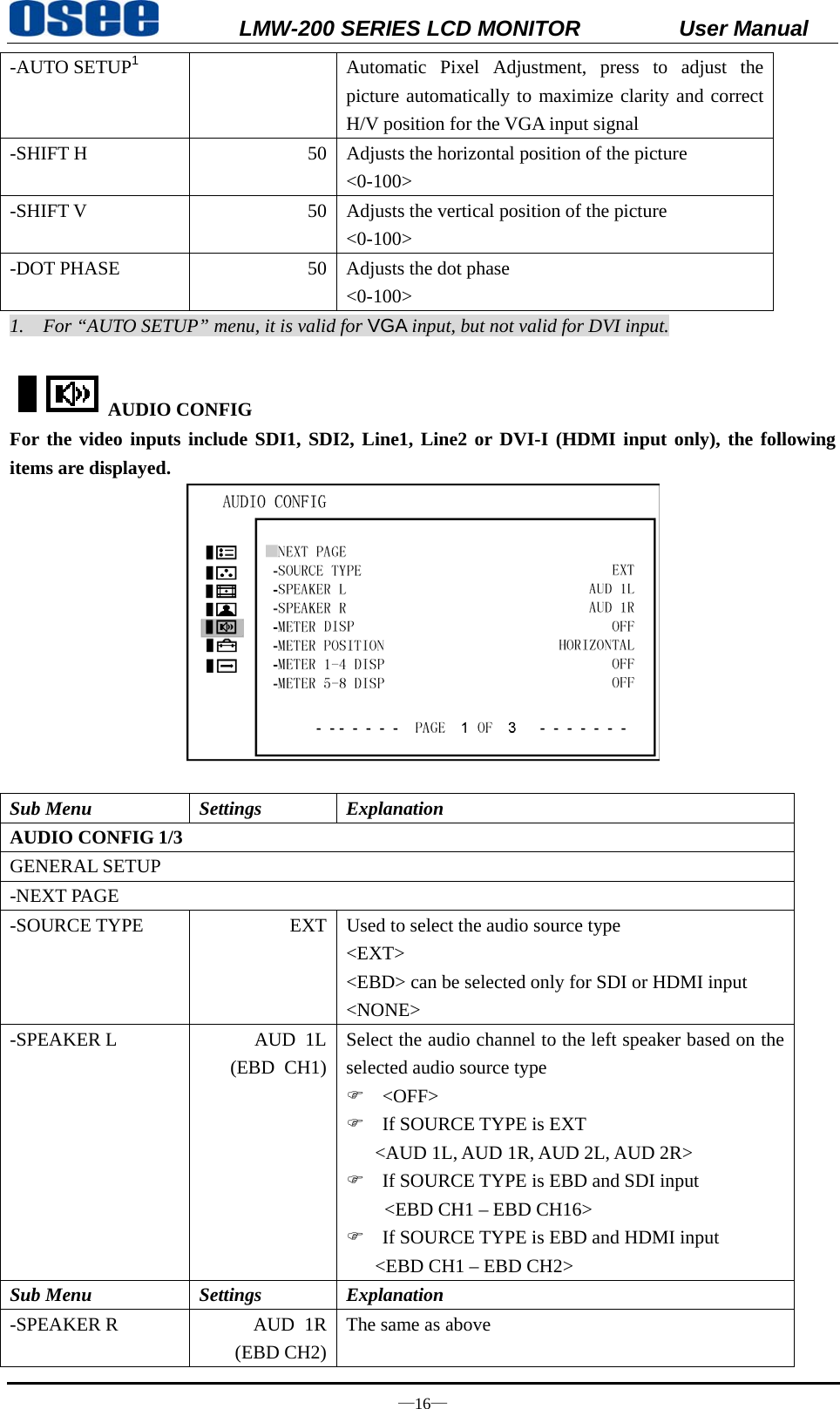

LMW-200 SERIES LCD MONITOR User Manual —16— -AUTO SETUP1 Automatic Pixel Adjustment, press to adjust the picture automatically to maximize clarity and correct H/V position for the VGA input signal -SHIFT H 50 Adjusts the horizontal position of the picture <0-100> -SHIFT V 50 Adjusts the vertical position of the picture <0-100> -DOT PHASE 50 Adjusts the dot phase <0-100> 1. For “AUTO SETUP” menu, it is valid for VGA input, but not valid for DVI input. AUDIO CONFIG For the video inputs include SDI1, SDI2, Line1, Line2 or DVI-I (HDMI input only), the following items are displayed. Sub Menu Settings Explanation AUDIO CONFIG 1/3 GENERAL SETUP -NEXT PAGE -SOURCE TYPE EXT Used to select the audio source type <EXT> <EBD> can be selected only for SDI or HDMI input <NONE> -SPEAKER L AUD 1L(EBD CH1)Select the audio channel to the left speaker based on the selected audio source type ) <OFF> ) If SOURCE TYPE is EXT <AUD 1L, AUD 1R, AUD 2L, AUD 2R> ) If SOURCE TYPE is EBD and SDI input <EBD CH1 – EBD CH16> ) If SOURCE TYPE is EBD and HDMI input <EBD CH1 – EBD CH2> Sub Menu Settings Explanation -SPEAKER R AUD 1R(EBD CH2)The same as above

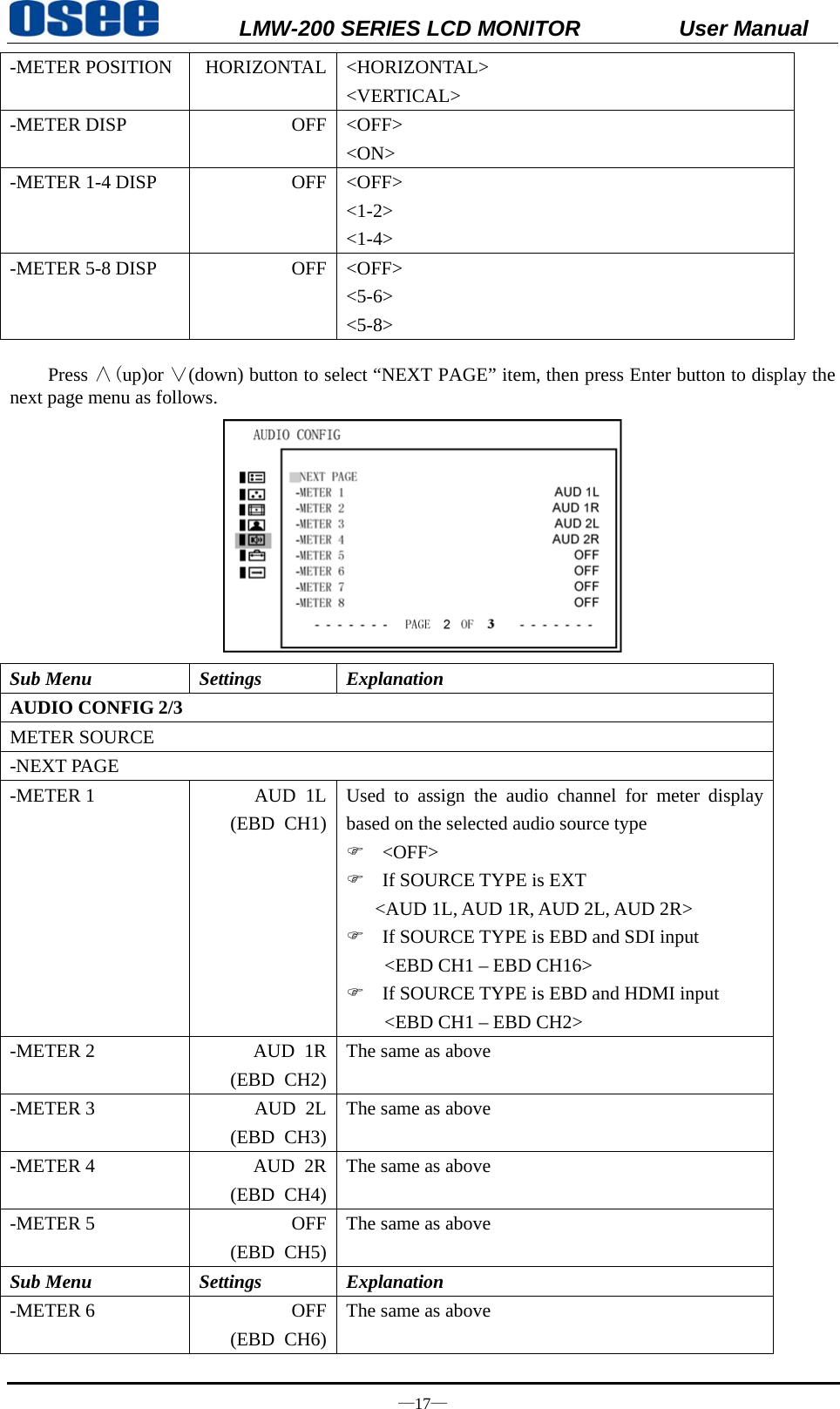

LMW-200 SERIES LCD MONITOR User Manual —17— -METER POSITION HORIZONTAL <HORIZONTAL> <VERTICAL> -METER DISP OFF <OFF> <ON> -METER 1-4 DISP OFF <OFF> <1-2> <1-4> -METER 5-8 DISP OFF <OFF> <5-6> <5-8> Press ∧(up)or ∨(down) button to select “NEXT PAGE” item, then press Enter button to display the next page menu as follows. Sub Menu Settings Explanation AUDIO CONFIG 2/3 METER SOURCE -NEXT PAGE -METER 1 AUD 1L(EBD CH1)Used to assign the audio channel for meter display based on the selected audio source type ) <OFF> ) If SOURCE TYPE is EXT <AUD 1L, AUD 1R, AUD 2L, AUD 2R> ) If SOURCE TYPE is EBD and SDI input <EBD CH1 – EBD CH16> ) If SOURCE TYPE is EBD and HDMI input <EBD CH1 – EBD CH2> -METER 2 AUD 1R(EBD CH2)The same as above -METER 3 AUD 2L(EBD CH3)The same as above -METER 4 AUD 2R(EBD CH4)The same as above -METER 5 OFF(EBD CH5)The same as above Sub Menu Settings Explanation -METER 6 OFF(EBD CH6)The same as above

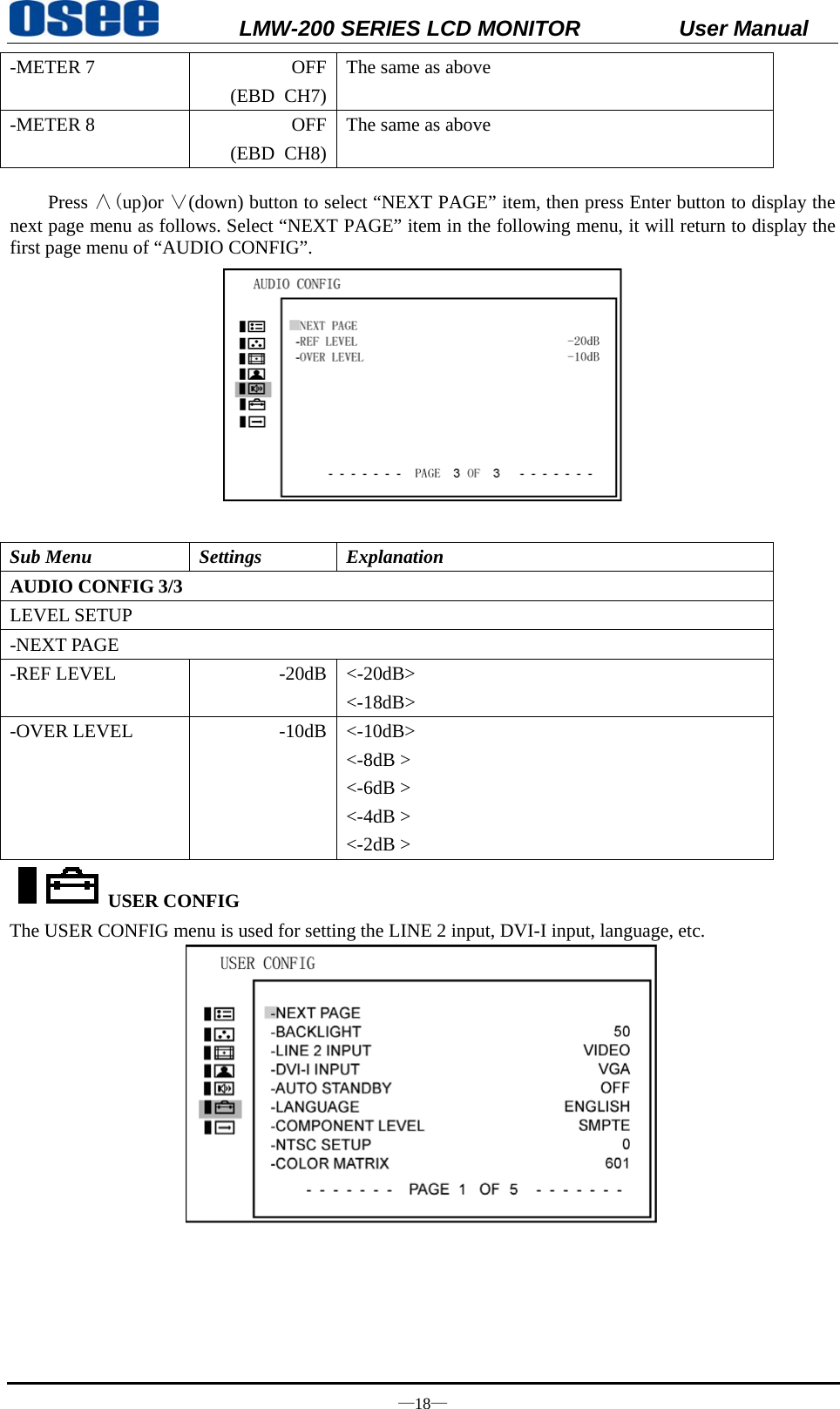

LMW-200 SERIES LCD MONITOR User Manual —18— -METER 7 OFF(EBD CH7)The same as above -METER 8 OFF(EBD CH8)The same as above Press ∧(up)or ∨(down) button to select “NEXT PAGE” item, then press Enter button to display the next page menu as follows. Select “NEXT PAGE” item in the following menu, it will return to display the first page menu of “AUDIO CONFIG”. Sub Menu Settings Explanation AUDIO CONFIG 3/3 LEVEL SETUP -NEXT PAGE -REF LEVEL -20dB <-20dB> <-18dB> -OVER LEVEL -10dB <-10dB> <-8dB > <-6dB > <-4dB > <-2dB > USER CONFIG The USER CONFIG menu is used for setting the LINE 2 input, DVI-I input, language, etc.

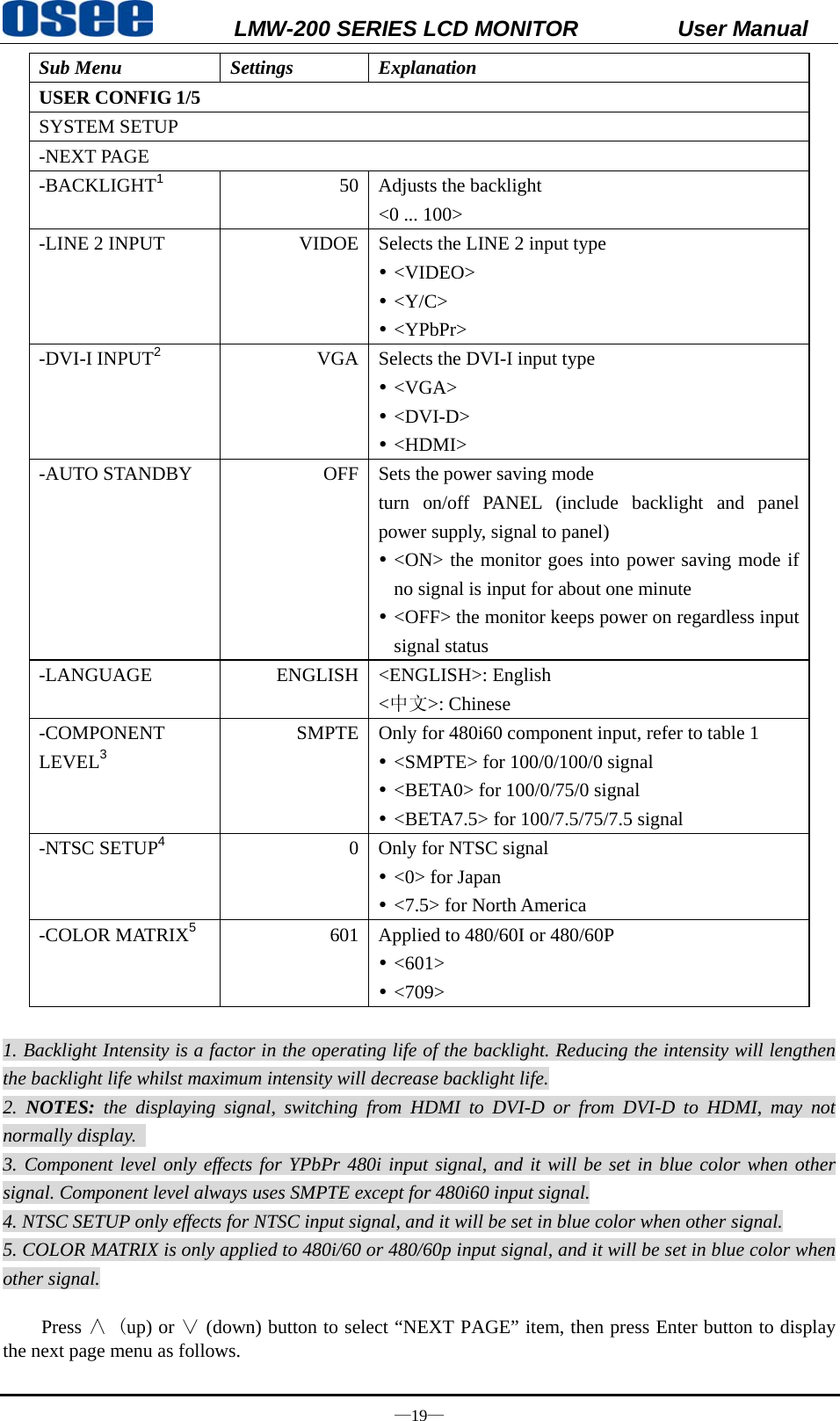

LMW-200 SERIES LCD MONITOR User Manual —19— Sub Menu Settings Explanation USER CONFIG 1/5 SYSTEM SETUP -NEXT PAGE -BACKLIGHT1 50 Adjusts the backlight <0 ... 100> -LINE 2 INPUT VIDOE Selects the LINE 2 input type y <VIDEO> y <Y/C> y <YPbPr> -DVI-I INPUT2 VGA Selects the DVI-I input type y <VGA> y <DVI-D> y <HDMI> -AUTO STANDBY OFF Sets the power saving mode turn on/off PANEL (include backlight and panel power supply, signal to panel) y <ON> the monitor goes into power saving mode if no signal is input for about one minute y <OFF> the monitor keeps power on regardless input signal status -LANGUAGE ENGLISH <ENGLISH>: English <中文>: Chinese -COMPONENT LEVEL3 SMPTE Only for 480i60 component input, refer to table 1 y <SMPTE> for 100/0/100/0 signal y <BETA0> for 100/0/75/0 signal y <BETA7.5> for 100/7.5/75/7.5 signal -NTSC SETUP4 0 Only for NTSC signal y <0> for Japan y <7.5> for North America -COLOR MATRIX5 601 Applied to 480/60I or 480/60P y <601> y <709> 1. Backlight Intensity is a factor in the operating life of the backlight. Reducing the intensity will lengthen the backlight life whilst maximum intensity will decrease backlight life. 2. NOTES: the displaying signal, switching from HDMI to DVI-D or from DVI-D to HDMI, may not normally display. 3. Component level only effects for YPbPr 480i input signal, and it will be set in blue color when other signal. Component level always uses SMPTE except for 480i60 input signal. 4. NTSC SETUP only effects for NTSC input signal, and it will be set in blue color when other signal. 5. COLOR MATRIX is only applied to 480i/60 or 480/60p input signal, and it will be set in blue color when other signal. Press ∧ (up) or ∨ (down) button to select “NEXT PAGE” item, then press Enter button to display the next page menu as follows.

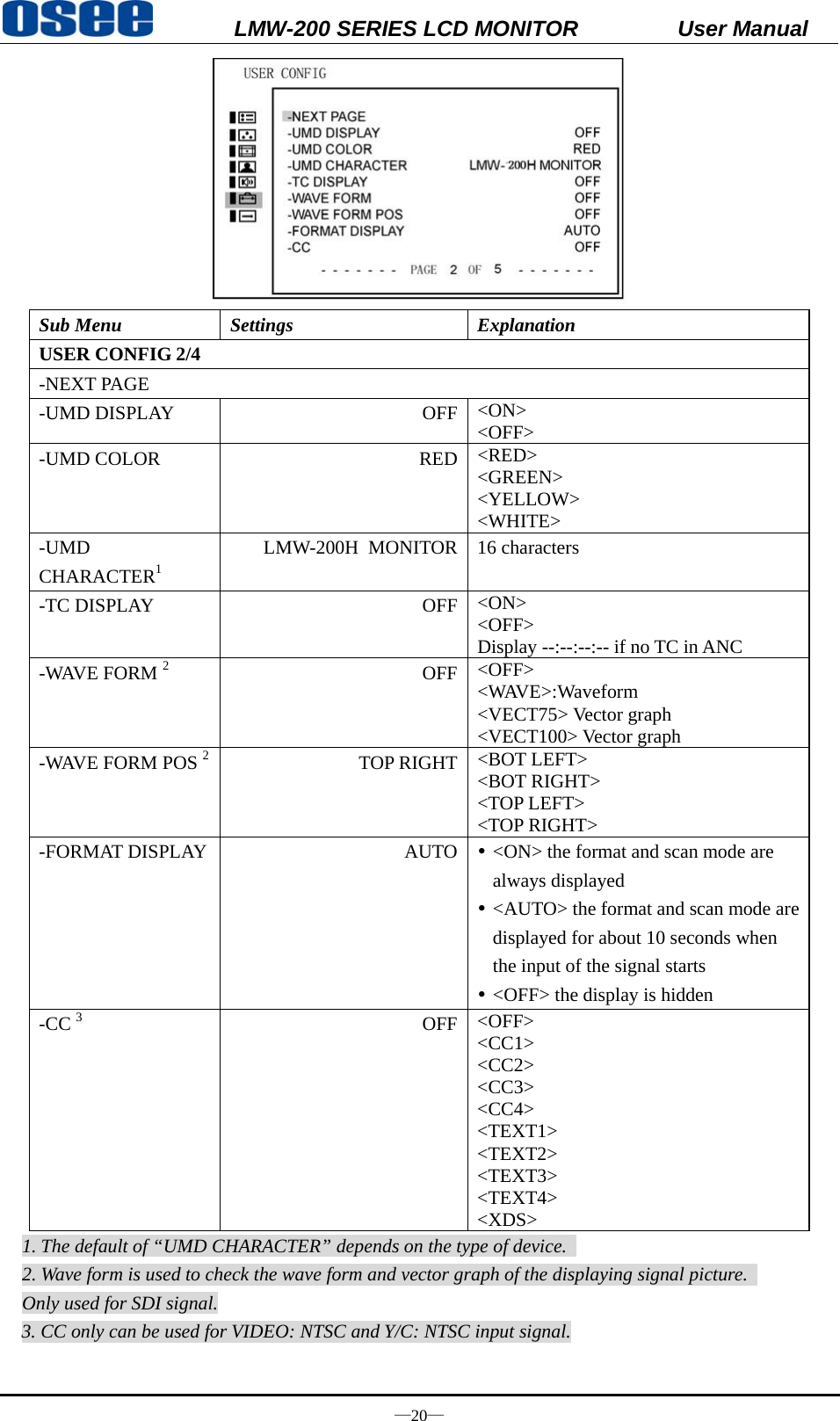

LMW-200 SERIES LCD MONITOR User Manual —20— Sub Menu Settings Explanation USER CONFIG 2/4 -NEXT PAGE -UMD DISPLAY OFF <ON> <OFF> -UMD COLOR RED <RED> <GREEN> <YELLOW> <WHITE> -UMD CHARACTER1 LMW-200H MONITOR 16 characters -TC DISPLAY OFF <ON> <OFF> Display --:--:--:-- if no TC in ANC -WAVE FORM 2 OFF <OFF> <WAVE>:Waveform <VECT75> Vector graph <VECT100> Vector graph -WAVE FORM POS 2 TOP RIGHT <BOT LEFT> <BOT RIGHT> <TOP LEFT> <TOP RIGHT> -FORMAT DISPLAY AUTO y <ON> the format and scan mode are always displayed y <AUTO> the format and scan mode are displayed for about 10 seconds when the input of the signal starts y <OFF> the display is hidden -CC 3 OFF <OFF> <CC1> <CC2> <CC3> <CC4> <TEXT1> <TEXT2> <TEXT3> <TEXT4> <XDS> 1. The default of “UMD CHARACTER” depends on the type of device. 2. Wave form is used to check the wave form and vector graph of the displaying signal picture. Only used for SDI signal. 3. CC only can be used for VIDEO: NTSC and Y/C: NTSC input signal.

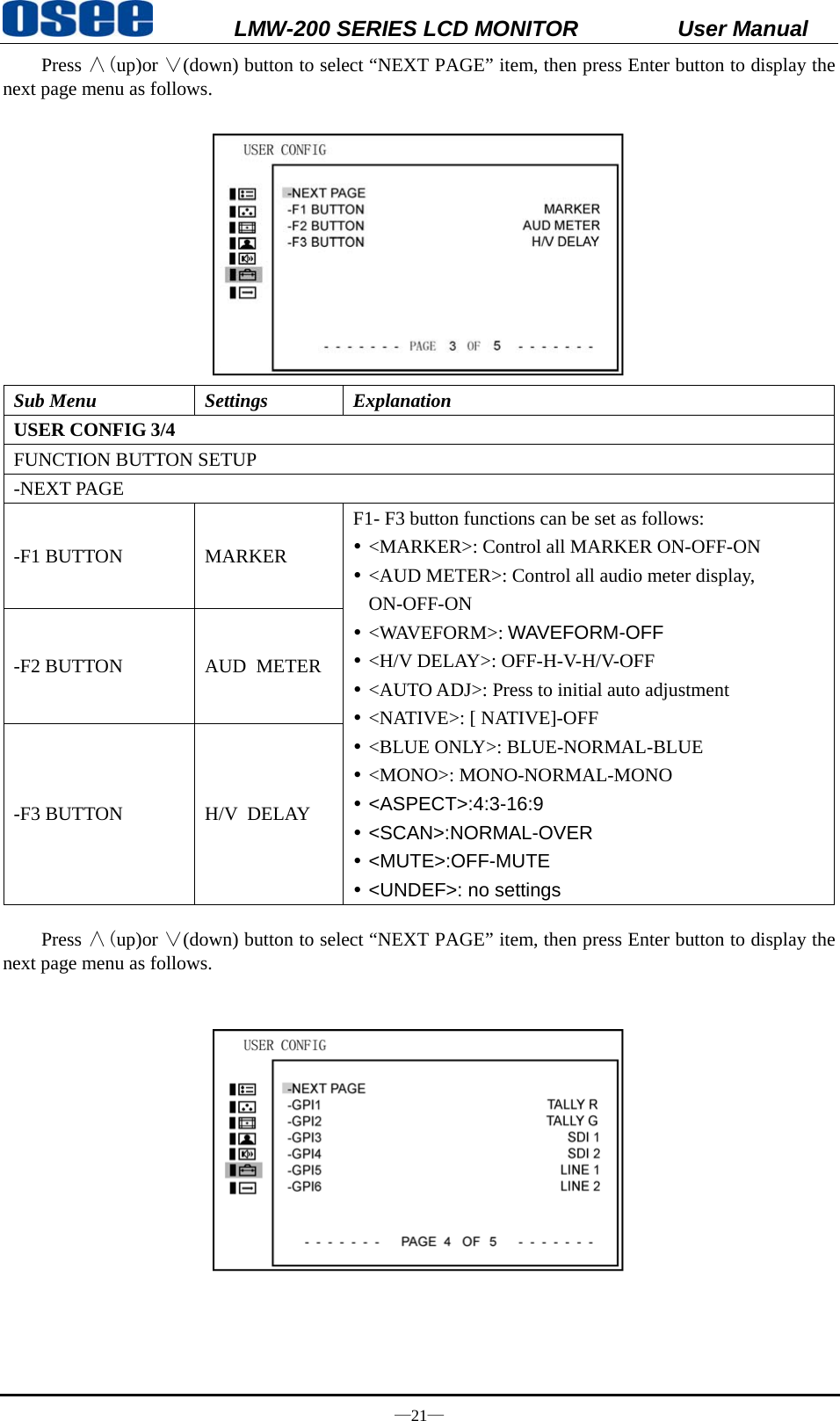

LMW-200 SERIES LCD MONITOR User Manual —21— Press ∧(up)or ∨(down) button to select “NEXT PAGE” item, then press Enter button to display the next page menu as follows. Sub Menu Settings Explanation USER CONFIG 3/4 FUNCTION BUTTON SETUP -NEXT PAGE -F1 BUTTON MARKER F1- F3 button functions can be set as follows: y <MARKER>: Control all MARKER ON-OFF-ON y <AUD METER>: Control all audio meter display, ON-OFF-ON y <WAVEFORM>: WAVEFORM-OFF y <H/V DELAY>: OFF-H-V-H/V-OFF y <AUTO ADJ>: Press to initial auto adjustment y <NATIVE>: [ NATIVE]-OFF y <BLUE ONLY>: BLUE-NORMAL-BLUE y <MONO>: MONO-NORMAL-MONO y <ASPECT>:4:3-16:9 y <SCAN>:NORMAL-OVER y <MUTE>:OFF-MUTE y <UNDEF>: no settings -F2 BUTTON AUD METER -F3 BUTTON H/V DELAY Press ∧(up)or ∨(down) button to select “NEXT PAGE” item, then press Enter button to display the next page menu as follows.

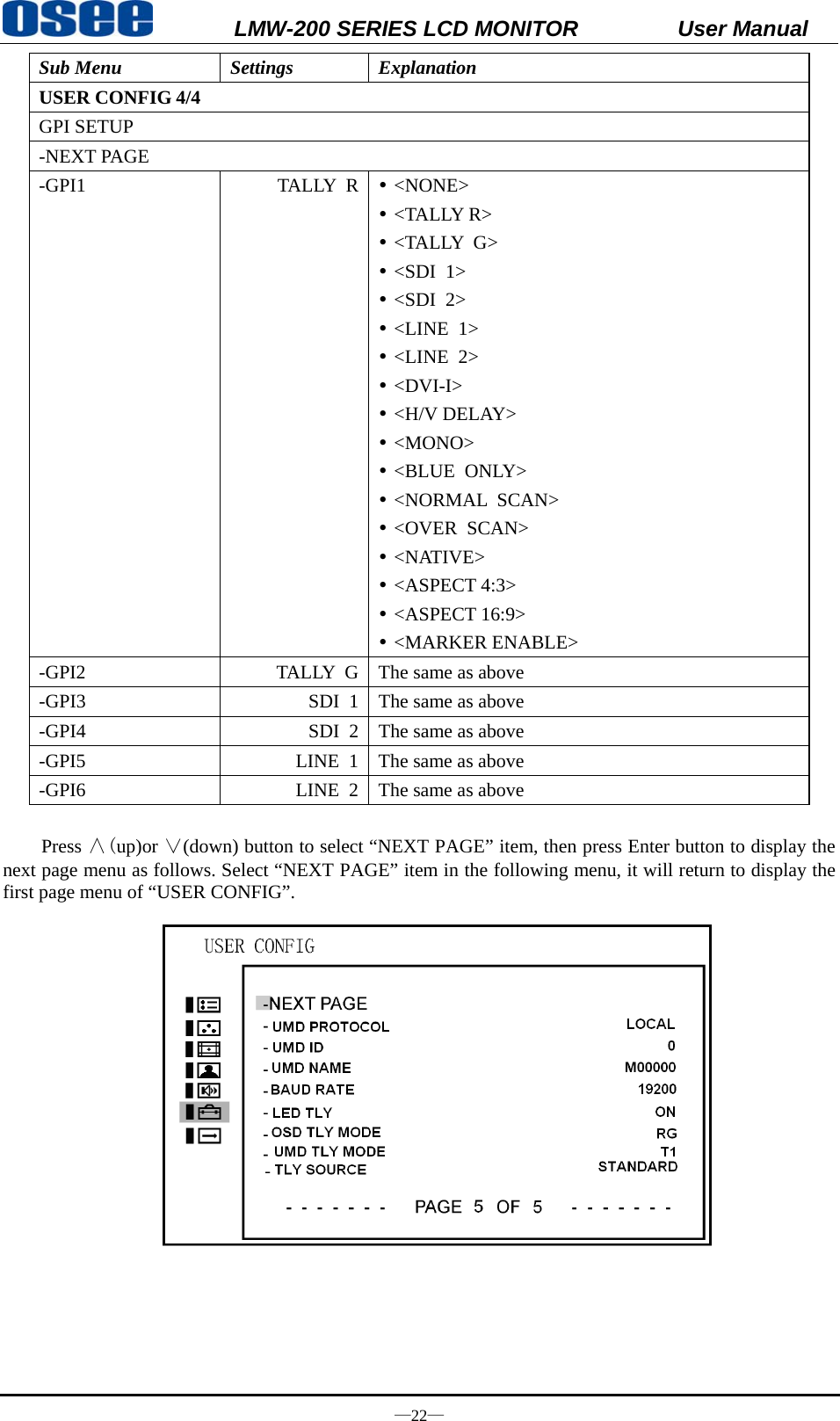

LMW-200 SERIES LCD MONITOR User Manual —22— Sub Menu Settings Explanation USER CONFIG 4/4 GPI SETUP -NEXT PAGE -GPI1 TALLY R y <NONE> y <TALLY R> y <TALLY G> y <SDI 1> y <SDI 2> y <LINE 1> y <LINE 2> y <DVI-I> y <H/V DELAY> y <MONO> y <BLUE ONLY> y <NORMAL SCAN> y <OVER SCAN> y <NATIVE> y <ASPECT 4:3> y <ASPECT 16:9> y <MARKER ENABLE> -GPI2 TALLY G The same as above -GPI3 SDI 1 The same as above -GPI4 SDI 2 The same as above -GPI5 LINE 1 The same as above -GPI6 LINE 2 The same as above Press ∧(up)or ∨(down) button to select “NEXT PAGE” item, then press Enter button to display the next page menu as follows. Select “NEXT PAGE” item in the following menu, it will return to display the first page menu of “USER CONFIG”.

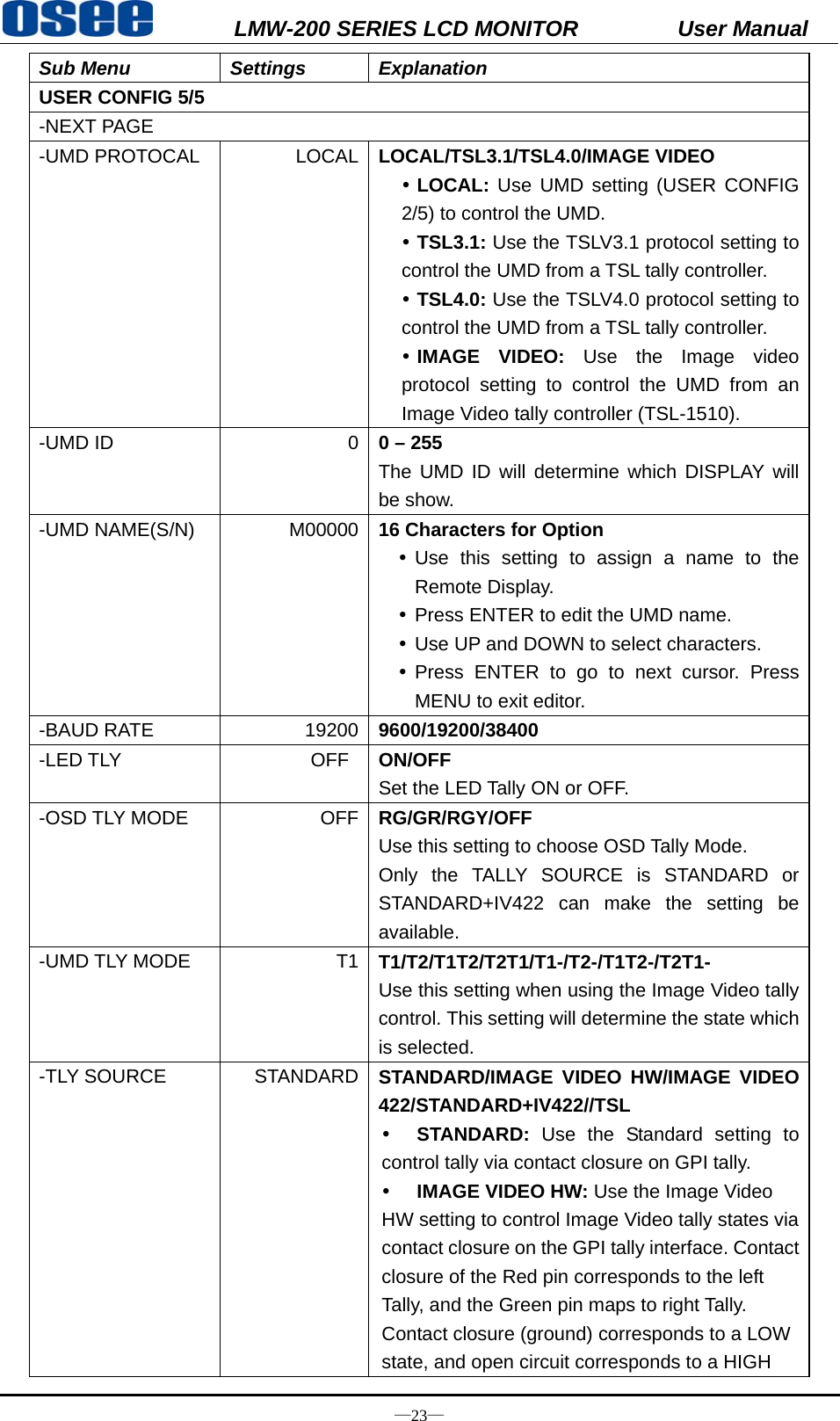

LMW-200 SERIES LCD MONITOR User Manual —23— Sub Menu Settings Explanation USER CONFIG 5/5 -NEXT PAGE -UMD PROTOCAL LOCAL LOCAL/TSL3.1/TSL4.0/IMAGE VIDEO y LOCAL: Use UMD setting (USER CONFIG 2/5) to control the UMD. y TSL3.1: Use the TSLV3.1 protocol setting to control the UMD from a TSL tally controller. y TSL4.0: Use the TSLV4.0 protocol setting to control the UMD from a TSL tally controller. y IMAGE VIDEO: Use the Image video protocol setting to control the UMD from an Image Video tally controller (TSL-1510). -UMD ID 0 0 – 255 The UMD ID will determine which DISPLAY will be show. -UMD NAME(S/N) M00000 16 Characters for Option y Use this setting to assign a name to the Remote Display. y Press ENTER to edit the UMD name. y Use UP and DOWN to select characters. y Press ENTER to go to next cursor. Press MENU to exit editor. -BAUD RATE 19200 9600/19200/38400 -LED TLY OFF ON/OFF Set the LED Tally ON or OFF. -OSD TLY MODE OFF RG/GR/RGY/OFF Use this setting to choose OSD Tally Mode. Only the TALLY SOURCE is STANDARD or STANDARD+IV422 can make the setting be available. -UMD TLY MODE T1 T1/T2/T1T2/T2T1/T1-/T2-/T1T2-/T2T1- Use this setting when using the Image Video tally control. This setting will determine the state which is selected. -TLY SOURCE STANDARD STANDARD/IMAGE VIDEO HW/IMAGE VIDEO 422/STANDARD+IV422//TSL y STANDARD: Use the Standard setting to control tally via contact closure on GPI tally. y IMAGE VIDEO HW: Use the Image Video HW setting to control Image Video tally states via contact closure on the GPI tally interface. Contact closure of the Red pin corresponds to the left Tally, and the Green pin maps to right Tally. Contact closure (ground) corresponds to a LOW state, and open circuit corresponds to a HIGH

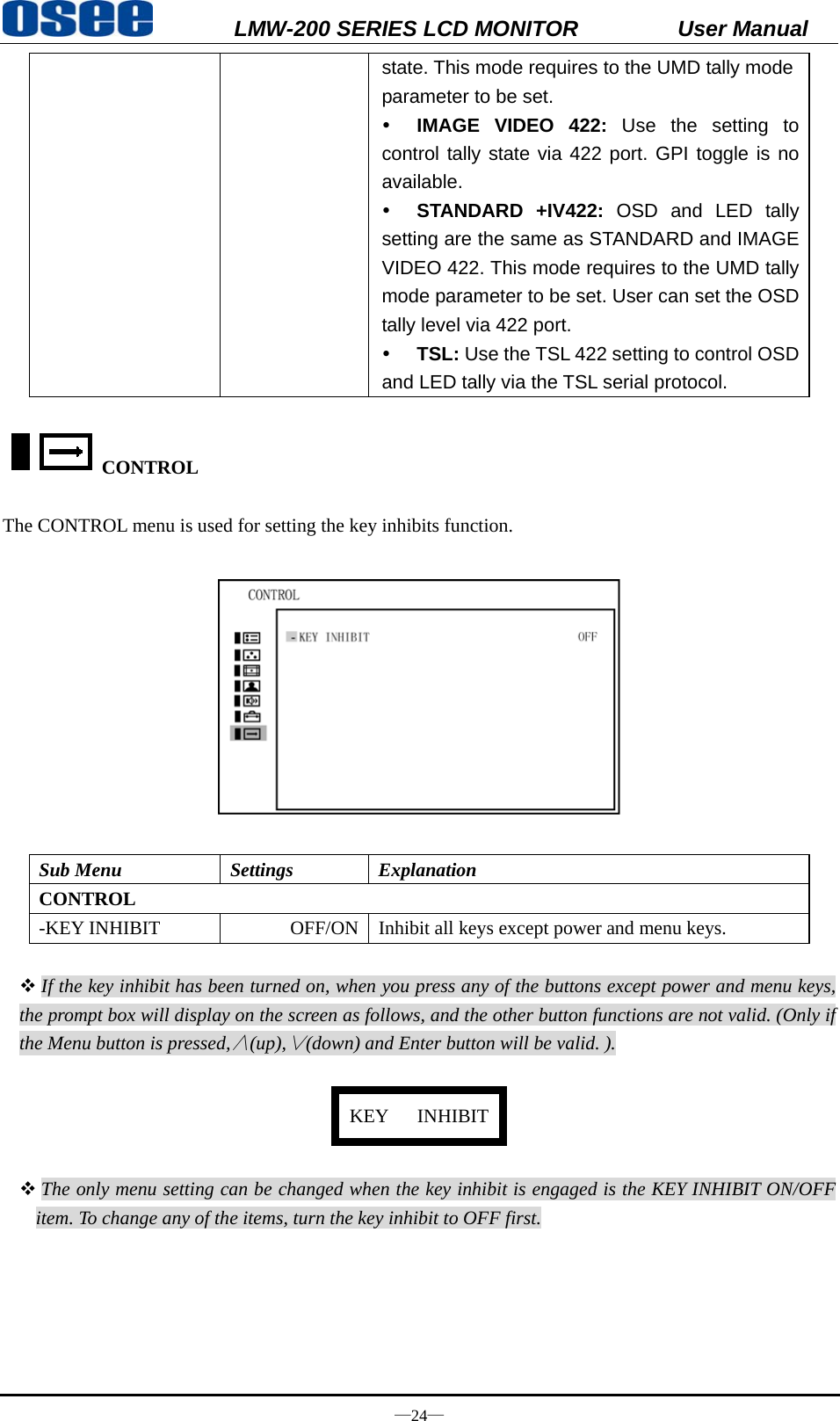

LMW-200 SERIES LCD MONITOR User Manual —24— state. This mode requires to the UMD tally mode parameter to be set. y IMAGE VIDEO 422: Use the setting to control tally state via 422 port. GPI toggle is no available. y STANDARD +IV422: OSD and LED tally setting are the same as STANDARD and IMAGE VIDEO 422. This mode requires to the UMD tally mode parameter to be set. User can set the OSD tally level via 422 port. y TSL: Use the TSL 422 setting to control OSD and LED tally via the TSL serial protocol. CONTROL The CONTROL menu is used for setting the key inhibits function. Sub Menu Settings Explanation CONTROL -KEY INHIBIT OFF/ON Inhibit all keys except power and menu keys.  If the key inhibit has been turned on, when you press any of the buttons except power and menu keys, the prompt box will display on the screen as follows, and the other button functions are not valid. (Only if the Menu button is pressed,∧(up),∨(down) and Enter button will be valid. ). KEY INHIBIT  The only menu setting can be changed when the key inhibit is engaged is the KEY INHIBIT ON/OFF item. To change any of the items, turn the key inhibit to OFF first.

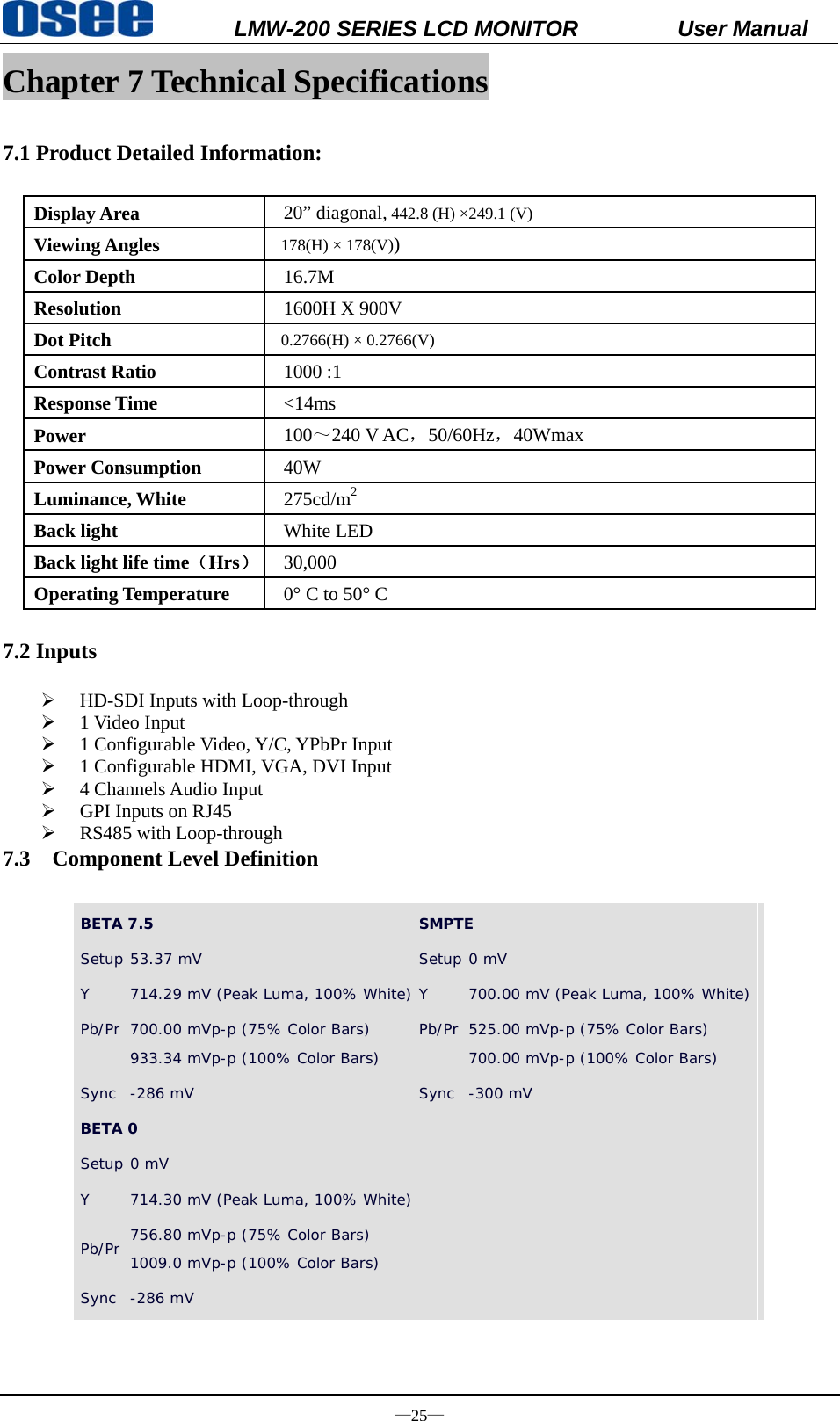

LMW-200 SERIES LCD MONITOR User Manual —25— Chapter 7 Technical Specifications 7.1 Product Detailed Information: Display Area 20” diagonal, 442.8 (H) ×249.1 (V) Viewing Angles 178(H) × 178(V)) Color Depth 16.7M Resolution 1600H X 900V Dot Pitch 0.2766(H) × 0.2766(V) Contrast Ratio 1000 :1 Response Time <14ms Power 100～240 V AC，50/60Hz，40Wmax Power Consumption 40W Luminance, White 275cd/m2 Back light White LED Back light life time（Hrs） 30,000 Operating Temperature 0° C to 50° C 7.2 Inputs ¾ HD-SDI Inputs with Loop-through ¾ 1 Video Input ¾ 1 Configurable Video, Y/C, YPbPr Input ¾ 1 Configurable HDMI, VGA, DVI Input ¾ 4 Channels Audio Input ¾ GPI Inputs on RJ45 ¾ RS485 with Loop-through 7.3 Component Level Definition BETA 7.5 SMPTE Setup 53.37 mV Setup 0 mV Y 714.29 mV (Peak Luma, 100% White) Y 700.00 mV (Peak Luma, 100% White) Pb/Pr 700.00 mVp-p (75% Color Bars) 933.34 mVp-p (100% Color Bars) Pb/Pr 525.00 mVp-p (75% Color Bars) 700.00 mVp-p (100% Color Bars) Sync -286 mV Sync -300 mV BETA 0 Setup 0 mV Y 714.30 mV (Peak Luma, 100% White) Pb/Pr 756.80 mVp-p (75% Color Bars) 1009.0 mVp-p (100% Color Bars) Sync -286 mV

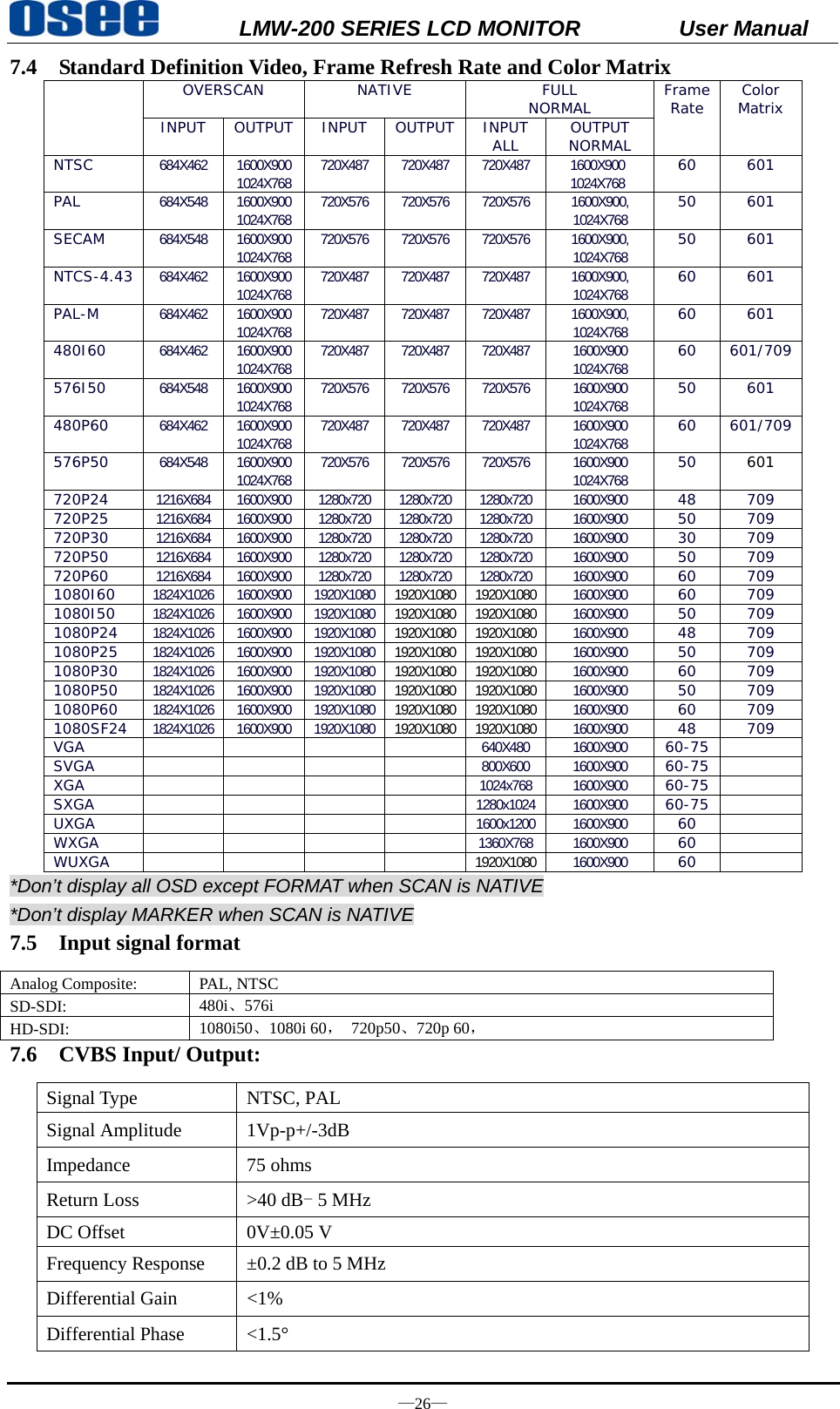

LMW-200 SERIES LCD MONITOR User Manual —26— 7.4 Standard Definition Video, Frame Refresh Rate and Color Matrix OVERSCAN NATIVE FULL NORMAL Frame Rate Color Matrix INPUT OUTPUT INPUT OUTPUT INPUT ALL OUTPUT NORMAL NTSC 684X462 1600X900 1024X768 720X487 720X487 720X487 1600X900 1024X768 60 601 PAL 684X548 1600X900 1024X768 720X576 720X576 720X576 1600X900, 1024X768 50 601 SECAM 684X548 1600X900 1024X768 720X576 720X576 720X576 1600X900, 1024X768 50 601 NTCS-4.43 684X462 1600X900 1024X768 720X487 720X487 720X487 1600X900, 1024X768 60 601 PAL-M 684X462 1600X900 1024X768 720X487 720X487 720X487 1600X900, 1024X768 60 601 480I60 684X462 1600X900 1024X768 720X487 720X487 720X487 1600X900 1024X768 60 601/709 576I50 684X548 1600X900 1024X768 720X576 720X576 720X576 1600X900 1024X768 50 601 480P60 684X462 1600X900 1024X768 720X487 720X487 720X487 1600X900 1024X768 60 601/709 576P50 684X548 1600X900 1024X768 720X576 720X576 720X576 1600X900 1024X768 50 601 720P24 1216X684 1600X900 1280x720 1280x720 1280x720 1600X900 48 709 720P25 1216X684 1600X900 1280x720 1280x720 1280x720 1600X900 50 709 720P30 1216X684 1600X900 1280x720 1280x720 1280x720 1600X900 30 709 720P50 1216X684 1600X900 1280x720 1280x720 1280x720 1600X900 50 709 720P60 1216X684 1600X900 1280x720 1280x720 1280x720 1600X900 60 709 1080I60 1824X1026 1600X900 1920X1080 1920X1080 1920X1080 1600X900 60 709 1080I50 1824X1026 1600X900 1920X1080 1920X1080 1920X1080 1600X900 50 709 1080P24 1824X1026 1600X900 1920X1080 1920X1080 1920X1080 1600X900 48 709 1080P25 1824X1026 1600X900 1920X1080 1920X1080 1920X1080 1600X900 50 709 1080P30 1824X1026 1600X900 1920X1080 1920X1080 1920X1080 1600X900 60 709 1080P50 1824X1026 1600X900 1920X1080 1920X1080 1920X1080 1600X900 50 709 1080P60 1824X1026 1600X900 1920X1080 1920X1080 1920X1080 1600X900 60 709 1080SF24 1824X1026 1600X900 1920X1080 1920X1080 1920X1080 1600X900 48 709 VGA 640X480 1600X900 60-75 SVGA 800X600 1600X900 60-75 XGA 1024x768 1600X900 60-75 SXGA 1280x1024 1600X900 60-75 UXGA 1600x1200 1600X900 60 WXGA 1360X768 1600X900 60 WUXGA 1920X1080 1600X900 60 *Don’t display all OSD except FORMAT when SCAN is NATIVE *Don’t display MARKER when SCAN is NATIVE 7.5 Input signal format Analog Composite: PAL, NTSC SD-SDI: 480i、576i HD-SDI: 1080i50、1080i 60， 720p50、720p 60， 7.6 CVBS Input/ Output: Signal Type NTSC, PAL Signal Amplitude 1Vp-p+/-3dB Impedance 75 ohms Return Loss >40 dB－5 MHz DC Offset 0V±0.05 V Frequency Response ±0.2 dB to 5 MHz Differential Gain <1% Differential Phase <1.5°

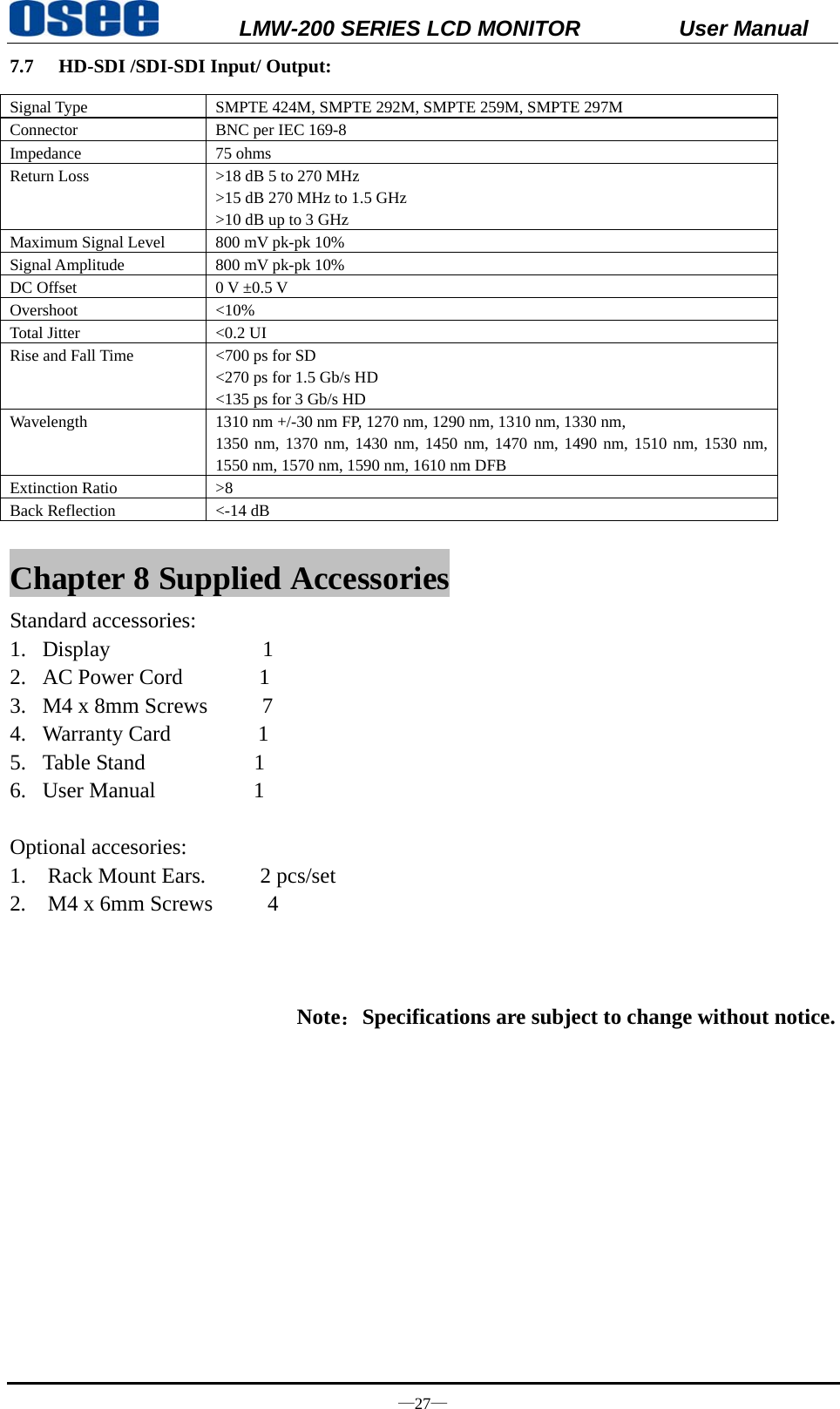

LMW-200 SERIES LCD MONITOR User Manual —27— 7.7 HD-SDI /SDI-SDI Input/ Output: Signal Type SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 297M Connector BNC per IEC 169-8 Impedance 75 ohms Return Loss >18 dB 5 to 270 MHz >15 dB 270 MHz to 1.5 GHz >10 dB up to 3 GHz Maximum Signal Level 800 mV pk-pk 10% Signal Amplitude 800 mV pk-pk 10% DC Offset 0 V ±0.5 V Overshoot <10% Total Jitter <0.2 UI Rise and Fall Time <700 ps for SD <270 ps for 1.5 Gb/s HD <135 ps for 3 Gb/s HD Wavelength 1310 nm +/-30 nm FP, 1270 nm, 1290 nm, 1310 nm, 1330 nm, 1350 nm, 1370 nm, 1430 nm, 1450 nm, 1470 nm, 1490 nm, 1510 nm, 1530 nm, 1550 nm, 1570 nm, 1590 nm, 1610 nm DFB Extinction Ratio >8 Back Reflection <-14 dB Chapter 8 Supplied Accessories Standard accessories: 1. Display 1 2. AC Power Cord 1 3. M4 x 8mm Screws 7 4. Warranty Card 1 5. Table Stand 1 6. User Manual 1 Optional accesories: 1. Rack Mount Ears. 2 pcs/set 2. M4 x 6mm Screws 4 Note：Specifications are subject to change without notice.
