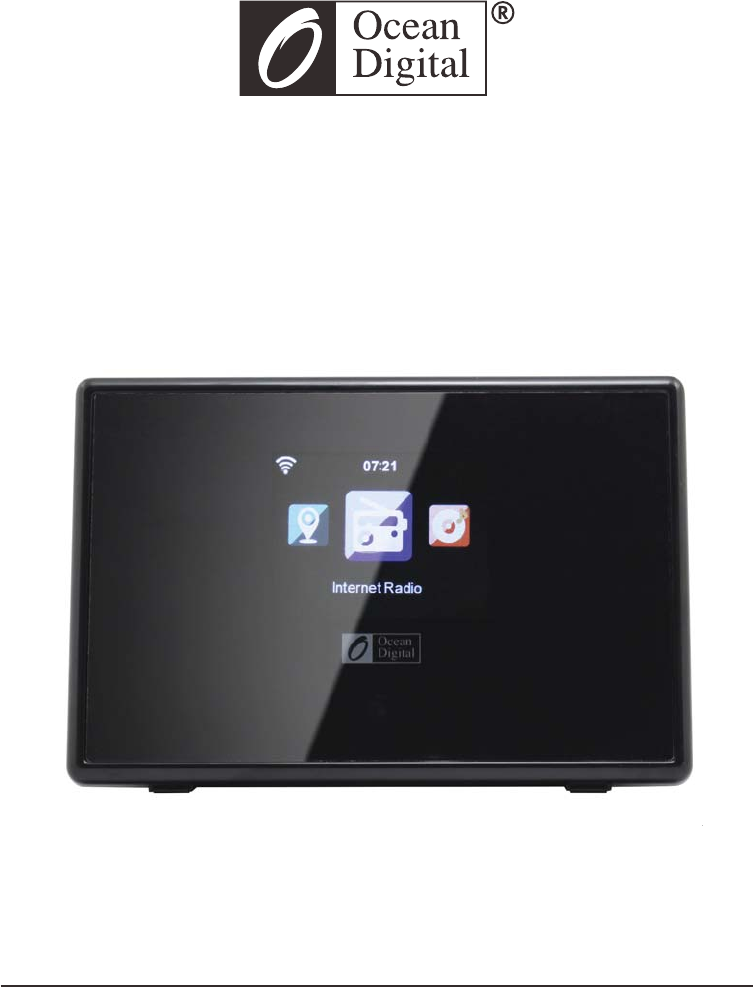

Ocean Digital Technology IRT01C0000 Internet Radio Adapter User Manual IRT 01C IB
Ocean Digital Technology Ltd. Internet Radio Adapter IRT 01C IB
Users Manual
User Manual
Please read this user manual carefully before using the receiver.
IRT-01C
Internet Radio Adaptor
Location of Controls
LCD Display
Infrared Sensor
3.5 mm Audio out socket:
Connect external powered speakers with
3.5 mm plug or RCA adapter
Earphone jack
DC Power socket 5V:
Connect the AC adaptor supplied in the package
Power on/off switch
Remote control
1. : Standby button
2. : Mute
3. 0-9: Favorite station key / input letters and numbers for
WiFi Encryption code
4. : Dim the display
5. : Favorite button, Long press to preset station. Press it
briefly to recall station. Adding station to your favorite list
6. ̵aGCursor up
7. ̷aGCursor down
8. : Cursor left / back to previous menu
9. : Cursor right
10. OK: confirm button
11. : Alarm button
12. : Sleep Timer
13. Vol+: Volume up
14. Vol-: Volume down
15. : Main Menu
16. Mode: Switch between Internet radio,
Media Center (UPnP) and Bluetooth
17. EQ: Equalizer
18. : Previous song (for UPnP)/Previous radio channel
19. : Play/pause (for UPnP)
20. : Next song (for UPnP)/Next radio channel
OFF/ON
Audio out DC 5V
Before you start
Please ensure the following is ready:
• You have a broadband internet connection.
• A wireless (Wi-Fi) broadband router is connected to the internet successfully.
The radio supports Wireless B, G and N connection (Wireless N router can also be used with
the setting on B or G).
• You know the Wired Equivalent Privacy (WEP) or Wi-Fi Protected Access (WPA) data
encryption code/password. You need to key in the correct code when the radio is connected
to the wireless router for network connection.
If you do not know the code/password, please contact the person /technician who set up the
router/network for you.
• The radio can work via Wireless network connection (Wi-Fi connection).
Precautions
• The radio should not be used in a high temperature or high humidity environment over
prolonged periods of time as this may damage the unit.
• Keep the radio away from liquids as it may get damaged. Please switch off the radio
immediately if water or liquids is spilled into the radio. Consult with the shop you bought this
radio for any question.
• Avoid using or storing the unit in dusty or sandy environment.
• Do not open and repair the radio by yourself.
• Use only the AC adaptor supplied with the radio.
Connecting a power supply with a different rating will cause permanent damage to the radio
and may be hazardous.
• Clean only with dry cloth
The MAINS plug or an appliance coupler is used as the disconnect device, the disconnect
device shall remain readily operable.
Remote control character list
Key“0”―― 0,'DEL'
Key“1”―― '1'->'@'->' '˄space˅->'ʽ'-> “ (double quotes)->'#'->'$'->'%'->'&'-> '˄single
quotes˅->'˄'->'˅'->'*'->'+'->'ˈ'->'-'->'.'->'/'->':'->';'->'<'->'='->'>'->'?'->'['->'\'-
>']'->'^'->'_'->'`'->'{'->'|'->'}'->'~'
Key “2”―― 2,A,B,C,a,b,c
Key“3”―― 3,D,E,F,d,e,f
Key“4”―― 4,G,H,I,g,h,i
Key“5”―― 5,J,K,L,j,k,l
Key“6”―― 6,M,N,O,m,n,o
Key“7”―― 7,P,Q,R,S,p,q,r,s
Key“8”―― 8,T,U,V,t,u,v
Key“9”―― 9,W,X,Y,Z,w,x,y,z
Remark: press '►' to move to next character and press 'OK' button to confirm.
You can also press ▲ ▼ to change the character /number, then press the right key► to confirm
the entry.
After you finish the entry, press the select button to confirm
Switching on the radio
Plug the connector pin of the mains adaptor into the DC jack on the unit. Connect the other end
of the adaptor to the wall socket.
Caution: Use only the main adaptor supplied with the radio. Connecting a power supply with a
different rating will cause permanent damage to the radio and may be hazardous.
The display on the front of the radio will light up and show:
Then you can select your prefer language on the radio.
It will ask you if you want to Enable the “Check Network” when Power on”, it is suggested to
choose “Yes”. Then the radio will always check the available WiFi network automatically.
Welcome
• English
Deutsch
Français
< 2/7
01:44AM
Connecting to your WiFi Network
The following screen will appear. You can choose <Yes> to proceed to search for the available
WiFi network. If your router has the WPS function, you can select the <Yes (WPS)> to proceed.
It will then start scanning the network. After the search is done, it will display a list of the
available router.
Choose your router from the list, enter the WEP(Wired Equivalent Privacy) or WPA(Wi-Fi
Protected Access) code. If your network is not configured to be with the WEP or a WPA code,
the unit will connect to the router automatically.
Note: The encryption code would have been set up by the person who set up and
configured your network.
Please refer to the “Remote control character list” for you to enter the passwords. Press the
“ ► ” button to go to the next entry, press “ ◄” button to make correction.
The radio will start connecting to the network.
After the router is connected successfully, it will display the menu screen:
You can now start enjoying the internet radio.
01:01
Would you like to
configure Network now?
Yes(WPS) NOYes
Linksys
Homeaudio
Demo
0144
MOVE INPUTOK
Ent er
Password
11
1623
0858
Internet Radio
Internet Radio
Choose 'Internet Radio' from the menu, you can see different functions as below:
To start listen the worldwide radio stations, select “Radio Station/Music”,
My Favorite
This is to show the list of your Favorite stations which have been assigned to the presets.
To preset a station:
While you are playing the favorite station, simply hold and press the key until the follow
screen appear.
The icon will appear, it means the station is added to the radio preset.
Kindly note the Preset 1-5 are reserved for new feature in future. The preset will be saved from
Preset #6 onwards.
The presets will be stored in ascending order. You can store up to 250 presets.
Edit the presets
You can edit your Favorite list with the following options:
Delete – To delete the selected station
Shift up/Shift down – To shift the selected station to a particular ranking on the list.
Rename – To rename the selected station
Play – press and play the selected station
To do the edit, simply press the button briefly to enter the Preset station list.
Choose the radio station that you want to make with the above changes. Then press the Right
key ►, it will enter into the edit menu. Then choose your desire action.
To recall a preset station:
Press the button briefly to recall the favourite list.
Remark: Please note Preset 1-5 is reserved for future use and cannot be preset for radio
stations.
Radio Station / Music
Select this option, then you can select your desired radio station by Genre or Location., etc.
1 .977 The 80s Channel
.977 The 90s Chanr
MOVE 2/2 OK
Add to My Favorite
Delete
Shift Up
Shift Down
< 1/5 >
iRadio
Local Radio
If you want to access quickly the radio station located in your area, select this function and it
will display the list of the stations available in your area.
Remark: You can set other region as the local radio in the Local radio set up under
Configuration.
History
It will show you the radio stations that you have listened in the past.
Service
Search Stations
You can find your desire radio station by entering the name of the radio.
Add New Radio Station
If you cannot find your desire station from the Radio station list and you have the URL address,
you can input the link here and add to your favorite list.
When the radio station is playing, the display will show a color image transmitted from the
radio station.
DLNA
The Internet radio can play music stream from DLNA compatible device, provided that the
Internet radio and other DLNA devices are under the same Wi-Fi network.
The radio will appear as “AirMusic” when you try to search it on other devices. If you want to
change other name from AirMusic, go to Configuration and DLNA setup to make the change.
Media Center
UPnP (Universal Plug and Play)
You can stream music from the Networked device which supports UPnP function to the radio to
play.
For instance, most of the latest computer laptop supports UPnP, and you can stream music
from Windows Media Player application on the computer and listen on your radio.
Please make sure your computer laptop is on the same Wi-Fi network as the Radio
before you start using this function.
1. If your PC is running Microsoft Windows XP, then you can use Windows Media Player 11
(WMP11) to act as your UPnP (Universal Plug and Play) media server. (For Windows 7 or
above, please download the correspond version of Windows Media Player). The latest
Windows Media Player may be downloaded from Microsoft's website and install by
following the instructions detailed in its installation wizard.
2. Once installed, Windows Media Player will create a library from all the media files available
to it on your PC.
iRadio
Internet Radio
Music
977
.977 The 80s Channel
2.1 Windows XP / Windows Media 11
2.1.1 To add new media files to the library, select' File > Add to Library…> Advanced
Options', Click 'Add' and choose the files you wish to add and click' OK'.
2.1.2 Now you need to connect your Internet radio to Windows Media Player 11 and
configure it to allow the radio to access your media library. In order to this, you will
need to do the following:
a. On the radio, go to the main menu and select <Media Centre> <UPnP>.
b. It will scan for all available UPnP servers. Note, this may take a few seconds for
the radio to complete its scan and before the scan has completed, the radio will
display '[Empty]'. The radio will continue to display '[Empty]' if no UPnP servers
and found.
c. After a successful scan. Select your UPnP server, by rotating the dial if there is
more than one UPnP server, and then press SELECT.
2.1.3 Your PC will now prompt you that a device has attempted to connect to your UPnP
server. In order to allow the radio to have access to the media files, you will need to
click the 'Library' tab from Windows Media Player 11 and select the <Media
Sharing> item to open the 'Media Sharing' window.
Selecting 'Media Sharing…' for Windows Media Player11:
2.1.4 From the 'Media Sharing' windows, the radio will be listed as an unknown device.
Click on the unknown device listed, then click the 'Allow' button and then click 'OK'.
Allowing the Radio to Connect:
2.2 Windows 7 / Windows Media Player 12
2.2.1 If you are using WMP 12, simply go to <File> and choose <Open> to retrieve the
music files you would like to add to library.
2.2.2 Windows 7 or above requires the PC to be set as Home network and also with the
Homegroup enabled to allow devices to access/ play the media files on your
Windows Media Player. Please find the steps below:

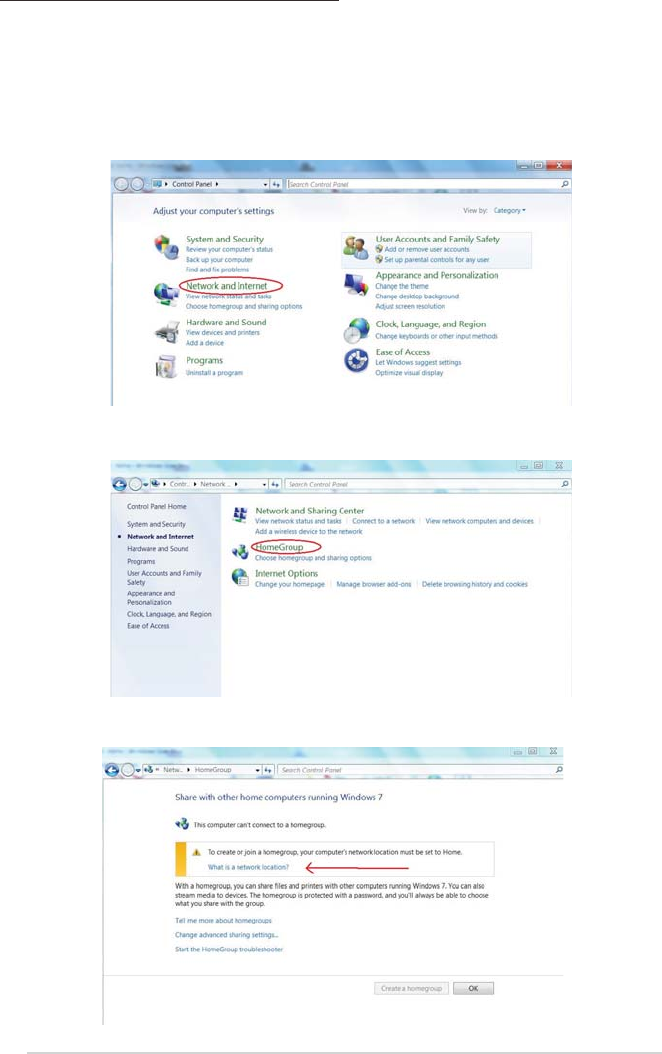

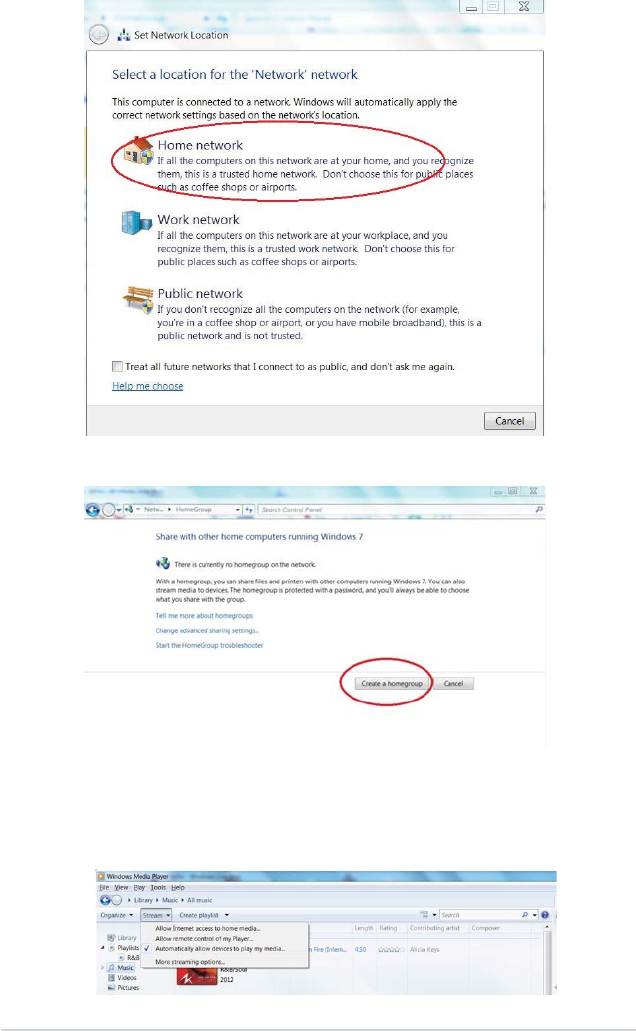

i)Go to <Control Panel>, select <Network and Internet>
ii) Choose <HomeGroup>
iii) Set the network location
iv) Choose Home network
v) Create a homegroup, then choose the kind of media file to be accessed,
such as music..etc.
vi) Launch the Windows Media Player, select <Stream> and choose <Automatically allow
devices to play my media> from the drop down list.
vii) You can now enjoy the music streaming from the windows media player.
Music streaming via UPnP
1. Once the UPnP server is configure to share media files with your radio, you can start music
streaming.
2. On the main menu, select <Media Centre> and choose <UPnP>
3. It may take a few seconds for the radio to complete the scan for available UPnP servers. If
no UPnP servers are found, it will show <Empty List>.
4. After a successful scan is done, select your UPnP server.
5. The radio will show the media categories available from the UPnP server, e.g. 'Music',
'Playlists' etc.
6. Choose the media files that you wish to play.
Information Center
Weather
You can view the weather forecast all over the world and choose the desire region to display on
Standby. To activate this feature, press “►” and choose “add to standby display”, then press
“OK” to confirm.
“Current Date & Time” and “Current Weather” will display every 10 seconds alternately under
the standby mode if the weather forecast display is started.
On standby mode, you can press “◄ ►” buttons to display the previous/next day weather
forecast.
Remark: The weather is just for reference only. It may have deviation to the actual
weather.
Financial Information
You can get the information of Stock Market all over the world
Remark: The information is just for reference only. It may have deviation to the actual
stock market info.
System Information
You can view the information of the radio such as the Version of the software / Wlan Mac /
IP address..etc.
Bluetooth
You can turn on the Bluetooth function to pair with the mobile device such as mobile phone or
tablet, to stream the music from your mobile device to play on the Internet radio Adaptor.
1. Turn on the Bluetooth on your mobile device
2. Switch the mode to Bluetooth on the Internet Radio Adaptor.
3. Your mobile device will start discovering the internet radio adaptor, look up the list with the
name called “IRT-01C”, then select to connect the device.
4. You can then start streaming your music from your mobile device to the Internet radio
adaptor.
Configuration
Mode
You can choose to display the Standby clock as Clock Radio mode or Internet Radio mode.
Manage my mediaU
You can tailor made your own favourite station list by operating on PC.
Firstly you need to register an account on MediaU.
On your computer, go to http://www.mediayou.net/web/index.php , this is the radio portal
playing on your radio.
Register as member by selecting “Join now”. After you have become the member, then you can
login and register your radio. Select “Radio” on the following screen and do the radio
registration.
You have to find out the Mac Address to register the radio. To locate the MAC address, please
follow the path below:
1. Go to Main Menu and select “Information Center”
2. Go to System Information
3. Choose Wireless Info and you will find the Mac Address for your radio
You can then organize your own favourite stations or add any new station which is currently not
found on the station list. After the work is done, follow the steps below to sync the changes to
the radio:
Go to Configuration Manage my MediaU Enable
Then you will see “Manage My mediaU” appear on the main menu.
The radio will synchronize the changes immediately and you will find your favourite list under
“My MediaU” on the radio menu.
For the added URL, we support the stream protocol as follow:
-HTTP/1.1 Audio Transport
-MMS
-RTSP
Whenever you have added new URL, you need to refresh the list on the radio by <Disable> the
My Media U and <Enable> it again under Configuration.
It allows maximum 5 users to register with the same radio and you can switch to listen the
favorite list under one user at a time
Time Display
Manage my mediaU
Network
Date&Time
03:36PM
1/20
1
Network
Wireless Network Configuration
Press “Enter” to scan for wireless network and list out.
Wireless Network WPS PBC
This is the option for you to use WPS function, which means you can set the wireless without
enter any passwords for Wi-Fi protected if your router has the function.
Manual Configuration
You can set the DHCP on or off, and enter the SSID as you known, or delete the connected
WiFi.
Check network when power on
This is set to enable or disable “Check network when power on”.
Date & Time
You can choose Auto Detect or Manual Setup the Currently Date & Time.
You can press“ ▲ ” “˖▼ ”buttons for parameter setting, and move cursor with“ ◄ ” “ ► ”buttons
and press 'OK' to confirm.
Time Format setting
Time format setting˖12hours / 24hours
Date Format setting
Date format˖YY/MM/DDǃDD/MM/YY and MM/DD/YY
Alarm Clock
1. Alarm Clock types˄2 Alarm Clock setting˅
You can select your favorite Alarm setting for every day, once or particular day in the week.
2. Alarm Clock˄NAP function˅: If you would like to take a nap or need the Alarm in short time,
you can use this function. You can select the time from 5 minutes up to 120 minutes. No
Snooze function available for the NAP alarm.
3. Alarm Volume: You can set the alarm sound level.
Remark˖The NAP Alarm will only with beeping sound.
4. Alarm Sounds setting˖Beep/Melody/Internet Radio
5. When the Alarm comes on, press any key except “Power” button, you can enter the “Snooze”
mode. You can press “Power” button to cancel the alarm sounds again 5 minutes later.
Remark: You can select any internet radio station as Alarm tone from the favorite
station. When the internet station doesn't work in 1 minute, it will auto set into
beeping sound.
Timer
The Timer can be set for 99:59. Use “ ◄ ” “ ► ” or “ ▲ ” “ ▼ ” to adjust the time you desire. Press
<OK> to start the timer. Whenever you want to pause, press <OK> and to resume it, press it
again.
To cancel the timer, press and hold the <OK> button until the 00:00 appears, then press the
<OK> to exit.
Language
There are 17 Languages available, such as English, German, French, Norwegian, Italiano,
Svenska, Dansk and others.
Dimmer
You can adjust the backlight of the LCD with below settings:
1. Power Saving
You can set the backlight dim down level when there is no operation after 15 seconds.
2. Turn on
The backlight will not dim down even there is no operation if this option is selected. You can
adjust the backlight level you want.
Display
You can choose the display show in color or Monochrome.
Power Management
This function is to allow the radio to go to Standby if there is no internet signal received in order
to save power. The default setting is 30 minutes, the radio will go into Standby after 30 minutes
when the radio does not receive any internet signal. Other time frame for 5 minutes and 15
minutes are available.
Sleep Timer
You can set the timer to put the radio on standby after certain time elapsed, from 15 minutes to
180 minutes with the step of every 15 minute.
You also can do the setting with the “Sleep” button from remote control, when you press
“Sleep”, then you can see the sleep timer on the top right corner of the display.
Buffer
You can select your preferred buffering time.
Weather
You can set the display of weather forecast on the standby mode and the temperature units.
- You can select Weather Display On/Off and Location.
- Temperature units˖1)Celsius ( C) 2)Fahrenheit ( F)
Local Radio Setup
The radio will detect your local area stations automatically and it will display under the
“Internet radio” you will find all the stations under “Internet radio” “Local Radio”.
If you would like to change the Local area stations to other countries, you can choose “Manual
setup” to make the change.
Playback Setup
You can set up the playback as Off, Repeat one, Repeat all, Shuffle
DLNA Setup
When the radio is connected by other DLNA devices, the name of the radio will appear as
“AirMusic”.
This is the name in default. You can change other name here as you desire.
Please note: The DLNA feature is compatible and works with corresponding third party
Android APPs. Apple devices are not supported.
Equalizer
Select your prefer music effect.
Resume When Power On
This is set to ON or OFF of “ Resume When Power On”.
Software update
Upgrade information will pop up on the display when there is upgrade available on the server.
Reset to default
You can do this factory reset to empty all of the settings and it comes back to default settings.
**Please note all the Station presets, Settings and configuration will be lost after you have
performed the “Factory Reset”.
oo
Trouble Shooting
1. If you have trouble connecting the radio to your wireless network, these steps
may help to resolve the problem:
- Confirm that a Wi-Fi or Ethernet Wired connected PC can access the internet (i.e. can
browse the web) using the same network.
- Check that a DHCP server is available, or that you have configured a static IP address on
the radio.
- Check that you firewall is not blocking any outgoing ports.
- Some access points may be set so that only equipment with registered MAC addresses
can connect to them. This is one possible cause of the Internet Radio being unable to
connect to the Wi-Fi network, and the Internet Radio display will show Bad ESSID or key.
To overcome this problem you will need to add the Internet Radio's MAC address to the list
of allowed equipment in your access point. The Internet Radio's MAC address can be
found using the menu <Information Center ->System Information -> Wireless Info MAC
address>. You will need to refer to the guide for you Access Point in order to enter the
Internet Radio as an allowed piece of equipment.
- If you have an encrypted network, check that you have entered the correct key or
passphrase into the radio. Remember that text-format keys are case sensitive.
- If your wireless network name(ESSID) is 'Hidden'(a setting on the wireless access point),
then you can either turn on the name, or you can manually enter the name into the internet
radio and media player, Select <Configure -> Network -> Manual Configuration->
Wireless -> Enter ESSID>. Confirm if the Network is encrypted, e.g. requires a WEP or
WPA key, then enter the network name.
2. If your radio can connect to the network successfully, but is unable to play particular
stations, it may be due to one of the following reasons:
- The station is not broadcasting at this time of the day (remember it may be located in a
different time zone).
- The station has too many people trying to attach to the radio station server and the server
capacity is not large enough.
- The station has reached the maximum allowed number of simultaneous listeners.
- The station is not broadcasting anymore.
- The link on the radio is out of date. This is updated automatically every day, so the next
time you turn on the link will be recognised.
- The internet connection between the server (often located in a different country) and yours
is slow. Some internet service providers may fail to stream in certain geographical areas.
Try using a PC to play back the stream via the broadcaster's web site. If you can play back
the station with a PC, please report to the customer service where you bought this radio. If
you have a laptop, try connecting it if your Internet Radio cannot find the station.
3. When you scan for PCs under UPnP function, none can be found, or the PC you are
looking for does not appear in the list:
- You have not connected to the wireless Access point. On the internet radio, select
'Configuration', 'Network ', 'Wireless network connection' and then select your Wireless
network. (You may need to enter a security key to access the network wirelessly).
- You have a firewall set on your PC which is stopping you accessing shared files.
- If you have a third party firewall (Like Norton, or Zone Alarm) that will have its own control
panel and you will need to consult the manual for your firewall.
- If your PC is connected to a managed network, with a server sometimes the PC being
searched for needs to be server Workgroup.
4. You can see the PC you want to play music from, but cannot find any folders on the
PC:
- You have a firewall running which is preventing the internet radio from seeing the shared
folder. As a quick check, you can disable firewalls like Norton to see if this overcomes the
problem, if this resolves the issue then you can either leave the firewall off, or allow file
sharing through the fire wall.
Note: If you firewall is required to provide security for your system, it should not be
left off.
5. I can't share a folder , as the option is not highlighted:
The share folder option will not be available until you have turned simple file sharing on. Run
the wizard.
Scan Error:
When the internet radio is scanning the content of the folders on a PC, it is possible that a
scan error may occur if the windows file sharing application times out. This is most likely to
occur if both the PC with the media content and the Internet Radio are connected wirelessly.
Try re-connecting the PC with the media content into the network via cable. This will
dramatically increase the speed at which the Internet Radio is able to scan the content of the
Media PC.
Playlists:
Some media ripping applications allow 'Playlists' to be created. The Internet Radio is able to
detect and stream these playlists, but they must be stored in the folder with the rest of the
Media content and they must have the file extension.m3u.
Windows Media player can create suitable playlist, just select 'create new playlist', drag and
drop the tracks you want into the playlist, then use 'Save as' to ensure the file type is .m3u.
(Existing play lists can be opened and re-saved in this format) When the Internet Radio
detects you have playlists, it will enable a new menu option allowing the playlist to be
selected and added to the queue.
If you re-connect to another PC of folder, which does not have any Playlists in the .m3u.
format, the playlist option will not be presented in the menu.
6. If the Internet Radio keeps re-buffering radio station:
- The Internet Radio is streaming the data from the radio station via your broadband
connection, if there is a high error rate on your broadband connection, or the connection is
intermittent, then it will cause the Internet Radio to pause until the connection is re-
established and it has received enough data to start playing again.
- If your Internet Radio keeps stopping, please check the DSL modem to ensure that the
Broadband line is not suffering a high error rate or disconnections. If you are experiencing
these problems, you will need to contact your broadband supplier.
7. What is Buffering?
When playing a stream, the Internet Radio/Media player, downloads a small amount of the
stream before it starts playing. This is used to fill in any gaps in the stream that may occur if
the internet or the wireless network is busy.
The Internet Radio streams music data from the PC while you are listening. If a stream gets
blocked or experiences Internet congestion while transferring it may stop/interfere with the
quality of play. If this happens, check your internet connection speed- it must be faster than
the speed of the streams.
Technical Specification
Model: IRT-01C
Power input: 5V 1A
Power voltage: 100-240V~50/60Hz
Wireless Network: IEEE802.11b/g/n
Security Protocol: WEP/WPA/WPA2
Audio sockets: 3.5mm earphone jack, 3.5mm Audio out jack
Unit Dimension: 135 x 38 x 98 mm (L x D x H)
Remark: Specification may vary without notice
What is included in the box
* Internet Radio
* Power adaptor
* Remote control
* RCA cable
* User manual
WEEE and Recycling
The European laws do not allow any more the disposal of old or defective electric or
electronic devices with the household waste. Return your product to a municipal
collection point for recycling to dispose of it. This system is financed by the industry
and the ensures environmentally responsible disposal and the recycling of valuable
raw materials.
Ocean Digital Technology Ltd
Flat B, 12/F., Yeung Yiu Chung (No. 8) Ind. Bldg.,
20 Wang Hoi Road, Kowloon Bay,
Hong Kong
Email: support@oceandigital.com.hk
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE : Any changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
