Ocean Signal MOB1 Maritime Survivor Locator Device User Manual MOB1
Ocean Signal Ltd. Maritime Survivor Locator Device MOB1
Users Manual
User Manual
MOB1
Maritime Survivor
Locating Device
English
© 2014 Ocean Signal Ltd
The technical data, information and illustrations contained in this manual were believed to
be correct at the time of print. Ocean Signal Ltd reserve the right to change specifications
and other information contained in this manual as part of our continual improvement
process.
No part of this manual may be reproduced, stored in a retrieval system or transmitted in
any form, electronic or otherwise, without the prior permission of Ocean Signal Ltd.
No liability can be accepted for any inaccuracies or omissions in this manual.
Ocean Signal® and rescueME® are registered trademarks of Ocean Signal Ltd.
MOB1 USER MANUAL
3 Version 00.03 08/10/2014
IN CASE OF EMERGENCY
Use only in situations of grave
or imminent danger
NOTE: Refer to section 5.4 for deactivation instructions.
MOB1 USER MANUAL
4 Part No 912S-01365
CONTENTS
IN CASE OF EMERGENCY............................................................................................................................3
1.
GENERAL ....................................................................................................................................5
1.1
Introduction................................................................................................................. 5
1.2
Exposure to RF Electromagnetic Energy .................................................................. 5
1.3
Warnings..................................................................................................................... 5
2.
Lifejacket Installation .................................................................................................................5
3.
MMSI configuration.....................................................................................................................7
3.1
Self Identification........................................................................................................ 7
3.2
User MMSI .................................................................................................................. 7
4.
MOB1 OVERVIEW ........................................................................................................................9
5.
OPERATION...............................................................................................................................10
5.1
Automatic Activation................................................................................................. 10
5.2
Manual Activation ..................................................................................................... 10
5.3
DSC transmission..................................................................................................... 10
5.4
Deactivation .............................................................................................................. 11
6.
TESTING ....................................................................................................................................11
6.1
Beacon test............................................................................................................... 12
6.2
DSC transmission test.............................................................................................. 12
6.3
AIS transmission test ............................................................................................... 12
7.
APPENDIX .................................................................................................................................14
7.1
Maintenance and Troubleshooting .......................................................................... 14
7.2
Batteries ................................................................................................................... 14
7.3
Transport .................................................................................................................. 14
7.4
Disposal .................................................................................................................... 14
7.5
Specifications............................................................................................................ 15
7.6
Approvals .................................................................................................................. 16
7.7
Limited Warranty...................................................................................................... 18
MOB1 USER MANUAL
5 Version 00.03 08/10/2014
1. GENERAL
1.1 Introduction
The rescueME range of products provides the user with the latest technology specifically
designed for compact size and ease of operation.
1.2 Exposure to RF Electromagnetic Energy
This product also complies with EN62479 (EU) and RSS-102 (Canada).
This product has been evaluated for compliance with the FCC RF exposure limits given in
CFR 47 part 1.307(b) at a distance of greater than 2cms.
1.3 Warnings
An AIS-MOB Man OverBoard device is only intended for short range signalling to
an AIS receiver installed onboard your own vessel. It will not directly alert the
emergency services or other vessels.
This equipment is not intended for routine tracking of persons or property. This
includes routine tracking of divers.
If self-test is performed more frequently than once a month, then battery life may
be reduced.
This radio device is designed to only provide an effective alerting and locating
capability in close proximity to a vessel. This radio beacon is NOT an EPIRB.
Cette radiobalise est conçue uniquement dans le but de fournir une fonction
d’alerte et de localisation efficace à proximité immédiate d’un navire. Cette
radiobalise n’est PAS une RLS.
MOB1 USER MANUAL
6 Part No 912S-01365

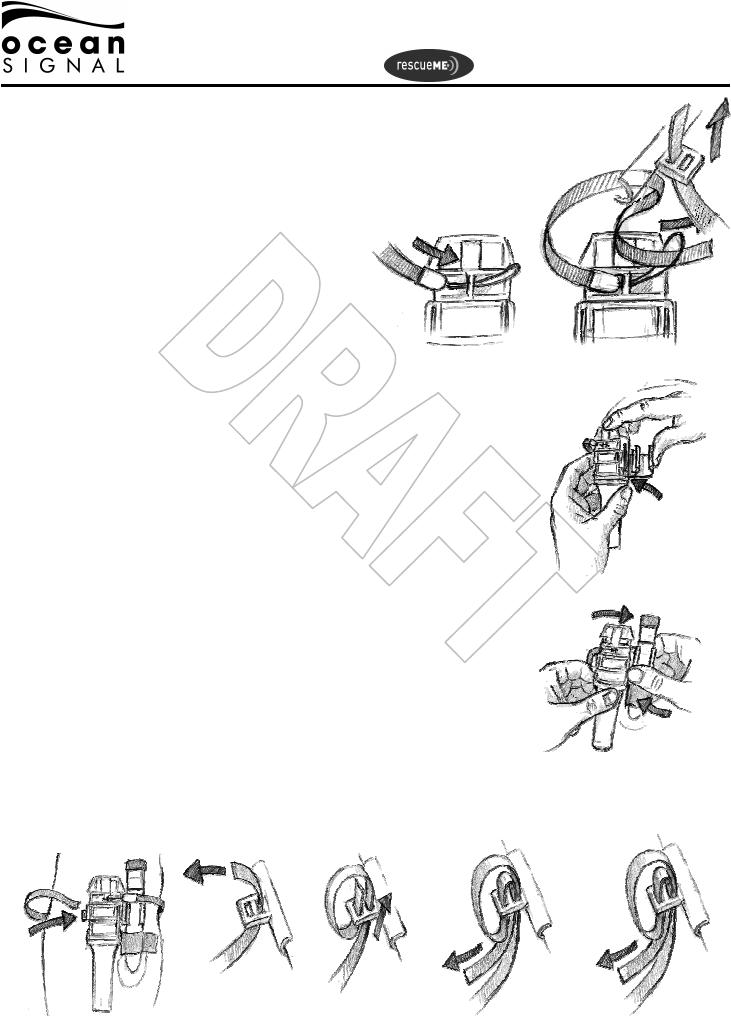

2. Lifejacket Installation
If your rescueME MOB1 is not already pre-installed lifejacket, please follow the
instructions below carefully.
• Loop the strap through the operating clip.
• Clip the bracket to the MOB1 so that the MOB will be on the outside of
the inflation tube. The following diagrams assume that the mounting
is to the left of the inflation tube. On most occasions it is
preferable to mount to the outside of the tube.
• Clip the MOB1 to the inflation tube
• Wrap the strap around the life jacket. When looping the strap through the bracket,
make sure that the strap is not twisted. Tighten the strap when complete.
• Mounting the MOB to the right. Follow steps 2-4 but swap over to the right. When
looping the strap through the bracket, make sure is has not twisted in the process.
MOB1 USER MANUAL
7 Version 00.03 08/10/2014

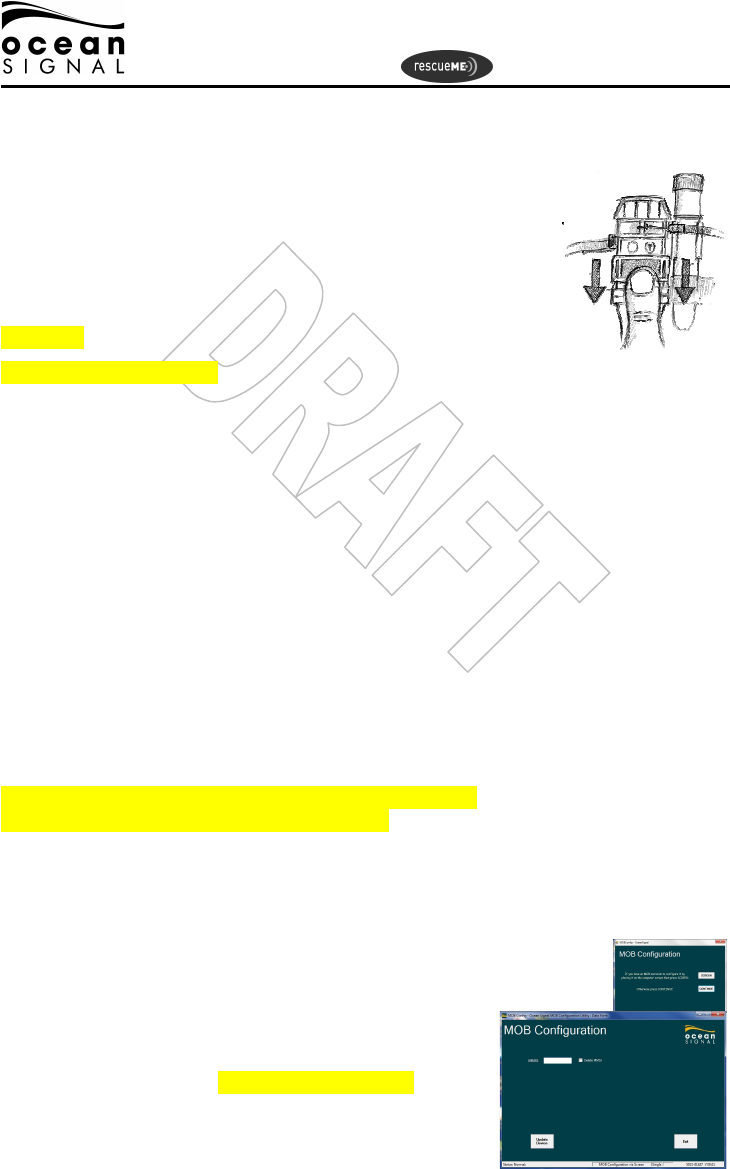

• Arm the MOB. Once the MOB is fully attached to the life-jacket, you are ready
to arm the device.
• Testing
• MOB Installation sticker
3. MMSI configuration
3.1 Self Identification
The MOB1 is supplied with the self identification number pre programmed. This number is
specific to each MOB1 and cannot be changed. The MMSI displayed on the AIS receiver will
always start with ‘972’ irrespective of the country it was purchased in.
3.2 User MMSI
(Applies to DSC enabled units only)
To be able to send DSC messages to your vessel, the MMSI number of the vessel needs to
be programmed into the MOB. This is achieved using a PC based application and the PC
screen.
3.2.1 Installation
The programming software for the can be downloaded from
www.oceansignal.com/installers/MOBconfig.msi
Save the file to your computer and open it to run the installer. Follow the instructions on
screen.
3.2.2 Configuration
Run the application from the desktop icon. The screen shown will appear.
Select the Screen button.
Enter the nine digit MMSI of the vessel in the box provided
and select update beacon. After the MMSI has been
MOB1 USER MANUAL
8 Part No 912S-01365
entered, a second box for a group MMSI will appear. Enter you group MMSI here if
available.
On completion press the Update Device button to proceed.

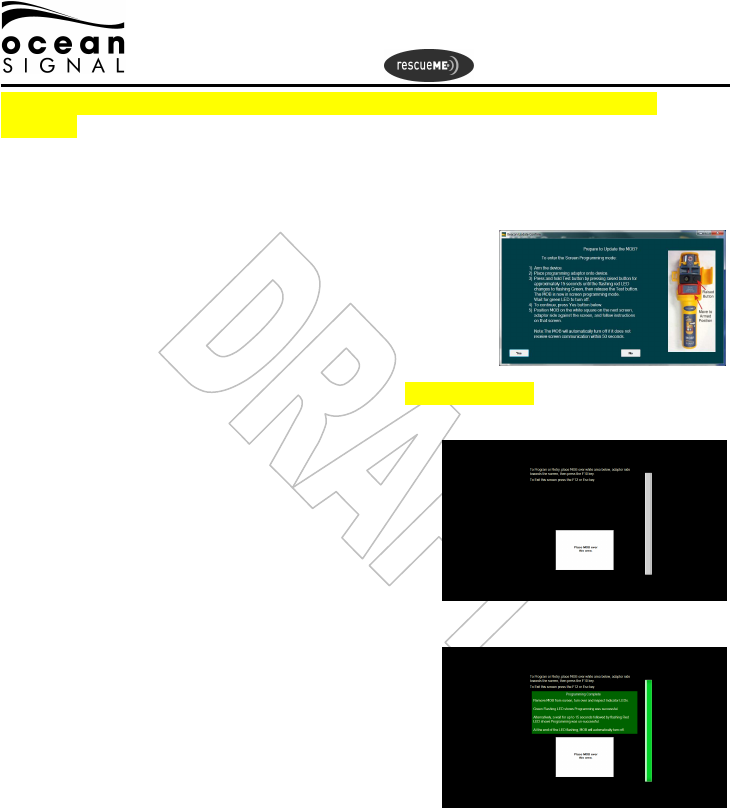

A new screen with further instructions will appear.
Slide the arming key down to the armed position and fit the
black rubber programming adaptor so that the push button
is over the test key and the aperture is over the clear
indicator window.
To put the MOB1 into programming mode, press the test
key for at least fifteen seconds. The LED will start flashing xxxxxxx. When ready press the
Yes key on screen.
The screen will now change to the programming
mode. Place the MOB1 over the screen so that the
clear indicator window is over the white box. Press
the <F10> key on your keyboard to commence
programming.
When the programming is complete, the screen will
change. Remove the MOB1 and check that the LED
starts flashing green. Turn the MOB2 off by pressing
the Test key for one second. The LED will blink red
twice. Press the <F12> key to exit the programming
mode.
If the programming fails, the Led will start flashing
Red after a short period of time. Turn the unit off and retry.
Return the arming tab to the locked position. Your MOB1 is now ready for use.
MOB1 USER MANUAL
9 Version 00.03 08/10/2014

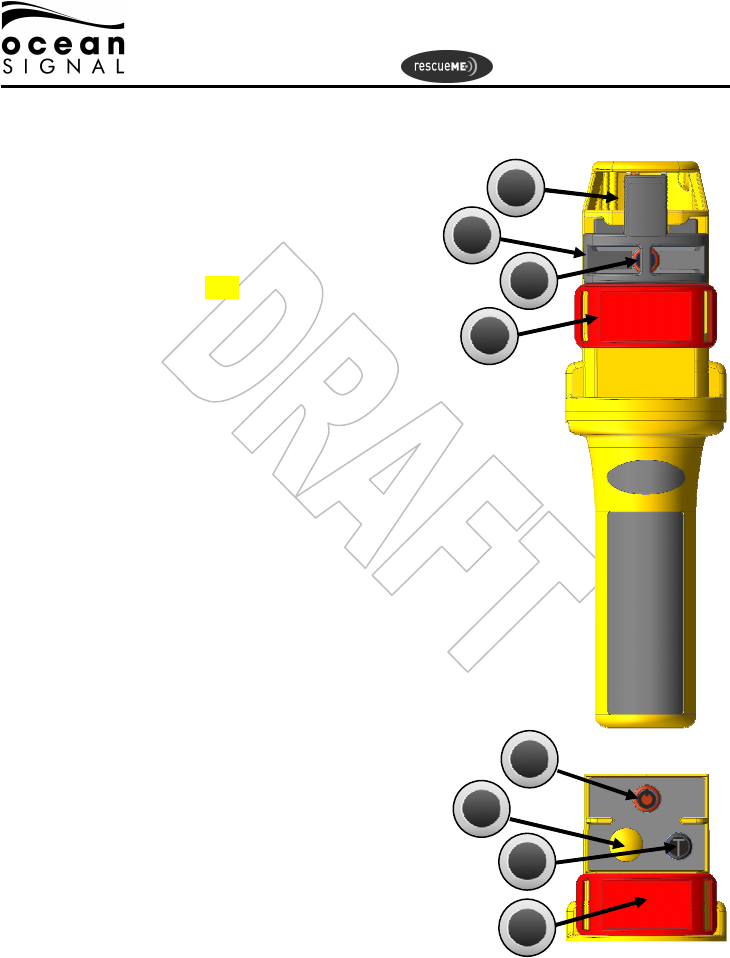

4. MOB1 OVERVIEW
1) Antenna behind activation slide
2) Activation slide
3) Manual Activation Button
4) Arming Slide (in safe position)
5) Strobe and Indicator LED
6) Test (and Off) button
7) Arming Slider (in armed position)
1
2
3
4
3
5
6
7
MOB1 Controls shown
in activated condition
MOB1 USER MANUAL
10 Part No 912S-01365
5. OPERATION
WARNING: Use only in situations of grave and imminent danger.
Misuse may result in a severe penalty.
Ensure that your MOB1 is always fitted with an unused battery that is within the marked
expiry date. Failure to do so may result in reduced operating time when used in a real
emergency. Please observe the recommendations on testing in section
0
6.
5.1 Automatic Activation
When correctly packed in a lifejacket the MOB1 will automatically activate when the
lifejacket inflates. Should the lifejacket fail to fully inflate, it may be necessary to assist
the activation slide to fully release.
5.2 Manual Activation
Only activate your MOB1 in situations requiring emergency
assistance. Deliberate misuse of your MOB1 may result in a fine.
•
To activate your MOB in an emergency, slide the red arming tab
down. Slide the grey tab to the Left or Right. The strobe light
will start flashing. The MOB will automatically start transmitting
AIS after [20seconds].
Warning: the antenna will be automatically released. Keep
the MOB well away from your eyes when activating.
•
To manually activate, press the ON key down. The Indicator LED
will start flashing Green. Release the ON key. The strobe light
will start flashing. AIS transmissions will commence after [20
seconds].
•
During activation the Indicator LED will five a short flash during
AIS transmissions and a long flash for a DSC transmission. The
colour of the flash will be Red during position acquisition and
green when the GPS position is being received.
•
When operating the MOB1, tether the beacon to your body or the
life - jacket.
•
Hold your beacon with the antenna standing vertically. Keep the
area marked ‘GPS Antenna’ free from obstruction, which would
interfere with the GPS reception.
5.3 DSC transmission
Applies to DSC enabled units only
MOB1 USER MANUAL
11 Version 00.03 08/10/2014
• Press and hold the ON key for over 5 seconds to transmit a single
DSC All Ships Distress Alert. This should only be done in a dire
emergency, if it is obvious that your alert is not being acted upon
by you own vessel. After the key is pressed, the Green LED will
start flashing then become steady. Release the key to
commence transmission of a single DSC transmission. The LED
will blink rapidly to indicate a DSC Distress is being transmitted,
Red if the is no position available land green when the GPS
position is being received.
5.4 Deactivation
To deactivate your MOB1 after use or if it is accidentally activated, press the TEST until
LED flashes red twice, then release.
MOB1 USER MANUAL
12 Part No 912S-01365
6. TESTING
Routine testing of your MOB1 is recommended to ensure it is in good working order if
needed, but please follow the guidance notes below on the frequency that tests should be
carried out. Please remember that each test will reduce the battery capacity slightly and
reduce the operation time of your MOB1 during an emergency.
6.1 Beacon test
To test your MOB1 is functioning correctly, press and hold the TEST key for one second.
The red LED will start flashing, indicating test mode is activated. The switch may now be
released. After a short pause, the indicator LED will flash green or amber to show a pass
or red to show fail status. The strobe will flash and then the unit will automatically turn off.
The number of green/amber flashes in each group indicates the number of hours the
battery has been used for as shown in the table below.
Green / Amber
Indicator.
Changes to Amber
after 1 hour of use
Red
indicator
status
No of
Flashes
No of
Hours Used
Type of
Failure
Passed
1 Fail
2
3
4
5
6
It is recommended to test your MSLD once a
month.
The amber test result indicates the battery has
been used for over one hour or the allowed
number of tests has been exceeded. The MSLD
will still operate normally in distress, but the
battery should be replaced to ensure the full
operating life when your MSLD is needed.
6.2 DSC transmission test
To initiate a DSC test transmission, press and hold the TEST key. The red LED will start
flashing, then after five seconds become steady. Release the ON key. After a short delay
the test results will be indicated by the LED flashing Green or Red, plus a single flash of
the strobe light.
6.3 AIS transmission test
To initiate an AIS transmission test with GPS, press and hold the TEST key. The RED LED
will start flashing and then become steady after five seconds. After a further five seconds,
the LED will start flashing slowly. Release the TEST key. The LED will give a long red
flash followed by a short green flash until GPS lock is achieved. The test results will be
indicated by the LED flashing Green or Red, plus a single flash of the strobe light. The
message “MOB TEST” will be displayed on a suitable AIS display.
MOB1 USER MANUAL
13 Version 00.03 08/10/2014
The AIS/GPS test should only be attempted with a clear view of the sky.
MOB1 USER MANUAL
14 Part No 912S-01365
APPENDIX
6.4 Maintenance and Troubleshooting
Your MSLD will require little maintenance except periodic cleaning, if required. Always
use a damp cloth to clean the case and dry thoroughly. Do not use solvents or other
cleaning fluids as this may cause the plastics to deteriorate. Ensure the antenna is free to
unwind.
6.5 Batteries
The MOB1 contains Lithium batteries for long operating life. Your battery must be
replaced either after the expiry date or after the MSLD has been activated, even if only for a
short period of time. Battery replacement must be done at an Ocean Signal authorised
battery replacement centre.
6.6 Transport
When shipping your MSLD the following guidance and regulations should be followed, but
you are advised to contact your nearest battery replacement centre or Ocean Signal prior
to shipping as regulations may have changed.
•
Always pack your MSLD securely in a stout cardboard carton. Ocean Signal advises that
you keep the original packaging in case of return for service.
•
For surface transport the MSLD may be shipped under special provision 188.
•
For air transport the MSLD should be shipped as category UN3091 and packed under
IATA packing instruction 970 section II. If you are hand carrying your MSLD on an
aircraft please contact you airline for advice.
6.7 Disposal
Care should be taken when disposing of your MSLD when it is no longer required. It is
recommended to remove the battery from the MSLD by removing the case lid. The case
screws are covered by the top label. Dispose of the battery in accordance with local waste
regulations. Please note that the MOB1 is not user serviceable and opening the case will
invalidate the warranty.
MOB1 USER MANUAL
15 Version 00.03 08/10/2014
6.8 Specifications
AIS transmission
Transmit Power (EIRP ...............................................................................................................1Watt
Frequency ............................................................................................ 161.975/162.025MHz ±500Hz
Baud rate ............................................................................................................................ 9600baud
Synchronisation ........................................................................................................................... UTC
DSC Transmission
1
Transmit Power (EIRP) ............................................................................................................. 1Watt
Frequency ...................................................................................................................... 156.525MHz
Messages ................................................................................................ Individual Distress Relay*
................................................................................................................... All Ships Distress Alert*
Baud rate ............................................................................................................................ 1200baud
*Single call made on press of the activation button.
Environmental
Temperature range (operational)......................................................................... -20°C - +55°C
Temperature range (storage) ............................................................................... -30°C -+70°C
Damp Heat (humidity) ............................................................................................. 40°C at 93%
[Drop (hard surface)................................................................................................ 1m : 6 sides]
Designed to meet Drop (water)............................................................................... 20m : 3sides
Water immersion .......................................................................................... 2 bar : >60minutes
Thermal Shock...................................................................... 45° into 100mm of water : >1hour
Physical
Weight ........................................................................................................................... 92grams
Dimensions ...........................................................................................134mm x 38mm x27mm
...................................................................................................................... 59mm over bracket
1
DSC functionality is subject to the regulations of the country.
MOB1 USER MANUAL
16 Part No 912S-01365
6.9 Approvals
TBD
6.9.1 European Declaration of Conformity
English Hereby, Ocean Signal Ltd declares that this MOB1 is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC
Finnish Ocean Signal Ltd vakuuttaa täten että MOB1 tyyppinen laite on direktiivin
1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden
ehtojen mukainen
Dutch Hierbij verklaart Ocean Signal Ltd dat het toestel MOB1 in overeenstemming
is met de essentiële eisen en de andere relevante bepalingen van richtlijn
1999/5/EG
French Par la présente Ocean Signal Ltd déclare que l'appareil MOB1 est conforme
aux exigences essentielles et aux autres dispositions pertinentes de la
directive 1999/5/CE
Swedish Härmed intygar Ocean Signal Ltd att denna MOB1 står I överensstämmelse
med de väsentliga egenskapskrav och övriga relevanta bestämmelser som
framgår av direktiv 1999/5/EG
Danish Undertegnede Ocean Signal Ltd erklærer herved, at følgende udstyr MOB1
overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF
German Hiermit erklärt Ocean Signal Ltd, dass sich diese MOB1 in Übereinstimmung
mit den grundlegenden Anforderungen und den anderen relevanten
Vorschriften der Richtlinie 1999/5/EG befindet".
Greek ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Ocean Signal Ltd ∆ΗΛΩΝΕΙ ΟΤΙ MOB1 ΣΥΜΜΟΡΦΩΝΕΤΑΙ
ΠΡΟΣ ΤΙΣ ΟΥΣΙΩ∆ΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ∆ΙΑΤΑΞΕΙΣ ΤΗΣ
Ο∆ΗΓΙΑΣ 1999/5/ΕΚ
Italian Con la presente Ocean Signal Ltd dichiara che questo MOB1 è conforme ai
requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva
1999/5/CE
Spanish Por medio de la presente Ocean Signal Ltd declara que el MOB1 cumple con
los requisitos esenciales y cualesquiera otras disposiciones aplicables o
exigibles de la Directiva 1999/5/CE
Portuguese Ocean Signal Ltd declara que este MOB1 está conforme com os requisitos
essenciais e outras disposições da Directiva 1999/5/CE
0560
MOB1 USER MANUAL
17 Version 00.03 08/10/2014
MOB1 USER MANUAL
18 Part No 912S-01365
6.10 Limited Warranty
Your Ocean Signal MOB1 is warranted against manufacturing defects in materials and
workmanship for a period of 5 years from the date of purchase and in accordance with the
following conditions.
Ocean Signal will at its discretion, repair or replace faulty product free of charge excluding
the cost of shipping. Proof of purchase shall be required in order for a warranty claim to
be valid from the original purchaser. All claims shall be made in writing to Ocean Signal or
an approved service dealer.
Ocean Signal shall not be liable to the buyer under the above warranty:
•
for any repairs or modifications carried out on the MSLD using parts that are not
supplied or approved by the manufacture Ocean Signal including batteries and for work
carried out other than by Ocean Signal or approved service dealers,
•
for any part, material or accessory that is not manufactured by Ocean Signal the
consumer will be covered by the guarantee / warranty offered to Ocean Signal by the
manufacturer or supplier,
•
for product which has not been fully paid for,
•
for any product supplied by Ocean Signal to a customer under an alternative warranty
agreement,
•
for the cost of shipping product to and from the customer.
The Battery is only warranted until the date of expiry and provided the unit is tested in
accordance with the information in the user manual. This warranty does not apply to a
used battery as indicated by the electronic witness (see page 8).
The following specific items are excluded from this warranty:
• Activation flap
•
Antenna
This warranty does not affect your statutory rights. This warranty is to be interpreted
under English law.
For further assistance please contact our Technical Service Department.
Email: service@oceansignal.com
MOB1 USER MANUAL
19 Version 00.03 08/10/2014
