Ogemray Technology WF3070M04B IEEE 802.11 b/g/n WiFi Module User Manual 54Mbps

Shenzhen Ogemray Technology Co.,Ltd IEEE 802.11 b/g/n WiFi Module 54Mbps

YWTWF3070M04B User Manual Rev2

54M/150M/30054M/150M/30054M/150M/30054M/150M/300 MMMM bpsbpsbpsbpsUSBUSBUSBUSB WIRELESSWIRELESSWIRELESSWIRELESS ADAPTERADAPTERADAPTERADAPTERUserUserUserUser ’’’’ ssss ManualManualManualManualVersionVersionVersionVersion 1.1.1.1. 8888

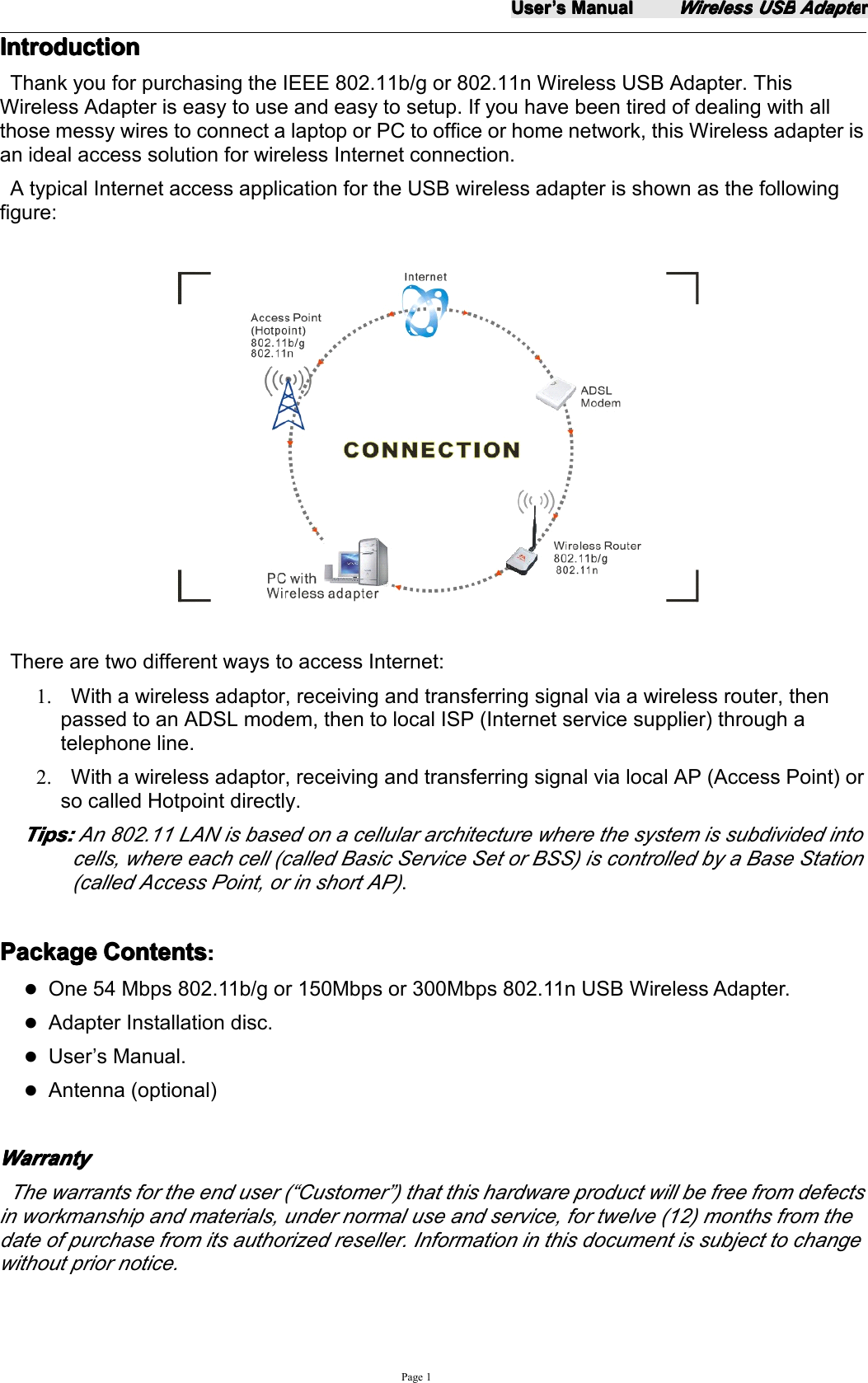

UserUserUserUser’’’’ssss ManualManualManualManualWirelessWirelessWirelessWireless USBUSBUSBUSB AdapteAdapteAdapteAdapterrrrPage 1IntroductionIntroductionIntroductionIntroductionThank you for purchasing the IEE E 802.11 b/g or 802.11n Wireless USB Adapter. ThisWireless Adapter is easy to use and easy to setup. If you have been tired of dealing with allthose messy wires to connect a laptop or PC to office or home network, th is Wireless adapter isan ideal access solution for wireless Internet connection.A typical Internet access application for the USB wireless adapter is shown as the followingfigure:There are two different ways to access Internet:1. With a wireless adaptor, receiving and transferring signal via a wireless router, thenpassed to an ADSL modem, then to local ISP (Internet service supplier) through atelephone line .2. With a wireless adaptor, receiving and transferring signal via local AP (Access Point) orso called Hotpoint directly.Tips:Tips:Tips:Tips: An 802.11 LAN is based on a cellular architecture where the system is subdivided intocells, where each cell (called Basic Service Set or BSS) is controlled by a Base Station(called Access Point, or in short AP).PackagePackagePackagePackage ContentsContentsContentsContents ::::�One 54 Mbps 802.11b/g or 150Mbps or 300Mbps 802.11n USB Wireless Adapter.�Adapter Installation disc.�User’s Manual.�Antenna (optional)WarrantyWarrantyWarrantyWarrantyThe warrants for the end user ( “ Customer ” ) that this hardware product will be free from defectsin workmanship and materials, under normal use and service, for twelve (12) months from thedate of purchase from its authorized reseller. Information in this document is subject to changewithout prior notice.

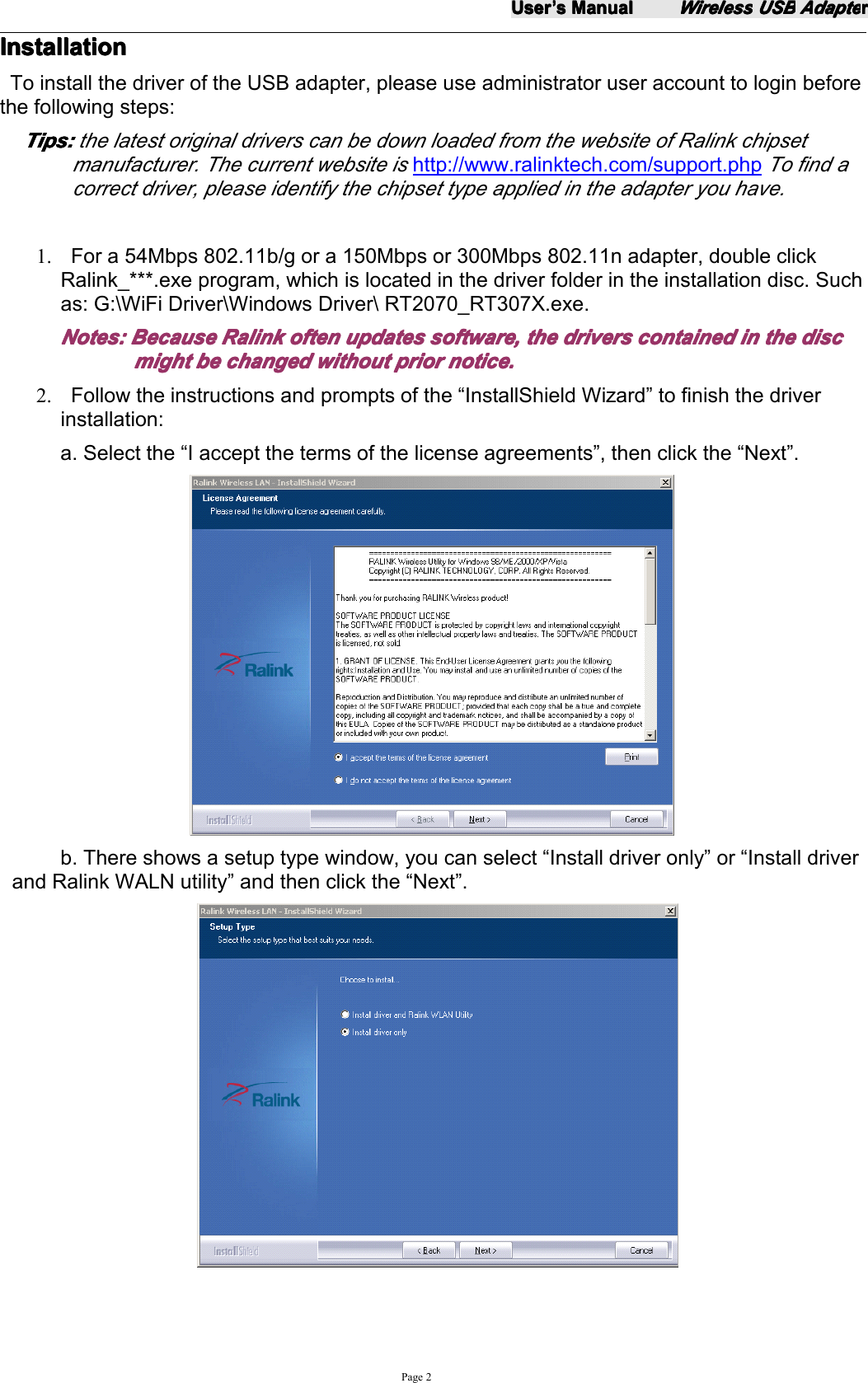

UserUserUserUser’’’’ssss ManualManualManualManualWirelessWirelessWirelessWireless USBUSBUSBUSB AdapteAdapteAdapteAdapterrrrPage 2InstallationInstallationInstallationInstallationTo install the driver of the USB adapter , please use administrator user account to login beforethe following steps:Tips:Tips:Tips:Tips: the latest original drivers can be down loaded from the website of Ralink chipsetmanufacturer . The current website ishttp://www.ralinktech.com/support.phpTo find acorrect driver, please identify the chipset type applied in the adapter you have.1. For a 54Mbps 802.11b/g or a 150Mbps or 300Mbps 802.11n adapter, double clickRalink_ *** .exe program, which is located in the driver folder in the installation disc. Suchas: G:\ WiFi D river\ Windows Driver\ RT2070_RT307X .exe .Notes:Notes:Notes:Notes: BecauseBecauseBecauseBecause RalinkRalinkRalinkRalink oftenoftenoftenoften updatesupdatesupdatesupdates softwaresoftwaresoftwaresoftware ,,,, thethethethe driversdriversdriversdrivers containedcontainedcontainedcontained inininin thethethethe discdiscdiscdiscmightmightmightmight bebebebe changedchangedchangedchanged withoutwithoutwithoutwithout priorpriorpriorprior notice.notice.notice.notice.2. Follow the instructions and prompts of the “ InstallShield Wizard ” to finish the driverinstallation:a. Select the “ I accept the terms of the license agreements ” , then click the “ Next ” .b. There shows a setup type window, you can select “ Install driver only ” or “ Install driverand Ralink WALN utility ” and then click the “ Next ” .

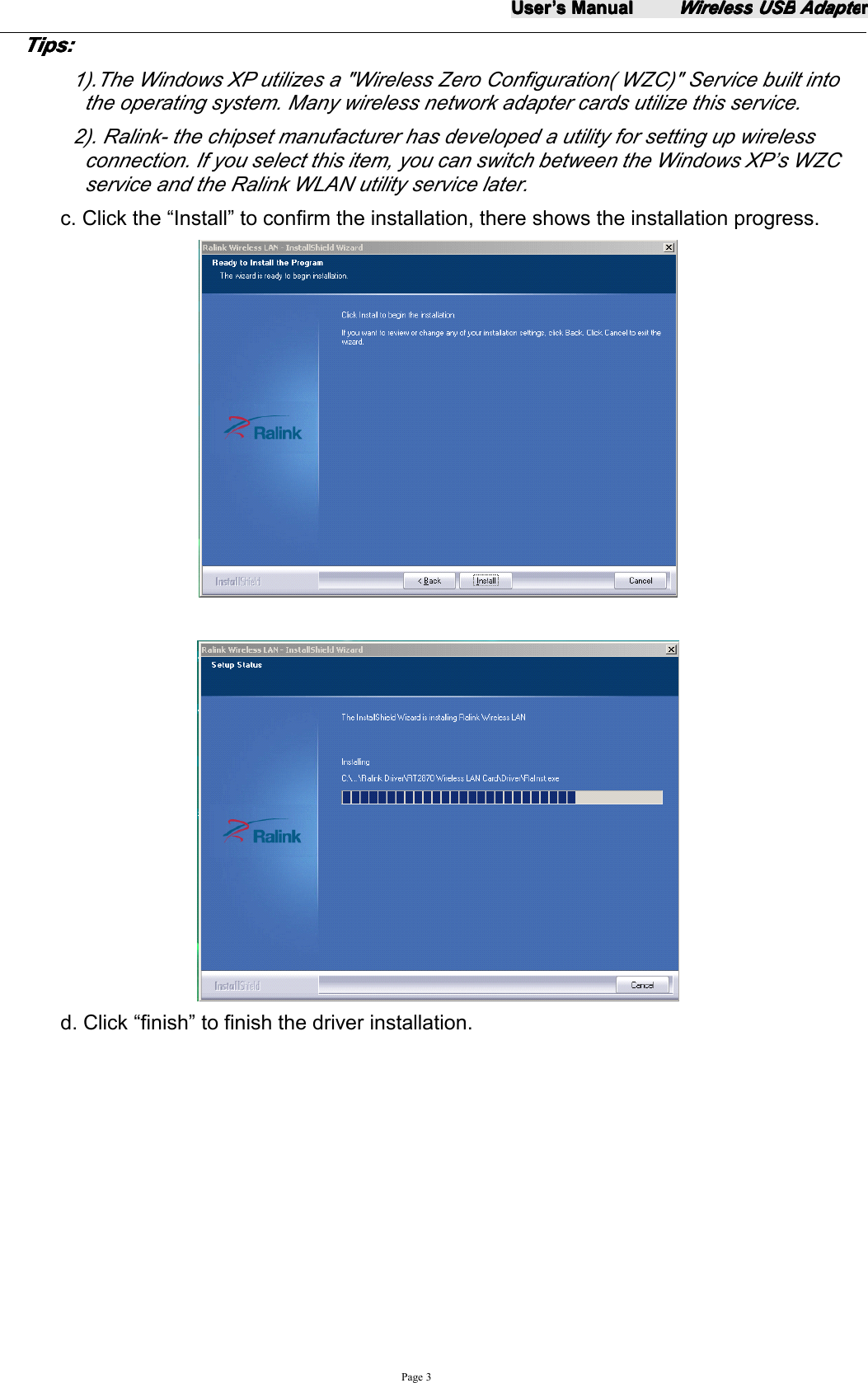

UserUserUserUser’’’’ssss ManualManualManualManualWirelessWirelessWirelessWireless USBUSBUSBUSB AdapteAdapteAdapteAdapterrrrPage 3TipsTipsTipsTips ::::1).The Windows XP utilizes a "Wireless Zero Configuration( WZC)" Service built intothe operating system. Many wireless network adapter cards utilize this service.2). Ralink - the chipset manufacturer has developed a utility for setting up wirelessconnection. If you select this item, you can switch between the Windows XP’s WZCservice and the Ralink WLAN utility service later.c. Click the “ Install ” to confirm the installation, there shows the installation progress.d. Click “ finish ” to finish the driver installation.

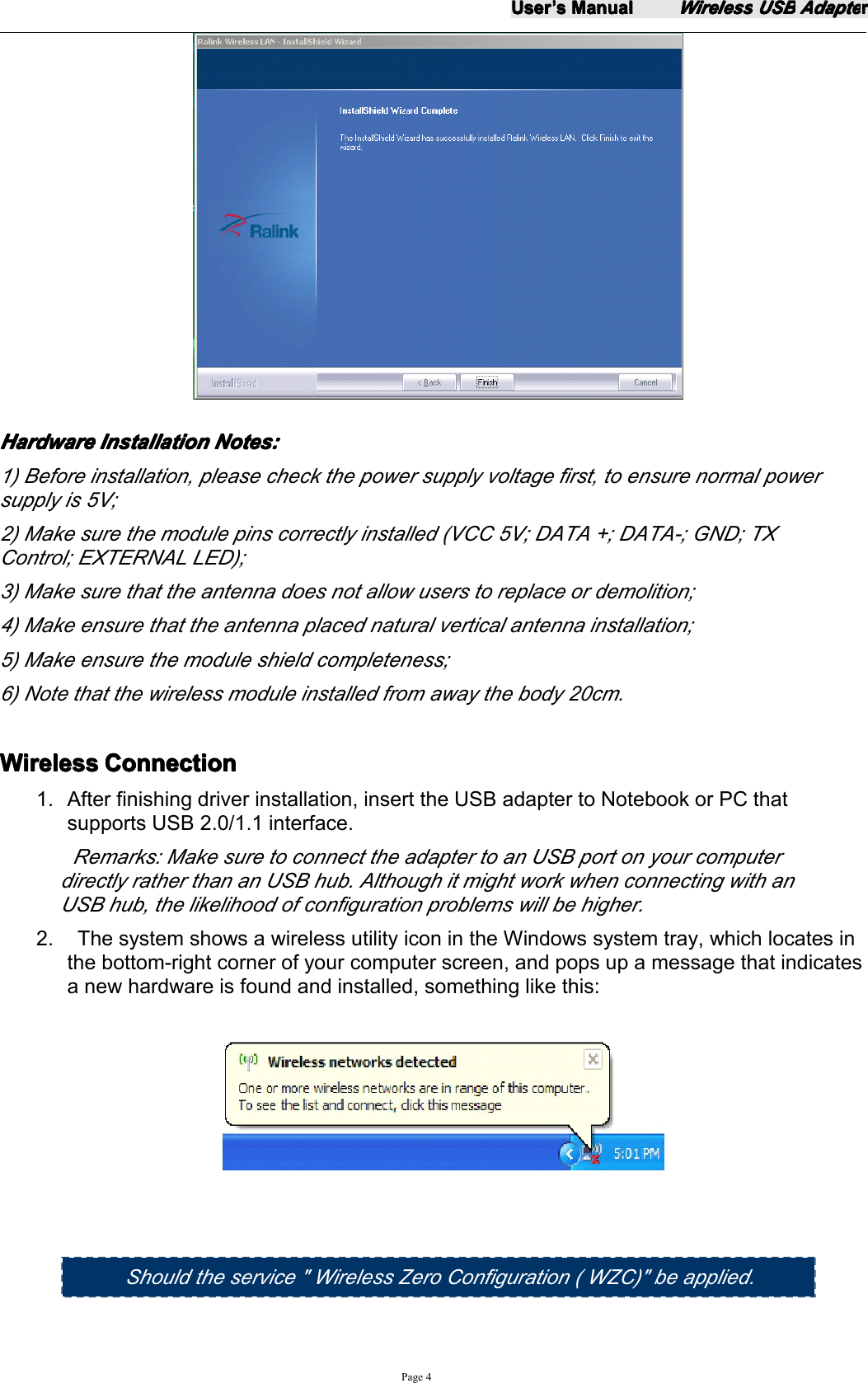

UserUserUserUser’’’’ssss ManualManualManualManualWirelessWirelessWirelessWireless USBUSBUSBUSB AdapteAdapteAdapteAdapterrrrPage 4HardwareHardwareHardwareHardware InstallationInstallationInstallationInstallation Notes:Notes:Notes:Notes:1) Before installation, please check the power supply voltage first, to ensure normal powersupply is 5V;2) Make sure the module pins correctly installed (VCC 5V; DATA +; DATA-; GND; TXControl; EXTERNAL LED);3) Make sure that the antenna does not allow users to replace or demolition;4) Make ensure that the antenna placed natural vertical antenna installation;5) Make ensure the module shield completeness;6) Note that the wireless module installed from away the body 20cm.WirelessWirelessWirelessWireless ConnectionConnectionConnectionConnection1. After finishing driver installation, insert the USB adapter to Notebook or PC thatsupports USB 2.0/1.1 interface.Remarks: Make sure to connect the adapter to an USB port on your computerdirectly rather than an USB hub. Although it might work when connecting with anUSB hub, the likelihood of configuration problems will be higher.2. The system shows a wireless utility icon in the Windows system tray, which locates inthe bottom-right corner of your computer screen, and pops up a message that indicatesa new hardware is found and installed, something like this:Should the s ervice " Wireless Zero Configuration ( WZC) " be applied .

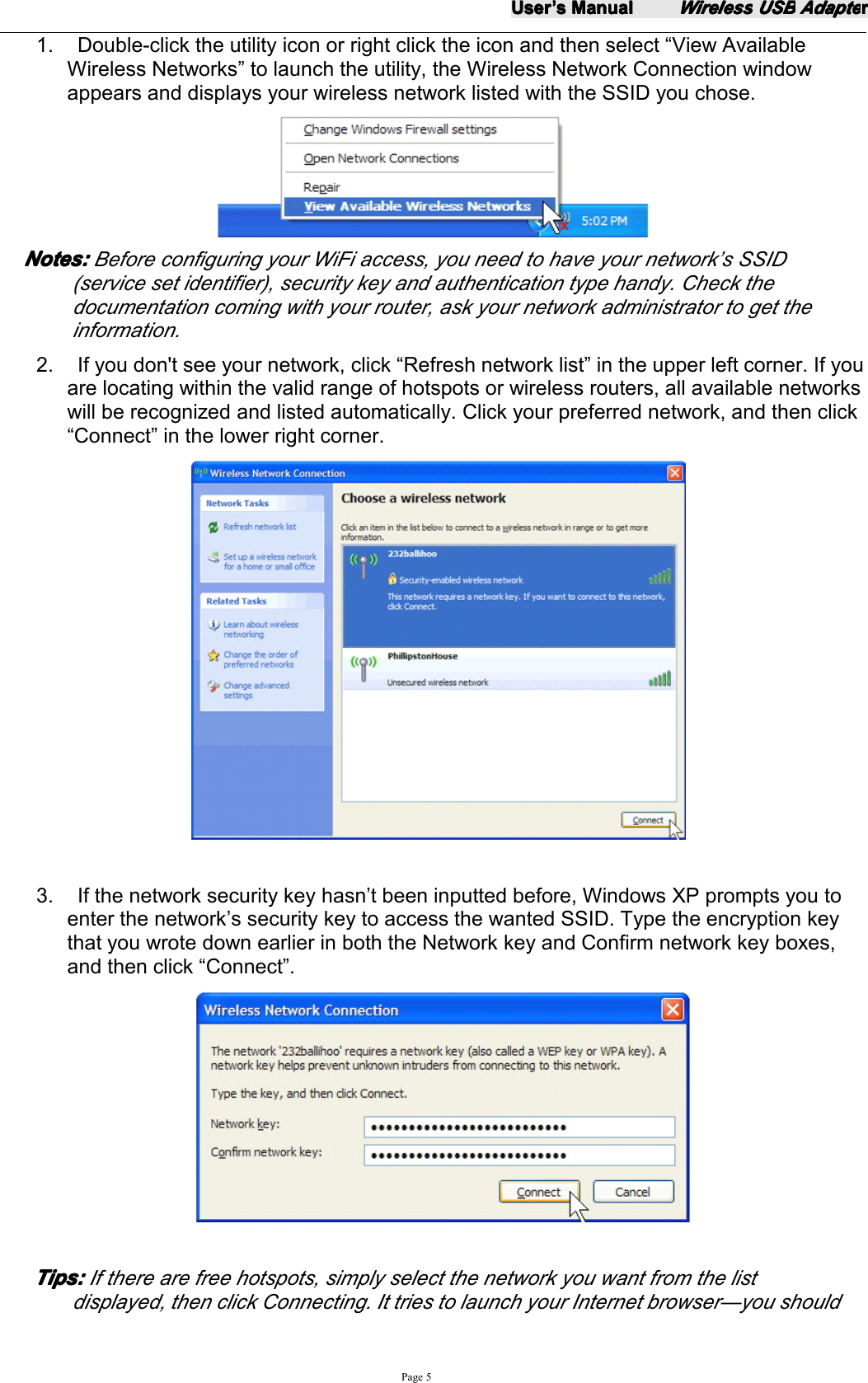

UserUserUserUser’’’’ssss ManualManualManualManualWirelessWirelessWirelessWireless USBUSBUSBUSB AdapteAdapteAdapteAdapterrrrPage 51. Double-click the utility icon or right click the icon and then select “ View AvailableWireless Networks ” to launch the utility, the Wireless Network Connection windowappears and displays your wireless network listed with the SSID you chose.Notes:Notes:Notes:Notes: Before configuring your WiFi access, you need to have your network’s SSID(service set identifier), security key and authentication type handy. Check thedocumentation coming with your router, ask your network administrator to get theinformation.2. If you don't see your network, click “ Refresh network list ” in the upper left corner. If youare locating within the valid range of hotspots or wireless routers, all available networkswill be recognized and listed automatically. Click your preferred network, and then click“ Connect ” in the lower right corner.3. If the network security key hasn ’ t been inputted before, Windows XP prompts you toenter the network ’ s security key to access the wanted SSID. Type the encryption keythat you wrote down earlier in both the Network key and Confirm network key boxes,and then click “ Connect ” .Tips:Tips:Tips:Tips: If there are free hotspots, simply select the network you want from the listdisplayed, then click Connecting. It tries to launch your Internet browser — you should

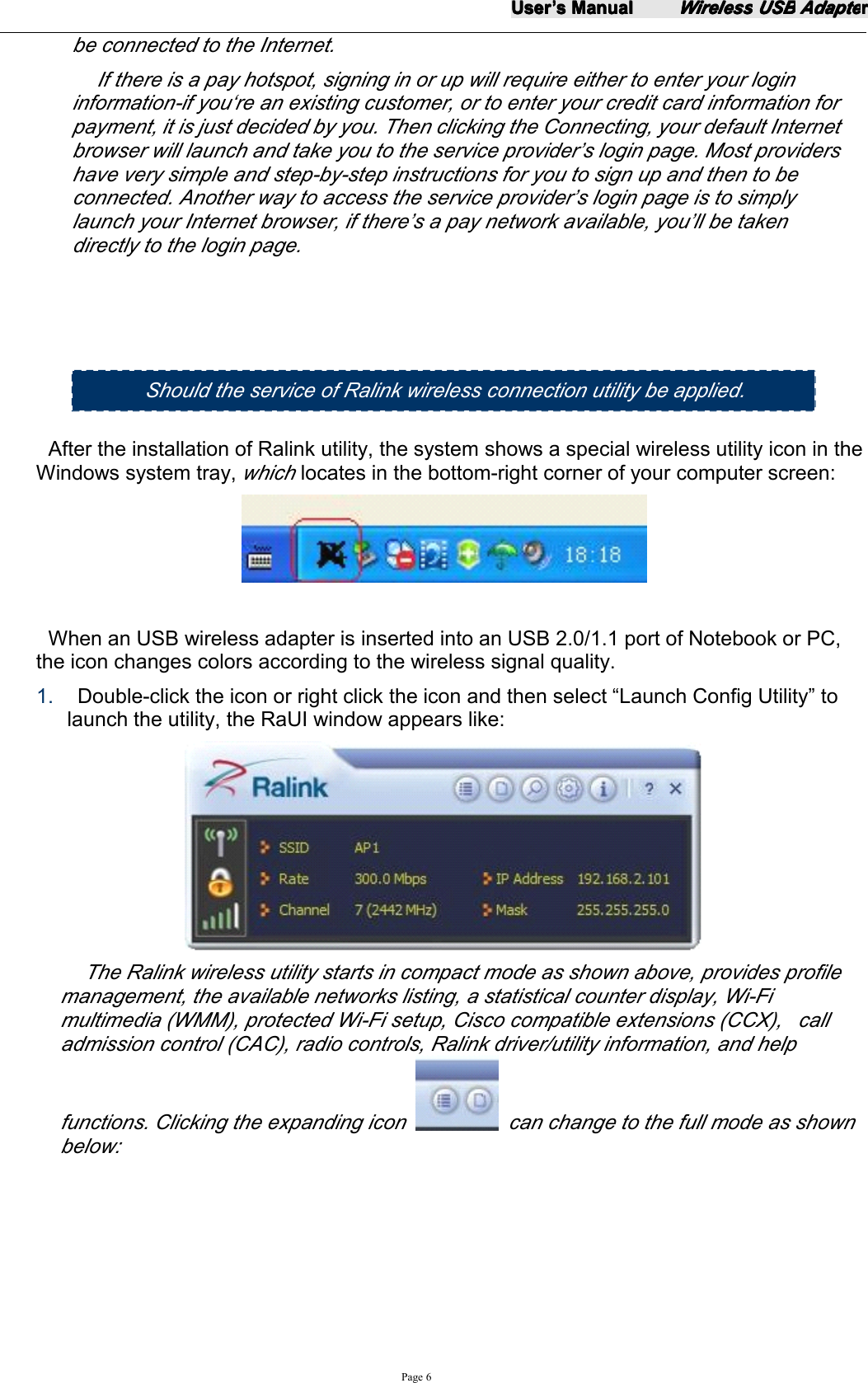

UserUserUserUser’’’’ssss ManualManualManualManualWirelessWirelessWirelessWireless USBUSBUSBUSB AdapteAdapteAdapteAdapterrrrPage 6be connected to the Internet.If there is a pay hotspot, signing in or up will require either to enter your logininformation-if you‘re an existing customer, or to enter your credit card information forpayment, it is just decided by you. Then clicking the Connecting, your default Internetbrowser will launch and take you to the service provider’s login page. Most providershave very simple and step-by-step instructions for you to sign up and then to beconnected. Another way to access the service provider’s login page is to simplylaunch your Internet browser, if there’s a pay network available, you’ll be takendirectly to the login page.After the installation of Ralink utility, the system shows a special wireless utility icon in theWindows system tray,whichlocates in the bottom-right corner of your computer screen:When an USB wireless adapter is inserted into an USB 2.0/1.1 port of Notebook or PC,the icon changes colors according to the wireless signal quality.1. Double-click the icon or right click the icon and then select “ Launch Config Utility ” tolaunch the utility, the RaUI window appears like:The Ralink wireless utility starts in compact mode as shown above , provides profilemanagement, the available networks listing, a statistical counter display, Wi-Fimultimedia (WMM), protected Wi-Fi setup, Cisco compatible extensions (CCX), calladmission control (CAC), radio controls, Ralink driver/utility information, and helpfunctions. Clicking the expanding icon can change to the full mode as shownbelow:Should the s ervice of Ralink wireless connection utility be applied .

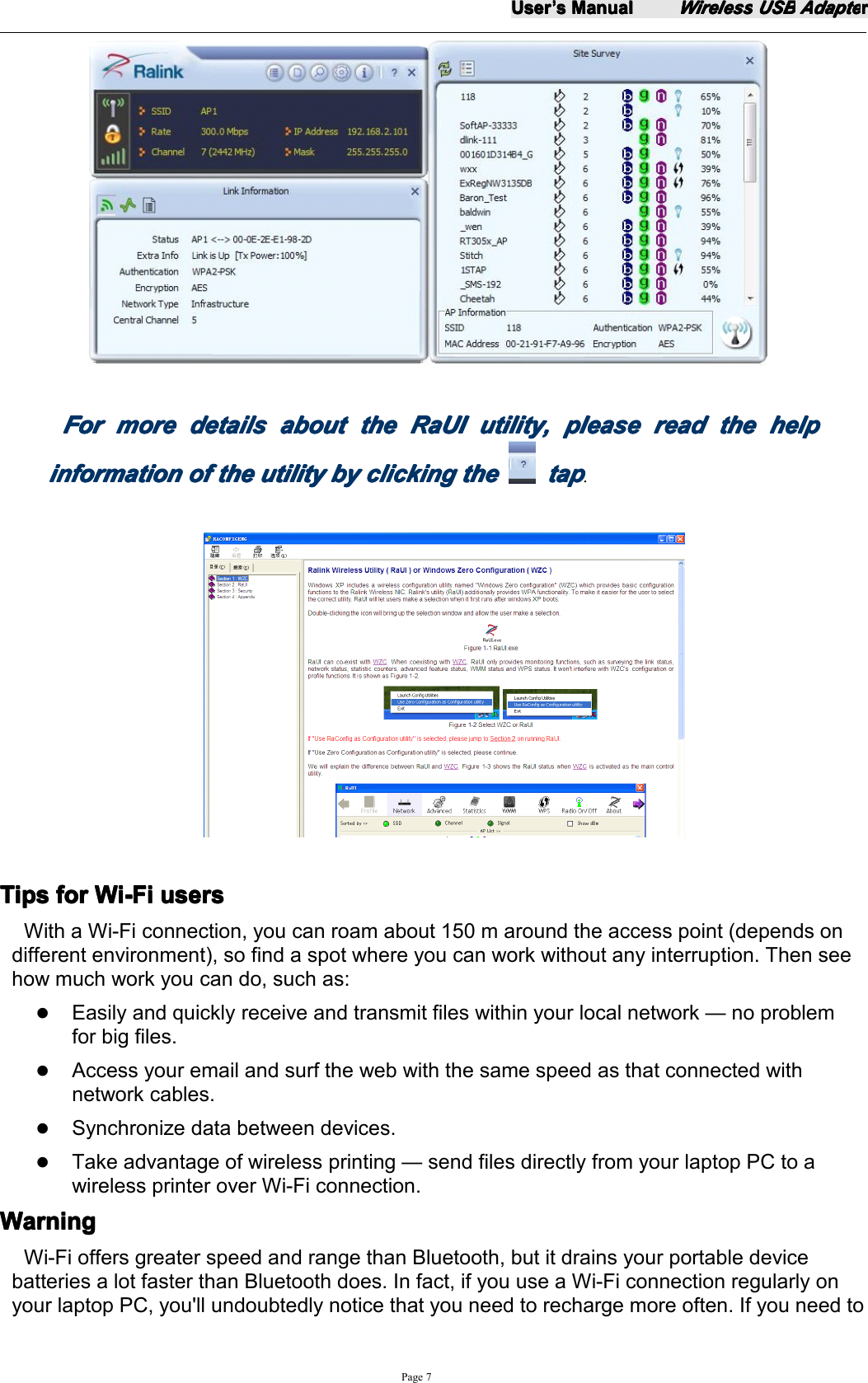

UserUserUserUser’’’’ssss ManualManualManualManualWirelessWirelessWirelessWireless USBUSBUSBUSB AdapteAdapteAdapteAdapterrrrPage 7ForForForFor moremoremoremore detailsdetailsdetailsdetails aboutaboutaboutabout thethethethe RaUIRaUIRaUIRaUI utility,utility,utility,utility, pleasepleasepleaseplease readreadreadread thethethethe helphelphelphelpinformationinformationinformationinformation ofofofof thethethethe utilityutilityutilityutility bybybyby clickingclickingclickingclicking thethethethe taptaptaptap.TipsTipsTipsTips forforforfor Wi-FiWi-FiWi-FiWi-Fi usersusersusersusersWith a Wi-Fi connection, you can roam about 150 m around the access point (depends ondifferent environment), so find a spot where you can work without any interruption. Then seehow much work you can do, such as:�Easily and quickly receive and transmit files within your local network — no problemfor big files.�Access your email and surf the web with the same speed as that connected withnetwork cables.�Synchronize data between devices.�Take advantage of wireless printing — send files directly from your laptop PC to awireless printer over Wi-Fi connection.WarningWarningWarningWarningWi-Fi offers greater speed and range than Bluetooth, but it drains your portable devicebatteries a lot faster than Bluetooth does. In fact, if you use a Wi-Fi connection regularly onyour laptop PC, you'll undoubtedly notice that you need to recharge more often. If you need to

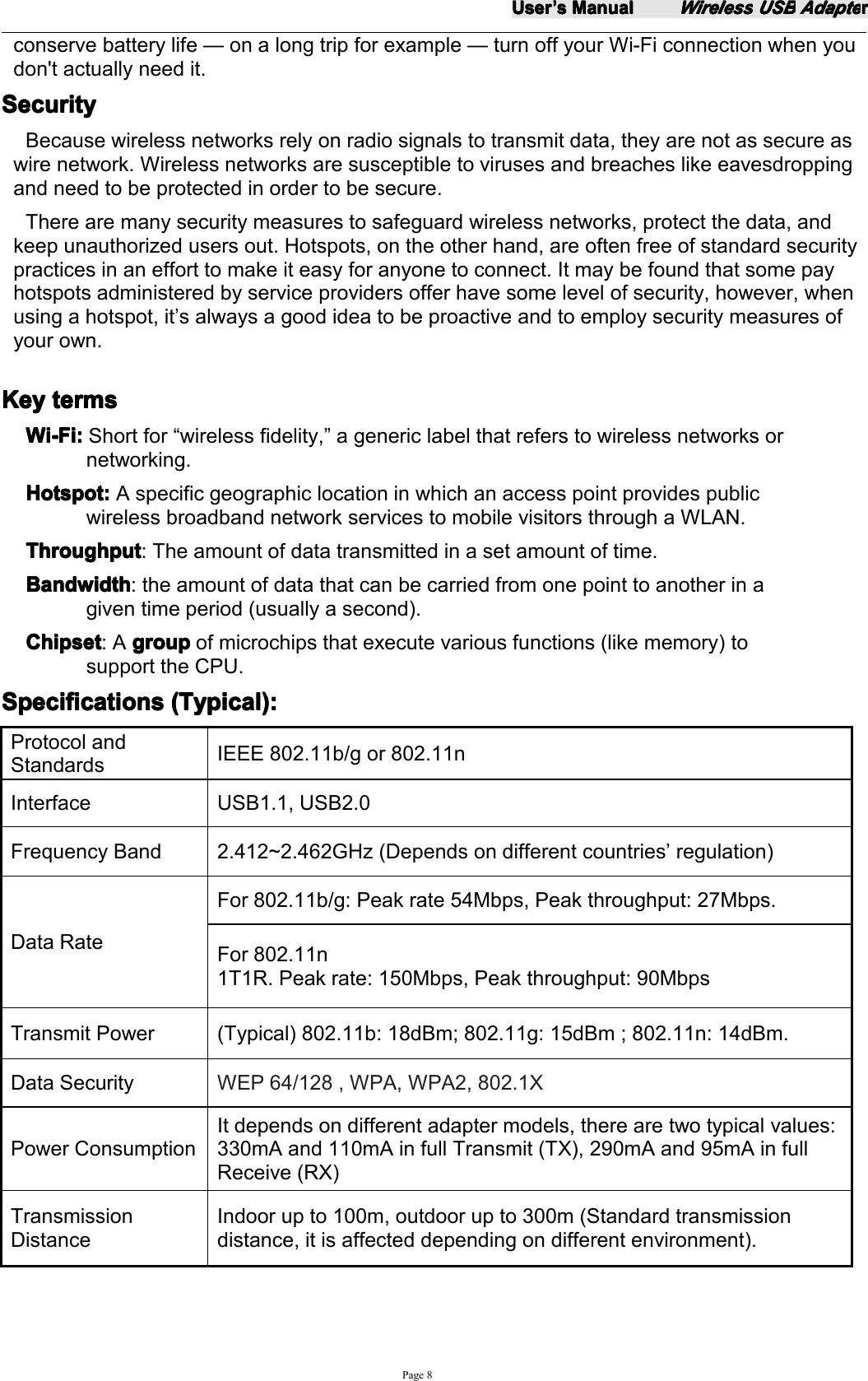

UserUserUserUser’’’’ssss ManualManualManualManualWirelessWirelessWirelessWireless USBUSBUSBUSB AdapteAdapteAdapteAdapterrrrPage 8conserve battery life — on a long trip for example — turn off your Wi-Fi connection when youdon't actually need it.SecuritySecuritySecuritySecurityBecause wireless networks rely on radio signals to transmit data, they are not as secure aswire network. Wireless networks are susceptible to viruses and breaches like eavesdroppingand need to be protected in order to be secure.There are many security measures to safeguard wireless networks, protect the data, andkeep unauthorized users out. Hotspots, on the other hand, are often free of standard securitypractices in an effort to make it easy for anyone to connect. It may be found that some payhotspots administered by service providers offer have some level of security, however, whenusing a hotspot, it ’ s always a good idea to be proactive and to employ security measures ofyour own.KeyKeyKeyKey termstermstermstermsWi-Fi:Wi-Fi:Wi-Fi:Wi-Fi: Short for “ wireless fidelity, ” a generic label that refers to wireless networks ornetworking.Hotspot:Hotspot:Hotspot:Hotspot: A specific geographic location in which an access point provides publicwireless broadband network services to mobile visitors through a WLAN.ThroughputThroughputThroughputThroughput : The amount of data transmitted in a set amount of time.BandwidthBandwidthBandwidthBandwidth : the amount of data that can be carried from one point to another in agiven time period (usually a second).ChipsetChipsetChipsetChipset : A groupgroupgroupgroup of microchips that execute various functions (like memory) tosupport the CPU.SpecificationsSpecificationsSpecificationsSpecifications (Typical):(Typical):(Typical):(Typical):Protocol andStandardsIEEE 802.11b/g or 802.11nInterface USB1.1, USB2.0Frequency Band 2.4 12~2. 462 GHz (Depends on different countries ’ regulation)Data RateFor 802.11b/g: Peak rate 54Mbps, Peak throughput: 27Mbps.For 802.11n1T1R. Peak rate: 150Mbps, Peak throughput: 90MbpsT ransmit Power (Typical) 802.11b: 18dBm; 802.11g: 1 5 dBm ; 802.11n: 14dBm.Data Security WEP 64/128 , WPA, WPA2, 802.1XPower C onsumptionIt depends on different adapter models, there are two t ypical values:33 0mA and 110mA in full Transmit (TX), 2 9 0 mA and 95 mA in fullReceive (RX)TransmissionDistanceIndoor up to 100m, outdoor up to 300m (Standard transmissiondistance, it is affected depend ing on different environment).

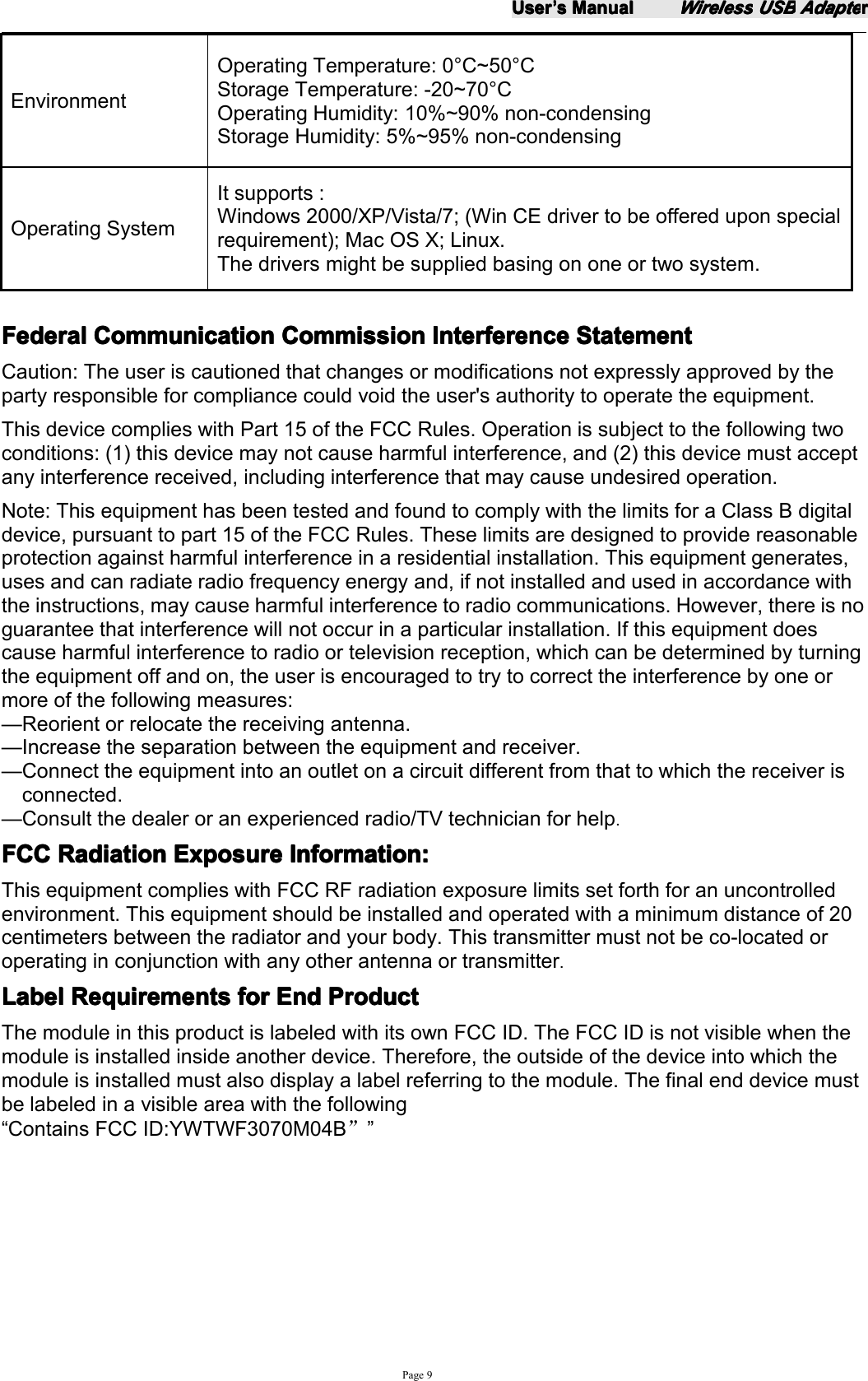

UserUserUserUser’’’’ssss ManualManualManualManualWirelessWirelessWirelessWireless USBUSBUSBUSB AdapteAdapteAdapteAdapterrrrPage 9EnvironmentOperating Temperature: 0 ° C~ 50 ° CStorage Temperature: - 2 0~70 ° COperating Humidity: 10%~90% non-condensingStorage Humidity: 5%~95% non-condensingOperating SystemIt supports :Windows 2000/XP/Vista/7; (Win CE driver to be offered upon specialrequire ment); Mac OS X ; Linux .The drivers might be supplied basing on one or two system.FederalFederalFederalFederal CommunicationCommunicationCommunicationCommunication CommissionCommissionCommissionCommission InterferenceInterferenceInterferenceInterference StatementStatementStatementStatementCaution: The user is cautioned that changes or modifications not expressly approved by theparty responsible for compliance could void the user's authority to operate the equipment.This device complies with Part 15 of the FCC Rules. Operation is subject to the following twoconditions: (1) this device may not cause harmful interference, and (2) this device must acceptany interference received, including interference that may cause undesired operation.Note: This equipment has been tested and found to comply with the limits for a Class B digitaldevice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful interference in a residential installation. This equipment generates,uses and can radiate radio frequency energy and, if not installed and used in accordance withthe instructions, may cause harmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation. If this equipment doescause harmful interference to radio or television reception, which can be determined by turningthe equipment off and on, the user is encouraged to try to correct the interference by one ormore of the following measures:— Reorient or relocate the receiving antenna.— Increase the separation between the equipment and receiver.— Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.— Consult the dealer or an experienced radio/TV technician for help.FCCFCCFCCFCC RadiationRadiationRadiationRadiation ExposureExposureExposureExposure Information:Information:Information:Information:This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolledenvironment. This equipment should be installed and operated with a minimum distance of 20centimeters between the radiator and your body. This transmitter must not be co-located oroperating in conjunction with any other antenna or transmitter.LabelLabelLabelLabel RRRR equirementsequirementsequirementsequirements forforforfor EndEndEndEnd ProductProductProductProductThe module in this product is labeled with its own FCC ID. The FCC ID is not visible when themodule is installed inside another device. Therefore, the outside of the device into w hich themodule is installed must also display a label referring to the module. The final end device mustbe labeled in a visible area with the following“ Contains FCC ID: YWTWF3070M04B ””
