Ogemray Technology WF7601U7MX 150Mbps WiFi Module User Manual GWF 7M02 spec V1 2 2015 12 15

Shenzhen Ogemray Technology Co.,Ltd 150Mbps WiFi Module GWF 7M02 spec V1 2 2015 12 15

Users Manual

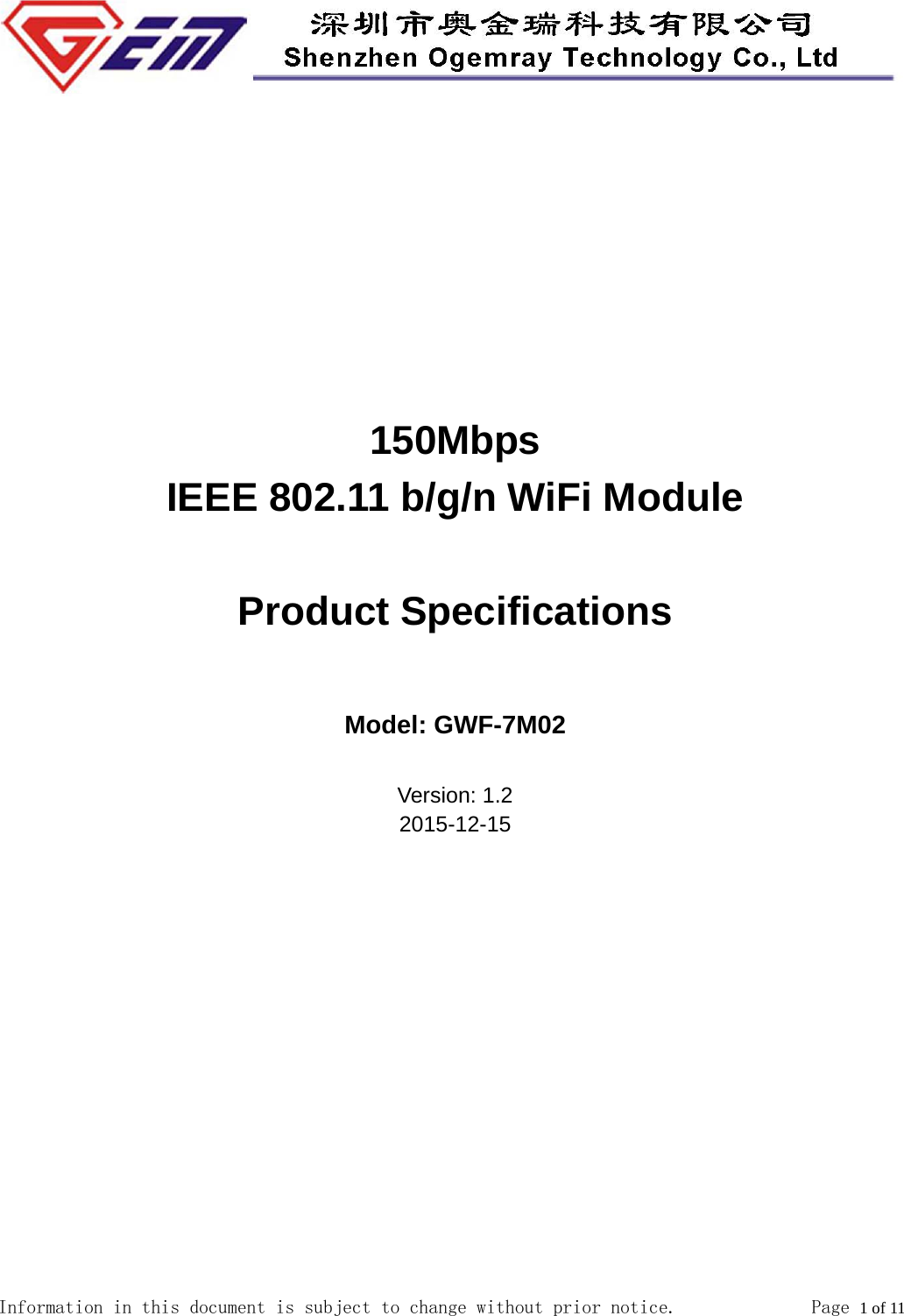

 Information in this document is subject to change without prior notice.              Page 1 of 11             150Mbps IEEE 802.11 b/g/n WiFi Module  Product Specifications  Model: GWF-7M02  Version: 1.2 2015-12-15

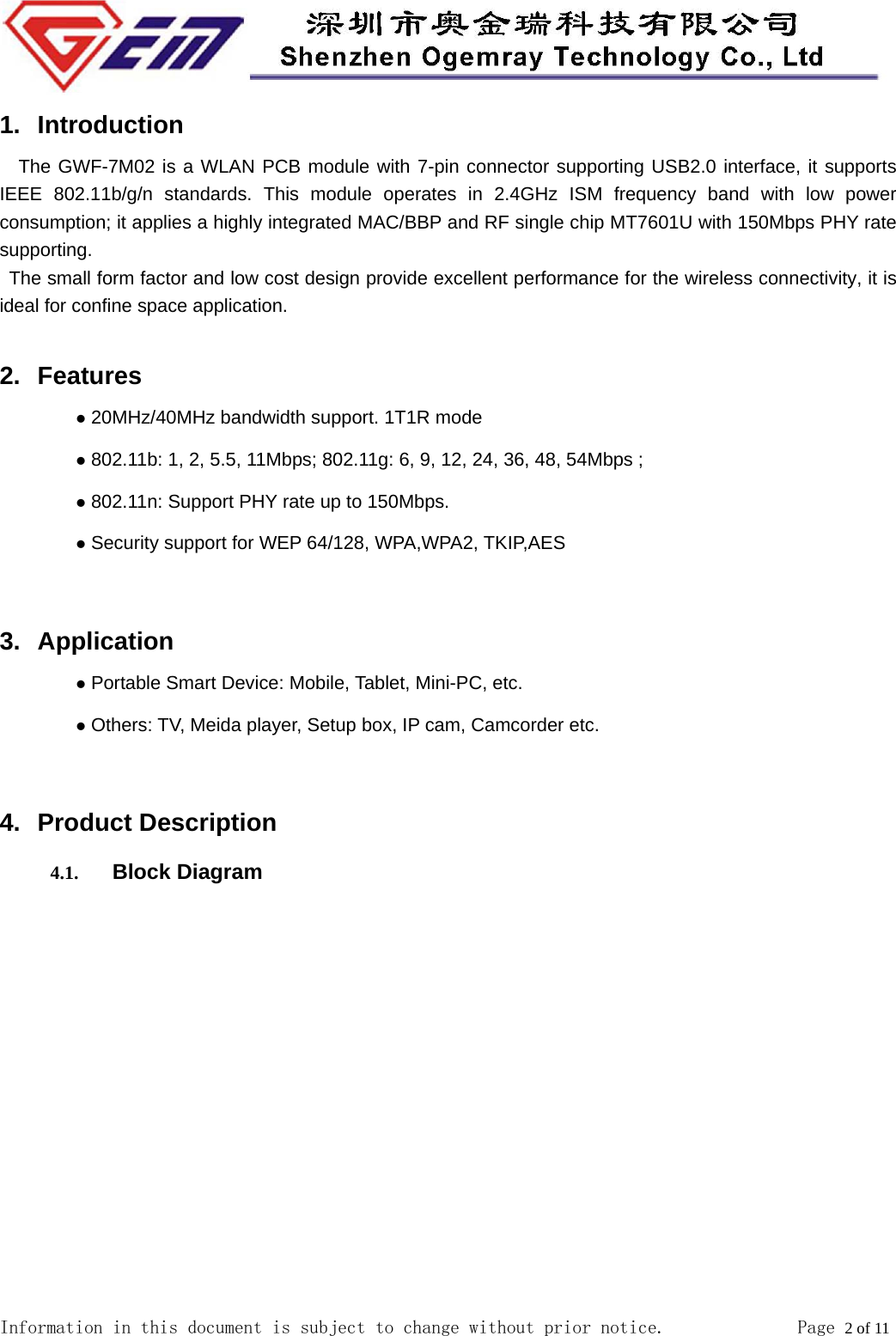

 Information in this document is subject to change without prior notice.              Page 2 of 11  1. Introduction   The GWF-7M02 is a WLAN PCB module with 7-pin connector supporting USB2.0 interface, it supports IEEE 802.11b/g/n standards. This module operates in 2.4GHz ISM frequency band with low power consumption; it applies a highly integrated MAC/BBP and RF single chip MT7601U with 150Mbps PHY rate supporting.  The small form factor and low cost design provide excellent performance for the wireless connectivity, it is ideal for confine space application.  2. Features  20MHz/40MHz bandwidth support. 1T1R mode  802.11b: 1, 2, 5.5, 11Mbps; 802.11g: 6, 9, 12, 24, 36, 48, 54Mbps ;  802.11n: Support PHY rate up to 150Mbps.  Security support for WEP 64/128, WPA,WPA2, TKIP,AES  3. Application  Portable Smart Device: Mobile, Tablet, Mini-PC, etc.  Others: TV, Meida player, Setup box, IP cam, Camcorder etc.  4. Product Description 4.1. Block Diagram
 Information in this document is subject to change without prior notice.              Page 3 of 11   Figure 1 With external antenna used   Figure 2 With onboard PCB antenna used  4.2. Specification: General Main Chipset  MediaTek MT7601U Device Interface  USB 2.0, 7 PCB Semi-holes RF output  External antenna Via I-PEX MHF receptacle or Built-in On Board

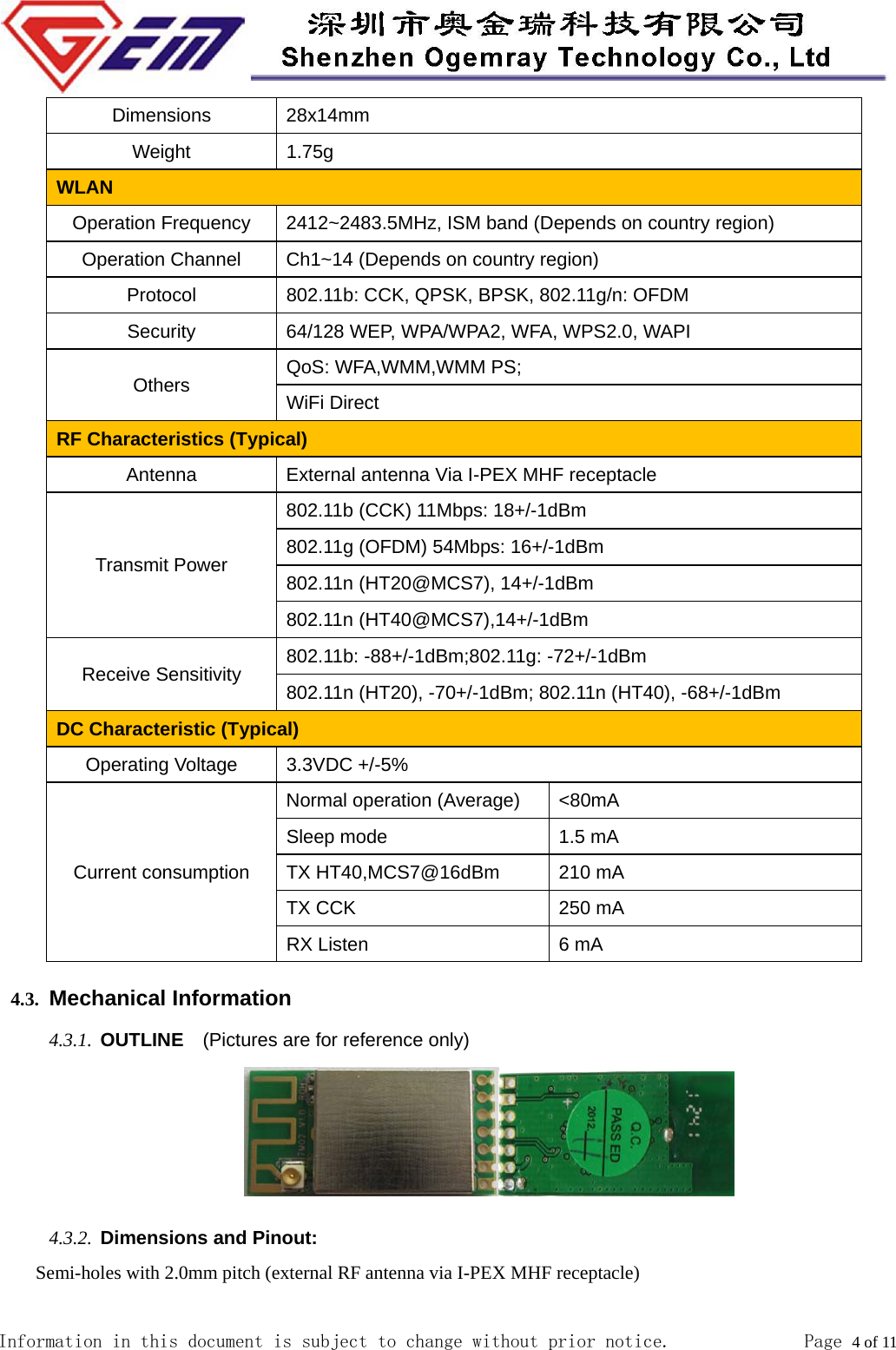

 Information in this document is subject to change without prior notice.              Page 4 of 11  Dimensions 28x14mm Weight 1.75g WLAN  Operation Frequency  2412~2483.5MHz, ISM band (Depends on country region) Operation Channel  Ch1~14 (Depends on country region) Protocol  802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM Security  64/128 WEP, WPA/WPA2, WFA, WPS2.0, WAPI Others  QoS: WFA,WMM,WMM PS; WiFi Direct RF Characteristics (Typical) Antenna  External antenna Via I-PEX MHF receptacle   Transmit Power 802.11b (CCK) 11Mbps: 18+/-1dBm 802.11g (OFDM) 54Mbps: 16+/-1dBm 802.11n (HT20@MCS7), 14+/-1dBm 802.11n (HT40@MCS7),14+/-1dBm Receive Sensitivity  802.11b: -88+/-1dBm;802.11g: -72+/-1dBm 802.11n (HT20), -70+/-1dBm; 802.11n (HT40), -68+/-1dBm DC Characteristic (Typical) Operating Voltage  3.3VDC +/-5% Current consumption Normal operation (Average)  <80mA   Sleep mode  1.5 mA TX HT40,MCS7@16dBm  210 mA TX CCK  250 mA RX Listen  6 mA 4.3. Mechanical Information 4.3.1. OUTLINE  (Pictures are for reference only)                             4.3.2. Dimensions and Pinout: Semi-holes with 2.0mm pitch (external RF antenna via I-PEX MHF receptacle)

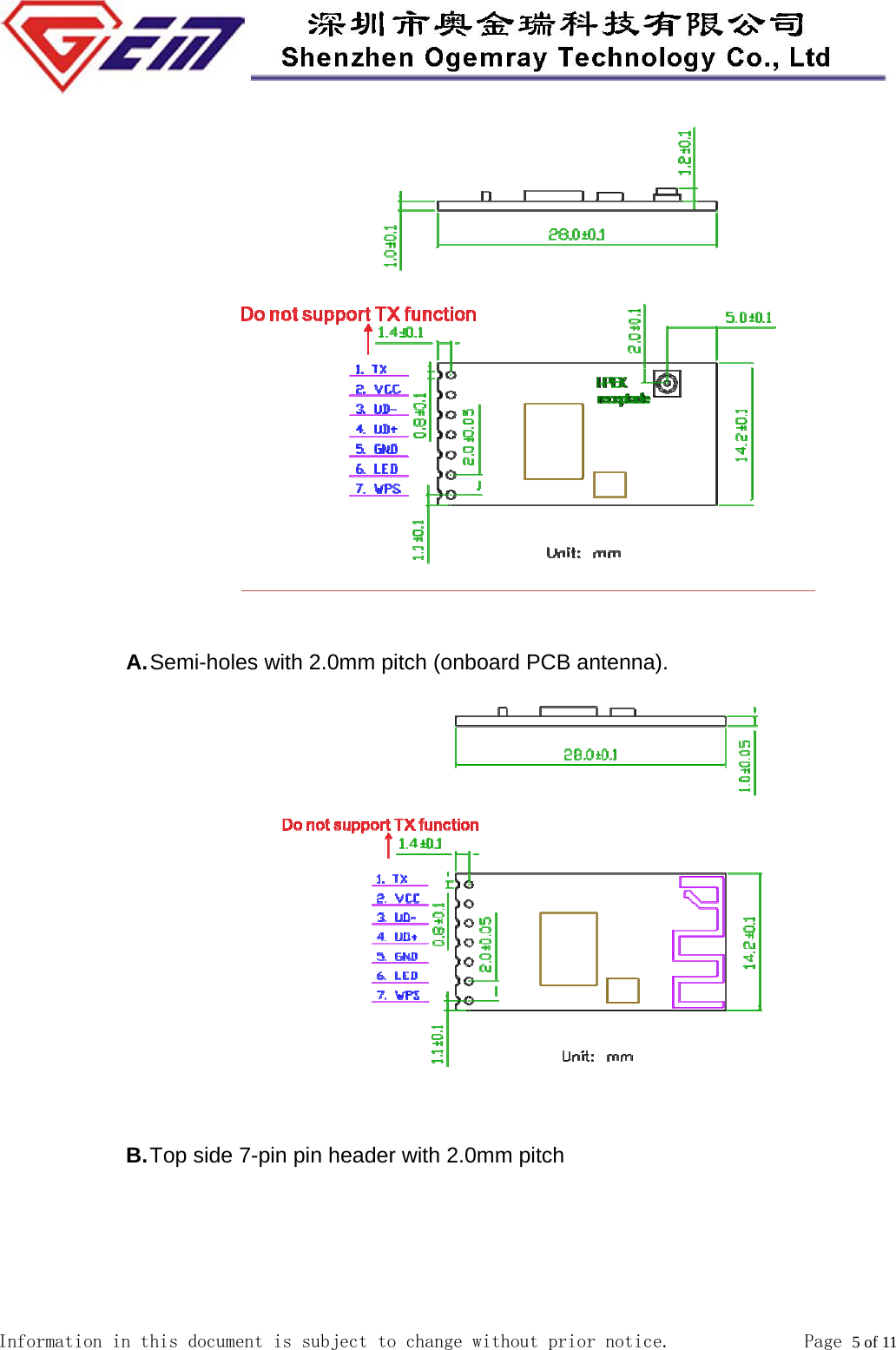

 Information in this document is subject to change without prior notice.              Page 5 of 11         A. Semi-holes with 2.0mm pitch (onboard PCB antenna).   B. Top side 7-pin pin header with 2.0mm pitch

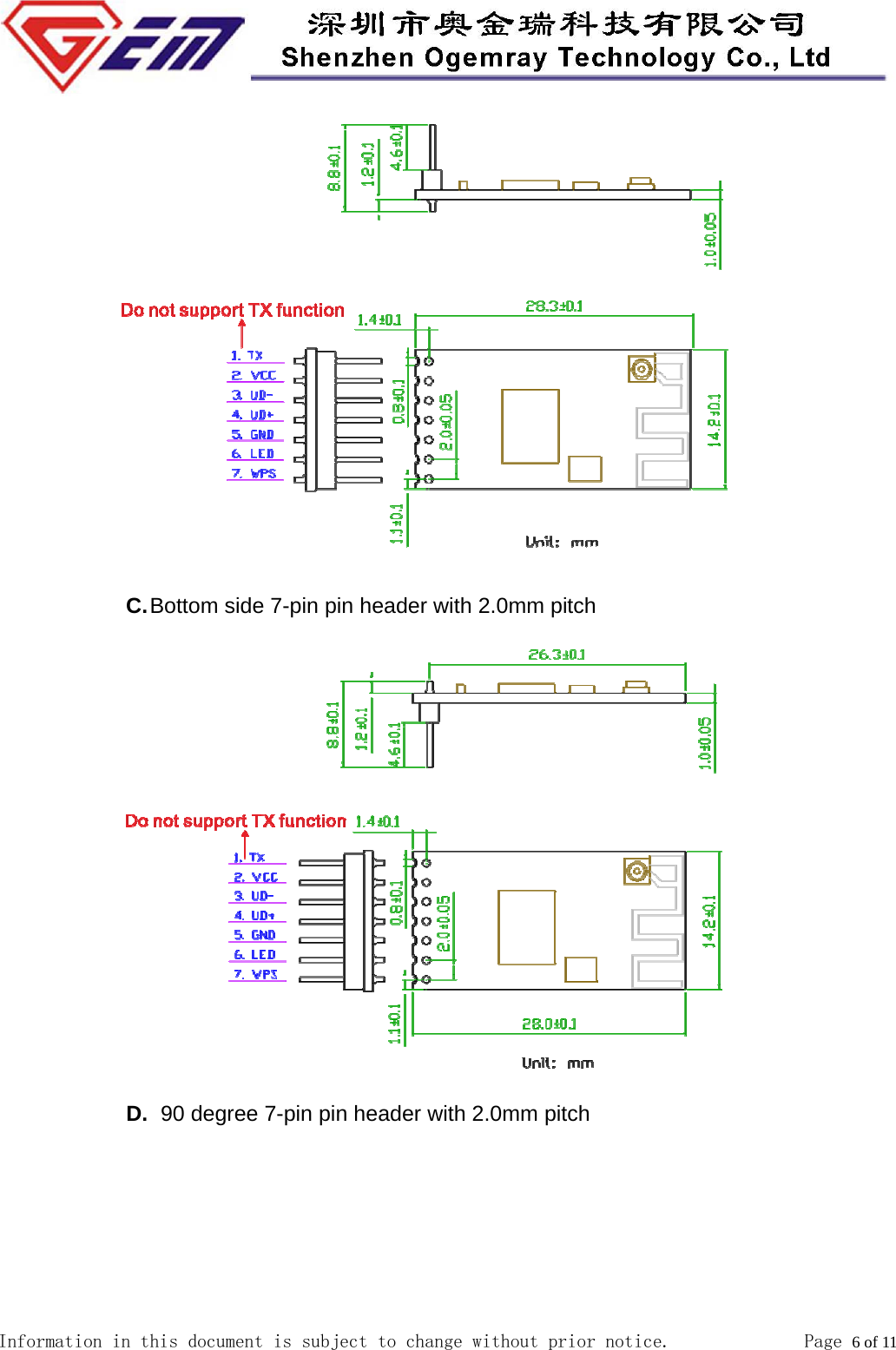

 Information in this document is subject to change without prior notice.              Page 6 of 11   C. Bottom side 7-pin pin header with 2.0mm pitch  D.   90 degree 7-pin pin header with 2.0mm pitch

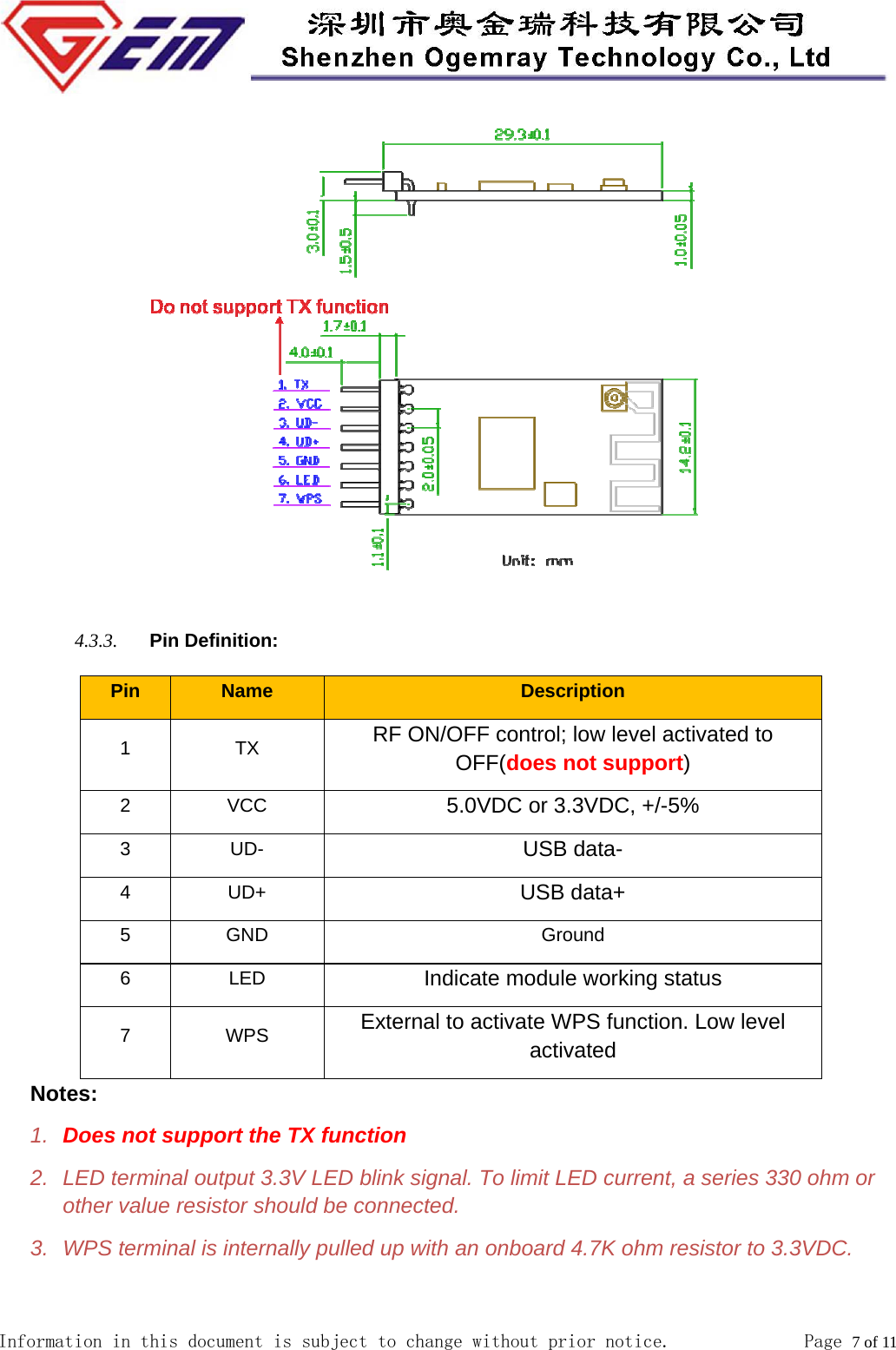

 Information in this document is subject to change without prior notice.              Page 7 of 11   4.3.3. Pin Definition: Pin  Name  Description 1 TX RF ON/OFF control; low level activated to OFF(does not support) 2 VCC 5.0VDC or 3.3VDC, +/-5% 3 UD- USB data- 4 UD+  USB data+ 5 GND  Ground 6 LED  Indicate module working status 7 WPS External to activate WPS function. Low level activated Notes: 1.  Does not support the TX function 2.  LED terminal output 3.3V LED blink signal. To limit LED current, a series 330 ohm or other value resistor should be connected.   3.  WPS terminal is internally pulled up with an onboard 4.7K ohm resistor to 3.3VDC.

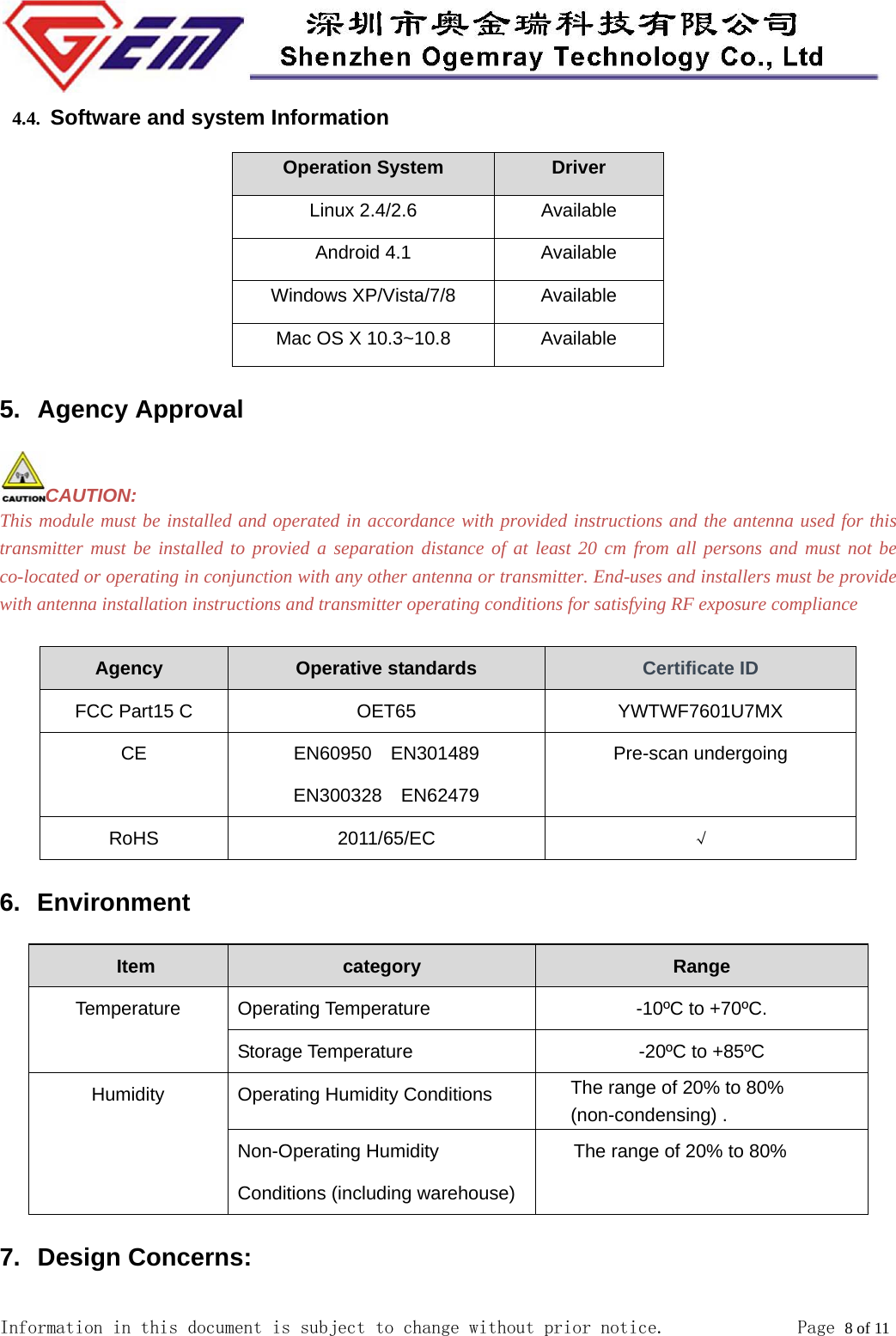

 Information in this document is subject to change without prior notice.              Page 8 of 11  4.4. Software and system Information Operation System  Driver Linux 2.4/2.6  Available Android 4.1  Available Windows XP/Vista/7/8  Available Mac OS X 10.3~10.8  Available 5. Agency Approval CAUTION: This module must be installed and operated in accordance with provided instructions and the antenna used for this transmitter must be installed to provied a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-uses and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance                                                                        Agency Operative standards  Certificate ID FCC Part15 C OET65 YWTWF7601U7MX CE EN60950  EN301489 EN300328  EN62479 Pre-scan undergoing RoHS 2011/65/EC  √ 6. Environment Item  category  Range Temperature Operating Temperature -10ºC to +70ºC. Storage Temperature  -20ºC to +85ºC Humidity  Operating Humidity Conditions  The range of 20% to 80% (non-condensing) . Non-Operating Humidity Conditions (including warehouse) The range of 20% to 80% 7. Design Concerns:

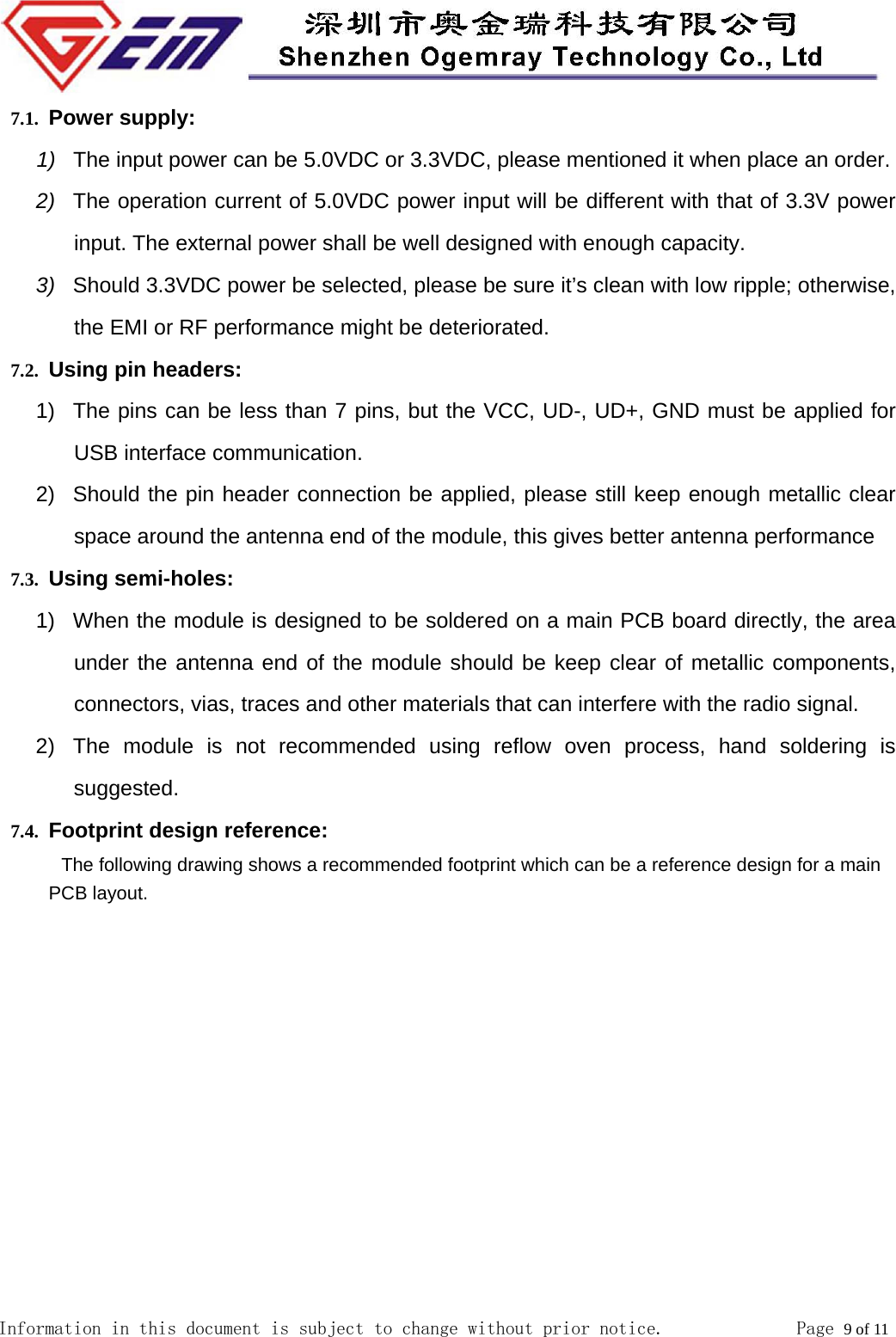

 Information in this document is subject to change without prior notice.              Page 9 of 11  7.1. Power supply: 1)  The input power can be 5.0VDC or 3.3VDC, please mentioned it when place an order. 2)  The operation current of 5.0VDC power input will be different with that of 3.3V power    input. The external power shall be well designed with enough capacity. 3)  Should 3.3VDC power be selected, please be sure it’s clean with low ripple; otherwise, the EMI or RF performance might be deteriorated. 7.2. Using pin headers: 1)  The pins can be less than 7 pins, but the VCC, UD-, UD+, GND must be applied for USB interface communication. 2)  Should the pin header connection be applied, please still keep enough metallic clear space around the antenna end of the module, this gives better antenna performance 7.3. Using semi-holes: 1)  When the module is designed to be soldered on a main PCB board directly, the area under the antenna end of the module should be keep clear of metallic components, connectors, vias, traces and other materials that can interfere with the radio signal. 2)  The module is not recommended using reflow oven process, hand soldering is suggested. 7.4. Footprint design reference:   The following drawing shows a recommended footprint which can be a reference design for a main PCB layout.

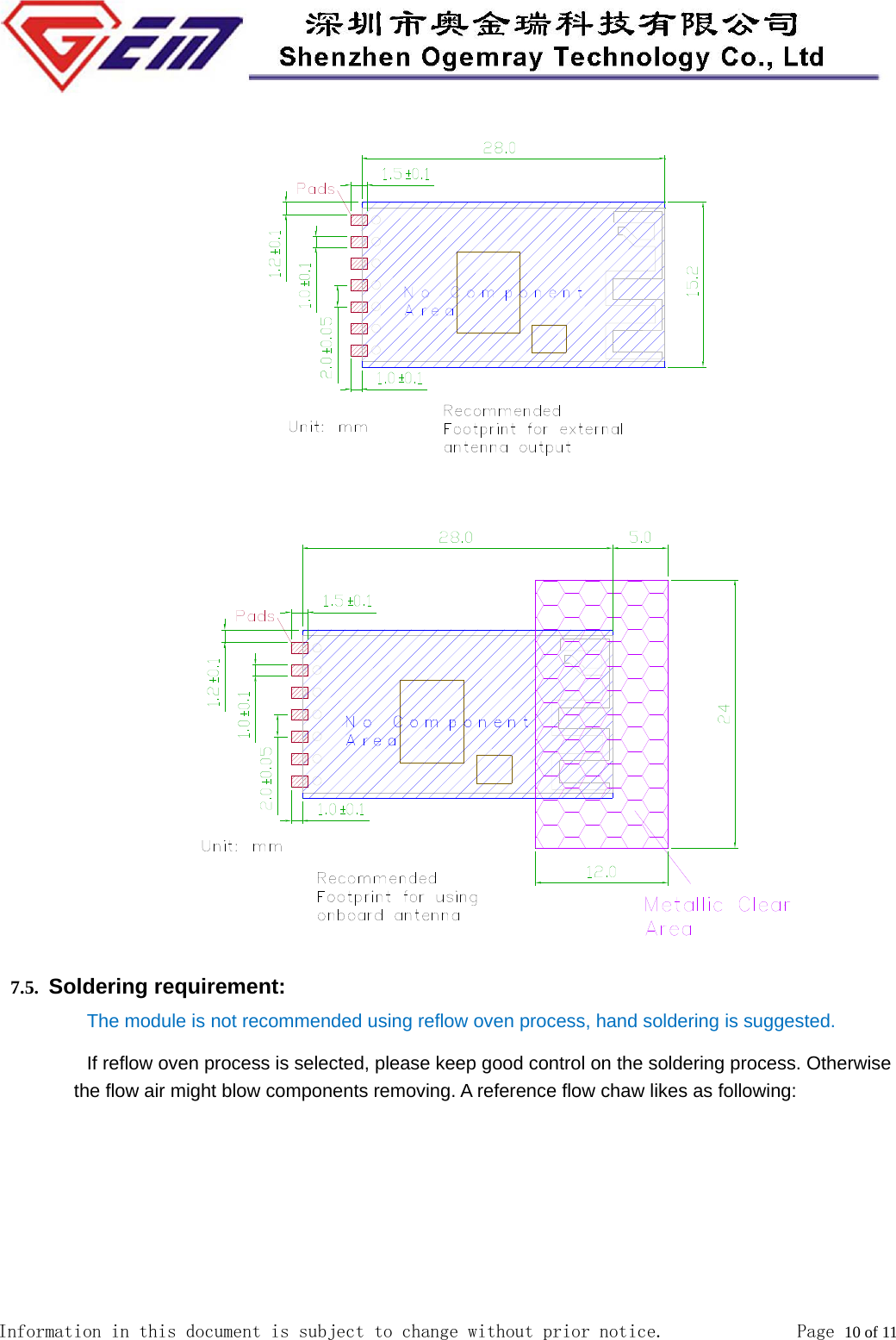

 Information in this document is subject to change without prior notice.              Page 10 of 11    7.5. Soldering requirement:   The module is not recommended using reflow oven process, hand soldering is suggested.   If reflow oven process is selected, please keep good control on the soldering process. Otherwise the flow air might blow components removing. A reference flow chaw likes as following:
 Information in this document is subject to change without prior notice.              Page 11 of 11   Notes: user should adjust setting of reflow oven to get best soldering quality  8. Disclaimer THESE MATERIALS AND INFORMATION ARE PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED , INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT. We uses reasonable efforts to include accurate and up-to-date information on this document; it does not, however, make any representations as to its accuracy or completeness of the information, text, graphics, links or other items contained within these materials. Your use of this Document is at your own risk. Ogemray, its suppliers, and other parties involved in creating and delivering this Document’s contents shall not be liable for any special, indirect, incidental, or consequential damages, including without limitation, lost revenues or lost profits.

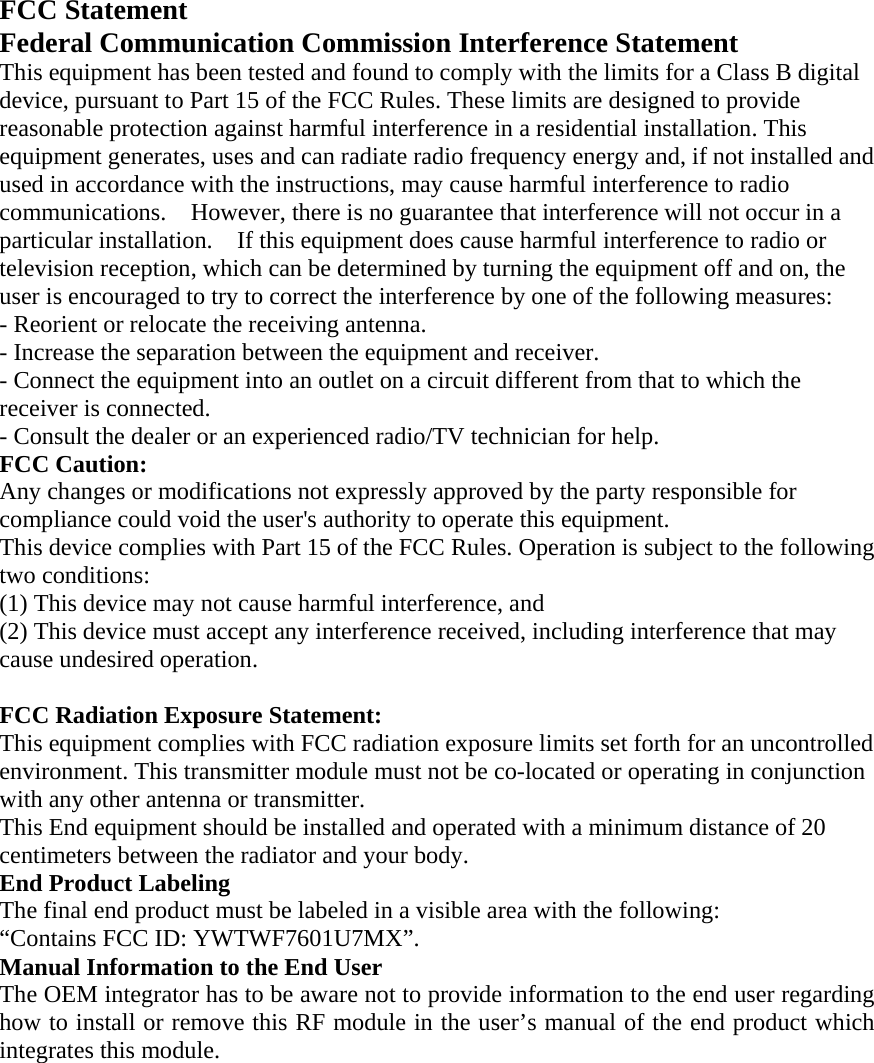

FCC Statement Federal Communication Commission Interference Statement   This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.    However, there is no guarantee that interference will not occur in a particular installation.    If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:   - Reorient or relocate the receiving antenna.   - Increase the separation between the equipment and receiver.   - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.   - Consult the dealer or an experienced radio/TV technician for help.   FCC Caution:   Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.   This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:   (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.    FCC Radiation Exposure Statement:     This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter module must not be co-located or operating in conjunction with any other antenna or transmitter.     This End equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.   End Product Labeling   The final end product must be labeled in a visible area with the following:           “Contains FCC ID: YWTWF7601U7MX”.     Manual Information to the End User     The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module.
