Owner’s Manual
CP-1
Central Processor
ccGEN2 CP-1 Owner’s Manual ©2013 Universal Remote Control, Inc.
The information in this owner’s manual is copyright protected. No part of this
manual may be copied or reproduced in any form without prior written consent
from Universal Remote Control, Inc.
UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR
OPERATIONAL, TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN
THIS MANUAL.
The information in this owner’s manual may be subject to change without prior
notice.
ccGEN2 is a registered trademark of Universal Remote Control, Inc.
URC - Control the Experience is a registered trademark of Universal Remote
Control, Inc.
All other brand or product names are trademarks or registered trademarks
of their respective companies or organizations.
Universal Remote Control,Inc.
500 Mamaroneck Avenue, Harrison, NY 8528
Phone: (914) 835-4484 Fax: (914) 835-4532
TABLE OFCONTENTS
Introduction 1
Features and Benefits 1
Parts Guide 1
Front Panel Descriptions 2
Rear Panel Descriptions 3
Installing the CP-1 4
Specifications 8
Limited Warranty Statement 9
End User Agreement 11
Federal Communication Commission
Interference Statement 12
Declaration of Conformity 13
Page 1
CCGEN2 CP-1 ADVANCED NETWORK SYSTEM CONTROLLER
Introduction
Congratulations on purchasing the ccGEN2 CP-1 Central Processor
for automation and control. Using the ccGEN2 line of interfaces
provides you full access and control for every compatible device
using IR, IP, RS-232, and Relays. This network based control is also
compatible with URC sensors, like audio sensor and video sensor,
which detects the status of a device and provides automation triggers.
The CP-1 makes it easy to turn on multiple devices at once like a
TV and Blu-Ray, even lights with one button press. Enjoy
controlling your space!
Features and Benefits
lStores and issues commands and macros for all IP, IR,
RS-232, Relay to compatible devices and other ccGEN2
series base stations in the system.
lProvides two-way communication with ccGEN2 rinterfaces.
(RM-1 remote requires optional AZ-1 to be compatible with
CP-1)
lControl URC Lighting with an optional RFTX-1 RF Transmitter.
lCan be programmed off site via the internet.
Parts Guide
The CP-1 Advanced Network System Controller includes:
1 - Central Processor
1 - Special Emitter for RFTX-1 port
1 - Wall Mount and 4 Screws
1 - AC Power Adapter
6 - Standard Emitters
1 - Adjustment Tool
1 - Installation Manual
Page 2
CCGEN2 CP-1 ADVANCED NETWORK SYSTEM CONTROLLER
Front Panel Descriptions

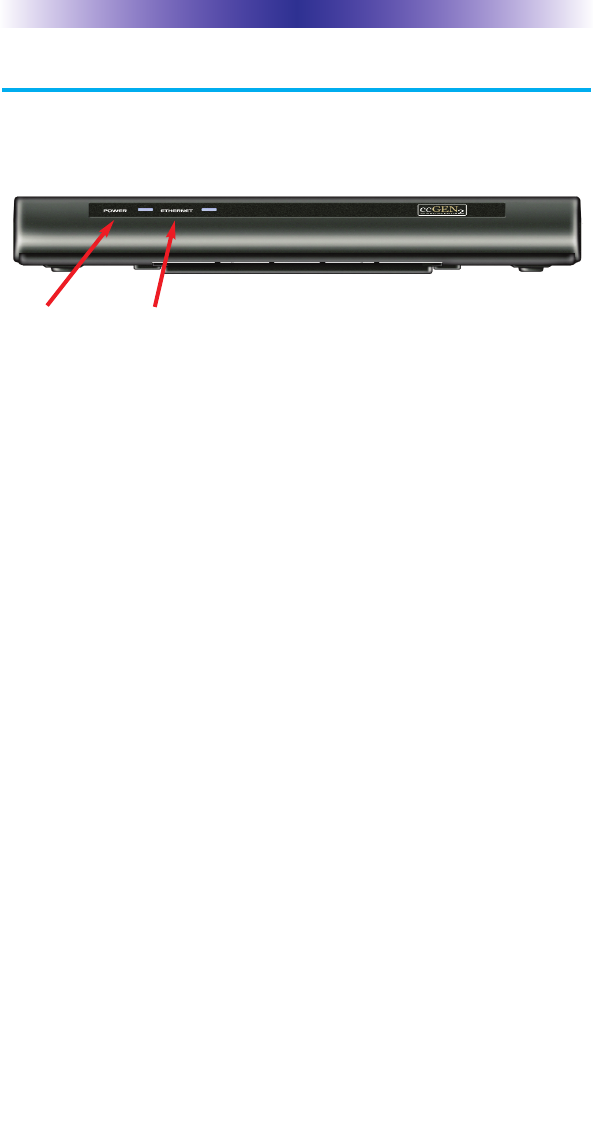

The front panel consists of two indicator lights which illuminate
when in use.
Power LED: Indicates that the CP-1 is powered on when lit.
Ethernet LED: Indicates the network connectivity status:
● On = Connected
●Off = Not connected
●Blinking = Attempting to connect.
Power LED Ethernet LED
Page 3
CCGEN2 CP-1 ADVANCED NETWORK SYSTEM CONTROLLER
Rear Panel Descriptions

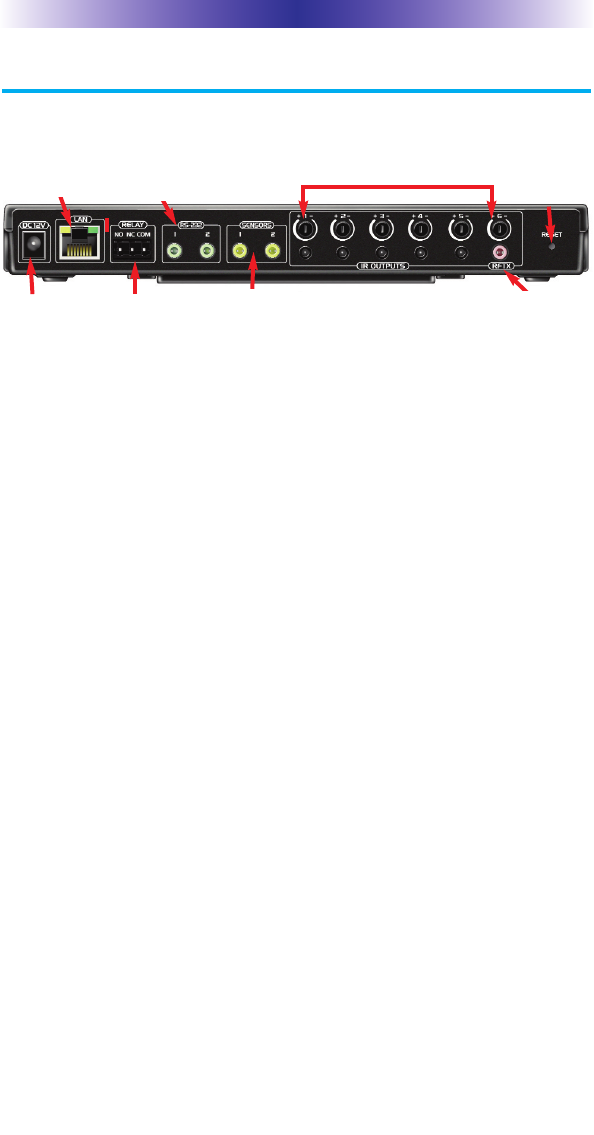

The rear panel ports are:
DC 12V Power: Attach the included 12V power supply here.
LAN Connection: RJ45 standard Ethernet connection to the
local network.
Relays (NO, NC, COM): Programmable relay to be normally
opened (NO), normally closed (NC) or momentary contact. An
application should require less than 30V/.5A.
RS-232: Two RS-232 ports support Tx(Transmit), Rx(Receive) and
GND(Ground) connections for two-way communication.
Compatible with URC cables RS232F and RS232M.
Sensors: Two sensor ports allow programming of state dependent
and triggered automation macros. Compatible with URC Video
(SEN-VID), Voltage (SEN-VID), Audio (SEN-AUD), Current (SEN-
CMF), Light (SEN-LITE), and Contact Closure (SEN-CCLS) sensors.
IR Outputs: Six standard 3.5mm IR emitter ports with individual
output level adjustment screws. Always use the supplied special
emitter with pink connector, in port #6. Plugging a regular emitter
to this port may cause it to damage the unit and prevent it from
operating correctly.
RFTX-1 Port: Connect the included 3.5mm stereo to 3.5mm stereo
to the optional RFTX-1 transmitter and control URC Lighting
products via 418MHz or 433.92MHz wireless RF.
Reset: Press and release to reboot, while pressing and holding for 15
seconds factory defaults the unit.
DC 12V
Power
Relay: NO,
NC, COM
RFTX-1
Reset
RS-232 Ports
Sensors
IR Outputs: #1-6
LAN
Installing the CP-1
Physical Installation of the CP-1 and Accessories
The CP-1 Central Processor can be installed anywhere in the home
or office network. Once installed program it to operate all local
equipment using IP/Network, IR, RS-232, or Relays. As well as query
the status of a device using Sensors. All cables are plugged into their
respective ports in the rear of the unit.
Network Installation

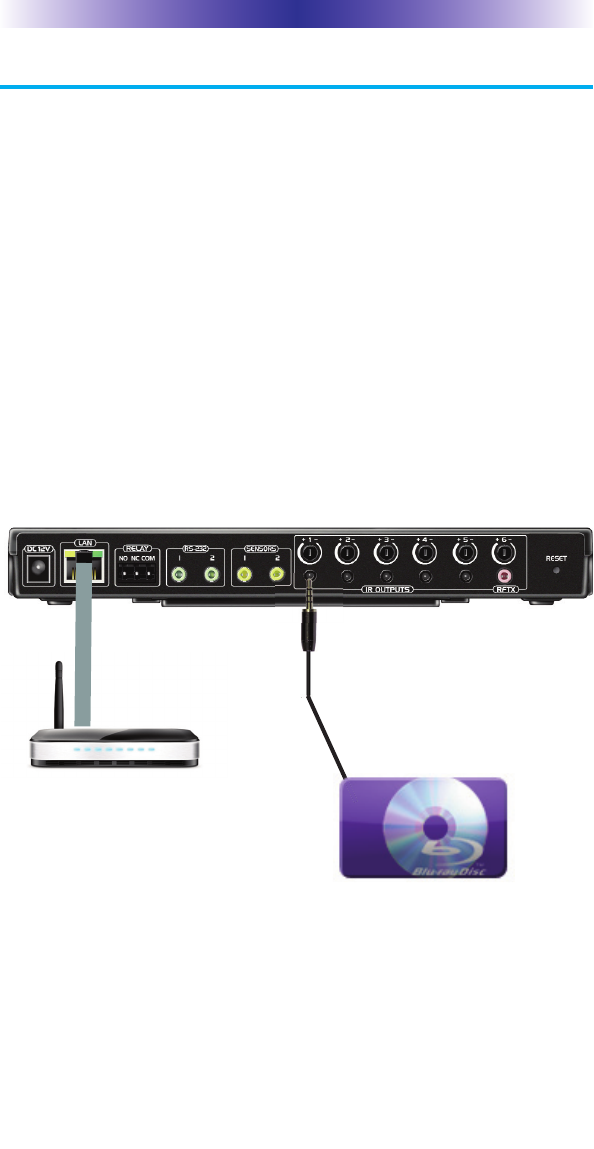

1. Connect an Ethernet cable (RJ45) to the rear of the CP-1 and onto
the network.
2. Plug flashers into any of the six flasher ports on the rear of the CP-1.
(Make sure the 3.5mm pink connector cable is reserved for port
#6.)
Page 4
CCGEN2 CP-1 ADVANCED NETWORK SYSTEM CONTROLLER
Page 5
Optimizing IR Flasher Levels
Test a few commands for each device before fixing the flasher in
place on the front panel of a device. Since Satellite Receivers and
Cable Boxes are extremely sensitive to IR overload or saturation, you
should test them thoroughly. Put up the cable or satellite
on-screen guide and test the navigation arrows. Compare operation
via RF to the original remote control. Operation should be identical.
If operation is inconsistent or sluggish, lower the IR line output
and/or reposition the flasher.
If you still have sluggish operation, check that the remote control is
set to a particular LINE OUT, rather than ALL. When IR commands
are sent to all the flashers in a cabinet, you can have difficulty
adjusting the IR Output. Reprogram the remote control to send IR
commands only via a specific (1-6) Line Output, then readjust the IR
Line Output level.
1. Connect an IR emitter to each IR output and run the emitter wire
to the front panel of each component. DO NOT STICK the emitter
in place. Adjust the level first.
2. Adjust each of the IR Output levels with the included adjustment
tool for best operation. If the component operates best at minimum
level, but is still operating sluggishly or intermittently, move the
emitter farther away from the component’s IR sensor.
RS-232 Connection
The CP-1 can operate equipment via RS-232 communication. This
allows discrete serial commands to be triggered from a ccGEN2
remote to a CP-1. The signal is then sent to the device over
proprietary URC RS-232 cables. These use either male or female
DB-9 connections with standard pin-outs.
CCGEN2 CP-1 ADVANCED NETWORK SYSTEM CONTROLLER
Page 6
Using Sensors with the CP-1
The CP-1 uses sensors to detect audio, light, video, voltage, current
and contact closures to determine the equipment status, query the state
of a device or other automation triggers for the equipment it controls.

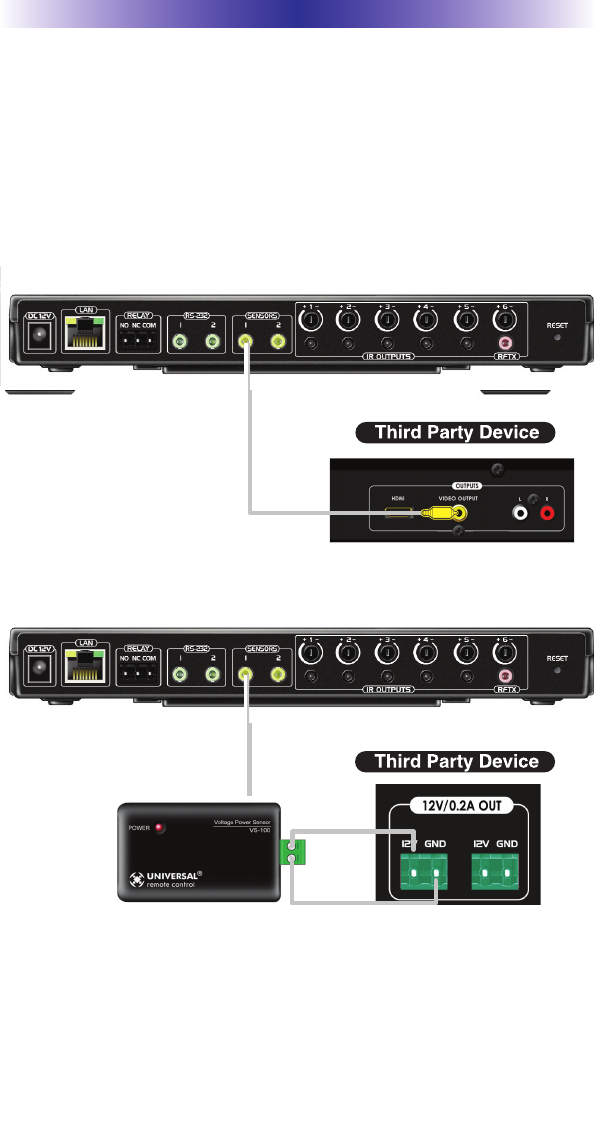

For example, using a video sensor cable with the CP-1 can detect a
video signal from a composite or component video output.
CCGEN2 CP-1 ADVANCED NETWORK SYSTEM CONTROLLER
Page 7
Wiring to the Relay on the CP-1
The CP-1 has a Relay with three contacts, NO, NC, and COM. These
can be used as dry contacts or to an electrical switch or motor for use
with screens, blinds, curtains, etc. The Relay can be programmed as
either a latching or a momentary contact.
Using an RFTX-1 for URC One-Way Lighting products
The CP-1 can use an RFTX-1, via the available RFTX-1 port. It
controls URC One-Way Lighting products at 418 or 433.92 MHz.
Use the included 3.5mm to 3.5mm to connect to the RFTX-1 and
plug the other end into the RFTX-1 port (port #6).
CCGEN2 CP-1 ADVANCED NETWORK SYSTEM CONTROLLER
RFTX-1
Page 8
CCGEN2 CP-1 ADVANCED NETWORK SYSTEM CONTROLLER
Specifications
Network: One 10/100 Ethernet port
Relay: One relay configurable to be NO, NC or Momentary
Sensor: Two Sensors support Video or Voltage sensing via URC
sensors.
RS-232: Two RS-232 ports support TX, RX and GND two way
communication via URC cables.
IR: Six adjustable IR ports enable the included URC emitters to
control IR devices Note: 6th IR Output requires the included
sleeved emitter (identified by a pink connector), since it can
optionally be used to connect an RFTX-1.
Weight: 8.4 oz.
Size: 3.74” X 2.7” X 1.1”
Power: 12V External Power Supply
Page 9
CCGEN2 CP-1 ADVANCED NETWORK SYSTEM CONTROLLER
Limited Warranty Statement
1. Limited Warranty and Disclaimers
Universal Remote Control, Inc. (“URC”) warrants that the URC equipment
shall be free from defects in material and workmanship under normal usage
for one (1) year from purchase when such is purchased from URC. This
limited warranty is valid only in the United States of America. URC warrants
that the software will substantially conform in any material respect to its
functional specifications at the time of delivery. URC SHALL NOT BE LIABLE
FOR OPERATIONAL, TECHNICAL OR EDITORIAL ERRORS AND/OR
OMISSIONS MADE IN THE URC DOCUMENTATION. URC DOES NOT
WARRANT THAT THE URC SOFTWARE IS BUG-FREE OR ERROR FREE
OR THAT THERE ARE NO ERRORS/BUGS IN THE URC SOFTWARE.
URC warrants that at the time of purchase the URC equipment and the URC
software complied with all applicable regulations and policies of the Federal
Communications Commissions (“FCC”) regarding electromagnetic
interference caused by electronic/computing devices and to the extent that the
URC equipment and/or the URC software fails to so comply, URC shall, at its
own expense, take all reasonable measures to promptly cause such to
comply.
URC equipment purchases from other than an authorized URC dealer or
distributor are without warranty.
THIS LIMITED WARRANT DOES NOT COVER TECHNICAL ASSISTANCE
FOR HARDWARE OR SOFTWARE USAGE EXCEPT AS EXPRESSLY
PROVIDED FOR HEREIN, THE EQUIPMENT, SOFTWARE AND
DOCUMENTATION OF URC ARE SUPPLIED “AS IS” WITHOUT ANY
WARRANTY, EXPRESS, STATUTORY OR IMPLIED, OF ANY KIND. TO
THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, URC
EXPRESSLY DISCLAIMS ALL WARRANTIES, EXPRESS, STATUTORY OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. URC
DOES NOT WARRANT, GUARANTEE, OR MAKE ANY
REPRESENTATIONS REGARDING THE USE OF, OR THE RESULTS OF THE
USE OF, THE EQUIPMENT, SOFTWARE OR DOCUMENTATION IN
TERMS OF CORRECTNESS, ACCURACY, RELIABILITY OR OTHERWISE.
EXCEPT AS EXPRESSLY PROVIDED FOR HEREIN, TECHNICAL SERVICES
ARE SUPPLIED “AS IS”, WITHOUT ANY WARRANTY, EXPRESS,
STATUTORY OR IMPLIED, OF ANY KIND. TO THE MAXIMUM EXTENT
PERMITTED BY APPLICABLE LAW, URC EXPRESSLY DISCLAIMS ALL
WARRANTIES, EXPRESS, STATUTORY OR IMPLIED, INCLUDING BUT
NOT LIMITED TO THE WARRANTIES OF QUALITY OR REASONABLE
Page 10
CCGEN2 CP-1 ADVANCED NETWORK SYSTEM CONTROLLER
SKILL AND CARE, OR OUTCOME OR RESULTS.
WITHOUT IN ANY WAY LIMITING THE GENERALITY OF THE OTHER
PROVISIONS HEREIN, WARRANTY DOES NOT COVER: (I) DAMAGE
FROM MISUSE, NEGLECT OR ACTS OR NATURE, (II) MODIFICATIONS,
(III) INTEGRATION WITH THIRD PARTY CONTENT (IV) BEYOND THE
WARRANTY PERIOD AND/ OR FAILURE TO FOLLOW URC WARRANTY
CLAIM PROCEDURE.
The warranty limitations and warranty disclaimers may not apply to end user
in whole or in part, where such are restricted or excluded by applicable law
and such shall apply to the maximum extent permitted by applicable law.
In the event of any warranty claim, URC will, at its sole option, repair the URC
equipment using new or comparable rebuilt parts, or exchange the URC
equipment for new or rebuilt equipment. In the event of a defect, these are
the end user’s exclusive remedies.
All the URC equipment returned for service, exchange or repair require an
RGA number. To obtain an RGA number, you must complete a Return
Request Form which you may obtain by calling (914) 835-4484 or contacting
URC at returnrequest@universalremote.com. To obtain warranty service, end
user must deliver the URC equipment, freight prepaid, in its original packaging
or packaging affording adequate protection to URC at 48 Columbus Avenue,
Valhalla, NY 8595. It is end user’s responsibility to backup any macro
programming, artwork, software or other materials that may have been
programmed into the unit. It is likely that such data, software, or other
materials will be lost during service and URC will not be responsible for any
such damage or loss. A dated purchase receipt, bill of sale, installation contract
or other verifiable proof of purchase is required. For the URC equipment
support and other important information, please visit URC's website available
at www.universalremote.com or call the Customer Service Center at (914)
835-4484.
This limited warranty only covers the URC equipment issues caused by
defects in material or workmanship during ordinary consumer use. It does not
cover product issues caused by any other reason, including but not limited to
product issues due to commercial use, acts of God, third-party installation,
misuse, limitations of technology, or modification of or to any part of the URC
equipment. This limited warranty does not cover the URC equipment sold as
used, as is, refurbished, so called "B stock" or consumables (such as batteries).
This limited warranty is invalid if the factory applied serial number has been
altered or removed from the URC equipment. This limited warranty
specifically excludes the URC equipment sold by unauthorized resellers.
With the exception of URC’s IR-only, broad-based consumer remotes, none of
Page 11
CCGEN2 CP-1 ADVANCED NETWORK SYSTEM CONTROLLER
URC’s PC programmable remotes or any of our Total Control® whole-house
equipment are authorized for online internet sales. Buying URC’s PC
programmable remotes or any of our Total Control® whole-house equipment
online means buying equipment that does not have a URC’s limited warranty.
Such equipment is not eligible for URC tech support or software support,
either.
2. URC’S Limitations of Liability
IN NO EVENT SHALL URC BE LIABLE FOR INDIRECT, SPECIAL,
INCIDENTAL, EXEMPLARY, PUNITIVE OR CONSEQUENTIAL DAMAGES
OF ANY KIND OR LOSS OF PROFITS OR BUSINESS OPPORTUNITY,
EVEN IF URC IS ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
IN NO EVENT SHALL URC BE LIABLE FOR LOSS OF OR DAMAGE TO
DATA, COMPUTER SYSTEMS OR COMPUTER PROGRAMS.
URC’S LIABILITY, IF ANY, FOR DIRECT DAMAGES OF ANY FORM SHALL
BE LIMITED TO ACTUAL DAMAGES, NOT IN EXCESS OF AMOUNTS
PAID BY END USER FOR THE URC EQUIPMENT.
IN NO EVENT SHALL URC BE LIABLE FOR ANY EVENTS BEYOND ITS
CONTROL, INCLUDING ANY INSTANCE OF FORCE MAJEURE.
IN NO EVENT SHALL URC BE LIABLE FOR THE ACTS OR OMISSIONS OF
END USER OR ANY THIRD PARTY.
THE LIMITATIONS OF LIABILITY MAY NOT APPLY TO END USER IN
WHOLE OR IN PART, WHERE SUCH ARE RESTRICTED LIMITED OR
EXCLUDED BY APPLICABLE LAW AND SUCH SHALL APPLY TO THE
MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW.
URC SHALL NOT BE HELD RESPONSIBLE FOR THE STATEMENTS MADE
BY OTHERS.
SOME STATES OR JURISDICTIONS DO NOT ALLOW THE EXCLUSION
OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR
ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY
TO END USER. THIS LIMITED WARRANTY GIVES END USER SPECIFIC
LEGAL RIGHTS AND END USER MAY HAVE OTHER RIGHTS WHICH
VARY FROM STATE TO STATE OR JURISDICTION TO JURISDICTION.
End User Agreement
The terms and conditions of the End User Agreement available at
www.universalremote.com/eua.php shall apply.
Page 12
CCGEN2 CP-1 ADVANCED NETWORK SYSTEM CONTROLLER
Federal Communication Commission
Interference Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a res-
idential installation. This equipment generates, uses and can radiate radio fre-
quency energy and, if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or tele-
vision reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one more of the
following measures:
uReorient or relocate the receiving antenna.
uIncrease the separation between the equipment and receiver.
uConnect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
uConsult the dealer or an experienced radio/TV technician for
help.
Warning!
Changes or modifications not expressly approved by the manufacturer could
void the user's authority to operate the equipment.
Note : The manufacturer is not responsible for any Radio or TV interference
caused by unauthorized modifications to this equipment. Such modifications
could void the user's authority to operate the equipment.
FCC Caution
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the authority to operate equipment.
The antenna(s) used for this transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Page 13
Declaration of Conformity
Company Name : OH SUNG ELECTRONICS CO., LTD.
Company Address : #181 GONG DAN-DONG, GUMI, GYEONG BUK,
REPUBLIC OF KOREA
Contact Information : Phone: +82-54-468-7281, Fax: +82-54-461-8368
Brand Name : UNIVERSAL remote control
Product Name : CENTRAL PROCESSOR
Model Name : CP-1
This product herewith complies with the requirements of EMC Directive(2004/108/EC)
issued by the Commission of the European Community
Compliance with these directives implies conformity to the following European Community
n EMC Directive
l EN 55022
l EN 55024
l EN 61000-3-2
l EN 61000-3-3
List of test reports and/or certificate verified compliance with the standards above
Date of issue :
Name and signature of authorized person :
n EMC Directive
l Report No.
l Testing Laboratory : Gumi College EMC Center
Quality Assurance Team
OH SUNG ELECTRONICS CO., LTD.
CCGEN2 CP-1 ADVANCED NETWORK SYSTEM CONTROLLER
Page 14
NOTE
Page 15
NOTE
OCE-0073F Rev 01
500 Mamaroneck Avenue, Harrison, NY 8528
Phone: (914) 835-4484 Fax: (914) 835-4532
www.universalremote.com
