C200 Owner’s Manual
Welcome!
Welcome to the world of HomeSet control and automation. Thank you for
your purchase. Before operating the unit, please read this manual
thoroughly, observe all safety precautions, and retain it for your future use.
Online Help:
http://www.homesethome.com/support-manuals/#manuals
For downloads and frequently asked questions.
Contact Support:
HomeSet is a URC product sold through Authorized Dealers and location
throughout the USA. For questions or assistance, contact your Custom
Installer/Programmer (write in Company Name, Email & Contact Info):
or Tech Support at: techsupport@universalremote.com
HomeSet/URC
500 Mamaroneck Ave., Harrison, NY 10528
Toll Free: (800) 901-0800
Main: (914) 835-4484
C200 Owner’s Manual
Important Information and
Safety Precautions
HomeSet C200 Owner’s Manual
© 2016 Universal Remote Control, Inc. all rights reserved. The
information in this manual is copyright protected. No part of this
manual may be reproduced in any form without written consent
from Universal Remote Control.
Universal Remote Control SHALL NOT BE LIABLE FOR
OPERATIONAL, TECHNICAL, OR EDITORIAL ERRORS/OMISSIONS
MADE IN THIS MANUAL.
This book is intended for use by the homeowner or system user. For
system custom installers and programmers, we offer additional
manuals. The information in this manual is subject to change
without notice. Feature may vary between customized software and
URC releases. Contact your custom installation professional with
questions to those regards.
URC, HomeSet, and Control the Experience are trademarks of
Universal Remote Control, Inc. all other brands or product names
are trademarks of their respective companies and owners.

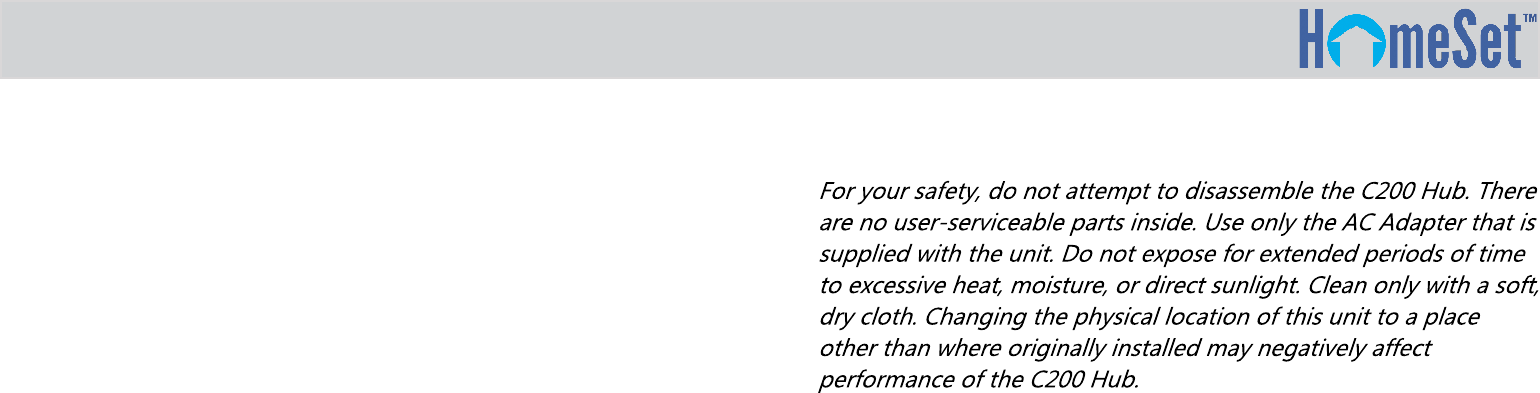

Safety Precautions
C200 Owner’s Manual
Introduction
Your HomeSet C200 Control Hub lets you easily control and
automate electronic components in your home (audio/video and
home entertainment devices such as lights, thermostats, security
systems, and more) to make life more enjoyable. The hub does this
by sending coded infrared and Ethernet commands wirelessly or
wired using wires installed by your smart home professional.
In the majority of installations, this hub functions with little or no
interactions from you, the homeowner/system user. Please read and
observe all precautions in this manual.
By using the HomeSet Mobile Android or iOS app on your
smartphone or tablet with the HomeSet hub, you gain two-way
control of your connected devices. “Two-way” means that in
addition to data being sent to an electronic component (such as a
Nest Thermostat), data is also returned to your phone/tablet so you
can see graphical information of current status, including “What’s
Playing”, volume, and more. Adding a handheld R200 remote
control to the system provides the same two-way feature.
It’s also possible to expand control to other rooms or areas of your
home. Multiple C200 Hubs can be installed in up to eight (8) rooms
using the same local network used for your home’s Internet access.
C200 Owner’s Manual

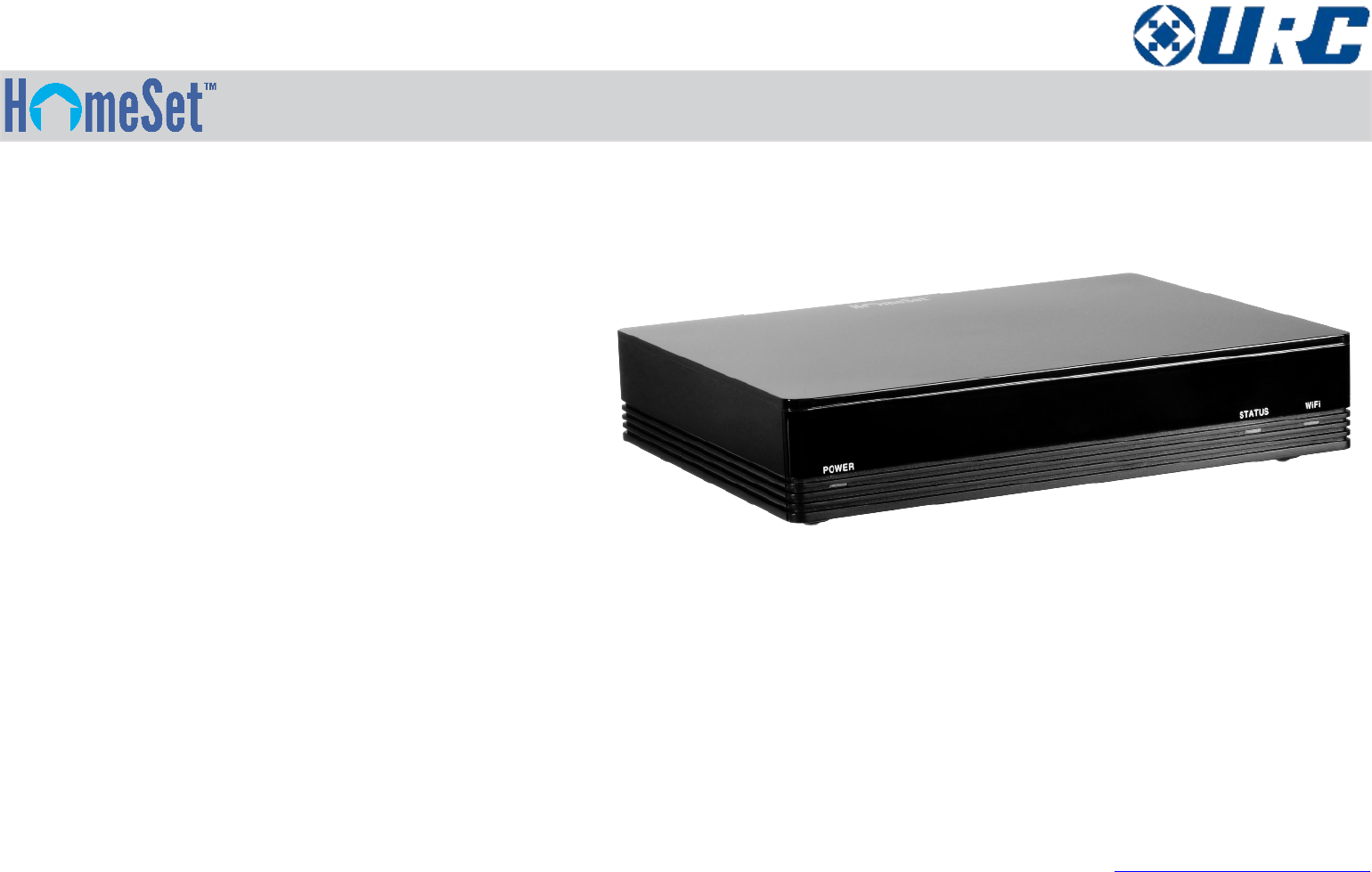

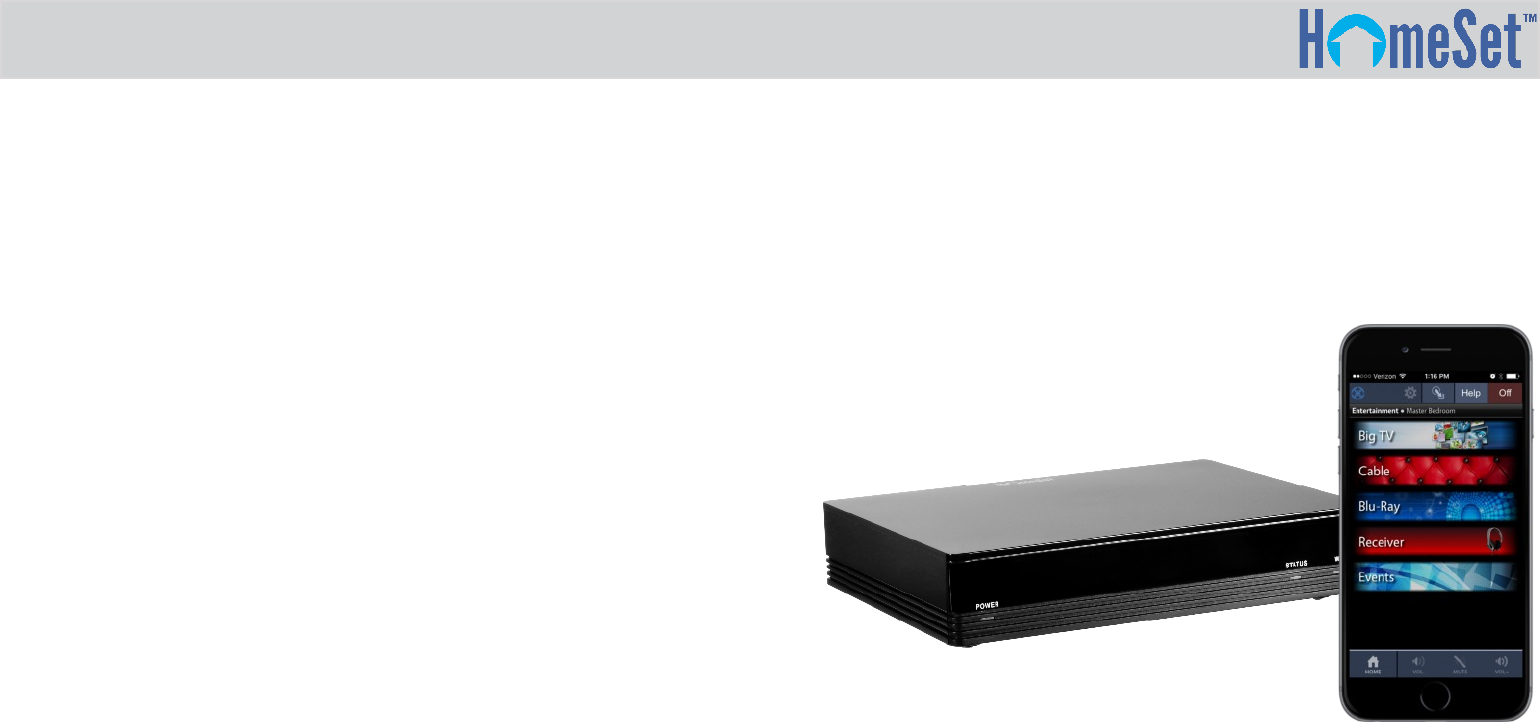

HomeSet C200 Control Hub
The C200 Hub is a network-based product that requires the
use of an installed local area Wi-Fi network (LAN).
For handy reference, we suggest you record the name and
contact information of the professional who installed your
system on the notes section on the last page of this manual.
C200 Owner’s Manual

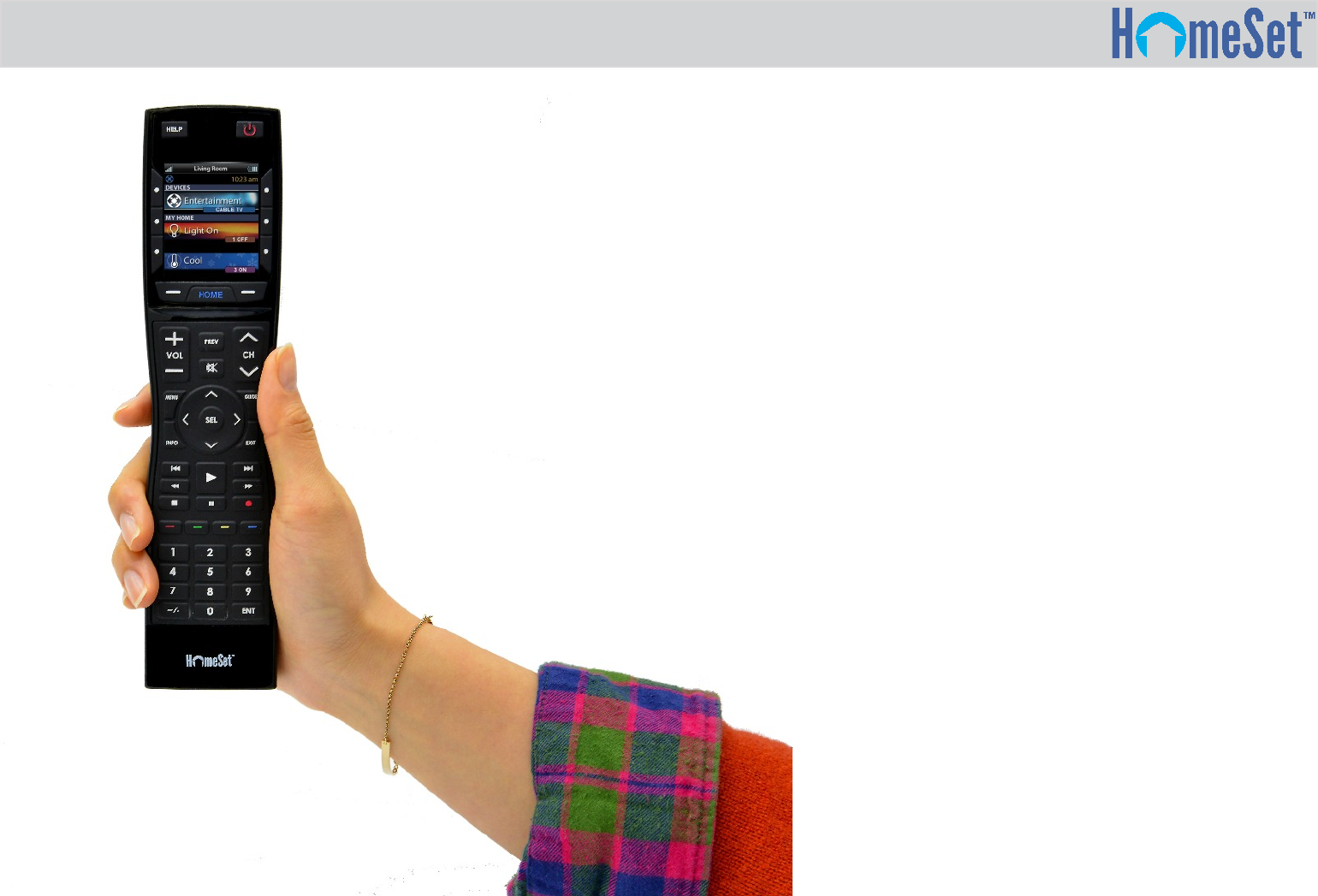

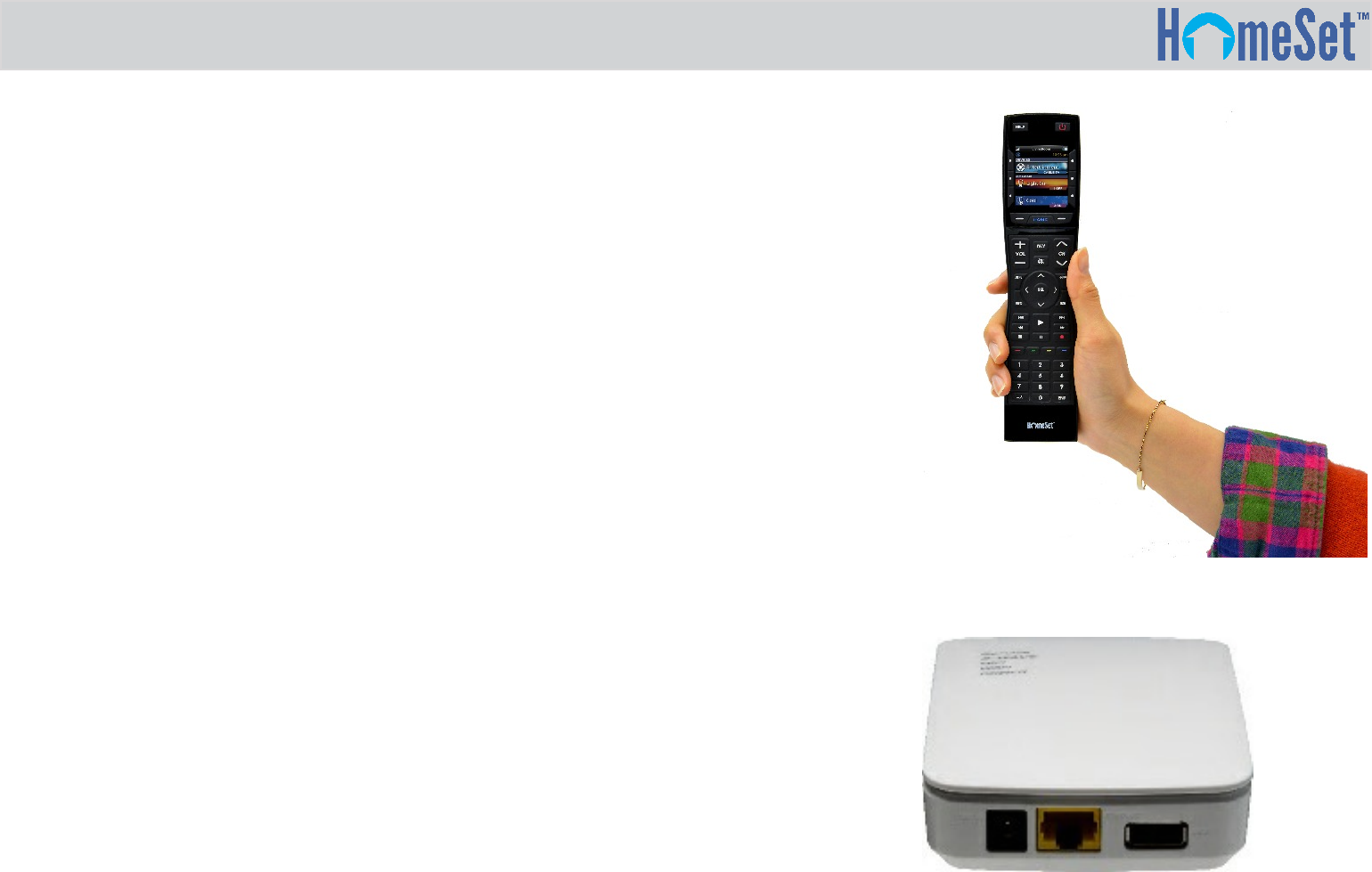

HomeSet R200 Remote Control (Optional)
Using a HomeSet R200 Remote Control with a C200 Hub
allows for control of smart home products such as lights,
thermostats, and security as well as control of you audio and
video (A/V) devices. The R200 is a Wi-Fi based remote
control and does not use “line of sight” infrared (IR) or low
frequency RF. It’s the perfect accessory companion for your
television room or bedroom.
C200 Owner’s Manual

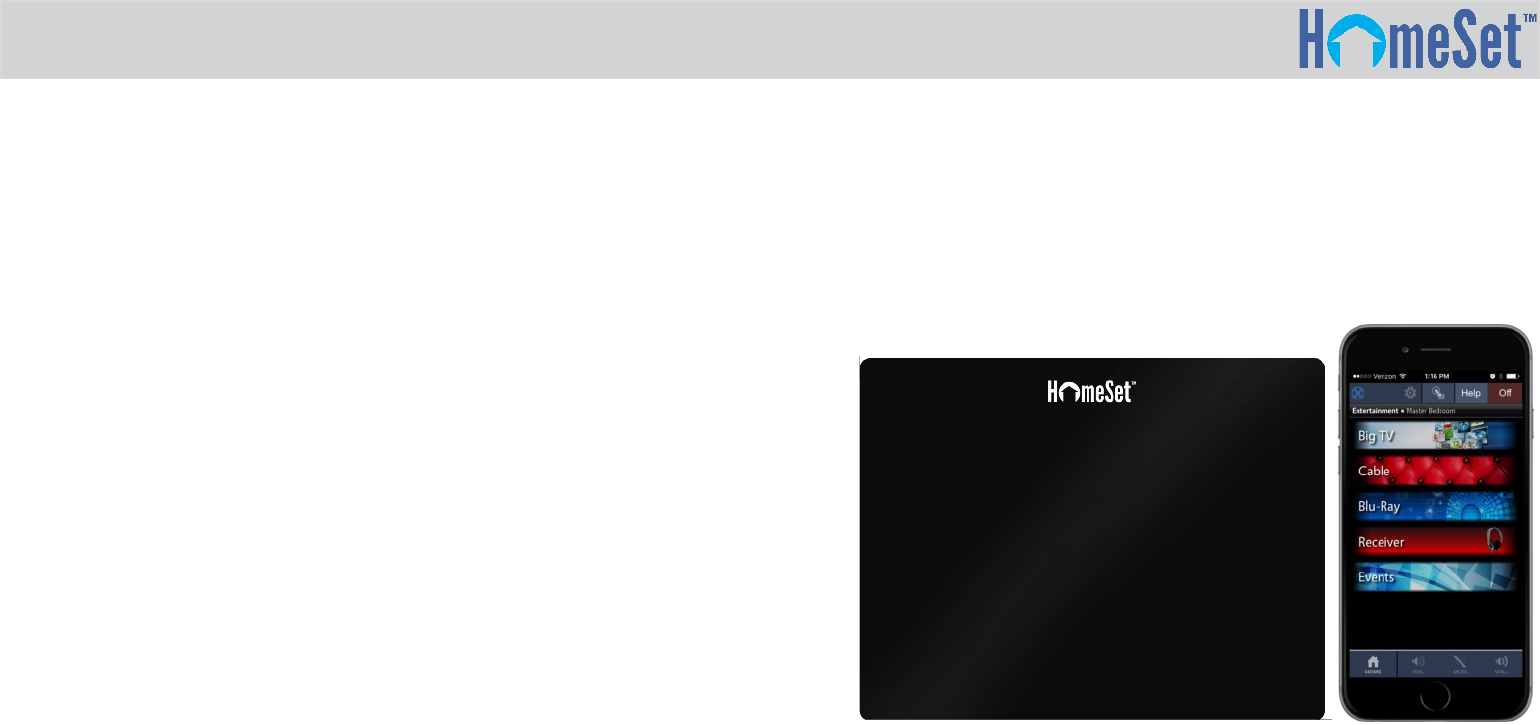

HomeSet Android and iOS Mobile App (Included)
When used with the C200 Hub, the HomeSet “Entertain” Android
and iOS Mobile Apps provide full control of A/V components,
without need for a “point and shoot” IR remote control. The mobile
app also provides advanced Internet Protocol (IP) command/control
of network-based equipment. Use the HomeSet “Automate” app to
control your Z-Wave® Lights, Thermostats, Door Locks, and IP
Cameras if a URC TRF-ZW Z-Wave bridge has been installed with
you system.
C200 Owner’s Manual
Features and Benefits
Enjoy the following key features:
●Connect with Wi-Fi or Wired Ethernet
Your professional installer/programmer connects the C200
Hub to a wired or wireless Ethernet network. The Wi-Fi
capability of the C200 provides installation flexibility.
●Control Smart Home Products with Ease
HomeSet provides an elegant way to control entertainment
products plus smart home devices in and around your home.
For example, you can check on the kids in the backyard and
turn on outside lights at dusk right from your smartphone.
Or switch on the TV and your Blu-ray player and start a
favorite movie with one press on your smartphone or
optional remote.
●Two-way Meta-data Feedback
Experience two-way feedback on your smartphone, tablet, or
optional R200 remote screen when used with compatible
home devices such as entertainment, lights, and more. Two-
way control of Nest is available on the R200 remote control
and via HomeSet’s mobile apps. Enjoy the same feedback
when used in conjunction with a regularly-expanding line of
products made by other manufactures.

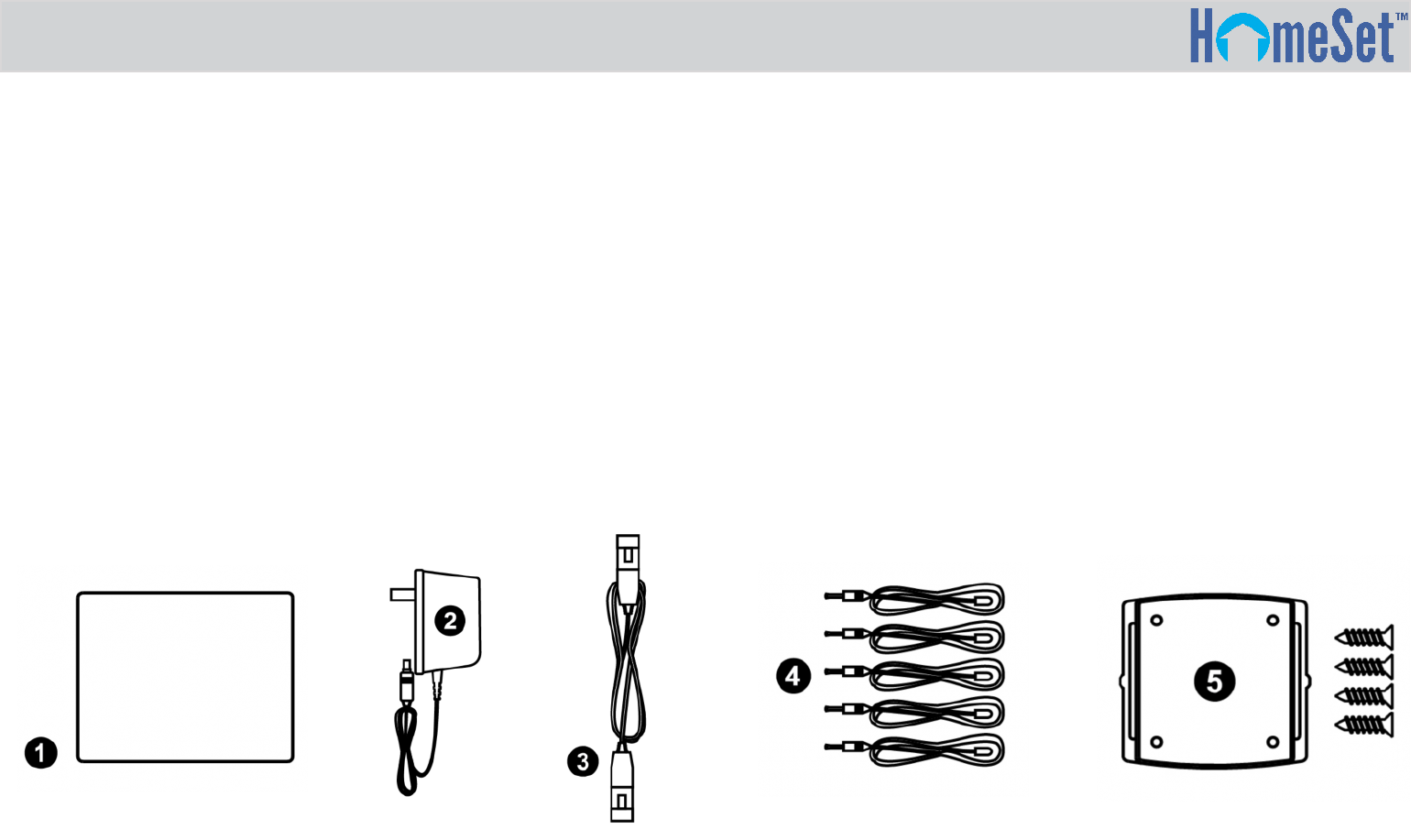

What’s Included in the Box:
The following comprise of the parts and pieces of the C200:
1. C200 Control Hub
2. AC Power Adapter/12 Volt 1000 mA Power Supply
3. Ethernet Network Cable
4. Five (5) Standard IR Emitters
5. One (1) Wall Mount Plate with Four (4) Mounting Screws.
C200 Owner’s Manual
C200 Owner’s Manual
Before Getting Started
Keep in mind the following:
●Designed for use on your local wireless network, the C200 Hub is
designed for use on your local wired or wireless network, much in
the same way your tablets or computers do.
●By adding an optional R200 Remote or the HomeSet Mobile App on
smart devices, the hub controls your home’s A/V products. Add an
optional TRF-ZW Z-Wave Gateway to control your home’s Z-Wave
lights, thermostats, door locks, and more.
●Your professional installer who programs your HomeSet system can
automate you home entertainment, comfort, and security devices.
Further enhancements and upgrades may be possible. Contract your
installer for further details.
C200 Owner’s Manual
Notice
Some of the following sections contain information that is useful to
the professional installer/programmer who installed your system.
It’s not necessary for you to learn the details; however, we
recommend you read them to be aware of the functions and
capabilities of your HomeSet system.
Front Panel
The front panel of the hub houses an IR “blaster”. The front panel
blaster sends IR commands to components in the same cabinet or
in line-of-sight of the hub.

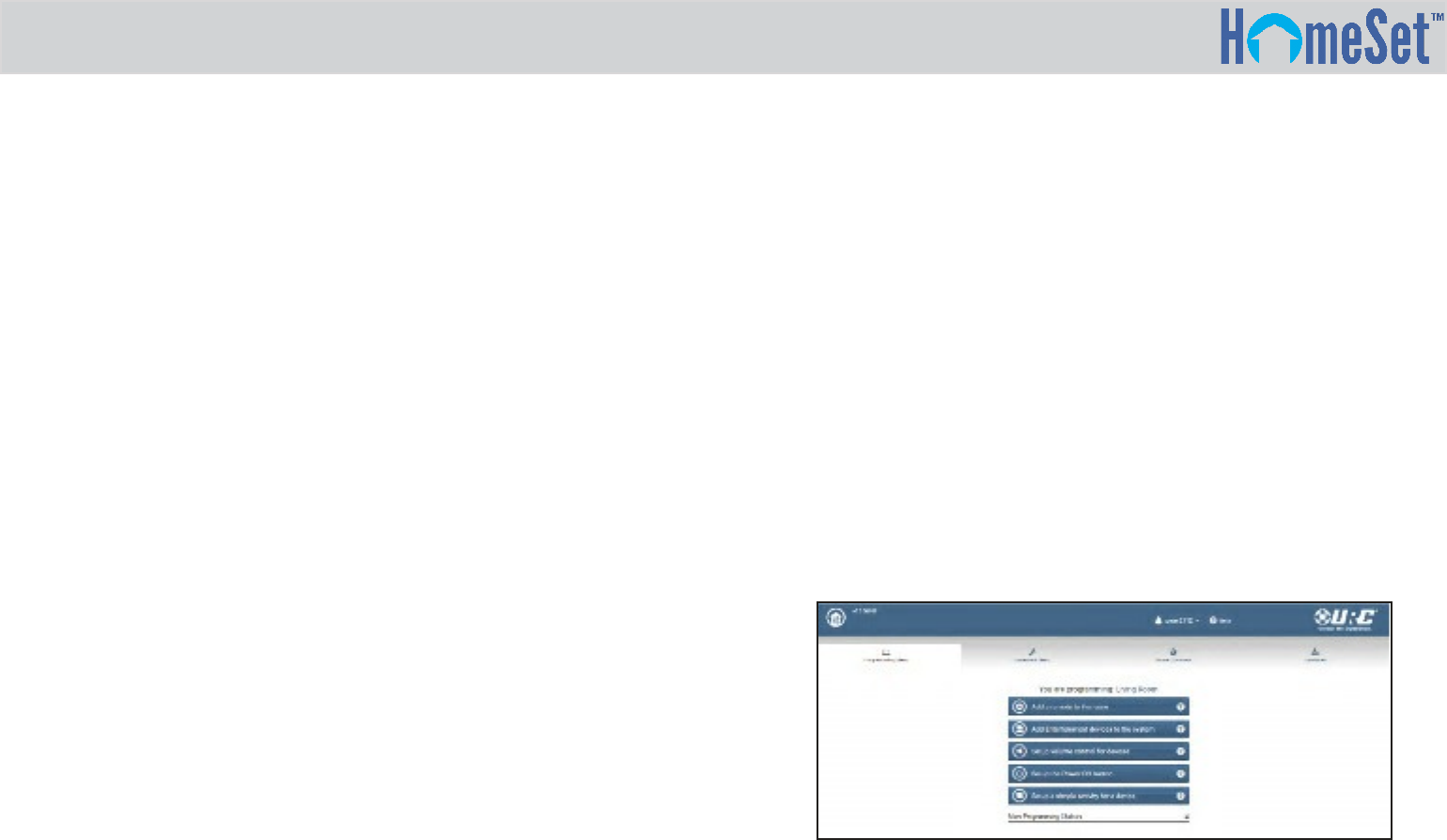

The front panel IR blaster can be enabled or disabled via HomeSet’s
Web Programming software. Your installer/programmer has
programmed your hub to use either the rear panel IR emitter
outputs or the front panel IR blaster, but not both.
The front panel IR blaster on the hub can also be used for “learning”
IR commands from another remote control. Any “learned” IR
command is saved by the HomeSet Web Programming software.
C200 Owner’s Manual
Rear Panel

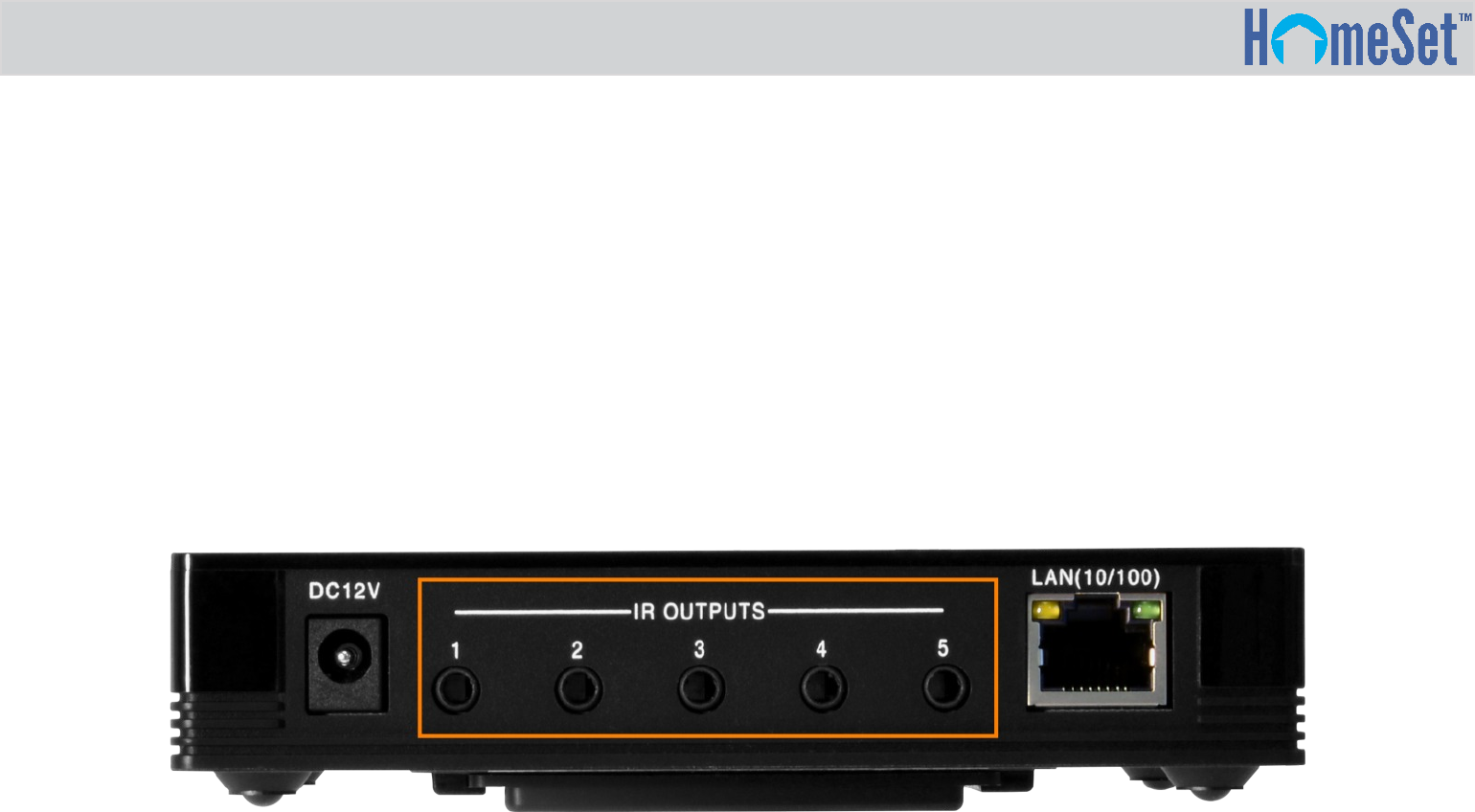

IR Outputs
The rear panel of the hub houses five (5) infrared emitter ports,
allowing for control of any A/V device normally controlled by a
simple “point and shoot” IR remote.
Self-adhesive “flashers” (included) affix to the front of your TV,
Blu-ray player, and other equipment where there is an IR
“window”. Thin wires connect flashers to the IR output ports,
show below.

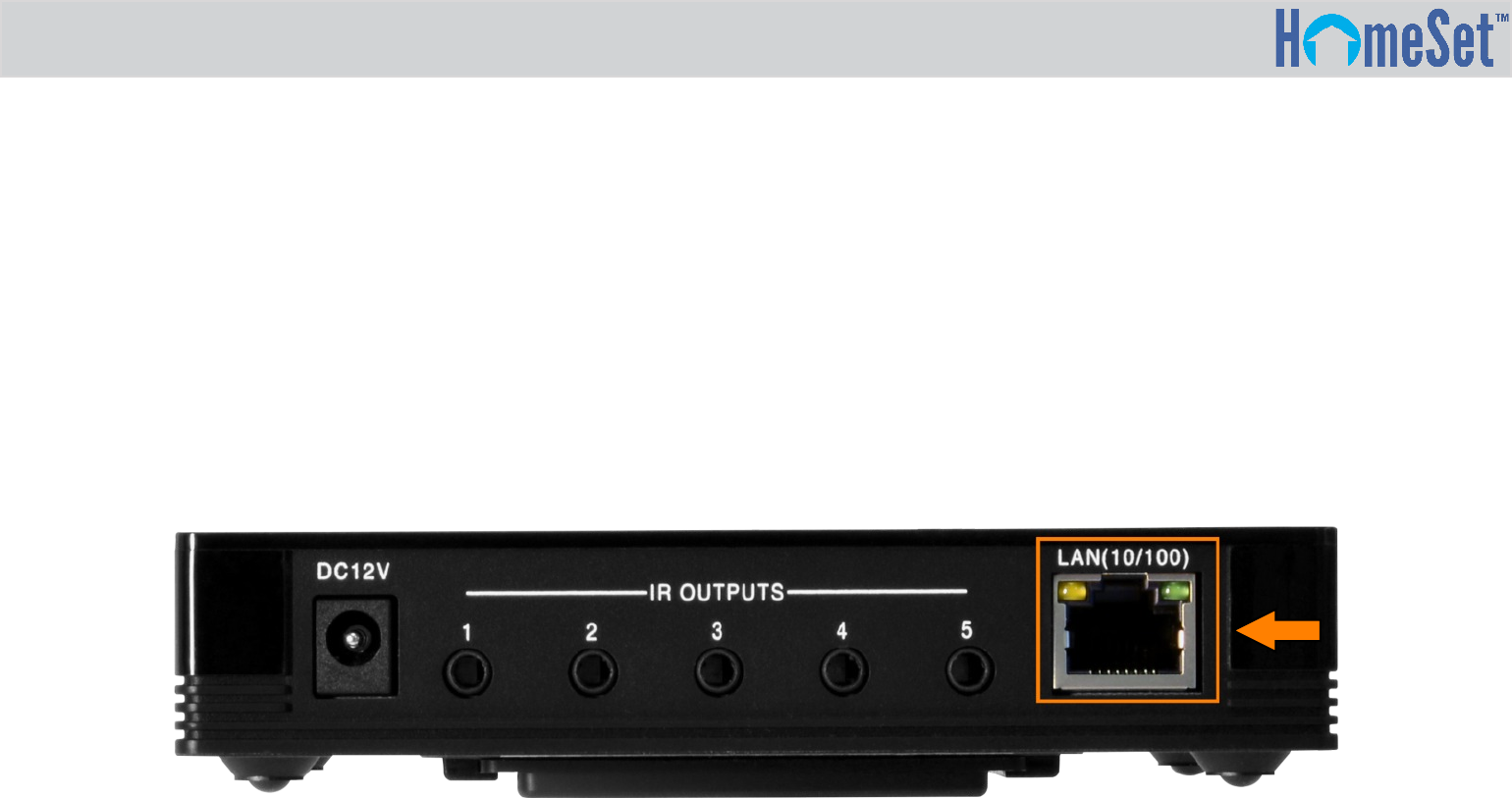

Ethernet LAN Connection/Wi-Fi
A standard Ethernet LAN connection port is provided for a wired
connection to a local network via included Cat5 cable. The C200
also supports a wireless Ethernet (Wi-Fi) connection to the same
local network used for Internet access.
Controlling Other Network Devices (IP Control)
The C200 Hub can also control other IP-compatible equipment
connected to the same local network. The hub can send “one-
way” IP commands to other network devices such as TVs,
projectors, and A/V receivers.
C200 Owner’s Manual
C200 Owner’s Manual

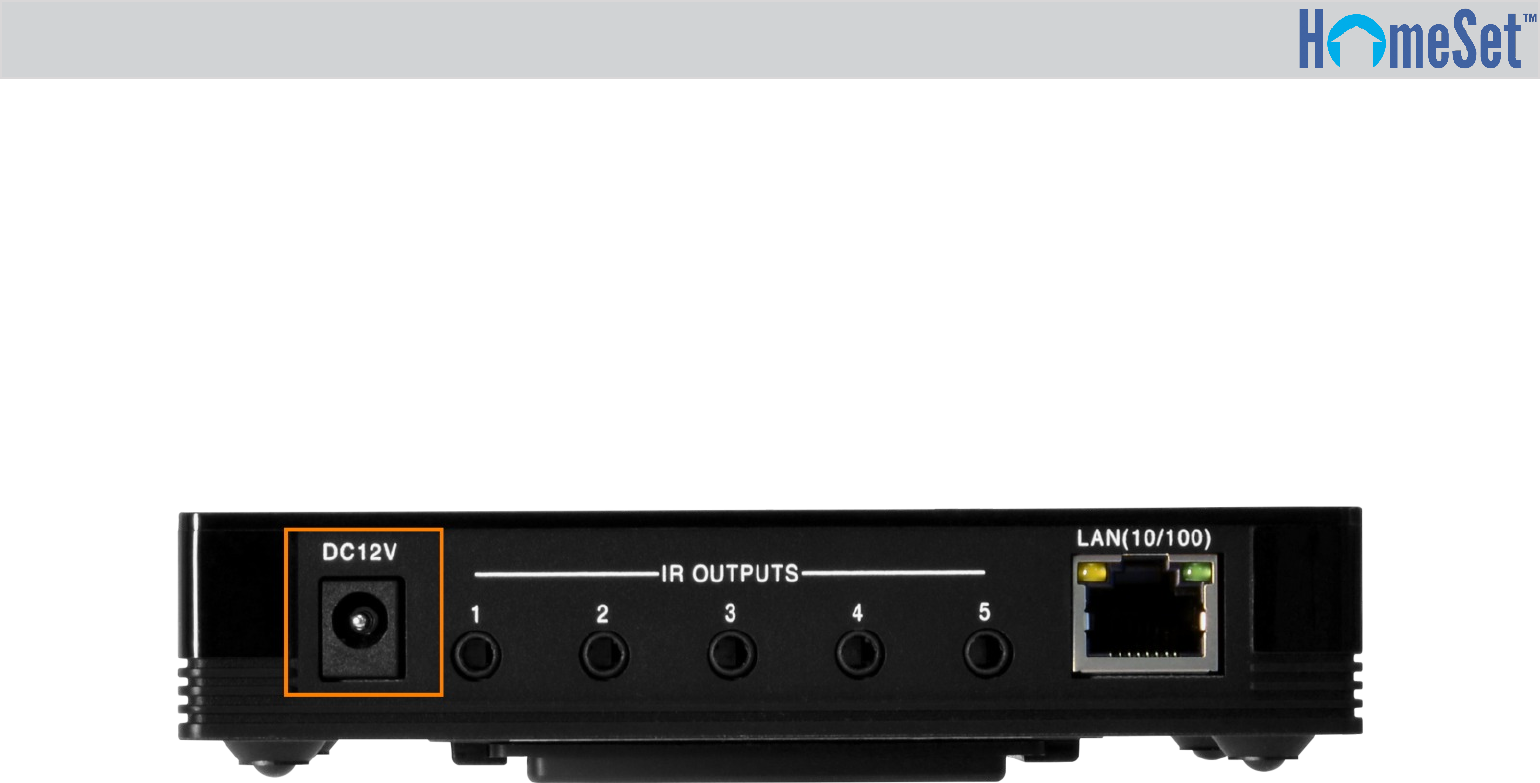

DC Power Input
The C200 is powered by an AC power adapter that plugs into
the input port shown below. The power supply is a 12 volt, 1-
amp supply. Use only the AC Adapter supplied with the unit in
all circumstances.

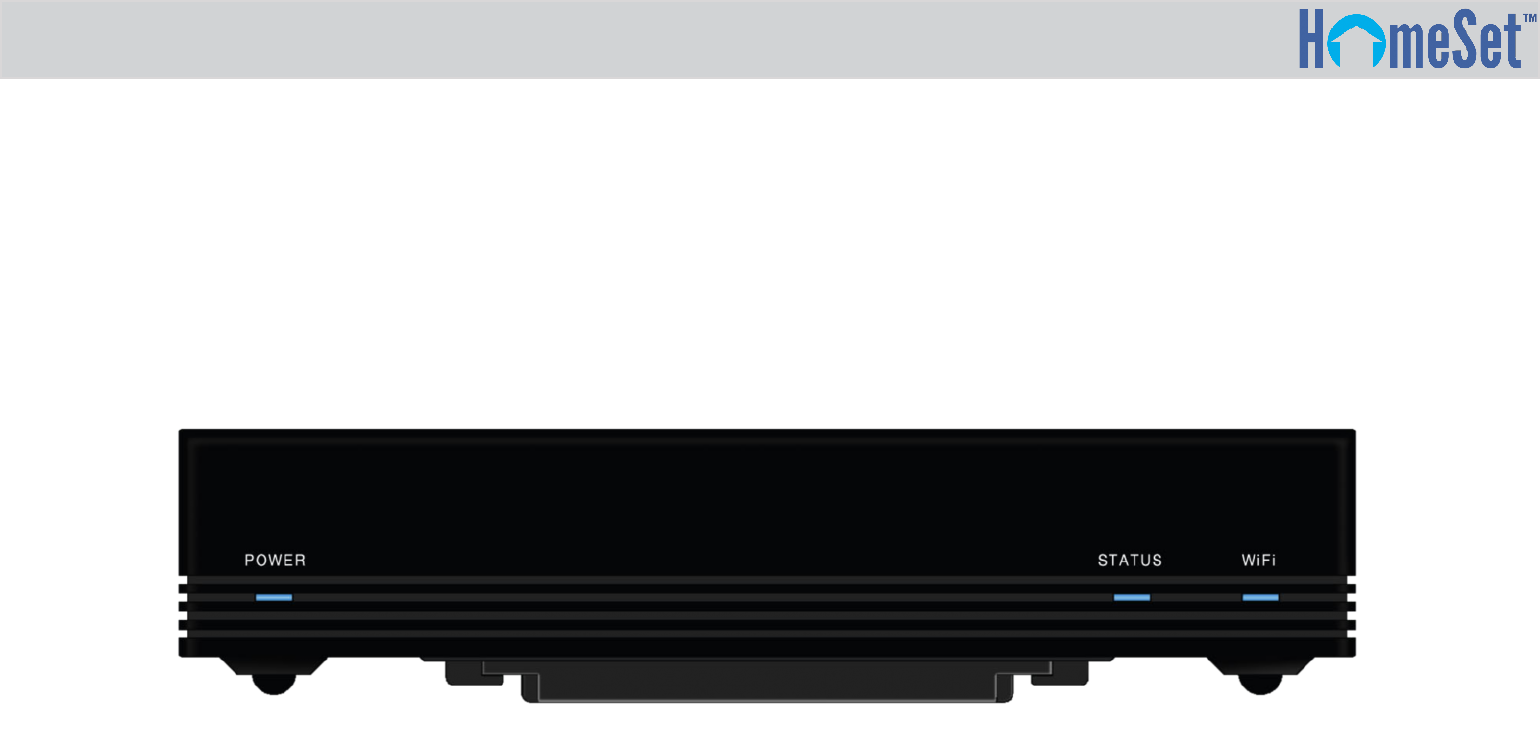

Top Panel
The top panel of the hub features three LED indicators that display
the status of the C200.

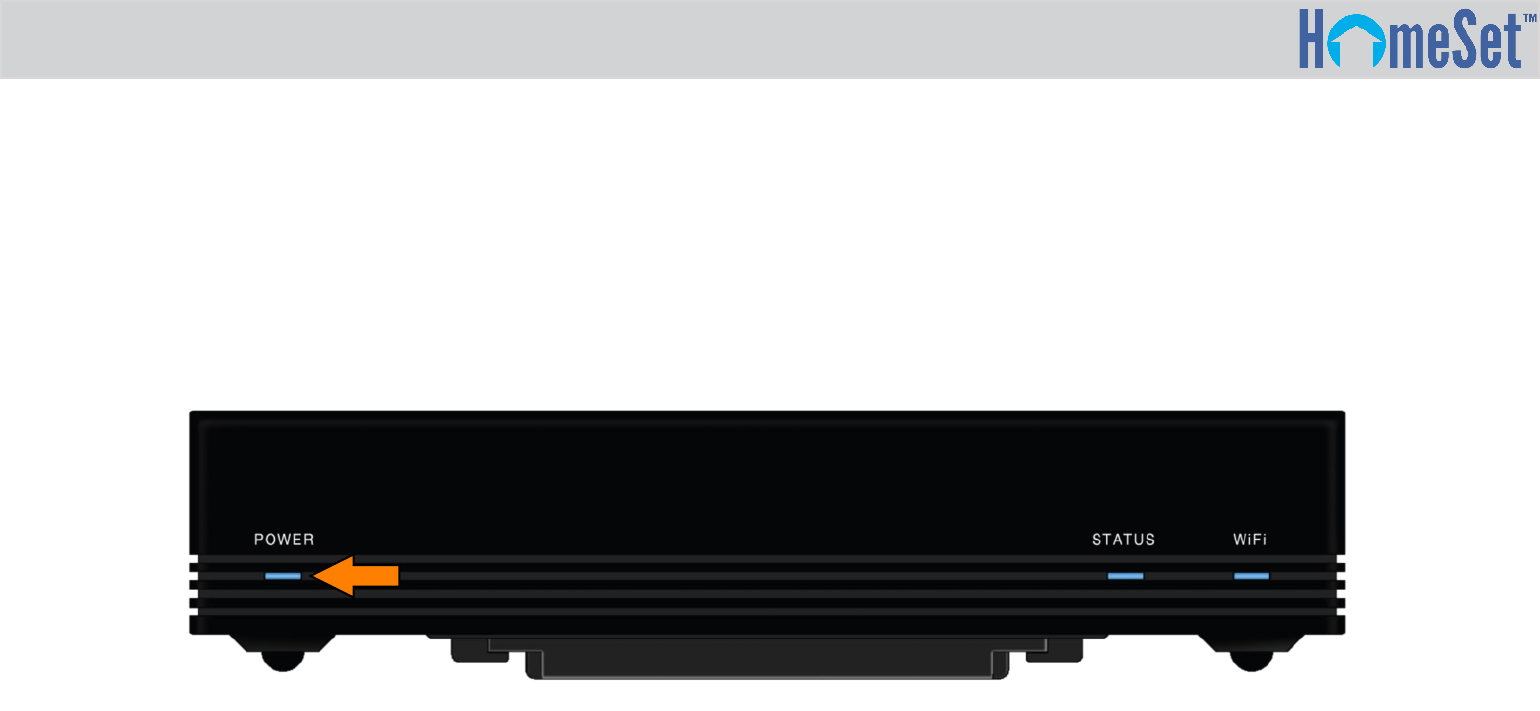

Power LED
This LED illuminates blue when DC power is applied.
C200 Owner’s Manual
C200 Owner’s Manual

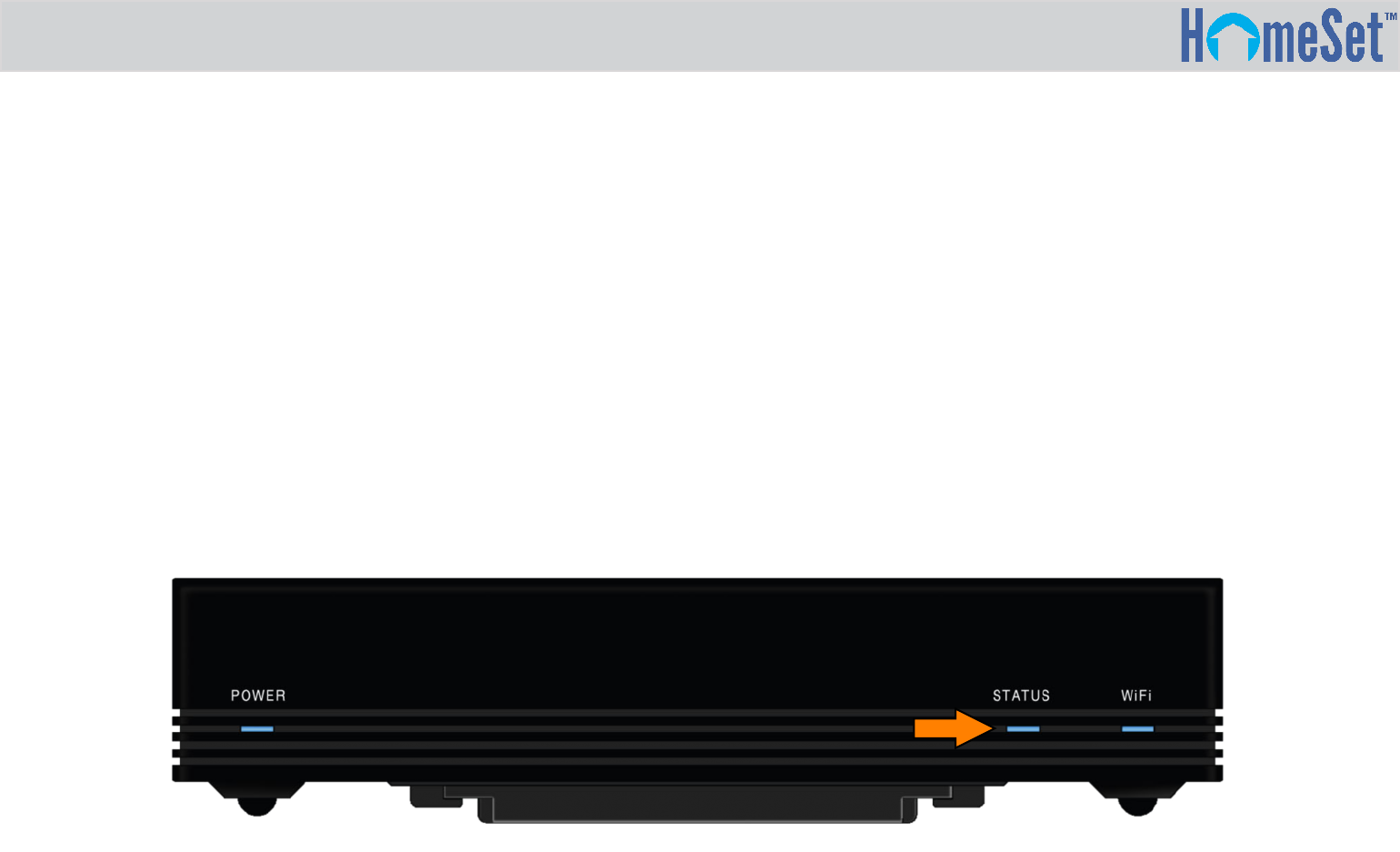

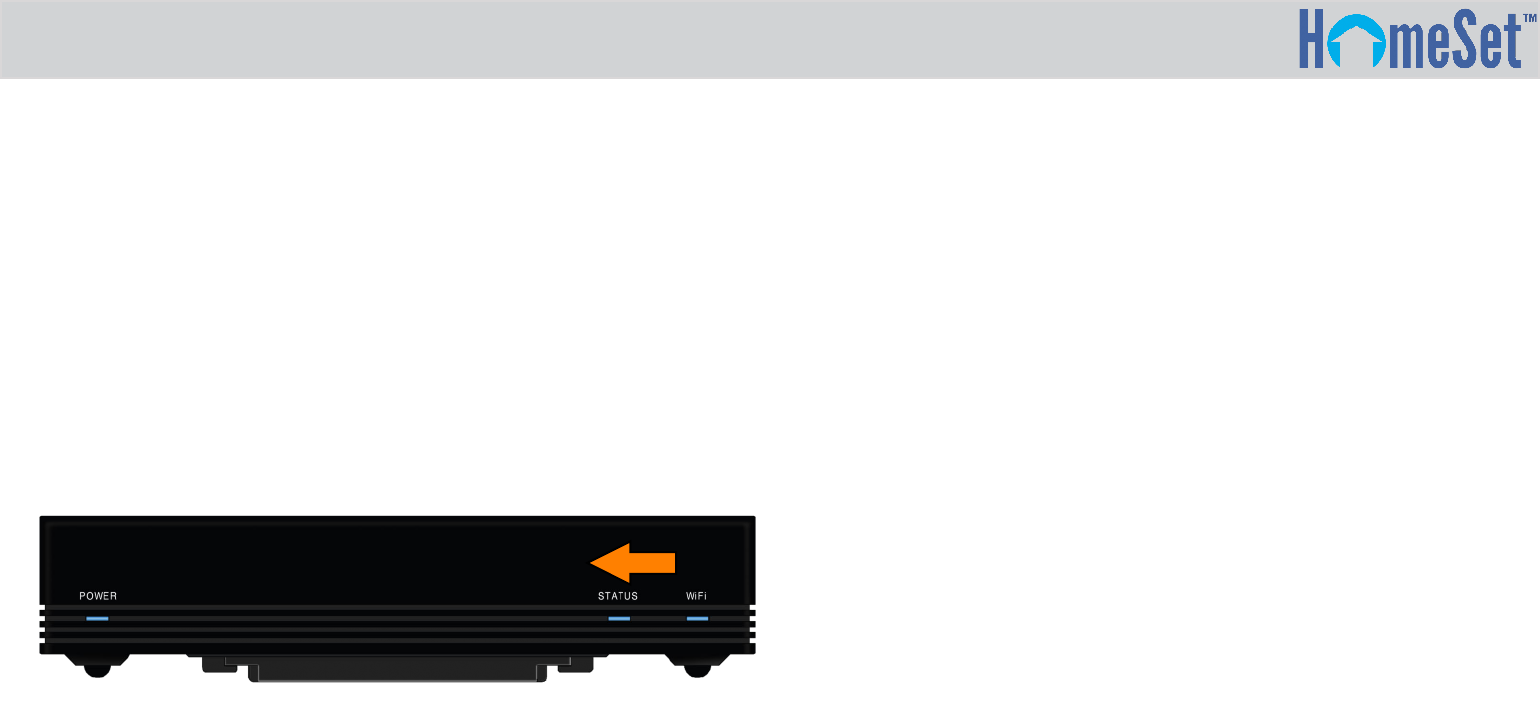

Status LED
The C200 status LED has six (6) possible states:
Blue LED: illuminates blue when the hub is connected to the
HomeSet server and fully programmed to control your home system.
Red LED: illuminates red when the hub is connected to the HomeSet
server, but has not yet been programmed to control your home
system.
Green LED: illuminates green when the hub is operating in a
secondary room within the system.
Blinking Red LED: blinks red when the hub cannot connect to the
HomeSet server. Please check your network connections.
Blinking Green LED: blinks green when the hub’s firmware is being
updated.
Blinking Blue LED: blinks blue when being programmed by the
HomeSet server.
C200 Owner’s Manual

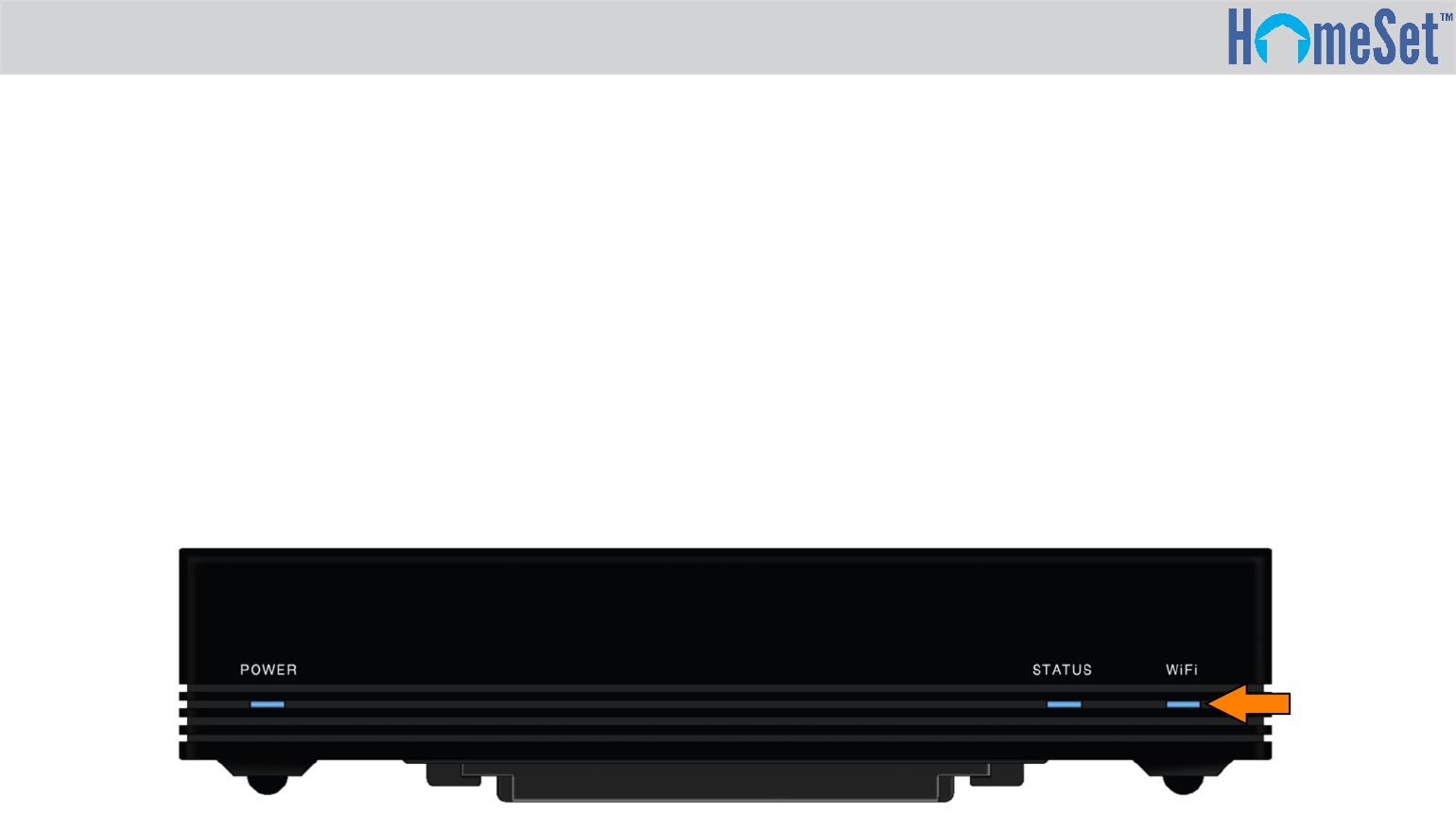

Wi-Fi LED
The C200 Wi-Fi LED has six (6) possible states:
Blue LED: illuminates blue when hub is connected to your network via
a Wi-Fi signal, with excellent signal strength.
Green LED: illuminates green when the hub is connected to your
network via a Wi-Fi signal, with good signal strength.
Yellow LED: illuminates yellow when the hub is connected to your
network via a Wi-Fi signal, with fair signal strength.
Red LED: illuminates red when the hub is connected to your
network via a Wi-Fi signal, with poor signal strength.
Blinking Red LED: blinks red when there is an error connecting to
your network wirelessly.
Off: the LED is off when the hub is connected to your local network
via a wired Ethernet connection.
C200 Owner’s Manual

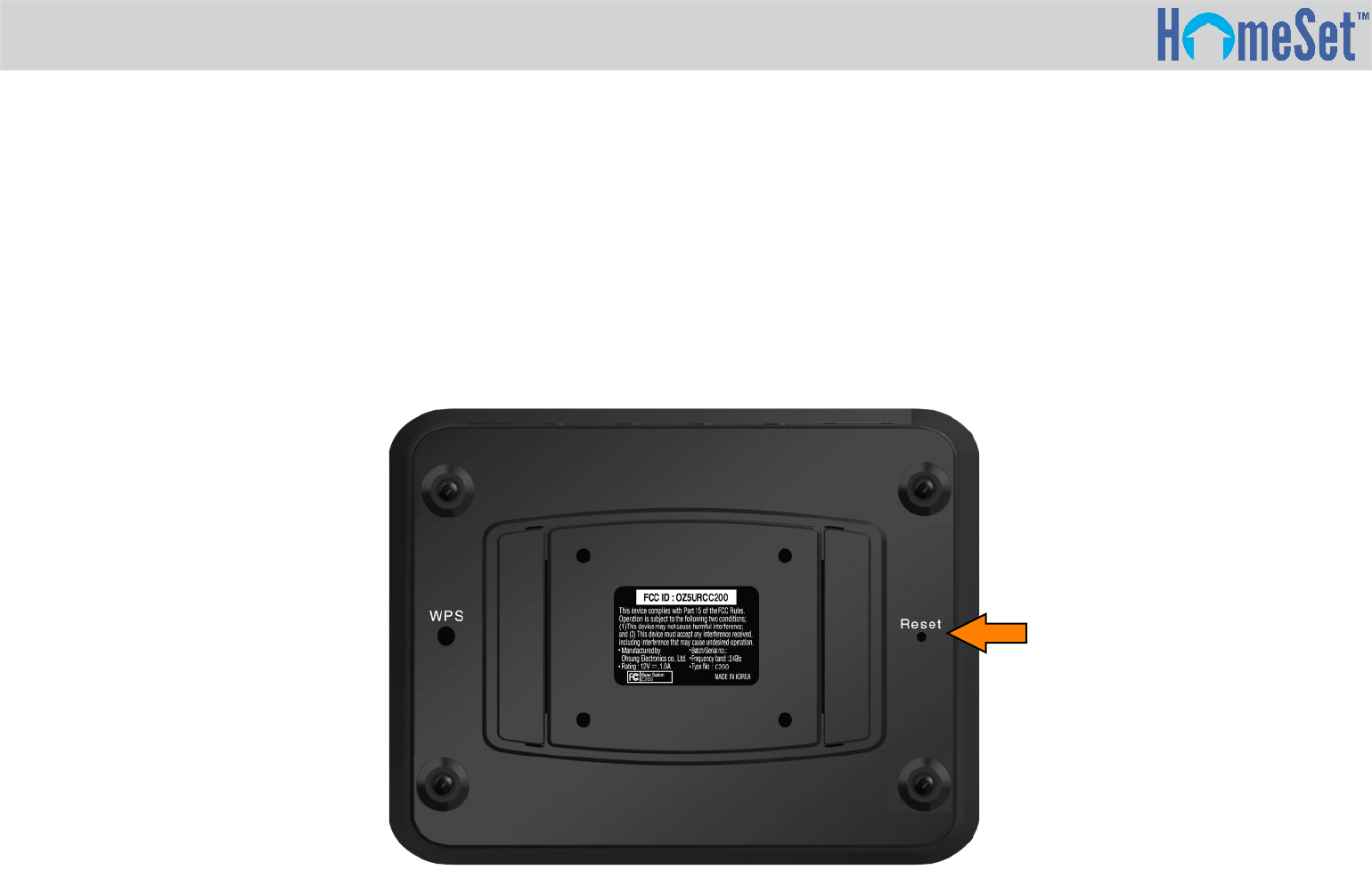

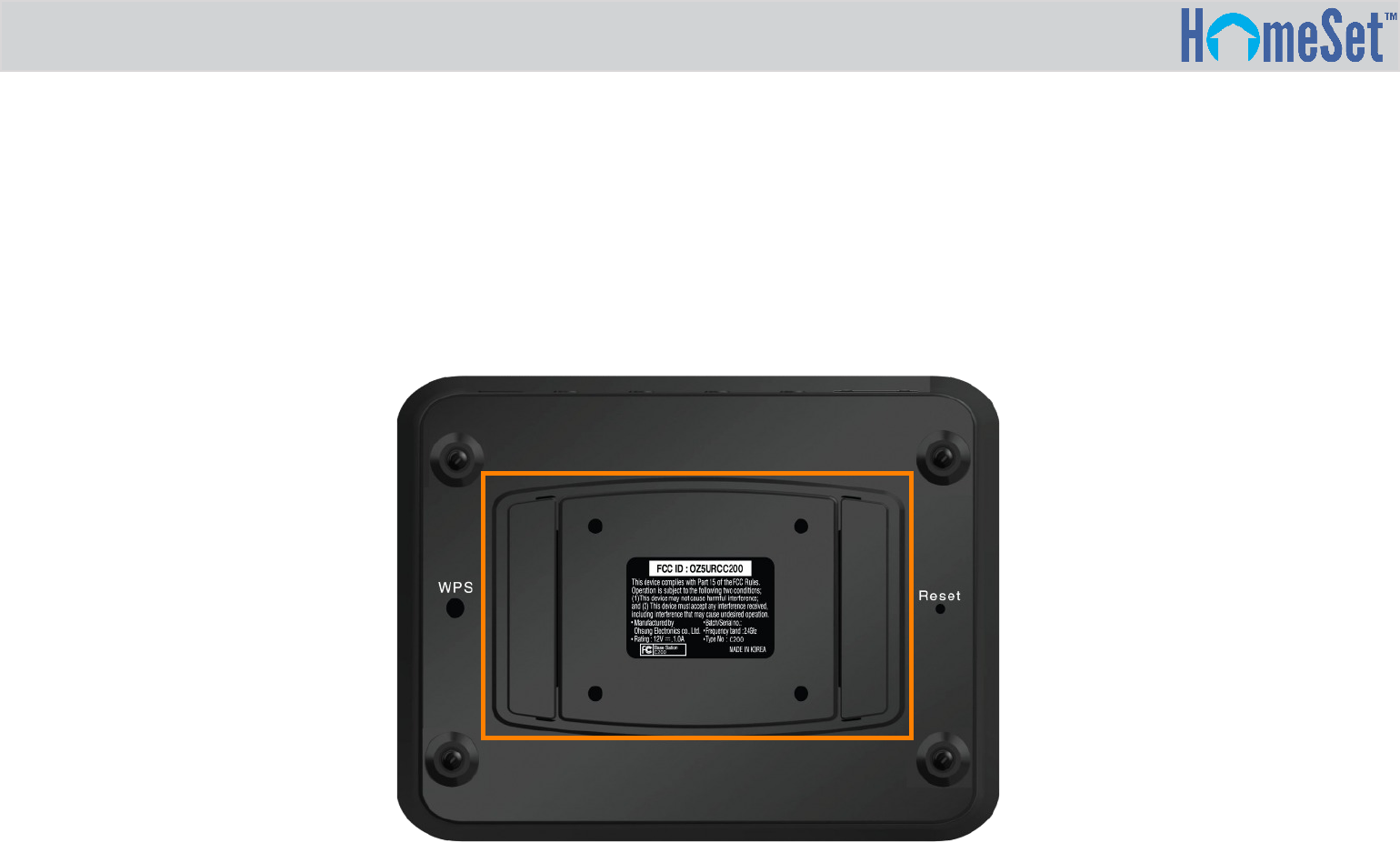

Bottom Panel
Rest Button
A single, momentary press of the Reset button REBOOTS the C200
Hub, similar to removing and then reapplying the DC power source.
DO THIS ONLY IF INSTRUCTED TO DO SO BY YOUR INSTALLER
OR BY HOMESET TECH SUPPORT.
Pressing and holding the Reset button for ten (10) seconds results in
setting the hub to “factory default”. All user data and programming will
be erased and your system will not operate until reprogrammed.
DO THIS ONLY IF INSTRUCTED TO DO SO BY YOUR INSTALLER OR
BY HOMESET TECH SUPPORT.
C200 Owner’s Manual

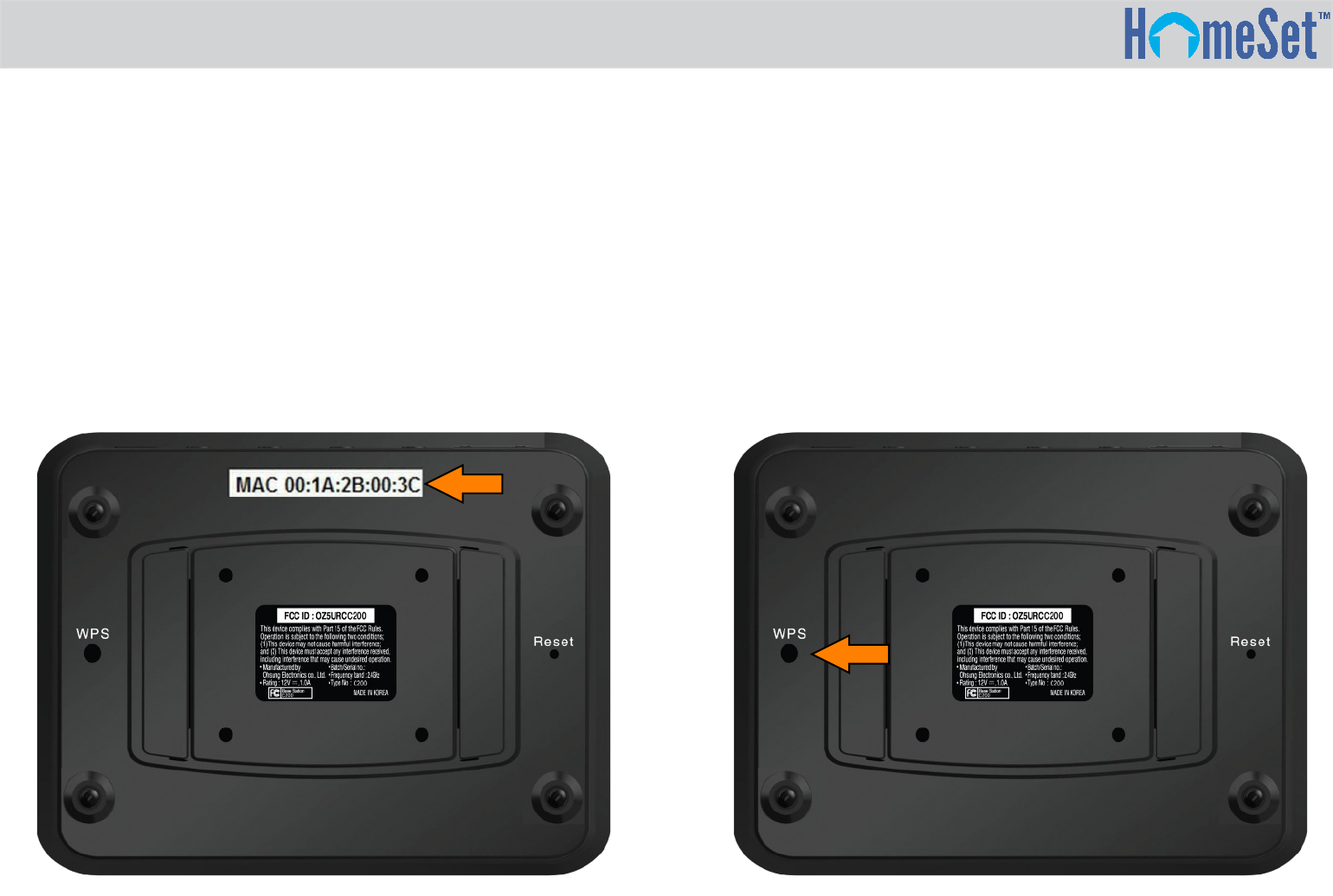

MAC Address Stickers
Two (2) MAC address stickers are provided and are located on the
bottom panel of the C200 Hub. MAC stands for “media access
control”. This unique address is used to identify your hub on the
network and on HomeSet’s cloud server.
WPS Button
A WPS button is provided, allowing the hub to be installed on a Wi-Fi
network using the “WPS” method (Wi-Fi Protected Setup). This control
is used by your professional installer.
C200 Owner’s Manual
Removable Mounting Plate
A removable mounting plate and four (4) mounting screws are
provided and can be used to mount the hub to a flat surface
such as a ceiling, wall, or entertainment center.
Network Installation
The C200 Hub can be installed using a Wi-Fi wireless Ethernet
connection or via traditional hard-wired Ethernet connection. When
installing the hub for the first time, your installer must perform one of
the two following steps:
●Connect the hub to your wireless access point by using the WPS
button on the hub and the one on the wireless access point.
When successfully connected to the wireless access point, the
Wi-Fi LED on the hub will glow either blue, green, yellow, or red
based on Wi-Fi signal strength. Setup is now complete. If you
wish to set specific network settings see section below:
Or
●Connect the hub to the local Ethernet network via a wired
Ethernet connection.
C200 Owner’s Manual
When the Status LED illuminates red, use an R200 remote to
set the network properties of the C200 Hub.
Note that the HS-R200 Remote Control is required to be on the
same local Ethernet network as the hub to set the network
properties of the hub. An R200 is required for setup but not
required in a HomeSet system for daily use.
To set the network properties of the hub, insert the battery into
the remote control and follow the screen prompts. Setting up
the HomeSet system is similar to setting up a new tablet or
mobile phone for the first time.
C200 Hub Programming
Each C200 Hub requires professional programming for control of the
equipment in your home. By connecting the hub to the network and
adjusting the hub’s network properties with the R200 remote, the
system can be programmed by the HomeSet Web Programming
Software.
When the system is programmed with the HomeSet Web
Programming Software, a handy backup of the system file is stored
within HomeSet’s server and can be accessed and edited at any time
by a smart home professional installer.
If an optional TRF-ZW Gateway is added to a HomeSet system to
enable Z-Wave control, additional programming steps and setup
steps will be required.
C200 Owner’s Manual
C200 Owner’s Manual
Limited Warranty Statement and Disclaimers
Please refer to the URC complete Limited Warranty:
www.homesethome.com/limited-warranty-statement/
This Limited Warranty is valid only in the United States of America.
Any URC/HomeSet equipment that is purchased from an
unauthorized source will not be eligible for
a) Technical Support or support of any kind from URC/HomeSet
b) Any Warranty by URC/HomeSet.
C200 Owner’s Manual
Specifications
●IR Range (line of sight via IR): 30 to 50 feet, depending
on the environment.
●IR Port: 5 available rear ports
●Macro Capability: up to 255 steps each
●Wi-Fi: IEEE 802.11 b/g/n
●Size: 1.2” H x 3.99” D x 5.13” W
●Weight: 5.4 oz
●Memory: DDR2 SDRAM 256MB
●Power: 12V DC 1A
Updating
HomeSet features and hardware may be updated from time
to time. Manual HomeSet software and/or hardware
updates should only be performed by your authorized
HomeSet installer/programmer. Features may vary between
customized software and URC software releases. To find out
more please contact your custom installation professional
with questions. All information, features, benefits, and user
screens are subject to change without notice.
End User Agreement
Terms and conditions of the End User Agreement are
available at:
www.universalremote.com/end-user-agreement/ apply.
C200 Owner’s Manual
Federal Communication Commission (FCC) Interference
Statement
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one
more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from
that to which receiver is connected.
●Consult your dealer/installer or an experienced radio/TV technician
for help.
Warning!
Changes/modifications not expressly approved by OHSUNG
Electronics Co., Ltd could void user’s authority to operate the
equipment. OHSUNG Electronics Co., Ltd is not responsible for any
Radio or TV interference caused by unauthorized modifications to this
equipment. Such modifications could void the user’s authority to
operate the equipment.
FCC Caution
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. Any
changes or modifications not expressly approved by the party
responsible for compliance could void the authority to operate
equipment. The antenna(s) used for this transmitter must not be co-
located or operating in conjunction with any other antenna or
transmitter.
Federal Communication Commission (FCC)
Radiation Exposure Statement
This device is approved as a table-top device which is normally
operated at 20cm from a person’s body.
C200 Owner’s Manual
Your HomeSet C200 Notes Page
●Custom Installer/Programmer Company Name, Email & Contact
Info:
●HomeSet C200 Serial Number:
●Date of Installation/Programming Completion
