Ohsung Electronics Co., Ltd. RF Receiver Users Manual
Users Manual
MRF-200 RF Interface
Home Theater Master MRF-200 is RF interface that
is used in combination with MX-series RF remote controls.
The RF interface receives Radio Frequency signals sent from
the MX-series remotes and converts the RF signals to Infrared
signals to operate your TV, VCR DVD. Receiver,etc.
1.Introduction
IR Blaster
IR Extender
RF Operation Distance

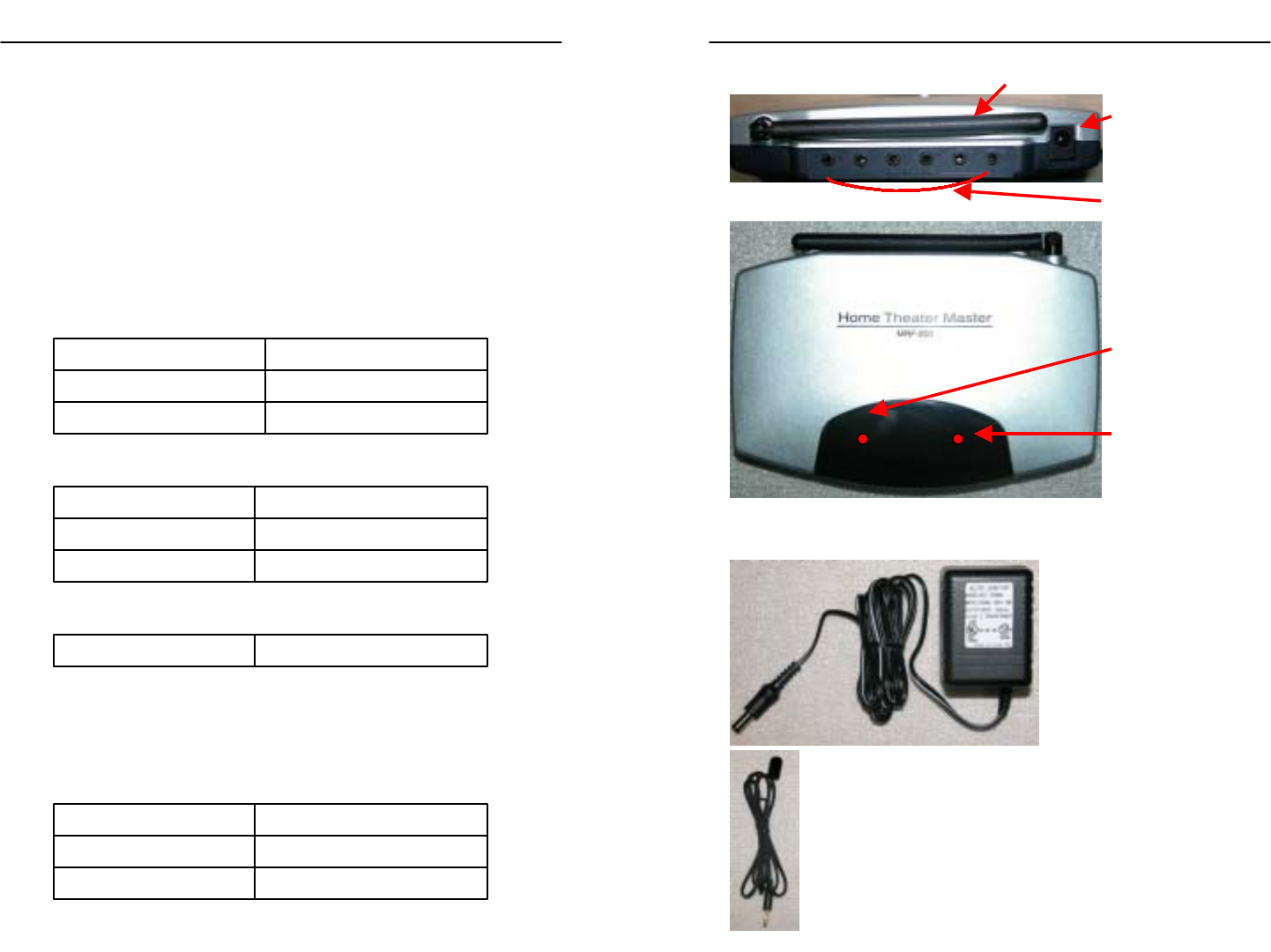

2. Specification
100 FEET
30 FEET
10 FEET
Power
EXTEND WIRE
Frequency 418MHz
DC 9V 300mA
2 METERS
Extender ID 1~0,A,B,C,D,E,F(16 IDs)
Size 130 x 90 x 28
Operation Distance
Electrical Characteristic
Available ID
Others
3. Structure
MRF-200 RECEIVER
POWER ADAPTER
IR Extender Cable ( 6pcs)
Antenna
POWER LED
STATUS LED
DC 9V IN JACK
IR Extender Jack
1to 6
MRF-200 RF Interface
You can select 16 IDs from the rotary switch installed the bottom case.
5. Install

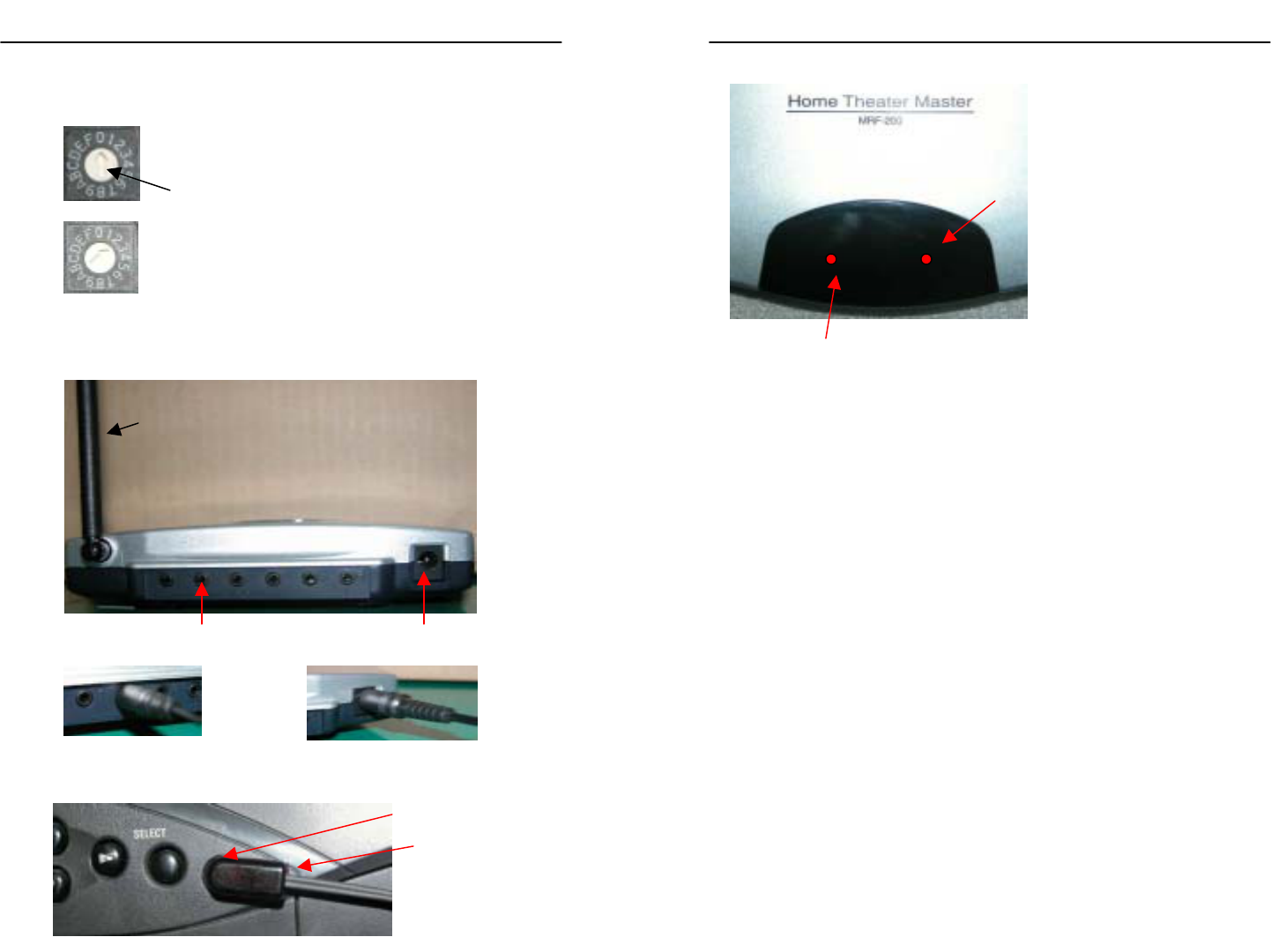

4. ID Setting
Shown the selected ID “2”.
Select an ID by using a small screwdriver.
Adjust antenna
Connect DC9V Power supply.Connect IR Extender cable jack.
Attach the IR Extender Emitter to the receiving lens of your device.
IR Extender Emitter
6. LEDs
Display power status
Display signal status
POWER IR OUT
Receiving Lens of the device
7. Remote ID Setting
Please see the remote control manual for the details.
@ Please note that all extender IR output(6) operate in the case of
ID”0”.
