Operating Your System
With the MX-880i
OCE-0056D_Rev01_Cover.qxd 11/10/08 5:25 PM Page 1
This remote control was
Custom Programmed for you by:
For questions about your Custom Programming call:
Custom Programming of a complex home theater and/or a multi-room
system is one of the most challenging tasks within an audio/video instal-
lation. It involves an intimate knowledge of how the components inter-
act and exact details on the proper sequences of control.
Only a Complete Control dealer has the requisite experience and training
to quickly and effectively customize a remote control for true automated
operation.
Congratulations on your choice!
MX-880i Owners Manual © 2008 Universal Remote Control, Inc.
Front Cover Photo courtesy of Robert Ridenour of Connected
Technologies,
www.connected-technologies.com
The information in this manual is copyright protected. No part of this manual may
be copied or reproduced in any form without prior written consent from Universal
Remote Control, Inc.
UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPERA-
TIONAL,
TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN THIS MANUAL.
The information in this manual may be subject to change without prior notice.
Complete Control is a registered trademark of Universal Remote Control, Inc.
Entertainment Made Simple is a trademark of Universal Remote Control, Inc.
All other brand or product names are trademarks or registered trademarks of their
respective companies or organizations.
Universal Remote Control, Inc.
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
OCE-0056D_Rev01.qxd 11/10/08 5:24 PM Page 1
TABLE OFCONTENTS
Introduction 1
Optional RF “No Rules” Operation 2
Installing and Charging the Battery 3
Programming the MX-880i 4
Selecting a New “Activity” 5
Using the MX-880i to Control an “Activity” 6
Accessing the MX-880i’s Setup Menus 7
Selecting from the Setup Menus 8
Setting the Color Screen 8
Setting the Button Lighting 9
System Menu 10
Setting the Button Beep Volume 11
Date and Time Menus 12
Erasing and Resetting 13
USA Limited Warranty Statement 13
Specifications 14
Contact Us 14
Your Listen Devices 15
Your Watch Devices 16
Regulatory Information to the user 17
Precautions and Information Concerning Rechargeable Lithium-Ion Batteries
18
OCE-0056D_Rev01.qxd 11/10/08 5:24 PM Page 2
Page 1
MX-880i OWNERS MANUAL
Congratulations!
You’ve purchased a unique synthesis of hardware and software engineering,
the Complete Control MX-880i. The MX-880i achieves a magnificent combi-
nation of power and flexibility, simplifying and automating operation of even
the most complex system.
User Configurable Screen and Button Lighting
A built in pick up sensor can be set to light the screen and/or the buttons
automatically. Additionally, a dedicated LIGHT button enables the user to
backlight the buttons if the pick up sensor is turned off.
Integrated Sound Signaling
The MX-880i incorporates a small speaker for beeps. Anytime you press a
button, the MX-880i signals that it has understood your command with a
beep sound.
Custom Labeled Buttons
When you pick up the MX-880i, it automatically lights up the color LCD
screen which labels the six buttons to either side of the screeen. These
button labels change based on what you are watching or listening to.
Thus, if you have selected Watch TV, you will see a list of buttons that
are useful to that activity, while if you select Watch DVD, the buttons
will control the DVD.

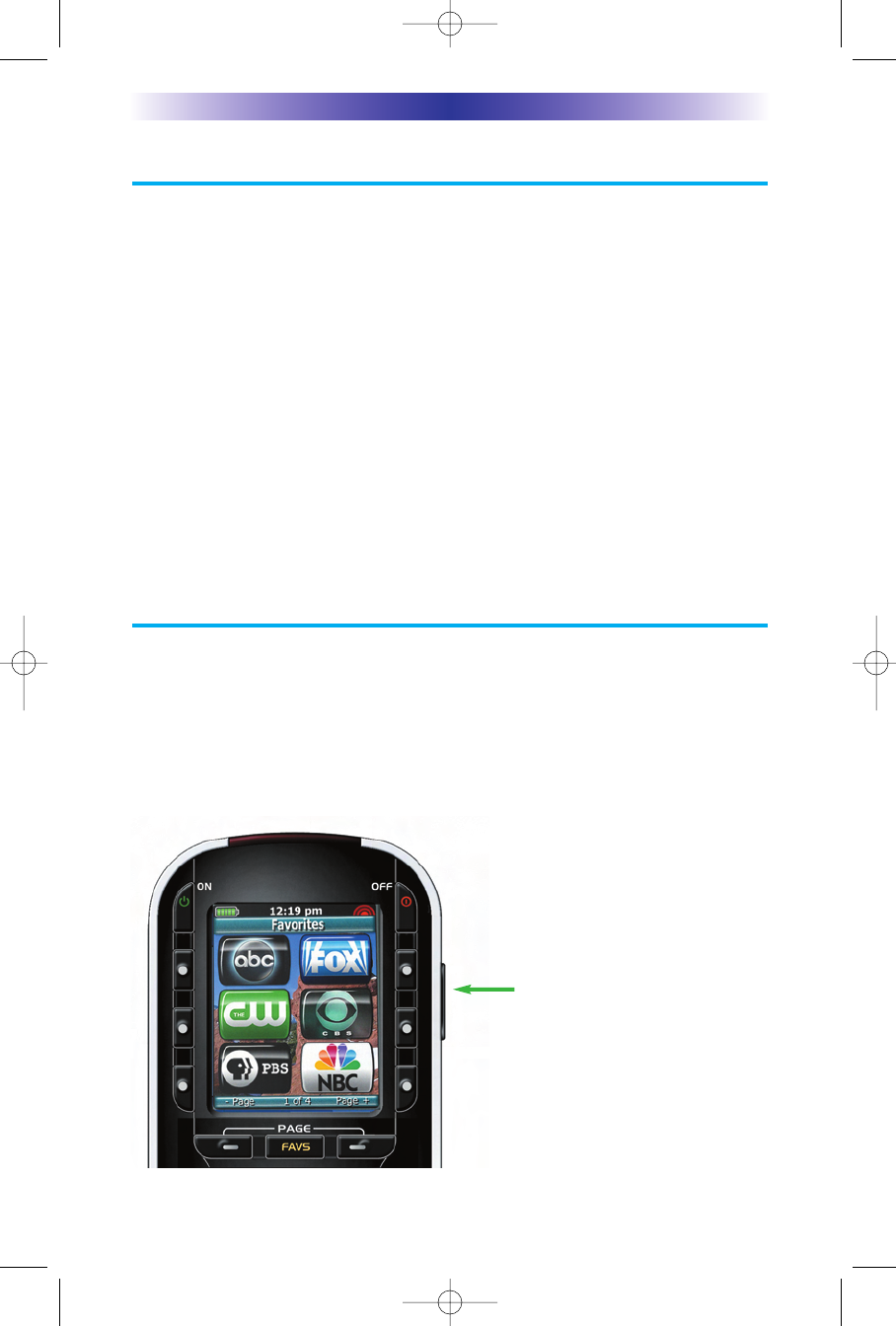

LIGHT Button
Press the Light button on the
side of the MX-880i to back-
light all of the buttons. Of
course, you could opt to set
the buttons to light automati-
cally via the pick up sensor.
OCE-0056D_Rev01.qxd 11/10/08 5:24 PM Page 1
Page 2
MX-880i OWNERS MANUAL

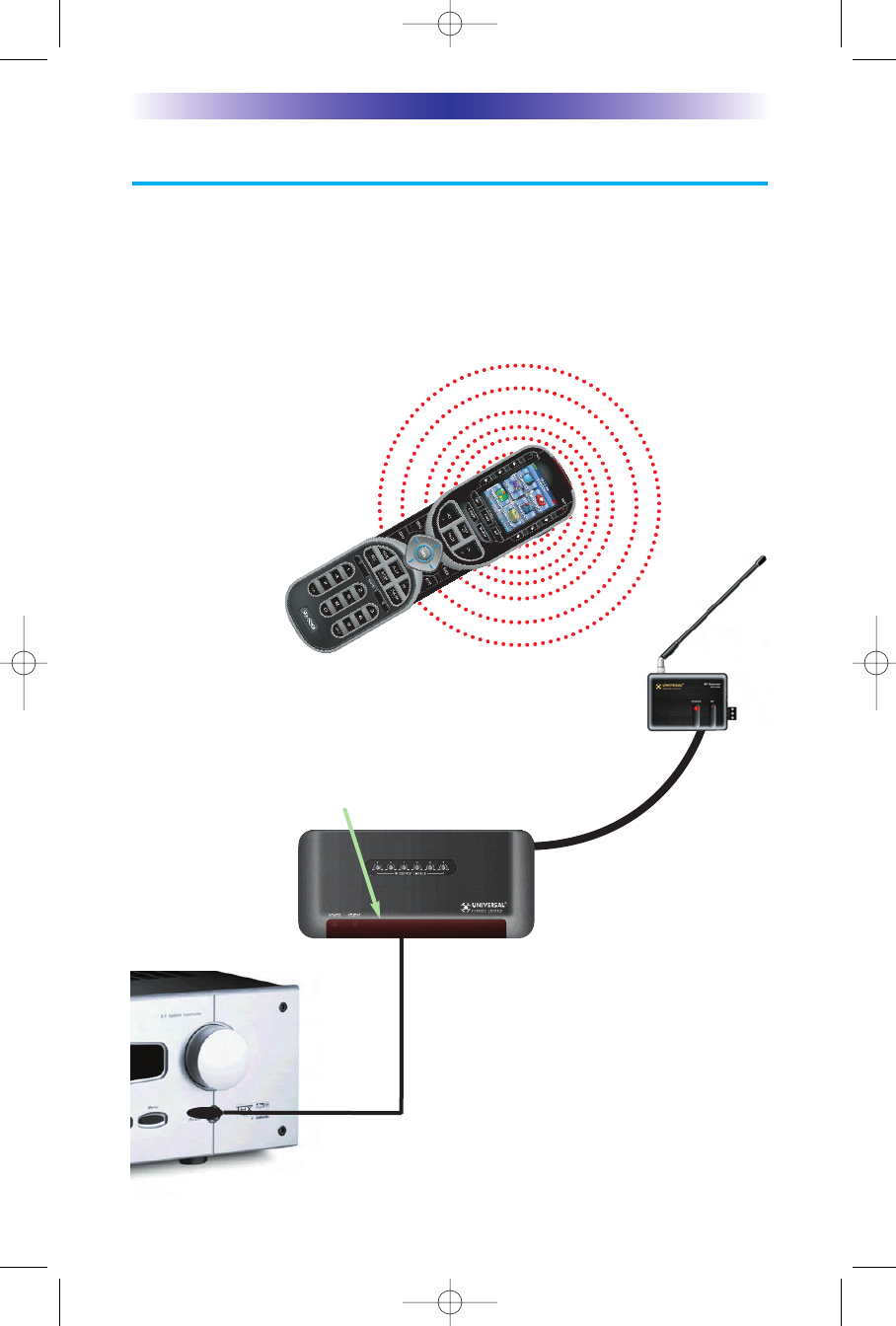

Optional RF “No Rules” Operation
In combination with a Complete Control RF Base Station, the MX-880i
can control your system without being in line-of-sight of the equipment.
To preserve good operation always utilize a Narrow Band RF Base Station
with RF Addressing. RF Addressing gives you the ability to control equip-
ment locations throughout your home, even if they are concealed in other
rooms or are behind closed doors.
4. Self-adhesive “Flashers” affix to the
Infrared sensors on the front panels of your
components. The Flashers relay commands
to components out of sight of the MRF-350i’s
Front Blaster. The flashers plug in to the
MRF-350i’s rear flasher line outputs via their
10 foot cables. Uniquely, the MRF-350i can
also connect to components with rear panel
IR Inputs via its adjustable IR Line Outputs.
3. The MRF-350i’s built-in Front Blaster sends commands to
components in the same cabinet space as the MRF-350i.
1. The MX-880i sends radio
waves in every direction, so you
don’t have to point the remote
anymore!
2. The RFX-250i RF Sensor can be freely
positioned for optimal reception.
OCE-0056D_Rev01.qxd 11/10/08 5:24 PM Page 2
Page 3
MX-880i OWNERS MANUAL

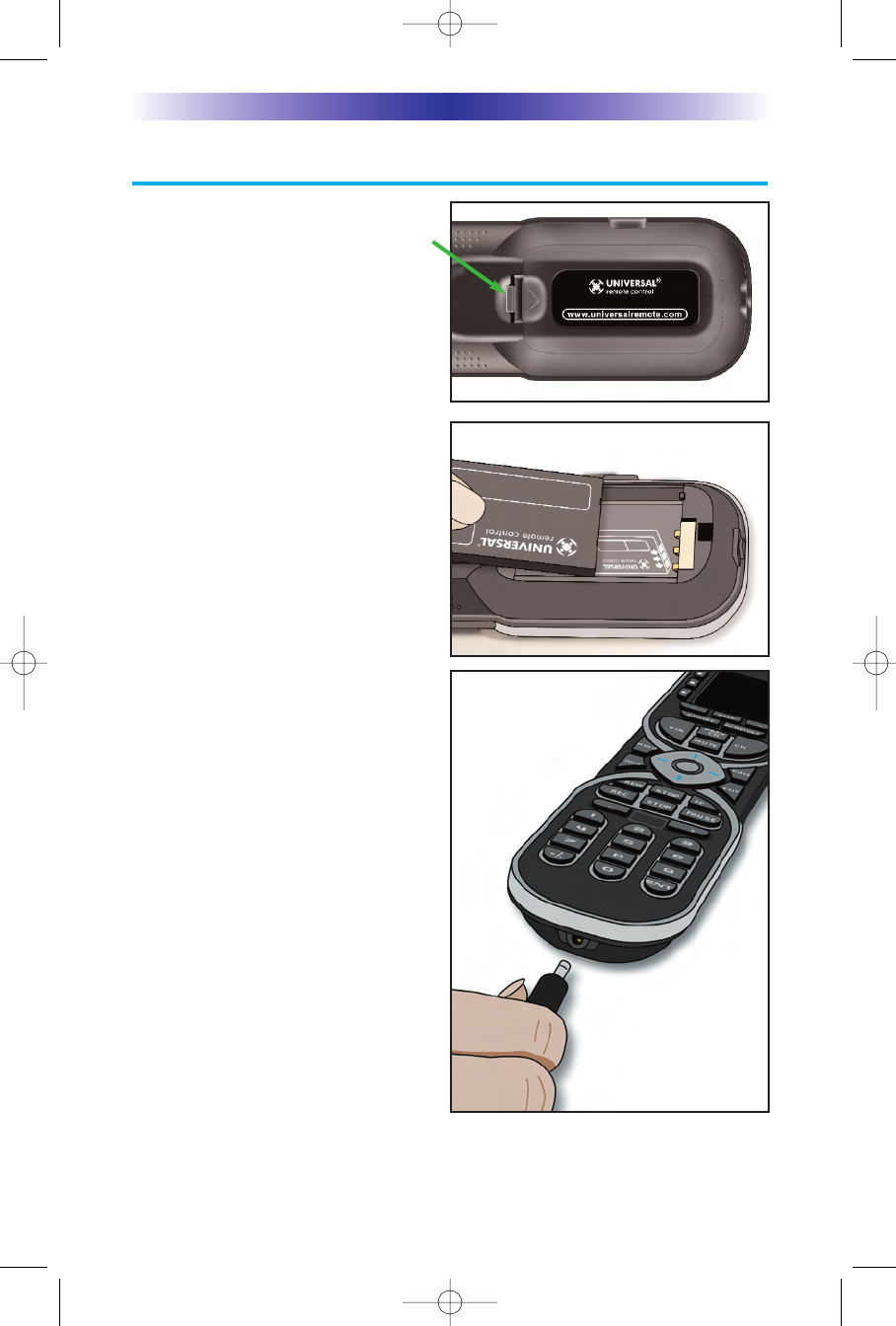

Installing and Charging the Battery
Open the battery cover by pressing
on the release clip and removing
the cover.
Note that the three contacts on the
battery must connect to the three
spring-loaded contacts in the MX-
880i. Angle the battery into the bat-
tery compartment, contacts first,
then gently fit the rear of the battery
into the compartment as well.
Replace the battery cover by insert-
ing the hinged end in first, then
snapping the cover back into place.
You can charge the Lithium Ion bat-
tery by simply plugging the includ-
ed charger into the base of the
remote as shown here.
The MX-880i can be used while
charging.
OCE-0056D_Rev01.qxd 11/10/08 5:24 PM Page 3
Page 4
MX-880i OWNERS MANUAL
Programming the MX-880i
The MX-880i is programmed via a Windows PC equipped with a USB
port (programming cable included), using our proprietary software,
MX-880i Editor.
To fully automate an audio/video system the programmer must have a
detailed knowledge of each component and how the system is connected
and operated. We highly recommend that you use a professional
audio/video installer to program your MX-880i so you will be able to
enjoy all the benefits of the MX-880i.
OCE-0056D_Rev01.qxd 11/10/08 5:24 PM Page 4
Page 5
MX-880i OWNERS MANUAL
Selecting a New “Activity”
The MX-880i’s WATCH and LISTEN buttons display the activities you can
control with your MX-880i. When you want to watch something else (a
DVD movie, a videotape or an HDTV broadcast), simply press the
WATCH button and select the new activity. When you want to listen to
the radio or to a CD, touch the LISTEN button and select what you would
like to listen to.
Your installer will have programmed the button you pressed to totally
configure your system to watch or listen to whatever you selected. Now,
the screen will change, and all of the LCD buttons will be reconfigured to
give you full control of your system while watching or listening to your
selection!
Press either of the PAGE buttons to see any other available choices.
When you press the LISTEN button,
you can see the most frequently used
activities you have for listening in
your system.
PAGE DISPLAY
At the bottom of the LCD screen, the
page display informs you if there are
other pages of buttons available.
When you press the WATCH button,
you can see the most frequently used
activities you have for watching the
sources in your system.
OCE-0056D_Rev01.qxd 11/10/08 5:24 PM Page 5
Page 6
MX-880i OWNERS MANUAL

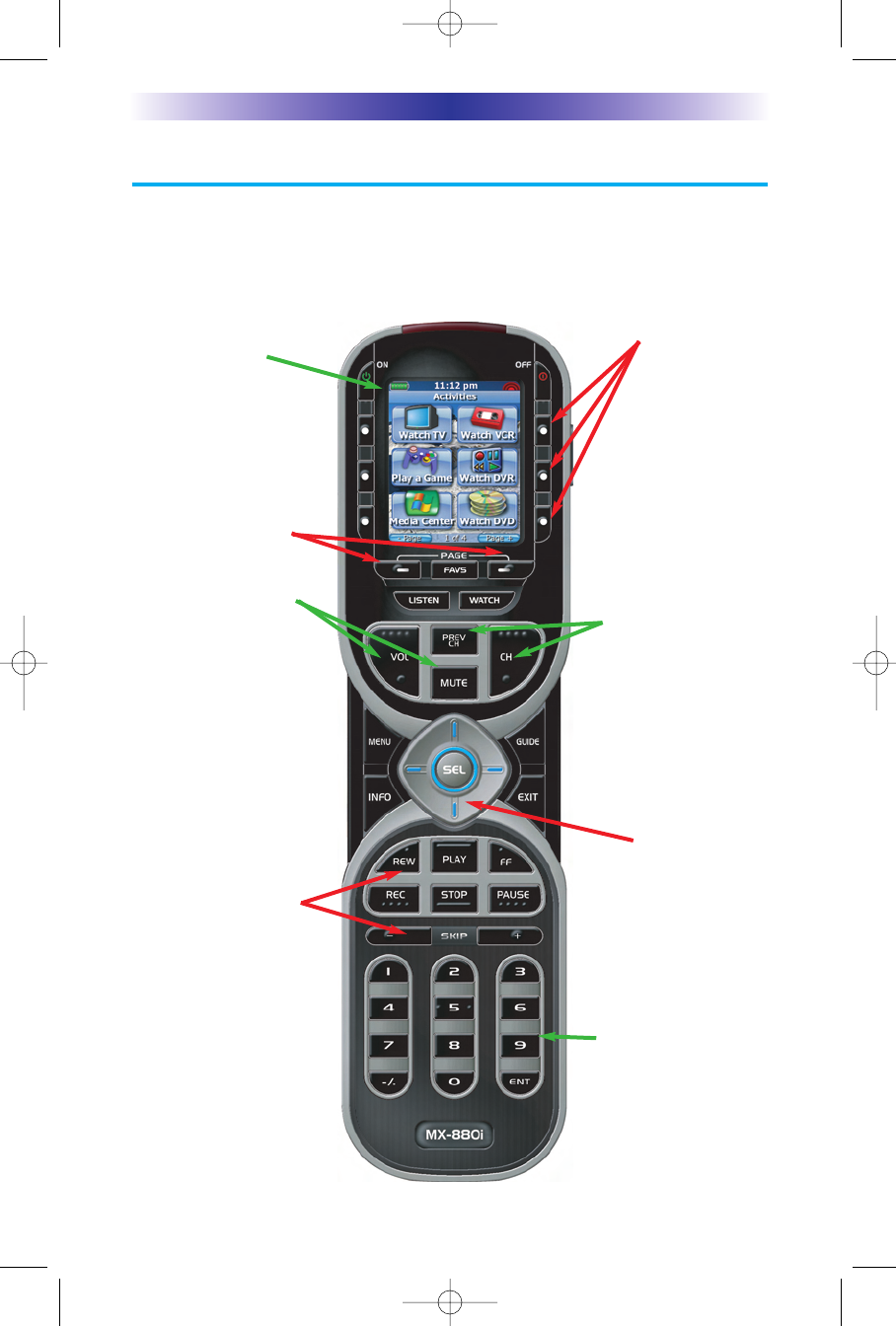

Using the MX-880i to Control an “Activity”
Once you’ve selected a new activity, the MX-880i displays the title of the
activity at the top of the screen. Below the title, the LCD displays the cus-
tomized names of any special features you need for the activity. All the
hard buttons of the MX-880i have now changed to functions optimized
for this activity.
The Title displays
what activity you
can control.
The Volume and
Mute buttons always
control the sound
regardless of what
screen is displayed.
Press either of the
PAGE buttons to
see any other avail-
able choices.
The transport buttons
(Play, Stop, Skip-, Skip+,
FF, REW and Pause)
operate when the select-
ed activity requires them
(for example, if you
watch CABLETV with a
TiVo type of DVR, these
buttons will control the
built-in DVR, while if
you are watching a
DVD, these buttons will
control the DVD player).
The 4 way cursor
buttons enable you
to navigate on
screen guides and
menus with ease.
The Channel and
Previous Channel
buttons will change
channels when you
have selected an
activity like Watch
CABLETV or
Watch SAT TV .
The Number keypad
will enter numbers
for the activity you’ve
selected. Thus, for
watching Cable TV,
you use the number
keypad to enter chan-
nel numbers, while
when listening to CD,
the number keypad
enters track numbers.
The LCD button
labels describe
special features
for this activity.
OCE-0056D_Rev01.qxd 11/10/08 5:24 PM Page 6

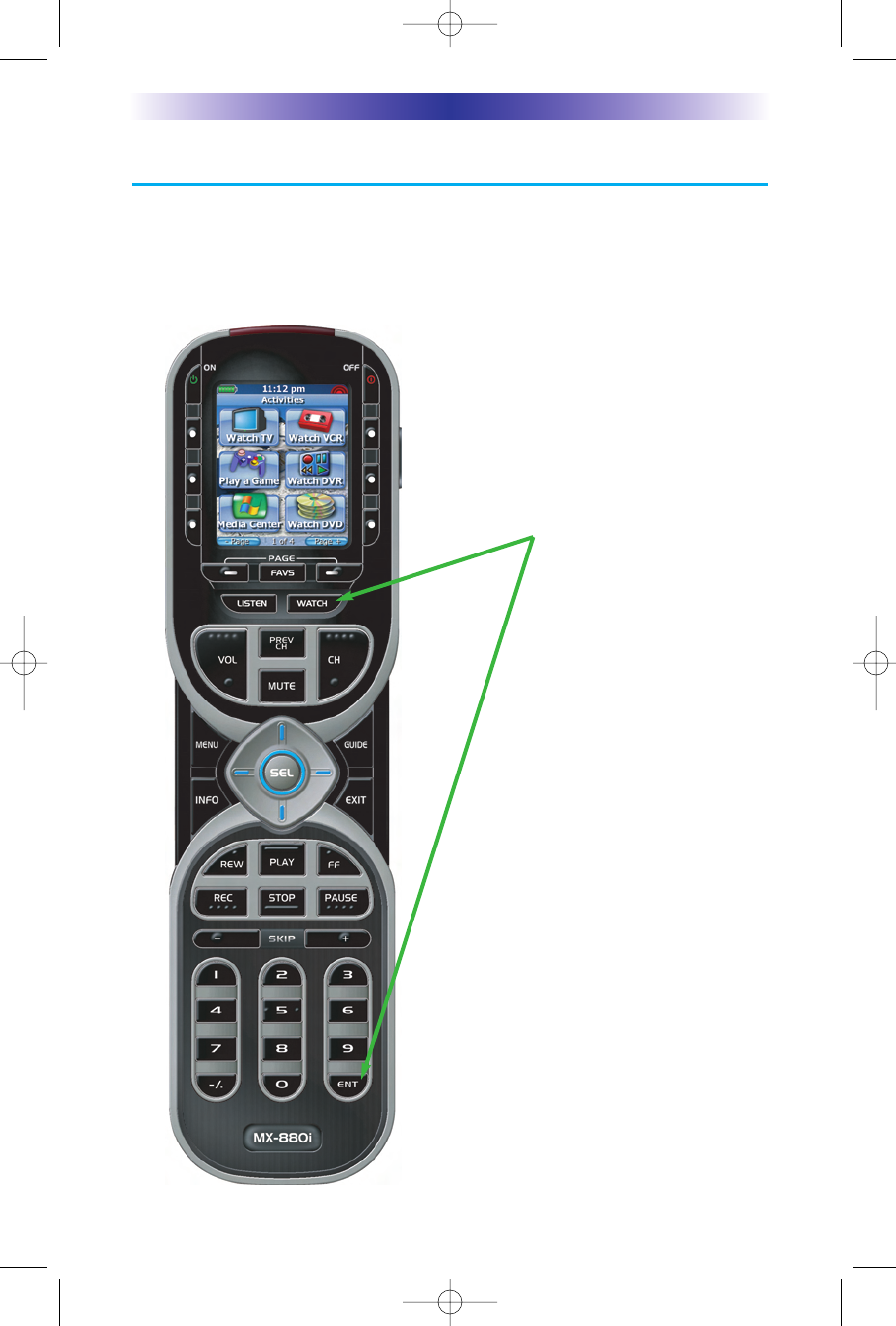

Accessing the MX-880i’s Setup Menus
The MX-880i has internal setup menus that enable you to change the set-
tings that control your color screen, the button lighting, battery warnings
and the clock. To access these settings, you must press and hold two buttons
at the same time as shown here:
At the same time, press and
hold both the WATCH but-
ton and the ENTER button.
When the SETUP screen
appears, you can release the
two buttons.
MX-880i OWNERS MANUAL
Page 7
OCE-0056D_Rev01.qxd 11/10/08 5:24 PM Page 7

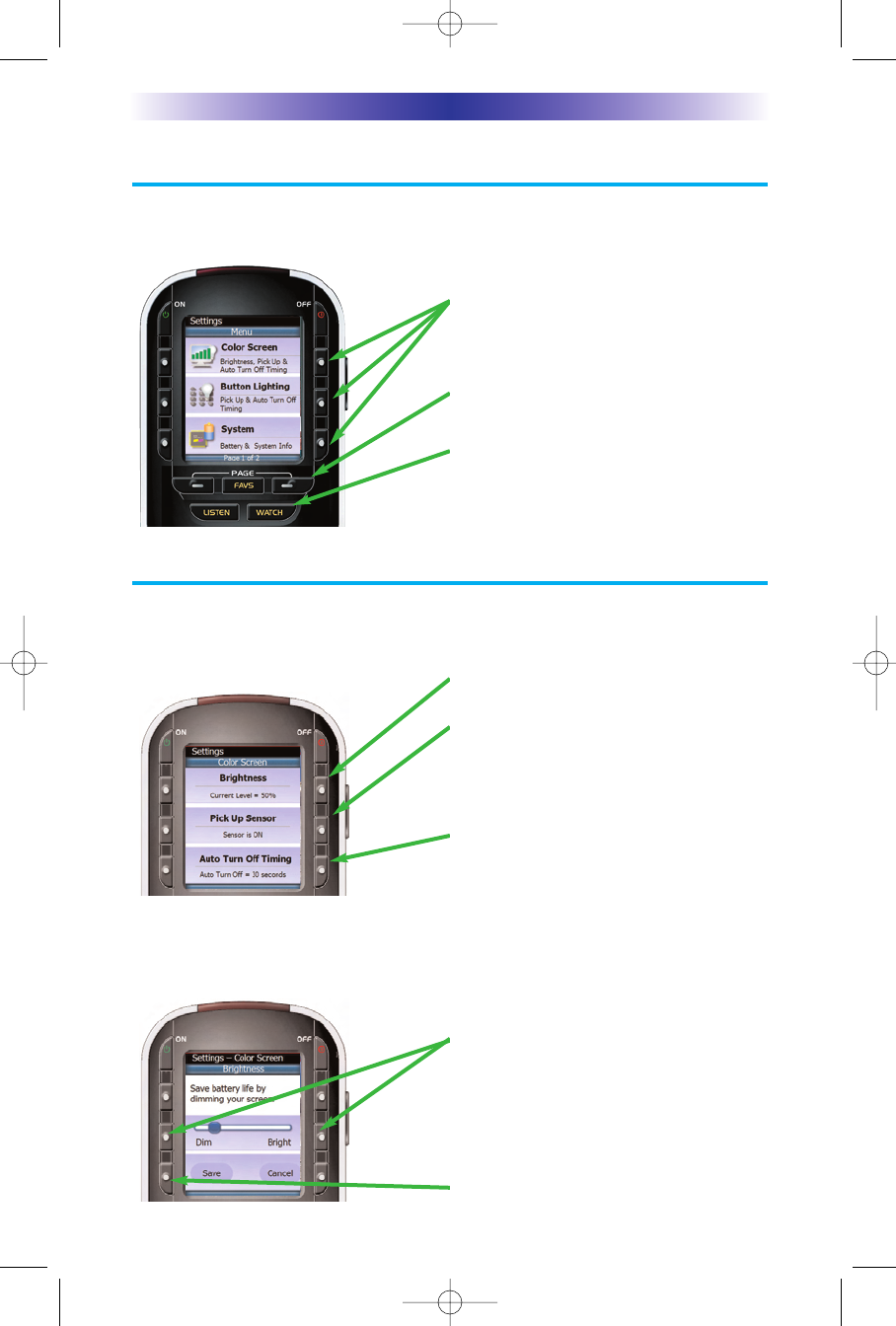

Selecting from the Setup Menus
There are two pages of settings on the Setup Menu. Use the page buttons to
view them. To select, simply press the corresponding button.
Setting the Color Screen
Although usage of the color screen will affect how frequently you have to
charge the battery, the screen does not drain the battery as quickly as the
button lighting does.
Setting Brightness
Use the buttons next to DIM and BRIGHT to adjust the brightness. You’ll
see the screen dim and brighten. When you have the right setting, press
SAVE. Pressing Cancel discards all changes.
Page 8
MX-880i OWNERS MANUAL
Select the setting you’d like to adjust by pressing the
button beside the screen.
Use the Page button to see other pages.
Exit the Setup Menus by pressing the WATCH or LIS-
TEN button, or simply waiting (the setup menus time
out in 30 seconds).
Adjust the brightness of the screen to taste. In most
lighting conditions, 50% gives good results.
The Pick Up sensor senses motion, so it will keep
the screen on (and drain your battery charge) as
long as you are holding it in your hand. If you turn
off the Pick Up sensor you will extend battery life
(the screen will still light up when you press any
button).
Adjust how long the screen stays lit after you put it
down or stop using it here.
Use the DIM and BRIGHT buttons to adjust the
lighting of the color screen.
Press the SAVE button to save your setting.
OCE-0056D_Rev01.qxd 11/10/08 5:24 PM Page 8
Page 9
MX-880i OWNERS MANUAL

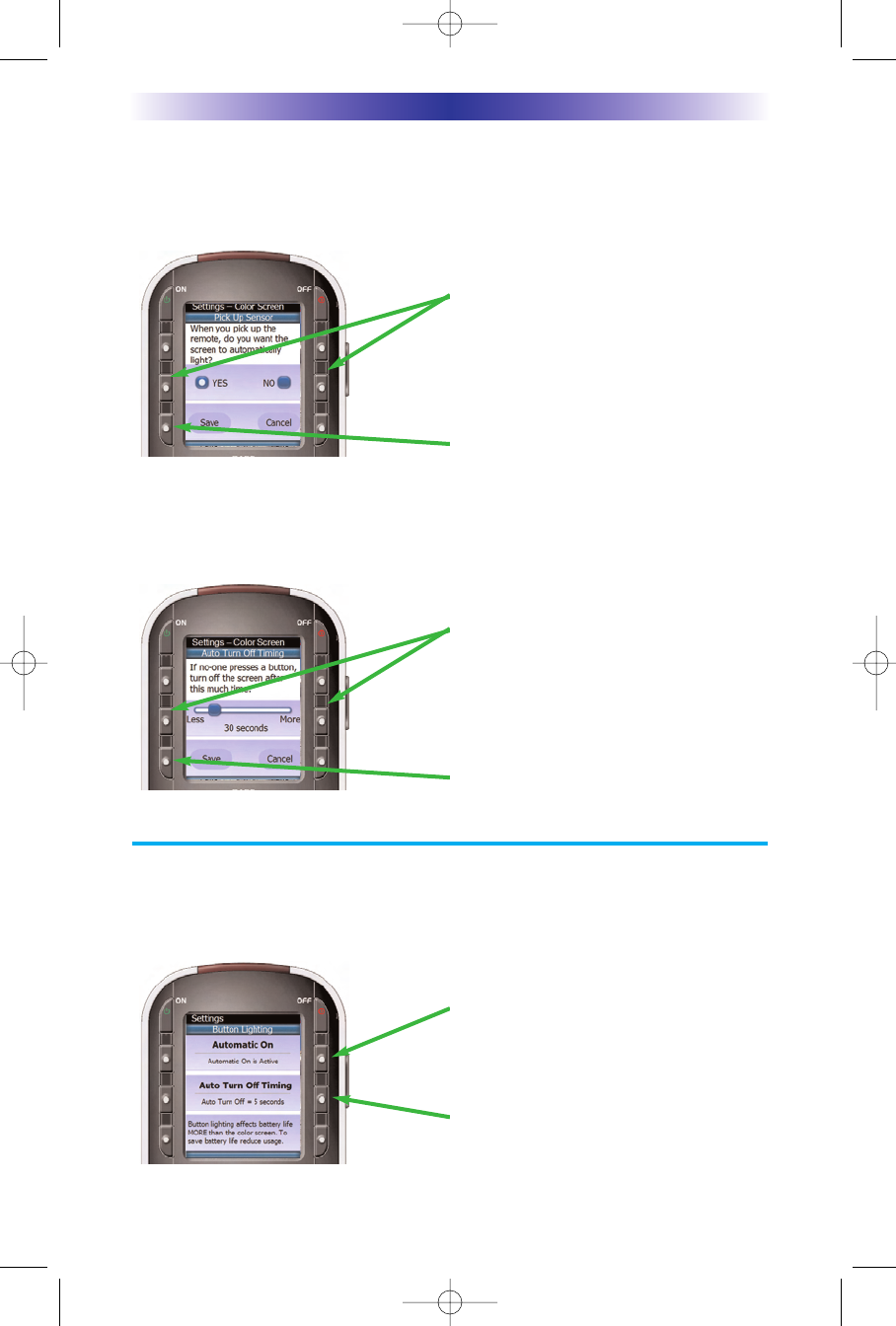

Setting the Screen Pick Up Sensor
Use the buttons next to YES and NO. If you say YES, the color screen will
light as long as you are moving the MX-880i. If you say NO, the screen
will light when you press any button.
Setting the Screen Auto Turn Off
Use the buttons next to LESS and MORE to adjust the amount of time the
screen will stay lit when you stop moving it (Pick Up Sensor ON) or when
you stop pressing buttons (Pick Up Sensor OFF).
Setting the Button Lighting
Note that button backlighting uses more battery charge than the screen.
So if you would like to extend the time between charges, lower the usage
of button lighting.
If you turn off Automatic On you will extend battery
life (the buttons will still light up when you press the
light button).
The buttons will stay lit for so many seconds after
you stop pressing buttons. Adjust to your preference
by pressing this button.
Use the YES and NO buttons to set the Pick Up sen-
sor.
Press the SAVE button to save your setting.
Use the LESS and MORE buttons to set the Auto
Turn Off timing.
Press the SAVE button to save your setting.
OCE-0056D_Rev01.qxd 11/10/08 5:24 PM Page 9
Page 10
MX-880i OWNERS MANUAL

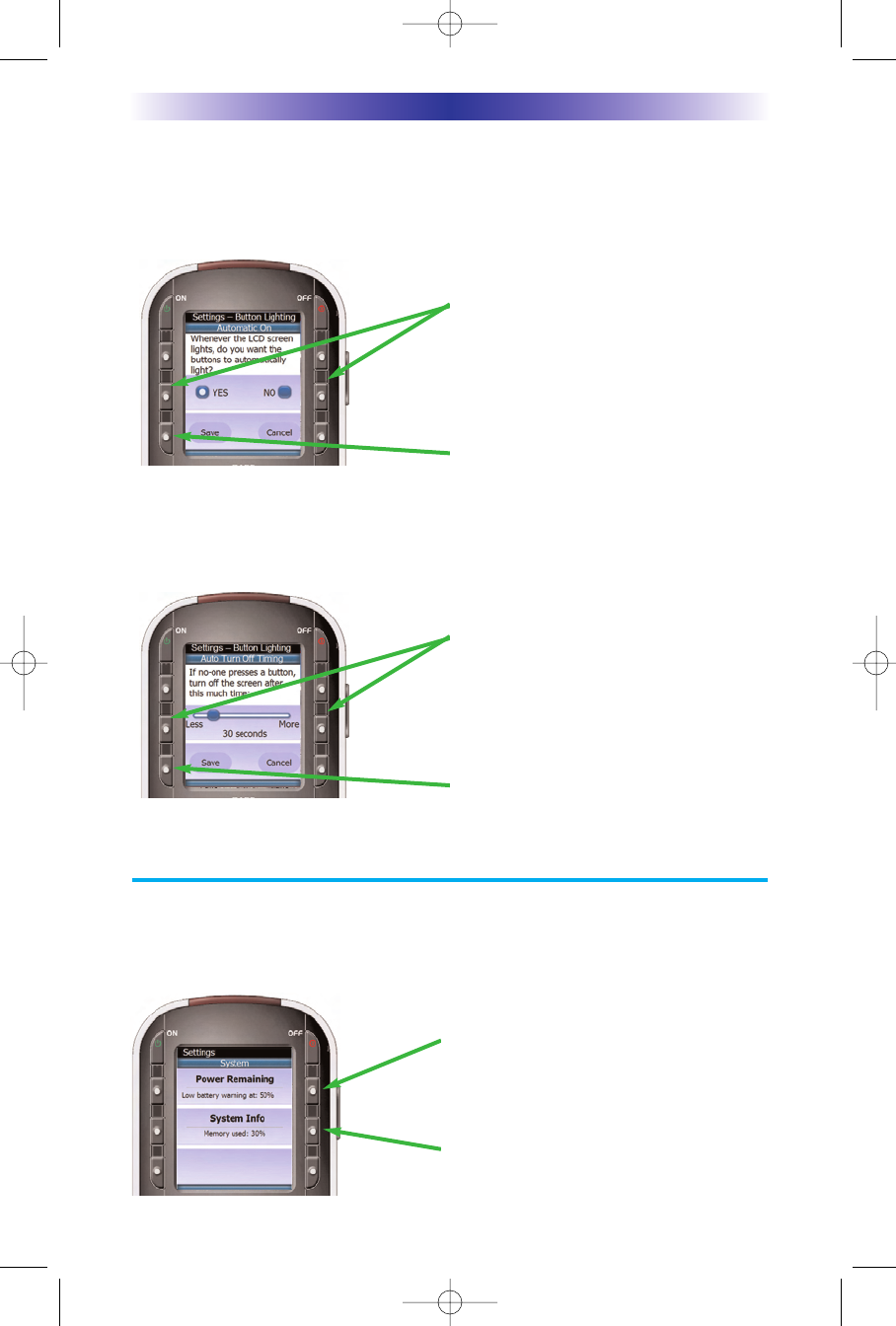

Setting Button Lighting Automatic On
Use the buttons next to YES and NO. If you say YES, the buttons will light
whenever the LCD screen is on. If you say NO, the buttons will only light
when you press the LIGHT button.
Setting the Button Lighting Auto Turn Off
Use the buttons next to LESS and MORE to adjust the amount of time the
buttons will stay lit when you stop moving it (Pick Up Sensor ON) or
when you stop pressing buttons (Pick Up Sensor OFF).
System Menu
While you are using the MX-880 you can get a more accurate reading of
the exact power remaining by checking the System Menu. Additionally,
the System Info page offers a look at how much memory you have used.
Select Power Remaining to check your power
remaining or to set a new battery warning level.
To view the system info, press here.
Use the YES and NO buttons to set the button back
lighting to automatically turn on or not.
Press the SAVE button to save your setting.
Use the LESS and MORE buttons to set the Auto
Turn Off timing.
Press the SAVE button to save your setting.
OCE-0056D_Rev01.qxd 11/10/08 5:24 PM Page 10
Page 11
MX-880i OWNERS MANUAL
Power Remaining and Battery Warning Settings
On this screen, you can see how much battery charge remains and you
can reset the “Low Battery” warning to either 10, 20 or 30 percent. The
battery indicator at the top left of the MX-880i screen will flash when
your low battery warning level is reached.
System Info
See how much memory you’ve used on this screen.
Setting the Button Beep Volume
Use the buttons next to OFF and LOUDEST to adjust how loud the beeps
are.
Use the OFF and LOUDEST buttons to set the Beep
volume.
Press the SAVE button to save your setting.
Use the LESS and MORE buttons to set the battery
warning.
Note the current remaining battery charge here.
Press the SAVE button to save your setting.
You cannot make any changes to the data displayed
on this screen. It is informational only.
Press the OK button to exit.
OCE-0056D_Rev01.qxd 11/10/08 5:24 PM Page 11
Page 12
MX-880i OWNERS MANUAL
Date and Time Menus
Via the three menus for Date and Time you can set the date, set the time
and opt to display either the date or the time.
Setting Time
Tap the button beside hour or minutes then use the number keys to enter
the correct time. Set the AM/PM by toggling the button. When the time is
correct, press the SAVE button.
Setting Date
Tap the button beside day, month or year then use the number keys to
enter the correct date. When the date is correct, press the SAVE button.
Setting Display for Time or Date
The MX-880i can display either the time or the date, not both. Select
what you would like to be displayed and press SAVE.
Select either Time or Date display.
Press the SAVE button to save your setting.
Select the field you’d like to change, then use the
Number buttons on the MX-880i to enter the year,
the month and the day.
Press the SAVE button to save your setting.
Select the field you’d like to change, then use the
Number buttons on the MX-880i to enter hours or
minutes.
Press this button to change AM to PM or PM to AM.
Each press changes the setting. When it is correct,
press SAVE.
Press the SAVE button to save your setting.
OCE-0056D_Rev01.qxd 11/10/08 5:24 PM Page 12
Page 13
MX-880i OWNERS MANUAL

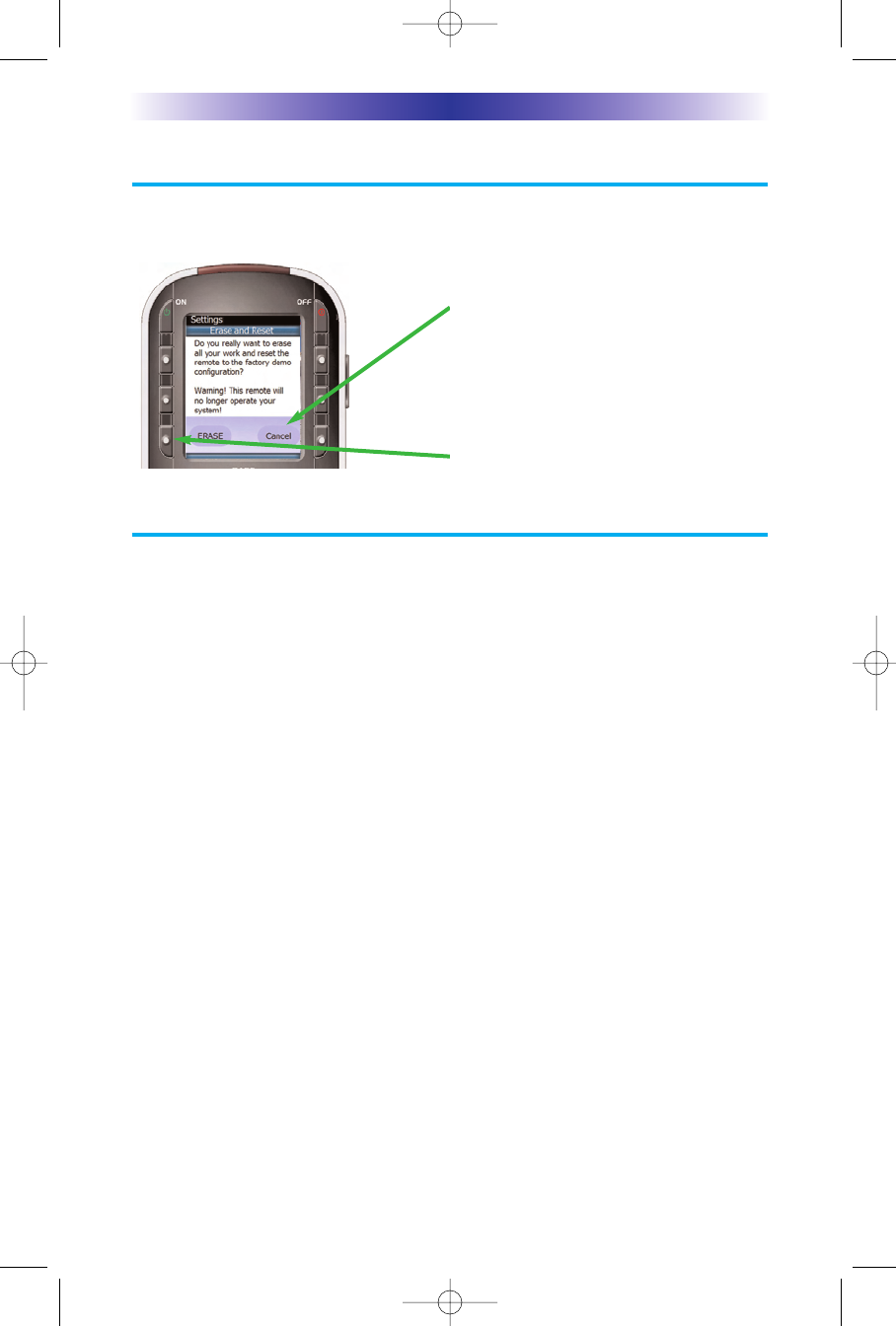

Erasing and Resetting
You can erase your MX-880i (all of your work, all devices, all activities
will be lost) and reset it to the factory default configuration.
USA Limited Warranty Statement
Your Universal Remote Control, when delivered to you in new condition, is warranted
against defects in materials or workmanship as follows: UNIVERSAL REMOTE CONTROL,
INC. warrants this product against defects in material or workmanship for a period of one
(1) year and as set forth below. Universal Remote Control will, at its sole option, repair the
product using new or comparable rebuilt parts, or exchange the product for a comparable
new or rebuilt product. In the event of a defect, these are your exclusive remedies.
This Limited Warranty covers only the hardware components packaged with the Product. It
does not cover technical assistance for hardware or software usage and it does not cover
any software products whether or not contained in the Product; any such software is pro-
vided "AS IS" unless expressly provided for in any enclosed software Limited Warranty.
To obtain warranty service, you must deliver the product, freight prepaid, in its original
packaging or packaging affording adequate protection to Universal Remote Control at the
address provided in the Owner's Manual. It is your responsibility to backup any macro
programming, artwork, software or other materials that may have been programmed into
your unit. It is likely that such data, software, or other materials will be lost during service
and Universal Remote Control will not be responsible for any such damage or loss. A
dated purchase receipt, Bill of Sale, Installation Contract or other verifiable Proof of
Purchase is required. For product support and other important information visit Universal
Remote Control's website: http://www.UniversalRemoteControl.com or call the Universal
Remote Control Customer Service Center (914) 835-4484.
This Limited Warranty only covers product issues caused by defects in material or work-
manship during ordinary consumer use. It does not cover product issues caused by any
other reason, including but not limited to product issues due to commercial use, acts of
God, third-party installation, misuse, limitations of technology, or modification of or to any
part of the Universal Remote Control product. This Limited Warranty does not cover
Universal Remote Control products sold as USED, AS IS, REFURBISHED, so-called "B
STOCK" or consumables (such as batteries). This Limited Warranty is invalid if the factory-
Use the CANCEL button to exit without erasing.
Press the ERASE button to erase all your work.
OCE-0056D_Rev01.qxd 11/10/08 5:24 PM Page 13
Page 14
MX-880i OWNERS MANUAL
applied serial number has been altered or removed from the product. This Limited
Warranty is valid only in the United States of America. This Limited Warranty specifically
excludes products sold by unauthorized resellers.
UNIVERSAL REMOTE CONTROL SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY
OR CONDITION ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY
APPLICABLE LAW, THERE IS NO OTHER WARRANTY EXPRESSED OR IMPLIED. UNIVER-
SAL REMOTE CONTROL WILL NOT BE HELD RESPONSIBLE FOR STATEMENTS MADE
BY OTHERS CONCERNING THE MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE ON THIS PRODUCT. Some states or jurisdictions do not allow the exclusion or
limitation of incidental or consequential damages, or allow limitations on how long an
implied warranty lasts, so the above limitations or exclusions may not apply to you. This
Limited Warranty gives you specific legal rights and you may have other rights which vary
from state to state or jurisdiction to jurisdiction.
Specifications
Memory - 32 Megabits of Flash Memory Total (28 Megabits for User
Configuration)
Customization Capability - Up to 48 devices and up to 8 pages each for a
total of 384 pages.
Learning Capability - Standard frequencies (15kHz to 460kHz)
Macro Capability - Up to 255 steps each
IR Range (Line of Sight via Infrared): 30-50 feet, depending on the environment
RF Range (radio frequency): 50 to 100 feet, depending upon the environment
RF Frequency: 433MHz
Weight: 6.9 ounces (with battery loaded)
Size: 8” H x 2.25” W x 1.25” D
Battery: Lithium Ion rechargeable battery included
Contact Us
Need assistance or have questions?
Our Customer Service Support Center is here to help.
Call (914) 835-4484 to speak with a customer service
representative or email us at techsupport@universalremote.com
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
www.universalremote.com
OCE-0056D_Rev01.qxd 11/10/08 5:24 PM Page 14
Page 15
MX-880i SETUP NOTES
Your Listen Devices
List any component or device you’d like to access via the Listen menu:
Type of Device (TV, DVD, VCR etc.) Brand Model
OCE-0056D_Rev01.qxd 11/10/08 5:24 PM Page 15
Page 16
MX-880i SETUP NOTES
Your Watch Devices
List any component or device you’d like to access via the Watch menu:
Type of Device (TV, DVD, VCR etc.) Brand Model
OCE-0056D_Rev01.qxd 11/10/08 5:24 PM Page 16
Page 17
MX-880i SETUP NOTES
Regulatory Information to the user
FCC Compliance statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, Pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harm-
ful interference in a residential Installation.
This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used In accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a par-
ticular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment by turning
the equipment off and on, the user is encouraged to try to correct the
interference by one more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
Caution
Changes or modifications not expressly approved by the manufactur-
er could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any Radio or TV interfer-
ence caused by unauthorized modifications to this equipment.
Such modifications could void the user’s authority to operate the
equipment.
CE conformity Notice
Products with “CE” marking comply with the R&TTE Directive
1995/5/EC, EMC Directive 2004/108/EC and Low Voltage Directive
2006/95/EEC issued by the commission of the European Community.
OCE-0056D_Rev01.qxd 11/10/08 5:24 PM Page 17
Page 18
MX-880i SETUP NOTES
1) R&TTE Directive
Safety : EN 60950-1
EMC : ETSI EN 301 489-1,3
RF : ETSI EN 300 220-1,2
2) EMC Directive
Emission : EN 55022
Immunity : EN 55024
Power : EN-61000-3-2, 3
3) Low Voltage Directive
Product safety : EN 60950-1
Safety instruction for charging internal rechargeable battery of
remote control Caution
Use only with EN60950-1 approved as Limited power source and
double insulation( ) marked power adaptor & same ratings described
on the product label (5Vdc, 1.0A).
Precautions and Information Concerning
Rechargeable Lithium-Ion Batteries
If you will not be using your remote control for an extended period
of time, be sure to remove the battery
Do not attempt to disassemble, alter or apply heat to the battery.
Use care to avoid dropping the battery or subjecting it to severe
impact that could damage the case.
The battery should not be immersed in water.
Lithium Ion batteries are recyclable. For the address of a recycle
drop-off location near you call toll Free 1-800-822-8837 or visit
http://www.rbrc.com
Declaration of Conformity
“Hereby, Ohsung Electronics co.Ltd, declares that this MX-880i is in
compliance with the Essential requirements and other relevant provisions
of Directive 1999/5/EC.”
Certification
Type No.(Model No.) MX-880i
Manufacturer Ohsung Electronics Co.Ltd
Batch/Serial No. -
Power Rating 5.0V , 1.0A
Frequency band 433.92MHz
OCE-0056D_Rev01.qxd 11/10/08 5:24 PM Page 18
Page 19

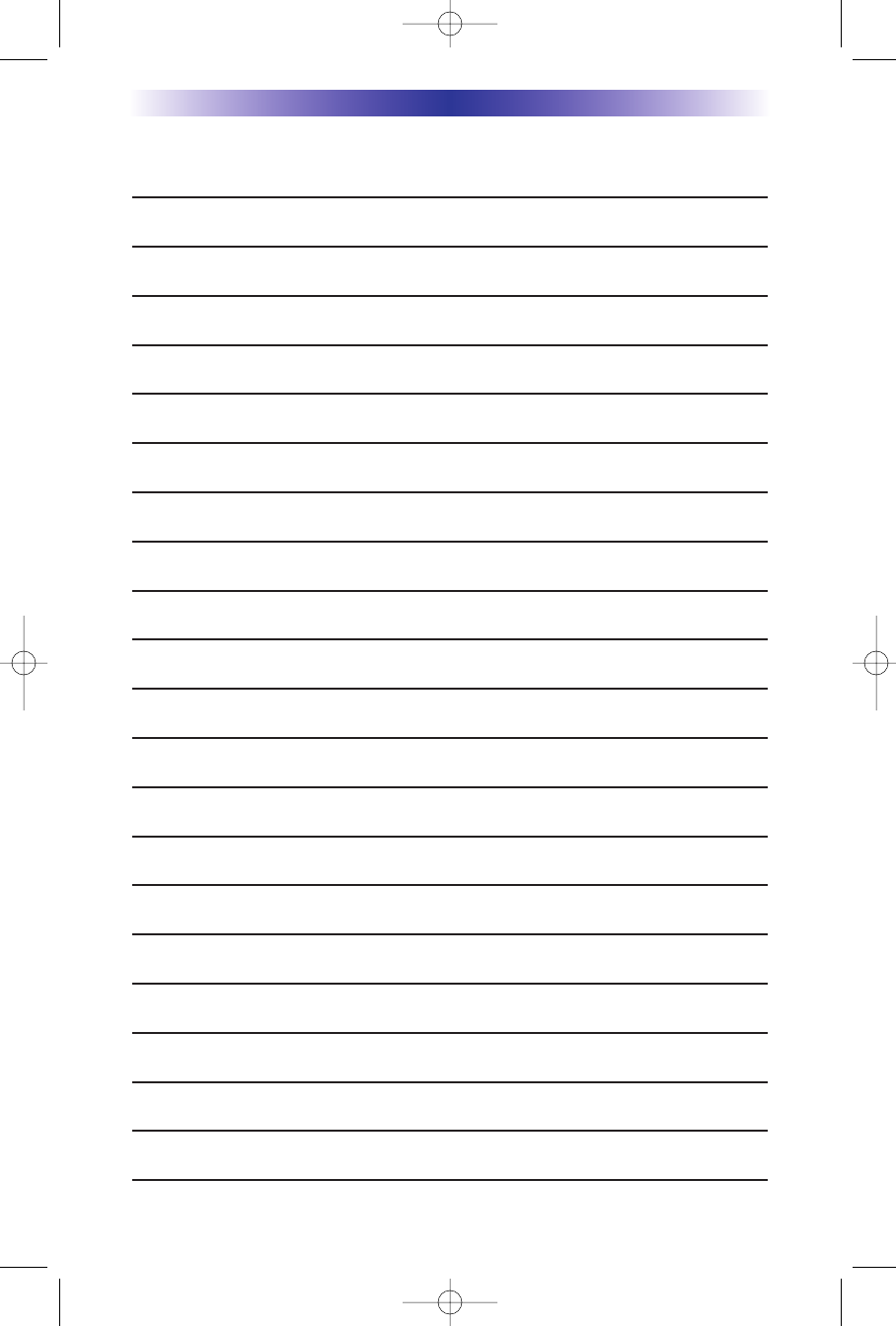

NOTE
OCE-0056D_Rev01.qxd 11/10/08 5:24 PM Page 19
Page 20
NOTE
OCE-0056D_Rev01.qxd 11/10/08 5:24 PM Page 20
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
www.universalremote.com
OCE-0056D Rev 01
OCE-0056D_Rev01.qxd 11/10/08 5:24 PM Page 21
