Ohsung Electronics URCMX350 RF REMOTE CONTROLLER User Manual EMISSION TEST REPORT
Ohsung Electronics Co., Ltd. RF REMOTE CONTROLLER EMISSION TEST REPORT
USERS MANUAL
Test Report No.: GETEC-E3-06-061
FCC Part 15 Subpart C
EUT Type: Remote Control
APPENDIX I
: USER’S MANUAL
FCC ID: OZ5URCMX350
Owner’s
Manual
Osiris Owner’s Manual © 2004 Universal Remote Control, Inc.
The information in this manual is copyright protected. No part of this manual may be copied or reproduced
in any form without prior written consent from Universal Remote Control, Inc. UNIVERSAL REMOTE CON-
TROL, INC. SHALL NOT BE LIABLE FOR OPERATIONAL, TECHNICAL OR EDITORIAL ERRORS/OMIS-
SIONS MADE IN THIS MANUAL. The information in this manual may be subject to change without prior
notice. Osiris is a registered trademark of Universal Remote Control, Inc. Power of Simple is a trademark of
Universal Remote Control, Inc. All other brand or product names are trademarks or registered trademarks of
their respective companies or organizations.
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
Thank You!
Thank you for purchasing the Osiris Pre-Programmed and
Learning Remote Control. This manual is designed to assist you
step-by-step as you setup the Osiris to replace all of your
remote controls and automate your home entertainment system.
TM
1
Table of Contents
Getting Started 2
Button Layout 3
Basic Setup 5
Pre-Programmed Method 5
Learning Method 9
Volume Control Punch Through 12
Advanced Operation 14
Advanced Setup 16
Editing Button Labels 16
Macro Button Setup 19
Favorite Channel Setup 21
Hiding and Adding Pages 23
Erasing 25
Cloning One Osiris to Another 26
Recalling Pre-Programmed Settings 27
Utilizing Optional RF Base Stations 28
IR/RF Signal Setting 31
ID # - Setting Base Station Address 33
EMITT - Setting IR Emitter Outputs 34
BLAST - Setting the Front Panel Blaster On or Off 35
Pre-Programmed Code Tables 37
Frequently Asked Questions 55
Warranty 56
Specifications 56
Memo 57
2
Getting Started
Congratulations!
You’ve purchased one of the most advanced and easy to setup control sys-
tems available. The Osiris’s built-in library includes thousands of different
brands and models of remote controls. In most systems, all you have to do
to setup the Osiris is enter which brands and models you own. If you own
a component too new to be in the library, the Osiris uses advanced learn-
ing technology to quickly set each Osiris button, one at at time. Setting up
your Osiris to replace all your existing remote controls can be done in a
few minutes. Basic Setup is described on pages 5 to 13.
The Osiris’s exciting advanced features automate and customize operation
in many ways. You could use Macro Setup to power on all of your compo-
nents and start the show with the press of one button! With the Osiris’s
unique Favorite Channel capability, you can tune in a channel with the
press of one button instead of entering the entire channel number. Any of
the button names on the display can be edited as you like. It is best to
delay any Advanced Setup (described on pages 14 to 36) until after you
finish Basic Setup.
Battery Installation
Remove the battery compartment cover by pressing up the cover lock.
Insert four AAA batteries into the battery compartment as shown in the
diagram.
The Osiris
+
+
+
+
-
-
-
-
3
MAIN
Button
takes you
to the
MAIN
Menu.
Screen
Labeled
Display
Buttons
LIGHT
Button
PAGE
Numbers
FUNCTION
Buttons
TITLE
FAVORITE
CHANNEL
Button
PAGE
Buttons
change the
page of
Display
Buttons.

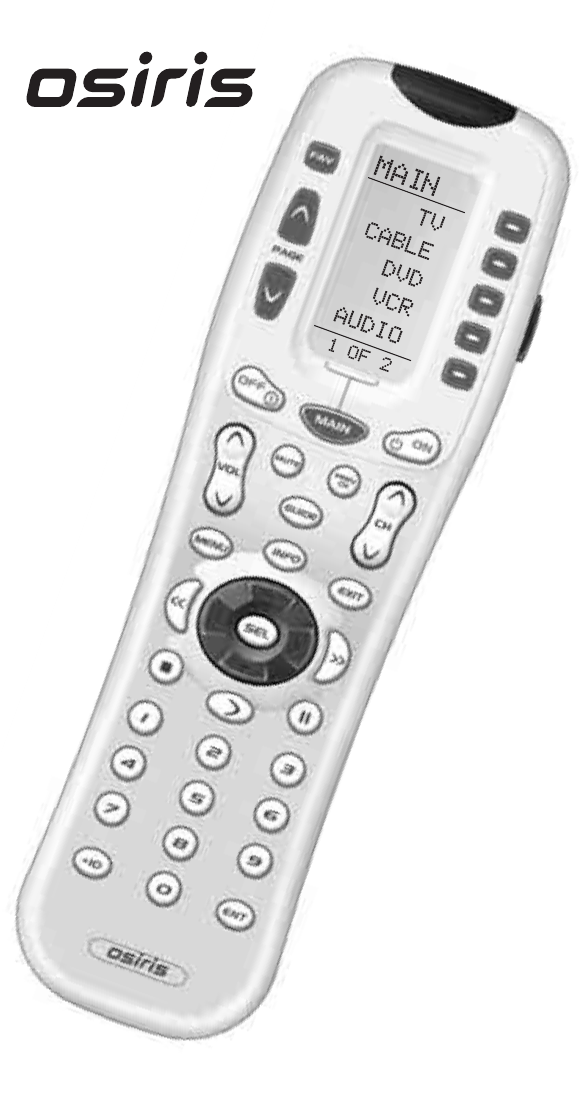

Button Layout
Universal Remote Control, Inc.
Transmitting
“Busy” Signal
Indicator*
*Note: When a command, macro or favorite channel is being transmitted, an icon will appear
in the top right corner of the display. While the Osiris is “busy”, it will ignore a button push.
4
The Osiris
Selecting a New DEVICE Changes
All Button Commands Instantly
The Osiris can operate ten different devices even though it is only one
remote control. Let’s try it now! Press the MAIN button, then press the TV
DEVICE button.
The top of the screen changes from MAIN to TV. Now all of the buttons
change their function to operate a TV. Press the page buttons. Watch the
labels of the display buttons change with each press. There are five pages
of display buttons already labeled for TV operation. To operate another
component (e.g., VCR, DVD etc.), press the MAIN button to return to the
MAIN menu. The MAIN menu displays five of your Devices on the
screen. Simply press one of the screen-labeled Device buttons to operate
another device. If you don’t see the device name you want, then use the
PAGE buttons to display the remaining five devices on page 2 of the
MAIN menu.
Light Button
Press the LIGHT button to backlight all the buttons. To turn off the back-
lighting, press the LIGHT button again, or just wait ten seconds (the back-
lighting automatically shuts itself off).
TV
DEVICE
Button
MAIN
Button
LIGHT
Button
5
Basic Setup
You can start setting up your Osiris using either the Pre-Programmed
Method or the Learning Method. However, all the buttons of the Osiris are
setup at once with the Pre-Programmed Method, so it is usually faster than
the one-button-at-a-time Learning Method.
Pre-Programmed Method
Power on the A/V component you wish to setup, so that you can test
codes by sending power off commands.
Refer to the pre-programmed code tables on pages 37 - 51 and
write down the code numbers listed for your A/V component. The
code numbers are listed by categories of devices, then by brand.
See page 37 for a category list.
Press and hold both the MAIN and ENT (Enter) buttons for approxi-
mately three seconds. The top of the display will show “SETUP”.
You are in SETUP mode now.
Note: You have 30 seconds to perform a step while you are in SETUP mode. If
you don’t press a button within that time, the Osiris will time out and return to
normal operation.
MAIN
Button ENT
Button
1
2
3
Universal Remote Control, Inc.
6
Press the P-PRO button to select the Pre-Programmed Method.
The display changes so that you can select which Device button to
setup.
In this step you choose the name of the device you’d like to setup.
Use the cursor UP or DOWN buttons to change the flashing name.
When it is correct, press the SELECT button.
For Example: I wanted to setup the TV Device button first, so I pressed the
cursor UP or DOWN until “TV” was flashing in the display.
The bottom of the display will flash “FROM TABLE”.
P-PRO
Button
The Osiris
4
5
UP
SELECT
DOWN
Press a Page button to display the
other five Device names.
First
Five
Device
Names
7
In this step you verify the type of component you plan to operate
with this device button. If the flashing name is correct, press
SELECT.
If the name flashing in the display is incorrect (for example, you are setting up
AUX to operate a Laser Disc Player), use the UP and DOWN buttons to
change the flashing name to the correct type of component.
Note: Each name that appears in the display may include several types of
components. For example, the DVD category includes DVD players and
Laser Disc Players. See page 37 for a list of component types each Code
Table contains.
Point the Osiris at the component, then enter the first three digit
code number from your notes using the numbered buttons. After
you enter each three digit number, look at the component to see if
it turned off.
Continue to enter code numbers until the component powers off.
For Example: I have a Sony TV. I found the code numbers 070, 139,147,
126, 185, 194 and 085 under Sony in the TV TABLE. Using the numbered
buttons on the Osiris, I entered 070 and looked at the TV. It didn’t turn off,
so I entered 139, then 147 and so on, until I found the code that powered
off the TV.
6
7
SELECT
Use the
number
buttons to
enter the
code
number.
Universal Remote Control, Inc.
8
Note: If a component fails to turn off after you have entered all of the code
numbers listed for your brand, you can scan through the other brands in the
table using the UP and DOWN buttons to change the code number displayed,
then tapping either the Power On or Power Off buttons to see if the compo-
nent powers on or off (there is a chance that your component was actually
manufactured by another brand). However, most of the code tables are so
large it is usually faster to use the Learning Method on Page 9.
When the component turns off, save the code number you entered
by pressing the SAVE button that appears on the screen.
Exit SETUP mode by pressing the MAIN button two times. When
the display shows “MAIN”, you are back in normal operating
mode.
SAVE
Button
Code
Number
You
Entered
MAIN
Button
The Osiris
8
9
Scan Up to the next Code
Number
Scan Down to the previous
Code Number
Press Power On or Power
Off to test if the device
powers off.
9
Repeat steps one through nine for each of your devices. If you are
missing any commands, use the learning method, described next
Learning Method
The Osiris can learn commands from your old remote controls one-but-
ton-at-a-time by following these simple steps:
Line-up the Osiris with your old remote control, head-to-head,
one or two inches apart.
On the Osiris, press and hold the MAIN and ENT (Enter) buttons at
the same time for approximately three seconds. The top of the dis-
play will show “SETUP”. You are in SETUP mode now.
Note: You have 30 seconds to perform a step while you are in SETUP mode. If
you don’t press a button within that time, the Osiris will time out and return to
normal operation.
Press the LEARN button.
The top of the screen will change to “LEARN”.
10
Universal Remote Control, Inc.
LEARN
Button
1
2
3
The display will show a list of the first five devices.
Select the device you would like to teach commands to by pressing
the Device button.
Now, press any button you want to teach a command to.
Note: If you don’t see the display button you would like to teach, use the
PAGE buttons. The only buttons you can’t teach are the PAGE and MAIN but-
tons.
Once you press a button, the top of the display will change from
“LEARN” to “READY”.
10
The Osiris
4
5
6
Press any
of the
Device
Buttons.
Press
any
Button.
11
Press and hold the button you want on your old remote control until
the display changes to either “GOOD” or “FAILED”.
If the “GOOD” label appears on top of the display, you were successful.
Now, press the next button you wish to teach. Keep repeating steps 6
through 7 until you have learned all the buttons you want.
If the “FAILED” label appears on top of the display, try to teach the
same button in Osiris once again by repeating steps 6-7.
Continue to teach any commands from any of your remote controls
by repeating steps 5-7 (to go back to step five, press MAIN once).
Once you completed teaching all the buttons, return to normal opera-
tion by pressing the MAIN button twice. Test all your new commands.
If any of them don’t work, try learning again using these notes:
7
8
9
Move to another room. Plasma TVs, sunlight, halogen or
quartz lighting can interfere with the learning process.
Although the old remote control seems to work fine,
change the batteries to fresh alkaline batteries.
Vary the distance between the remote controls
gradually. Try 1/4”, 1”, 2”and so on, up to 4 feet.
Tap the button on the original remote control instead of
pressing and holding it during the learning process.
Universal Remote Control, Inc.
Volume Control Punch Through
In most home entertainment systems, the sound volume is only con-
trolled by one device. In some systems, it is the TV speakers that make
the sound, so you would use the TV device on the Osiris to raise and
lower the volume. In another system, it might be a surround sound
receiver and speakers that control the sound, so you would use the
Osiris’s AUDIO device to adjust the volume. Constantly switching the
Osiris to TV or AUDIO to adjust the volume is inconvenient in daily
life.
You can use Punch Through to set the Osiris’s volume buttons to always
control the sound in your system. That way when the Osiris is set to
VCR or DVD, the volume up, down and mute buttons will work perfect-
ly without switching back to AUDIO or TV. Here’s how:
Enter Setup mode by pressing and holding both MAIN and ENT for
three seconds. The top of the display show you are in SETUP mode
now.
Note: You have 30 seconds for each step, otherwise the Osiris will time
out automatically.
Press the PAGE UP button to get to page 2 of the SETUP menu.
Press the PUNCH button.
Press the VOL button. The display confirms by displaying “VOL” at the
top of the screen. This sets up the group of three buttons (Volume Up,
Volume Down and Mute) in one action!
The bottom of the display flashes ”PUNCH TO”.
12
The Osiris
1
2
3
Select
Volume
13
Press the device button for the device that doesn’t have volume
control commands yet (i.e.,DVD). This is the device you are going
to PUNCH TO for the volume and mute commands.
Note: If you wish to PUNCH to the MAIN device, press the POWER OFF
button at this time.
The bottom of the display will then flash “PUNCH FROM”. Now
you select the device that has the volume commands you want
(i.e.,TV for systems using the TV speakers, AUDIO for systems with
surround sound receivers). The bottom of the
display will flash “SAVED”.
Repeat steps 3-5 until all your devices operate the volume perfect-
ly. Press the MAIN button twice to return to normal operating
mode and test your Punch Through settings.
Note: The Punch Through feature is not limited to
volume and can also be applied to channel or other functions. If you find
yourself switching to a particular device frequently to use a group of con-
trols, consider using Punch Through for another group, as listed here:
VOL - Volume Up, Volume Down and Mute
CH - Channel Up, Channel Down and Prev. Channel
PLAY - Play, Stop, Pause, Rewind and Fast Forward
VOD - Guide, Menu, Info, Exit, Up, Down, Left, Right, Sel
POWER - Power On and Power Off
6
4
5
Universal Remote Control, Inc.
Select
the Device
you want to
“Punch To”
14
Advanced Operation
Setting Backlight Options
You can adjust the amount of time that the Osiris backlight stays on by
entering the SETUP mode and proceeding to page two (using the PAGE
UP button), then pressing the LIGHT button on the display (not the
Backlight button). Then enter the amount of time you would like the
light to stay on using the number pad (0-99 seconds). After making your
selection, press the SAVE button.
If you don’t want backlighting at all (this extends battery life), press the ON
button that appears on the screen. The ON will change to OFF. Press the
SAVE button. Exit the setup mode by pressing the MAIN button.
The FAV Button
When you press the FAV button, the display changes to a list of your
favorite TV channels. Each button can be set to instantly select the channel
on your TV. There are eight pages of five favorite channel buttons for a total
of 40. Simply touch the PAGE buttons to display the other favorite chan-
nels. To return to the last device you viewed, press MAIN once (a second
press will take you to the MAIN menu).
To setup your Favorite Channel buttons go to page 21.
The Osiris
Favorite
Channel
Buttons
FAV
Button
15
Adjusting Contrast
You can make the text darker by pressing both the MAIN and cursor UP
buttons at the same time. To make the text appear lighter, press both the
MAIN and cursor DOWN buttons at the same time.
Transmitting (Busy Signal) Icon
When a command is being transmitted, an icon will appear in
the top right corner of the display. It is a useful aid when setting
up Macros and FAVs, since it flashes with every step of a
sequence of commands.
Contrast set low.
Cursor
Up & Down
Buttons
MAIN
Button
Contrast set high.
Universal Remote Control, Inc.
16
Advanced Setup
After you’ve finished all your basic setup, you can choose to make opera-
tion easier by customizing the Osiris just the way you want, using the
Advanced Setup features described in this section.
Editing Button Labels
You can change the name of any of the display buttons (including
Favorite Channels) by following these steps:
Press and hold both the MAIN and ENT (Enter) buttons for approx-
imately three seconds. The top of the display will show “SETUP”.
You are in SETUP mode now.
Note: You have 30 seconds to perform a step while you are in SETUP mode. If you don’t
press a button within that time, the Osiris will time out and return to normal operation.
Press the EDIT button.
The display changes to the EDIT menu. Press the TEXT button.
The screen displays the list of devices and “EDIT” will appear at
the top of the screen. Navigate to the device and page where there
is a button label you want to EDIT, selecting between the FAV,
MAIN, DEVICE, then using the PAGE button.
The Osiris
TEXT
Button
1
2
3
4
EDIT
Button
17
Press the button you wish to edit. The first character of your button
label blinks.
5
Blinking
Character
EDIT flashes at the bottom of the screen.
Universal Remote Control, Inc.
A,B,C,1 D,E,F,2 G,H,I,3
J,K,L,4 M,N,O,5 P,Q,R,6
S,T,U,7 V,W,X,8 Y,Z,9
DOWN Cursor
button deletes the currently
blinking character.
UP Cursor
button deletes ALL text.
LEFT Cursor
button
moves blinking
character left.
RIGHT Cursor
button
moves blinking
character right.
Change the character by
using any of the number
keys. Each press of the
same number button selects
the next character of that
number’s group, as shown
here.
Once the character you
want appears, move to the
next space by pressing the
RIGHT cursor button.
6
18
When you are finished editing the button, press the button you
edited and “SAVED” will flash at the bottom of the display.
To change any other button labels on the same device, press the next
button, then repeat steps 6-8. If you wish to edit a button on another
device, press the MAIN button once, then repeat Steps 4-8.
Once you’ve finished editing buttons, press the MAIN button four
times to return to normal operation.
Edit the MAIN Menu Title or a MAIN Menu Device Label
You can change the title of the MAIN Menu or a MAIN Menu device
label by following these steps after you’ve entered TEXT Edit mode
(described in the steps one through four in the preceding pages).
Once you’ve entered TEXT Edit mode, the top of the screen displays
EDIT and the first five devices of the MAIN Menu. There are five
pages you can access via the Page UP or DOWN buttons.
When the
top of the screen says EDIT, pressing a device button jumps to the pages for
that device so that you can edit a device’s LCD buttons normally. However,
if you continue to tap the Page button, the top of the screen will change
from EDIT to MAIN. While it says MAIN, there are three pages of LCD but-
tons. The first two list the Devices of the MAIN Menu and enable you to
change the device names when pressed. The third page titled MAIN has only
one entry for the LCD buttons; “MAIN”. When you press the corresponding
hard button, you can relable the MAIN title itself.
Select the title to edit by pressing the adjacent hard button.
Edit the text (described on steps 5 and 6 on page 17).
Press the button you edited to save the changes. Here’s an example:
The Osiris
7
8
9
1
2
3
4
Each of the MAIN
menu device but-
tons has been cus-
tom labeled for
the activities the
user likes to use
out on the Patio.
The MAIN Menu
title has been
changed to PATIO,
so whenever the
MAIN button is
pressed, the user is
reminded that this is
the Patio remote.
19
Macro Button Setup
Imagine turning on your TV, your DVD player and your surround sound
receiver by pressing a single button on your Osiris! What would nor-
mally take three remotes and three button pushes, the Osiris can
accomplish with the press of one button. We call that a “Macro”. Any
of the Display buttons, the Power On or the Power Off buttons (on any
Device or Page) can be set to be Macro buttons!
To setup a macro button, follow these easy steps:
Enter the SETUP mode by pressing and holding both MAIN and
ENT for three seconds.
Note: You have 30 seconds for each step, otherwise the Osiris will time
out automatically.
Press the MACRO button. The top of the display will show
“MACRO”. The bottom of the display will flash “SELECT”.
Navigate to the Device and Page where there is a button you would
like to set as a Macro button using the MAIN, DEVICE, and PAGE but-
tons.
Advanced Options:
If you wish to set one of the DEVICE buttons as a macro, on step 3, press the
Page Up button twice. The top of the display changes to MAIN, and you can
navigate to MAIN page 1 or page 2 before going on to Step 4.
Another option for DEVICE button macros is to only send the macro if the but-
ton is pressed and held. This is setup by entering a delay as the first step of the
macro. The amount of delay determines how long the user must press the but-
ton before the macro is sent. The advantage of this option is that a normal
press of the DEVICE button will simply switch devices without issuing the
macro.
Press the button you want to set as a Macro button. The top of the
screen will display the label of the button you selected. At the bot-
tom of the screen it displays “STEP0”, indicating that no macro
steps have been entered yet.
Universal Remote Control, Inc.
1
2
3
4
20
Navigate to the Device and Page that has a button you want in your
macro using the MAIN, DEVICE and PAGE buttons. Then press the
button with the command you want. Whenever a button is pressed,
another Macro step is counted and displayed at the bottom of the
screen.
Don’t worry about the number of steps. Each macro button can
store up to 190 steps, so you are not likely to run out of steps!
Note: You can program delays in between commands by pressing the
PAUSE button. Each press adds half a second to the delay.
Press the LIGHT button to end your macro. A new screen displays
three choices:
Press the MAIN button twice to return to normal operation.
The Osiris
SAVE
Button
SAVE —
UNDO —
EXIT —
If you are happy with your macro, press the
SAVE button.
The UNDO button lets you erase the last step.
The EXIT button erases all the macro steps.
5
6
7
21
Favorite Channel Setup
Imagine surfing all your favorite channels, without ever typing in a
channel number. By simply setting up each of the favorite channel but-
tons, you can make TV, cable or satellite operation fun and easy. To
setup a Favorite Channel button, follow these steps:
Enter SETUP mode by pressing and holding both MAIN and ENT
for three seconds.
Note: You have 30 seconds for each step, otherwise the Osiris will time
out automatically.
Press the FAV display button.
The top of the display will show “FAV”. The bottom of the display
will flash “SELECT”.
Use the Page buttons until you can see the name (i.e., ABC, CBS,
NBC) of the favorite channel you wish to setup.
Press the favorite channel button you wish to setup. The top of the
screen changes to show the channel name. The bottom of the
screen displays “STEP0”, indicating that you have not entered the
channel number yet.
Press either the TV, SAT or CABLE Device button (select the device you
use to enter channel numbers).
Press each of the number buttons for the channel.
Note: Some brands of television require an ENT(Enter) command after the
channel numbers.
1
2
FAV
Button
3
4
5
Universal Remote Control, Inc.
6
22
Note: If a number is repeated when setting the channel (for example,channel
“33” or “522”) it is usually best to set a half second delay in between the
identical numbers by pressing the PAUSE button. Each press of the PAUSE
button increases the delay by a half second.
Press the LIGHT button after you enter the
channel number. A new screen appears:
To save the channel you entered, press the SAVE button. The
UNDO button lets you erase the last entry. The EXIT button erases
all entries for this button.
When you are finished setting up Favorite Channel buttons, press
the MAIN button twice to return to normal operation.
The Osiris
7
8
SAVE
Button
Use the PAUSE Button to set
delays between steps, each press
of the pause button increases the
delay by a half second.
23
Hiding and Adding Pages
Each of your Osiris Devices actually contains eight pages. However, only
five pages are visible in the factory default setting. Three pages are hid-
den in each device. If you wish to use the hidden pages, you can ADD
them. If you don’t want to use some of the existing pages, you can HIDE
them. You can add or hide pages on devices OR on your favorite chan-
nel pages using this simple process:
Note: Be sure to program your Macros before you hide pages with a poten-
tial macro step in them. You can’t access hidden pages during macro setup.
However, after you finish Macro setup, you can hide pages without affect-
ing operation of your macros.
Enter SETUP mode by pressing and holding both MAIN and ENT
for three seconds.
Note: You have 30 seconds for each step, otherwise the Osiris will time out
automatically.
Press the EDIT button.
Press the PAGE button.
“PAGE” appears at the top of the screen.
Universal Remote Control, Inc.
1
2
3
EDIT
Button
PAGE
Button
24
Navigate to any page, using the MAIN, DEVICE, FAV, and PAGE but-
tons.
When you select a page, the top of the screen
indicates whether you want to “ADD?” or “HIDE?” the page dis-
played. When you would like to change a page’s visibility, press the
LIGHT button.
You can continue to ADD or HIDE pages on other devices by repeat-
ing Steps 4 and 5.
When you are finished adding and hiding pages, press the MAIN but-
ton four times to return to normal operation.
The Osiris
4
5
6
7
This page is hidden.
To ADD it, press the
LIGHT button.
This page is visible.
To HIDE it, press the
LIGHT button.
MAIN
Button
DEVICE
Buttons
PAGE
Buttons
FAV
Button
25
Erasing
You can erase an individual button with a learned command, a macro
or a favorite channel. You can erase an entire Device’s learned com-
mand or macro buttons. You can also erase ALL your learned com-
mands on all devices or all your macros or favorite channels every-
where. If you really want a fresh start, it is possible to reset everything to
the factory default condition.
Erasing Learned Buttons, Macros or Favs
Enter SETUP mode by pressing and holding both MAIN and ENT
for three seconds.
Note : You have 30 seconds for each step, otherwise the Osiris will time
out automatically.
Press a PAGE button to display page two of Setup.
Press the ERASE button.
Press either the LEARN, MACRO or FAV button.
The following screen appears:
If you press ALL, the Osiris displays a SURE? button. After the SURE
button is pressed, all the buttons will be erased.
If you press DEVICE, a list of Devices will appear. Press the
device button that you wish to erase. The bottom of the screen
will flash ERASE twice, then ERASED.
If you press KEY, you’ll have to navigate to the Device and Page
you want using the MAIN, DEVICE and PAGE buttons. Press a
button to erase it. The bottom of the display will flash ERASE
twice, then ERASED.
To return to normal operating mode, press the MAIN button four times.
1
2
3
4
ALL —
DEVICE—
KEY—
Universal Remote Control, Inc.
26
Erasing the Entire Osiris
To erase EVERYTHING, press and hold both the MAIN and the STOP
buttons for 15 seconds. After 15 seconds, the RESET screen appears.
Press the SURE button to erase all of your settings and return to the fac-
tory default setup.
Cloning One Osiris to Another
If you own two or more Osiris, you can copy and transfer all the setup
from one Osiris to another. Just follow these easy steps:
Enter SETUP mode by pressing and holding both MAIN and ENT
for three seconds.
Note: You have 30 seconds for each step, otherwise the Osiris will time
out automatically.
Press a PAGE button to display page two of Setup.
Press the CLONE button.
Align the two Osiris head-to-head, about an inch apart.
Press the RECV display button on the new Osiris you would like to
setup by cloning.
Press the SEND display button on the Osiris you previously setup.
Press the START button on the new Osiris and then press the
START button on the Osiris you previously setup.
Note: Cloning typically takes about 40 seconds.
After completion, the cloned Osiris will flash “GOOD”.
Return to normal operation by pressing the MAIN button twice.
The Osiris
SURE
Button
1
2
3
4
5
6
7
8
27
Recalling Pre-Programmed Settings
If you didn’t write down the code numbers you setup your Osiris with,
you can recall them via this simple process:
Enter SETUP mode by pressing and holding both MAIN and ENT
for three seconds.
Note: You have 30 seconds for each step, otherwise the Osiris will time
out automatically.
Go to page two of the SETUP menu via the PAGE UP button.
Press the RECAL button. The display changes to the recall screens. The
screen automatically switches between four screens, alternately flash-
ing page one devices and code numbers then those for page two.
Note: Pay attention to the page numbers on the bottom of the screen. Page
1 code numbers are the ones setup for the Page1 Devices. Page 2 code
numbers are the ones setup for the Page 2 Devices.
Write down the code numbers as they appear.
Return to normal operation by pressing the MAIN button twice.
1
2
3
4
5
Universal Remote Control, Inc.
28
Utilizing Optional RF Base Stations
You can use the Osiris as you would your other remote controls. It trans-
mits very powerful line-of-sight output using infrared light commands
(invisible to the naked eye). When you point the Osiris at the components,
expect the range to be between 30 and 50 feet. When the remote is not
pointed in the general direction of the components, the range will vary
(depending on reflective surfaces, lighting, etc.).
However, the Osiris also sends radio signals in every direction. By pur-
chasing the MRF-100 or the addressable MRF-250 or MRF-300 base sta-
tions, you can operate your equipment with the Osiris 50 to 100 feet away
(through walls, doors, cabinets, inside or outside). Since the RF Base
Station picks up the Osiris's radio signals from any direction, regardless of
distance, the Osiris doesn’t have to be pointed!
Using MRF-250 or MRF-300 Addressable Base Stations
By installing an MRF-250 or MRF-300 base station you gain freedom from
interference from a nearby room, house or condo where someone else
might be using an RF remote control. Addressable base stations are
assigned one of 15 unique ID#’s. This allows multiple equipment loca-
tions in one house to be controlled by any Osiris. In operation it’s simple:
when you select a device located in the Den, the Osiris only talks to the
base station in the Den. When you select a device located in the Family
Room, the Osiris only talks to it!
When used with an MRF-250 or MRF-300 base station, the Osiris can be
programmed to control identical components, for example, a media room
array of TV’s . The intelligent routing of the MRF-250 or the MRF-300 base
station will send your commands only to the TV you want to control. The
other identical TV’s will not receive commands. Of course, if your system
utilizes identical satellite receivers, cable boxes, VCR’s or disc changers
you can utilize IR routing just as easily for them. If you have more than six
identical components, up to 15 addressable MRF-250’s or MRF-300’s can
be installed to control them (thus allowing up to 90 identical components
in one house).
Note: The Osiris's radio signals will not control components directly.
Components that came with "no pointing" radio remote controls cannot
be operated by the Osiris unless the component can be switched to standard
The Osiris
29
Universal Remote Control, Inc.
The RF Base Station converts radio signals to stan-
dard infrared commands and sends them out via a
built-in front blaster to components in the same
cabinet space.
The Osiris sends radio signal to
the MRF-100, MRF-250 or the
MRF-300 RF Base Stations.
Self-adhesive “flashers” (included with the MRF-250 or the
MRF-300) affix to the front panels of your components. The
flashers relay infrared commands to components out-of-sight of
the front blaster. The flashers plug into the rear flasher line out-
put jacks. Each flasher has a 10’ cable to easily reach compo-
nents on nearby shelves.
30
RF Settings Overview
The Osiris is factory set to work out of the box with an MRF-100 base sta-
tion, which is not addressable. The only setting that affects operation with
an MRF-100 is the RF/IR setting (to operate, the Osiris must be set to IR/RF
or RF- it will not operate the MRF-100 in IR mode). The Osiris will operate
with an MRF-250 or MRF-300 base station set to ID#0 with the factory
default settings. However, in order to gain the advantages of addressable
base stations (no interference between systems within one house or a
condo development with potential interference between two different con-
dos, turning the front blaster on or off, or routing identical commands to a
stack of identical televisions or satellite receivers etc.) you must reset the
Osiris and the Base Station ID# to any address other than ID#0. ID#0 is an
“open door” to any RF signal, it is not a true address. It is extremely useful
for testing whether any interference is present, since the base station’s STA-
TUS LED will flicker if interference is present. Once the base station is
moved to a location where the LED does not flicker, the ID# can be
changed to one of the other addresses.
Note that ID#0 does not allow any emitter or blaster configuration. Before
changing any emitter or blaster settings, you must reset the ID# to an
address other than 0. Here are the factory default RF settings of the Osiris:
IR/RF (Type of Signal) - All devices are factory set to send both an IR line of
sight signal and an omnidirectional RF signal.
ID# (Base Station Address) - All devices are factory set with ID #0.
EMITT (IR Emitter Line Output) - All devices are factory set to output IR com-
mands through ALL IR Emitter Line Outputs.
BLAST (Base Station Front Panel Blaster) - The blaster is factory set to be on.
Changing the RF Settings
Enter SETUP mode by pressing and holding both MAIN and ENT
for three seconds.
Note: You have 30 seconds for each step, otherwise the Osiris will time
out automatically.
Press the PAGE buttons until page three of Setup is displayed (RF is
the only choice on Page 3).
The Osiris
1
2
31
Press the RF button.
The RF Settings Menu appears. See the notes on the following
pages for more info on each option. Make your selection by press-
ing the button you want:
After you’ve made a new setting and SAVED your change, use the
EXIT button to return to the RF settings menu to change any other
setting. Once you are finished all settings, use the MAIN button to
return to normal operation
IR/RF Signal Setting
You can set the signal to be IR line-of-sight only, RF only or IR and RF
simultaneously. Additionally, you can set the signal the same way for ALL
ten of your devices OR you can set the signal differently for each device
(the plasma TV could be set to be IR line-of-sight only, while the DVD
player and the Satellite receiver are set to be RF only). A good reason to set
the signal to RF only is to prevent too much IR being sent to a sensitive
component from two arrivals at the front panel (one directly from the
Osiris, one from the RF base station). A good reason to set the signal to IR
only is that another room has an MRF-100 base station (no RF address) so
it will receive commands from the Osiris unless it is set to IR only.
Universal Remote Control, Inc.
3
4
5
RF Button
Signal (IR, RF or Both)
Base Station ID #
Emitters - ALL or a specific Emitter
Blaster - Turn the Blaster On or Off
Exit this Menu
32
From the RF Settings Menu, select IR/RF.
Decide whether you are changing the Signal for all devices or just
one of the devices of the Osiris.
Select ALL to change the signal settings to ALL
devices in the Osiris. Then, go to Step 4.
Select DEVIC to change the signal settings to
just one of the devices in the Osiris. Then, go
to Step 3.
The display changes to a list of the names of your devices. If you have
two pages of devices, pressing either of the page buttons will display
the other page. Select the device you would like to change IR/RF set-
tings, then go to Step 4.
Select the new setting by pressing the desired button, then press SAVE
to save your new setting and return to the RF settings menu.
The Osiris
1
2
4
3
Both IR and RF will be output
Only IR line-of-sight
Only RF will be output
Save the new setting
Exit this Menu without changing
the IR/RF settings
Select a device
Page
Buttons
display the
other page
of devices.
33
When you are installing a system within 100 feet of another equipment
location in the same home OR near a home, condo, yacht or motor
home that might potentially have an RF remote control of any kind, it is
recommended that you use an addressable base station and set the
address as described here.
You can operate up to 15 different equipment locations, each with an
MRF-250 or MRF-300 assigned a unique Receiver ID#. You program
each or all of your Osiris devices to the appropriate equipment location
by assigning the corresponding ID# in the RF Settings Menus.
From the RF Settings Menu, select ID#.
Decide whether you are changing the ID# for all devices or just one
of the devices of the Osiris.
Select ALL to change the ID# for ALL devices
in the Osiris. Then, go to Step 4.
Select DEVIC to change the ID# for just one of
the devices in the Osiris. Then, go to Step 3.
The display changes to a list of the names of your devices. If you have
two pages of devices, pressing either of the page buttons will display
the other page. Select the device you would like to change the ID#,
then go to Step 4.
Universal Remote Control, Inc.
ID # - Setting Base Station Address
1
2
3
Select a device
Page
Buttons
display the
other page
of devices.
Select the new setting by pressing the desired button, then press SAVE
to save your new setting and return to the RF settings menu.
EMITT - Setting IR Emitter Outputs
The MRF-250 and MRF-300 Base Stations enable you to route or
steer the IR commands from any Device to any or all of the IR
Line Outputs. This allows you to control identical devices using
the exact same IR commands (such as an array of television sets
in a media room or a stack of identical satellite receivers installed
in a central location with one satellite receiver dedicated to each
room with a television). Each button push (or macro step) is rout-
ed to the specific IR Line Output you’ve assigned to a device. In
the factory set default settings, the Osiris is set to route IR com-
mands from any device to ALL IR Line Outputs simultaneously. To
change the Osiris default settings follow these steps:
From the RF Settings Menu, select EMITT.
Decide whether you are changing the Emitter settings for all devices
or just one of the devices of the Osiris.
Select ALL to change the Emitter settings to
ALL devices in the Osiris. Then, go to Step 4.
Select DEVIC to change the Emitter settings to
just one of the devices in the Osiris. Then, go
to Step 3.
34
The Osiris
1
2
Displays the current ID#
Change the ID# to a higher number
Change the ID# to a lower number
Save the new setting
Exit this Menu without changing
the IR/RF settings
4
The display changes to a list of the names of your devices. If you have
two pages of devices, pressing either of the page buttons will display
the other page. Select the device you would like to change the
Emitter settings, then go to Step 4.
Select the new setting by pressing the desired button, then press
SAVE to save your new setting and return to the RF settings menu.
BLAST - Setting the Front Panel Blaster On or Off
The MRF-250 and MRF-300 Base Stations have a configurable
front panel high power IR LED or “blaster” for controlling compo-
nents in the same cabinet space without emitters attached to their
front panel. The front panel blaster can overpower or saturate the
sensors of some A/V components, so if intermittent operation
occurs, the blaster should be turned off.
The blaster is incompatible with a stack of identical components,
since all components will receive IR commands at once, no mat-
ter what device is selected. Turn off the front panel blaster by fol-
lowing the steps described on the next page:
35
Universal Remote Control, Inc.
3
4
Select a device
Page
Buttons
display the
other page
of devices.
Displays the Line Output # or ALL
Change the Line Output upwards
Change the Line Output downwards
Save the new setting
Exit this Menu without changing
the EMITT settings
From the RF Settings Menu, select BLAST.
Decide whether you are changing the Blaster for all devices or just
one of the devices of the Osiris.
Select ALL to change the blaster settings to
ALL devices in the Osiris. Then, go to Step 4.
Select DEVIC to change the blaster settings to
just one of the devices in the Osiris. Then, go
to Step 3.
The display changes to a list of the names of your devices. If you have
two pages of devices, pressing either of the page buttons will display
the other page. Select the device you would like to change IR/RF set-
tings, then go to Step 4.
Select the new setting by pressing the desired button, then press SAVE
to save your new setting and return to the RF settings menu.
36
The Osiris
1
2
4
3
Turn Blaster ON.
Turn Blaster OFF.
Save the new setting
Exit this Menu without changing
the BLAST settings
Select a device
Page
Buttons
display the
other page
of devices.
37
Pre-Programmed Code Tables
The Osiris’s Pre-Programmed code library is divided into categories (TV, VCR,
AUX, etc.). Each category actually includes many types of components. For
example, the VCR category includes TV/VCR combo units.
Within each category, the code numbers are listed in rows by brand
(Sony, Panasonic, B & K, etc.). Some brands have more than one three
digit code for you to try. Just circle the correct row and refer to it while
you setup (step-by-step instructions for using Pre-Programmed codes are
found on page 5).
TVs, Plasmas, Projectors and Monitors
Cable TV Descramblers/Tuners
DVD Players, TV/DVD Combos, TV/DVD/VCR
Combos, DVD Recorders, and Laser Disc Players
VCRs and TV/VCR Combos
Amps, Preamps and A/V Receivers
Satellite Receiver
CD Players and Changers
Digital Video Recorders (TiVo, Replay)
Tape Decks, Lighting Controls,
Custom Installation Products
Pages 38-40
Pages 40-42
Pages 42-44
Pages 45-47
Pages 47-49
Page 49-50
Pages 50-52
Page 52
Pages 52-54
TV
CABLE
DVD
VCR
AUDIO
SAT
CD
DVR
AUX
Universal Remote Control, Inc.
38
ADMIRAL 072 081 161 160
ADVENT 247
AKAI 197 146 248
A MARK 112 143
AMPRO 167 073 157 183
AMSTRAD 052
ANAM 043 054 056 080 112 131
AOC 197 004 112 058
APEX DIGITAL 006 310
AUDIOVOX 076 273
BARCO 233
BLAUPUNKT 088
BROKSONIC 238
CAIRN 201
CANDLE 197 002 003 004
CAPEHART 058
CETRONIC 043
CITIZEN 197 002 003 004 043 101 103 143
CLASSIC 043
CONCERTO 004
CONTEC 043 050 051
CORONADO 143
CRAIG 043 054
CROWN 043 143
CURTIS MATHES 197 101 004 143
CXC 043
DAEWOO 004 016 043 044 076 103 114 125 127 143
DAYTRON 004 143
DELL 319 320 321
DREAMVISION 235 345
DWIN 177 257
DYNASTY 043
DYNATECH 062
EIKI 187
ELECTROHOME 143 024 076 196
EMERSON 028 048 043 155 005 197 004 047 050 051 076 096 143 151 153 154
EPSON 324
ESA 323
FISHER 007 057
FUJITSU 198 246 346
FUNAI 028 043
FUTURETECH 043
GATEWAY 242 268
GE 160 144 165 073 197 008 009 034 056 074 130 155 161 004 091 157 183
GOLDSTAR 113 116 102 004 106 112 119 127 143
HALL MARK 004
HANNSPREE 381
HITACHI 011 163 166 004 009 010 012 023 075 143 158 072
HP 316 327 378
HYUNDAI 337 338
INFINITY 164
INFOCUS 230 330 333
INSIGNIA 350
JBL 164
JCPENNEY 004 024 197 008 009 030 065 101 143 156 160
JENSEN 013
BRAND CODE NUMBERS
TV - TVs, Plasmas, Projectors and Monitors
39
TV (continued) - TVs, Plasmas, Projectors and Monitors
JVC 038 034 070 083 145 199 210 240 241
KEC 043
KENWOOD 197 070
KLOSS 002 059
KMC 143
KTV 043 197 143 154
LG 113 116 102 004 106 112 119 127 143 243 284 363 365
LODGENET 072
LOEWE 164
LOGIK 072
LUXMAN 004
LXI 166 007 015 052 081 160 164
MAGNAVOX 164 059 197 003 060 061 004 063 064 127 022 160 094 239 226 273
MARANTZ 197 164 184
MATSUI 164
MAXENT 242
MEMOREX 007 072 004
METZ 088
MGA 197 004 024 028 042
MINERVA 088
MITSUBISHI 109 124 024 004 028 040 042 146 191
MTC 197 004 062 101
NAD 015 025
NEC 132 130 134 197 040 016 024 056 019 236 237 262 272
NIKEI 043
NUVISION 351
ONKING 043
ONWA 043
OPTONICA 019 081
OPTOMA 265 270
ORION 096
PANASONIC 034 056 080 092 164 208
PHILCO 197 003 059 060 064 164 004 024 056 063
PHILIPS 164 005 093 038 197 003 004 059 127 184 206 239 259
PIONEER 135 025 197 018 023 116 190 234 335
POLAROID 138 268 328 353 354 356 388
PORTLAND 004 143
PROSCAN 144 160 161 165 167
PROTON 004 131 058 143 171 173 193
QUASAR 034 056 092
RADIO SHACK 019 004 143 043 127
RCA 160 165 065 156 144 161 197 004 024 056 152 023 074 333
REALISTIC 007 019 043 047
ROCTEC 186
RUNCO 168 169 178 179 180 181 182 183 073 157 340
SAMPO 197 058 004 202
SAMSUNG 050 089 101 105 004 127 143 160 228 229 258
SANYO 166 007 020 053 057 082 187
SCEPTRE 276
SCOTT 028 043 004 048 143
SEARS 015 030 004 007 028 057 143 094 160 082 165 166
SELECO 189 200 205 227
SHARP 081 019 014 170 028 029 004 022 143 175 251
SIEMENS 088
SIM2 189 200 205 227
SIGNATURE 072
BRAND CODE NUMBERS
40
BRAND CODE NUMBERS
TV (continued) - TVs, Plasmas, Projectors and Monitors
SOLE 231 232
SONY 070 139 147 126 185 194 085 213 277 279
SOUNDESIGN 028 004 003 043
SPECTRICON 112
SSS 004 043
SUPRE MACY 002
SVA 328
SYLVANIA 197 003 059 060 063 064 164 044 160 127
SYNTAX OLEVIA 376
TANDY 081
TATUNG 056 062
TECHNICS 034 080
TECHWOOD 004
TEKNIKA 002 003 004 024 028 043 072 101 143
TELEFUNKEN 037 046 086 087
TELERENT 072
TERA 172
TMK 004
TOSHIBA 015 138 030 007 040 062 101 325
TOTEVISION 143
UNIVERSAL 008 009
VIDEO CONCEPTS 146
VIDIKRON 174 184 188 192 340
VIDTECH 004
VIEWSONIC 242
VIZIO 386 387
WARDS 004 008 009 019 028 060 061 063 064 072 074 143 164 034
WESTING HOUSE 076 280
WINBOOK 339
YAMAHA 197 004
YORK 004
YUPITERU 043
ZENITH 073 072 095 103 157 183 243 284
ZONDA 112
ABC 004 103 003 039 042 046 053
ADELPHIA 043 074
ADVANCED NEWHOUSE
043
ALTRIO 043
AMERICAST 099
ARCHER 005 007 014
ARMSTONG 074
AT&T BROADBAND
074
ATLANTIC BROADBAND
043 074
BELL SOUTH 099
BLUE RIDGE 043 074
BRESNAN 074
BRIGHT HOUSE 043 110
BUCKEYE COMM 074
CABLEVISION 043 074 108
CABLE - Cable Set Top Boxes
BRAND CODE NUMBERS
41
BRAND CODE NUMBERS
CABLE (continued) - Cable Set Top Boxes
CENTURION 092
CENTURY 007
CHARTER 043 074
CITIZEN 007
COGECO 074
COMBANO 080 081
COMCAST 043 074 110
COMSAT 074
COX DIGITAL 043 074
DIGICABLE 101
EAGLE 020 030 040
EASTERN 057 066
ECHOSTAR 106
ELECTRICORD 032
GEMINI 008 054
GENERAL ELECTRIC
072
GENERAL INSTRUMENT
074 103 104
GNC 099
GOLDEN CHANNEL
030
HAMLIN 049 050 055
HITACHI 103 055
INSIGHT 074
JERROLD 074 004 103 002 003 008 009 010 069
MAGNAVOX 010 012 064 079 095 094
MASSILLON 074
MEDIA ONE 107
MEDICOM 074
MEMOREX 052
MITSUBISHI 102
MOTOROLA 074 110 109 111
MOVIE TIME 028 032
MOXI 111
NCTC 074
NSC 015 028 038 071
OAK 031 037 053
PACE 043 074
PANASONIC 044 047
PARAGON 052
PHILIPS 006 012 013 020 085 095
PIONEER 043 103 034 051 063 076 105
PRUCER 059
PULSAR 052
RCA 047
RCN 074
RECOTON 098
REGAL 049 050
REGENCY 057
RODGERS 043
SAMSUNG 030
SCIENTIFIC ATLANTA
043 011 003 041 042 045 046
SEREN 043
SERVICE ELECTRIC
074
SHAW 074
SIGECOM 043
SONY 096 108
SPRUCER 047 078
42
BRAND CODE NUMBERS
CABLE (continued) - Cable Set Top Boxes
STARCOM 002 004 008 009
STARGATE 008 030 097 104
SUSQUEHANNA 043 074
TIME WARNER 043 074
TOCOM 039 040 056
TOSHIBA 052
UNITED CABLE 004 053
UNIVERSAL 005 007 014 032 035
VIDEOTRON 043
VIEWSTAR 012 015 018 086 087 088 089
WIDE OPEN WEST 043 099
ZENITH 052 060 093 100
AIWA 146
ALPINE 098
APEX DIGITAL 087 111 115 112 116
ARCAM 122
CAMBRIDGE AUDIO
215
CARY AUDIO DESIGN
174
CLASSE 167
COBY 258
DENON 007 080 173
FUNAI 143
GATEWAT 175
GE 026 027
GO VIDEO 137 218 220 221 222
HARMAN KARDON
084 140
HITACHI 101
ILO 268
INTEGRA 142 180
JVC 012
KENWOOD 151
KISS 179 279
KLH 135
KRELL 104
LEXICON 148
LG 091 057 074
LITEON 264 265
MAGNAVOX 066 096
MALATA 267
MARANTZ 083 095
MERIDIAN 153
MITSUBISHI 017
MYRYAD 102 134
NAD 088 155
NAKAMICHI 103
ONKYO 076 035 180
OPPO 266
PANASONIC 021 042 138 139 144 150
PHILIPS 066 083 095 105 166
DVD - DVD Players
BRAND CODE NUMBERS
43
PIONEER 023 092 099 107 108 131
POLAROID 233 234 237
PRIMARE 193 194
PROCEED 086
PROSCAN 026 027
RCA 026 027
RJTECH 269
ROTEL 204
SAMSUNG 056 070 119 165 170 137 159
SANSUI 154
SANYO 147
SENSORY SCIENCE
222 223
SHARP 094
SONY 033 118 145 126 191
SYLVANIA 143
SYMPHONIC 143
TAG MCLAREN 156
TATUNG 102
TEAC 270
THOMPSON 026 027
THULE 177
TOSHIBA 035 034 130 141 164 188
VENTURER 149
VINC 161
YAMAHA 042 089 166 195 197
ZENITH 057 074 091
AIWA 146
FUNAI 143
INSIGNIA 143
SAMSUNG 165
SYLVANIA 143
SYMPHONIC 143
TOSHIBA 130
MAGNAVOX 143
PANASONIC 144
SYLVANIA 143
TOSHIBA 164
DVD (continued) - DVD Players
BRAND CODE NUMBERS
BRAND CODE NUMBERS
DVD-TV/DVD Combos
BRAND CODE NUMBERS
DVD-TV/DVD/VCR Combos
44
BRAND CODE NUMBERS
DVD-DVD/VCR Combos
GO VIDEO 137 218
PANASONIC 150
PHILIPS 105 (VCR Functions for VCR 067)
POLAROID 234
SAMSUNG 137 159
SANSUI 154
SONY 145 191
TOSHIBA 141
ZENITH 091 (VCR Functions for VCR171)
GATEWAY 175
GO VIDEO 220 221 222
ILO 268
KISS 279
LITEON 265
PANASONIC 139
SENSORY SCIENCE
222
SONY 191
TOSHIBA 188
DENON 206 207
FUNAI 120
KENWOOD 152 013
MAGNAVOX 032 121
MARANTZ 211
MITSUBISHI 121
NAD 121
OPTIMUS 049 013
PANASONIC 113
PHILIPS 032
PIONEER 106 117 121
RADIO SHACK 120
RCA 002
REALISTIC 049
RUNCO 127
SANYO 075
SHARP 152 013
SONY 053 110
TECHNICS 113
THETA DIGITAL 032
TOSHIBA 152 106
YAMAHA 043 129
BRAND CODE NUMBERS
DVD Recorder
BRAND CODE NUMBERS
DVD-LD
45
AIWA 034 161
AKAI 016 146 043 046 124 125 142
AMPRO 072
ANAM 031
AUDIO DYNAMICS 012 023 039 043
BROOKSONIC 035 037 129
CANON 028 031
CAPEHART 108
CRAIG 003 040 135
CURTIS MATHES 031 041
DAEWOO 111 116 117 119 005 007 010 065 108 110 112
DAYTRON 108
DBX 012 023 039 043
DYNATECH 034 053
ELECTROHOME 059
EMERSON 006 029 035 017 025 027 031 034 036 037 046 101 129 131 138 153 162 116
FISHER 003 010 008 009
FUNAI 034
GE 031 072 147 063 107 109 144
GO VIDEO 132 136 155 040 115
GOLDSTAR 101 106 114 013 020 012 123
HARMAN KARDON 012 045
HITACHI 004 026 150 018 034 043 063 137 160 013
INSTANTREPLAY 031
JCL 031
JCPENNEY 012 013 015 040 066 101
JENSEN 043
JVC 048 043 130 150 055 060 012 031 050 152 166
KENWOOD 014 048 034 047
LG 101 106 114 013 020 012 123
LLOYD 034
LXI 034 003 009 017 106
MAGIN 040
MAGNAVOX 067 031 034 068 041 156 164
MARANTZ 067 069 012 031 156
MARTA 101
MATSUI 027 030
MEI 031
MEMOREX 101 003 010 014 031 034 053 072 102 134 139
MGA 045 046 059
MINOLTA 013 020
MITSUBISHI 059 061 151 013 020 045 046 051 142 049 168
MTC 034 040
MULTITECH 024 034
NEC 012 023 039 043 048
NORDMENDE 043
OPTONICA 053 054
ORION 025
PANASONIC 066 070 145 083 133 140 157 163 074 167
PENTAX 013 020 031 063
PHILCO 031 034 067
PHILIPS 031 067 034 101 054 071 156
PILOT 101
PIONEER 021 013 048
PORTLAND 108
PULSAR 072
BRAND CODE NUMBERS
VCR - VCRs
46
BRAND CODE NUMBERS
VCR
(continued)
- VCRs
QUARTZ 002 014
QUASAR 066 145 075
RADIO SHACK 123
RCA 107 109 144 147 158 041 145 013 020 140 034 040
REALISTIC 003 008 010 014 031 034 040 053 054 101
RICO 058
RUNCO 148
SALORA 014
SAMSUNG 102 104 113 115 112 120 032 040 066 107 109 122 125
SANSUI 022 043 048 135
SANYO 003 010 007 014 134 102
SCOTT 017 037 112 129 131
SEARS 003 008 010 014 081 013 101 009 017 073 112
SHARP 149 054 031 159 165
SHINTOM 024
SIGNATURE 034
SONY 056 057 058 077 052 003 078 076 031 149 154
SOUNDESIGN 034
STS 013
SYLVANIA 031 034 059 067
SYMPHONIC 034
TANDY 010 034
TATUNG 039 043
TEAC 034 039 043
TECHNICS 031 070
TEKNIKA 031 019 034 101
THOMAS 034
TMK 006
TOSHIBA 112 131 079 008 059 047 082 013 042 081
TOTEVISION 040 101
UNITECH 040
VECTOR RESEARCH
012
VICTOR 048
VIDEO CONCEPTS 012 034 046 141
VIDEOSONIC 040
WARDS 003 013 017 024 031 034 040 053 054 131
YAMAHA 012 034 039 043
ZENITH 072 080 056 048 101 034 058
DAEWOO 005 117
EMERSON 153
FUNAI 034
GOLDSTAR 101 123
HITACHI 034
JCPENNEY 101
LG 101 123
LLOYD 034
MAGNAVOX 034 067
MEMOREX 101
PANASONIC 070 167
VCR - TV/VCR Combos
BRAND CODE NUMBERS
47
BRAND CODE NUMBERS
VCR
(continued)
- TV/VCR Combos
PHILIPS 034 067
RADIO SHACK 123
RCA 034
SEARS 101
SONY 057 154
SYLVANIA 067
SYMPHONIC 034
THOMAS 034
ZENITH 034
ADC 007
ADCOM 082 092 225 161 269 355 356 366
AIWA 170 018 104 202 203 213 211 188
AKAI 138 189
AMC 125 126 127 128 258 281 282 038
AMEND 054
AMX 196
ANGSTROM 142
ANTHEM 335 336 337 338 339
ARCAM 141 418 419
ATLANTIC TECHNOLOGY
342
AUDIO ACCESS 147
AUDIO ALCHEMY 135
AUDIO DESIGN 194 221 011
AUDIO EASE 021 196 207
AUDIO FILE 071
AUDIO MATRIX 167
AUDIO SOURCE 273
AUDIO TECHNICA 134
B & K 096 097
BOSE 070 170 224 347 409 459 460 532
BOSTON ACOUSTICS
447
BRYSTON 023
CAMBRIDGE AUDIO
522
CARVER 006 028 061 071 201 214 226 180 185 022 029 077 284
CASIO 076
CHIRO 140
CINEMA SOUND 034 134
CITATION 148 272
CLARION 026
CLASSE 537
COMPAQ 382
CURTIS MATHES 076
DELPHI 415 515
DENON 002 034 109 215 229 230 027 037 234 259 330 340 341 349 350 400 401 402
444 564
EAD 466
EIGER 149
ELAN 057 290
ENLIGHTENED AUDIO
099 098
BRAND CODE NUMBERS
AUDIO
48
AUDIO(continued)
BRAND CODE NUMBERS
ESCIENT 368 381 451 452 453 454
FANFARE 352
FISHER 047 214 180 182 297
FLEXTRONICS 378
FOSGATE 062 231
FOSGATE AUDIONICS
342
GE 056 260
GOLDSTAR 008
HAFLER 174
HARMAN KARDON
231 233 254 153 154 118 121 227 277 317 318 365
HITACHI 020
IMERGE 371
INKEL 197
INTEGRA 354 438
JAMO 398
JBL 263
JCPENNEY 076 216
JEFF ROWLAND 206
JENSEN 058
JVC 240 163 191 114 266 279 291
KENWOOD 026 066 145 146 181 190 197 192 182 199 151 222 180 005 280 374 550
KINERGETICS 220 140
KLH 331
KOSS 216 573
KRELL 150 072 376 384
KYOCERA 007
LEXICON 120 235 236 237 357 358 359 360 361 362 363 364
LINN 124 377
LUXMAN 137 139 052 165 115 004 009
LXI 076 056
MAGNAVOX 086 164 152 208
MARANTZ 006 028 031 040 063 185 186 251 265 119 289 296 492
MCINTOSH 238 286
MCS 076
MERIDIAN 100 012 013
MITSUBISHI 242 243 204
MONDIAL 157 158 042 043 081 112
MYRYAD 276 293
NAD 186 113 283 478 479
NAKAMICHI 111 244 245 172 183 287
NEC 176
NIRO 343
NILES 403
ONKYO 017 046 064 107 108 187 079 080 090 179 209 270 275 438
OPTIMUS 026 041 138
OUTLAW 342
PANASONIC 032 195 219 177 292 383 516
PARASOUND 129 130 132 261 294 295 333 334
PHAST 196
PHILIPS 249 250 251 063 119
PIONEER 014 033 039 044 045 050 069 159 168 116 035 078 198 480
POLKAUDIO 029 515
PRIMARE 464
PROCEED 144 268
RCA 010 048 117 156 067 288
REALISTIC 019 056 073 075 095
49
BRAND CODE NUMBERS
AUDIO(continued)
REQUEST 351
REVOX 162
ROTEL 074 083 085
RUSSOUND 379 391 392
SAMSUNG 016 571
SANSUI 040 048 110 119 065 228
SANYO 047 059
SCOTT 019 091
SEARS 076
SHARP 026 094 131 175 181
SHERWOOD 024 038 055 102 103 105 106 051 030 447
SONY 018 093 223 247 248 160 166 015 101 184 218 271 353 369 372 380 417 421
SOUNDESIGN 036
SOUNDMATTERS 375
SOUNDSTREAM 084 088
SSI 068
SUMO 171
SUNFIRE 344 345 346 494
TAEKWANG 138
TEAC 005 019 049 111 212 217
TECHNICS 122 176 193 219 178 177 200 257 262
THETA DIGITAL 136
TOSHIBA 060 087 198 278
WARDS 180
YAMAHA 026 253 169 067 173 205 264 232 089 264 274 285 332 373 432 433
ZENITH 143 210
BOSE 170 532
DELPHI 415 515
FANFARE 352
KENWOOD 550
POLKAUDIO 515
SONY 380
CABLEVISION / VOOM
148
DIRECTV 173
ECHOSTAR / DISH 122 167 168
EXPRESSVU 122
GENERAL ELECTRIC
151 106 150
GENERAL INSTRUMENT
148
GOI 122
HITACHI 139 140
HTS 122
HUGHES 161 162 068 154 165 166 108 117
BRAND CODE NUMBERS
AUDIO-XM Radios & Tuners
BRAND CODE NUMBERS
SAT
50
BRAND CODE NUMBERS
SAT(continued)
JVC 122
LG 170
MAGNAVOX 136
MEMOREX 136
MITSUBISHI 068 154
MOTOROLA 148
NEXT LEVEL 148
PANASONIC 142 160
PANSAT 172
PAYSAT 136
PHILIPS 152 153 156 068 154 136 108 117
PROSCAN 151 106 150
RADIOSHACK 148
RCA 151 106 150
SAMSUNG 123 155 163 169 175
SKY 164
SONY 103
STAR CHOICE 148
TOSHIBA 127 068 154 157 158
UNIDEN 136
ZENITH 159
ADCOM 062 042
AIWA 059 065 088 089 105 122 170 187
AKAI 085 195 202
AMC 231 232
AMEND 118
ARCAM 238
AUDIO ACCESS 119 147
AUDIO EASE 165
AUDIO TECHNICA 046
BSR 037 057
CALIFORNIA AUDIO
103 008
CAPETRONIC 063
CARRERA 057 080
CARVER 185 041 044 050 086 107 130 134 135 138 139 203 204 167
CASIO 111 182
CLARINETTE 182
CREEK 159
CROWN 035
DENON 002 123
EMERSON 042 069 102
FISHER 050 185 134 008
FRABA 111
GENEXXA 010 069 102
GOLDSTAR 080
HAITAI 093
HARMAN KARDON 018 033 047 208
HITACHI 042 175
INKEL 130 143 144
BRAND CODE NUMBERS
CD - CD Changers and Players
51
BRAND CODE NUMBERS
CD (continued) - CD Changers and Players
JCPENNEY 014 061 092 141
JENSEN 158
JVC 004 022 136 163 213 214 242 243
KENWOOD 185 007 023 055 071 072 142 137 254
KOSS 061
KRELL 241
KYOCERA 005
LOTTE 102
LUXMAN 011 028 070 076 249 252
LXI 059
MAGNAVOX 044 107
MARANTZ 027 041 044 051 077 107 209 246
MCINTOSH 212 247
MCS 014 073 092
MEMOREX 010
MISSION 044 107
MITSUBISHI 179
MITSUMI 153
MODULAIRE 182
MONDIAL 147
MYRYAD 244 155
NAD 006 005 067 178
NAKAMICHI 217 218 219 095
NEC 014 062
NIKKO 046
NSM 044 107
ONKYO 030 038 039 168 169
OPTIMUS 010 050 057 058 081 082 083 085 093 195
PANASONIC 103 201 172 008 068 248
PARASOUND 233 240
PHILIPS 041 044 107 246 253
PIONEER 010 020 025 056 174 175 176
PROCEED 239
PROTON 044 107 228
QUASAR 103 008
RADIO SHACK 182
RCA 017 042 150
REALISTIC 042 050 051 102 181 182 187
ROTEL 044 107 161 178 250
SAE 044 107
SANSUI 044 069 107 128 171 190 125
SANYO 050
SCOTT 069 102
SHARP 026 031 051 066
SHERWOOD 003 019 051 096 112 115 119 166
SIGNATURE 033
SONY 048 081 097 126 133 177 225 226 164
SOUNDESIGN 251
SUMO 155
SYLVANIA 044 107
SYMPHONIC 052 181
TAEKWANG 195 085
TANDY 010
TEAC 015 034 036 051 052 101 131 140 079
TECHNICS 060 103 200 172 184 008 068
TECHWOOD 076
52
BRAND CODE NUMBERS
CD (continued) - CD Changers and Players
THETA DIGITAL 234 235
TOSHIBA 006 067 091 160 148
VECTOR RESEARCH
080
VICTOR 004 022 114 124
WARDS 185 033
YAMAHA 024 046 054 186 183 245
YORX 182
DISH 122
ECHOSTAR 122
HUGHES 108 117
HUMAX 117
JVC 122
PHILIPS 108 090 117
RCA 109
REPLAY NETWORKS
075
SONY 104 105
TIVO 090 117
TOSHIBA 117
3M 152
AIWA 164
APPLE/iPod 401
ARCHER 155
AURORA MULTIMEDIA
220
AUTON 191
BOSE 409
CELADON 221
CRESTRON 213 214 215 216 217 218
DELL 261 262
DMX 156
DRAPER SCREEN 204
DREAMVISION 097
DWIN 080 253
EVERQUEST 206
EXTRON 151
FAROUDJA 184
FUJI 209
GATEWAY 261 262
HAUPPAUGE 294 295
HP 261 262
HUNTERDOUGLAS 219
JERROLD 153
JVC 185
BRAND CODE NUMBERS
DVR-PVR, TIVO
BRAND CODE NUMBERS
AUX
53
BRAND CODE NUMBERS
AUX (continued)
KENWOOD 185
KENSINGTON 406
KEYSPAN 297
LITE-TOUCH 208 257
LUTRON 158 159 077
MAKITA 186 201
MICROSOFT/XBOX
408 107
MINDPATH 205
NILES 160 187
NSM 161
PIANO DISC PLUS 085
POLKAUDIO 162
RUSSOUND 081
SCIENTIFIC ATLANTA
163 156
SIMA 082
SOLO ELECTRONICS
207
SOMFY 078 079
SONY 164 165 166 261 262
STARCOM 153
TURBOSCAN 167
VELODYNE 203
X-10 183 093
XANTECH 168 169 170 171 172 188 189
AIWA 015 071 100 114
CARVER 006 008 027 024 036
DENON 105 227 229
FISHER 064
GOLDSTAR 011
HARMAN KARDON
233
JVC 106 116 239 240
KENWOOD 005 013 023 026 064 145 146 181 190
LINN 124
LUXMAN 035 137 139
MAGNAVOX 027
MARANTZ 014 027 056 065 087
MCINTOSH 238
MITSUBISHI 242 243
NAD 029 048
NAKAMICHI 244 245 025
ONKYO 002 012 016 017 018 019 115
OPTIMUS 026 054 055
PANASONIC 007 010 032 088 195
PHILIPS 027 087
PIONEER 003 039 047 050 066 098 222
QUASAR 007 088
SANSUI 027 113 119 224
SHARP 026 057 131 175 181
SHERWOOD 038 004 028 030 033 034
SONY 020 022 052 084 089
BRAND CODE NUMBERS
AUX-TAPE
54
BRAND CODE NUMBERS
AUX (continued) -TAPE
TEAC 009 059 212
TECHNICS 007 010 076 088 109 122 193
TOSHIBA 112
VICTOR 106
YAMAHA 021 026 031 067 040
DELL 261 262
GATEWAY 261 262
HAUPPAUGE 294 295
HP 261 262
KEYSPAN 297
SONY 261 262
TOSHIBA 261 262
WINBOOK 261 262
MICROSOFT/XBOX 408 107
APPLE/iPod 401
BOSE 409
KENSINGTON 406
BRAND CODE NUMBERS
AUX-Media PC Controls
BRAND CODE NUMBERS
AUX - XBox Controls
BRAND CODE NUMBERS
AUX-iPod Controls
55
Frequently Asked Questions
What is a “macro” button?
It is an Osiris button you set to make a lot of things happen when you
press it. For example, to watch a DVD in most home theaters requires
several remote controls and many button presses (power up the TV,
power up the surround sound, power up the DVD player, set the TV to
the correct video input, set the surround sound to the correct audio
input and finally; press play on the DVD player remote control).
Instead of pressing all of those buttons one at a time, the Osiris enables
you to setup one button that does it all automatically with one press.
For more information on how and why you should setup macro and
favorite channel buttons, read pages 19-22.
If the batteries run out, will I lose my settings?
No. The Osiris stores all of your settings in non-volatile FLASH memory.
You could remove the batteries for months, replace them at your con-
venience and the Osiris would still remember your settings.
Who can I call for more answers?
The Universal Remote Control technical support and customer service
staff are ready to answer any questions you might have.
Call us at 1-914-835-4484
Monday - Friday, 9AM to 6PM (EST)
The Osiris
56
Warranty
The Osiris is covered against any manufacturers defects or workmanship
for a period of one year from the date of purchase if purchased from an
authorized Universal Remote Control dealer. Units purchased from
online auction sites or other unauthorized resellers have no warranty.
This warranty does not cover the following items:
- Damage from misuse, neglect, or acts of nature.
- Products that have been modified or incorporated into other products.
- Products purchased more than 12 months ago.
- Units purchased from unauthorized dealers or companies.
Specifications
Learning Capability - 784 IR commands at standard
frequencies (15kHz to 100kHz)
Macro Capability - 472 Macros of up to 190 steps each
IR Range (Line of Sight via Infrared): 30-50 feet, depending on the envi-
ronment
RF Range (radio frequency): 50 to 100 feet, depending upon the envi-
ronment
RF Frequency: 418MHz
Weight: 8 oz. (with batteries)
Size: 8.5” x 2 7/16” x 1”
Batteries: Four AAA Alkaline batteries included
LCD Size: approximately 7/8” x 1-7/8”
Universal Remote Control, Inc.
57
MEMO
OCE-0024B Rev. 04
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
Information To The User
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protec-
tion against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communi-
cations.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit differ-
ent from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV techni-
cian for help.
Warning
Changes or modifications not expressly approved by the manufac-
turer could void the user's authority to operate the equipment.
Note : The manufacturer is not responsible for any Radio or TV
interference caused by unauthorized modifications to this equip-
ment. Such modifications could void the user's authority to oper-
ate the equipment.
Universal Remote Control, Inc.
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
Universal Remote Control®
