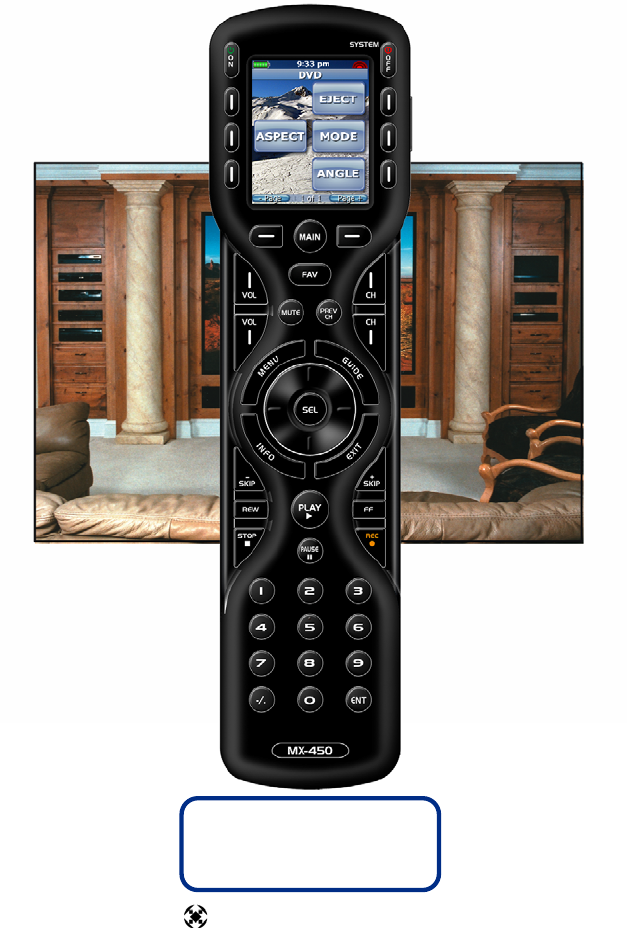

Operating Your System
With the MX-450
COMPLETE
™
Universal Remote Control®
CONTROL
COMPLETE
This remote control was
Custom Programmed for you by:
For questions about your Custom Programming call:
Custom Programming of a complex home theater and/or a multi-room
system is one of the most challenging tasks within an audio/video instal-
lation. It involves an intimate knowledge of how the components interact
and exact details on the proper sequences of control.
Only a Complete Control dealer has the requisite experience and training
to quickly and effectively customize a remote control for true automated
operation.
Congratulations on your choice!
MX-450 Owners Manual © 2008 Universal Remote Control, Inc.
Front Cover Photo courtesy of Robert Ridenour of Connected Technologies,
www.connected-technologies.com
The information in this manual is copyright protected. No part of this manual may
be copied or reproduced in any form without prior written consent from Universal
Remote Control, Inc.
UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPERATIONAL,
TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN THIS MANUAL.
The information in this manual may be subject to change without prior notice.
Complete Control is a registered trademark of Universal Remote Control, Inc.
Entertainment Made Simple is a trademark of Universal Remote Control, Inc.
All other brand or product names are trademarks or registered trademarks of their
respective companies or organizations.
Printed in Korea
Universal Remote Control, Inc.
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
TABLE OFCONTENTS
Introduction 1
Backlighting 1
Optional RF “No Rules” Operation 2
Replacing the Batteries 3
Programming the MX-450 4
Selecting a New “Activity” 5
Using the MX-450 to Control an “Activity” 6
EUSA Limited Warranty Statement 7
Specifications 8
Contact Us 8
Page 1
MX-450 OWNERS MANUAL
Congratulations!
You’ve purchased a unique synthesis of hardware and software engineering,
the Complete Control MX-450. The MX-450 achieves a magnificent combina-
tion of power and flexibility, simplifying and automating operation of even the
most complex system.
User Configurable Screen and Button Lighting
A built in pick up sensor can be set to light the screen and/or the buttons
automatically. Additionally, a dedicated LIGHT button enables the user to
backlight the buttons if the pick up sensor is turned off.
Fast Professional Setup
The MX-450 sets up quickly via on screen setup. Your installer simply
configures the remote for you using the MX-450 and his/her intimate
knowledge of how your system is configured and operated to completely
automate all operation and replace all of your remote controls with the
MX-450.
Backlit Color LCD Screen Buttons
When you pick up the MX-450, it automatically lights up the color LCD
screen which labels the six buttons to either side of the screeen. These
button labels change based on what you are watching or listening to.
Thus, if you have selected Watch TV, you will see a list of buttons that
are useful to that activity, while if you select Watch DVD, the buttons
will control the DVD.

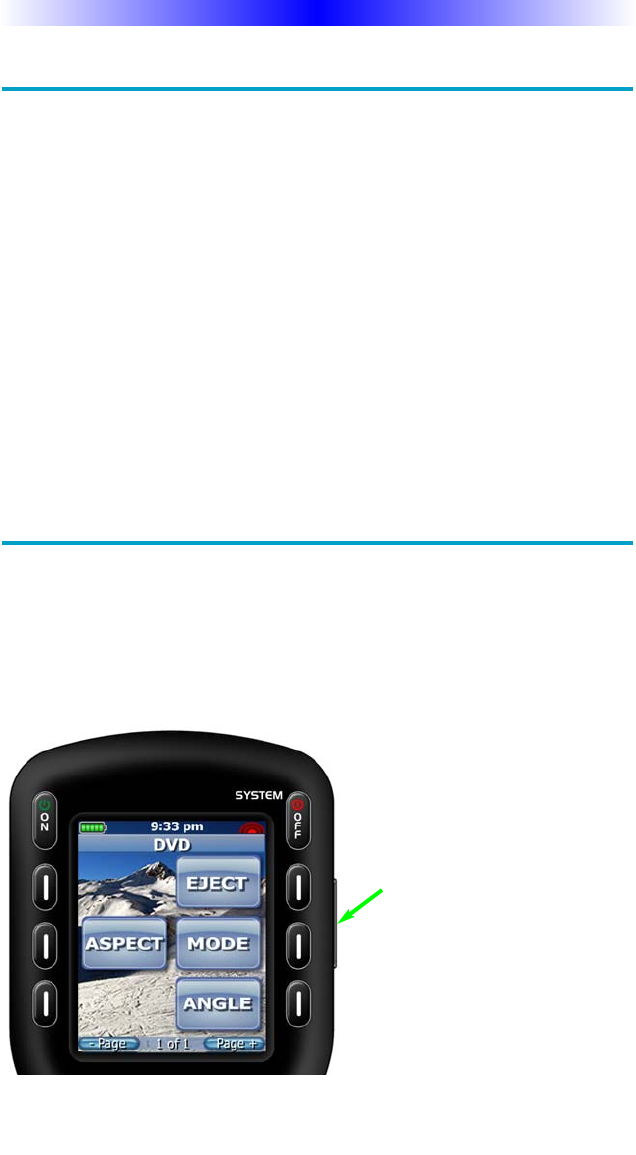

LIGHT Button
Press the Light button on the
side of the MX-450 to back-
light all of the buttons.
Page 2
MX-450 OWNERS MANUAL
Optional RF “No Rules” Operation
In combination with a Complete Control RF Base Station, the MX-450 can
control your system without being in line-of-sight of the equipment.
To preserve good operation always utilize a Narrow Band RF Base Station
with RF Addressing. RF Addressing gives you the ability to control equip-
ment locations throughout your home, even if they are concealed in other
rooms or are behind closed doors.

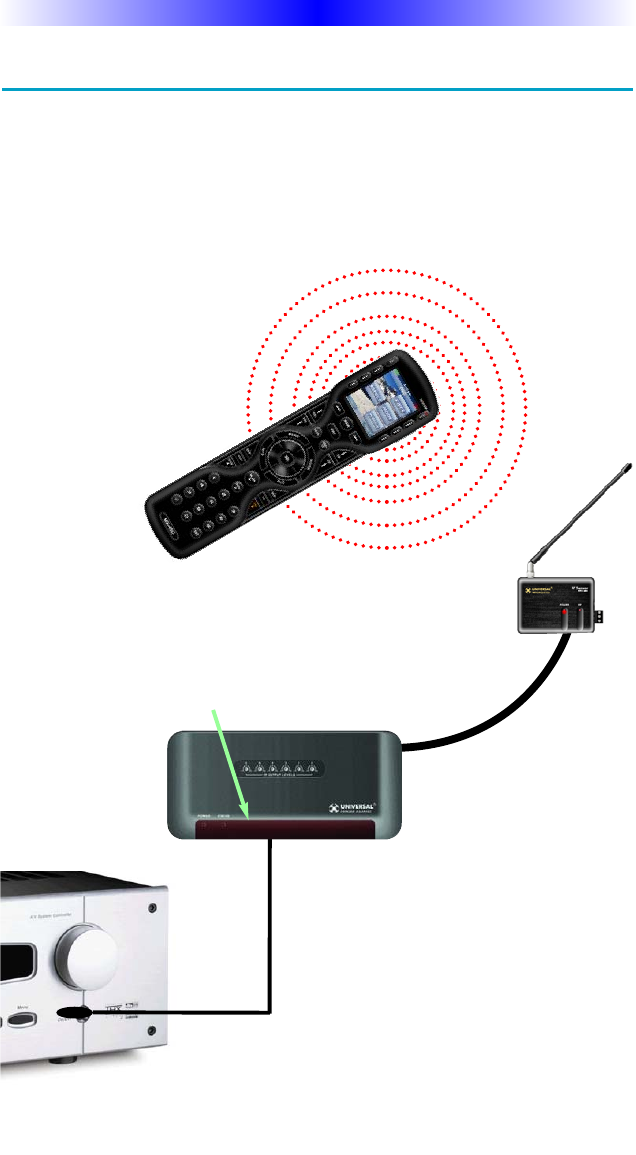

4. Self-adhesive “Flashers” affix to the Infrared
sensors on the front panels of your compo-
nents. The Flashers relay commands to com-
ponents out of sight of the MRF-350’s Front
Blaster. The flashers plug in to the MRF-350’s
rear flasher line outputs via their 10 foot
cables. Uniquely, the MRF-350 can also con-
nect to components with rear panel IR Inputs
via its adjustable IR Line Outputs.
3. The MRF-350’s built-in Front Blaster sends commands to
components in the same cabinet space as the MRF-350.
1. The MX-450 sends radio
waves in every direction, so you
don’t have to point the remote
anymore!
2. The RFX-250 RF Sensor can be freely
positioned for optimal reception.
Page 3
MX-450 OWNERS MANUAL
Replacing the Batteries
Open the battery cover by pressing the release and pulling back the cover
on the back of the control. Remove the cover.
Observe the + and - polarity
indications inside the battery
compartment.
Place the four AA batteries into their positions in the battery compartment
observing the + and - polarity indicators on the batteries.
Now, replace the battery cover by inserting the hinged end in first, then
snapping the cover back into place.
Page 4
MX-450 OWNERS MANUAL
Programming the MX-450
The MX-450 is programmed via on screen setup menus. Simply press and
hold the MAIN button for 3 seconds to view the menus.
However, to fully automate an audio/video system the programmer must
have a detailed knowledge of each component and how the system is
connected and operated. We highly recommend that you use a profes-
sional audio/video installer to program your MX-450 so you will be able
to enjoy all the benefits of the MX-450.
Page 5
MX-450 OWNERS MANUAL
Selecting a New “Activity”

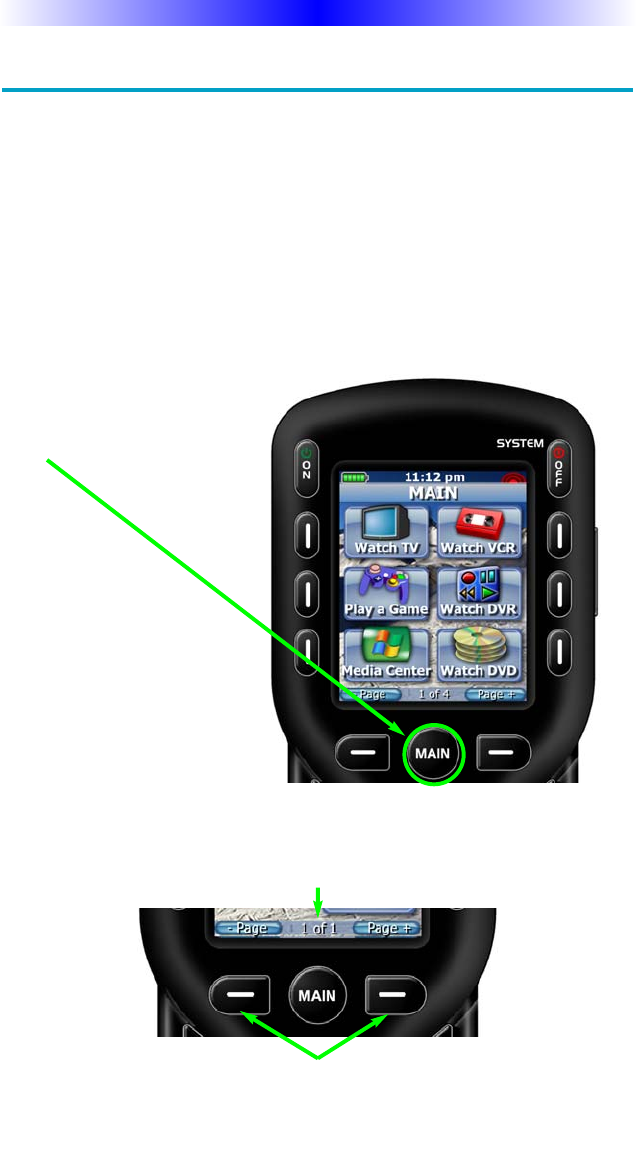

The MX-450’s MAIN button displays the activities you can control with
your MX-450. When you want to watch something else (a DVD movie, a
videotape or an HDTV broadcast), simply press the MAIN button and
select the new activity.
Your installer will have programmed the button you pressed to totally con-
figure your system to watch or listen to whatever you selected. Now, the
screen will change, and all of the LCD buttons will be reconfigured to
give you full control of your system while watching or listening to your
selection!
Press either of the PAGE buttons to see any other available choices.
When you press the MAIN
button, you can see the most
frequently used activities you
have for listening in your sys-
tem.
PAGE DISPLAY
At the bottom of the LCD screen, the
page display informs you if there are
other pages of buttons available.
Page 6
MX-450 OWNERS MANUAL
Using the MX-450 to Control an “Activity”
Once you’ve selected a new activity, the MX-450 displays the title of the
activity at the top of the screen. Below the title, the LCD displays the cus-
tomized names of any special features you need for the activity. All the
hard buttons of the MX-450 have now changed to functions optimized for
this activity.

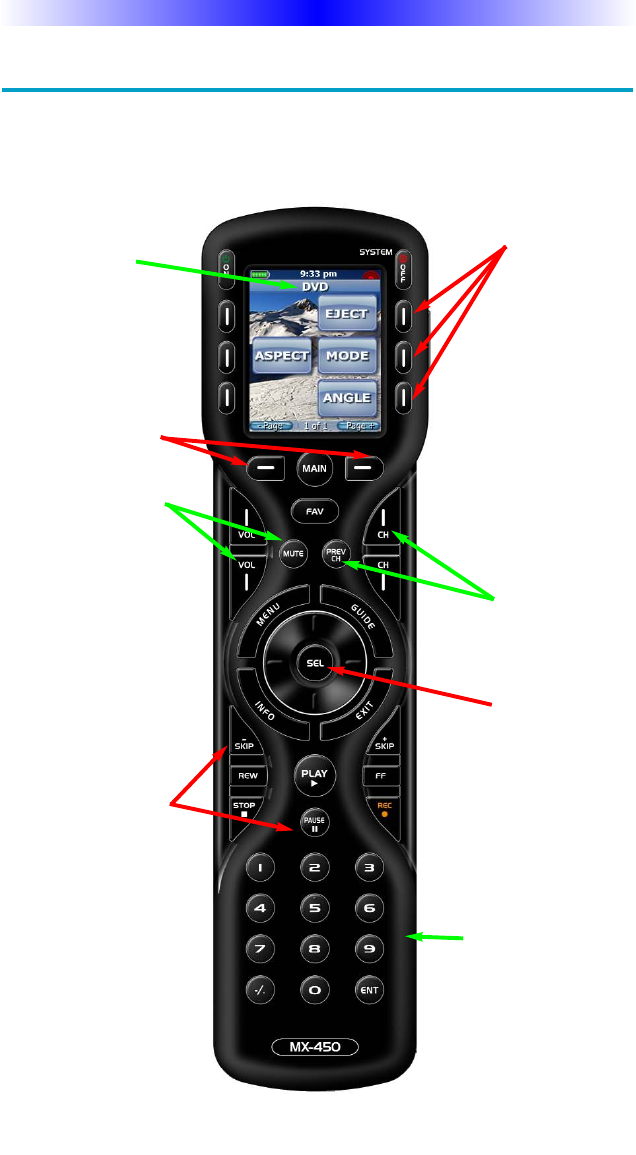

The Title displays
what activity you
can control.
The Volume and
Mute buttons always
control the sound
regardless of what
screen is displayed.
Press either of the
PAGE buttons to
see any other avail-
able choices.
The transport buttons
(Play, Stop, Skip-, Skip+,
FF, REW and Pause)
operate when the select-
ed activity requires them
(for example, if you
watch CABLETV with a
TiVo type of DVR, these
buttons will control the
built-in DVR, while if
you are watching a
DVD, these buttons will
control the DVD player).
The 4 way cursor
buttons enable you
to navigate on
screen guides and
menus with ease.
The Channel and
Previous Channel
buttons will change
channels when you
have selected an
activity like Watch
CABLETV or
Watch SAT TV .
The Number keypad
will enter numbers
for the activity you’ve
selected. Thus, for
watching Cable TV,
you use the number
keypad to enter chan-
nel numbers, while
when listening to CD,
the number keypad
enters track numbers.
The LCD button
labels describe
special features
for this activity.
Page 7
MX-450 OWNERS MANUAL
EUSA Limited Warranty Statement
Your Universal Remote Control, when delivered to you in new condition, is warranted
against defects in materials or workmanship as follows: UNIVERSAL REMOTE CONTROL,
INC. warrants this product against defects in material or workmanship for a period of one
(1) year and as set forth below. Universal Remote Control will, at its sole option, repair the
product using new or comparable rebuilt parts, or exchange the product for a comparable
new or rebuilt product. In the event of a defect, these are your exclusive remedies.
This Limited Warranty covers only the hardware components packaged with the Product. It
does not cover technical assistance for hardware or software usage and it does not cover
any software products whether or not contained in the Product; any such software is pro-
vided "AS IS" unless expressly provided for in any enclosed software Limited Warranty.
To obtain warranty service, you must deliver the product, freight prepaid, in its original
packaging or packaging affording adequate protection to Universal Remote Control at the
address provided in the Owner's Manual. It is your responsibility to backup any macro
programming, artwork, software or other materials that may have been programmed into
your unit. It is likely that such data, software, or other materials will be lost during service
and Universal Remote Control will not be responsible for any such damage or loss. A
dated purchase receipt, Bill of Sale, Installation Contract or other verifiable Proof of
Purchase is required. For product support and other important information visit Universal
Remote Control's website: http://www.UniversalRemoteControl.com or call the Universal
Remote Control Customer Service Center (914) 835-4484.
This Limited Warranty only covers product issues caused by defects in material or work-
manship during ordinary consumer use. It does not cover product issues caused by any
other reason, including but not limited to product issues due to commercial use, acts of
God, third-party installation, misuse, limitations of technology, or modification of or to any
part of the Universal Remote Control product. This Limited Warranty does not cover
Universal Remote Control products sold as USED, AS IS, REFURBISHED, so-called "B
STOCK" or consumables (such as batteries). This Limited Warranty is invalid if the factory-
applied serial number has been altered or removed from the product. This Limited
Warranty is valid only in the United States of America. This Limited Warranty specifically
excludes products sold by unauthorized resellers.
UNIVERSAL REMOTE CONTROL SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY
OR CONDITION ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY
APPLICABLE LAW, THERE IS NO OTHER WARRANTY EXPRESSED OR IMPLIED. UNIVER-
SAL REMOTE CONTROL WILL NOT BE HELD RESPONSIBLE FOR STATEMENTS MADE
BY OTHERS CONCERNING THE MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE ON THIS PRODUCT. Some states or jurisdictions do not allow the exclusion or
limitation of incidental or consequential damages, or allow limitations on how long an
implied warranty lasts, so the above limitations or exclusions may not apply to you. This
Limited Warranty gives you specific legal rights and you may have other rights which vary
from state to state or jurisdiction to jurisdiction.
Page 8
MX-450 OWNERS MANUAL
Specifications
Microprocessor - ARM 7
LCD Screen - 2” TFT Color LCD (176 x 220 Pixels)
Memory - 32 Megabits of Flash Memory
Total Customization Capability - Up to 18 devices on 3 Main pages with
up to 8 pages for each device; plus up to eight pages of favorite channels
for a total of 155 pages.
Learning Capability - Standard frequencies (15kHz to 460kHz)
Macro Capability - Up to 255 steps each
IR Range (Line of Sight via Infrared): 30-50 feet, depending on the environment
RF Range (radio frequency): 50 to 100 feet, depending upon the environment
RF Frequency: 418MHz
Weight: 6.9 ounces (with battery loaded)
Size: 8” H x 2.25” W x 1.25” D
Batteries: Four AA Batteries (included)
Battery Life: 18 Hours of continuous button pressing with backlighting
and LCD ON (months of use for most users). Users should expect some
variation based on the brand of batteries used.
Note: In actual use, the MX-450 protects itself if it gets stuck between
couch cushions (with a button being continuously pressed). After 30 sec-
onds the MX-450 will turn off, and will not turn on again until the button
is released.
Contact Us
Need assistance or have questions?
Our Customer Service Support Center is here to help.
Call (914) 835-4484 to speak with a customer service
representative or email us at techsupport@universalremote.com
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
www.universalremote.com
MX-450 OWNERS MANUAL
Information To The User
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful inter-
ference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accor-
dance with the instructions, may cause harmful interference to radio com-
munications.
However, there is no guarantee that interference will not occur in a par-
ticular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interfer-
ence by one more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for
help.
Warning
Changes or modifications not expressly approved by the manufacturer
could void the user's authority to operate the equipment.
Note: The manufacturer is not responsible for any Radio or TV interfer-
ence caused by unauthorized modifications to this equipment. Such
modifications could void the user's authority to operate the
equipment..
Page 9
