Ohsung Electronics URCMX6000I RF REMOTE CONTROLLER User Manual I
Ohsung Electronics Co., Ltd. RF REMOTE CONTROLLER I
Users Manual
EUT Type: RF Remote Controller
FCC ID.: OZ5URCMX6000I
Test Report No.: GETEC-E3-08-053
FCC Part 15 Subpart C
APPENDIX I
: USER’S MANUAL
Operating Your System
With The MX-6000i
Two Way Touch Screen
OCE-0026J(MX-6000i).QXD 12/16/08 4:43 PM Page 1
Page 2
MX-6000i TWO WAY TOUCH SCREEN
This remote control was Custom Programmed for you by:
For questions about your Custom Programming call:
Custom Programming of a complex home theater and/or
a multi-room system is one of the most challenging tasks
within an audio/video installation. It involves an intimate
knowledge of how the components interact and exact
details on the proper sequences of control.
Only a Complete Control dealer has the requisite
experience and training to quickly and effectively cus-
tomize a remote control for true automated operation.
Congratulations on your choice!
MX-6000i Owners Manual © 2008 Universal Remote Control, Inc.
The information in this manual is copyright protected. No part of this manual may
be copied or reproduced in any form without prior written consent from Universal
Remote Control, Inc.
UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPERATIONAL,
TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN THIS MANUAL.
The information in this manual may be subject to change without prior notice.
Complete Control is a registered trademark of Universal Remote Control, Inc.
Entertainment Made Simple is a trademark of Universal Remote Control, Inc.
All other brand or product names are trademarks or registered trademarks of their
respective companies or organizations.
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
OCE-0026J(MX-6000i).QXD 12/16/08 4:43 PM Page 2
Page 3
MX-6000i TWO WAY TOUCH SCREEN
Table of Contents
Introduction 4
Connecting the Battery Pack 5
Using the Charging Base 5
Two Way via WiFi 5
Optional RF “No Rules” Operation 6
Operating Your System 7
Using Two Way Personal Server Features 8

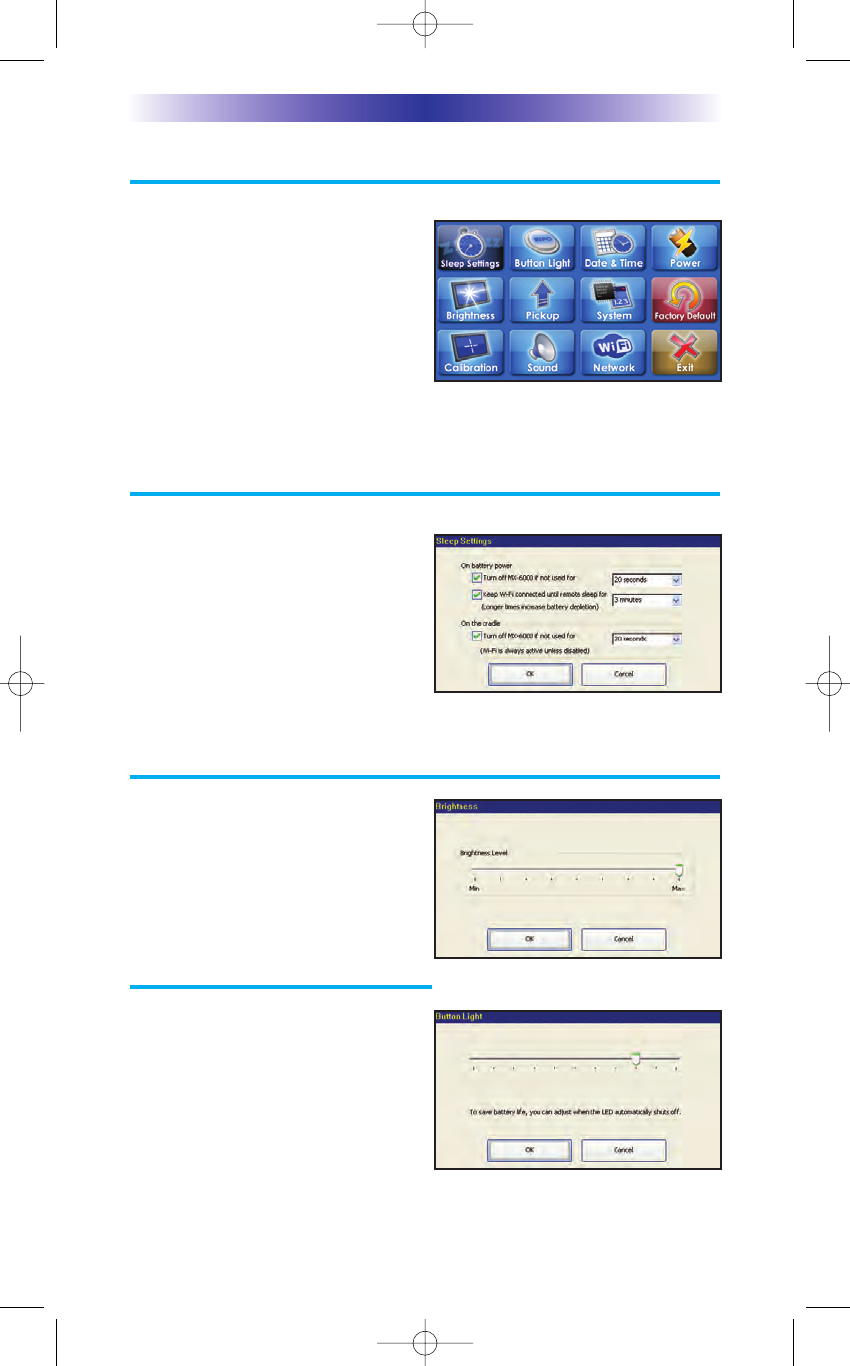

Displaying the Settings Screen 11
Sleep Settings 11
Brightness 11
Button Light 11

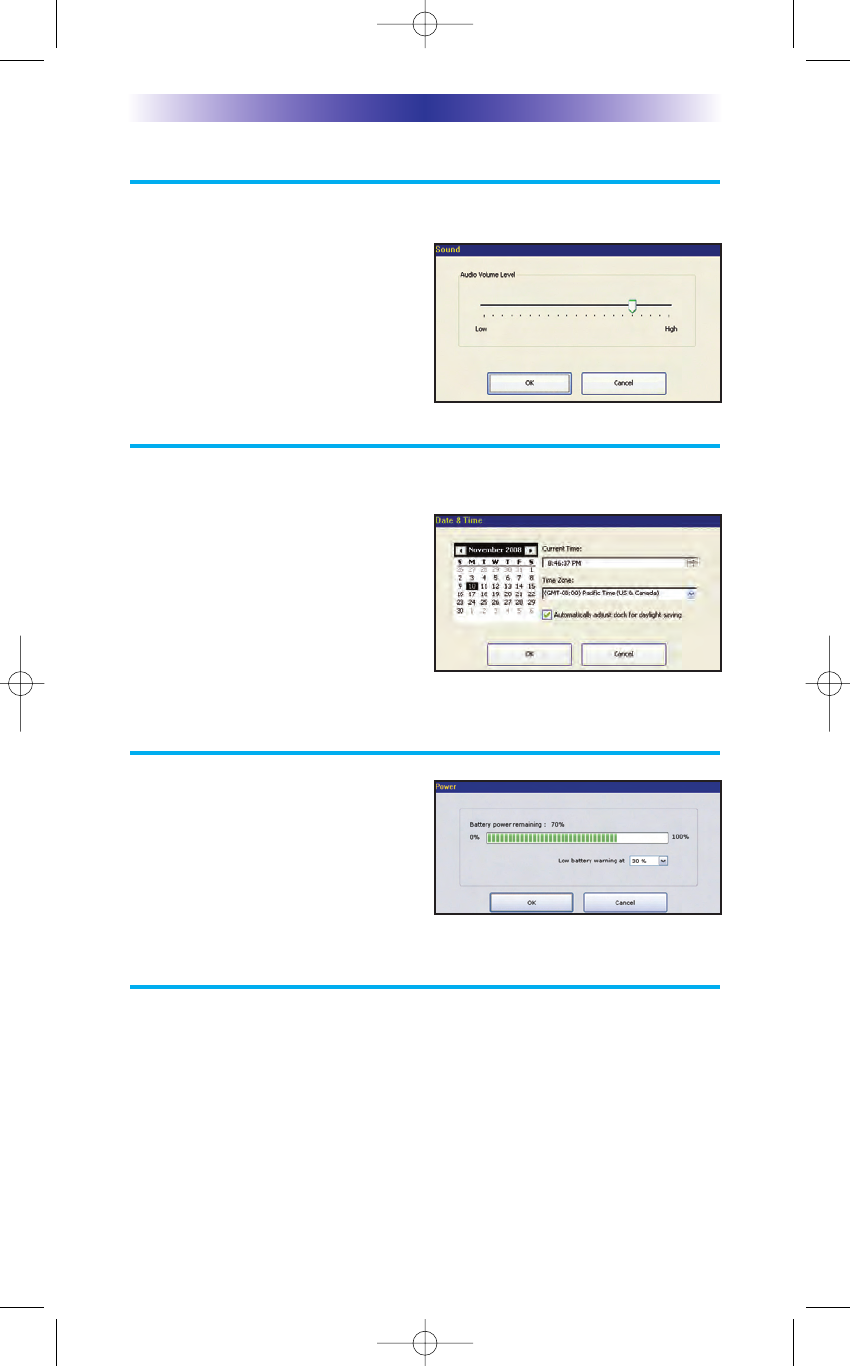

Sound 12
Date and time 12
System 12

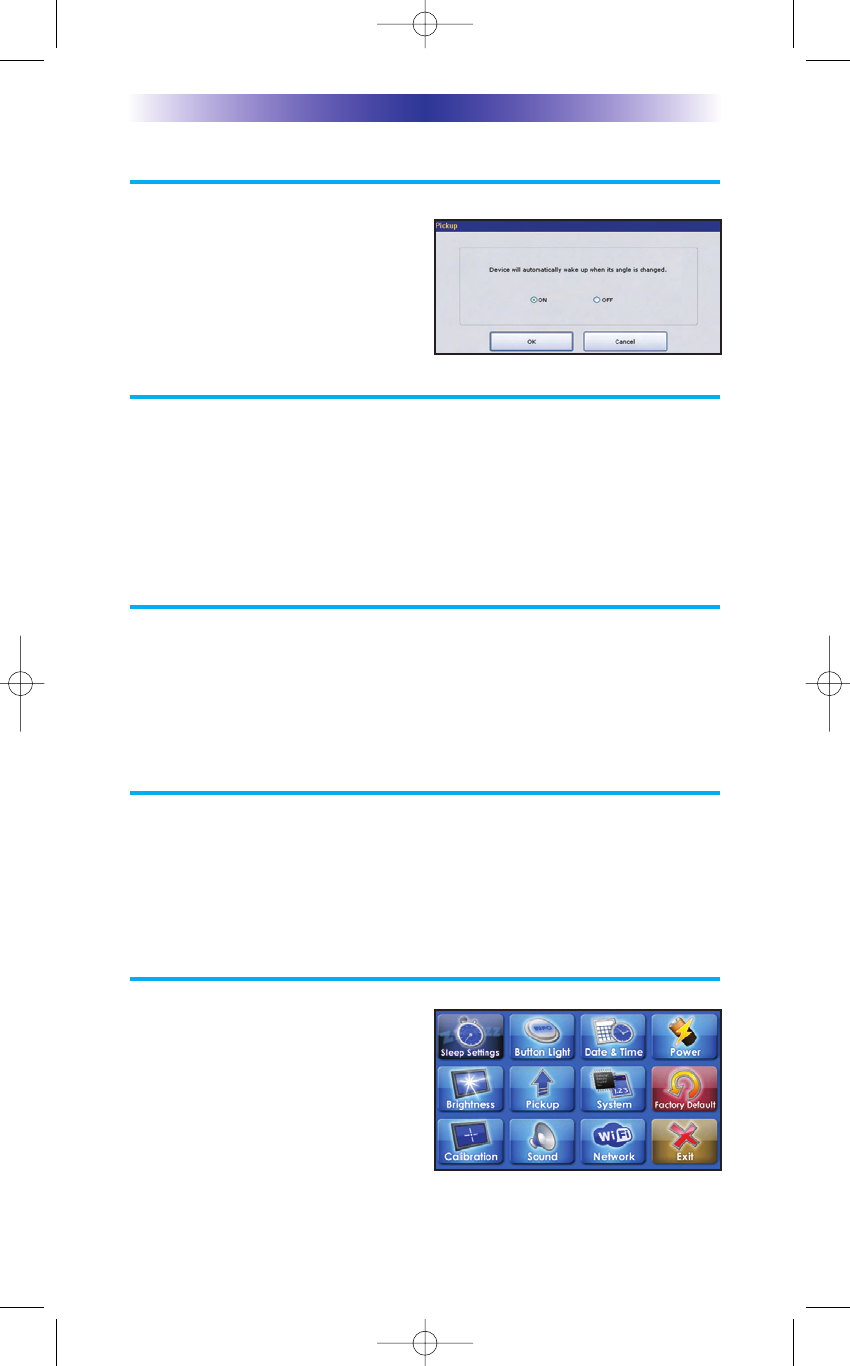

Pickup Settings 13
Network 13
Calibration 13
Factory Default 13
Exit 13
USA Limited Warranty Statement 14
Federal Communication Commission Interference
Statement 14
Specifications 15
Regulatory Information to the user 16
Precautions and Information Concerning
Rechargeable Lithium-lon Batteries 18
OCE-0026J(MX-6000i).QXD 12/16/08 4:43 PM Page 3
Page 4
MX-6000i TWO WAY TOUCH SCREEN

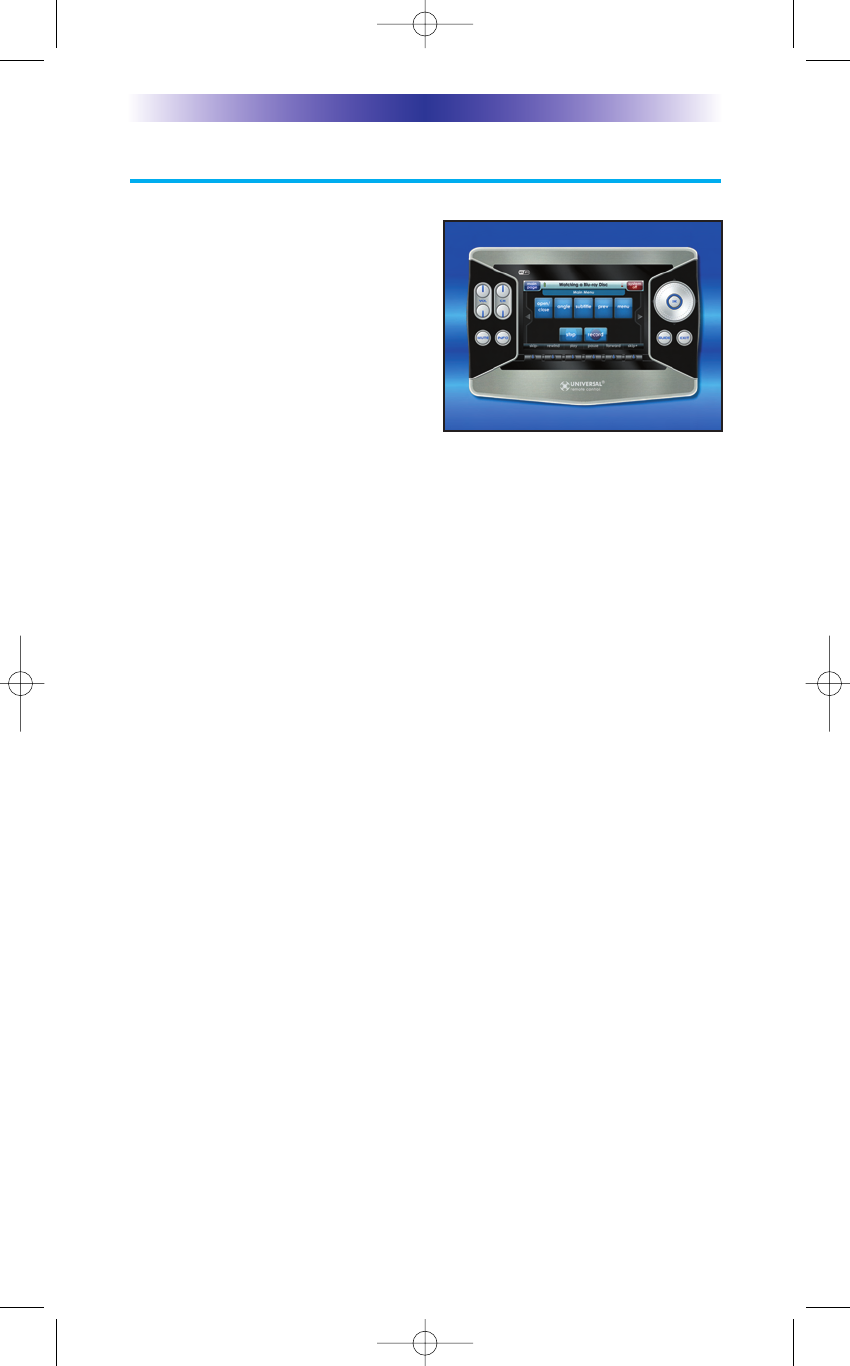

Congratulations
You’ve purchased a unique synthesis
of hardware and software engineer-
ing, the Complete Control MX-6000i.
The twin goals of the design team
were to improve the elegance and
usability of touch screens through the
physical design while providing a
new standard in brightness, clarity
and animation for the touch screen
itself.
Easy Operation
By assigning the important home theater operational buttons to the
natural resting place of the end users thumbs, the MX-6000i
achieves a new standard in use and comfort.
Automatic Backlighting
The integral motion sensor detects any movement of the touch
screen and automatically backlights the screen. You do not have to
press any button to display the screen. Any movement of the MX-
6000i renews the backlighting. To adjust the backlighting, see page
11.
Programming the MX-6000i
To fully automate an audio/video system and integrate two way
automation of servers etc. the programmer must have a detailed
knowledge of each component, LAN configuration, WiFi optimiza-
tion and how the system is connected and operated. Only a trained
and certified professional audio/video installer can install an MX-
6000i automation system in a timely and efficient manner.
Integrated Stylus
Stowed away in the top right hand corner storage slot, is a custom
made stylus for your convenience.
OCE-0026J(MX-6000i).QXD 12/16/08 4:43 PM Page 4
Page 5
MX-6000i TWO WAY TOUCH SCREEN
Connecting the Battery Pack
Unlock the rear cover by pressing down on the two locking tabs
and sliding the battery cover forward.
Remove the cover. For shipment from the factory, the battery is left
out of the MX-6000i. Place the battery into the battery compart-
ment, making sure you align the contacts on the battery to the con-
tacts on the MX-6000i. The battery will snap into place when
aligned properly.
Replace the cover and snap it into place.

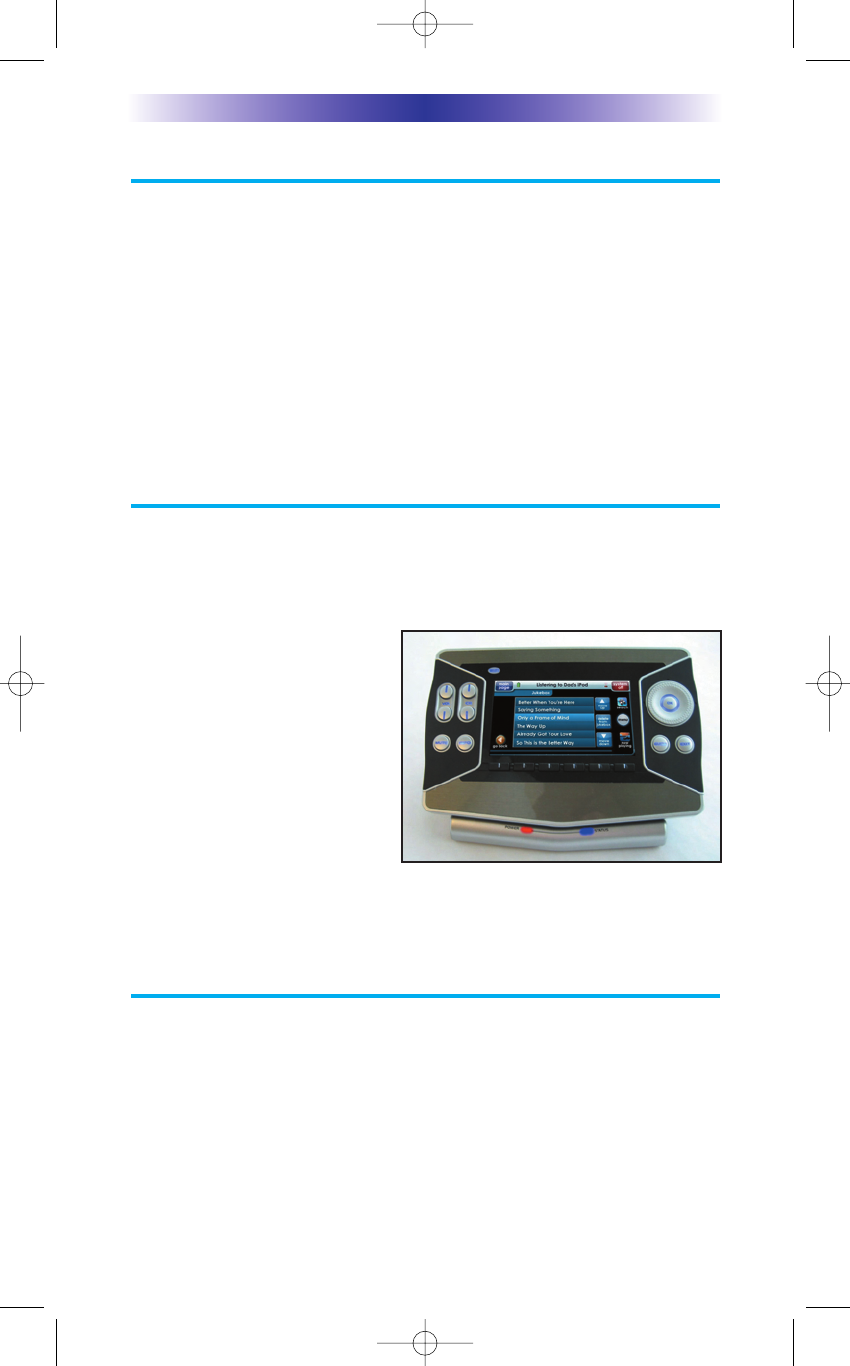

Using the Charging Base
Plug the 6V DC adapter into a power outlet and into the back of
the charging base.
Gently place the MX-6000i
into the cradle of the charging
base. It automatically aligns
itself to the contacts on the
charging base.
The Status light should imme-
diately light. Red indicates
that it is charging. Blue shows
that it is fully charged. There is
no harm in leaving the MX-
6000i on its charging base
whenever it is not in use.
Two Way via WiFi
To use the MX-6000i with any two way companion product, the
MX-6000i must be configured by your installer to be part of a LAN
(local area network) via a WiFi b/g access point or router. This is
not user configurable. If you have any questions, consult with your
custom installer.
Red indicates charging, Blue that the remote is fully
charged.
OCE-0026J(MX-6000i).QXD 12/16/08 4:43 PM Page 5
Page 6
MX-6000i TWO WAY TOUCH SCREEN

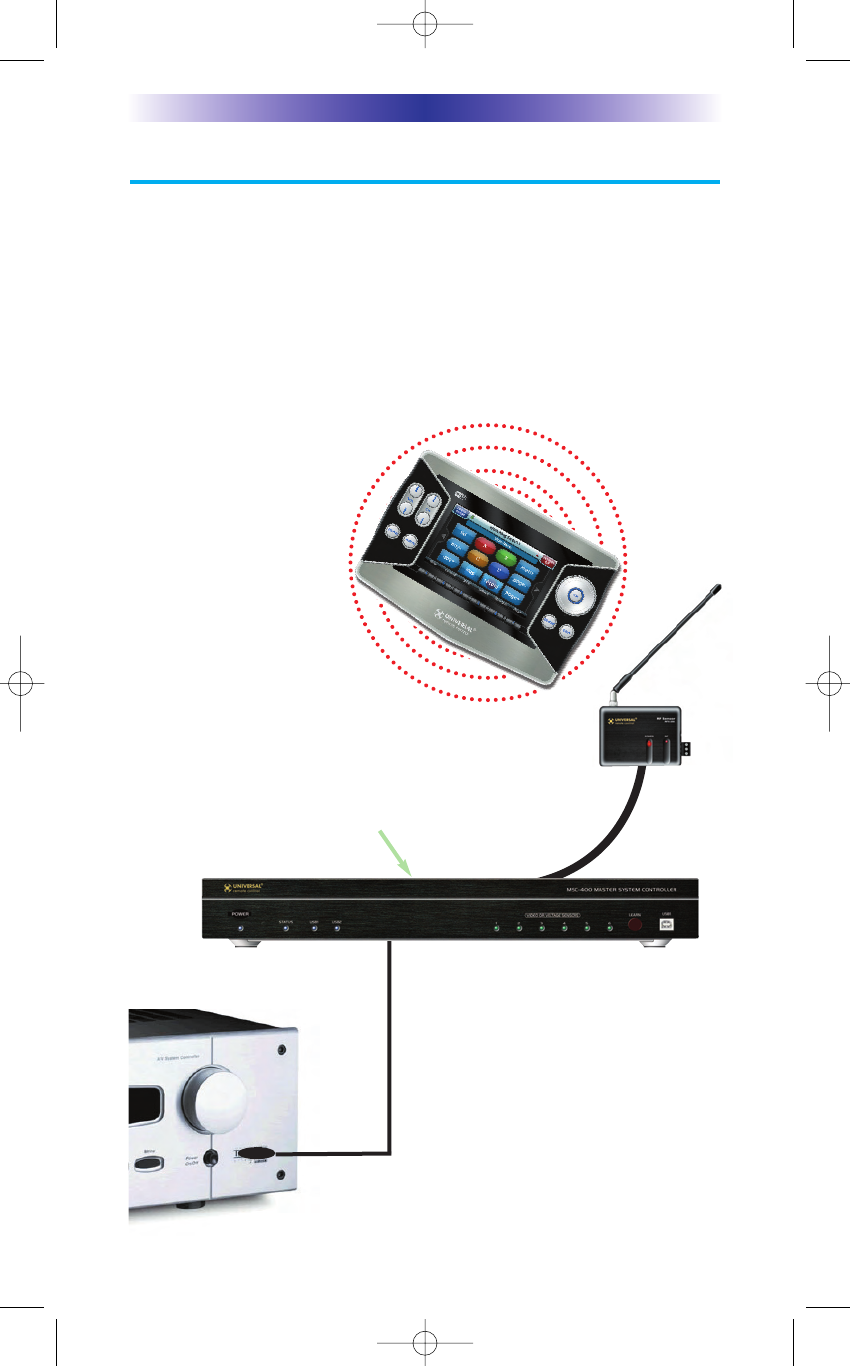

Optional RF “No Rules” Operation
In combination with an MSC-400 Master System Controller, or an
RF Base Station, the MX-6000i can control your system without
being in line-of-sight of the equipment.
The MSC-400 enhances the capabilities of the MX-6000i by storing
and issuing Smart Macros to your main system components. It is
triggered by RF Smart Macro commands via RF (radio frequency).
In addition, your MX-6000i can control components in secondary
rooms and systems via MRF-350i or MRF-260i RF base stations.
4. Self-adhesive “Flashers” affix to the
Infrared sensors on the front panels of
your components. Uniquely, all
Complete Control base stations can also
connect to components with rear panel
IR Inputs via adjustable IR Line
Outputs. The MSC-400 offers RS-232
control via rear panel connections as
well.
3. The MSC-400 can control IR, RS232 and Relay con-
trolled devices.
1. The MX-6000i sends
radio waves in every direc-
tion, so you don’t have to
point the remote anymore!
2. The RFX-250i RF Sensor can be
freely positioned for optimal recep-
tion.
OCE-0026J(MX-6000i).QXD 12/16/08 4:44 PM Page 6
Page 7
MX-6000i TWO WAY TOUCH SCREEN

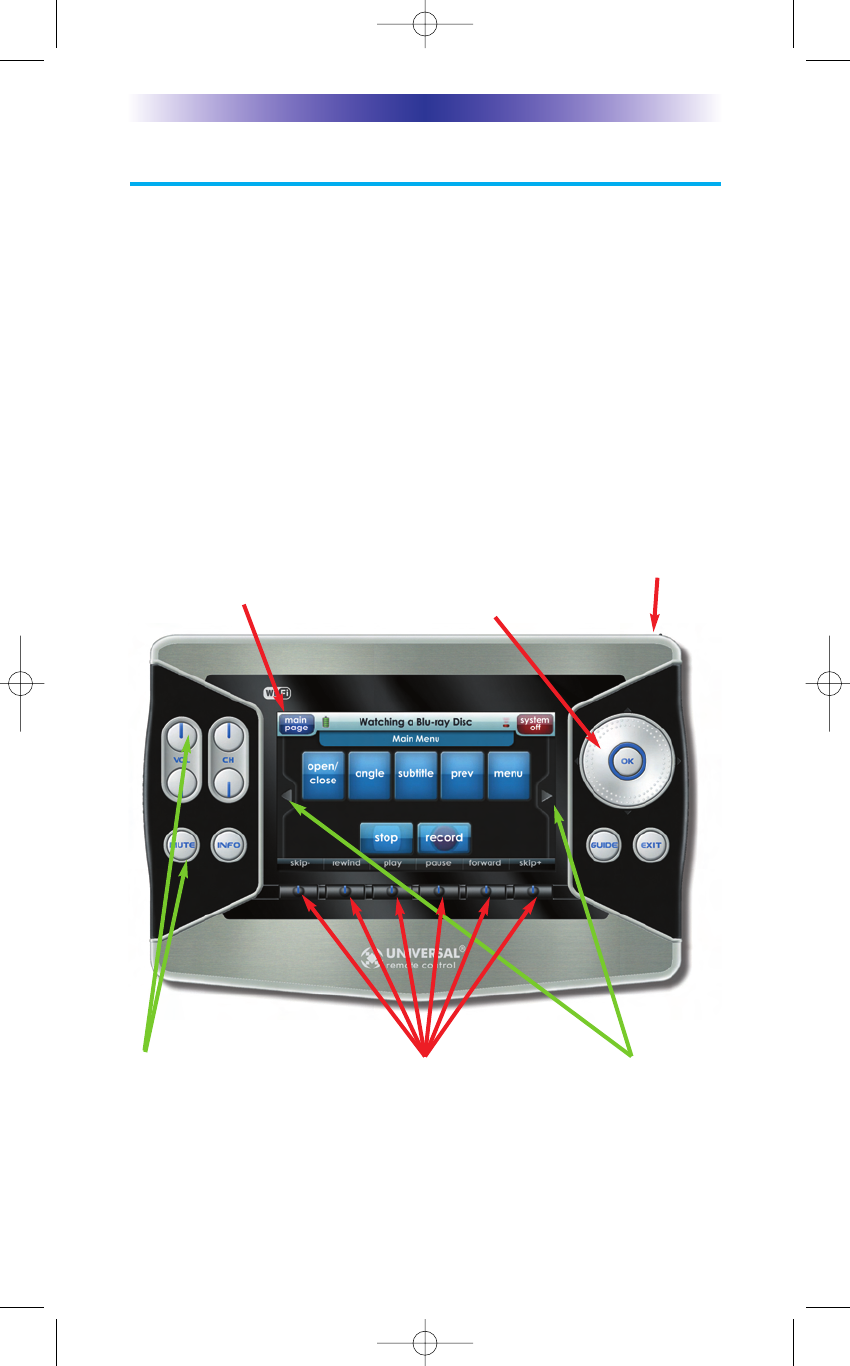

Operating Your System
The MX-6000i’s main pages display the activities and devices in
your system. Press the main page button to see what your choices
are. Large systems may have more than one page. Press either of
the Page buttons if you don’t see all your devices.
Gently press any screen button with your finger to select an activi-
ty or a device. The screen will change to a display of the buttons
you need for that activity/device. The Page buttons may reveal
addi-
tional buttons for some devices and activities.
When you would like to control another device, press the main
page button and select a new device from the main page.
The Volume and
Mute buttons are
always available
regardless of what
screen is displayed.
The screen buttons are
labeled dynamically and
make commonly used func-
tions easy to find by feel.
The Page buttons
display additional
pages of controls.
The combination Scroll Wheel and 4
way cursor buttons enable you to both
scroll lists of artists, albums or songs
from your Music Server or to navigate
on screen guides and menus with ease.
Stylus
storage
slot
The main page but-
ton in the upper left
always displays the
main menu pages.
OCE-0026J(MX-6000i).QXD 12/16/08 4:44 PM Page 7
Page 8
MX-6000i TWO WAY TOUCH SCREEN
Using Two Way Personal Server Features
Step 1 – Insert an iPod into the PSX-1. The
Universal Remote Control screen appears on the
iPod. This means it’s connected to the dock and
ready for use with the MX-6000i remote control.
Step 2 – Select the dock you want to listen to
from the Main page of your MX-6000i.
Step 3 – If the system has just been turned on, you may see the mes-
sage, “Connecting to iPod
Dock”. Once the MX-6000i has
connected to the iPod Dock, the
iPod menu screen appears. If the
iPod is already playing, the
“Now playing screen” appears.
Step 4 – When you browse for
new content, operate the MX-6000i as you would the iPod. Press the
Menu button, then place your thumb on the scroll wheel and rotate
to navigate, then press the “OK” button to make your selection. The
iPod Now Playing Screen appears after a selection is made.
Rotate the Scroll wheel
to navigate.
Press the Menu button
to display iPod menus.
Press the OK button
to select content.
OCE-0026J(MX-6000i).QXD 12/16/08 4:44 PM Page 8
Page 9
MX-6000i TWO WAY TOUCH SCREEN

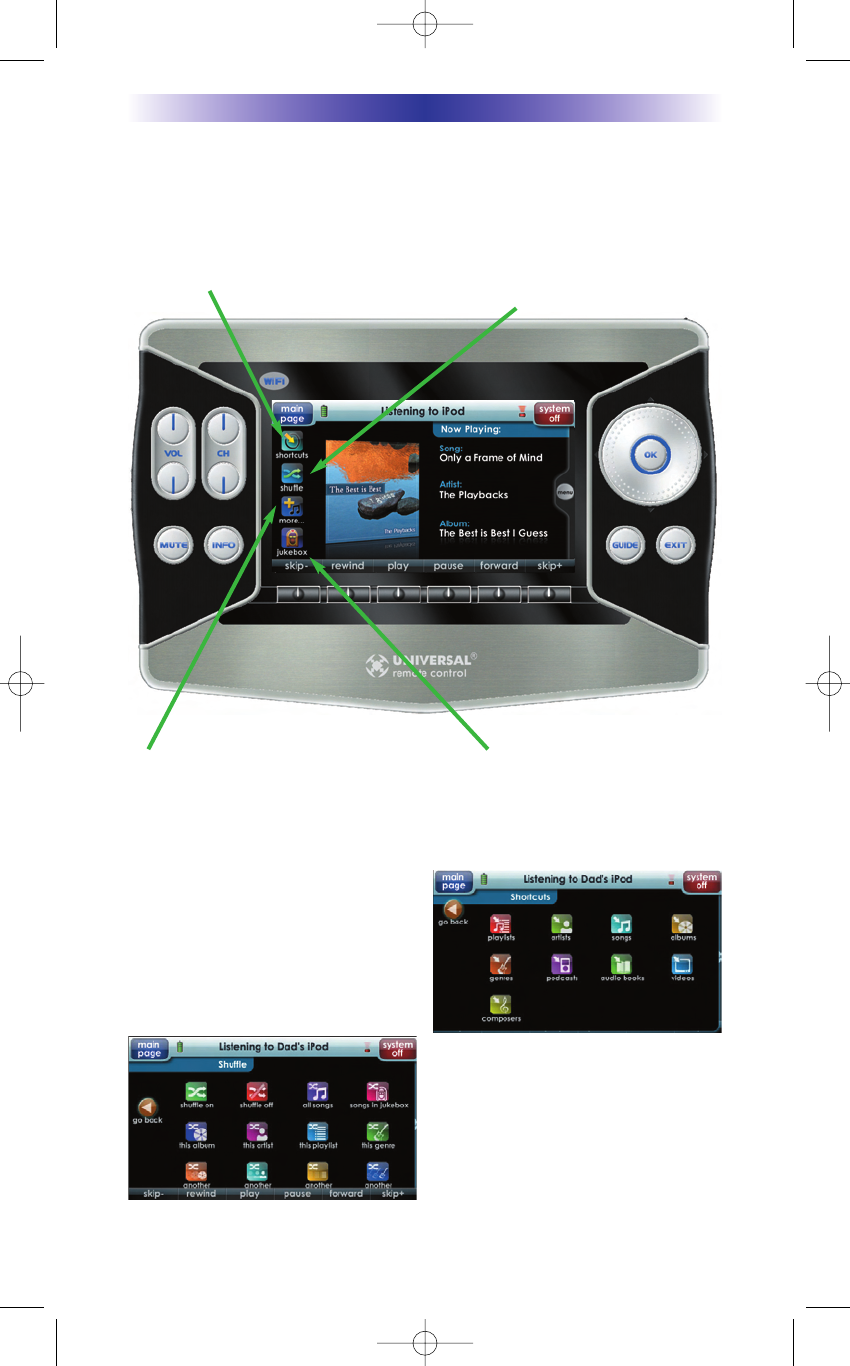

Shortcuts:
The “Shortcuts” button makes nav-
igating your iPod easier than ever
before. Touch any button to jump
directly to that menu. Example:
Touch the “Artists” button to jump
directly to the Artists menu.
Shuffle:
The “Shuffle” button opens an
expanded menu of shuffle
options. Touch any of the choices
to enjoy your music in a
random order.
Your unique personal server features are accessed from the left side
of the screen of your MX-6000i. Simply tap the feature you want:
Shortcuts to finding playlists,
albums, artists, etc. without
using the Menu button.
Shuffle exactly what you
want (this album, this artist,
this genre, etc.)
More from this artist, this
album, this genre, even this
composer...
Jukebox lets you build and
manage your own playlist
without accessing your PC.
OCE-0026J(MX-6000i).QXD 12/16/08 4:44 PM Page 9
Page 10
MX-6000i TWO WAY TOUCH SCREEN

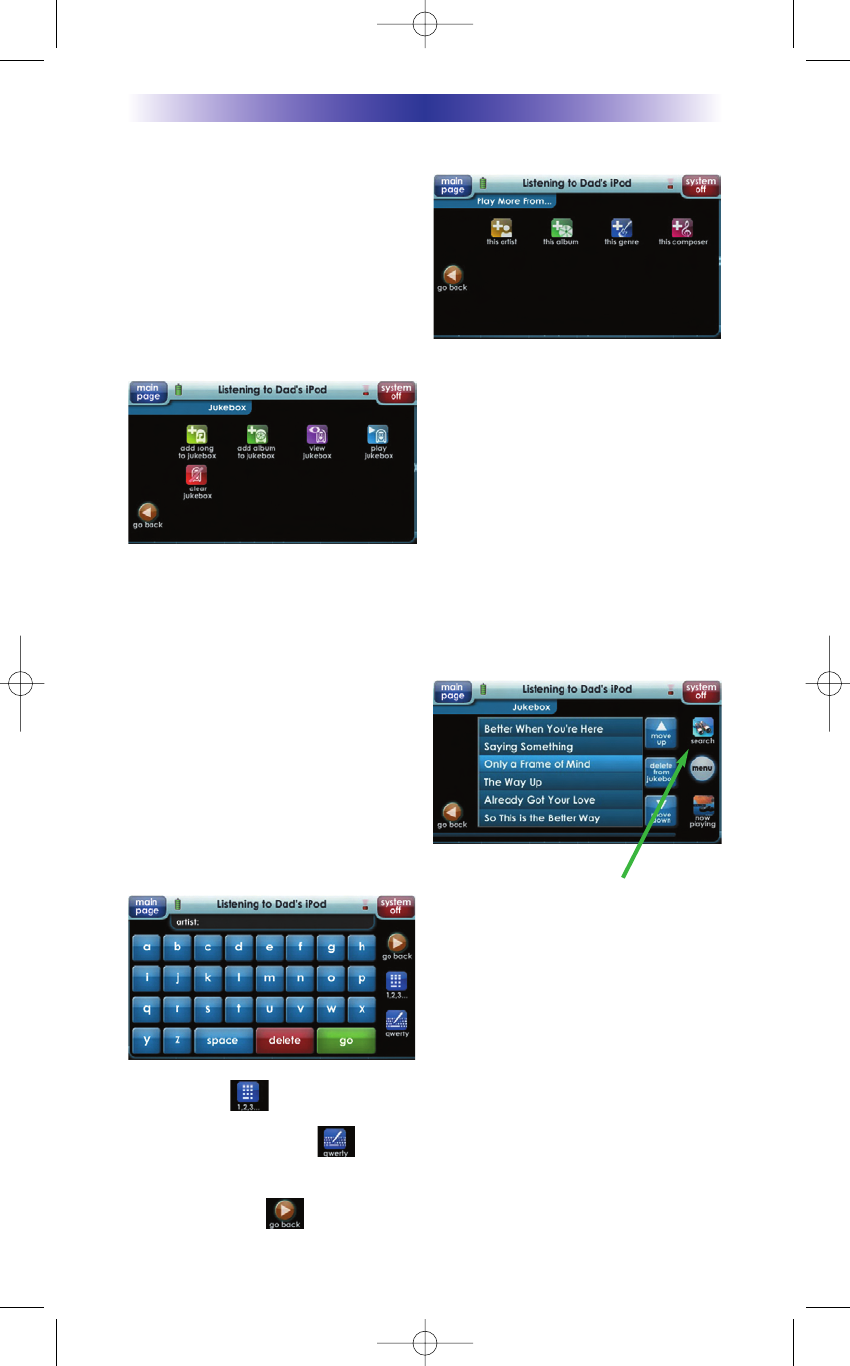

Using the Alpha Search Feature:
The “search” button appears in
the upper right whenever you are
looking at a Menu or Jukebox
screen. Once you click on Search,
an alphabetical keyboard appears.
Simply type in what you’d like to
search for and touch “Go”.
The 1, 2, 3 icon opens the numeric keypad screen.
The qwerty keyboard icon toggles between a qwerty style key-
board and a simple a,b,c keyboard.
The “Go Back” icon takes you back to the menu screen.
Play More From:
The ”Play More From” button
opens up a menu of choices to
add to your current selection. By
touching the “More from this
Artist” button, all the additional
songs, from the current Artist, will
be added to the song queue.
Jukebox:
The “Jukebox” button opens a
menu of choices allowing you to
create a jukebox playlist in real
time. Touch the “add song to
Jukebox” icon or “add album to
jukebox” to add the currently
playing song or album to the
jukebox. To play the jukebox, touch the “play jukebox” icon. To edit
the jukebox, touch the “view jukebox” icon. Note: the Jukebox
playlist is cleared when the iPod is replaced or in the event of a
power failure.
Edit Jukebox:
Songs can be moved up,
down or deleted from the jukebox
list by using the control keys on
the right of the “view jukebox”
screen. To exit from the “View
Jukebox” screen, touch either the”
Go Back” button or the “Now
Playing” icon.
OCE-0026J(MX-6000i).QXD 12/16/08 4:44 PM Page 10
Page 11
MX-6000i TWO WAY TOUCH SCREEN
Displaying the Settings Screen
You can adjust the settings of the
MX-6000i whenever you like by
pressing and holding both the
MUTE and OK buttons for five sec-
onds. When you do, the screen will
change to the SETTINGS screen. If
you do not press any button on the
SETTINGS screen within 30 seconds @ 1minute, the MX-6000i will
time out and automatically return to normal operation.
Sleep Settings
WiFi and Backlighting can be sep-
arately adjusted to conserve bat-
tery life. Note that if WiFI is dis-
connected, the MX-6000 will take
an additional 4-10 seconds to
connect to the network when a
two way device is started.
Brightness
Adjust the screen brightness by
moving the slider. Min is the
dimmest setting and Max is the
brightest setting.
Button Light
You can adjust the brightness of
the LEDs that backlight the but-
tons of the MX-6000. Move the
slider to the left to dim the back-
lighting and move it to the right to
brighten the backlighting.
OCE-0026J(MX-6000i).QXD 12/16/08 4:44 PM Page 11
Page 12
MX-6000i TWO WAY TOUCH SCREEN
Sound
You can adjust the volume to any
level you like by touching and
dragging the volume control.
Date and time
Your MX-6000i may have been programmed to display the time or
date on the touch screen. If you
need to, you can adjust the time
displayed by changing the settings
on this screen. If you live in a part
of the country that uses daylight
savings time, check the box next
to: "Automatically adjust time for
daylight savings time".
Power Settings
You can display the remaining
charge by selecting Power.
You can also adjust when the low
battery warning screen will
appear.
System
The System Information screen displays data about your MX-
6000i's operating system, memory etc.
OCE-0026J(MX-6000i).QXD 12/16/08 4:44 PM Page 12
Page 13
MX-6000i TWO WAY TOUCH SCREEN
Pickup Settings
You can set your MX-6000i to
only turn on when touched, or
every time you move it.
Simply select on or off.
Network
WARNING! Only use this button when instructed to by Technical
Support. The Network screen displays network information about
your MX6000 and the wireless network it is connected to. Do not
make any changes on this screen!
Calibration
If you like, you can calibrate where you tap by running the calibra-
tion. You will need a pen top or PDA stylus to do this. Do not
attempt to calibrate using your fingers.
Factory Default
WARNING! Only use this button when instructed to by Technical
Support. It resets the memory of the MX-6000 to the factory condi-
tion. All your programming will be lost!
Exit
When you have finished adjusting
Settings, simply tap the EXIT but-
ton to return to normal operation.
OCE-0026J(MX-6000i).QXD 12/16/08 4:44 PM Page 13
USA Limited Warranty Statement
Your Universal Remote Control, when delivered to you in new condition, is warranted against
defects in materials or workmanship as follows: UNIVERSAL REMOTE CONTROL, INC. warrants this
product against defects in material or workmanship for a period of one (1) year and as set forth
below. Universal Remote Control will, at its sole option, repair the product using new or comparable
rebuilt parts, or exchange the product for a comparable new or rebuilt product. In the event of a
defect, these are your exclusive remedies. This Limited Warranty covers only the hardware compo-
nents packaged with the Product. It does not cover technical assistance for hardware or software
usage and it does not cover any software products whether or not contained in the Product; any such
software is provided "AS IS" unless expressly provided for in any enclosed software Limited Warranty.
To obtain warranty service, you must deliver the product, freight prepaid, in its original packaging or
packaging affording adequate protection to Universal Remote Control at the address provided in the
Owner's Manual. It is your responsibility to backup any macro programming, artwork, software or
other materials that may have been programmed into your unit. It is likely that such data, software, or
other materials will be lost during service and Universal Remote Control will not be responsible for
any such damage or loss. A dated purchase receipt, Bill of Sale, Installation Contract or other verifi-
able Proof of Purchase is required. For product support and other important information visit
Universal Remote Control's website: http://www.UniversalRemote.com Or call the Universal Remote
Control Customer Service Center (914) 835-4484.
This Limited Warranty only covers product issues caused by defects in material or work-
manship during ordinary consumer use. It does not cover product issues caused by any
other reason, including but not limited to product issues due to commercial use, acts of
God, third-party installation, misuse, limitations of technology, or modification of or to any
part of the Universal Remote Control product. This Limited Warranty does not cover
Universal Remote Control products sold as USED, AS IS, REFURBISHED, so-called "B
STOCK" or consumables (such as batteries). This Limited Warranty is invalid if the facto-
ryapplied serial number has been altered or removed from the product. This Limited
Warranty is valid only in the United States of America. This Limited Warranty specifically
excludes products sold by unauthorized resellers.
Federal Communication Commission
Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digi-
tal device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or tele-
vision reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one more of the following meas-
ures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Page 14
MX-6000i TWO WAY TOUCH SCREEN
OCE-0026J(MX-6000i).QXD 12/16/08 4:44 PM Page 14
Page 15
MX-6000i TWO WAY TOUCH SCREEN
Warning!
Changes or modifications not expressly approved by the manufacturer could void the
user's authority to operate the equipment.
Note : The manufacturer is not responsible for any Radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user's
authority to operate the equipment.
FCC Caution
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compli-
ance could void the authority to operate equipment.
The antenna(s) used for this transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Federal Communication Commission (FCC) Radiation Exposure Statement
This EUT is compliance with SAR for general population/uncontrolled exposure limits
in ANSI/IEEE C95.1-1999 and had been tested in accordance with the measurement
methods and procedures specified in OET Bulletin 65 Supplement C.
OCE-0026J(MX-6000i).QXD 12/16/08 4:44 PM Page 15
Page 16
MX-6000i TWO WAY TOUCH SCREEN
Regulatory Information to the user
Caution
Changes or modifications not expressly approved by the manufactur-
er could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any Radio or TV interfer-
ence caused by unauthorized modifications to this equipment.
Such modifications could void the user’s authority to operate the
equipment.
CE conformity Notice
Products with “CE” marking comply with the R&TTE Directive
1995/5/EC, EMC Directive 2004/108/EC and Low Voltage Directive
2006/95/EEC issued by the commission of the European Community.
1) R&TTE Directive
Safety : EN 60950-1
EMC : ETSI EN 301 489-1,3
RF : ETSI EN 300 220-1,2
2) EMC Directive
Emission : EN 55022
Immunity : EN 55024
Power : EN-61000-3-2, 3
3) Low Voltage Directive
Product safety : EN 60950-1
Safety instruction for charging internal rechargeable battery of
remote control Caution
Use only with EN60950-1 approved as Limited power source and
double insulation( ) marked power adaptor & same ratings described
on the product label (6Vdc, 2.0A).

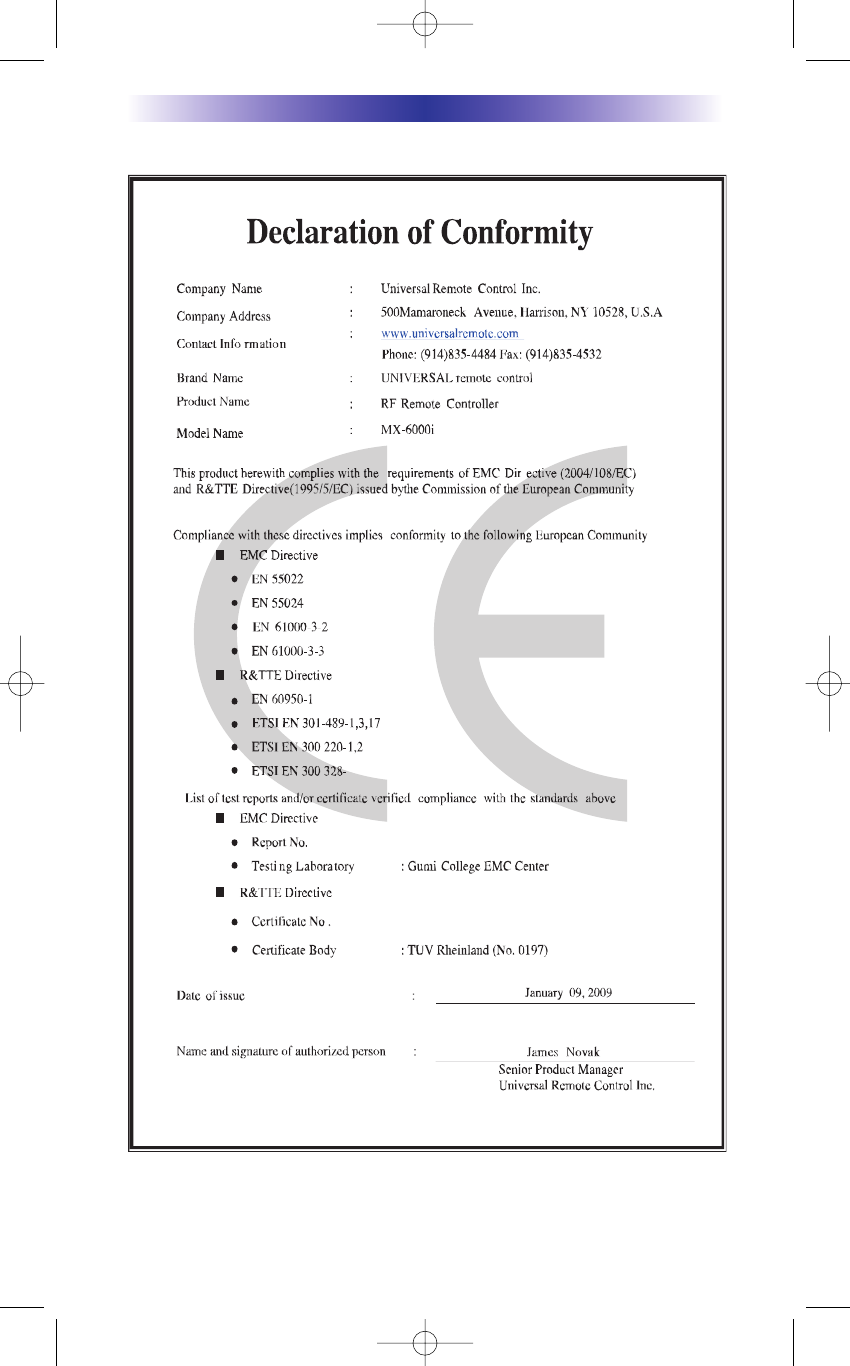

Declaration of Conformity
“Hereby, Universal Remote Control Inc. declares that this MX-6000i is in
compliance with the Essential requirements and other relevant provisions
of Directive 1999/5/EC.”
Certification
Type No.(Model No.) MX-6000i
Batch/Serial No. -
Power Rating 6.0V , 2.0A
Frequency band 433.92MHz
wifi: IEEE 802.11B (11Mps),G
OCE-0026J(MX-6000i).QXD 12/16/08 4:44 PM Page 16
Page 17
MX-6000i TWO WAY TOUCH SCREEN
OCE-0026J(MX-6000i).QXD 12/16/08 4:44 PM Page 17
Page 18
MX-6000i TWO WAY TOUCH SCREEN
Precautions and Information Concerning
Rechargeable Lithium-Ion Batteries
If you will not be using your remote control for an extended period
of time, be sure to remove the battery
Do not attempt to disassemble, alter or apply heat to the battery.
Use care to avoid dropping the battery or subjecting it to severe
impact that could damage the case.
The battery should not be immersed in water.
Lithium Ion batteries are recyclable. For the address of a recycle
drop-off location near you call toll Free 1-800-822-8837 or visit
http://www.rbrc.com
OCE-0026J(MX-6000i).QXD 12/16/08 4:44 PM Page 18
Page 19
NOTE
OCE-0026J(MX-6000i).QXD 12/16/08 4:44 PM Page 19
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
www.universalremote.com
OCE-0026J Rev 01
OCE-0026J(MX-6000i).QXD 12/16/08 4:44 PM Page 20
