Ohsung Electronics URCMXW-920 RF Remote Controller User Manual EMISSION TEST REPORT
Ohsung Electronics Co., Ltd. RF Remote Controller EMISSION TEST REPORT
Users Manual
Order Number
: GETEC-C1-11-129
FCC Part 15 subpart C
Test Report Number
: GETEC-E3-11-053
Page 1 / 1
EUT Type: RF REMOTE CONTROLLER
FCC ID.: OZ5URCMXW-920
APPENDIX I
: USER’S MANUAL
MXW-920
Owner’s Manual
MXW-920 Owner’s Manual ©2011 URC, Inc.
The information in this manual is copyright protected. No part of this
manual may be copied or reproduced in any form without prior written
consent from Universal Remote Control, Inc.
UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR
OPERATIONAL, TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE
IN THIS MANUAL.
The information in this manual may be subject to change without prior
notice.
All other brand or product names are trademarks or registered trademarks
of their respective companies or organizations.
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
TABLE OFCONTENTS
Congratulations! 1
Using the MXW-920 2
Displaying the Settings Screen 3
Selecting from the Setup Screen 3
Setting the LCD 4
Light Settings 6
Sound Volume 6
System Settings 7
Version Information Displays 7
Battery Installation 8
Specifications 8
USA Limited Warranty Statement 9
Federal Communication Commission
Interference Statement 11
Page 1
MXW-920 OWNER’SMANUAL
Congratulations!
Thank you for purchasing the Complete Control MXW-920 water
resistant wand-style controller. This unit can directly control every
IR device in your home. You can also control devices located in
different rooms by integrating an MRF base station. Controlling your
home is simple with the MXW-920 remote.
Splash Proof RF/IR wand-style controller
The Splash Proof MXW-920 wand-style controller can be used
outside as well as indoors. It’s the perfect controller for kitchen, bath
and poolside use. It is not intended for underwater use or exposure
to sugar-based substances (e.g., soda or lemonade). Make sure the
MXW-920 is dry when changing batteries. IP Code 54, JIS Class 4.
Ideally suited for poolside control
Entertain your guests by controlling your sound system or more
while poolside. Use the MXW-920 by the pool without the worry
of damaging your remote.
Controls up to 40 devices
The MXW-920 has the capacity to control up to 40 devices
throughout your home. Turn off devices that are not in use when
walking by a room. It’s like having a master key for your electronic
devices.
Ultra-reliable narrow band RF - compatible with URC
418 MHz RF Base Stations
The MXW-920 can communicate directly to RF base stations, such
as the MRF-350 and the MRF-260. It also natively communicates
with to URC Lighting via 418MHz RF. This gives the MXW-920 the
ability to control your system without being in direct line-of-sight.
Fast setup of complex systems via Complete Control PC editor
To fully automate an audio/video system, and integrate two way
automation of servers etc., the programmer must have a detailed
knowledge of each component, LAN configuration, WiFi
optimization and how the system is connected and operated. Only
a trained and certified professional audio/video installer can install
an MXW-920 remote control in a timely and efficient manner.
MXW-920 OWNER’SMANUAL

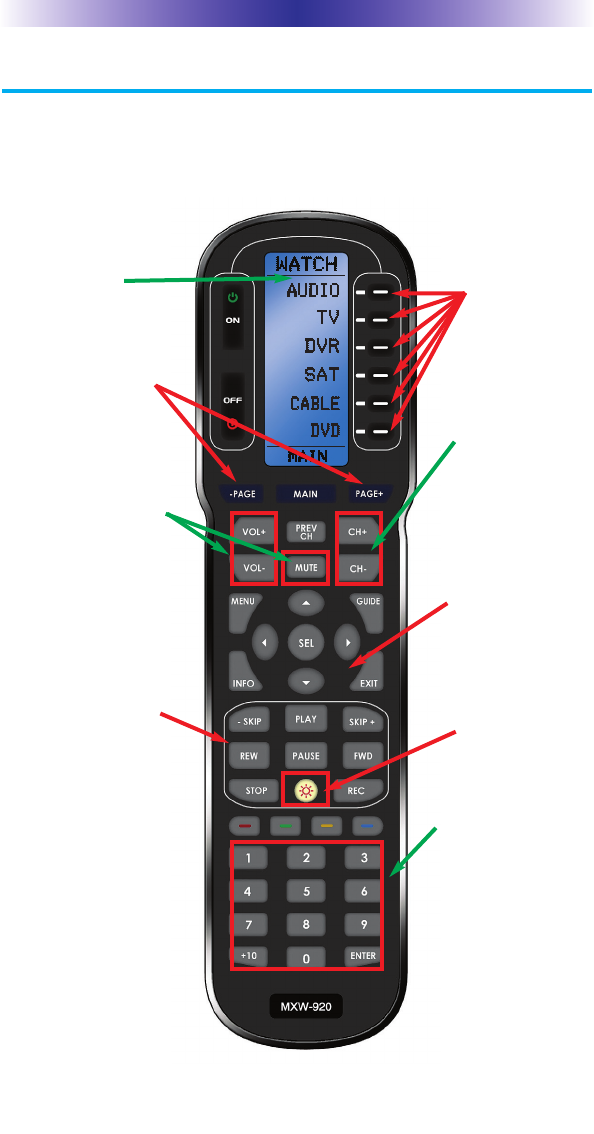

Using the MXW-920
The MXW-920 displays the title (Main or Device) at the top of the
screen. Below the title, the LCD displays the device or command
names. All the hard buttons of the MXW-920 are changed to control
the functions of the selected device.
The Title displays
the main page or
device you can
control.
Press either of the
Page buttons to see
any other available
choices.
The LCD button
labels describe
special features
for this activity.
The Channel and
Previous Channel
buttons change
channels when you
have selected devices
like CABLE.
The 4 way cursor
buttons enable you
to navigate on
screen guides and
menus with ease.
The Number keypad
enters numbers for
the devices you’ve
selected. When
watching Cable TV,
use the number
keypad to enter
channel numbers.
When listening to a
CD, the number
keypad enters track
numbers.
The Volume and
Mute buttons always
control the sound
regardless of what
screen is displayed.
The Transport buttons
(Play, Stop, Skip-,
Skip+, FF, REW and
Pause) operate when
the selected device
requires them. When
watching Cable
TV, use the number
keypad to enter
channel numbers.
When listening to a
CD, the number
keypad enters track
numbers.
The Light button
backlights all of
the buttons.
Page 2
MXW-920 OWNER’SMANUAL
Displaying the Settings Screen
You can adjust the settings of the MXW-920
controller whenever you like. Simply press and
hold both the Main and the Enter buttons at the
same time for three seconds. The screen displays
the Setup screen. If you do not press any button on
the Setup screen within 30 seconds, the MXW-920
times out and automatically returns to normal
operation. You can return to normal operation
before that by pressing the Main button.
Selecting from the Setup Screen
Simply touch the button for the setting you’d like to adjust:
At the same time, press and
hold both the Main button
and the Enter button.
When the Setup screen
appears, you can release the
two buttons.
Page 3
LCD - The appearance of the screen.
Light - What the light button does.
Sound - The volume of the beeps.
System - The battery low warning.
Version - No adjustments are possible.
Displays factory info.
Page 4

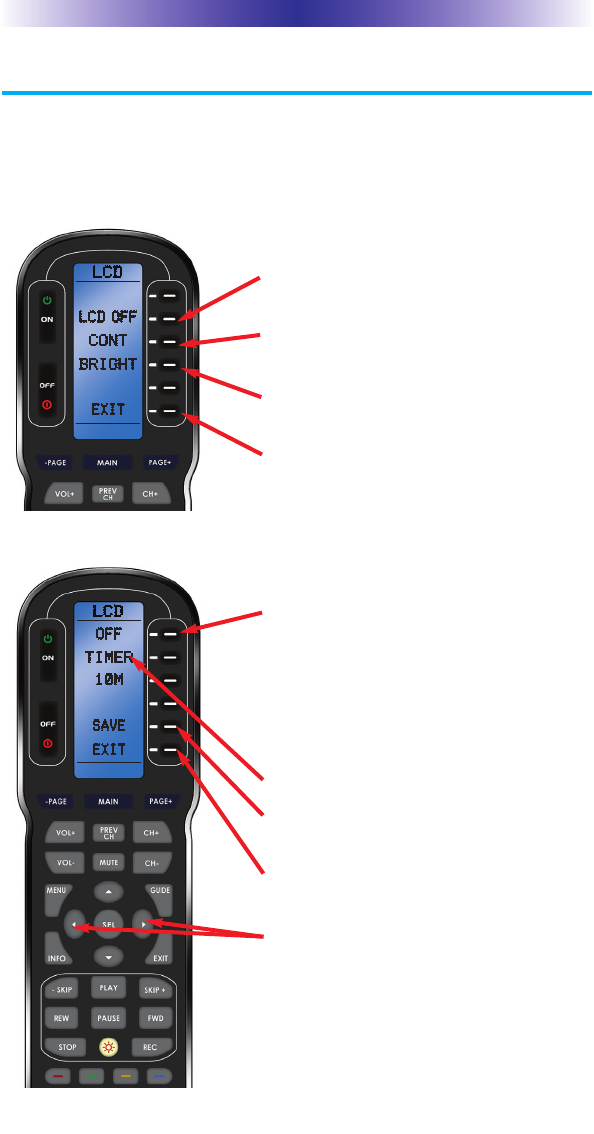

Setting the LCD
With these settings, you can set the MXW-920 to constantly display
the LCD or show a blank screen when not in use. Additionally, you
can control the contrast of the screen and the color of the backlighting.
MXW-920 OWNER’SMANUAL
To activate the LCD On/Off setting, press
this button. See below.
To activate the Contrast setting, press this
button. See the next page.
To activate the Brightness setting, press
this button. See the next page.
To exit without saving any changes you
have made, press Exit.
LCD Timer Setting:
If you set the LCD to OFF, the timer settings
appear. The LCD goes blank after the set
amount of time you set here by
adjusting the Left and Right arrow keys.
The timer can be set to turn off the LCD
between 10 seconds and 20 minutes.
The Timer Interval is displayed here.
To save any changes you have made,
press Save.
To exit without saving any changes you
have made, press Exit.
To change the timer interval, press the
Left or Right arrow keys.
Page 5
MXW-920 OWNER’SMANUAL
Setting LCD Contrast
You can adjust the contrast of the LCD screen using the Left and
Right arrow keys once the LCD Contrast screen has been selected
(shown on the previous page).
Setting LCD Brightness
You can adjust the brightness of the LCD screen using the Left and
Right arrow keys once the LCD Brightness screen has been selected
(shown on the previous page).
The current contrast is displayed here
via a bar graph.
To save any changes you have made,
press Save.
To exit without saving any changes you
have made, press Exit.
Adjust the Contrast setting with the Left
and Right keys as shown in the previous
pages.
The current brightness is displayed here
as a bar graph.
To save any changes you have made,
press Save.
To exit without saving any changes you
have made, press Exit.
Adjust the LCD brightness with the Left
and Right keys as shown in the previous
pages.
MXW-920 OWNER’SMANUAL
Page 6

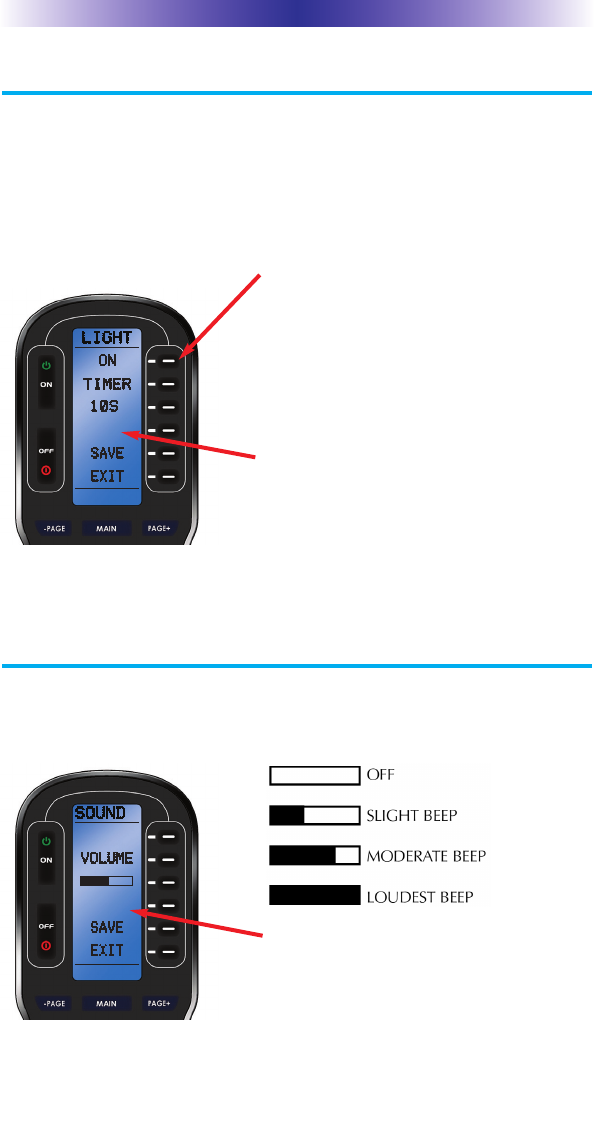

Light Settings
You can adjust the backlighting of the remote in two additional ways:
1. You can turn on/off the LCD and the hard button backlighting.
2. You can select the length of time the lighting stays on after the
last button press from a range of values between 10 seconds
and 90 seconds.
Sound Volume
Your MXW-920 beeps whenever a button is pressed. However, you
can adjust the volume of the beep to one of four levels as shown here
Change whether the backlighting is on or
off by pressing this button.
If you want the backlighting always off,
set it to OFF.
If you would like the backlighting on,
select ON.
The current timer setting is displayed
here in seconds.
Adjust the backlighting timer setting with
the Left and Right keys as shown in the
previous pages.
The current Beep volume is displayed
here as a “bar.”
Adjust the volume of the beep by
tapping the left and right arrow keys
as shown in the previous pages.
MXW-920 OWNER’SMANUAL
Page 7

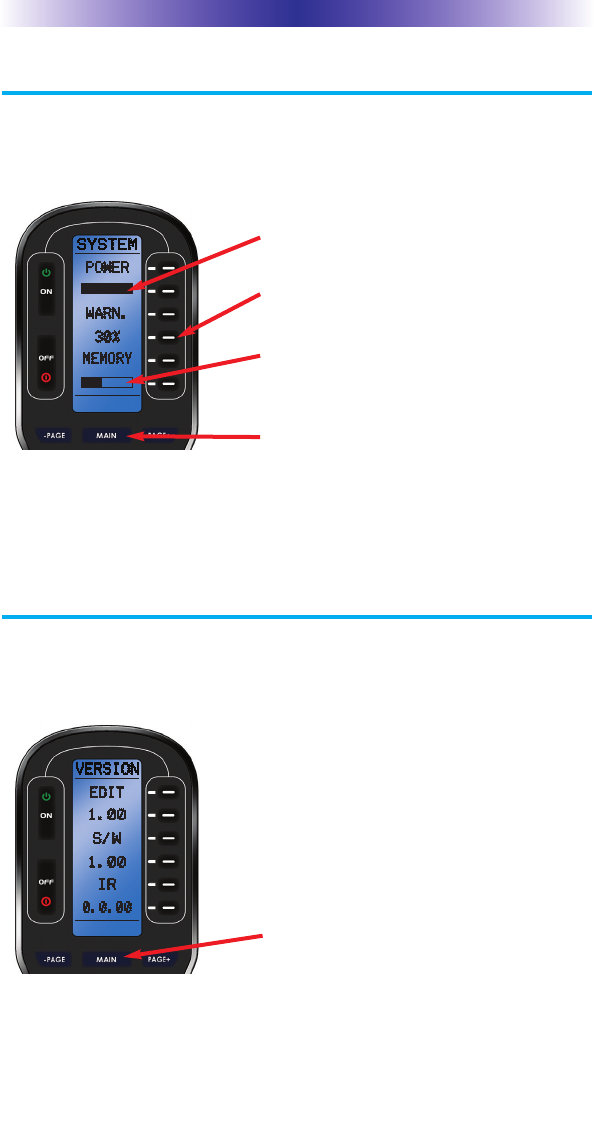

System Settings
You can set your MXW-920 to display the Low Battery warning at a
power level between 0% and 20% (in 5% increments).
Version Information Displays
Should you be curious, the Version indicates what firmware and
software versions were used to program your MXW-920.
The Power bar indicates available power
in black.
Press here to adjust the battery warning
level.
The Memory bar indicates available
memory in black. The memory in use is
white.
To exit, press Main.
To exit, press Main.
MXW-920 OWNER’SMANUAL
Page 8
Battery Installation
Open the battery cover by pressing the release and pulling back the
cover on the back of the control. Remove the cover. Observe the +
and - polarity indications inside the battery compartment. Place the
four AAA batteries into their positions in the battery compartment
observing the + and - polarity indicators on the batteries. Now,
replace the battery cover by inserting the hinged end in first, then
snapping the cover back into place.
Specifications
Memory: 4 Megabits of Flash Memory (for User Configuration)
Devices: Flexible, typically can support up to 40 Devices
Pages: Flexible, typically can support up to 40 Pages on each Device
Learning Capability: Standard frequencies (15kHz to 460kHz)
Macro Capability: Up to 255 steps each, however nesting is allowed
IR Range (Line of Sight via Infrared): 30-50 feet, depending on the
environment
RF Range (radio frequency): 50 to 100 feet, depending upon the
environment
RF Frequency: 418MHz
Weight: 5.68 ounces (without batteries)
Size: 8.9” H x 2.34” W x 1.1” D
Batteries: 4 AAA Batteries
Page 9
USA Limited Warranty Statement
Your Universal Remote Control, when delivered to you in new
condition, is warranted against defects in materials or workmanship
as follows: UNIVERSAL REMOTE CONTROL, INC. warrants this
product against defects in material or workmanship for a period of
one (1) year and as set forth below. Universal Remote Control will,
at its sole option, repair the product using new or comparable
rebuilt parts, or exchange the product for a comparable new or
rebuilt product. In the event of a defect, these are your exclusive
remedies.
This Limited Warranty covers only the hardware components
pack-aged with the Product. It does not cover technical assistance
for hardware or software usage and it does not cover any software
products whether or not contained in the Product; any such
software is provided “AS IS” unless expressly provided for in any
enclosed software Limited Warranty.
To obtain warranty service, you must deliver the product, freight
prepaid, in its original packaging or packaging affording adequate
protection to Universal Remote Control at the address provided in
the Owner’s Manual. It is your responsibility to backup any macro
programming, artwork, software or other materials that may have
been programmed into your unit. It is likely that such data, soft-
ware, or other materials will be lost during service and Universal
Remote Control will not be responsible for any such damage or
loss. A dated purchase receipt, Bill of Sale, Installation Contract or
other verifiable Proof of Purchase is required. For product support
and other important information visit Universal Remote Control’s
website: http://www.UniversalRemote.com or call the Customer
Service Center (914) 835-4484.
This Limited Warranty only covers product issues caused by defects
in material or workmanship during ordinary consumer use. It does
not cover product issues caused by any other reason, including but
not limited to product issues due to commercial use, acts of God,
third-party installation, misuse, limitations of technology, or modifi
-cation of or to any part of the Universal Remote Control product.
This Limited Warranty does not cover Universal Remote Control
products sold as USED, AS IS, REFURBISHED, so-called “B STOCK”
or consumables (such as batteries). This Limited Warranty is invalid
if the factory-applied serial number has been altered or removed
from the product. This Limited Warranty is valid only in the United
States of America. This Limited Warranty specifically excludes prod-
ucts sold by unauthorized resellers.
MXW-920 OWNER’SMANUAL
MXW-920 OWNER’SMANUAL
Page 10
LIMITATION OF REMEDIES
UNIVERSAL REMOTE CONTROL SHALL NOT BE LIABLE FOR
ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR
BREACH OF ANY EXPRESS OR IMPLIED WARRANTY OR CONDI-
TION ON THIS PRODUCT. IN NO EVENT SHALL UNIVERSAL
REMOTE CONTROL BE LIABLE, WHETHER IN CONTRACT OR IN
TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF
THE PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR
SOFTWARE, OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REV-
ENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMA-
TION OR DATA, SOFTWARE OR APPLICATIONS OR OTHER
FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH
THE ABILITY OR INABILITY TO USE THE PRODUCTS, ACCES-
SORIES OR SOFTWARE TO THE FULL EXTENT THESE DAMAGES
MAY BE DISCLAIMED BY LAW.
EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW,
THERE IS NO OTHER WARRANTY EXPRESSED OR IMPLIED. UNI-
VERSAL REMOTE CONTROL WILL NOT BE HELD RESPONSIBLE
FOR STATEMENTS MADE BY OTHERS CONCERNING THE MER-
CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON
THIS PRODUCT. Some states or jurisdictions do not allow the
exclusion or limitation of incidental or consequential damages, or
allow limitations on how long an implied warranty lasts, so the
above limitations or exclusions may not apply to you. This Limited
Warranty gives you specific legal rights and you may have other
rights which vary from state to state or jurisdiction to jurisdiction.
REV020708
Page 11
MXW-920 OWNER’SMANUAL
Federal Communication Commission
Interference Statement
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the
interference by one more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
Warning!
Changes or modifications not expressly approved by the manufacturer
could void the user's authority to operate the equipment.
Note : The manufacturer is not responsible for any Radio or TV
interference caused by unauthorized modifications to this equipment.
Such modifications could void the user's authority to operate the
equipment.
FCC Caution
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party
responsible for compliance could void the authority to operate
equipment.
Page 12
NOTE
Page 13
NOTE
Page 14
NOTE
Page 15
NOTE
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
www.universalremote.com
OCE-0066E Rev 01
