Ohsung Electronics URCTHZ100 THERMOSTAT User Manual EMISSION TEST REPORT
Ohsung Electronics Co., Ltd. THERMOSTAT EMISSION TEST REPORT
Users Manual
Order Number
: GETEC-C1-11-248
FCC Part 15 subpart C
Test Report Number
: GETEC-E3-11-125
Page 1 / 1
EUT Type: THERMOSTAT
FCC ID.: OZ5URCTHZ100
APPENDIX H
: USER’S MANUAL
Order Number
: GETEC-C1-11-248
FCC Part 15 subpart C
Test Report Number
: GETEC-E3-11-125
Page 1 / 1
EUT Type: THERMOSTAT
FCC ID.: OZ5URCTHZ100
APPENDIX H
: USER’S MANUAL
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835
Owners Manual
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835
-4484 Fax: (914) 835-4532
THZ-100
Owners Manual
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
MS-780 Owner’s Manual ©2010 URC,Inc.
The information in this manual is copyright protected.No part of this manual may be
copied or reproduced in any form without prior written consent from Universal Remote-
Control,Inc.
UNIVERSAL REMOTE CONTROL,INC.SHALL NOT BE LIABLE FOR OPERATIONAL,
TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN THIS MANUAL.
The information in this manual may be subject to change without prior notice.
All other brand or product names are trademarks or registered trademarks of their
respective companies or organizations.
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835
1 General Description
1.1
This thermostat enables intelligent HVAC control as part of a
system. It uses the
communicate with the Control4 system
1.2
The Control4 Thermostat features a backlit LCD display showing time,
temperature, date, fan status, hold status, and HVAC operating mode. The
panel allows for temperature setpoint adjustment, HVAC mode change,
hold options and fan control. It can also operate as a stand
thermometer if it loses communication with the system.

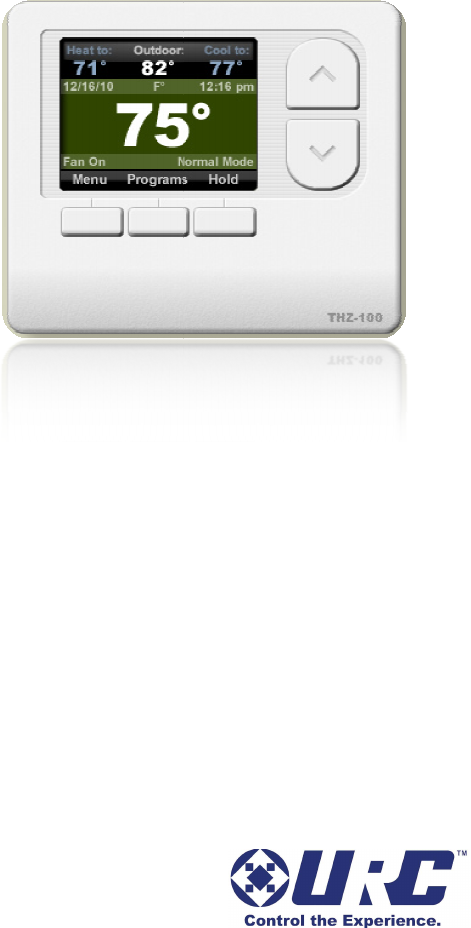

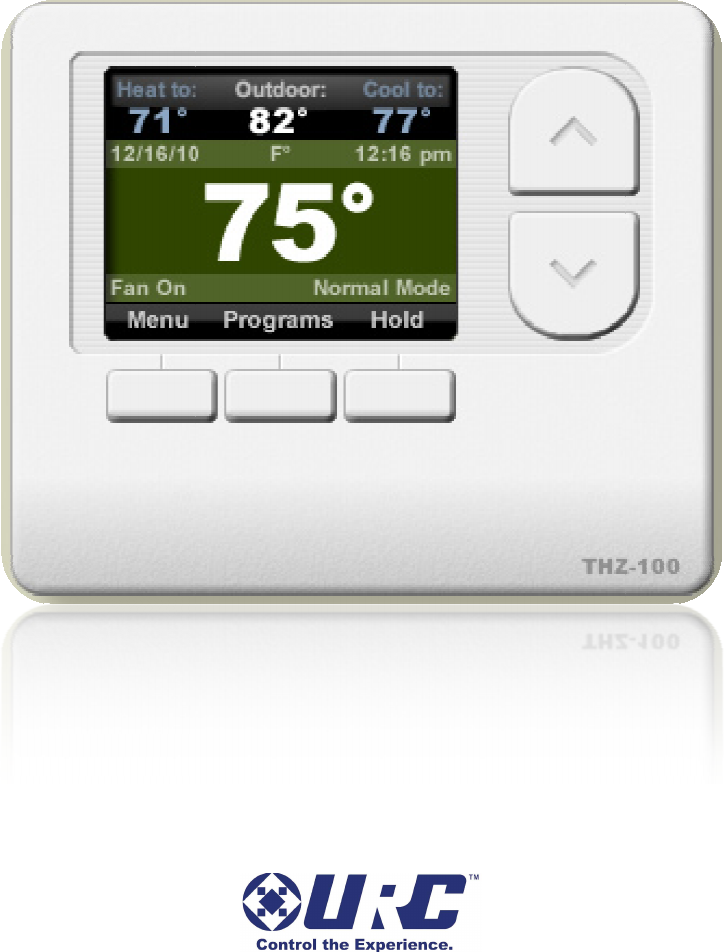

2 Front View
2.1
2 inch Color LCD screen.
2.2 Th
ree hard buttons labeled by the screen
2.3
Up and Down buttons for adjusting Temp or selecting line items.
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835
-4484 Fax: (914) 835-4532
This thermostat enables intelligent HVAC control as part of a
system. It uses the
ZigBee (802.15.4) wireless networking
communicate with the Control4 system
The Control4 Thermostat features a backlit LCD display showing time,
temperature, date, fan status, hold status, and HVAC operating mode. The
panel allows for temperature setpoint adjustment, HVAC mode change,
hold options and fan control. It can also operate as a stand
thermometer if it loses communication with the system.
2 inch Color LCD screen.
ree hard buttons labeled by the screen
Up and Down buttons for adjusting Temp or selecting line items.
This thermostat enables intelligent HVAC control as part of a
URC automated
ZigBee (802.15.4) wireless networking
standard to
The Control4 Thermostat features a backlit LCD display showing time,
temperature, date, fan status, hold status, and HVAC operating mode. The
front
panel allows for temperature setpoint adjustment, HVAC mode change,
variable
hold options and fan control. It can also operate as a stand
-alone set-point
Up and Down buttons for adjusting Temp or selecting line items.
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532

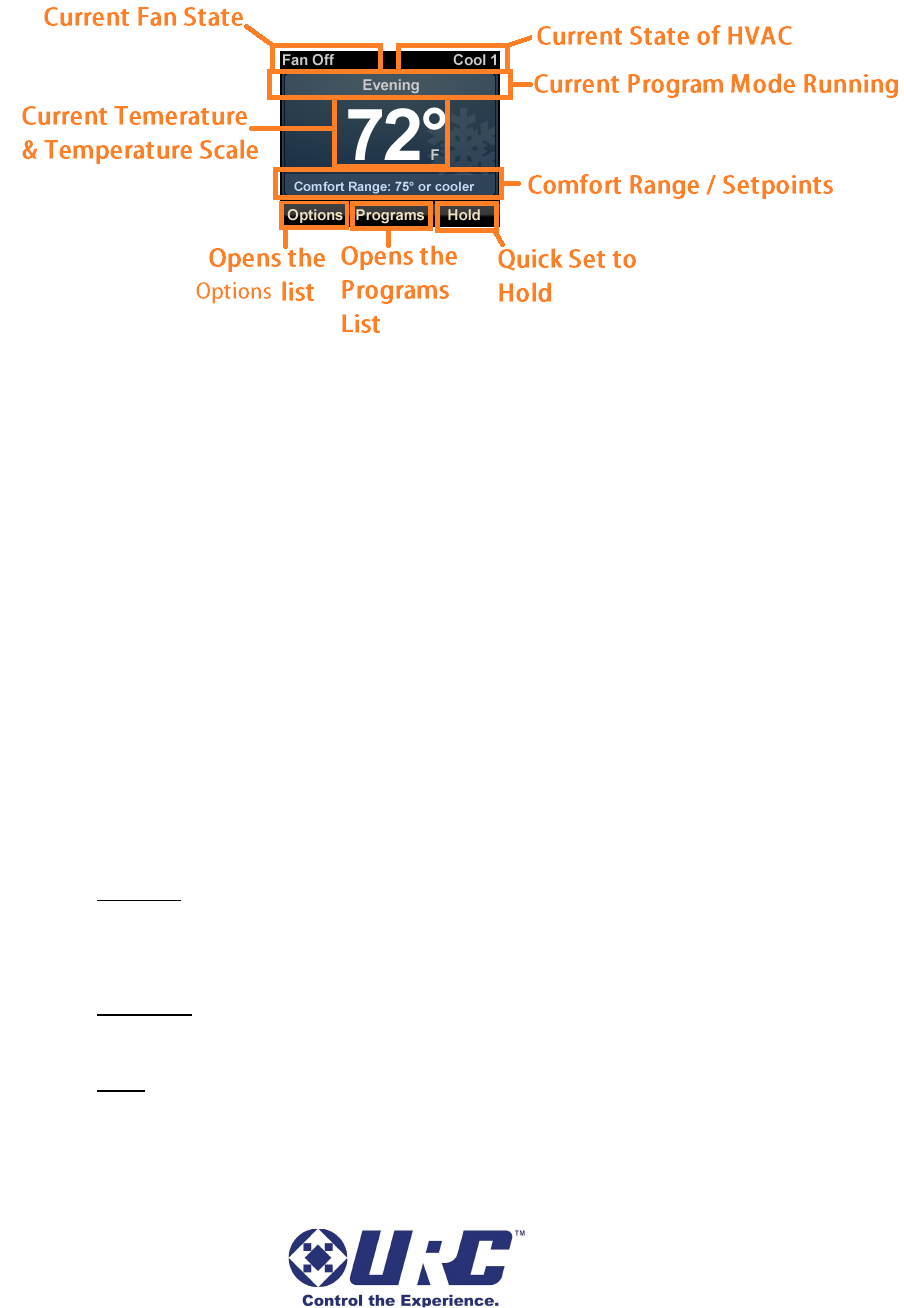

3 SCREEN
3.1 Current Thermostat Temperature
3.1.1 This will display what the current temperature the thermostat is currently
reporting.
3.1.2 This number needs to be supported in either Celsius or Fahrenheit.
3.2 Current State of the HVAC (Text Display)
This area of text will notify what the HVAC system is currently doing.
3.3 Temperature Scale: Will display the current temperature scale that the
thermostat is using - Fahrenheit (F°) or Celsius (C°)
3.4 Current Program Mode Running: This area of text will notify what the current
program running is.
3.5 Current Fan State: This text will display what the current fan mode running is
3.6 CLIMATE CONTROL MAIN SCREEN LCD BUTTONS
3.6.1 Underneath the LCD screen are three hard buttons that when pressed will
react to the command that is directly above them on the LCD screen.
3.6.2 Options: When the Menu Options button is pressed then the LCD screen
will change from the Climate Control Screen to the Menu Options Menu
screen.
3.6.3 Programs: When the Programs button is pressed then the LCD screen will
change from the Climate Control Screen to the Programs screen.
3.6.4 Hold: When the Hold button is pressed it will put the thermostat into the
Permanent Hold Program mode.
4 Wiring the Base Plate Terminals
4.1 Below is the total number of connectors that are required to make the
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
thermostat work with different types of Heating and Cooling.
4.2 Please refer to section for different heat and cooling wiring set up.
4.3 The thermostat will control and be powered by these 24v North American
HVAC systems:
4.3.1 Heat Only: Gas, oil, or Electric Furnace heat without central air conditioning.
4.3.2 Cool Only: Central Air Conditioning without Heat.
4.3.3 Heat/Cool: Gas, oil, or Electric Furnace heating with central air conditioning.
4.3.4 Heat/ Cool: Dual Stage: 2 stages of Gas, oil, or Electric Furnace with two-
stages of central air conditioning.
4.3.5 Heat/Cool (Separate Transformers):
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532

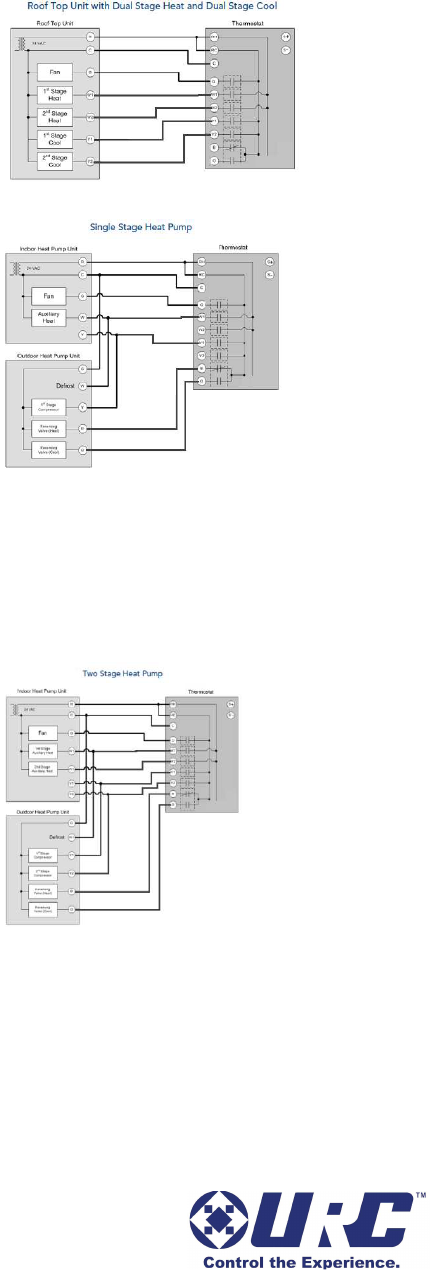

4.3.6 Heat / Cool (Roof Top Unit / Dual Stage): This is when the Heater and Air
conditioner are dual stage and are in a single unit.
4.3.7 Heat pump: Single-stage heat pump (backup or auxiliary heat).
4.3.8 Heat only with fan: Gas, oil, or Electric Furnace heat without central air
conditioning.
4.3.9 Hot water heat (no fan): Gas, oil or hot water heat without central air
conditioning.
4.3.10 Multi-stage heat pump: Heat pump with backup or auxiliary heating.
4.3.10.1 Conventional multi-stage system #1: 2heat stages & 2 cooling
stages
4.3.10.2 Conventional multi-stage system #2: 2 heat stages
4.3.10.3 Conventional multi-stage system #3: 1 heat stage, 2 cooling
stages

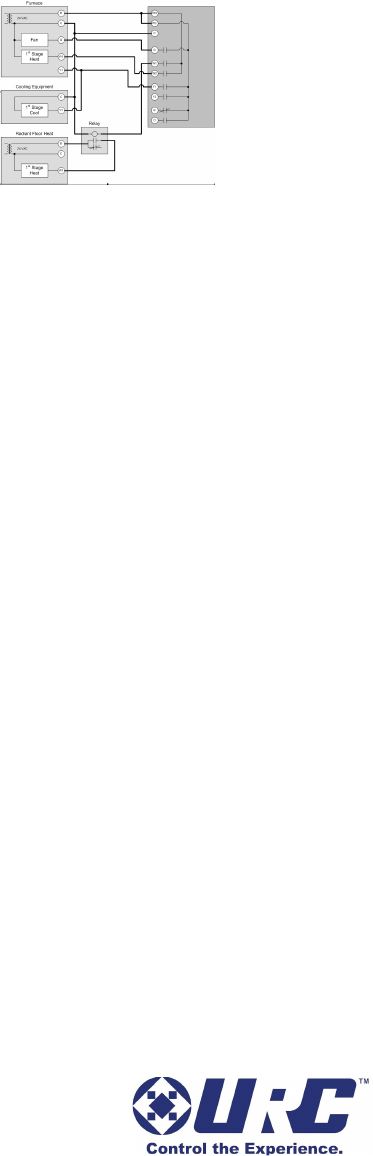

4.3.11 Radiant Floor With 2nd Stage Furnace (Oil/Gas or Electric):
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
4.3.11.1 We will support a radiant floor with the use of a separate relay.
(URC will not stock relay.) A radiant floor with the relay connects like
a conventional system. The only item is that when the call for heat
on the Radiant floor then the FAN “G” should not turn ON. The fan
should only turn on when the 2nd stage is called for.
5 Back Panel:
5.1 Below is the total number of connectors that are required to make the
thermostat work with different types of Heating and Cooling.
5.1.1 Please refer to section for different heat and cooling wiring set up.
5.1.1.1 RH: 24 VAC from the heating system
5.1.1.2 RC: 24 VAC from the cooling system.
5.1.1.2.1 Note: If a separate 24 VAC is not supplied to the RC terminal,
you should install a jumper from RH to RC.
5.1.1.3 C: 24 VAC common
5.1.1.4 G: Fan Terminal.
5.1.1.4.1 If you are using a single speed fan, connect it to the “G”
terminal, since the fan speed is set to Low by default.
5.1.1.4.2 On a multi-speed fan, “G” is the lowest speed.
5.1.1.5 W1: 1st stage heat or AUX heat for a heat pump system.
5.1.1.6 W2: 2nd stage heat or 2nd Stage AUX heat for a heat pump.
5.1.1.7 Y1: 1st stage compressor (Air Conditioner)
5.1.1.8 Y2: 2nd stage compressor (Air Conditioner)
5.1.1.9 B: Reversing valve (heat)
5.1.1.10 O: Reversing valve (cool)
5.1.1.11 S+: External Temperature Sensor (Power +).
5.1.1.11.1 Thermostat (THZ-100) will only support one hardwired
Thermostat)
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
5.1.1.12 S-: External Temperature Sensor (Power -).
5.1.1.12.1 Thermostat (THZ-100) will only support one hardwired
Thermostat
6 Specifications
6.1 Microprocessor: ARM 32-bit Cortex™-M3 150Mhz
6.2 FLASH: 128 Kbytes of SRAM, 512 Kbytes of Flash memory
6.3 Display: 2.0 inch QCIF
6.4 Display Resolution: 176(H) X RGB X 220(V)
6.5 Dimension: 3.25” X 1.00” X 2.75”
6.6 RF Range (radio frequency): 50 to 100 feet, depending upon the environment
6.7 RF Frequency: 2.4GHz
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one more of the following
measures:
□ Reorient or relocate the receiving antenna.
□ Increase the separation between the equipment and receiver.
□ Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
□ Consult the dealer or an experienced radio/TV technician for help.
Warning!
Changes or modifications not expressly approved by the manufacturer could
void the user's authority to operate the equipment.
Note : The manufacturer is not responsible for any Radio or TV interference
caused by unauthorized modifications to this equipment. Such modifications
could void the user's authority to operate the equipment.
FCC Caution
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the authority to operate equipment.
The antenna(s) used for this transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Federal Communication Commission (FCC) Radiation Exposure Statement
The device and the antenna for this device must be installed to ensure a
minimum separation distance of 20 cm more from a person's body. Other
operating configurations should be avoided.
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
Regulatory Information to the user
□ CE conformity Notice
Products with “CE” marking comply with the R&TTE Directive 1995/5/EC, EMC Directive
2004/108/EC and Low Voltage Directive 2006/95/EEC issued by the commission of the
European Community.
1) R&TTE Directive
○ EMC : ETSI EN 301 489-1,17
○ RF : ETSI EN 300 328
○ LVD EN 60950-1
2) EMC Directive
○ Emission : EN 55022
○ Immunity : EN 55024
○ Power : EN-61000-3-2, 3
Universal Remote Control
Certification
CE2200
Type No.(Model No.)
THZ
-
100
Batch/Serial No.
-
Power Rating
AC 24V
Frequency band
2.4
GHz
