TKP-100 Keypad
Owners Manual
TKP-100 Keypad Owners Manual ©2010 Universal Remote Control,Inc.
The information in this manual is copyright protected.No part of this manual may be
copied or reproduced in any form without prior written consent from Universal
Remote Control,Inc.
Universal Remote Control,INC.shall not be liable for operational,technical or edito-
rial errors/omissions made in this manual.
The information in this manual may be subject to change without prior notice.
Complete Control is a registered trademark of Universal Remote Control,Inc.
All other brand or product names are trademarks or registered trademarks of their
respective companies or organizations.
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
TABLE OFCONTENTS
Introduction 1
Features and Benefits 1
Parts Guide 1
TKP-100 Button Descriptions 2
Frequently Asked Questions 3
Specifications 3
USA Limited Warranty Statement 4
Federal Communication Commission
Interference Statement 5
Regulatory Information to the user 6
Declaration of Conformity 7
Page 1
TKP-100 KEYPAD
Introduction

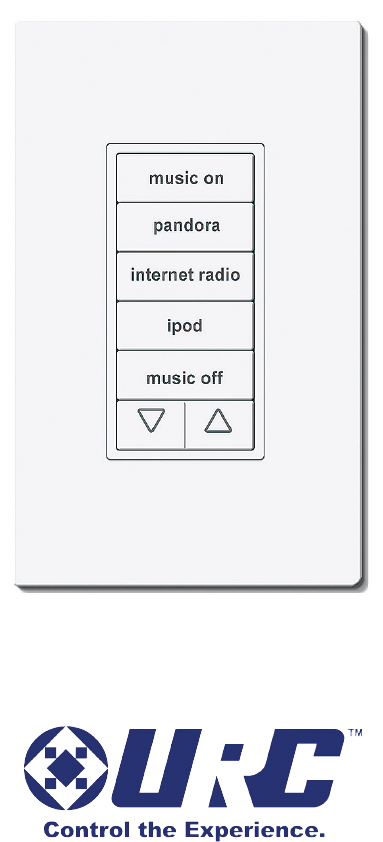

Congratulations on your purchase of the TKP-100 In-wall keypad!
The TKP-100 is an elegant, single-gang network keypad that lends
simplicity and one touch control of your URC Lighting system or
URC Whole House Music system.
Features and Benefits
Decora Style In-wall network Keypad:
Decora Style in-wall keypad accepts all standard Decora
style cover plates.
Backlit Buttons with Status Indication for URC Music Control:
Five standard backlit buttons change to amber, when
pressed. If the TKP-100 is configured to control a URC Music
System, the "Source Selection" buttons will remain amber to
indicate which music source is selected. When the room is
turned off, the source button will return to the default state
(White).
One rocker style backlit button changes to amber when
pressed, and then returns to its default state when released.
URC Lighting Control and URC Music Control button sets
included:
Two sets of buttons are included in the TKP-100 box, to
accommodate either URC Lighting applications or URC
Music System applications.
Custom Buttons available:
Custom labeling for all buttons is available from URC.
Consult your URC Certified Dealer for more information.
Available in White, Black and Almond
Parts Guide
The TKP-100 Keypad includes:
1 - TKP-100 In-wall Keypad
12 - Interchangeable Buttons for URC
Lighting Control and URC Music
Control
2- 6/32 Device Mounting Screws
1 - Owner’s Manual
(Cover Plate not included)
Page 2
TKP-100 KEYPAD
TKP-100 Button Descriptions

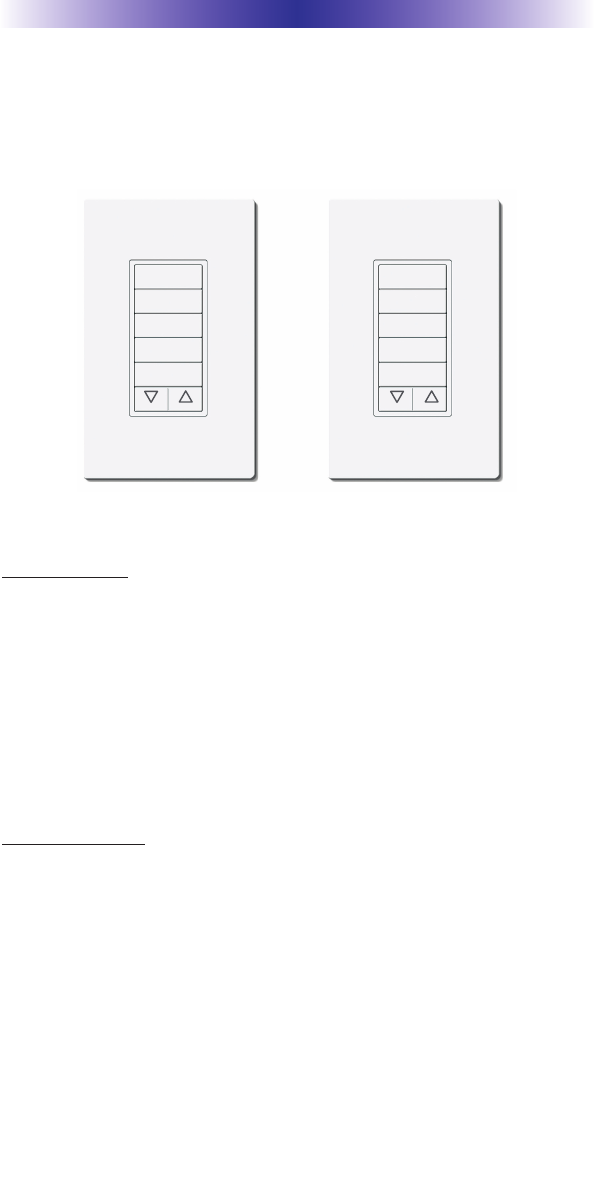

The front panel consists of 6 rows of replaceable buttons. Your
whole house custom installer can customize the keypad layout for
either music or lighting control
Music Control
To listen to music, simply press the on button or a music source,
such as Pandora, internet radio or iPod.
To increase or decrease the volume, press the up or down arrow.
Turn off the whole house music by pressing "music off".
When a button is pressed it blinks orange for as long as the button
is held.
Lighting Control
Select one of the scenes. The scene lights up in orange until the
room has been brightened or dimmed, or the scene is changed.
To turn off the room lights, simply press the lights off button.
Press the up or down arrow to operate the brightness or dimness of
the selected room light.
music on
pandora
internet radio
ipod
music off
scene 1
scene 2
scene 3
scene 4
lights off
Music Lighting
Page 3
TKP-100 KEYPAD
Frequently Asked Questions
Can I change the button layout of my TKP-100, myself?
No, the buttons correspond to the programming done by your URC
Certified Dealer. To make any changes to your TKP-100 button lay-
out contact your URC dealer to discuss your request. There may be
an additional charge associated with changing button layouts after a
TKP-100 has been installed in your system.
I decided I would like to have custom button labels added to my
TKP-100 keypad, how do I make that happen?
Contact your URC Certified Dealer who can order and install cus-
tom labeled buttons. There may be an additional charge associated
with changing out buttons after a TKP-100 has been installed in
your system.
Are "Blank" buttons available for the TKP-100 keypad?
Yes, "Blank" buttons are available through a Certified URC Dealer.
Can I mix URC Lighting control and URC Music System Control on
the same TKP-100 keypad?
No, the TKP-100 keypad was designed to either control URC
Lighting or a URC Music System. While a Certified URC Dealer can
custom program the TKP-100 to do virtually any function, we do
not recommend mixing URC Lighting control and URC Music con-
trol on a single TKP-100 keypad.
My TKP-100 is not working, or has locked up, what do I do?
You can reset the TKP-100 keypad by "Pressing and Holding" the
"Top Button" and the "Lower Left Button", for five seconds. If reset-
ting the TKP-100 does not solve your problem, contact your
Certified URC Dealer for assistance.
Specifications
Microprocessor: 55MHz RISC
Memory: 4 Megabits of Serial Flash, 512KB Flash, 128KB SRAM
Macro Capability: Unlimited via the MRX-10
Network: One 10/100 Ethernet port (Indicator 2 LED, PoE)
Indicator: On/Off LED 7 Button (Orange/White)
Power: PoE
Size: 4.12” x 1.75 x 1.25” (H x Wx D)
Weight: 0.18 lbs. (0.082Kg)
Page 4
USA Limited Warranty Statement
Your Universal Remote Control, when delivered to you in new con-
dition, is warranted against defects in materials or workmanship as
follows: UNIVERSAL REMOTE CONTROL, INC. warrants this prod-
uct against defects in material or workmanship for s period of one
(1) year and as set forth below. Universal Remote Control will, at its
sole option, repair the product using new or comparable rebuilt
parts, or exchange the product for a comparable new or rebuilt
product. In the event of a defect, these are your exclusive reme-
dies.
This Limited Warranty covers only the hardware components pack-
aged with the Product. It does not cover technical assistance for
hardware or software usage and it does not cover any software
products whether or not contained in the Product; any such soft-
ware is provided “AS IS” unless expressly provided for in any
enclosed software Limited Warranty.
To obtain warranty service, you must deliver the product, freight
prepaid, in its original packaging or packaging affording adequate
protection to Universal Remote Control at the address provided in
the Owner’s Manual. It is your responsibility to backup any macro
programming, artwork, software or other materials that may have
been programmed into your unit. It is likely that such data, soft-
ware, or other materials will be lost during service and Universal
Remote Control will not be responsible for any such damage or
loss. A dated purchase receipt, Bill of Sale, Installation Contract or
other verifiable Proof of Purchase is required. For product support
and other important information visit Universal Remote Control’s
website: http://www.UniversalRemote.com or call the Customer
Service Center (914) 835-4484.
This Limited Warranty only covers product issues caused by defects
in material or workmanship during ordinary consumer use. It does
not cover product issues caused by any other reason, including but
not limited to product issues due to commercial use, acts of God,
third-party installation, misuse, limitations of technology, or modifi
-cation of or to any part of the Universal Remote Control product.
This Limited Warranty does not cover Universal Remote Control
products sold as USED, AS IS, REFURBISHED, so-called “B STOCK”
or consumables (such as batteries). This Limited Warranty is invalid
if the factory-applied serial number has been altered or removed
from the product. This Limited Warranty is valid only in the United
States of America. This Limited Warranty specifically excludes prod-
ucts sold by unauthorized resellers.
TKP-100 KEYPAD
Page 5
TKP-100 KEYPAD
Federal Communication Commission
Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installa-
tion. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one more of the follow-
ing measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
Warning!
Changes or modifications not expressly approved by the manufacturer could
void the user's authority to operate the equipment.
Note : The manufacturer is not responsible for any Radio or TV interference
caused by unauthorized modifications to this equipment. Such modifications
could void the user's authority to operate the equipment.
FCC Caution
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the authority to operate equipment.
Page 6
TKP-100 KEYPAD
Regulatory Information to the user
CE conformity Notice
Products with “CE” marking comply with the R&TTE Directive
1995/5/EC, EMC Directive 2004/108/EC and Low Voltage
Directive 2006/95/EEC issued by the commission of the European
Community.
1) EMC Directive
Emission : EN 55022
Immunity : EN 55024
Power : EN-61000-3-2, 3
Declaration of Conformity
“Hereby, Universal Remote Control Inc. declares that this TKP-100 is
in compliance with the Essential requirements and other relevant
provisions of Directive 1999/5/EC.”
Certification
Type No.(Model No.) TKP-100
Batch/Serial No. -
Power Rating 48.0V .32A
TKP-100 KEYPAD
Page 7
Declaration of Conformity
Company Name : Universal Remote Control Inc.
Company Address : 500Mamaroneck Avenue, Harrison, NY 10528, U.S.A
Contact Info rmation : www.universalremote.com
Phone: (914)835-4484 Fax: (914)835-4532
Brand Name : UNIVERSAL remote control
Product Name : In-Wall Keypad
Model Name : TKP-100
This product herewith complies with the requirements of EMC Directive (2004/108/EC)
issued bythe Commission of the European Community
Compliance with these directives implies conformity to the following European Community
EMC Directive
EN 55022
EN 55024
EN 61000-3-2
EN 61000-3-3
List of test reports and/or certificate verified compliance with the standards above
Date of issue : November 29. 2010
Name and signature of authorized person :
EMC Directive
Report No.
Testi ng Labora tory : Gumi College EMC Center
James Novak
Senior Product Manager
Universal Remote Control Inc.
Page 8
TKP-100 KEYPAD
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
www.universalremote.com
OCE-0018D Rev 01
