EUT Type: Network Keypad
FCC ID.: OZ5URCTKP2000
APPENDIX G
: USER’S MANUAL

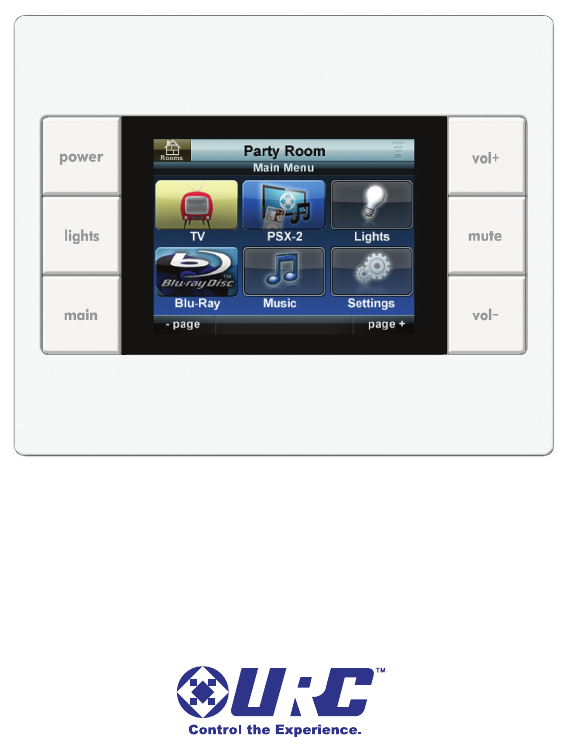

TKP-2000 Network Keypad
Owner’s Manual
TKP-2000 Installation Manual ©2011 Universal Remote Control, Inc.
The information in this manual is copyright protected. No part of this man-
ual may be copied or reproduced in any form without prior written consent
from Universal Remote Control, Inc.
UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPER-
ATIONAL, TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN
THIS MANUAL.
The information in this manual may be subject to change without prior
notice.
All other brand or product names are trademarks or registered trademarks
of their respective companies or organizations.
Universal Remote Control,Inc.
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
TABLE OFCONTENTS
Congratulations! 1
Features and Benefits 2
Parts List 2
TKP-2000 Product Description 3
Displaying the Settings Screen 4
Adjusting Sleep Settings 4
Button Light Settings 4
Setting Date and Time 4
Sound 5
Adjusting Brightness 5
System 5
Network 5
Factory Default 6
Exit 6
Frequently Asked Questions 7
Specifications 7
USA Limited Warranty Statement 8
Federal Communication Commission
Interference Statement 10
Regulatory Information to the user 11
Page 1
TKP-2000 NETWORK KEYPAD
Congratulations!
You’ve purchased a unique synthesis of hardware and software
engineering, the Total Control TKP-2000 Network Keypad. The TKP-
2000 achieves a magnificent combination of power and flexibility
by simplifying and automating the operation of even the most com-
plex systems.
The TKP-2000 has the ability to control audio video components,
energy management devices, multizone matrixes, PCs, iPods and
whole house URC Lighting. It communicates over IP to the Total
Control MRX-10 Network System Controller.
The MRX-10 “Controller” is required to make the TKP-2000 work.
The combination of the TKP-2000 and MRX-10 create a robust and
powerful system to control the Total Control product line and your
home theatre equipment.
Page 2
TKP-2000 NETWORK KEYPAD
Features and Benefits
2-Way IP Home Theater AVRS
Now with the unique URC 2-Way database, you can control your
multizone audio video receivers over your home network via the
MRX-10 Network System Controller.
2-Way IP Control of Media on PCs and iPods
The high speed of the LAN enables the TKP-2000 to display lists of
artists, albums or songs and to display the cover art of the selected
album on the Now Playing screen of the remote control from the
PSX-2 Personal Server or from a Mac or PC.
Backlit Color LCD screen
The TKP-2000 has a programmable 3.5” color touch screen. When
any button is pressed, the color LCD screen as well as the remote
buttons, will light up.
User Configurable Internet RSS for News, Sports, Stocks and
Weather
The well known URC modules for News, Sports, Weather and
Stocks are all available updated to the TKP-2000 screen and of
course, are completely user set.
No batteries to replace...Ever!
The TKP-2000 is powered over the ethernet cable it’s connected to,
so you never have to worry about replacing batteries.
Parts List
The TKP-2000 Network Keypad includes:
1 - TKP-2000 Network Base Station
1 - Owner’s Manual
4 - Screws for mounting to a wall box

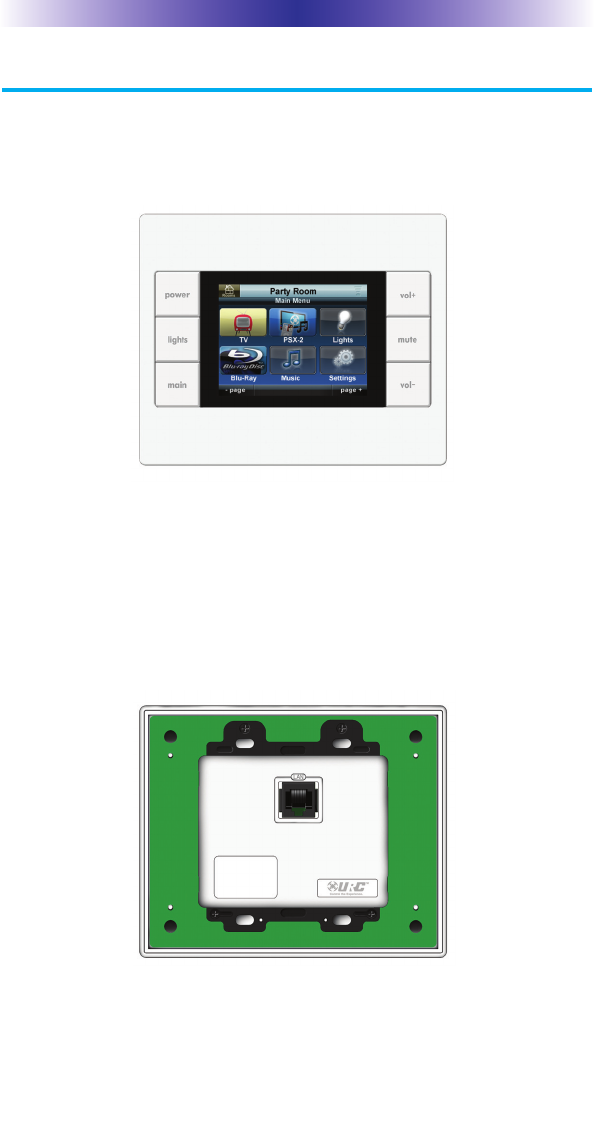

TKP-2000 Product Description
The TKP-2000 consists of a 3.5” color touchscreen and 6 customiz-
able buttons. Your whole house custom installer can request cus-
tom buttons specific to your Total Control setup.
Power: Turn on your Total Control setup by pressing the Power button.
Lights: Press to control URC Lighting throughout your home.
Main: Press to view the main screen and control the Total Control setup.
Vol+, Vol- and Mute: Easily adjust the volume settings for any zone.
LAN port: This is connected by your whole house custom installer
to your home network via Ethernet cable to a PoE (Power
over Ethernet) switch.
Page 3
TKP-2000 NETWORK KEYPAD
Displaying the Settings Screen
You can adjust the settings of the TKP-2000
whenever you like by pressing and hold-
ing both the MAIN and MUTE buttons for
five seconds. When you do, the screen
will change to the SETTINGS screen. If
you do not press any button on the SET-
TINGS screen within 1 minute, the TKP-
2000 will time out and automatically
return to normal operation.
Adjusting Sleep Settings
Conserve energy by configuring the
keypad to fall asleep after a specified
amount of time. Select a time from the
drop down list.
Button Light Settings
Conserve energy by opting to turn
off the LED lighting behind the buttons.
Setting Date and Time
Your TKP-2000 may have been programmed
to display the date or time on the touch screen.
If you need to, you can adjust the time dis-
played by changing the settings on this screen.
If you live in a part of the country that uses
daylight savings time, check the box next to:
“Automatically adjust clock for daylight saving”.
TKP-2000 NETWORK KEYPAD
Page 4
Page 5
TKP-2000 NETWORK KEYPAD

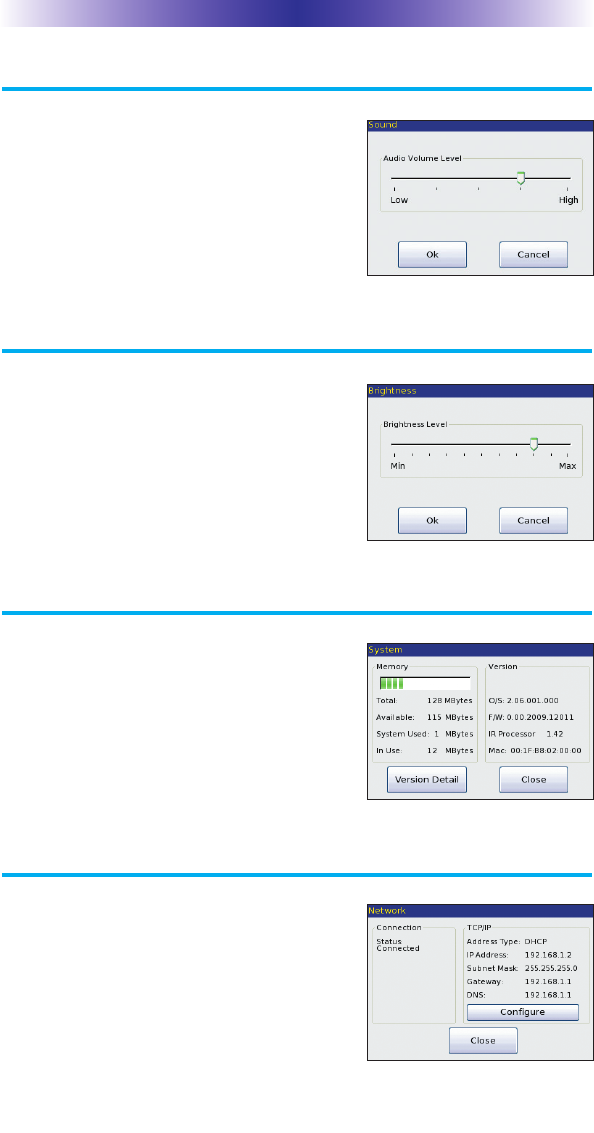

Sound
Your TKP-2000 may have been programmed
to make sounds. This is optional, and
some professional installers may prefer to
keep it silent. However, you can adjust
the volume to any level you like by
touching and dragging the volume control
here.
Adjusting Brightness
Simply touch and drag the brightness
slider to the desired level.
System
The System Information screen displays
data about your TKP-2000’s operating
system, memory etc.
Network
The Network screen displays network
information about your TKP-2000 and
the network it is connect to.
Page 6
TKP-2000 NETWORK KEYPAD
Factory Default
WARNING! Only use this button
when instructed to by Technical
Support. It resets the memory of the
TKP-2000 to the factory condition. All
your programming will be lost!
Exit
When you have finished adjusting Settings, simply tap the EXIT but-
ton to return to normal operation.
Page 7
TKP-2000 NETWORK KEYPAD
Frequently Asked Questions
How do I update the firmware?
Periodically there will be firmware updates for the TKP-2000. As the
TKP-2000 is connected to your home network, your installer has
the ability to update the firmware via Off-Site programming.
How do I reset a TKP-2000?
Remove the front cover of the TKP-2000. Use a pen or pointy
device to depress the button and reset the unit.
How do I erase a TKP-2000?
Press and hold Main + Mute for 3 seconds then select the Factory
Default button.
Specifications
Microprocessor: 190MHz RISC
Memory: 128MB Flash
Devices: Supports up to 255 Devices
Pages: Supports up to 255 Pages on each Device
Macro Capability: Up to 255 steps
Network: One 10/100 Ethernet port (PoE)
LCD : 3.5 inch (320x240 )
Weight: 9.84 oz
Size: 5.75” x 4.7” x 1.8”
Power : Standard PoE Injector or PoE Switch (Purchased separately)
Page 8
TKP-2000 NETWORK KEYPAD
USA Limited Warranty Statement
Your Universal Remote Control, when delivered to you in new con-
dition, is warranted against defects in materials or workmanship as
follows: UNIVERSAL REMOTE CONTROL, INC. warrants this prod-
uct against defects in material or workmanship for a period of one
(1) year and as set forth below. Universal Remote Control will, at its
sole option, repair the product using new or comparable rebuilt
parts, or exchange the product for a comparable new or rebuilt
product. In the event of a defect, these are your exclusive remeies.
This Limited Warranty covers only the hardware components packaged
with the Product. It does not cover technical assistance for hardware or
software usage and it does not cover any software products whether or
not contained in the Product; any such software is provided "AS IS"
unless expressly provided for in any enclosed software Limited Warranty.
To obtain warranty service, you must deliver the product, freight
prepaid, in its original packaging or packaging affording adequate
protection to Universal Remote Control at the address provided in
the Owner's Manual. It is your responsibility to backup any macro
programming, artwork, software or other materials that may have
been programmed into your unit. It is likely that such data, soft-
ware, or other materials will be lost during service and Universal
Remote Control will not be responsible for any such damage or
loss. A dated purchase receipt, Bill of Sale, Installation Contract or
other verifiable Proof of Purchase is required. For product support
and other important information visit Universal Remote Control's
website: http://www.UniversalRemote.com or call the Customer
Service Center (914) 835-4484.
This Limited Warranty only covers product issues caused by defects
in material or workmanship during ordinary consumer use. It does
not cover product issues caused by any other reason, including but
not limited to product issues due to commercial use, acts of God,
third-party installation, misuse, limitations of technology, or modifi-
cation of or to any part of the Universal Remote Control product.
This Limited Warranty does not cover Universal Remote Control
products sold as USED, AS IS, REFURBISHED, so-called “B STOCK”
or consumables (such as batteries). This Limited Warranty is invalid
if the factory-applied serial number has been altered or removed
from the product. This Limited Warranty is valid only in the United
States of America. This Limited Warranty specifically excludes
products sold by unauthorized resellers.
Page 9
TKP-2000 NETWORK KEYPAD
LIMITATION OF REMEDIES
UNIVERSAL REMOTE CONTROL SHALL NOT BE LIABLE FOR
ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR
BREACH OF ANY EXPRESS OR IMPLIED WARRANTY OR CONDI-
TION ON THIS PRODUCT. IN NO EVENT SHALL UNIVERSAL
REMOTE CONTROL BE LIABLE, WHETHER IN CONTRACT OR IN
TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF
THE PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR
SOFTWARE, OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REV-
ENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMA-
TION OR DATA, SOFTWARE OR APPLICATIONS OR OTHER
FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH
THE ABILITY OR INABILITY TO USE THE PRODUCTS, ACCES-
SORIES OR SOFTWARE TO THE FULL EXTENT THESE DAMAGES
MAY BE DISCLAIMED BY LAW.
EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW,
THERE IS NO OTHER WARRANTY EXPRESSED OR IMPLIED. UNI-
VERSAL REMOTE CONTROL WILL NOT BE HELD RESPONSIBLE
FOR STATEMENTS MADE BY OTHERS CONCERNING THE MER-
CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON
THIS PRODUCT. Some states or jurisdictions do not allow the
exclusion or limitation of incidental or consequential damages, or
allow limitations on how long an implied warranty lasts, so the
above limitations or exclusions may not apply to you. This Limited
Warranty gives you specific legal rights and you may have other
rights which vary from state to state or jurisdiction to jurisdiction.
REV020708
Page 10
TKP-2000 NETWORK KEYPAD
Federal Communication Commission
Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installa-
tion. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one more of the follow-
ing measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
Warning!
Changes or modifications not expressly approved by the manufacturer could
void the user's authority to operate the equipment.
Note : The manufacturer is not responsible for any Radio or TV interference
caused by unauthorized modifications to this equipment. Such modifications
could void the user's authority to operate the equipment.
FCC Caution
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the authority to operate equipment.
Page 11
TKP-2000 NETWORK KEYPAD
Regulatory Information to the user
CE conformity Notice
Products with “CE” marking comply EMC Directive 2004/108/EC issued
by the commission of the European Community.
1) EMC Directive
Emission : EN 55022
Immunity : EN 55024
Power : EN-61000-3-2, 3
Declaration of Conformity
“Hereby, Universal Remote Control Inc. declares that this TKP-2000 is in
compliance with the Essential requirements and other relevant provisions
of EMC Directive 2004/108/EC.”
Certification
Type No.(Model No.) TKP-2000
Batch/Serial No. -
Power Rating 12.0V , 1.0A
Page 12
TKP-2000 NETWORK KEYPAD
Declaration of Conformity
Company Name : Universal Remote Control Inc.
Company Address : 500Mamaroneck Avenue, Harrison, NY 10528, U.S.A
Contact Info rmation : www.universalremote.com
Phone: (914)835-4484 Fax: (914)835-4532
Brand Name : UNIVERSAL remote control
Product Name : Network Key pad
Model Name : TKP-2000
This product herewith complies with the requirements of EMC Directive (2004/108/EC)
issued by the Commission of the European Community
Compliance with these directives implies conformity to the following European Community
EMC Directive
EN 55022
EN 55024
EN 61000-3-2
EN 61000-3-3
List of test reports and/or certificate verified compliance with the standards above
Date of issue : April 30, 2011
Name and signature of authorized person :
EMC Directive
Report No.
Testi ng Labora tory : Gumi College EMC Center
James Novak
Senior Product Manager
Universal Remote Control Inc.
Page 13
NOTE
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
www.universalremote.com
OCE-0080C Rev 01
