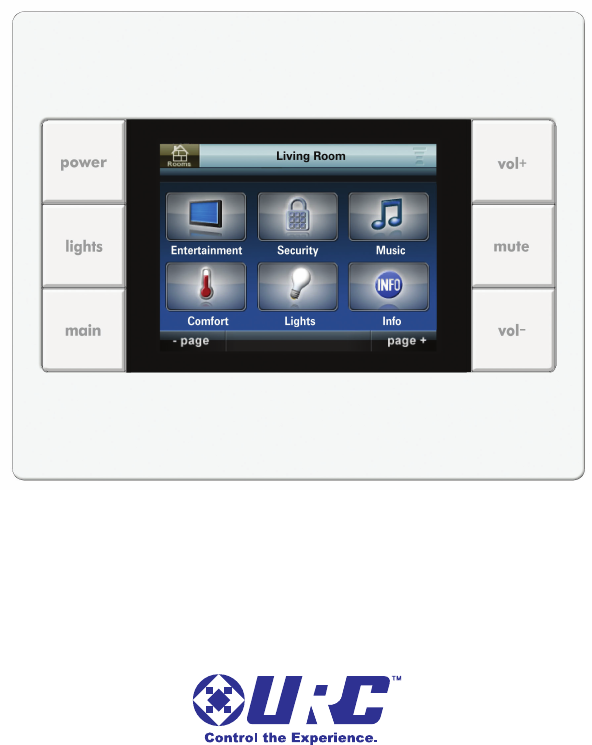

TKP-2000N Network Keypad
Owner’s Manual
TKP-2000N Installation Manual ©201 Universal Remote Control, Inc.
The information in this manual is copyright protected. No part of this manual
may be copied or reproduced in any form without prior written consent
from Universal Remote Control, Inc.
UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPER-
ATIONAL, TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN
THIS MANUAL.
The information in this manual may be subject to change without prior
notice.
All other brand or product names are trademarks or registered trademarks
of their respective companies or organizations.
Universal Remote Control,Inc.
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
TABLE OFCONTENTS
Congratulations! 1
Features and Benefits 2
Parts List 2
TKP-2000N Product Description 3
Displaying the Settings Screen 4
Adjusting Sleep Settings 4
Button Light Settings 4
Setting Date and Time 4
Sound 5
Adjusting Brightness 5
System 5
Network 5
Factory Default 6
Exit 6
Frequently Asked Questions 7
Specifications 7
USA Limited Warranty Statement 8
Federal Communication Commission
Interference Statement 10
Regulatory Information to the user 11
Declaration fo Conformity 12
Page 1
TKP-2000N NETWORK KEYPAD
Congratulations!
You’ve purchased a unique synthesis of hardware and software engineering,
the Total Control TKP-2000N Network Keypad. The TKP-2000N achieves a
magnificent combination of power and flexibility by simplifying and
automating the operation of even the most complex systems.
The TKP-2000N has the ability to control audio video components, energy
management devices, multi-zone matrixes, PCs, iPods and whole house
URC Lighting. It communicates over the Local Area Network (LAN) to the
MRX Advanced System Controller.
An MRX Advanced System Controller is REQUIRED for the TKP-2000N to
operate. The combination of the TKP-2000N and MRX-10 create a robust
and powerful system to control the Total Control product line and your
home theatre equipment.
Page 2
TKP-2000N NETWORK KEYPAD
Features and Benefits
Two-Way Control Of Devices
With the URC two-way database you can control (with feedback)
all compatible brands of receivers, lighting systems, alarms and thermostats.
Two-Way Control of Media on PSX-2 and SNP-1
The high speed of the LAN enables the TKP-2000N to display lists of
artists, albums or songs and to display the cover art of the selected
album on the Now Playing screen of the remote control from the
PSX-2 Personal Server or from the SNP-1 Streaming Network Player.
Backlit Color LCD screen
The TKP-2000N has a programmable 3.5” color LCD screen and backlit
"hard" buttons. When any button is pressed the color LCD screen
will turn on, and the "hard" buttons will illuminate.
User Configurable Information Feeds for News, Sports, Stocks and
Weather
The well known URC modules for News, Sports, Weather and Stocks
are all available, configured for the TKP-2000N screen. Of course these
are all user configurable.
No batteries to replace...Ever!
The TKP-2000N is powered over the Ethernet cable it’s connected to,
so you never have to worry about replacing batteries.
Parts List
The TKP-2000N Network Keypad includes:
1 - TKP-2000N In-Wall Network Keypad
1 - Owner’s Manual
4 - Screws for mounting to a wall box

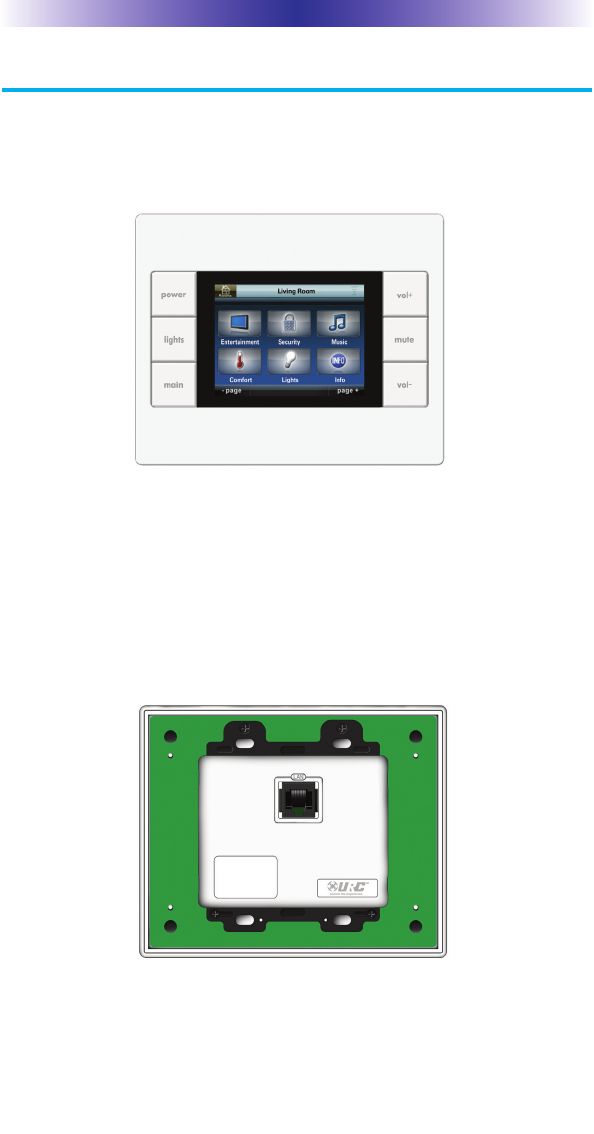

TKP-2000N Product Description
The TKP-2000N consists of a 3.5” color touchscreen and 6 customizable
buttons. Your whole house custom installer can request custom buttons
specific to your Total Control setup.
Power: Turn ON the room where the TKP-2000N is located (or any other
room if using the Rooms Menu)
Lights: Press to control URC Lighting throughout your home.
Main: Press to view the main screen and control the Total Control system.
Vol+, Vol- and Mute: Easily adjust the volume settings for any zone.
LAN port: This is connected by your whole house custom installer to
your home network via Ethernet cable to a PoE (Power over
Ethernet) switch.
Page 3
TKP-2000N NETWORK KEYPAD

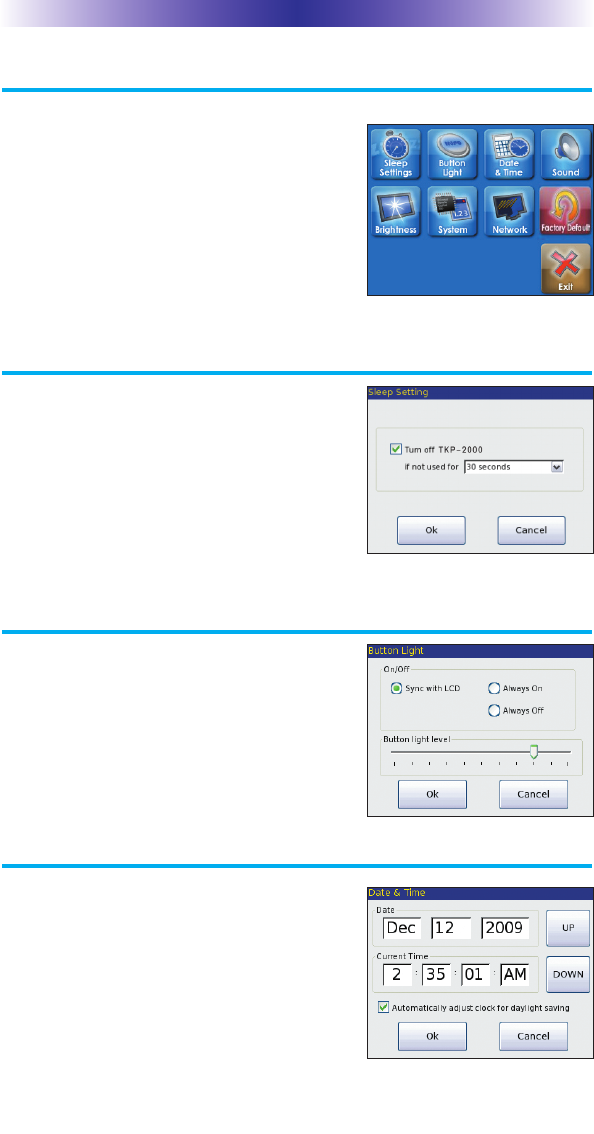

Displaying the Settings Screen
You can adjust the settings of the TKP-2000N
whenever you like by pressing and holding
both the MAIN and MUTE buttons for five
seconds. When you do, the screen will change
to the SETTINGS screen. If you do not press
any button on the SETTINGS screen within
1 minute, the TKP-2000N will time out and
automatically return to normal operation.
Adjusting Sleep Settings
Conserve energy by configuring the
keypad to fall asleep after a specified
amount of time. Select a time from the
drop down list.
Button Light Settings
Conserve energy by opting to turn
off the LED lighting behind the buttons.
Setting Date and Time
Your TKP-2000N may have been programmed
to display the date or time on the touch screen.
If you need to, you can adjust the time displayed
by changing the settings on this screen. If you
live in a part of the country that uses daylight
savings time, check the box next to: “Automatically
adjust clock for daylight saving”.
TKP-2000N NETWORK KEYPAD
Page 4
Page 5
TKP-2000N NETWORK KEYPAD

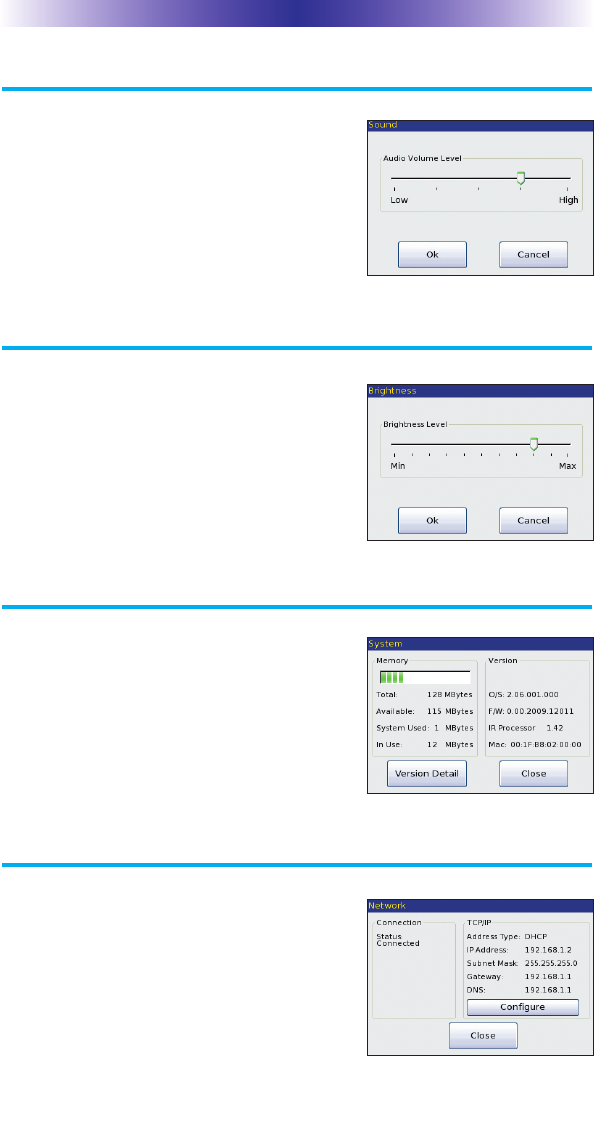

Sound
Your TKP-2000N may have been programmed
to make acknowledgement tones. This is
optional, and some professional installers
may prefer to keep it silent. However, you
can adjust the volume to any level you like
by touching and dragging the volume
control here.
Adjusting Brightness
Simply touch and drag the brightness
slider to the desired level.
System
The System Information screen displays
data about your TKP-2000N’s operating
system, memory etc.
Network
The Network screen displays network
information about your TKP-2000N and
the network it is connected to.
Page 6
TKP-2000N NETWORK KEYPAD
Factory Default
WARNING!
Only use this button when instructed to
by Technical Support.
It resets the memory of the TKP-2000N to
the factory condition. All your programming
will be lost!
Exit
When you have finished adjusting Settings, simply tap the EXIT button
to return to normal operation.
Page 7
TKP-2000N NETWORK KEYPAD
Frequently Asked Questions
How do I update the firmware?
Periodically there will be firmware updates for the TKP-2000N. As the
TKP-2000N is connected to your home network, your installer has
the ability to update the firmware via Off-Site programming.
How do I reset a TKP-2000N?
Remove the front cover of the TKP-2000N. Use a pen or pointed object
device to depress the button and reset the unit.
How do I erase a TKP-2000N?
Press and hold Main + Mute for 3 seconds then select the Factory
Default button.
Specifications
Microprocessor: 400MHz RISC
Memory: 128MB Flash
Devices: Supports up to 255 Devices
Pages: Supports up to 255 Pages on each Device
Macro Capability: Up to 255 steps
Network: One 10/100 Ethernet port (PoE)
LCD : 3.5 inch (320x240 )
Weight: 9.84 oz
Size: 5.75” x 4.7” x 1.8”
Power : Standard PoE Injector or PoE Switch (Purchased separately)
Page 8
TKP-2000N NETWORK KEYPAD
USA Limited Warranty Statement
Your Universal Remote Control, when delivered to you in new condition,
is warranted against defects in materials or workmanship as follows:
UNIVERSAL REMOTE CONTROL, INC. warrants this product against
defects in material or workmanship for a period of one (1) year and as set
forth below. Universal Remote Control will, at its sole option, repair the
product using new or comparable rebuilt parts, or exchange the product
for a comparable new or rebuilt product. In the event of a defect, these
are your exclusive remedies.
This Limited Warranty covers only the hardware components packaged
with the Product. It does not cover technical assistance for hardware or
software usage and it does not cover any software products whether or
not contained in the Product; any such software is provided "AS IS" unless
expressly provided for in any enclosed software Limited Warranty.
To obtain warranty service, you must deliver the product, freight prepaid,
in its original packaging or packaging affording adequate protection to
Universal Remote Control at the address provided in the Owner's Manual.
It is your responsibility to backup any macro programming, artwork,
software or other materials that may have been programmed into your
unit. It is likely that such data, software, or other materials will be lost
during service and Universal Remote Control will not be responsible for
any such damage or loss. A dated purchase receipt, Bill of Sale, Installation
Contract or other verifiable Proof of Purchase is required. For product
support and other important information visit Universal Remote Control's
website: http://www.UniversalRemote.com or call the Customer Service
Center (914) 835-4484.
This Limited Warranty only covers product issues caused by defects
in material or workmanship during ordinary consumer use. It does
not cover product issues caused by any other reason, including but
not limited to product issues due to commercial use, acts of God, third-
party installation, misuse, limitations of technology, or modification of
or to any part of the Universal Remote Control product. This Limited
Warranty does not cover Universal Remote Control products sold
as USED, AS IS, REFURBISHED, so-called “B STOCK” or consumables
(such as batteries). This Limited Warranty is invalid if the factory-applied
serial number has been altered or removed from the product. This Limited
Warranty is valid only in the United States of America. This Limited
Warranty specifically excludes products sold by unauthorized resellers.
Page 9
TKP-2000N NETWORK KEYPAD
LIMITATION OF REMEDIES
UNIVERSAL REMOTE CONTROL SHALL NOT BE LIABLE FOR
ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR
BREACH OF ANY EXPRESS OR IMPLIED WARRANTY OR CONDITION
ON THIS PRODUCT. IN NO EVENT SHALL UNIVERSAL REMOTE
CONTROL BE LIABLE, WHETHER IN CONTRACT OR IN TORT
(INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE
PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR SOFTWARE,
OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL
DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR PROFITS,
LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA, SOFTWARE
OR APPLICATIONS OR OTHER FINANCIAL LOSS ARISING OUT
OF OR IN CONNECTION WITH THE ABILITY OR INABILITY TO
USE THE PRODUCTS, ACCESSORIES OR SOFTWARE TO THE
FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.
EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW,
THERE IS NO OTHER WARRANTY EXPRESSED OR IMPLIED. UNIVERSAL
REMOTE CONTROL WILL NOT BE HELD RESPONSIBLE FOR
STATEMENTS MADE BY OTHERS CONCERNING THE MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT.
Some states or jurisdictions do not allow the exclusion or limitation
of incidental or consequential damages, or allow limitations on
how long an implied warranty lasts, so the above limitations or
exclusions may not apply to you. This Limited Warranty gives you
specific legal rights and you may have other rights which vary from
state to state or jurisdiction to jurisdiction.
REV020708
Page 10
TKP-2000N NETWORK KEYPAD
Federal Communication Commission
Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for
help.
Warning!
Changes or modifications not expressly approved by the manufacturer could
void the user's authority to operate the equipment.
Note : The manufacturer is not responsible for any Radio or TV interference
caused by unauthorized modifications to this equipment. Such modifications
could void the user's authority to operate the equipment.
FCC Caution
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the authority to operate equipment.
Page 11
TKP-2000N NETWORK KEYPAD
Regulatory Information to the user
CE conformity Notice
Products with “CE” marking comply EMC Directive 2004/108/EC issued
by the commission of the European Community.
1) EMC Directive
Emission : EN 55022
Immunity : EN 55024
Power : EN-61000-3-2, 3
Declaration of Conformity
“Hereby, Universal Remote Control Inc. declares that this TKP-2000N is
in compliance with the Essential requirements and other relevant provi-
sions of EMC Directive 2004/108/EC.”
Certification
Type No.(Model No.) TKP-2000N
Batch/Serial No. -
Power Rating 48.0V , 0.32A
Page 12
TKP-2000N NETWORK KEYPAD
Declaration of Conformity
Company Name : Universal Remote Control Inc.
Company Address : 500 Mamaroneck Avenue, Harrison, NY 10528, U.S.A
Contact Information : www.universalremote.com
Phone: (914)835-4484 Fax: (914)835-4532
Brand Name : UNIVERSAL remote control
Product Name : Network Keypad
Model Name : TKP-2000N
This product herewith complies with the requirements of EMC Directive (2004/108/EC)
issued by the Commission of the European Community
Compliance with these directives implies conformity to the following European Community
EMC Directive
EN 55022
EN 55024
EN 61000-3-2
EN 61000-3-3
List of test reports and/or certificate verified compliance with the standards above
Date of issue : May 30, 2012
Name and signature of authorized person :
EMC Directive
Report No.
Testi ng Labora tory : Gumi College EMC Center
James Novak
Senior Product Manager
Universal Remote Control Inc.
Page 13
NOTE
Page 14
NOTE
Page 15
NOTE
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
www.universalremote.com
OCE-0080D Rev 01
