TKP-7600
Network Keypad
Introducing the TKP-7600
Thank you for purchasing URC’s TKP-7600 In-Wall Network Color Touch-screen keypad. Its easy
intuitive use helps to simplify your life while adding control of more things than you thought
possible.
Enjoy some key features like:
Audio Video Intercom
Easily communicate throughout your home using the Audio Video Intercom feature with multiple
TKP-7600 clients and/or URC Mobile app clients. You can also make sure the baby is safe and
sound by viewing the baby monitor right on the TKP-7600.
Flexible Orientation
The TKP-7600 offers the ability to display the keypad in either portrait or landscape modes making
it the perfect keypad for virtually any room. This feature can only be programmed from within the
URC software. Speak to your custom home professional prior to installation.

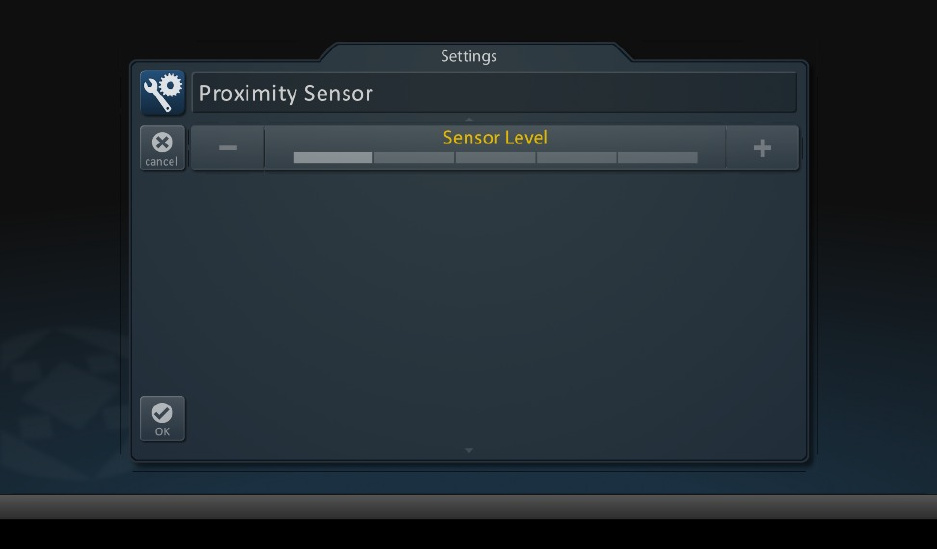

Proximity Sensor
A remote that knows where you are, the TKP-7600 has a built in sensor that can detect the
distance you are from it. As you approach the keypad illuminates and is ready to control the home.
The sensitivity of this sensor is adjustable by your custom home professional.
Rooms Menu
With the touch of a single button, take control of your domain. Besides the ability to temporarily
link the different rooms/areas of your system for music listening, the Rooms Menu offers a
snapshot of “what’s going on” in every room of your Total Control system. Better yet, tapping on a
room converts your keypad into a controller for THAT room. See how easy it is to keep track of
what’s happening in your world…and control it!
Shortcuts Pop-Up
With all the different options to choose from, the Shortcut Pop-Up allows you to save some of
the most common devices/activities for easy selection. Keep up to six different activities at your
fingertips with the Shortcuts Pop-Up menu.
Parts List
The TKP-7600 Network Keypad includes:
1 - TKP-7600 4 - Mounting Screws
1 - Mounting Ring
Installing the TKP-7600
The TKP-7600 is wall-mountable and fits into a standard dual gang (J-box or Mud Ring) opening.
Prior to installation, make sure power is available at the preferred location.
Power can be supplied to the TKP-7600 through an Ethernet ( ) cable connected to a PoE
( ) or in either of the following ways:
●Router/Switch
●PoE injector
Power over Ethernet or PoE technology describes a system to pass electrical power safely, along
with data, on Ethernet cabling. A shielded Ethernet cable is preferred. The IEEE standard for PoE
requires a Category 5 or higher for high power levels.
Installation
Follow the diagram below for installation:
1. Make sure the dual-gang opening is fitted with a standard two-gang trim box (available
from the local electrical supplier/store)
2. Connect the Ethernet cable to the rear of the supplied TKP-7600 wall-plate
3. Mount the wall-plate to the two-gang retro-box
4. The TKP-7600 easily snaps into the wall-plate
Note:
Main Menu Navigation
Although specific screen design and certain options are dictated by the custom integrator that
programmed the Total Control system, the general layout remains the same. Actual navigation is
performed through screen swipes ( ) while selecting any item is as simple as
pressing the icon/text to be selected.

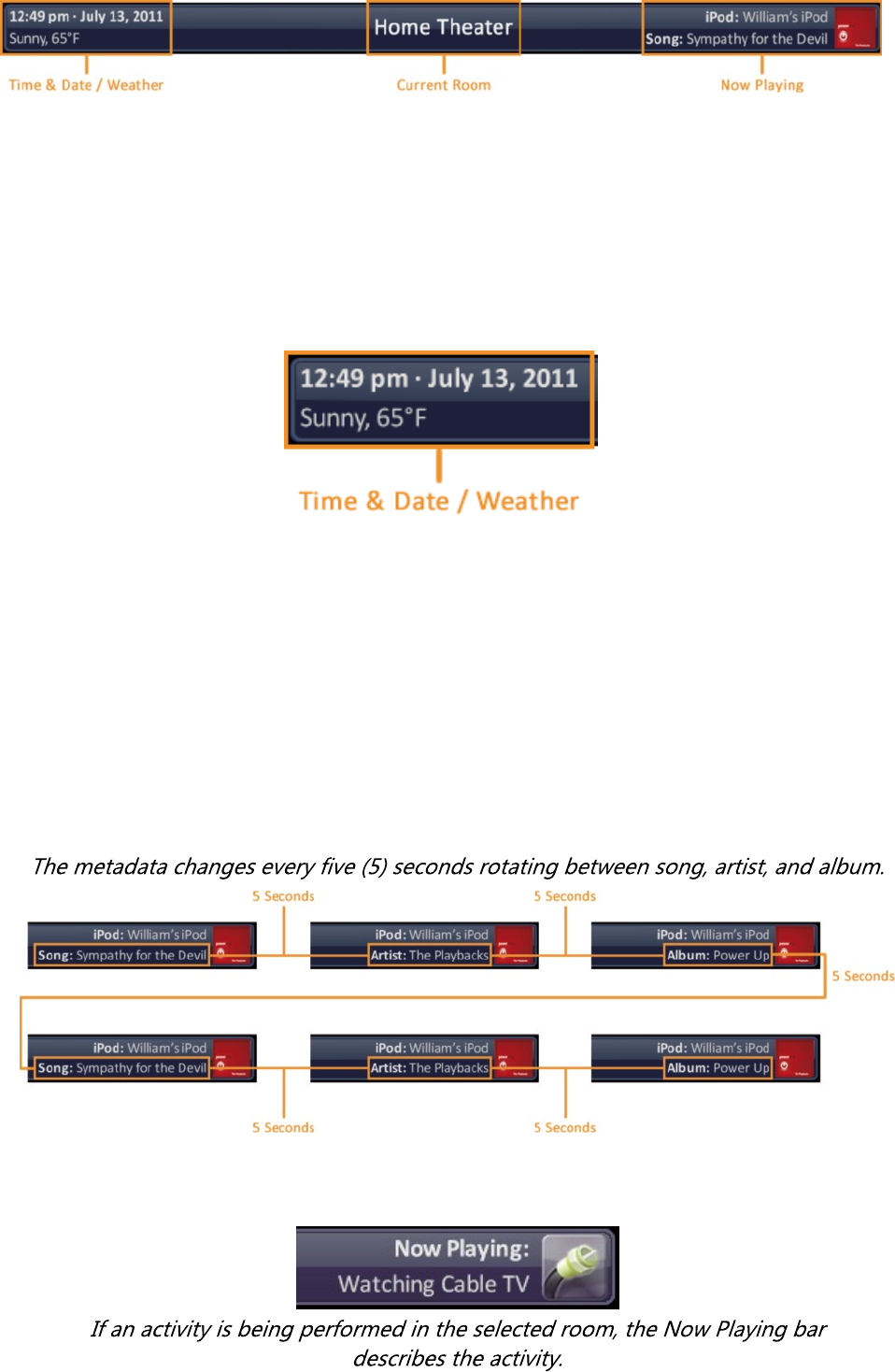

Title Bar
The Title Bar is present on all TKP-7600 screens and contains valuable information during normal
use. Easily find out the time, weather, now playing and the room that the keypad is controlling.

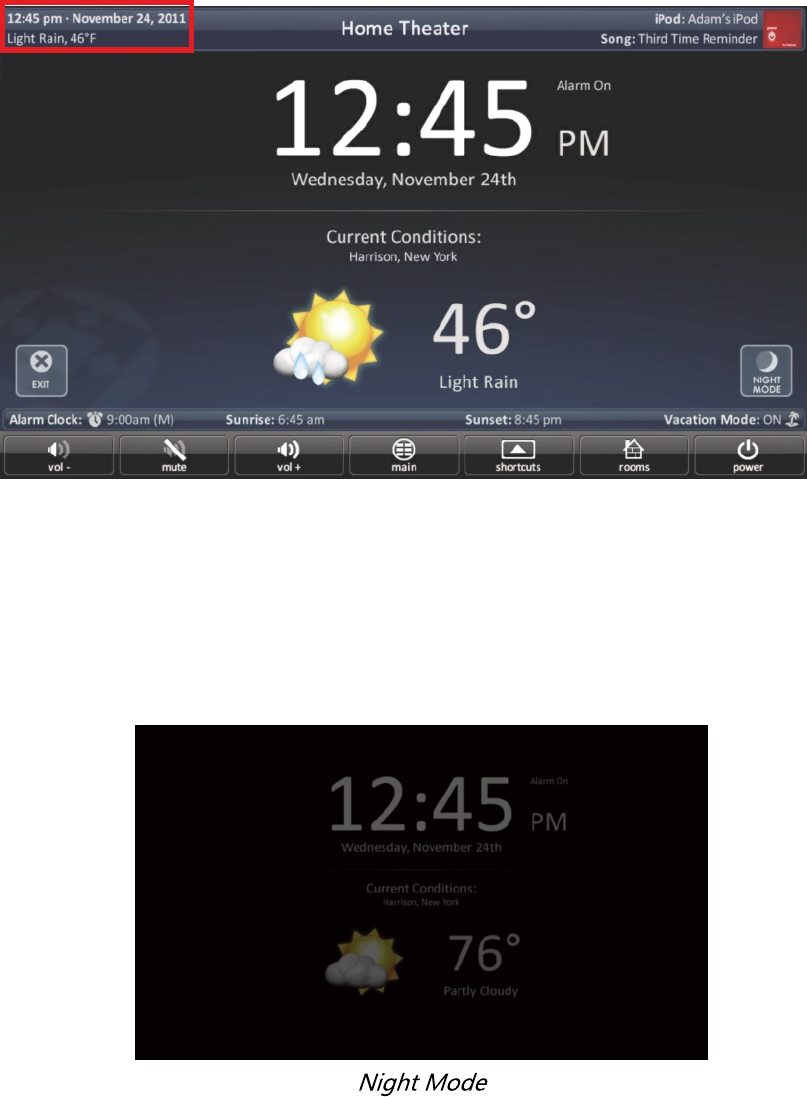

Time & Weather
This data, found on the left-hand side of the Title bar shows the current time, date, and weather
information. Pressing this area of the Title Bar opens the Time & Weather Module. For
information about this module, refer to the Time & Weather Module section, later in this manual.
Current Room
The current room portion of the Title Bar shows the room that the TKP-7600 is controlling.
Remember, in a Total Control system, although each room’s keypad defaults to control the room
in which is is placed, using the Rooms Menu allows it to control any other room in the system.
Now Playing
Appearing on the right-hand side of the Title Bar, this displays the source that is currently being
used in the room that the keypad is controlling.
●The Now Playing display shows the device that is being used (in this case, William’s iPod),
associated artwork, and metadata information is displayed since it is a URC media device.
●If an activity is being performed (like DVD or cable) in the selected room, the Now Playing
section displays the activity:
Category/Device Ribbon
This ribbon shows the various categories of control that are available to the selected room. The
quantity of categories is determined by the system setup and can vary from one to however many
categories were programmed by the system designer.
Although only seven categories can fit on the screen at any moment, navigate to other categories
( ) by swiping left or right.
Select a category by pressing the appropriate icon; this reveals the devices/activities available for
that category ( ).
Device List
Submenus contain the devices/activities that were placed in the chosen category by the system
programmer.
Scroll up or down through the list by swiping upwards or downwards, select a device/activity by
pressing its icon.

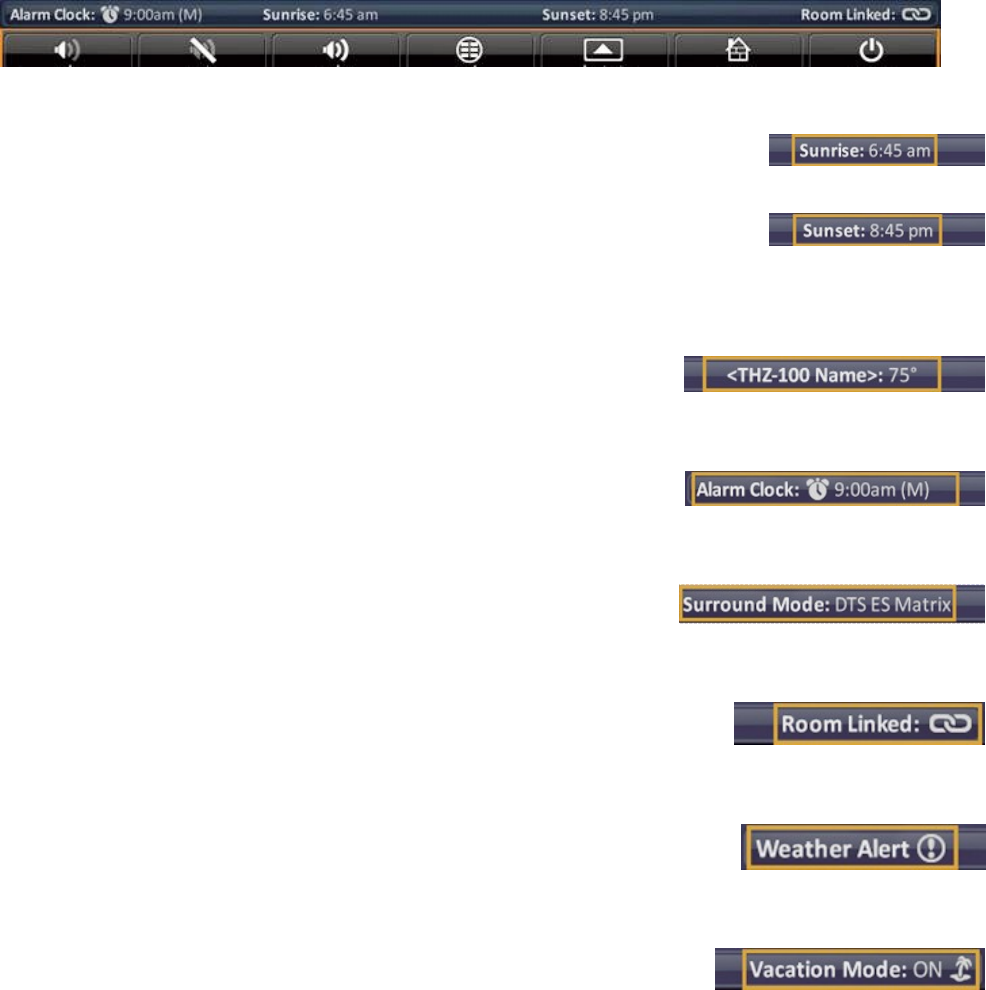

Status Bar
The Status Bar, located directly above the Core Buttons, provides valuable status and feedback of
the Total Control System. The four sections of the Status Bar are determined by the system
programmer and are customizable per keypad. It is not possible to explain how your keypad looks;
however, after reviewing the following possibilities, there should be no need for further
explanation.
Sunrise Time: Updated at midnight every day, this shows the sunrise time for the next day.
Sunset Time: Updated at midnight every day, this shows the sunset time for the next day.
URC Thermostat Temperature: If a THZ-100 (URC’s thermostat) is included in the home, this
shows the current temperature status based upon the internal sensor, additional sensor, or the
mean temperature of both.
Alarm Clock: If the room being controlled has an Alarm that is set to activate for that room, the
status bar displays an alarm clock icon and the next scheduled time/day.
Surround Mode: When used with URC’s DMS-AV Surround Processor, this displays the current
surround mode of the processor.
Room Linked Status: Whenever the chosen room/area is “linked” to other rooms, this shows a
link acknowledgement and icon.
Weather Alerts: Based on the current location entered by the system programmer, the words
“weather alert” appear if an automatic alert is received via Internet.
Vacation Mode: Whenever the Vacation Mode is activated for the Total Control system, the status
bar displays “Vacation Mode: ON”.

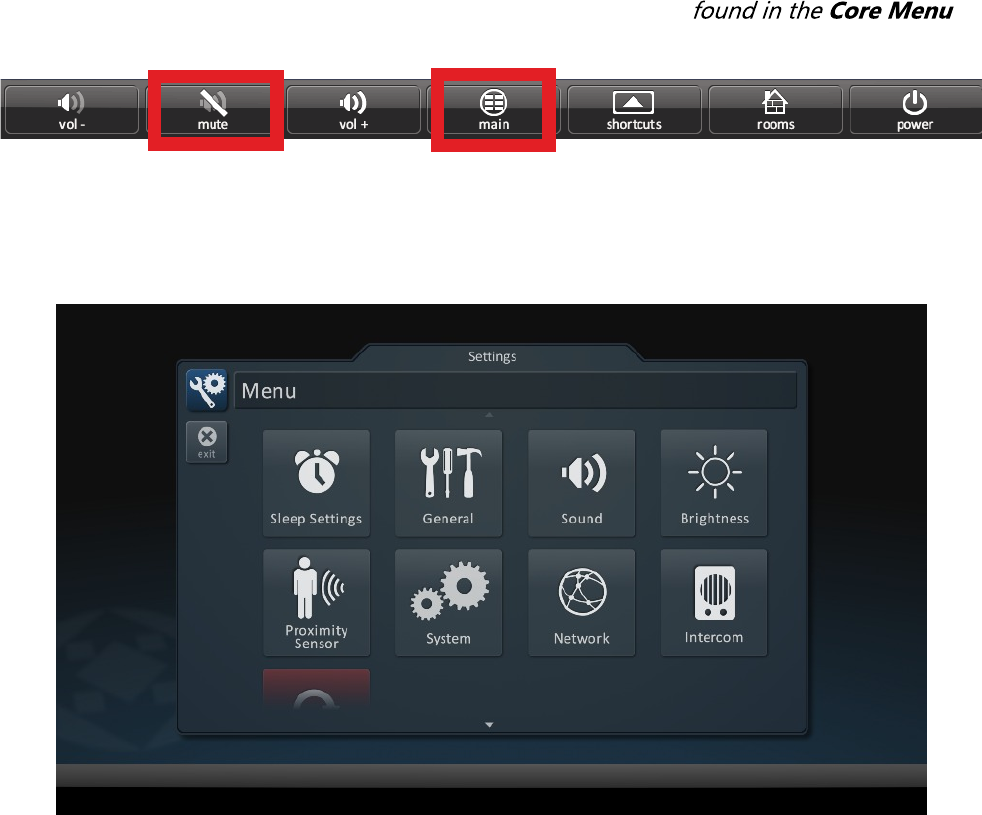

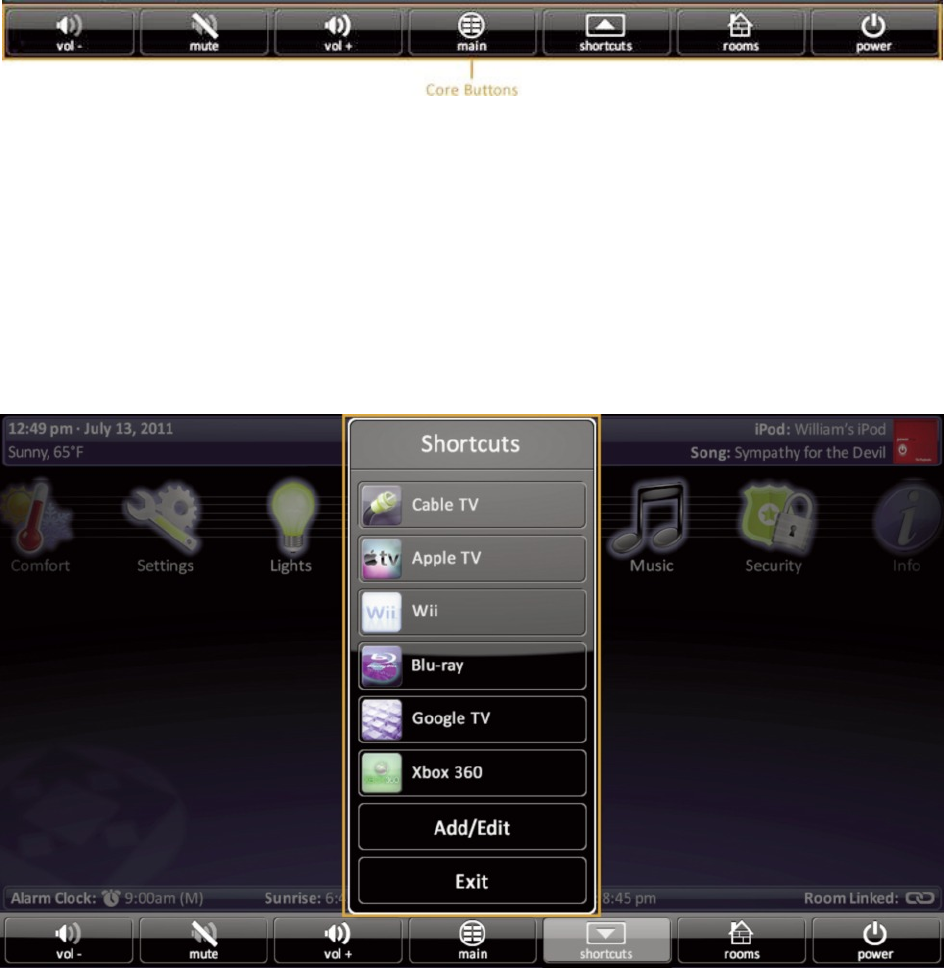

Core Buttons
These key system navigation buttons always are present at the bottom of the screen.
Vol-, Vol+, & Mute
These audio controls affect the volume for the room to which the TKP-7600 is assigned. See the
Rooms Menu section of this manual for more details.
Main
Selecting this button always returns the user to the Main screen.

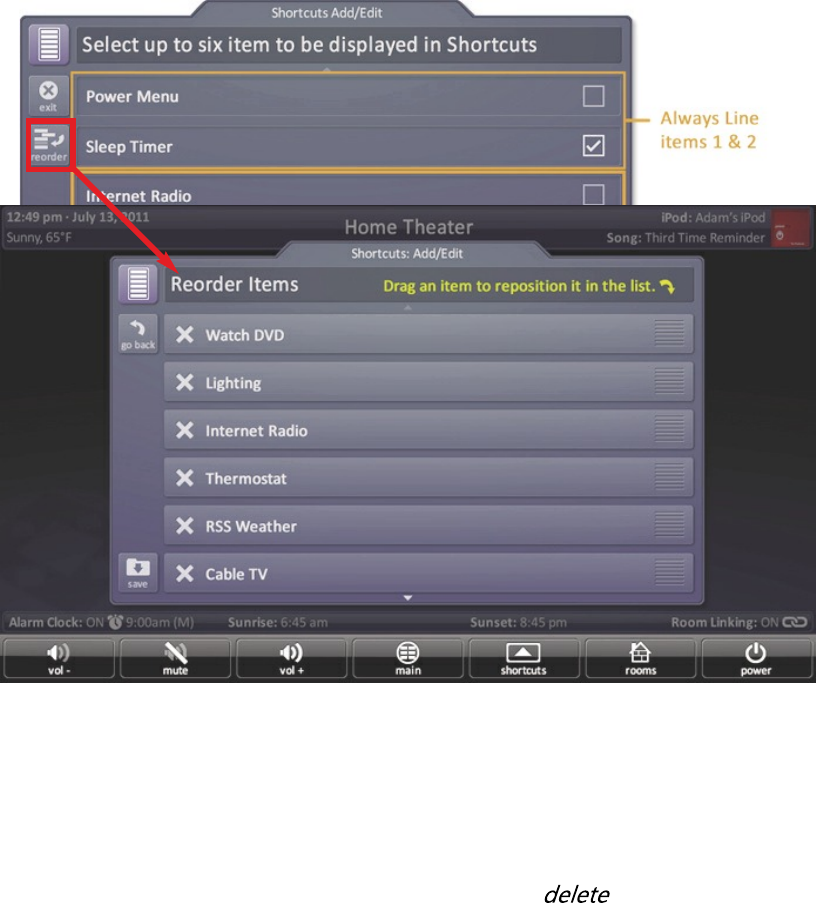

Shortcuts
These user-configurable shortcuts allow the end-user to store up to six (6) favorite activities. For
more information about using short cuts, refer to the Using Shortcuts section of this manual.
Rooms
This selection opens the Rooms Menu and allows for monitoring and/or control of other rooms in
the project. See the Rooms Menu section of this manual for more details.
Power
When pressed, this performs the Room Off function programmed by the Custom Integrator.
If this button is pressed for greater than three (3) seconds, the Power Menu appears.
In this menu, it is possible to:
●Turn Off the ROOM ( ).
●Issue the House Off command, as programmed by the custom integrator.
●Custom commands, programmed by the custom integrator, may also appear in this menu.

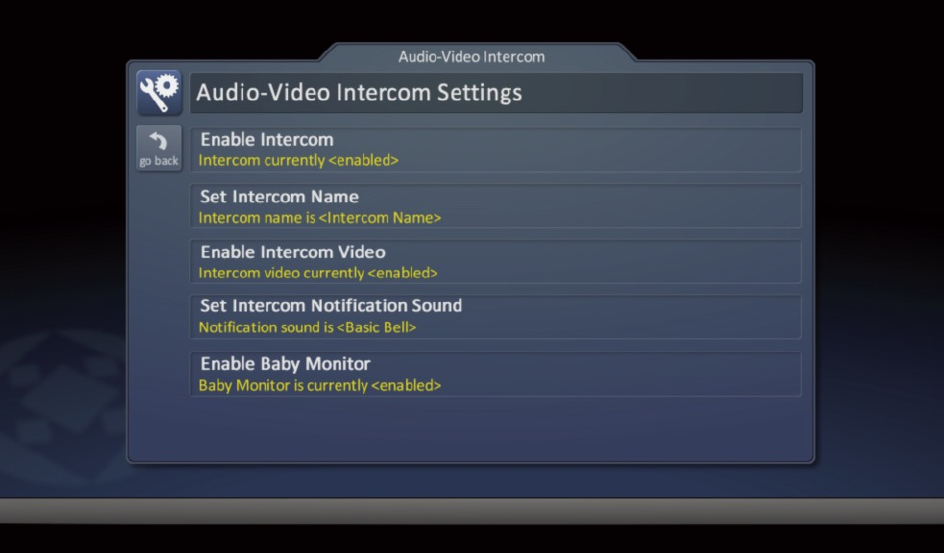

Audio Video Intercom Menu
The Intercom module communicates with other installed TKP-7600’s via audio, audio & video, or a
baby monitor. In order to use the intercom it must first be enabled within the Settings screen.
Using the Intercom
1. Touch the screen and navigate through the Category ribbon (scroll left or right) to locate
the Intercom icon.
2. Press the Intercom icon.
3. A list of available client (other TKP-7600 clients) are shown. Select an available client.
When an available client is selected, you have the option to select from audio only, audio
and video, or a baby monitor.
●Audio: Two-way communication between
clients and via audio only.
●Audio and Video: Two-way communication
between clients via audio and video.
●Baby Monitor: One-way communication to
view and listen to a room where the secondary
client cannot hear or see you.
Unavailable
client set to
do not
disturb.
Available
client
Busy client
on call
After selecting an option, the TKP-7600 turns the unit’s camera ON (
) displaying an onscreen image of the selected client.
6. Pressing the End Call button displays an onscreen message concluding the call.
Press to
a
call.
Increase/
decrease
or mute
the
volume

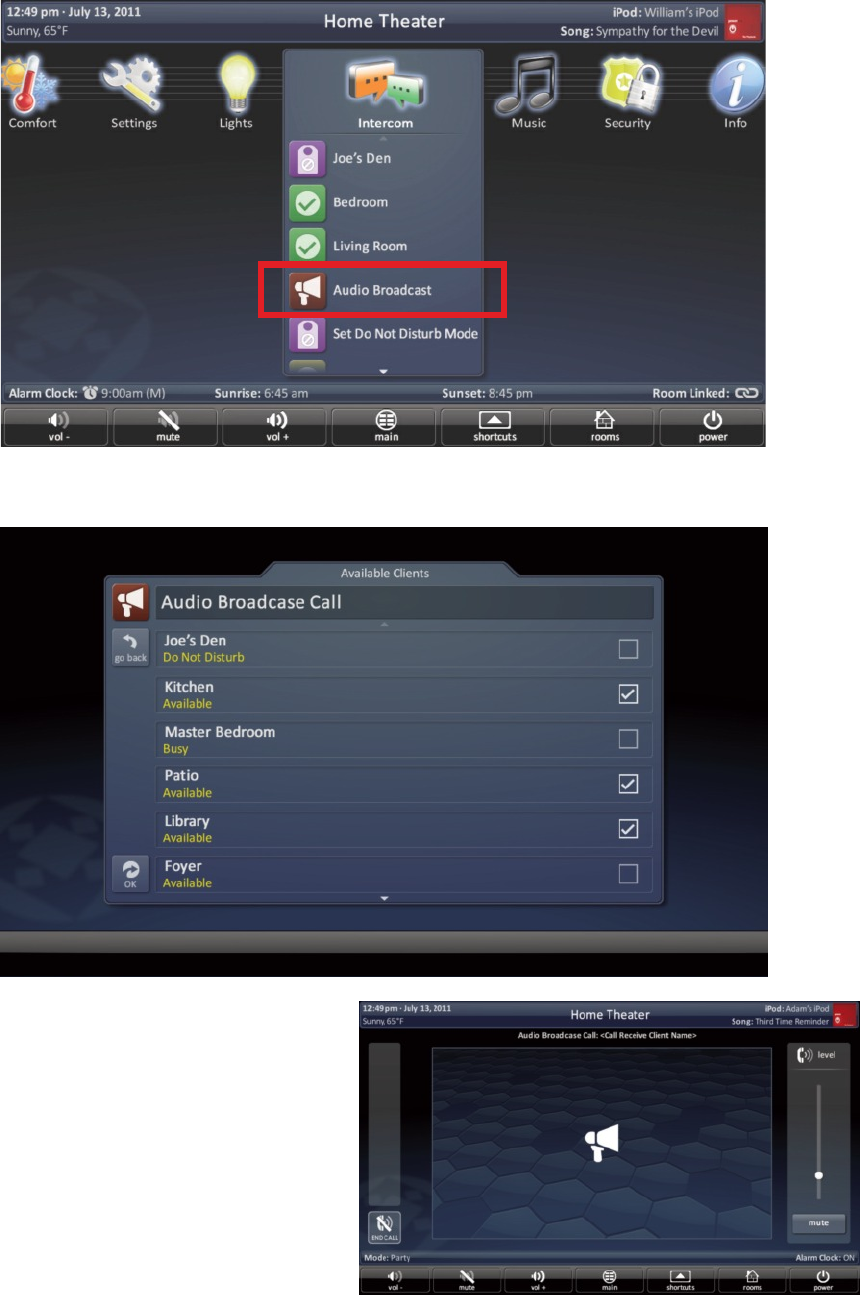

Using Audio Broadcast
Simultaneously communicate to two or more TKP-7600 clients.
1. Touch the screen and navigate through the Category ribbon (scroll left or right) to locate
the Intercom icon.
2. Press the Intercom icon.
3. Select Audio Broadcast.
4. Select available clients from the Audio Broadcast call list and press Ok to begin the
intercom call.
5. The call broadcast to all selected clients.
6. Press End Call to conclude the intercom
session.
Using Do Not Disturb
Turning ON Do Not Disturb
Setting the TKP-7600 to do not disturb renders the client unavailable for intercom communication
with other clients.
1. Touch the screen and navigate through the Category ribbon ( ) to locate
the Intercom Icon.
2. Press the Intercom icon.
3. Press Set Do Not Disturb Mode.
4. Now this TKP-7600 is unable to receive communication (
) from other clients.
Turning OFF Do Not Disturb
Turning off the do not disturb feature re-enables the client to receive audio and video
communication. (Note: this option is always at the bottom of the intercom list.)
1. Touch the screen and navigate through the Category ribbon (scroll left or right) to locate
the Intercom icon.
2. Press the Intercom icon.
3. Press Turn Off Do Not Disturb Mode.
This icon
states the
client is
currently set
to Do Not
Disturb
Rooms Menu
The Rooms Menu is the “landing” screen for the TKP-7600. This menu (see picture below) displays
whenever the keypad reboots, loses/regains power, or is rest. The most common choice would be
to select the room where the TKP-7600 is physically located; however, this is up to the user.
The Rooms Menu is used to:
●Temporarily Link rooms in a Total Control DMS system. This allows all of the linked rooms
to listen to the same audio source and join the volume commands into a single interface.
●Monitor the status of other rooms in the Total Control project.
●Control any other room in the Total Control projects as if it were a keypad in that room.
This is dependent upon the programming done by the custom integrator.
Room List Buttons
●Each room listing has an associated box and action buttons.
●The Exit button returns the user to the last screen used.
●Selecting the room name allows for control of that room ( )
Rooms
Options
Links

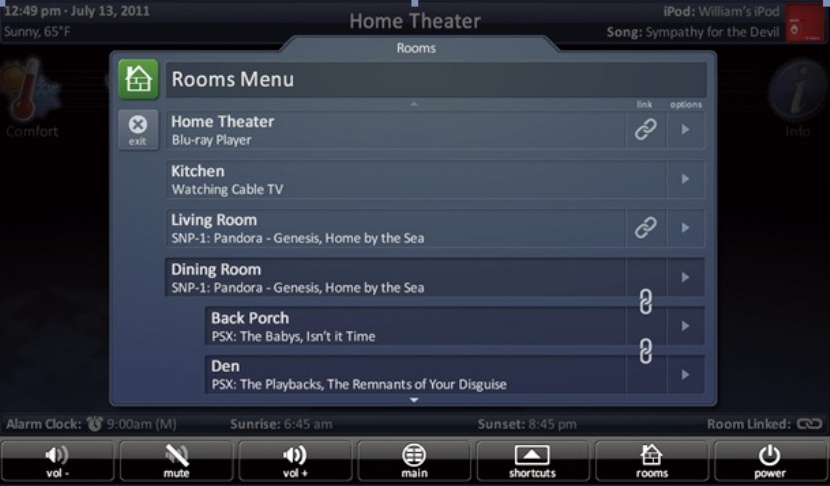

Initial View (Room Monitoring)
When the Rooms Menu opens up, the room list populates with all of the rooms in the Total
Control project. Each room displays its status so the user can visually see what is “going on” in
that room.
The Exit button returns the user to the previous screen.
Selecting a Room (Room Control)
Selecting any room from the room list allows the TKP-7600 to control that room, as if it were
physically in that room.
Returning the keypad to control the room where it is physically located requires accessing the
Rooms Menu and selecting the appropriate room.

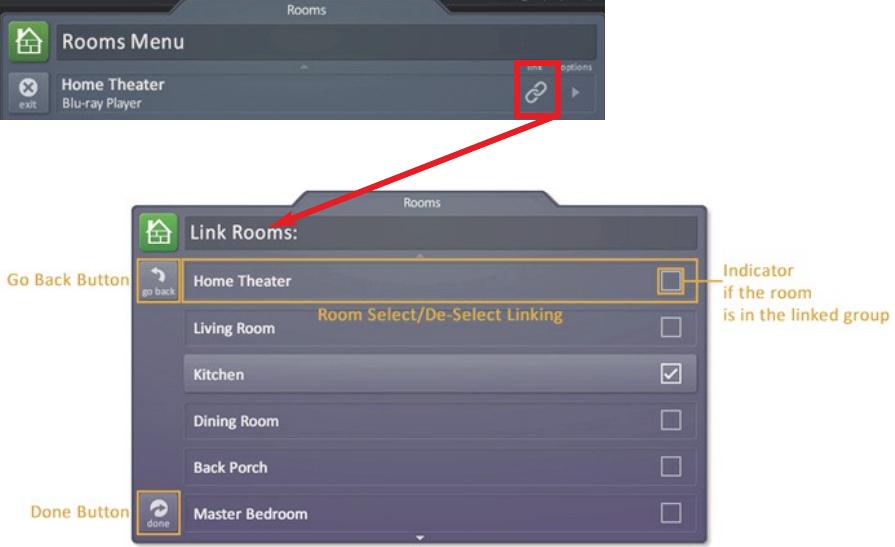

Linking Rooms (DMS Audio only)
Selecting the Link Rooms button opens up the Link Rooms screen with the current room already
selected. Only rooms/areas that are part of the DMS family of products appear on this menu.
●Select, using the check boxes, the rooms that you would like to LINK. Pressing the check bo
alternately “check” and “uncheck” it.
●The Go Back button cause the screen to revert to the Rooms Menu without making any
changes.
●The Done button temporarily saves the checked rooms as a linked group that can be
controlled from any of the linked rooms.
Linked Rooms are saved until the power is turned OFF, or the user manually de-links the room(s).

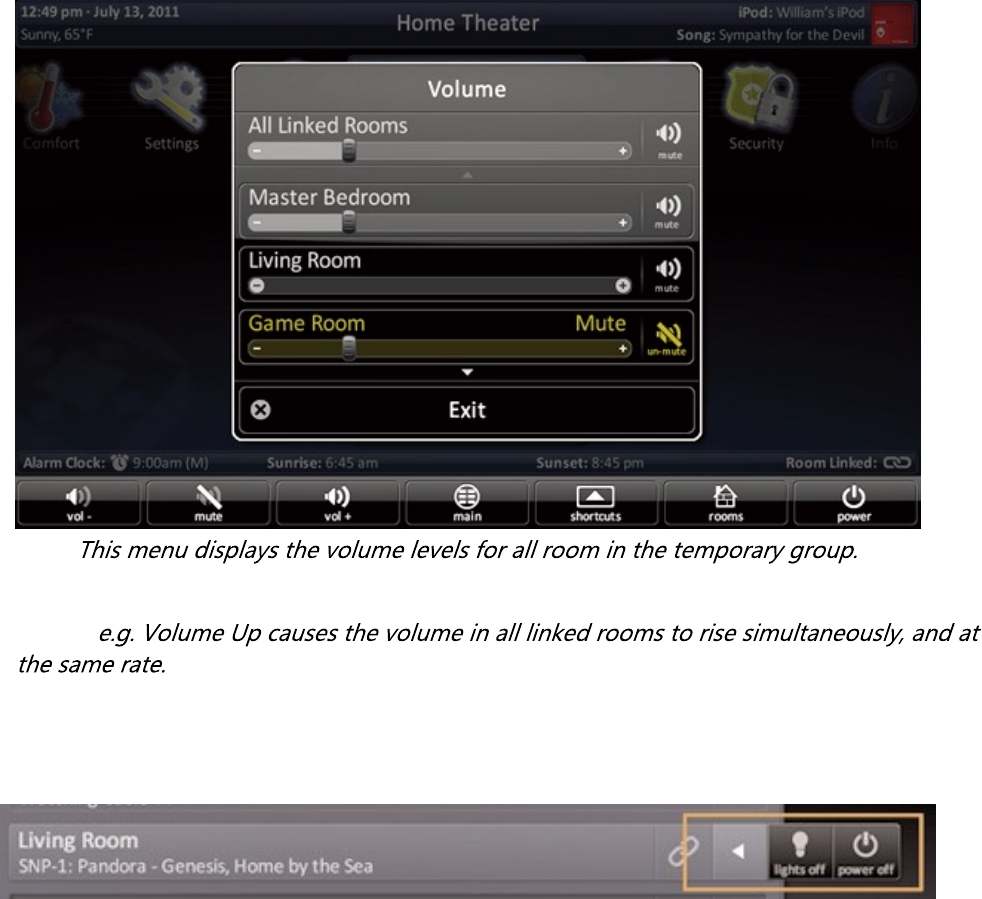

Using Linked Rooms
Once a room is linked, pressing the volume or mute buttons for that room causes the Linked
Rooms Volume Pop-Up to display.
●Selecting All Linked Rooms results in the volume and mute commands to operate ALL
rooms (
)
●Selecting an individual room in the Linked Room List allows the volume and mute buttons
to adjust sound ONLY for the room chosen.
Room Options
Selecting the Room Options button for a room causes the menu to expand and offer the user
various options to control the room.
●Lights Off: If the URC controlled lights are located in the selected room, the Options menu
displays a light bulb icon. Selecting this icon issues a “lights off” command for the chosen
room.
●Power Off: Selecting the power icon issues a “room off” command for the selected room.
The default for this command is to turn off all audio and video device in that room;
however, this may have been altered by the system programmer.
Time & Weather Module
This module displays information about the time, date, and local weather.
Pressing the Time, Date & Weather display in the Title Bar of the TKP-7600 opens the Time &
Weather Module.
●Selecting Exit returns the TKP-7600 to the previous screen.
●The Night Mode option displays the most essential information, date, time, and weather,
while reducing the screen’s brightness to not over power a dark room. This mode disables
any photo slideshow or screen time-out.
●Once touched, the screen reverts to its normal mode of operation, including displaying a
photo slide show and turning off after the amount of time determined by the Settings
menu.
Shortcuts Pop-Up
The Shortcuts Pop-Up menu is designed to give the user the ability to select their most frequently
used devices/activities and place them within an easy to reach menu.
There are a maximum of six (6) shortcuts per room location.
Remember, regardless of the physical location of the TKP-7600 it may still access, via the Rooms
Menu, any of the other rooms in the Total Control system (dependent upon programming). Each
room can be assigned up to 6 shortcuts in this menu.
Only items that appear in the currently selected room are available to be added to the Shortcuts
Pop-Up.
Using the Shortcuts Pop-Up
Select the Shortcuts Pop-Up by pressing the Shortcuts icon in the Core Menu.
If the screen is not touched, after 60 seconds the Shortcut Popup will close and the TKP-7500 will
revert to its previous screen.
Selecting a shortcut is the same as navigating to that same icon ( ) and
selecting it.
Add devices/activities to this menu by selecting the Add/Edit button in the Shortcut Popup.
This opens the Shortcuts Add/Edit screen, which will allow the user to scroll through all of the
devices/activities available to that room.
Select up to 6 devices/activities by selecting the check box shown for each possibility. Once all 6
are chosen, the remaining devices/activities are grayed out to show there are no more choices to
be made.
Reorder devices by selecting the reorder icon at the top of the Add/Edit window; this opens the
reorder Items list.
If you would like to change the order in which the activities/devices appear, drag the items, using
the “grabber” on the right side of the boxes to rearrange them.
If you would like to remove an item from the list, select the X ( ) icon to the left of the
device/activity name.
Selecting the Go Back option will revert to the Add/Edit screen without making any changes.
Selecting the Save option will make the requested changes and revert back to the Add/Edit screen.
Proximity Sensor
Built into the TKP-7600 the Proximity Sensor automatically detects the distance a user is from the
keypad to illuminate and be ready for control.
The sensitivity of this sensor can be easily adjusted from the Settings menu.
●Sensor sensitivity can be adjusted between 5cm to 100cm
●Night Mode can be deactivated by the proximity sensor. When triggered, the proximity
senor closes night mode and returns the TKP-7600 to normal mode. The sensor can also
stop a Photo Slide show, returning the keypad to its default operations.
Adjusting User Settings on the TKP-7600
By pressing and holding the Main and Mute buttons for 5 seconds ( )
simultaneously the TKP-7600 Settings Menu appears.
Simultaneously press both the Main and Mute buttons to activate the Settings Menu.
Settings Menu
The Settings Menu allows you to adjust some basic parameters of the TKP-7600 keypad.
Select these options by pressing the appropriate icon. If no icon/button is pressed for 45 seconds,
the unit reverts back to the Main screen.
The Settings Menu is broken down into the following categories:
Sleep Settings: Manages how long the LCD remains ON after usage.
General: Contains settings for Time, Date and Temperature Scale
Sound: Allows control of any confirmation beeps, or the ability to disable these tones.
Brightness: Easily adjust the LCD screen's brightness level, and enable/disable the light sensor.
Proximity Sensor: Allows for sensitivity adjustment of the proximity sensor.
System: Quickly view the Memory Usage, Firmware Version and other details about the TKP-7600.
Network: View information about the current network as well as set a Dynamic or static IP address
for the TKP-7600.
Intercom: Enable audio-video intercom settings to communicate with other installed TKP-7600’s.
Factory Default: Reset the TKP-7600 to factory settings.

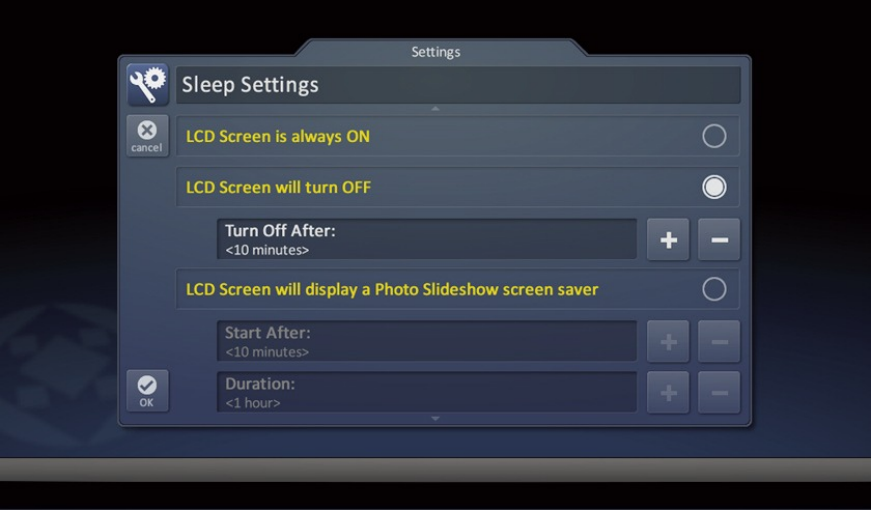

Sleep Settings
Decide upon the option that best fits the current needs.
LCD Screen is always ON: This option keeps the LCD screen illuminated at all times.
LCD Screen will turn OFF: This option allows the user to decide on the amount of time that the
LCD screen will remain illuminated after it is last used. The + and – buttons adjusts the time frame
up or down accordingly.
LCD Screen will display a screen saver
This option will display a screen saver of the photos found on the online website, Google +. This
starts to display after the time frame selected in the Start After box, and continues for the
amount of time dictated in the Duration box.
Selecting OK accepts any changes made and return to the Main menu, as well as selecting Cancel
will return the user to the Main menu, without incorporating any changes.

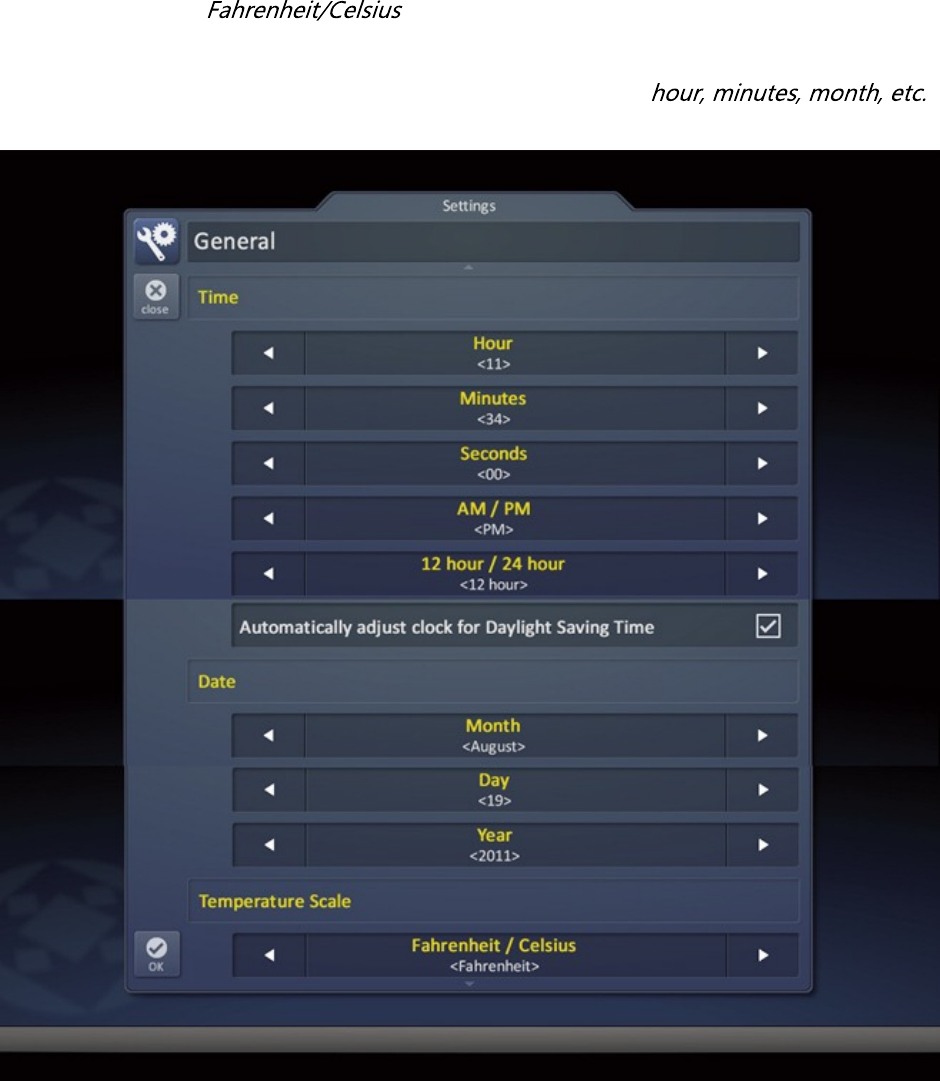

General
The General settings screen allows for setting the Time, Date and decide on the scale used to
display the temperature( ). To view the rest of the General settings menu, be
sure to scroll up/down.
Using the arrow found at the left and right sides of each property ( )
adjusts the value up, or down, respectively.
Selecting OK accepts any changes made and return to the Main menu, as well as selecting Cancel
returns the user to the Main menu, without incorporating any changes.
Sound
By default, the TKP-7500 emits a low volume beep as a confirmation tone for screen presses. Use
this menu to adjust the sound to your liking.
Use the + /– buttons or drag the slider to raise or lower the volume.
Selecting OK accepts any changes made and returns to the Main menu, as well as selecting
Cancel returns the user to the Main menu, without incorporating any changes.
Brightness
Determine the overall brightness of the TKP-7500's display, or incorporate a light sensor that
adjusts the brightness of the unit based upon ambient room lighting.
Use the + /– buttons or drag the slider to raise or lower the brightness.
Selecting Enable Light Sensor disables the Brightness Level selection and dynamically adjust the
LCD brightness based upon the ambient room lighting detected by the light sensor.
Selecting OK accepts any changes made and returns to the Main menu, as well as selecting
Cancel returns the user to the Main menu, without incorporating any changes.

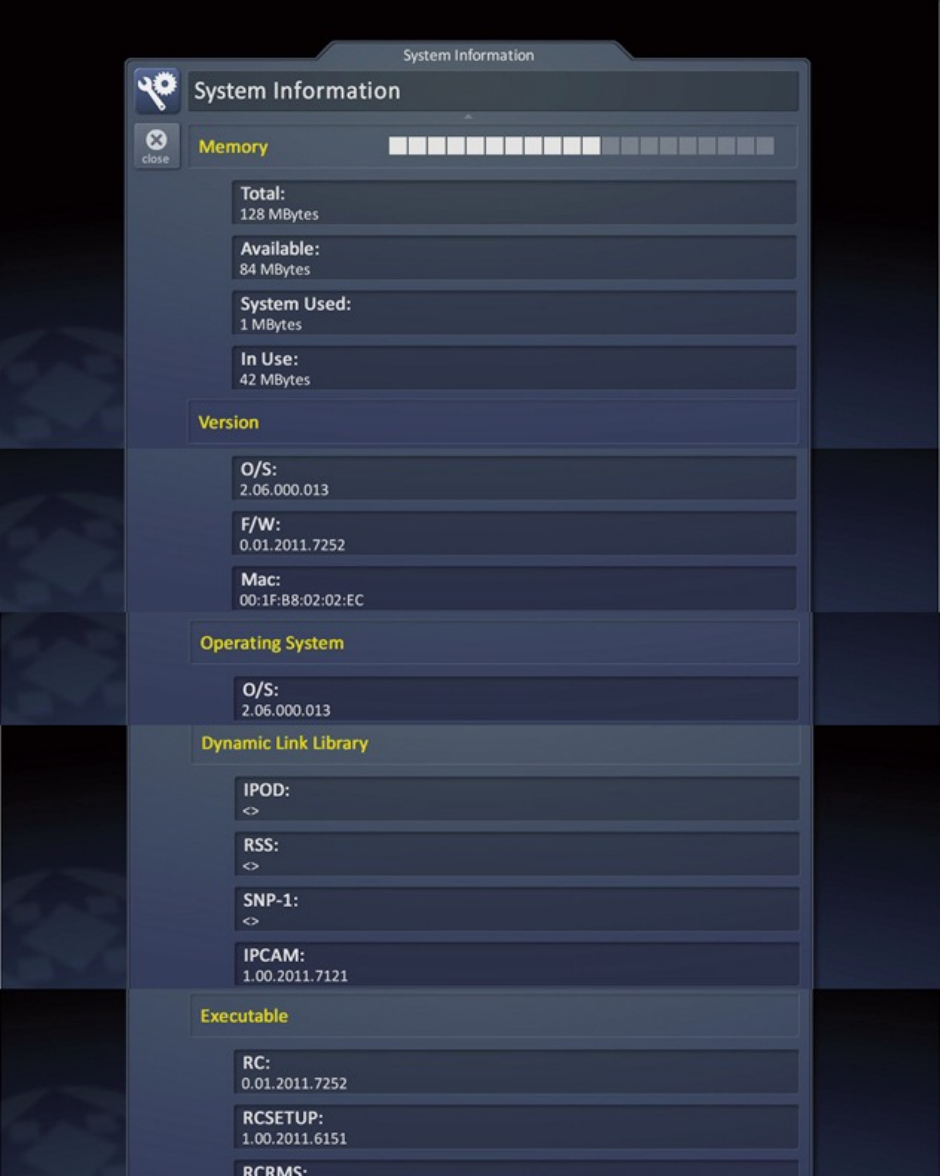

System
Although none of the information can be modified, these System Pages will show important
information about your TKP-7600. These pages should only be needed by a custom install
professional, or technical support.
Network
This option shows important information about the current network, its settings and give the
ability to edit the IP address of the TKP-7600.
Be careful, these settings should only be edited by a professional. Entering values without specific
information or instruction could easily result in the TKP-7600 failing to function correctly.

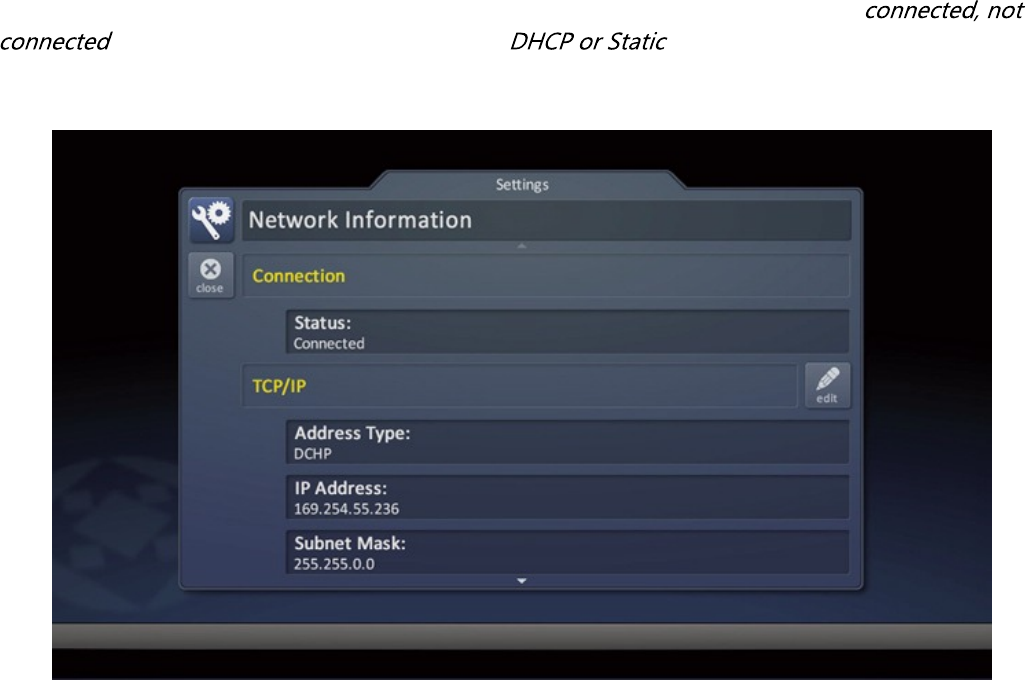

The Network Information screen displays the status of the network connection (
) as well as the current address type ( ), IP address and Subnet Mask.
Selecting the EDIT icon reveals a screen that allows for changing of the method for assigning an IP
address to the keypad.
●Obtain an IP address automatically: this uses the DHCP method of IP addressing
●Use the following address: this option requires that the Static address of the keypad, as
well as other network information be entered. This is the recommended method to connect
the TKP-7600
Audio-Video Intercom
The Audio-Video Intercom Settings screen allows you to set the Intercom function. You can enable
or disable your video, select from a list of notification sounds and adjust the volume. You can also
check if your baby is safe through one-way video communication by enabling the Baby Monitor.
Enable Intercom: Enables the audio intercom function. Once enabled the Intercom icon is
displayed on the category/device ribbon to communicate with other TKP-7600s. To also turn on
video, see enable intercom video below.
Set Intercom Name: Use up to 10 characters to label the TKP-7600 to easily identify and
communicate between multiple TKP-7600s.
Enable Intercom Video: When enabled, turns on the TKP-7600 camera for other TKP-7600 devices
to view you and your surroundings.
Set Intercom Notification Sound: Select from a list of different notification sounds and adjust the
TKP-7600 volume.
Enable Baby Monitor: Turns on one-way communication to check on the safety of your baby,
directly from the baby monitor.
Factory Default
This should only be attempted by a custom install professional that is familiar with Total Control,
or under instruction from the manufacturer. Selecting this option will reset the TKP-7600 to factory
default and the unit WILL NOT work until reprogrammed!
Specifications
Microprocessor: Coretex-A9 dual 1GHz
Memory: 4GB eMMC, 1GB RAM
Devices: Supports up to 255 Devices
Pages: Supports up to 255 Pages on each Device
Macro Capability: Up to 255 steps
Network: One 10/100 Ethernet port (PoE)
LCD : 7 inch (1280x800 )
Weight: 10.51 oz
Size: 7.91" x 5.04" x 1.03"
Power: Standard PoE Injector or PoE Switch (Purchased separately)
Limited Warranty Statement
1. Limited Warranty and Disclaimers
Universal Remote Control, Inc. (“URC”) warrants that the URC equipment shall be free from defects
in material and workmanship under normal usage for one (1) year from purchase when such is
purchased from URC. This limited warranty is valid only in the United States of America. URC
warrants that the software will substantially conform in any material respect to its functional
specifications at the time of delivery. URC SHALL NOT BE LIABLE FOR OPERATIONAL, TECHNICAL
OR EDITORIAL ERRORS AND/OR OMISSIONS MADE IN THE URC DOCUMENTATION. URC DOES
NOT WARRANT THAT THE URC SOFTWARE IS BUG-FREE OR ERROR FREE OR THAT THERE ARE NO
ERRORS/BUGS IN THE URC SOFTWARE.
URC warrants that at the time of purchase the URC equipment and the URC software complied
with all applicable regulations and policies of the Federal Communications Commissions (“FCC”)
regarding electromagnetic interference caused by electronic/computing devices and to the extent
that the URC equipment and/or the URC software fails to so comply, URC shall, at its own expense,
take all reasonable measures to promptly cause such to comply.
URC equipment purchases from other than an authorized URC dealer or distributor are
without warranty.
THIS LIMITED WARRANTY DOES NOT COVER TECHNICAL ASSISTANCE FOR HARDWARE OR
SOFTWARE USAGE EXCEPT AS EXPRESSLY PROVIDED FOR HEREIN, THE EQUIPMENT, SOFTWARE
AND DOCUMENTATION OF URC ARE SUPPLIED “AS IS” WITHOUT ANY WARRANTY, EXPRESS,
STATUTORY OR IMPLIED, OF ANY KIND. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE
LAW, URC EXPRESSLY DISCLAIMS ALL WARRANTIES, EXPRESS, STATUTORY OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. URC DOES NOT WARRANT, GUARANTEE, OR MAKE ANY
REPRESENTATIONS REGARDING THE USE OF, OR THE RESULTS OF THE USE OF, THE EQUIPMENT,
SOFTWARE OR DOCUMENTATION IN TERMS OF CORRECTNESS, ACCURACY, RELIABILITY OR
OTHERWISE. EXCEPT AS EXPRESSLY PROVIDED FOR HEREIN, TECHNICAL SERVICES ARE SUPPLIED
“AS IS”, WITHOUT ANY WARRANTY, EXPRESS, STATUTORY OR IMPLIED, OF ANY KIND. TO THE
MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, URC EXPRESSLY DISCLAIMS ALL
WARRANTIES, EXPRESS, STATUTORY OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE
WARRANTIES OF QUALITY OR REASONABLE SKILL AND CARE, OR OUTCOME OR RESULTS.
WITHOUT IN ANY WAY LIMITING THE GENERALITY OF THE OTHER PROVISIONS HEREIN,
WARRANTY DOES NOT COVER: (I) DAMAGE FROM MISUSE, NEGLECT OR ACTS OR NATURE, (II)
MODIFICATIONS, (III) INTEGRATION WITH THIRD PARTY CONTENT (IV) BEYOND THE WARRANTY
PERIOD AND/ OR FAILURE TO FOLLOW URC WARRANTY CLAIM PROCEDURE.
The warranty limitations and warranty disclaimers may not apply to end user in whole or in part,
where such are restricted or excluded by applicable law and such shall apply to the maximum
extent permitted by applicable law.
In the event of any warranty claim, URC will, at its sole option, repair the URC equipment using
new or comparable rebuilt parts, or exchange the URC equipment for new or rebuilt equipment. In
the event of a defect, these are the end user’s exclusive remedies.
All the URC equipment returned for service, exchange or repair require an RGA number. To obtain
an RGA number, you must complete a Return Request Form which you may obtain by calling (914)
835-4484 or contacting URC at returnrequest@universalremote.com. To obtain warranty service,
end user must deliver the URC equipment, freight prepaid, in its original packaging or packaging
affording adequate protection to URC at 420 Columbus Avenue, Valhalla, NY 10595. It is end user’s
responsibility to backup any macro programming, artwork, software or other materials that may
have been programmed into the unit. It is likely that such data, software, or other materials will be
lost during service and URC will not be responsible for any such damage or loss. A dated purchase
receipt, bill of sale, installation contract or other verifiable proof of purchase is required. For the
URC equipment support and other important information, please visit URC's website available at
www.universalremote.com or call the Customer Service Center at (914) 835-4484.
This limited warranty only covers the URC equipment issues caused by defects in material or
workmanship during ordinary consumer use. It does not cover product issues caused by any other
reason, including but not limited to product issues due to commercial use, acts of God, third-party
installation, misuse, limitations of technology, or modification of or to any part of the URC
equipment. This limited warranty does not cover the URC equipment sold as used, as is,
refurbished, so called "B stock" or consumables (such as batteries). This limited warranty is invalid if
the factory applied serial number has been altered or removed from the URC equipment. This
limited warranty specifically excludes the URC equipment sold by unauthorized resellers.
With the exception of URC’s IR-only, broad-based consumer remotes, none of Page 36 URC’s PC
programmable remotes or any of our Total Control® whole-house equipment are authorized for
online internet sales. Buying URC’s PC programmable remotes or any of our Total Control® whole-
house equipment online means buying equipment that does not have a URC’s limited warranty.
Such equipment is not eligible for URC tech support or software support, either.
2. URC’s Limitations of Liability
IN NO EVENT SHALL URC BE LIABLE FOR INDIRECT, SPECIAL, INCIDENTAL, EXEMPLARY, PUNITIVE
OR CONSEQUENTIAL DAMAGES OF ANY KIND OR LOSS OF PROFITS OR BUSINESS OPPORTUNITY,
EVEN IF URC IS ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
IN NO EVENT SHALL URC BE LIABLE FOR LOSS OF OR DAMAGE TO DATA, COMPUTER SYSTEMS
OR COMPUTER PROGRAMS. URC’S LIABILITY, IF ANY, FOR DIRECT DAMAGES OF ANY FORM
SHALL BE LIMITED TO ACTUAL DAMAGES, NOT IN EXCESS OF AMOUNTS PAID BY END USER FOR
THE URC EQUIPMENT.
IN NO EVENT SHALL URC BE LIABLE FOR ANY EVENTS BEYOND ITS CONTROL, INCLUDING ANY
INSTANCE OF FORCE MAJEURE. IN NO EVENT SHALL URC BE LIABLE FOR THE ACTS OR
OMISSIONS OF END USER OR ANY THIRD PARTY.
THE LIMITATIONS OF LIABILITY MAY NOT APPLY TO END USER IN WHOLE OR IN PART, WHERE
SUCH ARE RESTRICTED LIMITED OR EXCLUDED BY APPLICABLE LAW AND SUCH SHALL APPLY TO
THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW.
URC SHALL NOT BE HELD RESPONSIBLE FOR THE STATEMENTS MADE BY OTHERS.
SOME STATES OR JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO
END USER. THIS LIMITED WARRANTY GIVES END USER SPECIFIC LEGAL RIGHTS AND END USER
MAY HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE OR JURISDICTION TO
JURISDICTION.
End User Agreement
The terms and conditions of the End User Agreement available at
www.universalremote.com/eua.php shall apply.
Federal Communication Commission
Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one more of the following
measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
●Consult the dealer or an experienced radio/TV technician for help.
Warning!
Changes or modifications not expressly approved by the manufacturer could void the user's
authority to operate the equipment.
Note : The manufacturer is not responsible for any Radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user's authority
to operate the equipment.
FCC Caution
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the authority to operate equipment.
Regulatory Information to the user
●CE conformity Notice
Products with “CE” marking comply EMC Directive 2004/108/EC issued by the commission of
the European Community.
1. EMC Directive
❑Emission
❑Immunity
❑Power
●Declaration of Conformity
“Hereby, Universal Remote Control Inc. declares that this TKP-7600 is in compliance with the
Essential requirements
Certification
Type No.(Model No.) TKP-7600
Batch/Serial No. -
Power Rating 48.0V , 0.32A
:EN 55022
:EN 55024
:EN-61000-3-2, 3
Declaration of Conformity
Company Name : Universal Remote Control Inc.
Company Address : 500 Mamaroneck Avenue, Harrison, NY 10528, U.S.A
Contact Information : www.universalremote.com
Phone: (914)835-4484 Fax: (914)835-4532
Brand Name : UNIVERSAL remote control
Product Name : Network Keypad
Model Name : TKP-7600
This product herewith complies with the requirements of EMC Directive (2004/108/EC)
issued by the Commission of the European Community
Compliance with these directives implies conformity to the following European Community
EMC Directive
EN 55022
EN 55024
EN 61000-3-2
EN 61000-3-3
List of test reports and/or certificate verified compliance with the standards above
Date of issue : October 30, 2015
Name and signature of authorized person :
EMC Directive
Report No.
Testi ng Labora tory : Gumi College EMC Center
James Novak
Director of Product
Universal Remote Control Inc.
