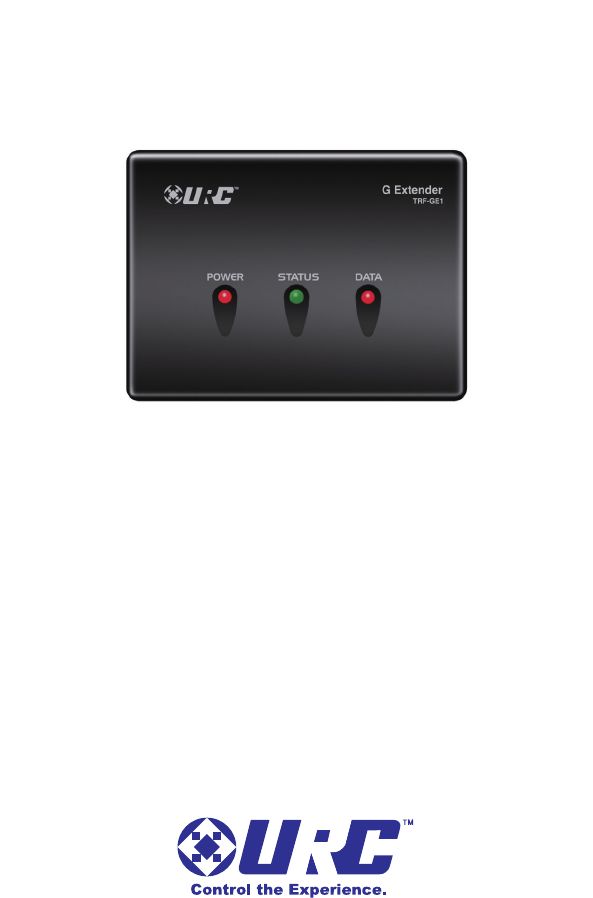

TRF-GE1 G Extender
Owner’s Manual
TRF-GE1 G EXTENDER
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
Congratulations on your choice!
TRF-GE1 G Extender Owner's Manual © 2012 Universal Remote Control,
Inc.
The information in this manual is copyright protected. No part of this manual may be
copied or reproduced in any form without prior written consent from Universal
Remote Control, Inc.
UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPERATIONAL,
TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN THIS MANUAL.
The information in this manual may be subject to change without prior notice.
URC - Control the Experience is a registered trademark of Universal Remote Control, Inc.
All other brand or product names are trademarks or registered trademarks of their
respective companies or organizations.
TRF-GE1 G EXTENDER
Congratulations! 1
Features and Benefits 1
Parts Guide 1
TRF-GE1 Panel Descriptions 2
Pairing a TRF-GE1 and a TRG-100/200 4
Specifications 5
USA Limited Warranty Statement 6
Federal Communication Commission
Interference Statement 8
Declaration of Conformity 9
Page 1
TRF-GE1 G EXTENDER
Congratulations!
Thank you for purchasing the Total Control TRF-GE1 G Extender for
the MRX-20 Advanced Network System Controller. The TRF-GE1 G
Extender is used to extend the normal operational range (30-50
feet) between the TRG-100/200 Umotion remote and the MRX-20
Advanced Network System Controller.
Features and Benefits
lExtends communication, via the wired network, between a
TRG-100/TRG-200, and the MRX-20 for on-screen motion
control
Substitutes the internal antenna found in the MRX-20 with its
internal antenna, creating a new origin point for RF communication.
This allows the on-screen motion control for the MRX-20 to
work virtually anywhere in the project using a TRG-100/200
Umotion remote control.
lCompact design for easy installation
Easily and discretely install a TRF-GE1 G Extender. Maintain your
home decor while controlling your Total Control MRX Advanced
Network System Controller.
Parts Guide
The TRF-GE1 G Extender includes:
1 - TRF-GE1 G Extender 1 - Owner’s Manual
1 - AC Power Adapter 1 - Wall Mount and 4 Screws

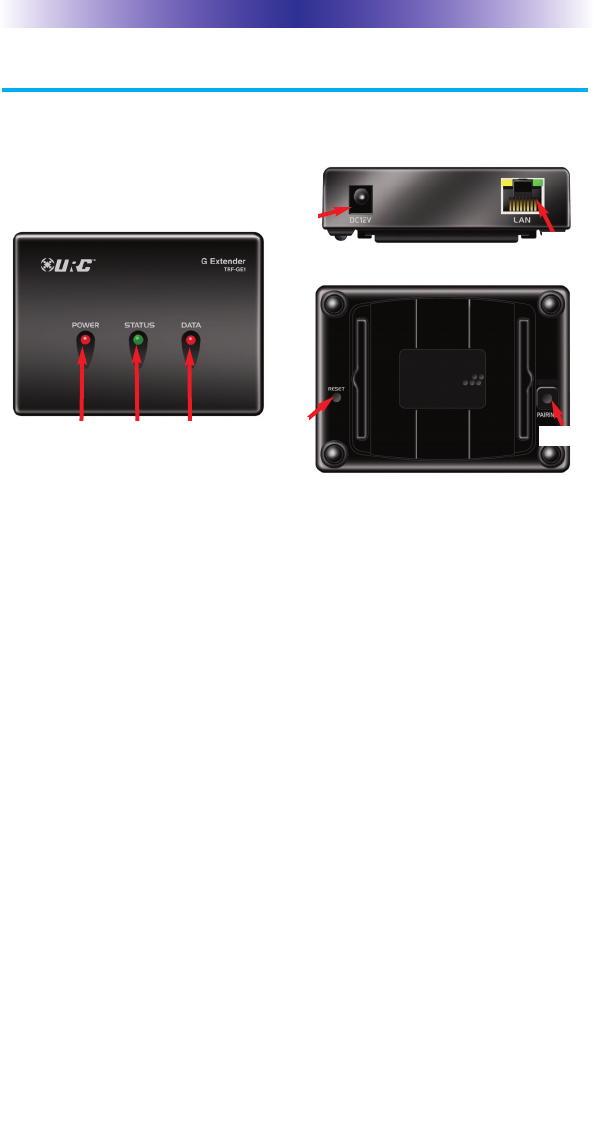

TRF-GE1 Panel Descriptions
The front, rear and bottom panel consists of:
Power LED: When illuminated this light indicates the TRF-GE1 is ON.
Status LED: The Status LED signifies when the TRF-GE1 is connected to
the network:
lConnected: Illuminates green.
lNot Connected: Remains OFF.
Data LED: The Data LED flashes as the TRF-GE1 receives and
transmits data.
DC 12V (1A): Plug in the included AC/DC adapter to power up the
TRF-GE1.
LAN: Communicate over the network to an MRX-20 using an
Ethernet cable.
Reset: Pressing the Reset button, with a stylus or paper clip, refreshes
the TRF-GE1. Unplugging and re-plugging the power cable also
resets the unit.
Pressing and holding the Reset button for 10 seconds, factory defaults
the TRF-GE1 and places the unit back to its original factory condition.
Page 2
TRF-GE1 G EXTENDER
POWER
LED STATUS
LED
DATA
LED
DC 12V
LAN
Reset Pairing
Page 3
TRF-GE1 G EXTENDER
Pairing: Place the TRF-GE1 G in pairing mode by pressing and
holding the Pairing button for three seconds. For pairing a TRG-
100/200 with a TRF-GE1 G, refer to the section: Pairing a TRF-GE1
G with a TRG-100/200.
lEntering pairing mode: Successfully entering the pairing
mode is confirmed by the following LED responses:
Power LED: Turns ON.
Status LED: Flashes orange ON and OFF.
Data LED: Remains OFF.
lConfirmation of pairing: A successful pairing between a TRF-
GE1 and a TRG-100/200 is confirmed with the following LED
responses:
Power LED: Turns ON.
Status LED: Flashes green ON and OFF three times.
Data LED: Remains OFF.
TRF-GE1 G EXTENDER

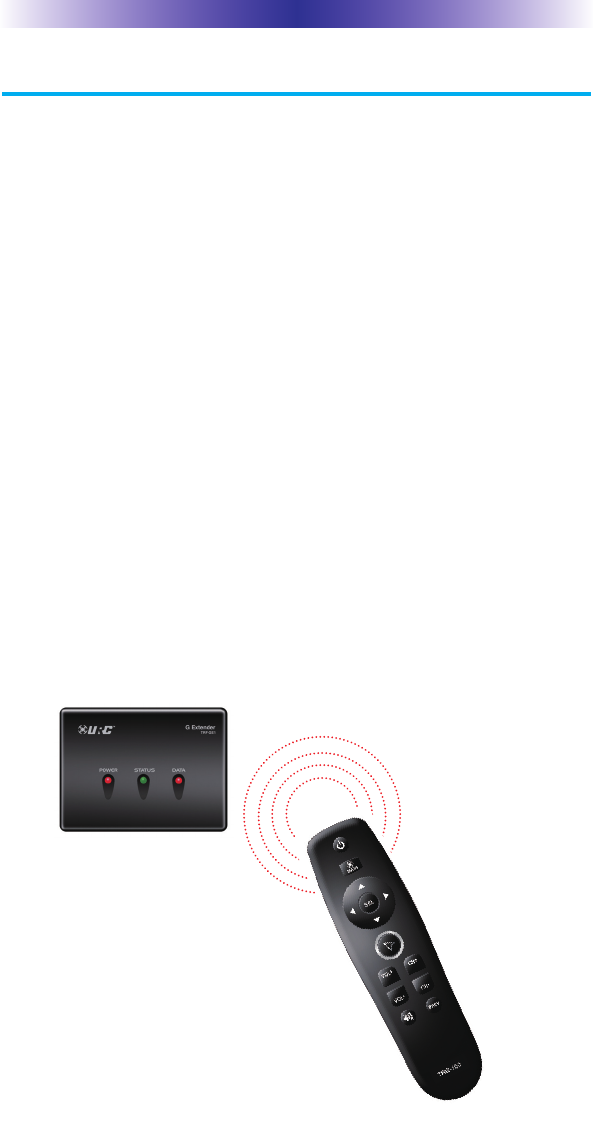

Pairing a TRF-GE1 and a TRG-100/200
Before you can begin to use the TRF-GE1 G Extender with the
TRG-100/200 Umotion remote, it is necessary to pair them. The
TRF-GE1 G has a Pairing button on the bottom of the unit, this
makes pairing possible without the use of a PC.
Entering Pairing mode:
1. Use a stylus or paper clip to press and hold the Pairing
button (on the bottom of the TRF-GE1 G) for three
seconds.
2. When in pairing mode, press and hold the Main and Sel
buttons for three seconds on the TRG-100/200 remote.
3. Once paired, both the TRG-100/200’s Umotion button
and the TRF-GE1 Status light will flash three times.
Keep in mind, although multiple TRG-100/200’s can pair with one
TRF-GE1 G Extender it is recommended that only one* TRG-100/200
control the on-screen menu.
*Multiple Umotion remotes paired to a single TRF-GE1 may cause
the unit to respond sluggishly.
Roaming throughout your home with a TRG-100/200, is NOT
recommended since it can only be paired with one TRF-GE1 G
Extender and work within its 30 – 50 feet range.
Page 4
TRF-GE1 G EXTENDER
Specifications
Microprocessor: ARM32-bit Cortex- M3(120MHz)
Power Supply: 12V DC 1A
RAM: 128Mbyte Mobile DDR
RF Range(radio frequency): 50 to 100 feet, depending upon the environment
RF Freqency: 2.425~2.475 GHz
NAND: 128Mbyte
FLASH: 768Kbytes
SRAM: 128 + 4 Kbyte
Weight: 3.058 oz
Size: 3.74” X 2.7” X 1.1”
Power: 12V DC 1A
Page 5
TRF-GE1 G EXTENDER
USA Limited Warranty Statement
Your Universal Remote Control, when delivered to you in new condition,
is warranted against defects in materials or workmanship as follows:
UNIVERSAL REMOTE CONTROL, INC. warrants this product against
defects in material or workmanship for a period of one (1) year and as set
forth below. Universal Remote Control will, at its sole option, repair the
product using new or comparable rebuilt parts, or exchange the product
for a comparable new or rebuilt product. In the event of a defect, these
are your exclusive remedies.
This Limited Warranty covers only the hardware components packaged
with the Product. It does not cover technical assistance for hardware or
software usage and it does not cover any software products whether or
not contained in the Product; any such software is provided "AS IS" unless
expressly provided for in any enclosed software Limited Warranty.
To obtain warranty service, you must deliver the product, freight prepaid, in
its original packaging or packaging affording adequate protection to
Universal Remote Control at the address provided in the Owner's Manual.
It is your responsibility to backup any macro programming, artwork,
software or other materials that may have been programmed into your
unit. It is likely that such data, software, or other materials will be lost
during service and Universal Remote Control will not be responsible for
any such damage or loss. Adated purchase receipt, Bill of Sale, Installation
Contract or other verifiable Proof of Purchase is required. For product
support and other important information visit Universal Remote Control's
website: http://www.UniversalRemote.com or call the Customer Service
Center (914) 835-4484.
This Limited Warranty only covers product issues caused by defects
in material or workmanship during ordinary consumer use. It does
not cover product issues caused by any other reason, including but
not limited to product issues due to commercial use, acts of God,
third-party installation, misuse, limitations of technology, or modification of
or to any part of the Universal Remote Control product. This imited
Warranty does not cover Universal Remote Control products sold as
USED, AS IS, REFURBISHED, so-called “B STOCK” or consumables
(such as batteries). This Limited Warranty is invalid if the factory-
applied serial number has been altered or removed from the
product. This Limited Warranty is valid only in the United States of
America. This Limited Warranty specifically excludes products sold
by unauthorized resellers.
Page 6
LIMITATION OF REMEDIES
UNIVERSALREMOTE CONTROLSHALLNOT BE LIABLE FOR ANY
INCIDENTALOR CONSEQUENTIALDAMAGES FOR BREACH OF
ANY EXPRESS OR IMPLIED WARRANTY OR CONDITION ON THIS
PRODUCT. IN NO EVENT SHALL UNIVERSAL REMOTE CONTROL
BE LIABLE, WHETHER IN CONTRACT OR IN TORT(INCLUDING
NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE
OF THE PRODUCT, ACCESSORY OR SOFTWARE,OR FOR ANY
INDIRECT, INCIDENTAL, SPECIALOR CONSEQUENTIALDAMAGES
OF ANYKIND, OR LOSS OF REVENUE OR PROFITS,LOSS OF
BUSINESS, LOSS OF INFORMATION OR DATA, SOFTWAREOR
APPLICATIONS OR OTHER FINANCIALLOSS ARISING OUT OF OR
IN CONNECTION WITH THE ABILITY OR INABILITY TO USE THE
PRODUCTS, ACCESSORIES OR SOFTWARE TO THE FULL EXTENT
THESE DAMAGES MAY BE DISCLAIMED BY LAW.
EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, THERE
IS NO OTHER WARRANTY EXPRESSED OR IMPLIED. UNIVERSAL
REMOTE CONTROL WILL NOT BE HELD RESPONSIBLE FOR
STATEMENTS MADE BY OTHERS CONCERNING THE
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE
ON THIS PRODUCT. Some states or jurisdictions do not allow the
exclusion or limitation of incidental or consequential damages, or
allow limitations on how long an implied warranty lasts, so the above
limitations or exclusions may not apply to you. This Limited Warranty
gives you specific legal rights and you may have other rights which
vary from state to state or jurisdiction to jurisdiction.
REV020708
TRF-GE1 G EXTENDER
Page 7
Page 8
TRF-GE1 G EXTENDER
Federal Communication Commission
Interference Statement
This equipment has been tested and found to comply with the limits for
aClass B digital device, pursuant to part 15 of the FCC Rules. These limits
aredesigned to provide reasonable protection against harmful interference in
aresidential installation. This equipment generates, uses and can radiate
radiofrequency energy and, if not installed and used in accordance with the
instructions,may cause harmful interference to radio communications.
However, there isno guarantee that interference will not occur in a particular
installation. If thisequipment does cause harmful interference to radio or
television reception,which can be determined by turning the equipment off
and on, the user isencouraged to try to correct the interference by one more
of the followingmeasures:
uReorient or relocate the receiving antenna.
uIncrease the separation between the equipment and receiver.
uConnect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
uConsult the dealer or an experienced radio/TV technician for help.
Warning!
Changes or modifications not expressly approved by the manufacturer could
void the user's authority to operate the equipment.
Note : The manufacturer is not responsible for any Radio or TV interference
caused by unauthorized modifications to this equipment. Such modifications
could void the user's authority to operate the equipment.
FCC Caution
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party
responsible for compliance could void the authority to operate
equipment.
Federal Communication Commission (FCC) Radiation Exposure Statement
The device and the antenna for this device must be installed to ensure a
minimum separation distance of 20 cm more from a person's body. Other
operating configurations should be avoided.
Page 9
TRF-GE1 G EXTENDER
Declaration of Conformity
Company Name : OH SUNG ELECTRONICS CO., LTD.
Company Address : #181 GONG DAN-DONG, GUMI, GYEONG BUK,
REPUBLIC OF KOREA
Contact Information : Phone: +82-54-468-7281, Fax: +82-54-461-8368
Brand Name : UNIVERSAL remote control
Product Name : BASE STATION
Model Name : TRF-GE1
This product herewith complies with the requirements of EMC Directive (2004/108/EC)
and R&TTE Directive(1995/5/EC) issued by the Commission of the European Community
Compliance with these directives implies conformity to the following European Community
n EMC Directive
l EN 55022 (2010)
l EN 55024 (2010)
l EN 61000-3-2 (2006) + A1 (2009) + A2 (2009)
l EN 61000-3-3 (2008)
n R&TTE Directive
l EN 60950-1 (2006) + A11 (2009) + A1 (2010) + A12 (2011)
l ETSI EN 301 489-1 V1.9.2 (2011), ETSI EN 301 489-17 V2.2.1 (2012)
l ETSI EN 300 328 V1.7.1 (2006)
List of test reports and/or certificate verified compliance with the standards above
Date of issue : March 16, 2012
Name and signature of authorized person :
n EMC Directive
l Report No.
l Testing Laboratory : Gumi College EMC Center
n R&TTE Directive
l Certificate No.
l Certificate Body : SIEMIC (No. 2200)
Hak-Ki Kim
General Manager
OH SUNG ELECTRONICS CO., LTD.
EN 50385 (2002)
Page 10
NOTE
Page 11
NOTE
Page 12
NOTE
Page 13
NOTE
Page 14
NOTE
Page 15
NOTE
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: (914) 835-4484 Fax: (914) 835-4532
www.universalremote.com
OCE-0132C Rev 01

Navigation menu
