Oki Electric Industry 4336823A Embedded RFID Read/Write System for Printers User Manual

Oki Data Corporation Embedded RFID Read/Write System for Printers

Users Manual

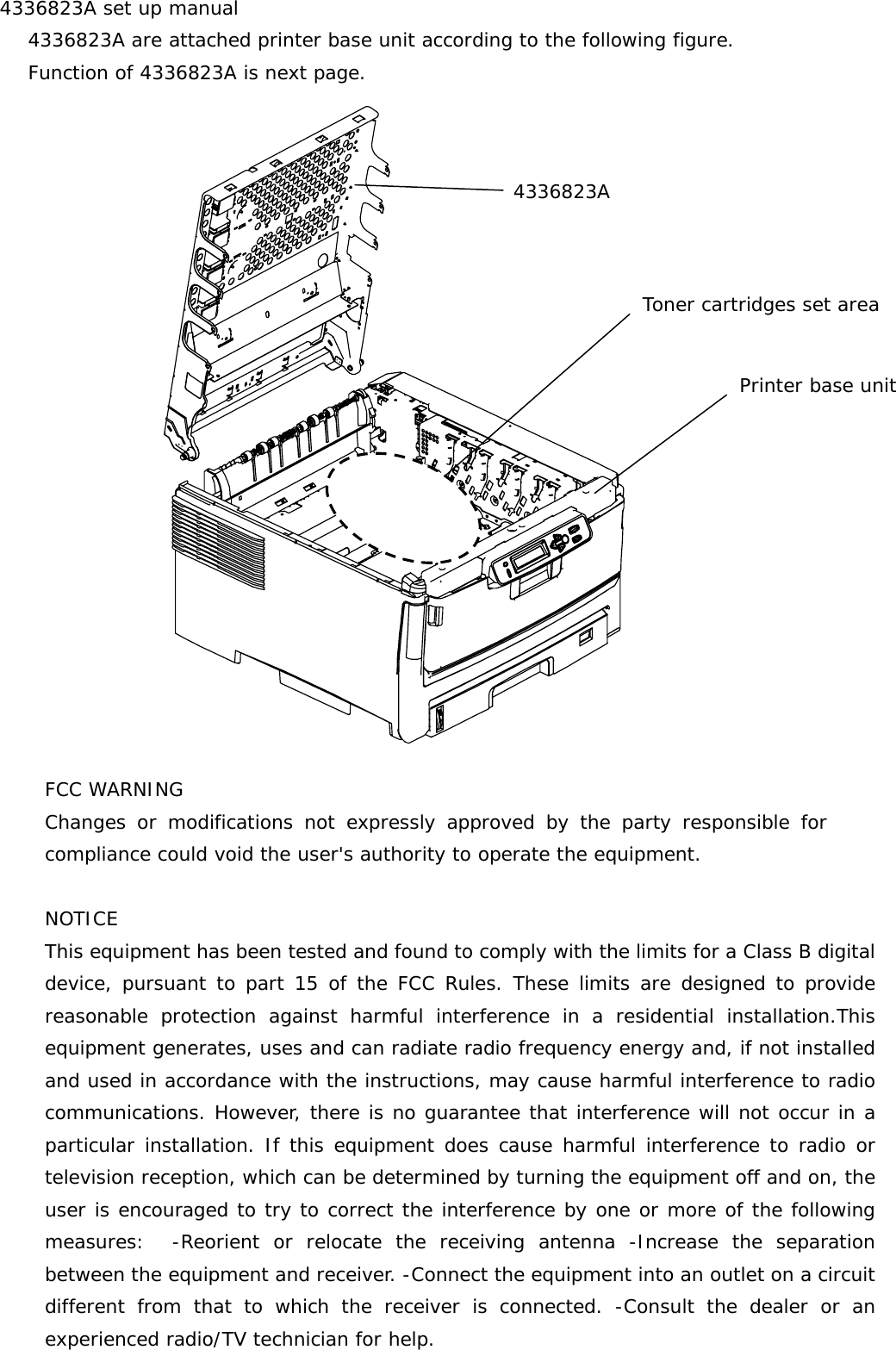

4336823A set up manual 4336823A are attached printer base unit according to the following figure. Function of 4336823A is next page. FCC WARNING Changes or modifications not expressly approved by the party responsible forcompliance could void the user's authority to operate the equipment. NOTICE This equipment has been tested and found to comply with the limits for a Class B digitaldevice, pursuant to part 15 of the FCC Rules. These limits are designed to providereasonable protection against harmful interference in a residential installation.Thisequipment generates, uses and can radiate radio frequency energy and, if not installedand used in accordance with the instructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interference will not occur in aparticular installation. If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning the equipment off and on, theuser is encouraged to try to correct the interference by one or more of the followingmeasures: -Reorient or relocate the receiving antenna -Increase the separationbetween the equipment and receiver. -Connect the equipment into an outlet on a circuitdifferent from that to which the receiver is connected. -Consult the dealer or anexperienced radio/TV technician for help. 4336823A Printer base unit Toner cartridges set area

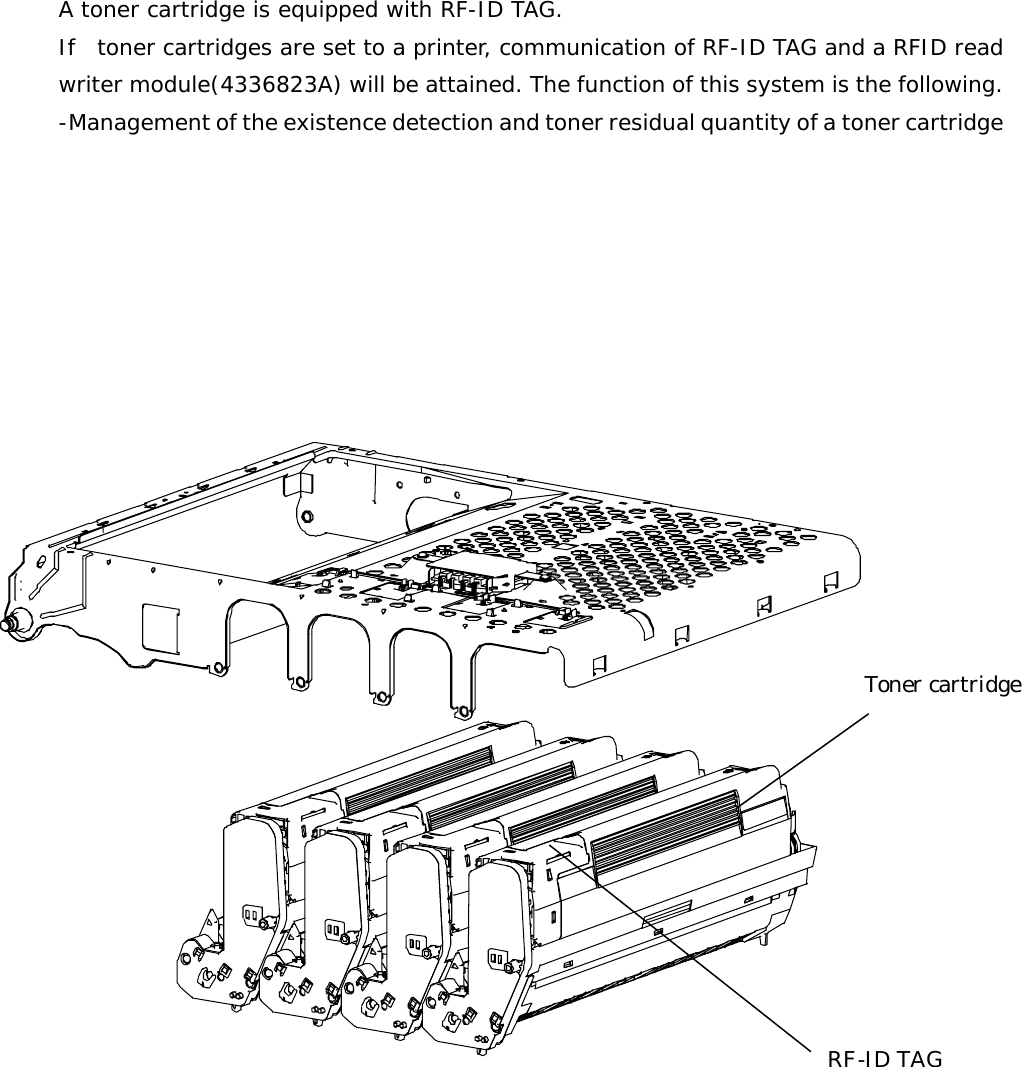

A toner cartridge is equipped with RF-ID TAG. If toner cartridges are set to a printer, communication of RF-ID TAG and a RFID readwriter module(4336823A) will be attained. The function of this system is the following.-Management of the existence detection and toner residual quantity of a toner cartridge Toner cartridge RF-ID TAG
