LC TV
2-Series
_LIE_V|A TM
Syntax-Brillian Corporation
20480 East Business Parkway
City of Industry, California 91789 USA
1-866-9-OLEVtA
of Contents
Important Information I
Important Safety Precautions 2
Introducing the OLEVIA TV 5
Accessories 7
TV Installation And Connection Guide

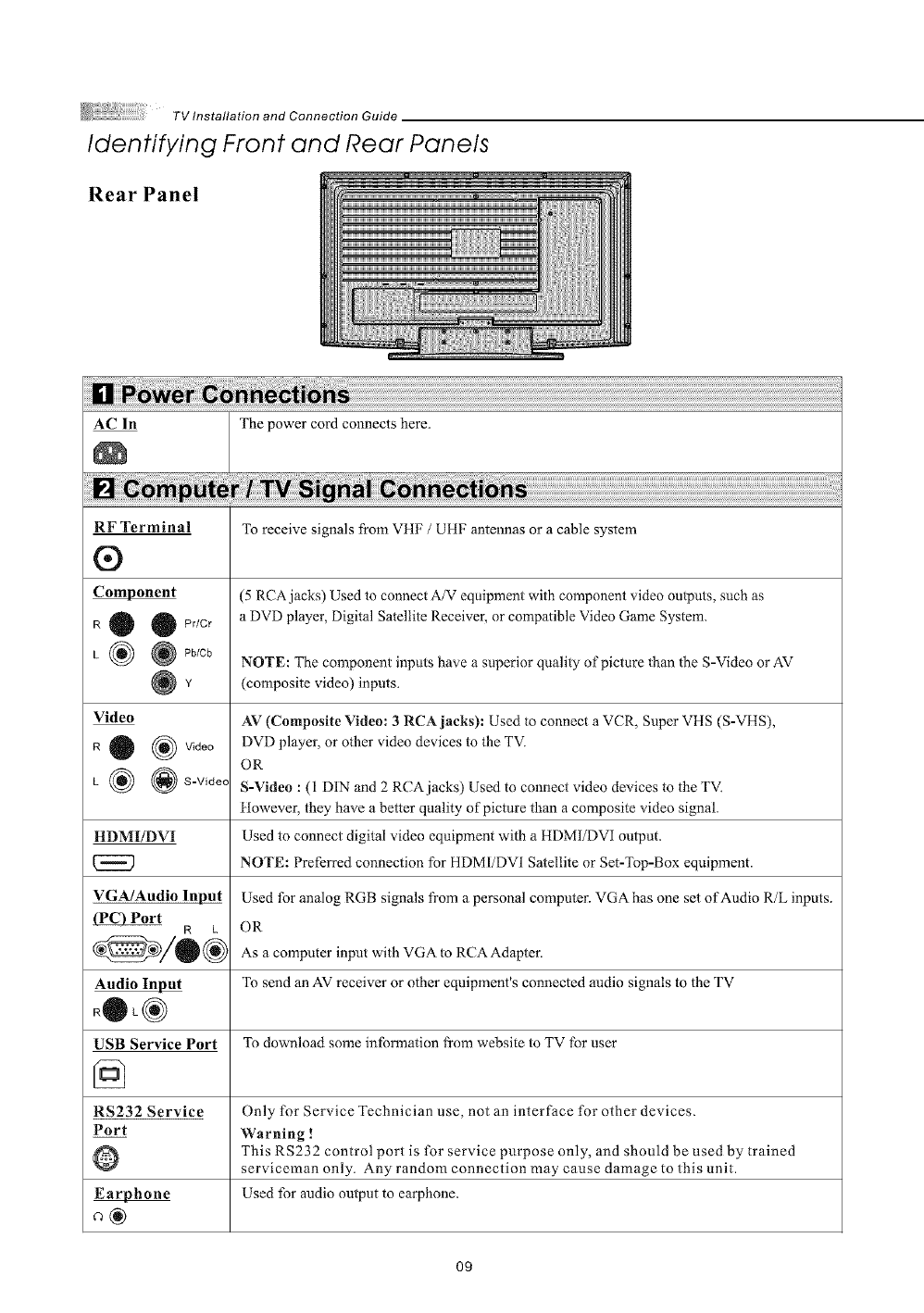

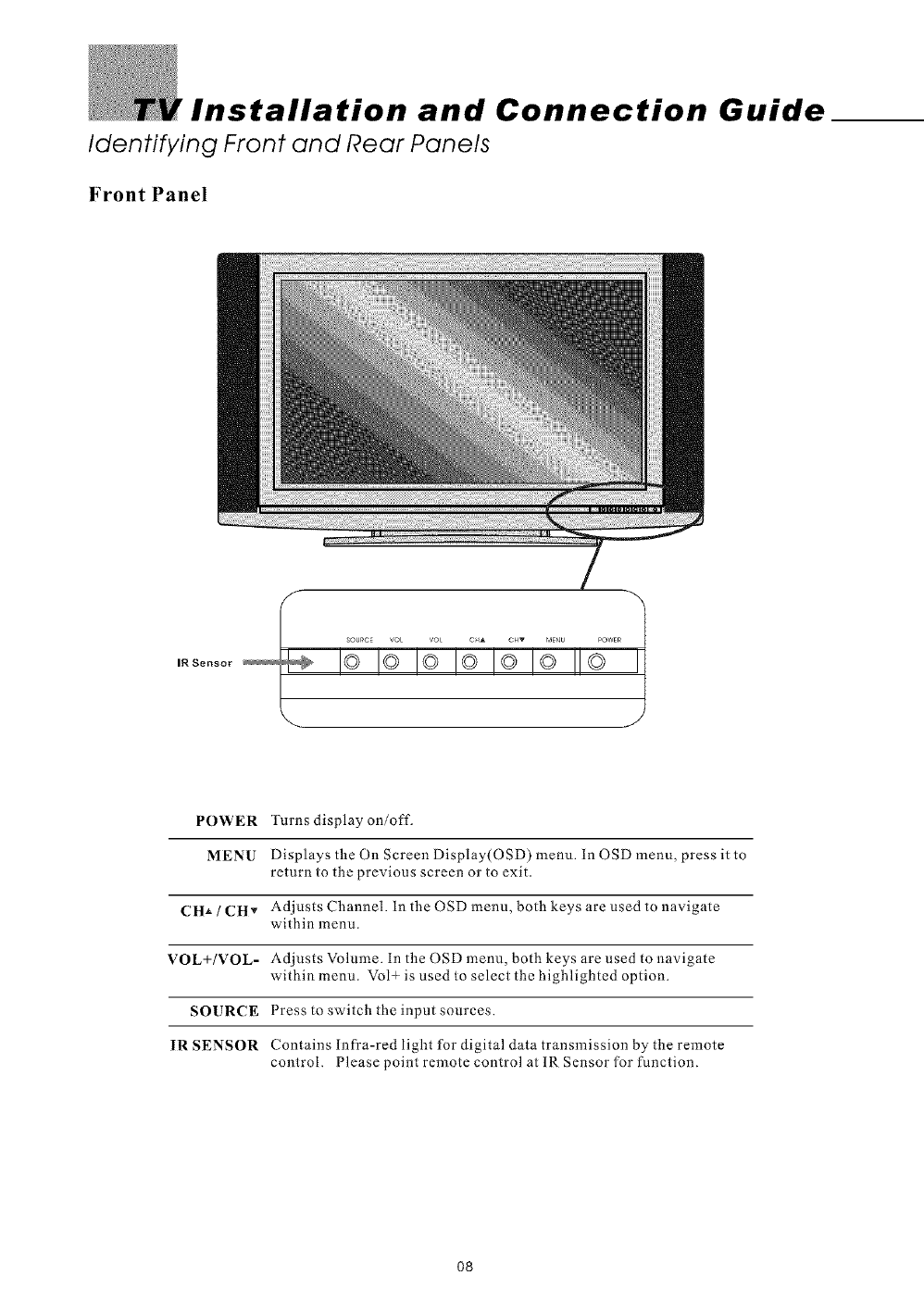

Identifying Front Controls and Rear Panels 8
- Descriptions of Connector Types ]0
- Turn the power on the TV |]
Installation 32

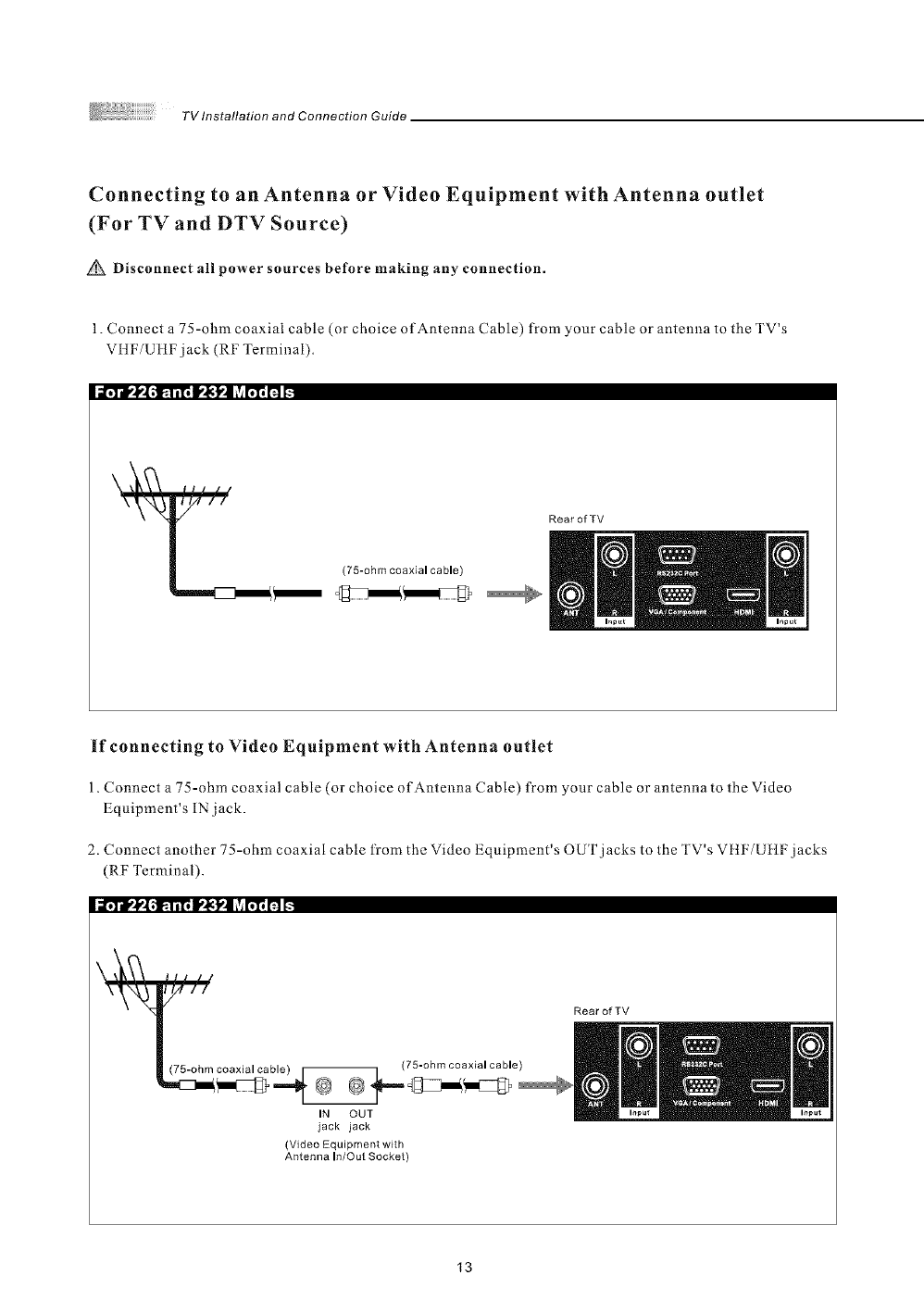

-Connecting to an Antenna or Video Equipment with Antenna Outlet ]3
-Connecting to a Set-Top-Box with HDMI Cables 14
-Connecting to a Satellite Receiver or Cable Box with Component Connectors 15

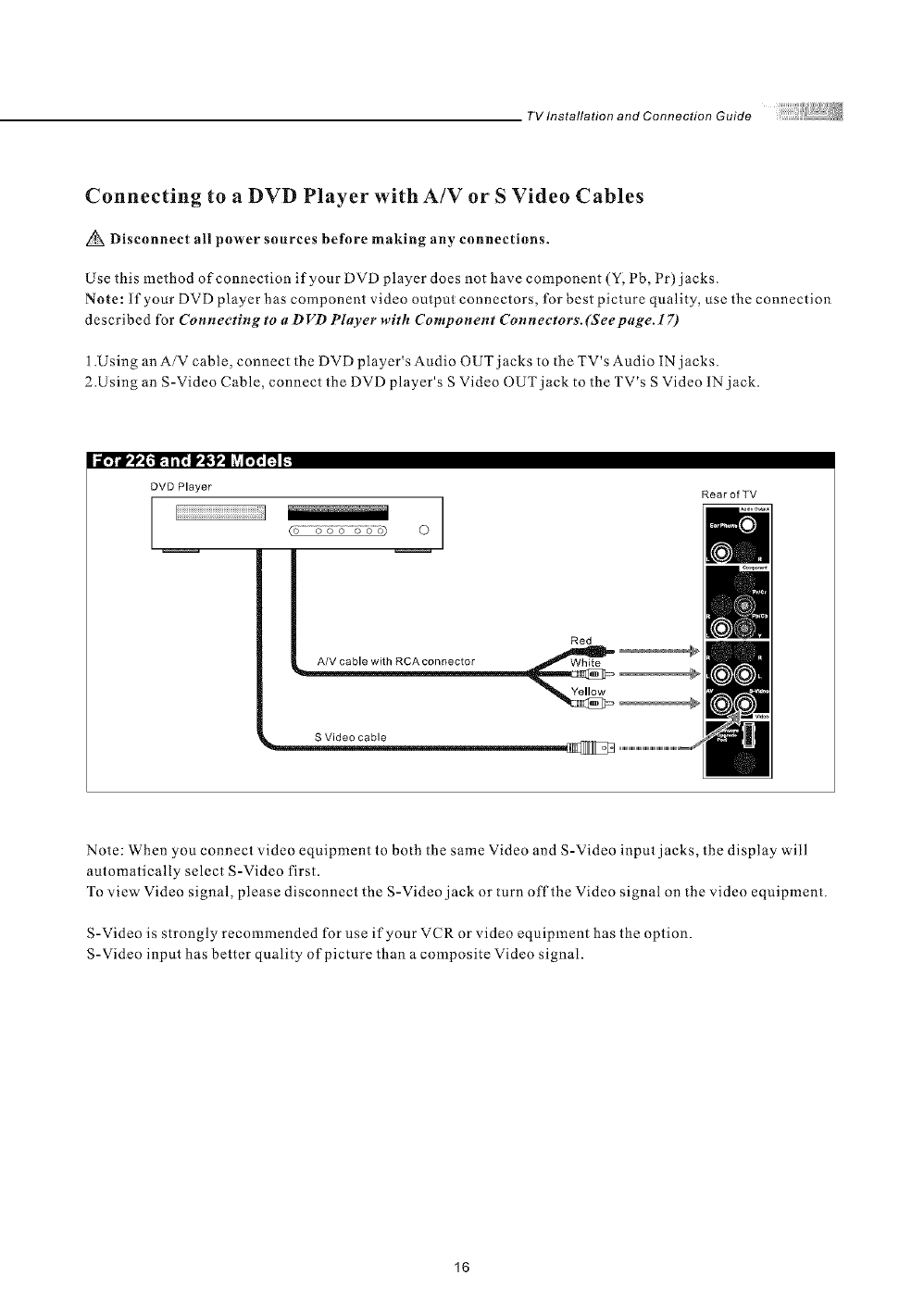

-Connecting to a DVD Player withA/V or S Video Cables 16
-Connecting to a DVD Player with Component Cables 17

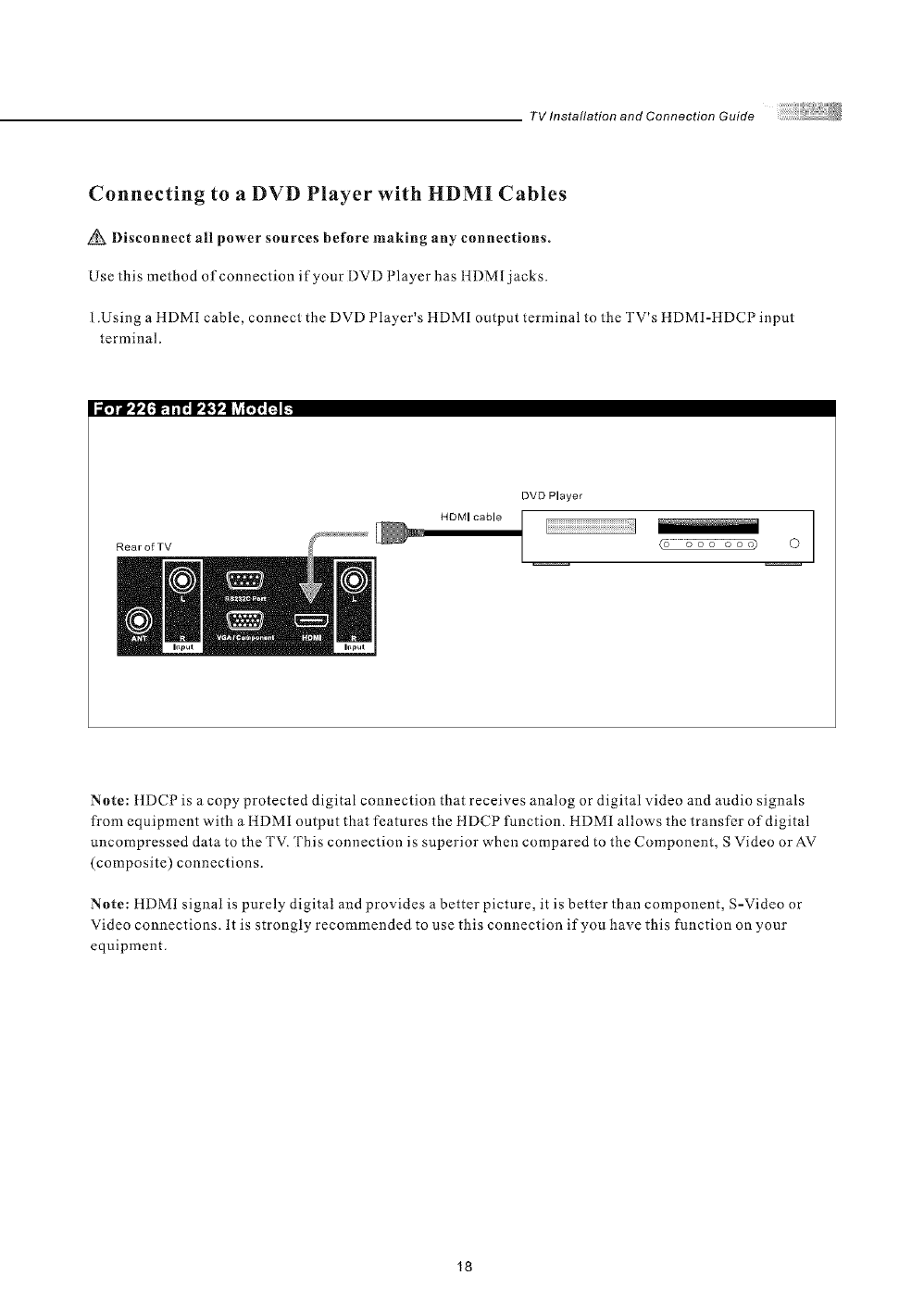

- Connecting to a DVD Player with HDMI Cables 18

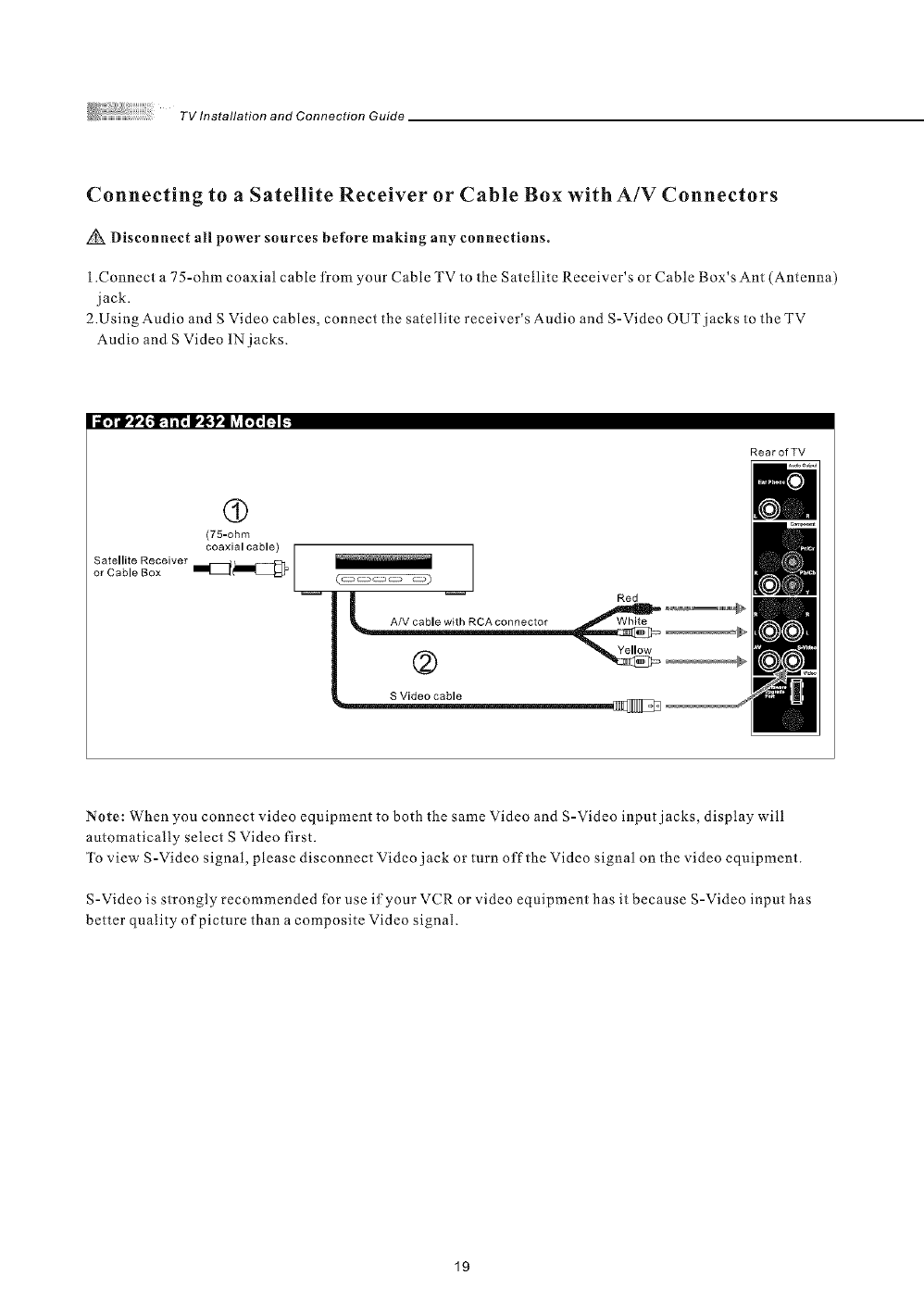

-Connecting to a Satellite Receiver or Cable Box with A/V Cables 19
- Connecting to a VCR, PVR, or DVwithA/V Cables 20
- Connecting to a Blue-Ray DVD Player or HD-Receiver with HDMI Cables and a
PC with VGA Cables 2t
- Connecting to a D-VHS with HDMI Cables 22
- Connecting to a D-VHS with Component Cables 23

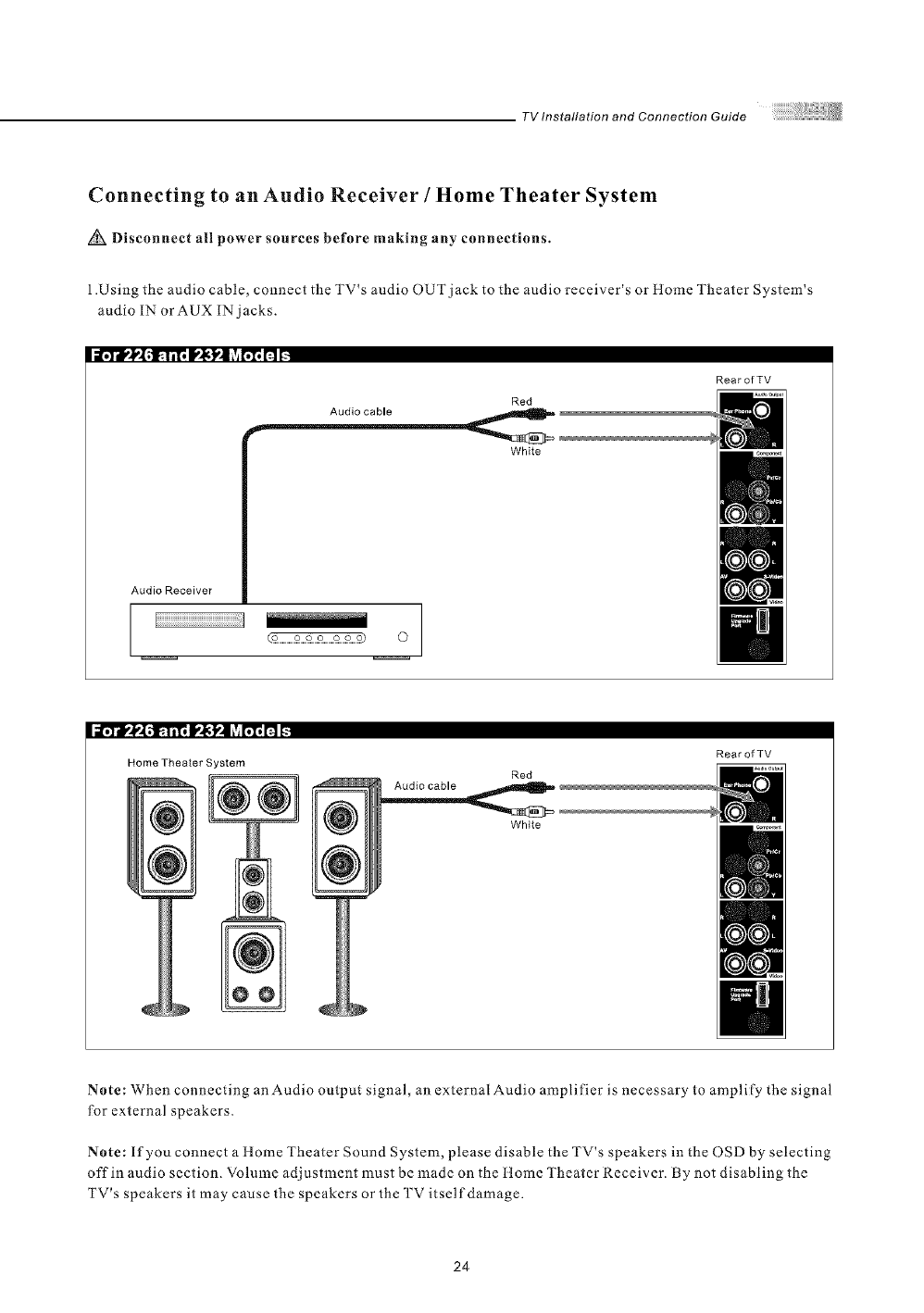

- Connecting to an Audio Receiver/Home Theater System 24
- Other Audio Connections 25
- Instruction for Uploading New Firmware 26
Remote Control Guide
- Regular Buttons 27
-Battery Installation 28
On Screen Display (OSD) 29
Introduction 29

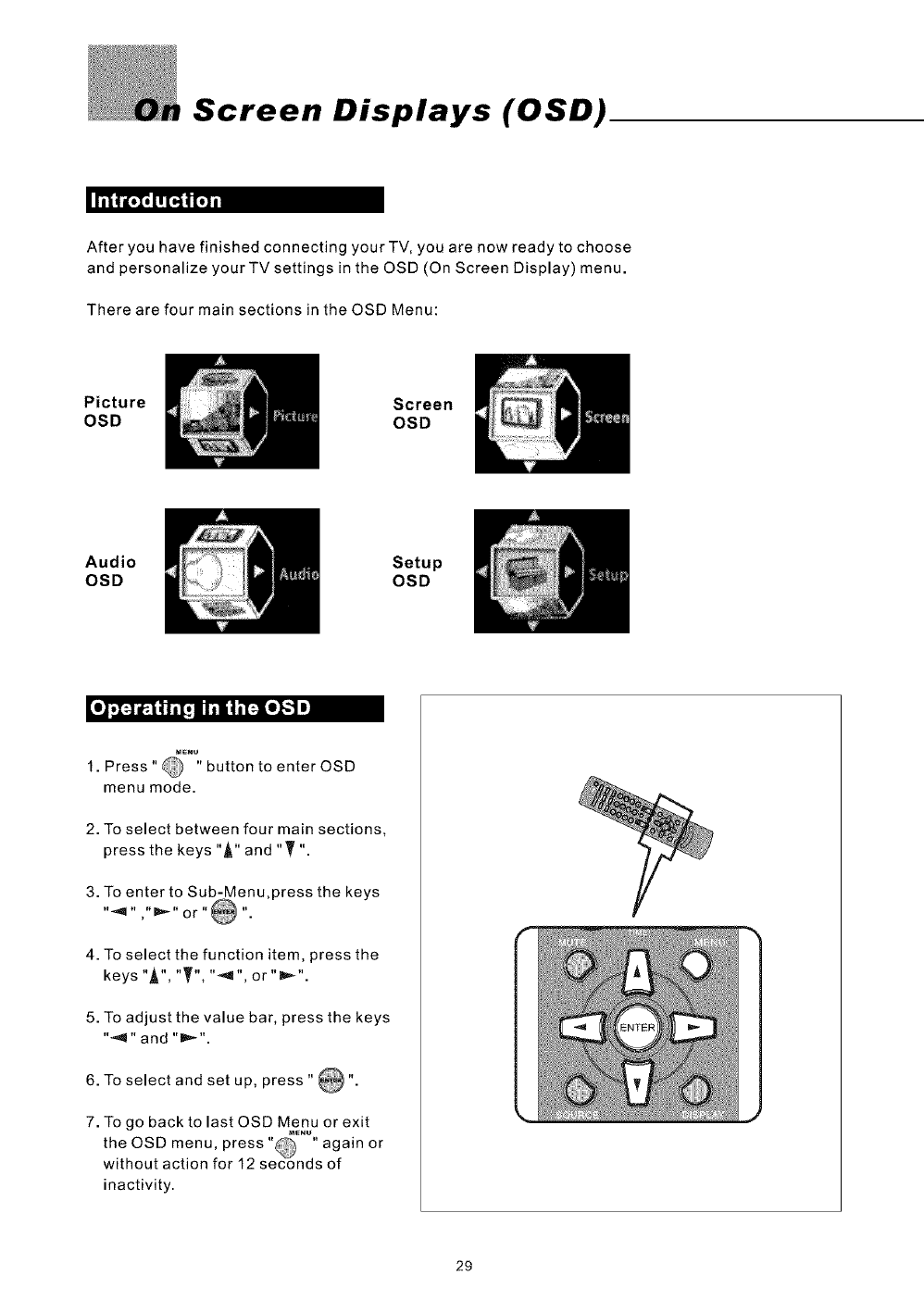

Operating in the OSD 29
Initial Screen 30
PICTURE OSDAdjusting TV Picture Settings 31
- Description of Settings 31
-Selecting the Picture Mode 32
-Adjusting the Picture Quality 33
AUDIO OSD Adjusting Sound Quality 34
-Description of Settings 34
- Adjusting the Audio Settings 34
-MTS System for Stereo TV 35

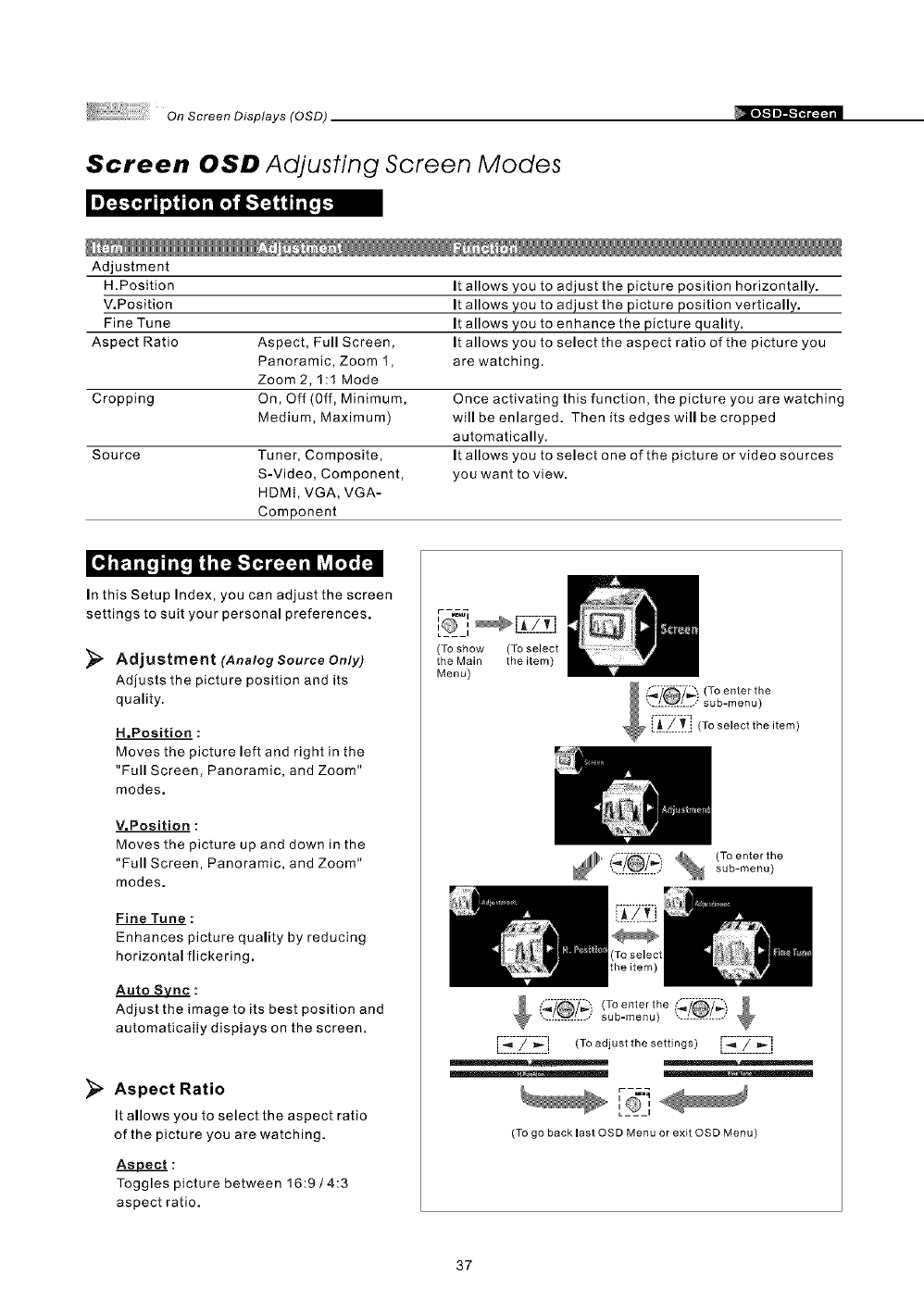

SCREEN OSD Adjusting Screen Modes 36
-Description of Settings 36
-Changing the Screen Mode 36

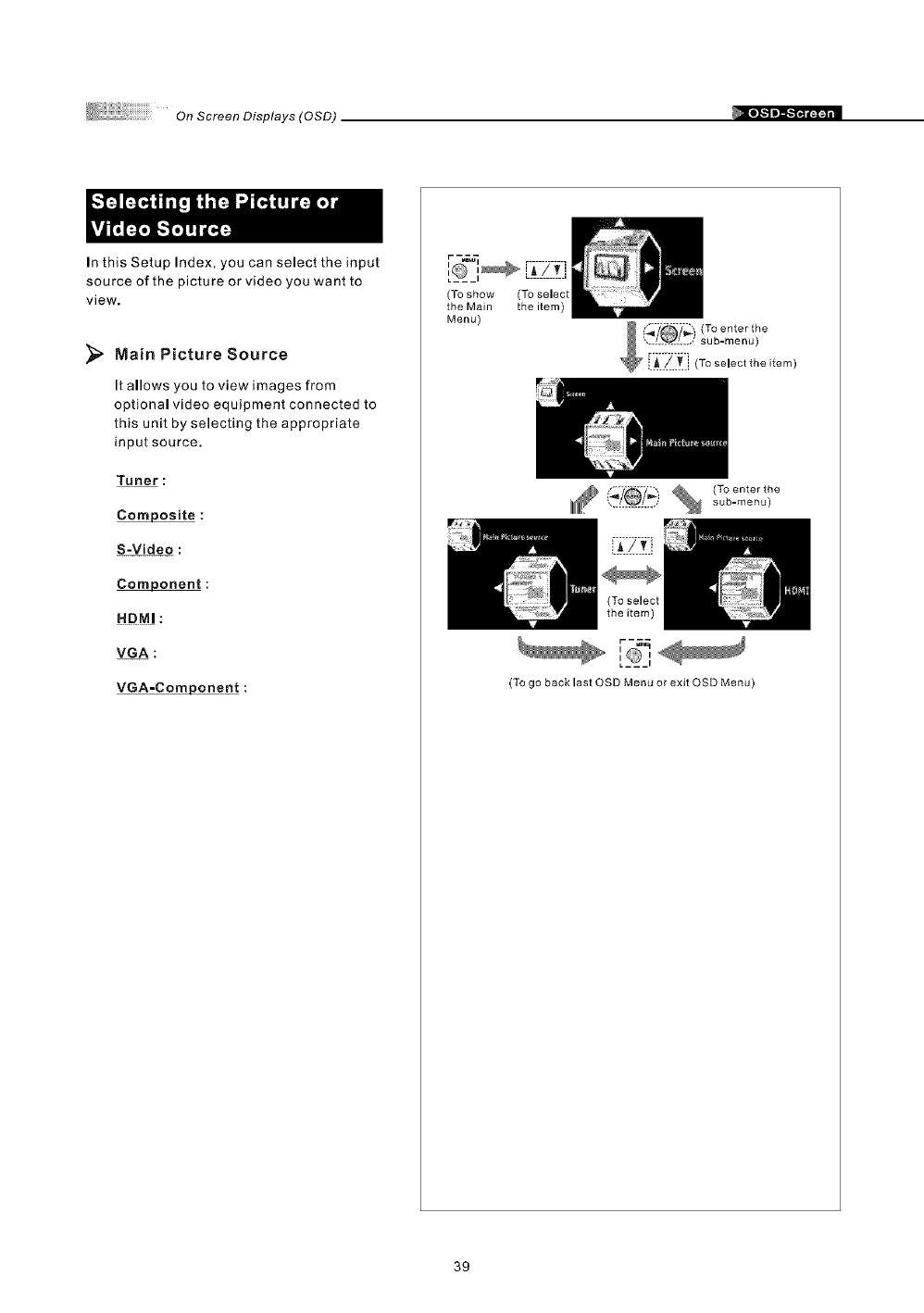

- Selecting the Picture/Video Source 38
SETUP OSD Adjusting Personal TV Settings 39
- Description of Settings 39
- Searching the TV Channels 40
-Editing Channels 41
- Closed Caption Options 45
- Setting up Parental Control Password 46
-Activating the Parental Control Feature 46
-Resetting the Password 52
-Setting the Date and Time 53

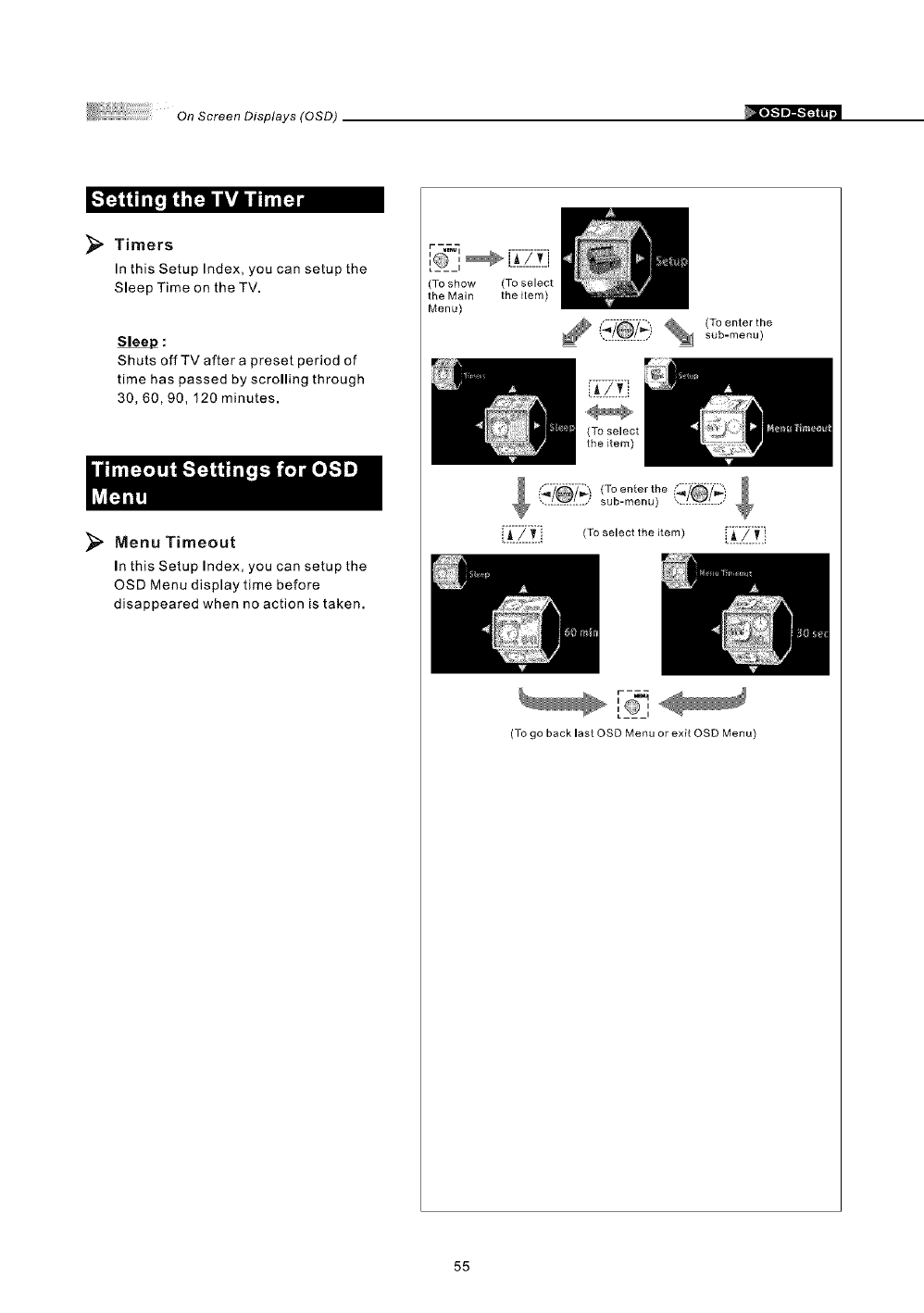

- Setting the TVTimer 54
-Timeout Settings for OSD Menu 54
-TV OSD Languages 55
-Setting DPMS 55
- Setting LED Light 55
- Factory Default Option 55
- Displaying the Firmware Version 55
Specifications 56
Timing Mode for VGAand HDMI(PC) 58

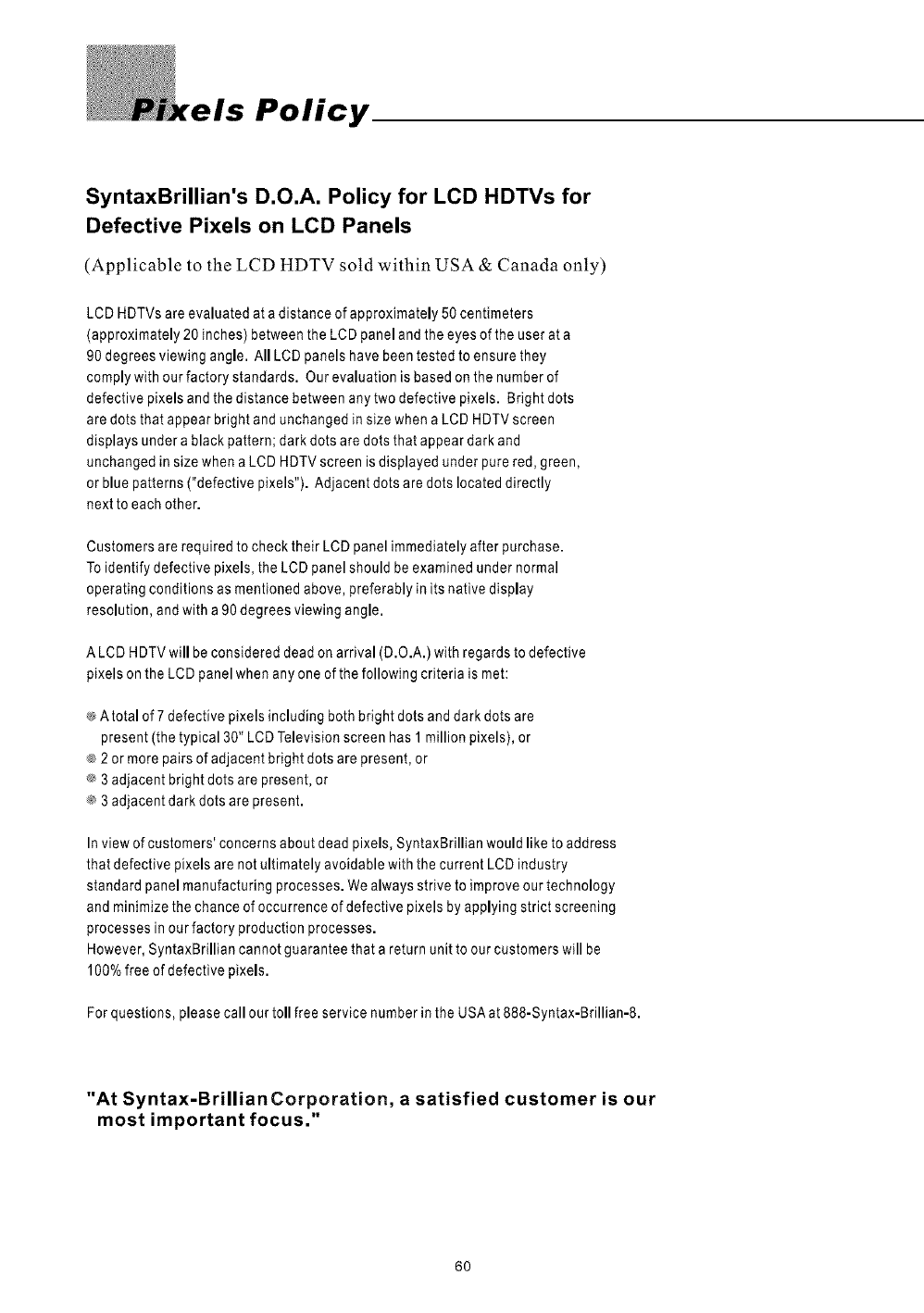

Pixels Policy 59
Glossary 60
Panel Display Mount 65
portant Information
Risk of electronic shock Z_
Do not open
To reduce the risk of electronic shock, do not remove cover (or back).
No user-serviceable parts inside.
Refer service to qualified Repair Technician or Repair Center.
Read the following context indicated by the following symbol to the left.
It indicates important literature in operating the product.
Read the following context indicated by the following symbol to the left.
tt indicates a potential high voltage hazard that may compromise your safety.
Caution
Take caution when moving the product on a cart.
Quick stops, excessive force, and uneven surfaces may cause the display unit and
cart combination to overturn.
Caution
To prevent electric shock, match wide blade of plug to wide slot, fully insert.
Caution
This product satisfies FCC regulations when shielded cables and connectors are used to
connect the unit to other equipment.
Prevent electromagnetic interference from electrical appliances such as radios and
televisions. Please use shielded cables and connectors for connections.
Warning
FCC Regulations state that any unauthorized changes or modifications to this equipmenl
not expressly approved by the manufacturer could void the user's authority to operate
this equipment.
Caution
Make sure that the cable system is grounded to provide protection against voltage surges
t up static charges.
Warning
)
WARNING! TIllS TEI,EV]SION IS F,XTREMELY Ht_;AVY -- IMPROI ER IIANDI,]NG
AND INSTALLATION CAN RESULT IN INJURY TO PEOPLE AND PROPERTY
DAMAGE TO THE STRUCTURE AND SURROUNDING PERSONAL PROPERTY !
T
WALL MOUNTING OF THIS TELEVISION SHOLLD ONLY BE ATTEMPTED BY A
PROFESSIONAL --ANY LIABILITY FOR PERSONAL INJURY OR PROPERTY
DAMAGE CAUSED BY FAILED WALL MOUNTING ATTEMPTS WILL NOT BE
ACCEPTED BY THE MANUFACTURER[
01

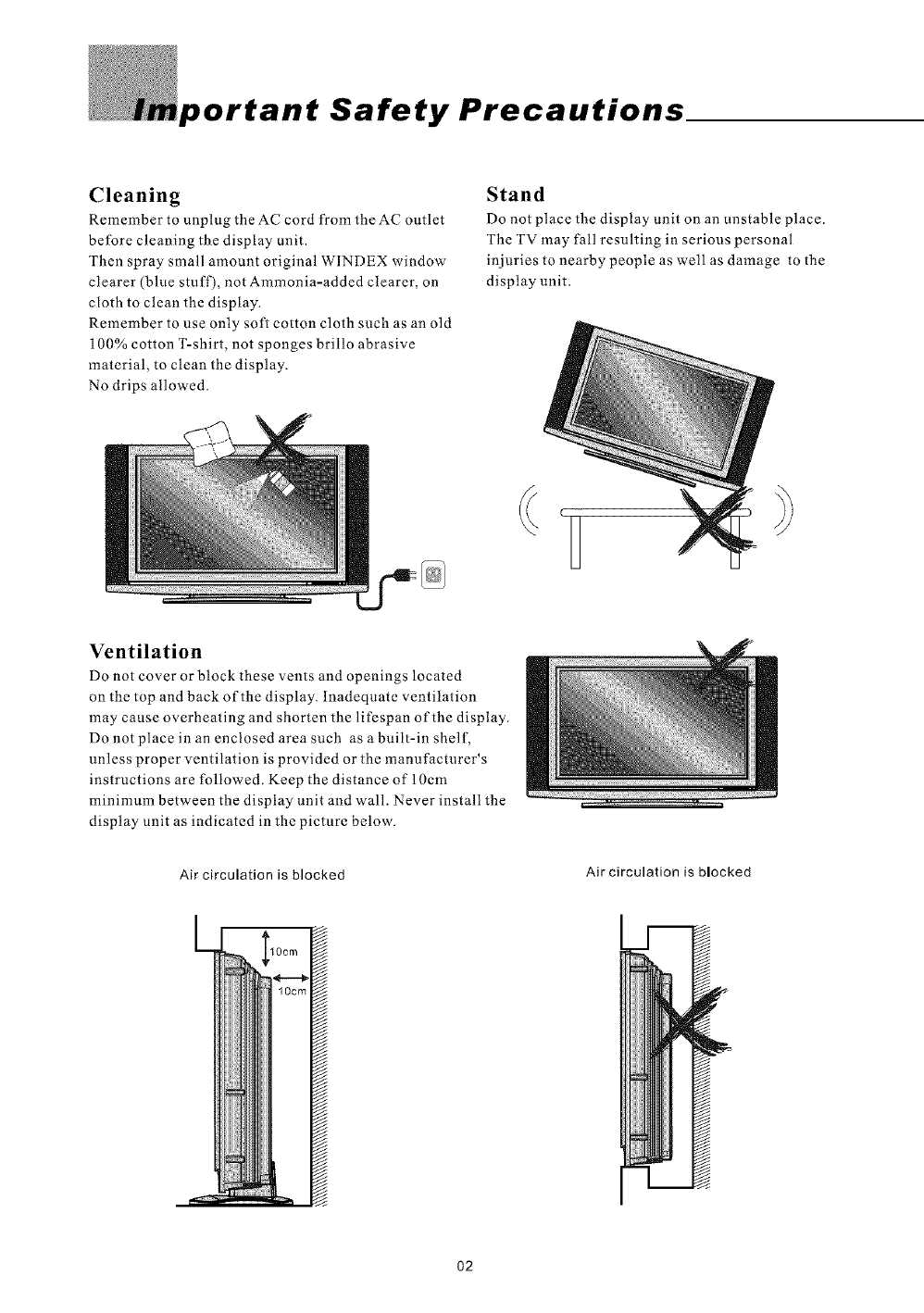

Safety Precautions
Cleaning
Remember to unplug theAC cord from theAC outlet
before cleaning the display unit.
Then spray small amount original WINDEX window
clearer (blue stuff), not Ammonia-added clearer, on
cloth to clean the display_
Remember to use only soft cotton cloth such as an old
100% cotton T-shirt, not sponges brillo abrasive
material, to clean the display.
No drips allowed.
Stand
Do not place the display unit on an unstable place.
The TV may fall resulting in serious personal
injuries to nearby people as well as damage to the
display unit.
Ventilation
Do not cover or block these vents and openings located
on the top and back of the display. Inadequate ventilation
may cause overheating and shorten the lifespan of the display.
Do not place in an enclosed area such as a built-in shelf,
unless proper ventilation is provided or the manufacturer's
instructions are followed. Keep the distance of 10cm
minimum between the display unit and wall. Never instal! the
display unit as indicated in the picture below.
Air circulation is blocked Air circulation is blocked
O2
Never insert objects or spill liquid
into the display unit
Never insert any object into the display unit through
openings or spill liquid on the display unit. High
voltage flows in the display unit, and inserting an
object can cause electric shock and/or short internal
parts.
Precautions when transporting the
display
Carrying the display requires two or more people.
Keep away from water and moisture
Do not place the display in areas where moisture is
present or where the unit may get wet such as bath-
rooms, kitchen, pool area or in a wet basement.
Keep away from heat sources
Keep the display unit away from heat sources such
as radiators, heaters, stoves and other
heat-generating products.
The liquid crystal panel used in this
product is made of glass
Do not hit the panel. Be careful to prevent from
getting hurt by broken glass pieces in case the panel
breaks.
Follow operating instructions
All operating instructions must be followed.
Servicing
Do not attempt to service the display unit yourself.
Removing covers expose you to high voltage and
other dangerous conditions. Request a qualified
service technician to perform the service.
Attachments
Do not use attachments not recommended by the
manufacturer. Use of inadequate attachments may
result in accidents to nearby poeple or to the unit.
Power source
This product must operate on a power source
specified on the specification label, lfyou are not
sure of the type of power supply used in your home,
consult your dealer or local power company. For
units designed to operate on batteries or another
power source, refer to the operating instructions.
AC cord protection
The AC cords must be routed properly to prevent
people fl'om stepping on them or objects from resting
on them. Check the cords at the plugs and product.
Overloading
Do not overload AC outlets or extension cords. It
may result in electric shock or start a fire.
O3
Important Safety Precautions

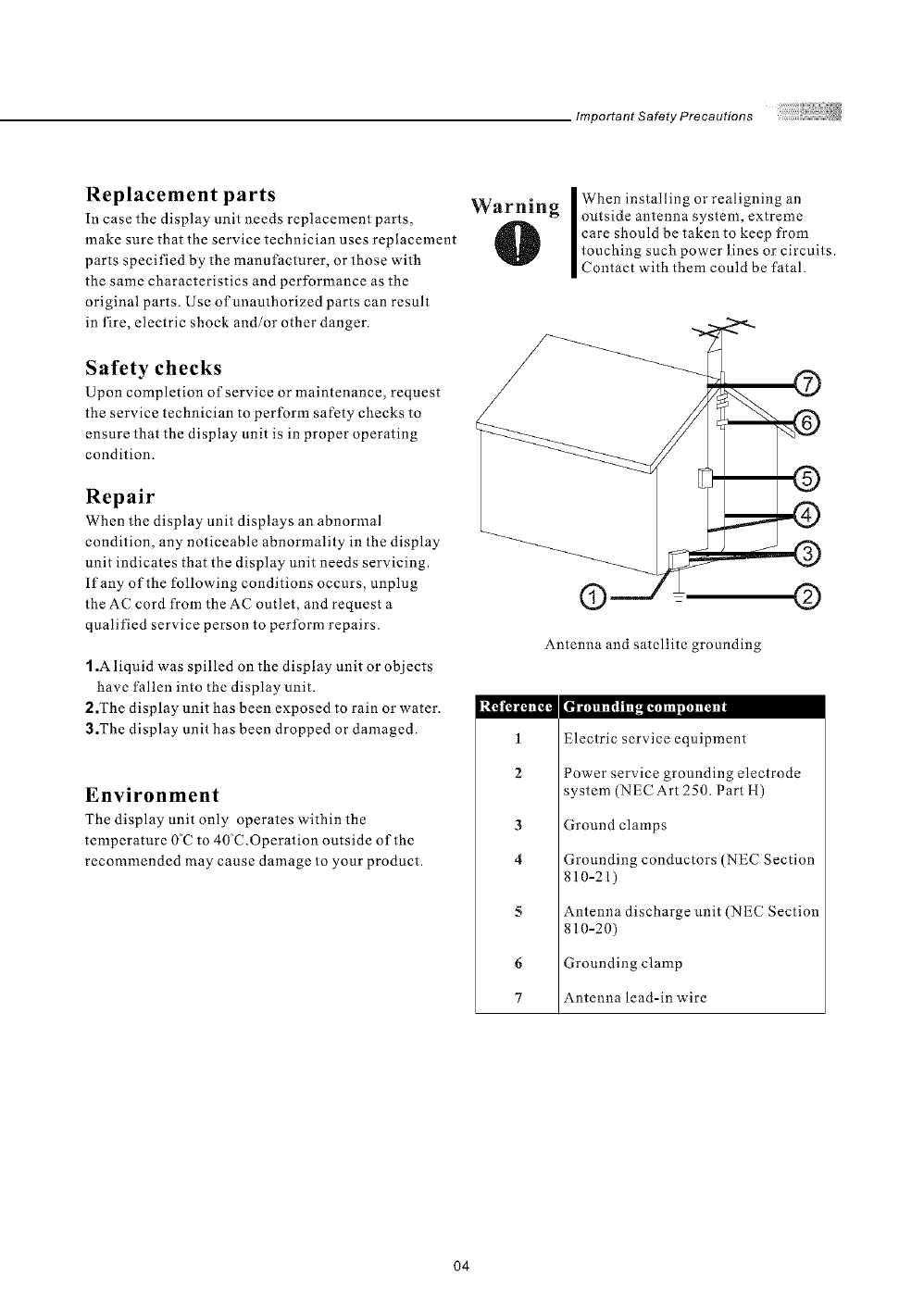

Replacement parts
In case the display unit needs replacement parts,
make sure that the service technician uses replacement
parts specified by the manufacturer, or those with
the same characteristics and performance as the
original parts. Use of unauthorized parts can result
in fire, electric shock and/or other danger.
Safety checks
Upon completion of service or maintenance, request
the service technician to perform safety checks to
ensure that the display unit is in proper operating
condition.
Repair
When the display unit displays an abnormal
condition, any noticeable abnormality in the display
unit indicates that the display unit needs servicing.
If any of the following conditions occurs, unplug
the AC cord from the AC outlet, and request a
qualified service person to perform repairs.
1.A liquid was spilled on the display unit or objects
have fallen into the display unit.
2.The display unit has been exposed to rain or water.
3.The display unit has been dropped or damaged.
Environment
The display unit only operates within the
temperature 0"C to 40 C.Operation outside of the
recommended may cause damage to your product.
Warning
IWhen installing or realigning an
outside antenna system, extreme
care should be taken to keep from
touching such power lines or circuits.
Contact with them could be fatal.
® ©
Antenna and satellite grounding
1
2
3
4
5
6
7
Electric service equipment
Power service grounding electrode
system (NEC Art 250. Part H)
Ground clamps
Grounding conductors (NEC Section
810-21)
Antenna discharge unit (NEC Section
810-20)
Grounding clamp
Antenna lead-in wire
O4

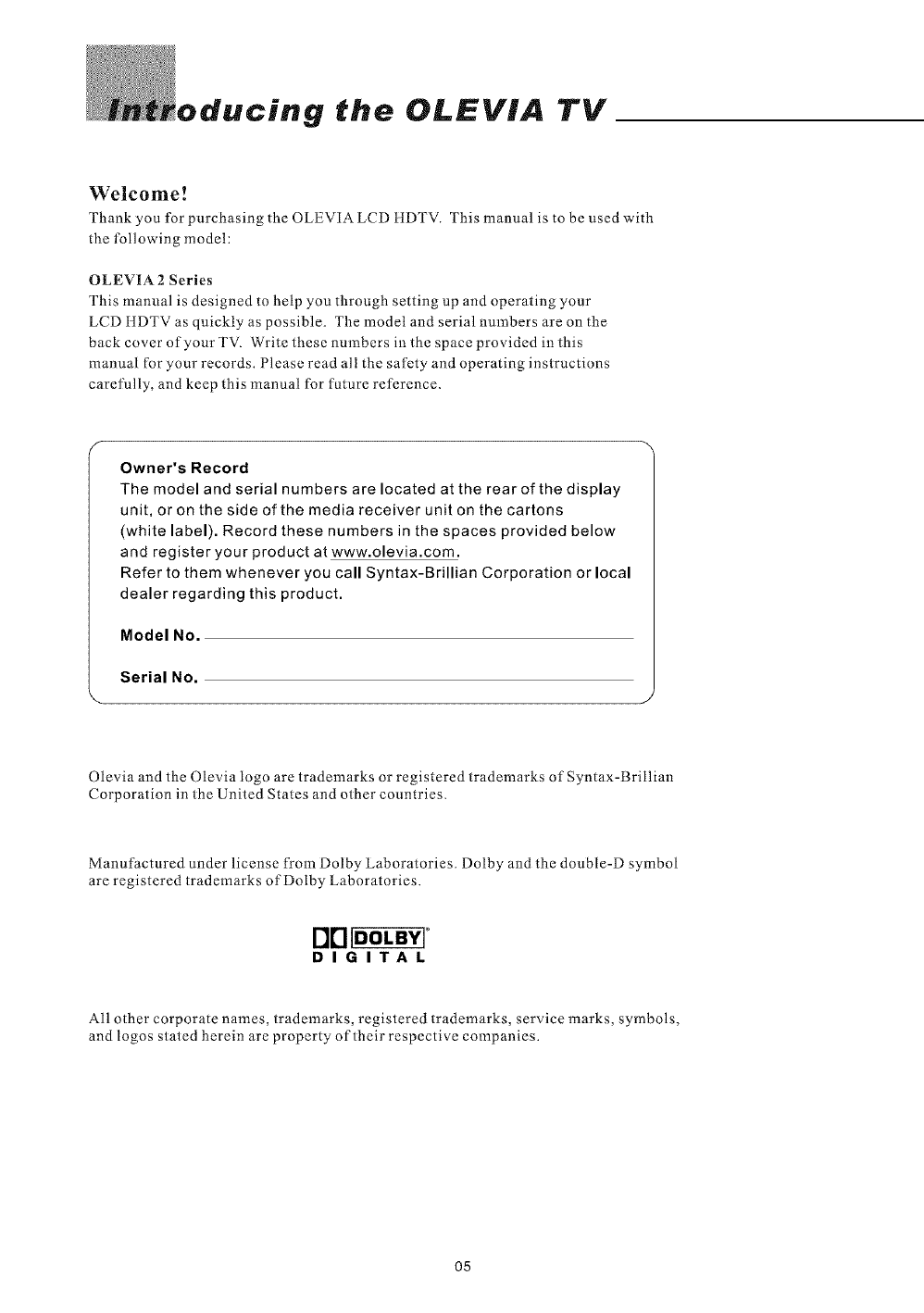

oducing the OLEVIA TV
Welcome!
Thank you for purchasing the OLEVIA LCD ItDTV. This manual is to be used with
the following model:
OLEVIA 2 Series
This manual is designed to help you through setting up and operating your
LCD flDTV as quickly as possible. The model and serial numbers are on the
back cover of your TV. Write these numbers in the space provided in this
manual for your records. Please read all the safety and operating instructions
carefully, and keep this manual for future reference.
Owner's Record
The model and serial numbers are located at the rear of the display
unit, or on the side of the media receiver unit on the cartons
(white label). Record these numbers in the spaces provided below
and register your product at www.olevia.com.
Refer to them whenever you call Syntax-Brillian Corporation or local
dealer regarding this product.
Model No.
Serial No.
Olevia and the Olevia logo are trademarks or registered trademarks of Syntax-Brillian
Corporation in the United States and other countries.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol
are registered trademarks of Dolby Laboratories.
DIGITAL
All other corporate names, trademarks, registered trademarks, service marks, symbols,
and logos stated herein are property of their respective companies.
O5

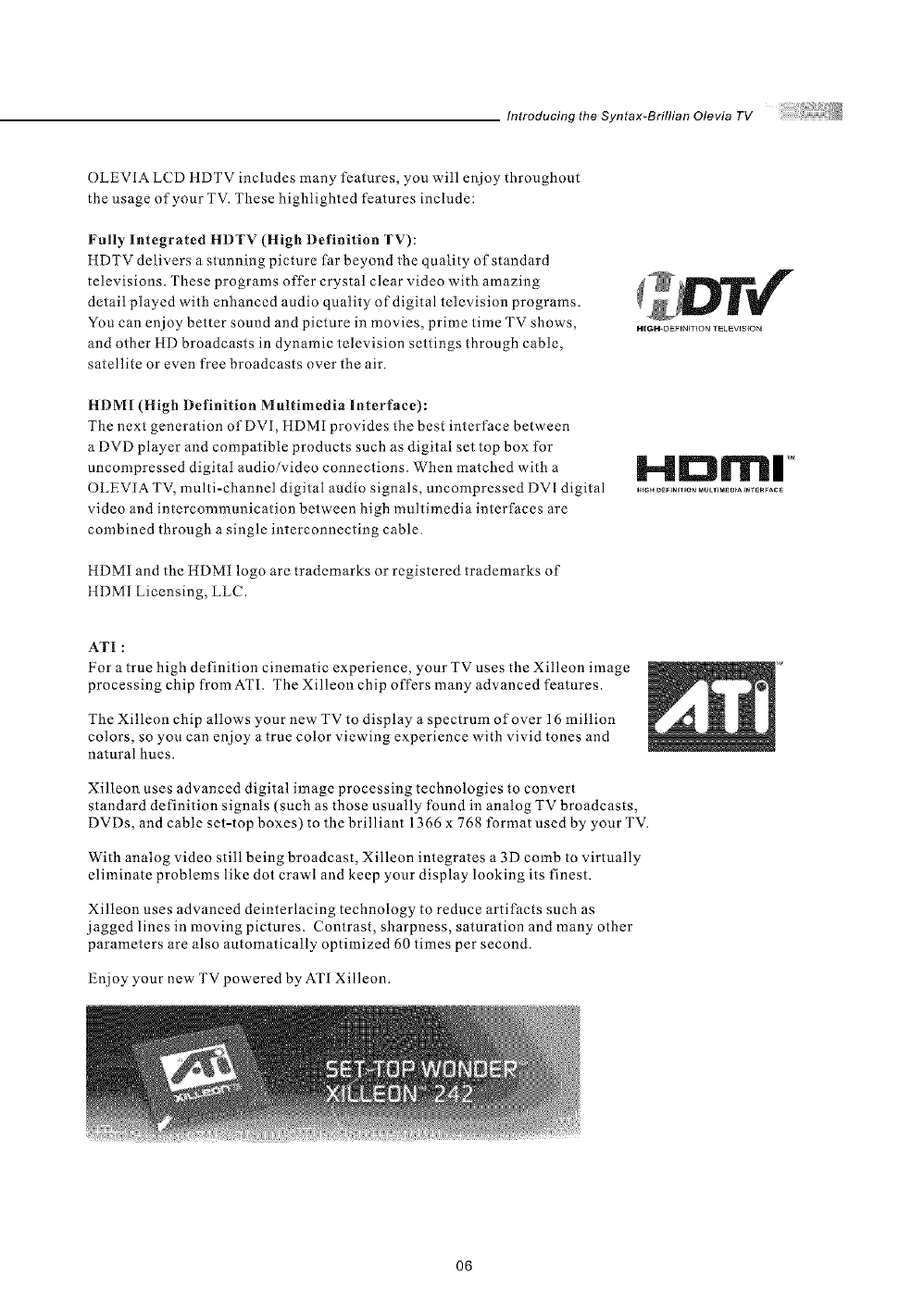

Introducing the Syntax-Brillian Olevia TV
OLEVIA LCD HDTV includes many features, you will enjoy throughout
the usage of your TV. These highlighted features include:
Fully Integrated HDTV (High Definition TV):
HDTV delivers a stunning picture far beyond the quality of standard
televisions. These programs offer crystal clear video with amazing
detail played with enhanced audio quality of digital television programs.
You can enjoy better sound and picture in movies, prime time TV shows,
and other HD broadcasts in dynamic television settings through cable,
satellite or even free broadcasts over the air.
HIGH*DEFiNITION TKLKV[S{ON
HDMI (High Definition Multimedia Interface):
The next generation ofDVI, HDMI provides the best interface between
a DVD player and compatible products such as digital set top box for
uncompressed digital audio/video connections. When matched with a H D _r_l
OLEVIA TV, multi-channel digital audio signals, uncompressed DV] digital ._.O_,_,,,O,_OLT,M_O,A,_TE_
video and intercommunication between high multimedia interfaces are
combined through a single interconnecting cable.
HDMI and the HDMI logo are trademarks or registered trademarks of
ttDMI Licensing, LLC.
ATI :
For a true high definition cinematic experience, your TV uses the Xilleon image
processing chip from ATI. The Xilleon chip offers many advanced features.
The Xilleon chip allows your new- TV to display a spectrum of over 16 million
colors, so you can enjoy a true color viewing experience with vivid tones and
natural hues.
Xilleon uses advanced digital image processing technologies to convert
standard definition signals (such as those usually found in analog TV broadcasts,
DVDs, and cable set-top boxes) to the brilliant 1366 x 768 format used by your TV.
With analog video still being broadcast, Xilleon integrates a 3D comb to virtually
eliminate problems like dot crawl and keep your display looking its finest.
Xilleon uses advanced deinterlacing technology to reduce artifacts such as
jagged lines in moving pictures. Contrast, sharpness, saturation and many other
parameters are also automatically optimized 60 times per second.
Enjoy your new TV powered by AT[ Xilleon.
O6
cessories
Supplied Accessories
Remote control & Power cord x 1
batteries (AAA x 2)
User manual
(CD-ROM) x 1
QSG x 1
E
Warranty Card x 1
[]
Optional Accessories

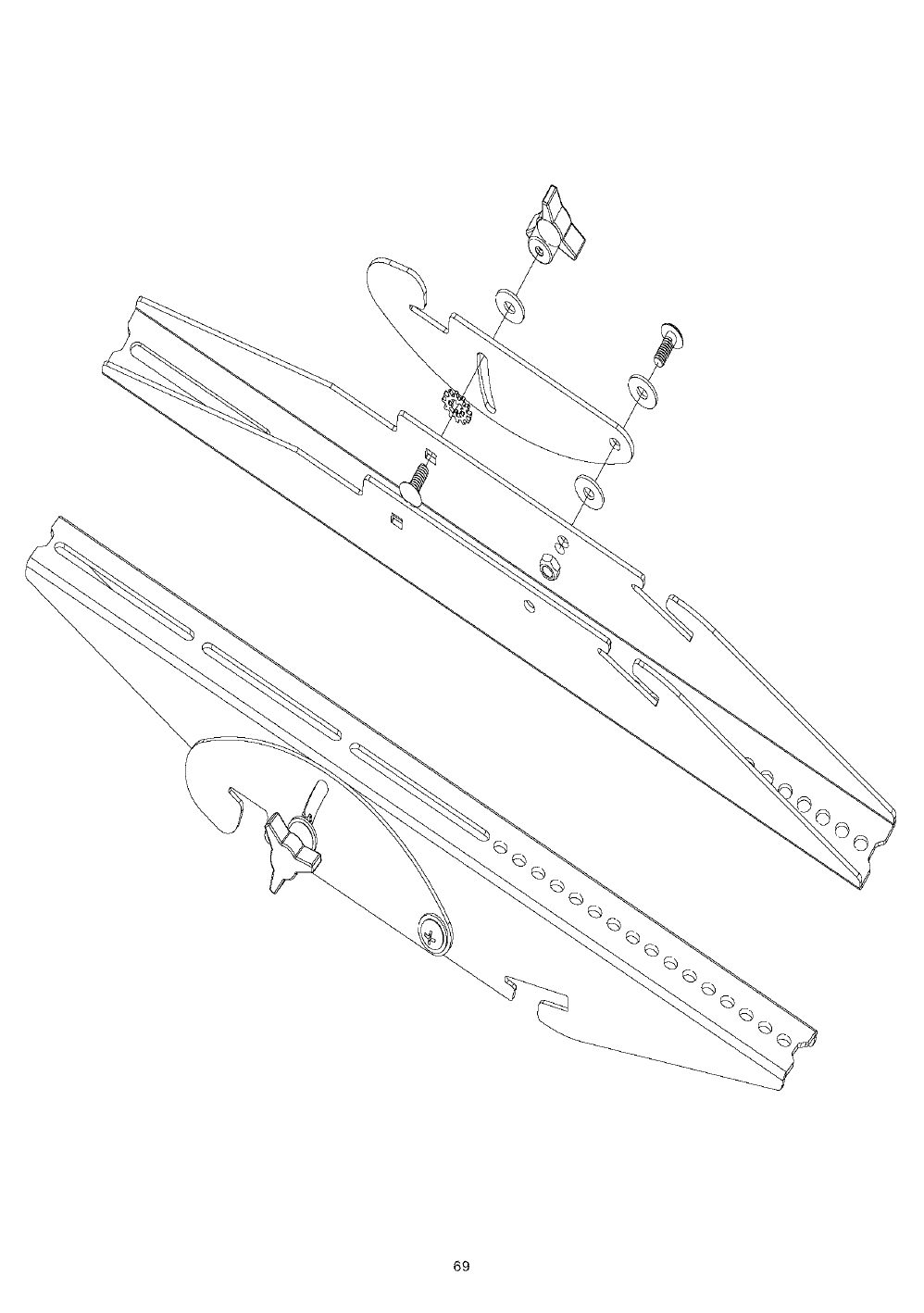

Wall Mount Set
Model #WM30D : available for 26" above
Models
_ _:_o_o <:_ @
o o
1. Before using the wall mount, please read
its Quick Start Guide and follow assembly
guide.
2. For safety purpose, please purchase wall
mount that will support the LCD HDTV
weight.
3. Following installation instruction is only
['oryour reference.
4. Please consult authorized service personnel
for the installation of wail mount.
These items are all you need to set up and operate the TV
in its basic configuration.
Note: Most components (VCRs, DVD players, etc.) Come
with the necessary cables to connect them. If you want to
set up a complex system, you may need to buy extra cables,
connectors, etc. Be sure to have these on hand before you
start to connect your system.
07
Installation and Connection Guide
Identifying Front and Rear Panels
Front Panel
POWER Turns displayon/off,
MENU Displays the On Screen Display(OSD) menu. In OSD menu, press itto
return to the previous screen or to exit.
CHA /CHv Adjusts Channel. in the OSD menu, both keys are used to navigate
within menu.
VOL+/VOL- Adjusts Volume. in the OSD menu, both keys are used to navigate
within menu. Vol+ is used to select the highlighted option.
SOURCE Press to switch the input sources.
IR SENSOR Contains infra-red light for digital data transmission by the remote
control. Please point remote control at IR Sensor for function.
O8
TVInstallation and Connection Guide
Identifying Front and Rear Panels
Rear Panel
_o The power cord connects here,
i ..............
RF Terminal
®
Component
R 0 0 Pr/Cr
L I_ @Pb/Cb
Video
R 0 (_ Video
L {_ _ S-V,dec
HDMI/DVI
VGA/Audio Input
R k
Audio Input
RQL®
USB Service Port
RS232 Service
Port
O
To receive signals from VHF /UHF antennas or acable system
(5 RCA jacks) Used to connect A/V equipment with component video outputs, such as
a DVD player, Digital Satellite Receiver, or compatible Video Game System.
NOTE: The component inputs have a superior quality of picture lhan the S-Video or AV
(composite video) inputs.
AV (Composite Video: 3 RCA jacks): Used to connect a VCR, Super VHS (S-VHS),
DVD player, or other video devices to the TV.
OR
S-Video : (1 DIN and 2 RCAjacks) Used to connect video devices to the TV.
tlowever, they have a better quality of picture than a composite video signal.
Used to connect digital video equipment with a HDMI/DVI output.
NOTE: Preferred connection for HDM1/DV1 Satellite or Set-Top-Box equipment.
Used tbr analog RGB signals from a personal computer. VGA has one set of Audio R/L inputs.
OR
As a computer input with VGA to RCA Adapter.
To send an AV receiver or other equipment's connected audio signals to the TV
To download some information from website to TV for user
Only for Service Technician use, not an interface for other devices.
Warning !
This RS232 control port is for service purpose only, and should be used by trained
serviceman only. Any random connection may cause damage to this unit.
Used for audio output to earphone.
09
TV Installation and Connection Guide
Descriptions of Connector Types
You may find it necessary to use some of the following cable types during setup.
75-ohm Coaxial Cable
S-Video Cable
Audio/Video Cable
Video (Yellow)
@]l 1__ LeftAudio(White)
C_ _ Right Audio (Red)
Component Cable
c_ m _ Pbtcb(Blool
HDMI Cable
For TV/cable connection
Used for transferring video signal, which is split
into two signals, brightness and color.
Through this connection, you can view a better
picture than AV (Composite Video) connection.
Used ('or transferring audio and video signal.
This connection is the most commonly found on
A/V equipment.
Used for transferring video signal, which is split
into three signals, one brightness and two color.
Through this connection, you can view abetter
high definition picture than S-Video orAV
(Composite Video) connection.
Used for transferring digital uncompressed video
and audio signals to the TV.
llDMI signal is purely digital and provides a
crystal clear technology better than component,
S-Video or Video connections. It is strongly
recommended to use this connection i['you have
this function on your equipment.
10
TV Installation and Connection Guide
Turn the power on the TV
Please follow these steps to turn the power on to the TV.
1) Bel'ore connecting the Power Cnrd, make sure all other connections are done first.
2) Connect the Pnwer Cord t¥om a Wall Outlet to the Power IN Port on the back of the TV as shown below.
BackofTV
Power Cord Wall Outlet
Ared or blue light on the front of the TV may turn on. If so, then skip step 3 and do step 4. If the light is NOT on,
do Step 3.
Front of TV Red or blue light (also called
"standby light").
Color and location depends
on model
3) lfa red or blue light on the front of the TV is NOT on, press the Power Button on the back of the TV as shown
below. Now the light on the front turns on. In other words, the Power Button in the back must be on lbr the light
in the front to turn on.
Back of TV
I IIII
Power Button
(also called "master power
switch")
4) Press the Power Button on the frQn_ of the TV as shown below or on the remote control. Wait about l 0 seconds
for something to appear on-screen. Your TV is on and the red or blue light on the front turns off automatically.
I°! Front of TV POWER
Button
Installation
TV Installation and Connection Guide
In the following pages, you will find directions on how to install your tv and choice of video equipment.
Connecting to an Antenna or Video Equipment with Antenna outlet
@ Connecting to a Set-Top-Box with HDMI Cables (Preferred TV connection)
Connecting to a Satellite Receiver or Cable Box with Component Connectors
(Secondary Preferred after HDMI)
@ Connecting to aDVD Player with A/V or SVideo Cables
@ Connecting to a DVD Player with Component Cables
@ Connecting to a DVD Player with HDM1 Cables
Connecting to a Satellite Receiver or Cable Box with A/V Cables
@ Connecting to a VCR, PVR, or DV with A/V Cables
@ Connecting to a Blue-Ray DVD Player or HD-Reeelver with HDMI Cables
and a PC with VGA Cables
Connecting to a D-VHS with HDMI Cables
@ Connecting to a D-VHS with Component Cables
Connecting to an Audio Receiver/Home Theater System
@OtherAudin Connections
@ Instruction for Uploading New Firmware
12
TV Installation and Connection Guide
Connecting to an Antenna or Video Equipment with Antenna outlet
(For TV and DTV Source)
Disconnect all power sources before making any connection.
1. Connect a 75-ohm coaxial cable (or choice of Antenna Cable) from your cable or antenna to the TV's
VtW/UItF jack (RF Terminal),
iil ,-]'--iI_l,,_i,'li_,i, i, I,,II t,,| iv_!'i'1'im i_
(75-ohm coaxial cable)
RearofYV
If connecting to Video Equipment with Antenna outlet
1. Connect a 75-ohm coaxial cable (or choice of Antenna Cable) from your cable or antenna to the Video
Equipment's 1N jack.
2. Connect another 75-ohm coaxial cable from the Video Equipment's OUT jacks to the TV's Vtt!_VUHF jacks
(RF Terminal).
ii_¥11,'l_4;l_,i il. I_1,0.| Lv_Ii'Ii !'t i_
RearofTV
_b_ (75-ohm coaxial cable)
IN OUT
jack jack
(Video Equipment with
Antenna In/Out Socket)
13
TV Installation and Connection Guide
Connecting to a Set-Top-Box with HDMI Cables
Disconnect all power sources before making any connection.
1. Connect a 75-ohm coaxial cable (or choice of Antenna Cable) from your cable or antenna to the
Set-Top-Box's VIIF/U HFjack (RF Terminal).
2. Connect a HDMI cable from the Set-Top-Box's HDMI OUT jacks to the TV's HDMI IN jacks.
Ii[,"_--wl'l,'_.ll[, i'_'4,vJ[,I, 1_v
RearofTV
Cable /
Satellite
(75-ohm
coaxial
Set-Top-Box cable)
HDMI cable ]
Note: HDCP is a copy protected digital connection that receives analog or digital video and audio signals t¥om
equipment with a HDMI output that features the HDCP functiom HDMI allows the transfer of digital
uncompressed data to the TV. This connection is superior when compared to the Component, S Video or AV
(composite) connections.
Note: tlDM1 signal is purely digital and provides a better picture, it is better than component, S-Video or Video
connections. [t is strongly recommended to use this connection if you have this function on your equipment.
14
TV Installation and Connection Guide

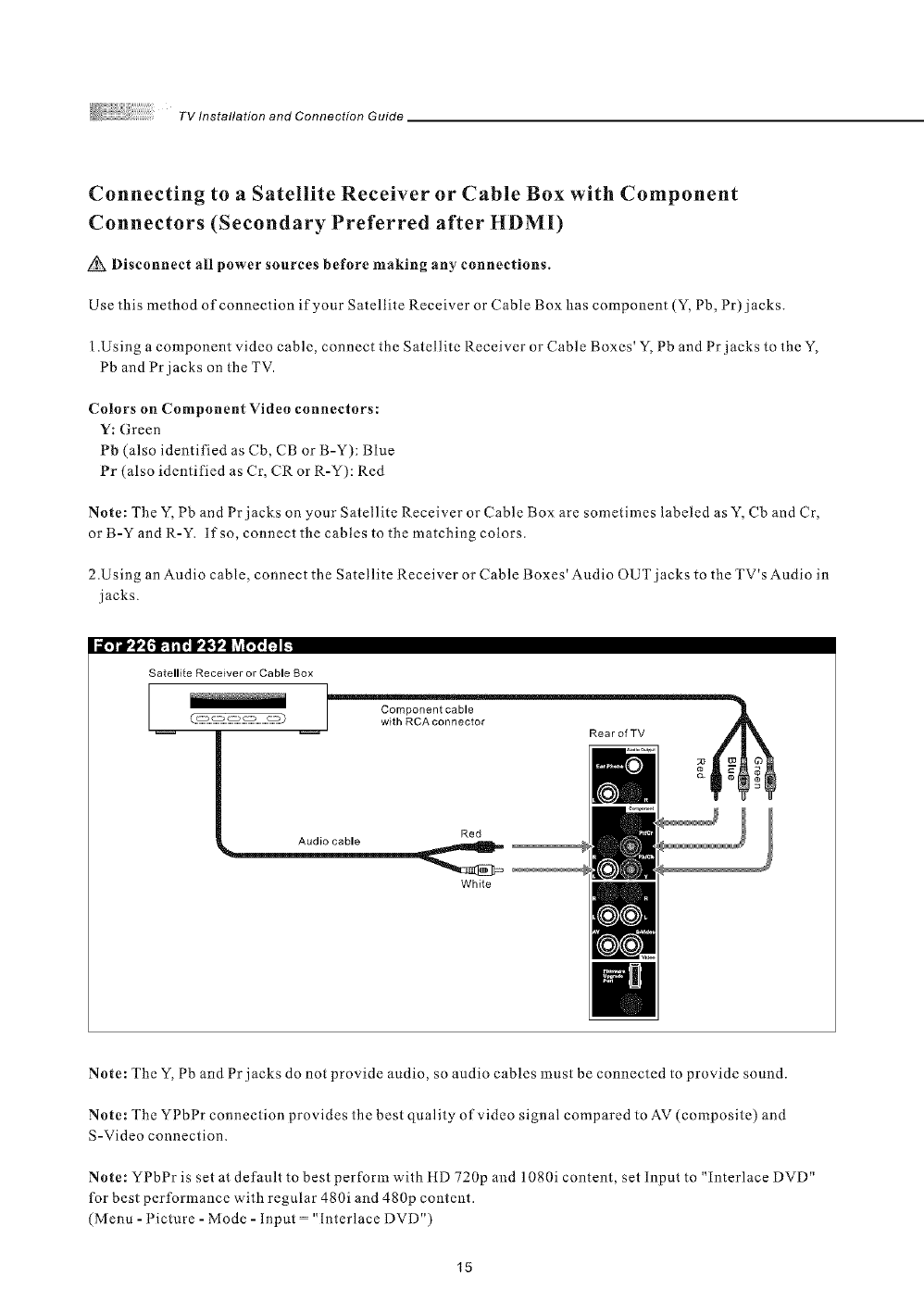

Connecting to aSatellite Receiver or Cable Box with Component
Connectors (Secondary Preferred after HDMD
Disconnect all power sources before making any connections.
Use this method of connection if your Satellite Receiver or Cable Box has component (Y, Pb, Pr) jacks.
1.Using a component video cable, connect the Satellite Receiver or Cable Boxes' Y, Pb and Pr jacks to the Y
Pb and Pr jacks on the TV.
Colors on Component Video connectors:
Y: Green
Pb (also identified as Cb, CB or B-Y): Blue
Pr (also identified as Cr, CR or R-Y): Red
Note: The Y, Pb and Pr jacks on your Satellite Receiver or Cable Box are sometimes labeled as Y, Cb and Cr
or B-Y and R-Y. If so, connect the cables to the matching colors.
2.Using an Audio cable, connect the Satellite Receiver or Cable Boxes' Audio OUT j acks to the TV's Audio m
jacks.
I il_.l_,l,1. Iil, I_ll!ll _viI,I, l:i I.
Satellite Receiver or Cable Box
_1 R....<TV
Red
Audio cable 1_
White
Note: The Y, Pb and Pr jacks do not provide audio, so audio cables must be connected to provide sound.
Note: The YPbPr connection provides the best quality of video signal compared to AV (composite) and
S-Video connection.
Note: YPbPr is set at default to best perform with tlD 720p and 1080i content, set Input to "interlace DVD"
for best performance with regular 480i and 480p content.
(Menu-[ icture- Mode- input ='Interlace DVD")
15
TV Installation and Connection Guide
Connecting to a DVD Player with A/V or S Video Cables
Disconnect all power sources before making any connections.
Use this method of connection if your DVD player does not have component (Y, Pb, Pr) jacks.
Note: If your [)VII) player has component video output connectors, for best picture quality, use the connection
described for Connecting to a I) VD Player with Component Connectors.(See page. 17)
1.Using an A/V cable, connect the DVD player's Audio OUT jacks to the TV's Audio IN jacks.
2.Using an S-Video Cable, connect the DVD player's S Video OUT jack to the TV's S Video 1N jack.
DVD Player
I iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!iiiil
Cd-----__;-s -(_5-_)] o
Red
A/V cable with RCA connector White _
S Video cable
_o
RearofTV
Note: When you connect video equipment to both the same Video and S-Video input jacks, the display will
automatically select S-Video first
To view Video signal, please disconnect the S-Video jack or turn off the Video signal on the video equipment.
S-Video is strongly recommended for use if your VCR or video equipment has the option.
S-Video input has better quality of picture than a composite Video signal.
16
TV Installation and Connection Guide

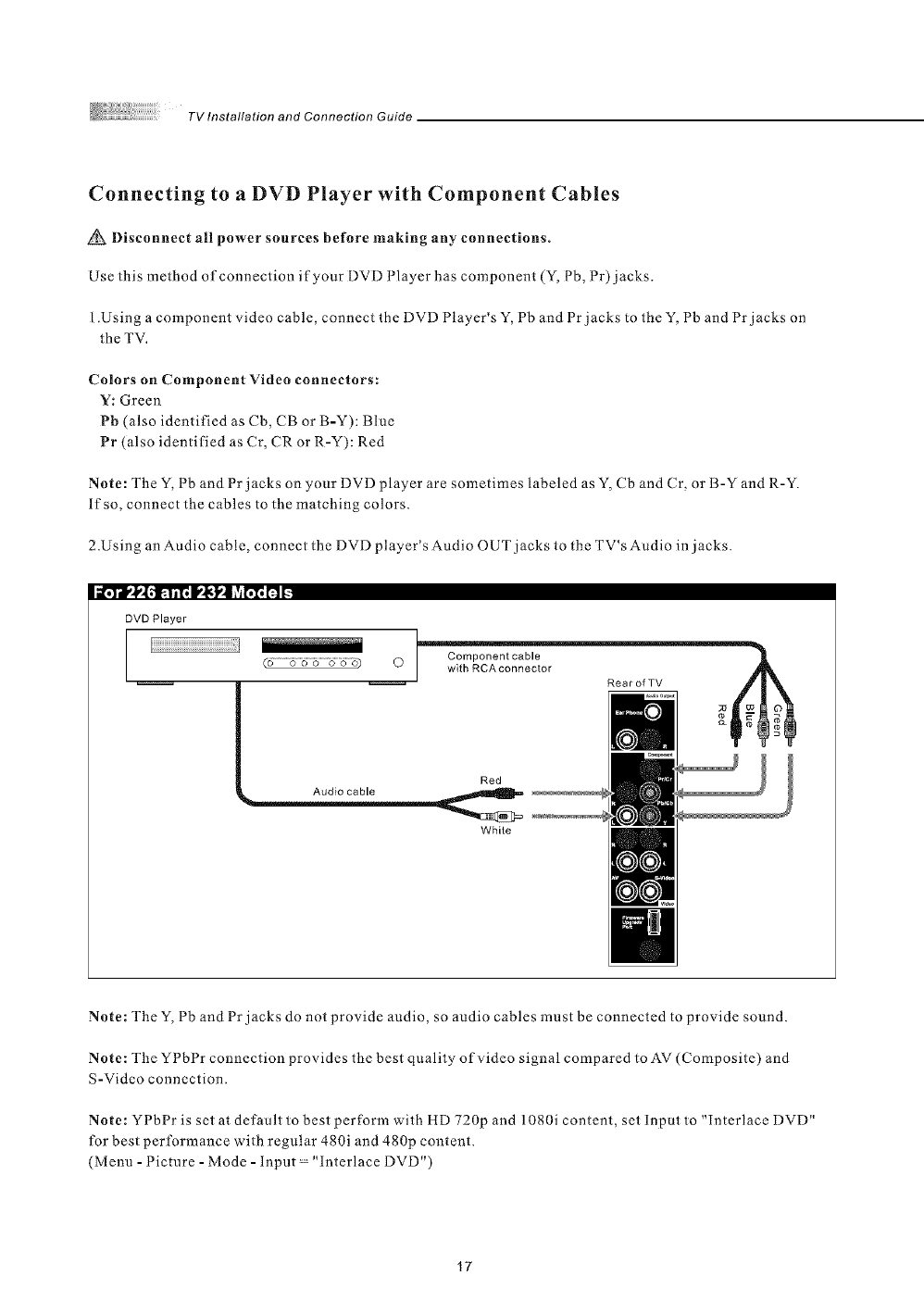

Connecting to a DVD Player with Component Cables
Disconnect all power sources before making any connections.
Use this method of connection if your DVD Player has component (Y, Pb, Pr) jacks.
1.Using a component video cable, connect the DVD Player's Y, Pb and Pr jacks to the Y, Pb and Pr jacks on
the TV.
Colors on Component Video connectors:
Y: Green
Pb (also identified as Cb, CB or B-Y): Blue
Pr (also identified as Cr, CR or R-Y): Red
Note: The Y, Pb and Pr jacks on your DVD player are solnetimes labeled as Y, Cb and Cr, or B-Y and R-Y.
If so, connect the cables to the matching colors.
2.Using an Audio cable, connect the DVD player s Audio OUT jacks to the FV s Audio in jacks.
I il_IJ,1. Iil, I_lltoll _viI,I, l=i I.
DVD Player
I iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiTiiiil O
Audio cable
]_r --4
Component cable
Rear of TV _r_;U_E'c° I_© t
Red
White
Note: The Y, Pb and Pr jacks do not provide audio, so audio cables must be connected to provide sound.
Note: The YPbPr connection provides the best quality of video signal compared to AV (Composite) and
S-Video connection.
Note: YPbPr is set at default to best perform with HD 720p and 1080i content, set Input to "Interlace DVD"
for best performance with regular 480i and 480p content.
(Menu - Picture - Mode - Input = "Interlace DVD")
17
TV Installation and Connection Guide
Connecting to a DVD Player with HDMI Cables
Disconnect all power sources before making any connections.
Use this method of connection if your DVD Player has ItDM[ jacks.
1.Using a HDMI cable, connect the DVD Player's HDMI output terminal to the TV's HDMI-HDCP input
terminal.
RearofTV
HDMI cable
DVD Player
IO
Note: ttDCP is a copy protected digital connection that receives analog or digital video and audio signals
fi-om equipment with a HDM1 output that features the HDCP function. HDM1 allows the transfer of digital
uncompressed data to the TVI '["his connection is superior when compared to the Component, S Video or AV
(composite) connections.
Note: HDMI signal is purely digital and provides a better picture, it is better than component, S-Video or
Video connections. It is strongly recommended to use this connection if you have this function on your
equipment
18
TV Installation and Connection Guide
Connecting to a Satellite Receiver or Cable Box with A/V Connectors
Disconnect all power sources before making any connections.
1.Connect a 75-ohm coaxial cable ti-om your Cable TV to the Satellite Receiver's or Cable Box's Ant (Antenna)
jack.
2.Using Audio and S Video cables, connect the satellite receiver's Audio and S-Video OUT jacks to the TV
Audio and S Video IN jacks.
RearofTV
(9
(75-ohm
Satellite Receiver coaxial cable)
or Cable Box I_[_ 1
_ Red _ ....
I _ith RCAconnector
SVideocabie
Note: When you connect video equipment to both the same Video and S-Video input jacks, display will
automatically select S Video first.
To view S-Video signal, please disconnect Video jack or turn off the Video signal on the video equipment.
S-Video is strongly recommended for use if your VCR or video equipment has it because S-Video input has
better quality of picture than a composite Video signal.
19
TV Installation and Connection Guide
Connecting to aVCR, PVR, or DV with A/V Cables
Disconnect atl power sources before making any connections.
I .Using A/V cable and S-Video cables, connect the video equipment's Audio and S-Video OUT jacks to the
TV's Audio and S-Video In jacks.
Il_lo_l ,'1.i i I, I!ll t,,| lv_I'iI"I !'_1i..
VCR
PVR
RearofTV
Red
A/V cable with RCA connecto_ _,,,,,,,,,,,,,,,,,,,m_
S Video cable
Connecting both Video IN and S-Video IN
Note: When you connect video equipment to both the same Video and S-Video input jacks, display will
automatically select S-Video first.
To view Video signal, please disconnect the S-Video jack or turn off the S-Video signal on the video equipment.
S-Video is strongly recommended for use if your VCR or video equipment has it. S-Video input has a better
quality of picture than a composite Video signal.
2O
TV Installation and Connection Guide
Connecting to a Blue-Ray DVD Player
or HD-Receiver with HDMI Cables
Disconnect all power sources before making
any connections.
1.Using a tlDMI cable, connect the DVD's HI)MI
output terminal to the TV's HDMI-HDCP input
terminal.
Note: HDCP is a copy protected digital connection
that receives analog or digital video and audio signals
from equipment with a HDM[ output that features the
HDCP {'unction. HDMI allows the transfer of digital
uncompressed data to the TV. This connection is
superior when compared to the Component, S Video
or AV (composite) connections.
Note: HDMI signal is purely digital and provides a
better picture, it is better than component, S-Video or
Video connections. It is strongly recommended to use
this connection if you have this function on your
equipment.
RearofTV
Blue-Ray DVD Player /HD-Receiver
L: OO]o
Connecting to aPC with VGA
Connector
Disconnect all power sources before making
any connections.
1.Using a D-Sub 15 pin cable, connect the VGA
output terminal of the PC to the TV's VGA signal
input terminal.
2.You may need to use a Stereo mini jack to Audio in
connectors to receive audio.
IiTl.l'l,'l, i _[, i_IPI lvirl l_ii_
PC
Audio cable
D-sub 15
RearofTV
21
TV Installation and Connection Guide

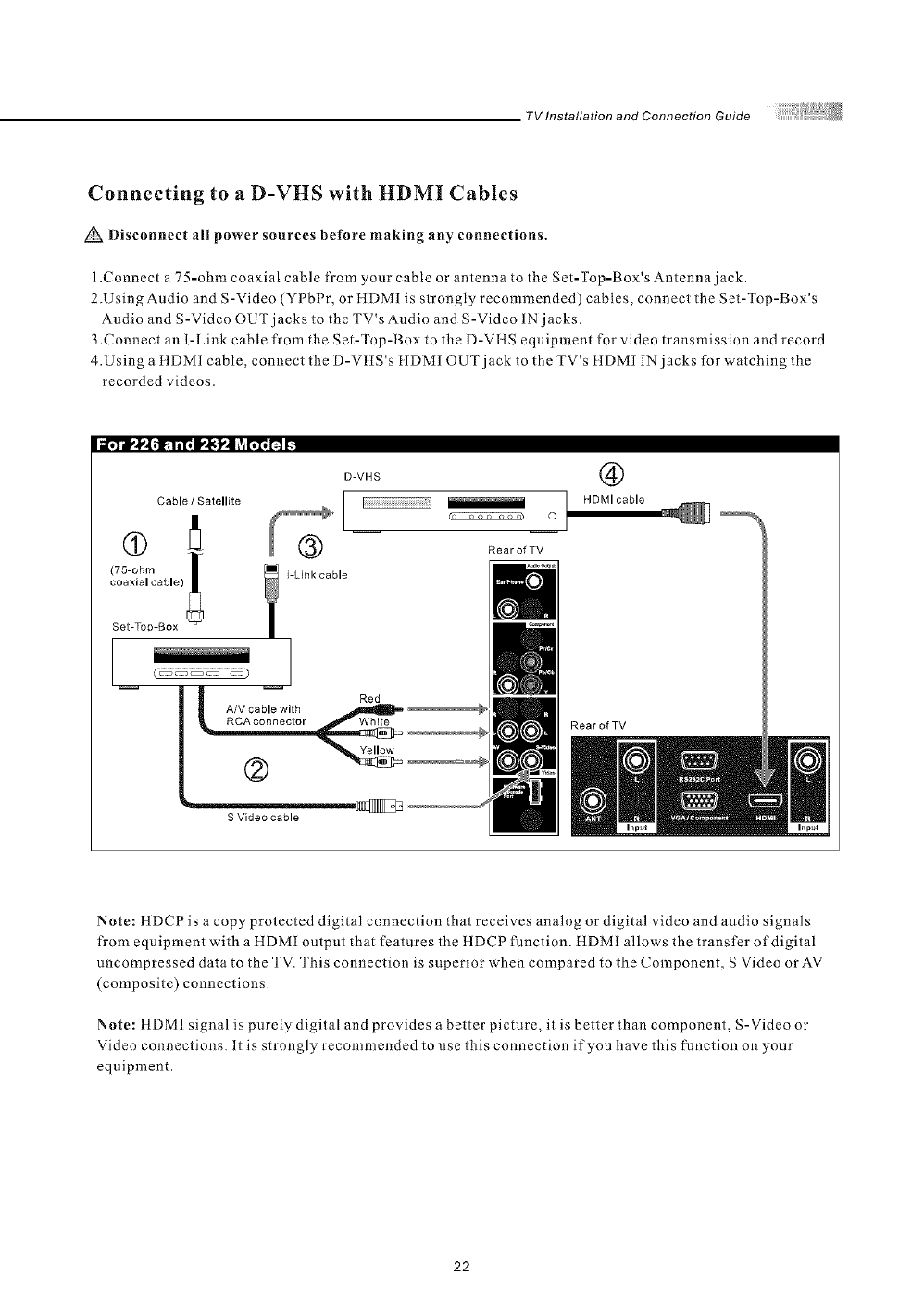

Connecting to a D-VHS with HDMI Cables
Disconnect all power sources before making any connections.
1.Connect a 75-ohm coaxial cable from your cable or antenna to the Set-Top-Box's Antenna jack.
2.Using Audio and S-Video (YPbPr, or HDMI is strongly recommended) cables, connect the Set-Top-Box's
Audio and S-Video OUT jacks to the TV's Audio and S-Video IN jacks.
3.Connect an I-Link cable from the Set-Top-Box to the D-VItS equipment for video transmission and record.
4.Using a HDMI cable, connect the D-VIfS's tlDMI OUT jack to the TV's ttDMI IN jacks for watching the
recorded videos.
Ii'il't_l,'_[ ,t. i i l, Itll tloll _Tll';i'i ["_t
Cable /Satellite
(75-ohm I
02'2
D-VHS @
[_l HDMI cable
Rear of YV
i-Link cable
Red
A/V cable with
RCA connector White
S Video cable
RearofTV
Note: HDCP is a copy protected digital connection that receives analog or digital video and audio signals
from equipment with a HDMI output that features the HDCP function. HDMI allows the transfer of digital
uncompressed data to the TV. This connection is superior when compared to the Component, S Video or AV
(composite) connections.
Note: HDMI signal is purely digital and provides a better picture, it is better than component, S-Video or
Video connections. It is strongly recommended to use this connection if you have this function on your
equipment.
22
TV Installation and Connection Guide
Connecting to a D-VHS with Component Cables
Disconnect all power sources before making any connections.
Use this method of connection if your D-VHS has component (Y, Pb, Pr)jacks.
1.Connect a75-ohm coaxial cable from your cable or antenna to the Set-Top-Box's Antenna jack.
2.Using Audio and S-Video (YPbPr, or HDMI is strongly recommended) cables, connect the Set-Top-Box's
Audio and S-Video OUT jacks to the TV's Audio and S-Video IN jacks.
3 .Connect an 1-Link cable from the Set-Top-Box to the D-VItS equipment for video transmission and record.
4.Using Audio and Cmnponent video cables, connect the D-VHS's Audio and Y, Pb and Pr OUT jacks to the
TV's Audio and Y, Pb and Pr iN jacks/br watching the recorded videos.
Colors on Component Video connectors:
Y: Green
Pb (also identified as Cb, CB or B-Y): Blue
Pr (also identified as Cr, CR or R-Y): Red
Cable /Satellite
(75-ohm
coaxial cable
Set-Top-Box ®
i-Link cable
D-VHS Component cable
0 with RCA connector
Audio
cable
Rear of TV
33
_ Red
®
_o
S Video cable
Note: The Y, Pb and Pr jacks do not provide audio, so audio cables must be connected to provide sound.
Note: The YPbPr connection provides the best quality of video signal compared to AV (Composite) and
S-Video connection.
Note: YPbPr is set at default to best perform with HD 720p and 1080i content, set input to "Interlace DVD"
for best performance with regular 480i and 480p content.
(Menu - Picture - Mode - Input = "Interlace DVD")
23
TV Installation and Connection Guide
Connecting to an Audio Receiver /Home Theater System
Disconnect all power sources before making any connections.
1.Using the audio cable, connect the TV's audio OUT jack to the audio receiver's or Home Theater System's
audio IN orAUX IN jacks.
Audio cable Red
RearofTV
White
Audio Receiver
©
i_,q--wl'l._.l it, I'l_t'l ?_1"_ FIv
Home Theater System
Audio cable Red
White
Rear of TV
Note: When connecting an Audio output signal, an external Audio amplifier is necessary to amplil'y the signal
for external speakers.
Note: if you connect a ttome Theater Sound System, please disable the TV's speakers in the ()SD by selecting
offin audio section. Volume adjustment nmst be made on the tiome Theater Receiver. By not disabling the
TV's speakers it may cause the speakers or the TV itself damage.
24
TV Installation and Connection Guide
Other Audio Connections
Disconnect all power sources before making any connections.
See setup instructions for: Connecting to an Audio Receiver on page 24,
Note: Speakers must be amplified using an audio receiver such as a ftome Theater System to amplify the audio
from the TVI
iil,_/tl ,t. I iI, IIII1 iviII1!.N f
._l) e akel" O_ltpUts
Audio cable
Red
White
RearofTV
Rear of TV
Note: When headphone is plugged in the speaker, it will turn into mute mode.
25
TV Installation and Connection Guide
Instruction for Uploading New Firmware
1.Go to our website :www.olevia.com and register TV.
2.Click FutureProof(TM) your TV. You will need the serial number of your Olevia TV and a USB flash drive.
3.Click on the instructions for your particular model of Olevia TV.
4.Follow the instructions on the website for your specific model to download the new firmware and to load the
firmware into the TV.
26
mote Control Guide
Remote Function Keys & Description
Regular Buttons
B POWER Press to turn display on/off.
I_ LIGHTING Press to switch the lighting mode
between Dark, Medium, Bright Room.
[] ASPECT Press to switch the aspect ratio between
Aspect, Full, Panoramic, Zoom, 1: 1 mode.
I_l FREEZE (Optional function currently unavailable)
[[r_ MENU Press to activate or close the On Screen
Display menu.
_]_ ENTER Press to enter to Sub-Menu, or highlight
and set up menu.
_'_ DISPLAY Press to display the information of
current channel number and time.
NUMBER BUTTONS Press to select channels on
the display.
[] RETURN Press to return the previous-channel.
I_ VOL+/VOL- Press to adjust the volume.
MUTE Press to mute the sound.
DIRECTION BUTTONS :
A/T Press to select between four main sections or
select the function item.
_/_ Press to enter to Sub-Menu, select the function
item or adjust the value bar.
SOURCE Press to switch the source input between
Tuner, Composite, S-Video, Component, HDMI,
VGA, and VGA Component.
tTI AUDIO Press to switch the TVAudio System
between SAP, Mono or Stereo mode.
[_ AUTO Press to adjust screen position automatically
when the screen image is not centered under VGA
mode.
C.C. Press to call up the Closed Caption (CC) and
Caption Service (CS) list.
FAVORITE Press to select t_vorite channels.
Can be preset in OSD Menu.
SLEEP Press to automatically shut off the TV after
a preset period of time has passed.
_[_ CH+ /CH- Press to adjust channel up and channel
down.
TIME Press to set the display to automatically turn
off at the set time.
27
Remote Control Guide
Battery Installation
1.Push the tab and pull it out as illustrated below.
2.Insert two size AAA batteries (supplied) by matching the (+) and (-) on
the batteries to the diagram inside the remote control's battery department.
3.Replace the cover back and make sure the cover "snaps" into the remote
control.
Note:
1.The display unit comes with two new AAA batteries as accessories.
ltowever, due to uncontrollable causes, the electricity of the accessory
batteries may be partially or completely drained. We do not warrant the
quality of the batteries in any case since many factors are considered.
If replacement is needed, please purchase two AAA batteries.
2.Handle remote with care. Avoid dropping it, placing in direct sunlight,
near a heater, high areas of humidity or getting it wet. If the remote gets
wet, please wipe it dry immediately, in the event of the remote not working
properly or is in operational, a replacement of remote control may be
required.
3.If you do not use the remote control l_ora long period of time, please remove
the batteries and store in a cool place to preserve battery life.
4.Do not mix new and used or with difl'erent types of batteries for operation.
28
Screen Displays (OSD)
After you have finished connecting your TV, you are now ready to choose
and personalize your TV settings in the OSD (On Screen Display) menu.
There are four main sections in the OSD Menu:
OSD Screen
OSD
Audio
OSD Setup
OSD
j Ir;l !_ _o_]m]
M_NU
1. Press "@ "button to enter OsD
menu mode.
2. To select between four main sections,
press the keys "A" and "T ".
3. To enter to Sub-Menu,press the keys
,or _-,-_ .
4. To select the function item, press the
keys "A", "'_", "-,9 ", or" m,.-".
5. To adjust the value bar, press the keys
"_'q" and "m,_".
6. To select and set up, press" @ ".
7. To go back to last OSD Menu or exit
t_NU
the OSD menu, press"@ "againor
without action for 12 sedonds of
inactivity.
29
mOn Screen Displays (OSD)
l_l[tFll B']'-JJ;F:F_
1, Selecting the OSD Language
The first time you power on the TV, there
are three language formats available for
the OSD Menu. You may select it by doing
the following: English, Fran;ais, Espa_'ol.
2. Selecting Input Source
After the Language selection, the Input
Source Screen will appear for your
selection.
2.1 Tuner :
By selecting Tuner1 you must perform
a channel scan by following the menu
screens.
2,2 HDMI :
HDMI supports internal and external audio
for PC and Video applications.
* Regular - Select Regular if the video
equipment supports audio through the
HDMI cable,
(Notes : Most video equipment supports
audio through HDMI cable,)
*External -If your device does not
support audio through HDMI cable then
select External.
(Notes : An example is your PC.)
=
=
2,1 Tuner Source
(To select (To confirm)
the item)
OR
2.2 HDMI Source
L.*_.Z..fJ
(To select
the item)
L_.!..£
(To select
_the item)
(To confirm)
(To select (To confirm)
the item)
(To select
the item)
(.--@---)
(To confirm)
3O
On Screen Displays (OSD)

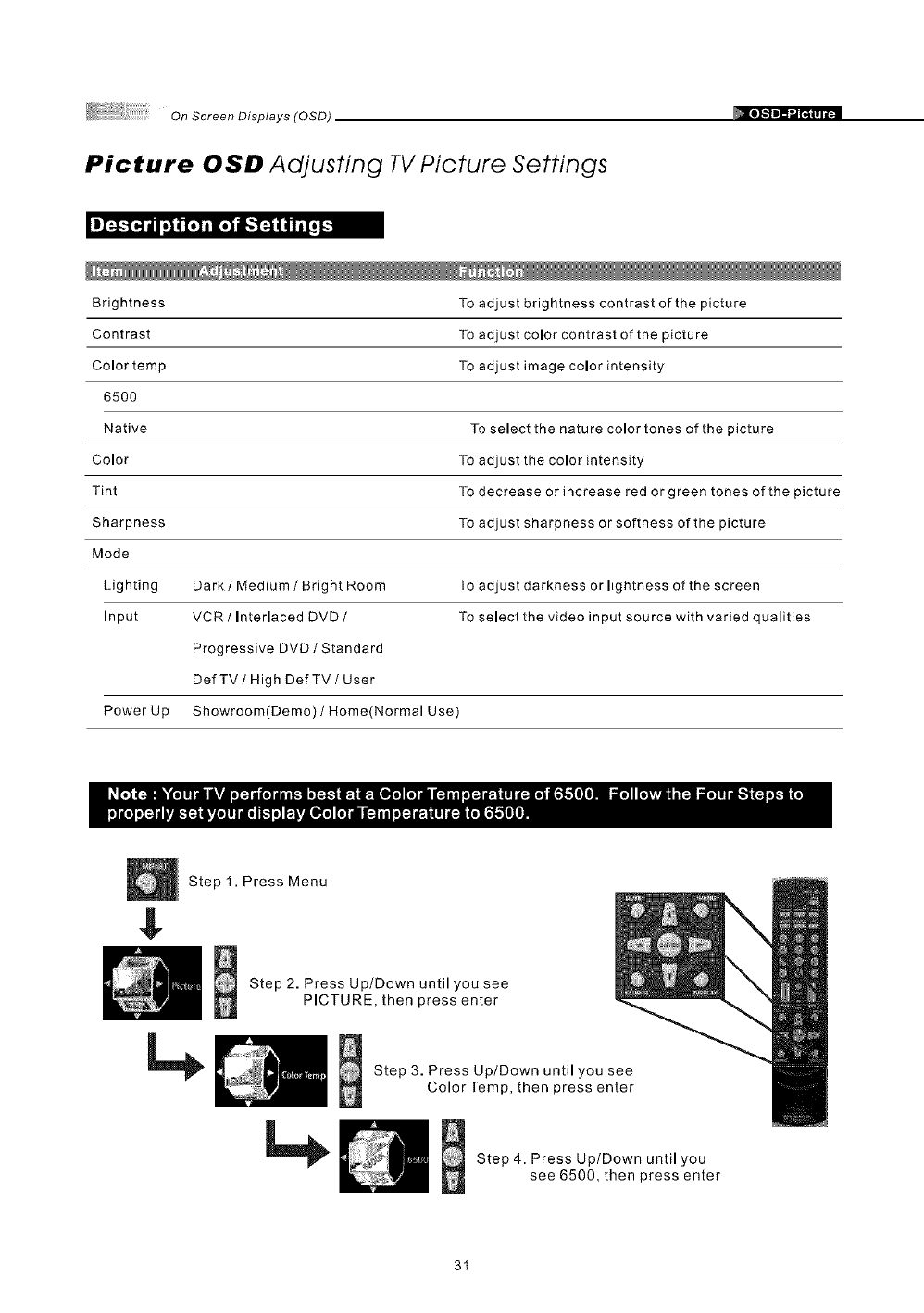

Picture OSD Adjusting TV Picture Settings
Brightness To adjust brightness contrast of the picture
Contrast To adjust color contrast of the picture
Color temp To adjust image color intensity
6500
Native To select the nature color tones of the picture
Color To adjust the color intensity
Tint To decrease or increase red or green tones of the picture
Sharpness To adjust sharpness or softness of the picture
Mode
Lighting Dark /Medium /Bright Room To adjust darkness or lightness of the screen
Input VCR /Interlaced DVD /To select the video input source with varied qualities
Progressive DVD /Standard
DefTV/High DefTV/User
Power Up Showroom(Demo) /Home(Normal Use)
Step 1. Press Menu
Step 2. Press Up/Down until you see
PICTURE, then press enter
Step 3. Press Up/Down until you see
Color Temp, then press enter
Step 4. Press Up/Down until you
see 6500, then press enter
31
On Screen Displays (OSD)
Mode
In this "Mode" Index, you can select one
of the picture modes which is suitable for
the program you are watching.
To adjust darkness or lightness of the
screen
* Dark Room : To darken the screen
*Medium Room
*Bright Room : To brighten the screen
To select the video input source with
varied qualities
* VCR
* Interlaced DVD
*Progressive DVD
* Standard DefTV
* High DefTV
* User
(To show
the Main
Menu)
(To select
the item)
.............. • %(To enter the
III " '"=" "sub-menu)
i.4..7._.,
(To select
the item)
(I_O_) (To enter the _.Q_).............. sub-menu)
(To select [-A-7-_-]
L___._/_ZJtheorem) .............
[__,
(To go back last OSD Menu or exit OSD Menu)
32
OnScreenDisplays(OSD)
Power U.E :
Selects the most appropriate setting
for your TV. (Read carefully, modes
effect TV performance.
* Showroom (Demo)
This mode is available for businesses
that will use the TV to demonstrate in
their stores. (Notes : This mode blocks
most OSD settings.)
*Home (Normal Use) :
This mode provides the best settings
to view theTV for regular use.
Disable Showroom Mode and Enable Home Mode
(Follow these 4 steps to activate Home Mode)
Step I. Press Menu and Scroll up/down
to "Picture" and press the "Enter or Right
Arrow key",
Step 2. Scroll up/down to "Mode"
and press "Enter or Right Arrow
key".
Step 3. Scroll up/down
to "Power Up" and
press "Enter or Right
Arrow key".
Step 4. Scroll up/
down to "Home"
and press "Enter
or Right Arrow
key" to activate
HOME MODE.
33
On Screen Displays (OSD)
In this Setup Index, you can adjust the video
and picture settings to suit your personal
preferences.
_> Brightness
To darken or brighten the picture
Contrast
To reduce(soften) or enhance(deepen)
color contrast of the picture
_" Color
To decrease or increase color intensity
of the picture
(To show
the Main
Menu)
(To select
the item)
_,_"_7_i _ (To enterthe
............... sub-menu)
(To enter the [_/O/_}
sub-menu) ...............
/Toodiosttbesotbogs/
I___ I
(To go back last OSD Menu or exit OSD Menu)
Tint
It allows you to decrease or increase red
or green tones of the picture,
_" Sharpness
To soften or sharpen the picture
_" Color Temp
To customize the RGB settings
6500 (recommended)
Native :
To select the nature color tones of the
(To show
the Main
Menu)
(To select
the item)
............... sub-menu)
(To go back last OSD Menu or exit OSD Menu)
34
On Screen Displays (OSD)
Audio OSD Adjusting Sound Quality
Treble It allows to adjust higher pitched sounds.
Bass It allows to adjust lower pitched sounds.
Balance It allows to adjust volume balance of the R/L speakers for
the best stereo reproduction.
Language English, Frangais, Espahol There are three language formats available for program
broadcasting.
MTS (Multi-channel Mono, SAP, Stereo It allows to select the sound reception of stereo, bilingual
Television Sound) and mono programs between the TVAudio System.
Mute On, Off It allows to mute the sound.
Speaker On, Off It allows to turn On/Off the speakers of the TV when using
a Receiver or Home Theater System.
HDMI Audio Regular, External It allows to select the HDMI audio input source.
:Iii ir_ I i i l! iI i-lT'.ll;ll'll Illll.'l':;'.l l t i ill t
[]
In this Setup Index, you can adjust the audio
settings to suit your personal preferences.
_. Treble
Decreases/Increases high pitch sounds.
_;_ Bass
Decreases/Increases low pitch sounds.
Balance
Adjusts volume to R/L speakers for the
best stereo reproduction.
Language
There are three language formats
available for program broadcasting• You
may select from: English, Espa5ol,
Frangais.
_" Mute
Mutes sounds.
Speaker
Turns TV speakers On/Off when using
Home Theater System.
_;_ HDMIAudio
It allows to select the HDMI audio input
source from the varied equipment.
(HDMI Source Only)
:input source from varied video
device
External : input source from PC deivce
(To show (To select
the Main the item)
Menu)
_1_'"'""_ _ (To enterthe
,./@/, _ub..... )
{J.Z.[.i
(To select
the item)
'.............. ' sub-menu) ..... X-_t2....,'
[:; 7 ;:i ITo adjust (To select r -Tii
• the settings) the item) .............
r-_,q
(To go back last OSD Menu or exit OSD Menu)
35
On Screen Displays (OSD)

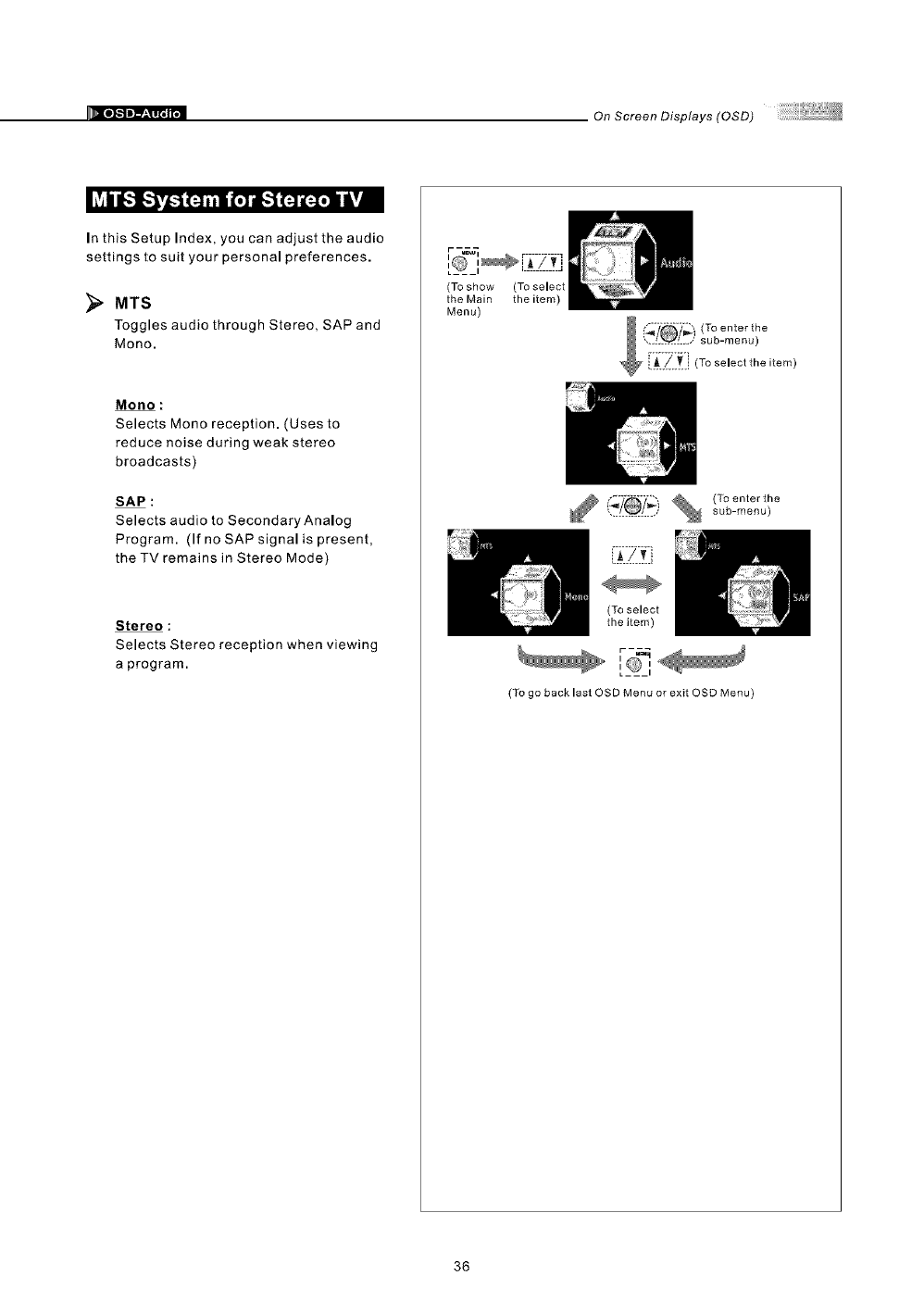

In this Setup Index, you can adjust the audio
settings to suit your personal preferences.
MTS
Toggles audio through Stereo_ SAP and
Mono.
Mono :
Selects Mene reception. (Uses to
reduce noise during weak stereo
broadcasts)
SAP :
Selects audio to SecondaryAnalog
Program. (If no SAP signal is present,
the TV remains in Stereo Mode)
Stereo :
Selects Stereo reception when viewing
a program.
(To show
the Main
Menu)
(To select
the item)
(To select
the item)
I I
(Togo back last OSD Menu or exit OSD Menu)
36
OnScreenOJs_ays(OS_)
Screen OSD Adjusting Screen Modes
Adjustment
H.Position It allows you to adjust the picture position horizontally•
V.Position It allows you to adjust the picture position vertically.
Fine Tune It allows you to enhance the picture quality.
Aspect Ratio Aspect, Full Screen, It allows you to select the aspect ratio of the picture you
Panoramic, Zoom 1, are watching.
Zoom 2,1:l Mode
Cropping On, Off (Off, Minimum, Once activating this function, the picture you are watching
Medium, Maximum) will be enlarged• Then its edges will be cropped
automatically.
Source Tuner, Composite, It allows you to select one of the picture or video sources
S-Video, Component, you want to view.
HDMi, VGA, VGA-
Component
In this Setup Index, you can adjust the screen
settings to suit your personal preferences.
_" Adjustment (Analog Source Only)
Adjusts the picture position and its
quality.
H,Position :
Moves the picture left and right in the
"Full Screen, Panoramic, and Zoom"
modes.
V.Position :
Movesthe picture up and downinthe
"FullScreen, Panoramic, and Zoom"
modes.
Fine Tune :
Enhances picture quality by reducing
horizontal flickering.
Auto Svnc :
Adjust the image to its best position and
automatically displays on the screen.
Aspect Ratio
It allows you to select the aspect ratio
of the picture you are watching•
ASDeCt :
Toggles picture between 16:9 /4:3
aspect ratio•
I___ I:, _[:_?f:j
(To show (To select
the Main the item)
Menu)
,,.'__: % (Toenterthe
II1'',,/0/.; sub-menu)
:,-;:,/®/,<_oo,,o,,,e_?;:>
sub-menu) ...............
[--.__-::Z::___-:i(To adjust the settings)[:-_--::_:-._----:l
r--_q
L_,
(To go back last OSD Menu or exit OSD Menu)
37
m_'_4J"_ On Screen Displays (OSD)
Full Screen :
Enlarges a4:3 picture to fill the 16:9
screen.
Panoramic :
Enlarges a picture from 4:3 to 16:9 by
stretching it horizontally.
Zoom 1 :
Stretches the image both horizontally
and vertically.
Zoom 2:
Stretches the image both horizontally
and vertically, which will lose part of the
image on both ends.
1:1 Mode :
Returns the image to its original mode.
_, Cropping
Crops image, and then enlarges it to fill
the screen.
*For All Sources except Tuner Source :
Crops 16 pixels on R/Ledge of image,8
lines on top/bottom edge of image, and
then enlarges it to fill the screen.
On : (recommended)
Off :
OR
*For Tuner Source :
Minimum (recommended) : To crop 16
pixels on the R/Ledge of image, 8 lines
on the top/bottom edge of image
Medium : To crop 24 pixels on the R/L
edge of image, 16 lines on the top/bottom
edge of image
Maximum : To crop 32 pixels on the R/L
edge of image, 24 lines on the top/bottom
edge of image
(Note: This feature helps remove any noise visible
under both vertical and horizontal edges of the
image.)
(To show
the Main
Menu)
(To select
the item)
_,'_/O/_i _ (To enterthe............... sub-menu)
',, /8/ .... b ..... ) ...... _"_-!.....
[-_,_-'7--_- i (To adjust (To select F---7¥ ]
, the settings) theitem) [_-/-..J.J
Or
,_0__,
(To go back last OSD Menu or exit OSD Menu)
(ForAIIof
_OUr¢es
except
Tuner
source)
(For
Tuner
Source)
38
ii_!_!_i!ii!i_i!i!i!!i!i!i!i!i!i!i!i!i!i!i!!iiOnScreenDisplays(OSD)
In this Setup Index, you can select the input
source of the picture or video you want to
view.
Main Picture Source
It allows you to view images from
optional video equipment connected to
this unit by selecting the appropriate
input source,
Tuner :
Composite :
S-Video :
Component :
HeM! :
VGA :
VGA-Component :
r--=;,_
iI
(To show (To select
the Main the item)
Menu)
f_*--"-'_ % (ToentertheIII '/_/ .... b-_,',_,)
L__,
(To go back last OSD Menu or exit OSD Menu)
39
On Screen Displays (OSD)

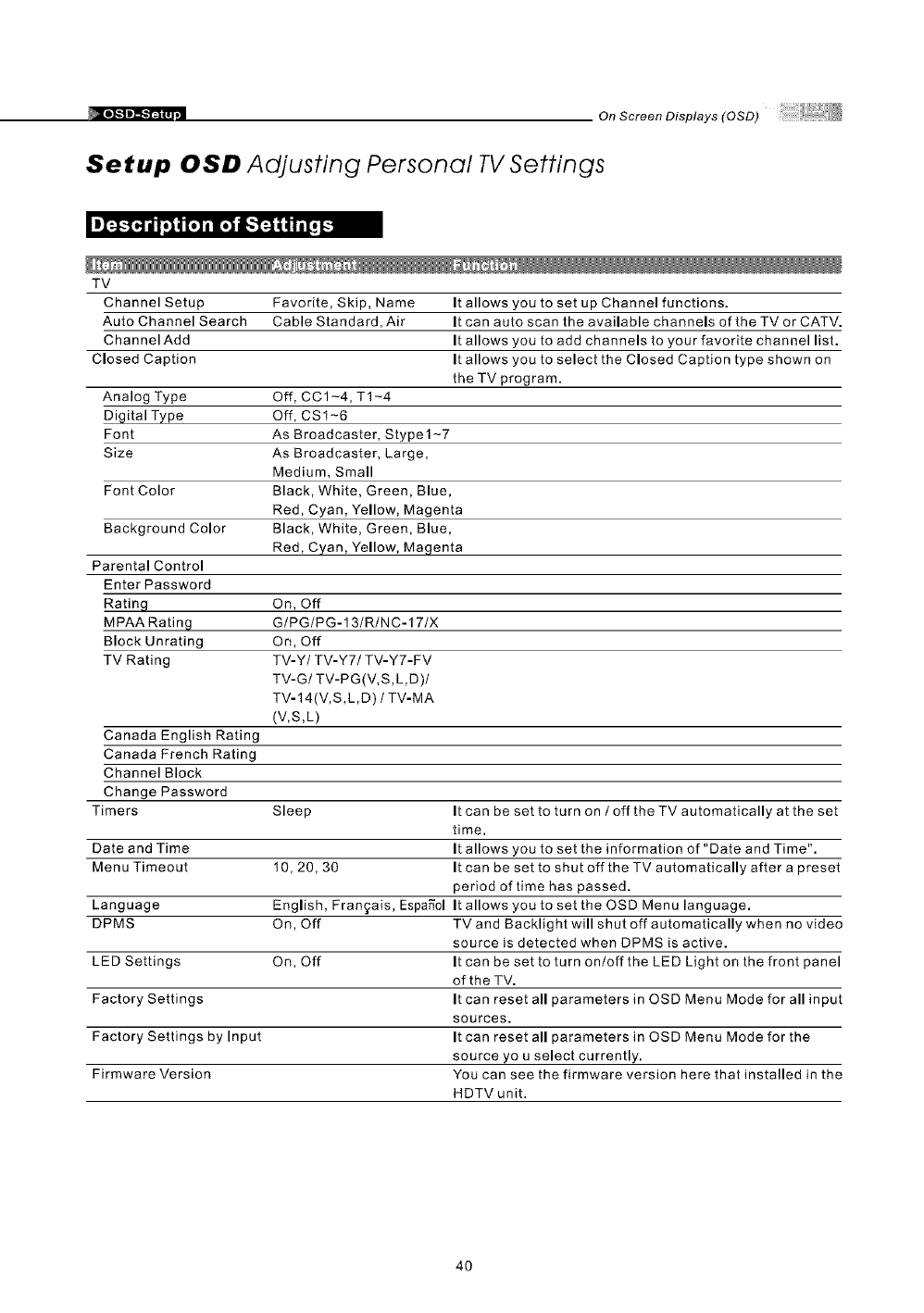

Setup OSD Adjusting Personal TV Settings
TV
Favorite, Skip, Name
Cable Standard, Air
Channel Setup
Auto Channel Search
ChannelAdd
Closed Caption
Analog Type
Digital Type
Font
Size
Font Color
Background Color
It allows you to set up Channel functions.
It can auto scan the available channels of theTV or CATV.
It allows you to add channels to your favorite channel list.
It allows you to select the Closed Caption type shown on
the TV program.
Off, CC1-4, T1-4
Off, CS1-6
As Broadcaster, Stypel-7
As Broadcaster, Large,
Medium, Small
Black, White, Green, Blue,
Red, Cyan, Yellow, Magenta
Black, White, Green, Blue,
Red, Cyan, Yellow, Magenta
Parental Control
Enter Password
Rating On, Off
MPAA Rating G/PG/PG-13/R/NC-17/X
Block Unrating On, Off
TV Rating TV-Y/TV-Y7/TV-Y7-FV
TV-G/TV-PG(V,S,L,D)/
TV-14(V,S,L,D) /TV-MA
(V,S,L)
Canada English Rating
Canada French Rating
Channel Block
Change Password
Timers Sleep It can be set to turn on /off the TV automatically at the set
time.
Date and Time It allows you to set the information of "Date and Time".
Menu Timeout 10, 20, 30 It can be set to shut off the TVautomatically after a preset
period of time has passed.
Language English, Fran_ais, EspaS"ol It allows you to set the OSD Menu language.
DPMS On, Off TV and Backlight will shut off automatically when no video
source is detected when DPMS is active.
LED Settings On, Off It can be set to turn on/off the LED Light on the front panel
of the TV.
Factory Settings It can reset all parameters in OSD Menu Mode for all input
sources.
Factory Settings by Input It can reset all parameters in OSD Menu Mode for the
source yo u select currently.
Firmware Version You can see the firmware version here that installed in the
HDTV unit.
4O
On Screen Displays (OSD)

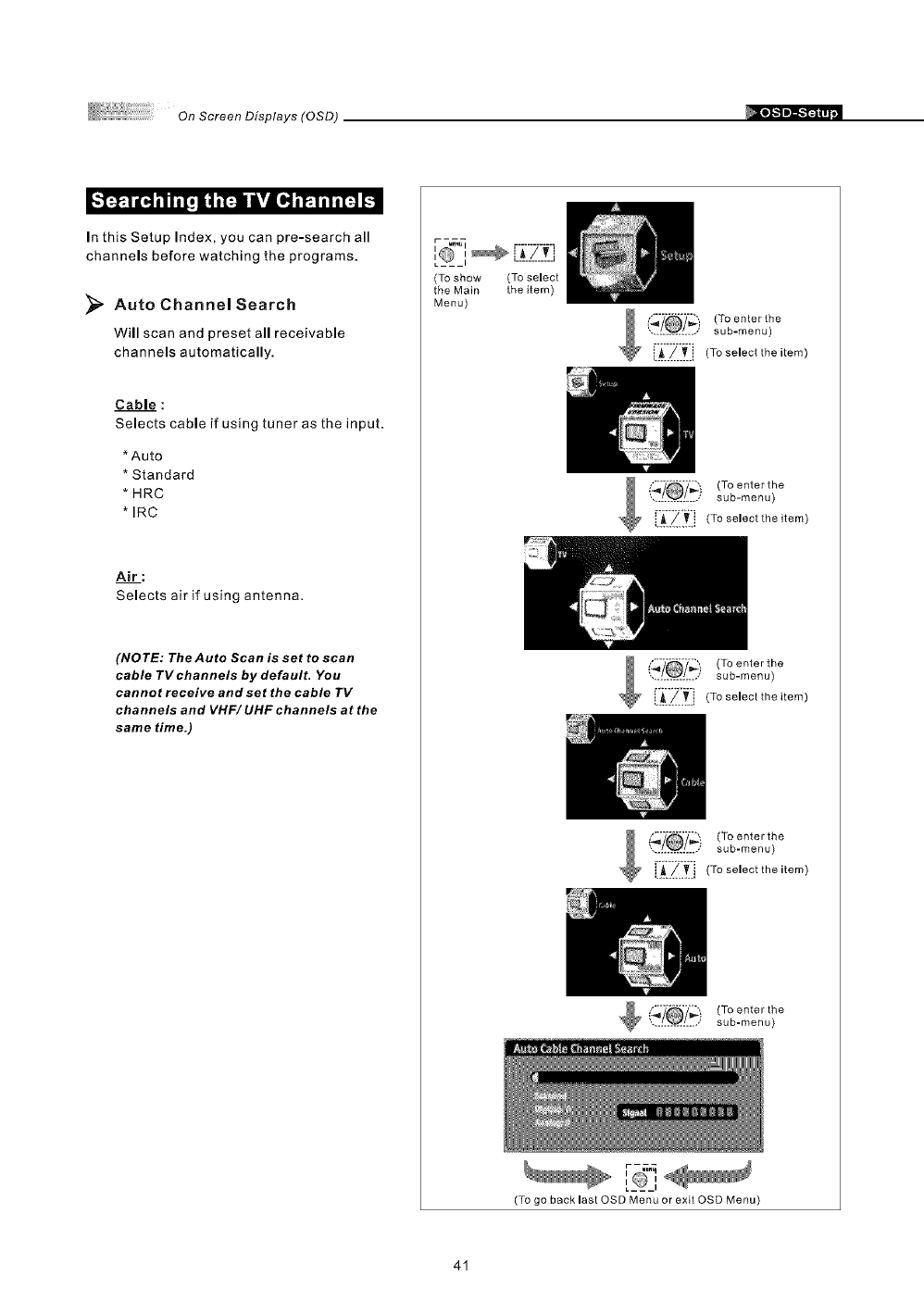

.]_.! 1,1_11J[, i i_ILVl_ =_.!il i[:]
In this Setup Index, you can pre-search all
channels before watching the programs.
_" Auto Channel Search
Will scan and preset all receivable
channels automatically.
Cable :
Selects cable if using tuner as the input.
*Auto
* Standard
*HRC
* IRC
Air:
Selects air if using antenna.
(NOTE: The Auto Scan is set to scan
cable TVchannels by default. You
cannot receive and set the cable TV
channels and VHF/ UHF channels at the
same time.)
r- -_
I___ I
LO, BZ£
(To show (To select
the Main the item)
Menu)
sub-menu)
i_i__i, (To selectthe item)
_Q/_i (To enter the
............... sub-menu)
i_._!..7.J (To selectthe item)
_ _") (To enter the
............... sub-menu)
[K_._[i(To,el_otth_item)
(To enter the
,/0/, sub-menu)
41
[_@__,
(To go back last OSD Menu or exit OSD Menu)

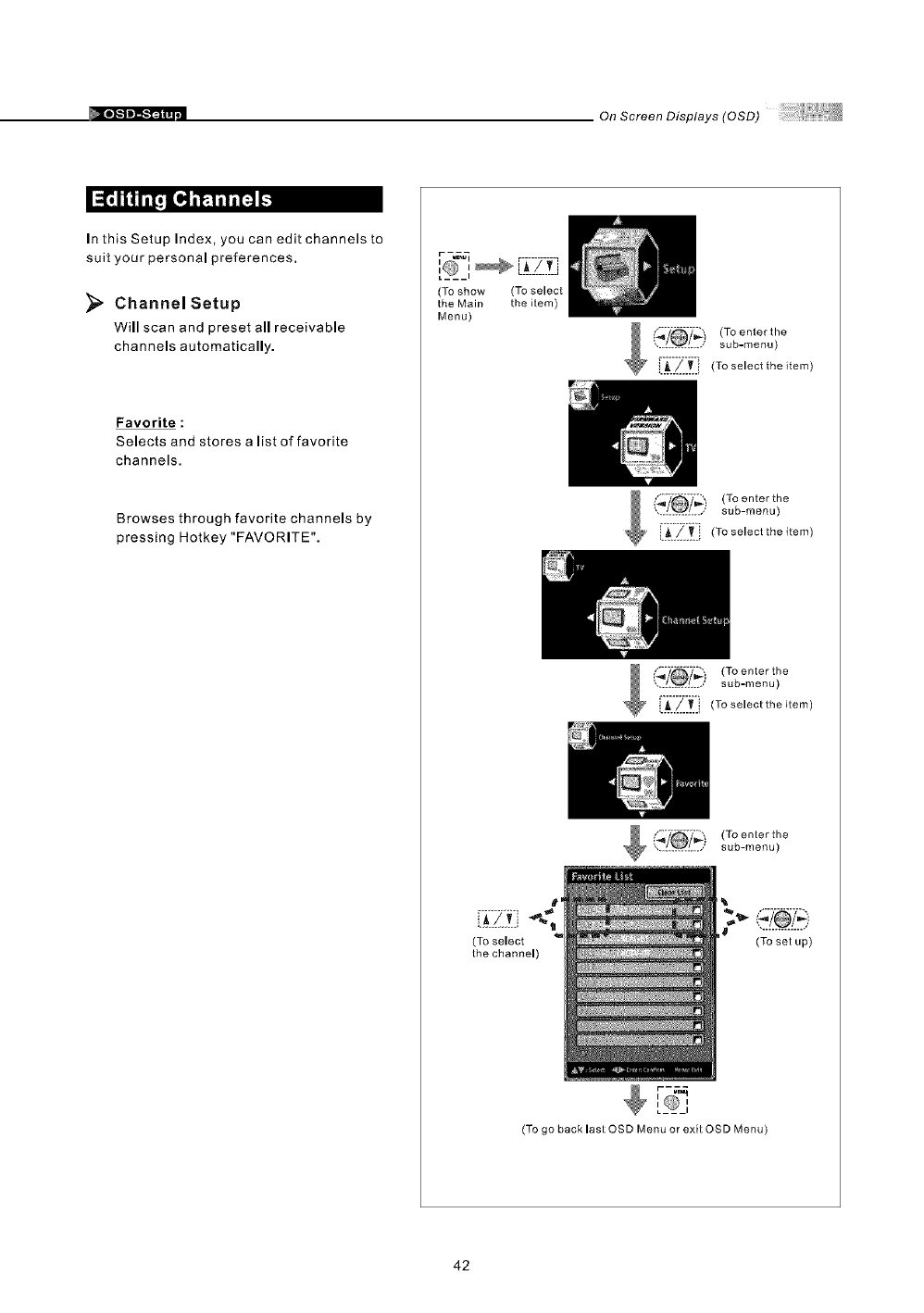

In this Setup Index, you can edit channels to
suit your personal preferences.
_, Channel Setup
Will scan and preset all receivable
channels automatically.
Favorite :
Selects and stores a list of favorite
channels.
Browses through favorite channels by
pressing Hotkey "FAVORITE".
I I
(To show (To select
the Main the item)
Menu)
_0/_ (To enter the
............... sub-menu)
L_.L.T..i (To select the item)
I_1 (To enter the
sub-menu)
I._.!_T..I (To select the item)
_ '_'i (To enter the
............... sub-menu)
i._,.L._..i (To select the item)
(To enter the
,,,,.j. jsub-menu)
(To select
the channel)
I___ I,0,
m_ ...............
(To set up)
(To go back last OSD Menu or exit OSD Menu)
42
On Screen Displays (OSD)

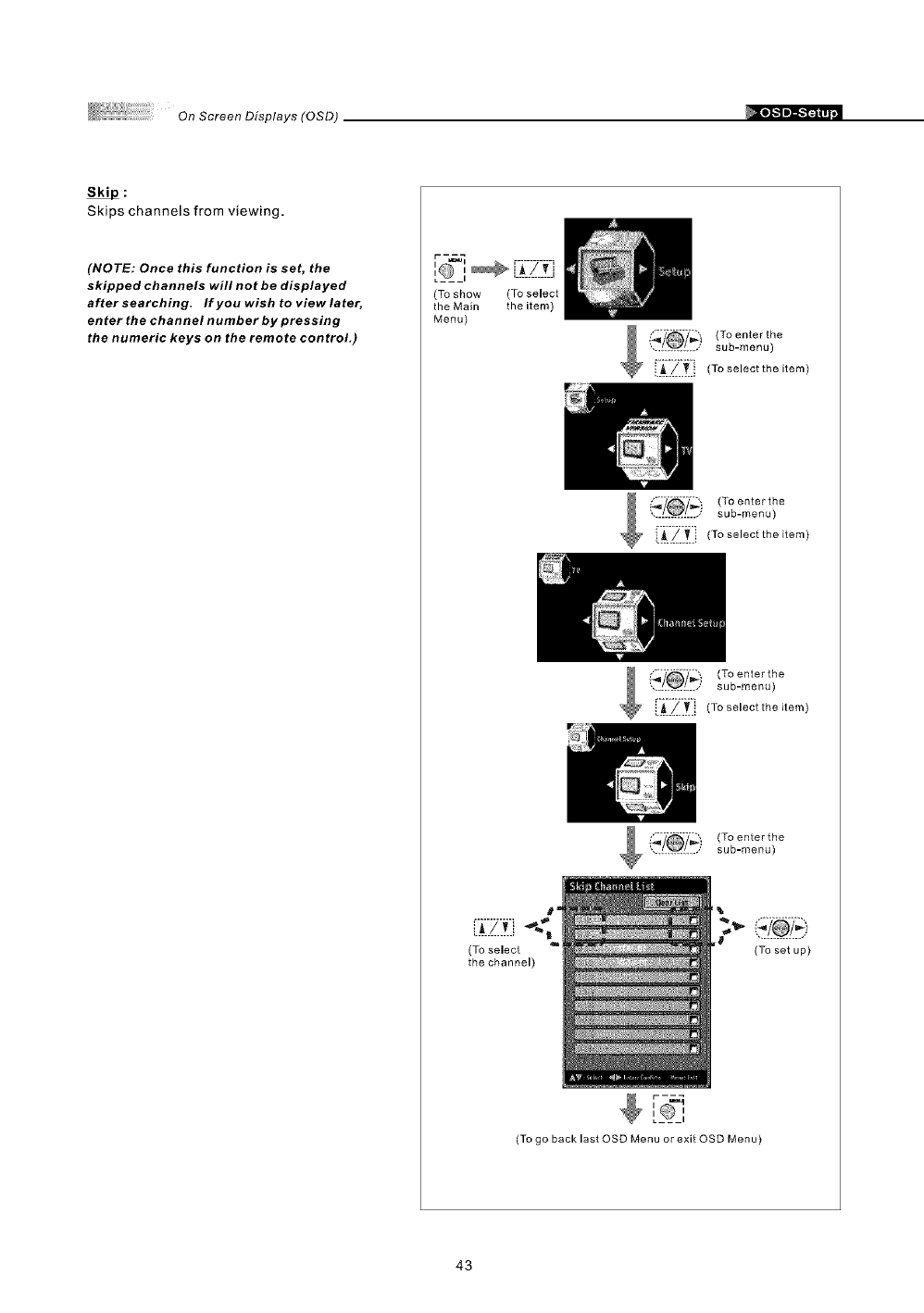

Ski_:
Skips channels from viewing.
(NOTE: Once this function is set, the
skipped channels will not be displayed
after searching, If you wish to view later,
enter the channel number by pressing
the numeric keys on the remote control,)
r-Z,,_,q
I I ® Ei__]Z_i]
(To show (To select
the Main the item)
Menu)
{_/O/_'i (To enter the
............... sub-menu)
i.A../.._.i (To select the item)
(To enter the
sub-menu)
[i_.i_ii_i} (To select the item)
'.. /8/ .; (Toenter the
sub-menu)
i._ /_.i (To select the item)
_("_/_,) (To enter the
............... sub-menu)
(To select
the channel)
I___ I,@,
(To set up)
(To go back last OSD Menu or exit OSD Menu)
43
On Screen Displays (OSD)

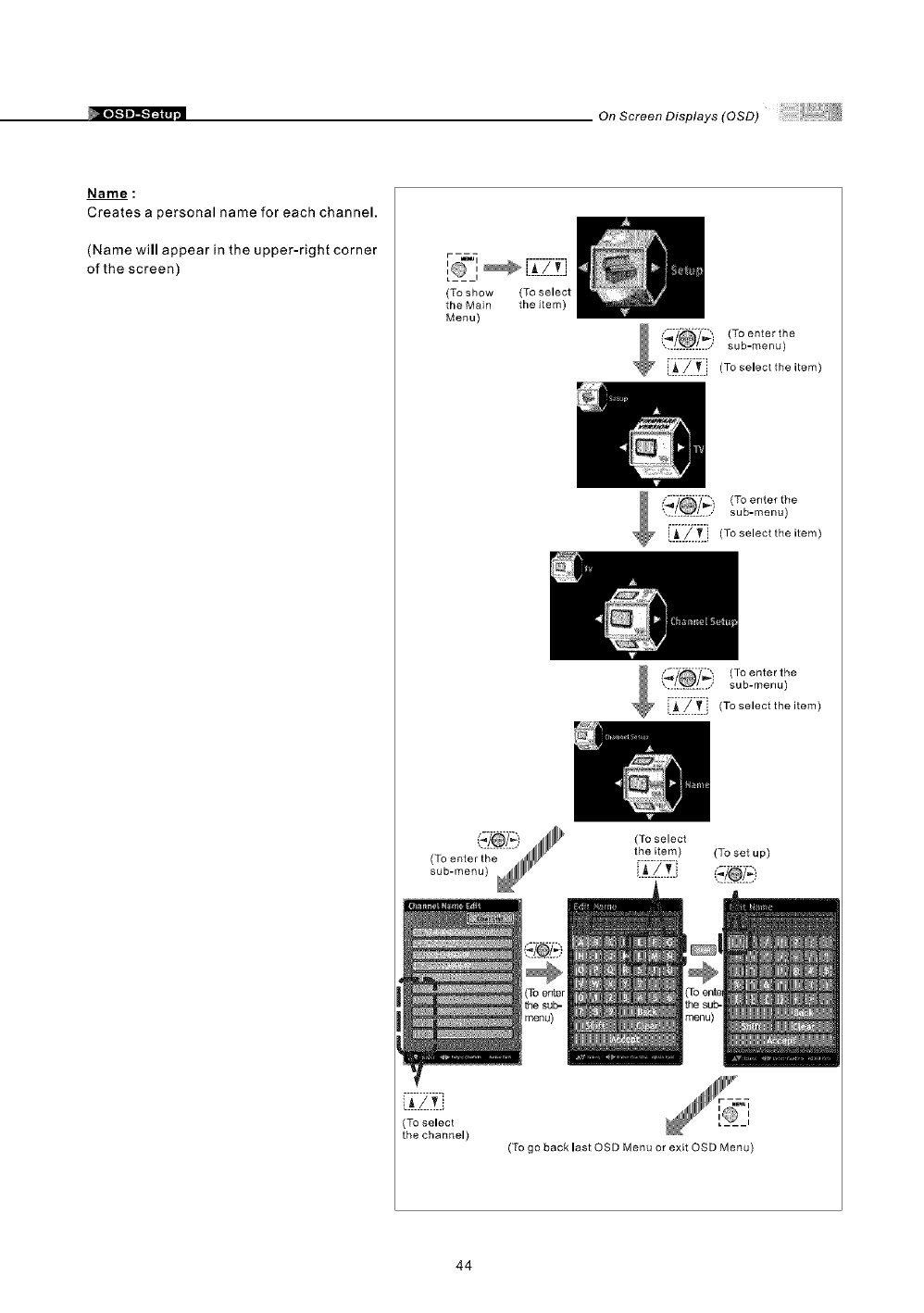

Name :
Creates a personal name for each channel.
(Name will appear in the upper-right corner
of the screen) R-_7
:®, ® _i_ifi
(To show (To select
the Main the item)
Menu)
(_/Oy_! (To enter the
............... sub-menu)
i._.Z..[., (To select the item)
[]
(To select
the item) (To set up)
i._.!..[.i
To select
the channel) (To go back last OSD Menu or exit OSD Menu)
44
On Screen Displays (OSD)
Channel Add :
Adds channel currently on display to
the FAVORITE channel list.
r--.T._
/1__- __1 _L@ I L............
(To show (To select
the Main the item)
Menu)
,, /_/ .,' (Toenterthe
sub-menu)
_-ZI_II (To select the item
(Keyin channel
numberby
pressingthe
numeric key)
I___ IL@ ,
(To go back last OSD Menu or exit OSD Menu)
45
On Screen Displays (OSD)
Displays the audio portion of a television
signal as text on the television screen.
_> Analog Type
If there is Closed Caption data shown on
the analog TV channel, you can select
your preferred Closed Caption type by
scrolling through CC1-4, T1-4.
CCl : is used for most programs
CC2 : may be used for alternate languages
Text : is used for network and station
information, such as channel guides,
schedules, or bulletin board, for Closed
Caption programs.
Digital Type
Selects preferred Close Caption type by
scrolling through CSl - 6.
Font
Selects preferred font by scrolling
through As Broadcaster, Style 1-7.
(Digital TV channel only)
Size
Selects preferred font size by scrolling
through As Broadcaster, Large, Medium,
Small. (Digital TVchannel only)
_, Font Color
Selects preferred font color by scrolling
through As Broadcaster, Black, White,
Green, Blue, Red, Cyan, Yellow,
Magenta. (Digital TVchannel only)
_" Background Color
Selects preferred background color by
scrolling through As Broadcaster, Black,
White, Green, Blue, Red, Cyan, Yellow,
Magenta. (Digital TVchannel only)
(To show
the Main
Menu)
(To select
the item)
(_7_y _ (To enter the
_, "-J isub-menu)
i.A /[.i (To select the item)
............... sub-menu)
k/_/ / sub-menu) t,--L?_L--J
i ,__!..T j (To select the item) i._../..._.i
F-_
L@,
(To go back last OSD Menu or exit OSD Menu)
46
O,,Scroon_sp_ays_OS_
This function allows programs to be
restricted and controlled by parents.
Enter Password
Password is necessary to enter and
re-enter the Parental Control Menu
screen.
(NOTE: The Factory Default password
is "999999".)
Blocks programs based on programing rating
system,
The TV Parental Control features by receiving
the rating signal from your local broadcasting
station or cable service provider.
_" Rating
*On- To activate rating function
* Off- To disable all of rating functions
r -._
I i
(To show (To select
the Main the item)
Menu)
_QI!'_" i (To enter the
sub-menu)
i_Zi_i, (to select the item)
I___ I
r--;_q
,0,
(To enter the
sub-menu)
(Key in
pressing the
numeric key )
(To go back last OSD Menu or exit OSD Menu)
47
On Screen Displays (OSD)

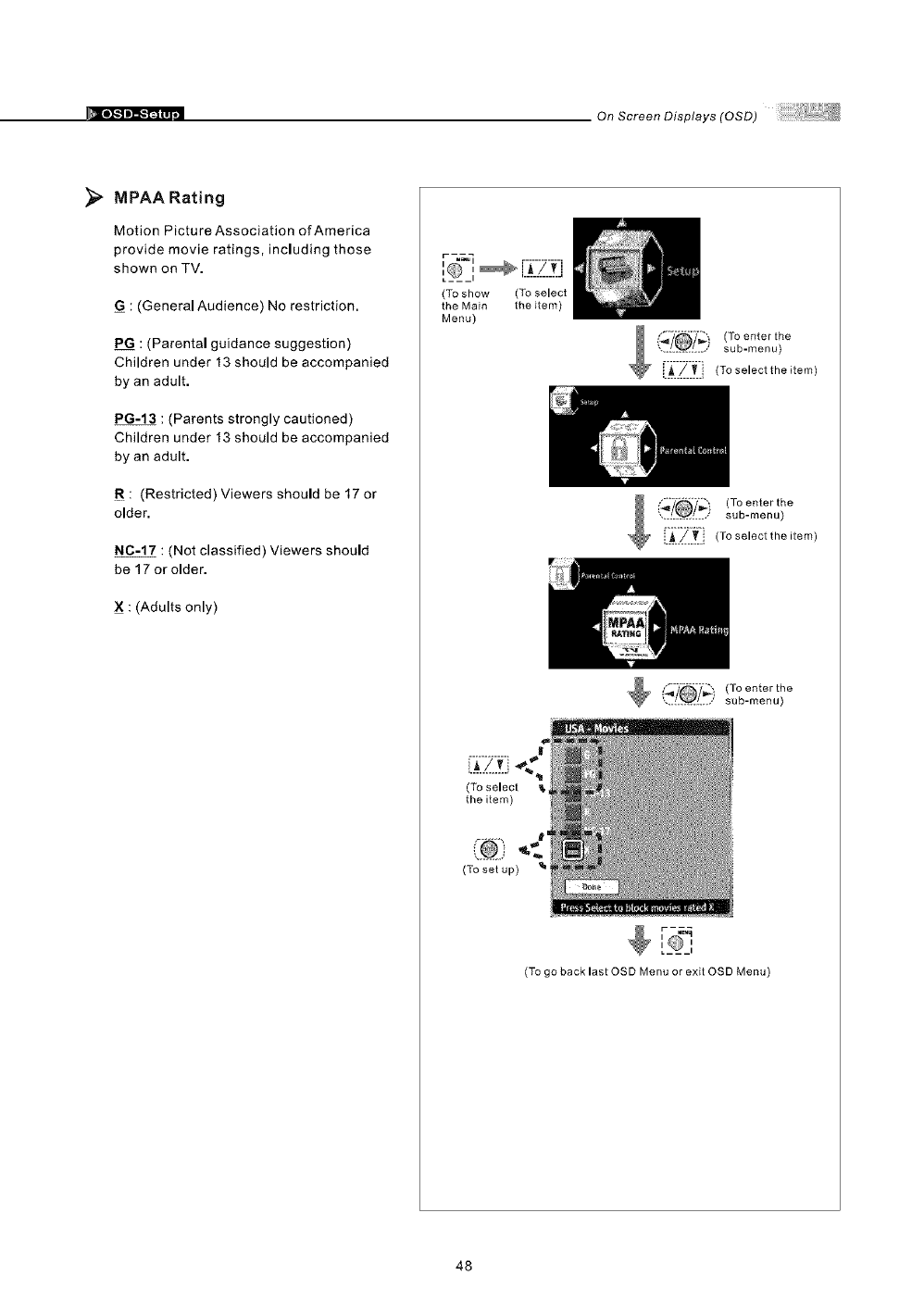

_, MPAA Rating
Motion Picture Association of America
provide movie ratings, including those
shown on TV.
G : (General Audience) No restriction.
PG : (Parental guidance suggestion)
Children under 13 should be accompanied
by an adult.
PG-13 : (Parents strongly cautioned)
Children under 13 should be accompanied
by an adult.
R : (Restricted) Viewers should be 17 or
older.
NC-17 : (Not classified) Viewers should
be 17 or older.
X: (Adults only)
I___ I
(To show (To select
the Main the item)
Menu)
i . ............. .
/_/ (To enter the
,, ,.j. :sub-menu)
E._.../...)..i(ToseleottheiteM)
,./@/... (To enter the
sub-menu)
I___ I
(To select _ i
the item)
(To set up) _'
(To go back last OSD Menu or exit OSD Menu)
48
OaScreenDisplaya_OS_

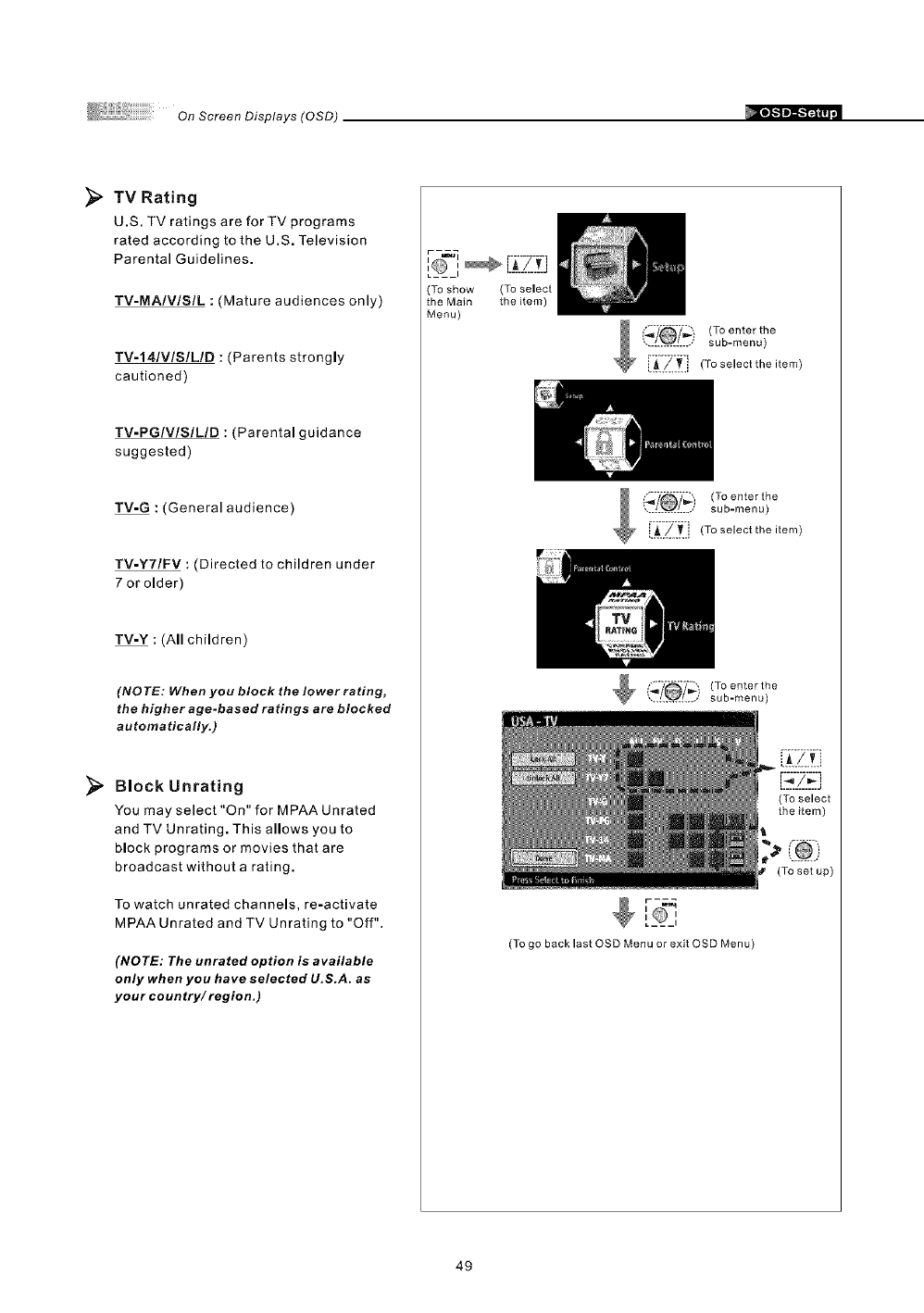

TV Rating
U.S. TV ratings are for TV programs
rated according to the U.S. Television
Parental Guidelines.
TV-MAIVISIL : (Mature audiences only)
TV-141VlSILID :(Parents strongly
cautioned)
TV-PGIVISILID : (Parental guidance
suggested)
TV-G : (General audience)
TV-Y7/FV : (Directed to children under
7 or older)
TV-Y : (All children)
(NOTE: When you block the lower rating,
the higher age=based ratings are blocked
automatically.)
Block Unrating
You may select "On" for MPAA Unrated
and TV Unrating. This allows you to
block programs or movies that are
broadcast without a rating.
To watch unrated channels, re-activate
MPAA Unrated and TV Unrating to "Off".
(NOTE: The unrated option is available
only when you have selected U,S.A. as
your coun try/region.)
To show
the Main
Menu)
(To select
the item)
/_/ (To enter the
_f sub-menu)
E'_I'__ ii (To select the item)
(_'_ (To enter the
............... sub-menu)
LA.!..._.i (To select the item)
,0,
To enter the
sub-menu)
(To go back last OSD Menu or exit OSD Menu)
(To set up)
49
On Screen Displays (OSD)
_" Canada English Rating
It is available for TV programs in English
broadcast in Canada.
: (Intended for children under 8)
C8± : (Generally considered acceptable
for children aged 8 and older to watch
on their own)
: (GeneralAudience)
P G : (Parental Guidance) Parents may
consider some content inappropriate
for unsupervised viewing by children
aged 8-13,
14+ : (Not suitable for viewers under
the age of 14)
184-:(Adult)
NOTE: When you block the Iower rating,
the higher age-based ratings are blocked
automatically,
(To show
the Main
Menu)
EI;IIZ..tll
(To select
the item)
(To select
the item)
!,_/O/_ (To enter the
'-.............. 'sub-menu)
i._.._.._..i (To selectthe item)
_Q_ (To enter the
............... sub-menu)
i.$.S_T_i (To select theitem)
I___ I[O,
To enter the
sub-menu)
(To set up)
(To go back last OSD Menu or exit OSD Menu)
5O
OaScreenDisplays_OS_

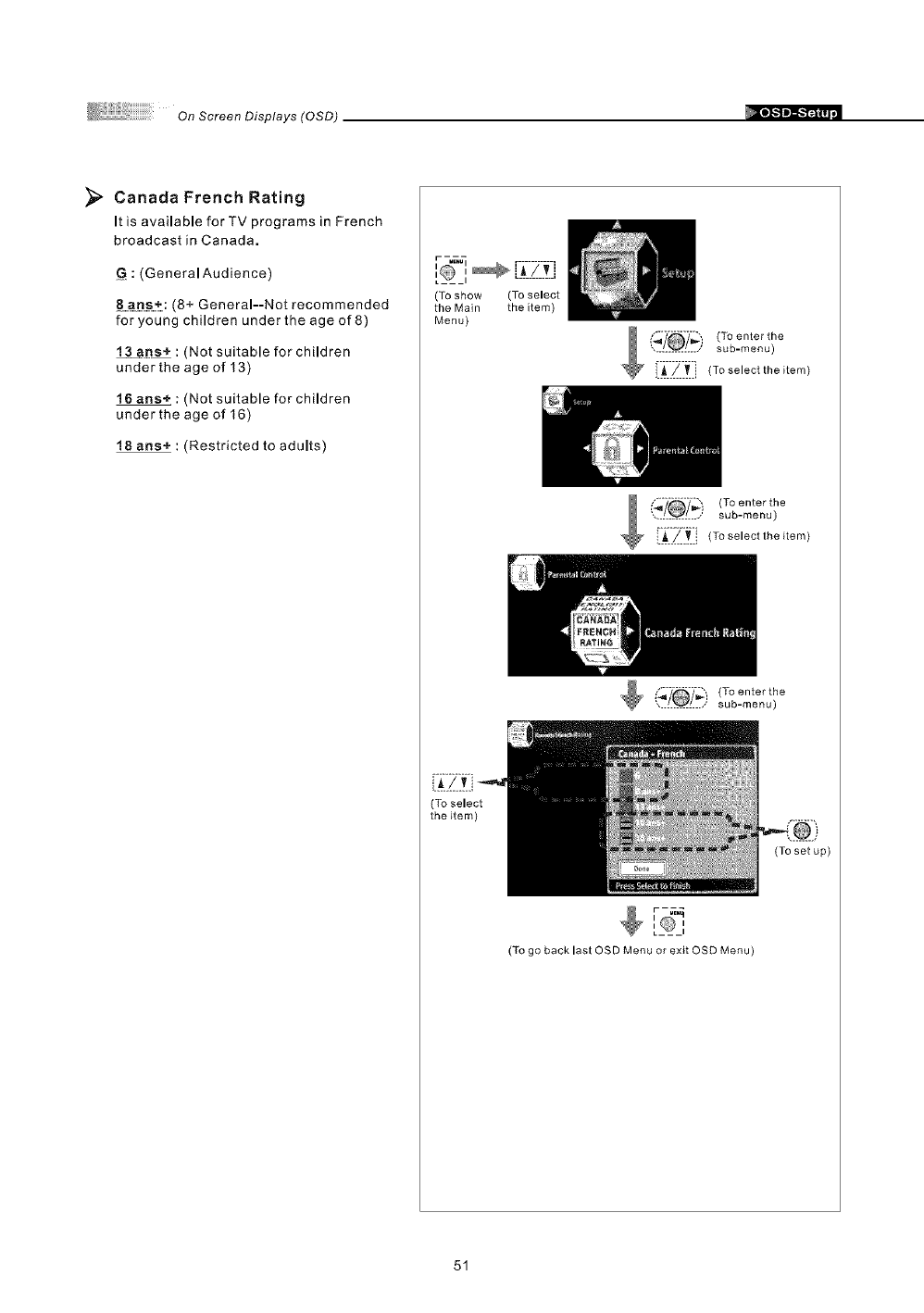

Canada French Rating
It is available for TV programs in French
broadcast in Canada.
:(GeneralAudience)
8 arts+: (8+ General--Not recommended
for young children under the age of 8)
13 ans_ : (Not suitable for children
under the age of 13)
leans+ : (Not suitable for children
under the age of 16)
18 ans+ : (Restricted to adults)
(To show
the Main
Menu)
(To select
the item)
(To select
the item)
_ '_"_y_ (TO enter the
............... sub-menu)
i._._.._.., (To select the item)
(Toenter the
._,._j, .. sub-menu)
i-_-_ii_il (To select the item)
_ _- sub-menu)
%/_/ ,*' (Toenterthe
I___ I,@,
(To go back last OSD Menu or exit OSD Menu)
(To set up)
51
On Screen Displays (OSD)
Channel Block
In this Setup Index, you may select the
blocked ratings to suit your personal
preferences. _,, _ E__-.7_::f_-J
(To show (To select
the Main the item)
Menu)
I . ............. ,
(To enter the
,,/@/,, sub-menu)
[__./.._.i (To selectthe item)
,,_7-[7_' ! (To enter the
', O J
............. sub-menu)
[_.._.._.i (To select the item)
_ '_77_' (To enter the
', 0 .,; sub-menu)
(To select
the channel)
I___ I
m_ ...............
(To set up)
(To go back last OSD Menu or exit OSD Menu)
52
O,,Scroon_sp_ays_OSm
Change Password
You may change to a new preferred
password by pressing the numeric key
within 6 numbers.
r--_
I___ I,®, ® Ei_-Z-_t]
(To show (To select
the Main the item)
Menu)
- ............. , (To enter"Enter
(Key in
pressing the
numeric key )
I___ I,,.@,
(To confirm and then
enter "Enter New
Password" screen)
(Key in new
password b
pressing the
numeric key )
(Key in new
password
again by
numeric key )
(To confirm and then
enter "Confirm New
Password" screen)
(To go back last OSD Menu or exit OSD Menu)
53
On Screen Displays (OSD)
,T_] iI i iT_II hT:I O]Ei(:l':.i iT, i I lii[:l
}_" Date and Time
In this Setup Index, you can setup the
Date, Week, Time Zone, and Current
Time on the TV.
Date :
Date is set automatically when NTSC
source is used. (Manual adjustment is
necessary however, if not used)
Day of Week :
It will be automatically displayed
according to the Date setting.
"lime Zone :
You can select available time zone
where you live.
Current Time :
Time is set automatically when NTSC
source is used. (Manual adjustment is
necessary however, if not used)
Adjust for Dayliqht Savinq Time :
Option will be selected automatically
based on settings above.
Auto Calibration :
Once activating this function, the information
of "Date and Time" will be corrected
automatically based on accurate time.
NOTE: Once marking the "Auto
Calibration" setting, all settings shown
on the "Date and Time" screen will be
invalid.
r- -._q
I___ IL@,
(To show (To select
the Main the item)
Menu)
sub-menu)
E,iiTi ] Toso,ec.heitom
To enter the
sub-menu)
L*_..4.v..i
(To cycle
selecting)
(To confirm)
I _ IL@,
(To go back last OSD Menu or exit OSO Menu)
54
On Screen Displays (OSD)
Timers
In this Setup Index, you can setup the
Sleep Time on the TV.
Sleeg :
Shuts offTV after a preset period of
time has passed by scrolling through
30, 60, 90, 120 minutes.
_" Menu Timeout
In this Setup Index, you can setup the
OSD Menu display time before
disappeared when no action is taken.
I___ I ®
To show (To select
the Main the item)
Menu)
............... sub-menu)
i._..4._.J (To select the item) L$/Tj
,®,
(To go back last OSD Menu or exit OSD Menu)
55
OnScreenDisplays(OSD)
Languages
There are three language formats
available for the OSD Menu. You may
select it doing the following:
English, Fran£ais, Espa_ol.
DPMS
TV and Backlight will shut off
automatically when no video source
is detected when DPMS is active.
* On- To activate this function
*Off- To disable this function
_;_ LED Settings
It can be set to turn on/off the LED Light
on the front panel of theTVwhen shutting
off the TV,
*On- To activate this function
* Off- To disable this function
_, Factory Settings
You can reset all OSD settings to original
manufacture settings for all input sources.
_" Factory Settings by Input
You can reset all OSD settings to original
manufacture settings for the source you
select currently.
Firmware Version
You can see the firmware version here
that installed in the HDTV unit,
I___ I
(To show (To select
the Main the item)
Menu)
_, ._-'"'""_'. % (Toenterthe
,I@1,. sub-mooo)
_._.Z..f.J
(To select
the item)
, r--_6
(To go back last OSD Menu or exit OSD Menu)
56
pecifications
TFT LCD Panel
Panel Size
Aspect Ratio
Pixels
Dynamic Contrast Ratio
H/V(View Angle)
Gray to Gray Response
Time
PC Compatible Frequency
Video Compatibility
DTV & HDTV Compatibility
Aspect Ratio Adjustment
3D Comb Filter
3:2/2:2PullDown
Digital Noise Reduction
Adjustable Color
Temperature
26"(Side Speaker)
t6:9
1366 X 768
800:1
t60 o(H)/t50 ,,(V)
8 ms
30~85KHz(H)/50~80Hz(V)
Max.1360x768@60Hz
32" (Side Speaker)
16:9
1366X768
1600:1
178, (H)/178, (V)
8 ms
30~85 KHz(H) /50~80Hz(V)
Max. 1360x768 @60Hz
NTSC/ATSC
480i, 480p, 720p, 1080i
Zoom, Full Screen, 4:3, 1:1,
Panoramic
Y
Y
Y
Native, 6500
De-interlacer y
VGAAuto Frequency Y
Correction
TV Auto Frequency y
Detection
Auto Sound Level Control Y
Output Watt 2 (10W + 10W)
Sound Effect MTS (Mono /Stereo /SAP)
TV Tuner Combo RF (NTSC/ATSC) Tuner xl
Video Input Composite (CVBS) xt, S-Video xl, Y/Pb/Pr, Y/Cb/Cr xl, R/L x3
HDTV & Video Input VGA/Component xl, HDMI xl, R/L x2
Service Port RS232C Port (Mini DIN 8 Pins) xl, Firmware Upgrade Port (AType) xl
Audio Output Output : Earphone, R/L xl
*NOTE : Product Specification is Subject to Change without Notice.
57
TFT LCD Panel
Power (Voltage)
(Power Consumption)
Stand-by
Dimensions (W x D x H)
Carton Dimensions (W x D x H)
Weight w/stand
Gross Weight
100-240 VAC /50-60 Hz
161 W
<lW
30.7 in x 7.56 in x 18.5 in
32,68 in x 8.81 in x 21.85 in
23,8 Ibs
29.11 Ibs
100-240 VAC /50-60 Hz
164W
<lW
37.76 in x 9.37 in x 22.20 in
42.80 in x 12.40 in x25.35 in
35.5 Ibs
45.4 Ibs
Dimensional Drawing
, F c
B
T
AE
ABCDE F
26" 17.59 in 30.78 in 17.32 in 7.56 in 18.50 in 4.18 in
32" 20.67 in 37.76 in 23.58 in 9.37 in 22.20 in 4.92 in
58
"g Mode for VGA and HDMI(PC)_
YPbPr 480p 59.94
720p 60
1080i 30
VGA 640x480 60
75
800x600 60
75
1024x768 60
75
1280x768 60
1360x768 60
HDMI(PC) 640 x 480 60
75
800x600 60
1024x 768 60
75
1280x720 60
1280x768 60
1360x768 60
59
Policy
SyntaxBrillian's D.O.A. Policy for LCD HDTVs for
Defective Pixels on LCD Panels
(Applicable to the LCD HDTV sold within USA & Canada only)
LCD HDTVs are evaluated at a distance of approximately 50 centimeters
(approximately 20 inches) between the LCD panel and the eyes of the user at a
90 degrees viewing angle. All LCD panels have been tested to ensure they
comply with our factory standards. Our evaluation is based on the number of
defective pixels and the distance between any two defective pixels. Bright dots
are dots that appear bright and unchanged in size when a LCD HDTV screen
displays under a black pattern; dark dots are dots that appear dark and
unchanged in size when a LCD HDTV screen is displayed under pure red, green,
or blue patterns ("defective pixels"). Adjacent dots are dots located directly
next to each other.
Customers are required to check their LCD panel immediately after purchase.
To identify defective pixels, the LCD panel should be examined under normal
operating conditions as mentioned above, preferably in its native display
resolution, and with a 90 degrees viewing angle.
A LCD HDTV will be considered dead on arrival (D.O.A.) with regards to defective
pixels on the LCD panel when any one of the following criteria is met:
_ Atotal of 7 defective pixels including both bright dots and dark dots are
present (the typical 30" LCD Television screen has 1 million pixels), or
® 2 or more pairs of adjacent bright dots are present, or
¢_3 adjacent bright dots are present, or
® 3 adjacent dark dots are present.
In view of customers' concerns about dead pixels, SyntaxBrillian would like to address
that defective pixels are not ultimately avoidable with the current LCD industry
standard panel manufacturing processes. We always strive to improve our technology
and minimize the chance of occurrence of defective pixels by applying strict screening
processes in our factory production processes.
However, SyntaxBrillian cannot guarantee that a return unit to our customers will be
100% free of defective pixels.
For questions, please call our toll free service number in the USA at 888-Syntax-Brillian-8.
"At Syntax-BrillianCorporation, a satisfied customer is our
most important focus."
6O
3:2 pull down - Process of converting 24 frames per second film to video by repeating one film frame
as three fields, then the next film frame as two fields.
480I - 480 lines of display every 1/60 of a second; image is displayed by interlace scanning. See
also Interlaced
480P - 480 lines of display every 1/60 of a second; image is displayed by progressive scanning. See
also Progressive.
720P - 720 lines of display every 1/60 of a second; image is displayed by progressive scanning. See
also Progressive.
10801 - 540 lines of display x 2 every 1/30 of a second; image is displayed by interlace scanning.
See also Interlaced
16_9 - Aspect ratio under Hi Def. and theater movie formats. Also known as widescreen; see Aspect
Ratio
4:3 - Aspect ratio under SDTV; see Aspect Ratio
Active Matrix TFT (Thin Film Transfer) - A type of display technology where the three primary
colors are modulated. Results in better contrast ratios suitable for video.
Alarm - Feature on the Syntax-Brillian Olevia models. Allows the unit to power on from the stand by
mode.
Alarm Time - Time specified as to when the unit will power on. See Alarm.
Aspect Ratio - The ratio of an image according to the width and height of a picture.
ATSC - Advanced Television Systems Committee; international, non-profit organization that is
committed to developing standards for digital television.
Reference: http:/!www.atsc.org
Bezel - Refers to the plastic or metal frame that acts like a shell around the LCD glass.
IBacklight - Refers to the component, that lights up the LCD display.
Balance - Feature on the OSD for the Syntax-Brillian Olevia models that adjust the left and right
sound output from the speakers.
Background - Feature on the OSD for the Syntax-Brillian Olevia models, which allows the user to
change the OSD background, display to transparent or opaque.
Brightness - The measurement of color that is illuminated. Colors range from black to white.
CATV - Community Antenna Television (Cable Television)
Channel Favorite - Feature on the OSD for the Syntax-Brillian Olevia models that allows the user to
scroll through a defined list of channels that the user sets up.
Channel Edit - Feature on the OSD for the Syntax-Brillian Olevia models that allows the user add or
delete a channel.
Channel Source - Feature on the OSD for the Syntax-Brillian Olevia models that lets the user select
the source of their channels. Select TV for antennae or CATV for cable television.
Channel Auto Scan - Feature on the OSD for the Syntax-Brillian Olevia models that when initiated,
will determine which channels are available and which arenot. If a desired channel is not accessible,
you can add the channel in manually. See Channel Edit.
Channel Fine Tune - Feature on the OSD for the Syntax-Brillian Olevia models that enables the user
to tune the channel for better reception.
Chroma - (Chrominance) Refers to the color characteristics of a video signal.
£C - Closed Caption
61

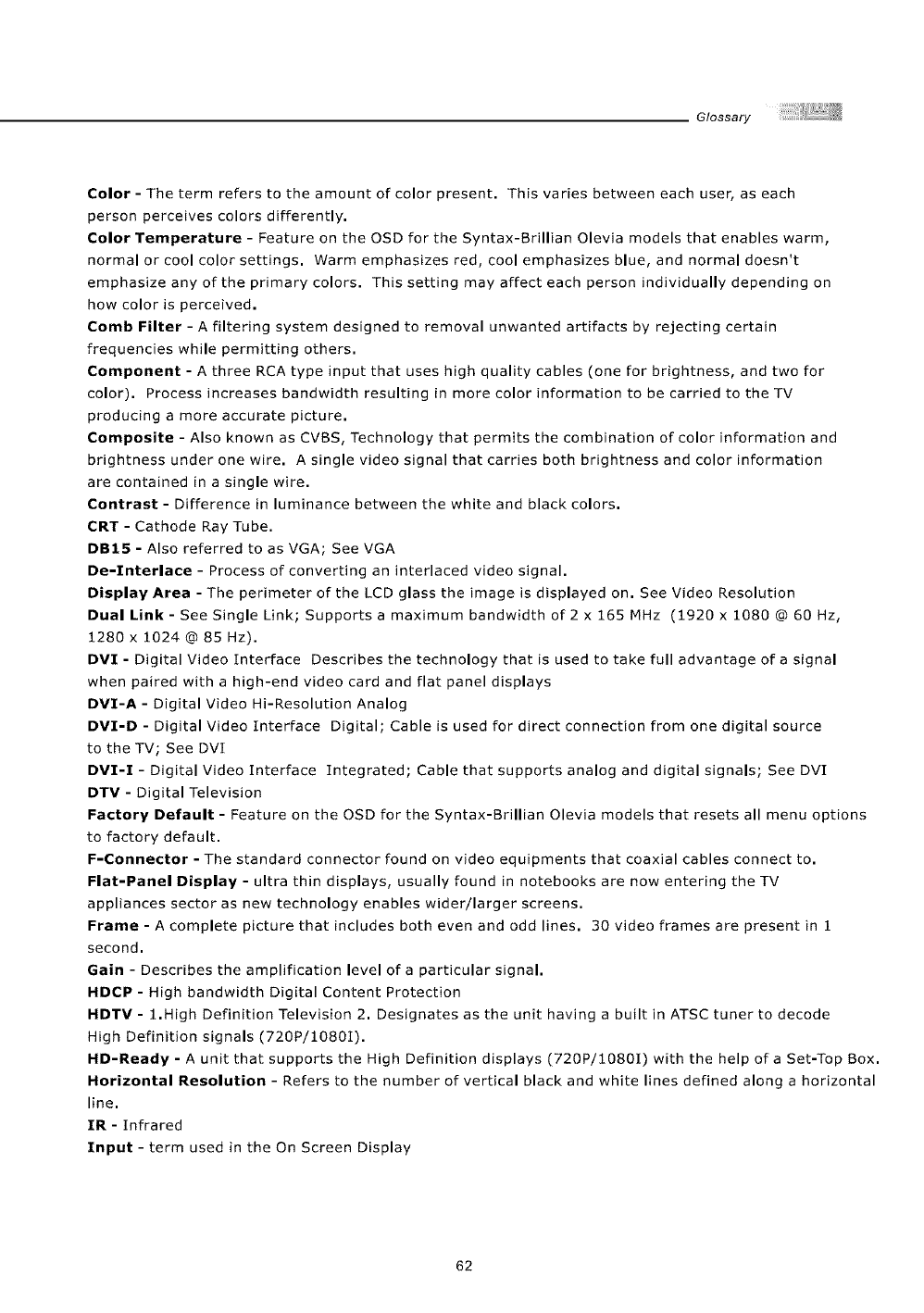

Glossary
Color - The term refers to the amount of color present. This varies between each user, as each
person perceives colors differently.
Color Temperature - Feature on the OSD for the Syntax-Brillian Olevia models that enables warm,
normal or cool color settings. Warm emphasizes red, cool emphasizes blue, and normal doesn't
emphasize any of the primary colors. This setting may affect each person individually depending on
how color is perceived.
Comb Filter - A filtering system designed to removal unwanted artifacts by rejecting certain
frequencies while permitting others.
Component - A three RCA type input that uses high quality cables (one for brightness, and two for
color). Process increases bandwidth resulting in more color information to be carried to theTV
producing a more accurate picture.
Composite - Also known as CVBS, Technology that permits the combination of color information and
brightness under one wire. A single video signal that carries both brightness and color information
are contained in a single wire.
Contrast - Difference in luminance between the white and black colors.
CRT - Cathode Ray Tube.
DB15 - Also referred to as VGA; See VGA
De-Interlace - Process of converting an interlaced video signal.
Display Area - The perimeter of the LCD glass the image is displayed on. See Video Resolution
Dual Link- See Single Link; Supportsa maximum bandwidth of 2x 165 MHz (1920x 1080 @ 60 Hz,
1280 x 1024 @ 85 Hz).
DVI- Digital Video Interface Describes the technology that is used to take full advantage of a signal
when paired with a high-end video card and flat panel displays
DVI-A - Digital Video Hi-Resolution Analog
DVI-D- Digital Video Interface Digital; Cable is used for direct connection from one digital source
to the TV; See DVI
DVI-I- Digital Video Interface Integrated; Cable that supports analog and digital signals; SeeDVI
DTV - Digital Television
Factory Default - Feature on the OSD for the Syntax-Brillian Olevia models that resets all menu options
to factory default.
F-Connector - The standard connector found on video equipments that coaxial cables connect to.
Flat-Panel Display - ultra thin displays, usually found in notebooks are now entering the TV
appliances sector as new technology enables wider/larger screens.
Frame-Acomplete picture that includes both even and odd lines. 30 video frames are present in 1
second.
Gain - Describes the amplification level of a particular signal.
HDCP - High bandwidth Digital Content Protection
HDTV - 1.High Definition Television 2. Designates as the unit having a built in ATSC tuner to decode
High Definition signals (720P/1080I).
HD-Ready - A unit that supports the High Definition displays (720P/10801) with the help of a Set-Top Box.
Horizontal Resolution - Refers to the number of vertical black and white lines defined along a horizontal
line.
IR- Infrared
Input - term used in the On Screen Display
62
iiiiii! !iii:ii!iiiiiiiiiiiiiiiiiiiiiiiiiii G ossar
Interlaced - Images are the result of lines of data reassembled. Interlaced refers to the process
of an image's odd lines reassembled from top to bottom taking about 1/60 of a second, before
reassembling the even lines which results in a full picture. Antonym: Progressive
Language - Feature on the OSD for the Syntax-Brillian Olevia models that enables the OSD to be
read in different languages.
LCD - Liquid Crystal Display
LCoS - Liquid Crystal on Silicon
LED - Light Emitting Diode
Luminance - refers to the brightness of an image.
Lux - 1 Lux = 1 footcandle; measurement of brightness
Moire - A visual illusion in which a succession of parallel curved lines produces a pattern to the
naked eye, but does not really exist. Otherwise known as the moire effect.
NCTA - National Cable Television Association
Noise reduction -Feature on the OSD for the Syntax-Brillian Olevia models that enables channels
from the tuner box to reduce noise displayed on the LCD unit.
NTSC - National Television systems Committee
OSD - On Screen Display; brought up by pressing the menu button on the TV or the Remote.
Over Scanning - An image displayed is larger than the display area
PAL - Phase Alternating Line
Parental Control - The ability to block access to specified content from an unsuitable audience.
PIP - Picture in Picture; feature that enables one source to be displayed on top of another source.
Pixel Resolution - Refers to the number of rows horizontal and vertical that produces the image.
PIP - Picture in Picture; Allows an image to be displayed in front of another image.
Plug and Play - Describes the hardware or software that is installed and does not require any
configuration before using.
Progressive - An image or lines of data that is reassembled from top to bottom sequentially.
Antonym: Interlaced
RGB - Red, green & blue These primary colors provide the basis for many different colors.
Refresh Rate - Refers to the maximum number of frames that the monitor can display per second.
Usually measured in hertz.
Saturation - The amount of a particular color present in an image.
SCART - An industry standard for interconnecting audio-video equipment developed by Peritel.
Usually associated with PAL video equipment.
SDTV - Standard Definition Television usually in 480I/P format.
SECAM - Sequential Color with Memory or Sequential Couleur Avec Memoire
Set-Top-Box - box that is capable of receiving and decoding digital transmissions (i.e. High
Definition Cable Box, Digital Cable box).
Sharpness - Tries to artificially enhance the edges of a picture.
Single Link - supports a maximum bandwidth of 165 MHz
(1920 x 1080 @ 60 Hz, 1280 x 1024 @ 85 Hz).
Split screen - Feature that places two images side by side.
1 2
63
Glossary
Swap- Button featured on theOlevia remote, Used in thePOP3or PIP12 views to swap the sub
viewable boxes with the main viewable box,
Tint - Adjusts the whiteness level within the color, Similar to Hue,
Under- scanning Term used where the image displayed is smaller than the display area,
Up convert - Process of converting a 480P/I signals to 720P or 1080I.
V-Chip - Chip that controls access to forbidden content specified by an adult,
VGA - 1. Video Graphics Array (DB15) 2.
Video Display - Refers to the display resolution
Video Resolution
VGA 640x480
SVGA 800 x 600
XGA I024x768
QVGA t280 x960
SXGA+ 1400 x 1050
UXGA 1600 x 1200
QXGA 2045 x 1836
QSXGA+ 2800 x 2100
QUXGA 3200x2400
WXGA 1280X800
SXGA 1280X 1024
WXGA+ 1400 X 1050
WSXGA 1680X 1080
WUXGA 1920X 1200
QSXGA 2560X2048
Viewable Angle - Angle at which the screen is still viewable.
Widescreen - See 16:9
YCbCr- Used often with standard interlaced video equipment. See Component
YPbPr - Used often with progressive video equipment. See Component
64
Model
WM-30DPANELDISPLAYMOUNT
Thanksyou forpurchasingthe Syntaxpaneldisplaymount
Toensurethecorrectusage,pleasereadandfollowthe instructionsmanualthoroughly.Pleasestoretheinstructionsina safeplace forfuturereference.
All mountsandadapterscarrya limitedlifetimewarrantyfromshipdate againstdefectsin materialandworkmanship.
Wearenot liablefor improperinstallationthatresultsin damageto mounts,adaptersor presentationequipment.
Specialtechniques are necessaryfor installation of the panel display mount.
Donot attemptto performthiswork byyourself.
Requestaninstallationspecialistto installthis unit.
Manufacturerassumesabsolutelynoresponsibilityfor injuriesand damagesthat mayoccurdueto improper installationand handling.
Pleaserememberthat if youremovethe paneldisplayfrom thewall later,youwillfind thescrewholesand anchorboltsforthe
mountingunitleft onthewall. _lso notethatlong useof the paneldisplaymaydiscolorthewallaroundit due to itsheatand
airflow.
Toensure customer safety, be sure to decide the installation Iocation so that the strength is sufficient to withstandthe weight of both the panel
display and the wall mount.
Always useat least two people for all installations.
Fully tighten all of the mounting screws as specified in the installation instructions.
A _ 14" Displaybracket.... 2 pcs
B _,,_" _ ,,_, Wallmountbracket...1pcs
Lockingbar... 1pcs Arm Hook....2pcs
D % o
5/16" Flatwashers...4 pcs PlasticTri Knob... 2 pcs
5/16"x 2 1/2"Lagbolts...4pcs PlasticWasher...6pcs
F _ _ K Q
M4x 16ram M5x16ram 1/4-20x 5/8" CarriageBolt,,, 2 pcs
M3 x 16ram M6 x 16mm 1/4-20 x 5/8" THPMScrew...2 pcs
M4steelflatwasher M8x 16ram 1/4"StarrWasher...2 pcs
I_ T
Square multi-mountwashers...4 pca 1/4-20 nylock nut...2 pcs
j u ©
4 lockingwashers each 8mm,6,5,4,3 Mgsteel flatwasher
Low profile 2 5/8"
16"or 24" studmounting points
Easy installation
Flat to 15 deg tilt (no tools required)
Lateralmovement from center for better viewing position
Eo_'_.'] =!,',I:]k'd
Assembleleftandrightarmsperfig I
Fig 1
TOP
BOTTOM
65
@

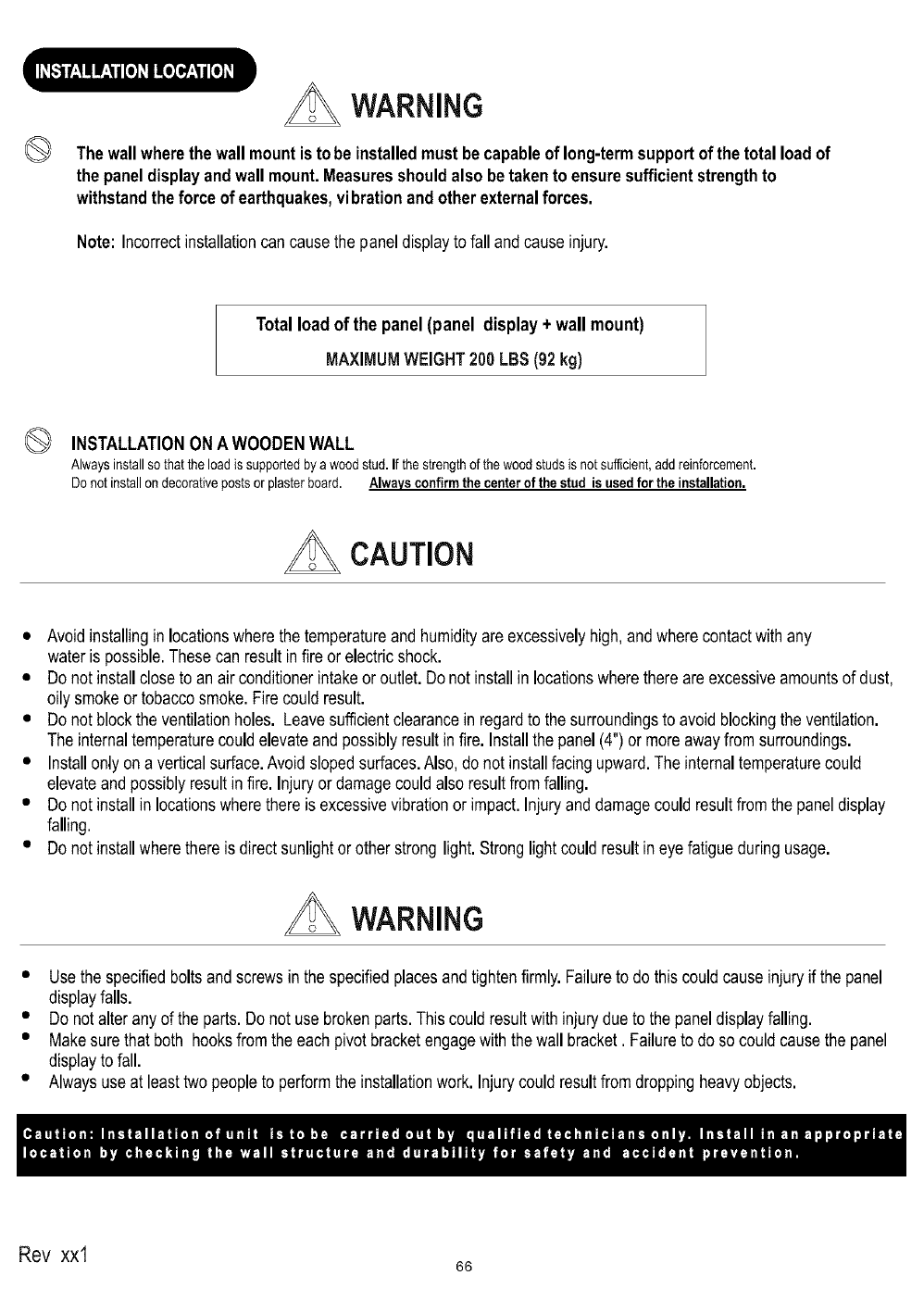

WARNING
Thewallwherethe wallmountisto be installedmustbe capableof long-termsupportof the totalloadof
the paneldisplayandwallmount.Measuresshouldalso betakento ensuresufficientstrengthto
withstandthe force of earthquakes,vibrationandotherexternalforces.
Note:Incorrectinstallationcan causethe paneldisplayto fall andcauseinjury.
Totalload of the panel(panel display+ wall mount)
MAXIMUMWEIGHT200LBS(92kg)
INSTALLATIONONA WOODENWALL
Alwaysinstallso that theloadis supportedbya wood stud. If the strengthofthe wood studsis not sufficient,add reinforcement.
Do not install on decorativepostsor plaster board. Always confirmthe centerof the stud is used for the installation.
CAUTION
Avoidinstallingin locationswherethe temperatureandhumidityareexcessivelyhigh,andwherecontactwithany
wateris possible.Thesecan resultinfire or electricshock.
Do not installcloseto an air conditionerintakeor outlet.Donot installin locationswherethereareexcessiveamountsof dust,
oily smokeor tobaccosmoke.Firecouldresult.
Do not blockthe ventilationholes. Leavesufficientclearancein regardto thesurroundingsto avoid blockingtheventilation.
The internaltemperaturecouldelevateandpossiblyresultinfire. Installthe panel(4")or moreawayfrom surroundings.
Installonlyon averticalsurface.Avoidslopedsurfaces.Also,donot installfacingupward.Theinternaltemperaturecould
elevateandpossiblyresultin fire.Injuryor damagecouldalsoresultfromfalling.
Do not installin locationswherethereis excessivevibrationor impact.Injuryanddamagecouldresultfromthe paneldisplay
falling.
Do not installwherethere is directsunlightorother stronglight.Stronglightcouldresultineyefatigueduringusage.
WARNING
Usethe specifiedboltsandscrewsin the specifiedplacesandtightenfirmly.Failureto do thiscouldcauseinjuryif the panel
displayfalls.
Do notalter anyof the parts.Do not usebrokenparts.Thiscouldresultwithinjurydueto the paneldisplayfalling.
Makesure thatboth hooksfromthe eachpivotbracketengagewiththe wall bracket. Failureto doso could causethe panel
displayto fall.
Alwaysuseat leasttwopeopleto performthe installationwork. Injurycould resultfromdroppingheavyobjects.
Rev xxl 66
The bracketmust besecuredtothe wall studs capableofat least (4) timesthe weightof the unit.The wall bracketshouldbe mountedat the same horizontalcenterline
as the displaycenterline ( viewinghorizontalcenterline).Using the fourlag bolts( E ) andwasherssupplied( D ) Level and securethe mountingplateto the centerof
the wallstuds Pre drill 3/16 (5mm)holefor lag boltsfig.2
Fig 224 4.00
r r
ri
c_ _ _ _ _ ,_ VIEWING
...................................................................................................................................................................................................................................._ ..................... HORIZONTAL......................
CENTER LINE
oo
16"
_WOOD STUDS
(std construction 2 x 4 studs/1/2[ wallboard)
FLOOR LINE
Laythedisplaypanelfacedownon a protectedsurface.Positiontheleftandthe righthand bracket(A) withtheslotsfacingtowardsthetop.
SeeFig.&Notebottom edge!Usingtheproperscrews,squaremulti-mountwashersandlockwasherssupplied(F,H,orH andI ). Positionthe bracketsequaldistancefrom
topto bottomandtightenhardware.
Fig 3
lMountinghardwareF,G,H,J,K,L,M,UI
Warning: Donot attempt to install
wallmount without both washers, not
doing so will result in severe damage
to your display.
SquareMulti-mountwasher( I ) J
Displaybracket(A ) right sher(J)8mm,6,5,4,3
Displaybracket(A ) left
Panel display boffom edge
67
Liftthedisplaywiththebracketsattached,ontothewallplate.See Fig4 Positionthe top and bottomintothe slots.Seefig 5 and Fig 6
Insertthe locking bar(C) as showninfig 5 with the locking holesfacing up to matchthe holesin the wall mount bracket(B).Makesure the display brackets
engage the rails on the wall mount bracket (B)
Seefig 5. Securewith a padlock(notsupplied)if requiredthru holes in the lockingbarr (C) andwallmount bracket(B). Fig 5
Fig 4
L_
Fig 5
J
LateralMovement:
Once the display on the wall is complete you can still movethe display left to right to optimize the final viewing position, by gently sliding the unit on the wall
bracket. The adjustment distance will vary depending on the display model being installed. See fig 7
Adjust for bestviewingangle (upto 15 deg.)Usingthe Triknob(k).
After adjustmentiscompletetighten bothtri knobs(K). See fig 6
Fig 6 Fig 7
_LATERAL CL
MOVEMENT_
68
%
69

Navigation menu
